Breve análisis de la estación de trabajo Asus PU551JH

Silencioso. Sin hacer mucho follón, Asus ha incluído una estación móvil de 15" en su cartera. El PU551JH ya está a la venta por menos de 1,000 Euros y puede ser un auténtico rebajaprecios gracias a su display mate Full HD y a Nvidia Quadro K1100M. Lo hemos probado ampliamente para ver si es cierto.
Asus PU551JH (ASUSPRO Serie)
Procesador
Intel Core i5-4210M 2 x 2.6 - 3.2 GHz, Haswell

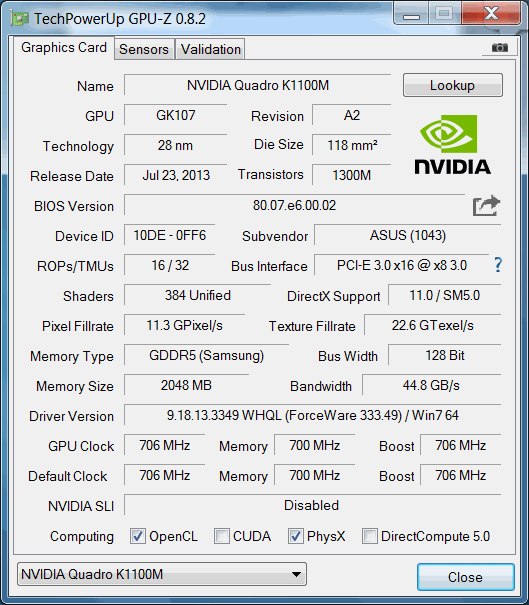

Adaptador gráfico
NVIDIA Quadro K1100M - 2048 MB VRAM, Núcleo: 705 MHz, Memoría: 700 MHz, GDDR5, 9.18.13.3349, Nvidia Optimus with Intel HD Graphics 4600
Memoría
7.9 GB
, 8 GB PC3-12800, 1 ranura libre, monocanal
pantalla
15.60 pulgadas 16:9, 1920 x 1080 pixels, Samsung 156HL01_102, IPS LED, lustroso: no
Disco duro
Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB
, 7200 rpm
Tarjeta de sonido
CX20751/2 @ Intel Lynx Point PCH - High Definition Audio Controller
Conexiones
4 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Conexiones: clavija combinada de entrada/salida de 3.5mm, Card Reader: Sd, SDHC, SDXC, UHS-I , 1 Lector de Huellas Digitales
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Unidad óptica
MATSHITADVD-RAM
Tamaño
Alto x ancho x profundidad (en mm): 36 x 380 x 256

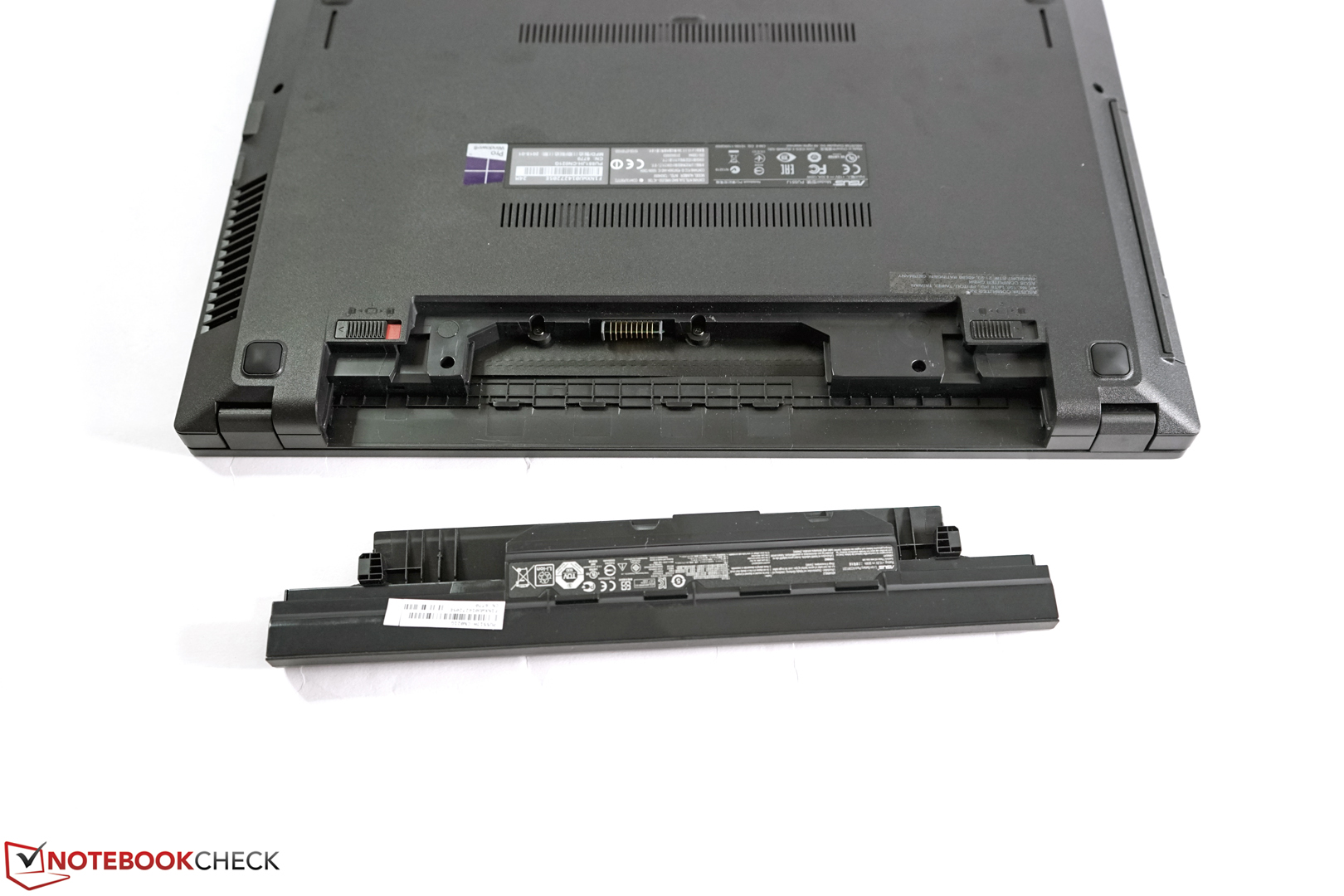

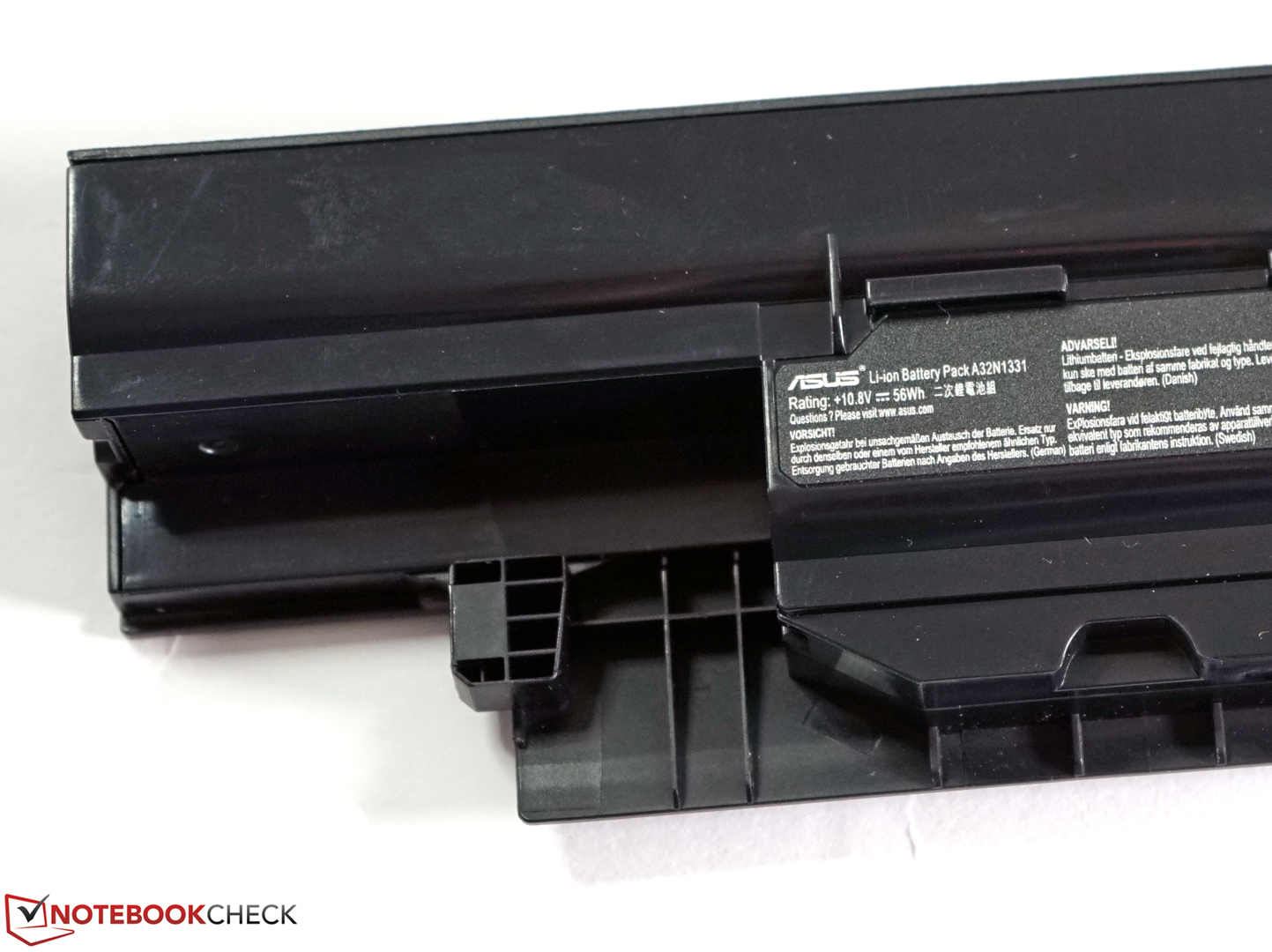

Battería
56 Wh Litio-Ion, 10.8V
Sistema Operativo
Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)
Camera

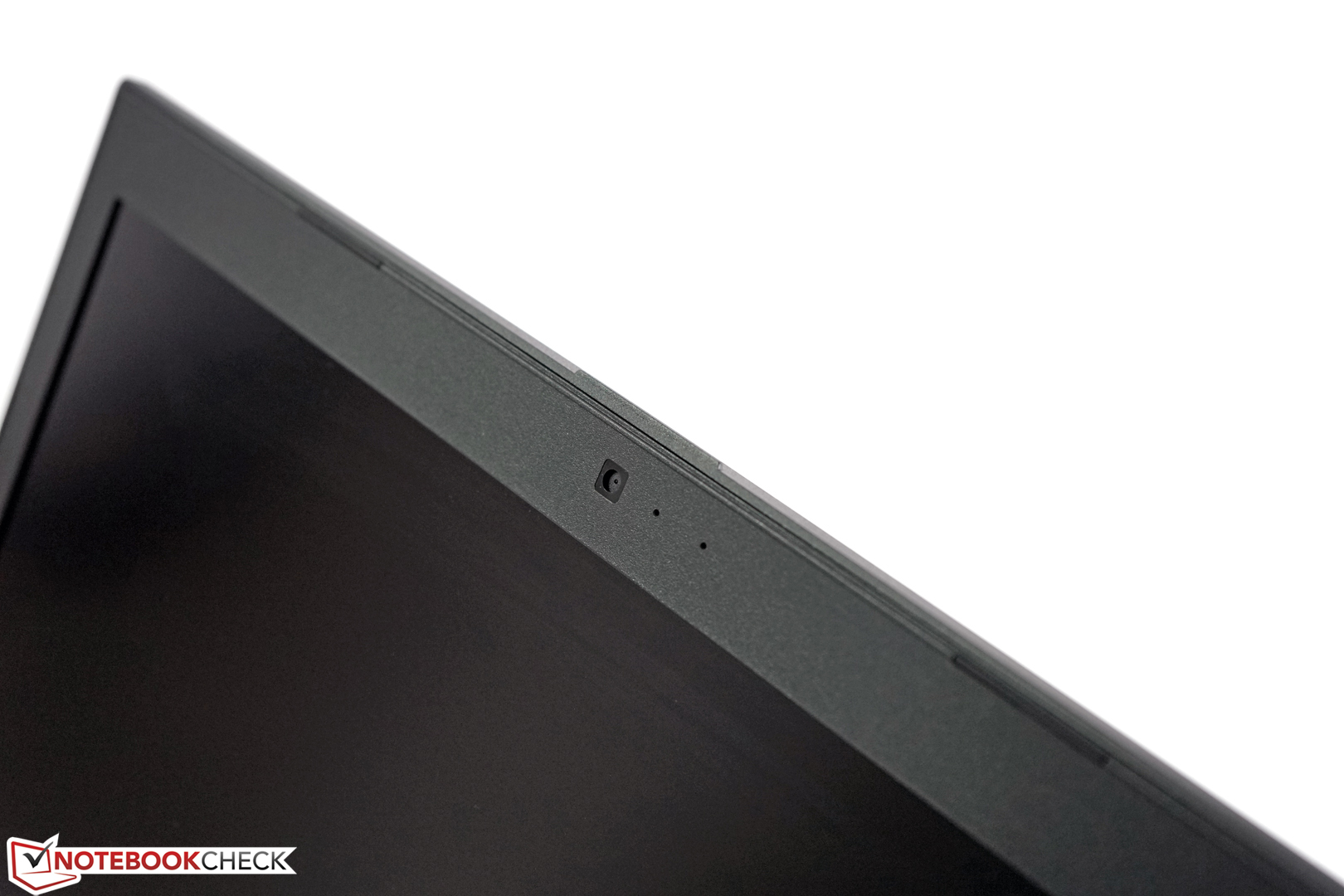

Webcam: 1 MP
Características adicionales
Teclado: Chiclet, Luz de Teclado: no, 24 Meses Garantía
Peso
2.51 kg, Suministro de Electricidad: 570 g
Precio
1000 Euros
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

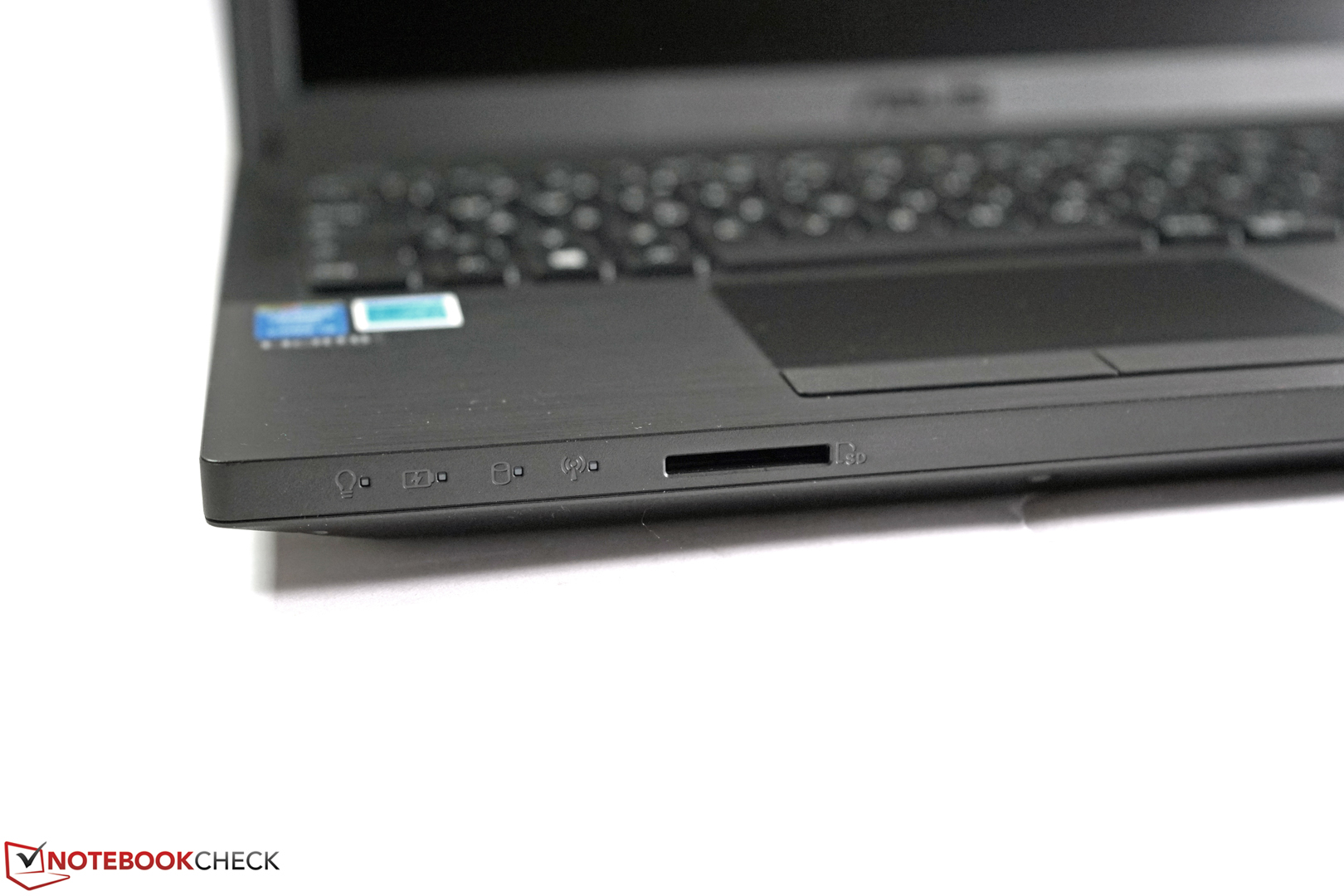

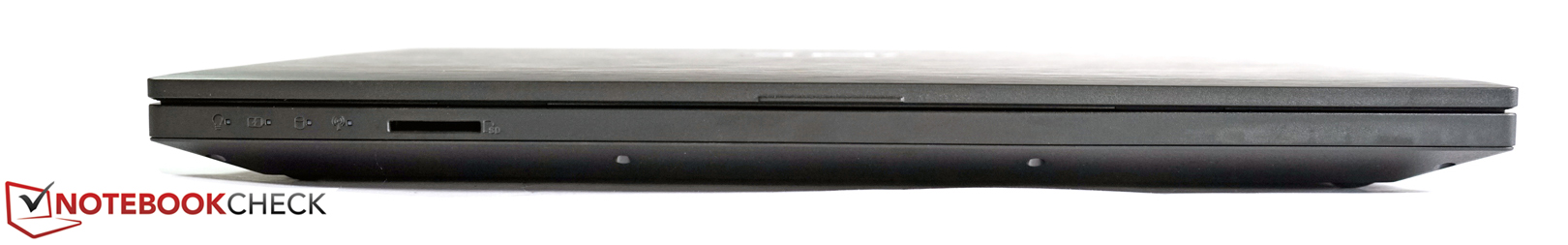

Front: UHS-I card-reader
Front: UHS-I card-reader

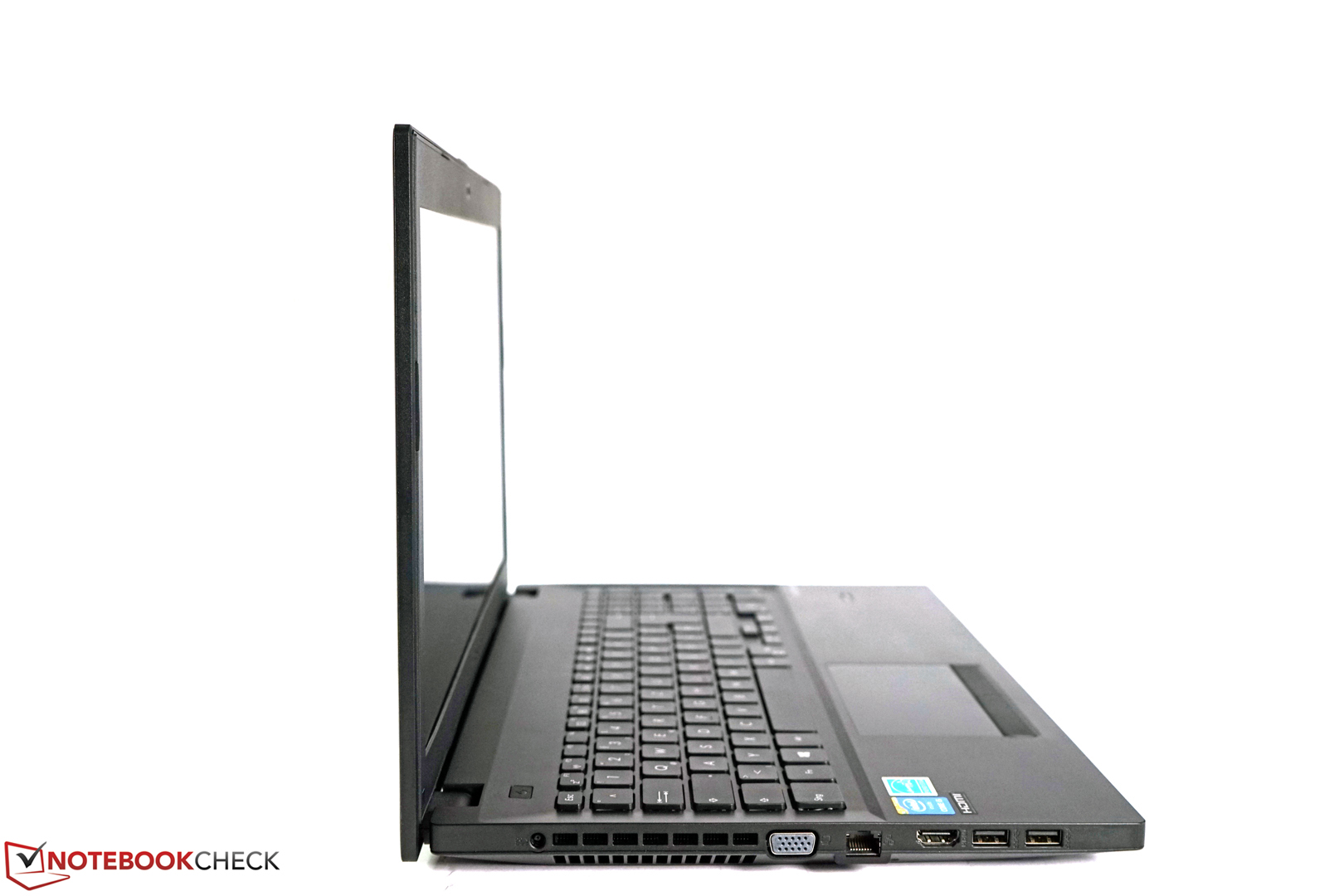

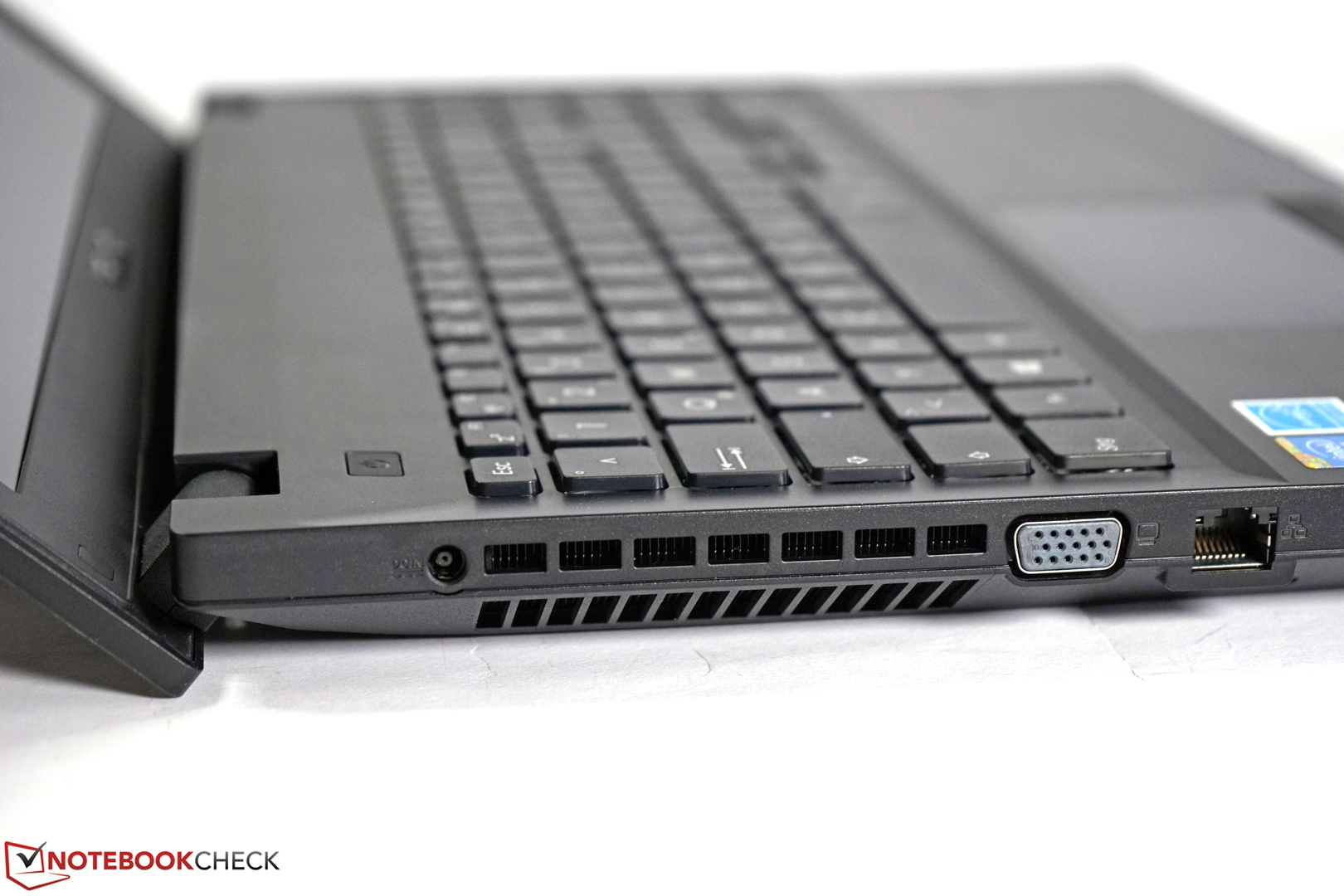

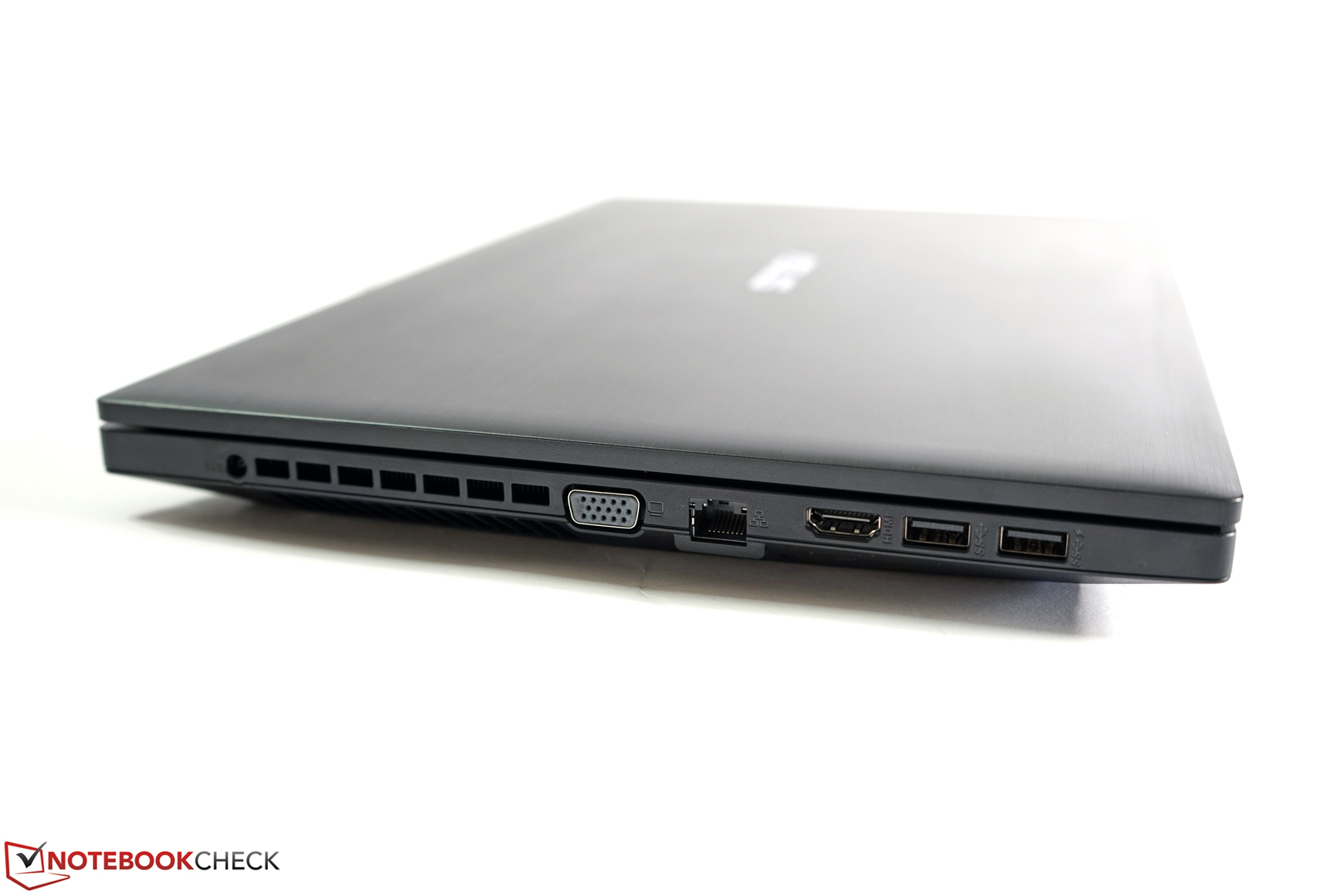

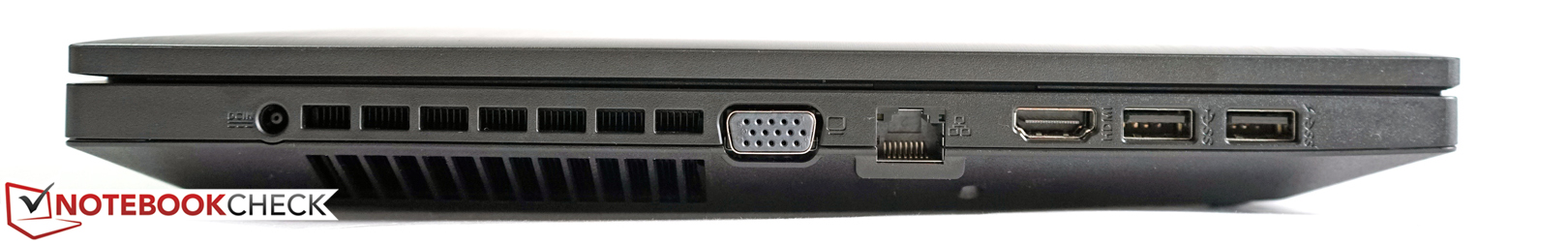

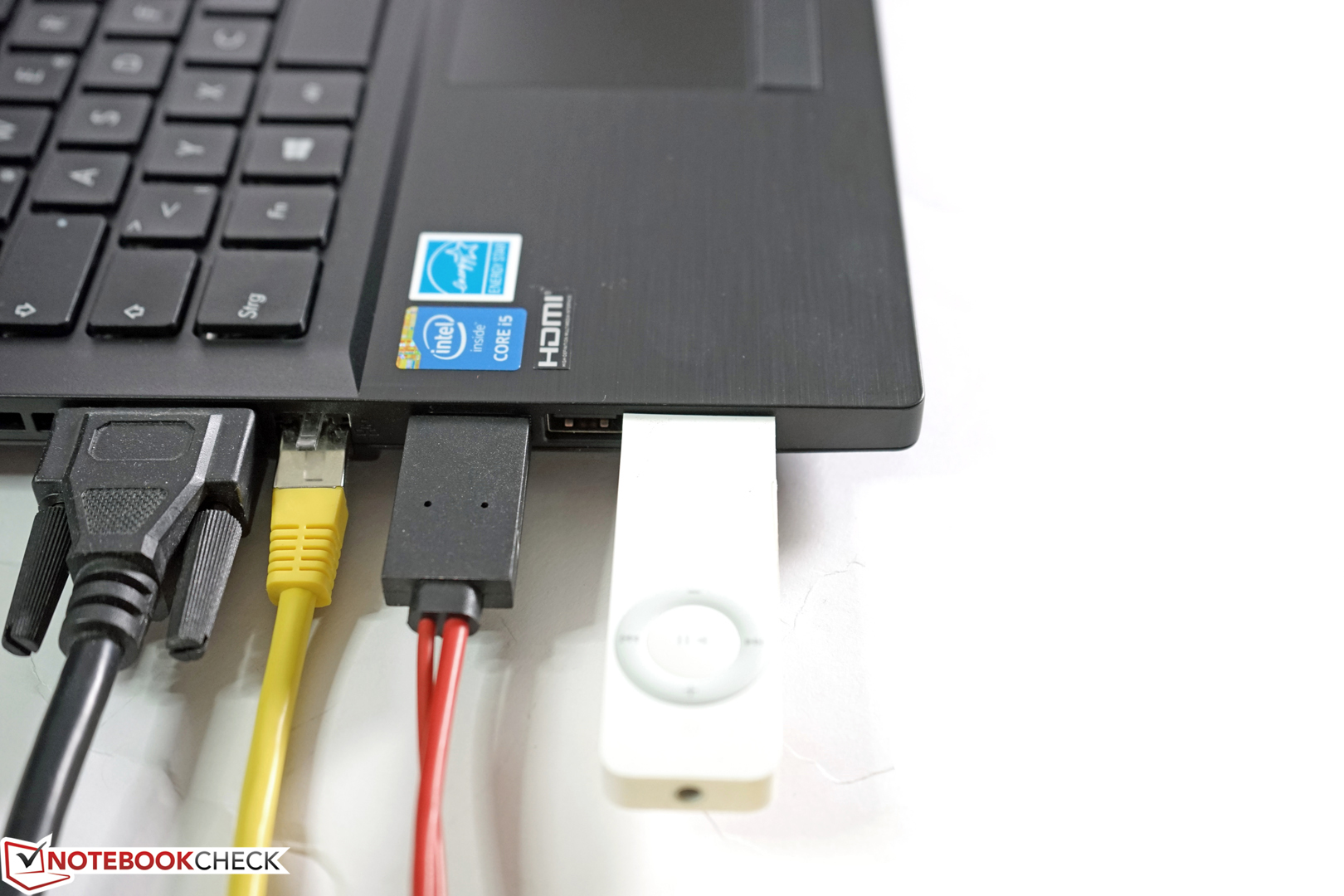

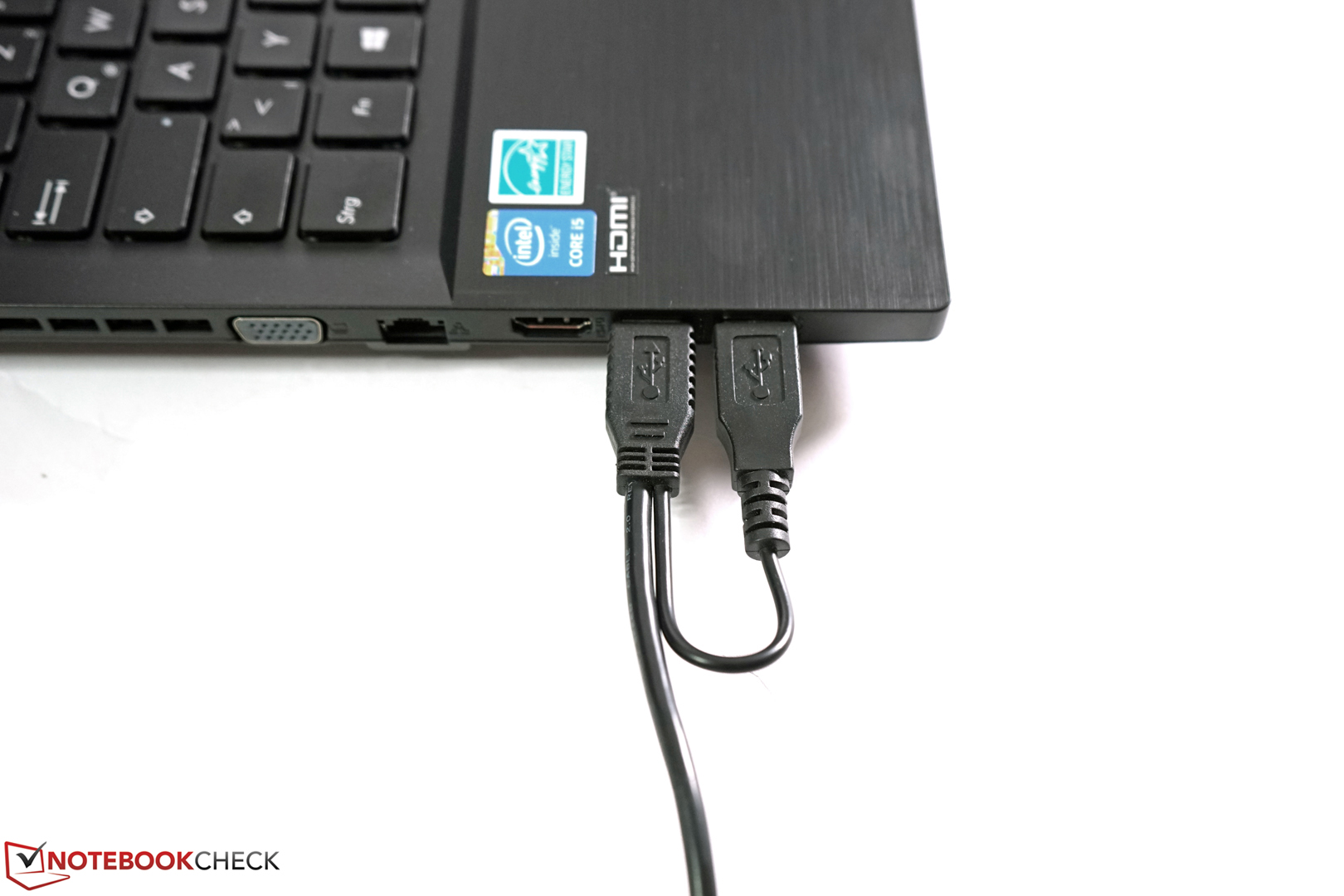

Left: power connection, VGA, LAN, HDMI, 2 x USB 3.0
Left: power connection, VGA, LAN, HDMI, 2 x USB 3.0

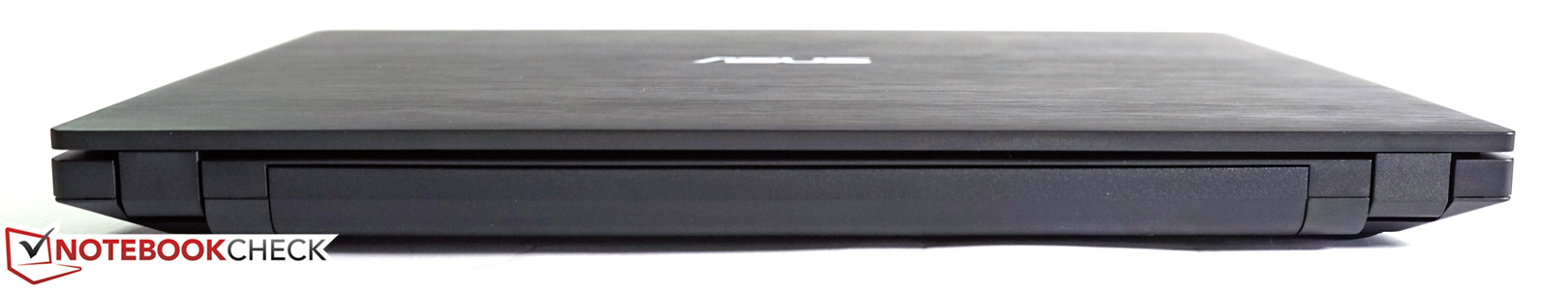

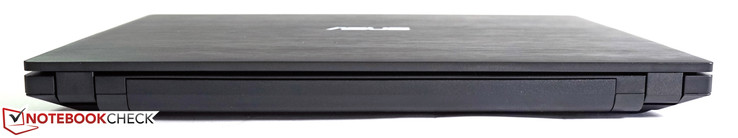

Back: no connections
Back: no connections

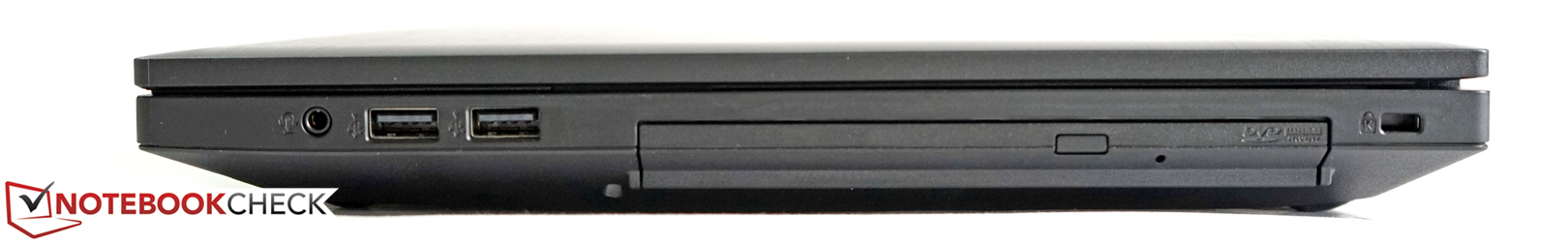

Right: combined audio in/out, 2 x USB 3.0, DVD drive, Kensington lock
Right: combined audio in/out, 2 x USB 3.0, DVD drive, Kensington lock
319
cd/m²
333
cd/m²
322
cd/m²
318
cd/m²
337
cd/m²
316
cd/m²
313
cd/m²
297
cd/m²
308
cd/m²
Temperatura del cuarto
Samsung 156HL01_102 tested with X-Rite i1Pro 2
Máximo: 337 cd/m² (Nits) Médio: 318.1 cd/m²
iluminación: 88 %
Brillo con batería: 342 cd/m²
Contraste: 864:1 (Negro: 0.39 cd/m²)
ΔE Color 4.5 | 0.5-29.43 Ø5
ΔE Greyscale 5.94 | 0.57-98 Ø5.3
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
67.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.32
Cinebench R10
Rendering Multiple CPUs 64Bit (ordenar por valor)
Asus PU551JH
12149 Points
Lenovo ThinkPad W550s 20E2-000PGE
11616 Points -4%
HP ZBook 15 G2
24653 Points +103%
Lenovo ThinkPad T450s-20BWS1UT00
11244 Points -7%
Rendering Single CPUs 64Bit (ordenar por valor)
Asus PU551JH
5582 Points
Lenovo ThinkPad W550s 20E2-000PGE
6100 Points +9%
HP ZBook 15 G2
6511 Points +17%
Lenovo ThinkPad T450s-20BWS1UT00
5424 Points -3%

Leyenda


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4710MQ, AMD FirePro M5100, HGST Travelstar 5K1000 HTS541075A9E680

Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M, Samsung SSD PM871 MZ7LN256HCHP
Cinebench R10 Shading 32Bit
5727
Cinebench R10 Rendering Multiple CPUs 32Bit
10082
Cinebench R10 Rendering Single 32Bit
4276
Cinebench R10 Shading 64Bit
5424 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12149 Points
Cinebench R10 Rendering Single CPUs 64Bit
5582 Points
Cinebench R11.5 CPU Multi 64Bit
3.34 Points
Cinebench R11.5 OpenGL 64Bit
43.75 fps
Cinebench R11.5 CPU Single 64Bit
1.39 Points
Cinebench R15 CPU Multi 64Bit
302 Points
Cinebench R15 CPU Single 64Bit
119 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
50.3 fps
ayuda
PCMark 7 Score
2905 puntos
PCMark 8 Home Score Accelerated v2
2343 puntos
PCMark 8 Creative Score Accelerated v2
2399 puntos
PCMark 8 Work Score Accelerated v2
3311 puntos
ayuda

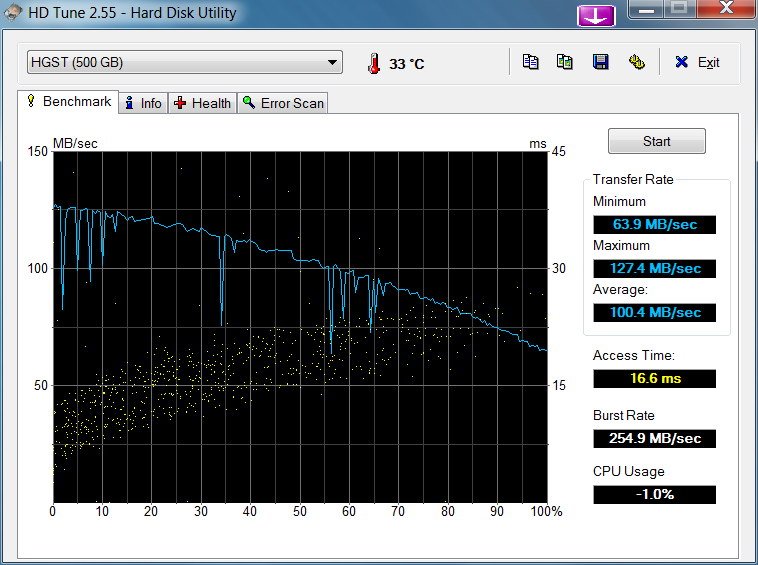

Hitachi Travelstar Z7K500 HTS725050A7E630
Tasa de Transferencia Mínima: 63.9 MB/s
Tasa de Transferencia Máxima: 127.4 MB/s
Tasa de Transferencia Promedio: 100.4 MB/s
Tiempo de Acceso: 16.6 ms
Velocidad de Ráfagas: 254.9 MB/s
Uso de CPU: 1 %
SPECviewperf 11
1920x1080 Siemens NX (ordenar por valor)
Asus PU551JH
23.39 fps
Dell Precision M2800
25.04 fps +7%
HP ZBook 17 E9X11AA-ABA
21.28 fps -9%
MSI WS60 2OJ8H11W7P
30.48 fps +30%
1920x1080 Tcvis (ordenar por valor)
Asus PU551JH
27.27 fps
Dell Precision M2800
9.81 fps -64%
HP ZBook 17 E9X11AA-ABA
25.26 fps -7%
MSI WS60 2OJ8H11W7P
35.1 fps +29%
1920x1080 SolidWorks (ordenar por valor)
Asus PU551JH
36.55 fps
Dell Precision M2800
47.75 fps +31%
HP ZBook 17 E9X11AA-ABA
36.1 fps -1%
MSI WS60 2OJ8H11W7P
42.18 fps +15%
1920x1080 Pro/ENGINEER (ordenar por valor)
Asus PU551JH
12.9 fps
Dell Precision M2800
11 fps -15%
HP ZBook 17 E9X11AA-ABA
15.9 fps +23%
MSI WS60 2OJ8H11W7P
15.53 fps +20%
1920x1080 Maya (ordenar por valor)
Asus PU551JH
45.88 fps
Dell Precision M2800
68.4 fps +49%
HP ZBook 17 E9X11AA-ABA
35.14 fps -23%
MSI WS60 2OJ8H11W7P
51.6 fps +12%
1920x1080 Lightwave (ordenar por valor)
Asus PU551JH
45.89 fps
Dell Precision M2800
71.6 fps +56%
HP ZBook 17 E9X11AA-ABA
49.84 fps +9%
MSI WS60 2OJ8H11W7P
47.96 fps +5%
1920x1080 Ensight (ordenar por valor)
Asus PU551JH
17.21 fps
Dell Precision M2800
19.94 fps +16%
HP ZBook 17 E9X11AA-ABA
17.02 fps -1%
MSI WS60 2OJ8H11W7P
23.89 fps +39%
1920x1080 Catia (ordenar por valor)
Asus PU551JH
32.22 fps
Dell Precision M2800
26.24 fps -19%
HP ZBook 17 E9X11AA-ABA
28.32 fps -12%
MSI WS60 2OJ8H11W7P
41.31 fps +28%
SPECviewperf 12
1900x1060 Solidworks (sw-03) (ordenar por valor)
Asus PU551JH
24.72 fps
Dell Precision M2800
37.52 fps +52%
MSI WS60 2OJ8H11W7P
31.6 fps +28%
1900x1060 Siemens NX (snx-02) (ordenar por valor)
Asus PU551JH
15.31 fps
Dell Precision M2800
23.52 fps +54%
MSI WS60 2OJ8H11W7P
21.95 fps +43%
1900x1060 Showcase (showcase-01) (ordenar por valor)
Asus PU551JH
8.66 fps
Dell Precision M2800
12.75 fps +47%
MSI WS60 2OJ8H11W7P
10.61 fps +23%
1900x1060 Medical (medical-01) (ordenar por valor)
Asus PU551JH
4.15 fps
Dell Precision M2800
5.84 fps +41%
MSI WS60 2OJ8H11W7P
5.69 fps +37%
1900x1060 Maya (maya-04) (ordenar por valor)
Asus PU551JH
14 fps
Dell Precision M2800
22.75 fps +63%
MSI WS60 2OJ8H11W7P
17.77 fps +27%
1900x1060 Energy (energy-01) (ordenar por valor)
Asus PU551JH
0.31 fps
Dell Precision M2800
0.35 fps +13%
MSI WS60 2OJ8H11W7P
0.32 fps +3%
1900x1060 Creo (creo-01) (ordenar por valor)
Asus PU551JH
15.59 fps
Dell Precision M2800
18.8 fps +21%
MSI WS60 2OJ8H11W7P
19.88 fps +28%
1900x1060 Catia (catia-04) (ordenar por valor)
Asus PU551JH
15.48 fps
Dell Precision M2800
19.33 fps +25%
MSI WS60 2OJ8H11W7P
21.2 fps +37%

Leyenda


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 17 E9X11AA-ABA Intel Core i7-4900MQ, NVIDIA Quadro K610M, Micron RealSSD C400 MTFDDAK128MAM

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL
LuxMark v2.0 64Bit
Room GPUs-only (ordenar por valor)
Asus PU551JH
53 Samples/s
Dell Precision M2800
256 Samples/s +383%
MSI WS60 2OJ8H11W7P
73 Samples/s +38%
Wortmann Terra Mobile 1529H
166 Samples/s +213%
Sala GPUs-only (ordenar por valor)
Asus PU551JH
113 Samples/s
Dell Precision M2800
462 Samples/s +309%
MSI WS60 2OJ8H11W7P
154 Samples/s +36%
Wortmann Terra Mobile 1529H
262 Samples/s +132%

Leyenda


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Wortmann Terra Mobile 1529H Intel Core i5-4200M, Intel HD Graphics 4600, Samsung SSD 840 EVO 250GB
3DMark 11 - 1280x720 Performance GPU (ordenar por valor)
Asus PU551JH
1798 Points
Asus UX501JW-DS71T
5095 Points +183%
Dell Precision M2800
2315 Points +29%
3DMark
1280x720 Cloud Gate Standard Graphics (ordenar por valor)
Asus PU551JH
9615 Points
Asus UX501JW-DS71T
22468 Points +134%
Dell Precision M2800
12506 Points +30%
1920x1080 Fire Strike Graphics (ordenar por valor)
Asus PU551JH
1347 Points
Asus UX501JW-DS71T
4063 Points +202%
Dell Precision M2800
1766 Points +31%

Leyenda


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920
3DMark 06 Standard Score
11447 puntos
3DMark 11 Performance
1925 puntos
3DMark Ice Storm Standard Score
50820 puntos
3DMark Cloud Gate Standard Score
6559 puntos
3DMark Fire Strike Score
1285 puntos
ayuda
bajo medio alto ultra
Tomb Raider (2013) 103 58 40 16
Metro: Last Light (2013) 38 31 18 10
GRID: Autosport (2014) 205 75 36 17

Ruido

Ocioso
29.1 / 31.9 / 31.9 dB(A)
HDD
31.9 dB(A)
Carga
36.4 / 41.6 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   PCE-322A (15 cm de distancia)
Carga Máx.
 28.5 °C30.4 °C24.1 °C
 31.4 °C36.1 °C26.9 °C
 25.7 °C30.4 °C25.1 °C
Máximo: 36.1 °C
Médio: 28.7 °C
24 °C26.3 °C28.5 °C
24.2 °C28.4 °C31.1 °C
25.3 °C25.8 °C25.1 °C
Máximo: 31.1 °C
Médio: 26.5 °C
Conector de corriente  57.3 °C | Temperatura del cuarto 20 °C | Fennel Firt 550 Pocket
(+) The average temperature for the upper side under maximal load is 28.7 °C / 84 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 36.1 °C / 97 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 31.1 °C / 88 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.4 °C / 86.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-2.6 °C / -4.7 F).
Consumo de corriente
Off / Standbydarklight 0.1 / 0.3 Watt
Ociosodarkmidlight 7.4 / 11.7 / 12.6 Watt
Carga midlight 54.7 / 78.4 Watt
 color bar
Clave: min: dark, med: mid, max: light        Voltcraft VC 870 Iso kalibriert
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
7h 25min
WiFi Websurfing
4h 27min
Big Buck Bunny H.264 1080p
4h 31min
Carga (máximo brillo)
1h 29min

Pro

+ Carcasa
+ Teclado
+ Display
+ Duración de batería
+ Rendimiento bajo carga constante
+ Rendimiento CAD
+ Todo el rendimiento en batería
+ Nivel de ruido
+ Generación de calor

Contra

- Teclado no iluminado
- Sin interfaces business
- Rendimiento del HDD
- Distribución de interfaces
- Mejorabilidad oficial
- "sólo" 24 meses de garantía
- Display 4k nativamente sólo a 30 Hz

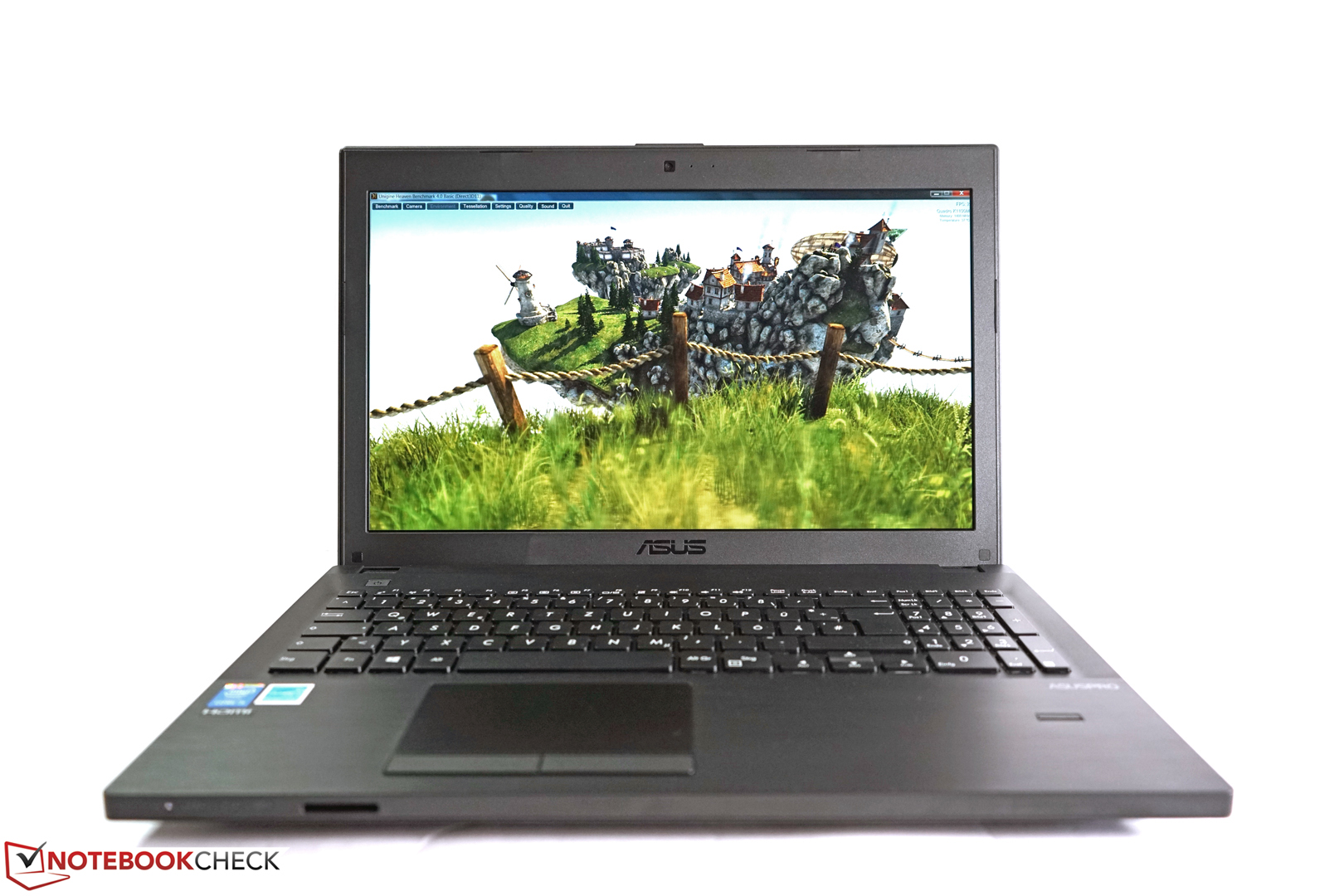

ASUSPRO PU551JH. Modelo de pruebas cortesía de Cyberport.de
ASUSPRO PU551JH. Modelo de pruebas cortesía de Cyberport.de

A pesar de algunos defectos en la equipación, el ASUSPRO PU551JH es una estación de trabajo básica atractiva y móvil. Los principales componentes forman una sólida base para las tareas profesionales.

El display, el teclado, el rendimiento de sistema y, especialmente, el rendimiento CAD ofrecen una base bien rematada que satisfará a muchos ingenieros del diseño novatos y amateur. Si ves el ASUSPRO PU551JH como una solución económica con capacidad CAD, estás en el lugar adecuado.

Después de todo, el rendimiento basta para retar a algunos de los jefazos más caros.

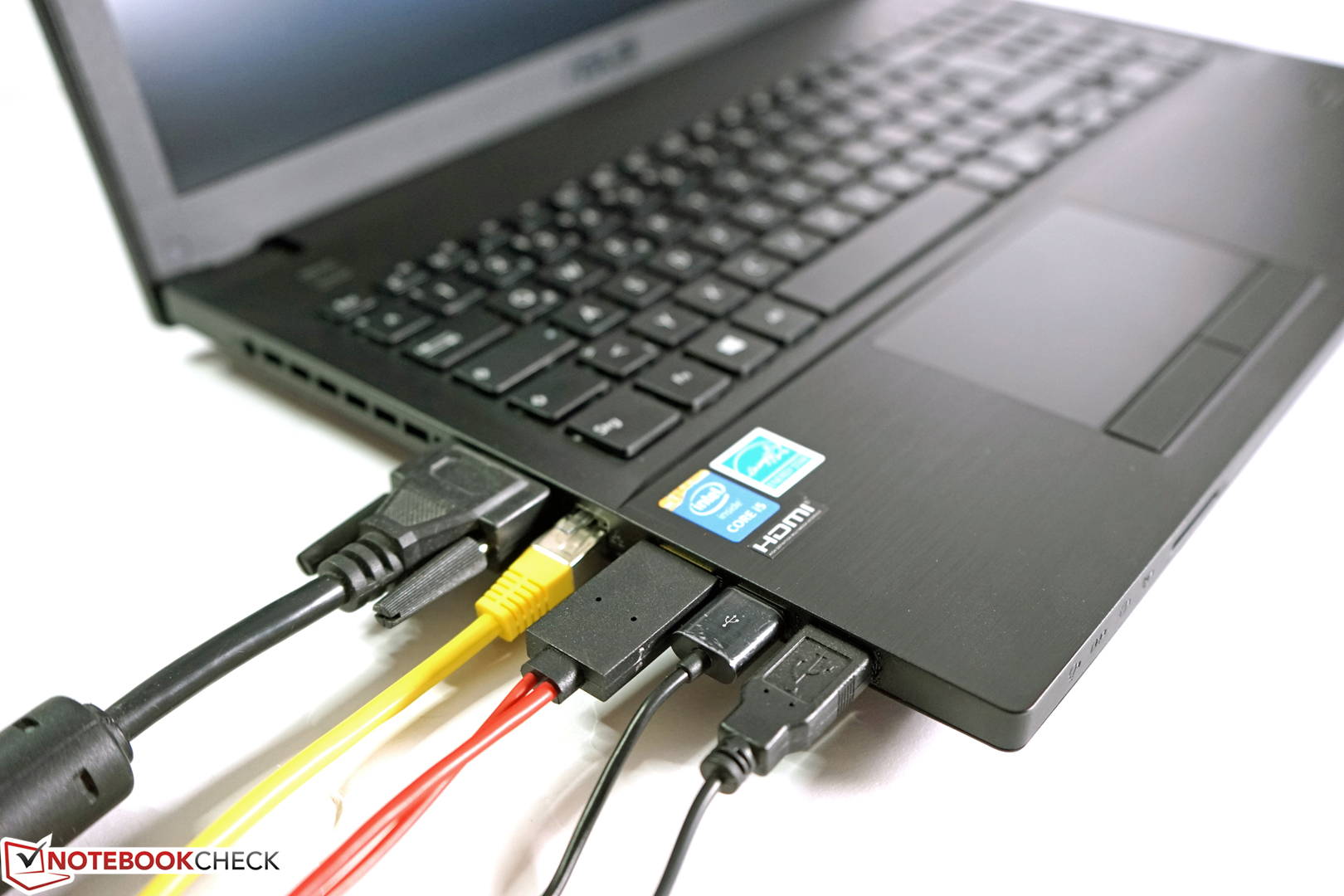

Sin embargo, hay algunos defectos en la configuración debidos a este precio tan bajo. Asus no incluyó un SSD o un teclado iluminado. Lo que es más, el usuario tiene que conformarse con una distribución de interfaces poco práctica así como a la ausencia de ciertas interfaces business. Los que puedan acomodarse a estos defectos se llevarán una estación de trabajo básica sólida con un hardware genial a un precio extremadamente justo.

 Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Asus PU551JH - 03/17/2016 v5(old)
Tobias Winkler

Acabado
87 / 98 → 88%
Teclado
89%
Ratón
82%
Conectividad
53 / 81 → 65%
Peso
60 / 10-66 → 89%
Battería
77%
Pantalla
87%
Rendimiento de juegos
80%
Rendimiento de la Aplicación
71%
Temperatura
94 / 95 → 99%
Ruido
89 / 90 → 99%
Audio
48%
Cámara
22 / 85 → 26%
Impresión
+2%
Médio
66%
76%
Workstation - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis de la estación de trabajo Asus PU551JH
Tobias Winkler, 2015-06- 4 (Update: 2015-06- 4)
