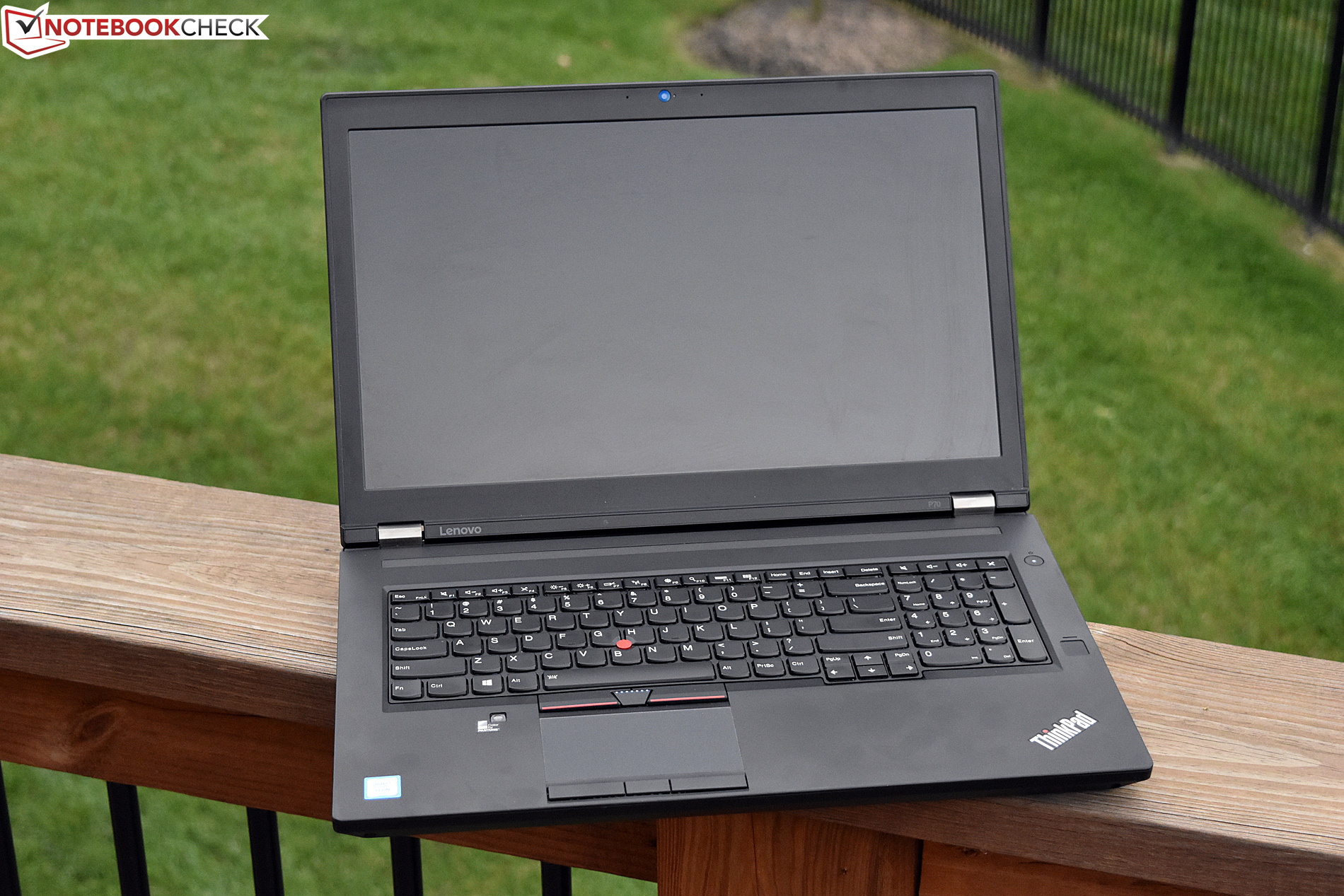

Breve análisis de la estación de trabajo Lenovo ThinkPad P70-20ER000XUS

Caro pero potente. La última configuración del Lenovo P70 cuenta con una CPU Intel Xeon Skylake y sube la GPU a una NVIDIA M4000M, a la vez que presenta almacenamiento SSD NVMe. ¿Cómo afectan estas mejoras al rendimiento general? Y ¿sigue siendo ésta una estación de trabajo a tener en cuenta hoy?
Lenovo ThinkPad P70-20ER000XUS (ThinkPad P70 Serie)
Procesador
Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake
Adaptador gráfico
NVIDIA Quadro M4000M - 4 GB VRAM, Núcleo: 1013 MHz, Memoría: 5012 MHz, 21.21.13.6926 - nVIDIA ForceWare 369.26
Memoría
16 GB
, DDR4-2133 MHz
pantalla
17.30 pulgadas 16:9, 3840 x 2160 pixels 255 PPI, no, Panasonic VVX17P051J00 / LEN4123, IPS, lustroso: no
Placa base
Intel Sunrise Point CM236
Disco duro
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Conexiones
1 Express Card 34mm, 4 USB 3.0, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Conexiones: clavija headset 3.5mm, Card Reader: SDXC, 1 eSata, 1 Lector de Huellas Digitales, Sensores: X-Rite Pantone Color Calibrator
Equipamento de red
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Tamaño
Alto x ancho x profundidad (en mm): 32 x 415 x 277
Battería
96 Wh, 6200 mAh Litio-Ion, removeable
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Primary Camera: 1 MPix
Características adicionales
Altavoces: 2.0, Teclado: Chiclet, Luz de Teclado: si, 12 Meses Garantía
Peso

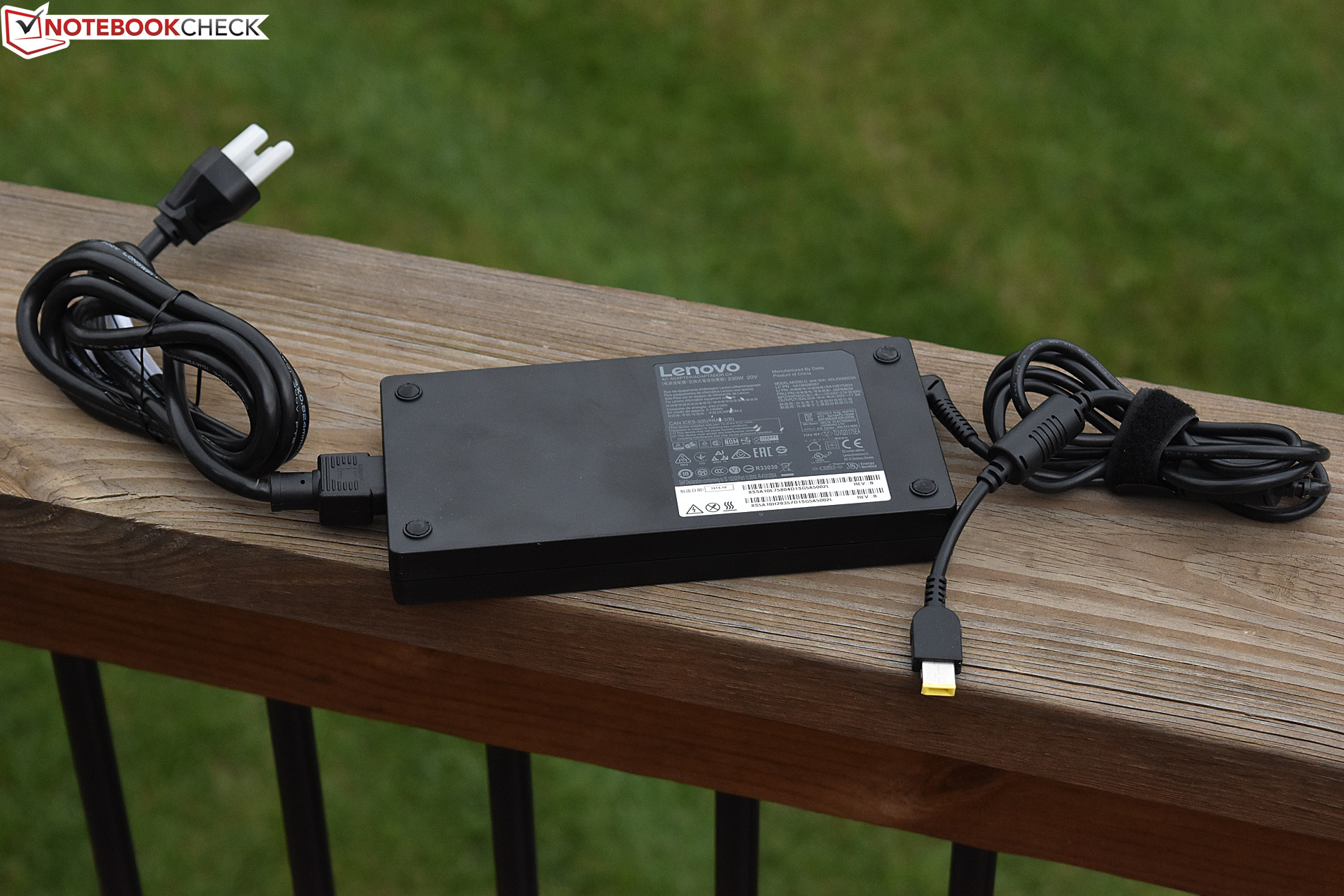

3.65 kg, Suministro de Electricidad: 974 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



428 mm 294 mm 48 mm 3.8 kg417 mm 281 mm 35 mm 3.6 kg416 mm 275.5 mm 34.2 mm 3.6 kg420 mm 280 mm 30 mm 3.3 kg415 mm 277 mm 32 mm 3.7 kg297 mm 210 mm 1 mm 5.7 g
315.5
cd/m²
351.4
cd/m²
312.5
cd/m²
302.2
cd/m²
332
cd/m²
302.3
cd/m²
305
cd/m²
325.2
cd/m²
302.8
cd/m²
Temperatura del cuarto
Panasonic VVX17P051J00 / LEN4123 tested with X-Rite i1Pro 2
Máximo: 351.4 cd/m² (Nits) Médio: 316.5 cd/m² Minimum: 3.6 cd/m²
iluminación: 86 %
Brillo con batería: 332 cd/m²
Contraste: 836:1 (Negro: 0.397 cd/m²)
ΔE Color 3.15 | 0.5-29.43 Ø5
ΔE Greyscale 3.72 | 0.57-98 Ø5.3
100% sRGB (Argyll 1.6.3 3D)
74.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 1.86
Lenovo ThinkPad P70-20ER000XUS
Panasonic VVX17P051J00 / LEN4123, IPS, 17.30, 3840x2160
HP ZBook 17 G3 TZV66eA
SDC3854, IPS, 17.30, 1920x1080
Dell Precision 7710
SDC8151, VHN17_173HL, IPS LED, 17.30, 1920x1080
Lenovo ThinkPad P70
LEN4123, IPS, 17.30, 3840x2160
MSI WT72-6QM
LG Philips LP173WF4-SPF1, IPS, 17.30, 1920x1080
Display
Display P3 Coverage
67.3
66.6
90.8
67.3
sRGB Coverage
95.9
96.9
100
85.4
AdobeRGB 1998 Coverage
69
68.6
85.4
62.5
Response Times
-20%
-29%
-8%
-26%
Response Time Grey 50% / Grey 80% *
34.8 ?(15.2, 19.6)
50.4 ?(17.2, 33.2)
-45%
50 ?(17, 33)
-44%
44 ?(17.2, 26.8)
-26%
42 ?(13, 29)
-21%
Response Time Black / White *
26.8 ?(4, 22.8)
28.4 ?(7.2, 21.2)
-6%
36 ?(11, 25)
-34%
27.6 ?(4.8, 22.8)
-3%
26 ?(7, 19)
3%
PWM Frequency
219.3 ?(99)
200 ?(40)
-9%
198 ?(25)
-10%
228 ?(95)
4%
86 ?(10, 15)
-61%
Screen
11%
1%
-6%
-22%
Brightness middle
332
252
-24%
332
0%
365
10%
303
-9%
Brightness
317
243
-23%
307
-3%
341
8%
298
-6%
Brightness Distribution
86
86
0%
83
-3%
85
-1%
94
9%
Black Level *
0.397
0.21
47%
0.33
17%
0.4
-1%
0.46
-16%
Contrast
836
1200
44%
1006
20%
913
9%
659
-21%
Colorchecker dE 2000 *
3.15
2.2
30%
3
5%
3.8
-21%
5.77
-83%
Colorchecker dE 2000 max. *
5.55
3.8
32%
Greyscale dE 2000 *
3.72
2.7
27%
4
-8%
6.09
-64%
4.87
-31%
Gamma
1.86 118%
2.28 96%
2 110%
2.3 96%
1.99 111%
CCT
6103 107%
6686 97%
7089 92%
6332 103%
7363 88%
Color Space (Percent of AdobeRGB 1998)
74.3
62
-17%
62
-17%
76.01
2%
56.04
-25%
Color Space (Percent of sRGB)
100
96
-4%
97
-3%
99.97
0%
85.27
-15%
Media total (Programa/Opciones)
-5% / 4%
-14% / -7%
-7% / -7%
-24% / -23%

* ... más pequeño es mejor

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.

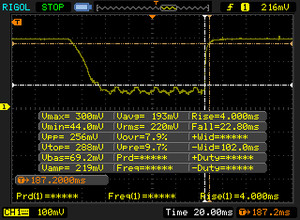

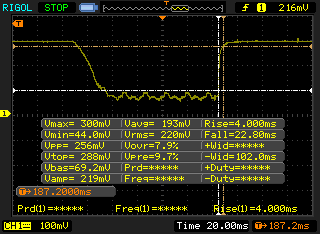

       Tiempo de respuesta de Negro a Blanco
26.8 ms ... subida ↗ y bajada ↘ combinada↗ 4 ms subida
↘ 22.8 ms bajada
La pantalla mostró tiempos de respuesta relativamente lentos en nuestros tests pero podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 62 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (21.6 ms) de todos los dispositivos testados.

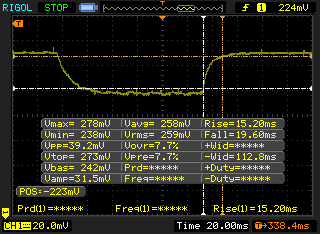

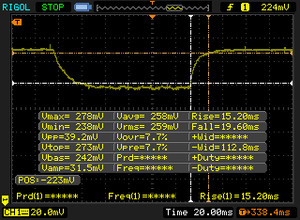

       Tiempo de respuesta 50% Gris a 80% Gris
34.8 ms ... subida ↗ y bajada ↘ combinada↗ 15.2 ms subida
↘ 19.6 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 42 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es similar al dispositivo testado medio (33.9 ms).

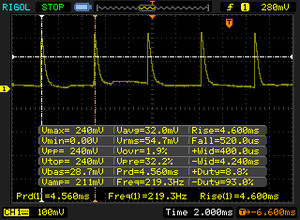

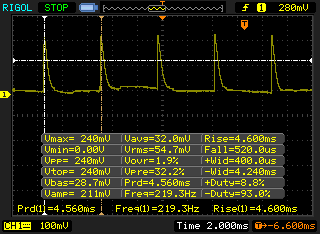

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.
Parpadeo de Pantalla / PWM detectado 219.3 Hz ≤ 99 % de brillo

La retroiluminación del display parpadea a 219.3 Hz (seguramente usa PWM - Pulse-Width Modulation) a un brillo del 99 % e inferior. Sobre este nivel de brillo no debería darse parpadeo / PWM.

La frecuencia de 219.3 Hz es relativamente baja, por lo que la gente sensible debería ver parpadeos y padecer fatiga visual por la pantalla (usado al brillo indicado a continuación).

Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 18080 (mínimo: 5 - máxmo: 3846000) Hz.

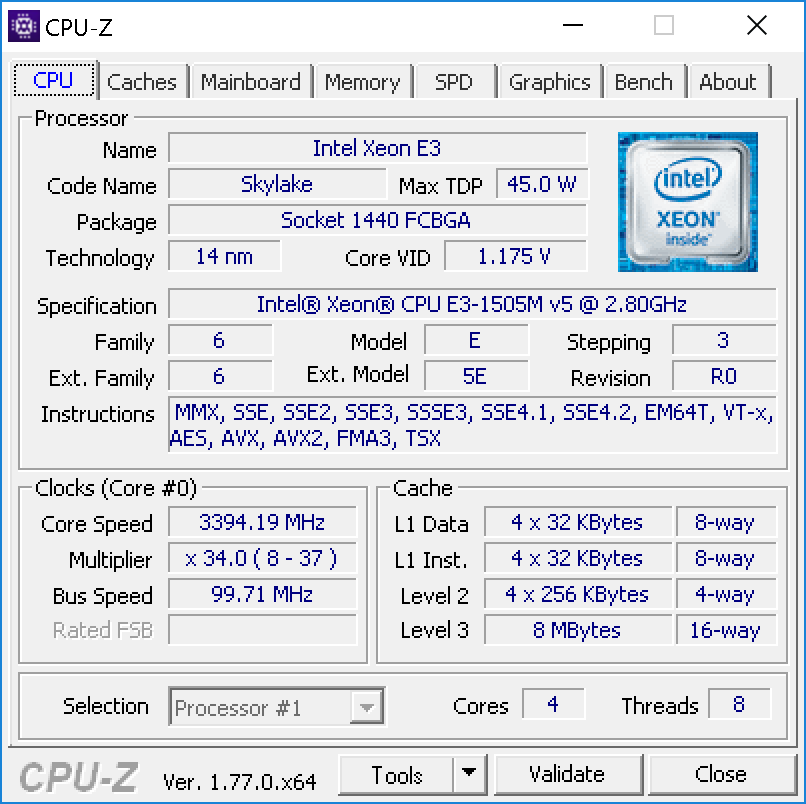

CPU-Z CPU
CPU-Z CPU

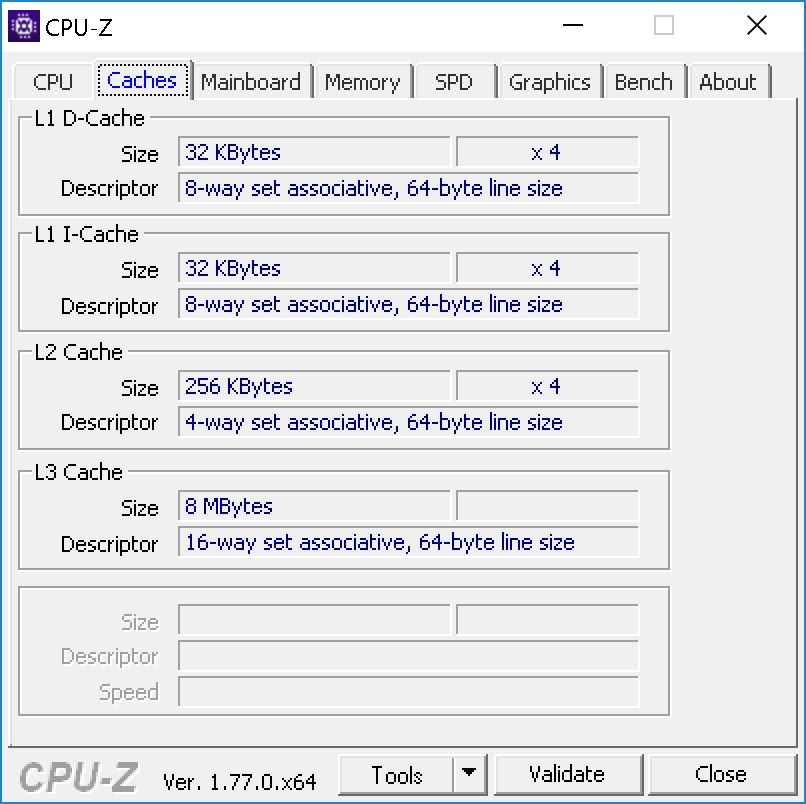

CPU-Z Caches
CPU-Z Caches

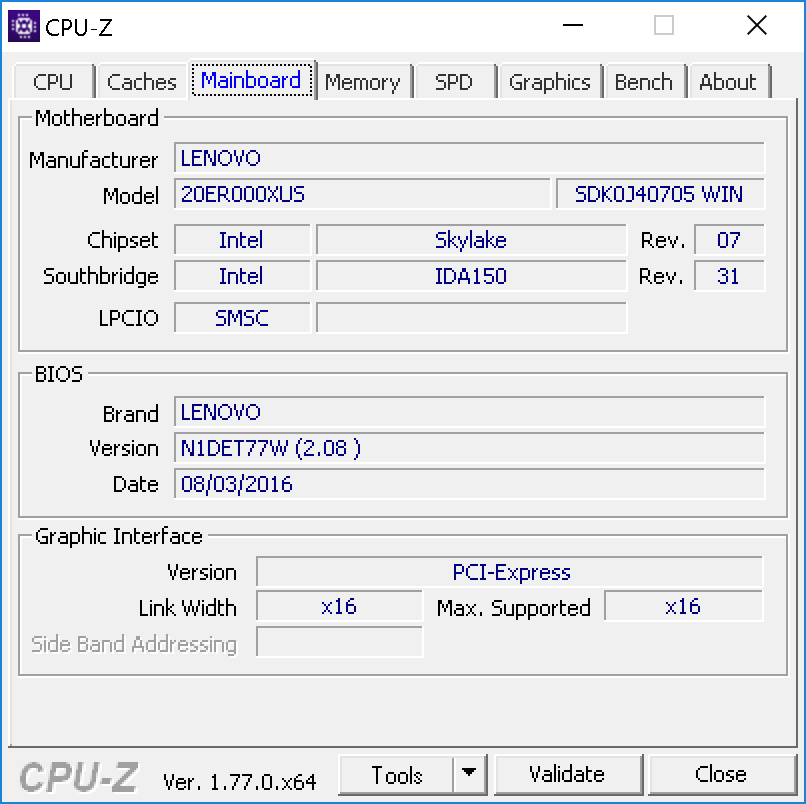

CPU-Z Mainboard
CPU-Z Mainboard

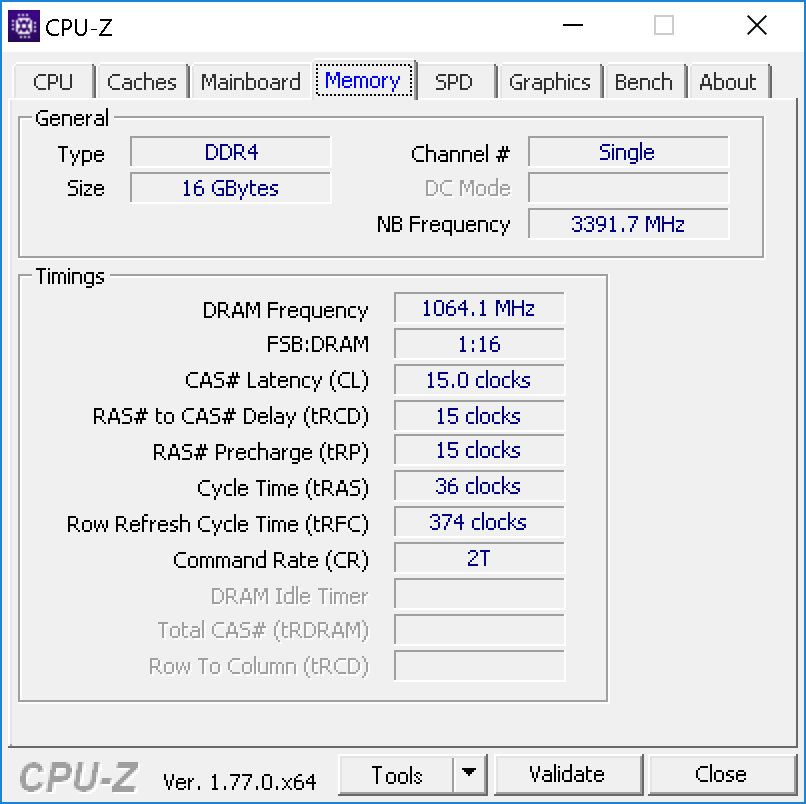

CPU-Z Memory
CPU-Z Memory

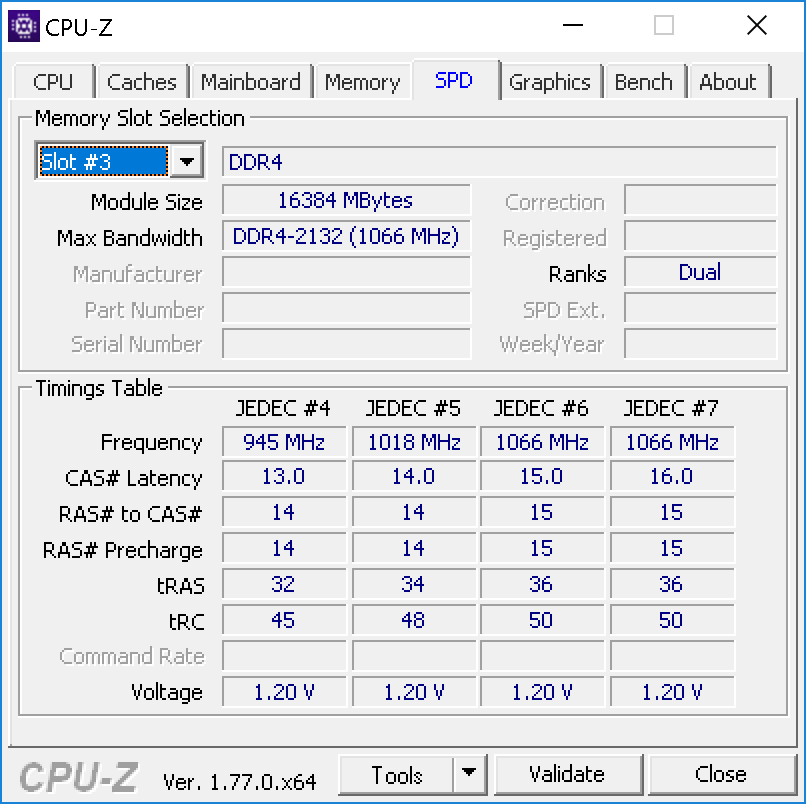

CPU-Z RAM SPD
CPU-Z RAM SPD

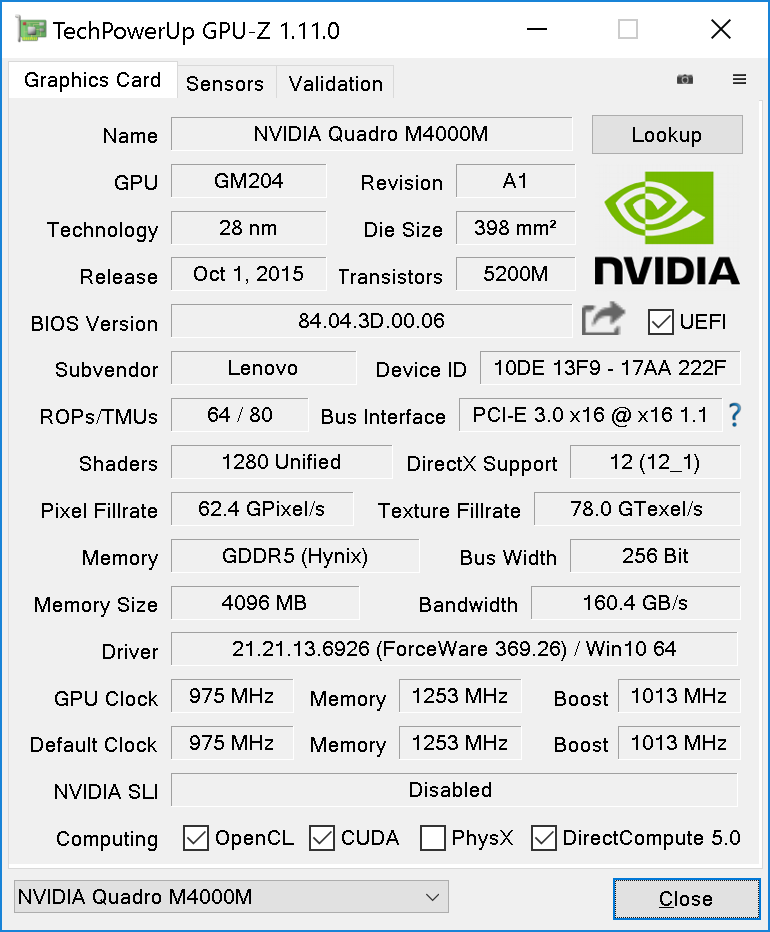

GPU-Z
GPU-Z

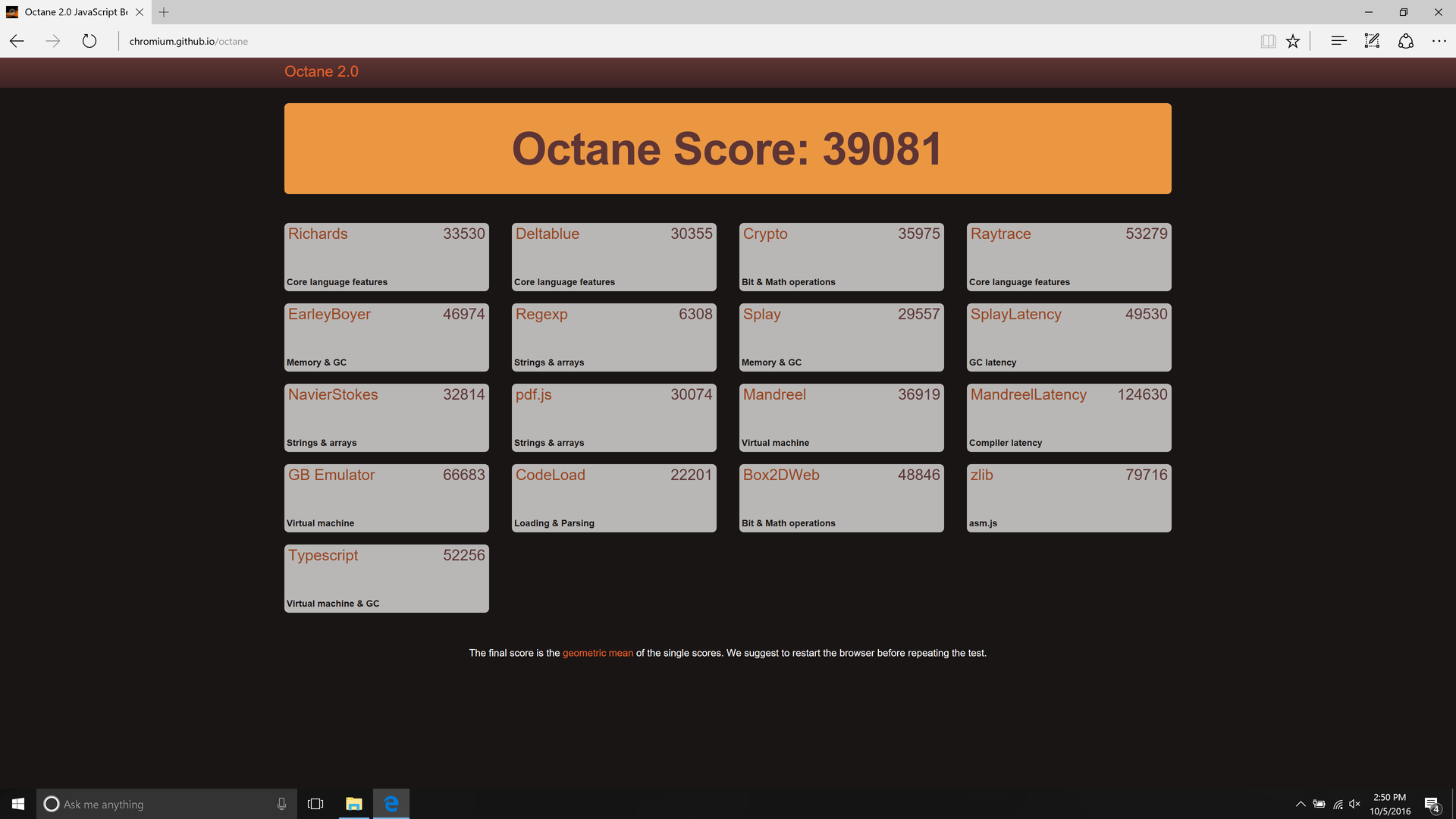

Octane v2
Octane v2

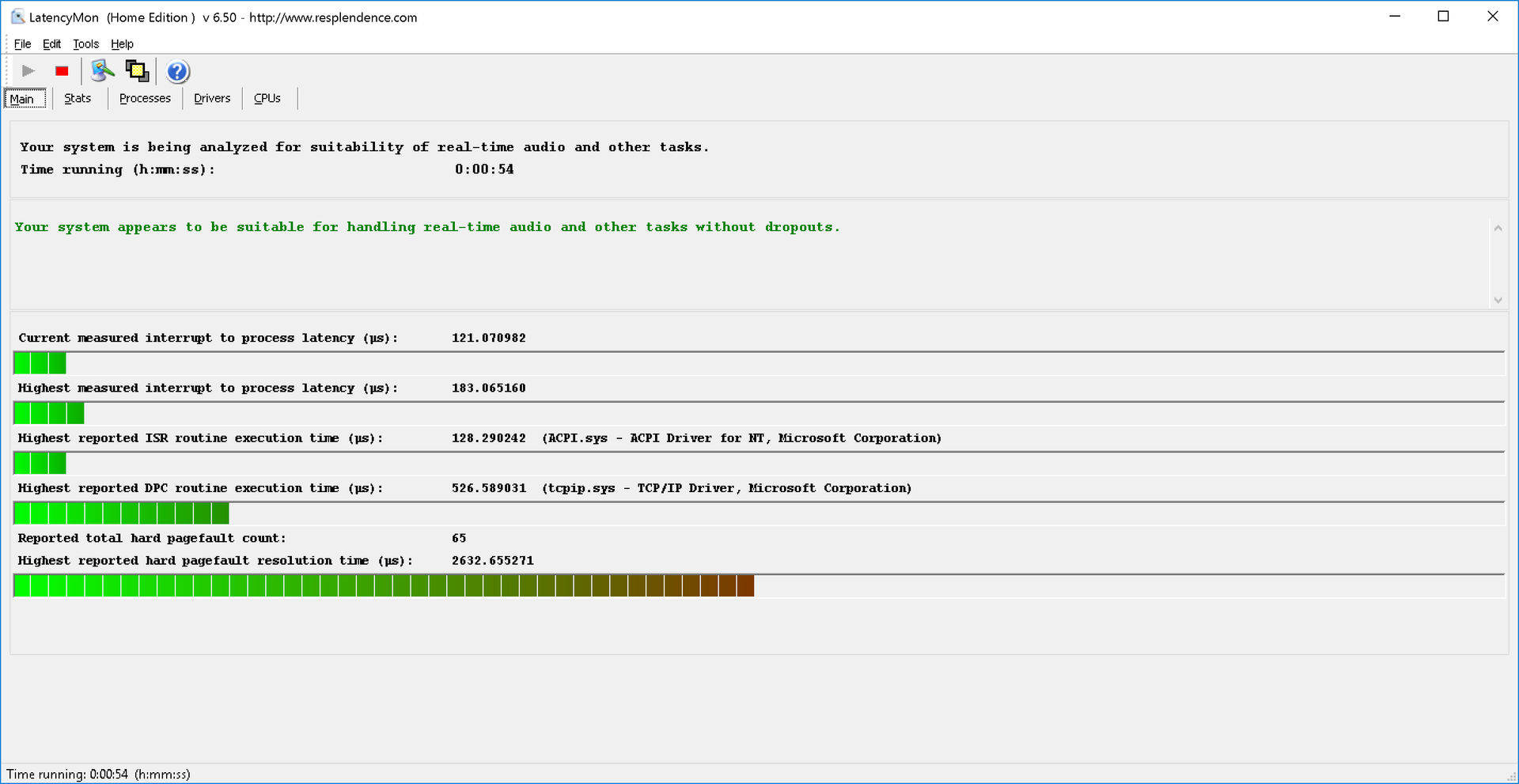

LatencyMon
LatencyMon
Cinebench R11.5
CPU Single 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
1.84 Points +8%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
1.83 Points +7%
MSI WT72-6QM
Intel Xeon E3-1505M v5
1.77 Points +4%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
1.71 Points
Lenovo ThinkPad P70
Intel Core i7-6820HQ
1.7 Points -1%
CPU Multi 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
8.24 Points +4%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
8.16 Points +3%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
7.94 Points
MSI WT72-6QM
Intel Xeon E3-1505M v5
7.85 Points -1%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
7.63 Points -4%
Cinebench R15
CPU Single 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
162 Points +9%
MSI WT72-6QM
Intel Xeon E3-1505M v5
157 Points +5%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
156 Points +5%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
153 Points +3%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
149 Points
CPU Multi 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
746 Points +3%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
742 Points +2%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
725 Points
MSI WT72-6QM
Intel Xeon E3-1505M v5
724 Points 0%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
699 Points -4%
wPrime 2.10 - 1024m
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
234.4 s *
Lenovo ThinkPad P70
Intel Core i7-6820HQ
230.8 s * +2%
Dell Precision 7710
Intel Xeon E3-1535M v5
214.5 s * +8%
Super Pi Mod 1.5 XS 32M - 32M
Lenovo ThinkPad P70
Intel Core i7-6820HQ
561 s * -0%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
559 s *
MSI WT72-6QM
Intel Xeon E3-1505M v5
529 s * +5%
Dell Precision 7710
Intel Xeon E3-1535M v5
511 s * +9%

* ... más pequeño es mejor

Cinebench R11.5 OpenGL 64Bit
89.3 fps
Cinebench R11.5 CPU Multi 64Bit
7.94 Points
Cinebench R11.5 CPU Single 64Bit
1.71 Points
Cinebench R15 OpenGL 64Bit
93.2 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Multi 64Bit
725 Points
Cinebench R15 CPU Single 64Bit
149 Points
ayuda
SPECviewperf 12
1900x1060 Solidworks (sw-03)
MSI WT72-6QM
101 fps +4%
Lenovo ThinkPad P70-20ER000XUS
97.1 fps
HP ZBook 17 G3 TZV66eA
84.8 fps -13%
Dell Precision 7710
73 fps -25%
Lenovo ThinkPad P70
52.3 fps -46%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P70-20ER000XUS
127.8 fps
MSI WT72-6QM
86.9 fps -32%
HP ZBook 17 G3 TZV66eA
65.8 fps -49%
Dell Precision 7710
63 fps -51%
Lenovo ThinkPad P70
39.84 fps -69%
1900x1060 Showcase (showcase-01)
MSI WT72-6QM
44.14 fps +9%
HP ZBook 17 G3 TZV66eA
43.81 fps +9%
Lenovo ThinkPad P70-20ER000XUS
40.33 fps
Lenovo ThinkPad P70
39.81 fps -1%
Dell Precision 7710
37 fps -8%
1900x1060 Medical (medical-01)
MSI WT72-6QM
31.35 fps +20%
Dell Precision 7710
27 fps +4%
Lenovo ThinkPad P70-20ER000XUS
26.06 fps
HP ZBook 17 G3 TZV66eA
22.34 fps -14%
Lenovo ThinkPad P70
17.46 fps -33%
1900x1060 Maya (maya-04)
MSI WT72-6QM
69.6 fps +9%
Lenovo ThinkPad P70-20ER000XUS
64 fps
HP ZBook 17 G3 TZV66eA
50.4 fps -21%
Dell Precision 7710
46 fps -28%
Lenovo ThinkPad P70
23.08 fps -64%
1900x1060 Energy (energy-01)
MSI WT72-6QM
6.86 fps +14%
Lenovo ThinkPad P70-20ER000XUS
6.04 fps
HP ZBook 17 G3 TZV66eA
4.85 fps -20%
Lenovo ThinkPad P70
4.68 fps -23%
Dell Precision 7710
3.17 fps -48%
1900x1060 Creo (creo-01)
MSI WT72-6QM
81.3 fps +4%
Lenovo ThinkPad P70-20ER000XUS
78.4 fps
HP ZBook 17 G3 TZV66eA
64.8 fps -17%
Dell Precision 7710
50 fps -36%
Lenovo ThinkPad P70
42.17 fps -46%
1900x1060 Catia (catia-04)
MSI WT72-6QM
94.4 fps +7%
Lenovo ThinkPad P70-20ER000XUS
88.1 fps
HP ZBook 17 G3 TZV66eA
77.9 fps -12%
Dell Precision 7710
58 fps -34%
Lenovo ThinkPad P70
45.24 fps -49%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P70-20ER000XUS
111.4 fps
Lenovo ThinkPad P70
67.4 fps -39%
MSI WT72-6QM
61.8 fps -45%
HP ZBook 17 G3 TZV66eA
49.91 fps -55%
Dell Precision 7710
49 fps -56%
1920x1080 Tcvis
Lenovo ThinkPad P70-20ER000XUS
58.1 fps
HP ZBook 17 G3 TZV66eA
56.3 fps -3%
MSI WT72-6QM
55.9 fps -4%
Lenovo ThinkPad P70
41.16 fps -29%
Dell Precision 7710
36 fps -38%
1920x1080 SolidWorks
Dell Precision 7710
74 fps +21%
Lenovo ThinkPad P70-20ER000XUS
61.3 fps
MSI WT72-6QM
49.26 fps -20%
HP ZBook 17 G3 TZV66eA
48.01 fps -22%
Lenovo ThinkPad P70
35.28 fps -42%
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA
22.46 fps +20%
Lenovo ThinkPad P70-20ER000XUS
18.79 fps
MSI WT72-6QM
17.87 fps -5%
Lenovo ThinkPad P70
16.08 fps -14%
Dell Precision 7710
11.7 fps -38%
1920x1080 Maya
Lenovo ThinkPad P70-20ER000XUS
109.2 fps
Dell Precision 7710
106 fps -3%
Lenovo ThinkPad P70
86 fps -21%
MSI WT72-6QM
71.6 fps -34%
HP ZBook 17 G3 TZV66eA
57.8 fps -47%
1920x1080 Lightwave
Dell Precision 7710
84 fps +10%
Lenovo ThinkPad P70-20ER000XUS
76.3 fps
MSI WT72-6QM
59.6 fps -22%
HP ZBook 17 G3 TZV66eA
51.9 fps -32%
Lenovo ThinkPad P70
35.34 fps -54%
1920x1080 Ensight
Lenovo ThinkPad P70-20ER000XUS
110.2 fps
MSI WT72-6QM
74 fps -33%
Dell Precision 7710
70 fps -36%
Lenovo ThinkPad P70
59.5 fps -46%
HP ZBook 17 G3 TZV66eA
59.1 fps -46%
1920x1080 Catia
Lenovo ThinkPad P70-20ER000XUS
82.3 fps
Dell Precision 7710
61 fps -26%
MSI WT72-6QM
55.3 fps -33%
HP ZBook 17 G3 TZV66eA
53.4 fps -35%
Lenovo ThinkPad P70
43.12 fps -48%

Leyenda


Lenovo ThinkPad P70-20ER000XUS Intel Xeon E3-1505M v5, NVIDIA Quadro M4000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5, NVIDIA Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH
PCMark 8
Home Score Accelerated v2
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4770 Points +17%
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
4731 Points +16%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4133 Points +2%
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4062 Points
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
3345 Points -18%
Work Score Accelerated v2
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
5655 Points +31%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5417 Points +26%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5271 Points +22%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
4411 Points +2%
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4307 Points
Creative Score Accelerated v2
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
6007 Points
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5668 Points -6%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4564 Points -24%
PCMark 8 Home Score Accelerated v2
4062 puntos
PCMark 8 Creative Score Accelerated v2
6007 puntos
PCMark 8 Work Score Accelerated v2
4307 puntos
ayuda
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
AS SSD
-11%
-10%
-60%
-19%
Seq Read
2104
1596
-24%
1886
-10%
477.8
-77%
2638
25%
Seq Write
1458
703
-52%
626
-57%
458.1
-69%
810
-44%
4K Read
48.38
51.1
6%
51
5%
22.61
-53%
37.5
-22%
4K Write
131.9
148.2
12%
179
36%
82.7
-37%
96.4
-27%
4K-64 Read
1082
1037
-4%
1064
-2%
341.7
-68%
935
-14%
4K-64 Write
349.3
230.4
-34%
275
-21%
255.5
-27%
473.5
36%
Access Time Read *
0.047
0.041
13%
0.069
-47%
0.069
-47%
0.092
-96%
Access Time Write *
0.026
0.025
4%
0.022
15%
0.056
-115%
0.04
-54%
Score Read
1341
1248
-7%
1304
-3%
412
-69%
1237
-8%
Score Write
627
449
-28%
517
-18%
384
-39%
651
4%
Score Total
2630
2302
-12%
2435
-7%
1012
-62%
2433
-7%

* ... más pequeño es mejor

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Tasa de Transferencia Mínima: 924 MB/s
Tasa de Transferencia Máxima: 1156 MB/s
Tasa de Transferencia Promedio: 1121 MB/s
Tiempo de Acceso:
Velocidad de Ráfagas: 203 MB/s
Uso de CPU: 8.5 %
3DMark 11
1280x720 Performance GPU
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
11820 Points +15%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
10259 Points
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
9708 Points -5%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8313 Points -19%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
8264 Points -19%
1280x720 Performance Combined
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
9356 Points +19%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8654 Points +10%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
8644 Points +10%
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
8311 Points +5%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
7892 Points
3DMark
1280x720 Cloud Gate Standard Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
61789 Points +26%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
50666 Points +3%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
49204 Points
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
43124 Points -12%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
38539 Points -22%
1920x1080 Fire Strike Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
9087 Points +18%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
7723 Points
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
6935 Points -10%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
6658 Points -14%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
6415 Points -17%
1920x1080 Ice Storm Extreme Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
251633 Points +43%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
176003 Points
3DMark 11 Performance
9549 puntos
3DMark Ice Storm Standard Score
121354 puntos
3DMark Cloud Gate Standard Score
21920 puntos
3DMark Fire Strike Score
6937 puntos
3DMark Fire Strike Extreme Score
3694 puntos
ayuda
BioShock Infinite
1366x768 Medium Preset (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
196 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
182.7 fps -7%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
178 fps -9%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
176 fps -10%
1366x768 High Preset (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
181 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
166.7 fps -8%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
158 fps -13%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
163.8 fps -10%
1920x1080 Ultra Preset, DX11 (DDOF) (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
85 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
69.8 fps -18%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
66 fps -22%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
69.7 fps -18%
Rise of the Tomb Raider
1366x768 Medium Preset AF:2x (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
90 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
69.9 fps -22%
1920x1080 High Preset AA:FX AF:4x (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
55 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
40.2 fps -27%
1920x1080 Very High Preset AA:FX AF:16x (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
48 fps
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
33.4 fps -30%
3840x2160 High Preset AA:FX AF:4x (ordenar por valor)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
20 fps
bajo medio alto ultra4K
BioShock Infinite (2013) 196 181 85
Rise of the Tomb Raider (2016) 90 55 48 20

Ruido

Ocioso
28.8 / 28.8 / 28.8 dB(A)
Carga
40.5 / 45.7 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   BK Precision 732A (15 cm de distancia)   environment noise: 28.8 dB(A)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
Noise
-7%
-4%
1%
-6%
off / environment *
28.8
30
-4%
30
-4%
30
-4%
Idle Minimum *
28.8
30
-4%
30
-4%
30
-4%
33.3
-16%
Idle Average *
28.8
30
-4%
30
-4%
30
-4%
33.4
-16%
Idle Maximum *
28.8
30
-4%
30
-4%
30
-4%
33.5
-16%
Load Average *
40.5
48.9
-21%
43.2
-7%
36.5
10%
38.8
4%
Load Maximum *
45.7
48.9
-7%
47.13
-3%
40.8
11%
40.2
12%

* ... más pequeño es mejor

Carga Máx.
 45.6 °C47.8 °C52 °C
 38 °C40 °C39.4 °C
 32.6 °C35.6 °C34.6 °C
Máximo: 52 °C
Médio: 40.6 °C
51 °C47.6 °C45.2 °C
34.8 °C38 °C34.4 °C
29.2 °C32 °C31.2 °C
Máximo: 51 °C
Médio: 38.2 °C
Conector de corriente  45.4 °C | Temperatura del cuarto 25 °C | Fluke 62 Mini IR Thermometer
(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 51 °C / 124 F, compared to the average of 41.3 °C / 106 F
(±) In idle usage, the average temperature for the upper side is 33.9 °C / 93 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.6 °C / 96.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-7.8 °C / -14.1 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.836.2253736.63134.233.74034.633.75032.232.86332.732.48032.232.410031.231.812529.732.516030.640.420028.750.525028.557.531527.46140027.15950026.862.963024.565.880023.664.110002361.7125022.861.1160022.562.320002260.5250021.956.4315021.952400021.857.1500021.859.5630021.657800021.649.31000021.540.71250021.535.91600021.530.2SPL35.272.1N2.529.9median 22.8median 57.1Delta2.59.735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseLenovo ThinkPad P70-20ER000XUSApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo ThinkPad P70-20ER000XUS audio analysis

(±) | speaker loudness is average but good (72.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.9% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(±) | linearity of highs is average (14.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.1% difference to median)
Compared to same class
» 92% of all tested devices in this class were better, 3% similar, 5% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 82% of all tested devices were better, 3% similar, 14% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de corriente
Off / Standbydarklight 0.34 / 0.61 Watt
Ociosodarkmidlight 22.8 / 29.7 / 31.1 Watt
Carga midlight 124.2 / 177.4 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad P70-20ER000XUS
E3-1505M v5, Quadro M4000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IPS, 3840x2160, 17.30
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS, 1920x1080, 17.30
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS LED, 1920x1080, 17.30
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH, IPS, 3840x2160, 17.30
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7, IPS, 1920x1080, 17.30
Power Consumption
39%
19%
32%
0%
Idle Minimum *
22.8
6.7
71%
6.04
74%
12.1
47%
24.8
-9%
Idle Average *
29.7
12.5
58%
15.2
49%
19.7
34%
29.7
-0%
Idle Maximum *
31.1
13.2
58%
42.3
-36%
20.5
34%
30.1
3%
Load Average *
124.2
128.2
-3%
112.8
9%
94.3
24%
105.2
15%
Load Maximum *
177.4
158.9
10%
182.2
-3%
139.6
21%
192.2
-8%

* ... más pequeño es mejor

Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
4h 52min
WiFi Websurfing
3h 11min
Carga (máximo brillo)
0h 52min
Lenovo ThinkPad P70-20ER000XUS
E3-1505M v5, Quadro M4000M, 96 Wh
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, 96 Wh
Dell Precision 7710
E3-1535M v5, FirePro W7170M, 72 Wh
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, 96 Wh
MSI WT72-6QM
E3-1505M v5, Quadro M5000M,  Wh
Duración de Batería
130%
106%
57%
38%
Reader / Idle
292
956
227%
775
165%
464
59%
413
41%
WiFi v1.3
191
290
52%
365
91%
361
89%
245
28%
Load
52
110
112%
85
63%
64
23%
76
46%

Pro

+ potente rendimiento de calculo tanto de CPU como de GPU
+ potente rendimiento de estación de trabajo
+ almacenamiento extremadamente rápido
+ sólida calidad de construcción
+ memoria ECC para una mayor estabilidad
+ funcionamiento quedo en inactivo

Contra

- altas temperaturas en inactivo
- alto consumo de energía en inactivo
- pobre rendimiento de batería
- malos altavoces
- resultados raros del test de estrés muestran una caída del rendimiento GPU cuando la CPU está estresada
- baja frecuencia de PWM de nuevo en todos los niveles de brillo por debajo del maximo
Lenovo P70-20ER000XUS
Lenovo P70-20ER000XUS

Muchas variables se combinan para crear una potente estación de trabajo móvil, pero en esencia, los aspectos más criticos de todos suelen ser la estabilidad, el rendimiento CPU/GPU, y la velocidad del almacenamiento. El Lenovo P70-20ER000XUS se revela como más que capaz en todas estas categorías, justificando su elevado precio de $3,849 con sus potentes resultados en las pruebas y su fiable funcionamiento. Comparado con la anterior configuración P70 que analizamos hace unos meses, ésta cuenta con un rendimiento de almacenamiento muy mejorado con un nuevo SSD NVMe, una GPU NVIDIA Quadro M4000M más potente (y más tragona), y una especie de paso al lado a una CPU Xeon que abre el camino para la RAM ECC para una mayor estabilidad  (trae 16 GB).

¿Merece la pena tenerlo en cuenta visto junto a la competencia? En resumen, sí - siempre que los beneficios únicos que ofrece (y los varios defectos) se alinean con las necesidades específicas del comprador. Las estaciones de trabajo, si bien se defienden como dispositivos sin sacrificios, ciertamente no lo son: más bien, son dispositivos que se niegan a sacrificar rendimiento - pero en lo demás siempre hay compensaciones. Si la M4000M cumplirá con la tarea, la RAM ECC es deseable, y el aguante de la batería no es una preocupación, el P70 es un candidato principal y su precio es adecuado.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Lenovo ThinkPad P70-20ER000XUS - 10/17/2016 v5.1(old)
Steve Schardein

Acabado
87 / 98 → 89%
Teclado
94%
Ratón
89%
Conectividad
78 / 81 → 96%
Peso
52 / 10-66 → 75%
Battería
70%
Pantalla
88%
Rendimiento de juegos
92%
Rendimiento de la Aplicación
93%
Temperatura
83 / 95 → 87%
Ruido
87 / 90 → 97%
Audio
30%
Cámara
71 / 85 → 84%
Médio
79%
89%
Workstation - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis de la estación de trabajo Lenovo ThinkPad P70-20ER000XUS
Steve Schardein, 2016-10-15 (Update: 2020-06- 8)
