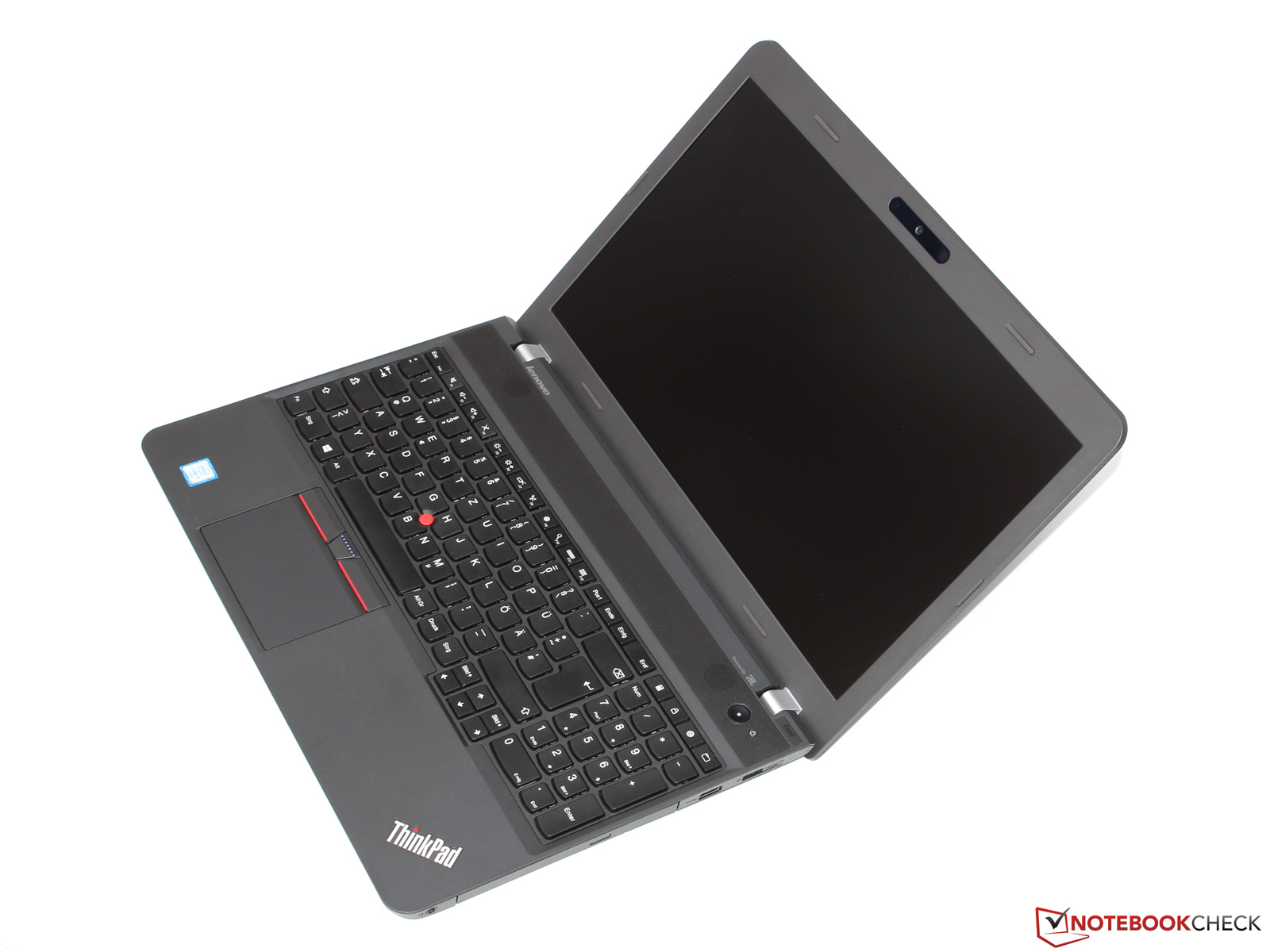

Breve análisis del Lenovo ThinkPad E560 (Core i3, HD)

Trabajador con aguante. Nuestro modelo actual del ThinkPad E560 está dirigido a los usuarios preocupados por el precio. Hay que gastar algo más de 500 Euros por el dispositivo. El comprador se lleva a cambio un procesador Core i3, gran aguante de batería, teclado sobresaliente y dos sistemas operativos Windows.
Lenovo ThinkPad E560 20EV000MGE (ThinkPad E560 Serie)
Procesador
Intel Core i3-6100U 2 x 2.3 GHz, Skylake
Adaptador gráfico
Intel HD Graphics 520, Núcleo: 950 MHz, monocanal, 20.19.15.4312
Memoría
4 GB
, DDR3-1600, monocanal, dos ranuras de memoria (una ocupada)
pantalla
15.60 pulgadas 16:9, 1366 x 768 pixels 100 PPI, Lenovo N156B6-L07, TN LED, lustroso: no
Placa base
Intel Skylake-U Premium PCH
Disco duro
Western Digital WD Black Mobile 500GB (WD5000LPLX), 500 GB
, 7200 rpm, 420 GB libre
Tarjeta de sonido
Conexant CX20753/4 @ Intel Skylake PCH - High Definition Audio Controller
Conexiones

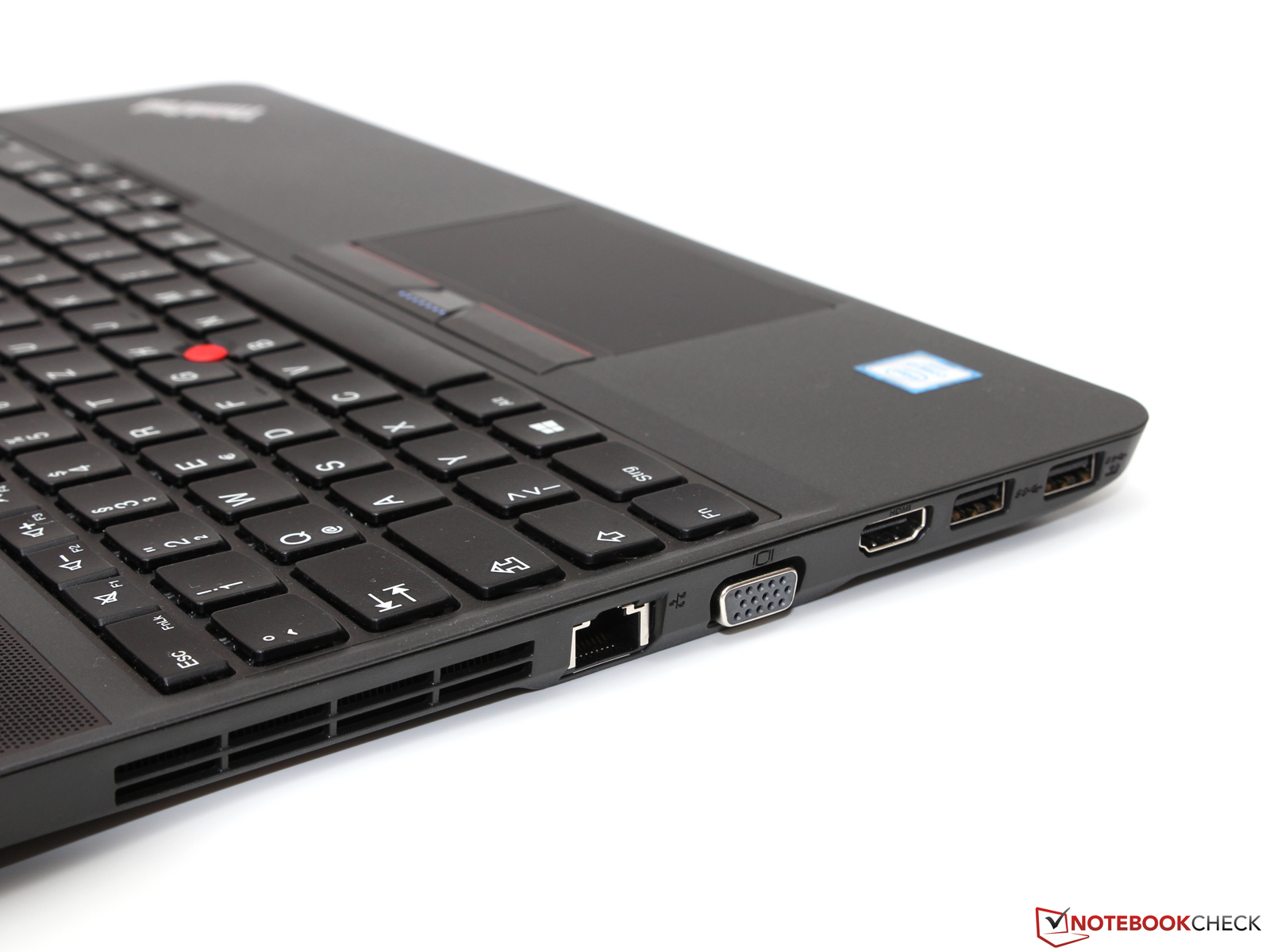

3 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Conexiones: clavija headset 3.5mm, Card Reader: SD, 1 Lector de Huellas Digitales, TPM 1.2
Equipamento de red
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Unidad óptica
HL-DT-ST DVDRAM GUC0N
Tamaño
Alto x ancho x profundidad (en mm): 27.1 x 377 x 255
Battería
48 Wh, 4400 mAh Litio-Ion, removeable, 10.8 V
Sistema Operativo
Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)
Camera
Webcam: webcam HD
Características adicionales
Altavoces: estéreo, Teclado: chiclet, Luz de Teclado: no, Cyberlink PowerDVD 12, Cyberlink WaveEditor Cyberlink PowerDVD Create, McAfee LiveSafe Internet Security (prueba), MS Office (prueba), 12 Meses Garantía
Peso
2.35 kg, Suministro de Electricidad: 305 g
Precio
549 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



225
cd/m²
238
cd/m²
224
cd/m²
218
cd/m²
241
cd/m²
224
cd/m²
215
cd/m²
226
cd/m²
221
cd/m²
Temperatura del cuarto
Lenovo N156B6-L07 tested with X-Rite i1Pro 2
Máximo: 241 cd/m² (Nits) Médio: 225.8 cd/m² Minimum: 7 cd/m²
iluminación: 89 %
Brillo con batería: 242 cd/m²
Contraste: 502:1 (Negro: 0.48 cd/m²)
ΔE Color 12.43 | 0.5-29.43 Ø5
ΔE Greyscale 13.24 | 0.57-98 Ø5.3
57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
38.88% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.7% sRGB (Argyll 2.2.0 3D)
37.63% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.61

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.
Parpadeo de Pantalla / PWM no detectado

Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 18071 (mínimo: 5 - máxmo: 3846000) Hz.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscale
CalMAN - Grayscale
CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.
       Tiempo de respuesta de Negro a Blanco
23 ms ... subida ↗ y bajada ↘ combinada↗ 7 ms subida
↘ 16 ms bajada
La pantalla mostró buenos tiempos de respuesta en nuestros tests pero podría ser demasiado lenta para los jugones competitivos.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 45 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es similar al dispositivo testado medio (21.6 ms).
       Tiempo de respuesta 50% Gris a 80% Gris
50 ms ... subida ↗ y bajada ↘ combinada↗ 20 ms subida
↘ 30 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 84 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (33.9 ms) de todos los dispositivos testados.
Lenovo ThinkPad E560 20EV000MGE
TN LED, 1366x768
Lenovo ThinkPad E560-20EWS00000
IPS-Panel, 1920x1080
HP ProBook 450 G3
TN LED, 1920x1080
Acer TravelMate P257-M-56AX
TN LED, 1920x1080
Dell Latitude 15 3550-0123
IPS, 1920x1080
Dell Latitude 15-3570
TN LED, 1366x768
Display
2%
1%
0%
58%
8%
Display P3 Coverage
37.63
38.5
2%
38.1
1%
37.78
0%
64.3
71%
40.61
8%
sRGB Coverage
56.7
57.5
1%
57.3
1%
56.8
0%
83.3
47%
61.1
8%
AdobeRGB 1998 Coverage
38.88
39.8
2%
39.37
1%
39.04
0%
60.9
57%
41.96
8%
Response Times
13%
-2%
-18%
Response Time Grey 50% / Grey 80% *
50 ?(20, 30)
38.4 ?(13.2, 25.2)
23%
41.2 ?(22.4, 18.8)
18%
37 ?(13, 24)
26%
Response Time Black / White *
23 ?(7, 16)
22.4 ?(6.4, 16)
3%
28 ?(10, 18)
-22%
37 ?(20, 17)
-61%
PWM Frequency
Screen
26%
5%
2%
54%
-7%
Brightness middle
241
257
7%
211
-12%
205
-15%
353
46%
202
-16%
Brightness
226
234
4%
214
-5%
210
-7%
335
48%
211
-7%
Brightness Distribution
89
83
-7%
91
2%
71
-20%
88
-1%
88
-1%
Black Level *
0.48
0.27
44%
0.43
10%
0.4
17%
0.31
35%
0.62
-29%
Contrast
502
952
90%
491
-2%
513
2%
1139
127%
326
-35%
Colorchecker dE 2000 *
12.43
7.16
42%
9.25
26%
9.76
21%
4.59
63%
12.35
1%
Colorchecker dE 2000 max. *
21.03
19.9
5%
Greyscale dE 2000 *
13.24
6.28
53%
9.83
26%
10.47
21%
3.73
72%
13.46
-2%
Gamma
2.61 84%
2.44 90%
2.82 78%
2.56 86%
2.42 91%
2.44 90%
CCT
15733 41%
6806 96%
10890 60%
12103 54%
6268 104%
15217 43%
Color Space (Percent of AdobeRGB 1998)
36
36.6
2%
36.4
1%
36
0%
55
53%
39
8%
Color Space (Percent of sRGB)
57
57.3
1%
57.3
1%
57
0%
83
46%
61
7%
Media total (Programa/Opciones)
14% / 19%
1% / 3%
1% / 2%
56% / 55%
-6% / -5%

* ... más pequeño es mejor

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
HWInfo
LatencyMon
Cinebench R10 Shading 32Bit
6506
Cinebench R10 Rendering Multiple CPUs 32Bit
8437
Cinebench R10 Rendering Single 32Bit
3710
Cinebench R11.5 OpenGL 64Bit
23.77 fps
Cinebench R11.5 CPU Multi 64Bit
2.78 Points
Cinebench R11.5 CPU Single 64Bit
1.11 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
30.2 fps
Cinebench R15 CPU Multi 64Bit
251 Points
Cinebench R15 CPU Single 64Bit
98 Points
ayuda
Cinebench R15
CPU Multi 64Bit
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
319 Points +27%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
299 Points +19%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
290 Points +16%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
288 Points +15%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
260 Points +4%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
251 Points
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
247 Points -2%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
220 Points -12%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
211 (209.9min - 211.39max) Points -16%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
217 Points -14%
CPU Single 64Bit
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
124 Points +27%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
124 Points +27%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
116 Points +18%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
116 Points +18%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
109 Points +11%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
98 Points
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
97 Points -1%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
85 Points -13%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
84 Points -14%
Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
3.55 Points +28%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3.29 Points +18%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3.21 Points +15%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
2.85 Points +3%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2.78 Points
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
2.75 Points -1%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
2.32 Points -17%
CPU Single 64Bit
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
1.45 Points +31%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
1.41 Points +27%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
1.32 Points +19%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
1.24 Points +12%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
1.11 Points
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
1.1 Points -1%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
0.97 Points -13%
Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
11004 Points +30%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
10119 Points +20%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
9907 Points +17%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
8689 Points +3%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
8437 Points
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
8413 Points 0%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
7222 Points -14%
Rendering Single 32Bit
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
4871 Points +31%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
4573 Points +23%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
4414 Points +19%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
4103 Points +11%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
3714 Points 0%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
3710 Points
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
3114 Points -16%
Geekbench 3
32 Bit Single-Core Score
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2914 Points +33%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
2816 Points +29%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
2549 Points +16%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
2191 Points 0%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2188 Points
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
2167 Points -1%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
2164 Points -1%
32 Bit Multi-Core Score
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
6092 Points +27%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
6029 Points +25%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
5557 Points +16%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
4826 Points 0%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
4804 Points
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
4551 Points -5%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
4540 Points -5%
Sunspider - 1.0 Total Score
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
160.3 ms * -20%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
146.7 ms * -9%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
134.1 ms *
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
117.5 ms * +12%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
109.1 ms * +19%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
96.4 ms * +28%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
89.6 ms * +33%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
85.9 ms * +36%
JetStream 1.1 - Total Score
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
190.4 Points +103%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
189.6 Points +102%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
165.4 Points +76%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
117.7 Points +25%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
71 Points -24%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
93.8 Points
Mozilla Kraken 1.1 - Total
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
3232 ms * -15%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
3171 ms * -13%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
1727 ms * +39%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2817 ms *
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
2551 ms * +9%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2269 ms * +19%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
1474 ms * +48%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
1281 ms * +55%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
1104 ms * +61%
Octane V2 - Total Score
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
29745 Points +140%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
27580 Points +123%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
24139 Points +95%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
19588 Points +58%
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
10221 Points -17%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
14741 Points +19%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
13295 Points +7%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
12368 Points
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
10182 Points -18%
Peacekeeper - ---
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
3055 Points +39%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2655 Points +20%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
2546 Points +15%
Medion Akoya E6422
HD Graphics 520, 6100U, Phison 128GB PS3109-S9
2319 Points +5%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2205 Points
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
1946 Points -12%

* ... más pequeño es mejor

PCMark 7 Score
2627 puntos
PCMark 8 Home Score Accelerated v2
2965 puntos
PCMark 8 Creative Score Accelerated v2
3113 puntos
PCMark 8 Work Score Accelerated v2
3926 puntos
ayuda
PCMark 8 - Work Score Accelerated v2
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
4650 Points +18%
Acer Aspire V Nitro VN7-792G-55SF
GeForce 945M, 6300HQ, Toshiba MQ02ABD100H
4483 Points +14%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
4477 Points +14%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3979 Points +1%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
3926 Points
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3901 Points -1%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3873 Points -1%
PCMark 7 - Score
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
5102 Points +94%
Acer Aspire V Nitro VN7-792G-55SF
GeForce 945M, 6300HQ, Toshiba MQ02ABD100H
4633 Points +76%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
4293 Points +63%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3075 Points +17%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2714 Points +3%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2627 Points
Western Digital WD Black Mobile 500GB (WD5000LPLX)
Tasa de Transferencia Mínima: 74.2 MB/s
Tasa de Transferencia Máxima: 120.9 MB/s
Tasa de Transferencia Promedio: 101.3 MB/s
Tiempo de Acceso: 16.2 ms
Velocidad de Ráfagas: 69 MB/s
3DMark 11 Performance
1160 puntos
3DMark Ice Storm Standard Score
41065 puntos
3DMark Cloud Gate Standard Score
4620 puntos
3DMark Fire Strike Score
567 puntos
ayuda
3DMark 11 - 1280x720 Performance
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
2689 Points +132%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2097 Points +81%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
1363 Points +18%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
1290 Points +11%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
1260 Points +9%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
1160 Points
3DMark
1280x720 Ice Storm Standard Score
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
51123 Points +24%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
46457 Points +13%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
43118 Points +5%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
41065 Points
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
40691 Points -1%
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
34736 Points -15%
1280x720 Cloud Gate Standard Score
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
7083 Points +53%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
6238 Points +35%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
5179 Points +12%
Dell Latitude 15-3570
HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP
4919 Points +6%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
4847 Points +5%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
4620 Points
1280x720 Sky Diver Score
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
4779 Points +67%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
2883 Points +1%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
2855 Points
1920x1080 Fire Strike Score
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
1654 Points +192%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
1209 Points +113%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
574 Points +1%
Lenovo ThinkPad E560 20EV000MGE
HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)
567 Points
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
12983 Points
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
11275 Points
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
6518 Points
bajo medio alto ultra
Tomb Raider (2013) 49.2 26.2 15.3
BioShock Infinite (2013) 33.5 19.7 15.9
Battlefield 4 (2013) 23 16.9 11.3

Ruido

Ocioso
32.3 / 32.3 / 32.5 dB(A)
HDD
32.3 dB(A)
DVD
36.7 / dB(A)
Carga
36 / 38.8 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distancia)   environment noise: 31.2 dB(A)
Lenovo ThinkPad E560 20EV000MGE
6100U, HD Graphics 520
Lenovo ThinkPad E560-20EWS00000
6500U, Radeon R7 M370
HP ProBook 450 G3
6200U, HD Graphics 520
Acer TravelMate P257-M-56AX
5200U, HD Graphics 5500
Dell Latitude 15 3550-0123
5500U, GeForce 830M
Dell Latitude 15-3570
6200U, HD Graphics 520
Noise
9%
9%
2%
-8%
5%
off / environment *
31.2
31
1%
Idle Minimum *
32.3
29.2
10%
29.7
8%
31.8
2%
32.5
-1%
31
4%
Idle Average *
32.3
29.2
10%
29.7
8%
31.8
2%
32.5
-1%
31
4%
Idle Maximum *
32.5
29.2
10%
29.7
9%
31.8
2%
32.5
-0%
31
5%
Load Average *
36
33.6
7%
33.1
8%
35
3%
43.5
-21%
34.2
5%
Load Maximum *
38.8
35.5
9%
34.2
12%
37.6
3%
45.3
-17%
34.3
12%

* ... más pequeño es mejor

Carga Máx.
 27.9 °C26.2 °C28.9 °C
 30.9 °C31 °C27.4 °C
 29.8 °C32.1 °C26.3 °C
Máximo: 32.1 °C
Médio: 28.9 °C
31.1 °C29.4 °C27.4 °C
30.2 °C33.6 °C32.4 °C
26.6 °C33.1 °C30.4 °C
Máximo: 33.6 °C
Médio: 30.5 °C
Conector de corriente  36 °C | Temperatura del cuarto 22.6 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 28.9 °C / 84 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 32.1 °C / 90 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 33.6 °C / 92 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.9 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.1 °C / 89.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.4 °C / -7.9 F).
Lenovo ThinkPad E560 20EV000MGE
6100U, HD Graphics 520
Lenovo ThinkPad E560-20EWS00000
6500U, Radeon R7 M370
HP ProBook 450 G3
6200U, HD Graphics 520
Acer TravelMate P257-M-56AX
5200U, HD Graphics 5500
Dell Latitude 15 3550-0123
5500U, GeForce 830M
Dell Latitude 15-3570
6200U, HD Graphics 520
Heat
-5%
-11%
-0%
-30%
-12%
Maximum Upper Side *
32.1
45
-40%
40.2
-25%
34.3
-7%
50.5
-57%
36.1
-12%
Maximum Bottom *
33.6
39.8
-18%
42
-25%
42.1
-25%
54
-61%
47
-40%
Idle Upper Side *
30.5
26.1
14%
32.5
-7%
26.7
12%
34.1
-12%
31.7
-4%
Idle Bottom *
36
27.7
23%
31
14%
29.2
19%
31.6
12%
32.9
9%

* ... más pequeño es mejor

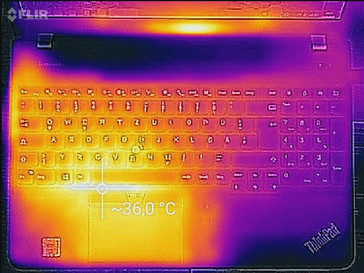

Temperature development upper side (load)
Temperature development upper side (load)

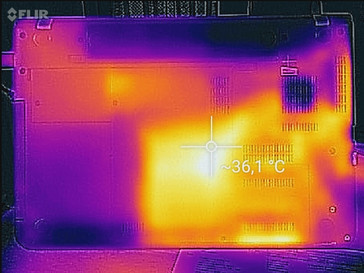

Temperature development underside (load)
Temperature development underside (load)

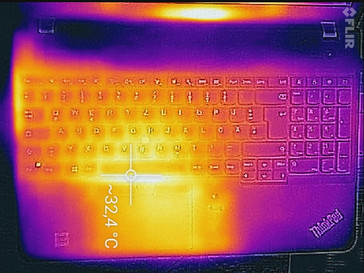

Temperature development upper side (idle)
Temperature development upper side (idle)

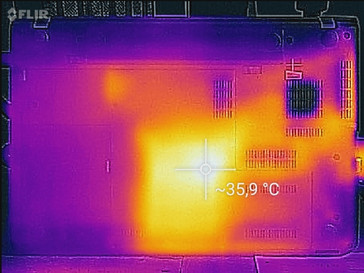

Temperature development underside (idle)
Temperature development underside (idle)
Consumo de corriente
Off / Standbydarklight 0.22 / 0.4 Watt
Ociosodarkmidlight 5.2 / 7.25 / 7.9 Watt
Carga midlight 25.1 / 25.1 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad E560 20EV000MGE
6100U, HD Graphics 520
Lenovo ThinkPad E560-20EWS00000
6500U, Radeon R7 M370
HP ProBook 450 G3
6200U, HD Graphics 520
Acer TravelMate P257-M-56AX
5200U, HD Graphics 5500
Dell Latitude 15 3550-0123
5500U, GeForce 830M
Dell Latitude 15-3570
6200U, HD Graphics 520
Power Consumption
-50%
-17%
5%
-69%
-0%
Idle Minimum *
5.2
4.2
19%
4.9
6%
3.2
38%
5.9
-13%
4.9
6%
Idle Average *
7.25
7.5
-3%
8.2
-13%
5.5
24%
11.5
-59%
7.2
1%
Idle Maximum *
7.9
8.2
-4%
9
-14%
6.4
19%
11.6
-47%
7.5
5%
Load Average *
25.1
49.6
-98%
30.1
-20%
31.8
-27%
49
-95%
25.4
-1%
Load Maximum *
25.1
65.8
-162%
36.1
-44%
33
-31%
58
-131%
28
-12%

* ... más pequeño es mejor

Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
14h 45min
WiFi Websurfing (IE 11)
9h 26min
Big Buck Bunny H.264 1080p
7h 35min
Carga (máximo brillo)
2h 37min
Lenovo ThinkPad E560 20EV000MGE
48 Wh
Lenovo ThinkPad E560-20EWS00000
48 Wh
HP ProBook 450 G3
44 Wh
Acer TravelMate P257-M-56AX
37 Wh
Dell Latitude 15 3550-0123
58 Wh
Dell Latitude 15-3570
65 Wh
Duración de Batería
-21%
-37%
-37%
-15%
4%
Reader / Idle
885
884
0%
575
-35%
703
-21%
775
-12%
1024
16%
H.264
455
413
-9%
337
-26%
474
4%
WiFi v1.3
566
342
-40%
309
-45%
321
-43%
379
-33%
542
-4%
Load
157
104
-34%
90
-43%
83
-47%
129
-18%
157
0%

Pro

+ pantalla mate
+ silencioso
+ bajas temperaturas
+ decente calidad de carcasa

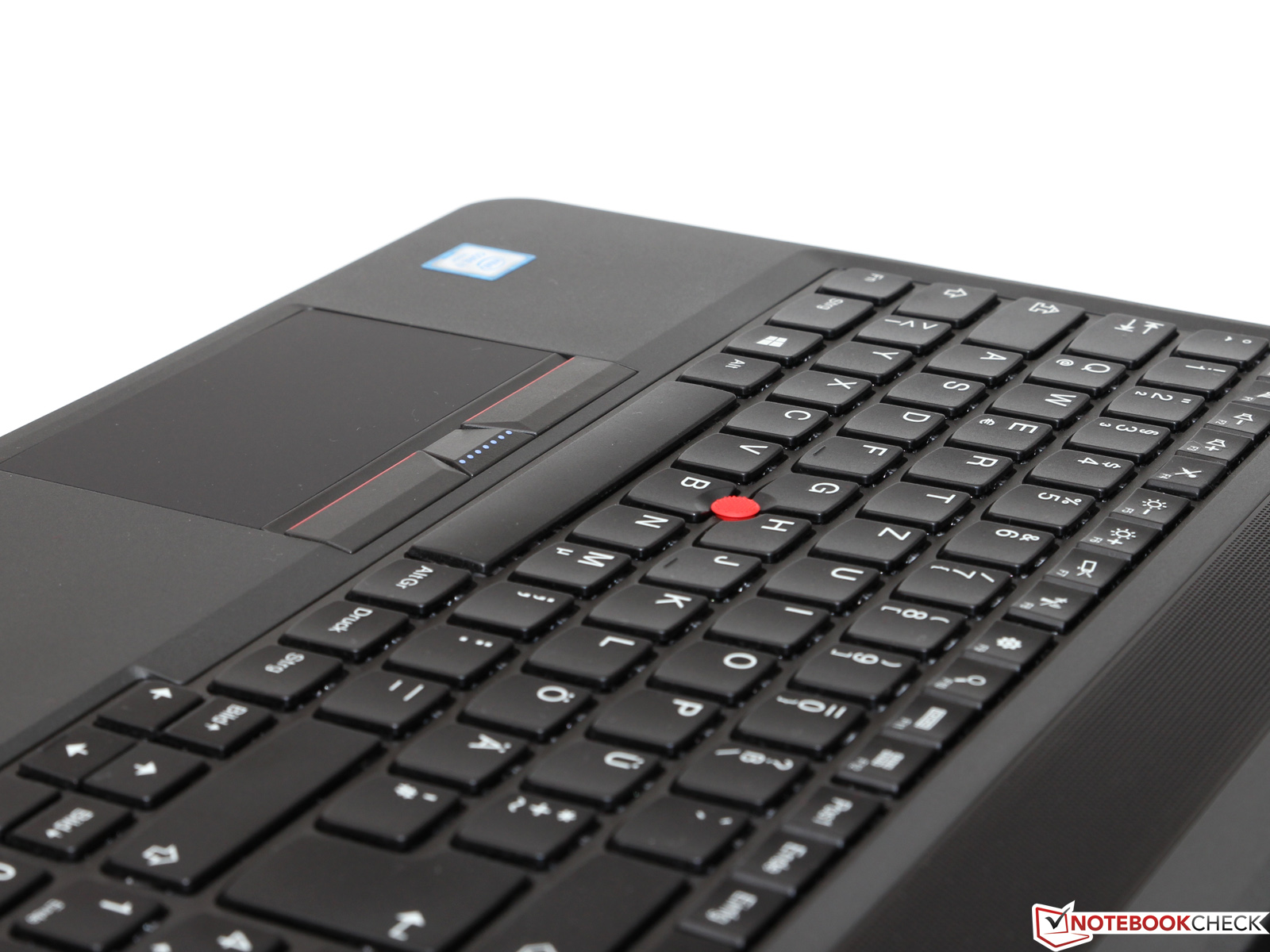

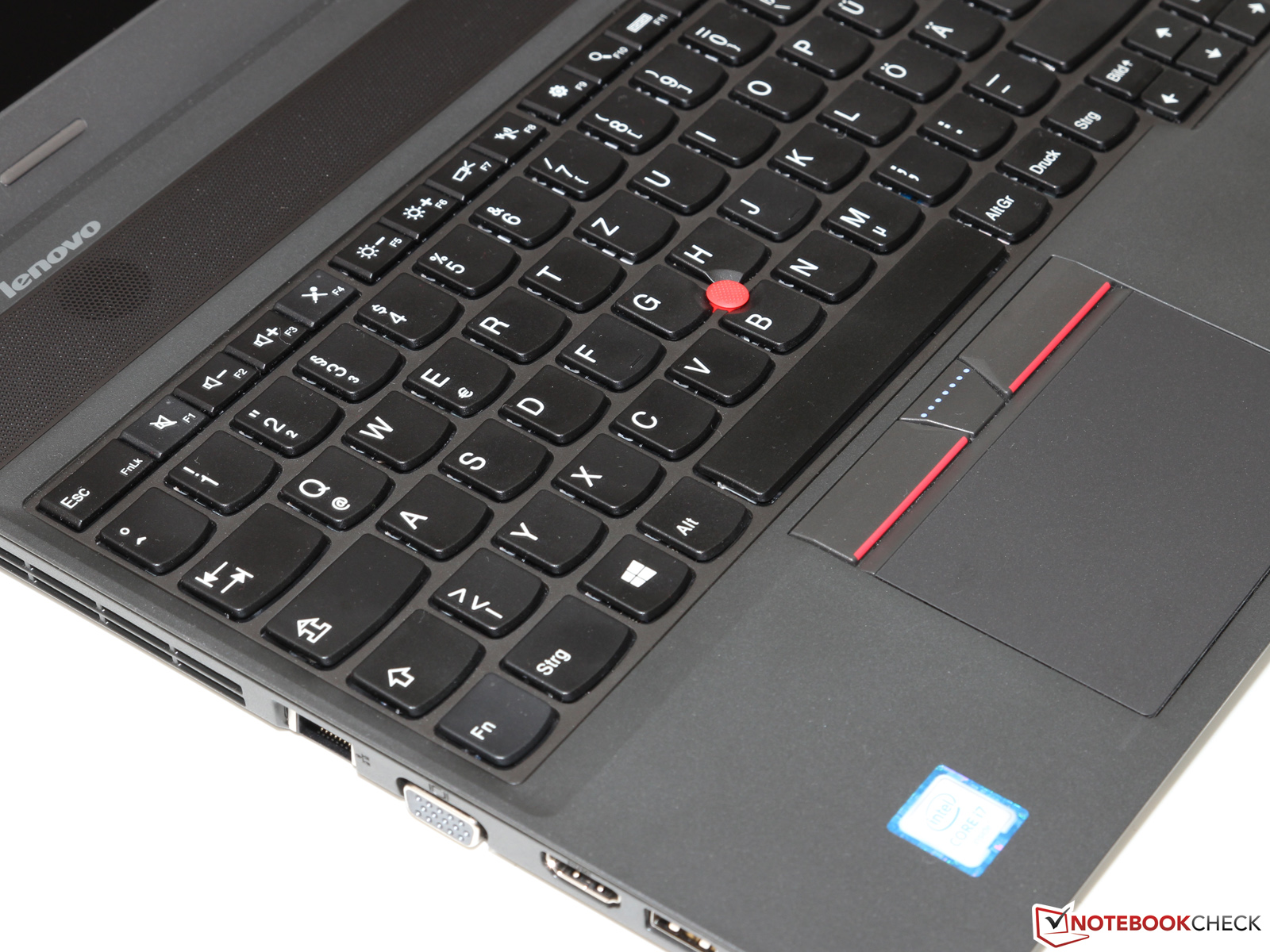

+ muy buen teclado
+ puerto de anclaje
+ genial aguante de batería

Contra

- pantalla oscura
- sólo 12 meses de garantía

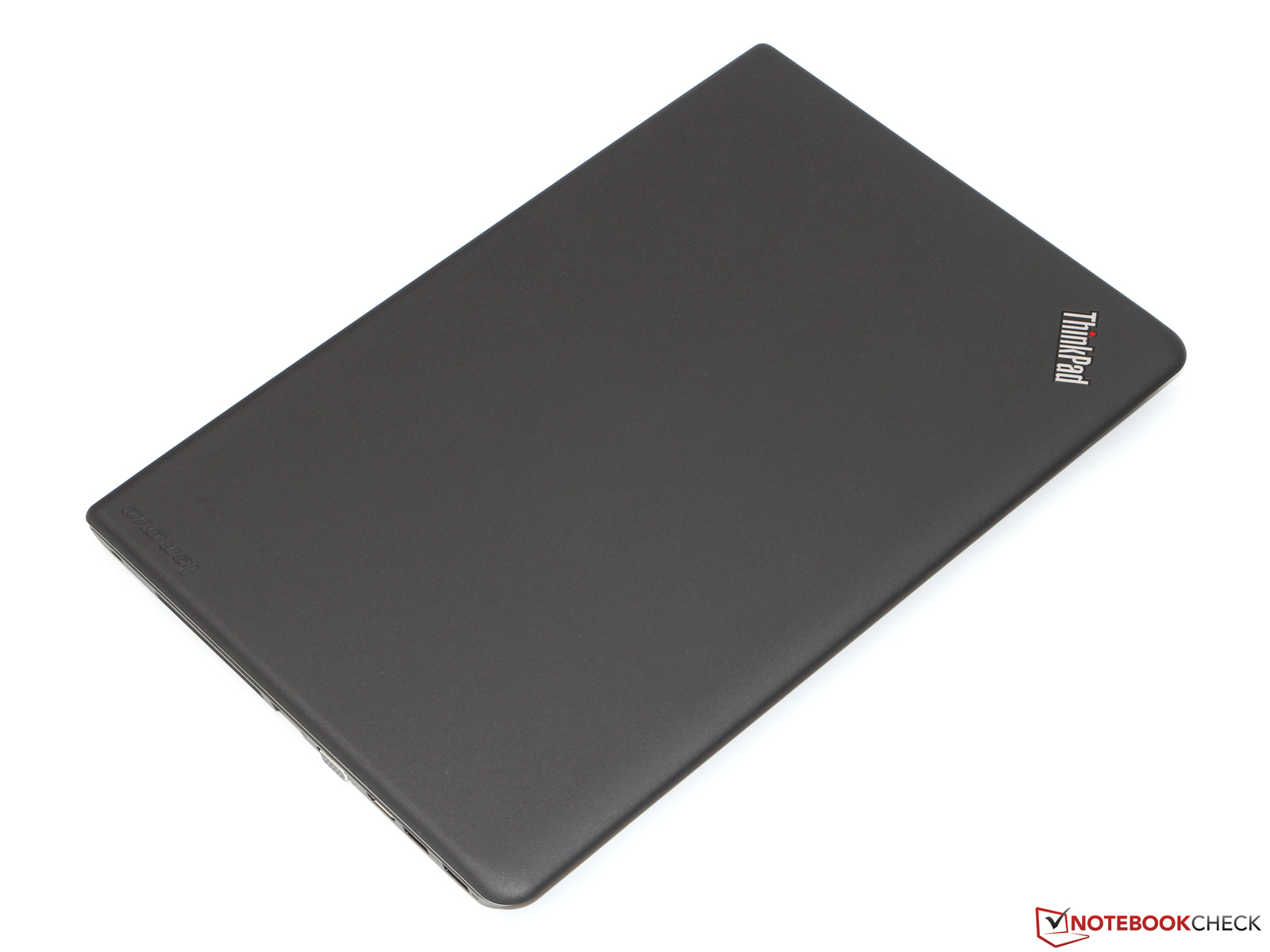

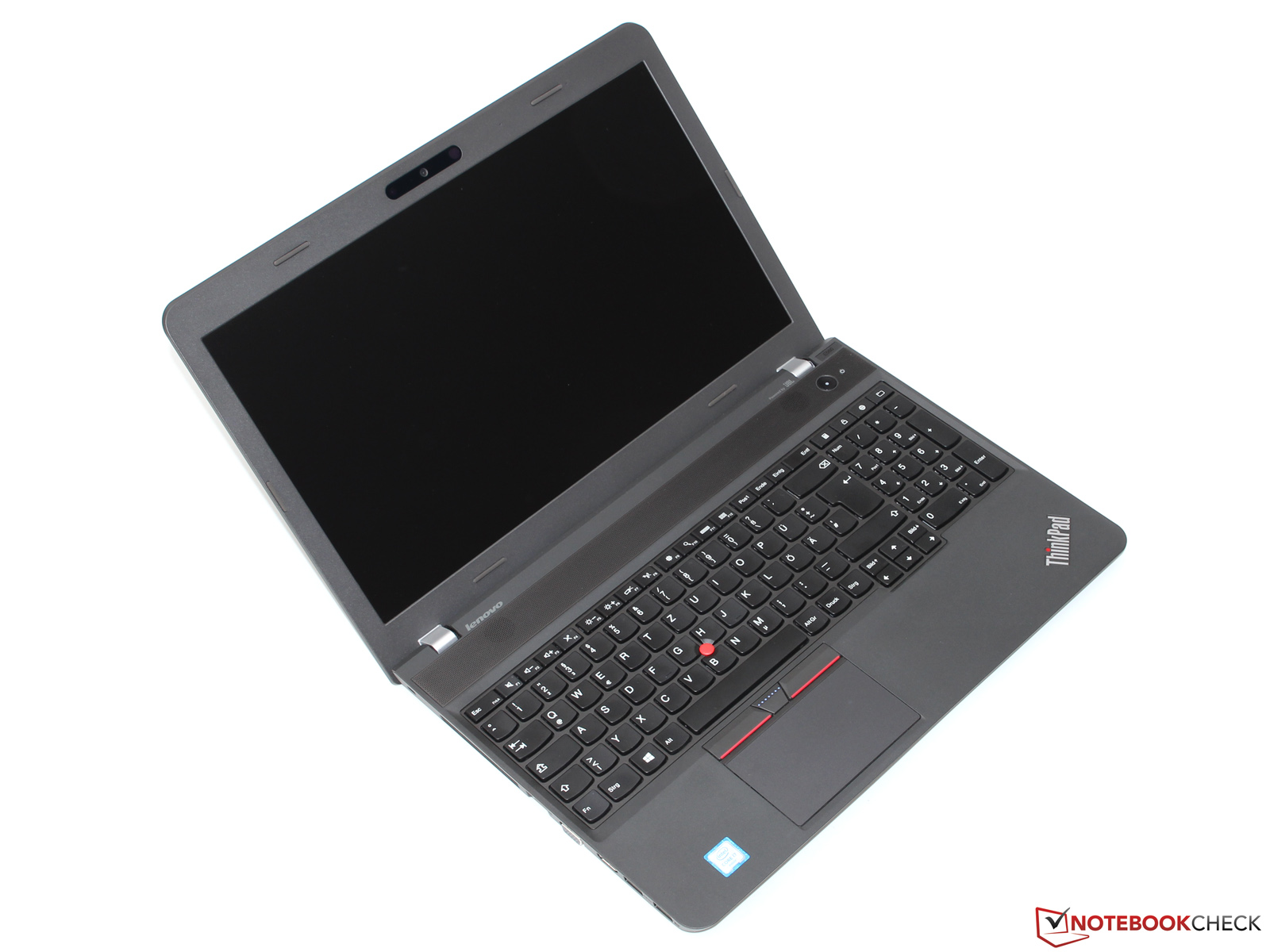

Lenovo ThinkPad E560. Modelo de pruebas cortesía de Notebooksbilliger.de
Lenovo ThinkPad E560. Modelo de pruebas cortesía de Notebooksbilliger.de

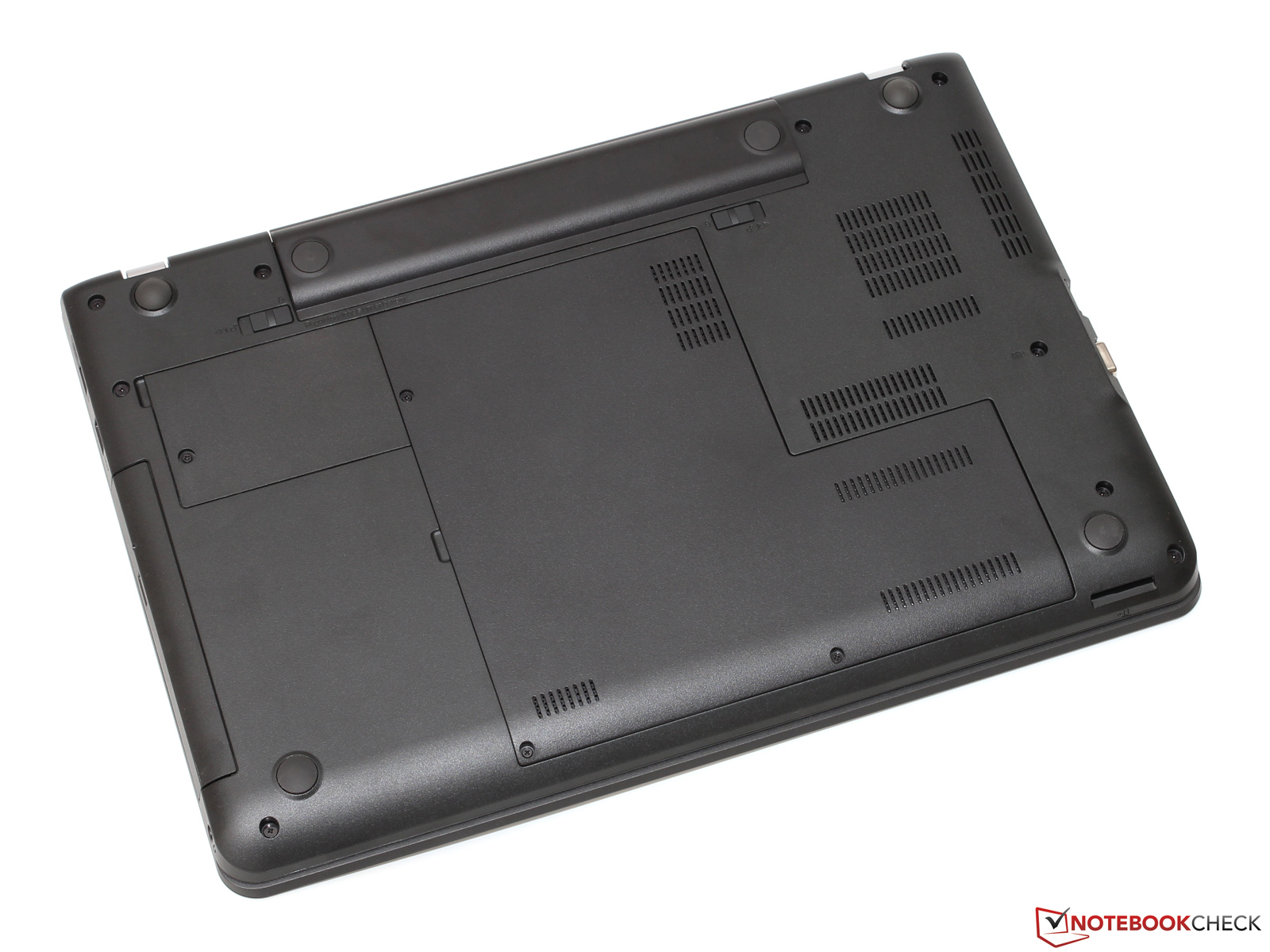

Nuestro presente ThinkPad es un miembro low-cost de la línea. El procesador Core i3 instalado tiene potencia de cálculo más que de sobras para las aplicaciones ofimáticas y de internet. El portátil suele trabajar en silencio y apenas se calienta. Sería fácil cambiar el HDD de 500GV por un SSD ya que el ThinkPad tiene escotillas de mantenimiento. Como los modelos ThinkPad, el E560 también trae un teclado buenísimo. El sobresaliente aguante de batería lo complementa.

Gran aguante de batería, muy buen teclado, precio razonable  - Lenovo tiene en su cartera un portátil para estudiantes.

Sin embargo, el portátil también tiene algunos defectos. La oscura pantalla sólo permite el uso en interiores. Lo que es más, Lenovo sólo incluye un año de garantía. Los compradores que puedan aceptarlo se llevarán un portátil de oficina redondo con un look impresionante y muchos escenarios de uso.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Lenovo ThinkPad E560 20EV000MGE - 06/28/2016 v5.1(old)
Sascha Mölck

Acabado
80 / 98 → 82%
Teclado
87%
Ratón
83%
Conectividad
54 / 80 → 68%
Peso
61 / 20-67 → 87%
Battería
90%
Pantalla
75%
Rendimiento de juegos
51 / 68 → 75%
Rendimiento de la Aplicación
67 / 92 → 73%
Temperatura
94%
Ruido
88%
Audio
69%
Cámara
58 / 85 → 68%
Médio
74%
83%
Office - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del Lenovo ThinkPad E560 (Core i3, HD)
Sascha Mölck, 2016-07-12 (Update: 2016-07-12)
