Breve análisis del Samsung ATIV Book 8 Touch 880Z5E X01

Actualización táctil. Mismo chasis y hardware, diferente nombre. Samsung añade una pantalla táctil a un modelo de la serie Chronos 7 y renombra el portátil por el camino. Como su predecesor, el Ativ Book 8 Touch sigue llevando un potente procesador Core i7 y una GPU dedicada Radeon. Cómo rinde el portátil y qué tal queda frente a sus competidores son los temas de este análisis.
251
cd/m²
266
cd/m²
250
cd/m²
254
cd/m²
244
cd/m²
224
cd/m²
262
cd/m²
209
cd/m²
224
cd/m²
Temperatura del cuarto
Panel kann nicht ausgelesen werden tested with X-Rite i1Pro 2
Máximo: 266 cd/m² (Nits) Médio: 242.7 cd/m²
iluminación: 79 %
Brillo con batería: 243 cd/m²
Contraste: 1017:1 (Negro: 0.24 cd/m²)
ΔE Color 2.79 | 0.5-29.43 Ø5
ΔE Greyscale 1.6 | 0.57-98 Ø5.3
63.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
89.5% sRGB (Argyll 2.2.0 3D)
65.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31
Cinebench R10 Rendering Single 32Bit
4685
Cinebench R10 Rendering Multiple CPUs 32Bit
17688
Cinebench R10 Shading 32Bit
7425
Cinebench R10 Rendering Single CPUs 64Bit
5937 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
22277 Points
Cinebench R10 Shading 64Bit
7542 Points
Cinebench R11.5 CPU Single 64Bit
1.38 Points
Cinebench R11.5 CPU Multi 64Bit
6.46 Points
Cinebench R11.5 OpenGL 64Bit
53.8 fps
ayuda
Cinebench R11.5 - OpenGL 64Bit (ordenar por valor)
Samsung ATIV Book 8 Touch 880Z5E X01
Radeon HD 8870M, 3635QM, Toshiba MQ01ABD100
53.8 fps
Sony Vaio SV-F15A1S2ES
GeForce GT 735M, 3537U, Toshiba MQ01ABD075H
33.91 fps -37%
Toshiba Satellite S50-A-10H
GeForce GT 740M, 4700MQ, HGST Travelstar 5K1000 HTS541010A9E680
41.38 fps -23%
Asus N56VB-S4050H
GeForce GT 740M, 3630QM, WDC Scorpio Blue WD7500BPVT-80HXZT3
42.12 fps -22%
Acer Aspire V5-573G-54208G50aii
GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
42.33 fps -21%
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
52.6 fps -2%
Asus N550JV-CN201H
GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
53.1 fps -1%
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
54.5 fps +1%
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
58.1 fps +8%
Cinebench R11.5 - CPU Multi 64Bit (ordenar por valor)
Samsung ATIV Book 8 Touch 880Z5E X01
Radeon HD 8870M, 3635QM, Toshiba MQ01ABD100
6.46 Points
Acer Aspire V5-573G-54208G50aii
GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
2.45 Points -62%
Sony Vaio SV-F15A1S2ES
GeForce GT 735M, 3537U, Toshiba MQ01ABD075H
2.88 Points -55%
Toshiba Satellite S50-A-10H
GeForce GT 740M, 4700MQ, HGST Travelstar 5K1000 HTS541010A9E680
5.22 Points -19%
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
5.29 Points -18%
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
6.38 Points -1%
Asus N56VB-S4050H
GeForce GT 740M, 3630QM, WDC Scorpio Blue WD7500BPVT-80HXZT3
6.41 Points -1%
Asus N550JV-CN201H
GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
6.68 Points +3%
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
6.99 Points +8%
5.9
Índice de Experiencia Windows 8
Procesador
Cálculos por segundo
7.8
Memoria (RAM)
Operaciones de memoria por segundo
7.8
Gráficos
Rendimiento de desktop para Windows Aero
6.9
Gráficos de juegos
Gráficos 3D de negocios y juegos
6.9
Disco duro principal
Velocidad de transferencia de datos de disco
5.9
PCMark Vantage Result
8206 puntos
PCMark 7 Score
3290 puntos
PCMark 8 Home Score Accelerated
3682 puntos
PCMark 8 Creative Score Accelerated
3420 puntos
PCMark 8 Work Score Accelerated
3903 puntos
ayuda
PCMark 7 - Score (ordenar por valor)
Samsung ATIV Book 8 Touch 880Z5E X01
Radeon HD 8870M, 3635QM, Toshiba MQ01ABD100
3290 Points
Acer Aspire V5-573G-54208G50aii
GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
2878 Points -13%
Asus N56VB-S4050H
GeForce GT 740M, 3630QM, WDC Scorpio Blue WD7500BPVT-80HXZT3
3065 Points -7%
Toshiba Satellite S50-A-10H
GeForce GT 740M, 4700MQ, HGST Travelstar 5K1000 HTS541010A9E680
3178 Points -3%
Asus N550JV-CN201H
GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
3395 Points +3%
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3970 Points +21%
Sony Vaio SV-F15A1S2ES
GeForce GT 735M, 3537U, Toshiba MQ01ABD075H
4054 Points +23%
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
4776 Points +45%
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
4983 Points +51%
Toshiba MQ01ABD100
Tasa de Transferencia Mínima: 7.9 MB/s
Tasa de Transferencia Máxima: 105.8 MB/s
Tasa de Transferencia Promedio: 80.7 MB/s
Tiempo de Acceso: 17.8 ms
Velocidad de Ráfagas: 105.2 MB/s
Uso de CPU: 1 %
3DMark 06 Standard Score
14222 puntos
3DMark Vantage P Result
11807 puntos
3DMark 11 Performance
3252 puntos
3DMark Ice Storm Standard Score
53664 puntos
3DMark Cloud Gate Standard Score
11328 puntos
3DMark Fire Strike Score
2235 puntos
ayuda
3DMark 11 - 1280x720 Performance (ordenar por valor)
Samsung ATIV Book 8 Touch 880Z5E X01
Radeon HD 8870M, 3635QM, Toshiba MQ01ABD100
3252 Points
Sony Vaio SV-F15A1S2ES
GeForce GT 735M, 3537U, Toshiba MQ01ABD075H
1816 Points -44%
Toshiba Satellite S50-A-10H
GeForce GT 740M, 4700MQ, HGST Travelstar 5K1000 HTS541010A9E680
2034 Points -37%
Asus N56VB-S4050H
GeForce GT 740M, 3630QM, WDC Scorpio Blue WD7500BPVT-80HXZT3
2238 Points -31%
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
2425 Points -25%
Acer Aspire V5-573G-54208G50aii
GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
2462 Points -24%
Asus N550JV-CN201H
GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
2678 Points -18%
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3311 Points +2%
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3311 Points +2%
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
4542 Points +40%
bajo medio alto ultra
World of Warcraft (2005) 59.2 34.9
Crysis - GPU Benchmark (2007) 42 19.21
Crysis - CPU Benchmark (2007) 39 17.36
Resident Evil 5 (2009) 71.5 64.5
Metro 2033 (2010) 70.5 41.8 14.9
Civilization 5 (2010) 70.7 31.2
Total War: Shogun 2 (2011) 145.8 55.6
Deus Ex Human Revolution (2011) 94.5 40.1
Batman: Arkham City (2011) 97 53 30
The Elder Scrolls V: Skyrim (2011) 70.8 54.4 31.4
Ghost Recon: Future Soldier (2012) 50.8 25.1
Tomb Raider (2013) 84 58.4 26.7
StarCraft II: Heart of the Swarm (2013) 92.5 75.1 26.2
Metro: Last Light (2013) 53.4 47.4 30.1
GRID 2 (2013) 63 58.4 26.7
Company of Heroes 2 (2013) 37.4 33.6 23.14
Dota 2 (2013) 69.2 53.4
Splinter Cell: Blacklist (2013) 46.4 31.6 15
Saints Row IV (2013) 40 32.8 19.7
The Bureau: XCOM Declassified (2013) 60.8 30 15.7
Total War: Rome II (2013) 96.5 78.2
Samsung ATIV Book 8 Touch 880Z5E X01
Radeon HD 8870M, 3635QM, Toshiba MQ01ABD100
Asus N550JV-CN201H
GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
Samsung 770Z5E-S01DE
Radeon HD 8870M, 3635QM, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
Tomb Raider
-29%
-4%
74%
1366x768 Normal Preset AA:FX AF:4x
84
67.2
-20%
80.4
-4%
142.7
70%
1366x768 High Preset AA:FX AF:8x
58.4
38.9
-33%
55.3
-5%
105.8
81%
1920x1080 Ultra Preset AA:FX AF:16x
26.7
17.7
-34%
25.5
-4%
45.3
70%

Ruido

Ocioso
29.8 / 29.8 / 30 dB(A)
HDD
30.4 dB(A)
Carga
30.8 / 40.7 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm de distancia)
Carga Máx.
 43.1 °C53.6 °C39.7 °C
 41.6 °C43.2 °C36.2 °C
 31.2 °C29.6 °C30.7 °C
Máximo: 53.6 °C
Médio: 38.8 °C
36.4 °C42.7 °C37.7 °C
33.2 °C36.5 °C34.5 °C
29.8 °C28.7 °C30.1 °C
Máximo: 42.7 °C
Médio: 34.4 °C
Conector de corriente  58.6 °C | Temperatura del cuarto 24.6 °C | Voltcraft IR-360
(-) The average temperature for the upper side under maximal load is 38.8 °C / 102 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 53.6 °C / 128 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 42.7 °C / 109 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.2 °C / 88.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-2.4 °C / -4.4 F).
Consumo de corriente
Off / Standbydarklight 0 / 0.3 Watt
Ociosodarkmidlight 9.9 / 13.9 / 16.1 Watt
Carga midlight 75.4 / 89.7 Watt
 color bar
Clave: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
12h 49min
Navegando con WLAN
6h 26min
Carga (máximo brillo)
2h 02min
El Samsung Ativ Book 8
El Samsung Ativ Book 8

El Samsung Ativ Book 8 impresiona con un muy buen rendimiento general y también está bien capacitado para el juego. El display Full-HD es maravilloso y el teclado de primera. A pesar de los potentes componentes, el sistema opera en silencio la mayor parte del tiempo. El chasis premium es muy atractivo a la vista y la duración de la batería bastante decente. Por desgracia, Samsung usa un disco duro convencional bastante lento - considerando el precio, nos habría gustado una opción mas rápida.

Los usuarios interesados en un rendimiento de juego aún mejor deberían echarle un vistazo al Lenovo Ideapad Y510p. El Asus N550JV-CN201H es una buena opción para aquellos que quieran un sistema con unidad Blu-ray. El N550JV está disponible actualmente por unos 1100 Euros.



Esta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

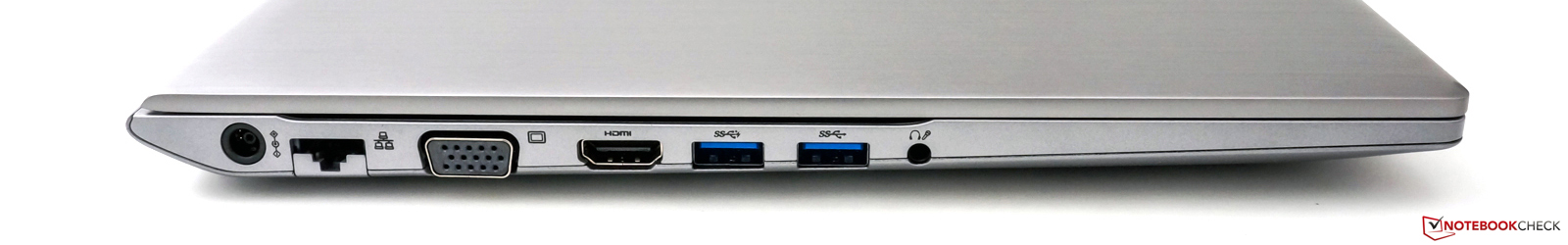

Izquierda: toma de corriente, Gigabit Ethernet, VGA, HDMI, 2x USB 3.0, clavija combo de audio
Izquierda: toma de corriente, Gigabit Ethernet, VGA, HDMI, 2x USB 3.0, clavija combo de audio

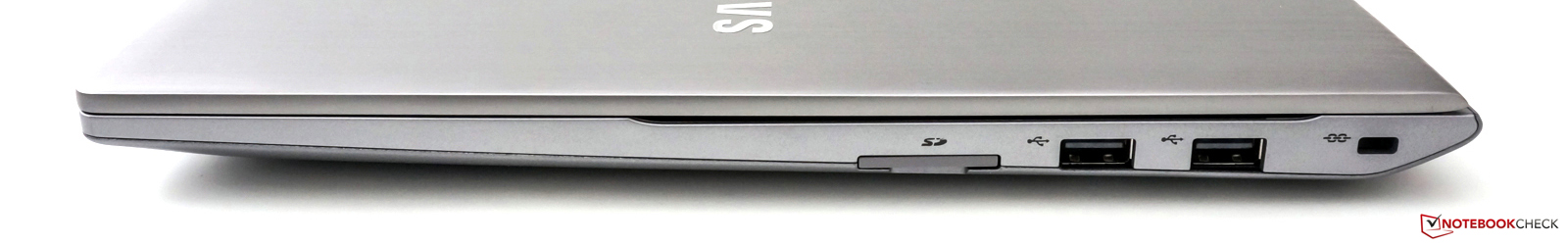

Derecha: lector de tarjetas, 2x USB 2.0, ranura de bloqueo Kensington
Derecha: lector de tarjetas, 2x USB 2.0, ranura de bloqueo Kensington

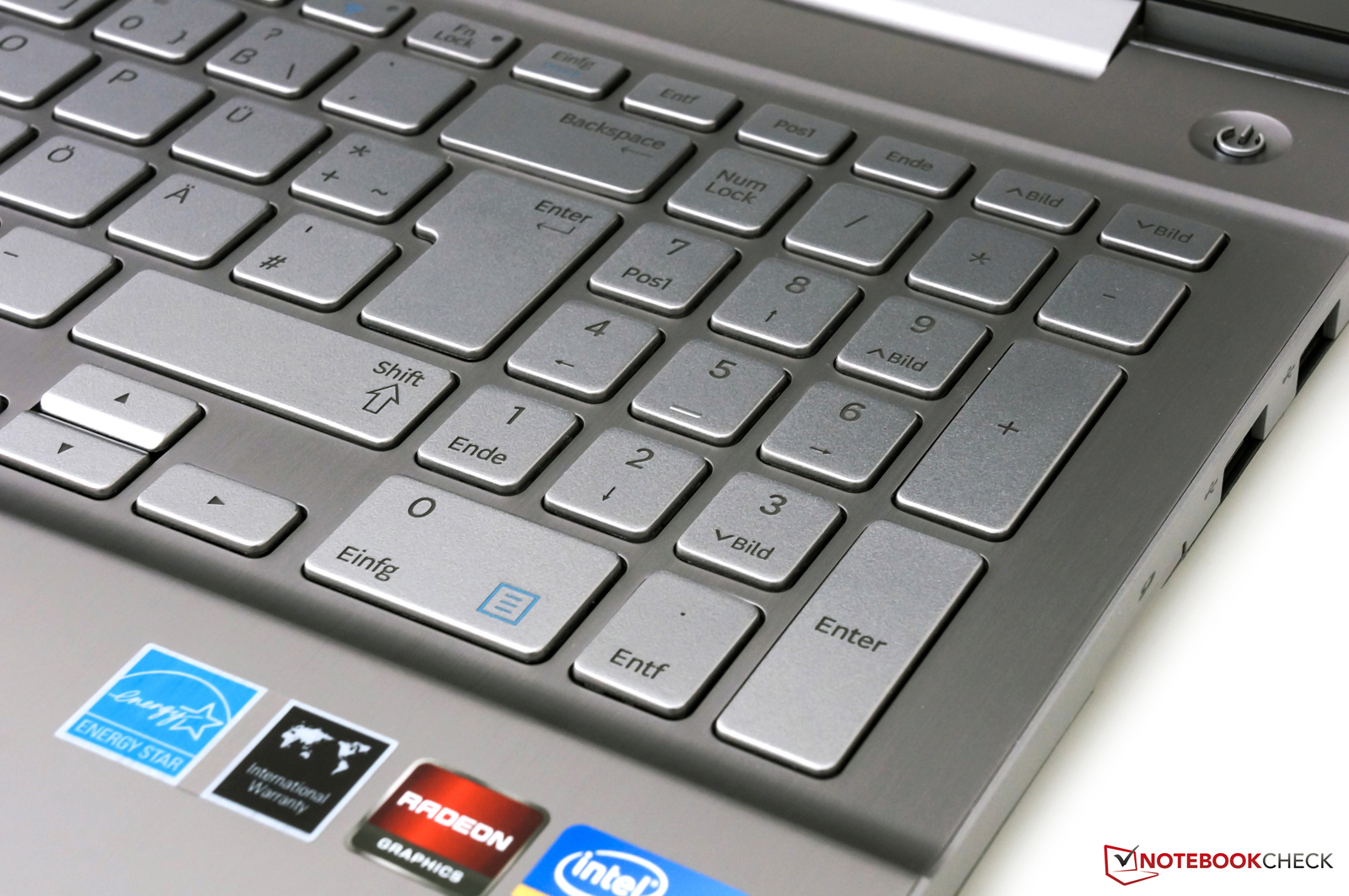

Pad numérico separado.
Pad numérico separado.

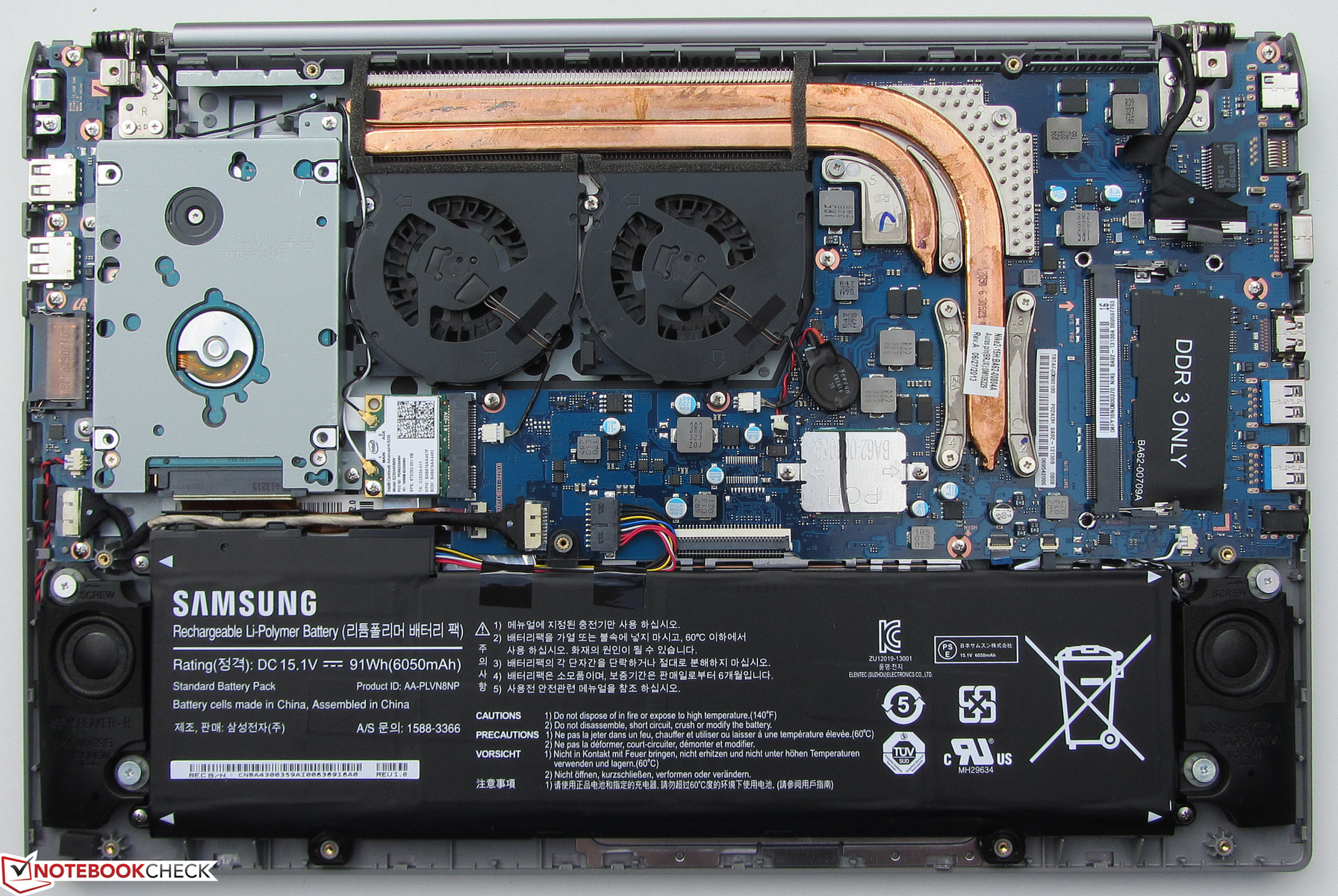

Se puede retirar la cubierta inferior.
Se puede retirar la cubierta inferior.

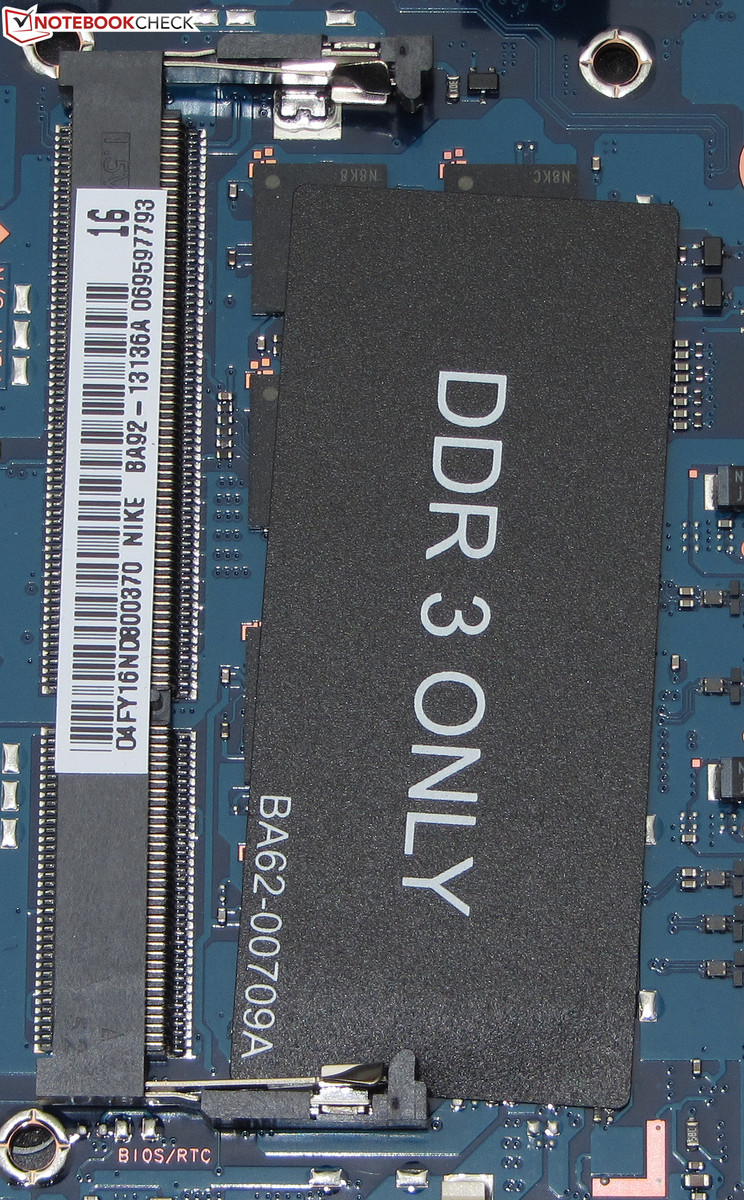

Una ranura de RAM para ampliar memoria.
Una ranura de RAM para ampliar memoria.
El disco duro es accesible y se puede cambiar.
El disco duro es accesible y se puede cambiar.

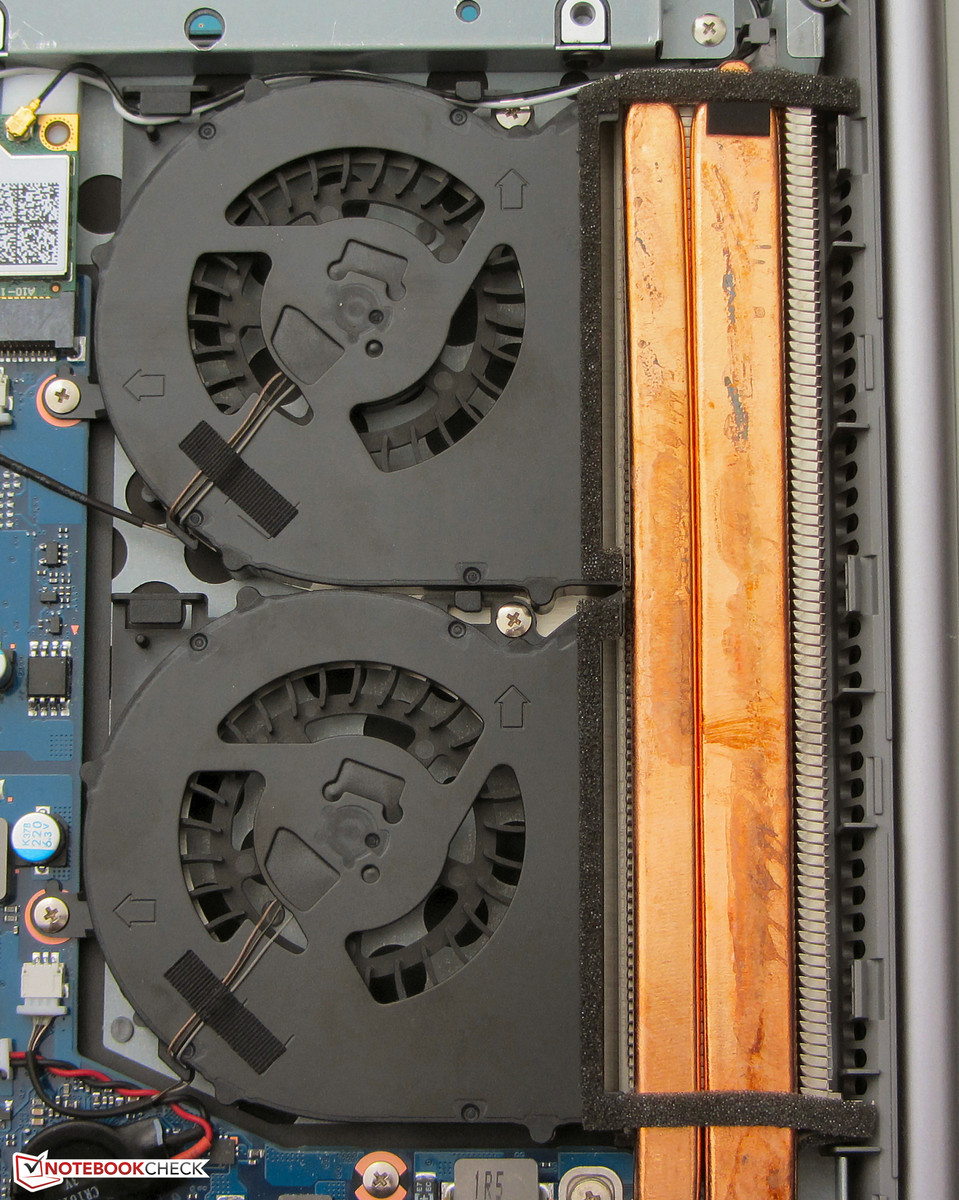

A pesar de los dos ventiladores, el portátil es bastante silencioso.
A pesar de los dos ventiladores, el portátil es bastante silencioso.
CPU y GPU están soldadas.
CPU y GPU están soldadas.
Bien: dos antenas WLAN.
Bien: dos antenas WLAN.

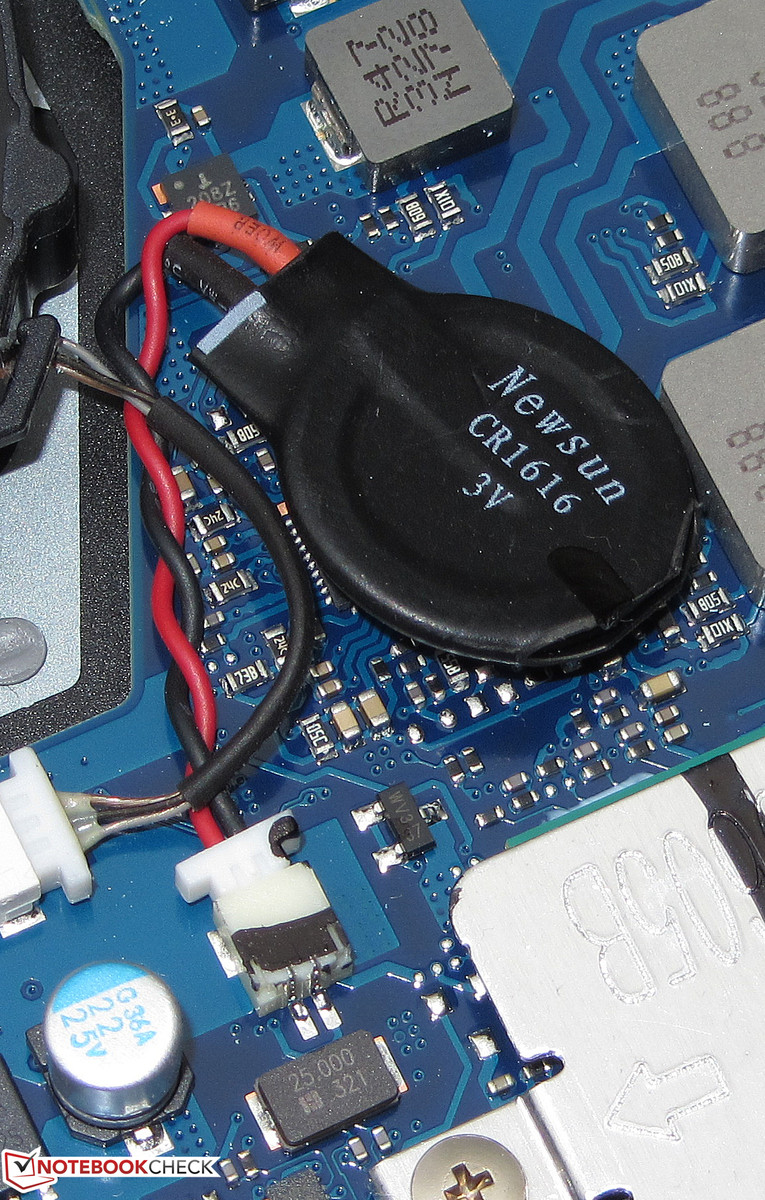

La batería de la BIOS también es accesible.
La batería de la BIOS también es accesible.

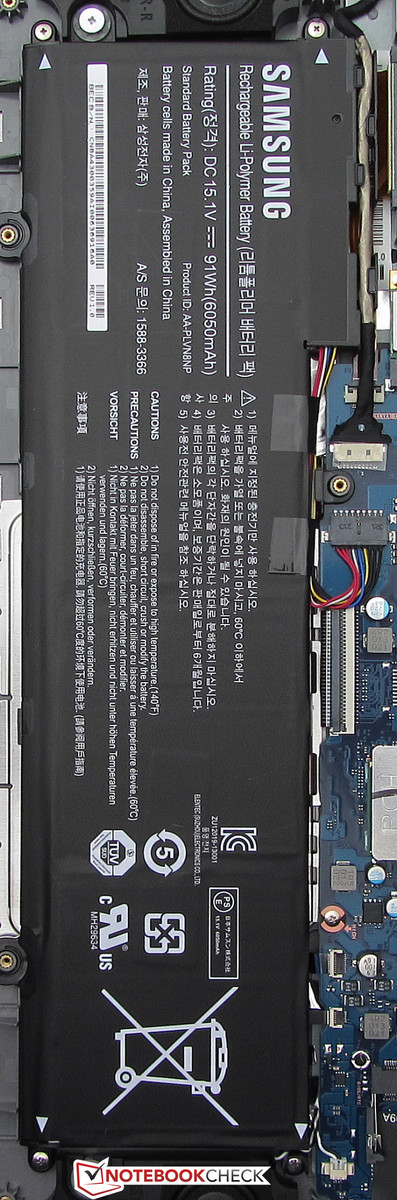

La batería está fijada con cuatro tornillos y se puede cambiar si es preciso.
La batería está fijada con cuatro tornillos y se puede cambiar si es preciso.

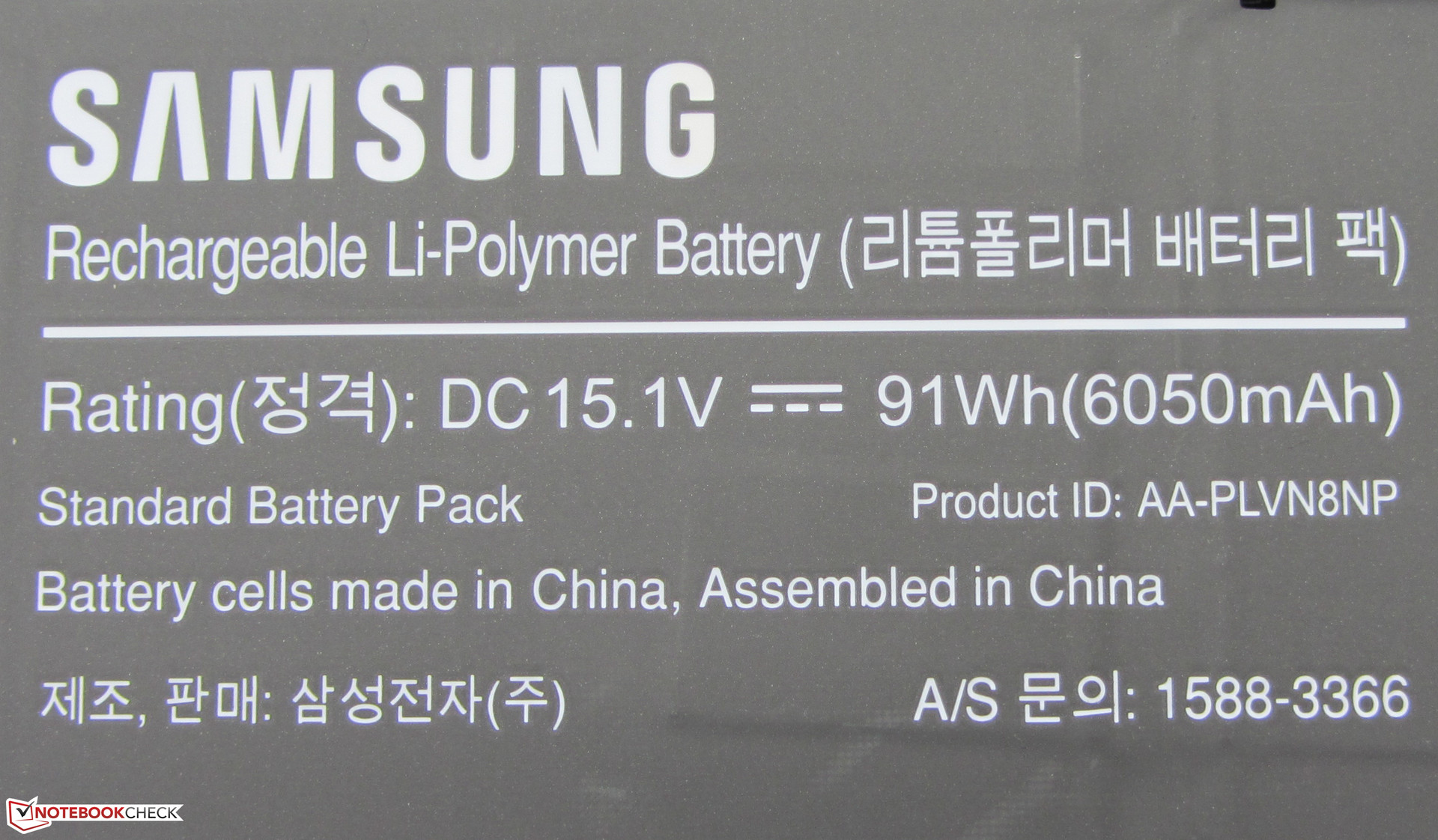

Capacidad de la batería: 91 Wh.
Capacidad de la batería: 91 Wh.

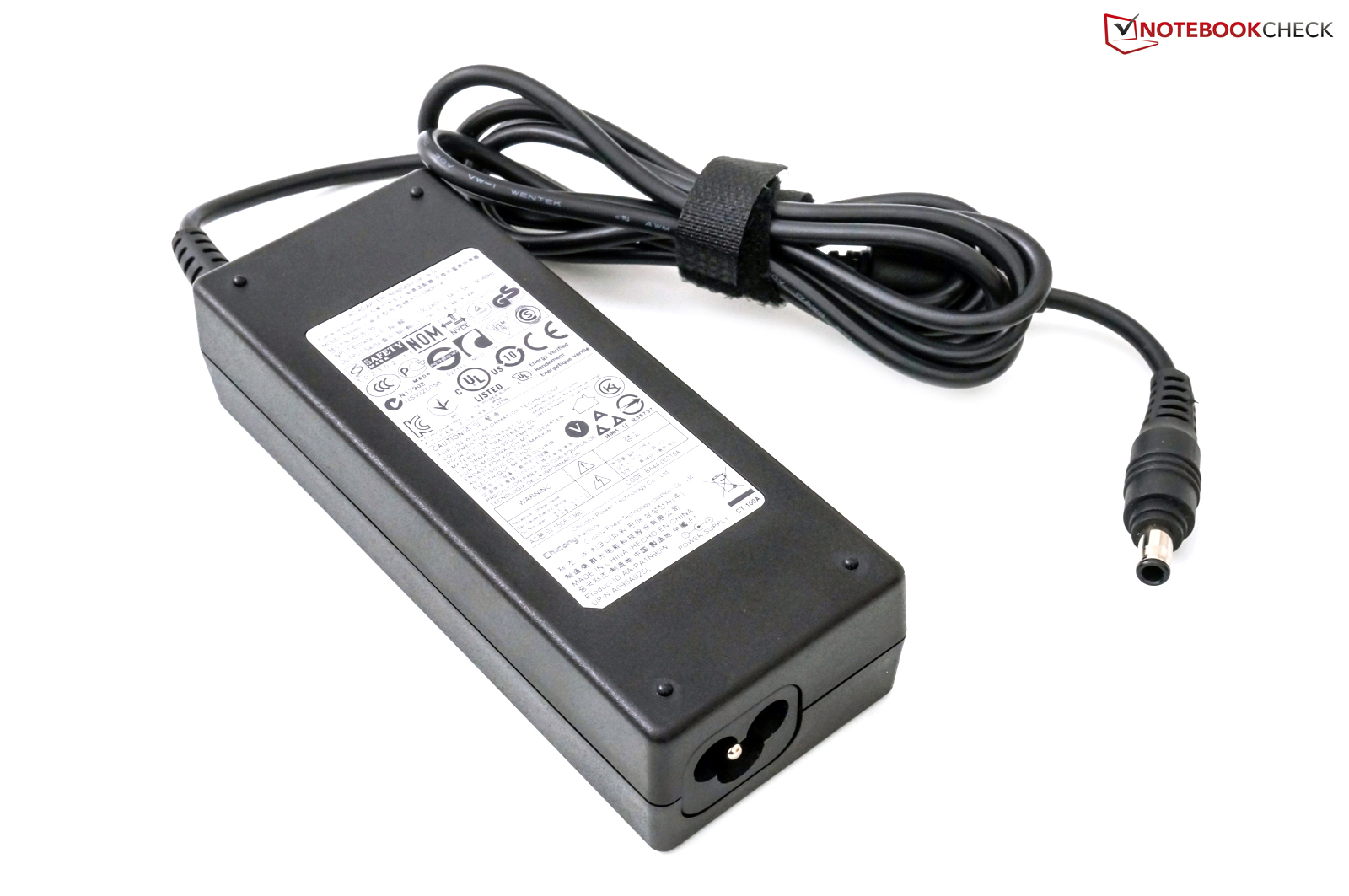

El adaptador de corriente pesa 347 gramos.
El adaptador de corriente pesa 347 gramos.

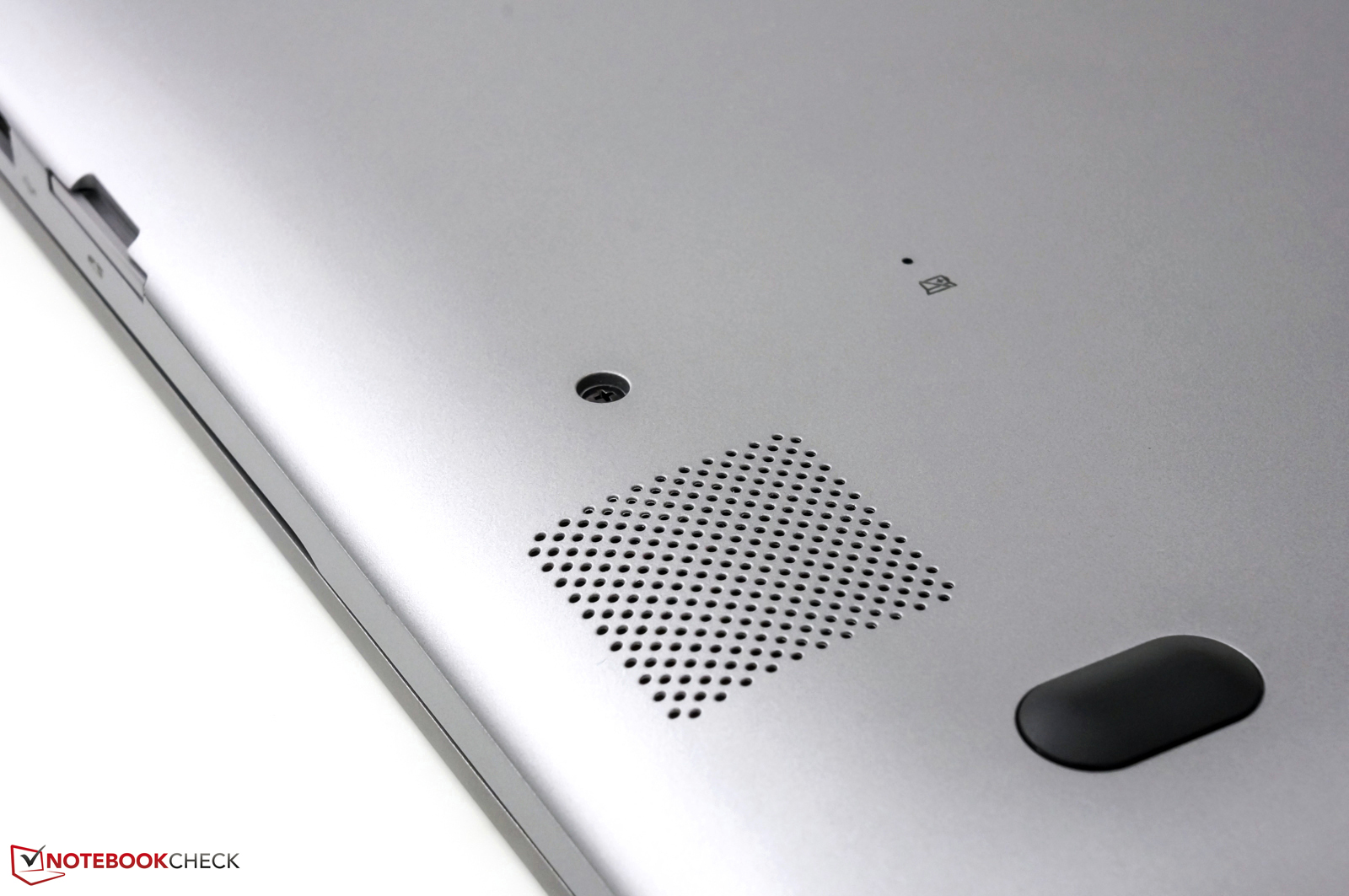

Los altavoces están en la base.
Los altavoces están en la base.
JBL provee los altavoces.
JBL provee los altavoces.
El teclado es muy bueno...
El teclado es muy bueno...

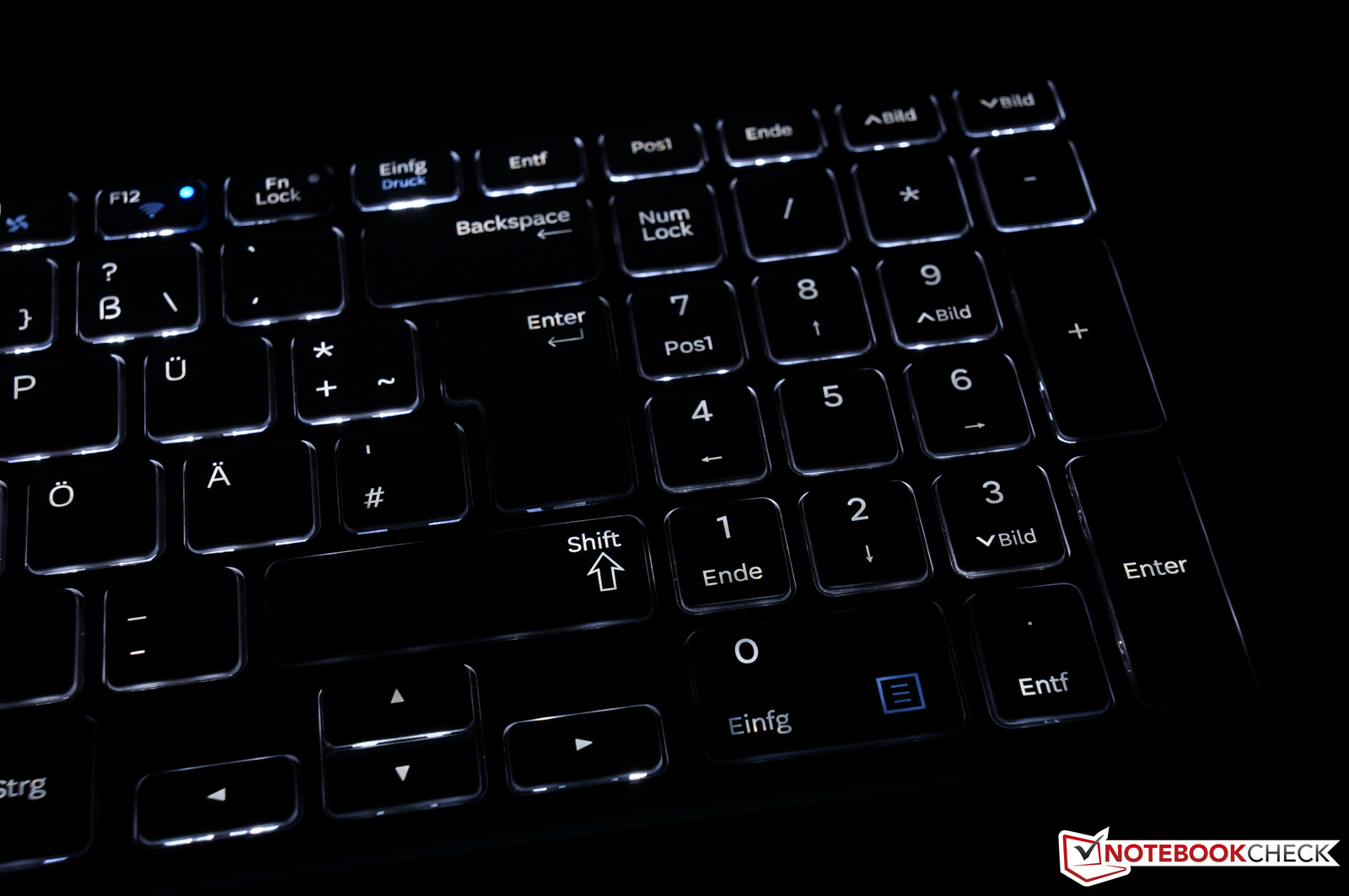

...y tiene retroiluminación.
...y tiene retroiluminación.

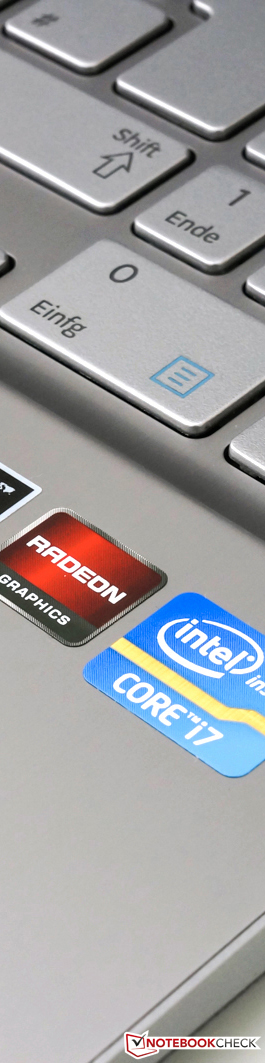

Abundante potencia de procesado.
Abundante potencia de procesado.

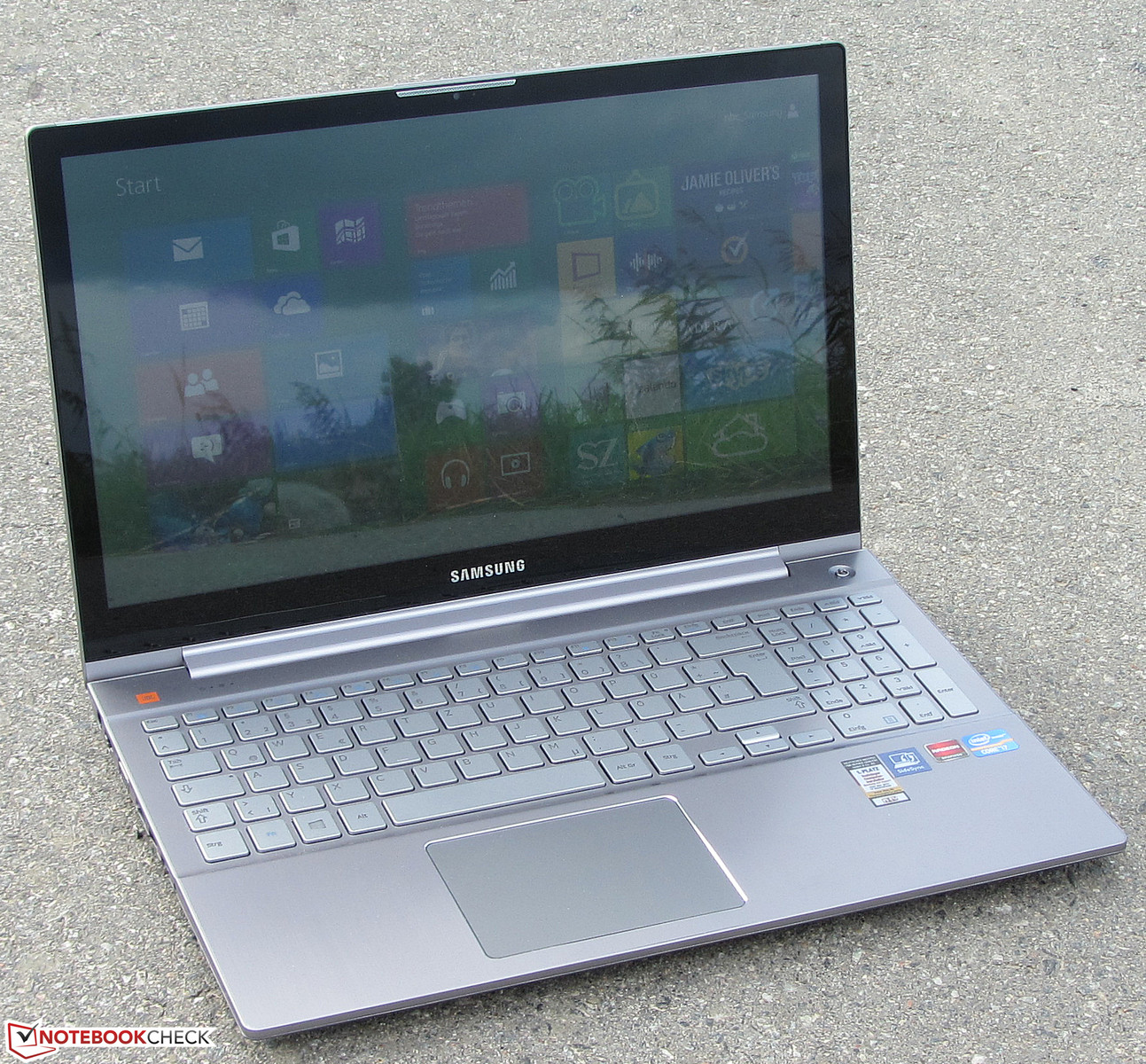

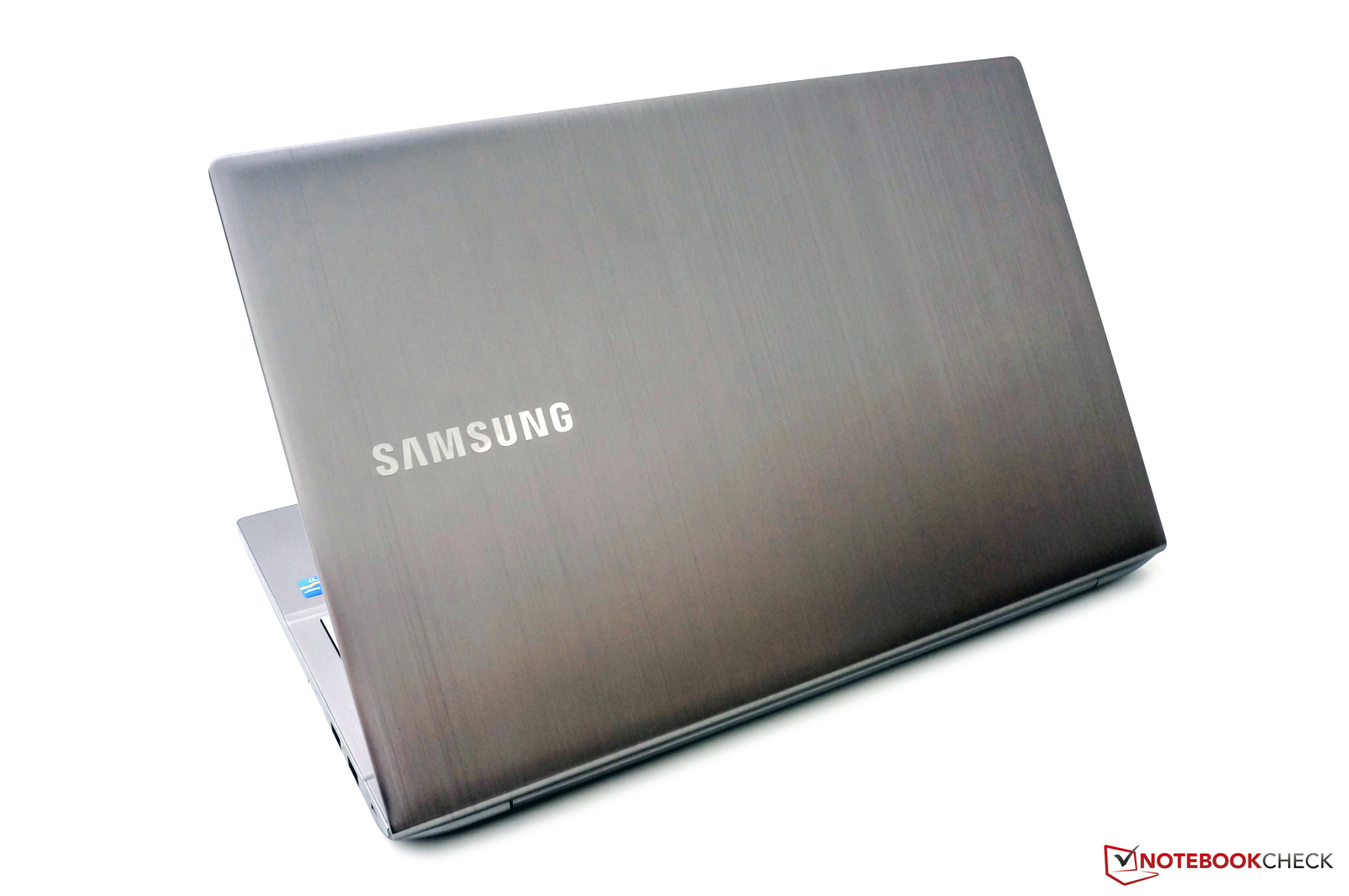

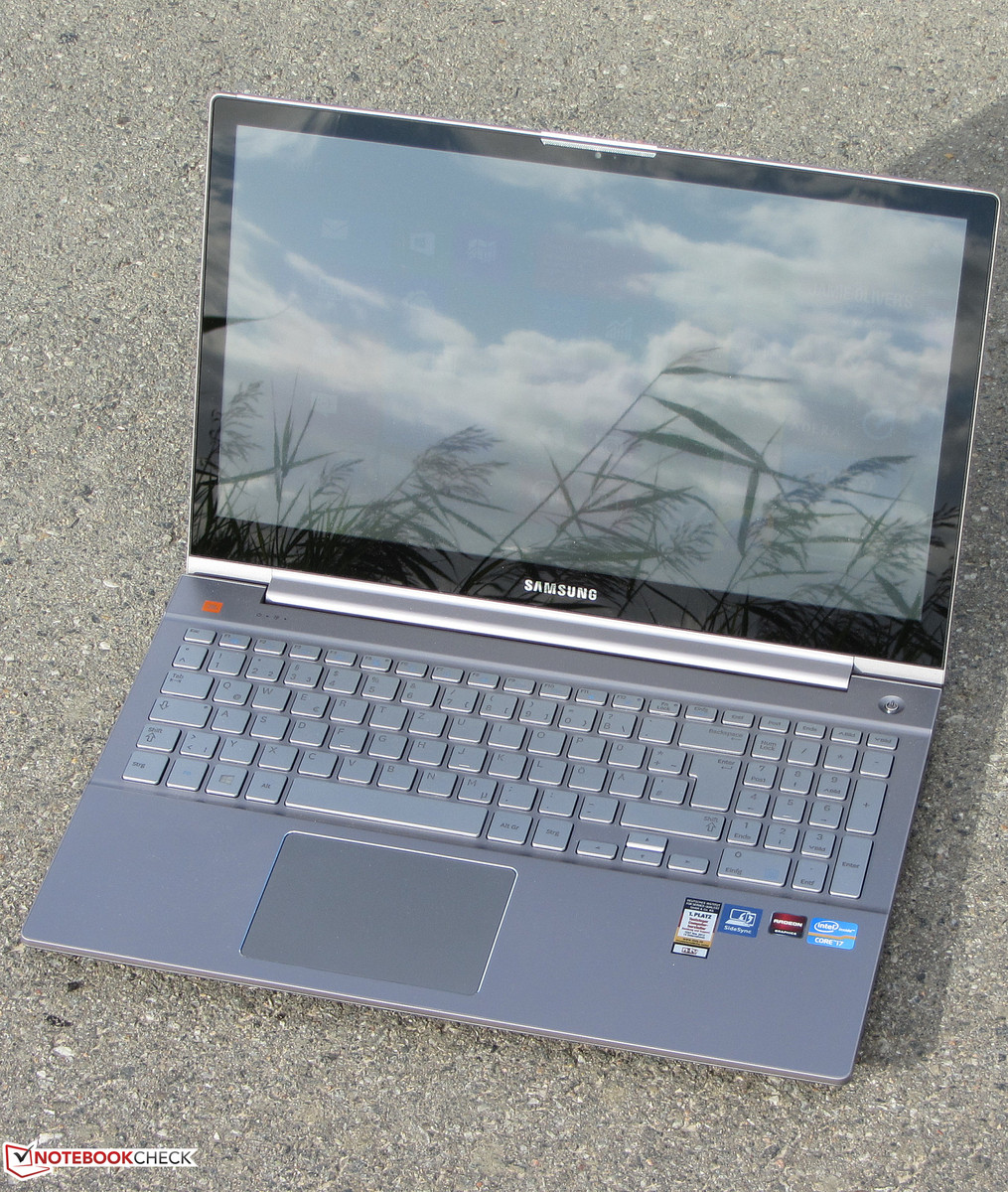

El Ativ Book 8 en el exterior.
El Ativ Book 8 en el exterior.



Please share our article, every link counts!

especificaciones del portátil

Samsung ATIV Book 8 Touch 880Z5E X01 (ATIV Book 8 Serie)
Procesador
Intel Core i7-3635QM 4 x 2.4 - 3.4 GHz, Ivy Bridge
Adaptador gráfico
AMD Radeon HD 8870M - 2048 MB VRAM, Núcleo: 775 MHz, Memoría: 1125 MHz, GDDR5, 9.3.5.0, Enduro
Memoría
8 GB
, DDR3, monocanal, 8 GB soldados a la placa base, una ranura libre
pantalla
15.60 pulgadas 16:9, 1920 x 1080 pixels, multitáctil, Panel kann nicht ausgelesen werden, lustroso: si
Placa base
Intel HM76 (Panther Point)
Disco duro
Toshiba MQ01ABD100, 1000 GB
, 5400 rpm, 886 GB libre
Tarjeta de sonido
Intel Panther Point PCH - High Definition Audio Controller
Conexiones
2 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Conexiones: clavija combo de audio, Card Reader: SD, SDHC, SDXC
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Centrino Advanced-N 6235 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Tamaño
Alto x ancho x profundidad (en mm): 23 x 376 x 250
Battería
91 Wh Litio-Ion, 15.1 V, 6050 mAh
Sistema Operativo
Microsoft Windows 8 64 Bit
Camera
Webcam: 1.3 Megapixel (max. 1280 x 720 Bildpunkte)
Características adicionales
Altavoces: Altavoces estéreo JBL (2x 4w), Teclado: Chiclet, Luz de Teclado: si, Adobe Photshop Elements 11, Cyberlink PowerDVD 10, Microsoft Office 365 (versión de prueba), Norton Internet Security (versión de prueba), Windows Essentials 2012, 24 Meses Garantía
Peso
2.5 kg, Suministro de Electricidad: 347 g
Precio
1549 Euros



Portátiles con el Mismo Tamaño de Pantalla y Peso

Análisis del Samsung Galaxy Book3 Ultra 16: Ultrabook de 16 pulgadas resistente con RTX 4050
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i7-13700H, 16.00", 1.812 kg
Samsung Galaxy Book3 Ultra 16 con RTX 4070 en análisis: Alto rendimiento gráfico en un portátil profesional
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i9-13900H, 16.00", 1.81 kg
Análisis del Samsung Notebook 9 NP900X5T (i7-8550U, GeForce MX150)
GeForce MX150, Kaby Lake Refresh i5-8550U, 15.00", 1.28 kg
Breve análisis del Samsung Notebook 9 NP900X5N (7500U, FHD, GeForce 940MX)
GeForce 940MX, Kaby Lake i7-7500U, 15.00", 1.21 kg
Breve análisis del Samsung ATIV Book 8 870Z5G
GeForce GT 750M, Core i7 4700HQ, 15.60", 2.4 kg

Pro

+Muy buen rendimiento general
+Buen manejo de los juegos
+Montones de almacenamiento
+Sobresaliente pantalla Full-HD
+Muy buen teclado
+Bastante silencioso la mayor parte del tiempo
+Buenos altavoces
+Chasis atractivo
+Buena duración de la batería


Contra

-Sin SSD ni caché SSD.

Samsung ATIV Book 8 Touch 880Z5E X01 - 04/16/2014 v4(old)
Sascha Mölck

Acabado
79 / 98 → 81%
Teclado
92%
Ratón
89%
Conectividad
64 / 81 → 79%
Peso
60 / 20-67 → 85%
Battería
87%
Pantalla
85%
Rendimiento de juegos
89 / 85 → 100%
Rendimiento de la Aplicación
68 / 92 → 74%
Temperatura
78%
Ruido
93 / 95 → 98%
Audio
60%
Cámara
38 / 85 → 45%
Médio
76%
83%
Multimedia - media ponderada
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Archivo de análisis > Breve análisis del Samsung ATIV Book 8 Touch 880Z5E X01
Sascha Mölck, 2013-10- 2 (Update: 2013-10- 2)
