Intel Core i5-520M

Intel 520M

El Intel Core i5-520 es una CPU de doble nucleo para portatiles con una velocidad de reloj (debido al Modo Turbo) de 2.4 a 2.93 GHz. Cada nucleo está basado en la microarquitectura Nehalem (Westemere). La tecnología Hyperthreading permite a la CPU de doble nucleo manejar 4 hilos a la vez (para un mejor uso del pipeline). Comparado con el Core i7-630 la 520M presenta solo 3 MB de Cache de nivel 3 y una menor velocidad de reloj (CPU y GPU).

Una característica del nuevo Core i5-520M es la tarjeta gráfica integrada llamada GMA HD y el controlador de memoria. Ambos estan en un bloque diferente que está fabricado en 45 nm mientras que la CPU ya se fabrica en proceso 32 nm.

El rendimiento del i5 520M es de media más rápido que un Core 2 Duo T9500 y gracias al Turbo Boost, las aplicaciones de un solo hilo funcionan incluso mejor. Por tanto, la Core i5-520M es tan rápida como una CPU Cor 2 Duo con una alta velocidad de reloj y debería manejar bien la mayoria de los juegos y tareas multimedia.

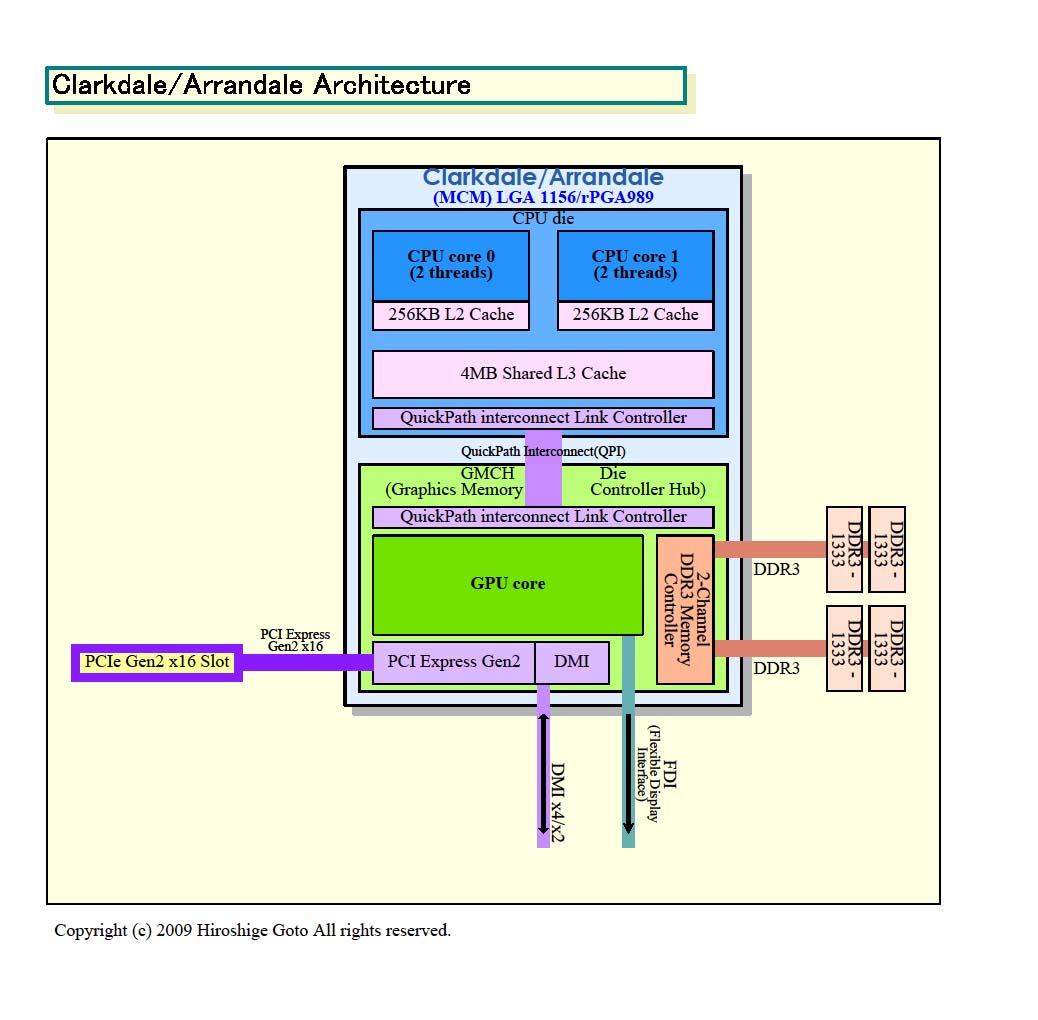

Los nucleos de 32 nm de la generación Westmere pueden procesar algunas instrucciones nuevas para acelerar encriptados AES.

La tarjeta gráfica Intel Graphics Media Acceleratos HD (GMA HD) se sabe que tiene una velocidad de reloj de 500-766 MHz y debería ser claramente más rápida que la anterior GMA 4500MHD. Una GeForce 9400M (ION) debería aún ser un poco más rápida (especialmente porque las tarjetas Nvidia y ATI tienen un mejor soporte de controladores hasta ahora).

Segun los rumores el nucle de la GMA usará tambien el Modo Turbo para regular la velocidad de reloj.

El consumo de corriente de 35 vatios de TDP (máximo) es para el paquete completo y por tanto es claramente mejor que los 35 vatios TDP de la serie T del Core 2 Duo (que eran solo para la CPU). Debido a Turbo Boost, el Core i5 usara el TDP bajo carga frente a las antiguas CPUs core 2 Duo. sin ninguna carga el i5 usa menos energía.

SeriesIntel Core i5
CodenameArrandale
Clock Rate2400 - 2933 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3072 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Millón
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 733MHz,
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $225 U.S.
Announcement Date01/04/2010
Product Link (external)Intel Core i5 520M

CPU Benchmarks

3DMark 06 - CPU:
0% 100%
min: 2602     avg: 2728.4 (30.56%)     max: 2817 Points
Super Pi mod 1.5 XS 1M:
0% 100%
min: 15     avg: 16.7 (98.31%)     max: 24 Seconds*
Super Pi mod 1.5 XS 2M:
0% 100%
min: 36     avg: 38.4 (99.25%)     max: 44 Seconds*
Super Pi Mod 1.5 XS 32M:
0% 100%
min: 848     avg: 898.9 (96.06%)     max: 1182 Seconds*
SiSoft Sandra Dhrystone (MIPS):
0% 100%
min: 31600     avg: 34552.9 (16.39%)     max: 39000 MIPS
SiSoft Sandra Whetstone (MFLOPS):
0% 100%
min: 25360     avg: 28514.3 (21.87%)     max: 35320 MFLOPS
PCMark 05: Standard 1024x768
0% 100%
min: 8082     avg: 8082 (48.47%)     max: 8082 Points
PCMark Vantage: Result 1024x768
0% 100%
min: 4464     avg: 6801.5 (28.04%)     max: 10721 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 2789     avg: 3017.3 (50.49%)     max: 3102 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 6114     avg: 6660.8 (24.41%)     max: 6925 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 7129     avg: 8021.6 (24.48%)     max: 8342 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 1799     avg: 3636.1 (47.12%)     max: 3957 Points
3DMark Vantage: P CPU no PhysX 1280x1024
0% 100%
min: 7304     avg: 7540.4 (20.39%)     max: 7658 Points
wPrime 2.0x: 32m
0% 100%
min: 19     avg: 26.6 (95.58%)     max: 44.633 seconds*
wPrime 2.0x: 1024m
0% 100%
min: 599     avg: 813.7 (91.79%)     max: 1427.826 seconds*
Windows 7 Experience Index: Processor
0% 100%
min: 5.2     avg: 6.6 (81.39%)     max: 6.8 points
Cinebench R11.5: CPU Multi 64Bit
0% 100%
min: 1.97     avg: 2.1 (16.35%)     max: 2.19 Points
- Range of benchmarks for this CPU
- Average benchmark score

Cinebench R10 in comparison
Intel Atom Z670 (min)
691
...
AMD Phenom II X4 N950
6554
Intel Core i3 380M
6557.6
Intel Core i5 450M
6649.5
Intel Core i5 520M
6660.8
Intel Core i7 2677M
6672
Intel Core i7 2617M
6690
Intel Core i3 2350M
6728.5
...
Intel Core i7 (Desktop) 3960X (max)
27189.5
