Intel Core i5-540M

El Intel Core i5-540M es una CPU de gama alta y dos nucleos para portatiles con una velocidad de reloj (gracias al Modo Turbo) de 2.66 a 3.33 GHz. Cada nucleo se basa en la microarquitectura Nehalem (Westemere). Hyperthreading permite a la CPU Dual Core majejar 4 hilos de forma simultanea (para un mejor uso de la pipeline). comparada con la rápida Core i7-620M, el 540M solo tiene 3MB de Cache de nivel 3 y una velocidad de reloj más baja.

Una característica de la nueva Core i5-540M es la tarjeta gráfica integrada llamada GMA HD y el controlador de memoria. Ambas estan en un 'die' distinto fabricado aún en 45 nm mientras que el de la CPU está fabricado en el nuevo proceso de 32 nm.

El rendimiento del Core i5-540M es de media superior al Core 2 Duo T9800 a 2.8 GHz y en algunas pruebas incluso más rápido que la Core 2 Duo T9900 (p.e. 3DMark 06 CPU). Por tanto, el Core i5-540M es una CPU doble nucleo de gama alta que debería manejar todo el trabajo diario y juegos. Solo las CPUs i7 de cuatro nucleos serán más rápidas en tareas que requieran cuatro o más nucleos (p.e. renderizado)

The power consumption of 35 Watt TDP (max.) counts for the whole package and therefore it is clearly better than the 35 Watt TDP of the Core 2 Duo T-series (CPU alone). Due to the Turbo Boost, the Core i5 is likely to use the whole TDP of 35 Watt under load and therefore can use more power than a similar specified Core 2 Duo. In Idle mode, the i5 uses clearly less power than the Core 2 Duo CPUs.

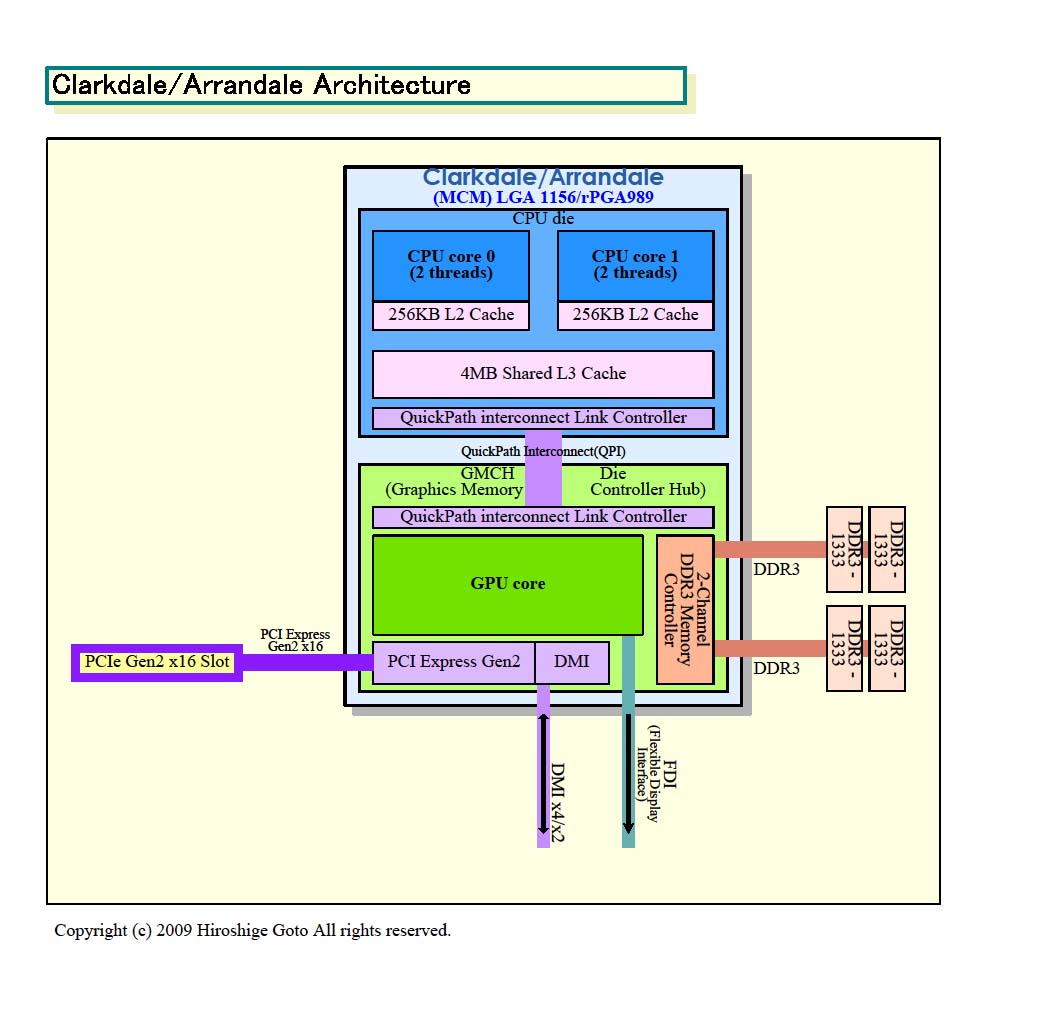

Los nucleos de CPU de 32nm de la generación Westemere puede tambien procesar algunas instrucciones nuevas para acelerar encriptados AEs. Comparado con las versiones i5 más lentas sin características AES, el 3DMark Vantage Communication Score mostró un incremento significativo con CPUs con AES activado.

La tarjeta gráfica Intel Graphics Media Accelerator HD (GMA HD) tiene una velocidad de reloj entre 500-733 MHz y rinde claramente mejor que la vieja GMA 4500MHD. Una GeForce 9400M (ION) debería ser aún ligeramente más rápida (especialmente porque las tarjetas Nvidia y ATI tienen un mejor soporte de controladores que Intel, al menos hasta ahora).

El consumo de 35 vatios TDP es para el paquete completo y por tanto es claramente mejor que los 35 vatios de TDP (unicamente la CPU) de la gama Core 2 Duo T. Debido a Turbo Boost el Core i5 parece usar el TDP completo bajo carga y por tanto puede usar más potencia que un Core 2 Duo de características similares. En modo reposo, el i5 usa claramente menos potencia que las CPUs Core 2 Duo.

CPU Benchmarks

3DMark 06 - CPU:

0% 100%

min: 2643     avg: 2813.9 (33%)     max: 2905 Points

10 mas detalles 10 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	2643
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	2722
EliteBook 8540p	4096 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 ForceWare 188.12	2772
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			2796
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	2816
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	2836
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	2884
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	2902
	4096 MB	Graphics Media Accelerator (GMA) HD Graphics		15.16.4.64.2008	2905
1280x800
ThinkPad T510	2048 MB	NVS 3100M	606 / 790MHz	512MB ForceWare 188.25	2863

C7-M C7-M-1200 1x 1.2GHz -93%

...

Core i3 380M 2x 2.5GHz -4%

Core i5 520M 2x 2.4 - 2.9GHz -3%

Core i7 2677M 2x 1.8 - 2.9GHz -3%

Core i3 2350M 2x 2.3GHz -3%

Core i5 2557M 2x 1.7 - 2.7GHz -2%

Core i7 2617M 2x 1.5 - 2.6GHz -2%

Core i5 450M 2x 2.4 - 2.7GHz -2%

Core 2 Duo T9900 2x 3.1GHz -1%

Core i3 390M 2x 2.7GHz 0%

Core i5 540M

Core i7 2637M 2x 1.7 - 2.8GHz 0%

A-Series A10-4600M 4x 2.3 - 3.2GHz 1%

Core 2 Extreme X9100 2x 3.1GHz 1%

Core 2 Quad Q9000 4x 2GHz 1%

Core i5 480M 2x 2.7 - 2.9GHz 2%

Core i5 2415M 2x 2.3 - 2.9GHz 3%

Phenom II X4 N930 4x 2GHz 3%

Core i5 460M 2x 2.5 - 2.8GHz 4%

Phenom II X4 N950 4x 2.1GHz 6%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 198%

0%

100%

Super Pi 1M:

0% 100%

min: 15     avg: 15 (3%)     max: 15 Seconds

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	15
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	15
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			15
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	15
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	15

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz -35%

...

Core i7 2657M 2x 1.6 - 2.7GHz -7%

Core i7 2635QM 4x 2 - 2.9GHz -7%

Core i7 820QM 4x 1.7 - 3.1GHz -7%

Core i5 2410M 2x 2.3 - 2.9GHz -6%

Core i7 2637M 2x 1.7 - 2.8GHz -6%

Core i5 560M 2x 2.7 - 3.2GHz -4%

Core i7 640LM 2x 2.1 - 2.9GHz -3%

Core i7 740QM 4x 1.7 - 2.9GHz -3%

Core i7 (Desktop) 920 4x 2.7 - 2.9GHz -1%

Core i5 540M

Core 2 Duo T9800 2x 2.9GHz 0%

Core i5 480M 2x 2.7 - 2.9GHz 0%

Core i7 2617M 2x 1.5 - 2.6GHz 2%

Core 2 Duo T9900 2x 3.1GHz 2%

Core i7 720QM 4x 1.6 - 2.8GHz 5%

Core 2 Duo P9700 2x 2.8GHz 7%

Core 2 Quad (Desktop) Q9550 4x 2.8GHz 7%

Core i5 460M 2x 2.5 - 2.8GHz 7%

Core i7 620LM 2x 2 - 2.8GHz 8%

...

C3-M C3-M-1200 1x 1.2GHz 2987%

0%

100%

Super Pi 2M:

0% 100%

min: 35     avg: 36.2 (2%)     max: 37 Seconds

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	35
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	36
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			36
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	37
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	37

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz -40%

...

Core i7 620M 2x 2.7 - 3.3GHz -10%

Core i5 580M 2x 2.7 - 3.3GHz -9%

Core i5 2557M 2x 1.7 - 2.7GHz -7%

Core 2 Extreme X9100 2x 3.1GHz -7%

Core i7 740QM 4x 1.7 - 2.9GHz -6%

Core i7 2617M 2x 1.5 - 2.6GHz -4%

Core i5 560M 2x 2.7 - 3.2GHz -3%

Core i7 720QM 4x 1.6 - 2.8GHz 0%

Core i5 480M 2x 2.7 - 2.9GHz 0%

Core i5 540M

Core i7 640LM 2x 2.1 - 2.9GHz 2%

Core 2 Duo T9900 2x 3.1GHz 2%

Core i5 460M 2x 2.5 - 2.8GHz 3%

Core 2 Duo T9800 2x 2.9GHz 5%

Core i3 2350M 2x 2.3GHz 5%

Core i7 620LM 2x 2 - 2.8GHz 5%

Core i5 520M 2x 2.4 - 2.9GHz 6%

Core 2 Duo P9700 2x 2.8GHz 8%

Core i5 2537M 2x 1.4 - 2.3GHz 8%

...

Celeron Dual-Core T1400 2x 1.7GHz 6364%

0%

100%

Super Pi 32M:

0% 100%

min: 822     avg: 847.6 (4%)     max: 867 Seconds

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	822
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	848
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	850
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			851
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	867

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz -36%

...

Core i7 2637M 2x 1.7 - 2.8GHz -10%

Core i5 2557M 2x 1.7 - 2.7GHz -9%

Core i5 580M 2x 2.7 - 3.3GHz -8%

Core i7 620M 2x 2.7 - 3.3GHz -7%

Core i7 (Desktop) 920 4x 2.7 - 2.9GHz -7%

Core i7 820QM 4x 1.7 - 3.1GHz -7%

Core i5 560M 2x 2.7 - 3.2GHz -5%

Core i7 740QM 4x 1.7 - 2.9GHz -4%

Core i7 2617M 2x 1.5 - 2.6GHz -4%

Core i5 540M

Core i5 480M 2x 2.7 - 2.9GHz 1%

Core i7 720QM 4x 1.6 - 2.8GHz 2%

Core i7 640LM 2x 2.1 - 2.9GHz 4%

Core i5 520M 2x 2.4 - 2.9GHz 6%

Core 2 Extreme X9100 2x 3.1GHz 7%

Core i3 2350M 2x 2.3GHz 8%

Core i5 450M 2x 2.4 - 2.7GHz 8%

Core i5 460M 2x 2.5 - 2.8GHz 8%

Core i7 620LM 2x 2 - 2.8GHz 9%

...

C3-M C3-M-1200 1x 1.2GHz 2556%

0%

100%

SiSoft Sandra Dhrystone (MIPS):

0% 100%

min: 32820     avg: 34952.5 (17%)     max: 40000 MIPS

4 mas detalles 4 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	32820
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	33050
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	33940
	4096 MB	Graphics Media Accelerator (GMA) HD Graphics		15.16.4.64.2008	40000

Geode LX 800 1x 0.5GHz -98%

...

Phenom II X2 X640 BE 2x 3.2GHz -10%

Phenom II X4 N970 4x 2.2GHz -8%

Core i3 370M 2x 2.4GHz -7%

Core 2 Extreme X9100 2x 3.1GHz -7%

Core i5 450M 2x 2.4 - 2.7GHz -6%

Core i5 2467M 2x 1.6 - 2.3GHz -5%

Pentium B960 2x 2.2GHz -4%

A-Series A10-4600M 4x 2.3 - 3.2GHz -2%

Core i5 520M 2x 2.4 - 2.9GHz -1%

Core i5 540M

Core i3 2330M 2x 2.2GHz 0%

Core 2 Quad Q9000 4x 2GHz 5%

Core i5 480M 2x 2.7 - 2.9GHz 9%

Core i5 460M 2x 2.5 - 2.8GHz 10%

Core i5 2557M 2x 1.7 - 2.7GHz 10%

Core i7 620M 2x 2.7 - 3.3GHz 12%

Core i3 390M 2x 2.7GHz 12%

Core 2 Quad (Desktop) Q6600 4x 2.4GHz 13%

Core i7 2657M 2x 1.6 - 2.7GHz 16%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 436%

0%

100%

SiSoft Sandra Whetstone (MFLOPS):

0% 100%

min: 26630     avg: 27545.8 (21%)     max: 29923 MFLOPS

4 mas detalles 4 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	26630
	4096 MB	Graphics Media Accelerator (GMA) HD Graphics		15.16.4.64.2008	26650
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	26980
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	29923

Geode LX 800 1x 0.5GHz -99%

...

Phenom II X4 N950 4x 2.1GHz -12%

Core 2 Extreme X9100 2x 3.1GHz -11%

Core i7 620LM 2x 2 - 2.8GHz -11%

Phenom II X4 N970 4x 2.2GHz -8%

Core i3 370M 2x 2.4GHz -8%

Core i7 2657M 2x 1.6 - 2.7GHz -6%

Core i3 380M 2x 2.5GHz -5%

Core 2 Quad Q9000 4x 2GHz -2%

Core i3 390M 2x 2.7GHz -1%

Core i5 540M

Core i5 460M 2x 2.5 - 2.8GHz 2%

Core i5 2557M 2x 1.7 - 2.7GHz 3%

Core i5 520M 2x 2.4 - 2.9GHz 4%

Core 2 Quad Q9100 4x 2.3GHz 4%

Core i7 620M 2x 2.7 - 3.3GHz 5%

Core i5 450M 2x 2.4 - 2.7GHz 6%

Core 2 Quad (Desktop) Q6600 4x 2.4GHz 6%

Core i5 480M 2x 2.7 - 2.9GHz 8%

Core i7 2637M 2x 1.7 - 2.8GHz 8%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 370%

0%

100%

PCMark 05: Standard 1024x768

0% 100%

min: 6030     avg: 6498.5 (41%)     max: 6967 Points

2 mas detalles 2 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	6030
ThinkPad T510	2048 MB	NVS 3100M	606 / 790MHz	512MB ForceWare 188.25	6967

Atom Z520 1x 1.3GHz -85%

...

Core 2 Duo T9300 2x 2.5GHz -12%

Core i7 640LM 2x 2.1 - 2.9GHz -12%

Core 2 Duo T9400 2x 2.5GHz -9%

Core 2 Duo P9500 2x 2.5GHz -5%

Core 2 Duo (Desktop) E6850 2x 3GHz -4%

A-Series A8-3500M 4x 1.5 - 2.4GHz -4%

Core 2 Duo T9500 2x 2.6GHz -3%

Core i5 430M 2x 2.3 - 2.5GHz -2%

Core i5 450M 2x 2.4 - 2.7GHz -2%

Core i5 540M

Core 2 Duo T9550 2x 2.7GHz 1%

Core 2 Duo T9800 2x 2.9GHz 2%

Core 2 Duo T9600 2x 2.8GHz 4%

Core i7 740QM 4x 1.7 - 2.9GHz 5%

Core i7 620M 2x 2.7 - 3.3GHz 5%

Core i5 460M 2x 2.5 - 2.8GHz 6%

Core i7 720QM 4x 1.6 - 2.8GHz 7%

Core i5 560M 2x 2.7 - 3.2GHz 7%

Core 2 Quad Q9000 4x 2GHz 10%

...

Core i7 (Desktop) 980X EE 6x 3.3 - 3.6GHz 145%

0%

100%

PCMark Vantage: Result 1024x768

0% 100%

min: 5038     avg: 5834.3 (28%)     max: 6482 Points

6 mas detalles 6 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	5038
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			5575
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	5749
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	5863
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	6299
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	6482

Atom Z530 1x 1.6GHz -82%

...

Core i3 390M 2x 2.7GHz -8%

Core i5 430M 2x 2.3 - 2.5GHz -8%

Core i3 2310M 2x 2.1GHz -7%

Core i5 2415M 2x 2.3 - 2.9GHz -6%

Core i7 720QM 4x 1.6 - 2.8GHz -6%

A-Series A6-3410MX 4x 1.6 - 2.3GHz -4%

Core i3 2367M 2x 1.4GHz -3%

Core i5 460M 2x 2.5 - 2.8GHz -2%

Core 2 Duo SP9600 2x 2.5GHz 0%

Core i5 540M

Core i5 480M 2x 2.7 - 2.9GHz 0%

Core i7 740QM 4x 1.7 - 2.9GHz 3%

Core 2 Quad (Desktop) Q9550 4x 2.8GHz 7%

Core i7 820QM 4x 1.7 - 3.1GHz 7%

Core i7 840QM 4x 1.9 - 3.2GHz 9%

Core i5 2430M 2x 2.4 - 3GHz 10%

Core i5 2410M 2x 2.3 - 2.9GHz 11%

Core i7 2635QM 4x 2 - 2.9GHz 11%

Core i7 (Desktop) 920 4x 2.7 - 2.9GHz 13%

...

Core i7 3720QM 4x 2.6 - 3.6GHz 225%

0%

100%

Cinebench R10: Rendering Single 32Bit

0% 100%

min: 3061     avg: 3140.8 (51%)     max: 3214 Points

8 mas detalles 8 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	3061
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	3102
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	3120
EliteBook 8540p	4096 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 ForceWare 188.12	3124
ThinkPad T510	2048 MB	NVS 3100M	606 / 790MHz	512MB ForceWare 188.25	3141
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	3179
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			3185
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	3214

Geode LX 800 1x 0.5GHz -96%

...

Core i5 520M 2x 2.4 - 2.9GHz -4%

Core i3 2350M 2x 2.3GHz -3%

Core i7 640LM 2x 2.1 - 2.9GHz -3%

Core 2 Duo (Desktop) E6850 2x 3GHz -3%

Core i7 740QM 4x 1.7 - 2.9GHz -1%

Core i5 460M 2x 2.5 - 2.8GHz -1%

Core 2 Quad (Desktop) Q9550 4x 2.8GHz -1%

Core i7 720QM 4x 1.6 - 2.8GHz -1%

Core 2 Extreme QX9300 4x 2.5GHz 0%

Core i5 540M

Core 2 Extreme X9000 2x 2.8GHz 2%

Core i5 480M 2x 2.7 - 2.9GHz 2%

Core 2 Duo T9600 2x 2.8GHz 2%

Core i7 2617M 2x 1.5 - 2.6GHz 6%

Core 2 Duo P9700 2x 2.8GHz 6%

Core i5 560M 2x 2.7 - 3.2GHz 7%

Core i5 2557M 2x 1.7 - 2.7GHz 9%

Core i7 840QM 4x 1.9 - 3.2GHz 9%

Core i7 820QM 4x 1.7 - 3.1GHz 10%

...

Core i7 3820QM 4x 2.7 - 3.7GHz 71%

0%

100%

Cinebench R10: Rendering Multiple CPUs 32Bit

0% 100%

min: 6545     avg: 6950.4 (25%)     max: 7211 Points

8 mas detalles 8 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	6545
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	6717
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			6874
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	7028
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	7033
EliteBook 8540p	4096 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 ForceWare 188.12	7034
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	7161
ThinkPad T510	2048 MB	NVS 3100M	606 / 790MHz	512MB ForceWare 188.25	7211

Atom Z670 1x 1.5GHz -90%

...

Phenom II X4 N950 4x 2.1GHz -6%

Core i5 450M 2x 2.4 - 2.7GHz -4%

Core i5 520M 2x 2.4 - 2.9GHz -4%

Core i7 2677M 2x 1.8 - 2.9GHz -4%

Core i7 2617M 2x 1.5 - 2.6GHz -4%

Core i3 2350M 2x 2.3GHz -2%

Phenom II X4 N970 4x 2.2GHz -2%

Core 2 Duo T9800 2x 2.9GHz -2%

Core 2 Duo T9900 2x 3.1GHz -1%

Core i5 540M

Phenom II X4 X920 BE 4x 2.3GHz 1%

Core i5 460M 2x 2.5 - 2.8GHz 2%

Core i7 2637M 2x 1.7 - 2.8GHz 2%

Core i5 480M 2x 2.7 - 2.9GHz 3%

Core 2 Extreme X9100 2x 3.1GHz 5%

Core i5 2415M 2x 2.3 - 2.9GHz 7%

Core i5 560M 2x 2.7 - 3.2GHz 8%

Core i7 620M 2x 2.7 - 3.3GHz 9%

Core i5 580M 2x 2.7 - 3.3GHz 11%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 291%

0%

100%

Cinebench R10: Rendering Multiple CPUs 64Bit

0% 100%

min: 7844     avg: 8348.8 (25%)     max: 8600 Points

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	7844
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	8315
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			8408
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	8577
	4096 MB	Graphics Media Accelerator (GMA) HD Graphics		15.16.4.64.2008	8600

C-Series C-50 2x 1GHz -84%

...

Core i7 2677M 2x 1.8 - 2.9GHz -6%

Core i3 2330M 2x 2.2GHz -6%

Core i5 520M 2x 2.4 - 2.9GHz -4%

A-Series A10-4600M 4x 2.3 - 3.2GHz -3%

Core i5 450M 2x 2.4 - 2.7GHz -3%

Core i7 2617M 2x 1.5 - 2.6GHz -3%

Core i3 2350M 2x 2.3GHz -1%

Core i5 2557M 2x 1.7 - 2.7GHz 0%

Phenom II X4 N970 4x 2.2GHz 0%

Core i5 540M

Phenom II X4 X920 BE 4x 2.3GHz 0%

Core i5 460M 2x 2.5 - 2.8GHz 1%

Core i5 480M 2x 2.7 - 2.9GHz 3%

Core 2 Quad Q9000 4x 2GHz 3%

Core i7 620M 2x 2.7 - 3.3GHz 4%

Core i7 2637M 2x 1.7 - 2.8GHz 5%

Core i5 580M 2x 2.7 - 3.3GHz 5%

Core i5 560M 2x 2.7 - 3.2GHz 6%

Core i5 2415M 2x 2.3 - 2.9GHz 10%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 289%

0%

100%

Cinebench R10: Rendering Single CPUs 64Bit

0% 100%

min: 3237     avg: 3785.2 (59%)     max: 3991 Points

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	3237
	4096 MB	Graphics Media Accelerator (GMA) HD Graphics		15.16.4.64.2008	3800
MB6	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			3938
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	3960
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	3991

C-Series C-50 2x 1GHz -81%

...

Pentium B960 2x 2.2GHz -7%

Core i3 390M 2x 2.7GHz -7%

Core i5 2467M 2x 1.6 - 2.3GHz -7%

Core i5 450M 2x 2.4 - 2.7GHz -6%

Core i3 2330M 2x 2.2GHz -4%

Core i5 520M 2x 2.4 - 2.9GHz -4%

Core i5 2537M 2x 1.4 - 2.3GHz -4%

Core i7 720QM 4x 1.6 - 2.8GHz -3%

Core i3 2350M 2x 2.3GHz -1%

Core i5 540M

Core i5 460M 2x 2.5 - 2.8GHz 1%

Core i7 640LM 2x 2.1 - 2.9GHz 2%

Core i7 740QM 4x 1.7 - 2.9GHz 2%

Core i5 480M 2x 2.7 - 2.9GHz 4%

Core i7 820QM 4x 1.7 - 3.1GHz 4%

Core i5 580M 2x 2.7 - 3.3GHz 8%

Core i7 620M 2x 2.7 - 3.3GHz 9%

Core i5 560M 2x 2.7 - 3.2GHz 9%

Core i7 2617M 2x 1.5 - 2.6GHz 9%

...

Core i7 3920XM 4x 2.9 - 3.8GHz 70%

0%

100%

3DMark Vantage: P CPU no PhysX 1280x1024

0% 100%

min: 7801     avg: 7897.2 (18%)     max: 7994 Points

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	7801
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	7842
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	7904
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	7945
HP Envy 15	4096 MB	Mobility Radeon HD 5830		DDR3 8.681	7994

Atom N450 1x 1.7GHz -90%

...

Core i3 2350M 2x 2.3GHz -6%

Core i5 2557M 2x 1.7 - 2.7GHz -6%

Core i5 450M 2x 2.4 - 2.7GHz -5%

Core i5 520M 2x 2.4 - 2.9GHz -5%

Core i5 460M 2x 2.5 - 2.8GHz -3%

Phenom II X4 X920 BE 4x 2.3GHz -3%

Core i7 2657M 2x 1.6 - 2.7GHz -2%

Core i5 480M 2x 2.7 - 2.9GHz -2%

Core i7 2637M 2x 1.7 - 2.8GHz -1%

Core i5 540M

Core i5 560M 2x 2.7 - 3.2GHz 4%

Core i7 620M 2x 2.7 - 3.3GHz 6%

Core i5 580M 2x 2.7 - 3.3GHz 7%

Core i7 640M 2x 2.8 - 3.5GHz 14%

Core i5 2520M 2x 2.5 - 3.2GHz 15%

A-Series (Desktop) A8-3850 4x 2.9GHz 20%

Core i5 2430M 2x 2.4 - 3GHz 20%

Core i5 2540M 2x 2.6 - 3.3GHz 26%

Core i5 2410M 2x 2.3 - 2.9GHz 30%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 366%

0%

100%

wPrime 2.0x: 32m

0% 100%

min: 18.1     avg: 23.5 (5%)     max: 42.5 seconds

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	18.4
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	18.1
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	18.6
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	19.9
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	42.5

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz -78%

...

Core i3 380M 2x 2.5GHz -15%

Core i7 2637M 2x 1.7 - 2.8GHz -11%

Core i3 370M 2x 2.4GHz -8%

A-Series A8-3520M 4x 1.6 - 2.5GHz -7%

A-Series A6-3410MX 4x 1.6 - 2.3GHz -6%

Core i7 620M 2x 2.7 - 3.3GHz -4%

Core i3 390M 2x 2.7GHz -4%

Phenom II X3 N850 3x 2.2GHz 0%

Core i7 740QM 4x 1.7 - 2.9GHz 0%

Core i5 540M

Core i5 430M 2x 2.3 - 2.5GHz 0%

A-Series A6-3420M 4x 1.5 - 2.4GHz 1%

Core i5 2557M 2x 1.7 - 2.7GHz 1%

Core i3 2350M 2x 2.3GHz 1%

Core i7 640M 2x 2.8 - 3.5GHz 2%

Phenom II X4 P920 4x 1.6GHz 2%

Phenom II X4 P960 4x 1.8GHz 2%

Core i7 2617M 2x 1.5 - 2.6GHz 3%

A-Series A8-3500M 4x 1.5 - 2.4GHz 3%

...

C3-M C3-M-1200 1x 1.2GHz 1049%

0%

100%

wPrime 2.0x: 1024m

0% 100%

min: 569     avg: 740 (9%)     max: 1352 seconds

5 mas detalles 5 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	569
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	575.8
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	576.8
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	626.4
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	1352

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz -79%

...

Core i3 370M 2x 2.4GHz -9%

A-Series A8-3520M 4x 1.6 - 2.5GHz -9%

Core i3 390M 2x 2.7GHz -8%

A-Series A6-3410MX 4x 1.6 - 2.3GHz -7%

Phenom II X4 P960 4x 1.8GHz -5%

Core i5 430M 2x 2.3 - 2.5GHz -2%

Core i7 740QM 4x 1.7 - 2.9GHz -1%

Core i7 2677M 2x 1.8 - 2.9GHz -1%

Core i7 2637M 2x 1.7 - 2.8GHz -1%

Core i5 540M

A-Series A6-3420M 4x 1.5 - 2.4GHz 0%

Core i3 2350M 2x 2.3GHz 0%

Phenom II X3 N850 3x 2.2GHz 1%

A-Series A8-3500M 4x 1.5 - 2.4GHz 3%

Phenom II X4 P920 4x 1.6GHz 4%

Core i5 2557M 2x 1.7 - 2.7GHz 4%

Core i7 640M 2x 2.8 - 3.5GHz 4%

Core i3 2330M 2x 2.2GHz 6%

Core i7 2617M 2x 1.5 - 2.6GHz 6%

...

C3-M C3-M-1200 1x 1.2GHz 1043%

0%

100%

Windows 7 Experience Index: Processor

0% 100%

min: 5.2     avg: 6.4 (82%)     max: 6.8 points

6 mas detalles 6 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	5.2
EliteBook 2740p	2048 MB	Graphics Media Accelerator (GMA) HD Graphics	766 / MHz	shared memory igdumdx32 8.15.10.2057 / Win7	6.4
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	6.8
EliteBook 8540p	2048 MB	Quadro NVS 5100M	550 / 790MHz	1024MB DDR3 8.17.11.9805 - nVidia Forceware 198.05	6.6
Latitude E4310	4096 MB	Graphics Media Accelerator (GMA) HD Graphics			6.6
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	6.8

Athlon Neo MV-40 1x 1.6GHz -64%

...

Core 2 Duo P8600 2x 2.4GHz -6%

Core 2 Duo P8700 2x 2.5GHz -5%

Core i3 330M 2x 2.1GHz -4%

Phenom II X3 N830 3x 2.1GHz -4%

Phenom II X3 N850 3x 2.2GHz -3%

Phenom II X4 P920 4x 1.6GHz -3%

Core i5 2467M 2x 1.6 - 2.3GHz -2%

Core 2 Duo P8800 2x 2.7GHz -2%

Core i3 350M 2x 2.3GHz -1%

Core i5 540M

Core i3 2310M 2x 2.1GHz 1%

Core i7 640LM 2x 2.1 - 2.9GHz 2%

Core i3 2330M 2x 2.2GHz 2%

A-Series A8-3500M 4x 1.5 - 2.4GHz 3%

Core i7 2657M 2x 1.6 - 2.7GHz 3%

A-Series A6-3410MX 4x 1.6 - 2.3GHz 3%

Phenom II X4 P960 4x 1.8GHz 3%

A-Series A6-3400M 4x 1.4 - 2.3GHz 3%

Core i5 430M 2x 2.3 - 2.5GHz 3%

...

Core i7 (Desktop) 990X EE 6x 3.5 - 3.7GHz 22%

0%

100%

Cinebench R11.5: CPU 64Bit

0% 100%

min: 2.16     avg: 2.2 (21%)     max: 2.29 Points

4 mas detalles 4 mas detalles    Show comparison chart Hide comparison chart

Model	Memory	GPU			Result
ThinkPad X201	4096 MB	Graphics Media Accelerator (GMA) HD Graphics	500 / MHz	shared memory igdumd64 8.15.10.2008/Win7 64	2.21
MacBook Pro 17 inch 2010-04	4096 MB	GeForce GT 330M	500 / 790MHz	512MB DDR3 196.21	2.2
ThinkPad T410s NUHFWPB	4096 MB	NVS 3100M	606 / 790MHz	512MB dodatkowo Intel GMA HD ForceWare 188.98	2.16
EasyNote TX86-JO-025FR	4096 MB	GeForce GT 330M	575 / 790MHz	1024MB 189.79	2.29

Atom Z670 1x 1.5GHz -90%

...

A-Series A10-4600M 4x 2.3 - 3.2GHz -7%

Core i7 2617M 2x 1.5 - 2.6GHz -5%

Core i3 380M 2x 2.5GHz -5%

Core i3 2330M 2x 2.2GHz -4%

Core i5 450M 2x 2.4 - 2.7GHz -4%

Core i7 2677M 2x 1.8 - 2.9GHz -4%

Core i5 520M 2x 2.4 - 2.9GHz -4%

Core i3 390M 2x 2.7GHz -2%

Core i3 2350M 2x 2.3GHz 0%

Core i5 540M

Core i5 2557M 2x 1.7 - 2.7GHz 0%

Core i5 460M 2x 2.5 - 2.8GHz 1%

Core i7 2637M 2x 1.7 - 2.8GHz 1%

Phenom II X4 N930 4x 2GHz 3%

Core i5 480M 2x 2.7 - 2.9GHz 3%

Core 2 Quad Q9000 4x 2GHz 7%

Core i7 620M 2x 2.7 - 3.3GHz 8%

Core i5 560M 2x 2.7 - 3.2GHz 8%

Core i5 2415M 2x 2.3 - 2.9GHz 9%

...

Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 375%

0%

100%

- Range of benchmarks for this CPU
- Average benchmark score

Reviews for the Intel Core i5 540M processor

Apple MacBook Pro 17 inch 2010-04 (NVIDIA GeForce GT 330M, 17.0")
» Análisis del Portátil Apple MacBook Pro 17 pulgadas 2010-04 - análise
» Apple MacBook Pro 17 inch 2010-04 - análise externo

Asus K42F (Intel Graphics Media Accelerator (GMA) 4500MHD, 14.0")
» Asus K42F - análise externo

Asus K42JV-VX054V (NVIDIA GeForce GT 335M, 14.0")
» Asus K42JV-VX054V - análise externo

Asus N53jf (NVIDIA GeForce GT 425M, 15.6")
» Asus N53jf - análise externo

Asus N73Jg (NVIDIA GeForce GT 415M, 17.3")
» Asus N73Jg - análise externo

Asus U43j (NVIDIA GeForce 310M, 14.0")
» Asus U43j - análise externo

Dell Latitude E4310 (Intel Graphics Media Accelerator (GMA) HD Graphics, 13.3")
» Dell Latitude E4310 - análise externo

HP EliteBook 2740p (Intel Graphics Media Accelerator (GMA) HD Graphics, 12.1")
» Análisis del Portátil HP EliteBook 2740p - análise
» HP EliteBook 2740p - análise externo

HP EliteBook 8440p-WL653PA (Intel Graphics Media Accelerator (GMA) HD Graphics, 14.0")
» HP EliteBook 8440p-WL653PA - análise externo

HP EliteBook 8540p (NVIDIA Quadro NVS 5100M, 15.6")
» HP EliteBook 8540p - análise externo
» HP EliteBook 8540p - análise externo

HP EliteBook 8540w-WD928EA (NVIDIA Quadro FX 880M, 15.6")
» HP EliteBook 8540w-WD928EA - análise externo

Lenovo Ideapad G560 (NVIDIA GeForce 310M, 15.6")
» Lenovo Ideapad G560 - análise externo

Lenovo ThinkPad X201 (Intel Graphics Media Accelerator (GMA) HD Graphics, 12.1")
» Análisis del portátil Lenovo ThinkPad X201 - análise
» Lenovo ThinkPad X201 - análise externo

Packard Bell EasyNote TX86-JO-025FR (NVIDIA GeForce GT 330M, 15.6")
» Packard Bell EasyNote TX86-JO-025FR - análise externo

Packard Bell Easynote TX86-MS2300 (NVIDIA GeForce GT 330M, 15.6")
» Packard Bell Easynote TX86-MS2300 - análise externo

Other CPUs of the series Intel Core i5

Surrounding CPUs
