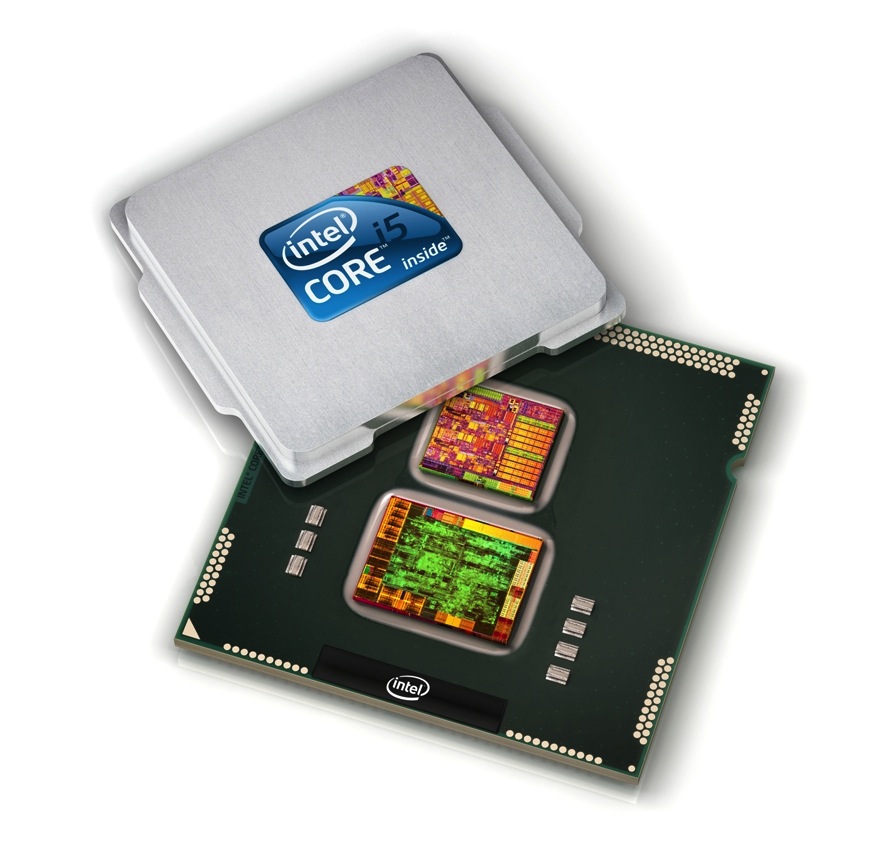

Intel Core i5-580M

El Intel Core i5-580M es un CPU dual core avanzado para portátiles y (gracias al Modo Turbo) funciona a una frecuencia de 2,66 hasta 3,33 GHz. Cada núcleo se basa en la micro-arquitectura Nehalem (Westemere). El Hyperthreading permite que el CPU Dual Core maneje 4 threads de una vez (para un mejor uso del pipeline). Comparado con el Core i7-620M, el 580M tiene un cache de nivel 3 de apenas 3 MB.
Una característica del nuevo i5-580M es la tarjeta de video integrada llamada GMA HD y controlador de memoria para DDR3-800/1066. Ambos están en una matriz separada que aún es fabricada en 45nm mientras que la matriz del CPU ya es fabricada en el nuevo proceso de 32nm.
El rendimiento del Core i5-580M debe estar un poco más allá del Core i7-620M y por lo tanto es el segundo CPU dual core más veloz para portátiles en 2010. Comparado con los antiguos modelos Core 2 Duo, el i5-580M debe ser más veloz que el T9900. Por eso el Core i5-580M es un cpu dual core avanzado que debe encargarse de todo el trabajo cotidiano y juegos. Sólo los CPUs quad core i7 pueden ser notoriamente más veloces en tareas que requieren cuatro o más threads (por ejemplo, en rendering).
Los núcleos de cpu de 32nm de la generación Westmere también pueden procesar algunas nuevas instrucciones para acelerar encriptaciones AES.
La tarjeta de video integrada Intel Graphics Media Accelerator HD (GMA HD) es conocida por funcionar con frecuencias de hasta 500-766 MHz y debe ser claramente más rápida que la antigua GMA 4500MHD. Una GeForce 9400M (ION) aún debe ser más veloz (especialmente porque la tarjetas Nvidia y ATI poseen un mejor soporte de controladores que Intel, hasta hora). Según los rumores, el núcleo GMA también usará el modo Turbo para regular la velocidad de frecuencia.
El consumo de energía de 35 Watt TDP (máx.) es de todo el paquete y por lo tanto es claramente mejor que los 35 Watt de TDP de la serie-T Core 2 Duo (sólo CPU). Debido al Turbo Boost, es probable que el Core i5 use todo el TDP de 35 Watt bajo carga de trabajo y por lo tanto puede usar más energía que un Core 2 Duo con especificaciones similares. En modo Inactivo, el i5 usa menos energía que los CPUs Core 2 Duo.
| Series | Intel Core i5 |
| Codename | Arrandale |
| Clock Rate | 2666 - 3333 MHz |
| Front Side Bus | 4800 MHz |
| Level 1 Cache | 128 KB |
| Level 2 Cache | 512 KB |
| Level 3 Cache | 3072 KB |
| Number of Cores / Threads | 2 / 4 |
| Max. Power Consumption (TDP = Thermal Design Power) | 35 Watt |
| Transistor Count | 382+177 Millón |
| Manufacturing Technology | 32 nm |
| Die Size | 81+114 mm2 |
| Max. Temperature | 105 °C |
| Socket | BGA1288, PGA988 |
| Features | Turbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 500-733MHz, Dual Channel DDR3 memory controller |
| 64 Bit | 64 Bit support |
| Hardware Virtualization | VT-x, VT-d |
| Starting Price | $266 U.S. |
| Announcement Date | 09/26/2010 |
| Product Link (external) | Intel Core i5 580M |
CPU Benchmarks
3DMark 06 - CPU:
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 3126 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 3222 |
C7-M C7-M-1200 1x 1.2GHz -94%
...
Phenom II X4 N950 4x 2.1GHz -6%
Phenom II X4 N970 4x 2.2GHz -4%
Pentium (Desktop) G860 2x 3GHz -3%
Core i3 3120M 2x 2.5GHz -3%
Core 2 Quad Q9100 4x 2.3GHz 4%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 163%
Super Pi mod 1.5 XS 1M:
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 13 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 13 |
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 14 |
Core i7 (Desktop) 3770K 4x 3.5 - 3.9GHz -30%
...
Pentium (Desktop) G860 2x 3GHz -2%
Core i7 (Desktop) 940 4x 2.9 - 3.2GHz -1%
Core i5 (Desktop) 750 4x 2.7 - 3.2GHz 1%
...
C3-M C3-M-1200 1x 1.2GHz 3373%
Super Pi mod 1.5 XS 2M:
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 32 |
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 33 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 34 |
Core i7 (Desktop) 3770K 4x 3.5 - 3.9GHz -36%
...
Core i3 3120M 2x 2.5GHz 5%
...
Super Pi Mod 1.5 XS 32M:
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 769 |
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 773 |
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 801 |
Core i7 (Desktop) 3770K 4x 3.5 - 3.9GHz -34%
...
Core i7 (Desktop) 920 4x 2.7 - 2.9GHz 1%
Core i3 3120M 2x 2.5GHz 6%
...
C3-M C3-M-1200 1x 1.2GHz 2783%
SiSoft Sandra Dhrystone (MIPS):
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 43800 |
Geode LX 800 1x 0.5GHz -98%
...
Core 2 Quad (Desktop) Q6600 4x 2.4GHz -10%
Core i3 2328M 2x 2.2GHz -10%
Core 2 Quad Q9100 4x 2.3GHz -5%
Core i3 3120M 2x 2.5GHz -2%
Core i5 2415M 2x 2.3 - 2.9GHz 6%
Core 2 Quad (Desktop) Q9550 4x 2.8GHz 6%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 343%
SiSoft Sandra Whetstone (MFLOPS):
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 31750 |
Geode LX 800 1x 0.5GHz -99%
...
Core 2 Quad (Desktop) Q6600 4x 2.4GHz -8%
Phenom II X4 (Desktop) 905e 4x 2.5GHz -7%
Core i3 3120M 2x 2.5GHz 0%
Core i5 3437U 2x 1.9 - 2.9GHz 4%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 308%
PCMark Vantage: Result 1024x768
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 5471 |
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 10926 |
...
Core i7 (Desktop) 940 4x 2.9 - 3.2GHz -7%
Core i5 3230M 2x 2.6 - 3.2GHz -4%
Core i5 (Desktop) 2500K 4x 3.3 - 3.7GHz -2%
...
Cinebench R10: Rendering Single 32Bit
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 3511 |
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 3519 |
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 3606 |
Geode LX 800 1x 0.5GHz -96%
...
Core i3 3120M 2x 2.5GHz -3%
Core i5 (Desktop) 750 4x 2.7 - 3.2GHz -2%
Core i7 (Desktop) 940 4x 2.9 - 3.2GHz 0%
Core i5 2415M 2x 2.3 - 2.9GHz 3%
...
Core i7 (Desktop) 3770K 4x 3.5 - 3.9GHz 56%
Cinebench R10: Rendering Multiple CPUs 32Bit
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 7591 |
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 7666 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 7842 |
...
Core i5 2415M 2x 2.3 - 2.9GHz -3%
Pentium (Desktop) G860 2x 3GHz 0%
Phenom II X4 (Desktop) 905e 4x 2.5GHz 7%
Core i5 3437U 2x 1.9 - 2.9GHz 8%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 253%
Cinebench R10: Rendering Multiple CPUs 64Bit
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 7549 |
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 9273 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 9411 |
...
Pentium (Desktop) G860 2x 3GHz 4%
Core i5 2415M 2x 2.3 - 2.9GHz 5%
Core i3 3120M 2x 2.5GHz 10%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 271%
Cinebench R10: Rendering Single CPUs 64Bit
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 3535 |
| MB6.A | | Graphics Media Accelerator (GMA) HD Graphics | | | 4374 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 4377 |
...
A-Series (Desktop) AMD A8-5600K 4x 3.6 - 3.9GHz -3%
A-Series (Desktop) AMD A10-5800K 4x 3.8 - 4.2GHz 2%
...
Core i7 (Desktop) 3770K 4x 3.5 - 3.9GHz 70%
3DMark Vantage: P CPU no PhysX 1280x1024
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 8375 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 8540 |
...
Core i3 3120M 2x 2.5GHz 1%
Core i5 3437U 2x 1.9 - 2.9GHz 5%
...
Core i7 (Desktop) 3960X 6x 3.3 - 3.9GHz 333%
Windows 7 Experience Index: Processor
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 6.9 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 6.9 |
...
A-Series A8-3520M 4x 1.6 - 2.5GHz -1%
Core i3 380M 2x 2.5GHz -1%
Phenom II X4 N950 4x 2.1GHz 0%
Phenom II X4 N970 4x 2.2GHz 0%
Core i5 2415M 2x 2.3 - 2.9GHz 0%
A-Series A8-3510MX 4x 1.8 - 2.5GHz 0%
...
Core i7 (Desktop) 990X EE 6x 3.5 - 3.7GHz 13%
Cinebench R11.5: CPU Multi 64Bit
| ThinkPad T410s - 2924-9HG | 4096 MB | NVS 3100M | 606 / 790MHz | 512MB nvlddmkm 8.17.12.5738 (ForceWare 257.38) / Win7 64 | 2.41 |
| XMG A500 | 8192 MB | GeForce GT 425M | 560 / 700MHz | 1024MB Shadertakt: 1120 MHz, DDR3 ForceWare 259.39 | 2.5 |
...
Pentium (Desktop) G860 2x 3GHz -5%
Core i5 2415M 2x 2.3 - 2.9GHz -1%
Core i3 3120M 2x 2.5GHz 1%
Phenom II X4 N970 4x 2.2GHz 2%
Core i5 3437U 2x 1.9 - 2.9GHz 9%
...
Xeon (Desktop) E5-2680 8x 2.7 - 3.5GHz 387%

- Range of benchmarks for this CPU

- Average benchmark score
