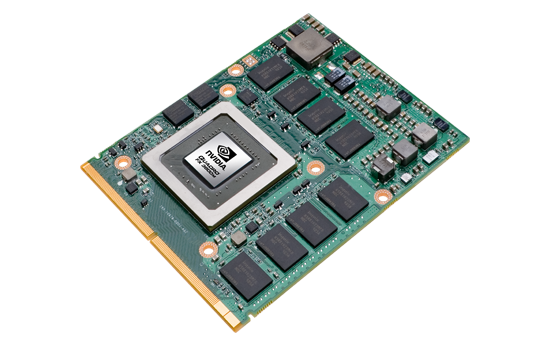

NVIDIA Quadro FX 3800M
La NVIDIA Quadro FX 3800M es una tarjeta gráfica para estaciones de trabajo móviles para portatiles de gama alta. Está basado en el nucleo GTX 280M (nucleo G92) y presenta 128 nucleos CUDA (shaders unificados)
Comparada con la Quadro FX 3700M, la Quadro FX 3800M presenta una mayor velocidad de reloj y está fabricada en 55 nm (3700M - 65nm). La FX 3800M tiene una velocidad aún mayor que la GeForce GTX 280M del mercado de consumo y por tanto tiene mejor rendimiento.
La gama Quadro FX está optimizada para aplicaciones profesionales como CAD o DCC. Debería ser notablemente mejor el rendimiento con OpenGL.en comparación con tarjetas GeForce de consumo.
En el momento de su anuncio (12-2009) la FX 3800M era la tarjeta gráfica más rápida para portátiles.
| Fabricante | NVIDIA |
| Quadro FX Serie | Quadro FX 3800M 128@675MHz Quadro FX 3700M 128@550MHz Quadro FX 2800M 96@600MHz Quadro FX 3600M 96@500MHz Quadro FX 2700M 48@530MHz Quadro FX 880M 48@550MHz Quadro FX 3500M 24/8@575MHz Quadro FX 2500M 24/8@500MHz Quadro FX 1700M 32@625MHz Quadro FX 1600M 32@625MHz Quadro FX 1500M 20/7@375MHz Quadro FX 770M 32@500MHz Quadro FX 570M 32@475MHz Quadro FX 370M 8@580MHz Quadro FX 360M 16@400MHz Quadro FX 350M 4/3@450MHz |
| Nombre Código | N10E-GLM4 |
| Architecture | G9x |
| Pipelines | 128 - unificado |
| Velocidad del núcleo * | 675 MHz |
| Velocidad de Shader * | 1688 MHz |
| Velocidad de Memoria * | 1000 MHz |
| Ancho de Bus de Memoria | 256 Bit |
| Tipo de Memoria | GDDR3 |
| Max. Cantidad de Memoria | 1024 MB |
| Memoria Compartida | no |
| DirectX | DirectX 10, Shader 4.0 |
| Consumo de corriente | 100 Watt |
| Transistors | 754 Millón |
| tecnología | 55 nm |
| Características | OpenGL 2.1, CUDA, PowerMizer 8.0 |
| Tamaño de la portátil | grande |
| Fecha de Anuncio | 20.12.2009 |
| Link a la Página del Fabricante | http://www.nvidia.com/object/product_qua... |
* Las velocidades de reloj especificadas son solo orientaciones para el fabricante y pueden ser modificadas
Benchmarks
3DMark Vantage - P Result no PhysX 1280x1024
0% 100%
100%min: 6584 avg: 6951.3 (22%) max: 7491 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
Dell Precision M6500  | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 6584 | |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 6779 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 7491 |
Radeon HD 4225 -98%
...
Radeon HD 7690M -15%
GeForce GT 635M -14%
Radeon HD 6770M -13%
Radeon HD 6850M -10%
FirePro M5950 -10%
Radeon HD 5670 -5%
FirePro M7740 -5%
Quadro 2000M -5%
GeForce GT 640M 0%
Quadro FX 3800M
GeForce GTX 460M 10%
Quadro 5000M 12%
Quadro 3000M 14%
GeForce GTX 480M 28%
Radeon HD 4850 29%
GeForce GTX 560M 33%
GeForce GT 650M 34%
...
Radeon HD 7970M Crossfire 348%
0%
100%
3DMark Vantage - P GPU no PhysX 1280x1024
0% 100%
100%min: 5758 avg: 5926.3 (17%) max: 6019 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 5758 | |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 6002 |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 6019 |
Radeon HD 4225 -98%
...
Radeon HD 6850M -13%
Radeon HD 6770M -13%
Radeon HD 5670 -10%
GeForce GT 635M -10%
Quadro 2000M -9%
FirePro M5950 -6%
FirePro M7740 -1%
Quadro FX 3800M
GeForce GT 640M 12%
Quadro 3000M 12%
GeForce GTX 460M 14%
Quadro 5000M 18%
Radeon HD 4850 25%
GeForce GT 650M 33%
GeForce GTX 480M 33%
GeForce GTX 560M 35%
...
GeForce GTX 590 433%
0%
100%
3DMark 06
0% 100%
100%min: 12050 avg: 12882 (50%) max: 13323 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 13232 | |
| Standard 1280x1024 | |||||
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 12050 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 12923 |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 13323 | |
...
GeForce GTS 360M -20%
GeForce GT 555M -18%
Radeon HD 7690M XT -15%
GeForce GT 635M -11%
Quadro 2000M -9%
Radeon HD 5670 -7%
FirePro M7740 -6%
FirePro M7820 -3%
Quadro FX 3800M
Quadro 5000M 1%
GeForce GT 650M 4%
Radeon HD 4850 10%
Quadro 3000M 10%
Radeon HD 6870M 12%
GeForce GTX 560M 18%
GeForce GTX 480M 19%
...
GeForce GTX 590 95%
0%
100%
3DMark 05 - Standard 1024x768
0% 100%
100%min: 16593 avg: 18198.7 (56%) max: 19960 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 16593 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18043 |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 19960 |
...
GeForce GT 550M -9%
Quadro 1000M -9%
GeForce GTS 360M -8%
Radeon HD 6850M -7%
FirePro M7740 -6%
Radeon HD 7690M -2%
GeForce GT 640M -2%
Quadro FX 3800M
Radeon HD 5850 2%
Quadro 5000M 4%
FirePro M5950 10%
GeForce GTX 460M 11%
GeForce GTX 480M 14%
GeForce GT 650M 15%
...
GeForce GTX 570 77%
0%
100%
3DMark 03 - Standard 1024x768
0% 100%
100%min: 33146 avg: 37082 (35%) max: 39909 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 33146 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 38191 |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 39909 |
Mirage 3+ 672MX -99%
...
GeForce GT 555M -29%
Radeon HD 6850M -28%
GeForce GT 445M -26%
GeForce GT 640M -24%
FirePro M5950 -14%
Radeon HD 5670 -9%
GeForce GT 650M -8%
GeForce GTX 460M -5%
Quadro FX 3800M
GeForce GTS 450 8%
Quadro 5000M 12%
GeForce GTX 470M 13%
GeForce GTX 480M 18%
GeForce GTX 570M 18%
Radeon HD 6950M 32%
...
ArrayRadeon HD 6990M Crossfire 177%
0%
100%
3DMark 2001SE - Standard 1024x768
0% 100%
100%min: 32886 avg: 34790 (57%) max: 36694 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 32886 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 36694 |
...
GeForce GT 330M -23%
Radeon HD 6470M -23%
GeForce GTX 580M -21%
GeForce GT 425M -21%
GeForce GT 540M -18%
Radeon HD 6550M -10%
Quadro FX 880M -7%
GeForce GT 550M -7%
Radeon HD 6490M -4%
Quadro FX 3800M
Radeon HD 6450 GDDR5 11%
Radeon HD 6850M 12%
GeForce GTX 480M 15%
...
Radeon HD 6870 75%
0%
100%
SPECviewperf 11 - Catia 1920x1080
0% 100%
100%min: 23.38 avg: 23.4 (55%) max: 23.38 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 23.38 |
GeForce G210M -91%
...
Radeon HD 6970M -71%
GeForce GT 640M -69%
Radeon HD 6970M Crossfire -67%
Radeon HD 5770 -63%
Radeon HD 6870 -59%
Quadro FX 880M -47%
Quadro 1000M -36%
FirePro M5950 -28%
Quadro FX 1800M -25%
Quadro FX 3800M
Quadro 3000M 5%
Quadro 5000M 15%
Quadro 2000M 17%
Quadro 4000M 56%
Quadro 5010M 63%
...
Quadro 5010M 63%
0%
100%
SPECviewperf 11 - Ensight 1920x1080
0% 100%
100%min: 16.17 avg: 16.2 (41%) max: 16.17 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 16.17 |
...
GeForce GT 445M -28%
Radeon HD 6650M -28%
GeForce GT 555M -26%
Quadro FX 1800M -24%
Radeon HD 6730M -19%
Radeon HD 6770M -9%
Radeon HD 6850M -6%
Radeon HD 7660G -6%
FirePro M5950 -4%
Quadro FX 3800M
GeForce GTX 460M SLI 5%
Radeon HD 5850 5%
Quadro 2000M 11%
GeForce GT 640M 12%
Quadro 3000M 13%
Radeon HD 6970M 16%
Radeon HD 6970M Crossfire 17%
...
Quadro 5010M 134%
0%
100%
SPECviewperf 11 - Lightwave 1920x1080
0% 100%
100%min: 38.4 avg: 38.4 (70%) max: 38.4 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 38.4 |
GeForce G210M -87%
...
Quadro FX 880M -38%
Radeon HD 6730M -37%
Radeon HD 6970M -34%
Radeon HD 6970M Crossfire -27%
Radeon HD 5770 -16%
Quadro 5000M -13%
Radeon HD 6870 -13%
Quadro 3000M -10%
Quadro 1000M -6%
Quadro FX 3800M
Quadro 2000M 9%
Quadro 4000M 10%
Quadro 5010M 24%
FirePro M5950 26%
...
Quadro 5010M 24%
0%
100%
SPECviewperf 11 - Maya 1920x1080
0% 100%
100%min: 16.55 avg: 16.6 (18%) max: 16.55 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 16.55 |
HD Graphics 3000 -94%
...
Radeon HD 6730M -35%
Radeon HD 6970M -35%
Radeon HD 6450M -34%
GeForce GTX 675M -34%
GeForce GTX 580M -33%
GeForce GTX 660M -24%
Radeon HD 5770 -22%
GeForce GTX 670M -22%
Radeon HD 6870 -19%
Quadro FX 3800M
FirePro M5800 97%
Quadro 1000M 102%
Quadro 3000M 157%
Quadro 5000M 169%
Quadro 2000M 176%
FirePro M5950 198%
Quadro 4000M 210%
...
Quadro 5010M 337%
0%
100%
SPECviewperf 11 - Pro/ENGINEER 1920x1080
0% 100%
100%min: 6.9 avg: 6.9 (51%) max: 6.9 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 6.9 |
...
Radeon HD 6970M Crossfire -65%
Radeon HD 5770 -62%
Radeon HD 6870 -62%
FirePro M5800 -58%
GeForce GT 425M -54%
FirePro M5950 -32%
Quadro FX 880M -24%
Quadro 5000M -5%
Quadro FX 3800M
Quadro 3000M 10%
Quadro 1000M 21%
Quadro 5010M 28%
Quadro 2000M 40%
Quadro 4000M 53%
GeForce GTX 580 95%
...
GeForce GTX 580 95%
0%
100%
SPECviewperf 11 - SolidWorks 1920x1080
0% 100%
100%min: 30.57 avg: 30.6 (56%) max: 30.57 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 30.57 |
HD Graphics 3000 -88%
...
FirePro M5800 -34%
Radeon HD 6970M Crossfire -33%
Radeon HD 6970M -31%
Quadro 1000M -18%
Radeon HD 5770 -11%
Quadro FX 1800M -8%
Radeon HD 6870 -5%
Quadro 3000M -2%
Quadro 5000M -2%
Quadro FX 3800M
Quadro 2000M 8%
FirePro M5950 27%
Quadro 4000M 28%
Quadro 5010M 51%
...
Quadro 5010M 51%
0%
100%
SPECviewperf 11 - Tcvis 1920x1080
0% 100%
100%min: 18.68 avg: 18.7 (45%) max: 18.68 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18.68 |
...
Radeon HD 6970M -70%
Radeon HD 6870 -59%
Radeon HD 5770 -59%
Quadro FX 880M -40%
FirePro M5800 -35%
Quadro FX 1800M -30%
Quadro 1000M -13%
FirePro M5950 -11%
Quadro FX 3800M
Quadro 2000M 20%
Quadro 3000M 23%
Quadro 5000M 41%
Quadro 4000M 56%
Quadro 5010M 113%
GeForce GTX 580 119%
...
Quadro 5010M 113%
0%
100%
SPECviewperf 11 - Siemens NX 1920x1080
0% 100%
100%min: 18.82 avg: 18.8 (45%) max: 18.82 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18.82 |
...
Radeon HD 6970M -47%
Radeon HD 5850 -47%
Radeon HD 6990M -46%
Radeon HD 6970M Crossfire -46%
Quadro FX 1800M -34%
Radeon HD 6870 -30%
Quadro 1000M -29%
FirePro M5800 -18%
Quadro FX 3800M
Quadro 2000M 3%
Quadro 3000M 9%
Quadro 4000M 40%
Quadro 5000M 52%
Quadro 5010M 103%
...
Quadro 5010M 103%
0%
100%
SPEC Viewperf 10.0 - 3ds Max 1280x1024
0% 100%
100%min: 32.8 avg: 32.8 (68%) max: 32.8 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 32.8 |
...
GeForce GT 330M -80%
Quadro NVS 5100M -77%
GeForce 410M -70%
GeForce GTX 480M -69%
Quadro FX 3800M
Quadro FX 880M 46%
FirePro M7740 47%
...
ArrayFirePro M7740 47%
0%
100%
SPEC Viewperf 10.0 - Catia 1280x1024
0% 100%
100%min: 45.75 avg: 45.8 (96%) max: 45.75 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 45.75 |
...
Quadro NVS 5100M -87%
GeForce GT 330M -87%
GeForce 410M -78%
GeForce GTX 480M -77%
FirePro M7740 -17%
Quadro FX 3800M
...
ArrayQuadro FX 880M 4%
0%
100%
SPEC Viewperf 10.0 - EnSight 1280x1024
0% 100%
100%min: 47.37 avg: 47.4 (100%) max: 47.37 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 47.37 |
...
GeForce 410M -77%
GeForce GT 330M -72%
GeForce GTX 480M -56%
FirePro M7740 -1%
Quadro FX 3800M
...
ArrayFirePro M7740 -1%
0%
100%
SPEC Viewperf 10.0 - Maya 1280x1024
0% 100%
100%min: 59.74 avg: 59.7 (32%) max: 59.74 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 59.74 |
...
GeForce 410M -72%
GeForce GTX 480M -70%
GeForce GT 330M -66%
Quadro NVS 5100M -65%
Quadro FX 3800M
FirePro M7740 212%
...
ArrayFirePro M7740 212%
0%
100%
SPEC Viewperf 10.0 - Pro/Engeneer 1280x1024
0% 100%
100%min: 51.12 avg: 51.1 (100%) max: 51.12 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 51.12 |
...
GeForce GT 330M -85%
Quadro NVS 5100M -83%
GeForce 410M -79%
GeForce GTX 480M -76%
FirePro M7740 -12%
Quadro FX 3800M
...
ArrayFirePro M7740 -12%
0%
100%
SPEC Viewperf 10.0 - SolidWorks 1280x1024
0% 100%
100%min: 59.72 avg: 59.7 (89%) max: 59.72 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 59.72 |
...
GeForce GTX 480M -87%
GeForce 410M -85%
FirePro M7740 -82%
GeForce GT 330M -77%
Quadro NVS 5100M -74%
Quadro FX 880M -3%
Quadro FX 3800M
...
ArrayQuadro FX 880M -3%
0%
100%
SPEC Viewperf 10.0 - UGS Teamcenter 1280x1024
0% 100%
100%min: 38.52 avg: 38.5 (100%) max: 38.52 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 38.52 |
...
GeForce GTX 480M -97%
GeForce 410M -96%
GeForce GT 330M -92%
Quadro NVS 5100M -92%
Quadro FX 880M -37%
FirePro M7740 -13%
Quadro FX 3800M
...
ArrayFirePro M7740 -13%
0%
100%
SPEC Viewperf 10.0 - UGS NX 1280x1024
0% 100%
100%min: 35.3 avg: 35.3 (72%) max: 35.3 fps
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 35.3 |
...
GeForce GTX 480M -97%
GeForce 410M -97%
GeForce GT 330M -89%
Quadro NVS 5100M -89%
Quadro FX 3800M
FirePro M7740 39%
...
ArrayFirePro M7740 39%
0%
100%
Cinebench R11.5 - OpenGL 64Bit
0% 100%
100%min: 32.07 avg: 32.7 (43%) max: 33.29 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 32.07 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 33.29 |
...
GeForce GT 550M -18%
Radeon HD 7610M -16%
GeForce GTS 360M -15%
Radeon HD 7660G -8%
Radeon HD 5570 -8%
GeForce GTX 480M -2%
GeForce GT 555M -2%
Radeon HD 6550M -1%
Quadro FX 3800M
Quadro 5000M 0%
Radeon HD 6570M 3%
GeForce GT 640M 7%
Radeon HD 6750M 10%
GeForce GTX 550 Ti 10%
GeForce GTX 560 Ti 10%
GeForce GTX 460M 10%
...
Radeon HD 6870 132%
0%
100%
Cinebench R10 - Shading 32Bit
0% 100%
100%min: 4429 avg: 4928 (45%) max: 5427 Points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 4429 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 5427 |
...
GeForce GT 525M -10%
Radeon HD 7640G -9%
HD Graphics 3000 -7%
Mobility Radeon HD 550v -4%
GeForce GT 520MX -4%
GeForce GT 640M -3%
Quadro FX 880M -1%
Quadro FX 3800M
Radeon HD 6470M 1%
Radeon HD 7470M 7%
NVS 4200M 8%
...
Radeon HD 6870 120%
0%
100%
Windows 7 Experience Index - Graphics
0% 100%
100%min: 6.9 avg: 6.9 (87%) max: 6.9 points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 6.9 |
...
Mobility Radeon HD 5730 -2%
Radeon HD 6770M -2%
Radeon HD 6730M -1%
Radeon HD 6850M -1%
GeForce GT 445M -1%
GeForce GTS 360M -1%
Quadro FX 3800M
Quadro 2000M 0%
GeForce GT 650M 1%
Quadro 4000M 3%
GeForce GTX 675M 6%
...
ArrayGeForce GTX 580M SLI 14%
0%
100%
Windows 7 Experience Index - Gaming graphics
0% 100%
100%min: 6.9 avg: 6.9 (87%) max: 6.9 points
| modelo | CPU | memoria | Nucleo / Memoria | Memoria de la GPU | valor |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 6.9 |
...
Mobility Radeon HD 5730 -2%
Radeon HD 6770M -2%
Radeon HD 6730M -1%
Radeon HD 6850M -1%
GeForce GT 445M -1%
GeForce GTS 360M -1%
GeForce GT 555M -1%
GeForce GT 635M -1%
Quadro FX 3800M
GeForce GT 640M 0%
Quadro 2000M 0%
GeForce GT 650M 1%
Quadro 4000M 3%
...
ArrayGeForce GTX 580M SLI 14%
0%
100%
- Gama de valores de las pruebas para esta tarjeta gráfica - Valores medios de las pruebas para esta tarjeta gráficaPruebas de juegos
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.
Fifa 11 (2010)
medio:
230.6
Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
GeForce GT 525M -31%
GeForce GT 540M -24%
Quadro 1000M -17%
GeForce GT 550M -16%
Radeon HD 6570M -13%
Radeon HD 5850 -8%
GeForce GT 555M -5%
Quadro FX 3800M
Radeon HD 6730M 6%
Radeon HD 6750M 19%
GeForce GTX 560M 32%
GeForce GTX 460M 35%
GeForce GTX 470M 36%
GeForce GTX 460M SLI 38%
Radeon HD 6970M 41%
...
ArrayGeForce GTX 485M SLI 85%
0%
100%
alto:
124.2 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
Quadro 2000M -26%
GeForce GT 425M -21%
GeForce GT 335M -21%
Radeon HD 6570M -19%
GeForce GT 525M -16%
GeForce GT 435M -13%
Radeon HD 6850M -11%
Radeon HD 6730M -11%
GeForce GT 540M -7%
Quadro FX 3800M
Radeon HD 6750M 5%
Quadro 1000M 6%
GeForce GT 445M 31%
Radeon HD 6650M 34%
Radeon HD 5850 34%
...
ArrayRadeon HD 6990M Crossfire 180%
0%
100%
» Jugable con todos los portátiles probados en ajustes de detalle alto.
Civilization 5 (2010): Jugable con una tarjeta gráfica menos potente en ajustes de detalle bajo. - mas...
Civilization 5 (2010) - ¡Aproximacion!
ultra:
13+ fps (GeForce GT 640M)
bajo:
50+ fps (GeForce GT 640M)
Risen (2009)
medio:
64.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonRadeon HD 4250 -90%
...
Radeon HD 6730M -32%
Radeon HD 6770M -30%
GeForce GTS 360M -30%
GeForce GT 555M -29%
Radeon HD 6850M -27%
GeForce GT 445M -25%
Radeon HD 5670 -12%
GeForce GTX 460M -5%
Quadro FX 3800M
Quadro 3000M 3%
Radeon HD 6970M 20%
GeForce GTX 570M 23%
GeForce GTX 470M 29%
Radeon HD 5850 45%
Radeon HD 6990M 48%
...
ArrayGeForce GTX 580M SLI 151%
0%
100%
ultra:
31.8 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce G210M -81%
...
GeForce GT 555M -30%
Radeon HD 6850M -27%
GeForce GTS 360M -27%
Radeon HD 5670 -18%
GeForce GTX 460M -14%
Quadro 3000M -4%
Radeon HD 4850 -3%
Quadro FX 3800M
GeForce GTX 480M 13%
GeForce GTX 570M 17%
GeForce GTX 470M 20%
Quadro 5010M 32%
Radeon HD 5770 38%
GeForce GTS 450 38%
Radeon HD 6970M 42%
GeForce GTX 580M 63%
...
GeForce GTX 590 299%
0%
100%
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Resident Evil 5 (2009): Jugable con una tarjeta gráfica menos potente en ajustes de detalle ultra. - mas...
Resident Evil 5 (2009) - ¡Aproximacion!
ultra:
43+ fps (GeForce GT 640M)
alto:
56+ fps (GeForce GT 640M)
bajo:
96+ fps (Radeon HD 6770M)
Need for Speed Shift (2009)
medio:
78.5 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonHD Graphics 2000 -85%
...
Radeon HD 6730M -31%
Radeon HD 6970M -25%
GeForce GT 555M -24%
Radeon HD 5850 -20%
GeForce GTS 360M -19%
GeForce GTX 480M -6%
GeForce GT 445M -4%
Quadro FX 3800M
GeForce GTX 560M 12%
Radeon HD 6970M Crossfire 20%
GeForce GTX 460M 26%
GeForce GTX 570M 32%
Quadro 3000M 34%
Radeon HD 6990M 34%
GeForce GTX 485M 36%
GeForce GTX 460M SLI 37%
...
ArrayGeForce GTX 485M SLI 77%
0%
100%
ultra:
40.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce GT 330M -69%
...
Radeon HD 6730M -46%
GeForce GT 540M -42%
GeForce GT 550M -38%
Radeon HD 6770M -32%
GeForce GT 445M -22%
GeForce GT 555M -22%
GeForce GTS 360M -22%
Quadro FX 3800M
Quadro 3000M 6%
GeForce GTX 560M 20%
GeForce GTX 480M 27%
Radeon HD 5850 27%
GeForce GTX 470M 36%
Radeon HD 6970M 39%
...
GeForce GTX 580 267%
0%
100%
» Jugable con todos los portátiles probados en ajustes de detalle ultra.
Colin McRae: DIRT 2 (2009)
bajo:
97 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
Radeon HD 6450 GDDR5 -24%
GeForce GT 330M -21%
GeForce GT 540M -21%
GeForce GT 435M -20%
Radeon HD 5850 -19%
Quadro FX 880M -18%
GeForce GTX 570M -17%
Radeon HD 6770M -10%
GeForce GTX 460M -9%
Quadro FX 3800M
GeForce GTX 485M 65%
GeForce GTX 460M SLI 70%
GeForce GTX 470M 72%
...
ArrayGeForce GTX 485M SLI 142%
0%
100%
medio:
82 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
GeForce GT 540M -21%
GeForce GT 550M -18%
Radeon HD 5850 -18%
Radeon HD 6770M -13%
Radeon HD 6750M -13%
GeForce GTX 570M -7%
GeForce GTS 360M -1%
Quadro FX 3800M
Radeon HD 6970M 15%
GeForce GTX 480M 37%
Quadro 3000M 38%
GeForce GTX 485M 69%
...
ArrayGeForce GTX 485M SLI 141%
0%
100%
ultra:
29.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
Mobility Radeon HD 5730 -31%
GeForce GT 435M -29%
Radeon HD 6750M -29%
GeForce GT 555M -13%
Radeon HD 5670 -12%
GeForce GT 240 -10%
GeForce GT 640M -8%
GeForce GTS 360M -7%
Quadro FX 3800M
Quadro 3000M 34%
Radeon HD 5770 39%
GeForce GTX 460M 42%
GeForce GTX 560M 49%
Radeon HD 6790 51%
GeForce GTX 480M 57%
GeForce GTS 450 64%
...
ArrayGeForce GTX 485M SLI 282%
0%
100%
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Anno 1404 (2009)
bajo:
142.8 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
Radeon HD 6550M -12%
GeForce GT 525M -12%
Radeon HD 6970M -7%
Radeon HD 5850 -5%
Radeon HD 6630M -4%
GeForce GT 555M -1%
Quadro FX 3800M
Radeon HD 6650M 2%
GeForce GT 540M 11%
GeForce GTX 480M 19%
Quadro 4000M 21%
GeForce GTX 470M 23%
GeForce GTX 460M SLI 27%
Quadro 3000M 31%
...
ArrayGeForce GTX 485M SLI 60%
0%
100%
ultra:
61.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonHD Graphics 2000 -92%
...
GeForce GTS 360M -37%
Quadro 2000M -36%
Radeon HD 6520G + HD 7450M Dual Graphics -31%
GeForce GTX 460M -29%
GeForce GTX 560M -16%
Quadro 3000M -15%
GeForce GTX 480M -14%
Quadro FX 3800M
Quadro 4000M 0%
Radeon HD 6970M 33%
GeForce GTX 485M 35%
GeForce GTX 580M 39%
Radeon HD 5850 52%
GeForce GTX 460M SLI 53%
...
GeForce GTX 590 147%
0%
100%
» Jugable con todos los portátiles probados en ajustes de detalle ultra.
ArmA 2 (2009) - ¡Aproximacion!
ultra:
11+ fps (GeForce GT 640M)
Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
Análises de portátiles con NVIDIA Quadro FX 3800M tarjeta gráfica
Eurocom Panther 2.0: Intel Core i7 (Desktop) 980X EE, 17.3", 3.6 kg
análise externo » Eurocom Panther 2.0
HP 8740W-WW427PA: Intel Core i7 820QM, 17.0", 3.6 kg
análise externo » HP 8740W-WW427PA
HP EliteBook 8740w-WD943EA: Intel Core i7 840QM, 17.0", 3.6 kg
análise externo » HP EliteBook 8740w-WD943EA
HP EliteBook 8740W-XT911UT: Intel Core i7 740QM, 17.0", 3.6 kg
análise externo » HP EliteBook 8740W-XT911UT
Lenovo ThinkPad W701ds: Intel Core i7 920XM, 17.0", 4.1 kg
análise externo » Lenovo ThinkPad W701ds
