Breve análisis del Gigabyte U24T

¿Un paso adelante? Gigabyte es uno de los fabricantes de dispositivos móviles más desconocidos en algunos países. Una pena, considerando que el fabricante taiwanés tiene unos cuantos portátiles muy emocionantes en su línea de producción. Por ejemplo, el U24T está considerado un todoterreno multimedia compacto.
172
cd/m²
168
cd/m²
177
cd/m²
173
cd/m²
186
cd/m²
176
cd/m²
183
cd/m²
181
cd/m²
180
cd/m²
Temperatura del cuarto
AU Optronics B140XW02 V3 tested with X-Rite i1Pro 2
Máximo: 186 cd/m² (Nits) Médio: 177.3 cd/m²
iluminación: 90 %
Brillo con batería: 186 cd/m²
Contraste: 715:1 (Negro: 0.26 cd/m²)
ΔE Color 11.66 | 0.5-29.43 Ø5
ΔE Greyscale 12.39 | 0.57-98 Ø5.3
37.46% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.09% AdobeRGB 1998 (Argyll 2.2.0 3D)
59.2% sRGB (Argyll 2.2.0 3D)
40.04% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
Cinebench R11.5
CPU Single 64Bit (ordenar por valor)
Gigabyte U24T
1.32 Points
Gigabyte U2442N
1.26 Points -5%
Sony Vaio SV-F14A1M2E/S
1.11 Points -16%
Lenovo IdeaPad U430 Touch 59372369
1.11 Points -16%
SCHENKER S413
1.42 Points +8%
CPU Multi 64Bit (ordenar por valor)
Gigabyte U24T
2.64 Points
Gigabyte U2442N
2.91 Points +10%
Sony Vaio SV-F14A1M2E/S
2.5 Points -5%
Lenovo IdeaPad U430 Touch 59372369
2.44 Points -8%
SCHENKER S413
6.55 Points +148%

Leyenda


Gigabyte U24T Intel Core i7-4500U, NVIDIA GeForce GT 750M, Liteonit LMT-128M6M

Gigabyte U2442N Intel Core i5-3210M, NVIDIA GeForce GT 640M, Crucial RealSSD M4-CT128M4SSD3

Sony Vaio SV-F14A1M2E/S Intel Core i5-3337U, NVIDIA GeForce GT 735M, Toshiba MQ01ABD075H

Lenovo IdeaPad U430 Touch 59372369 Intel Core i5-4200U, NVIDIA GeForce GT 730M, Seagate ST500LX005-1CW162 500 GB + 16 GB Flash

SCHENKER S413 Intel Core i7-4750HQ, Intel Iris Pro Graphics 5200, Crucial M4-CT256M4SSD3
Cinebench R10 Rendering Single 32Bit
4451
Cinebench R10 Rendering Multiple CPUs 32Bit
8077
Cinebench R10 Shading 32Bit
6755
Cinebench R11.5 CPU Single 64Bit
1.32 Points
Cinebench R11.5 CPU Multi 64Bit
2.64 Points
Cinebench R11.5 OpenGL 64Bit
49.87 fps
ayuda
PCMark 7 - Score (ordenar por valor)
Gigabyte U24T
5441 Points
Gigabyte U2442N
3667 Points -33%
Sony Vaio SV-F14A1M2E/S
2981 Points -45%
Lenovo IdeaPad U430 Touch 59372369
3937 Points -28%
SCHENKER S413
6365 Points +17%

Leyenda


Gigabyte U24T Intel Core i7-4500U, NVIDIA GeForce GT 750M, Liteonit LMT-128M6M

Gigabyte U2442N Intel Core i5-3210M, NVIDIA GeForce GT 640M, Crucial RealSSD M4-CT128M4SSD3

Sony Vaio SV-F14A1M2E/S Intel Core i5-3337U, NVIDIA GeForce GT 735M, Toshiba MQ01ABD075H

Lenovo IdeaPad U430 Touch 59372369 Intel Core i5-4200U, NVIDIA GeForce GT 730M, Seagate ST500LX005-1CW162 500 GB + 16 GB Flash

SCHENKER S413 Intel Core i7-4750HQ, Intel Iris Pro Graphics 5200, Crucial M4-CT256M4SSD3
PCMark 7 Score
5441 puntos
ayuda
CrystalDiskMark 3.0
Read Seq (ordenar por valor)
Gigabyte U24T
519 MB/s
SCHENKER S413
510 MB/s -2%
Dell Latitude E7440
527 MB/s +2%
Write Seq (ordenar por valor)
Gigabyte U24T
318.1 MB/s
SCHENKER S413
268.4 MB/s -16%
Dell Latitude E7440
377.2 MB/s +19%
Read 4k (ordenar por valor)
Gigabyte U24T
34.17 MB/s
SCHENKER S413
24.44 MB/s -28%
Dell Latitude E7440
39.43 MB/s +15%
Write 4k (ordenar por valor)
Gigabyte U24T
90.9 MB/s
SCHENKER S413
108.2 MB/s +19%
Dell Latitude E7440
121.9 MB/s +34%

Leyenda


Gigabyte U24T Intel Core i7-4500U, NVIDIA GeForce GT 750M, Liteonit LMT-128M6M

SCHENKER S413 Intel Core i7-4750HQ, Intel Iris Pro Graphics 5200, Crucial M4-CT256M4SSD3

Dell Latitude E7440 Intel Core i5-4300U, Intel HD Graphics 4400, Samsung SSD SM841 128GB

Apple MacBook Pro Retina 13 inch 2013-10 Intel Core i5-4258U, Intel Iris Graphics 5100, Apple SSD SM0256F
Liteonit LMT-128M6M
Sequential Read: 519 MB/s
Sequential Write: 318.1 MB/s
512K Read: 373.9 MB/s
512K Write: 321.3 MB/s
4K Read: 34.17 MB/s
4K Write: 90.9 MB/s
4K QD32 Read: 315.7 MB/s
4K QD32 Write: 285.9 MB/s
3DMark 11 - 1280x720 Performance (ordenar por valor)
Gigabyte U24T
2497 Points
Gigabyte U2442N
1837 Points -26%
Sony Vaio SV-F14A1M2E/S
1762 Points -29%
SCHENKER S413
2217 Points -11%
Dell XPS 15 (Late 2013)
2974 Points +19%

Leyenda


Gigabyte U24T Intel Core i7-4500U, NVIDIA GeForce GT 750M, Liteonit LMT-128M6M

Gigabyte U2442N Intel Core i5-3210M, NVIDIA GeForce GT 640M, Crucial RealSSD M4-CT128M4SSD3

Lenovo IdeaPad U430 Touch 59372369 Intel Core i5-4200U, NVIDIA GeForce GT 730M, Seagate ST500LX005-1CW162 500 GB + 16 GB Flash

Sony Vaio SV-F14A1M2E/S Intel Core i5-3337U, NVIDIA GeForce GT 735M, Toshiba MQ01ABD075H

SCHENKER S413 Intel Core i7-4750HQ, Intel Iris Pro Graphics 5200, Crucial M4-CT256M4SSD3

Dell XPS 15 (Late 2013) Intel Core i7-4702HQ, NVIDIA GeForce GT 750M, Samsung SSD SM841 512GB
3DMark 06 Standard Score
12104 puntos
3DMark Vantage P Result
8132 puntos
3DMark 11 Performance
2497 puntos
3DMark Ice Storm Standard Score
59686 puntos
3DMark Cloud Gate Standard Score
6490 puntos
3DMark Fire Strike Score
1423 puntos
ayuda
BioShock Infinite - 1366x768 High Preset (ordenar por valor)
Gigabyte U24T
42.86 fps
Lenovo IdeaPad U430 Touch 59372369
28 fps -35%
Sony Vaio SV-F14A1M2E/S
29.2 fps -32%
Dell XPS 15 (Late 2013)
61.1 fps +43%
Asus N56VB-S4050H
41.9 fps -2%
Tomb Raider - 1366x768 High Preset AA:FX AF:8x (ordenar por valor)
Gigabyte U24T
38.6 fps
Lenovo IdeaPad U430 Touch 59372369
23 fps -40%
Sony Vaio SV-F14A1M2E/S
23 fps -40%
Sony Vaio SV-F14A1M2E/S
23 fps -40%
Dell XPS 15 (Late 2013)
58.2 fps +51%
Asus N56VB-S4050H
35.3 fps -9%

Leyenda


Gigabyte U24T Intel Core i7-4500U, NVIDIA GeForce GT 750M, Liteonit LMT-128M6M

Gigabyte U2442N Intel Core i5-3210M, NVIDIA GeForce GT 640M, Crucial RealSSD M4-CT128M4SSD3

Lenovo IdeaPad U430 Touch 59372369 Intel Core i5-4200U, NVIDIA GeForce GT 730M, Seagate ST500LX005-1CW162 500 GB + 16 GB Flash

Sony Vaio Fit multi-flip SV-F13N1L2E/S Intel Core i5-4200U, Intel HD Graphics 4400, Samsung MZNTD128HAGM

Sony Vaio SV-F14A1M2E/S Intel Core i5-3337U, NVIDIA GeForce GT 735M, Toshiba MQ01ABD075H

Dell XPS 15 (Late 2013) Intel Core i7-4702HQ, NVIDIA GeForce GT 750M, Samsung SSD SM841 512GB

Asus N56VB-S4050H Intel Core i7-3630QM, NVIDIA GeForce GT 740M, WDC Scorpio Blue WD7500BPVT-80HXZT3
bajo medio alto ultra
Crysis 3 (2013) 47.5 29.71 21.46
Tomb Raider (2013) 115.1 64 38.6
BioShock Infinite (2013) 85.8 50.5 42.86
Company of Heroes 2 (2013) 28.4 22.03 14.89

Ruido

Ocioso
30.8 / 30.8 / 35.8 dB(A)
Carga
46.1 / 49.1 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm de distancia)
Carga Máx.
 32.5 °C41.4 °C35.7 °C
 32.2 °C39.2 °C34 °C
 24.3 °C25.6 °C25.7 °C
Máximo: 41.4 °C
Médio: 32.3 °C
35.8 °C37.7 °C46 °C
30.3 °C37 °C32.2 °C
27.9 °C26.9 °C26.2 °C
Máximo: 46 °C
Médio: 33.3 °C
Conector de corriente  55 °C | Temperatura del cuarto 22.8 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 32.3 °C / 90 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 29.2 °C / 85 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.5 °C / 79.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+2.3 °C / 4.1 F).
Consumo de corriente
Off / Standbydarklight 0 / 0.8 Watt
Ociosodarkmidlight 9.2 / 11.9 / 12.2 Watt
Carga midlight 73.6 / 74.4 Watt
 color bar
Clave: min: dark, med: mid, max: light        Voltcraft VC 960
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
11h 00min
Navegando con WLAN
4h 30min
Carga (máximo brillo)
1h 48min
Gigabyte U24T: Precio de lujo para un paquete regular
Gigabyte U24T: Precio de lujo para un paquete regular

No quedamos satisfechos con la relación precio-rendimiento del anterior U2442N, y eso es algo que no ha cambiado su actual sucesor U24T. Con una configuración no del todo idéntica, el algo más débil U24T cuesta unos 1299 Euros en varias tiendas. Para nosotros eso es definitivamente demasiado caro para lo que trae.

Aunque la carcasa es delgada y parece bien en general, la impresión que deja su calidad no puede competir con algunos chasis de aluminio, o incluso dispositivos menos caros. La pantalla instalada es inapropiada para este precio. Si bien se puede justificar una resolución de 1366x768 pixels en un portátil de 14", cuando hablamos de una pantalla táctil, definitivamente debe ser IPS cuando nos movemos en el rnago de precio en el que está el Gigabyte U24T. La pantalla de nuestro modelo de pruebas es consistentemente decepcionante: brillo mediocre, reproducción del color imprecisa y demasiada dependencia de los ángulos de visión. Teniendo esto en cuenta, es casi un alivio que la versión disponible en Alemania del U24T siga empleando aparentemente el display mate HD+ de su precursor, incluso cuando no puntuó muy bien en la prueba con él.

El rendimiento es bueno. La CPU ULV Intel Haswell junto con la solución gráfica GT 750M aseguran una sólida potencia multimedia, y sigue bastando para tener un frame rate fluido a resolución nativa, también con detalles gráficos medios o altos en muchos juegos actuales.

Puede costar encontrar dispositivos de 14" como alternativa cuando se quiere tener el extra de rendimiento gráfico. Hay muchas más opciones en la categoría de 15". También encontramos la Nvidia GT 750M en el Dell Inspiron 15, Acer Aspire V5, o Asus N550JV. Todos los dispositivos son considerablemente menos caros que el Gigabyte U24T. El Aspire V5 resultaría particularmente interesante para los cazachollos ya que trae una pantalla mate Full HD IPS por menos de 700 Euros.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.




Please share our article, every link counts!

especificaciones del portátil

Gigabyte U24T
Procesador
Intel Core i7-4500U 2 x 1.8 - 3 GHz, Haswell
Adaptador gráfico
NVIDIA GeForce GT 750M - 2048 MB VRAM, Núcleo: 967 MHz, Memoría: 1800 MHz, DDR3, 128-bit, 311.93, Optimus

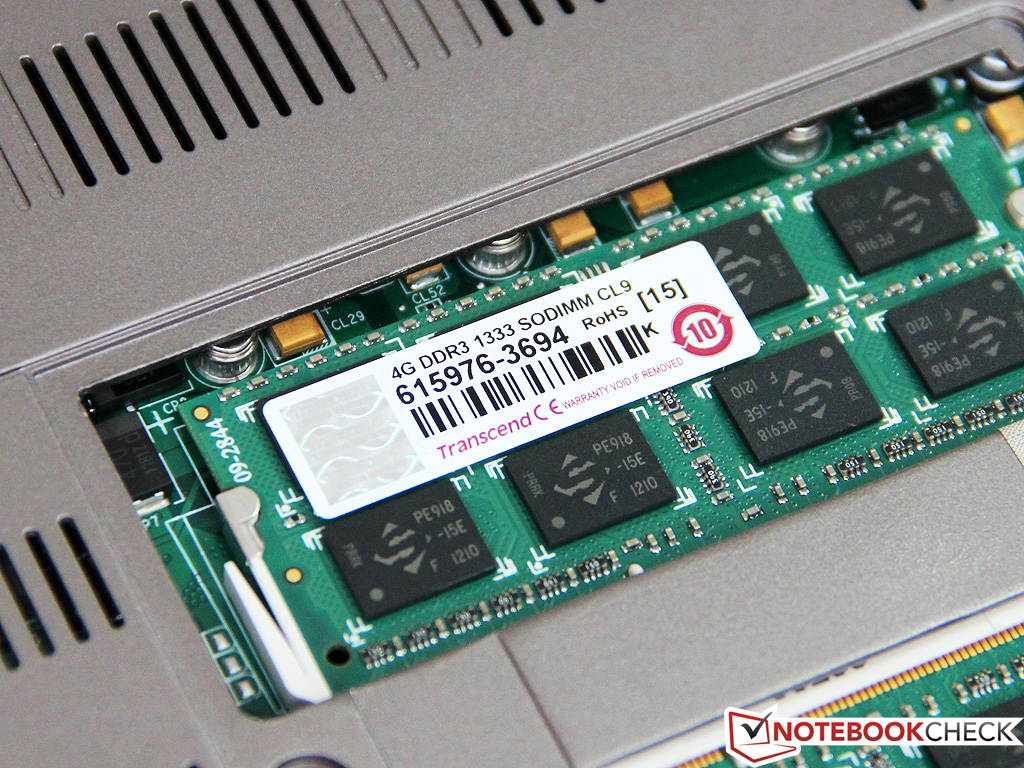

Memoría
16 GB
, PC3-12800 DDR3 SDRAM
pantalla
14.00 pulgadas 16:9, 1366 x 768 pixels, capacitiva, multitáctil, AU Optronics B140XW02 V3, TN, lustroso: si
Placa base
Intel Lynx Point-LP
Disco duro
Liteonit LMT-128M6M, 128 GB
, + Toshiba MQ01ABD075 750GB 5400rpm HDD
Tarjeta de sonido
Intel Lynx Point-LP - High Definition Audio Controller
Conexiones
2 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Conexiones: micrófono, auriculares (salida), Card Reader: Lector de tarjetas SD
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-N 7260 (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Tamaño
Alto x ancho x profundidad (en mm): 22.5 x 339 x 233
Battería
48 Wh Litio-Polimero, integrada
Sistema Operativo
Microsoft Windows 8 64 Bit
Camera
Webcam: 1.3 Megapixel
Características adicionales
Altavoces: 2x 2w, Teclado: chiclet, Luz de Teclado: si, 24 Meses Garantía
Peso
1.78 kg, Suministro de Electricidad: 400 g
Precio
1399 Euros



tamaño de pantalla mismo GPU

Breve análisis del Dell XPS 15
GeForce GT 750M, Core i7 4712HQ, 15.60", 2.1 kg
Breve análisis del Samsung ATIV Book 8 870Z5G
GeForce GT 750M, Core i7 4700HQ, 15.60", 2.4 kg
Análisis completo del Dell XPS 15 (9530, final del 2013)
GeForce GT 750M, Core i7 4702HQ, 15.60", 2.02 kg
Breve análisis del HP Envy 17-j110eg Leap Motion
GeForce GT 750M, Core i7 4702MQ, 17.30", 3.359 kg
Análisis completo del Dell Inspiron 7737 CN77304
GeForce GT 750M, Core i7 4500U, 17.30", 3.287 kg
Análisis completo del Apple MacBook Pro Retina 15 de finales del 2013
GeForce GT 750M, Core i7 4850HQ, 15.40", 2.012 kg
Breve análisis del Dell Inspiron 15-7537
GeForce GT 750M, Core i7 4500U, 15.60", 2.6 kg

Pro

+Gran rendimiento de aplicación y juego
+Combinación SSD/HDD
+Conectividad
+Duración de batería


Contra

-Pantalla débil en ángulos de visión con brillo mediocre
-Teclado desvencijado
-Malos altavoces

Gigabyte U24T - 03/20/2014 v4(old)
J. Simon Leitner

Acabado
74 / 98 → 76%
Teclado
67%
Ratón
86%
Conectividad
62 / 81 → 77%
Peso
66 / 20-67 → 98%
Battería
85%
Pantalla
72%
Rendimiento de juegos
83 / 85 → 98%
Rendimiento de la Aplicación
88 / 92 → 96%
Temperatura
90%
Ruido
74 / 95 → 78%
Audio
38%
Cámara
38 / 85 → 45%
Médio
71%
78%
Multimedia - media ponderada
J. Simon Leitner, 2013-12-27 (Update: 2013-12-27)
