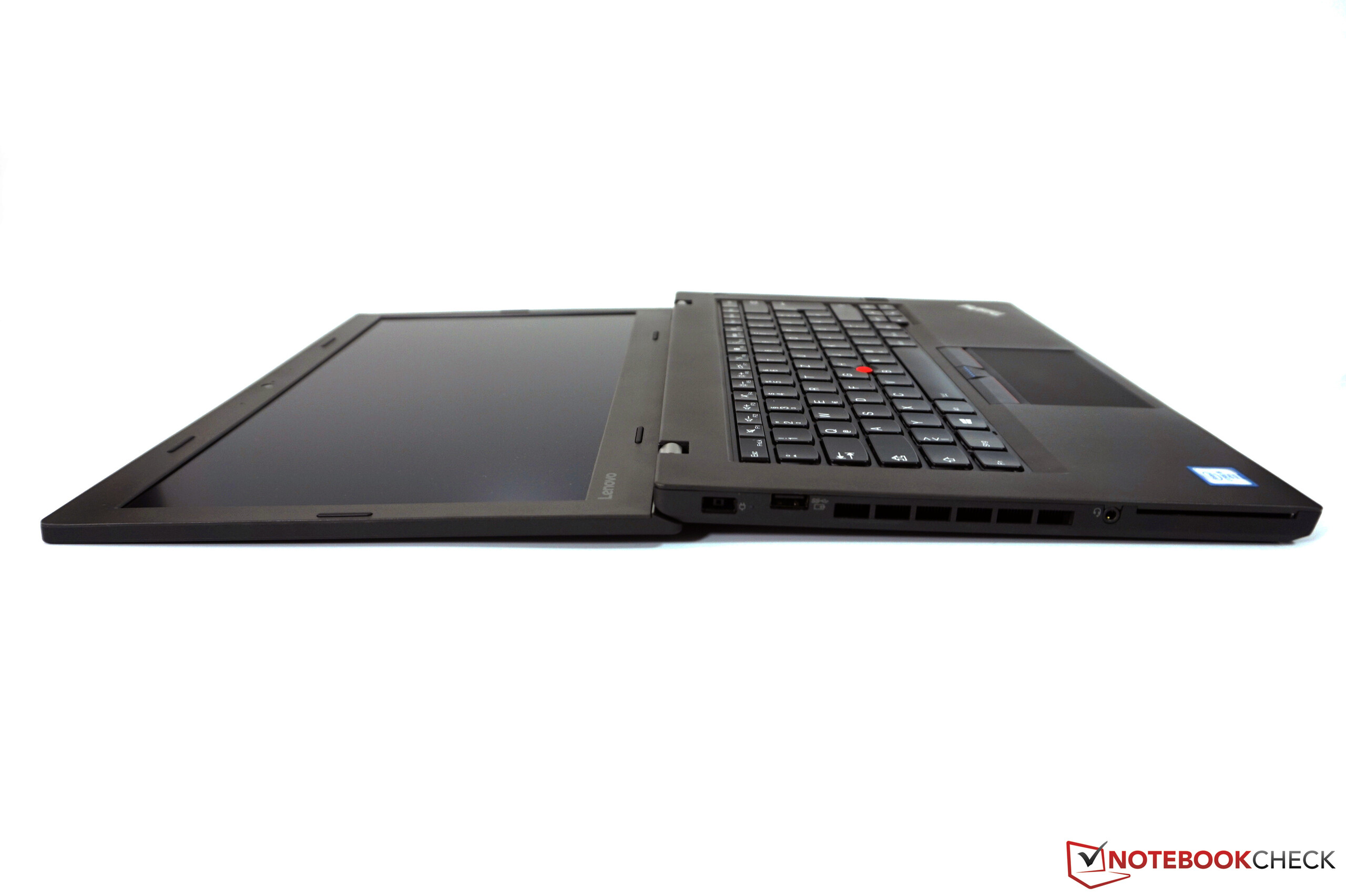

Breve análisis del Lenovo ThinkPad T460p (Core i7, GeForce 940MX)

Pequeño temperamental. Un procesador quad-core y una discreta GPU GeForce implementados en una compacta carcasa de 14" – el ThinkPad T460p definitivamente no es un portátil business normal. El buen rendimiento, empero, también resulta en temperaturas elevadas.
Lenovo ThinkPad T460p-20FXS05500
Procesador
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

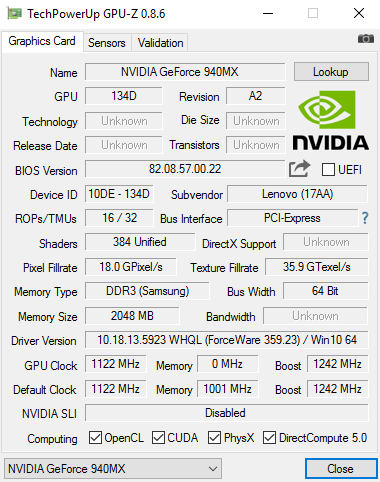

Adaptador gráfico
NVIDIA GeForce 940MX - 2048 MB VRAM, Núcleo: 1176 MHz, Memoría: 1000 MHz, DDR3, ForceWare 359.23, Optimus

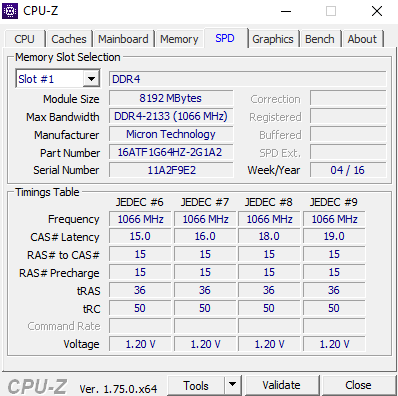

Memoría
8 GB
, 1x 8 GB DDR4-2133, 1 ranura libre de 2
pantalla
14.00 pulgadas 16:9, 2560 x 1440 pixels 210 PPI, VVX14T058J00, IPS, retroiluminación LED, lustroso: no
Placa base
Intel Skylake QM170 (Skylake PCH-H)
Disco duro
Samsung SSD PM871 MZ7LN512HCHP, 512 GB
, 440 GB libre
Tarjeta de sonido
Intel Skylake PCH-H High Definition Audio Controller
Conexiones
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Conexiones: puerto headset 3.5mm, Card Reader: 4-en-1 (MMC, SD, SDHC, SDXC), 1 eSata, 1 Lector de Huellas Digitales
Equipamento de red
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamaño
Alto x ancho x profundidad (en mm): 24.4 x 344 x 239
Battería
48 Wh Litio-Ion, 6 celdas
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Características adicionales
Altavoces: estéreo, 2x 1 W, Teclado: Chiclet, Luz de Teclado: si, adaptador de corriente de 135W, guía de inicio rápido, información de garantía, 36 Meses Garantía
Peso
1.856 kg, Suministro de Electricidad: 550 g
Precio
1400 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.

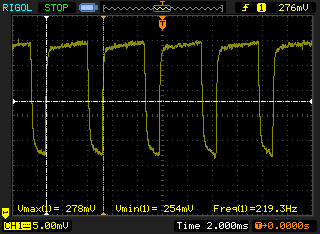

Parpadeo de Pantalla / PWM detectado 220 Hz

La retroiluminación del display parpadea a 220 Hz (seguramente usa PWM - Pulse-Width Modulation) .

La frecuencia de 220 Hz es relativamente baja, por lo que la gente sensible debería ver parpadeos y padecer fatiga visual por la pantalla (usado al brillo indicado a continuación).

Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 18110 (mínimo: 5 - máxmo: 3846000) Hz.

280
cd/m²
286
cd/m²
279
cd/m²
281
cd/m²
290
cd/m²
283
cd/m²
269
cd/m²
269
cd/m²
283
cd/m²
Temperatura del cuarto
VVX14T058J00 tested with X-Rite i1Pro 2
Máximo: 290 cd/m² (Nits) Médio: 280 cd/m² Minimum: 3 cd/m²
iluminación: 93 %
Brillo con batería: 290 cd/m²
Contraste: 935:1 (Negro: 0.31 cd/m²)
ΔE Color 3.88 | 0.5-29.43 Ø5
ΔE Greyscale 5.47 | 0.57-98 Ø5.3
96.64% sRGB (Argyll 1.6.3 3D)
63.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
66.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.33
Lenovo ThinkPad T460p-20FXS05500
2560 x 1440 IPS-Panel
Lenovo ThinkPad T460p-20FW000DGE
1920 x 1080 IPS-Panel
Lenovo ThinkPad T460s-20FA003GGE
2560 x 1440 IPS-Panel
HP EliteBook 840 G3 T9X59ET#ABD
1920 x 1080 TN-Panel
Dell Latitude 14 7000 Series E7470
2560 x 1440 IPS-Panel
Display
-41%
2%
-26%
0%
Display P3 Coverage
66.9
38.78
-42%
68.7
3%
48.93
-27%
67.2
0%
sRGB Coverage
96.5
58.3
-40%
98.1
2%
73.7
-24%
95.9
-1%
AdobeRGB 1998 Coverage
68.8
40.08
-42%
70.4
2%
50.5
-27%
69.3
1%
Response Times
10%
-4%
-7%
-17%
Response Time Grey 50% / Grey 80% *
38.4 ?(14.8, 23.6)
30.8 ?(14.8, 26)
20%
35.6 ?(17.2, 18.4)
7%
43 ?(20, 23)
-12%
48 ?(15, 33)
-25%
Response Time Black / White *
24.8 ?(10.8, 14)
24.8 ?(6.8, 18)
-0%
29.2 ?(14.4, 14.8)
-18%
25 ?(9, 16)
-1%
27 ?(7, 20)
-9%
PWM Frequency
220
220 ?(90)
0%
204 ?(90)
-7%
Screen
-3%
-5%
-48%
17%
Brightness middle
290
269
-7%
257
-11%
366
26%
380
31%
Brightness
280
255
-9%
248
-11%
336
20%
354
26%
Brightness Distribution
93
91
-2%
94
1%
87
-6%
81
-13%
Black Level *
0.31
0.24
23%
0.26
16%
0.65
-110%
0.26
16%
Contrast
935
1121
20%
988
6%
563
-40%
1462
56%
Colorchecker dE 2000 *
3.88
4.27
-10%
4.59
-18%
10.26
-164%
3.11
20%
Colorchecker dE 2000 max. *
8.19
8.82
-8%
9.72
-19%
6.73
18%
Greyscale dE 2000 *
5.47
2.95
46%
6.38
-17%
11.51
-110%
4.35
20%
Gamma
2.33 94%
2.12 104%
2.51 88%
2.4 92%
2.37 93%
CCT
6469 100%
7049 92%
6238 104%
12725 51%
6771 96%
Color Space (Percent of AdobeRGB 1998)
63.3
37
-42%
65
3%
47
-26%
62
-2%
Color Space (Percent of sRGB)
96.64
58.2
-40%
98
1%
74
-23%
96
-1%
Media total (Programa/Opciones)
-11% / -9%
-2% / -3%
-27% / -35%
0% / 9%

* ... más pequeño es mejor

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.

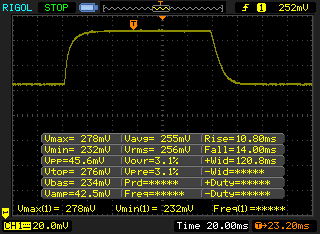

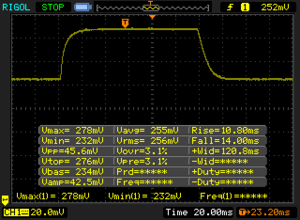

       Tiempo de respuesta de Negro a Blanco
24.8 ms ... subida ↗ y bajada ↘ combinada↗ 10.8 ms subida
↘ 14 ms bajada
La pantalla mostró buenos tiempos de respuesta en nuestros tests pero podría ser demasiado lenta para los jugones competitivos.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 52 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (21.6 ms) de todos los dispositivos testados.

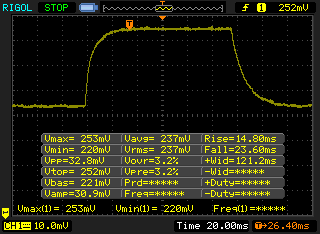

       Tiempo de respuesta 50% Gris a 80% Gris
38.4 ms ... subida ↗ y bajada ↘ combinada↗ 14.8 ms subida
↘ 23.6 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 52 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (33.9 ms) de todos los dispositivos testados.
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
147 Points
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
145 Points -1%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
142 Points -3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
141 Points -4%
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ
134 Points -9%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
119 Points -19%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
116 Points -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
662 Points
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ
532 Points -20%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
513 Points -23%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
347 Points -48%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
334 Points -50%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
322 Points -51%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
288 Points -56%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
1.67 Points
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
1.66 Points -1%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
1.61 Points -4%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
1.57 Points -6%
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ
1.51 Points -10%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
1.31 Points -22%
CPU Multi 64Bit
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
7.42 Points
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
5.91 Points -20%
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ
5.86 Points -21%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
3.83 Points -48%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
3.58 Points -52%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
3.18 Points -57%
X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
147.4 fps
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
120.4 fps -18%
Pass 2
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ
41.83 fps
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
22.62 fps -46%
Cinebench R10 Shading 32Bit
8276
Cinebench R10 Rendering Multiple CPUs 32Bit
20010
Cinebench R10 Rendering Single 32Bit
5527
Cinebench R11.5 CPU Multi 64Bit
7.42 Points
Cinebench R11.5 OpenGL 64Bit
38.34 fps
Cinebench R11.5 CPU Single 64Bit
1.67 Points
Cinebench R15 CPU Single 64Bit
147 Points
Cinebench R15 CPU Multi 64Bit
662 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
38.08 fps
ayuda
Lenovo ThinkPad T460p-20FXS05500
Samsung SSD PM871 MZ7LN512HCHP
Lenovo ThinkPad T460s-20FA003GGE
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad T460s-20F9003SGE
Samsung CM871 MZ7LF192HCGS
HP EliteBook 840 G3 T9X59ET#ABD
Samsung SSD PM851 256 GB MZNTE256HMHP
Dell Latitude 14 7000 Series E7470
Samsung SSD PM851 M.2 2280 256GB
AS SSD
168%
-55%
-12%
-6%
Seq Read
510
2039
300%
471
-8%
505
-1%
495.5
-3%
Seq Write
448.3
1407
214%
163.3
-64%
231.6
-48%
283.7
-37%
4K Read
23.3
45.41
95%
14.18
-39%
25.24
8%
30.91
33%
4K Write
74
114.4
55%
34.38
-54%
72.4
-2%
85.1
15%
4K-64 Read
338
968
186%
85.4
-75%
362
7%
336.1
-1%
4K-64 Write
286.8
366
28%
33.4
-88%
190.6
-34%
170
-41%
Copy ISO MB/s
285
1135
298%
119.9
-58%
Samsung SSD PM871 MZ7LN512HCHP
Tasa de Transferencia Mínima: 86.2 MB/s
Tasa de Transferencia Máxima: 319.9 MB/s
Tasa de Transferencia Promedio: 304 MB/s
Tiempo de Acceso: 0.1 ms
Velocidad de Ráfagas: 131.2 MB/s
Uso de CPU: 2.1 %
PCMark 7 - Score
Lenovo ThinkPad T460p-20FXS05500
GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP
5585 Points
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5194 Points -7%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
5190 Points -7%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3002 Points -46%
PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points +8%
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points +2%
Lenovo ThinkPad T460p-20FXS05500
GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP
3292 Points
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points -2%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3088 Points -6%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3024 Points -8%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4338 Points +2%
Lenovo ThinkPad T460p-20FXS05500
GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP
4241 Points
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3644 Points -14%
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points +2%
Lenovo ThinkPad T460p-20FXS05500
GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP
4463 Points
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points 0%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points -4%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
4121 Points -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
4072 Points -9%
PCMark 7 Score
5585 puntos
PCMark 8 Home Score Accelerated v2
3292 puntos
PCMark 8 Creative Score Accelerated v2
4241 puntos
PCMark 8 Work Score Accelerated v2
4463 puntos
ayuda
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
2636 Points
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2313 Points -12%
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ, NVIDIA GeForce GT 730M
1713 Points -35%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1416 Points -46%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U, Intel HD Graphics 520
1327 Points -50%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U, Intel HD Graphics 520
1264 Points -52%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
1162 Points -56%
3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
1718 Points
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1627 Points -5%
Lenovo ThinkPad T440p 20AN-006VGE
Intel Core i7-4700MQ, NVIDIA GeForce GT 730M
1053 Points -39%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
935 Points -46%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U, Intel HD Graphics 520
800 Points -53%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U, Intel HD Graphics 520
744 Points -57%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
672 Points -61%
SPECviewperf 12
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
11.62 fps +11%
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
10.47 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
9.71 fps -7%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.15 fps +27%
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
7.97 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.68 fps -16%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
0.32 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
0.08 fps -75%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
0.06 fps -81%
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
13.68 fps
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.89 fps -20%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2.09 fps -85%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
6.28 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
5.72 fps -9%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1.7 fps -73%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
6.91 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.05 fps -12%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
6.05 fps -12%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
2.95 fps +33%
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
2.22 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1.81 fps -18%
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
22.64 fps +38%
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
16.4 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
14.65 fps -11%
3DMark 06 Standard Score
14195 puntos
3DMark 11 Performance
2805 puntos
3DMark Ice Storm Standard Score
41687 puntos
3DMark Cloud Gate Standard Score
8503 puntos
3DMark Fire Strike Score
1537 puntos
ayuda
Tomb Raider
1024x768 Low Preset
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
141.2 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
130.8 fps -7%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
83.1 fps -41%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
65.1 fps -54%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
68.4 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.1 fps -3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
41.1 fps -40%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
33.5 fps -51%
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T460p-20FXS05500
Intel Core i7-6700HQ, NVIDIA GeForce 940MX
37.4 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps -3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
25.7 fps -31%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
20 fps -47%
bajo medio alto ultra
Diablo III (2012) 125.6 103 83.4 50.6
Counter-Strike: GO (2012) 182 156.8 107.2 57.9
Crysis 3 (2013) 44.3 26.1 19.6 7.3
Tomb Raider (2013) 141.2 68.4 37.4 18.5
BioShock Infinite (2013) 98.7 55.7 44.8 15.5
Metro: Last Light (2013) 52.5 39.8 24 12
Battlefield 4 (2013) 67.9 47 31.7 12.1
Thief (2014) 37.5 24.8 20 9.9
Sims 4 (2014) 173.4 68.7 38 29
Dirt Rally (2015) 145.4 57.3 29.7 13
FIFA 16 (2015) 126.8 68.6 43.5
Fallout 4 (2015) 36.5 22.9 12.3
Rise of the Tomb Raider (2016) 29.1 18.7 11.3
Lenovo ThinkPad T460p-20FXS05500
6700HQ, GeForce 940MX
Lenovo ThinkPad T460p-20FW000DGE
6440HQ, HD Graphics 530
Lenovo ThinkPad T460s-20F9003SGE
6200U, HD Graphics 520
Lenovo ThinkPad T460s-20FA003GGE
6600U, HD Graphics 520
Dell Latitude 14 7000 Series E7470
6600U, HD Graphics 520
Noise
-11%
2%
0%
-1%
off / environment *
29.2
30
-3%
29.1
-0%
29.2
-0%
31.2
-7%
Idle Minimum *
29.2
33.7
-15%
29.1
-0%
29.2
-0%
31.2
-7%
Idle Average *
29.2
33.7
-15%
29.1
-0%
29.2
-0%
31.2
-7%
Idle Maximum *
29.2
33.7
-15%
29.1
-0%
29.2
-0%
31.2
-7%
Load Average *
33.5
36.2
-8%
32.3
4%
33.7
-1%
31.9
5%
Load Maximum *
38.8
41.9
-8%
36.6
6%
38.5
1%
31.9
18%

* ... más pequeño es mejor

Ruido

Ocioso
29.2 / 29.2 / 29.2 dB(A)
Carga
33.5 / 38.8 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm de distancia)   environment noise: 29.2 dB(A)
Carga Máx.
 44.9 °C41.1 °C34.9 °C
 51.6 °C45.8 °C35.1 °C
 41.1 °C41.1 °C36.9 °C
Máximo: 51.6 °C
Médio: 41.4 °C
33.7 °C36.2 °C42.2 °C
34.7 °C48.1 °C55.2 °C
35.1 °C45.1 °C43.8 °C
Máximo: 55.2 °C
Médio: 41.6 °C
Conector de corriente  46.4 °C | Temperatura del cuarto 21.4 °C | Fluke 62 Max
(-) The average temperature for the upper side under maximal load is 41.4 °C / 107 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 51.6 °C / 125 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 29.5 °C / 85 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 41.1 °C / 106 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-13.4 °C / -24.1 F).
Consumo de corriente
Off / Standbydarklight 0.28 / 0.48 Watt
Ociosodarkmidlight 5 / 9.9 / 10.8 Watt
Carga midlight 52.4 / 89.8 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad T460p-20FXS05500
48 Wh
Lenovo ThinkPad T460p-20FW000DGE
48 Wh
Lenovo ThinkPad T440p 20AN-006VGE
100 Wh
Lenovo ThinkPad T460s-20FA003GGE
49 Wh
Dell Latitude 14 7000 Series E7470
55 Wh
Duración de Batería
-16%
58%
13%
50%
Reader / Idle
660
494
-25%
887
34%
833
26%
H.264
357
289
-19%
508
42%
397
11%
WiFi v1.3
298
265
-11%
340
14%
346
16%
Load
61
55
-10%
121
98%
62
2%
112
84%
WiFi
602
Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
11h 00min
WiFi Websurfing
4h 58min
Big Buck Bunny H.264 1080p
5h 57min
Carga (máximo brillo)
1h 01min

Pro

+ chasis robusto
+ bisagras tensas
+ dispositivos de entrada buenísimos
+ excelente display IPS
+ múltiples características de seguridad
+ altísimo rendimiento de aplicación
+ capacidades limitadas para el juego
+ 3 años de garantía

Contra

- sin USB Type-C

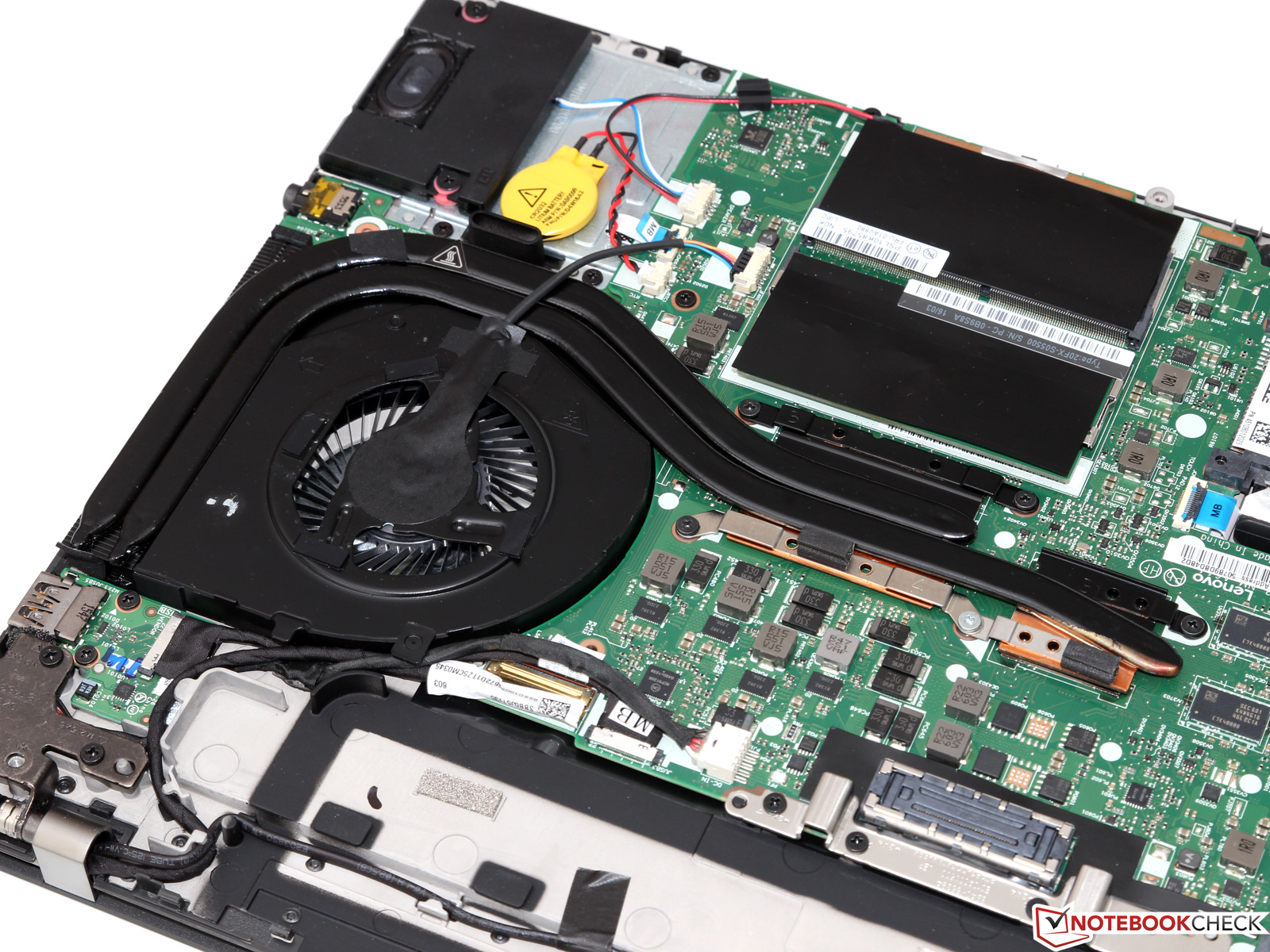

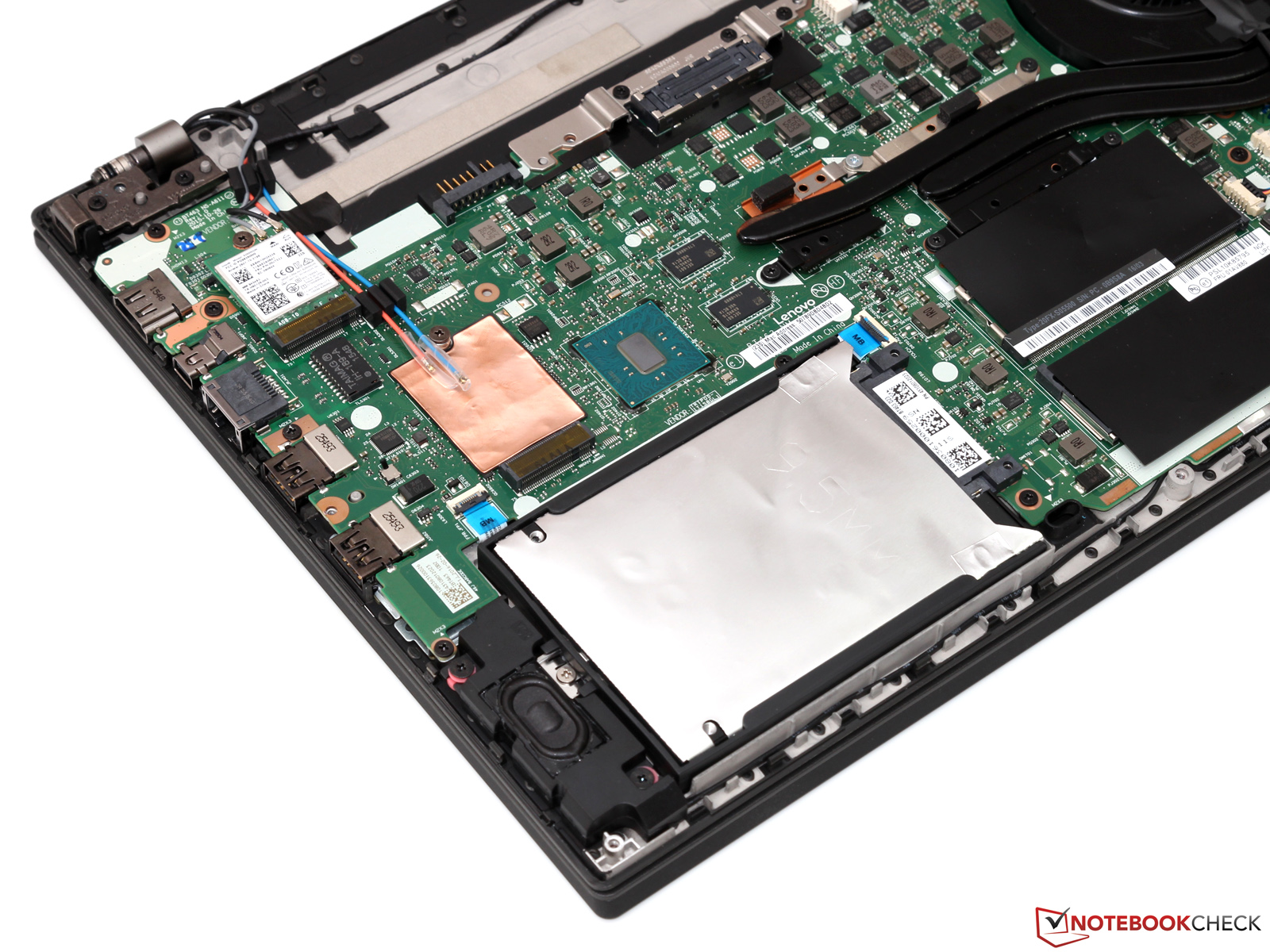

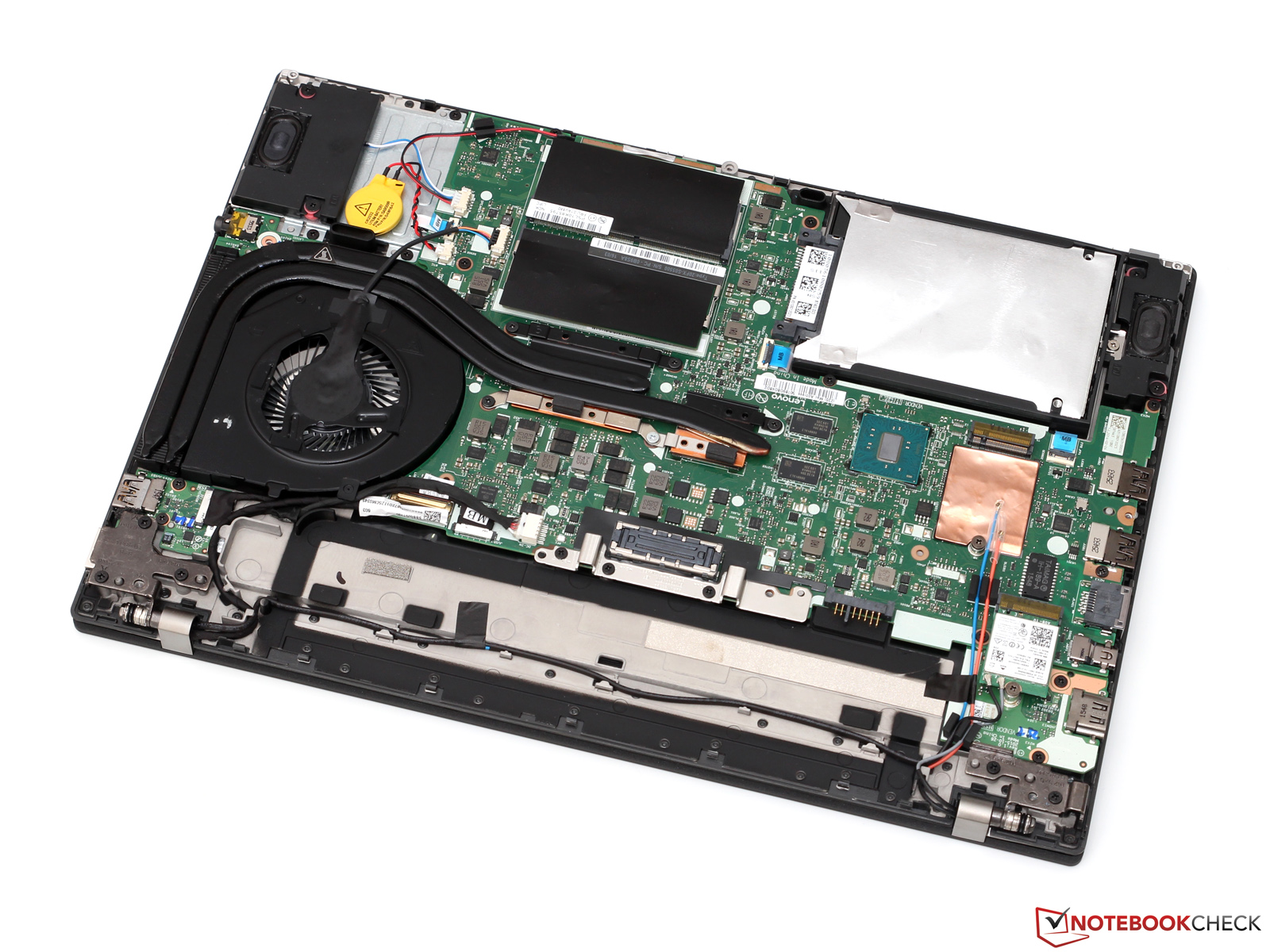

- mantenimiento incómodo

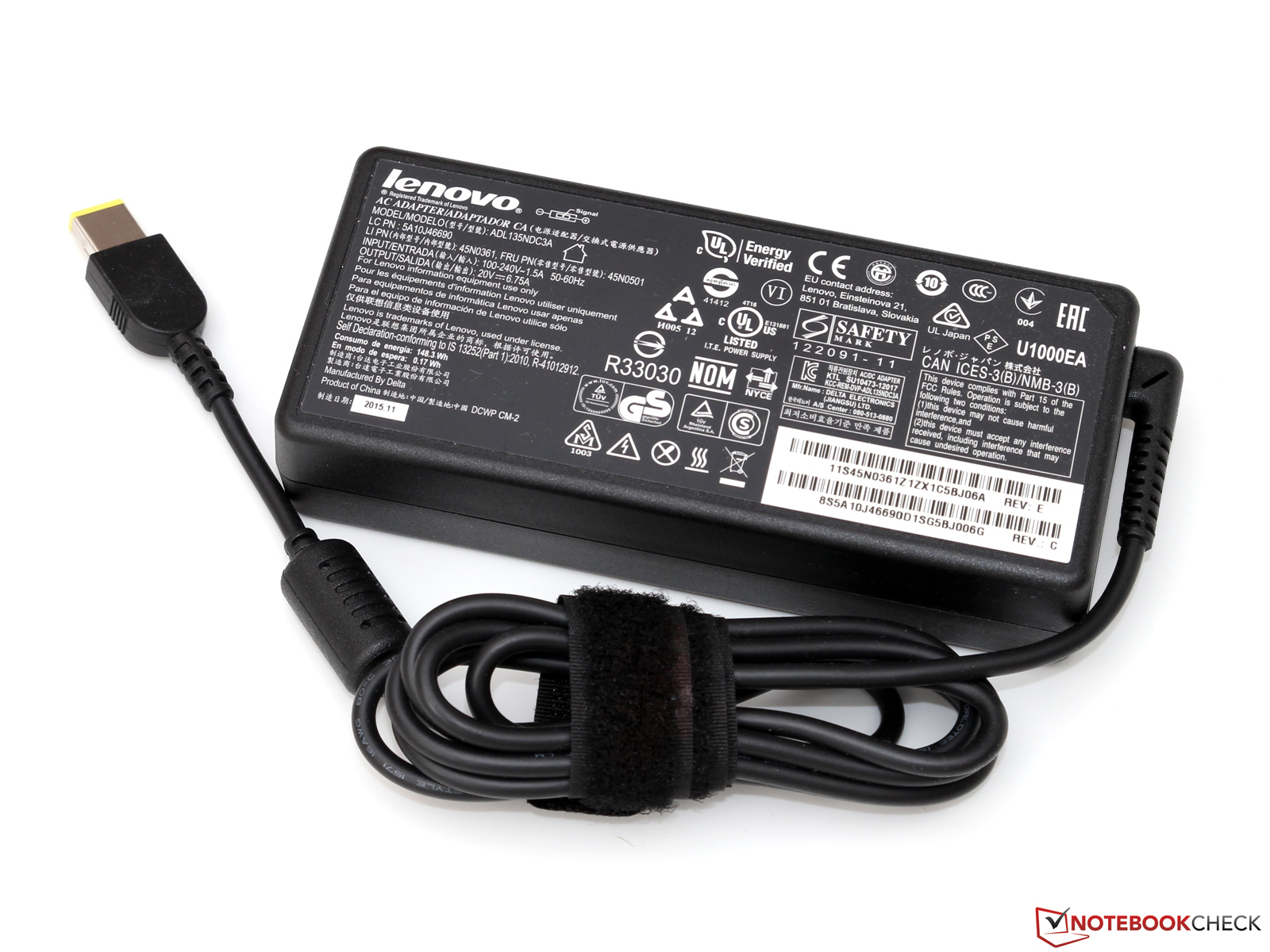

- adaptador de corriente voluminoso
- elevado desarrollo de temperatura
- aguante de batería mediocre
Lenovo ThinkPad T460p. Model de pruebas cortesía de Campuspoint.
Lenovo ThinkPad T460p. Model de pruebas cortesía de Campuspoint.

Actualmente no hay muchas alternativas si buscas un portátil de oficina compacto con mucho rendimiento CPU. Aparte del Dell Latitude E5470, el ThinkPad T460p es actualmente el único dispositivo de 14" que puede también vérselas con exigente software multihilo gracias a sus CPUs quad-core. Esto puede ser razón suficiente para algunos usuarios - pero el ThinkPad también tiene otras ventajas como el robusto chasis, los excelentes dispositivos de entrada o el buenísimo display IPS. La GPU dedicada GeForce definitivamente merece el sobrecoste, ya que es el doble de rápida que la gráfica integrada. Defectos menores como la falta de un puerto USB Type-C, el voluminoso adaptador de corriente o el aguante mediocre de la batería no son, por tanto, un gran problema.

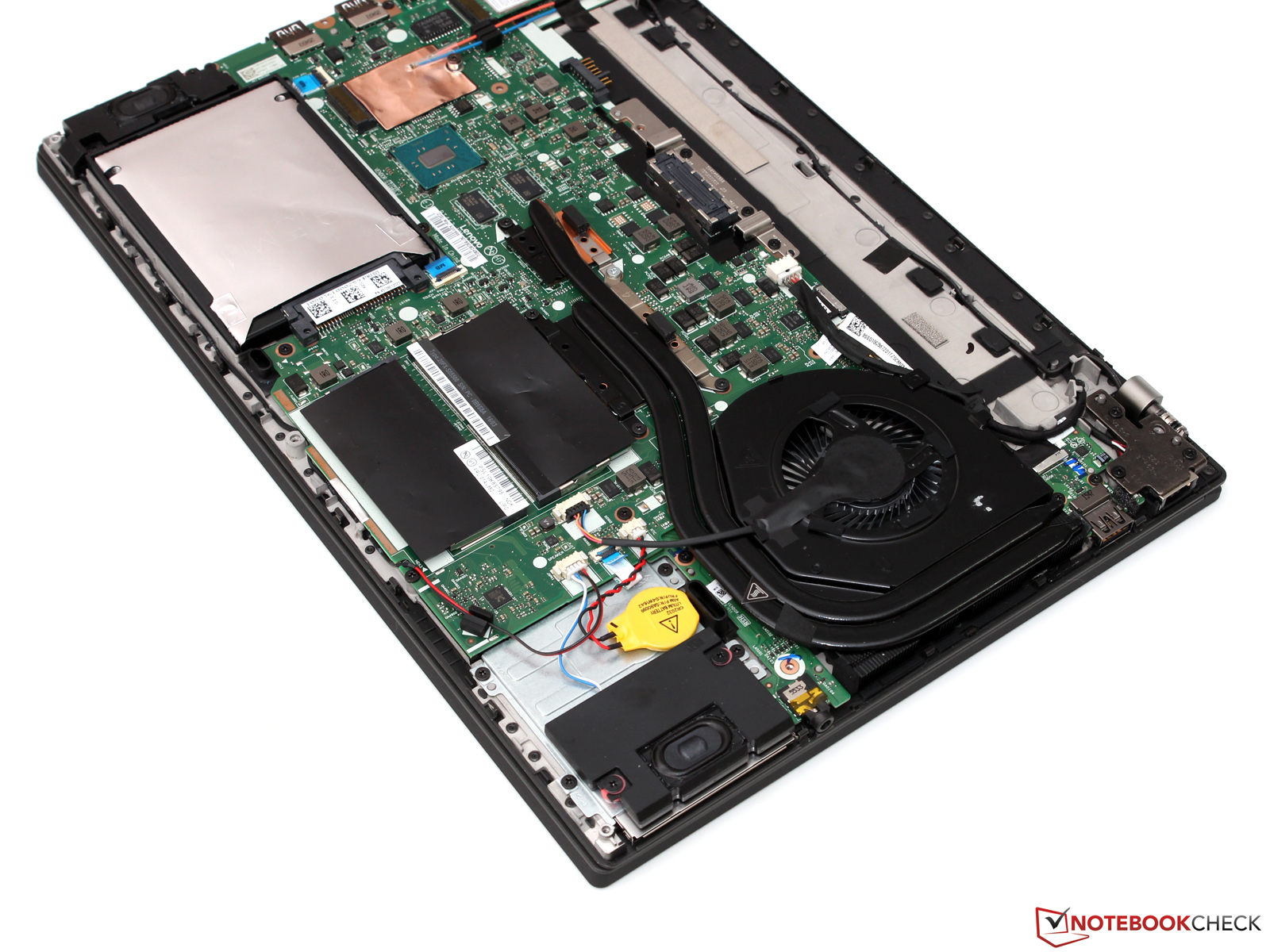

Algo que no puede compensarse tan fácil: Con la masilla térmica envejecida y los ventiladores llenos de polvo, puede darse ralentización así como temperaturas superficiales incómodamente cálidas aún si no usas las herramientas de estrés sintético. Puedes pensar que el problema en la práctica no es tan importante - pero ¿quién compra un dispositivo como el T460p si no quiere usar el rendimiento?

Temperaturas de CPU cercanas a los 100 °C muestran lo que pueden esperar los usuarios durante el verano.

Si puedes tolerar las elevadas temperaturas, no hay motivos para evitar el T460p, pero podría ser una buena idea usar herramientas como TPFanControl para afinar el control de ventilador en este caso.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Lenovo ThinkPad T460p-20FXS05500 - 04/18/2016 v5.1(old)
Till Schönborn

Acabado
85 / 98 → 86%
Teclado
94%
Ratón
84%
Conectividad
65 / 80 → 82%
Peso
65 / 20-67 → 96%
Battería
83%
Pantalla
89%
Rendimiento de juegos
64 / 68 → 95%
Rendimiento de la Aplicación
89 / 92 → 97%
Temperatura
80%
Ruido
94%
Audio
64%
Cámara
50 / 85 → 59%
Médio
77%
87%
Office - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del Lenovo ThinkPad T460p (Core i7, GeForce 940MX)
Till Schönborn, 2016-04-21 (Update: 2016-04-21)
