El mini PC Acemagic AM20 con un AMD Ryzen 7 7735H y 32 GB de RAM puede cargar smartphones de forma inalámbrica

Name: Acemagic AM20
Brand: Acemagic

¿Una característica sensata? Con el AM20, Acemagic ha lanzado un mini PC con un AMD Ryzen 7 7735H y una AMD Radeon 680M. A pesar de su formato compacto, se pueden instalar tres unidades de almacenamiento masivo y en la tapa de la carcasa se esconde una estación de carga inductiva. Nuestro análisis revela si este dispositivo tiene lo que hace falta para impresionar en el uso diario. Sigue leyendo y descubre todo lo que necesitas saber sobre el Acemagic AM20.

Sebastian Bade, 👁 Sebastian Bade (traducido por DeepL / Ninh Duy), Published 10/04/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop AMD Ryzen (Zen)

Con el AM20, Acemagic amplía su cartera y lanza un repräsentativo muy interesante en la categoría. Sin embargo, no se trata de una simple actualización de un modelo existente, sino de un modelo completamente nuevo. Con elAMD Ryzen 7 7735Hel fabricante ha apostado por un SoC actual que cuenta con una potente iGPU, laAMD Radeon 680M. Ya se sabe que Intel va por detrás en este aspecto y con la iGPU mencionada es posible incluso emprender algunas pequeñas sesiones de juego. Acemagic ha equipado el dispositivo con 32 GB de RAM y un SSD de 512 GB, lo que significa que el PC está bien equipado por ahora. El Acemagic AM20 con 16 GB de RAM cuesta unos 570 dólares. Nuestro modelo de prueba no aparece actualmente en la tienda de Acermagic.

En este análisis, enfrentamos al Acemagic AM20 con competidores bien conocidos que ya han luchado en nuestro curso de pruebas. Una lista de los dispositivos de comparación para esta revisión se puede encontrar en el siguiente resumen.

Dispositivo de pruebas cortesía de Acemagic

Download your licensed rating image as PNG / SVG

Acemagic AM20

Procesador

AMD Ryzen 7 7735H 8 x 3.2 - 4.8 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Rembrandt-H Refresh

Adaptador gráfico

AMD Radeon 680M, Adrenalin 23.7.2

Memoría

32 GB

, DDR5 6400, soldered

Placa base

AMD Promontory/Bixby FCH

Disco duro

AirDisk APF 10-512G, 512 GB

, M.2 2280, NVMe, 450 GB libre

Tarjeta de sonido

AMD Zen - Audio Processor - HD Audio Controller

Conexiones

4 USB 3.0, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, Audio Conexiones: 3,5mm Klinke

Equipamento de red

Intel Ethernet Controller I226-V (10/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Tamaño

Alto x ancho x profundidad (en mm): 38 x 107 x 107

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionales

12 Meses Garantía

Peso

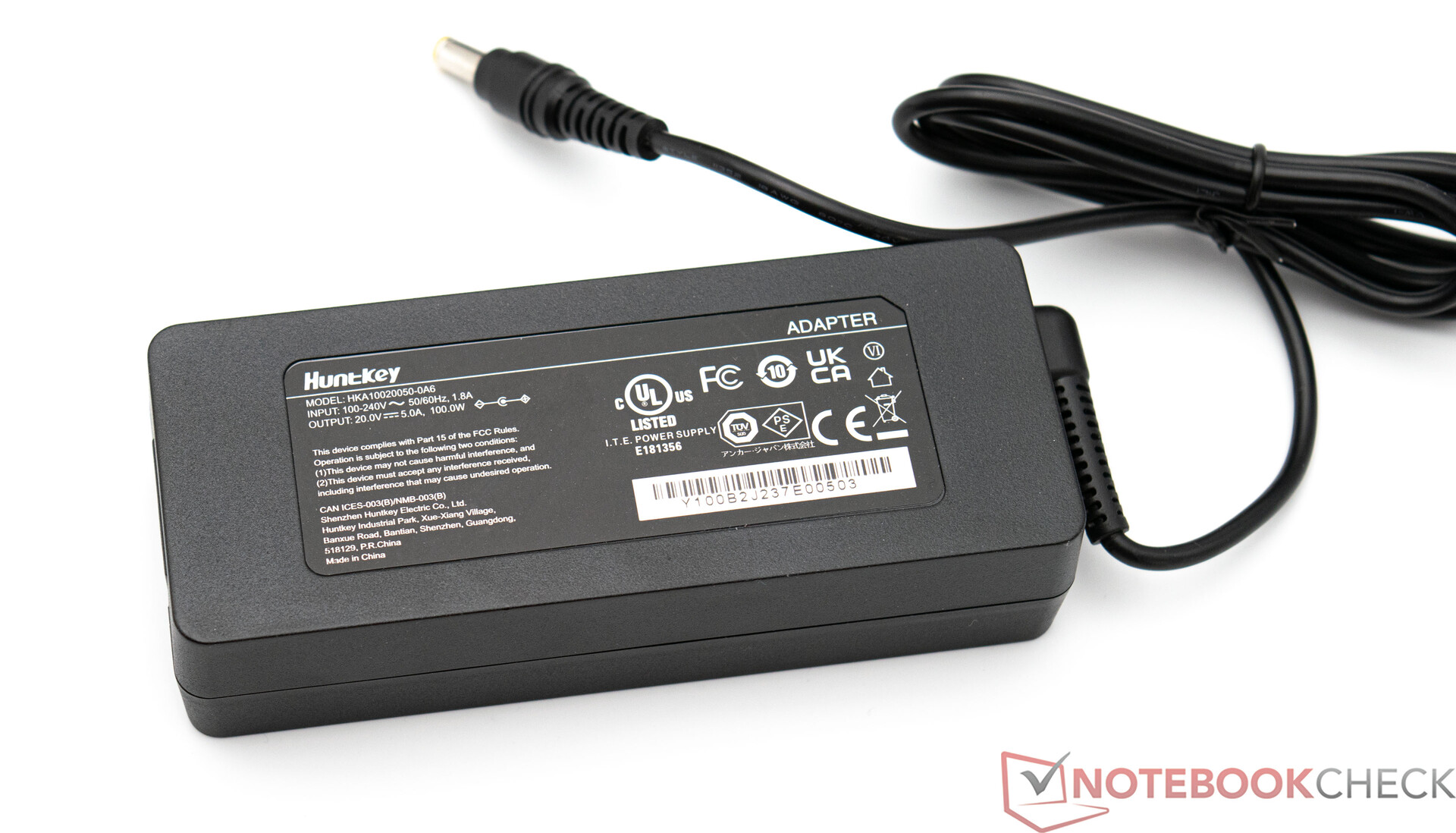

339 g, Suministro de Electricidad: 301 g

Precio

580 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

todas las especificaciónes

Posibles contendientes en la comparación

Valoración	Fecha	Modelo	Peso	Altura
84 %	10/2023	Acemagic AM20 R7 7735H, Radeon 680M	339 g	38 mm
82.8 %	07/2023	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	666 g	52.3 mm
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.8 %	07/2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82.3 %	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.7 %	05/2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
73.8 %	08/2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

Acemagic AM20 en detalle

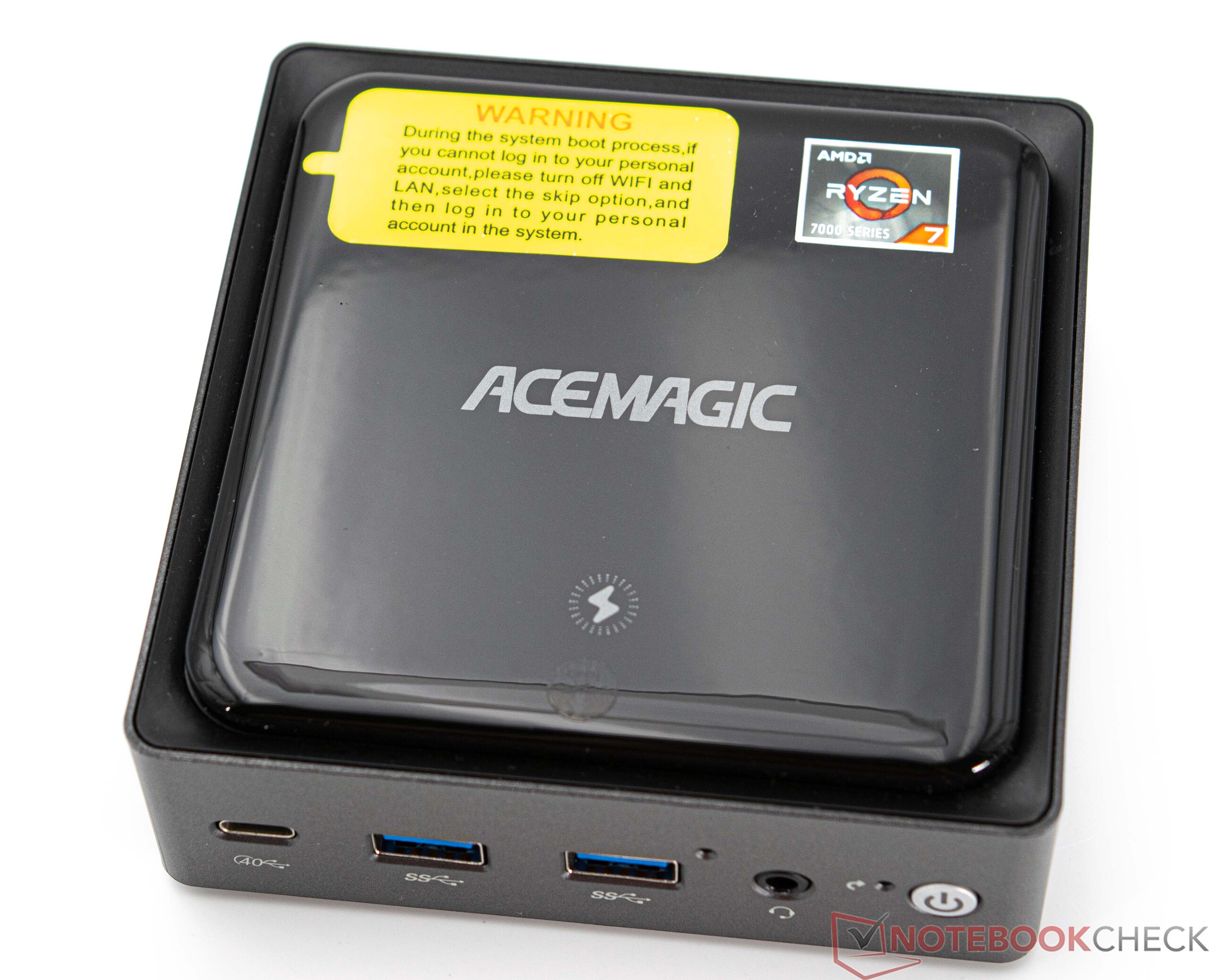

Funda - con función de carga inalámbrica

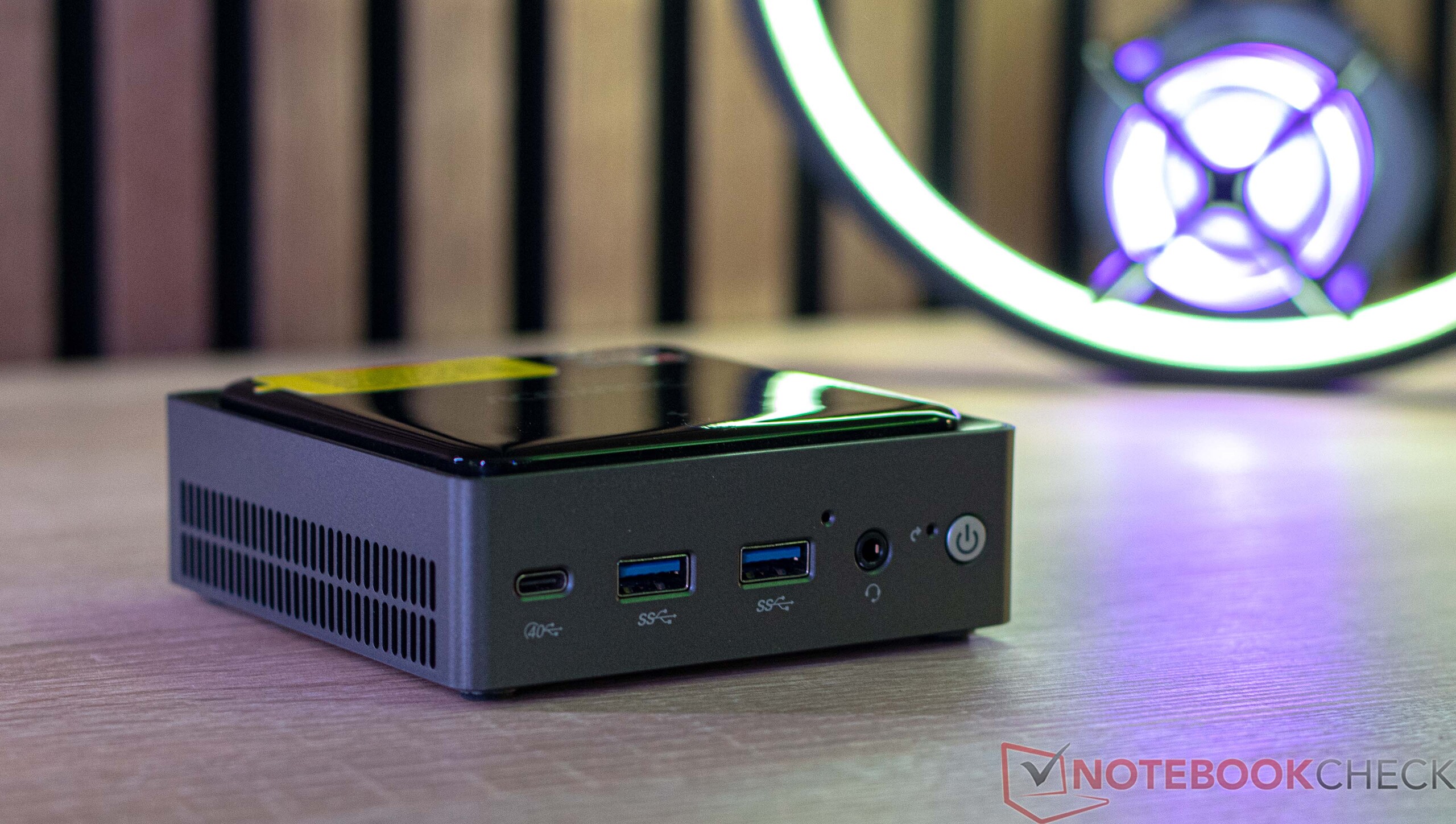

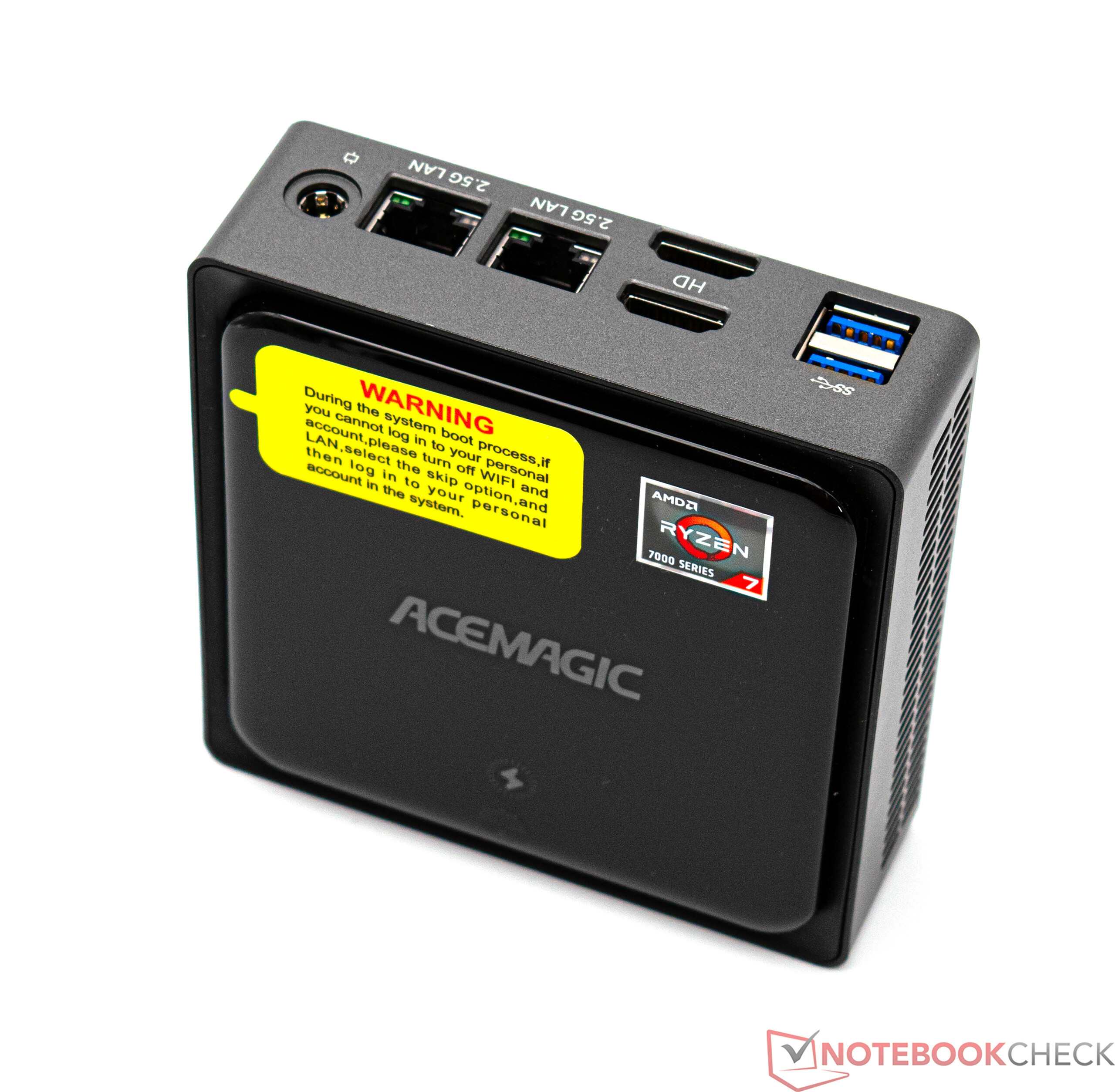

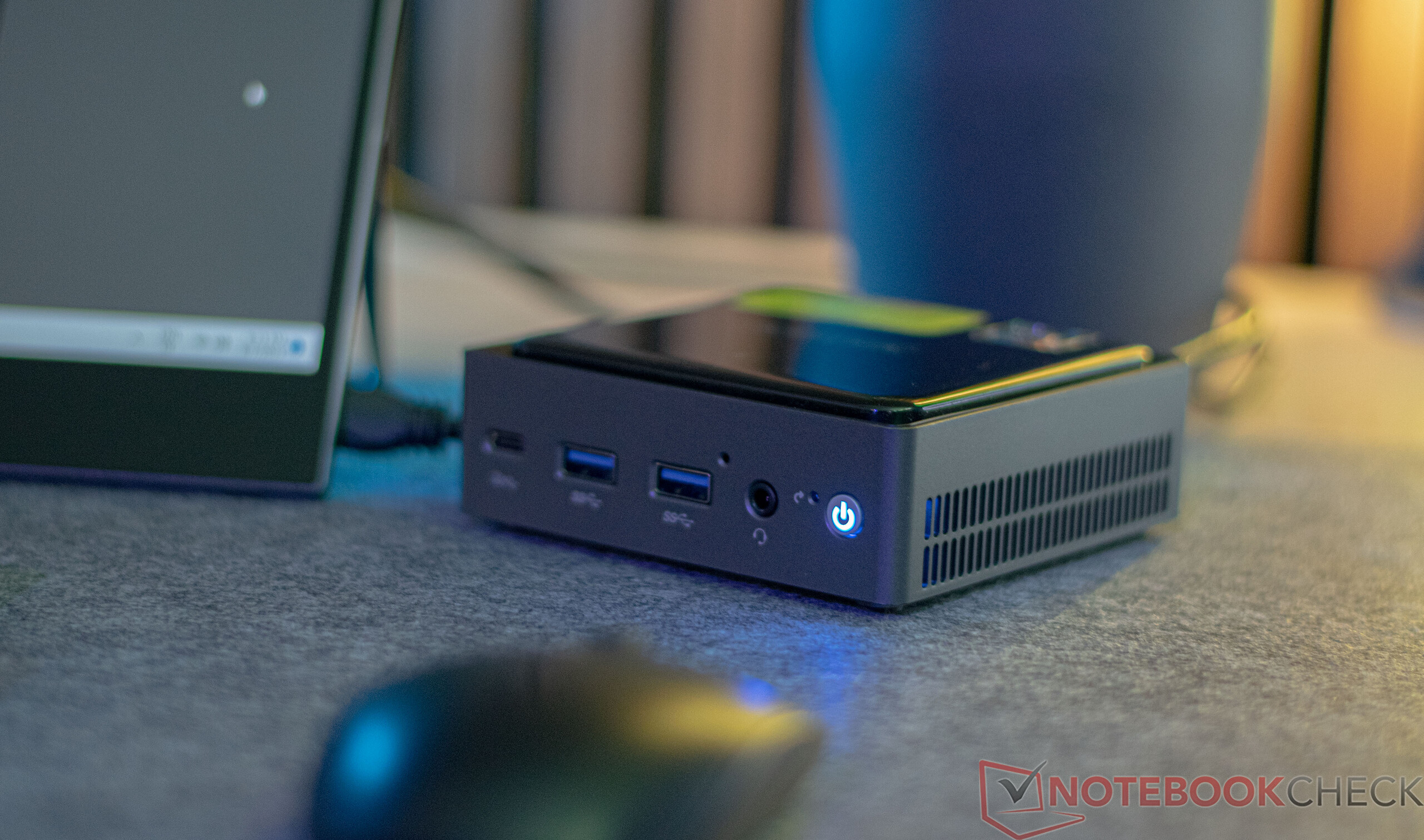

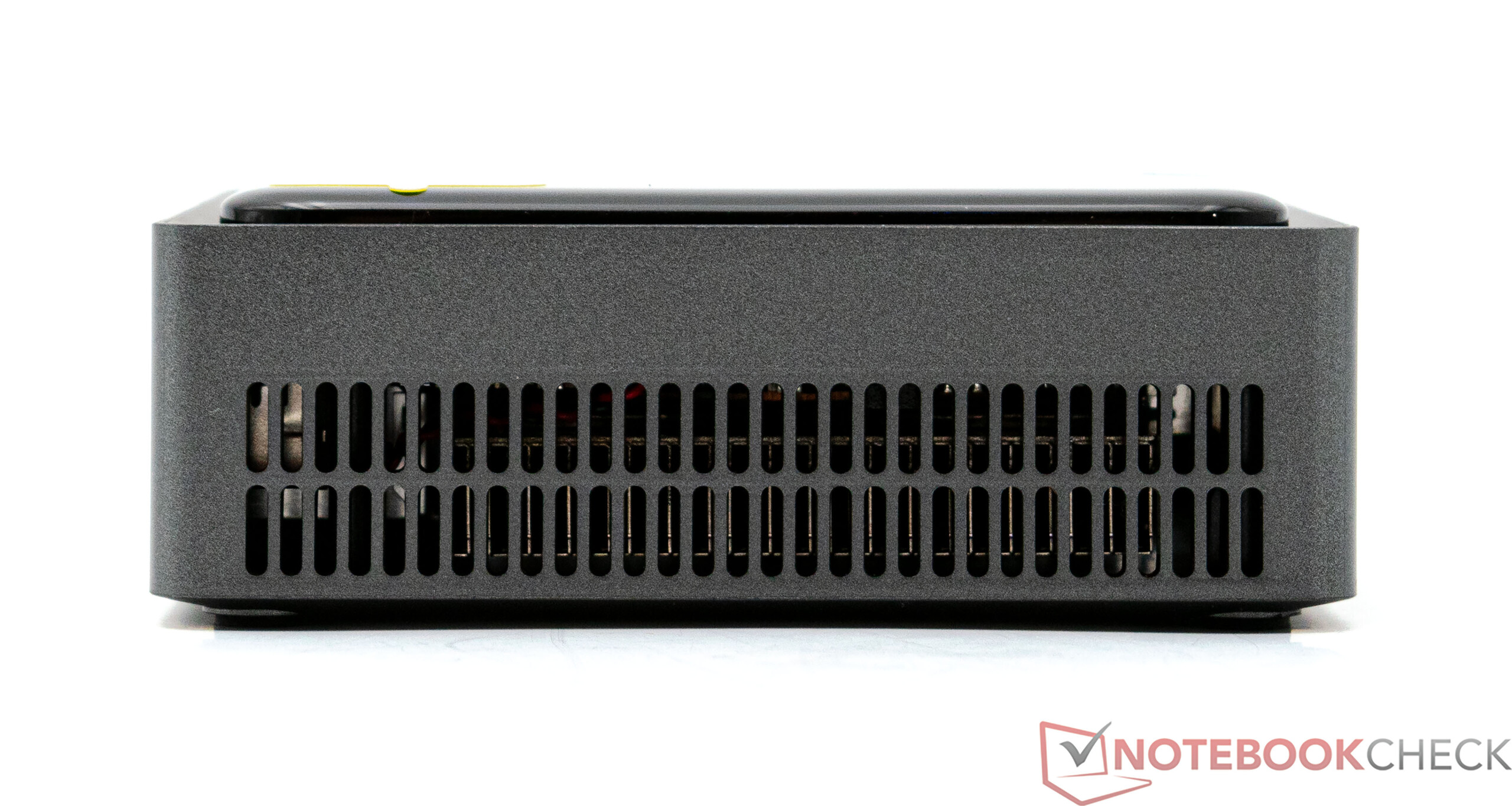

El Acemagic AM20 no es visualmente llamativo. Los exteriores del dispositivo son de color gris oscuro, aunque la cubierta parece negra. Brilla con un aspecto de alto brillo que, por desgracia, lo hace propenso a atraer las huellas dactilares. Dentro de la carcasa se esconde una unidad de carga inalámbrica. Los smartphones, por ejemplo, pueden cargarse durante el funcionamiento con hasta 10 vatios. Esto convierte al Acemagic AM20 en el mini PC más pequeño con función de carga inalámbrica. Si echamos un vistazo a los requisitos de espacio, el Acermagic AM20 pertenece, una vez más, a los dispositivos más compactos. Con 10,7 × 10,7 centímetros, ocupa muy poco espacio. En cuanto a la altura, también mide sólo 3,8 centímetros.

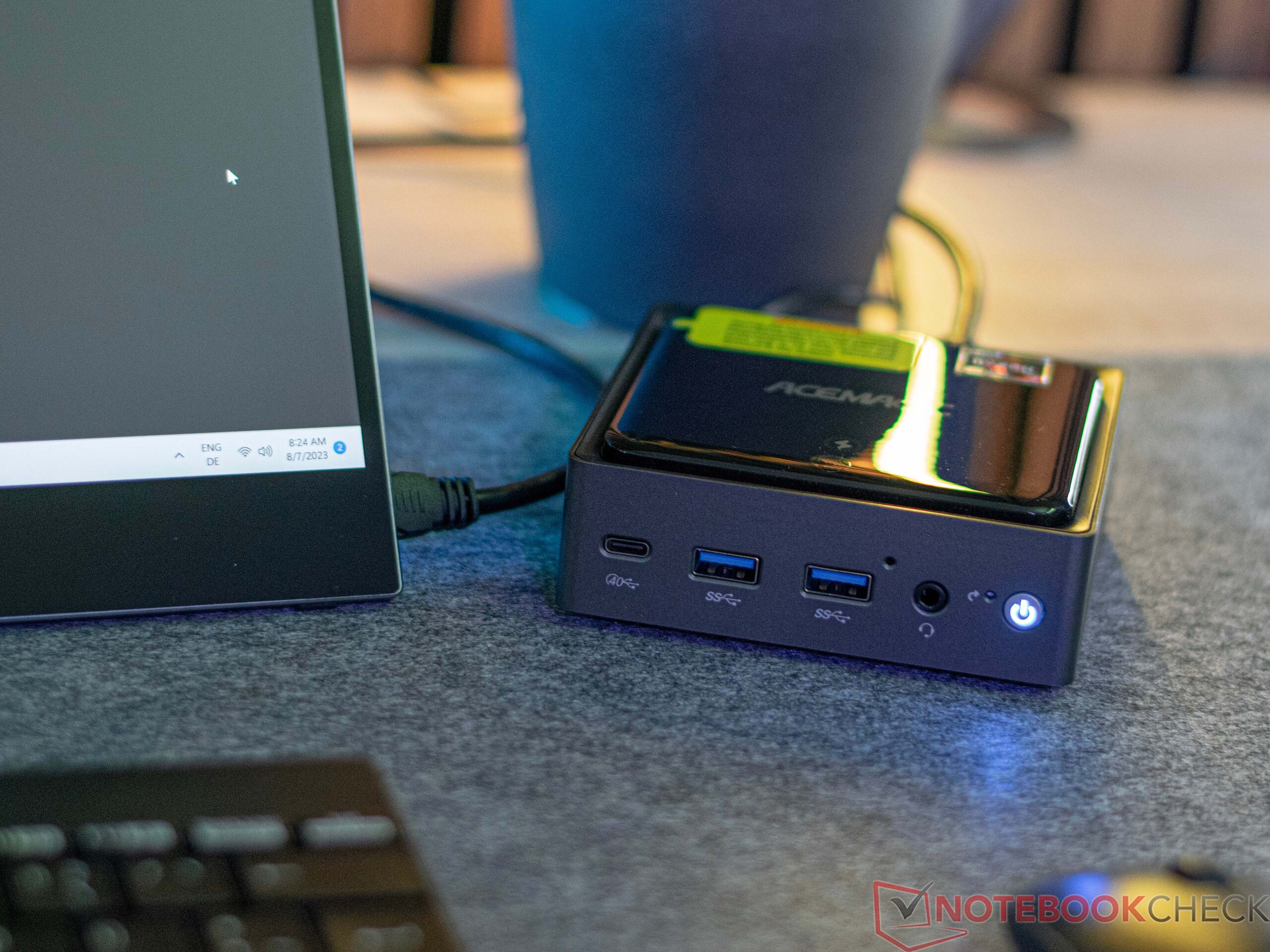

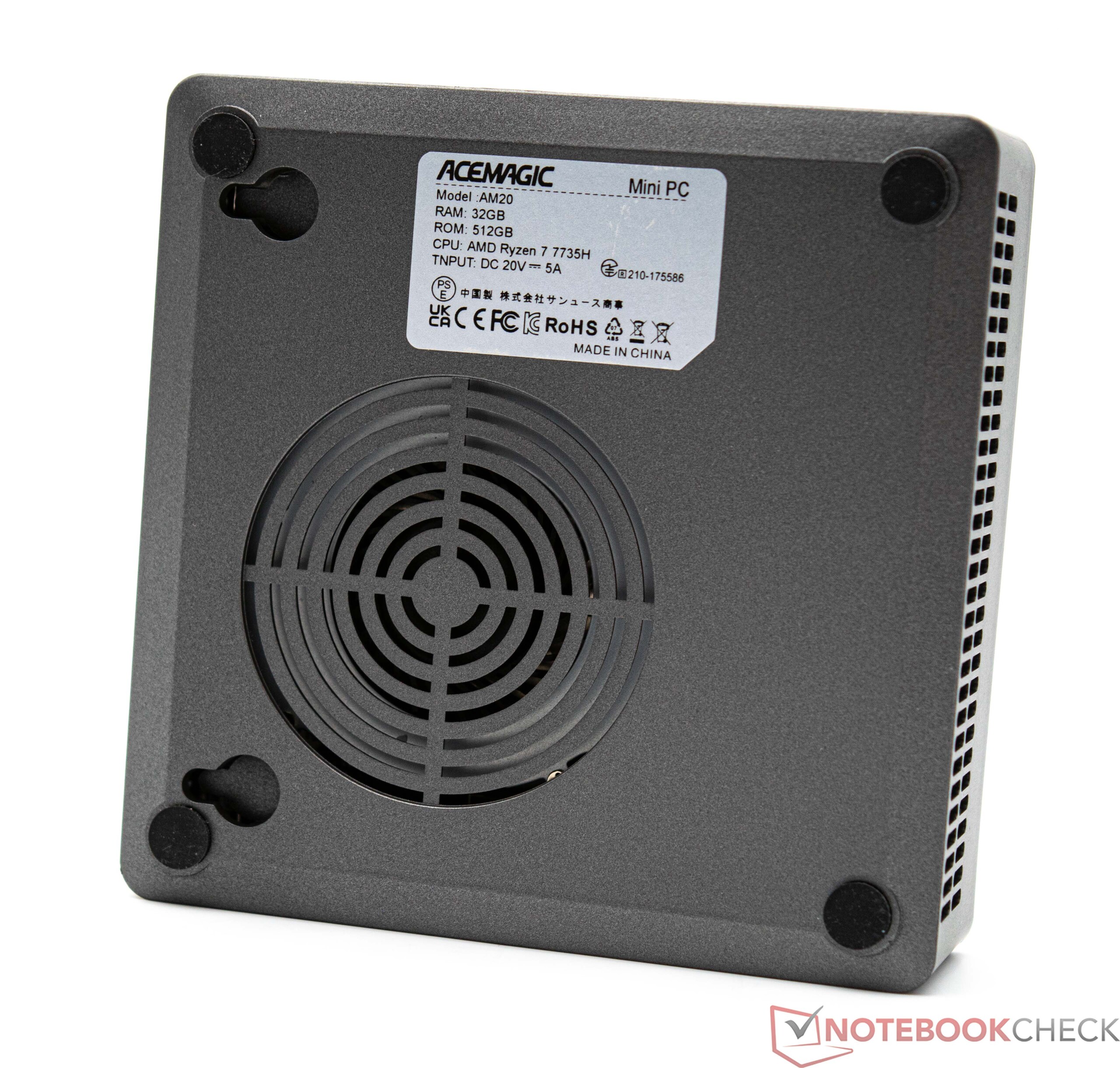

El Acemagic AM20 puede fijarse a un monitor mediante un soporte VESA. Sin embargo, este tipo de montaje dificultaría el uso de la unidad de carga integrada en la carcasa.

Comparación de tamaños

Minisforum Neptune Series NAD9 Blackview MP200 Geekom AS 6, R9 6900HX Morefine M600, 6600U Minisforum Venus Series UM790 Pro Minisforum Venus Series UM560 XT Geekom Mini IT12 Acemagic AM20 DIN A4 ❌

Características: una buena selección que incluye Thunderbolt

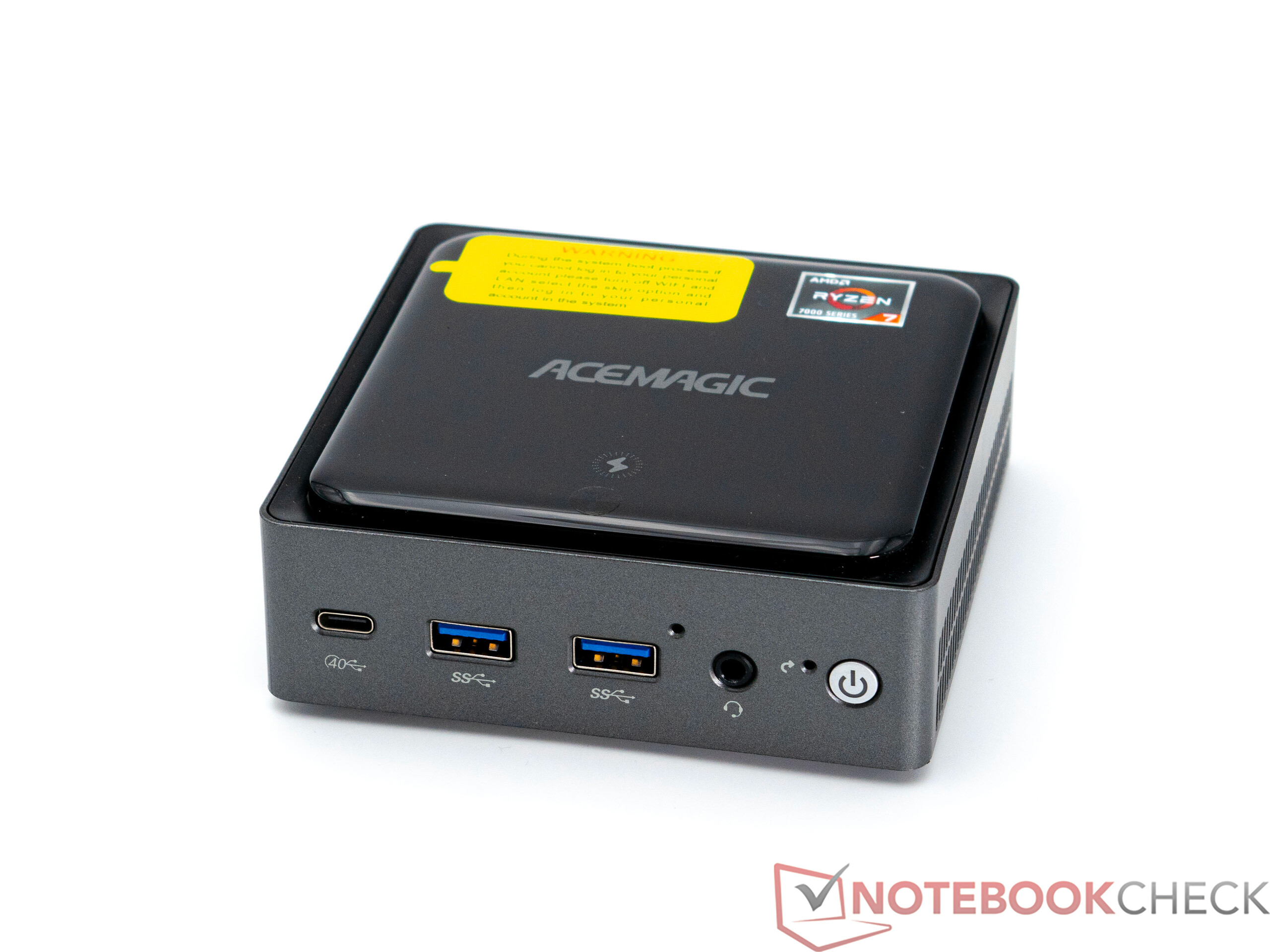

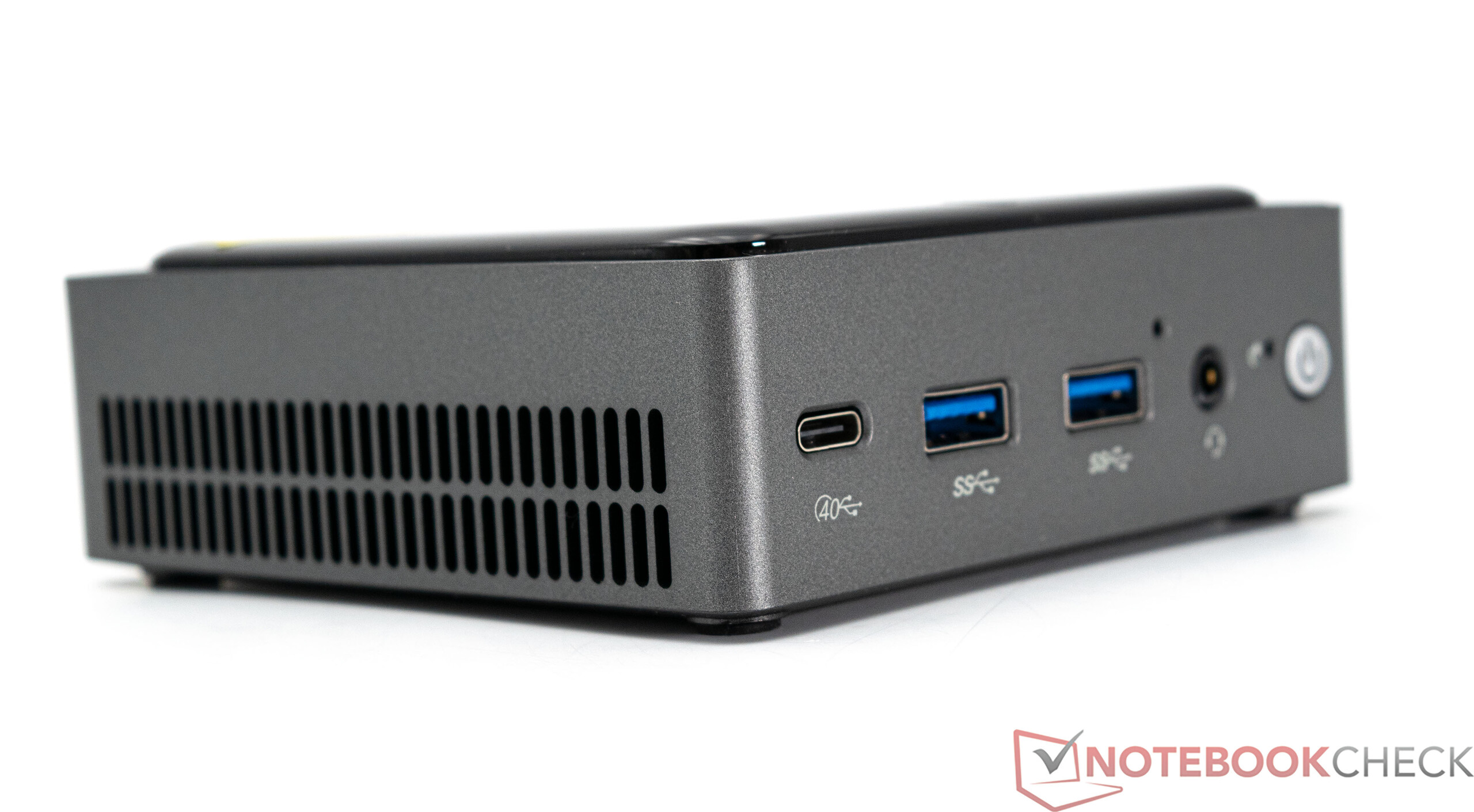

El Acemagic AM20 ofrece una buena selección de puertos que se encuentran en la parte delantera y trasera. En total, hay cinco puertos USB, uno de los cuales también soporta la funcionalidad Thunderbolt. Las pantallas se pueden controlar a través de HDMI o USB-C, lo que significa que tres pantallas no son un problema para el Acemagic AM20

Puertos externos del Acemagic AM20 (fuente: Acemagic)

Comunicación

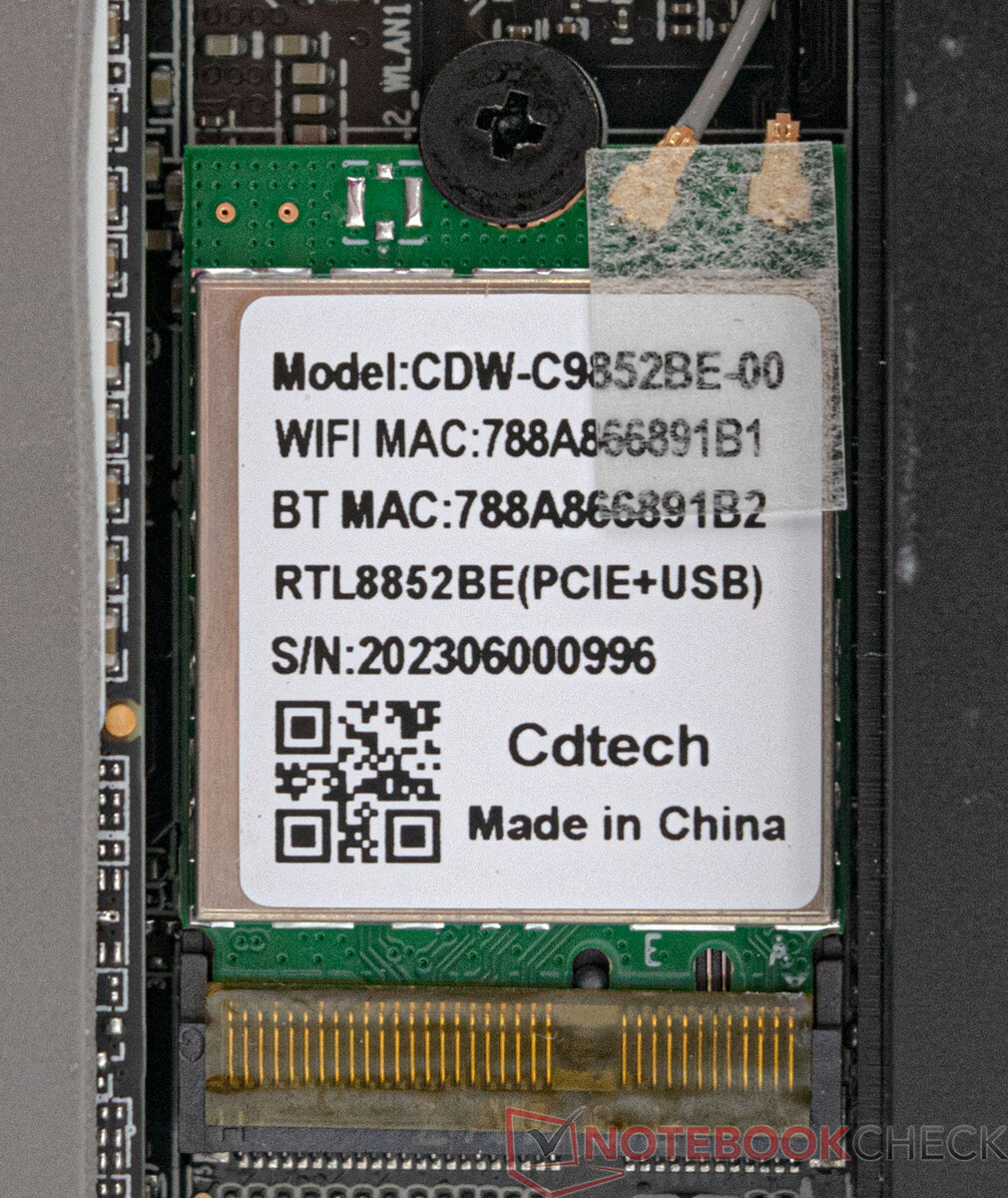

El módulo Wi-Fi instalado es de Realtek y funciona idealmente en la banda de frecuencia de 5 GHz. No obstante, es compatible con la gama de 2,4 GHz. En lo que respecta al módulo Wi-Fi instalado, nuestro análisis reveló los resultados correspondientes: En cuanto a la recepción de datos, el Acemagic AM20 sigue estando en el medio del pelotón, pero en lo que respecta al envío, nuestro dispositivo de prueba ha caído hasta el último puesto. No obstante, estos resultados no son motivo de preocupación, ya que el rendimiento mostrado es suficiente para el uso diario. Para este análisis hemos utilizado nuestro router de pruebas, el Asus ROG Rapture GT-AXE11000. Merece la pena destacar las dos tomas LAN, ya que pueden usarse como alternativa a una conexión inalámbrica. Ambas ofrecen hasta 2,5 GBit/s, que no es el estándar para mini PCs.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +39%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s +1%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s 0%
Acemagic AM20 Realtek RTL8852BE	945 (927^min - 957^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s 0%
Average of class Mini PC (192.9 - 1796, n=87, last 2 years)	892 MBit/s -6%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s -6%
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s -12%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	774 (347^min - 841^max) MBit/s -18%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +84%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +28%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s +16%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s +15%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +15%
Average of class Mini PC (184.1 - 1776, n=87, last 2 years)	822 MBit/s +14%
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s +9%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s +9%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	768 (738^min - 792^max) MBit/s +7%
Acemagic AM20 Realtek RTL8852BE	718 (667^min - 770^max) MBit/s

Morefine M600, 6600U MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø765 (718-814)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1622 (1561-1670)

Morefine M600, 6600U MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø957 (943-967)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1519 (1392-1699)

Acemagic AM20 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø944 (927-957)

Morefine M600, 6600U MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø948 (934-957)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø943 (923-960)

Acemagic AM20 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø718 (667-770)

Morefine M600, 6600U MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (381-874)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø918 (892-938)

Mantenimiento

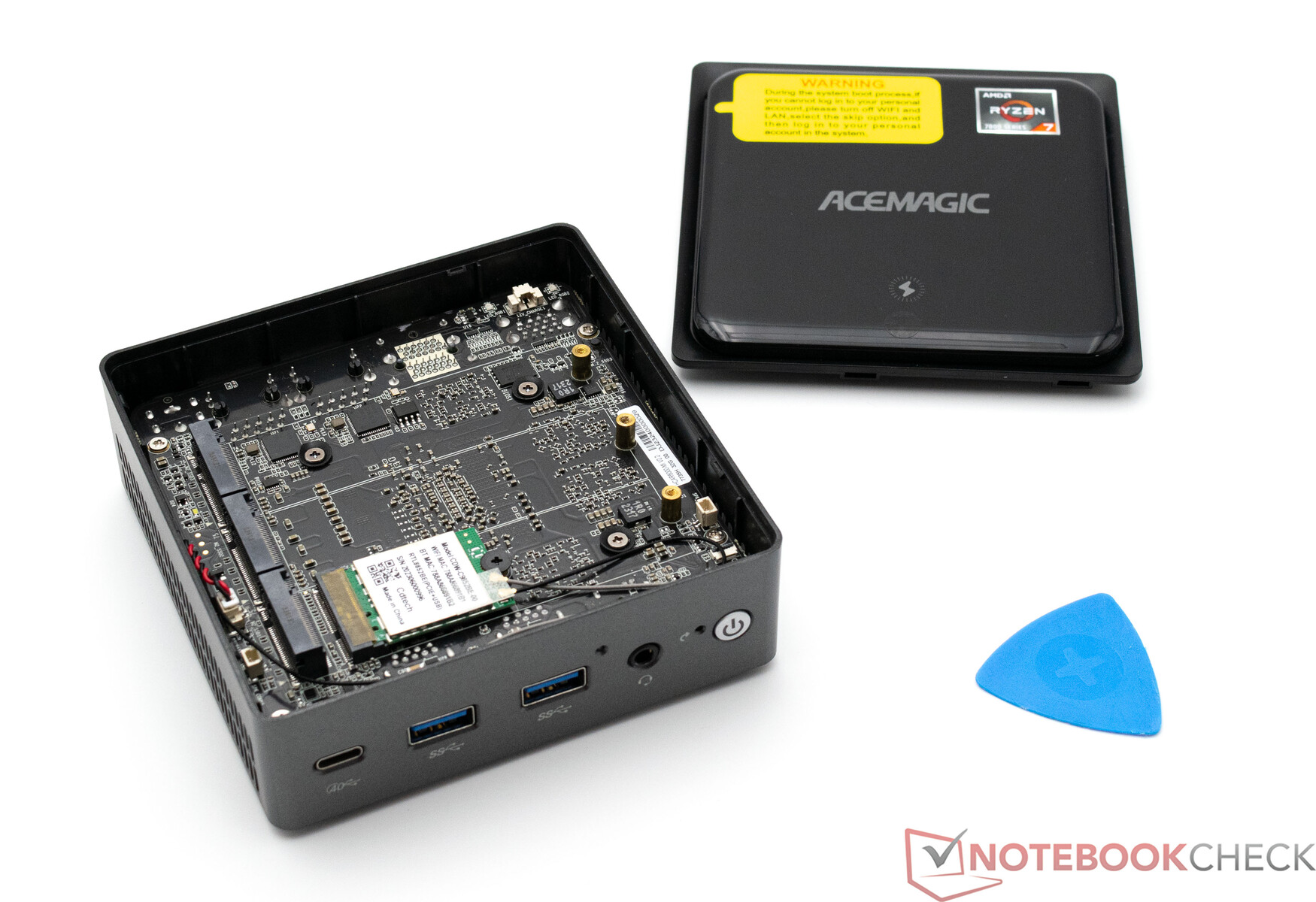

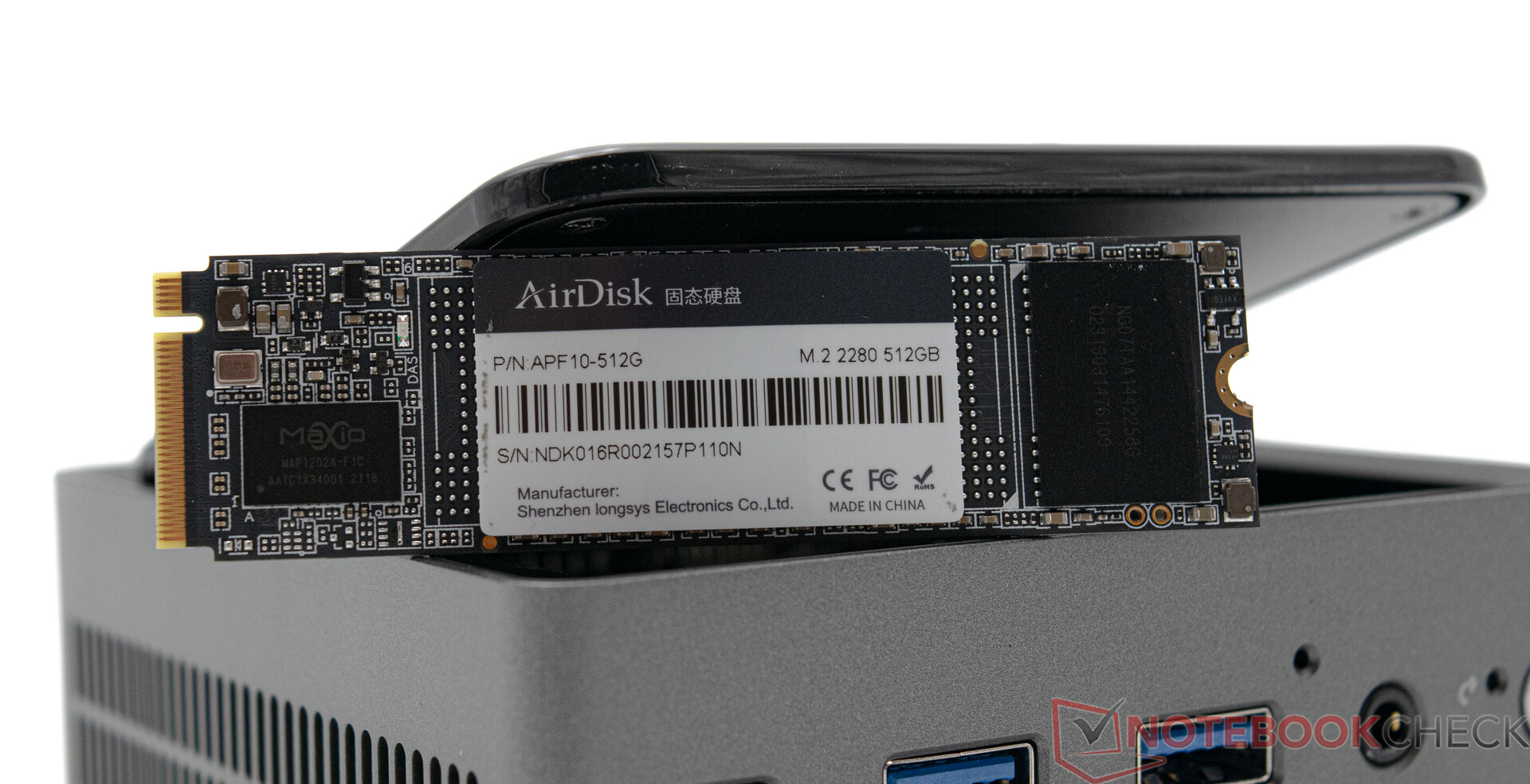

La parte superior del Acemagic AM20 se puede abrir fácilmente porque el fabricante ha dotado al dispositivo de una solapa con cierre magnético. Debajo se esconden el almacenamiento masivo y el módulo Wi-Fi, ambos fácilmente reemplazables. Enseguida se aprecian tres interfaces M.2 para SSD. Esto tampoco es lo habitual y, teniendo en cuenta el compacto factor de forma, es un aspecto importante a la hora de tomar una decisión de compra. Cualquiera que desee limpiar también el ventilador tendrá que desmontar más el dispositivo y esto es esencialmente alcanzable con un toque delicado y las herramientas adecuadas.

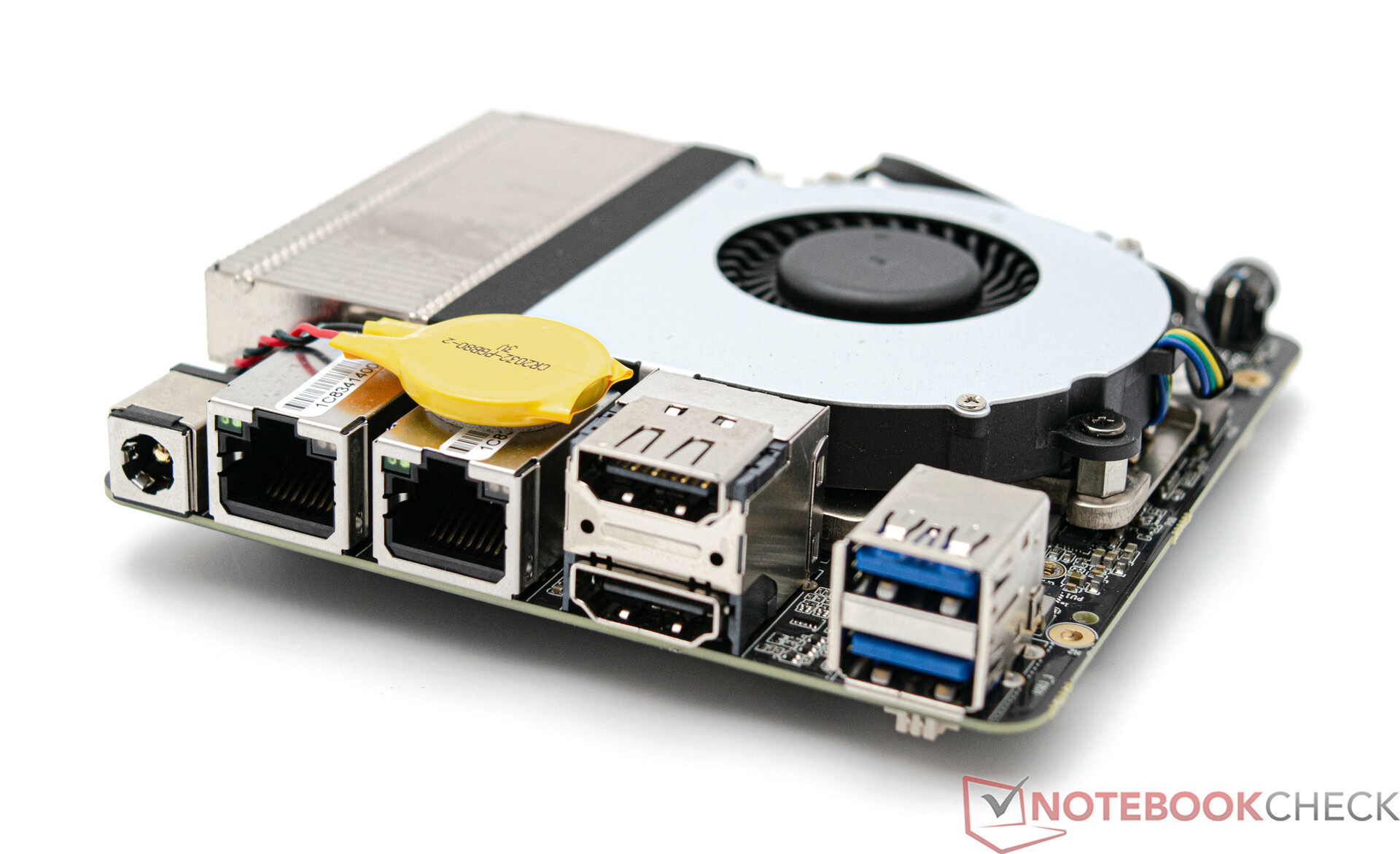

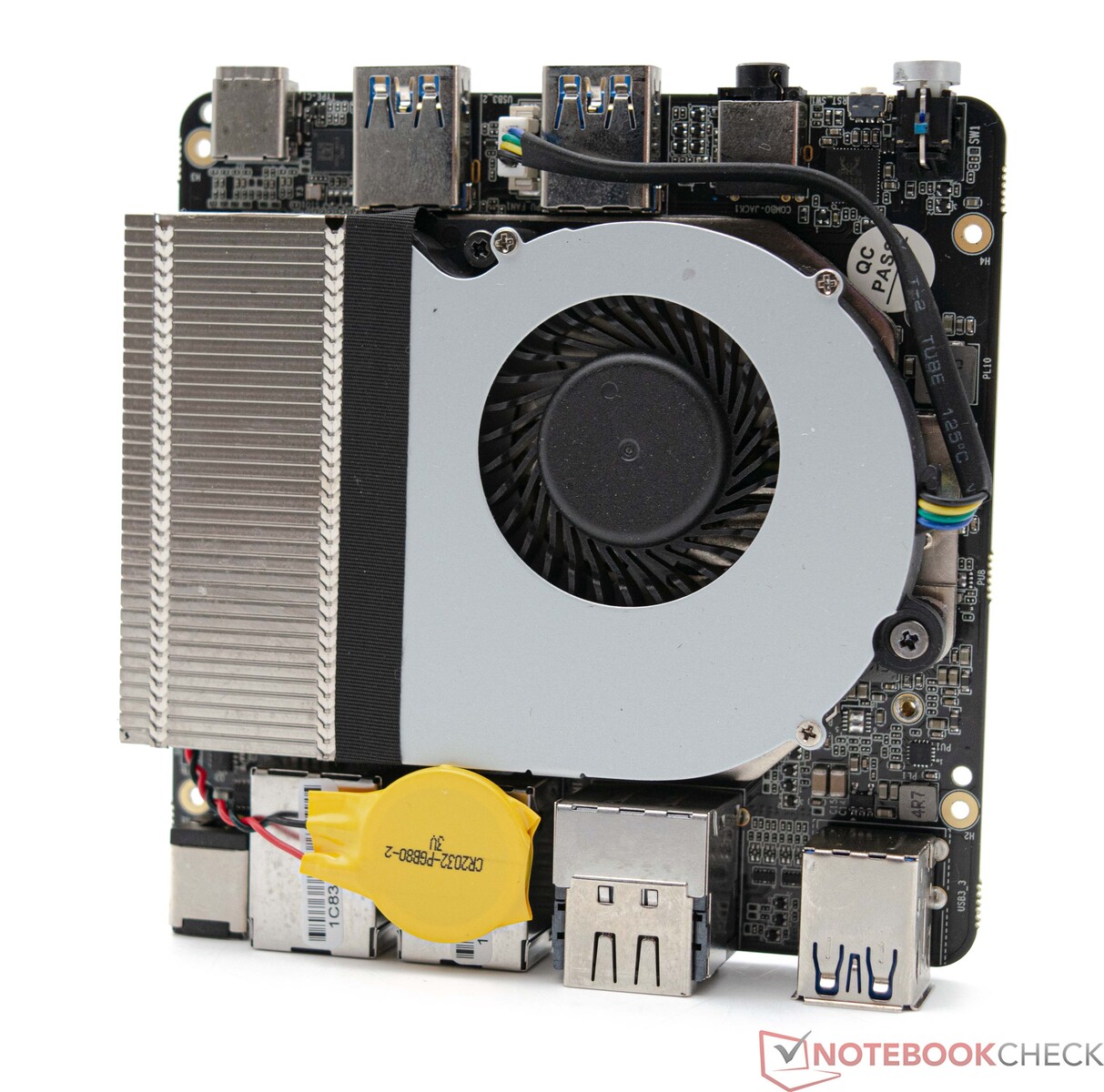

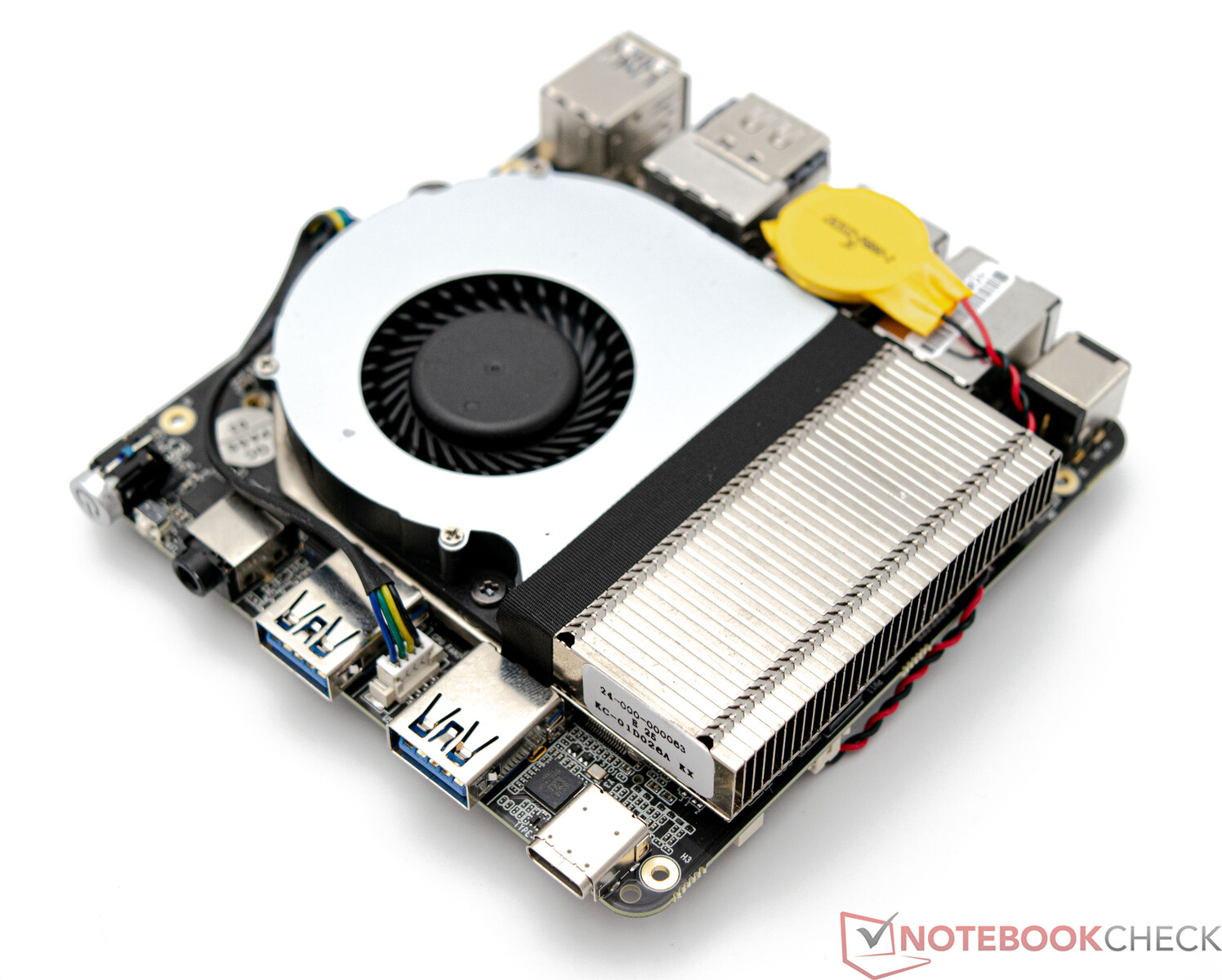

Acemagic AM20 desmontado

Rendimiento - El AMD Ryzen 7 7735H sólo tiene núcleos Zen 3+

Con elAMD Ryzen 7 7735Hel Acemagic AM20 tiene un SoC relativamente actualizado con 8 núcleos y 16 hilos. Esto le asegura estar bien equipado para manejar la mayoría de tareas. De momento, no se han revelado otras configuraciones. En cuanto a la RAM, el Acemagic AM20 está disponible con 16 o 32 GB. Es preferible esta última, ya que no es posible ampliarla.

Condiciones de la prueba

Realizamos todas las pruebas de rendimiento usando el perfil de energía de "alto rendimiento". No cambiamos el rendimiento del SoC y dejamos el dispositivo en modo de fábrica de acuerdo con la configuración de la BIOS. Los distintos planes de ahorro de energía sólo se utilizaron para las mediciones de consumo de energía, así como para el análisis del nivel de ruido.

Procesador

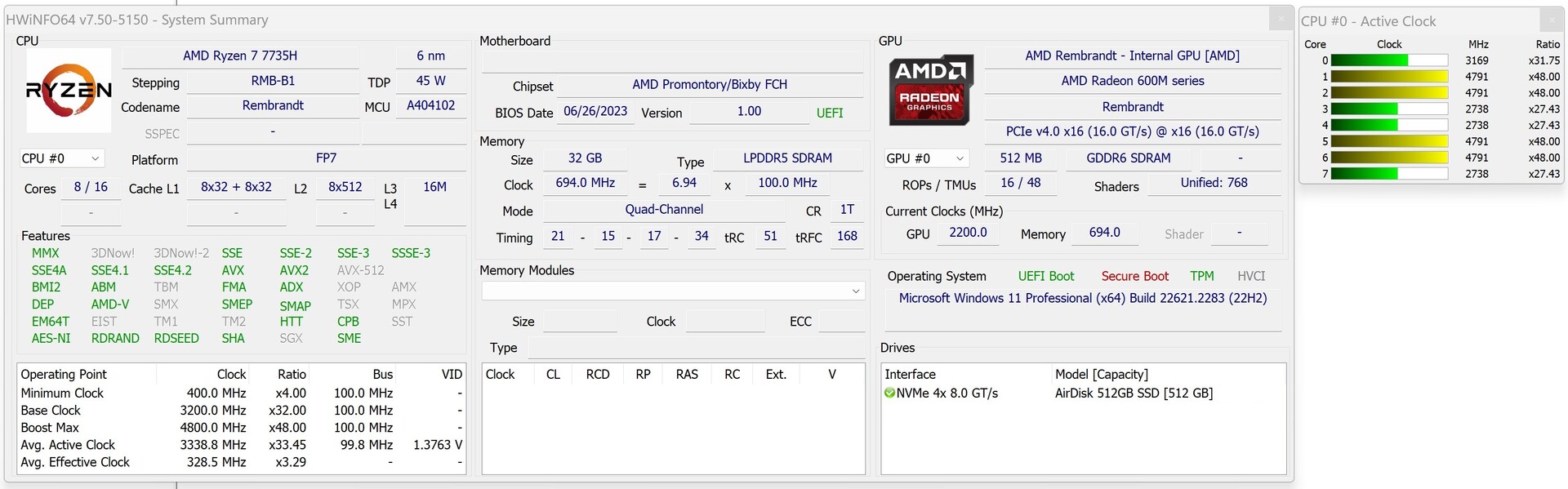

EnAMD Ryzen 7 7735Hcombina ocho núcleos Zen 3+, lo que significa que el fabricante ha decidido no usar la actual serie Phoenix de AMD. A pesar de ello, con 8 núcleos y 16 hilos, el SoC logra un rendimiento multinúcleo decente. Sin embargo, esto nos muestra que el Acemagic AM20 apenas supera alMinisforum UM560 XTen comparación con elAMD Ryzen 9 6900HXel AMD Ryzen 7 7735H pierde aproximadamente un siete por ciento. En comparación con elGeekom Mini IT12observamos puntuaciones de rendimiento casi idénticas.

En los benchmarks AIDA64, el Acemagic AM20 demuestra maravillosamente que se ha instalado un potente SoC. Sin embargo, el Geekom AS 6 y el Minisforum UM790 Pro son claramente mejores.

Encontrará más comparaciones y pruebas en nuestra tabla comparativa de CPUs Procesadores mobiles - lista de benchmarks (nueva) .

Performance Rating - Percent
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	54.2 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H	49.3 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.5 pt
Acemagic AM20 AMD Ryzen 7 7735H	46.2 pt
Geekom Mini IT12 Intel Core i7-1260P	45.3 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	43.6 pt
Morefine M600, 6600U AMD Ryzen 5 6600U	43.3 pt
Blackview MP200 Intel Core i5-11400H	41.4 pt

Cinebench R23
Multi Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +56%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	13320 Points +22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points +14%
Acemagic AM20 AMD Ryzen 7 7735H	10920 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9564 Points -12%
Geekom Mini IT12 Intel Core i7-1260P	8846 Points -19%
Morefine M600, 6600U AMD Ryzen 5 6600U	8491 Points -22%
Blackview MP200 Intel Core i5-11400H	8451 Points -23%
Single Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	1743 Points +13%
Geekom Mini IT12 Intel Core i7-1260P	1693 Points +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	1536 Points
Blackview MP200 Intel Core i5-11400H	1462 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U	1420 Points -8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1375 Points -10%

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	247 Points 0%
Acemagic AM20 AMD Ryzen 7 7735H	246 Points
Geekom Mini IT12 Intel Core i7-1260P	241 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	227 Points -8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	225 Points -9%
Blackview MP200 Intel Core i5-11400H	218 Points -11%
CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +46%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2067 Points +13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points +11%
Acemagic AM20 AMD Ryzen 7 7735H	1825 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1596 Points -13%
Geekom Mini IT12 Intel Core i7-1260P	1565 Points -14%
Blackview MP200 Intel Core i5-11400H	1378 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U	1361 Points -25%

Cinebench R20
CPU (Single Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	682 Points +13%
Geekom Mini IT12 Intel Core i7-1260P	652 Points +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	601 Points
Blackview MP200 Intel Core i5-11400H	560 Points -7%
Morefine M600, 6600U AMD Ryzen 5 6600U	558 Points -7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	533 Points -11%
CPU (Multi Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +53%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	4941 Points +13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points +10%
Acemagic AM20 AMD Ryzen 7 7735H	4354 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	3768 Points -13%
Geekom Mini IT12 Intel Core i7-1260P	3427 Points -21%
Morefine M600, 6600U AMD Ryzen 5 6600U	3419 Points -21%
Blackview MP200 Intel Core i5-11400H	3283 Points -25%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	3.46 Points +19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2.94 Points +1%
Geekom Mini IT12 Intel Core i7-1260P	2.93 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	2.91 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2.86 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	2.73 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	2.63 Points -10%
Blackview MP200 Intel Core i5-11400H	2.55 Points -12%
CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	30.88 Points +46%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	25.96 Points +23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	23.48 Points +11%
Acemagic AM20 AMD Ryzen 7 7735H	21.14 Points
Geekom Mini IT12 Intel Core i7-1260P	20.06 Points -5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	18.68 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U	17.15 Points -19%
Blackview MP200 Intel Core i5-11400H	15.97 Points -24%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	14731 Points +20%
Geekom Mini IT12 Intel Core i7-1260P	13568 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	12846 Points +5%
Acemagic AM20 AMD Ryzen 7 7735H	12257 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12133 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U	11685 Points -5%
Blackview MP200 Intel Core i5-11400H	11530 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	11201 Points -9%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	88529 Points +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	77409 Points +26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	68188 Points +11%
Acemagic AM20 AMD Ryzen 7 7735H	61400 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	59479 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U	54792 Points -11%
Blackview MP200 Intel Core i5-11400H	54687 Points -11%
Geekom Mini IT12 Intel Core i7-1260P	53950 Points -12%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U	415 Seconds * -48%
Blackview MP200 Intel Core i5-11400H	373 Seconds * -33%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	319 Seconds * -14%
Acemagic AM20 AMD Ryzen 7 7735H	280 Seconds *
Geekom Mini IT12 Intel Core i7-1260P	279 Seconds * -0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	273 Seconds * +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +33%

wPrime 2.10
32m
Morefine M600, 6600U AMD Ryzen 5 6600U	4.688 s * -23%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	4.552 s * -19%
Blackview MP200 Intel Core i5-11400H	4.498 s * -18%
Geekom Mini IT12 Intel Core i7-1260P	4.485 s * -18%
Acemagic AM20 AMD Ryzen 7 7735H	3.813 s *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	3.765 s * +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	3.421 s * +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2.698 s * +29%
1024m
Geekom Mini IT12 Intel Core i7-1260P	237.123 s * -116%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	189.07 s * -72%
Morefine M600, 6600U AMD Ryzen 5 6600U	146.553 s * -33%
Blackview MP200 Intel Core i5-11400H	140.674 s * -28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	129.204 s * -18%
Acemagic AM20 AMD Ryzen 7 7735H	109.781 s *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	104.788 s * +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	66.801 s * +39%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	304.5 (304^min - 306^max) fps +21%
Acemagic AM20 AMD Ryzen 7 7735H	251.5 (250^min - 261^max) fps
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	251.21 fps 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 (246^min - 255^max) fps -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	245 (239^min - 261^max) fps -3%
Blackview MP200 Intel Core i5-11400H	226.5 (210^min - 228^max) fps -10%
Geekom Mini IT12 Intel Core i7-1260P	224 (222^min - 258^max) fps -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	212 (206^min - 224^max) fps -16%
Pass 2
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	150.8 (150.7^min - 152.5^max) fps +45%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	125.25 (105.2^min - 130^max) fps +21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	114.45 (113.9^min - 116.5^max) fps +10%
Acemagic AM20 AMD Ryzen 7 7735H	103.65 (103^min - 106.1^max) fps
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	95.18 fps -8%
Blackview MP200 Intel Core i5-11400H	77.85 (69.8^min - 82.6^max) fps -25%
Geekom Mini IT12 Intel Core i7-1260P	77.75 (77.6^min - 113.9^max) fps -25%
Morefine M600, 6600U AMD Ryzen 5 6600U	71.45 (70.2^min - 76.6^max) fps -31%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H	7937 KB/s +32%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7497 KB/s +25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	7439 KB/s +24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	6980 KB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U	6937 KB/s +16%
Geekom Mini IT12 Intel Core i7-1260P	6559 KB/s +9%
Acemagic AM20 AMD Ryzen 7 7735H	5997 KB/s
Blackview MP200 Intel Core i5-11400H	5477 KB/s -9%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	14.8 GB/s +40%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	11.8 GB/s +11%
Acemagic AM20 AMD Ryzen 7 7735H	10.6 GB/s
Geekom Mini IT12 Intel Core i7-1260P	10.4 GB/s -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9.4 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	9.3 GB/s -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	8.6 GB/s -19%
Blackview MP200 Intel Core i5-11400H	8.4 GB/s -21%
Twofish Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2.1 GB/s +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2 GB/s +25%
Geekom Mini IT12 Intel Core i7-1260P	1.8 GB/s +13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1.7 GB/s +6%
Acemagic AM20 AMD Ryzen 7 7735H	1.6 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U	1.3 GB/s -19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1.3 GB/s -19%
Blackview MP200 Intel Core i5-11400H	1.3 GB/s -19%
Serpent Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1.4 GB/s +27%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1.1 GB/s 0%
Acemagic AM20 AMD Ryzen 7 7735H	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.857 GB/s -22%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.857 GB/s -22%
Blackview MP200 Intel Core i5-11400H	0.815 GB/s -26%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	9695 Points +13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points +8%
Geekom Mini IT12 Intel Core i7-1260P	8918 Points +4%
Acemagic AM20 AMD Ryzen 7 7735H	8612 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	7658 Points -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7253 Points -16%
Blackview MP200 Intel Core i5-11400H	6006 Points -30%
Single-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	1861 Points +19%
Geekom Mini IT12 Intel Core i7-1260P	1782 Points +14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	1563 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1504 Points -4%
Blackview MP200 Intel Core i5-11400H	1465 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1443 Points -8%

Geekbench 5.0
5.0 Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11232 Points +32%
Geekom Mini IT12 Intel Core i7-1260P	10249 Points +20%
Morefine M600, 6600U AMD Ryzen 5 6600U	10249 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	9663 Points +13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9351 Points +10%
Acemagic AM20 AMD Ryzen 7 7735H	8527 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7128 Points -16%
Blackview MP200 Intel Core i5-11400H	5961 Points -30%
5.0 Single-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1898 Points +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	1838 Points +20%
Geekom Mini IT12 Intel Core i7-1260P	1557 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U	1557 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1538 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	1527 Points
Blackview MP200 Intel Core i5-11400H	1461 Points -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1393 Points -9%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H	8015 Points +24%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	7904 Points +23%
Geekom Mini IT12 Intel Core i7-1260P	6698 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U	6698 Points +4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	6648 Points +3%
Acemagic AM20 AMD Ryzen 7 7735H	6442 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6117 Points -5%
Blackview MP200 Intel Core i5-11400H	6110 Points -5%
64 Bit Multi-Core Score
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46270 Points +35%
Geekom Mini IT12 Intel Core i7-1260P	39852 Points +16%
Morefine M600, 6600U AMD Ryzen 5 6600U	39852 Points +16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	36780 Points +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	36692 Points +7%
Acemagic AM20 AMD Ryzen 7 7735H	34266 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	28997 Points -15%
Blackview MP200 Intel Core i5-11400H	24947 Points -27%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	21848 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	18382 Points +18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	17810 Points +15%
Acemagic AM20 AMD Ryzen 7 7735H	15515 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	14496 Points -7%
Geekom Mini IT12 Intel Core i7-1260P	13067 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U	11630 Points -25%
Blackview MP200 Intel Core i5-11400H	10999 Points -29%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +33%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +8%
Acemagic AM20 AMD Ryzen 7 7735H	52518 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H	51151 MIPS -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	46562 MIPS -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	44320 MIPS -16%
Geekom Mini IT12 Intel Core i7-1260P	37570 MIPS -28%
Blackview MP200 Intel Core i5-11400H	34660 MIPS -34%
7z b 4 -mmt1
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	6019 MIPS +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS +2%
Acemagic AM20 AMD Ryzen 7 7735H	5621 MIPS
Geekom Mini IT12 Intel Core i7-1260P	5577 MIPS -1%
Morefine M600, 6600U AMD Ryzen 5 6600U	5486 MIPS -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	5369 MIPS -4%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +47%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	14.1 fps 0%
Acemagic AM20 AMD Ryzen 7 7735H	14.1 fps
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	12.4 fps -12%
Morefine M600, 6600U AMD Ryzen 5 6600U	11.7 fps -17%
Blackview MP200 Intel Core i5-11400H	10.2 fps -28%
Geekom Mini IT12 Intel Core i7-1260P	10.1 fps -28%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H	0.581 sec * -8%
Acemagic AM20 AMD Ryzen 7 7735H	0.536 sec *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.526 sec * +2%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.511 sec * +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * +10%
Geekom Mini IT12 Intel Core i7-1260P	0.4718 sec * +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	0.4641 sec * +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +22%

LibreOffice - 20 Documents To PDF
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	56.7 s * -23%
Morefine M600, 6600U AMD Ryzen 5 6600U	53 s * -15%
Blackview MP200 Intel Core i5-11400H	53 s * -15%
Geekom Mini IT12 Intel Core i7-1260P	48.1 s * -4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -0%
Acemagic AM20 AMD Ryzen 7 7735H	46.1 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H	38 s * +18%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H	311 Points +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	302 Points +3%
Acemagic AM20 AMD Ryzen 7 7735H	293 Points
Geekom Mini IT12 Intel Core i7-1260P	287 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	274 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	270 Points -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	268 Points -9%
Blackview MP200 Intel Core i5-11400H	247 Points -16%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H	660 ms * -12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	651 ms * -10%
Morefine M600, 6600U AMD Ryzen 5 6600U	619 ms * -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	600 ms * -2%
Acemagic AM20 AMD Ryzen 7 7735H	590 ms *
Minisforum Neptune Series NAD9 Intel Core i9-12900H	577 ms * +2%
Geekom Mini IT12 Intel Core i7-1260P	539 ms * +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	487 ms * +17%

3DMark
1920x1080 Fire Strike Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	28247 Points +26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	22740 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H	22468 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H	22244 Points -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21025 Points -6%
Blackview MP200 Intel Core i5-11400H	16949 Points -25%
Geekom Mini IT12 Intel Core i7-1260P	16568 Points -26%
Morefine M600, 6600U AMD Ryzen 5 6600U	15934 Points -29%
2560x1440 Time Spy CPU
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	10563 Points +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	10539 Points +32%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9004 Points +13%
Acemagic AM20 AMD Ryzen 7 7735H	7994 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6767 Points -15%
Geekom Mini IT12 Intel Core i7-1260P	6487 Points -19%
Blackview MP200 Intel Core i5-11400H	5160 Points -35%
Morefine M600, 6600U AMD Ryzen 5 6600U	5114 Points -36%

* ... más pequeño es mejor

Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	97.2 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	74.2 pt
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	67.8 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	57.4 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	57.1 pt
Average of class Mini PC	51 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	50.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	50.1 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	26146 KRay/s +110%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s +16%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	12454 KRay/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -12%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s -15%
Average of class Mini PC (561 - 27538, n=99, last 2 years)	10007 KRay/s -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -24%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -36%

AIDA64 / FPU Julia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	116269 Points +47%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points +13%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	79058 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points -10%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -30%
Average of class Mini PC (3604 - 116903, n=99, last 2 years)	52649 Points -33%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points -43%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -49%

AIDA64 / CPU SHA3
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	4890 MB/s +80%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s +13%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	2719 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s -13%
Average of class Mini PC (225 - 5096, n=99, last 2 years)	2303 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -26%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -27%

AIDA64 / CPU Queen
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	119569 Points +28%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points 0%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	93739 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points -19%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -21%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points -26%
Average of class Mini PC (8172 - 119569, n=99, last 2 years)	69580 Points -26%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	15312 Points +31%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points +1%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	11708 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -36%
Average of class Mini PC (408 - 15525, n=99, last 2 years)	7339 Points -37%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points -39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -52%

AIDA64 / FPU Mandel
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62219 Points +43%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points +14%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	43608 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -35%
Average of class Mini PC (1958 - 62378, n=99, last 2 years)	27876 Points -36%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points -39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -54%

AIDA64 / CPU AES
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s +7%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	111846 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s -15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	86346 MB/s -23%
Average of class Mini PC (3691 - 177158, n=99, last 2 years)	75619 MB/s -32%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -33%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -65%

AIDA64 / CPU ZLib
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	1114 MB/s +65%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +8%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	675 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s -9%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s -12%
Average of class Mini PC (74.8 - 1183, n=99, last 2 years)	585 MB/s -13%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -21%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	14472 KRay/s +123%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s +17%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	6480 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s -11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s -11%
Average of class Mini PC (308 - 14722, n=99, last 2 years)	5342 KRay/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -36%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	32647 MPixel/s +20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s +11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +1%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	27160 MPixel/s
Average of class Mini PC (4408 - 44347, n=99, last 2 years)	24663 MPixel/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s -25%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -55%

Acemagic AM20 frente a Cinebench R15 multibucle

Con el bucle continuo de Cinebench R15, analizamos los AMD Ryzen 7 77350Hdurante un periodo de tiempo más largo. El Acemagic AM20 completó las 50 ejecuciones bien y sin ninguna pérdida de rendimiento notable. Enfrentado al Minisforum NAD9nuestro modelo de pruebas logra incluso prevalecer, logrando un resultado ligeramente mejor.

Métricas de la CPU durante el bucle Cinebench R15

Acemagic AM20 AMD Ryzen 7 7735H, AMD Ryzen 7 7735H: Ø1716 (1661.2-1782.69)

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

Rendimiento del sistema

Desde un punto de vista subjetivo, el rendimiento del sistema del Acemagic AM20 es bueno y así lo demuestran las pruebas sintéticas. En PCMark 10, sólo elMinisforum UM790 Proes más rápido. En Crossmark, observamos una historia similar, aunque se las arregla mejor con los procesadores Intel. Esta es la razón por la que tanto elMinisforum NAD9 como elGeekom Mini IT12también están por delante de nuestro dispositivo de pruebas. En las pruebas de RAM, el Acemagic se beneficia de la rápida RAM DDR5 a 6.400 MT/s. Nuestro modelo de pruebas es incapaz de seguir el ritmo de sus compañeros debido a la alta latencia.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7048 Points +4%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	6768 Points
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6653 Points -2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points -9%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -16%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -33%

PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +4%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	10808 Points
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10504 Points -3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points -3%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10448 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -9%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -12%

PCMark 10 / Productivity
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	9971 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points 0%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	9637 Points
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9550 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -23%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -33%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +18%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +8%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1726 Points +7%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	1607 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points -6%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1476 Points -8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points -16%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -20%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +43%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +18%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	1475 Points
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1382 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -16%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points -19%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -27%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1060 Points -28%

CrossMark / Creativity
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1914 Points +16%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +6%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1675 Points +1%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	1654 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points -17%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -21%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +8%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1675 Points +4%
Acemagic AM20, AMD Ryzen 7 7735H AMD Radeon 680M, AirDisk APF 10-512G	1605 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -7%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1451 Points -10%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points -15%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -17%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62093 MB/s +21%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	51342 MB/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50714 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -13%
Average of class Mini PC (6481 - 70620, n=99, last 2 years)	42930 MB/s -16%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s -19%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -57%

AIDA64 / Memory Read
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	61458 MB/s +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51580 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s +4%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	44374 MB/s
Average of class Mini PC (6914 - 71285, n=99, last 2 years)	43615 MB/s -2%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -44%

AIDA64 / Memory Write
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	79298 MB/s +55%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55128 MB/s +8%
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	51117 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -8%
Average of class Mini PC (6862 - 89318, n=99, last 2 years)	46629 MB/s -9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s -12%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -55%

AIDA64 / Memory Latency
Acemagic AM20 AMD Ryzen 7 7735H, Radeon 680M	104.7 ns *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89.9 ns * +14%
Average of class Mini PC (44.9 - 154.6, n=99, last 2 years)	87.8 ns * +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	87.6 ns * +16%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +23%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * +28%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +30%

* ... más pequeño es mejor

Latencias del CPD

Hasta este punto, no habíamos visto ningún problema de latencia al abrir varias pestañas en el navegador Edge. LatencyMon sólo nos mostró un aumento de latencia, pero no particularmente notable, al reproducir nuestro vídeo de prueba 4K. Los mejores dispositivos hasta la fecha no rinden mejor en esta área, lo que significa que el Acemagic AM20 se aseguró un puesto en mitad de la tabla en nuestra comparación.

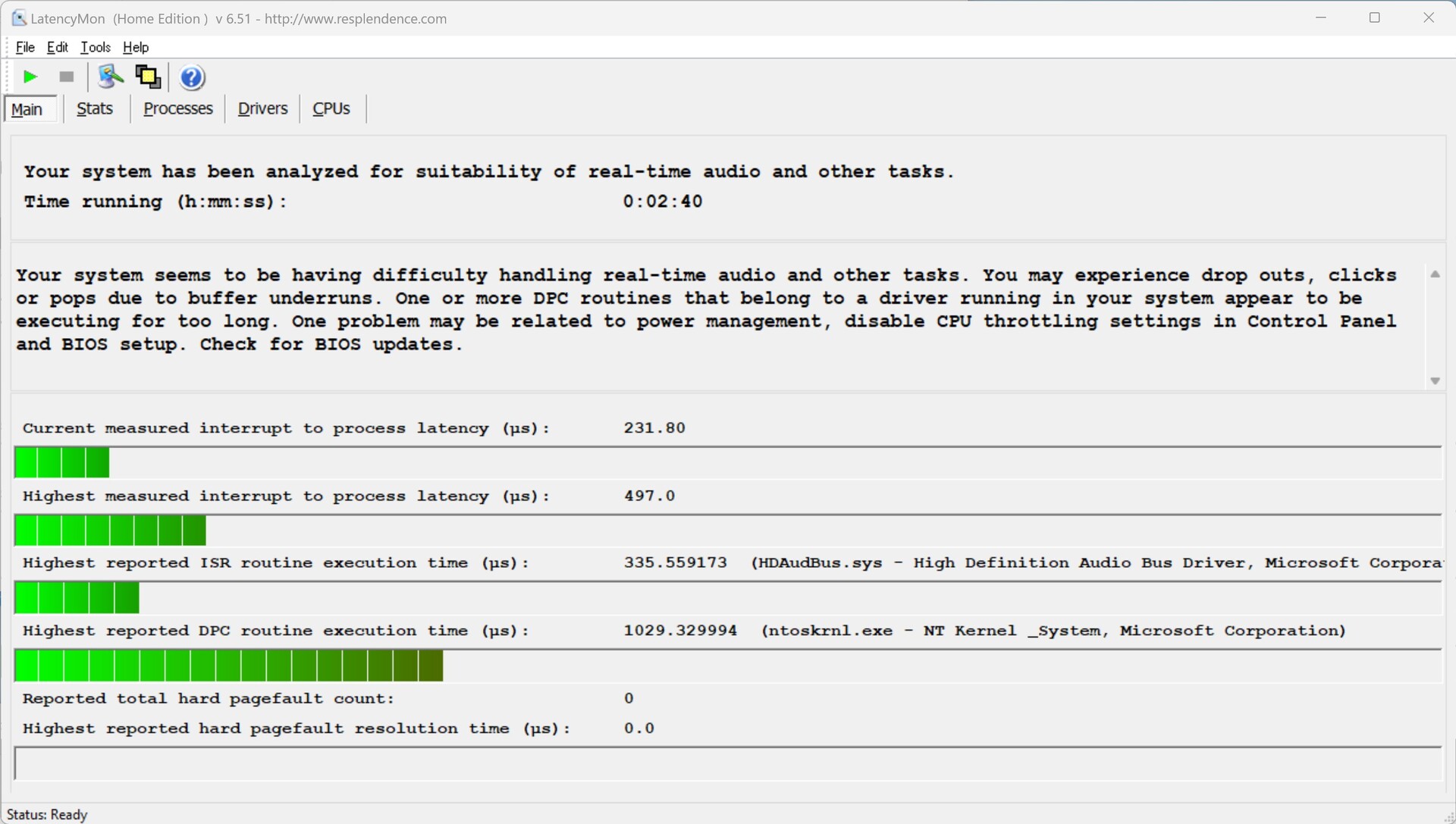

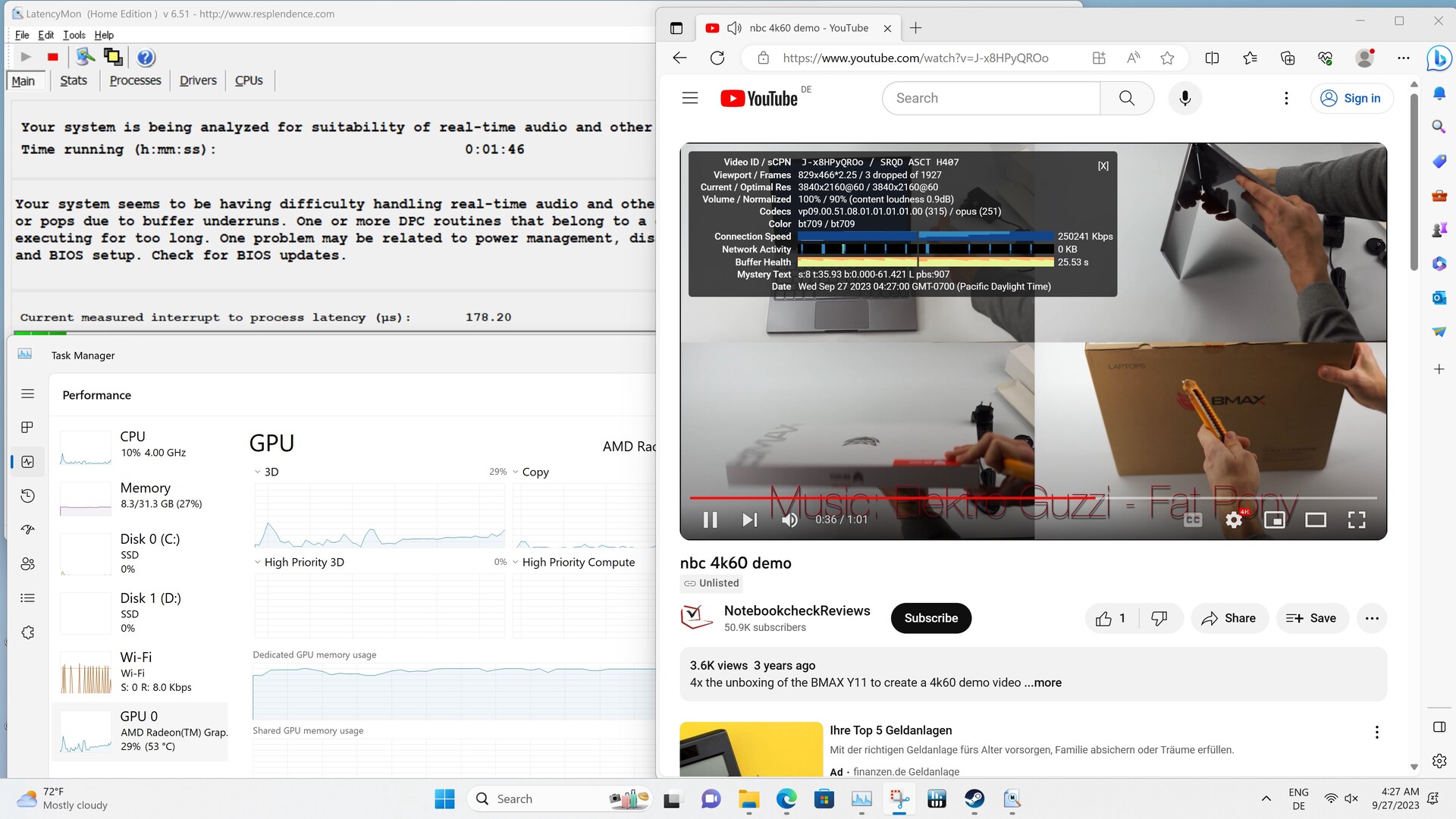

Latencia máxima al abrir varias pestañas del navegador Edge y al reproducir vídeo 4K

Latencia máxima tras diez segundos de Prime95

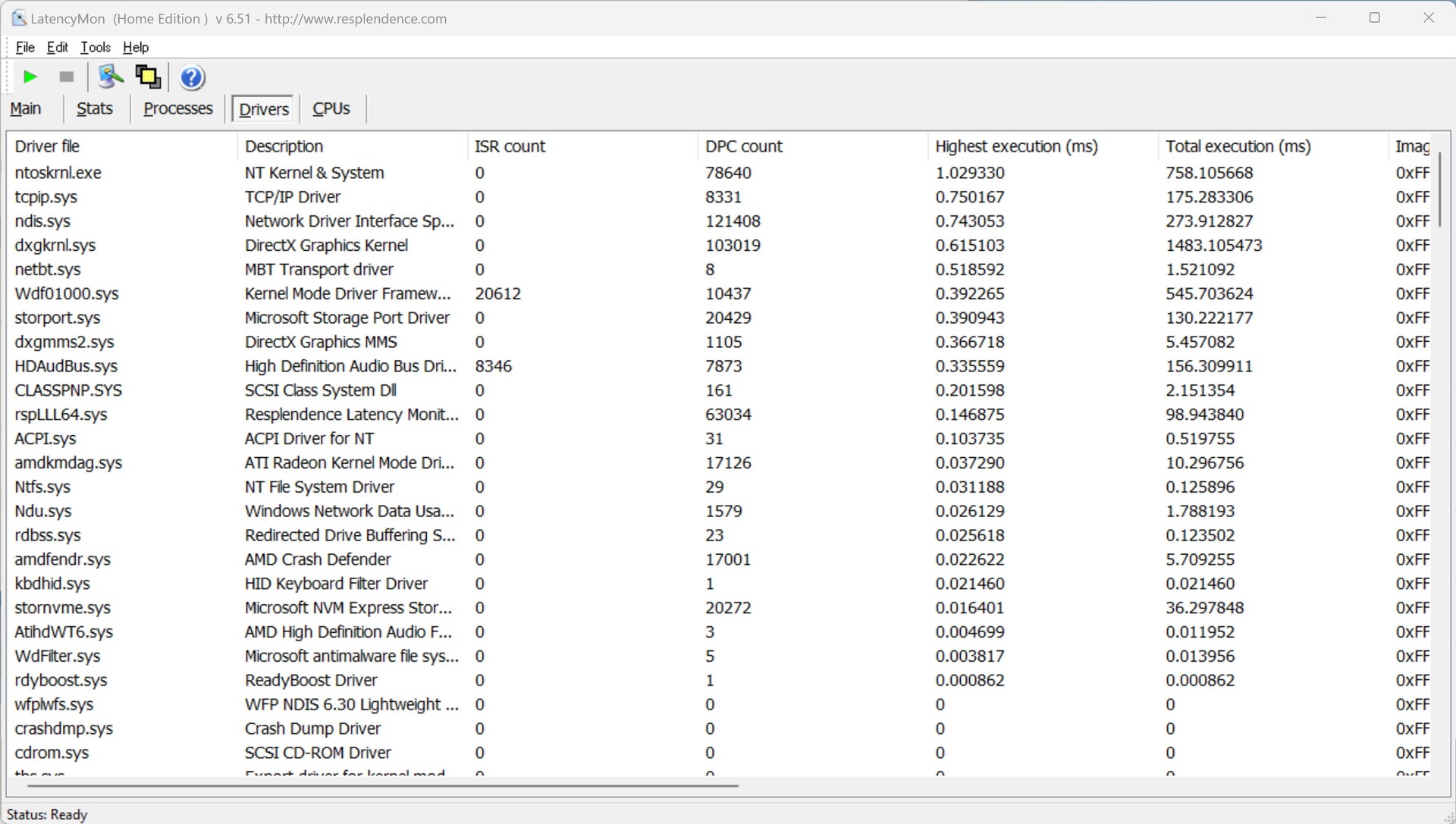

Conductores ordenados según su mayor duración

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -54%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -37%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -8%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs * -3%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	1029 μs *
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * +1%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * +9%

* ... más pequeño es mejor

Almacenamiento masivo

Nuestro dispositivo de pruebas alberga un SSD de 512 GB del fabricante AirDisk. Una empresa hasta ahora desconocida que aún no hemos analizado. Sin embargo, el SSD instalado usa la interfaz PCIe, lo que significa que el almacenamiento masivo ofrece un rendimiento adecuado. Sin embargo, las puntuaciones del Acemagic AM20 no están a la altura de las delMinisforum NAD9. No obstante, una vez más, nuestro modelo de prueba consiguió el segundo puesto. En cuanto a la refrigeración, Acemagic tiene el AM20 bajo control, aunque el almacenamiento masivo sólo consigue disipar el calor de forma pasiva a través de la carcasa con la ayuda de una almohadilla térmica. Las pruebas demuestran que esto funciona y que el rendimiento del disco no decae. Es posible instalar un total de tres dispositivos de almacenamiento masivo M.2. Sin embargo, no se puede instalar almacenamiento de 2,5 pulgadas en el Acemagic AM20.

Comparaciones y benchmarks adicionales se pueden encontrar en nuestra tabla comparativa.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

AirDisk APF 10-512G

Sequential Read: 2592 MB/s

Sequential Write: 2835 MB/s

512K Read: 1848 MB/s

512K Write: 2485 MB/s

4K Read: 70.91 MB/s

4K Write: 223 MB/s

4K QD32 Read: 658.5 MB/s

4K QD32 Write: 524.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	92.2 pt
Acemagic AM20 AirDisk APF 10-512G	66.9 pt
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	58.4 pt
Average of class Mini PC	51.7 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	50.5 pt
Blackview MP200 Foresee XP1000F512G	45.2 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	42 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	38.5 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	22.1 pt

DiskSpd
seq read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3248 (3141.12^min - 3248.07^max) MB/s +30%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +12%
Acemagic AM20 AirDisk APF 10-512G	2508 (2477.79^min - 2508.42^max) MB/s
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s -17%
Average of class Mini PC (233 - 4168, n=98, last 2 years)	2036 MB/s -19%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -31%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s -34%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -42%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -44%
seq write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +20%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3148 (613.87^min - 3148.03^max) MB/s +11%
Acemagic AM20 AirDisk APF 10-512G	2839 (2799.76^min - 2838.7^max) MB/s
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s -16%
Average of class Mini PC (222 - 5595, n=98, last 2 years)	2070 MB/s -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s -34%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -62%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -91%
seq q8 t1 read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7654 (6491.54^min - 7653.98^max) MB/s +122%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +39%
Acemagic AM20 AirDisk APF 10-512G	3448 (3197.42^min - 3448.35^max) MB/s
Average of class Mini PC (236 - 8430, n=98, last 2 years)	3188 MB/s -8%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s -12%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s -32%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -43%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -51%
seq q8 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +9%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3301 (1115.06^min - 3301.44^max) MB/s +5%
Acemagic AM20 AirDisk APF 10-512G	3132 (3089.94^min - 3132.1^max) MB/s
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s -23%
Average of class Mini PC (228 - 6669, n=98, last 2 years)	2250 MB/s -28%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s -38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -61%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -91%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +21%
Acemagic AM20 AirDisk APF 10-512G	67.8 (66.67^min - 67.84^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -18%
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s -21%
Average of class Mini PC (5.67 - 86.6, n=98, last 2 years)	51.8 MB/s -24%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	48.2 (46.14^min - 48.16^max) MB/s -29%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s -34%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -41%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -59%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +95%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +27%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +5%
Acemagic AM20 AirDisk APF 10-512G	218 (203.29^min - 218.36^max) MB/s
Average of class Mini PC (22 - 425, n=98, last 2 years)	188.1 MB/s -14%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s -23%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	126 (96.77^min - 125.97^max) MB/s -42%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -52%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -60%
4k q32 t16 read
Acemagic AM20 AirDisk APF 10-512G	2309 (2239.61^min - 2309.3^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s -16%
Average of class Mini PC (26.1 - 2967, n=98, last 2 years)	1111 MB/s -52%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s -64%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s -68%
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -68%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	700 (683.05^min - 700^max) MB/s -70%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -76%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -82%
4k q32 t16 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +61%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s +8%
Acemagic AM20 AirDisk APF 10-512G	1486 (1290.46^min - 1485.54^max) MB/s
Average of class Mini PC (30.2 - 3983, n=98, last 2 years)	1111 MB/s -25%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -37%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s -49%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -63%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	425 (345.14^min - 425.25^max) MB/s -71%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -86%

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +69%
Acemagic AM20 AirDisk APF 10-512G	4212 Points
Average of class Mini PC (151.3 - 9030, n=96, last 2 years)	3606 Points -14%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3361 Points -20%
Blackview MP200 Foresee XP1000F512G	3153 Points -25%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points -25%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -41%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -62%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -82%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +59%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1528 Points +1%
Acemagic AM20 AirDisk APF 10-512G	1507 Points
Average of class Mini PC (61 - 3635, n=96, last 2 years)	1370 Points -9%
Blackview MP200 Foresee XP1000F512G	1276 Points -15%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points -37%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -40%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -52%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -56%
Score Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +84%
Acemagic AM20 AirDisk APF 10-512G	1922 Points
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points -11%
Average of class Mini PC (88 - 4185, n=96, last 2 years)	1585 Points -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -24%
Blackview MP200 Foresee XP1000F512G	1235 Points -36%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1137 Points -41%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -64%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -83%
Seq Read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	5272 MB/s +73%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +36%
Acemagic AM20 AirDisk APF 10-512G	3052 MB/s
Blackview MP200 Foresee XP1000F512G	2930 MB/s -4%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s -7%
Average of class Mini PC (291 - 6620, n=96, last 2 years)	2834 MB/s -7%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -9%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -25%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s -28%
Seq Write
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3385 MB/s +18%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +15%
Acemagic AM20 AirDisk APF 10-512G	2873 MB/s
Blackview MP200 Foresee XP1000F512G	2478 MB/s -14%
Average of class Mini PC (240 - 5783, n=96, last 2 years)	1986 MB/s -31%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s -39%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -57%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -82%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -90%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +36%
Acemagic AM20 AirDisk APF 10-512G	76.4 MB/s
Average of class Mini PC (6.08 - 104.3, n=96, last 2 years)	56 MB/s -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s -28%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -30%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.2 MB/s -30%
Blackview MP200 Foresee XP1000F512G	52.2 MB/s -32%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -36%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -65%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +95%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +46%
Acemagic AM20 AirDisk APF 10-512G	187.6 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s -1%
Average of class Mini PC (30.9 - 366, n=96, last 2 years)	170.3 MB/s -9%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s -19%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s -20%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	119.3 MB/s -36%
Blackview MP200 Foresee XP1000F512G	103.1 MB/s -45%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +66%
Acemagic AM20 AirDisk APF 10-512G	1126 MB/s
Average of class Mini PC (23.4 - 3035, n=96, last 2 years)	1030 MB/s -9%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	947 MB/s -16%
Blackview MP200 Foresee XP1000F512G	931 MB/s -17%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s -40%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -42%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -65%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -71%
4K-64 Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +96%
Acemagic AM20 AirDisk APF 10-512G	1447 MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s -5%
Average of class Mini PC (32.8 - 3598, n=96, last 2 years)	1216 MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -27%
Blackview MP200 Foresee XP1000F512G	884 MB/s -39%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	679 MB/s -53%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -68%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -90%
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms * -198%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * -166%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.133 ms * -151%
Average of class Mini PC (0.022 - 0.489, n=96, last 2 years)	0.1019 ms * -92%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -85%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * -13%
Acemagic AM20 AirDisk APF 10-512G	0.053 ms *
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +17%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -123%
Blackview MP200 Foresee XP1000F512G	0.16 ms * -36%
Average of class Mini PC (0.016 - 0.765, n=96, last 2 years)	0.1287 ms * -9%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -0%
Acemagic AM20 AirDisk APF 10-512G	0.118 ms *
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.088 ms * +25%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +74%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +80%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +81%

* ... más pequeño es mejor

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Acemagic AM20 AirDisk APF 10-512G: Ø3443 (3235.28-3456.53)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Tarjeta gráfica - AMD Radeon 680M

En las pruebas sintéticas, el Acemagic AM20 se beneficia del AMD Ryzen 7 7735Hla iGPU AMD Radeon 680My su excelente rendimiento básico. Se queda a una distancia casi insignificante por detrás delMinisforum UM790 Pro y elGeekom AS 6- con la misma iGPU - queda relegado al tercer puesto. Intel no tiene ninguna posibilidad aquí y no tiene mucho que contrarrestar en este punto. Con las actuales iGPU Intel Iris Xe Graphics G7, el Geekom Mini IT12se queda muy atrás y sólo puede conseguir un puesto en mitad de la tabla.

Para más comparaciones y pruebas comparativas, echa un vistazo a nuestroG Tabla comparativa de GPU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	98.9 pt
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	94 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	84.8 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	64.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	58.6 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	53.7 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	49.7 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	14.2 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +11%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	11116 Points
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points -6%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -37%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -41%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -45%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -49%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -85%

3DMark
2560x1440 Time Spy Graphics
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +8%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	2429 Points
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points -9%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -32%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -37%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points -41%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -49%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -86%
1920x1080 Fire Strike Graphics
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	7530 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -3%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points -14%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -27%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -35%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points -39%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points -47%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -84%

Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Affinity Photo 2

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	36.6 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps -7%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29.7 fps -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -43%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps -43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -44%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -80%
Extreme Preset DX11
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	35.2 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps -9%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	31.1 fps -12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -32%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps -38%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -41%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps -44%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -78%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	23.6 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps -11%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	20.4 fps -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -44%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps -44%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -54%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -78%
1920x1080 Extreme HD Preset OpenGL AA:x8
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	24.6 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps -7%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	17.7 fps -28%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps -35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -38%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps -45%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -53%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -78%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10495 Points +74%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	6030 Points
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points -7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -43%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -44%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -45%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points -46%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -88%
1024x600 Normal, Fluid 3DTex
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	443 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points -4%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points -11%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points -28%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -47%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -73%
1024x600 Normal, Fluid 2DTexArr
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	442 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points -3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points -10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points -23%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points -41%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -44%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -46%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -75%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2984 Points +78%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	1673 Points
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points -5%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points -43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -44%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -49%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -51%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -91%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2808 Points +86%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	1508 Points
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points -4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points -41%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points -41%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -43%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -45%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -91%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3849 Points +96%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	1964 Points
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points -10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -40%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -51%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points -55%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -88%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4176 Points +176%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	1539 Points +2%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	1511 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1331 Points -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1171 Points -23%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	697 Points -54%

3DMark 05 Standard		51389 puntos
3DMark 06 Standard Score		35629 puntos
3DMark Vantage P Result		34781 puntos
3DMark 11 Performance		10939 puntos
3DMark Ice Storm Standard Score		160248 puntos
3DMark Cloud Gate Standard Score		32366 puntos
3DMark Fire Strike Score		6858 puntos
3DMark Fire Strike Extreme Score		3434 puntos
3DMark Time Spy Score		2712 puntos
ayuda

... comparado con

Rendimiento en juegos - AMD Radeon 680M

Para una iGPU, ya nos quedamos impresionados con la AMD Radeon 680Men nuestras otras pruebas. En esta área, el Acemagic AM20 está, sin excepción, al mismo nivel que elGeekom AS 6. Con algunas pequeñas limitaciones en los detalles gráficos, es posible jugar a muchos juegos sin problemas. Sin embargo, no sirve como sustituto de una tarjeta gráfica.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps +16%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	116.4 (10.1^min, 21.9^P0.1, 75.6^P1) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps -7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps -25%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -34%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps -35%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	24.5 fps -79%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps +8%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	40.2 (12.2^min, 17.8^P0.1, 30.7^P1) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -28%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps -43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -44%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.3 fps -79%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps +15%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	78.8 fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps -16%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -25%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -38%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	13.4 fps -83%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps +13%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps +2%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	25.6 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -37%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -42%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -47%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	3.3 fps -87%

GTA V
1024x768 Lowest Settings possible
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1) fps +9%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	144.2 (9.88^min, 90.9^P1) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps -1%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -6%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps -13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -17%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	59.3 (9.5^min, 33.3^P1) fps -59%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1) fps +13%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	52.9 (4^min, 35.7^P1) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps -7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps -36%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps -40%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -60%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -65%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.59 (3.34^min, 6.21^P1) fps -84%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min) fps +19%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps +1%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	67 (61^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps -7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -15%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps -15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -25%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	16 (14^min) fps -76%
1920x1080 High Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min) fps +8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps 0%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	38 (35^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps -24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -29%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -34%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps -34%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (6^min) fps -82%

Far Cry New Dawn
1280x720 Low Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min) fps +15%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	61 (48^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps -5%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -15%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps -15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -25%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	15 (11^min) fps -75%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min) fps +8%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	37 (30^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps -3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -24%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -32%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps -35%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (5^min) fps -81%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	150.2 (132.8^min) fps +19%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps +10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +8%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	125.7 (106.9^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -14%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	98.7 (85.5^min) fps -21%
1920x1080 high (2/3)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.9 (78.3^min) fps +13%
Acemagic AM20 Radeon 680M, R7 7735H, AirDisk APF 10-512G	79.5 (69.9^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps -12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps -18%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps -22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -23%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	22.6 (20.6^min) fps -72%

	bajo	medio	alto	ultra
GTA V (2015)	144.2	130.5	52.9	23.2
The Witcher 3 (2015)	116.4	51.4	40.2	26.3
Dota 2 Reborn (2015)	125.7	102.8	79.5	69.2
Final Fantasy XV Benchmark (2018)	64.7	35.5	25.7
X-Plane 11.11 (2018)	56.7	44	35.4
Far Cry 5 (2018)	67	41	38	36
Strange Brigade (2018)	148.9	60.5	49.5	42.5
Shadow of the Tomb Raider (2018)	90	39.2	35.6	30.5
Far Cry New Dawn (2019)	61	39	37	34
Metro Exodus (2019)	72.2	30.6	23.4	18.8
Borderlands 3 (2019)	78.8	38.7	25.6	20.1
F1 2020 (2020)	158	80.5	62.4	42.8
F1 2021 (2021)	168.1	85	26.8
Far Cry 6 (2021)	71.8	40.6	34.5	29.7
God of War (2022)	37.6	30.5	24.2	18.1
GRID Legends (2022)	76.9	60.6	47	38.4
Tiny Tina's Wonderlands (2022)	56.2	42.2	28.6	22.5
F1 22 (2022)	80.2	69.9	50.5	12.3
F1 23 (2023)	71.8	64.5	44.7	9.36

rendimiento 3D mediante una base eGPU con una Nvidia GeForce RTX 3060 Ti

Dado que el Acemagic AM20 está equipado con un puerto Thunderbolt, lo hemos probado junto con nuestro Razer Core X y unaNvidia GeForce RTX 3060 Ticon el objetivo de conseguir un aumento externo del rendimiento de los gráficos 3D. En principio, hay un aumento notable del rendimiento 3D. Sin embargo, en comparación, vimos que elIntel NUC 13 Pro Kit un rendimiento significativamente mejor. El Acemagic AM20 se encuentra más cerca delMorefine M600 6600U.

Desde un punto de vista subjetivo, podemos confirmar que esta combinación te permitirá jugar a muchos más juegos sin problemas. Sin embargo, también debes ser consciente de algunas limitaciones. La tarjeta gráfica instalada sólo puede comunicarse con el sistema a través de cuatro carriles PCIe 3.0 . Esto se traduce en una drástica reducción del ancho de banda. Esto es algo que fue especialmente evidente en los juegos F1 22 y F1 23. Incluso documentamos peores resultados aquí que en comparación con la iGPU.

El Acemagic AM20 con un Razer Core X y una Nvidia GeForce RTX 3060 Ti

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99.5 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	98.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.1 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	96.9 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.3 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	96.1 pt
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	96.1 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +202%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	33282 Points +199%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33147 Points +198%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32835 Points +195%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +194%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	32571 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	32467 Points +192%
	11116 Points

3DMark
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +354%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	11012 Points +353%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10768 Points +343%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10764 Points +343%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10743 Points +342%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +341%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	10704 Points +341%
	2429 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +241%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	25163 Points +234%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	24738 Points +229%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24657 Points +227%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24452 Points +225%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +224%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	24239 Points +222%
	7530 Points
3840x2160 Fire Strike Ultra Graphics
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7114 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7036 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	7001 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6996 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6977 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6967 Points
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	6873 Points

Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33051 Points +179%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	31403 Points +165%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	28935 Points +144%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	28235 Points +139%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27744 Points +134%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	26166 Points +121%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	25214 Points +113%
	11837 Points
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15114 Points +356%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	14936 Points +351%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	14836 Points +348%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	14830 Points +348%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14698 Points +344%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14660 Points +343%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	14362 Points +334%
	3311 Points
1920x1080 1080p Extreme
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7146 Points +408%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +407%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7035 Points +400%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	7012 Points +399%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	7002 Points +398%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6971 Points +396%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6894 Points +390%
	1406 Points
3840x2160 4k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	9335 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9308 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9152 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	9133 Points
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	9123 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9039 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	8782 Points
7680x4320 8k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	4061 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4036 Points
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	3997 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3989 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	3989 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3966 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	3910 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	143.1 fps +506%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	139.8 fps +492%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	134.2 fps +469%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	133 fps +464%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.4 fps +457%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	129.8 fps +450%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	127.9 fps +442%
	23.6 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	125.8 fps +411%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	125.7 fps +411%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.7 fps +399%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.1 fps +392%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	120.1 fps +388%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	119.9 fps +387%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	119.2 fps +385%
	24.6 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.6 fps +363%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	169 fps +362%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +357%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	166.1 fps +354%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	163.2 fps +346%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	162.7 fps +345%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	160.7 fps +339%
	36.6 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	164.8 fps +368%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	161.9 fps +360%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.5 fps +339%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	153.4 fps +336%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	153.3 fps +336%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	152.4 fps +333%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	147.7 fps +320%
	35.2 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27929 Points +363%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	27842 Points +362%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27811 Points +361%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27740 Points +360%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	27683 Points +359%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	27566 Points +357%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27460 Points +355%
	6030 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2689 Points +507%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2689 Points +507%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2681 Points +505%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	2681 Points +505%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2679 Points +505%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	2675 Points +504%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2667 Points +502%
	443 Points
1024x600 Normal, Fluid 2DTexArr
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2621 Points +493%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2619 Points +493%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2619 Points +493%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2614 Points +491%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	2613 Points +491%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	2606 Points +490%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2598 Points +488%
	442 Points
1024x600 Normal, Mandel Vector
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	5738 Points +243%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	5726 Points +242%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5694 Points +240%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	5660 Points +238%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5655 Points +238%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5606 Points +235%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	5603 Points +235%
	1673 Points
1024x600 Normal, Mandel Scalar
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	6317 Points +319%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6275 Points +316%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6253 Points +315%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6251 Points +315%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	6233 Points +313%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	6219 Points +312%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6202 Points +311%
	1508 Points
1024x600 Normal, QJuliaRayTrace
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	10564 Points +438%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10555 Points +437%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10548 Points +437%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10536 Points +436%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	10496 Points +434%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10462 Points +433%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10388 Points +429%
	1964 Points

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.3 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 pt
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	95.9 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	91.2 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	80.7 pt
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	80.3 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +334%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +316%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.6 (18.1^min, 66.7^P1 - 185.1^max) fps +303%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.3 (11.5^min, 58.8^P1 - 195.1^max) fps +302%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +290%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	88.7 (13.3^min, 22.2^P1 - 196.2^max) fps +282%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	76.1 (11.9^min, 50^P1 - 151.7^max) fps +228%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	59.7 (15.9^min, 34.5^P1 - 133.9^max) fps +157%
	23.2 (3.58^min, 16.4^P1 - 69.3^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +184%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +181%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	64.8 fps +146%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	58.4 fps +122%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +120%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	56.6 fps +115%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.4 fps +114%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	56.2 (19.5^min, 39.1^P0.1, 44^P1 - 156^max) fps +114%
	26.3 (13.4^min, 14.2^P0.1, 16.7^P1 - 70.2^max) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	128.3 (106.8^min) fps +85%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +84%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +82%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.2 (104.6^min) fps +75%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.8 (93.5^min) fps +64%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +64%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	106.4 (90.6^min) fps +54%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	105 (89.2^min) fps +52%
	69.2 (61^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.7 fps +284%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +283%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +279%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	93.5 fps +264%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.8 fps +257%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	91.8 fps +257%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +256%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	91.2 fps +255%
	25.7 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	157.9 (77.9^min, 97.3^P1 - 300^max) fps +272%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +253%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +246%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	138.4 (68^min, 84.1^P1 - 279^max) fps +226%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	135 (67.5^min, 82.2^P1 - 274^max) fps +218%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	128.7 (36^min, 76.1^P1 - 249^max) fps +203%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +200%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	125.2 (59.6^min, 72^P1 - 263^max) fps +195%
	42.5 (28.1^min, 30.2^P1 - 102.4^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +225%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	116 (88^min - 153^max) fps +222%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +217%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (90^min - 149^max) fps +208%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (86^min - 148^max) fps +208%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +197%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	96 (70^min - 127^max) fps +167%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	88 (68^min - 117^max) fps +144%
	36 (30^min - 41^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +191%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	97 (69^min - 141^max) fps +185%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +179%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93 (68^min - 140^max) fps +174%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92 (65^min - 143^max) fps +171%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +159%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	78 (56^min - 122^max) fps +129%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	77 (54^min - 122^max) fps +126%
	34 (26^min - 46^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +314%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +312%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 fps +302%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	79.5 fps +296%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	77.9 fps +288%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +280%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	74.5 fps +271%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	68.7 fps +242%
	20.1 fps

F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	31.2 (18^min, 9^P1 - 46^max) fps +154%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	28.5 (16^min, 8^P1 - 46^max) fps +132%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27.8 (18^min, 7^P1 - 38^max) fps +126%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24.1 (13^min, 7^P1 - 40^max) fps +96%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	23.6 (12^min, 6^P1 - 38^max) fps +92%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	22.6 (13^min, 6^P1 - 36^max) fps +84%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	22.6 (12^min, 6^P1 - 34^max) fps +84%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	22.4 (13^min, 6^P1 - 36^max) fps +82%
	12.3 (9^min, 9^P1 - 15^max) fps

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.7 fps +263%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	80.7 fps +259%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	80.4 fps +257%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	76 fps +238%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	75.3 fps +235%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	75.3 fps +235%
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 7 7735H	74.4 fps +231%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.1 fps +229%
	22.5 fps

	bajo	medio	alto	ultra	QHD	4K DLSS	4K
GTA V (2015)	161.5	148.2	88	59.7	41.8		32.3
The Witcher 3 (2015)	209	167.7	107.1	56.2	49.8		60.8
Dota 2 Reborn (2015)	126.9	114.3	111.9	106.4			94.7
Final Fantasy XV Benchmark (2018)	172.5	129.9	91.8		74.2		47.1
X-Plane 11.11 (2018)	102.3	88.2	71.4				62.8
Far Cry 5 (2018)	120	107	103	96	88		56
Strange Brigade (2018)	167.8	129.7	128.1	125.2	115.8		80.4
Shadow of the Tomb Raider (2018)	113.8	90.9	89.4	86.2	78.8		52
Far Cry New Dawn (2019)	103	92	87	78	74		56
Metro Exodus (2019)	112.9	77	58.6	44.1	39.3		30.2
Borderlands 3 (2019)	106.2	94.1	84.1	74.5	60.8		37.2
F1 2020 (2020)	170.5	95	96.7	81	72.4		52.3
F1 2021 (2021)	112.7	85.4	55.6	42.4	38.9		33.2
Far Cry 6 (2021)	61.8	53	43.8	37.4	37
God of War (2022)	99.4	89.1	73.7	56.7	50.8		37.9
GRID Legends (2022)	100.1	82.4	67.7	57.8	52		43
Tiny Tina's Wonderlands (2022)	153	124.7	90.8	74.4	57.7		34.7
F1 22 (2022)	47.9	43.9	34.2	22.4	21.5		17.5
F1 23 (2023)	52.9	51.9	43	27.5	26.1	26.2	14.1

Emisiones - Buen rendimiento pero económico

Emisiones sonoras

Comparado con la competencia, el Acemagic AM20 no gana puntos por su silencioso ruido de funcionamiento. El mini PC sólo funciona silenciosamente en reposo y con poca carga. Bajo carga media, ya conseguimos 44,7 dB(A). En la prueba de estrés, medimos entonces 45,4 dB(A), el máximo con el que el pequeño compañero informático es claramente audible. El Blackview MP200demuestra que aún se puede hacer más ruido.

Ruido

Ocioso		26.1 / 26.1 / 26.4 dB(A)
Carga		44.7 / 45.4 dB(A)

	30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R (15 cm de distancia) environment noise: 25.2 dB(A)

	Acemagic AM20 R7 7735H, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		-1%	-1%	2%	-12%	-1%	-2%	-1%
off / environment *	25.2	29.7 -18%	30.2 -20%	29.4 -17%	30 -19%	29.8 -18%	30 -19%	25.1 -0%
Idle Minimum *	26.1	31.7 -21%	30.5 -17%	29.4 -13%	33.2 -27%	29.9 -15%	30.3 -16%	25.3 3%
Idle Average *	26.1	31.7 -21%	30.5 -17%	29.4 -13%	33.6 -29%	30.1 -15%	30.5 -17%	25.3 3%
Idle Maximum *	26.4	31.7 -20%	30.5 -16%	29.5 -12%	33.6 -27%	30.2 -14%	30.6 -16%	25.3 4%
Load Average *	44.7	32.8 27%	30.5 32%	29.6 34%	36.8 18%	32.1 28%	32.5 27%	46 -3%
Witcher 3 ultra *	43.3	32.8 24%
Load Maximum *	45.4	35.2 22%	30.5 33%	29.6 35%	39.8 12%	32.5 28%	33.2 27%	51.8 -14%

* ... más pequeño es mejor

Temperatura

Las temperaturas de la carcasa del Acemagic AM20 no son criticables. Sin embargo, la tapa de la carcasa se calienta más que las demás partes de la carcasa y esto se debe probablemente a la disipación de calor del SSD. Quien equipe el AM20 con tres unidades de almacenamiento masivo alcanzará sin duda valores aún más altos. En la prueba de estrés con Prime95, elAMD Ryzen 7 7735H alcanzó un máximo de 87 °C. Esto puede considerarse relativamente insignificante, aunque observamos que el consumo de energía del SoC no superó los 35 vatios. Hay un límite claramente definido aquí que también se aplica al multiloop Cinebench R15. Sin embargo, el límite de rendimiento puede mantenerse e incluso tras media hora de carga contínua, el procesador funciona a 28 vatios.

Acemagic AM20 frente a la prueba de esfuerzo (frente)

Acemagic AM20 frente a la prueba de esfuerzo (lado izquierdo)

Acemagic AM20 frente a la prueba de esfuerzo (lado derecho)

Carga Máx.

Inactivo


33.6 °C	32.8 °C	34.4 °C
36.5 °C	40 °C	37.1 °C
40.8 °C	38.2 °C	41.6 °C

Máximo: 41.6 °C
Médio: 37.2 °C


28.2 °C	27.4 °C	28.1 °C
24.6 °C	27.4 °C	38 °C
27.8 °C	28.8 °C	35.4 °C

Máximo: 38 °C
Médio: 29.5 °C

Conector de corriente 36.2 °C | Temperatura del cuarto 23 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 37.2 °C / 99 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 41.6 °C / 107 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.7 °C / 89 F, compared to the device average of 32.1 °C / 90 F.

Consumo de energía

La Acemagic AM20 es un modelo extremadamente económico si se tiene en cuenta su potencia. ElAMD Ryzen 7 7735H es ciertamente capaz de más si no fuera por las limitaciones de refrigeración. Esto significa que el fabricante sólo tiene el límite duro de rendimiento de 35 vatios que el SoC cumple a rajatabla. Básicamente, todo esto no es un problema porque a plena carga con casi 65 vatios, nuestro modelo de pruebas es el dispositivo más económico comparado con sus compañeros - y por bastante margen. Esto hace que la fuente de alimentación parezca algo sobredimensionada, ya que puede suministrar un máximo de 100 vatios. Sin embargo, no debemos olvidar que hay una estación de carga integrada en la carcasa. Esta puede, entre otras cosas, cargar smartphones a un máximo de 10 vatios. Además, se pueden instalar unidades de almacenamiento masivo adicionales que también deben recibir alimentación. Por este motivo, celebramos la decisión de incluir una fuente de alimentación de 100 vatios.

El Acemagic AM20 con su fuente de alimentación

Consumo de corriente

Off / Standby	1.7 / 1.8 Watt
Ocioso	8.7 / 9.5 / 10.3 Watt
Carga	50.8 / 64.9 Watt


Clave: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Acemagic AM20 R7 7735H, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average AMD Radeon 680M	Average of class Mini PC
Power Consumption		-2%	-53%	-1%	-9%	8%	16%	-24%	4%	-23%
Idle Minimum *	8.7	4.6 47%	12.1 -39%	8 8%	6.8 22%	5 43%	6.6 24%	9 -3%	6.75 ?(2.2 - 10.8, n=30) 22%	9.78 ?(1.9 - 46.5, n=93, last 2 years) -12%
Idle Average *	9.5	6 37%	13 -37%	8.7 8%	9.4 1%	7 26%	6.8 28%	10.6 -12%	8.75 ?(4.4 - 12.8, n=30) 8%	11.7 ?(1.9 - 63, n=92, last 2 years) -23%
Idle Maximum *	10.3	10.6 -3%	18.2 -77%	8.8 15%	13.7 -33%	10.7 -4%	7.2 30%	19.9 -93%	10.3 ?(5.1 - 18.6, n=30) -0%	14.7 ?(2.6 - 68.9, n=93, last 2 years) -43%
Load Average *	50.8	72.5 -43%	70.6 -39%	54.6 -7%	45.3 11%	50.3 1%	45.1 11%	30.9 39%	52.8 ?(20 - 77.7, n=30) -4%	52.2 ?(11.3 - 158.7, n=93, last 2 years) -3%
Load Maximum *	64.9	94.6 -46%	113 -74%	83.2 -28%	94.8 -46%	82 -26%	73.4 -13%	97.8 -51%	69.4 ?(48 - 103.2, n=30) -7%	86.3 ?(18.1 - 271, n=93, last 2 years) -33%
Witcher 3 ultra *								44.8

* ... más pequeño es mejor

Power consumption with an external monitor

Acemagic AM20; Prime95 V2810 Stress (external Monitor): Ø53.6 (51-63.9)

Acemagic AM20; Cinebench R15 Multi (external Monitor): Ø50.4 (47-57)

Acemagic AM20; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55 (53.8-64.9)

Acemagic AM20; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.5 (51.4-55.5)

Acemagic AM20; Idle 1min (external Monitor): Ø8.75 (8.48-10)

Pro

+ caja sólida y compacta

+ peso reducido

+ fácil de abrir

+ función de carga inductiva en la carcasa

+ AMD Ryzen 7 7735H con 8 núcleos y 16 hilos

+ 32 GB de RAM DDR5

+ tres interfaces M.2

+ Thunderbolt

+ rendimiento estable de la CPU

+ una potente AMD Radeon 680M

+ un rápido SSD con rendimiento constante

Contra

- audible bajo carga

- RAM no ampliable

- sin Wi-Fi 6E o 6 GHz

Veredicto - Un mini PC con estación de carga

Reseña de Acemagic AM20: proporcionado por Acemagic

El Acemagic AM20 ha adoptado un buen enfoque para destacar entre la multitud de mini PC. Acemagic es actualmente uno de los pocos fabricantes que ofrecen la opción de cargar de forma inalámbrica un smartphone colocándolo encima del dispositivo. Por lo tanto, combinado con su tamaño, el AM20 tiene incluso un punto de venta único. Como limitación, sin embargo, tendrás que conformarte con el bajo rendimiento de carga de sólo 10 vatios.

La calidad de construcción es impecable, aunque se ha evitado en gran medida el uso de metal. En cuanto al rendimiento, el AMD Ryzen 7 7735H es un SoC sólido. Aunque el SoC forma parte de la serie 7000, no estamos ante un SoC con núcleos de cálculo Zen 4, sino más bien ante un procesador basado en Zen 3. No obstante, el AMD Ryzen 7 7735H ofrece un rendimiento sólido. El gran beneficio de este SoC AMD puede verse en el área del rendimiento 3D. La AMD Radeon 680M es claramente superior a Intel, incluso haciendo posibles pequeñas sesiones de juego con el Acemagic AM20.

El Acemagic AM20 es un mini PC potente y económico a la vez y, con sus 8 núcleos y 16 hilos, las tareas multihilo tampoco suponen ningún problema.

Cabe destacar la buena selección de interfaces con dos puertos de red así como el puerto Thunderbolt. Esto permite ampliar el dispositivo de forma razonable, ya que incluso se pueden utilizar tarjetas gráficas externas. En lo tocante a la elección del módulo WiF, habríamos preferido uno más moderno. Los niveles de ruido del dispositivo bajo carga resultan ser una desventaja. Debido a su pequeño factor de forma, el Acemagic no tiene mucho espacio para otros componentes, así que ha habido que hacer concesiones en este aspecto.

Precio y disponibilidad

Der Acemagic AM20 puede pedirse directamente a través de la tienda en línea del fabricante a un precio de 569 dólares estadounidenses. Sin embargo, esta oferta sólo se aplica a EE.UU. y el Reino Unido. Actualmente, la empresa no tiene planes para cubrir la región de habla alemana.

Acemagic AM20 - 2024-02-27 02/27/2024 v7
Sebastian Bade

Acabado

73 / 98 → 75%

Conectividad

65 / 81 → 80%

Peso

86%

Rendimiento de juegos

77%

Rendimiento de la Aplicación

96%

Temperatura

89%

Ruido

83%

Médio

81%

84%

Mini PC - media ponderada

El mini PC Acemagic AM20 con un AMD Ryzen 7 7735H y 32 GB de RAM puede cargar smartphones de forma inalámbrica

Posibles contendientes en la comparación

Acemagic AM20 en detalle

Funda - con función de carga inalámbrica

Comparación de tamaños

Características: una buena selección que incluye Thunderbolt

Comunicación

Mantenimiento

Acemagic AM20 desmontado

Rendimiento - El AMD Ryzen 7 7735H sólo tiene núcleos Zen 3+

Condiciones de la prueba

Procesador

Acemagic AM20 frente a Cinebench R15 multibucle

Rendimiento del sistema

Latencias del CPD

Almacenamiento masivo

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Tarjeta gráfica - AMD Radeon 680M

Rendimiento en juegos - AMD Radeon 680M

rendimiento 3D mediante una base eGPU con una Nvidia GeForce RTX 3060 Ti

Emisiones - Buen rendimiento pero económico

Emisiones sonoras

Temperatura

Consumo de energía

Power consumption with an external monitor

Pro

Contra

Veredicto - Un mini PC con estación de carga

Precio y disponibilidad

More articles related to this device

Transparency
