Precio y disponibilidad
La AMD Radeon RX 9060 XT de 16 GB tiene un precio oficial de 349 SEP. El precio de la PowerColor Reaper 9060 XT aún no se ha revelado oficialmente.
Nota: Se trata de una revisión en curso y se actualizará en breve con las pruebas de resistencia y los datos sobre el ruido.
AMD presentó las Radeon RX 9070 y RX 9070 XT en marzo a bombo y platillo y como alternativas de valor viables a las ofertas RTX 50 Blackwell de Nvidia.
El mes pasado, Nvidia presentó la RTX 5060 Ti de 16 GB por 429 $ MSRP en un intento de frustrar los movimientos de AMD y hacerla atractiva para los jugadores de gama media. Ahora, AMD está jugando a la pelota con la introducción de la nueva Radeon RX 9060 XT en variantes de 8 GB y 16 GB por 299 y 349 dólares MSRP, respectivamente, rebajando la propuesta de Nvidia por un margen considerable.
Dicho esto, la justificación de AMD para seguir ofreciendo tarjetas de 8 GB en 2025, en un momento en que los juegos consumen cada vez más VRAM ha suscitado opiniones divididas.
La Radeon RX 9060 XT lleva las características clave de la RDNA 4 a la corriente principal, incluido el nuevo motor multimedia mejorado, los aceleradores de IA de 2ª generación con soporte para inferencia FP8 y los aceleradores de trazado de rayos (RT) de 3ª generación.
No existe una versión Made by AMD (MBA) de la RX 9060 XT, por lo que tendrá que recurrir a los socios de placas complementarias (AiB) de AMD si desea una.

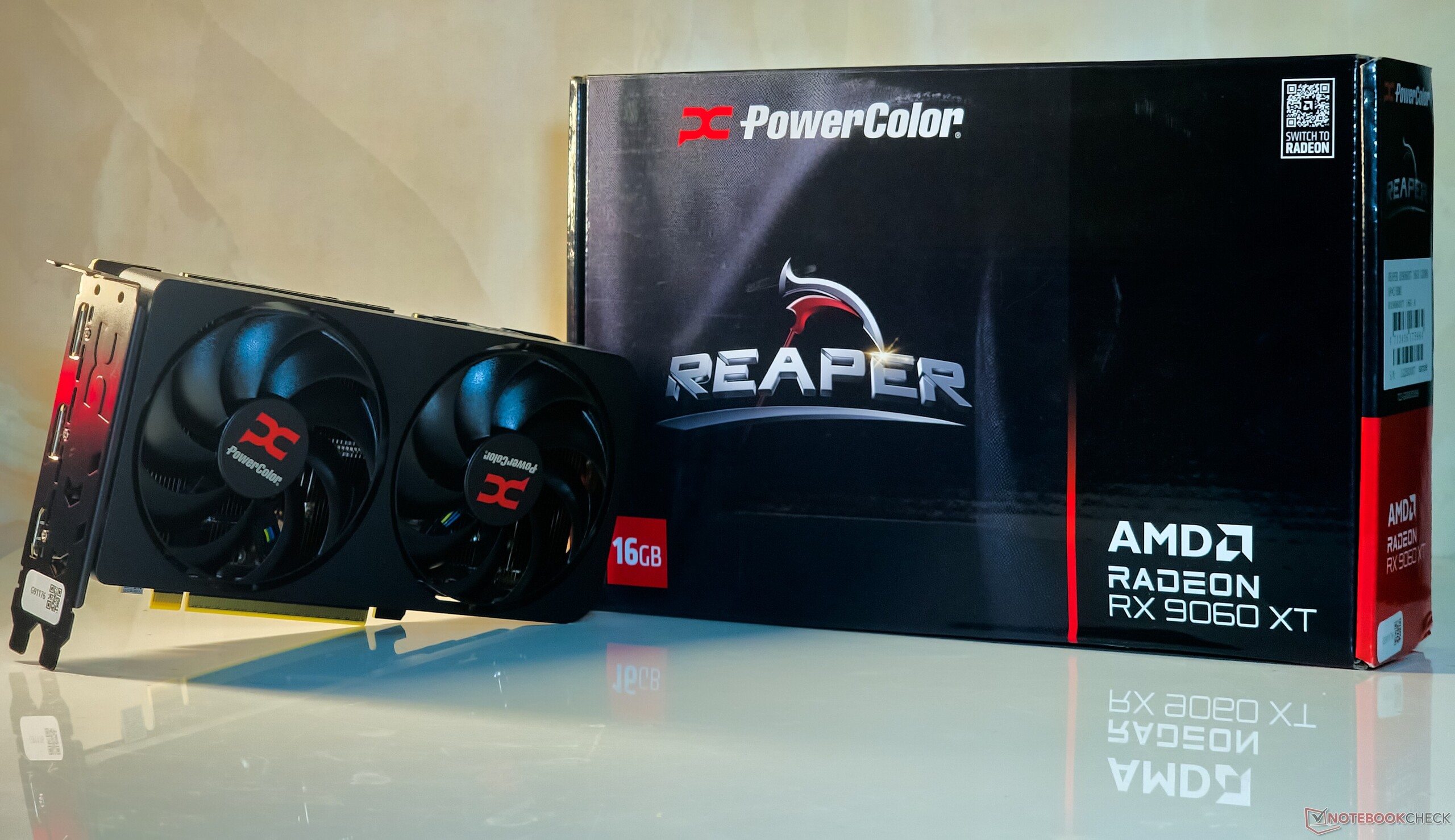

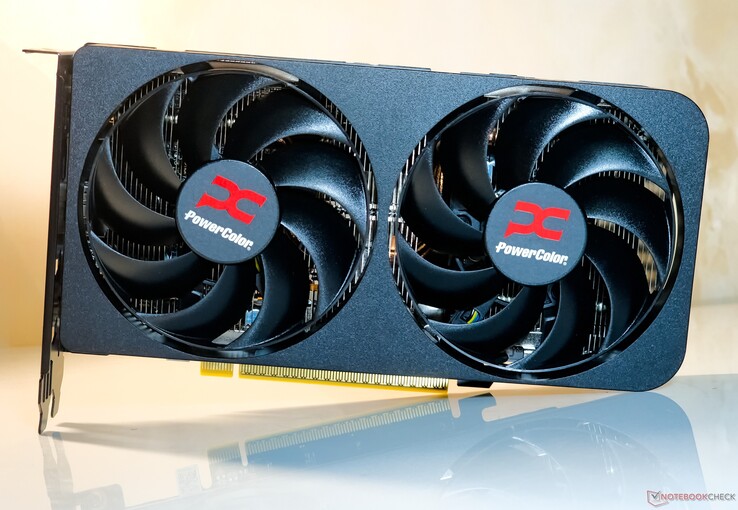

En este análisis, echamos un vistazo a la PowerColor Reaper AMD Radeon RX 9060 XT 16 GB y vemos cómo se comporta frente a la RTX 5060 Ti 16 GB de Nvidia y otras GPU.
Comparación de la Radeon RX 9060 XT con otras GPU de AMD
Especificaciones | Gigabyte Radeon RX 9070 XT Gaming OC | Gigabyte Radeon RX 9070 Gaming OC | PowerColor Reaper Radeon RX 9060 XT 16 GB | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7600 XT | Radeon RX 6950 XT | Radeon RX 6800 XT | Radeon RX 6800 |
---|---|---|---|---|---|---|---|---|---|
GPU | Navi 48 | Navi 48 | Navi 44 XT | Navi 31 XTX | Navi 31 XT | Navi 33 XT | Navi 21 XTX | Navi 21 XT | Navi 21 XL |
Proceso de fabricación | 4 nm | 4 nm | 4nm | 5/6 nm | 5/6 nm | 5/6 nm | 7 nm | 7 nm | 7 nm |
Unidades de cálculo | 64 | 56 | 32 | 96 | 84 | 32 | 80 | 72 | 60 |
Unidades de sombreado | 4.096 | 3.584 | 2.048 | 6.144 | 5.376 | 2.048 | 5.120 | 4.608 | 3.840 |
Unidades de mapeado de texturas | 256 | 224 | 128 | 384 | 336 | 128 | 320 | 288 | 240 |
Aceleradores de rayos | 64 | 56 | 32 | 96 | 84 | 32 | 80 | 72 | 60 |
Aceleradores AI | 128 | 112 | 64 | 192 | 168 | 64 | - | - | - |
Reloj base | 1.820 MHz | 1.440 MHz | 2.220 MHz | 2.270 MHz | 2.000 MHz | 1.980 MHz | 1.925 MHz | 1.825 MHz | 1.700 MHz |
Reloj de juego | 2.520 MHz | 2.210 MHz | 2.620 MHz | 2.300 MHz | 2.000 MHz | 2.470 MHz | 2.116 MHz | 2.015 MHz | 1.815 MHz |
Reloj Boost | 3.060 MHz | 2.700 MHz | 3.230 MHz | 2.500 MHz | 2.400 MHz | 2.755 MHz | 2.324 MHz | 2.250 MHz | 2.105 MHz |
Caché infinita | 64 MB (3ª generación) | 64 MB (3ª generación) | 32 MB (3ª generación) | 96 MB | 80 MB | 32 MB | 128 MB | 128 MB | 128 MB |
Ancho del bus de memoria | 256 bits | 256 bits | 128 bits | 384 bits | 320 bits | 128 bits | 256 bits | 256 bits | 256 bits |
Ancho de banda de memoria | 644,6 GB/s | 644,6 GB/s | 322,3 GB/s | 960 GB/s | 800 GB/s | 288 GB/s | 576 GB/s | 512 GB/s | 512 GB/s |
Tamaño de la memoria | 16 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 |
Potencia total de la placa | 330 W | 240 W | 160 W | 355 W | 315 W | 190 W | 335 W | 300 W | 250 W |
La PowerColor Reaper 9060 XT utiliza unos relojes de juego y boost ligeramente superiores de 2.620 MHz y 3.230 MHz, respectivamente, en comparación con las correspondientes frecuencias de stock de 2.530 MHz y 3.130 MHz.
La tarjeta tiene un consumo total de energía de la placa (TBP) de 160 W. Es posible aumentar el límite de potencia en un 10% adicional hasta 176 W.
Top 10 Análisis
» Top 10 Portátiles Multimedia
» Top 10 Portátiles de Juego
» Top 10 Portátiles de Juego ligeros
» Top 10 Portátiles Asequibles de Oficina/Empresa
» Top 10 Portátiles de Juego Ligeros
» Top 10 Portátiles de Oficina/Empresa Premium
» Top 10 Estaciones de Trabajo
» Top 10 Subportátiles
» Top 10 Ultrabooks
» Top 10 Convertibles
» Top 10 Tablets
» Top 10 Tablets Windows
» Top 10 Tablets de menos de 250 Euros
» Top 10 Phablets (>5.5")
» Top 10 Smartphones
» Top 10 Smartphones (≤5")
» Top 10 Smartphones de menos de 300 Euros
» Top 10 Smartphones de menos de 120 Euros
» Top 10 Portátiles de menos de 1000 Euros
» Top 10 Portátiles de menos de 500 Euros
» Top 10 Portátiles de menos de 300 Euros
» Los Mejores Displays de Portátiles Analizados por Notebookcheck
El banco de pruebas: La RX 9060 XT se empareja con el Core i9-14900K
Nuestra configuración de prueba para evaluar la RX 9060 XT consta de los siguientes componentes:
- Banco de pruebas abierto Cooler Master MasterFrame 700
- Intel Core i9-14900K con el perfil Intel Extreme configurado en la BIOS
- Placa base Gigabyte Z790 Aorus Master
- SSD NVMe Sabrent Rocket 4 Plus Gen4 de 2 TB y 2x SSD SATA Crucial MX500 de 1 TB para el sistema operativo, pruebas de rendimiento y juegos
- 2x 16 GB de memoria RAM Kingston Fury Renegade DDR5-6400 con tiempos 32-39-39-80 a 1,40 V
- Monitor Aorus FO32U2P 4K 240 Hz QD-OLED
- Thermaltake TH420 V2 Ultra EX ARGB Refrigerador AiO
- Fuente de alimentación totalmente modular Cooler Master MVE Gold V2 1250 ATX 3.0
Windows 11 24H2 con los últimos parches, junto con el software AMD Adrenalin Edition versión 25.10.09.01 enviado a la prensa fue utilizado.
Nos gustaría dar las gracias a Cooler Master por suministrar el banco de pruebas y la PSU, a Intel por la CPU, a Gigabyte por la placa base y el monitor QD-OLED, a Sabrent por la SSD, a Thermaltake por el refrigerador AiO, a Kingston por el kit de memoria DDR5 y, por último, a AMD por la RX 9060 XT.
Benchmarks sintéticos: La RTX 5060 Ti mantiene una buena ventaja sobre la RX 9060 XT
La Radeon RX 9060 XT de 16 GB es un 16% más lenta que la RTX 5060 Ti de 16 GB en las pruebas acumulativas de 3DMark y Unigine, mientras que ofrece un 20% más de rendimiento que la XFX Speedster Radeon RX 7600 Black Edition.
Curiosamente, la Inno3D RTX 4060 Ti Twin x2 de 8 GB está sólo un 5% por detrás de la RX 9060 XT en las pruebas sintéticas globales debido a las ventajas en las pruebas Unigine, en particular en los puntos de referencia Heaven y Valley.
Performance Rating - Percent | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition -1! |
Unigine Heaven 4.0 - Extreme Preset DX11 | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8 | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5090 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
3DMark Fire Strike Score | 33186 puntos | |
3DMark Fire Strike Extreme Score | 17846 puntos | |
3DMark Time Spy Score | 16565 puntos | |
3DMark Steel Nomad Score | 3552 puntos | |
ayuda |
IA y rendimiento informático: No es el punto fuerte de la RX 9060 XT
La RTX 5060 Ti de 16 GB sigue mostrando unas ganancias perceptibles del 13% y el 25% en las pruebas ComputeMark y MLPerf, respectivamente.
Por lo general, las tarjetas AMD tienden a obtener mejores resultados que sus homólogas Nvidia en LuxMark, pero la RX 9060 XT de 16 GB queda por detrás incluso de la RTX 4060 Ti de 8 GB en esta prueba comparativa.
MLPerf Client 0.5 - overall generation rate | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
Blender | |
v3.3 Classroom CUDA | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5090 Founders Edition | |
v3.3 Classroom OPTIX/RTX | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 4080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5090 Founders Edition |
V-Ray Benchmark Next 4.10 - GPU | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 4080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Sapphire Pulse AMD Radeon RX 7900 XT |
V-Ray 5 Benchmark - GPU CUDA | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
* ... más pequeño es mejor
Rendimiento en juegos: Pisando los talones a la RTX 5060 Ti 16 GB
La diferencia entre la RTX 5060 Ti de 16 GB y la RX 9060 XT de 16 GB se reduce considerablemente en los juegos, con la RX 9060 XT por detrás de la oferta principal de Nvidia en sólo un 7% en los ajustes acumulados de 1080p y QHD Ultra.
La RX 9060 XT de 16 GB puede alcanzar fácilmente más de 60 fps en QHD Ultra en títulos algo más antiguos. La VRAM de 16 GB resulta bastante útil en juegos modernos con muchas texturas como Mito Negro: Wukong, Indiana Jones y el Gran Círculoy Assassin's Creed Sombras.
AMD no lanza exactamente la RX 9060 XT a los jugadores 4K, pero títulos como El Witcher 3 y Assassin's Creed Mirage ofrecen una buena experiencia a 4K Ultra nativo sin necesidad de reescalado.
1080p and 2K Performance Rating - Percent | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 5070 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition -7! |
F1 24 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
4K Performance Rating - Percent | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition -1! | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition -4! |
Indiana Jones and the Great Circle - 3840x2160 Very Ultra Preset | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
Black Myth: Wukong - 3840x2160 cinematic TSR 100 | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5070 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
Alan Wake 2 - 3840x2160 High Preset | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5070 Founders Edition | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
F1 24 - 3840x2160 Ultra High Preset AA:T AF:16x | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
NVIDIA GeForce RTX 4080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
Assassin's Creed Mirage - 3840x2160 Ultra High Preset (Adaptive Quality Off) | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5070 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
Avatar Frontiers of Pandora - 3840x2160 Ultra Preset AA:T | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
Cyberpunk 2077 2.2 Phantom Liberty - 3840x2160 Ultra Preset (FSR off) | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
X-Plane 11.11 - 3840x2160 high (fps_test=3) | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Sapphire Pulse AMD Radeon RX 7900 XT |
Rendimiento del trazado de rayos
Los aceleradores de rayos de 3ª generación de RDNA 4 permiten a la RX 9060 XT alcanzar velocidades de fotogramas jugables en Alan Wake 2 y Cyberpunk 2077: Phantom Liberty en ajustes nativos de trazado de rayos Ultra 1080p.
el rendimiento de trazado de rayos 4K sigue siendo una tarea ardua para la RX 9060 XT incluso con FSR activado. Dicho esto, FSR junto con la generación de fotogramas puede hacer que el juego sea fluido como se ve con el rendimiento de la tarjeta en Indiana Jones y el Gran Círculo en QHD Muy Ultra.
La compatibilidad nativa con FSR 4 aún no está disponible en la selección de juegos que hemos elegido para este análisis. No obstante, de forma similar a las anulaciones DLSS, es posible activar FSR 4 a través del controlador Adrenalin en los juegos que ya admiten FSR 3.1.
Esperamos echar un vistazo al FSR 4 de la RX 9060 XT y al rendimiento en la generación de fotogramas en un artículo posterior.
Alan Wake 2 | |
1920x1080 High Preset + High Ray Tracing | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
3840x2160 High Preset + High Ray Tracing + Quality FSR | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
Cyberpunk 2077 2.2 Phantom Liberty | |
1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
NVIDIA GeForce RTX 5090 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4080 Founders Edition | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
3840x2160 Ray Tracing Ultra Preset (FSR2 on) | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
Indiana Jones and the Great Circle | |
2560x1440 Very Ultra + FSR Quality + FG | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
2560x1440 Very Ultra + FSR Quality | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB |
bajo | medio | alto | ultra | QHD FSR | QHD | 4K FSR | 4K | |
---|---|---|---|---|---|---|---|---|
The Witcher 3 (2015) | 689 | 489 | 260 | 133.1 | 97.8 | 84.7 | ||
X-Plane 11.11 (2018) | 199.9 | 161.5 | 120.9 | 92.5 | ||||
Baldur's Gate 3 (2023) | 191 | 148.3 | 127.5 | 127.6 | 87.9 | 73.1 | 46 | |
Cyberpunk 2077 2.2 Phantom Liberty (2023) | 198.8 | 159.9 | 127.2 | 114.1 | 72.1 | 25.7 | 31.1 | |
Assassin's Creed Mirage (2023) | 201 | 182 | 169 | 130 | 97 | 58 | ||
Alan Wake 2 (2023) | 117.5 | 103.3 | 93.3 | 62.1 | 18.4 | 32.1 | ||
Avatar Frontiers of Pandora (2023) | 102.5 | 93.6 | 80.3 | 62.1 | 41.6 | 21.2 | ||
F1 24 (2024) | 413 | 374 | 280 | 99.7 | 63.7 | 54.3 | 31.4 | |
Black Myth: Wukong (2024) | 118 | 89 | 69 | 36 | 39 | 27 | 15 | |
Indiana Jones and the Great Circle (2024) | 124.1 | 87.8 | 77.2 | 78 | 60.4 | 35.9 | ||
Assassin's Creed Shadows (2025) | 93 | 86 | 73 | 50 | 48 | 43 | 36 | 30 |
Cyberpunk 2077 1080p Ultra FPS Chart
Gestión de la energía
Power consumption: External monitor
:
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
NVIDIA GeForce RTX 5090 Founders Edition (Idle: 90 W) | |
NVIDIA GeForce RTX 4090 (Idle: 82 W) | |
Sapphire Pulse AMD Radeon RX 7900 XTX (Idle: 74 W) | |
NVIDIA GeForce RTX 5080 Founders Edition (Idle: 70 W) | |
Sapphire Pulse AMD Radeon RX 7900 XT (Idle: 94 W) | |
Asus Prime GeForce RTX 5080 OC Edition (Idle: 78 W) | |
NVIDIA GeForce RTX 4080 Founders Edition (Idle: 72 W) | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC (Idle: 107 W) | |
Gigabyte Aorus GeForce RTX 4070 Ti Master (Idle: 120 W) | |
NVIDIA GeForce RTX 5070 Founders Edition (Idle: 77 W) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus (Idle: 73 W) | |
Inno3D GeForce RTX 4060 Ti Twin X2 (Idle: 69 W) | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB (Idle: 64 W) |
Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
Sapphire Pulse AMD Radeon RX 7900 XTX (Idle: 74 W) | |
Sapphire Pulse AMD Radeon RX 7900 XT (Idle: 94 W) | |
NVIDIA GeForce RTX 5090 Founders Edition (Idle: 90 ) | |
NVIDIA GeForce RTX 4090 (Idle: 82 W) | |
Gigabyte Aorus GeForce RTX 4070 Ti Master (Idle: 120 W) | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC (Idle: 107 W) | |
Asus Prime GeForce RTX 5080 OC Edition (Idle: 78 W) | |
NVIDIA GeForce RTX 5080 Founders Edition (Idle: 70 W) | |
NVIDIA GeForce RTX 5070 Founders Edition (Idle: 77 W) | |
NVIDIA GeForce RTX 4080 Founders Edition (Idle: 72 W) | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus (Idle: 73 W) | |
Inno3D GeForce RTX 4060 Ti Twin X2 (Idle: 69 W) | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB (Idle: 64 W) |
Power Consumption / Cyberpunk 2077 ultra Efficiency | |
Asus Prime GeForce RTX 5080 OC Edition | |
NVIDIA GeForce RTX 5080 Founders Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4080 Founders Edition | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5090 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
Inno3D GeForce RTX 4060 Ti Twin X2 |
Power Consumption / The Witcher 3 ultra (external Monitor) | |
NVIDIA GeForce RTX 5090 Founders Edition (Idle: 90 W) | |
Sapphire Pulse AMD Radeon RX 7900 XTX (Idle: 74 W) | |
NVIDIA GeForce RTX 4090 (Idle: 82 W) | |
Sapphire Pulse AMD Radeon RX 7900 XT (Idle: 94 W) | |
Asus Prime GeForce RTX 5080 OC Edition (Idle: 78 W) | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC (Idle: 107 W) | |
NVIDIA GeForce RTX 5080 Founders Edition (Idle: 70 W) | |
Gigabyte Aorus GeForce RTX 4070 Ti Master (Idle: 120 W) | |
NVIDIA GeForce RTX 5070 Founders Edition (Idle: 77 W) | |
NVIDIA GeForce RTX 4080 Founders Edition (Idle: 72 W) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus (Idle: 73 W) | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB (Idle: 64 W) | |
Inno3D GeForce RTX 4060 Ti Twin X2 (Idle: 69 W) |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
NVIDIA GeForce RTX 5080 Founders Edition | |
NVIDIA GeForce RTX 4080 Founders Edition | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 5070 Founders Edition | |
Asus Prime GeForce RTX 5080 OC Edition | |
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC | |
Gigabyte Aorus GeForce RTX 4070 Ti Master | |
NVIDIA GeForce RTX 5090 Founders Edition | |
MSI GeForce RTX 5060 Ti Ventus 2X Plus | |
Inno3D GeForce RTX 4060 Ti Twin X2 | |
Sapphire Pulse AMD Radeon RX 7900 XT | |
Sapphire Pulse AMD Radeon RX 7900 XTX | |
PowerColor Reaper AMD Radeon RX 9060 XT 16GB | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | |
1920x1080 The Witcher 3 ultra (external Monitor) |
:
* ... más pequeño es mejor
Transparencia
La selección de los dispositivos que se van a reseñar corre a cargo de nuestro equipo editorial. La muestra de prueba fue proporcionada al autor en calidad de préstamo por el fabricante o el minorista a los efectos de esta reseña. El prestamista no tuvo ninguna influencia en esta reseña, ni el fabricante recibió una copia de la misma antes de su publicación. No había ninguna obligación de publicar esta reseña. Nunca aceptamos compensaciones o pagos a cambio de nuestras reseñas. Como empresa de medios independiente, Notebookcheck no está sujeta a la autoridad de fabricantes, minoristas o editores.
Así es como prueba Notebookcheck
Cada año, Notebookcheck revisa de forma independiente cientos de portátiles y smartphones utilizando procedimientos estandarizados para asegurar que todos los resultados son comparables. Hemos desarrollado continuamente nuestros métodos de prueba durante unos 20 años y hemos establecido los estándares de la industria en el proceso. En nuestros laboratorios de pruebas, técnicos y editores experimentados utilizan equipos de medición de alta calidad. Estas pruebas implican un proceso de validación en varias fases. Nuestro complejo sistema de clasificación se basa en cientos de mediciones y puntos de referencia bien fundamentados, lo que mantiene la objetividad.
