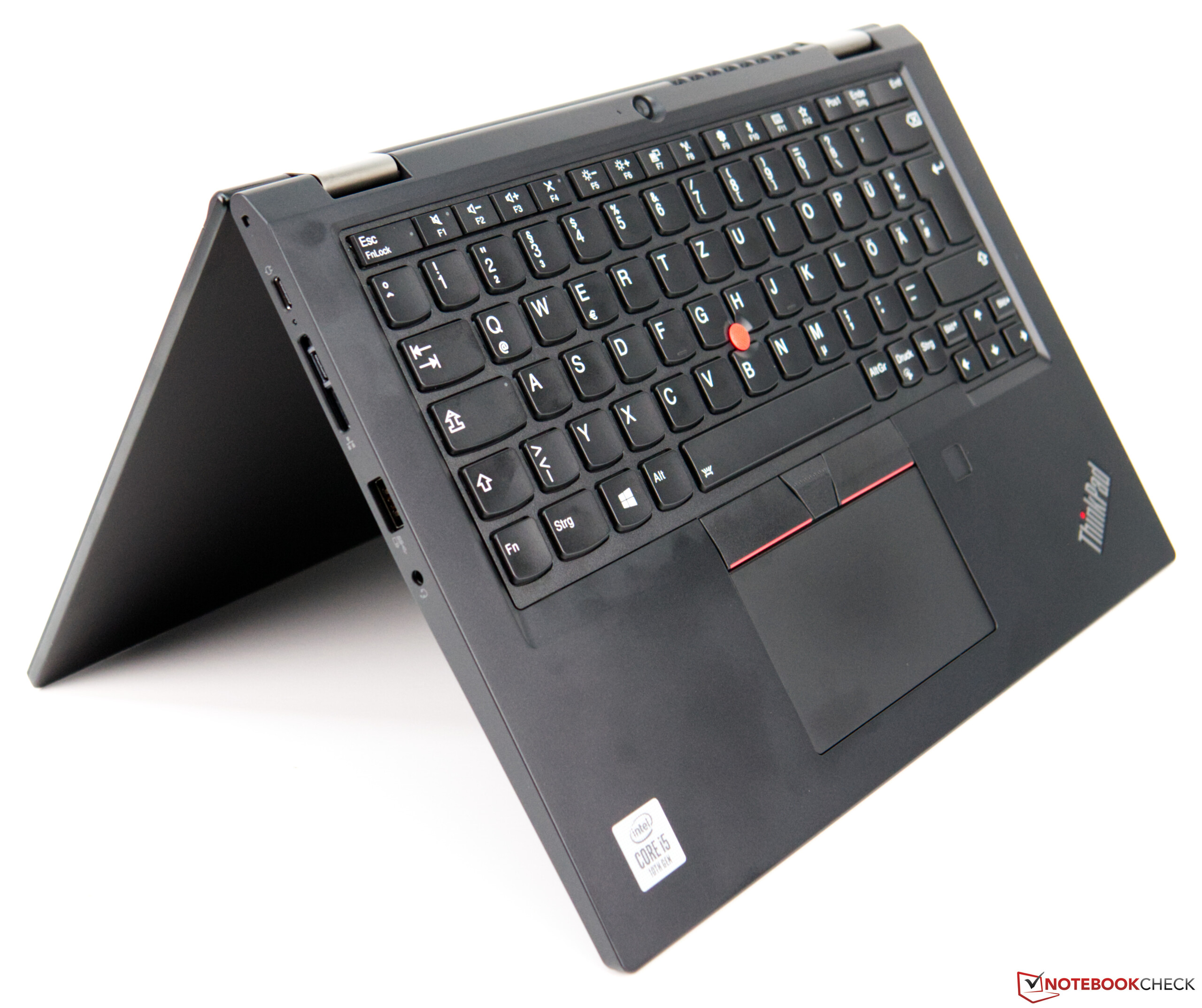

Review del Lenovo ThinkPad L13 Yoga: Un convertible de negocios con un buen equipamiento

¡Un convertible caliente! Lenovo promete un convertible de negocios a un precio de entrada para el ThinkPad L13 Yoga, confiando en los SoCs de Comet Lake de Intel. Averigua qué más tiene el aparato y si vale la pena comprarlo en esta reseña.

Como sucesor del ThinkPad L390 Yoga, el Lenovo ThinkPad L13 Yoga retoma el legado. Visualmente, el nuevo convertible es un ThinkPad de principio a fin. La serie L sigue atrayendo la atención con un bajo precio de compra. También lo hace nuestro dispositivo de prueba, que tiene un sólido equipo por 1.119 Euros (~$1.210) y viene con buenas características comerciales.

Lenovo ThinkPad L13 Yoga 20R6S00800 (ThinkPad L13 Serie)
Procesador
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Adaptador gráfico
Memoría
16 GB
, instalado de forma permanente, DDR4-2666, de doble canal
pantalla
13.30 pulgadas 16:9, 1920 x 1080 pixels 166 PPI, Multitáctil, native pen support, N133HCE-EP2, IPS, lustroso: si, 60 Hz
Placa base
Intel Comet Lake-U PCH-LP Premium

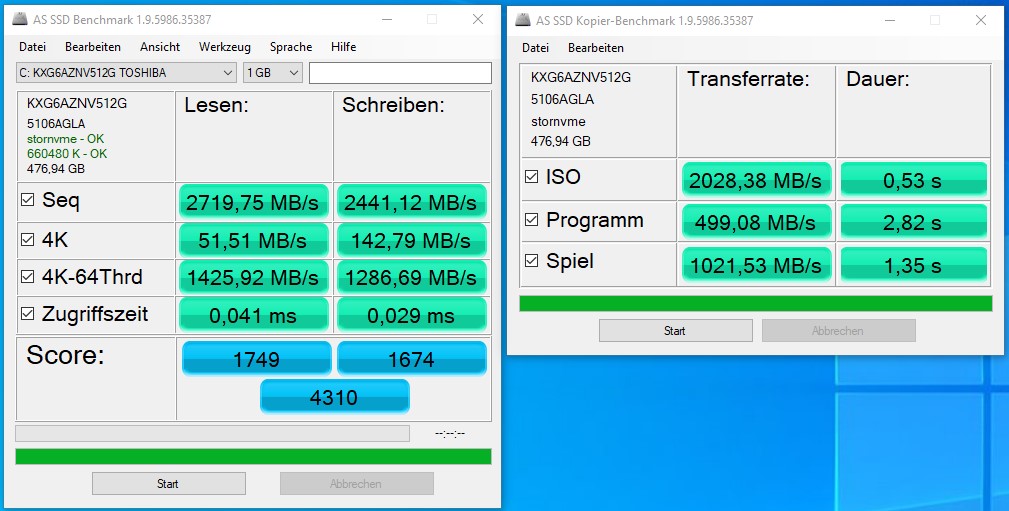

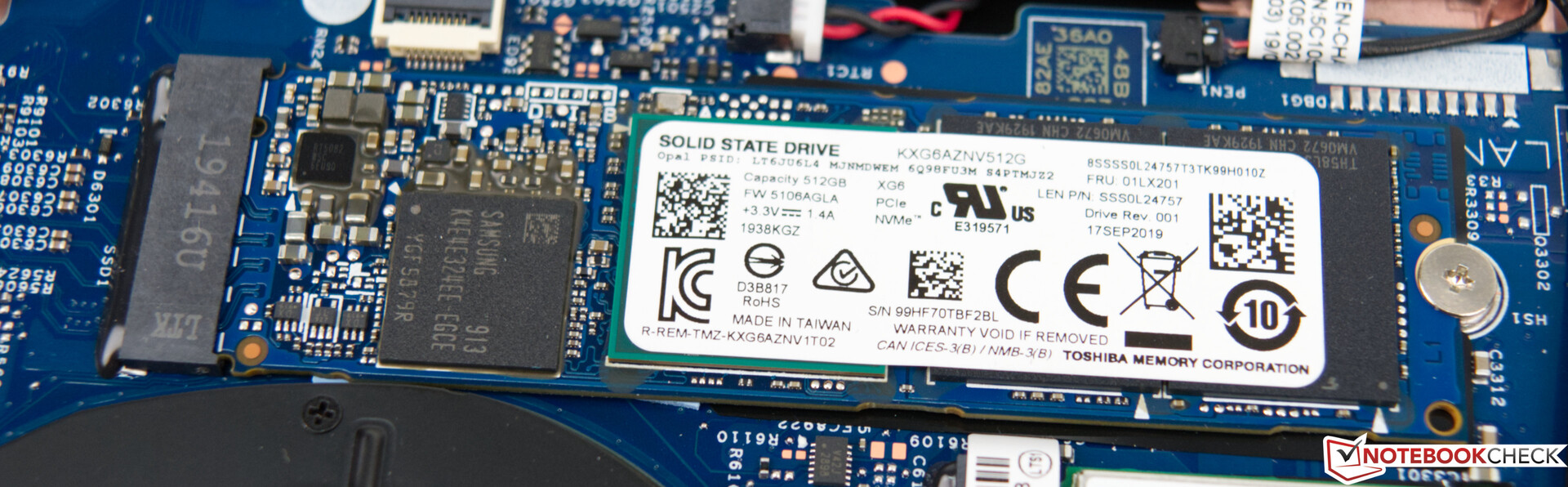

Disco duro
Toshiba XG6 KXG6AZNV512G, 512 GB
, NVMe SSD, M.2 2280, 480 GB libre
Tarjeta de sonido
Intel Comet Lake PCH-LP - cAVS
Conexiones
4 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Conexiones: 3.5mm, Card Reader: micro-SD, 1 eSata, 1 Lector de Huellas Digitales, Sensores: Sensor G
Equipamento de red
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Tamaño
Alto x ancho x profundidad (en mm): 17.6 x 311.5 x 219
Battería
46 Wh, 2985 mAh Litio-Ion
Camera
Webcam: HD 720pSecondary Camera: IR
Características adicionales
Altavoces: Estéreo, Teclado: Chiclet, Luz de Teclado: si, Adaptador de corriente de 65 W, Lenovo System Update, 36 Meses Garantía
Peso
1.426 kg, Suministro de Electricidad: 358 g
Precio
1119 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Valoración
Fecha
Modelo
Peso
Altura
Tamaño
Resolución
Best Price
88.2 %
03/2020
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620
1.4 kg17.6 mm13.30"1920x1080
86.3 %
02/2019
Lenovo ThinkPad L390 Yoga-20NT000XGE
i5-8265U, UHD Graphics 620
1.5 kg18.8 mm13.30"1920x1080
84.3 %
06/2019
HP Envy x360 13-ar0601ng
R7 3700U, Vega 10
1.3 kg14.7 mm13.30"1920x1080
81 %
02/2020
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620
1.6 kg20.5 mm14.00"1920x1080
84.3 %
03/2020
Lenovo Yoga C740-14IML
i5-10210U, UHD Graphics 620
1.4 kg16.9 mm14.00"1920x1080

Carcasa y Conectividad

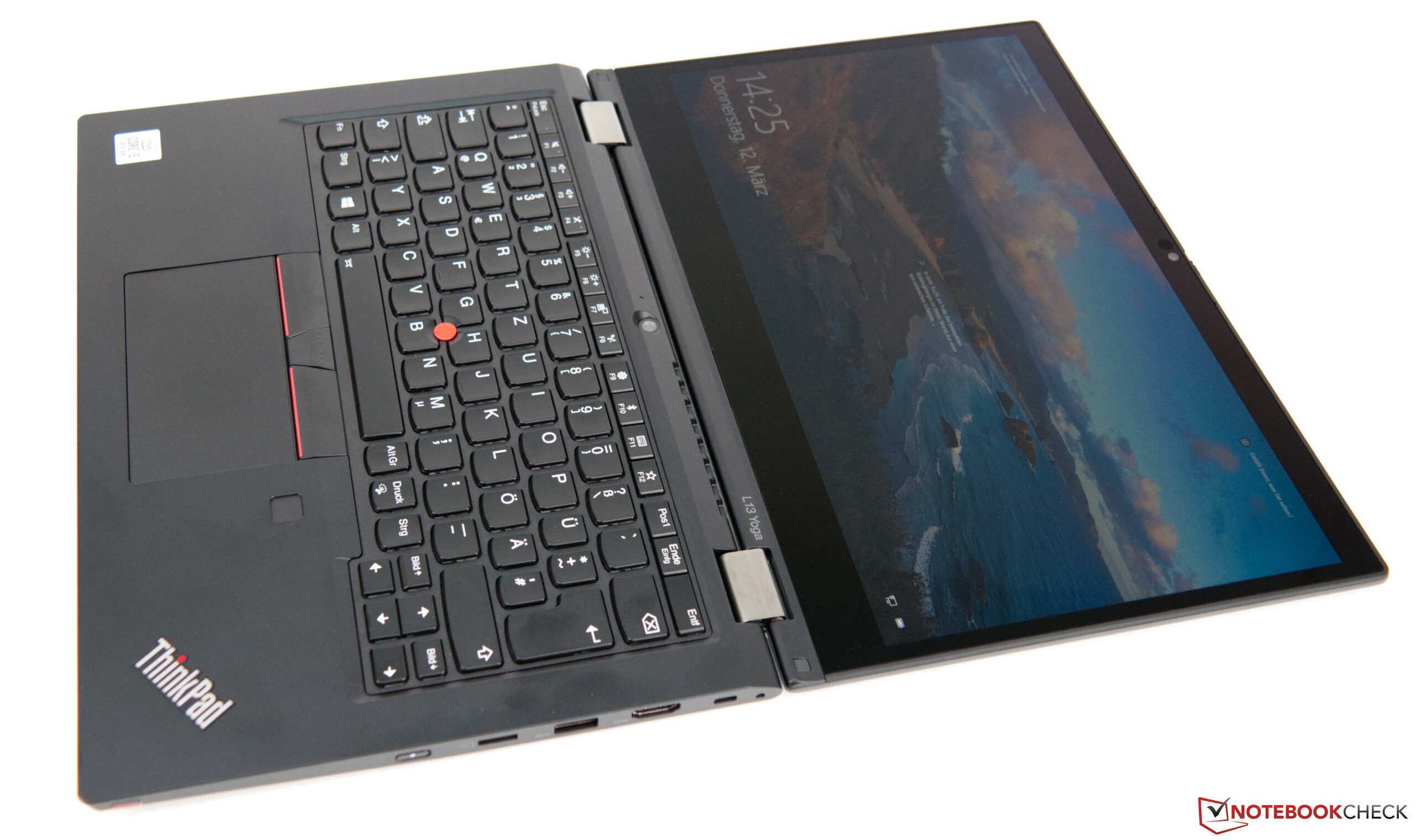

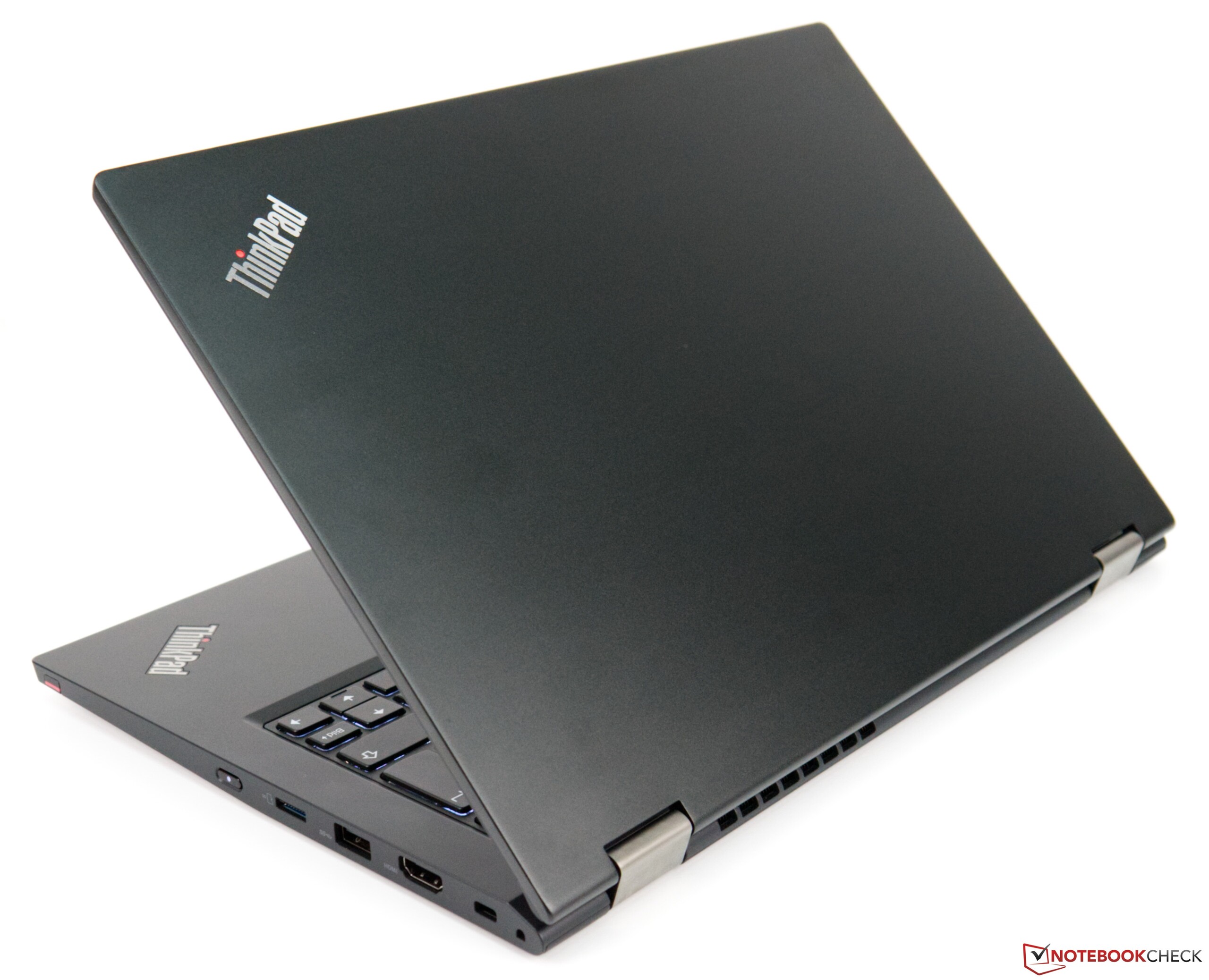

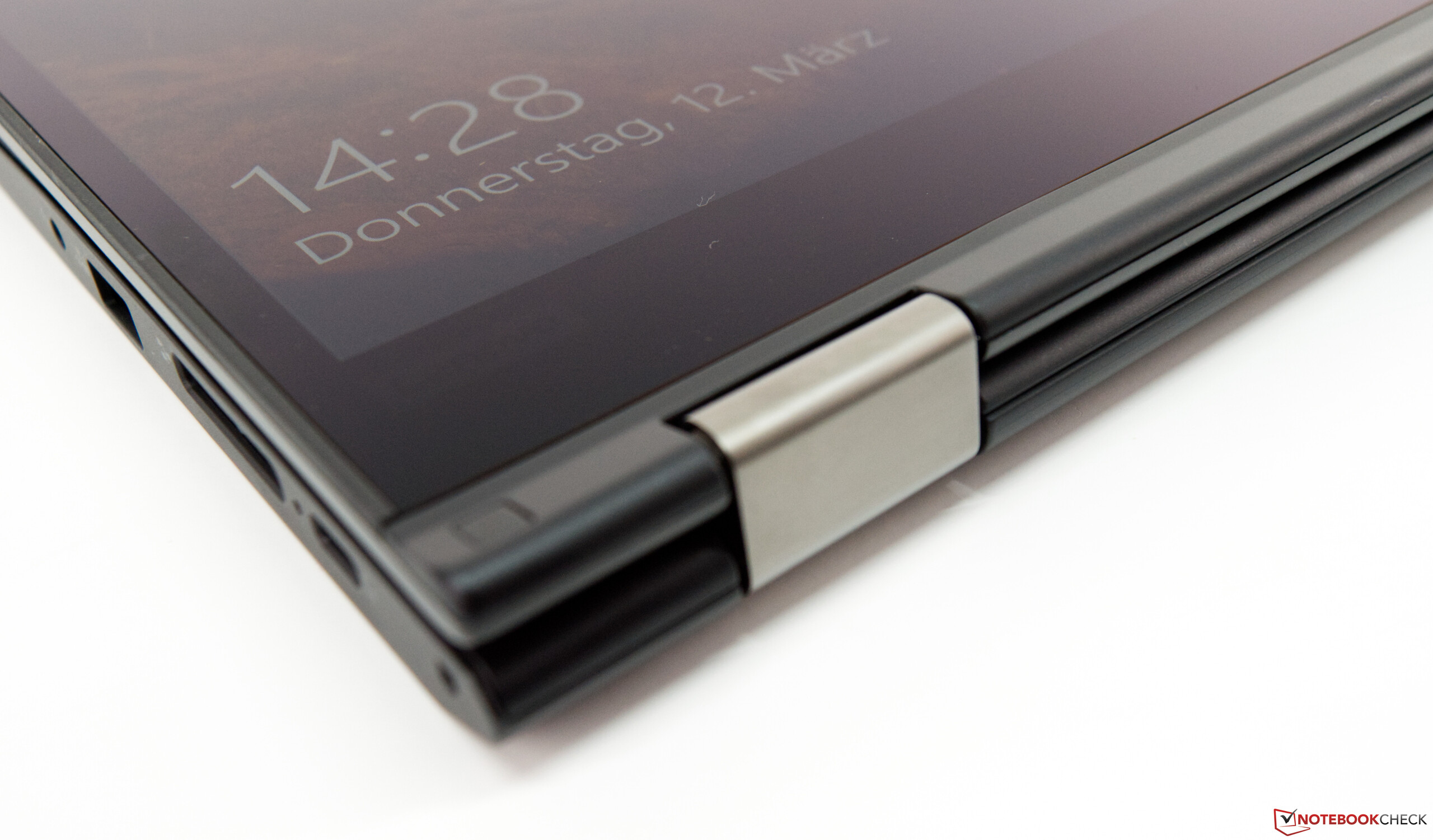

Visualmente, el ThinkPad L13 Yoga está claramente marcado con los logos distintivos del ThinkPad. El negro mate en todas las superficies parece bastante elegante a primera vista, pero cuando se trabaja, las huellas dactilares también son rápidamente visibles en todas las superficies. Lenovo no hace concesiones a la hora de elegir los materiales para el nuevo ThinkPad L13 Yoga y utiliza plástico reforzado con fibra de vidrio, que es ligero pero muy estable. La base se puede torcer un poco, pero esto es limitado. Lo mismo se aplica a la tapa de la pantalla. Sin embargo, esto ofrece algo más de fuerza y absorbe muy bien las fuerzas recurrentes. El convertible está equipado con bisagras estables de 360 grados. Sin embargo, éstas no pueden evitar completamente el tambaleo en el modo portátil.

En comparación con el tamaño, el ThinkPad L13 Yoga es ligeramente más grande que el Yoga C740. Sin embargo, nuestra muestra de prueba es relativamente ahorradora de espacio en comparación. Lo mismo se aplica al peso, porque con 1,4 kg nuestro ThinkPad L13 Yoga también se basa en el Yoga C740. En términos de conexiones, nada tiene que ser dejado de lado. Un total de cuatro puertos USB debería ser suficiente para la mayoría de los usuarios. El L13 Yoga también ofrece un lector de tarjetas, aunque sólo es un lector de tarjetas micro SD. La comunicación externa en nuestro dispositivo de prueba es manejada por el Intel Wireless AC-9560 incluyendo soporte Bluetooth 5. También hay un módulo opcional de Wi-Fi 6 más rápido. Hablando de opcionales, el adaptador RJ-45 sólo está disponible por separado y lamentablemente no está incluido en el alcance del suministro.



Comparación de tamaños

324 mm 222.9 mm 20.5 mm 1.6 kg321.8 mm 224.2 mm 18.8 mm 1.5 kg321.8 mm 214.6 mm 16.9 mm 1.4 kg311.5 mm 219 mm 17.6 mm 1.4 kg306 mm 212 mm 14.7 mm 1.3 kg297 mm 210 mm 1 mm 5.7 g

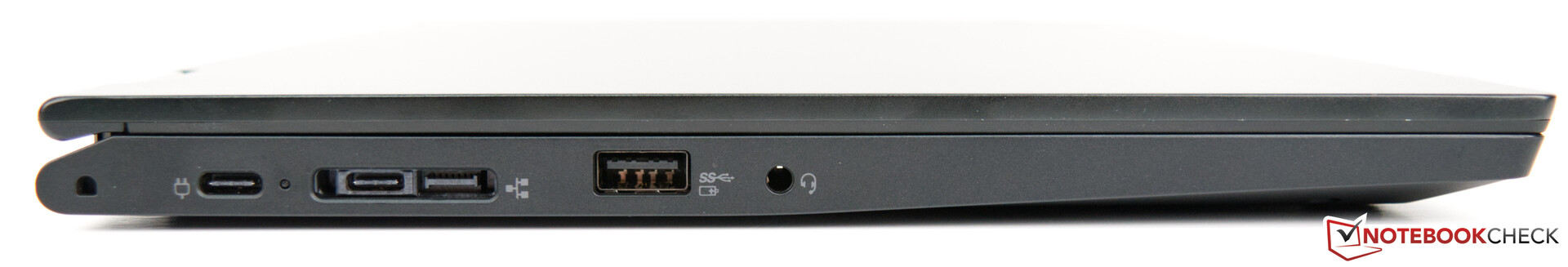

Izquierda: 2x USB-3.1 Gen1 Tipo-C, conector RJ45 a través del adaptador de extensión Ethernet ThinkPad opcional, USB-3.1 Tipo-A, combo-audio
Izquierda: 2x USB-3.1 Gen1 Tipo-C, conector RJ45 a través del adaptador de extensión Ethernet ThinkPad opcional, USB-3.1 Tipo-A, combo-audio

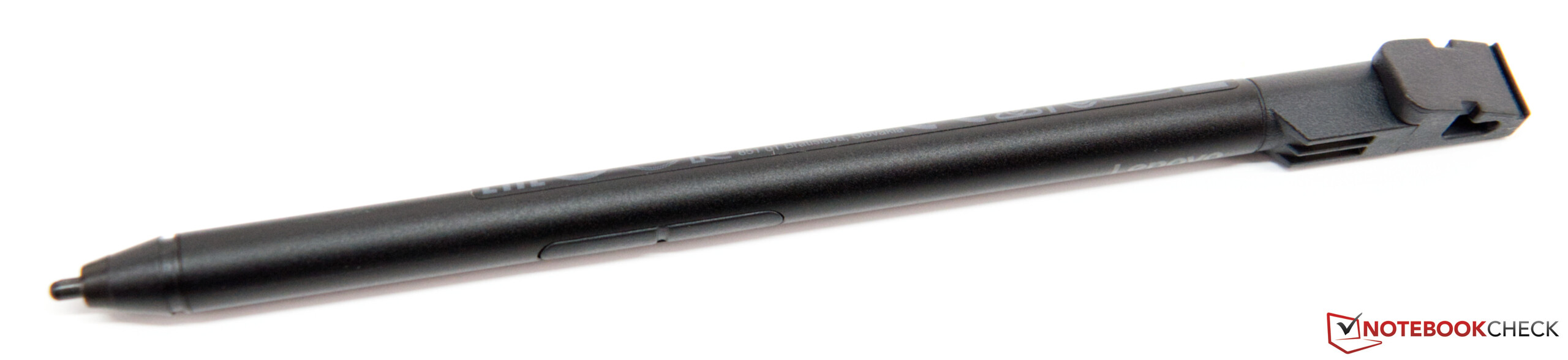

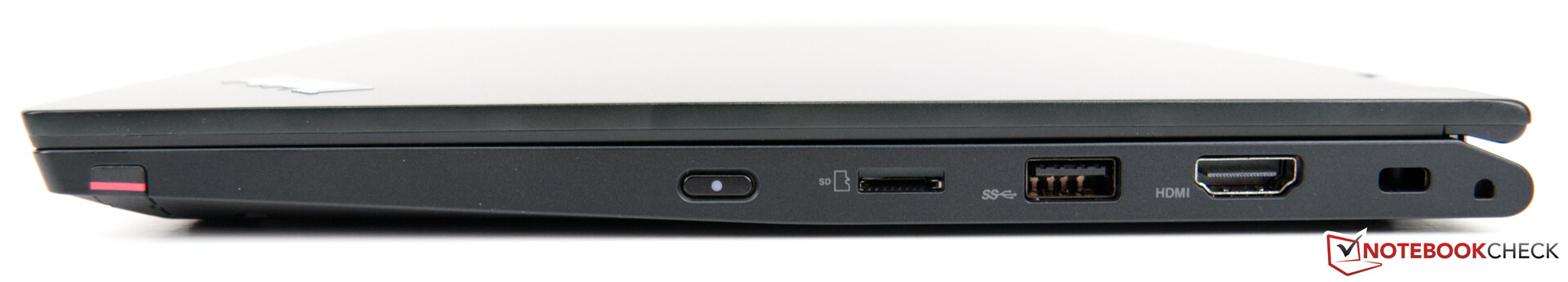

Derecha: ThinkPad Pen Pro, encendido, lector de tarjetas microSD, USB-3.1 Tipo-A, HDMI 1.4b, cerradura Kensington
Derecha: ThinkPad Pen Pro, encendido, lector de tarjetas microSD, USB-3.1 Tipo-A, HDMI 1.4b, cerradura Kensington

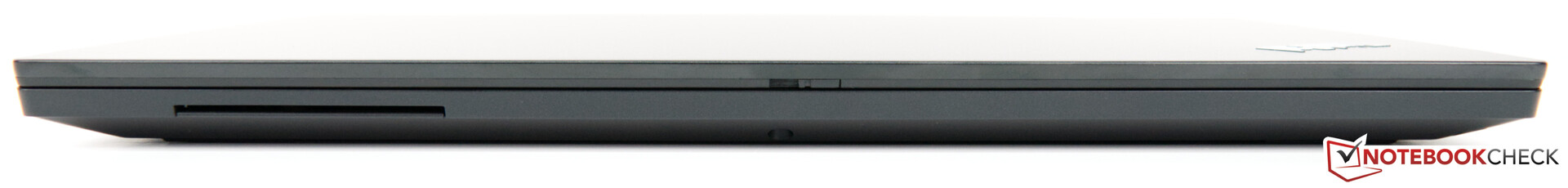

Frente: lector de tarjetas inteligentes
Frente: lector de tarjetas inteligentes

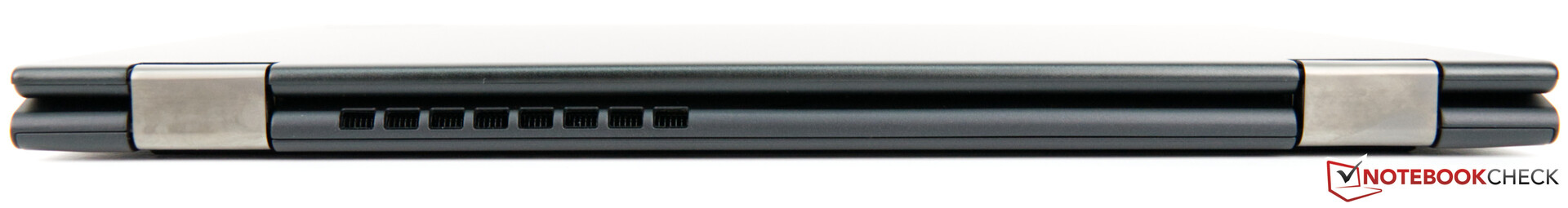

Atrás: ranuras de ventilación
Atrás: ranuras de ventilación
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Envy x360 13-ar0601ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
77.7 MB/s +4%
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.3 MB/s +4%
Lenovo ThinkPad L13 Yoga 20R6S00800

74.4 MB/s
Average of class Convertible
  (17.7 - 177.7, n=37, last 2 years)
73.9 MB/s -1%
Lenovo ThinkPad L390 Yoga-20NT000XGE
  (Toshiba Exceria Pro M501 UHS-II)
72.3 MB/s -3%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (22.6 - 263, n=35, last 2 years)
94.9 MB/s +12%
HP Envy x360 13-ar0601ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
87.4 MB/s +3%
Lenovo ThinkPad L13 Yoga 20R6S00800
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.1 MB/s
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.2 MB/s -2%
Lenovo ThinkPad L390 Yoga-20NT000XGE
  (Toshiba Exceria Pro M501 UHS-II)
81.2 MB/s -5%

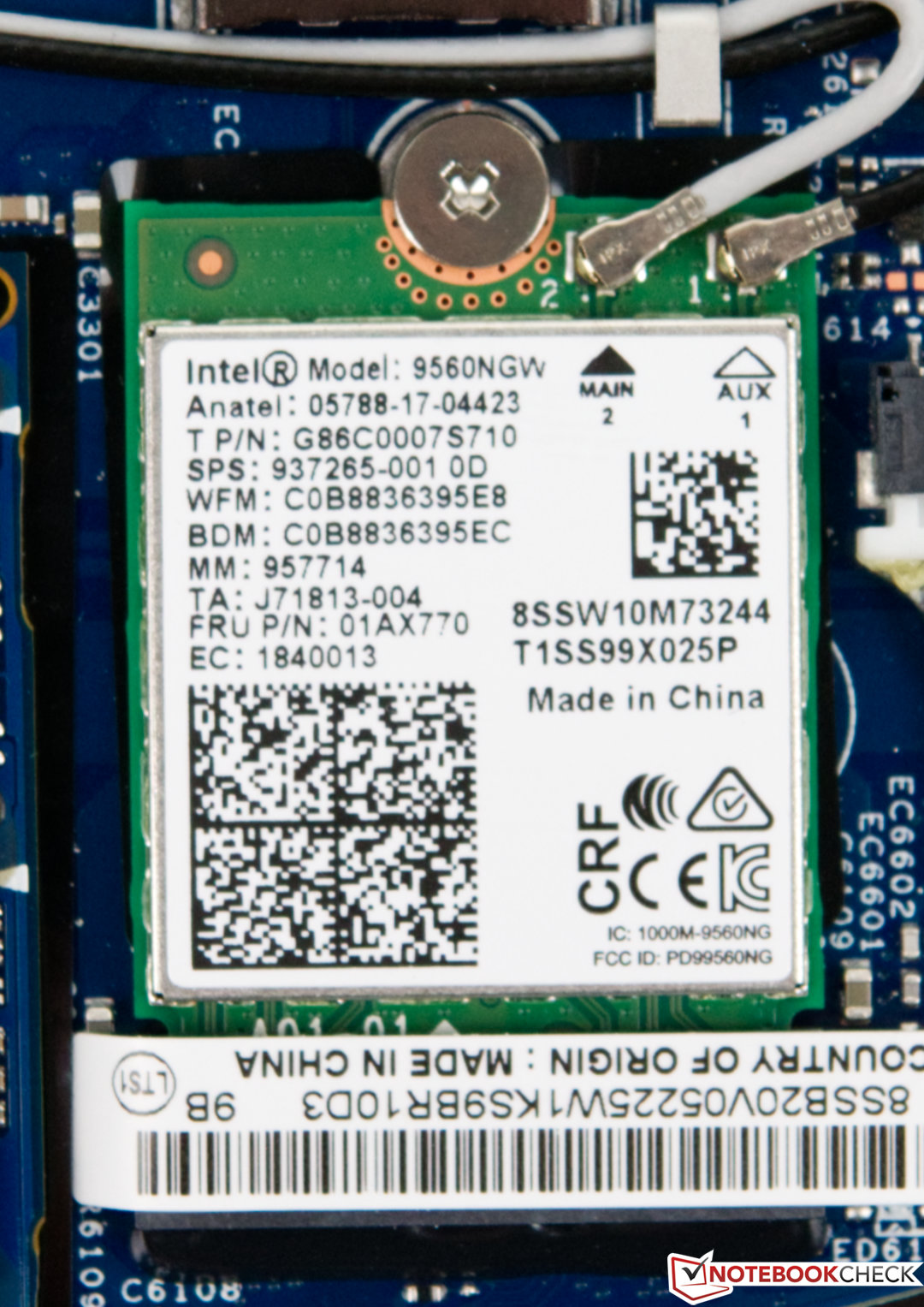

Networking
iperf3 transmit AX12
Lenovo Yoga C740-14IML
Intel Wireless-AC 9560
1203 (1102min - 1276max) MBit/s +75%
Average of class Convertible
  (1003 - 1395, n=2, last 2 years)
1199 MBit/s +74%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
688 (362min - 697max) MBit/s
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Wireless-AC 9560
680 MBit/s -1%
HP Envy x360 13-ar0601ng
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
613 (570min - 664max) MBit/s -11%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
291 (276min - 329max) MBit/s -58%
iperf3 receive AX12
Average of class Convertible
  (1178 - 1578, n=2, last 2 years)
1378 MBit/s +102%
Lenovo Yoga C740-14IML
Intel Wireless-AC 9560
1096 (1062min - 1130max) MBit/s +61%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
682 (614min - 703max) MBit/s
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Wireless-AC 9560
649 MBit/s -5%
HP Envy x360 13-ar0601ng
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
581 (541min - 615max) MBit/s -15%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
262 (248min - 281max) MBit/s -62%
04080120160200240280320360400440480520560600640680Tooltip
Lenovo ThinkPad L13 Yoga 20R6S00800; iperf3 receive AX12; iperf 3.1.3: Ø681 (614-703)
Lenovo ThinkPad L13 Yoga 20R6S00800; iperf3 transmit AX12; iperf 3.1.3: Ø676 (362-697)

Dispositivos de entrada


Lenovo instala un muy buen teclado chiclet en el ThinkPad L13 Yoga, que también tiene una retroiluminación de dos niveles. Las teclas tienen una caída corta y un punto de presión claramente perceptible, que se acompaña de un golpe ligeramente amortiguado. Al mismo tiempo, la sensación de escritura no es de ninguna manera vaga, lo que le conviene a los escritores frecuentes. En el lado derecho, algunas letras y teclas especiales son ligeramente más pequeñas que el resto, lo que requiere un cierto tiempo de adaptación al principio.



Con el ClickPad, Lenovo confía en el modelo probado y comprobado que ya conocemos del Lenovo ThinkPad L390 Yoga. El área de entrada es generosa pero funciona de manera algo imprecisa en las esquinas. Si tienes experiencia con él, también puedes usar el trackpoint para pasar el puntero del ratón por la pantalla. La pantalla táctil de 13,3 pulgadas también sirve como otro medio de entrada. Las entradas pueden hacerse aquí con el dedo o usando el ThinkPad Pen Pro suministrado.

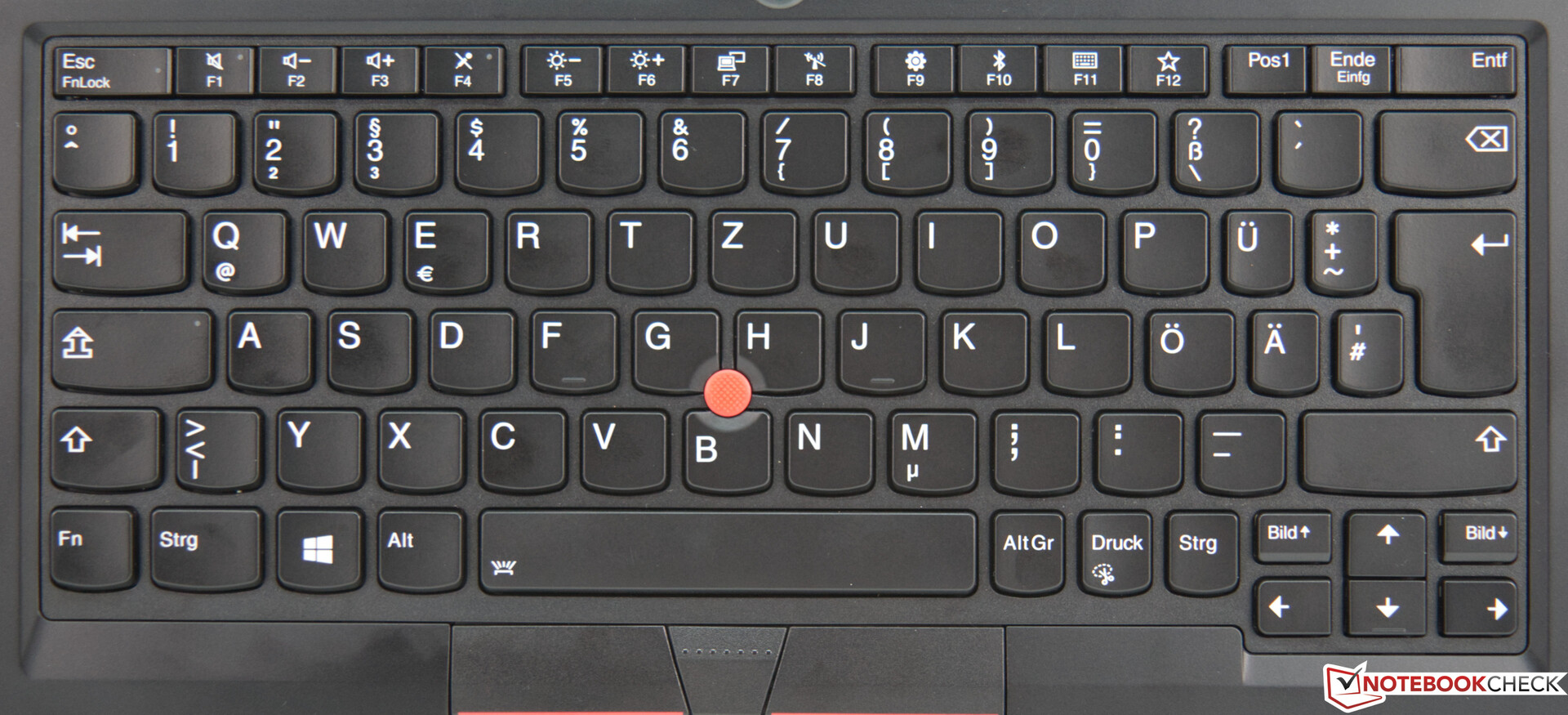

Teclado
Teclado

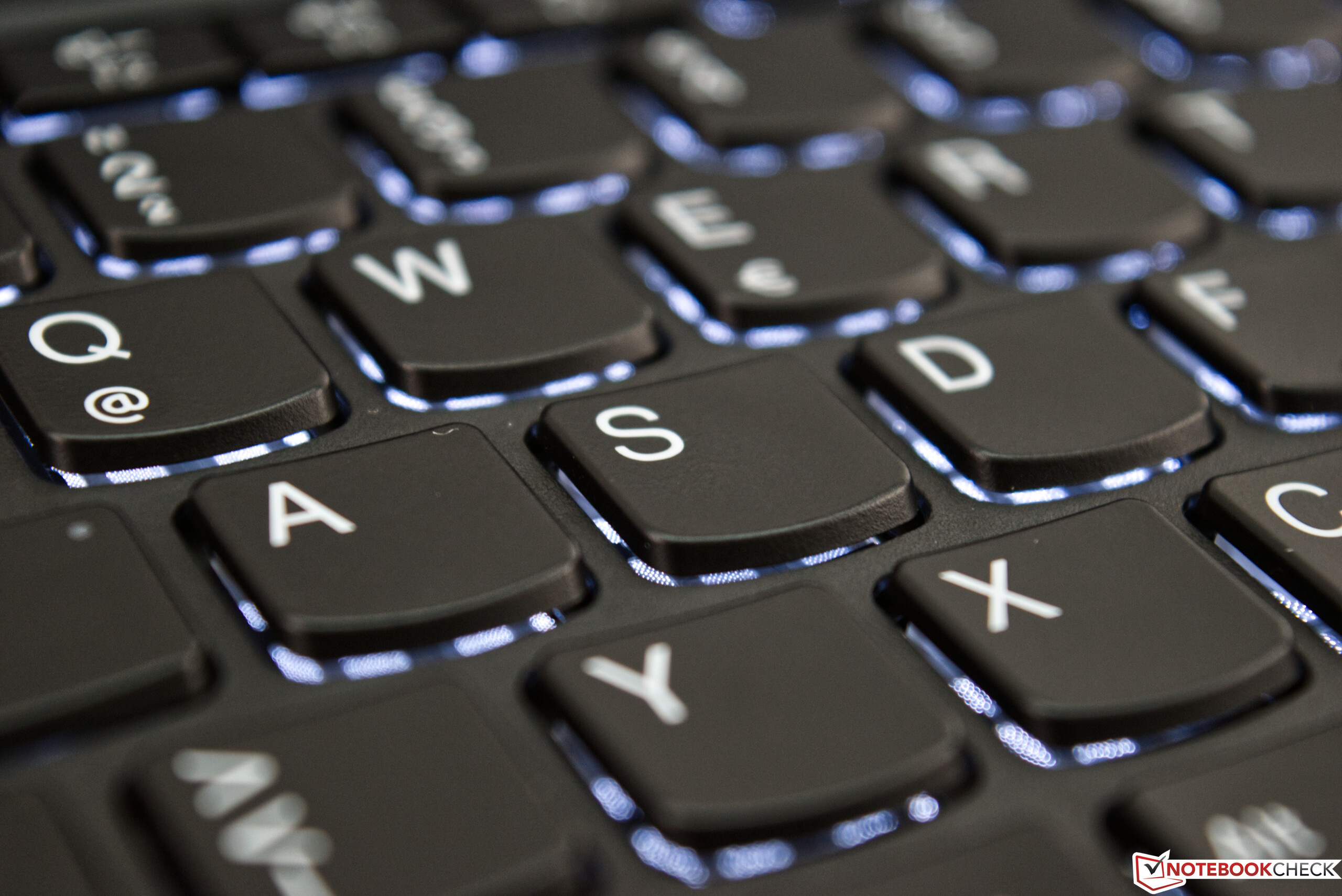

Teclado (iluminado)
Teclado (iluminado)

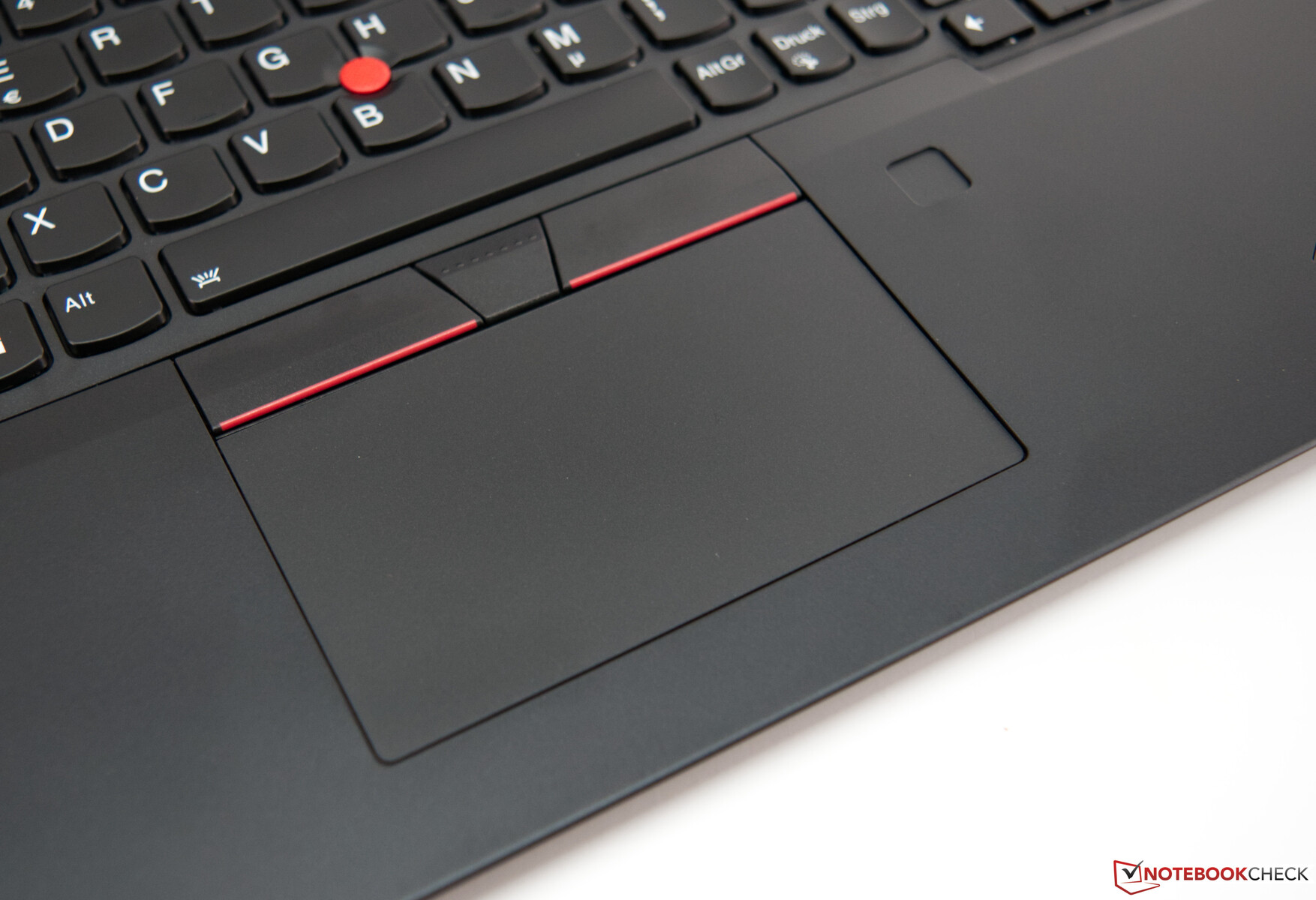

Touchpad
Touchpad
Pantalla táctil
Pantalla táctil

La pantalla - buena pero no perfecta

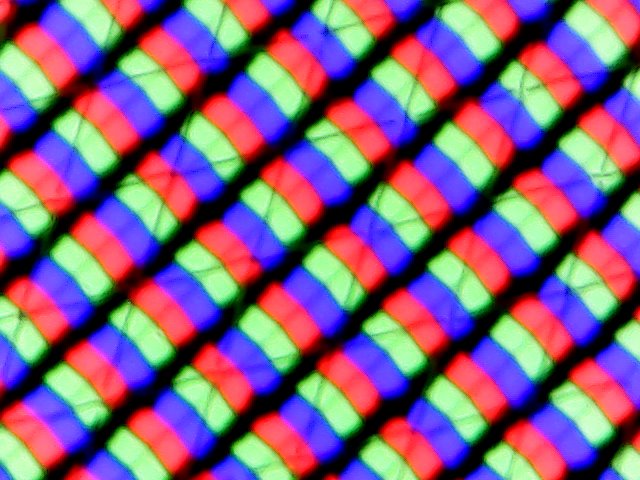

Matriz de subpíxeles
Matriz de subpíxeles

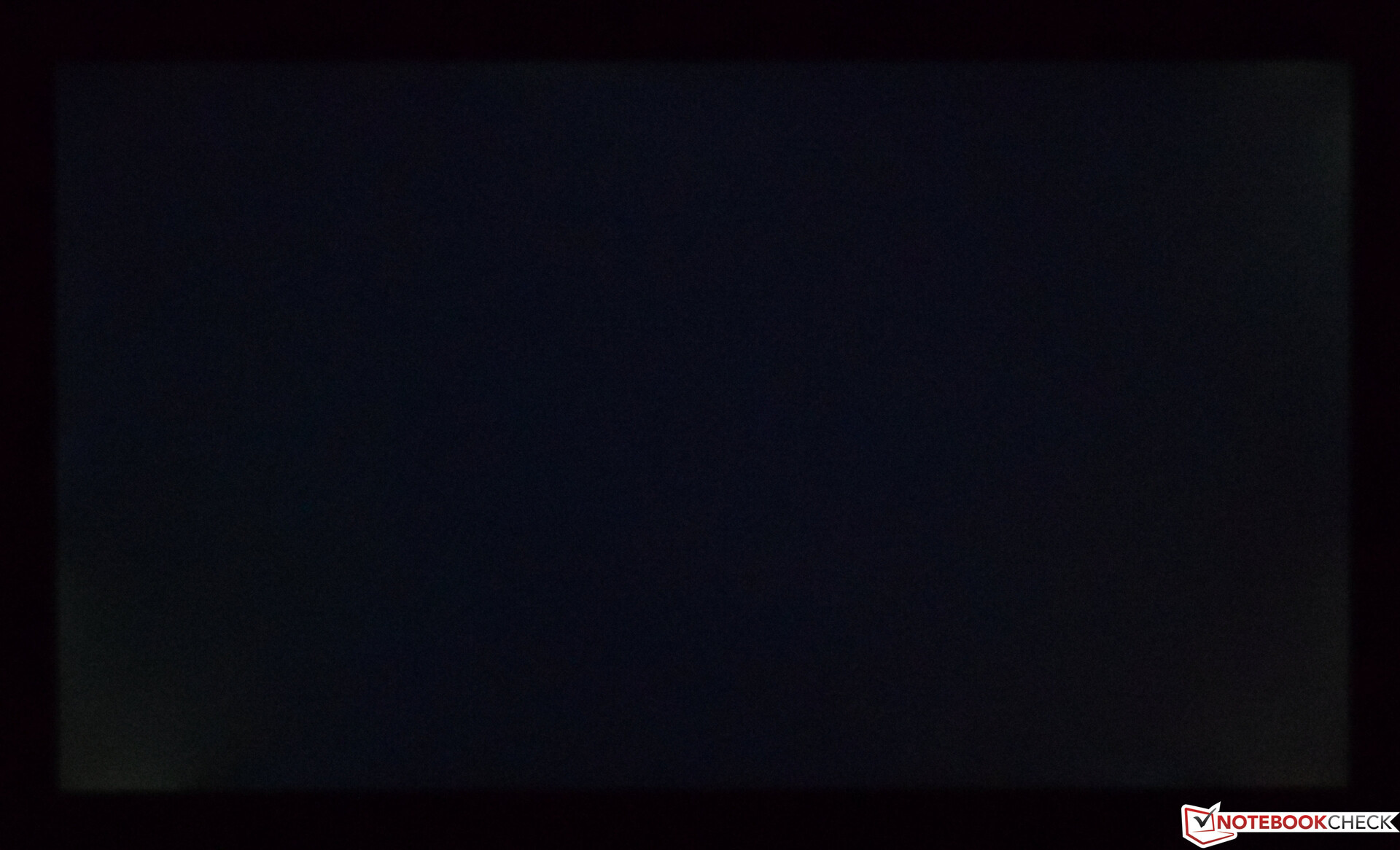

Apenas hay alguna nubosidad visible
Apenas hay alguna nubosidad visible

El Lenovo ThinkPad L13 Yoga está equipado con una pantalla táctil IPS de 13,3 pulgadas. No hay opciones de visualización alternativas para este dispositivo. El panel incorporado ofrece 1920x1080 píxeles, lo que corresponde a una densidad de píxeles de 166 ppi. Según la hoja de datos, la pantalla debe tener un brillo de 300 nits. El fabricante especifica 800:1 para el contraste. Ambos valores fueron claramente excedidos en nuestras mediciones. Con 336 cd/m², la luminosidad es significativamente mejor que la indicada, aunque sólo basta para el segundo lugar. El HP Envy x360 tiene una pantalla aún más brillante. Sin embargo, la marea cambia cuando se trata de contraste y nuestra muestra de prueba puede superar la comparación aquí con 1.889:1.

La nubosidad de la luz es visible en las escenas oscuras pero apenas se nota en la vida cotidiana. No hay una deducción de puntos por la alta frecuencia PWM, porque esto no debería resultar en restricciones incluso para personas sensibles.

333
cd/m²
350
cd/m²
351
cd/m²
334
cd/m²
340
cd/m²
348
cd/m²
324
cd/m²
316
cd/m²
332
cd/m²
Temperatura del cuarto
N133HCE-EP2 tested with X-Rite i1Pro 2
Máximo: 351 cd/m² (Nits) Médio: 336.4 cd/m² Minimum: 4.1 cd/m²
iluminación: 90 %
Brillo con batería: 338 cd/m²
Contraste: 1889:1 (Negro: 0.18 cd/m²)
ΔE Color 1.3 | 0.5-29.43 Ø5, calibrated: 0.7
ΔE Greyscale 1.9 | 0.57-98 Ø5.3
99.6% sRGB (Argyll 1.6.3 3D)
64.1% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
94.7% sRGB (Argyll 2.2.0 3D)
68.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.15
Lenovo ThinkPad L13 Yoga 20R6S00800
N133HCE-EP2, IPS, 1920x1080, 13.30
Lenovo ThinkPad L390 Yoga-20NT000XGE
LEN4094, NV133FHM-N5A, IPS LED, 1920x1080, 13.30
HP Envy x360 13-ar0601ng
InfoVision, M133NVF3 R2, IPS, 120 Hz, 1920x1080, 13.30
HP Pavilion x360 14-dh1153ng
BOE NV140FHM-N4K, IPS, 1920x1080, 14.00
Lenovo Yoga C740-14IML
CMN N140HCE-ET2, IPS, 1920x1080, 14.00
Display
-3%
-7%
-41%
1%
Display P3 Coverage
68.1
69.2
2%
63
-7%
39.35
-42%
67.9
0%
sRGB Coverage
94.7
90.6
-4%
90.8
-4%
58.8
-38%
98.3
4%
AdobeRGB 1998 Coverage
70.2
66.3
-6%
63.8
-9%
40.65
-42%
70.1
0%
Response Times
-52%
-17%
-42%
-4%
Response Time Grey 50% / Grey 80% *
40 ?(21.6, 18.4)
51.2 ?(26.8, 24.4)
-28%
35 ?(18, 17)
12%
44 ?(24, 20)
-10%
35.6 ?(19.2, 16.4)
11%
Response Time Black / White *
28 ?(15.6, 12.4)
36.8 ?(19.2, 17.6)
-31%
22 ?(12, 10)
21%
33 ?(19, 14)
-18%
36.8 ?(17.2, 9.6)
-31%
PWM Frequency
25000 ?(50)
1000 ?(99)
-96%
4065 ?(90)
-84%
192 ?(90)
-99%
27030 ?(67)
8%
Screen
-120%
-57%
-170%
-72%
Brightness middle
340
313
-8%
633
86%
248
-27%
329.9
-3%
Brightness
336
295
-12%
675
101%
238
-29%
315
-6%
Brightness Distribution
90
90
0%
75
-17%
74
-18%
90
0%
Black Level *
0.18
0.22
-22%
0.55
-206%
0.235
-31%
0.29
-61%
Contrast
1889
1423
-25%
1151
-39%
1055
-44%
1138
-40%
Colorchecker dE 2000 *
1.3
6.2
-377%
3.12
-140%
5.43
-318%
3.68
-183%
Colorchecker dE 2000 max. *
2.8
10.7
-282%
6.37
-128%
17.96
-541%
8.64
-209%
Colorchecker dE 2000 calibrated *
0.7
2.5
-257%
1.83
-161%
5.7
-714%
1.03
-47%
Greyscale dE 2000 *
1.9
8
-321%
3.89
-105%
3.18
-67%
6.4
-237%
Gamma
2.15 102%
2.38 92%
2.39 92%
2.56 86%
2.17 101%
CCT
6735 97%
7100 92%
6476 100%
6642 98%
6195 105%
Color Space (Percent of AdobeRGB 1998)
64.1
59.1
-8%
59
-8%
37.3
-42%
63.6
-1%
Color Space (Percent of sRGB)
99.6
90.6
-9%
91
-9%
58.4
-41%
98.4
-1%
Media total (Programa/Opciones)
-58% / -87%
-27% / -41%
-84% / -125%
-25% / -47%

* ... más pequeño es mejor

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.

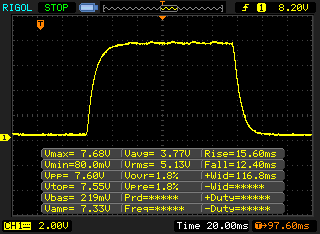

       Tiempo de respuesta de Negro a Blanco
28 ms ... subida ↗ y bajada ↘ combinada↗ 15.6 ms subida
↘ 12.4 ms bajada
La pantalla mostró tiempos de respuesta relativamente lentos en nuestros tests pero podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 67 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (21.6 ms) de todos los dispositivos testados.

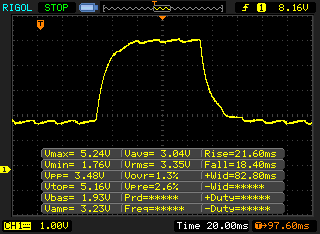

       Tiempo de respuesta 50% Gris a 80% Gris
40 ms ... subida ↗ y bajada ↘ combinada↗ 21.6 ms subida
↘ 18.4 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 55 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (33.9 ms) de todos los dispositivos testados.

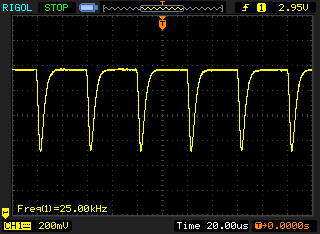

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.
Parpadeo de Pantalla / PWM detectado 25000 Hz ≤ 50 % de brillo

La retroiluminación del display parpadea a 25000 Hz (seguramente usa PWM - Pulse-Width Modulation) a un brillo del 50 % e inferior. Sobre este nivel de brillo no debería darse parpadeo / PWM.

La frecuencia de 25000 Hz es bastante alta, por lo que la mayoría de gente sensible al parpadeo no debería ver parpadeo o tener fatiga visual.

Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 18080 (mínimo: 5 - máxmo: 3846000) Hz.

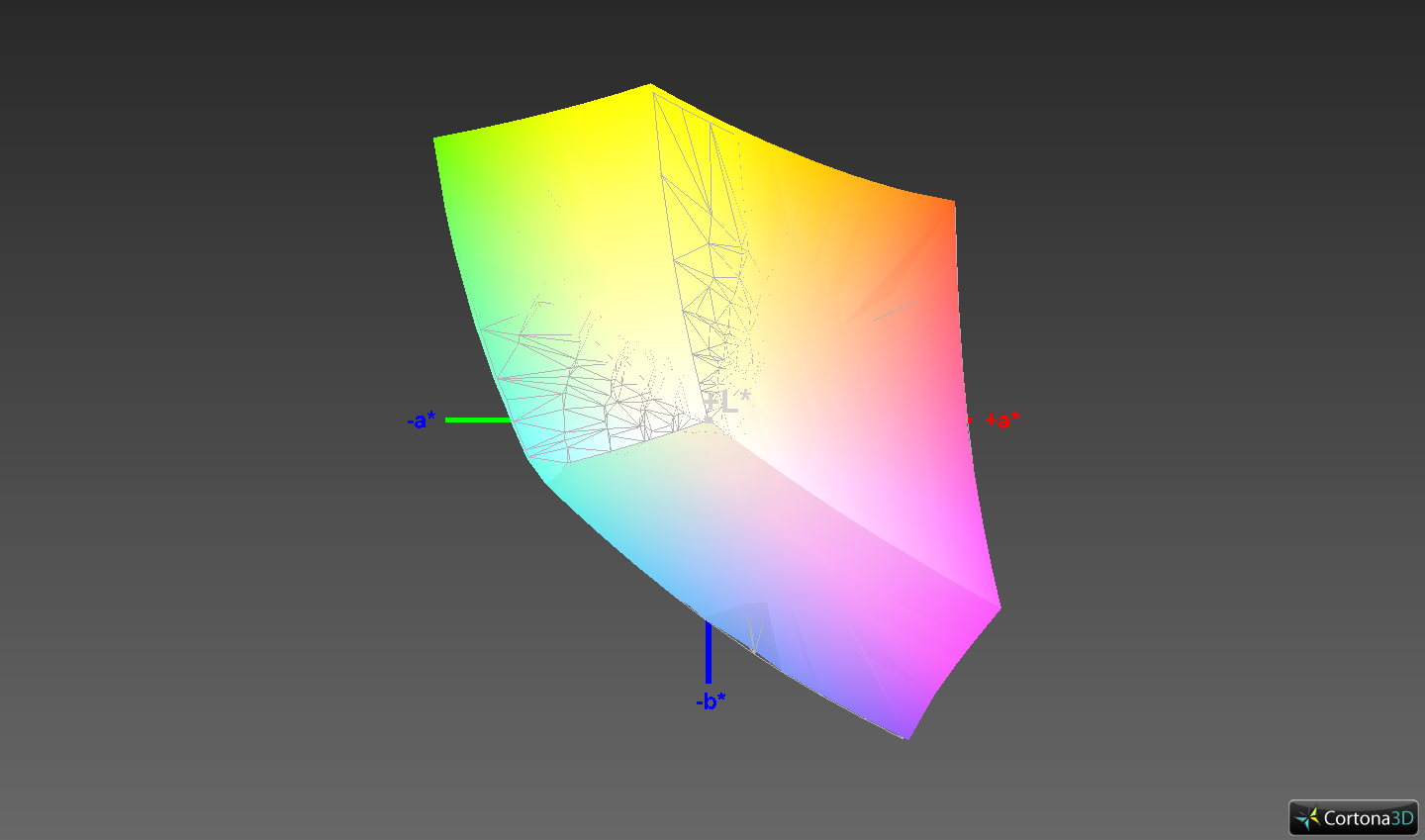

Lenovo ThinkPad L13 Yoga vs sRGB (99.6%)
Lenovo ThinkPad L13 Yoga vs sRGB (99.6%)

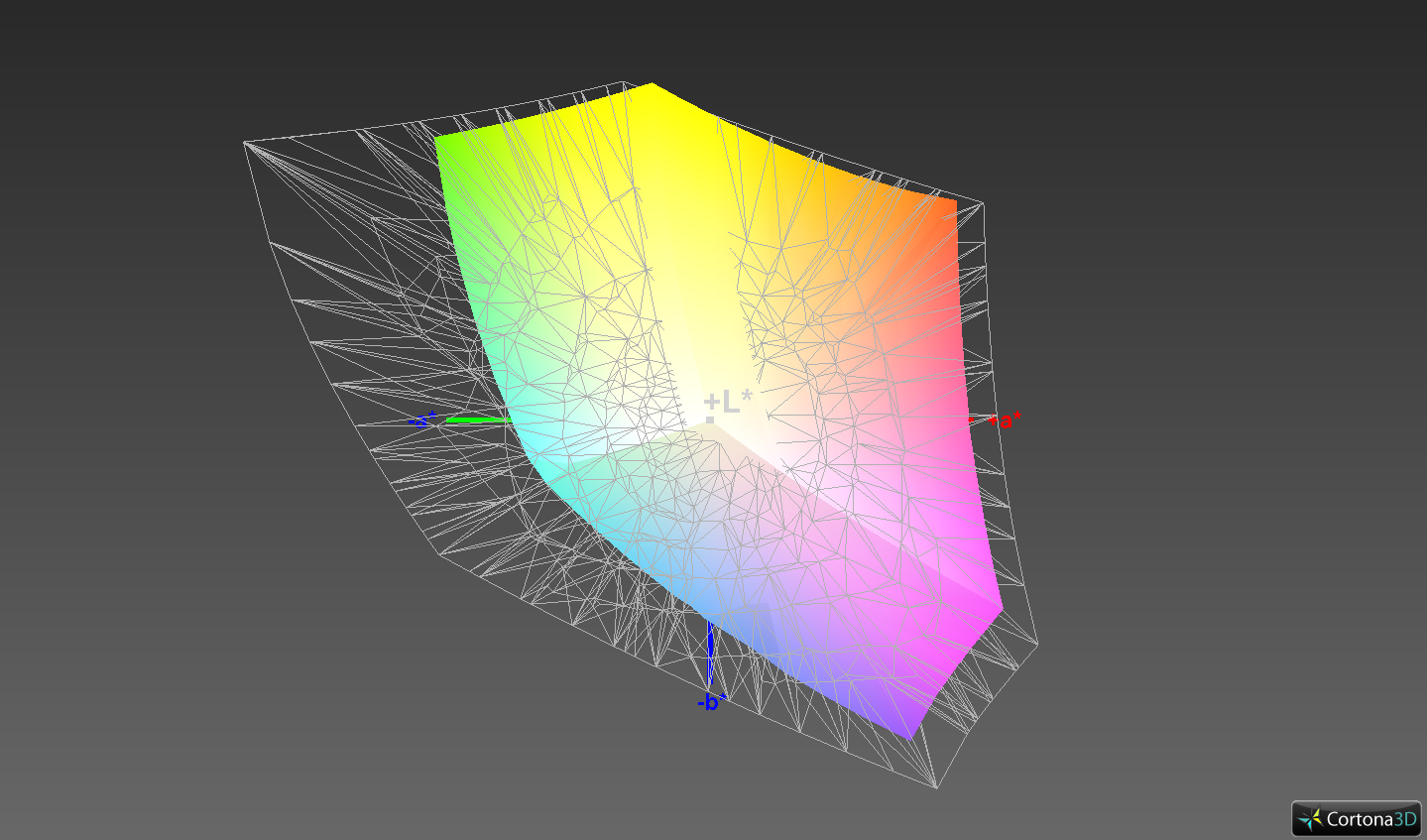

Lenovo ThinkPad L13 Yoga vs AdobeRGB (64.1%)
Lenovo ThinkPad L13 Yoga vs AdobeRGB (64.1%)

La muy buena relación de contraste asegura una rica exhibición de colores e incluso las áreas oscuras no están cubiertas por un fuerte velo gris. Además, Lenovo parece haber entregado la pantalla del ThinkPad L13 Yoga precalibrada, porque los valores Delta E 2000 de la escala de grises y los colores ya son muy bajos y significativamente mejores que los de la competencia. Después de nuestra calibración con el software profesional CalMAN y el espectrofotómetro X-Rite-i1-Pro-2, los valores Delta-E-2000 fueron aún más bajos. El ThinkPad L13 Yoga también recoge importantes puntos de valoración para la cobertura del espacio de color. Con un 99,6%, el espacio de color sRGB está casi completamente cubierto. Con el AdobeRGB extendido, la cobertura sigue siendo suficiente con el 64,1%. La competencia no puede mantenerse al día con estos valores. Por lo tanto, el Lenovo ThinkPad L13 Yoga también es adecuado para la edición de fotos.

La pantalla táctil reflectante del ThinkPad L13 Yoga es una desventaja cuando se usa en el exterior. A pesar del revestimiento antirreflectante, es difícil ver algo en la pantalla a la luz del sol. Trabajar en la sombra es sólo posible con ligeras restricciones, también. La pantalla también tiene algunas debilidades en la prueba del ángulo de visión, porque las cuatro imágenes de las esquinas muestran ligeros cambios de color. Con un uso normal no hay desventajas.

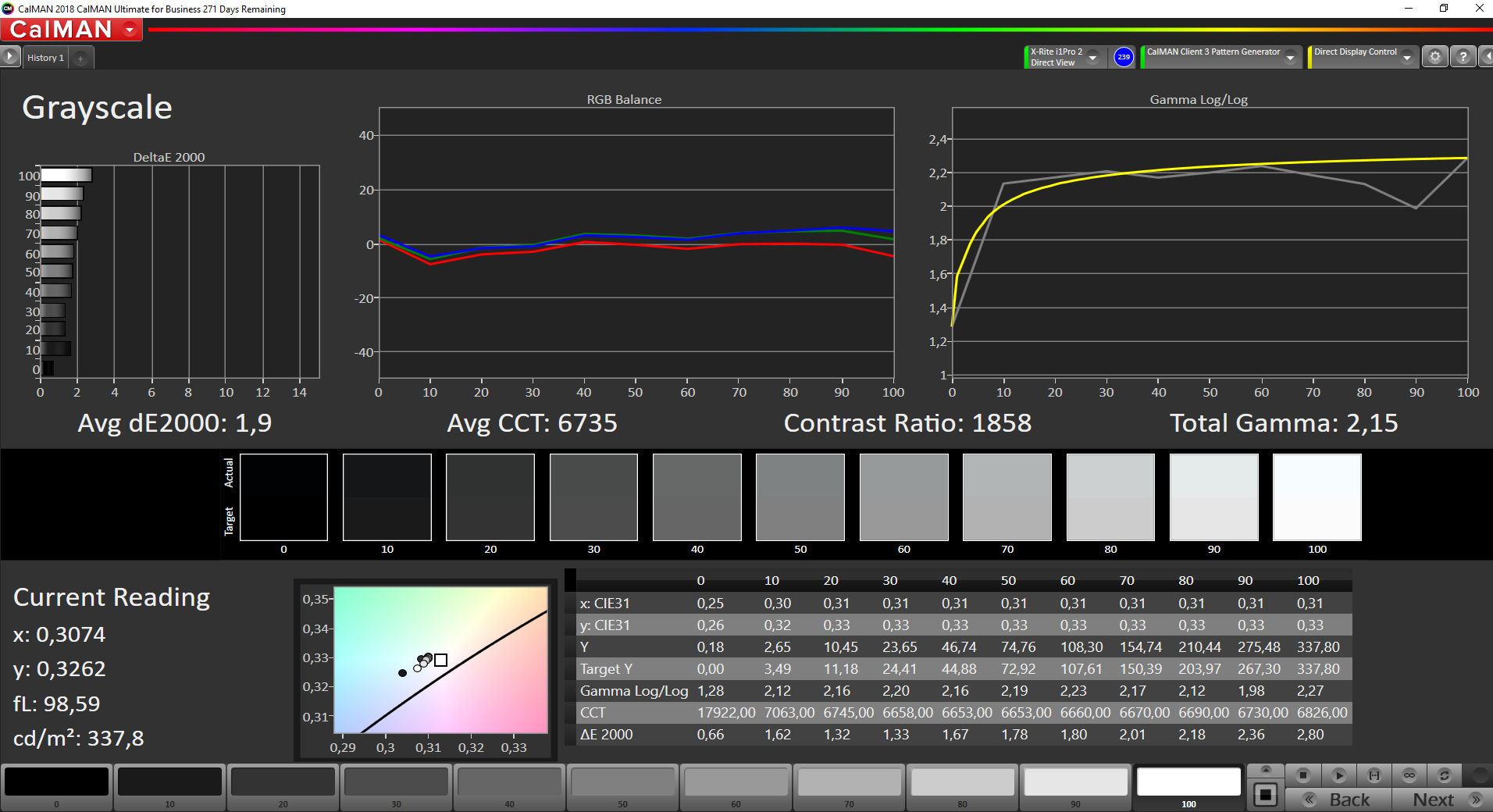

CalMAN: escala de grises
CalMAN: escala de grises

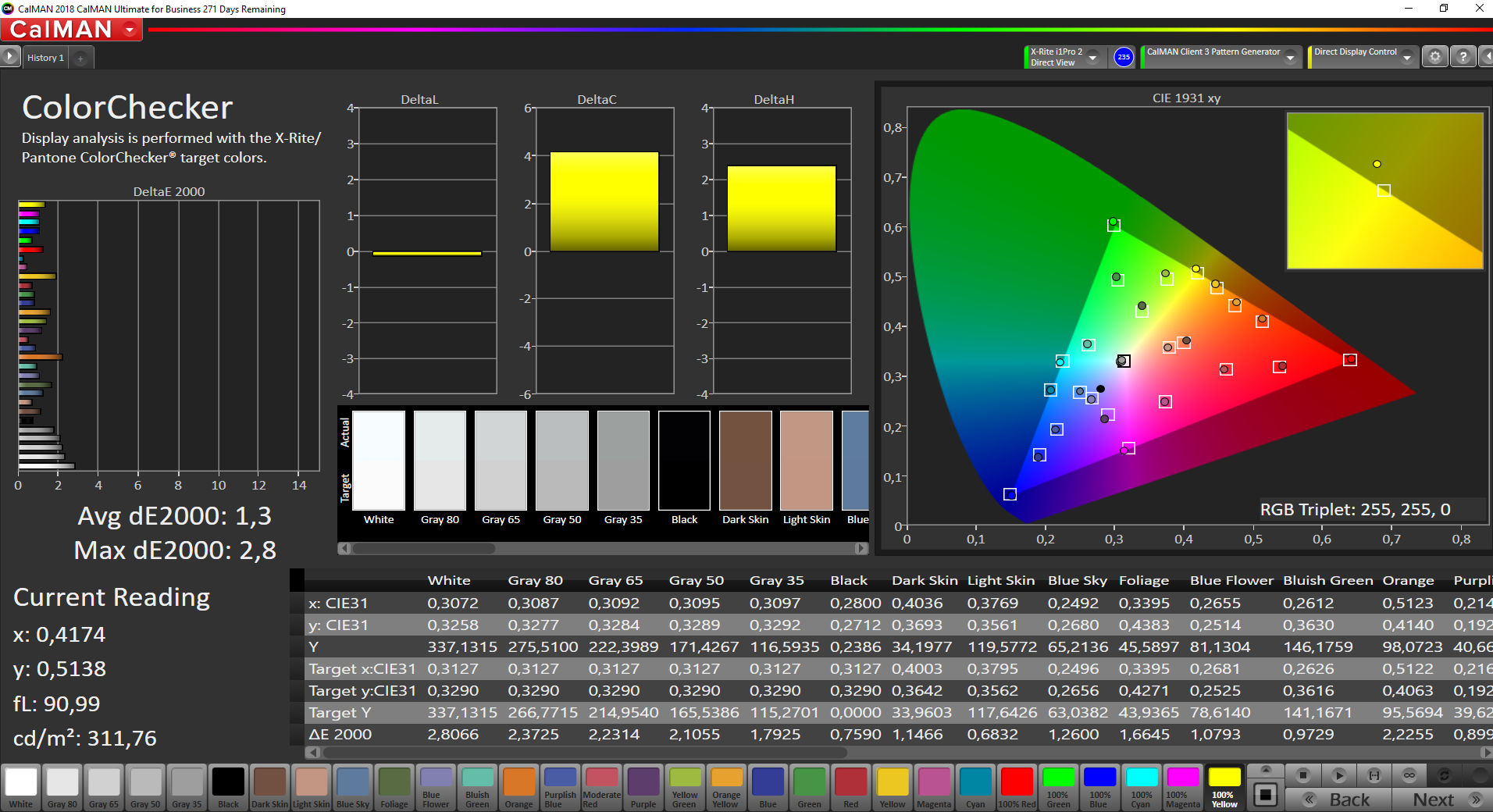

CalMAN: precisión de color
CalMAN: precisión de color

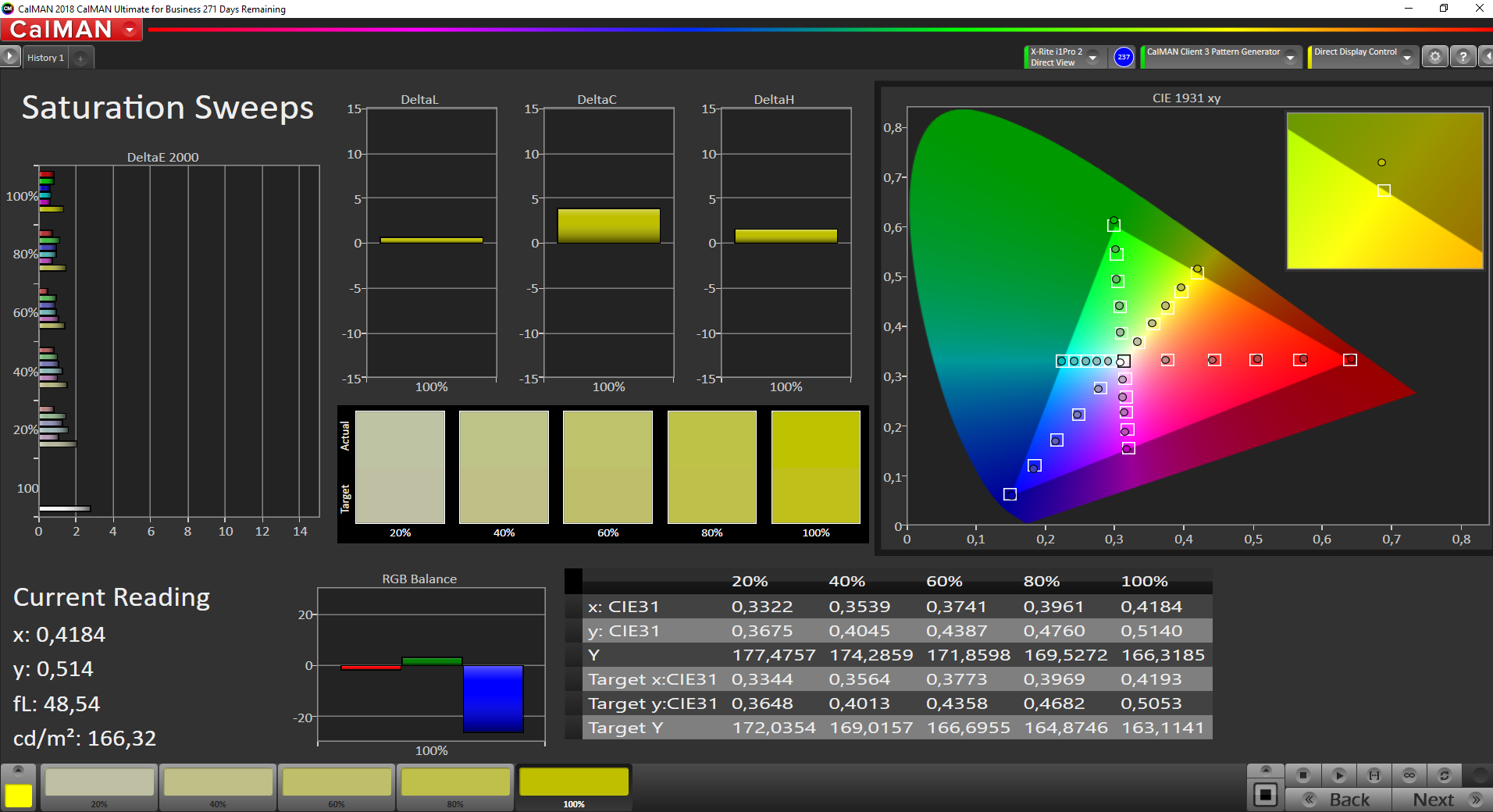

CalMAN: saturación
CalMAN: saturación

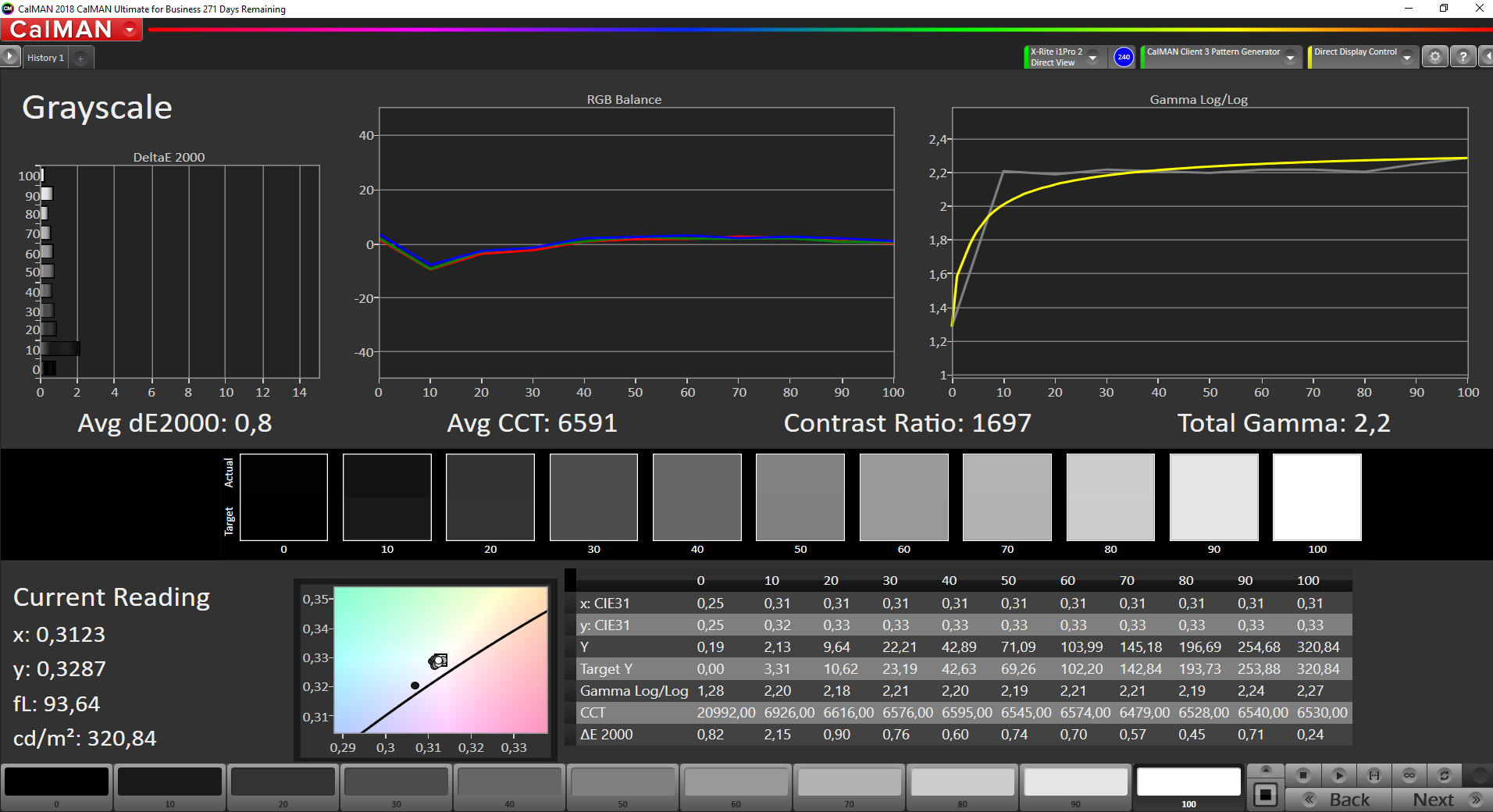

CalMAN: escala de grises (calibrado)
CalMAN: escala de grises (calibrado)

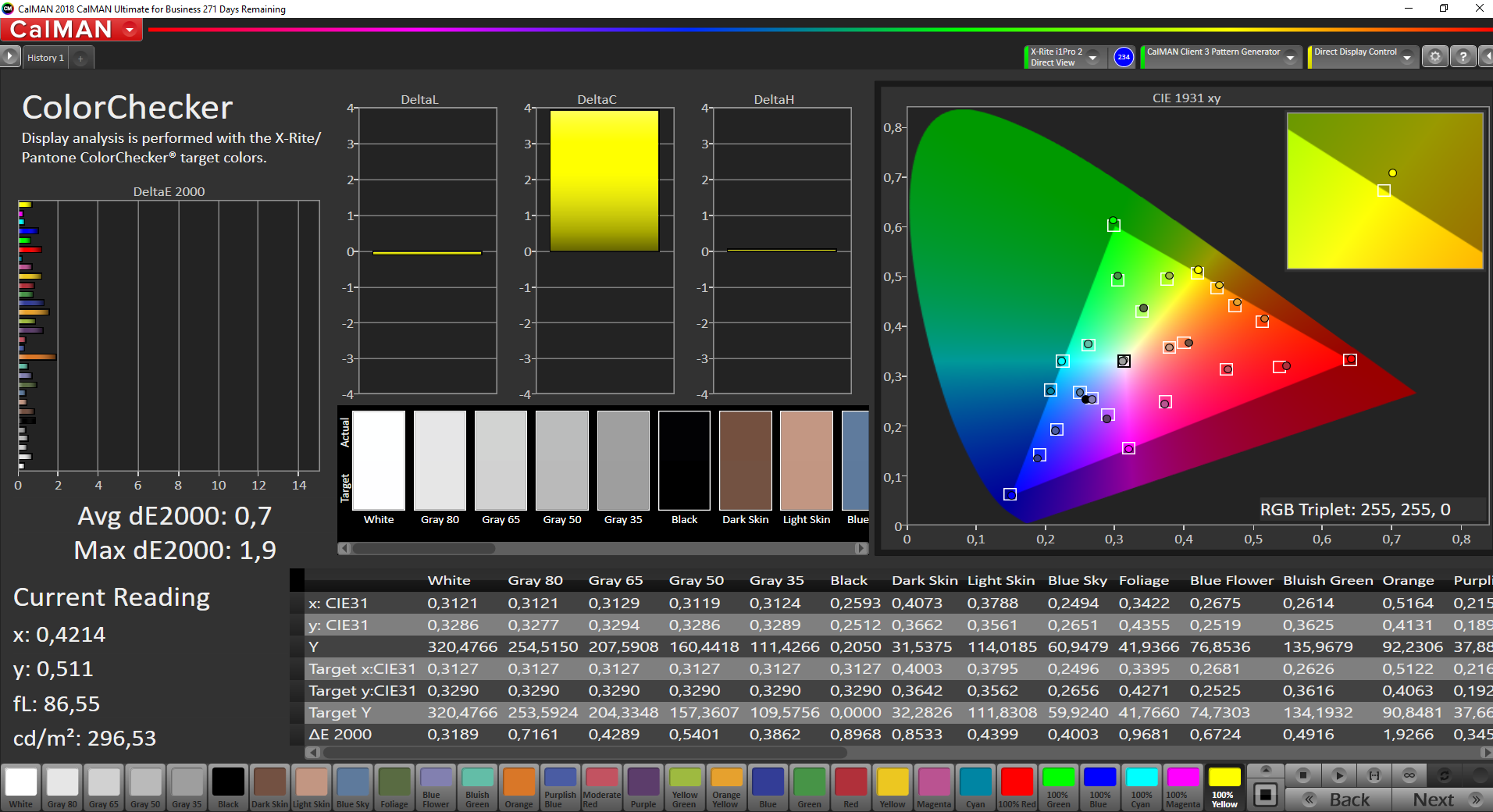

CalMAN: precisión de color (calibrado)
CalMAN: precisión de color (calibrado)

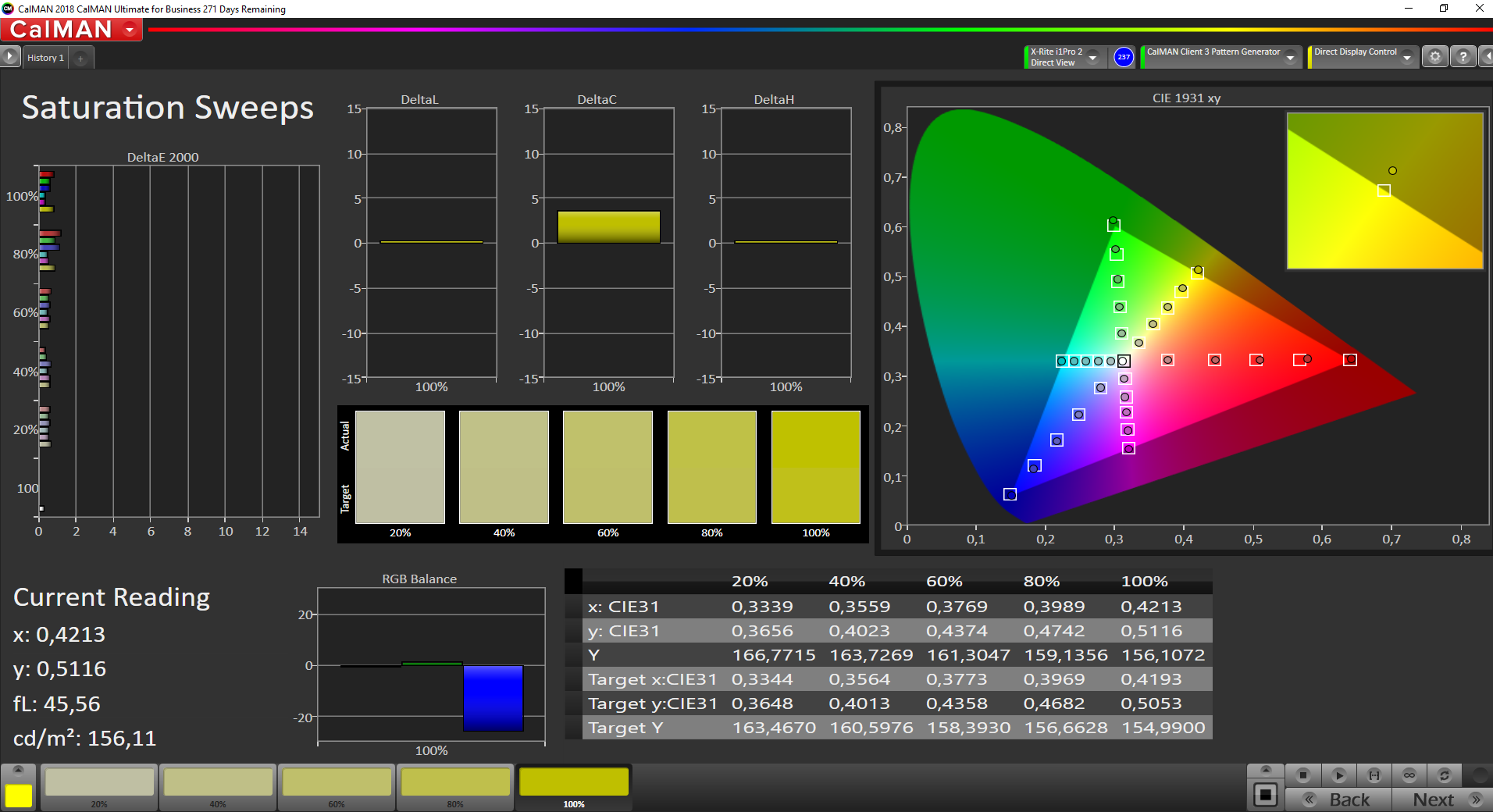

CalMAN: saturación (calibrado)
CalMAN: saturación (calibrado)

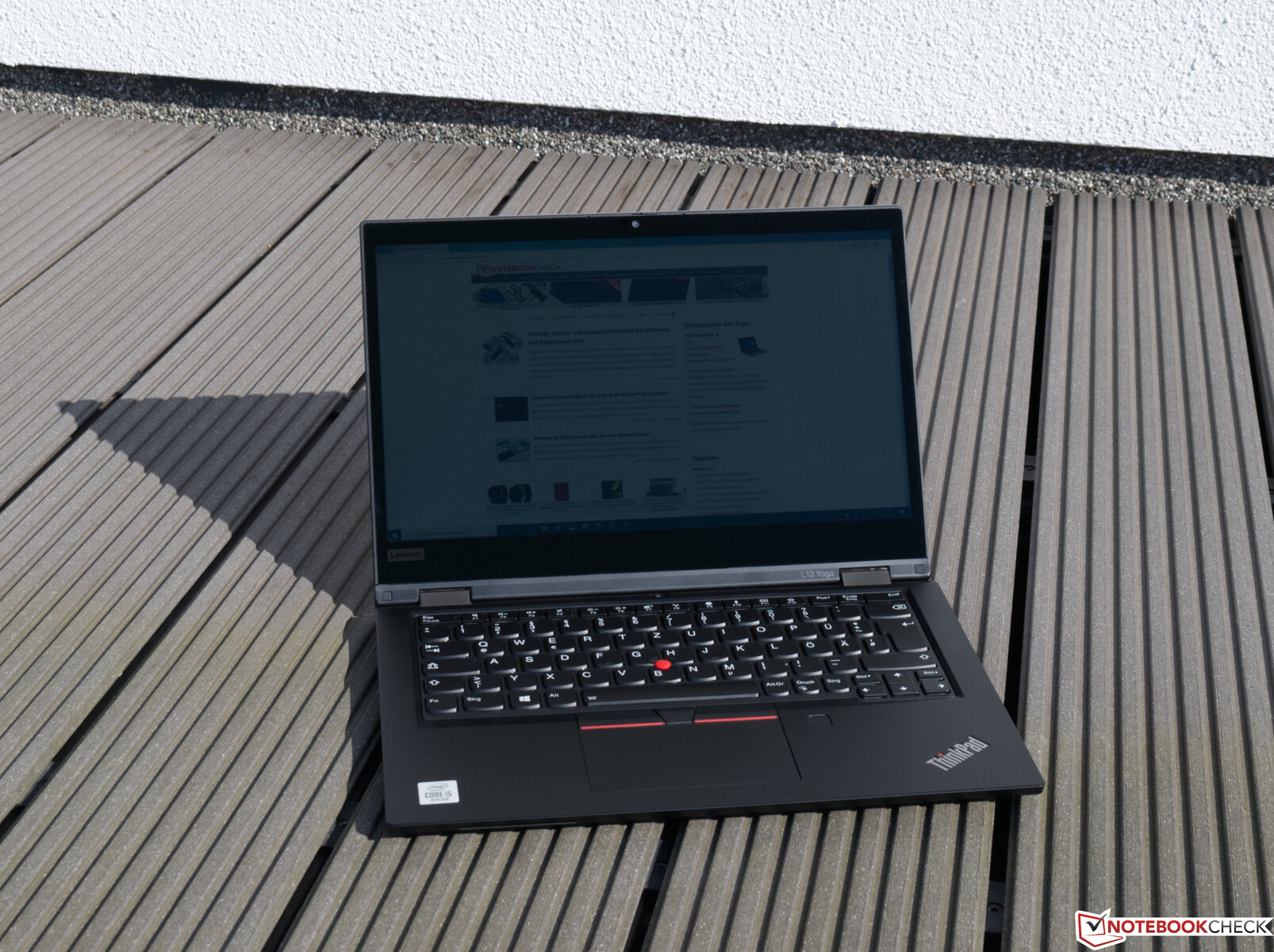

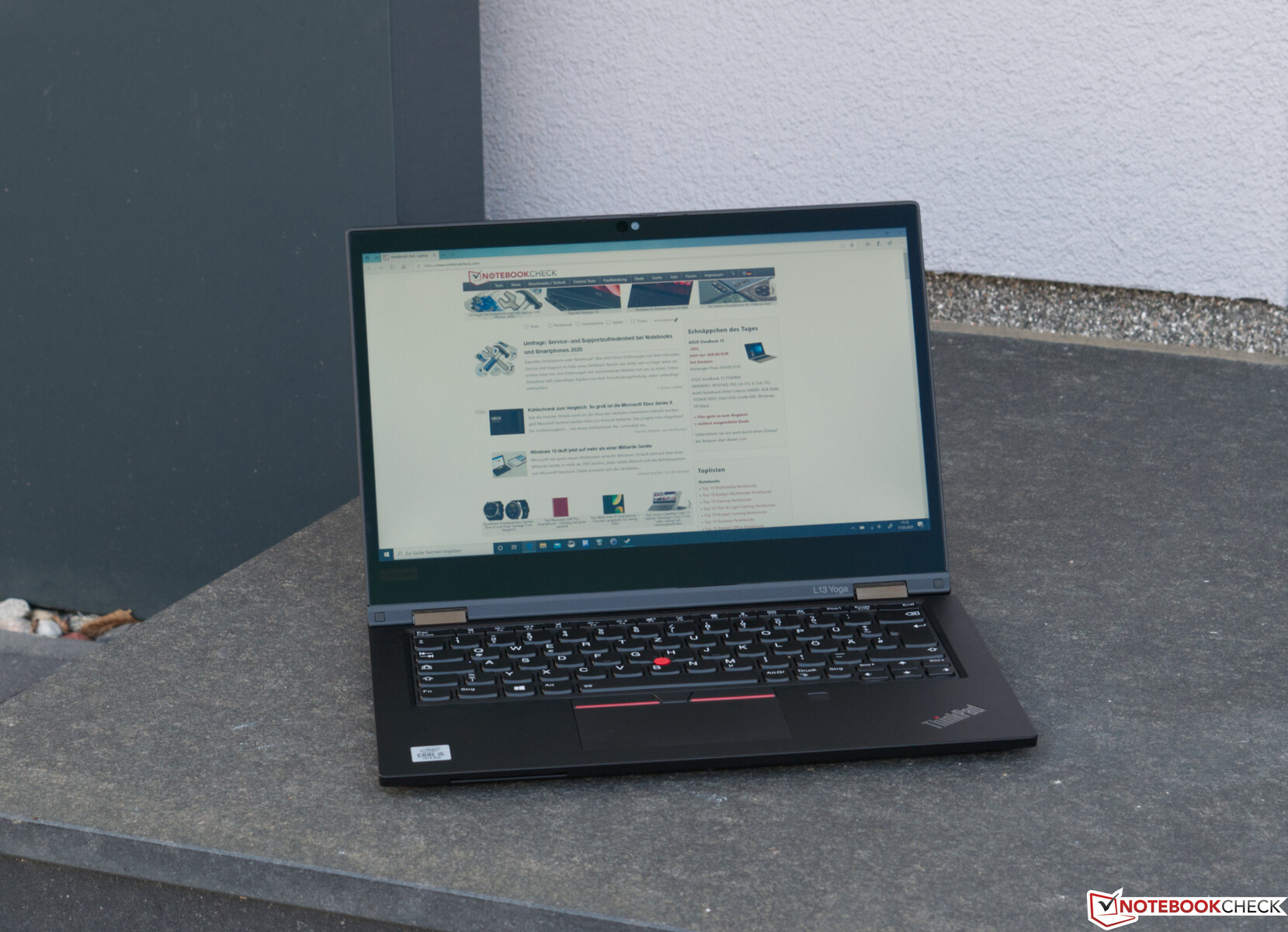

Uso al aire libre (al sol)
Uso al aire libre (al sol)
Uso al aire libre (a la sombra)
Uso al aire libre (a la sombra)
Prueba de ángulo de visión
Prueba de ángulo de visión

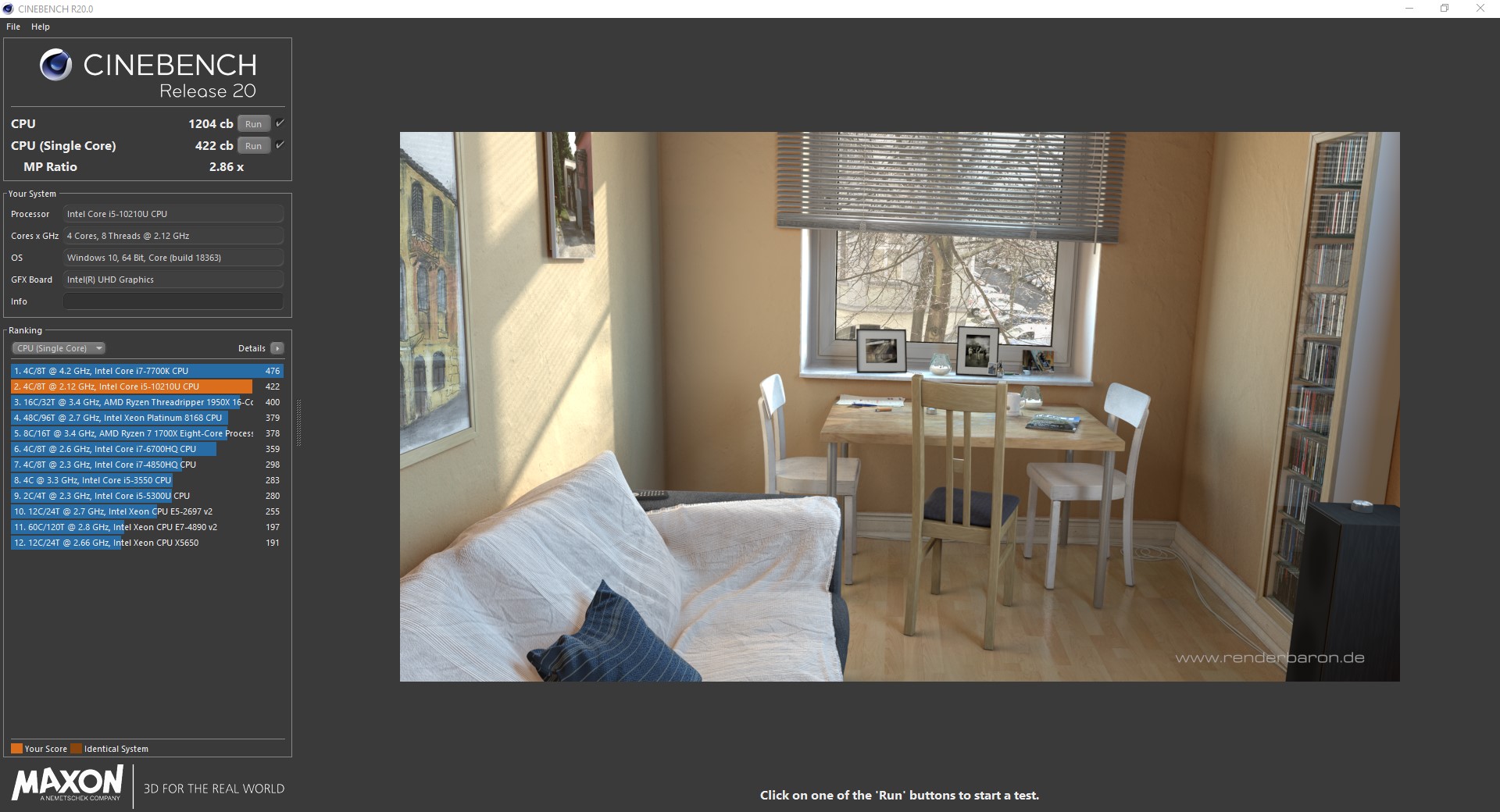

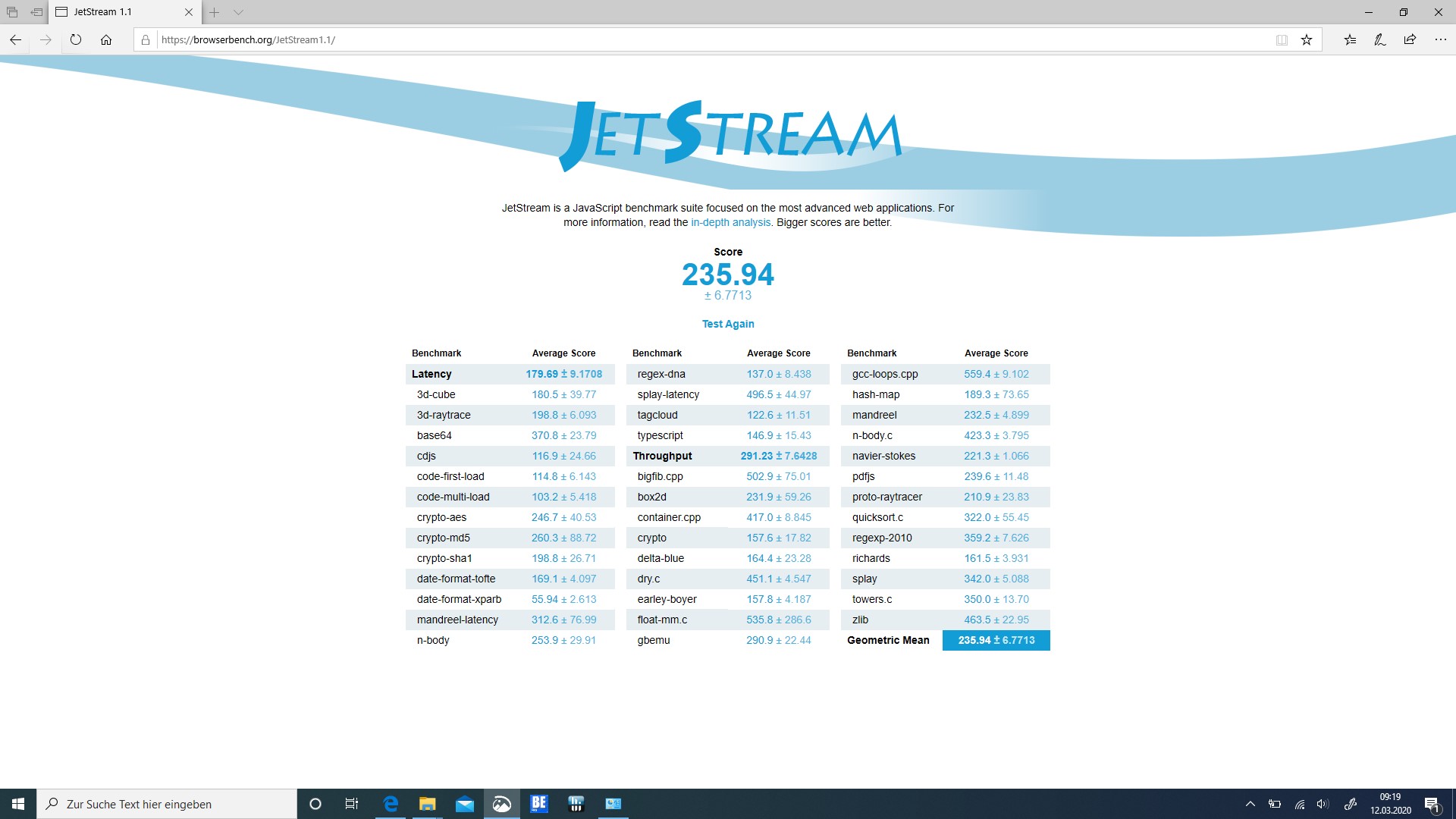

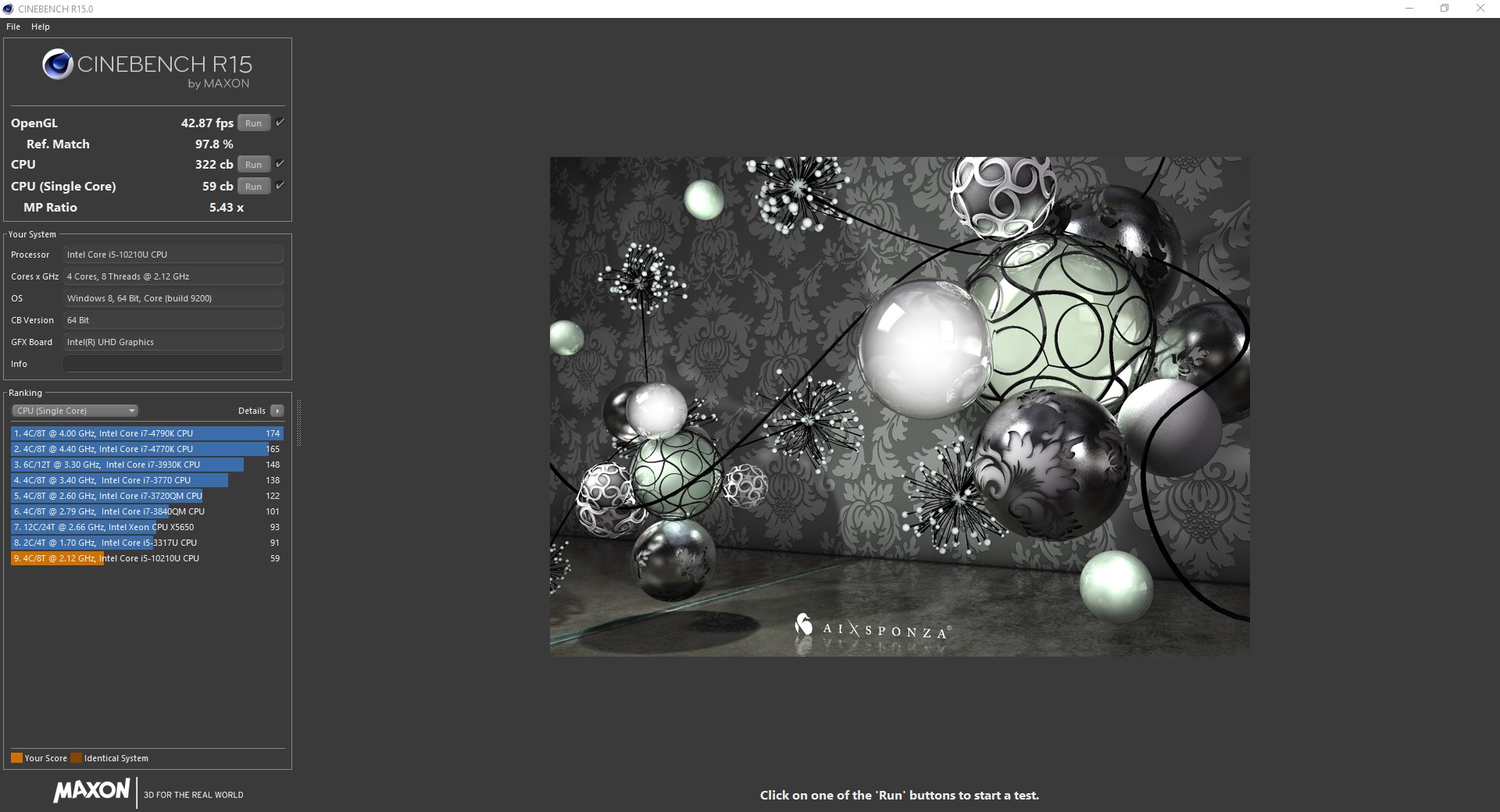

Rendimiento - lo suficientemente rápido para la vida diaria

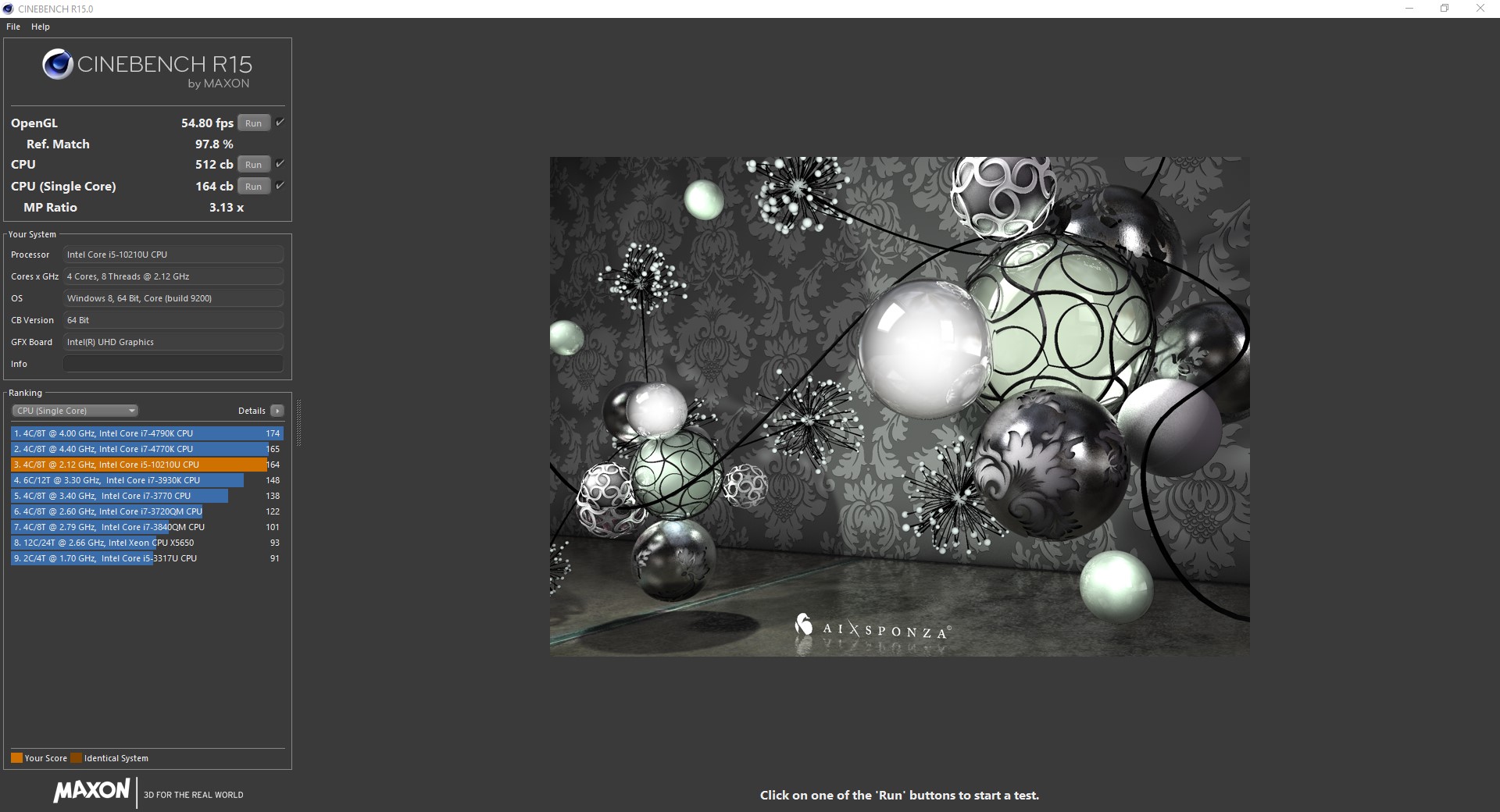

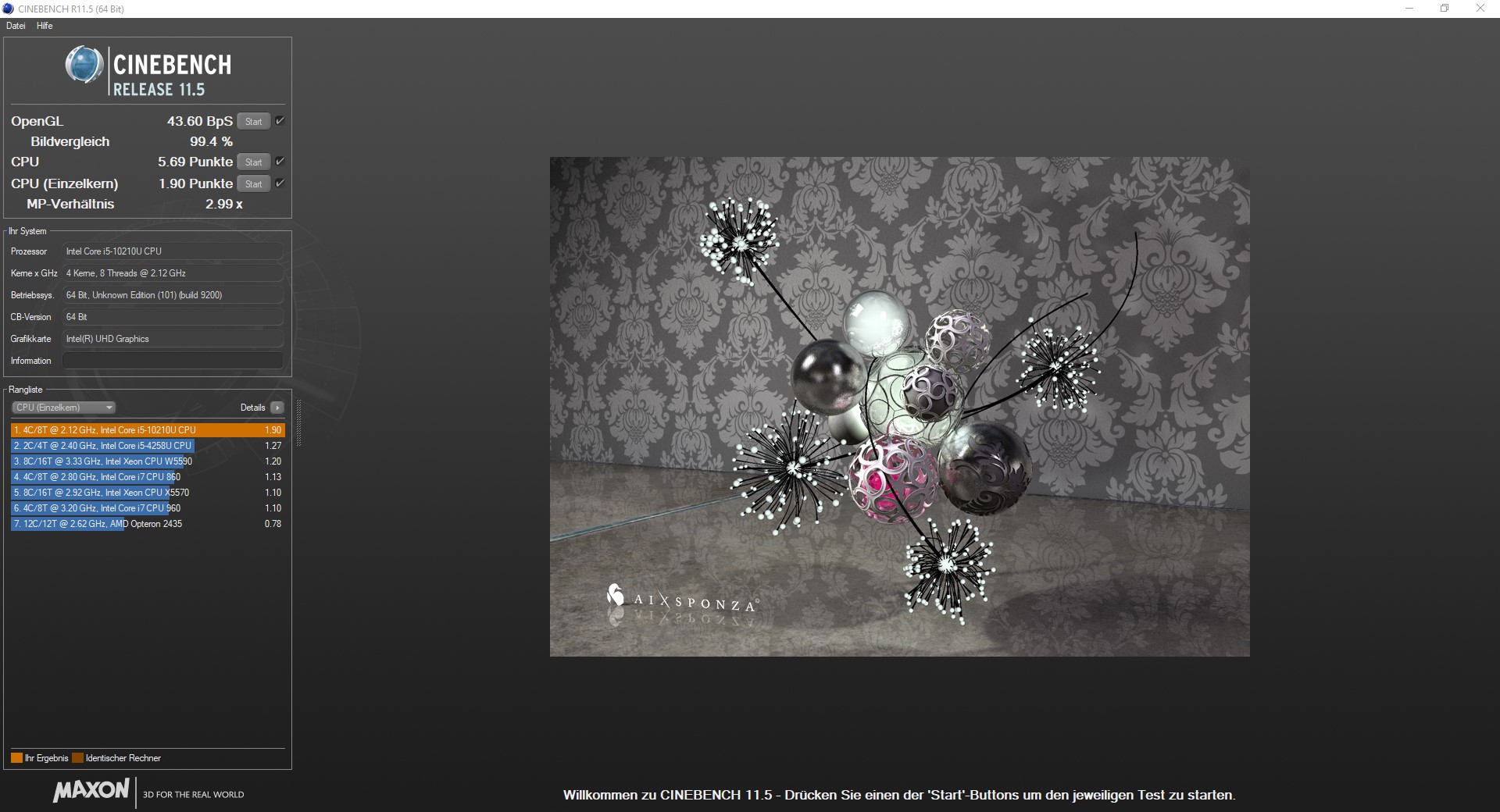

El convertible de negocios ofrece un sólido rendimiento con el Intel Core i5-10210U, que es suficiente para el trabajo diario de la oficina. La interacción del hardware y el software funciona muy bien, como se puede ver en las latencias del CPD.

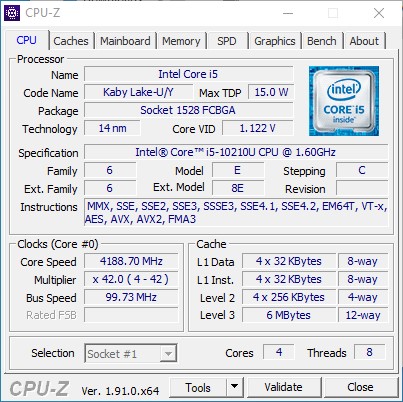

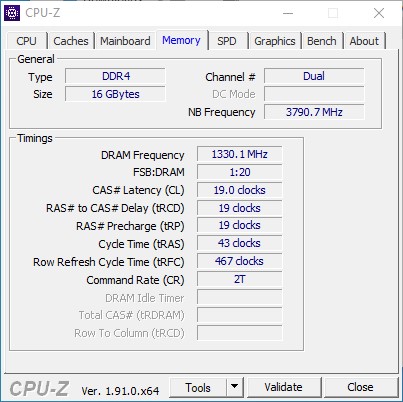

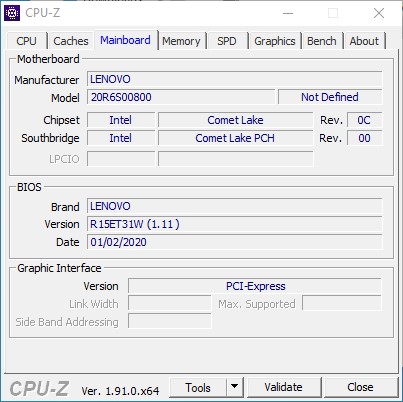

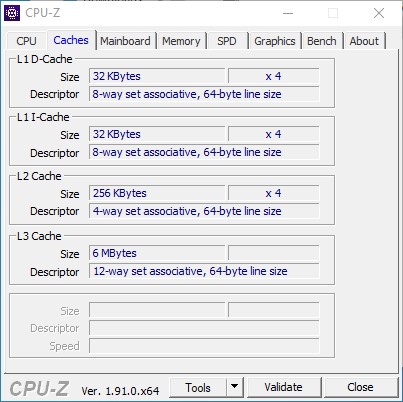

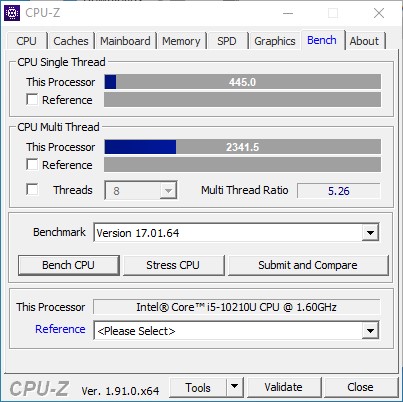

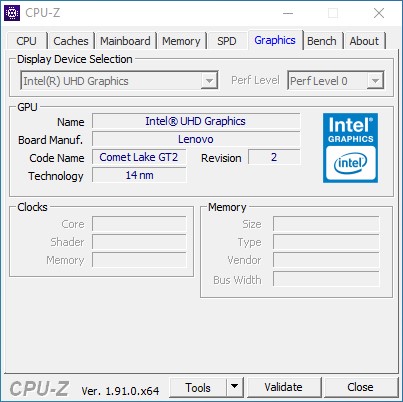

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

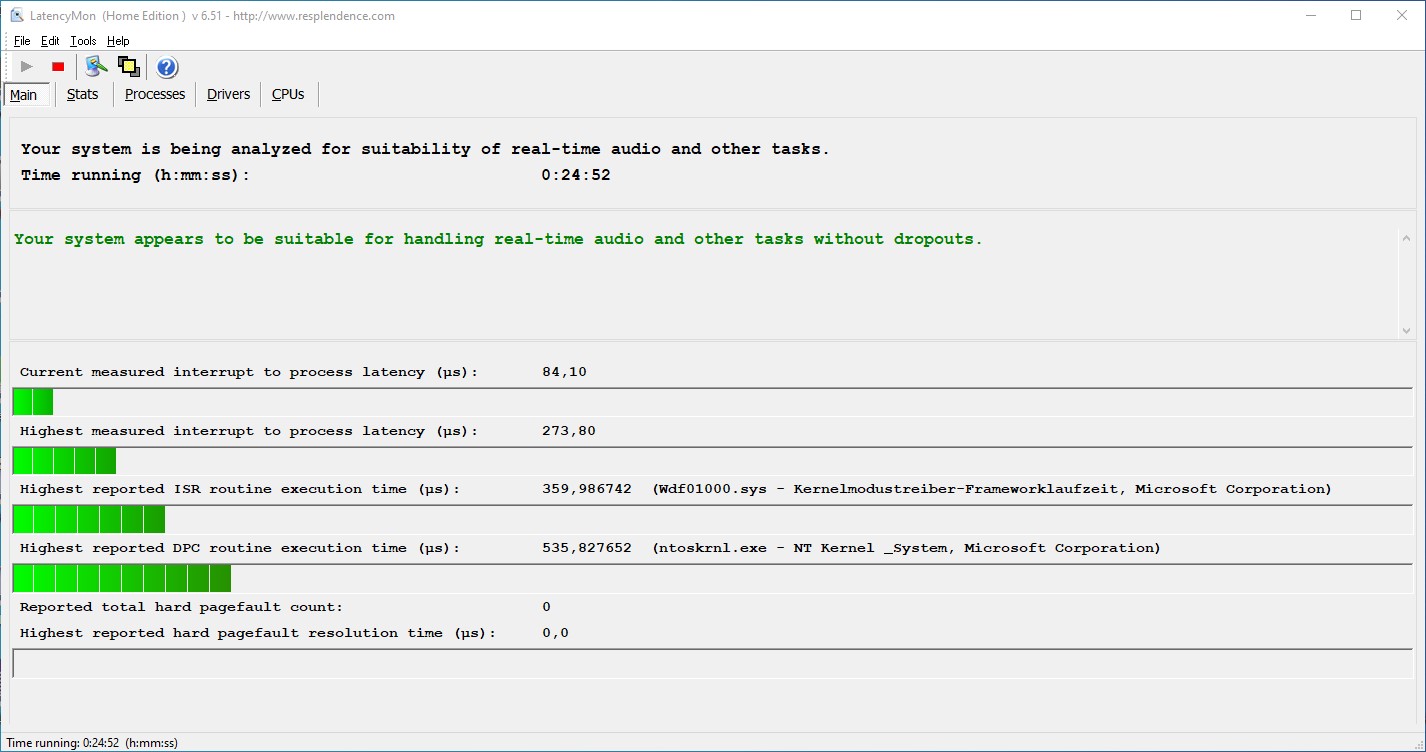

DPC latencies
DPC latencies

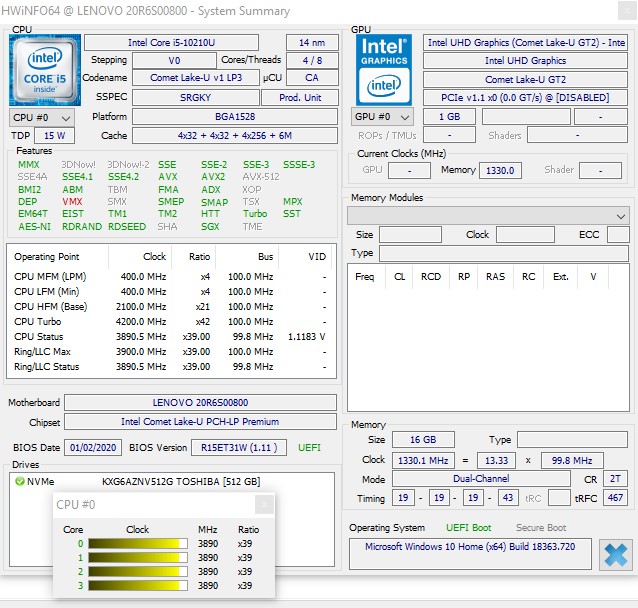

HWiNFO
HWiNFO

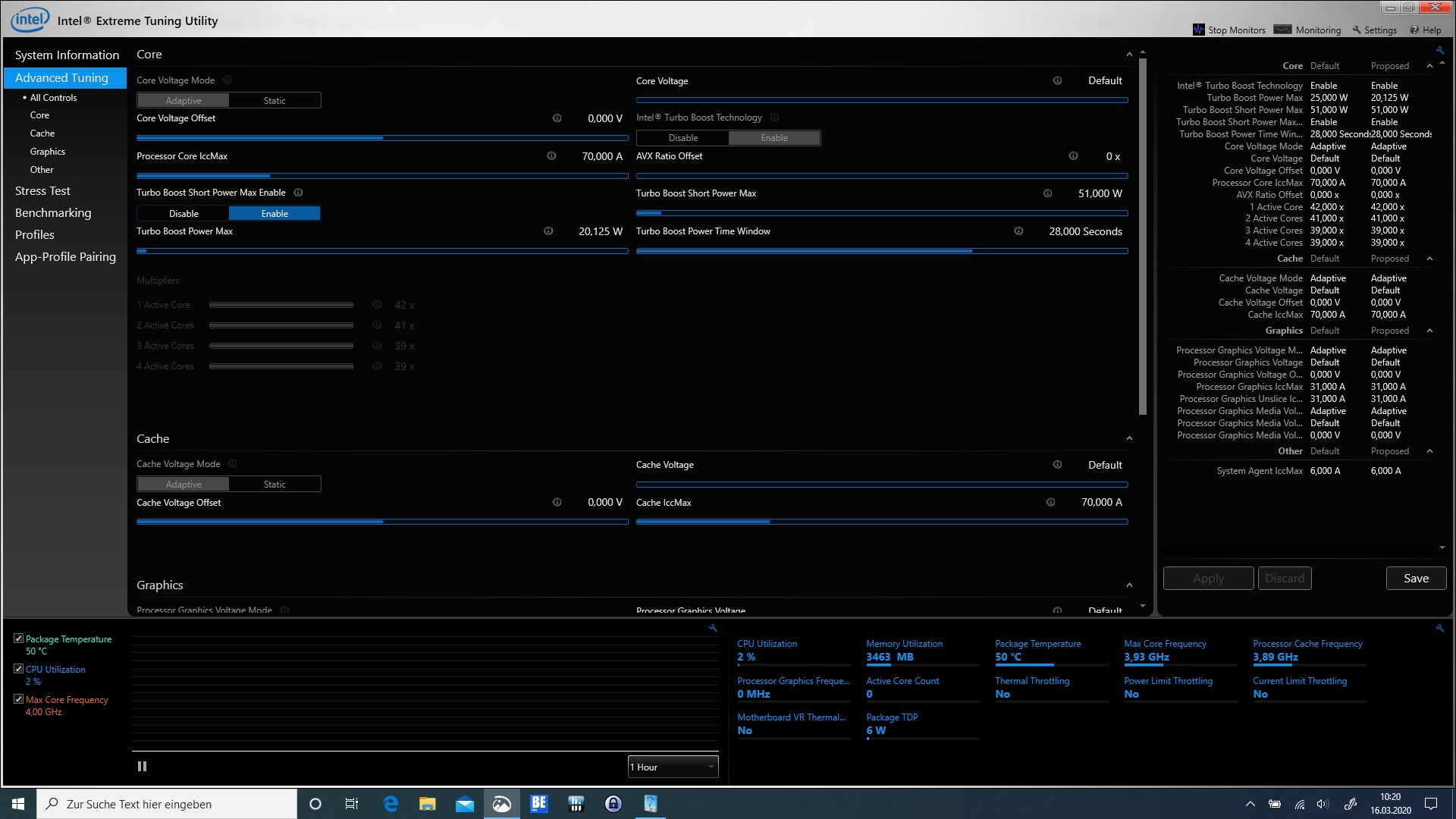

Intel Extreme Utility
Intel Extreme Utility

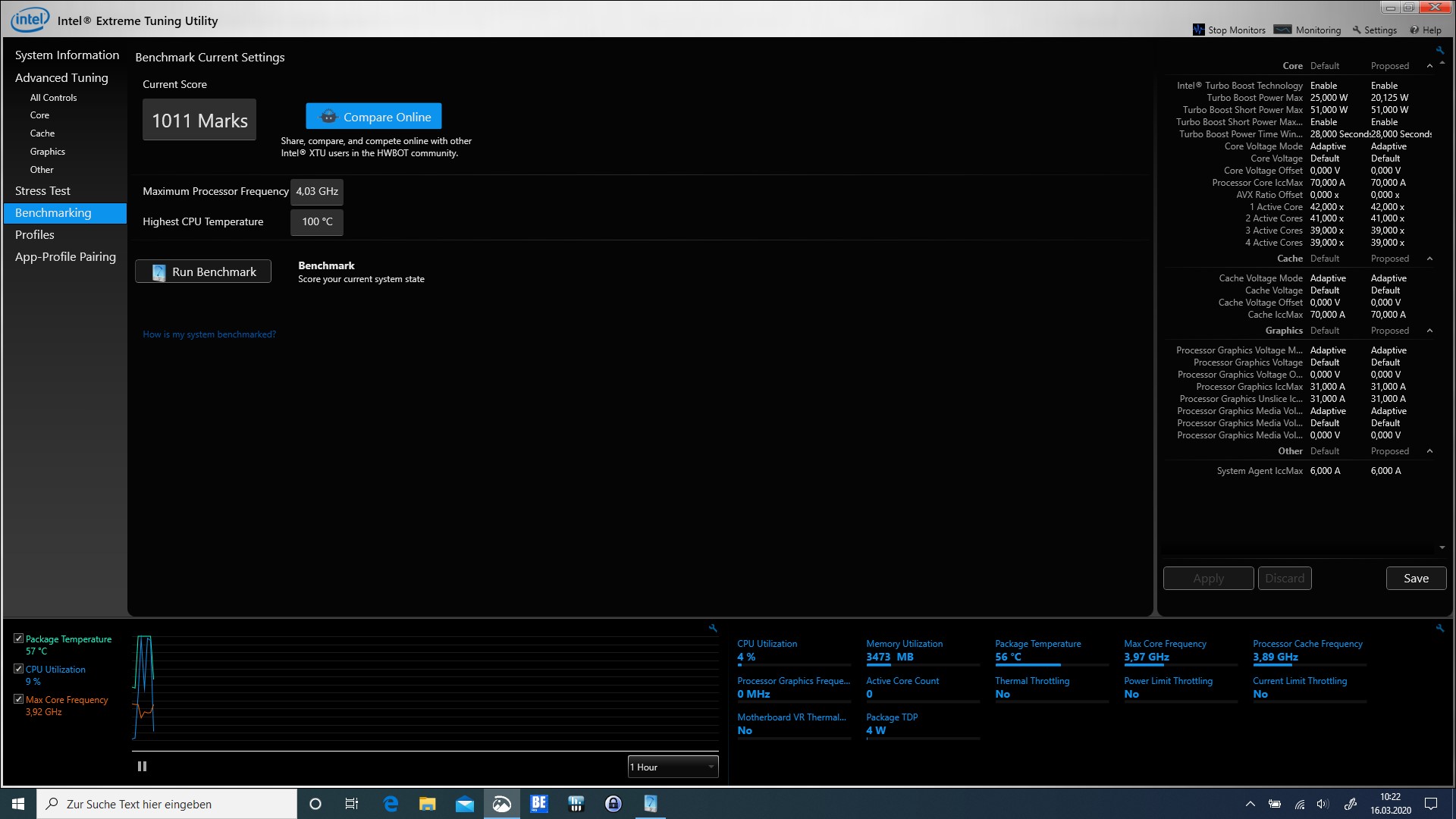

Intel Extreme Utility (benchmark)
Intel Extreme Utility (benchmark)





Procesador

Intel Core i5-10210U
Intel Core i5-10210U

El Intel Core i5-10210U integrado funciona con un TDP de 15 vatios y ofrece cuatro núcleos de computación nativos. El SoC puede usar temporalmente hasta 51 vatios bajo carga. Sin embargo, el Lenovo ThinkPad L13 Yoga no obtuvo el rendimiento completo del SoC en las pruebas de la CPU. El Lenovo Yoga C740 es mucho más rápido con el mismo SoC.

 Como la utilización del turbo no es muy alta, la caída de rendimiento en el Cinebench R15 multi loop es por lo tanto relativamente baja. Para más comparaciones y puntos de referencia nos remitimos a nuestra tabla de comparación de CPU.

03570105140175210245280315350385420455490525560595630665Tooltip
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Core i5-10210U, Intel Core i5-10210U: Ø506 (500.98-533.71)
Lenovo ThinkPad L390 Yoga-20NT000XGE Intel Core i5-8265U, Intel Core i5-8265U: Ø537 (459.65-563.59)
HP Envy x360 13-ar0601ng AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø440 (425.31-674.59)
HP Pavilion x360 14-dh1153ng Intel Core i5-10210U, Intel Core i5-10210U: Ø501 (494.9-546.17)
Lenovo Yoga C740-14IML Intel Core i5-10210U, Intel Core i5-10210U: Ø550 (517.87-676.69)
Cinebench R15
CPU Single 64Bit
Average of class Convertible
  (68.6 - 287, n=65, last 2 years)
229 Points +40%
Lenovo Yoga C740-14IML
Intel Core i5-10210U
169 Points +3%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
166 Points +1%
Average Intel Core i5-10210U
  (134 - 174, n=35)
165.6 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
164 Points
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
157 Points -4%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
139 Points -15%
CPU Multi 64Bit
Average of class Convertible
  (110.1 - 2889, n=67, last 2 years)
1556 Points +202%
Lenovo Yoga C740-14IML
Intel Core i5-10210U
677 Points +31%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
676 Points +31%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
634 Points +23%
Average Intel Core i5-10210U
  (320 - 790, n=35)
609 Points +18%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
546 Points +6%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
515 Points
Cinebench R20
CPU (Single Core)
Average of class Convertible
  (116.8 - 755, n=65, last 2 years)
603 Points +43%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
422 Points
Lenovo Yoga C740-14IML
Intel Core i5-10210U
421 Points 0%
Average Intel Core i5-10210U
  (322 - 428, n=30)
407 Points -4%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
399 Points -5%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
343 Points -19%
CPU (Multi Core)
Average of class Convertible
  (242 - 6954, n=66, last 2 years)
3483 Points +189%
Lenovo Yoga C740-14IML
Intel Core i5-10210U
1292 Points +7%
Average Intel Core i5-10210U
  (722 - 1820, n=30)
1279 Points +6%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
1204 Points
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
1158 Points -4%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
1110 Points -8%
Cinebench R11.5
CPU Single 64Bit
Average of class Convertible
  (1.86 - 3.26, n=8, last 2 years)
2.69 Points +42%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
1.9 Points
Average Intel Core i5-10210U
  (1.71 - 1.91, n=4)
1.85 Points -3%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
1.8 Points -5%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
1.23 Points -35%
CPU Multi 64Bit
Average of class Convertible
  (4.31 - 25, n=8, last 2 years)
17.9 Points +215%
Average Intel Core i5-10210U
  (5.69 - 8.66, n=4)
7.34 Points +29%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
5.74 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
5.69 Points
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
5.02 Points -12%
JetStream 1.1 - Total Score
Average of class Convertible
  (124.8 - 443, n=5, last 2 years)
339 Points +44%
Lenovo Yoga C740-14IML
Intel Core i5-10210U
243.6 Points +3%
Average Intel Core i5-10210U
  (191.3 - 252, n=14)
236 Points 0%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
235.9 Points
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
226.5 Points -4%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
225.4 Points -4%

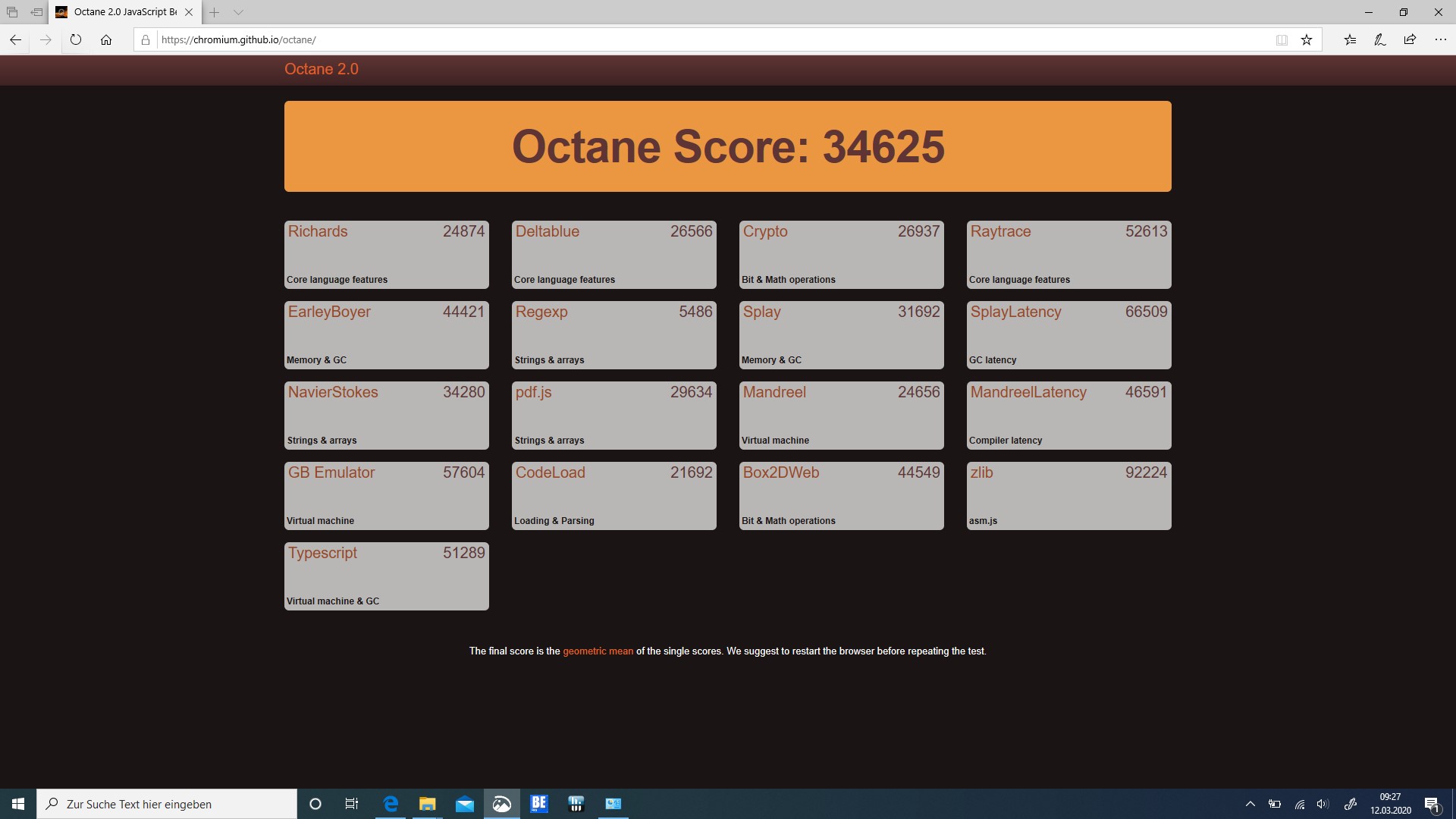

Octane V2 - Total Score
Average of class Convertible
  (23395 - 92146, n=17, last 2 years)
76235 Points +120%
Average Intel Core i5-10210U
  (30096 - 44584, n=17)
36050 Points +4%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
34625 Points
Lenovo Yoga C740-14IML
Intel Core i5-10210U
34540 Points 0%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
33932 Points -2%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
31901 Points -8%
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
27490 Points -21%

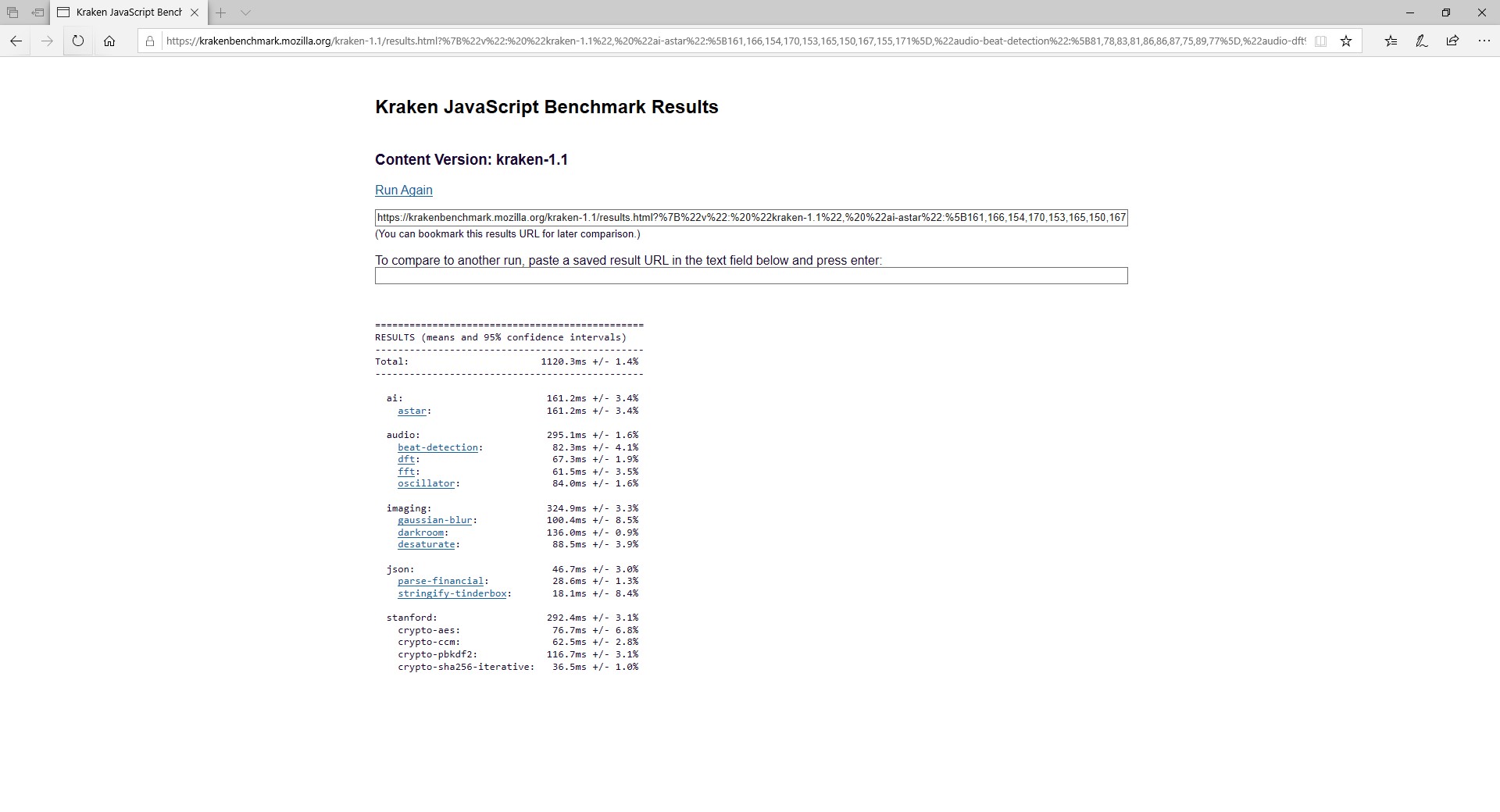

Mozilla Kraken 1.1 - Total
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
1299 ms * -16%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
1198 ms * -7%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
1134 ms * -1%
Lenovo Yoga C740-14IML
Intel Core i5-10210U
1132 ms * -1%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
1120 ms *
Average Intel Core i5-10210U
  (886 - 1267, n=31)
1014 ms * +9%
Average of class Convertible
  (472 - 3989, n=66, last 2 years)
719 ms * +36%
Blender - v2.79 BMW27 CPU
HP Envy x360 13-ar0601ng
AMD Ryzen 7 3700U
1018 Seconds * -28%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel Core i5-8265U
861 Seconds * -9%
Average Intel Core i5-10210U
  (585 - 1339, n=24)
859 Seconds * -8%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
793 Seconds *
Average of class Convertible
  (193 - 3620, n=61, last 2 years)
462 Seconds * +42%

* ... más pequeño es mejor

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R11.5 CPU Single 32Bit
1.72 Points
Cinebench R11.5 CPU Multi 32Bit
5.25 Points
Cinebench R11.5 OpenGL 32Bit
41.28 fps
Cinebench R11.5 CPU Single 64Bit
1.9 Points
Cinebench R11.5 CPU Multi 64Bit
5.69 Points
Cinebench R11.5 OpenGL 64Bit
43.6 fps
Cinebench R15 CPU Single 64Bit
164 Points
Cinebench R15 CPU Multi 64Bit
515 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
54.8 fps
ayuda

Rendimiento del sistema

Afortunadamente, el rendimiento menos que perfecto del SoC no tiene un gran impacto en el rendimiento general del sistema. El Lenovo ThinkPad L13 Yoga puede asegurar un lugar en la primera fila aquí.

PCMark 10
Score
Average of class Convertible
  (1486 - 7963, n=60, last 2 years)
5628 Points +29%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
4353 Points
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
4323 Points -1%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (3448 - 4353, n=28)
3988 Points -8%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
3840 Points -12%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
3792 Points -13%
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3685 Points -15%
Essentials
Average of class Convertible
  (3975 - 12059, n=60, last 2 years)
10505 Points +6%
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
10000 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
9907 Points
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (7172 - 10000, n=28)
8499 Points -14%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
8201 Points -17%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
8131 Points -18%
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
7472 Points -25%
Productivity
Average of class Convertible
  (2764 - 10800, n=60, last 2 years)
7392 Points +6%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
6972 Points
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
6762 Points -3%
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
6677 Points -4%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (5980 - 7317, n=28)
6663 Points -4%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
6288 Points -10%
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
5875 Points -16%
Digital Content Creation
Average of class Convertible
  (811 - 12360, n=60, last 2 years)
6366 Points +96%
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
3284 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
3242 Points
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3094 Points -5%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (2289 - 4463, n=28)
3057 Points -6%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
2982 Points -8%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2692 Points -17%
PCMark 8
Home Score Accelerated v2
Average of class Convertible
  (4404 - 5830, n=3, last 2 years)
4890 Points +14%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
4284 Points
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3863 Points -10%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
3780 Points -12%
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
3695 Points -14%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (3182 - 4284, n=21)
3605 Points -16%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
3392 Points -21%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
2550 Points -40%
Work Score Accelerated v2
Lenovo Yoga C740-14IML
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
5098 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
5063 Points
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (4286 - 5114, n=21)
4879 Points -4%
HP Envy x360 13-ar0601ng
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
4869 Points -4%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
4867 Points -4%
Lenovo ThinkPad L390 Yoga-20NT000XGE
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB256HAHQ
4843 Points -4%
Average of class Convertible
  (2921 - 6089, n=3, last 2 years)
4045 Points -20%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
3550 Points -30%
PCMark 8 Home Score Accelerated v2
4284 puntos
PCMark 8 Creative Score Accelerated v2
5440 puntos
PCMark 8 Work Score Accelerated v2
5063 puntos
PCMark 10 Score
4353 puntos
ayuda

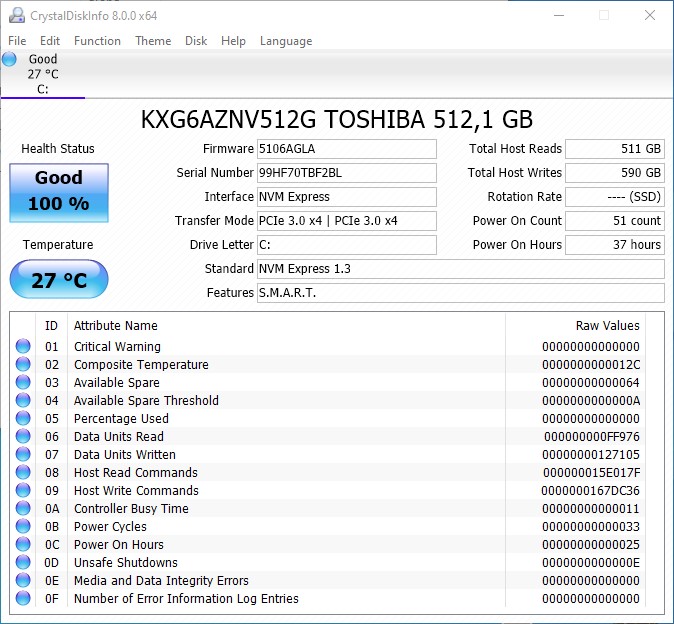

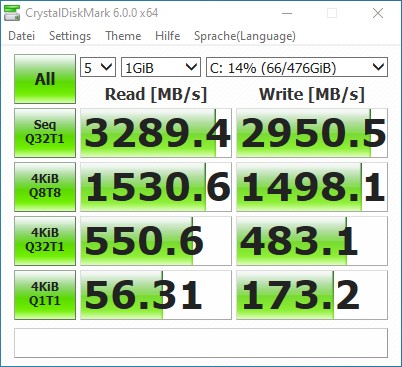

Dispositivos de almacenamiento

512 GB NVMe SSD
512 GB NVMe SSD

El dispositivo de almacenamiento incorporado ofrece 512 GB de espacio y fue capaz de convencer en la prueba con muy buenos valores.



Desafortunadamente, el ThinkPad L13 Yoga sólo puede ser equipado con un dispositivo de almacenamiento masivo. Para más comparaciones y puntos de referencia nos remitimos a nuestra tabla de comparación.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Lenovo ThinkPad L13 Yoga 20R6S00800
Toshiba XG6 KXG6AZNV512G
Lenovo ThinkPad L390 Yoga-20NT000XGE
Samsung SSD PM981 MZVLB256HAHQ
HP Envy x360 13-ar0601ng
SK Hynix BC501 HFM512GDJTNG
HP Pavilion x360 14-dh1153ng
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Lenovo Yoga C740-14IML
Samsung SSD PM981a MZVLB256HBHQ
Average Toshiba XG6 KXG6AZNV512G

CrystalDiskMark 5.2 / 6
-15%
-50%
13%
-4%
-7%
Write 4K
172.3
126.3
-27%
88.3
-49%
162.7
-6%
125.6
-27%
139 ?(115.3 - 172.3, n=3)
-19%
Read 4K
44.37
41.58
-6%
34.84
-21%
190.5
329%
43.46
-2%
45.8 ?(43.3 - 49.5, n=3)
3%
Write Seq
1492
1383
-7%
740
-50%
450.1
-70%
2011
35%
1628 ?(1014 - 2379, n=3)
9%
Read Seq
1471
2012
37%
985
-33%
1624
10%
2046
39%
1647 ?(1471 - 1989, n=3)
12%
Write 4K Q32T1
483.1
543
12%
313.7
-35%
353.5
-27%
375.8
-22%
547 ?(483 - 663, n=3)
13%
Read 4K Q32T1
551
411
-25%
243.1
-56%
397.7
-28%
338.1
-39%
436 ?(333 - 551, n=3)
-21%
Write Seq Q32T1
2951
1712
-42%
846
-71%
937
-68%
2346
-21%
2522 ?(1654 - 2960, n=3)
-15%
Read Seq Q32T1
3289
3423
4%
1783
-46%
2145
-35%
3562
8%
2739 ?(1746 - 3289, n=3)
-17%
Write 4K Q8T8
1498
1031
-31%
305.7
-80%
1266 ?(1033 - 1498, n=2)
-15%
Read 4K Q8T8
1531
572
-63%
698
-54%
1212 ?(892 - 1531, n=2)
-21%
AS SSD
-26%
-54%
-60%
-36%
-19%
Seq Read
2719
1724
-37%
1412
-48%
1241
-54%
1719
-37%
2383 ?(1383 - 2747, n=4)
-12%
Seq Write
2441
1123
-54%
540
-78%
372.5
-85%
1211
-50%
1459 ?(852 - 2441, n=4)
-40%
4K Read
51.5
51.8
1%
32.24
-37%
65.4
27%
53.1
3%
46.8 ?(43.7 - 51.5, n=4)
-9%
4K Write
142.8
133.8
-6%
74.7
-48%
114.8
-20%
131.4
-8%
125.1 ?(105.6 - 142.8, n=4)
-12%
4K-64 Read
1426
745
-48%
567
-60%
416.9
-71%
508
-64%
1294 ?(977 - 1431, n=4)
-9%
4K-64 Write
1287
1193
-7%
700
-46%
516
-60%
883
-31%
1276 ?(926 - 1452, n=4)
-1%
Access Time Read *
0.041
0.041
-0%
0.049
-20%
0.097
-137%
0.05
-22%
0.0825 ?(0.041 - 0.124, n=4)
-101%
Access Time Write *
0.029
0.028
3%
0.048
-66%
0.045
-55%
0.085
-193%
0.0335 ?(0.029 - 0.038, n=4)
-16%
Score Read
1749
969
-45%
741
-58%
606
-65%
733
-58%
1580 ?(1289 - 1752, n=4)
-10%
Score Write
1674
1440
-14%
829
-50%
668
-60%
1135
-32%
1547 ?(1132 - 1693, n=4)
-8%
Score Total
4310
2889
-33%
1913
-56%
1567
-64%
2235
-48%
3893 ?(3420 - 4310, n=4)
-10%
Copy ISO MB/s
2028
1025
-49%
521
-74%
504
-75%
1636
-19%
1645 ?(1147 - 2028, n=3)
-19%
Copy Program MB/s
499.1
322.1
-35%
253.1
-49%
222.6
-55%
698
40%
425 ?(355 - 499, n=3)
-15%
Copy Game MB/s
1022
637
-38%
392.9
-62%
421.2
-59%
1246
22%
933 ?(849 - 1022, n=3)
-9%
Media total (Programa/Opciones)
-21% / -21%
-52% / -52%
-24% / -33%
-20% / -24%
-13% / -14%

* ... más pequeño es mejor

Toshiba XG6 KXG6AZNV512G
Sequential Read: 1633 MB/s
Sequential Write: 1320 MB/s
512K Read: 877 MB/s
512K Write: 839 MB/s
4K Read: 40.22 MB/s
4K Write: 170.2 MB/s
4K QD32 Read: 563 MB/s
4K QD32 Write: 478.4 MB/s

Tarjeta gráfica

El Intel UHD Graphics 620 se utiliza como unidad de gráficos para el ThinkPad L13 Yoga. No hay soluciones alternativas para el nuevo convertible. Una mirada al rendimiento muestra que nuestro modelo de prueba se desempeña mejor aquí que el promedio de la clase. Sin embargo, nuestro ThinkPad L13 Yoga es claramente superado por el HP Envy x360 con una APU AMD. Para más comparaciones y puntos de referencia, nos remitimos a nuestra tabla de comparación de GPU.

3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (471 - 40768, n=65, last 2 years)
7603 Points +311%
HP Envy x360 13-ar0601ng
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
4056 Points +119%
Lenovo Yoga C740-14IML
Intel UHD Graphics 620, Intel Core i5-10210U
1859 Points +1%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1849 Points
Average Intel UHD Graphics 620
  (1144 - 3432, n=244)
1749 Points -5%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1744 Points -6%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel UHD Graphics 620, Intel Core i5-8265U
1721 Points -7%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2965 - 154219, n=50, last 2 years)
31444 Points +206%
HP Envy x360 13-ar0601ng
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
14056 Points +37%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
10274 Points
Lenovo Yoga C740-14IML
Intel UHD Graphics 620, Intel Core i5-10210U
10233 Points 0%
Average Intel UHD Graphics 620
  (6205 - 16400, n=225)
9262 Points -10%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel UHD Graphics 620, Intel Core i5-8265U
8677 Points -16%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
8453 Points -18%
1920x1080 Fire Strike Graphics
Average of class Convertible
  (365 - 29684, n=65, last 2 years)
5731 Points +330%
HP Envy x360 13-ar0601ng
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
1950 Points +46%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1333 Points
Lenovo Yoga C740-14IML
Intel UHD Graphics 620, Intel Core i5-10210U
1257 Points -6%
Average Intel UHD Graphics 620
  (557 - 2608, n=213)
1161 Points -13%
Lenovo ThinkPad L390 Yoga-20NT000XGE
Intel UHD Graphics 620, Intel Core i5-8265U
1083 Points -19%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1083 Points -19%
2560x1440 Time Spy Graphics
Average of class Convertible
  (94 - 11749, n=64, last 2 years)
1959 Points +375%
HP Envy x360 13-ar0601ng
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
578 Points +40%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
412 Points
Lenovo Yoga C740-14IML
Intel UHD Graphics 620, Intel Core i5-10210U
408 Points -1%
Average Intel UHD Graphics 620
  (299 - 797, n=88)
389 Points -6%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
360 Points -13%
3DMark 11 Performance
2073 puntos
3DMark Ice Storm Standard Score
64237 puntos
3DMark Cloud Gate Standard Score
8834 puntos
3DMark Fire Strike Score
1206 puntos
3DMark Fire Strike Extreme Score
588 puntos
3DMark Time Spy Score
472 puntos
ayuda
bajo medio alto ultra
BioShock Infinite (2013) 73 40 35 11
Dota 2 Reborn (2015) 82 52.5 20.4 17.8
Rise of the Tomb Raider (2016) 22.8 14.6 7.48
X-Plane 11.11 (2018) 23.6 14.8 13.5

Emisiones - Tiempos cortos de carga para el ThinkPad L13 Yoga

Ruido del sistema

El ThinkPad L13 Yoga funciona muy silenciosamente y a menudo el ventilador se detiene completamente. Sin embargo, se pueden escuchar ruidos eléctricos silenciosos desde el aparato.

Ruido

Ocioso
29.3 / 29.3 / 29.3 dB(A)
Carga
32.7 / 32.7 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distancia)   environment noise: 29.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203233.633.22526.327.931.83129.330.430.74028.330.630.35024.823.824.6632624.425.38023.823.323.810024.72423.11252423.222.21602422.923.720023.622.723.725023.922.923.531521.92121.94002220.821.750022.219.421.76302219.122.680021.818.821.6100022.318.522.912502317.822.9160021.816.621.9200020.916.120.7250021.515.720.9315020.215.720.6400019.415.619.1500016.815.516.7630016.215.616.180001615.615.81000015.915.515.81250015.715.315.71600015.615.115.5SPL32.729.332.7N1.81.21.7median 21.8median 17.8median 21.7Delta3.22.52.9hearing rangehide median Fan NoiseLenovo ThinkPad L13 Yoga 20R6S00800

Temperatura

3DMark 11 después de la prueba de estrés
3DMark 11 después de la prueba de estrés

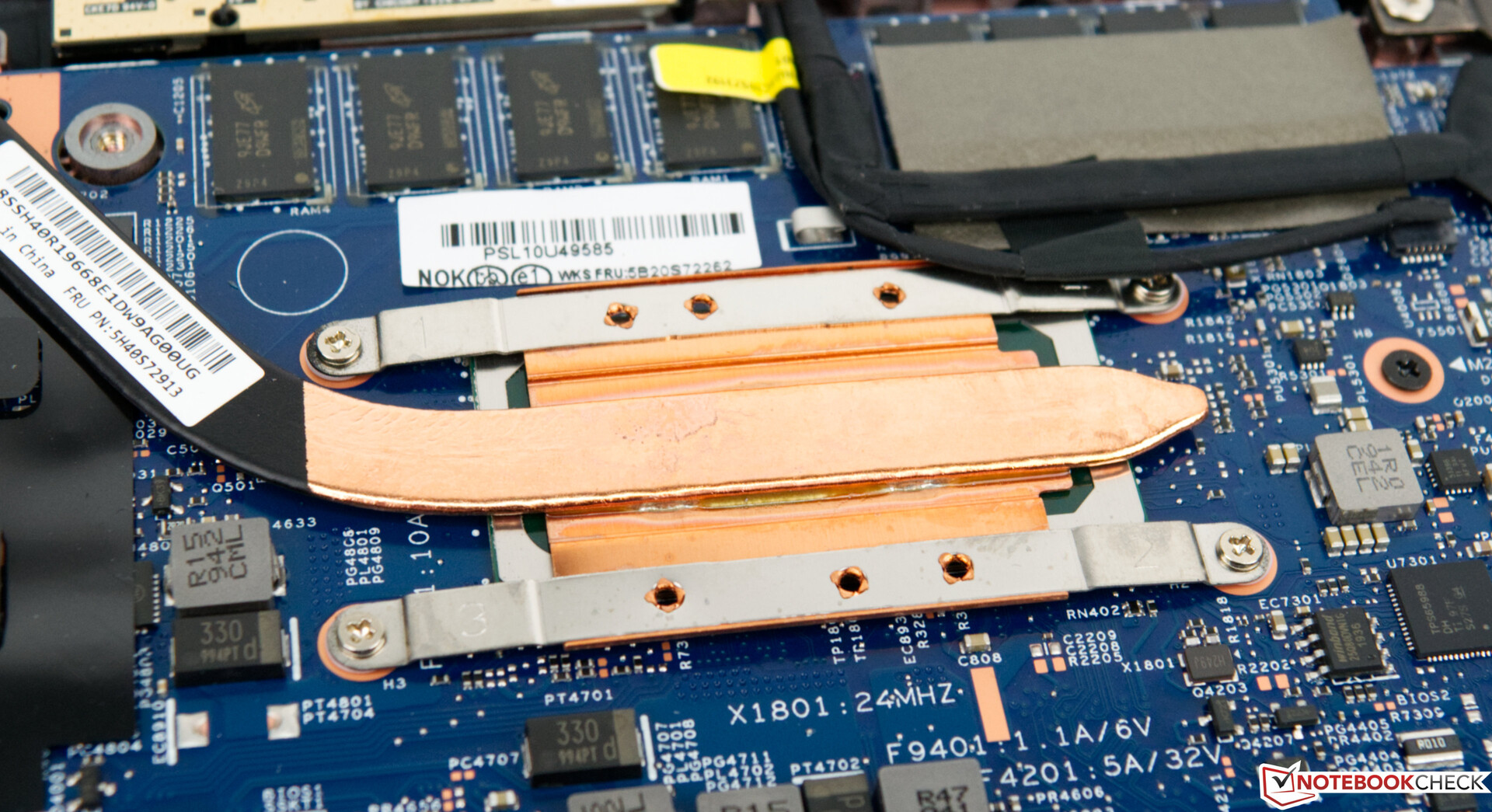

Por el contrario, el control del ventilador defensivo asegura altas temperaturas de la caja bajo carga. Hemos medido 62,9 °C en el fondo. Esto es demasiado y trabajar en tu regazo puede ser incómodo. El SoC incluso se calienta hasta 98 °C durante la prueba de esfuerzo. Sin embargo, el Intel Core i5-10210U sigue trabajando por encima del reloj base de 1,6 GHz. El rendimiento 3D no se ve afectado notablemente por la carga continua.

Prueba de estrés: Prime95
Prueba de estrés: Prime95

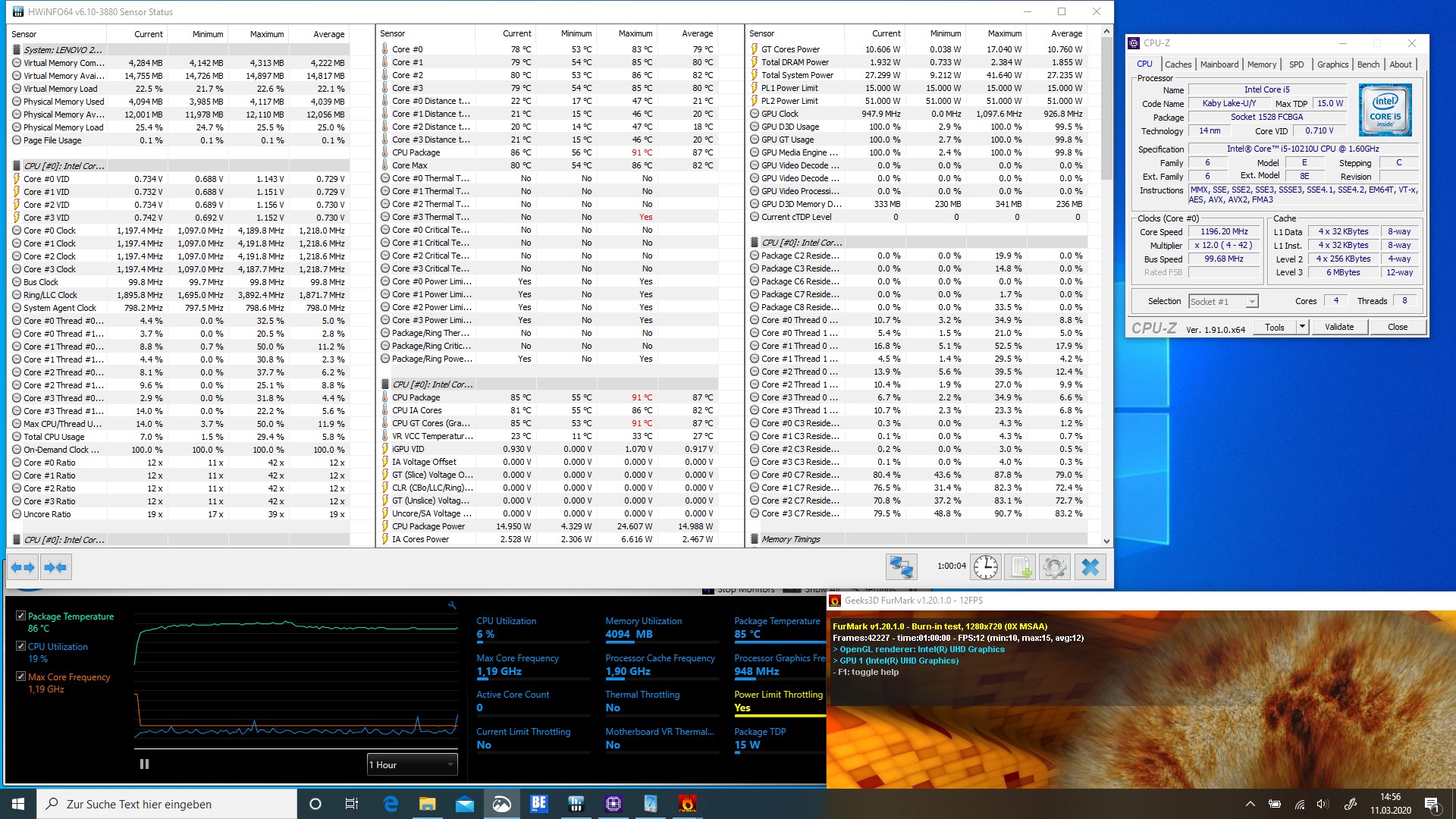

Prueba de estrés: FurMark
Prueba de estrés: FurMark
Prueba de estrés: FurMark+Prime95
Prueba de estrés: FurMark+Prime95
Carga Máx.
 46.2 °C49.3 °C23.1 °C
 43.9 °C45.7 °C29.3 °C
 24.3 °C23.9 °C22.7 °C
Máximo: 49.3 °C
Médio: 34.3 °C
37.8 °C62.9 °C51.8 °C
29.2 °C52.5 °C47.5 °C
23.6 °C26.7 °C27.9 °C
Máximo: 62.9 °C
Médio: 40 °C
Conector de corriente  29.7 °C | Temperatura del cuarto 20.5 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.3 °C / 94 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 49.3 °C / 121 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 62.9 °C / 145 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.3 °C / 75.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+3.8 °C / 6.9 F).
Mapa de calor bajo carga - arriba
Mapa de calor bajo carga - arriba

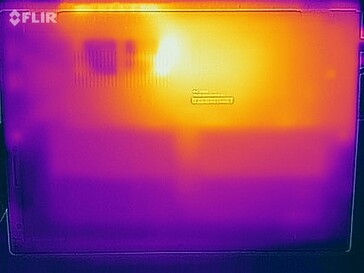

Mapa de calor bajo carga - abajo
Mapa de calor bajo carga - abajo

Altavoces

Los dos altavoces se sientan en la parte inferior y son suficientes para la reproducción del discurso. Para la música o las películas, es mejor cambiar a alternativas. Los auriculares o altavoces externos pueden conectarse al ThinkPad L13 Yoga usando un conector de 3,5 mm.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.632.52527.9293130.431.24030.629.15023.826.56324.424.78023.324.11002424.112523.226.816022.932.120022.739.725022.948.63152160.840020.864.150019.46163019.160.180018.862.6100018.567.4125017.867.2160016.668.6200016.165.9250015.764.2315015.763.7400015.659.5500015.555.6630015.645.1800015.646.41000015.543.11250015.341.21600015.141.8SPL29.375.8N1.233.2median 17.8median 59.5Delta2.511.228.530.42826.128.628.224.725.725.225.322.225.422.924.524.225.822.526.523.334.222.342.822.45021.154.920.856.920.456.92054.21956.318.360.917.762.517.160.116.856.416.459.316.267.115.870.715.667.215.664.115.56315.559.915.459.815.451.929.576.31.335median 17.7median 56.92.55.9hearing rangehide median Pink NoiseLenovo ThinkPad L13 Yoga 20R6S00800Lenovo ThinkPad L390 Yoga-20NT000XGE
Diagrama de frecuencia en comparación (¡las casillas de verificación se pueden marcar y desmarcar!)
Lenovo ThinkPad L13 Yoga 20R6S00800 audio analysis

(±) | speaker loudness is average but good (75.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.2% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 8.1% lower than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.1% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 3% similar, 11% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 13% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad L390 Yoga-20NT000XGE audio analysis

(±) | speaker loudness is average but good (76.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.9% lower than median
(±) | linearity of bass is average (12.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.5% higher than median
(±) | linearity of highs is average (9.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 65% of all tested devices in this class were better, 6% similar, 29% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 63% of all tested devices were better, 6% similar, 30% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Gestión de la energía

El consumo de energía

Fuente de alimentación de 65 vatios
Fuente de alimentación de 65 vatios
Fuente de alimentación de 65 vatios
Fuente de alimentación de 65 vatios

El Lenovo ThinkPad L13 Yoga es ligeramente peor en términos de consumo de energía que la competencia. Nuestra muestra de revisión puede mantenerse bien con 3,7 a 11,2 vatios en reposo, pero el consumo de energía se eleva a un promedio de hasta 44,3 vatios bajo carga. En las horas punta, si el SoC puede usar el turbo, a veces puede llegar a 65 vatios. La fuente de alimentación incluida también puede proporcionar la misma cantidad.

Consumo de corriente
Off / Standbydarklight 0.46 / 0.95 Watt
Ociosodarkmidlight 3.7 / 6.2 / 11.2 Watt
Carga midlight 44.3 / 65 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620, Toshiba XG6 KXG6AZNV512G, IPS, 1920x1080, 13.30
Lenovo ThinkPad L390 Yoga-20NT000XGE
i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB256HAHQ, IPS LED, 1920x1080, 13.30
HP Envy x360 13-ar0601ng
R7 3700U, Vega 10, SK Hynix BC501 HFM512GDJTNG, IPS, 120 Hz, 1920x1080, 13.30
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H), IPS, 1920x1080, 14.00
Lenovo Yoga C740-14IML
i5-10210U, UHD Graphics 620, Samsung SSD PM981a MZVLB256HBHQ, IPS, 1920x1080, 14.00
Average Intel UHD Graphics 620

Average of class Convertible

Power Consumption
6%
25%
26%
19%
11%
-16%
Idle Minimum *
3.7
4
-8%
3.2
14%
3.3
11%
3
19%
3.81 ?(1 - 12.4, n=259)
-3%
5.44 ?(1.6 - 16.6, n=61, last 2 years)
-47%
Idle Average *
6.2
7.1
-15%
2.8
55%
5.8
6%
3.9
37%
6.94 ?(2.8 - 15.7, n=261)
-12%
8.23 ?(3.8 - 20.7, n=61, last 2 years)
-33%
Idle Maximum *
11.2
10.7
4%
12.4
-11%
7.9
29%
7.3
35%
8.75 ?(3.8 - 30, n=259)
22%
10.5 ?(4.7 - 29.9, n=61, last 2 years)
6%
Load Average *
44.3
33.8
24%
24.2
45%
27
39%
42.5
4%
35 ?(8.1 - 51.6, n=259)
21%
46.1 ?(7.6 - 101.3, n=61, last 2 years)
-4%
Load Maximum *
65
48.8
25%
50
23%
37
43%
65.5
-1%
47.5 ?(22 - 96.3, n=261)
27%
65 ?(10.5 - 155.7, n=61, last 2 years)
-0%

* ... más pequeño es mejor

Duración de la batería

Cinebench R15  en el modo de batería
Cinebench R15 en el modo de batería

Con la batería de 46 Wh instalada permanentemente, el Lenovo ThinkPad L13 Yoga puede ser alimentado durante unas 7,5 horas durante la prueba de WLAN. El tiempo de carga es agradablemente corto, porque después de sólo 45 minutos la batería ya está al 80%.

Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620, 46 Wh
Lenovo ThinkPad L390 Yoga-20NT000XGE
i5-8265U, UHD Graphics 620, 45 Wh
HP Envy x360 13-ar0601ng
R7 3700U, Vega 10, 53 Wh
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620, 41 Wh
Lenovo Yoga C740-14IML
i5-10210U, UHD Graphics 620, 51 Wh
Average of class Convertible

Duración de Batería
-4%
-8%
-5%
8%
33%
Reader / Idle
912
949
4%
632
-31%
856
-6%
1118
23%
1138 ?(680 - 1667, n=25, last 2 years)
25%
H.264
394
444
13%
392
-1%
525
33%
740 ?(542 - 999, n=16, last 2 years)
88%
WiFi v1.3
459
431
-6%
437
-5%
377
-18%
551
20%
557 ?(329 - 876, n=64, last 2 years)
21%
Load
123
89
-28%
130
6%
88
-28%
100
-19%
121 ?(53 - 219, n=47, last 2 years)
-2%
Máxima duración de la batería
Máxima duración de la batería
Duración mínima de la batería
Duración mínima de la batería
Duración de la batería WLAN
Duración de la batería WLAN
Duración de la batería  WLAN (brillo máximo)
Duración de la batería WLAN (brillo máximo)
Duración de la batería H.264
Duración de la batería H.264
Tiempo de carga
Tiempo de carga
Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
15h 12min
WiFi Websurfing (Edge: 44.18362.449.0)
7h 39min
WiFi Websurfing max. Brightness (Edge: 44.18362.449.0)
6h 26min
Big Buck Bunny H.264 1080p
6h 34min
Carga (máximo brillo)
2h 03min

Pro

+ base delgada y estable
+ SSD muy rápido
+ el rendimiento del sistema
+ agradable teclado retroiluminado
+ muy tranquilo bajo carga
+ Lector de tarjetas micro SD
+ relación precio-rendimiento
+ Cámara IR
+ webcam con ThinkShutter
+ 36 meses de garantía
+ pantalla utilizable con ligeras desviaciones del Delta-E-2000 y buena cobertura del espacio de color
+ ThinkPad Pen Pro

Contra

- temperaturas de caso muy altas bajo carga
- el rendimiento de los múltiples núcleos es peor que el de su predecesor
- ClickPad algo inexacto en las esquinas
- no se incluye el adaptador RJ45

Veredicto - Buena relación calidad-precio

Review: Lenovo ThinkPad L13 Yoga, dispositivo de prueba proporcionado por
Review: Lenovo ThinkPad L13 Yoga, dispositivo de prueba proporcionado por

El Lenovo ThinkPad L13 Yoga hereda los rasgos del Lenovo ThinkPad L390. Sin embargo, el nuevo Comet Lake SoC no pudo lograr ningún aumento notable en el rendimiento en la prueba. Pero el nuevo dispositivo tenía ventajas en cuanto a la duración de la batería, aunque el aumento sólo se produjo en el rango de un porcentaje de un dígito.

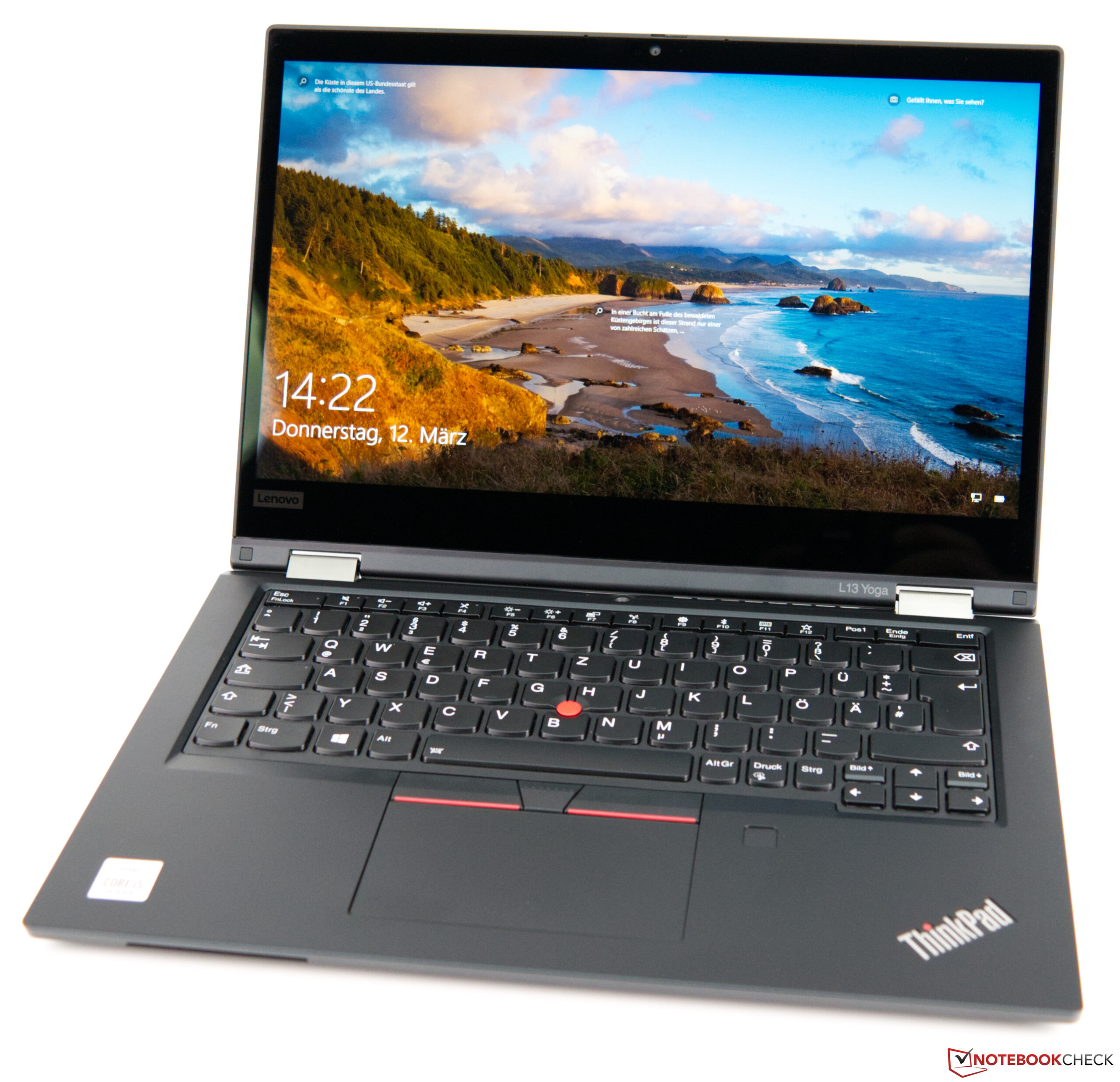

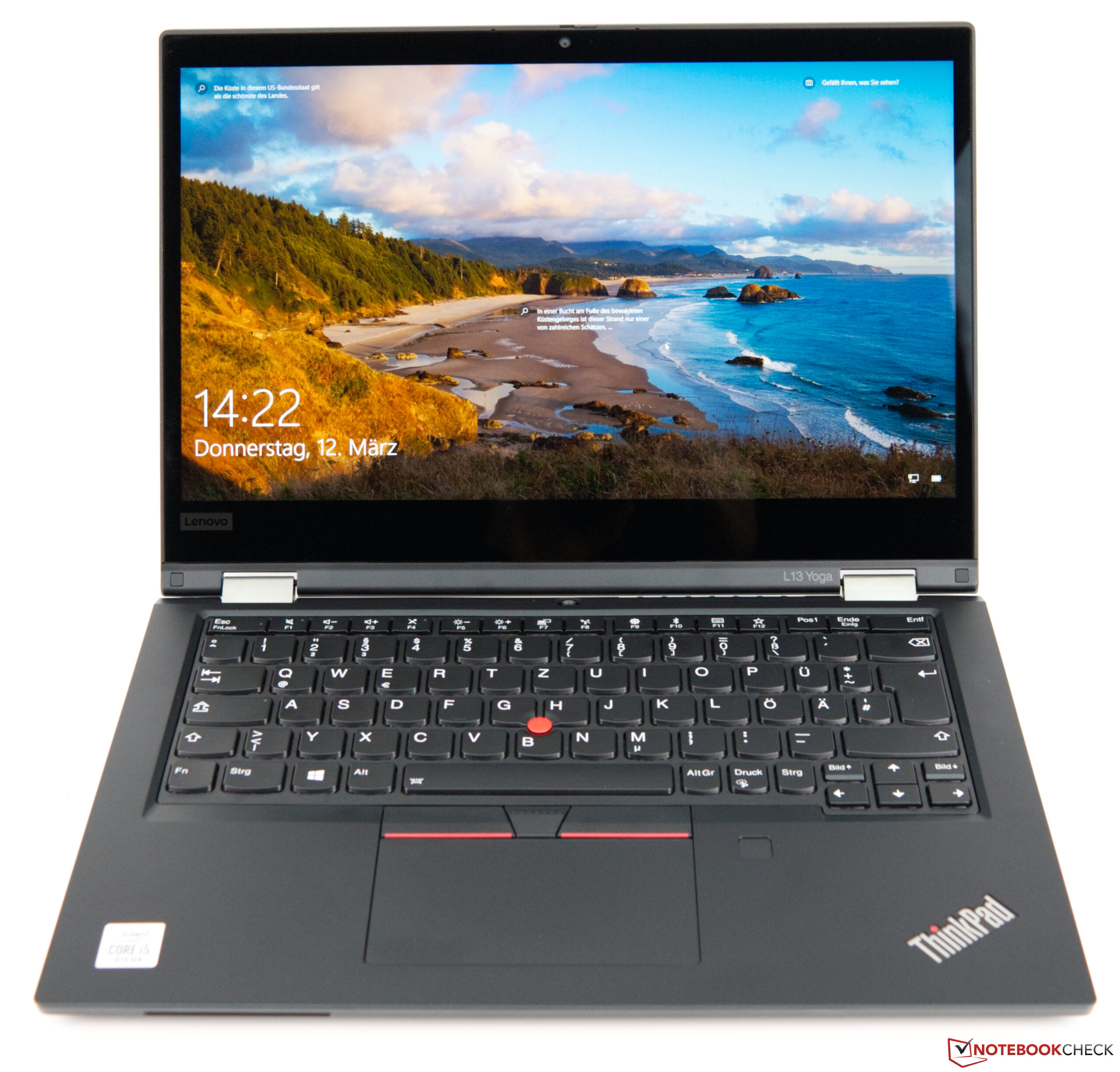

Básicamente, el Lenovo ThinkPad L13 Yoga es un convertible de negocios muy bien hecho con muchas características. Una cámara de infrarrojos, un escáner de huellas dactilares o un lector de tarjetas inteligentes son opciones importantes cuando se trata de un dispositivo de negocios. El ThinkPad L13 Yoga trae todo esto y lo combina en una carcasa compacta y estable. Como es sabido, el L13 Yoga también ofrece un teclado de gran éxito. Sin embargo, el ThinkPad Pen Pro forma parte del volumen de suministro como medio de entrada y no hay que olvidar el largo período de garantía de 36 meses.

El Lenovo ThinkPad L13 Yoga ofrece buenas especificaciones a un precio aceptable.

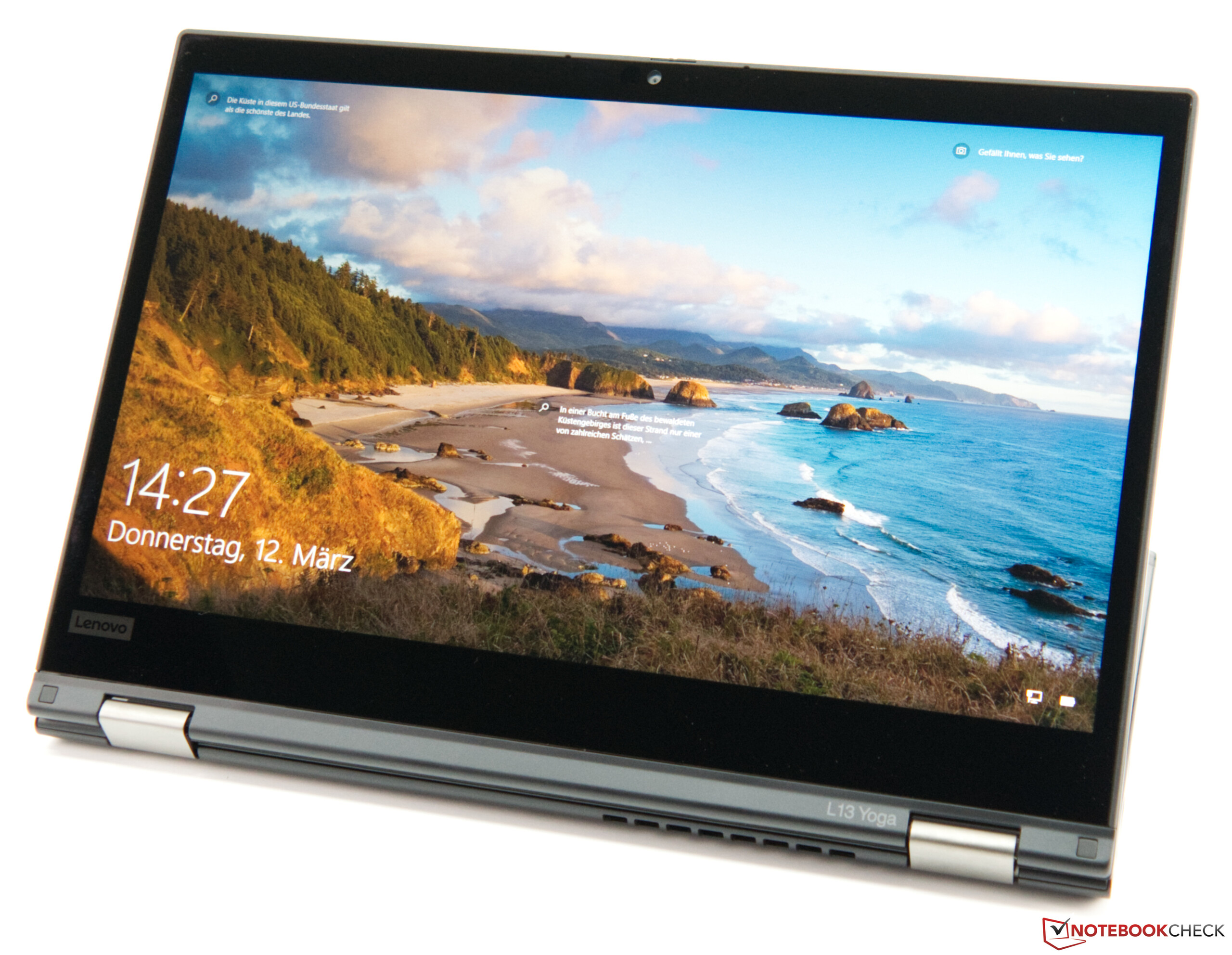

A pesar de las buenas mediciones, las opiniones sobre la pantalla pueden ser ambiguas, porque la baja frecuencia de PWM podría desanimar a algunos usuarios. El Lenovo ThinkPad L13 Yoga ofrece a los usuarios un moderno descapotable, que también puede ser utilizado para la edición de fotos.

Lenovo ThinkPad L13 Yoga 20R6S00800 - 03/19/2020 v7
Sebastian Bade

Acabado
82 / 98 → 83%
Teclado
93%
Ratón
91%
Conectividad
66 / 75 → 88%
Peso
70 / 20-75 → 91%
Battería
73%
Pantalla
89%
Rendimiento de juegos
51 / 78 → 65%
Rendimiento de la Aplicación
86 / 85 → 100%
Temperatura
87%
Ruido
98%
Audio
57 / 91 → 62%
Cámara
38 / 85 → 44%
Médio
75%
88%
Convertible - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Review del Lenovo ThinkPad L13 Yoga: Un convertible de negocios con un buen equipamiento
Sebastian Bade, 2020-03-29 (Update: 2020-03-29)
