Intel UHD Graphics 620

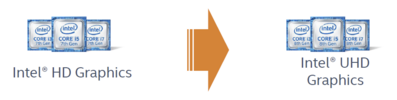

La Intel UHD Graphics 620 (GT2) es una unidad gráfica integrada de la generación Skylake, que puede ser encontrada en varios procesadores ULV (Ultra Low Voltage) de la generación Kaby Lake Refresh (Core de 8va generación). Comparada con la Intel HD Graphics 620 de nombre similar en las CPUs Kaby Lake 2016, solo el nombre cambió de HD a UHD. Tiene una velocidad de hasta 1.150 MHz y por lo tanto 100 MHz superior a la anterior HD Graphics 620 (máx. 1.050 MHz) y ofrece un rendimiento similar. Debido a la falta de memoria gráfica dedicada o cache eDRAM, la HD 620 debe acceder la memoria principal (2x 64bit DDR3/DDR4).
El rendimiento exacto de la UHD Graphics 620 depende de varios factores, como el tamaño del cache L3, configuración de la memoria (DDR3/DDR4) y velocidad máxima del modelo específico y como es similar a la Intel HD Graphics 620 e Intel HD Graphics 630. Comparada con la HD Graphics 620 promedio, los gráficos UHD se benefician un poco de la CPU de cuatro núcleos en nuestros benchmarks de juegos. Por lo tanto, debe posicionarse entre una tarjeta gráfica dedicada GeForce 910M y 920M de Nvidia. Sin embargo, para los juegos, los controladores no se actualizan y se prueban tan rápido como con las tarjetas gráficas GeForce. En nuestras pruebas, el UHD 620 es ideal para juegos casuales como Team Fortress 2, Rocket League o Farming Simulator 17. Vea a continuación una lista de juegos modernos probados con varios modelos.
El motor de vídeo revisado ahora soporta el perfil H.265/HEVC Main10 en hardware con colores de 10 bits. Además, el códec Google VP9 también puede ser decodificado por el hardware. Los primeros modelos no soportan HDCP 2.2 y, por tanto Netflix 4K. Esto se agregó con los nuevos modelos en 2017 y comienzos de mayo de 2017, y los modelos de CPU más antiguos, como el i3-7100U, ahora se envían con un nuevo código S-Spec que admite HDCP 2.2. Sin embargo, HDMI 2.0 solo es compatible con un chip convertidor externo (LSPCon).
La UHD Graphics 620 puede ser encontrada en procesadores móviles especificados con TDP de 15 W y, por tanto es adecuada para portátiles compactos y ultrabooks. El consumo de energía durante la reproducción de The Witcher 3 (con un monitor externo) fue comparable al de un portátil basado en Intel HD Graphics 620 y en el extremo más bajo de todas nuestras mediciones. Las GPU dedicadas, como la GeForce 940MX, necesitaban mucha más energía.
Fabricante | Intel |
Gen. 9.5 Serie | Iris Plus Graphics 655 | 48 @ 0.3 - 1.2 GHz | | Iris Plus Graphics 650 | 48 @ 0.3 - 1.1 GHz | 64/128 Bit | Iris Plus Graphics 645 | 48 @ 0.3 - 1.15 GHz | | Iris Plus Graphics 640 | 48 @ 0.3 - 1.05 GHz | 64/128 Bit | UHD Graphics 630 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | UHD Graphics P630 | 24 @ 0.3 - 1.2 GHz | 64/128 Bit | HD Graphics 630 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | HD Graphics P630 | 24 | 64/128 Bit | UHD Graphics 620 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | HD Graphics 620 | 24 @ 0.3 - 1.05 GHz | 64/128 Bit | UHD Graphics 617 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | UHD Graphics 615 | 24 @ 0.3 - 1 GHz | 64/128 Bit | HD Graphics 615 | 24 @ 0.3 - 1.05 GHz | 64/128 Bit |
|
Nombre Código | Kaby-Lake-Refresh GT2 |
Arquitectura | Gen. 9.5 |
Pipelines | 24 - unificado |
Velocidad del núcleo | 300? - 1150 (Boost) MHz |
Ancho de Bus de Memoria | 64/128 Bit |
Tipo de Memoria | DDR3/DDR4 |
Memoria Compartida | si |
DirectX | DirectX 12_1 |
tecnología | 14 nm |
Características | QuickSync |
Fecha de Anuncio | 01.09.2017 |
CPU in UHD Graphics 620 | GPU Base Speed | GPU Boost / Turbo |
---|
Intel Core i7-10810U | 6 x 1100 MHz, 15 W | 300 MHz | ? MHz | Intel Core i7-10710U | 6 x 1100 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i7-10610U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | » show 15 more | Intel Core i7-10510U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-10310U | 4 x 1700 MHz, 15 W | 300 MHz | ? MHz | Intel Core i7-8665U | 4 x 1900 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i7-8650U | 4 x 1900 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-10210U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i7-8565U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-8365U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i5-8265U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i7-8550U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-8350U | 4 x 1700 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i5-8250U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i3-10110U | 2 x 2100 MHz, 15 W | 300 MHz | 1000 MHz | Intel Core i3-8145U | 2 x 2100 MHz, 15 W | 300 MHz | 1000 MHz | Intel Core i3-8130U | 2 x 2200 MHz, 15 W | 300 MHz | 1000 MHz | Intel Celeron 5205U | 2 x 1900 MHz, 15 W | 300 MHz | 900 MHz | min. - max. | | 300 MHz | 900 - 1150 MHz |
|
Benchmarks
Performance Rating - 3DMark 11 + Fire Strike + Time Spy
6.7 pt (7%)
...
Intel UHD Graphics G1 (Ice Lake 32 EU) 1%
Intel UHD Graphics 630 3%
...
AMD Radeon RX 6800 XT 1323%
3DMark - 3DMark Time Spy Score
min: 343 de promedio: 434 mediana: 434.5 (2%) max: 512 Points
...
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -10%
Intel HD Graphics 630 -2%
Intel UHD Graphics 630 8%
NVIDIA GeForce 920MX 9%
Intel UHD Graphics G1 (Ice Lake 32 EU) 10%
Intel Iris Plus Graphics 640 15%
AMD Radeon R7 M445 22%
...
AMD Radeon RX 6900 XT 3944%
3DMark - 3DMark Time Spy Graphics
min: 299 de promedio: 378 mediana: 378 (2%) max: 443 Points
...
Intel UHD Graphics 617 -22%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -8%
Intel HD Graphics 630 -3%
Intel UHD Graphics 630 7%
Intel UHD Graphics G1 (Ice Lake 32 EU) 10%
NVIDIA GeForce 920MX 10%
Intel Iris Plus Graphics 640 17%
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 65949 de promedio: 89052 mediana: 88807 (14%) max: 115515 Points
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) -7%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -1%
Intel HD Graphics 630 7%
ARM Mali-G78 MP14 8%
Intel UHD Graphics 630 9%
...
3DMark - 3DMark Ice Storm Extreme Graphics
min: 29002 de promedio: 43200 mediana: 42660 (6%) max: 59483 Points
...
Intel UHD Graphics Xe G4 48EUs -3%
AMD Radeon R7 M445 1%
Intel UHD Graphics G1 (Ice Lake 32 EU) 3%
AMD Radeon R7 M340 4%
...
AMD Radeon RX 6800 XT 877%
3DMark - 3DMark Cloud Gate Score
min: 5821 de promedio: 8157 mediana: 8135 (11%) max: 10960 Points
...
NVIDIA GeForce GT 710 -6%
Intel Iris Plus Graphics 640 -2%
Intel HD Graphics 630 5%
AMD FirePro W4100 9%
Intel UHD Graphics G1 (Ice Lake 32 EU) 9%
Intel UHD Graphics 630 12%
Intel Iris Plus Graphics 650 12%
Intel UHD Graphics Xe G4 48EUs 13%
...
AMD Radeon RX 6800 XT 779%
3DMark - 3DMark Cloud Gate Graphics
min: 6910 de promedio: 9222 mediana: 9312 (5%) max: 11436 Points
...
NVIDIA GeForce 930MX -3%
AMD Radeon R6 M340DX -3%
NVIDIA GeForce 920MX -1%
Intel UHD Graphics 630 1%
Intel HD Graphics 630 1%
AMD Radeon R7 M445 4%
...
3DMark - 3DMark Fire Strike Standard Score
min: 538 de promedio: 1055 mediana: 1071 (3%) max: 1298 Points
...
AMD FirePro W2100 -2%
AMD Radeon R5 (Bristol Ridge) 0%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 5%
Intel UHD Graphics 630 7%
...
AMD Radeon RX 6900 XT 3602%
3DMark - 3DMark Fire Strike Standard Graphics
min: 557 de promedio: 1152 mediana: 1164 (2%) max: 1420 Points
...
AMD FirePro W2100 -6%
Intel UHD Graphics 630 5%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 6%
...
AMD Radeon RX 6900 XT 4291%
3DMark - 3DMark Ice Storm Graphics
min: 13790 de promedio: 68374 mediana: 67512 (9%) max: 102010 Points
...
Intel UHD Graphics 630 -6%
NVIDIA GeForce RTX 2070 Super Max-Q -2%
NVIDIA GeForce 930MX 1%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 4%
NVIDIA Quadro P520 5%
...
AMD Radeon RX 6800 XT 564%
3DMark 11 - 3DM11 Performance Score
min: 1175 de promedio: 1927 mediana: 1935 (5%) max: 2283 Points
...
Intel HD Graphics 630 0%
Intel UHD Graphics 630 1%
AMD Radeon R7 M260 2%
...
AMD Radeon RX 6900 XT 2101%
3DMark 11 - 3DM11 Performance GPU
min: 1235 de promedio: 1743 mediana: 1744 (3%) max: 2006 Points
...
Intel UHD Graphics 630 -2%
AMD Radeon R5 (Bristol Ridge) -2%
AMD Radeon R5 (Carrizo) -2%
NVIDIA GeForce 920MX 5%
...
AMD Radeon RX 6900 XT 3292%
3DMark Vantage
3DM Vant. Perf. total +3DMark Vantage - 3DM Vant. Perf. total
7761 Points (8%)
...
NVIDIA GeForce 920MX -5%
Intel HD Graphics 630 -1%
Intel UHD Graphics 630 -1%
NVIDIA GeForce 930MX 4%
...
AMD Radeon RX 6800 XT 1144%
3DM Vant. Perf. GPU no PhysX +3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
6341 Points (6%)
...
AMD Radeon R7 M445 -5%
Intel UHD Graphics 630 -4%
Intel HD Graphics 630 -2%
NVIDIA GeForce 920MX 5%
...
3DMark 2001SE - 3DMark 2001 - Standard
34467 Points (36%)
Honor Magicbook | i5-8250U | 8192 MB | 1468 / MHz | | 34467 |
...
...
3DMark 06 3DMark 06 - Standard 1280x1024 +min: 7653 de promedio: 10759 mediana: 10622 (20%) max: 14158 Points
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 1%
Intel UHD Graphics G1 (Ice Lake 32 EU) 2%
Intel UHD Graphics Xe G4 48EUs 3%
...
AMD Radeon RX 6800 XT 338%
Unigine Valley 1.0 - Unigine Valley 1.0 DX
