Breve análisis del Asus ROG GX800

Objeto de prestigio. Somos uno de los primeros en poder echar un visazo de cerca al futuro GX800. Comparado con el predecesor, Asus no sólo aumenta el rendimiento y las dimensiones, sino que también equipa al dispositivo con un display 4K y soporte G-Sync. ¿Puede el sistema de ventilación con los componentes? Nuestro análisis responde a las preguntas iniciales.
Asus GX800 Prototype (GX800 Serie)
Procesador
Intel Core i7-6820HK 4 x 2.7 - 3.6 GHz @ 4.4 GHz, Skylake
Adaptador gráfico
NVIDIA GeForce GTX 980 SLI (Laptop) - 16 GB VRAM, Núcleo: 1328 MHz, Memoría: 3700 MHz, GDDR5, ForceWare 362.34 (368.39 for Games)
Memoría
64 GB
, 4x 16 GB DDR4-2400, 4 ranuras (ocupadas), dual-channel, hasta 64 GB
pantalla
18.40 pulgadas 16:9, 1920 x 1080 pixels 120 PPI, Samsung 184HL (SDC4C48) , Super PLS, Full HD, lustroso: no
Placa base
Intel CM236 (Skylake PCH-H)
Disco duro
3x Samsung SM951 512 GB NVMe M.2 (RAID 0), 1536 GB
Tarjeta de sonido
Realtek ALC286 @ Intel Sunrise Point PCH - High Definition Audio Controller
Conexiones
3 USB 3.0, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Conexiones: auriculares 3.5mm, micrófono 3.5mm, Card Reader: SD,SDHC,SDXC, antena WiFi
Equipamento de red
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Tamaño
Alto x ancho x profundidad (en mm): 45 x 458 x 338
Battería
76 Wh Litio-Ion, 8 celdas
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD (720p @ 30 fps)
Características adicionales

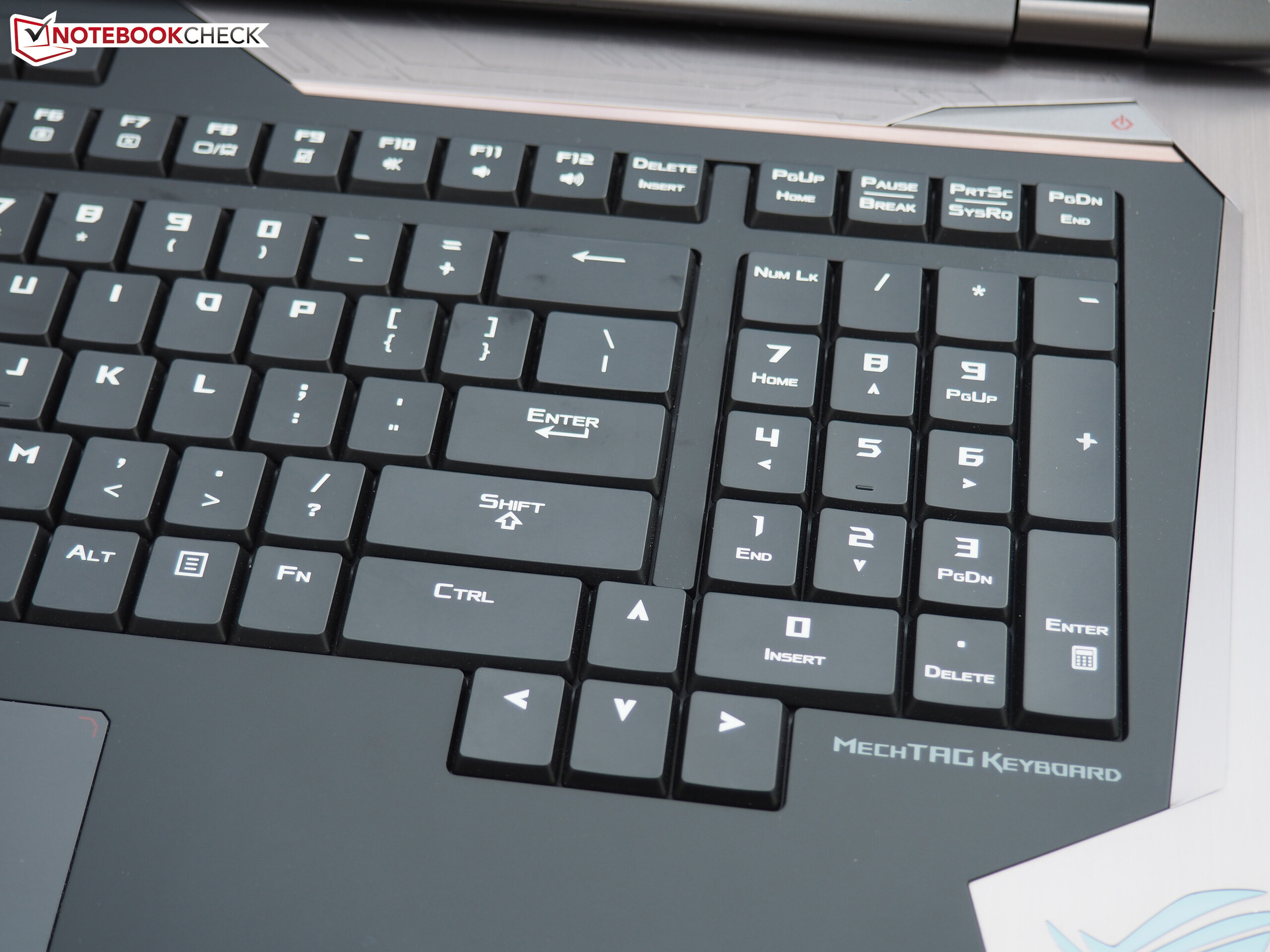

Altavoces: 4.0, Teclado: mecánico, Luz de Teclado: si, adaptador de corriente: 2x 330W, refrigeración por agua: Hydro Overclocking System, McAfee Security Paket, MS Office 365 (prueba), varias herramientas del fabricante, 24 Meses Garantía
Peso
5.69 kg, Suministro de Electricidad: 2 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

456 mm 330 mm 49 mm 5 kg458 mm 338 mm 45 mm 5.7 kg428 mm 308 mm 45 mm 5 kg430 mm 312 mm 38 mm 3.9 kg297 mm 210 mm 1 mm 5.7 g
Left side: Kensington lock, power, RJ45-LAN, HDMI 2.0, Mini-DisplayPort 1.4, Thunderbolt 3.0, USB 3.1 Type-C, USB 3.0, microphone, headphones
Left side: Kensington lock, power, RJ45-LAN, HDMI 2.0, Mini-DisplayPort 1.4, Thunderbolt 3.0, USB 3.1 Type-C, USB 3.0, microphone, headphones

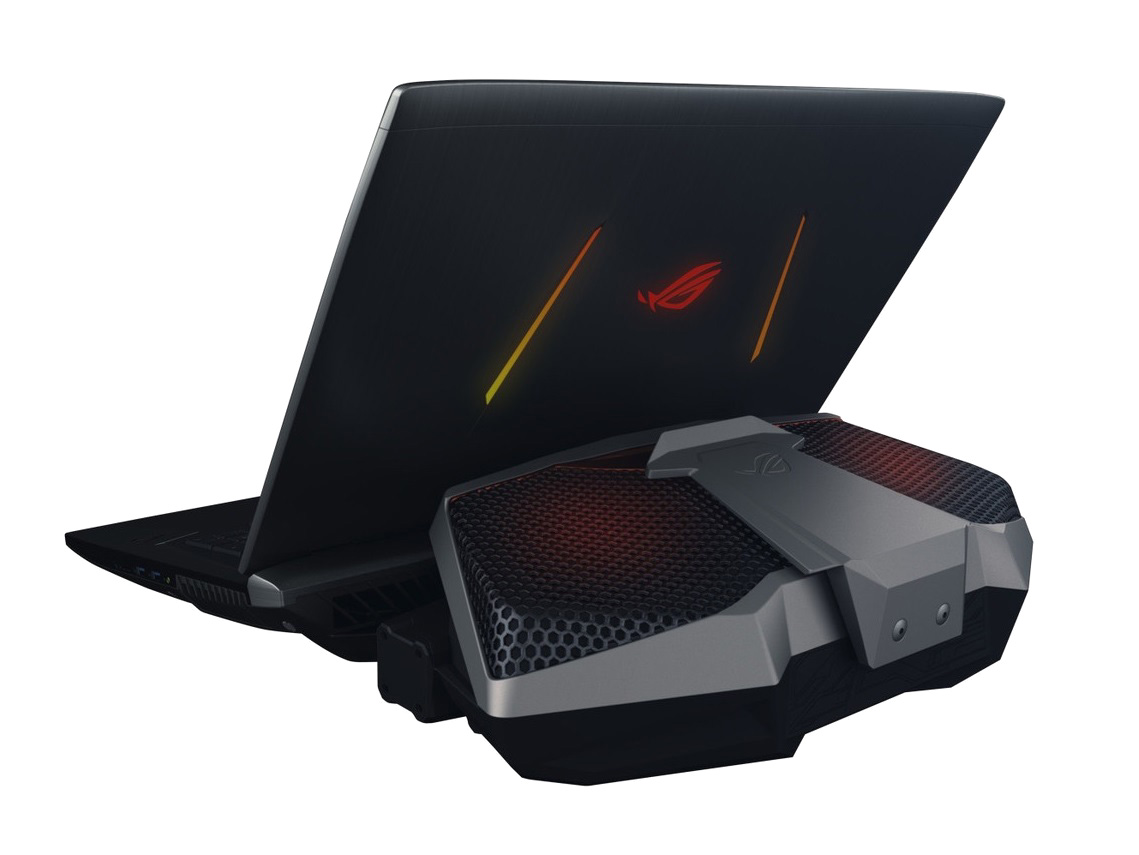

Back: connections for the water cooling
Back: connections for the water cooling
Right side: card reader, 2x USB 3.0, Wi-Fi antenna
Right side: card reader, 2x USB 3.0, Wi-Fi antenna
Cinebench R11.5 CPU Single 64Bit
2.08 Points
Cinebench R11.5 OpenGL 64Bit
85.9 fps
Cinebench R15 CPU Single 64Bit
185 Points
Cinebench R15 OpenGL 64Bit
133.8 fps
ayuda
Cinebench R15 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
185 Points
MSI GT80S 6QF
Intel Core i7-6820HK
174 Points -6%
Asus GX700
Intel Core i7-6820HK
173 Points -6%
SCHENKER XMG U726
Intel Core i7-6700
171 Points -8%
Cinebench R11.5 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
2.08 Points
MSI GT80S 6QF
Intel Core i7-6820HK
1.98 Points -5%
Asus GX700
Intel Core i7-6820HK
1.95 Points -6%
SCHENKER XMG U726
Intel Core i7-6700
1.91 Points -8%
PCMark 7 Score
8047 puntos
ayuda
PCMark 7 - Score
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK, 3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
8047 Points
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
7933 Points -1%
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK, 2x Samsung SM951 MZVPV256HDGL (RAID 0)
7386 Points -8%
SCHENKER XMG U726
GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e
7093 Points -12%

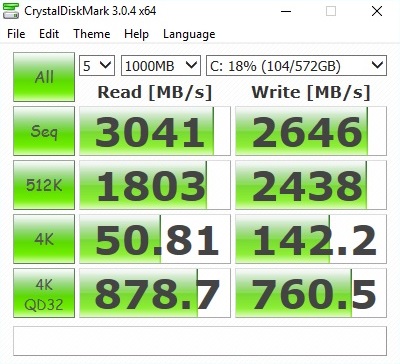

3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
Sequential Read: 3041 MB/s
Sequential Write: 2646 MB/s
512K Read: 1803 MB/s
512K Write: 2438 MB/s
4K Read: 50.8 MB/s
4K Write: 142.2 MB/s
4K QD32 Read: 879 MB/s
4K QD32 Write: 761 MB/s
Asus GX800 Prototype
3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
MSI GT80S 6QF
2x Samsung SM951 MZVPV256HDGL (RAID 0)
Asus GX700
2x Samsung SM951 MZVPV512HDGL (RAID 0)
SCHENKER XMG U726
Samsung SM951 MZHPV512HDGL m.2 PCI-e

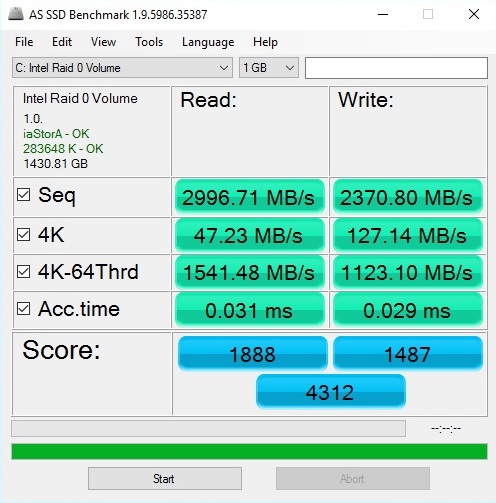

AS SSD
-9%
-4%
-32%
Seq Read
2997
2892
-4%
2964
-1%
1943
-35%
Seq Write
2371
2408
2%
2525
6%
1500
-37%
4K Read
47.23
44.96
-5%
46.43
-2%
40.45
-14%
4K Write
127.1
109.9
-14%
119.6
-6%
103.6
-18%
Score Total
4312
3336
-23%
3655
-15%
1930
-55%
3DMark 11 Performance
22627 puntos
3DMark Ice Storm Standard Score
197819 puntos
3DMark Cloud Gate Standard Score
35100 puntos
3DMark Fire Strike Score
19513 puntos
ayuda
3DMark
1920x1080 Fire Strike Score
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
19513 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
17165 Points -12%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
11440 Points -41%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
11096 Points -43%
1920x1080 Fire Strike Graphics
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
27555 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
23351 Points -15%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
13382 Points -51%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
13047 Points -53%
3DMark 11
1280x720 Performance
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
22627 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
20055 Points -11%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
15462 Points -32%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
14925 Points -34%
1280x720 Performance GPU
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
36293 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
30045 Points -17%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
17864 Points -51%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
17474 Points -52%
Unigine Heaven 4.0 - Extreme Preset DX11
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
149.5 fps
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
129.5 fps -13%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
78.7 fps -47%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
78.3 fps -48%
Mirror's Edge Catalyst
3840x2160 High Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
48.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47 (44min - 50max) fps -3%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
31 fps -36%
1920x1080 Ultra Preset AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
121 (108min - 131max) fps +1%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
119.3 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
81.9 fps -31%
Overwatch
3840x2160 High (Render Scale 100 %) AA:SM AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
143 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (88min - 121max) fps -27%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
69.4 fps -51%
1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
297.4 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
196 (164min - 231max) fps -34%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
125.9 fps -58%
Doom
3840x2160 High Preset AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
56.5 fps -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
41.4 fps -41%
1920x1080 Ultra Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
160.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
137 (112min - 191max) fps -15%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
116 fps -28%
Need for Speed 2016
3840x2160 High / On AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
75.1 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
61 (47min - 75max) fps -19%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
40.5 fps -46%
1920x1080 Ultra / On AA:T
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (64min - 148max) fps +12%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
93.1 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.3 fps -17%
Hitman 2016
3840x2160 High / On AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
54.6 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
42 (34min - 53max) fps -23%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
28.8 fps -47%
1920x1080 Ultra / On AA:SM AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
78 (61min - 96max) fps +10%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.6 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
61.3 fps -13%
The Division
3840x2160 High Preset AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
55.1 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48.5 (19min - 65max) fps -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.3 fps -40%
1920x1080 Ultra Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
100.6 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
95 (55min - 125max) fps -6%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
64.6 fps -36%
Far Cry Primal
3840x2160 High Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
56 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
49 (46min - 53max) fps -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
32 fps -43%
1920x1080 Ultra Preset AA:SM
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
106 (80min - 125max) fps +25%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
85 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
68 fps -20%
XCOM 2
3840x2160 High Preset AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
39 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
30.4 (27min - 34max) fps -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
20.1 fps -48%
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
59.9 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48 (43min - 52max) fps -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.4 fps -44%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
60.9 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
50 fps -18%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47.8 (43min - 54max) fps -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.7 fps -45%
1920x1080 Very High Preset AA:FX AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (105min - 124max) fps +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (105min) fps +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 fps +19%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
94.4 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.1 fps -18%
bajo medio alto ultra4K
Rise of the Tomb Raider (2016) 107.3 95 94.7 94.4 60.9
XCOM 2 (2016) 129.6 109.5 108 59.9 39
Far Cry Primal (2016) 98 97 86 85 56
The Division (2016) 226 189.9 126.5 100.6 55.1
Hitman 2016 (2016) 84.8 79.7 72 70.6 54.6
Need for Speed 2016 (2016) 133.4 122.4 121.4 93.1 75.1
Doom (2016) 192.7 189.8 168.7 160.3 70.3
Overwatch (2016) 299.9 299.8 299.8 297.4 143
Mirror's Edge Catalyst (2016) 197.4 145.4 124.4 119.3 48.3
Consumo de corriente
Off / Standbydarklight 2.8 / 5.2 Watt
Ociosodarkmidlight 58 / 68 / 74 Watt
Carga midlight 200 / 590 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK
Asus GX700
GeForce GTX 980 (Laptop), 6820HK
SCHENKER XMG U726
GeForce GTX 980 (Laptop), 6700
Power Consumption
22%
34%
36%
Idle Minimum *
58
44
24%
40
31%
36
38%
Idle Average *
68
53
22%
45
34%
45
34%
Idle Maximum *
74
62
16%
51
31%
53
28%
Load Average *
200
163
18%
149
25%
139
30%
Load Maximum *
590
411
30%
313
47%
306
48%

* ... más pequeño es mejor

Pro

+ teclado mecánico con mucha iluminación
+ overclocking adicional del procesador y la gráfica
+ producto final con display 4K y G-Sync
+ muchos puertos (como Thunderbolt)
+ 3 SSDs NVMe en RAID 0
+ excelente rendimiento
+ touchpad cómodo
+ 64 GB de RAM DDR4
+ concepto atrevido
+ bonito diseño
+ herramientas potentes

Contra

- típicos problemas de GPU dual (dependencia de drivers, micro trastabilles, ...)
- necesita dos adaptadores de corriente para operar con refrigeración por agua
- alto consumo de energía
- mantenimiento incómodo
- chasis pesado
- movilidad limitada

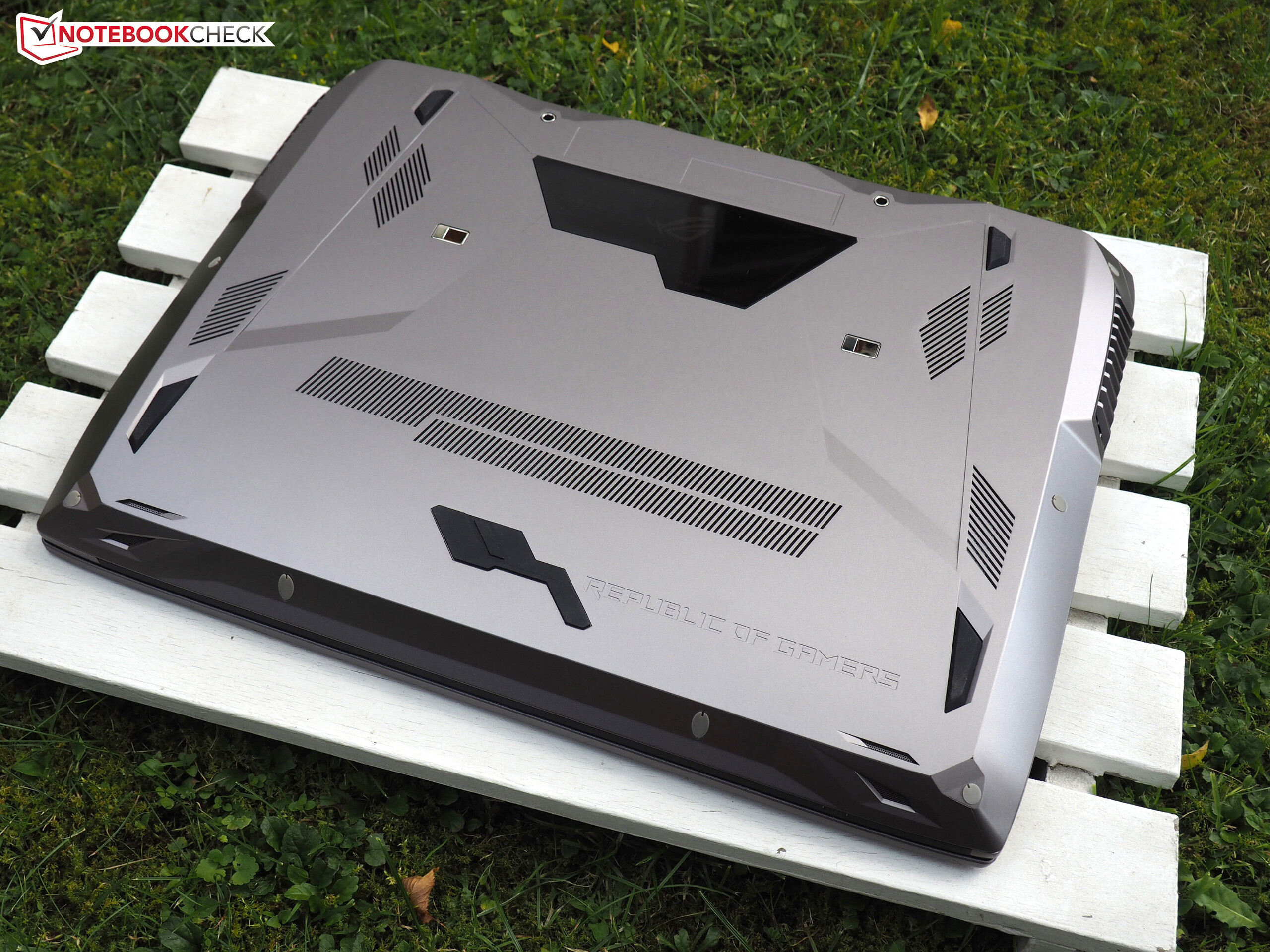

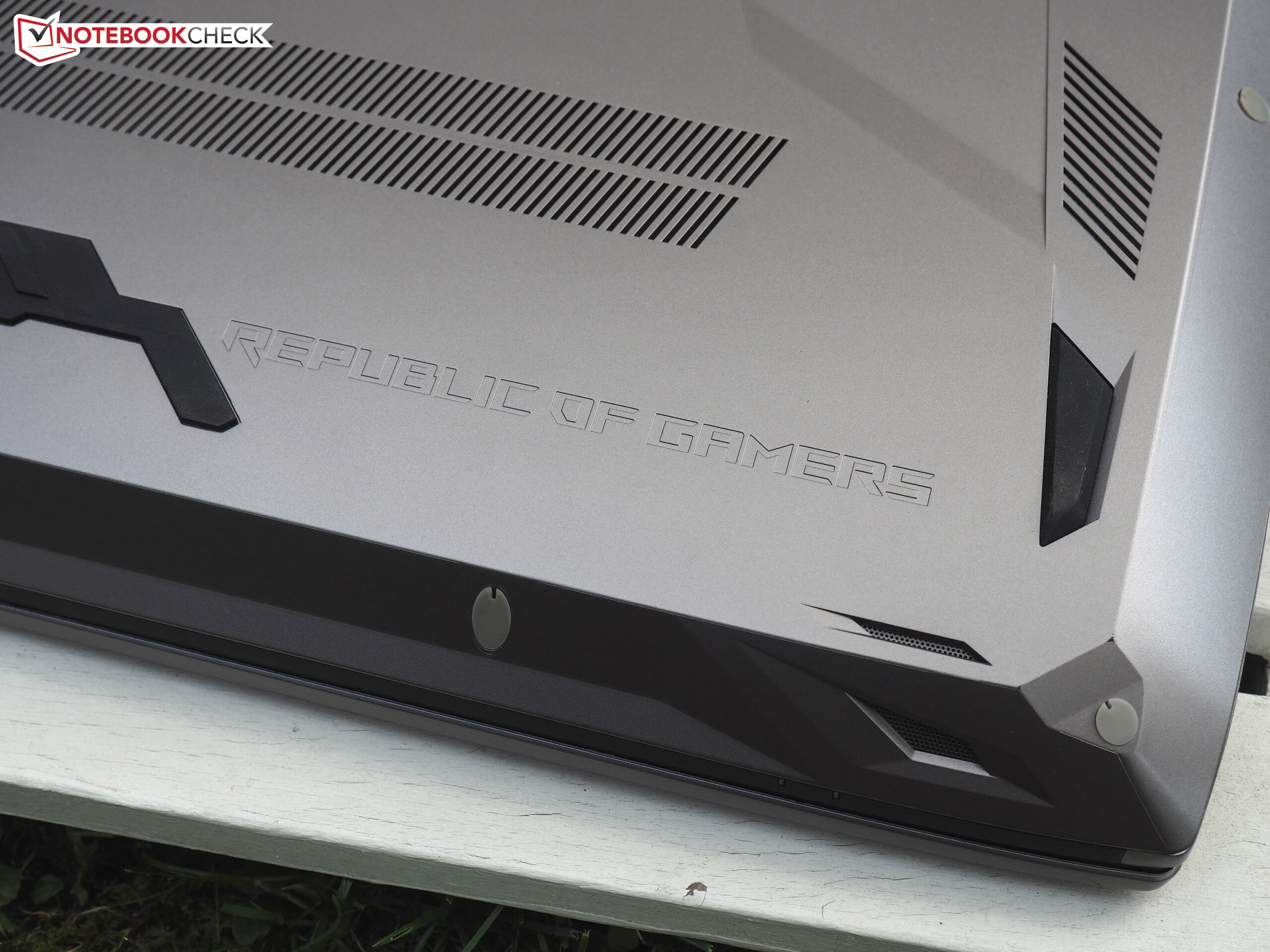

Asus GX800. Prototipo cortesía de Asus Taiwan.
Asus GX800. Prototipo cortesía de Asus Taiwan.

Gracias a la refrigeración externa por agua, el portátil de Asus es seguramente uno de los conceptos más interesantes del último par de años. El GX700 ya era un producto único, y tiene un digno sucesor en el GX800.

El punto principal son el rendimiento y las características. No sólo el número de SSDs ha aumentado, sino también el de GPUs. Siguiendo el concepto de "dos mejor que uno", el portátil viene equipado ahora con dos GPUs Nividia de gama alta. Gracias al overclocking, logran frame rates imposibles hasta ahora y dejan al usuario listo para los 4K.

El sistema SLI, empero, afecta al peso y al consumo de energía, que son bastante altos. El panel UHD con soporte G-Sync y la generosa variedad de puertos (USB 3.1 Type-C, Thunderbolt 3, HDMI 2.0, etc.) son otra gran ventaja.

El GX800 va igualado con el rival de doble GPU MSI GT80S (o más precisamente su sucesor), que tiene su propia serie de ventajas y defectos, pero usa un concepto clásico sin refrigeración por agua.

Obviamente habrá un "auténtico" análisis en cuanto tengamos nuestras manos en el producto final.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Pricecompare

Please share our article, every link counts!
Florian Glaser, 2016-07-20 (Update: 2016-07-20)
