Revisión del NiPoGi CK10 con el Intel Core i7-10810U: Pequeño PC de oficina que ofrece espacio para tres SSD

Ya conocemos al fabricante chino de sistemas Minipc Union tras haber revisado tanto el Ace Magician AMR5 como el Ace Magician TK11-A0 - dos interesantes mini PC. Ahora ha aparecido otro pequeño contendiente en forma de nuestra muestra de revisión NiPiGi CK10. El sistema se basa en un Intel Core i7-10810U de la serie Comet Lake. El SoC ya no es el chico más nuevo del bloque a pesar de lo prometedor que puedan parecer 6 núcleos y 12 hilos. Junto con 16 GB de RAM DDR4 y un SSD de 512 GB, así como una licencia de Windows, el dispositivo cuesta aproximadamente 600 euros

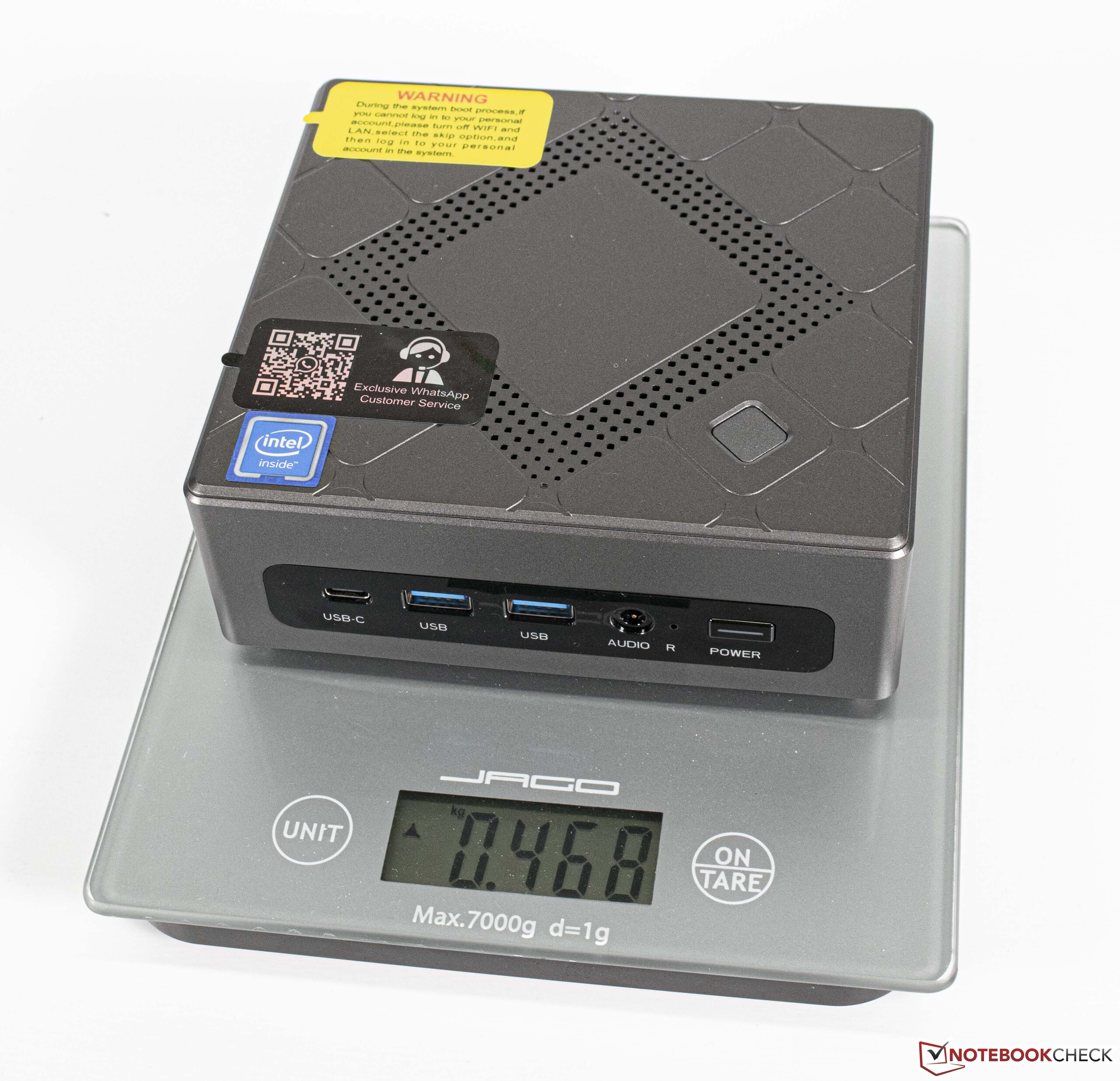

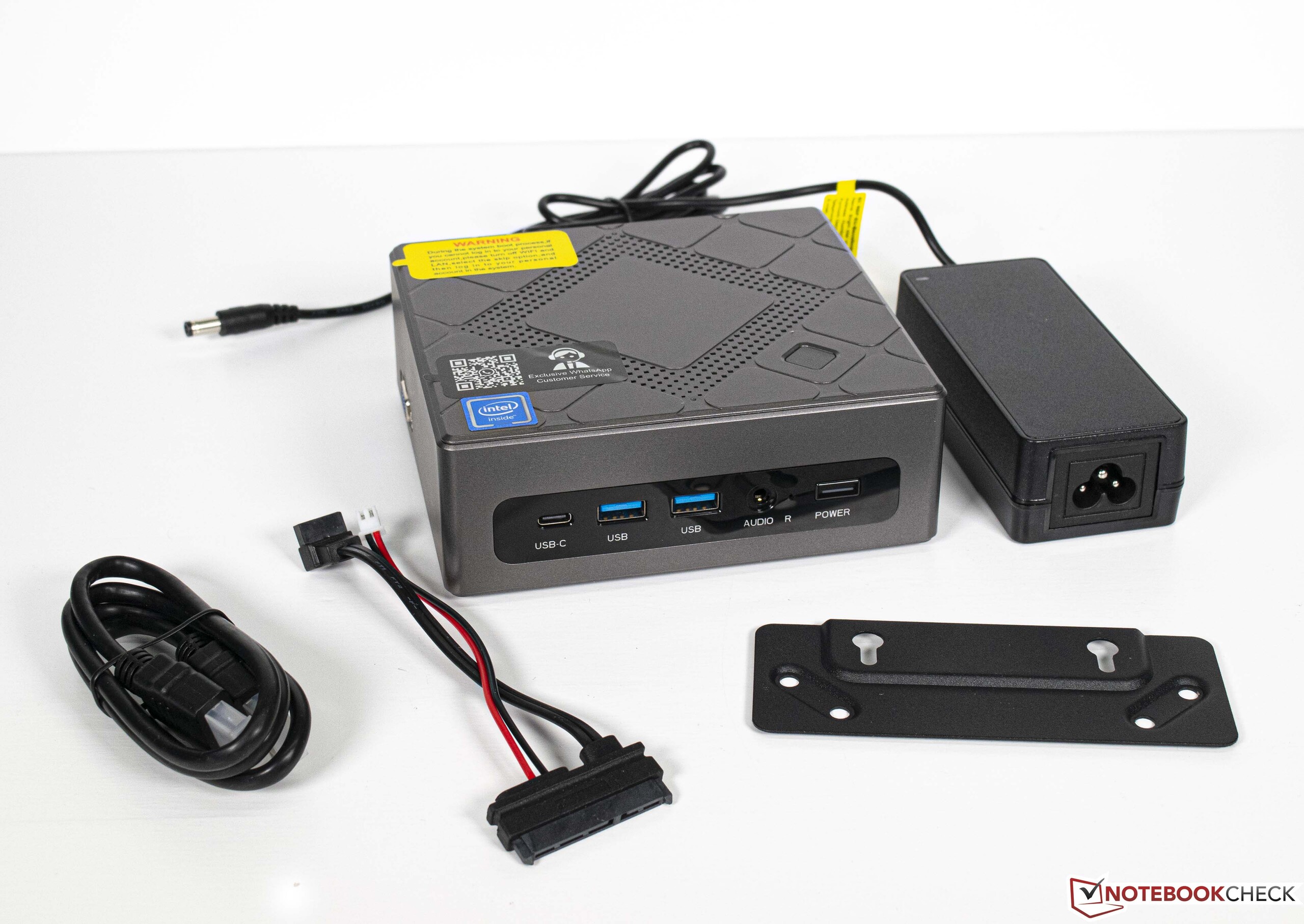

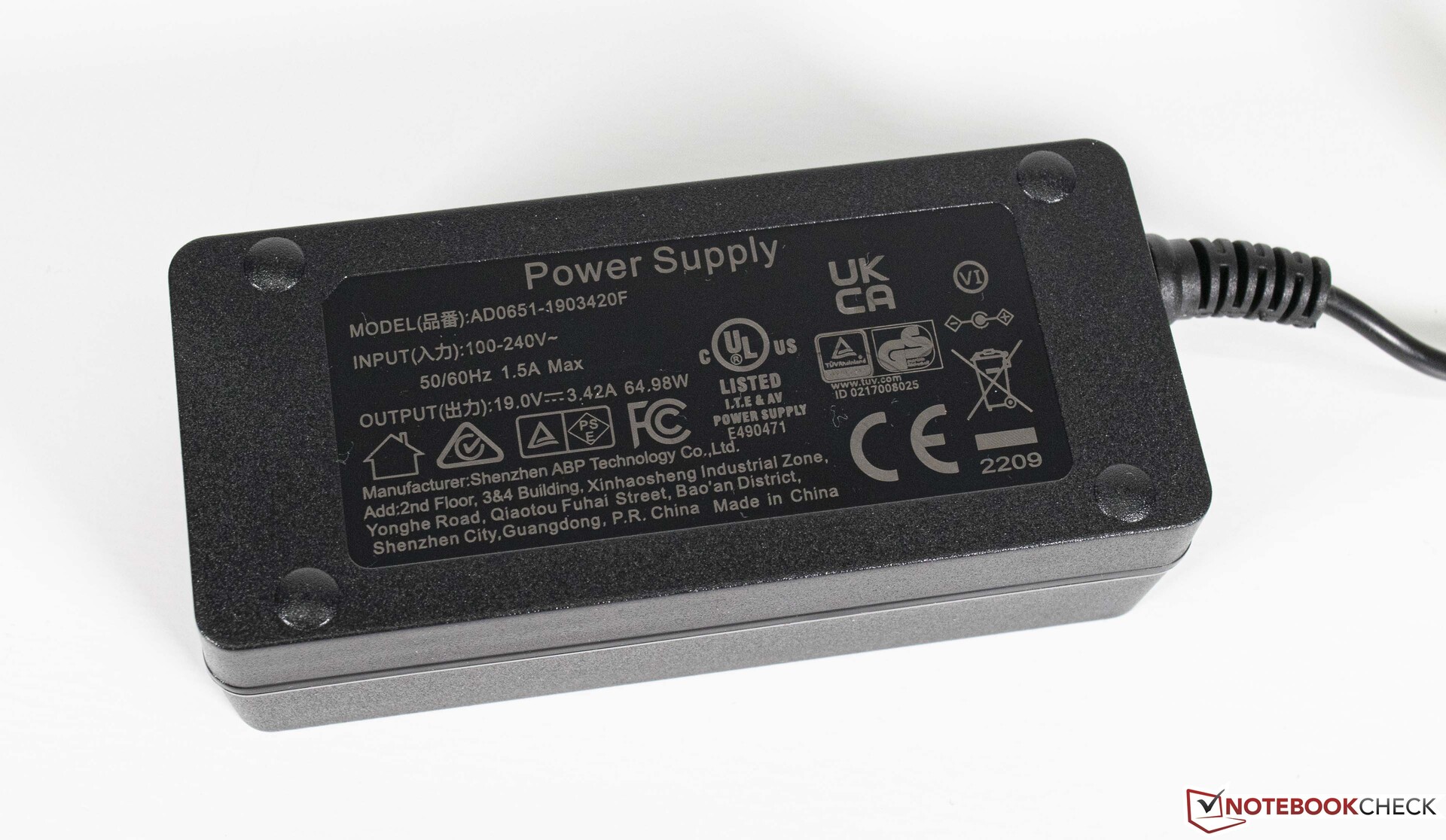

El Mini PC llega en un embalaje compacto, que incluye un adaptador de corriente de 65 vatios y un soporte VESA que permite fijar el dispositivo a un monitor. En la siguiente tabla se puede encontrar un resumen de los posibles competidores.

Valoración	Fecha	Modelo	Peso	Altura
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Caso

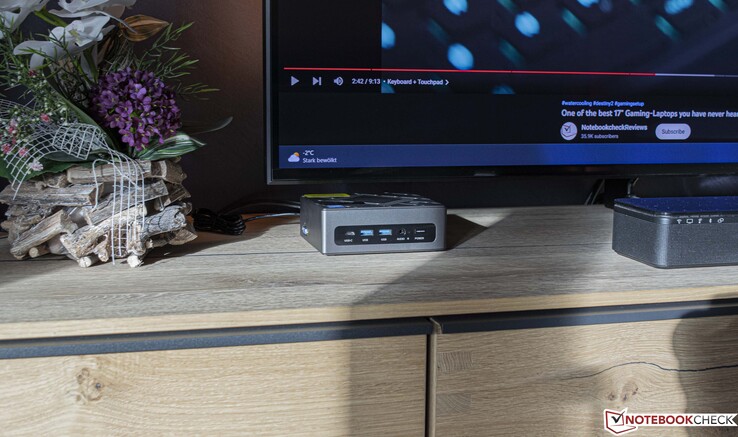

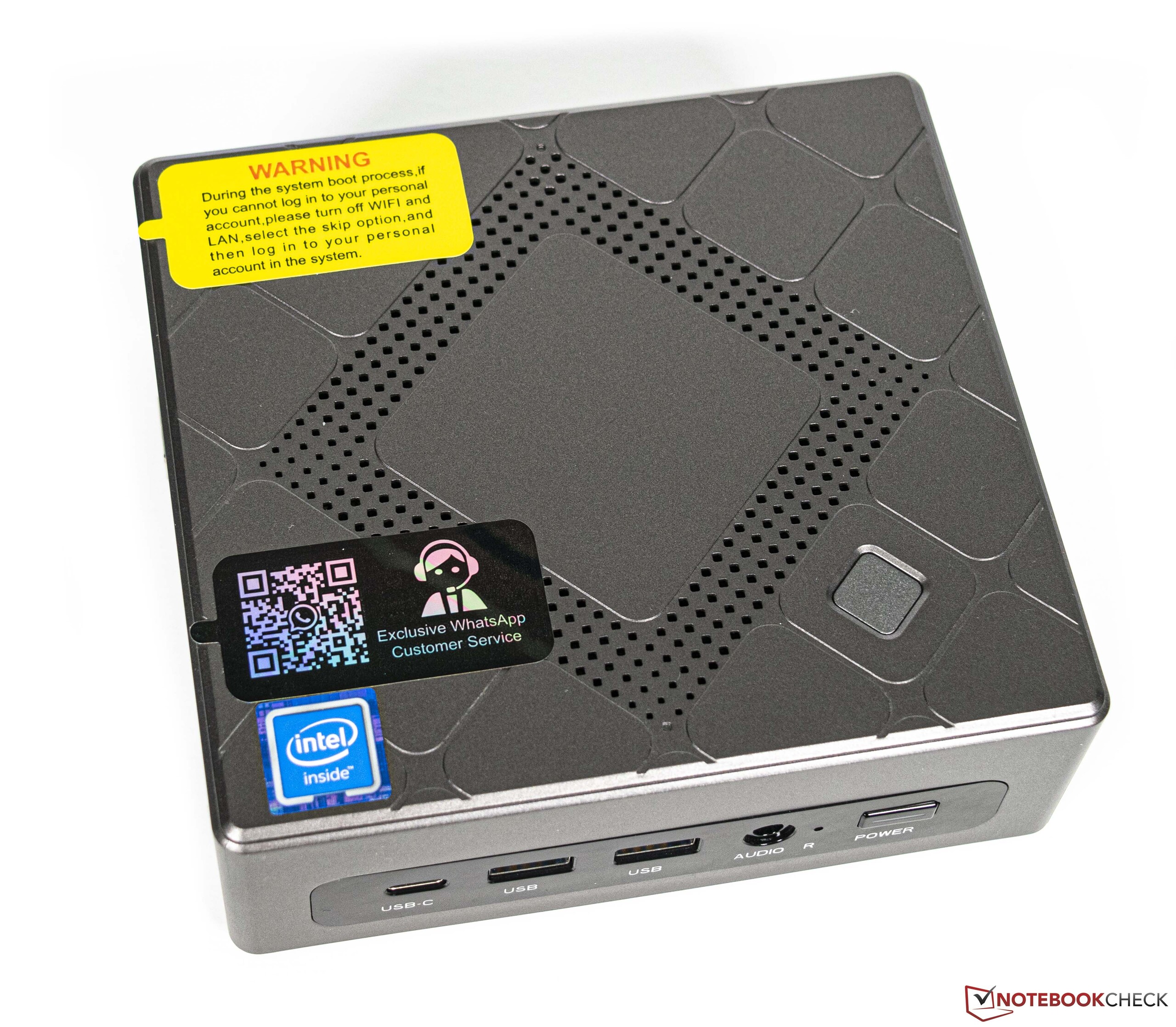

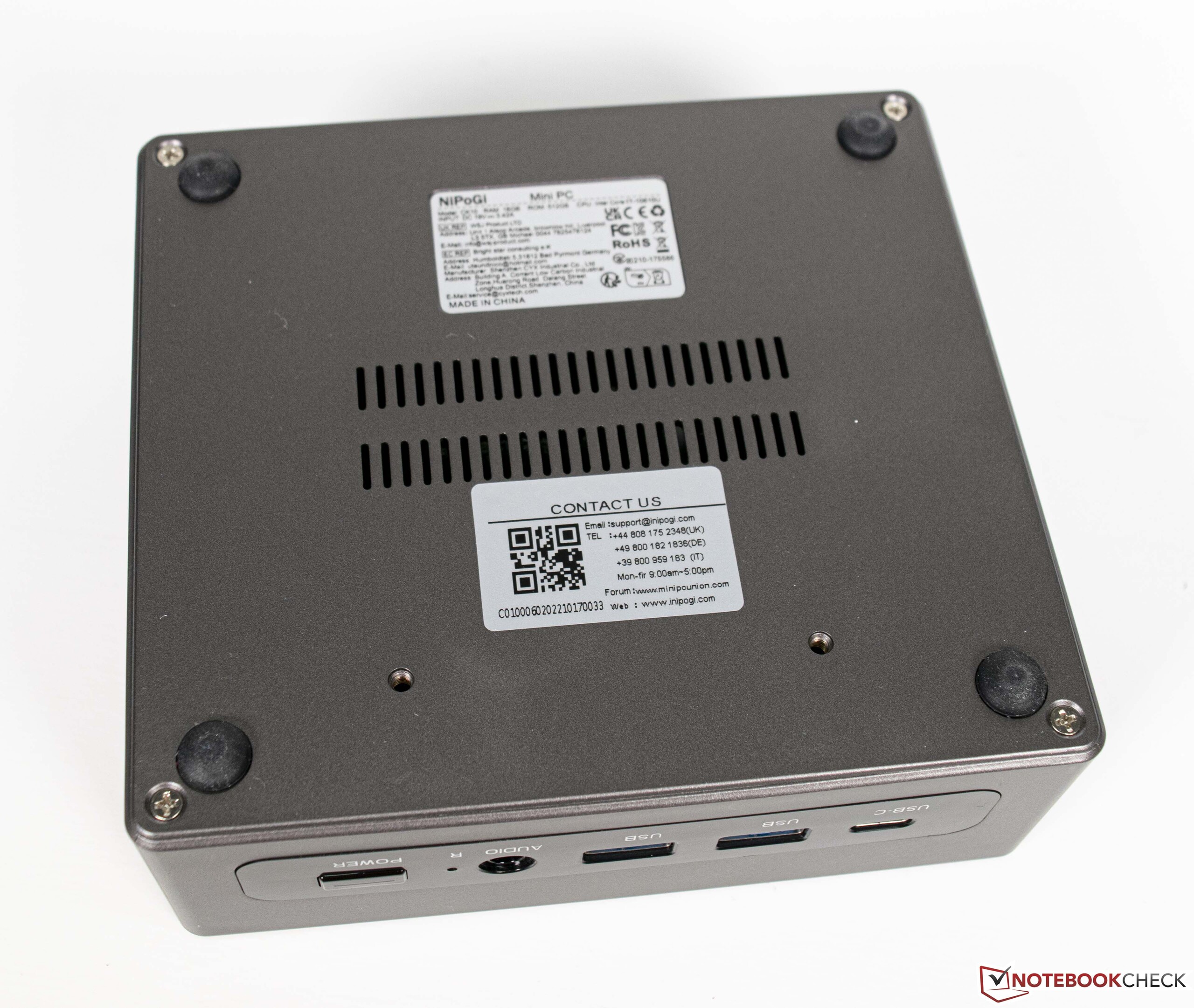

El NiPoGi CK10 es un sencillo mini PC que no tiene nada que destacar. Con un tamaño de 13,7 x 12,5 centímetros, es más pequeño que muchos de sus competidores. En cuanto a la altura, el PC compacto mide casi exactamente cinco centímetros. En cuanto a la elección de materiales, el NiPoGi CK10 está hecho principalmente de plástico. El fabricante ha evitado por completo la implementación de un marco metálico estabilizador. Un escáner de huellas dactilares ficticio se encuentra en la parte superior del dispositivo y sugiere que la carcasa ha sido preparada para posibilidades de configuración adicionales.

Comparación de tamaños

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

Conectividad

En el ámbito de las interfaces externas, el NiPoGi CK10 ofrece una selección sencilla y estándar. Un total de cinco puertos USB está bien y debería ser suficiente para la mayoría de usuarios. El puerto Type-C disponible no ofrece soporte Thunderbolt. Sin embargo, el conector VGA compensa esto con sentimientos de nostalgia. Lo interesante que sea el puerto de monitor analógico dependerá de los propios usuarios. No obstante, se pueden usar hasta dos pantallas modernas sin problemas a través de HDMI.

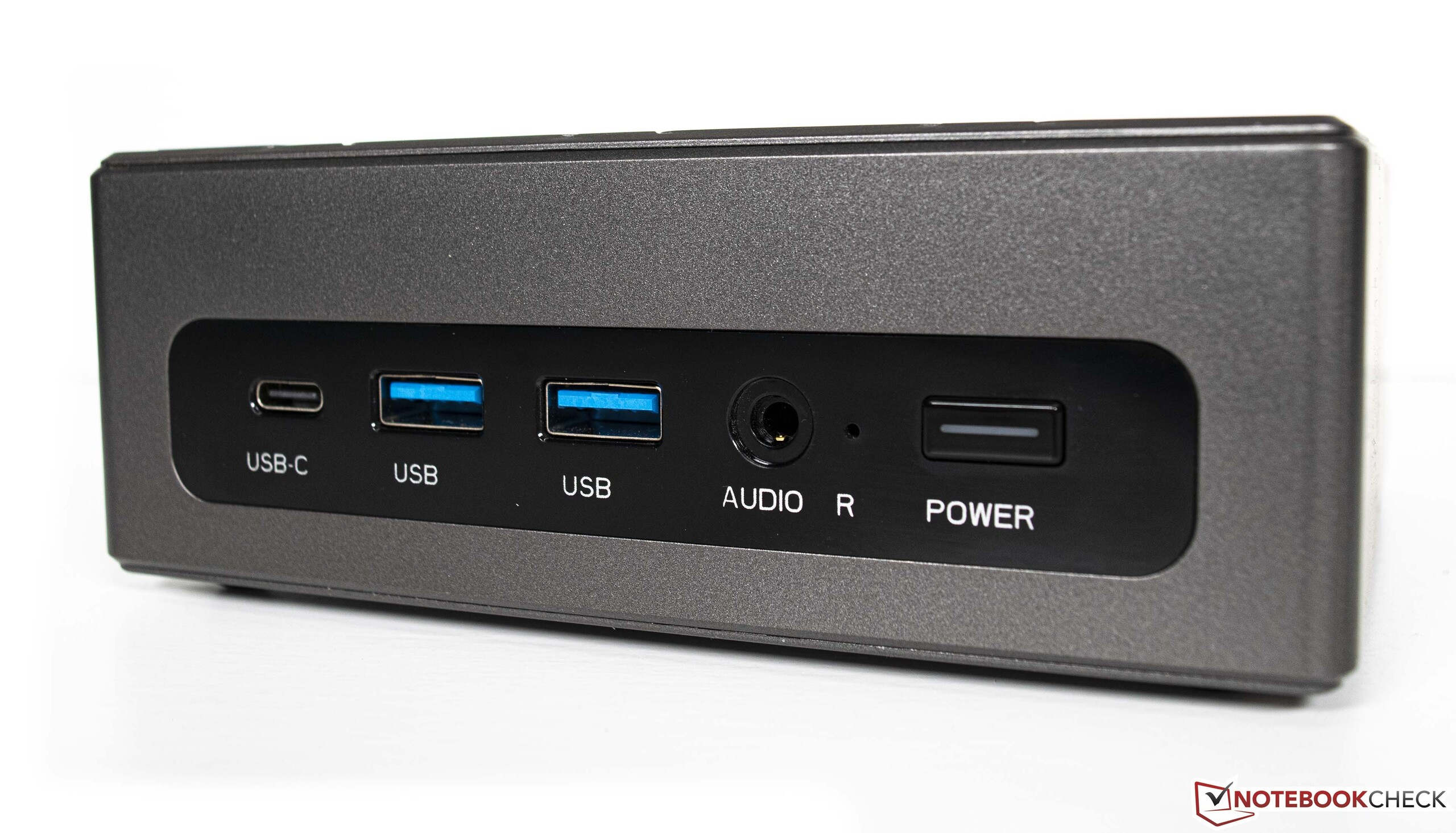

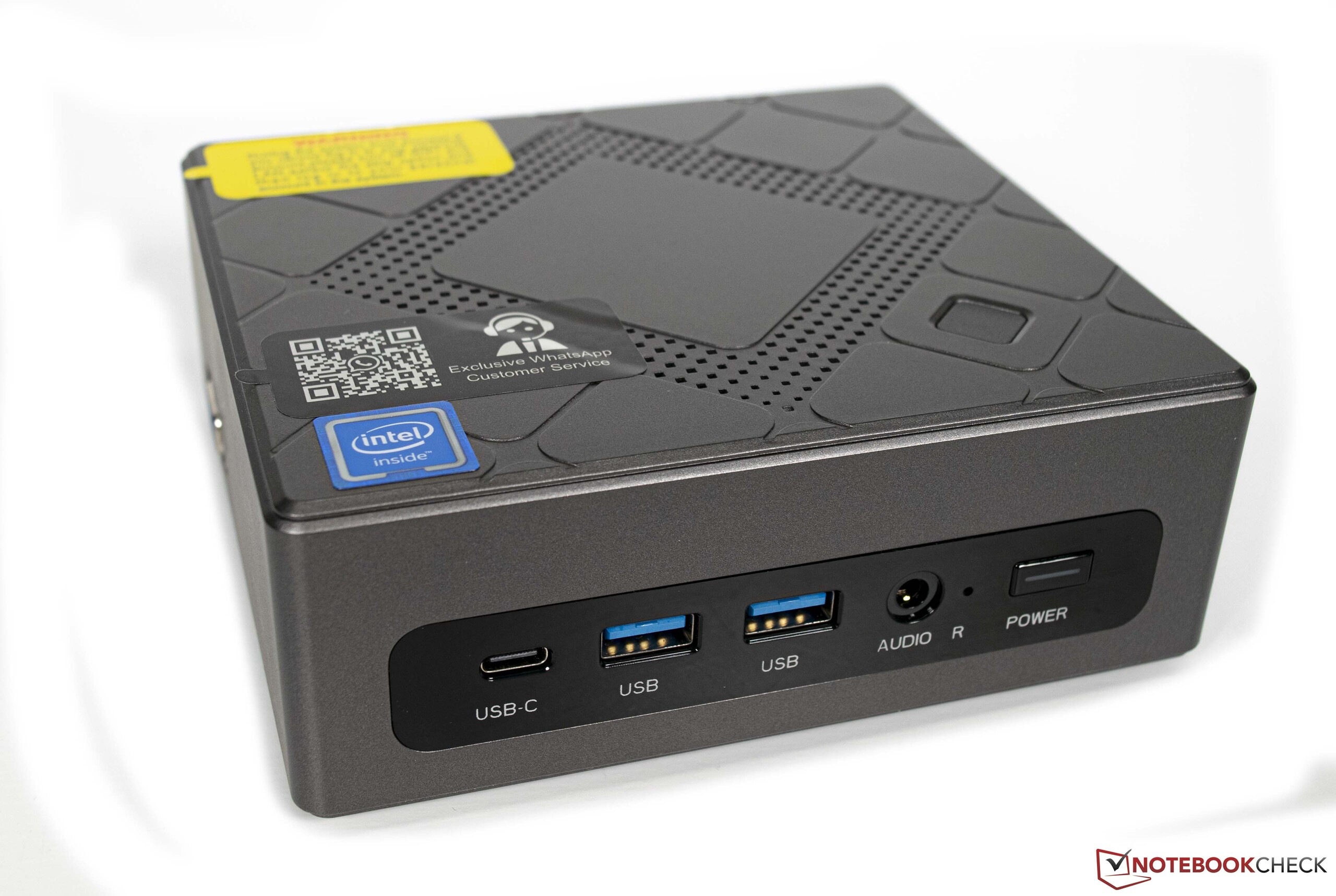

Parte delantera: USB tipo C (datos), 2 USB 3.0, conector de audio de 3,5 mm, botón de encendido

Parte trasera: 2x USB 3.0, 2x HDMI, GBit LAN, conector de red

Comunicación

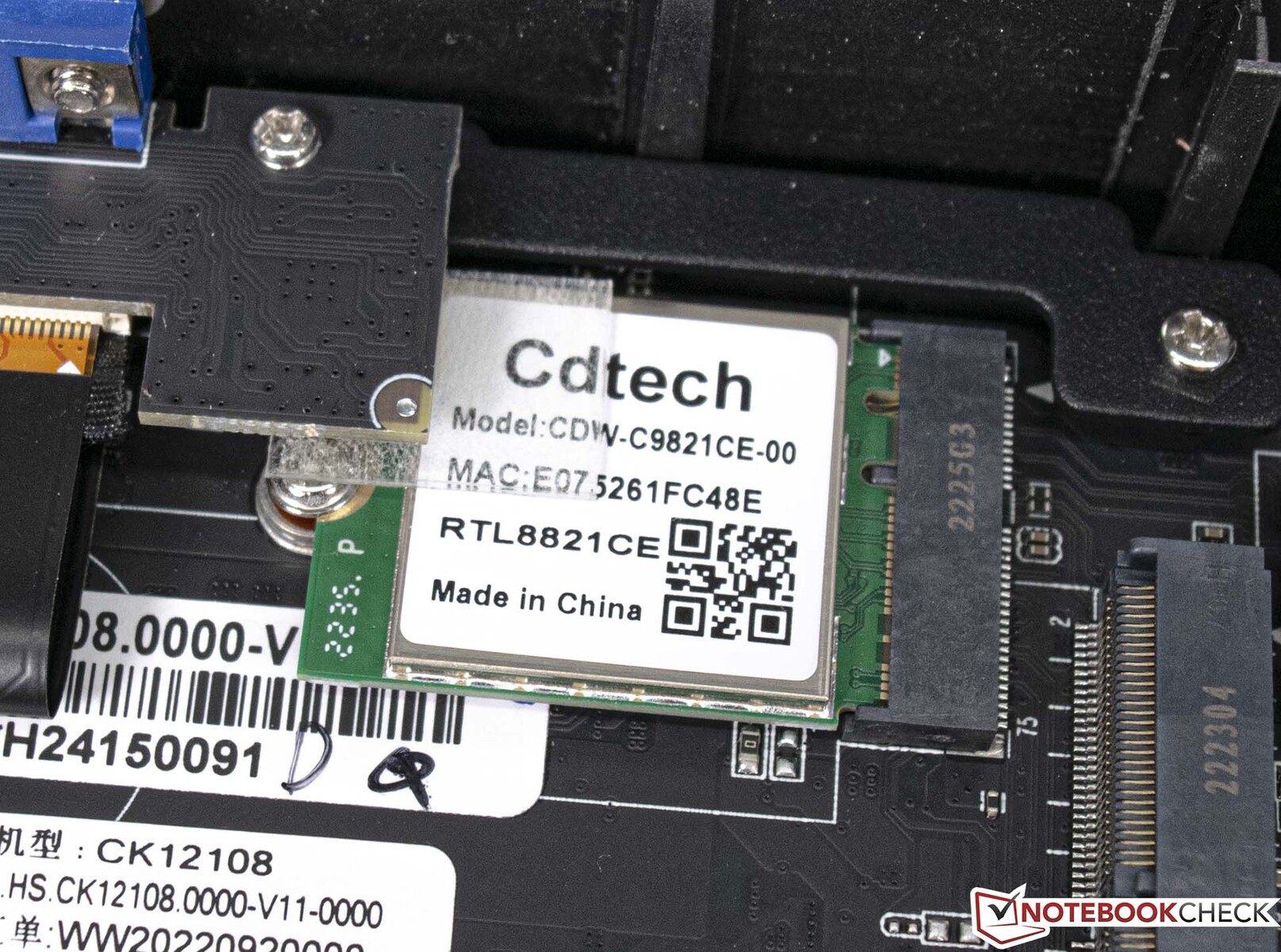

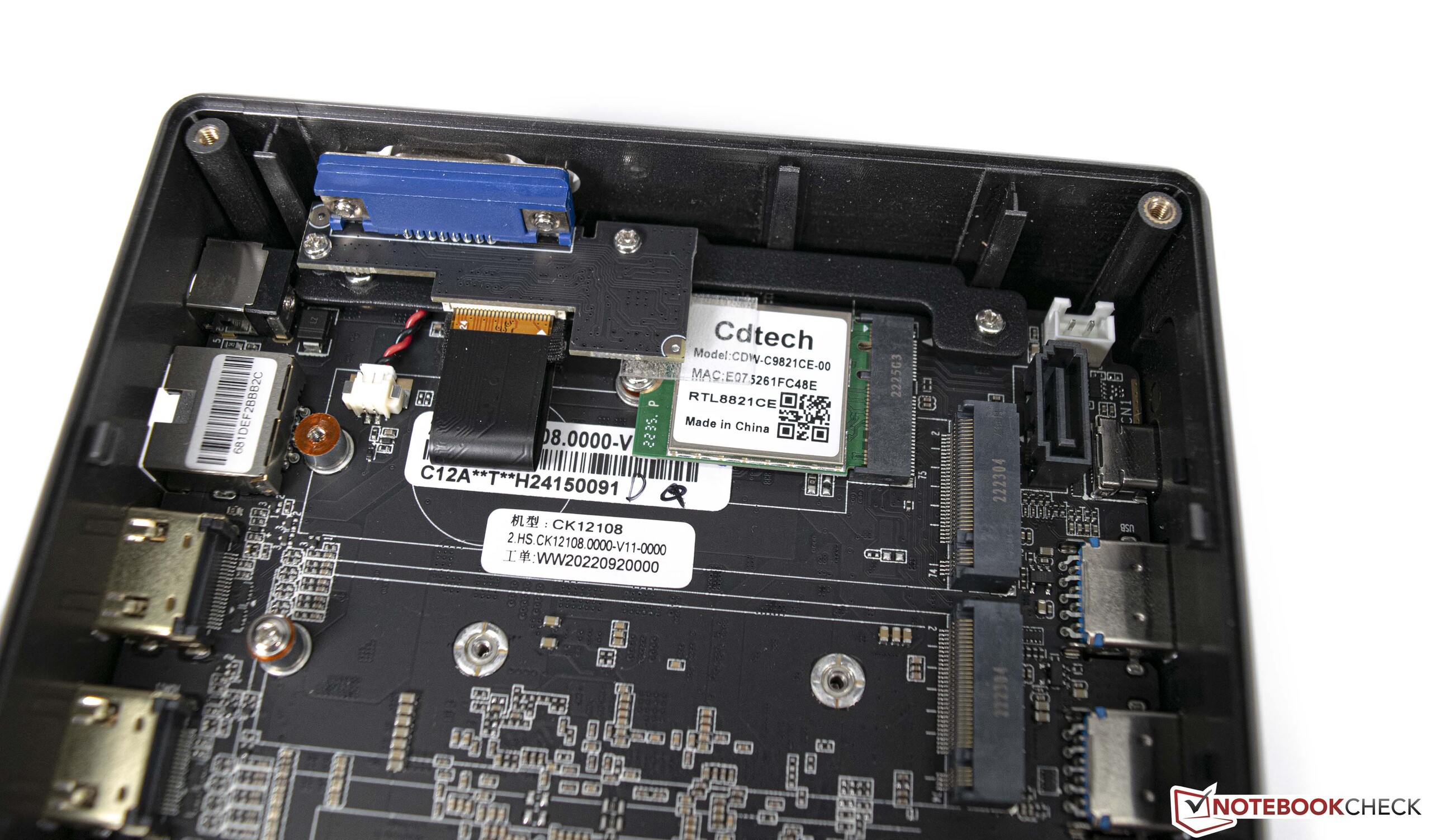

En el interior del NiPoGi CK10 se esconde un módulo Wi-Fi de Realtek. Durante las pruebas, el módulo inalámbrico fue lamentablemente incapaz de ofrecer un rendimiento convincente cuando se emparejó con nuestro router de prueba, el Asus ROG Rapture GT-AXE11000. Por un margen considerable, la muestra de prueba ocupó el último lugar en nuestra tabla de comparación. Afortunadamente, es posible una conexión a internet más rápida de hasta 1 GBit/s cuando se usa una conexión por cable.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼100% +368%
Average of class Mini PC (192.9 - 1796, n=51, last 2 years)	876 MBit/s ∼97% +354%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s ∼86% +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼48% +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s ∼43% +102%
Average RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s ∼30% +40%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s ∼21%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼100% +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s ∼90% +152%
Average of class Mini PC (184.1 - 1776, n=51, last 2 years)	816 MBit/s ∼84% +138%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s ∼77% +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼59% +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s ∼35%
Average RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s ∼32% -10%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

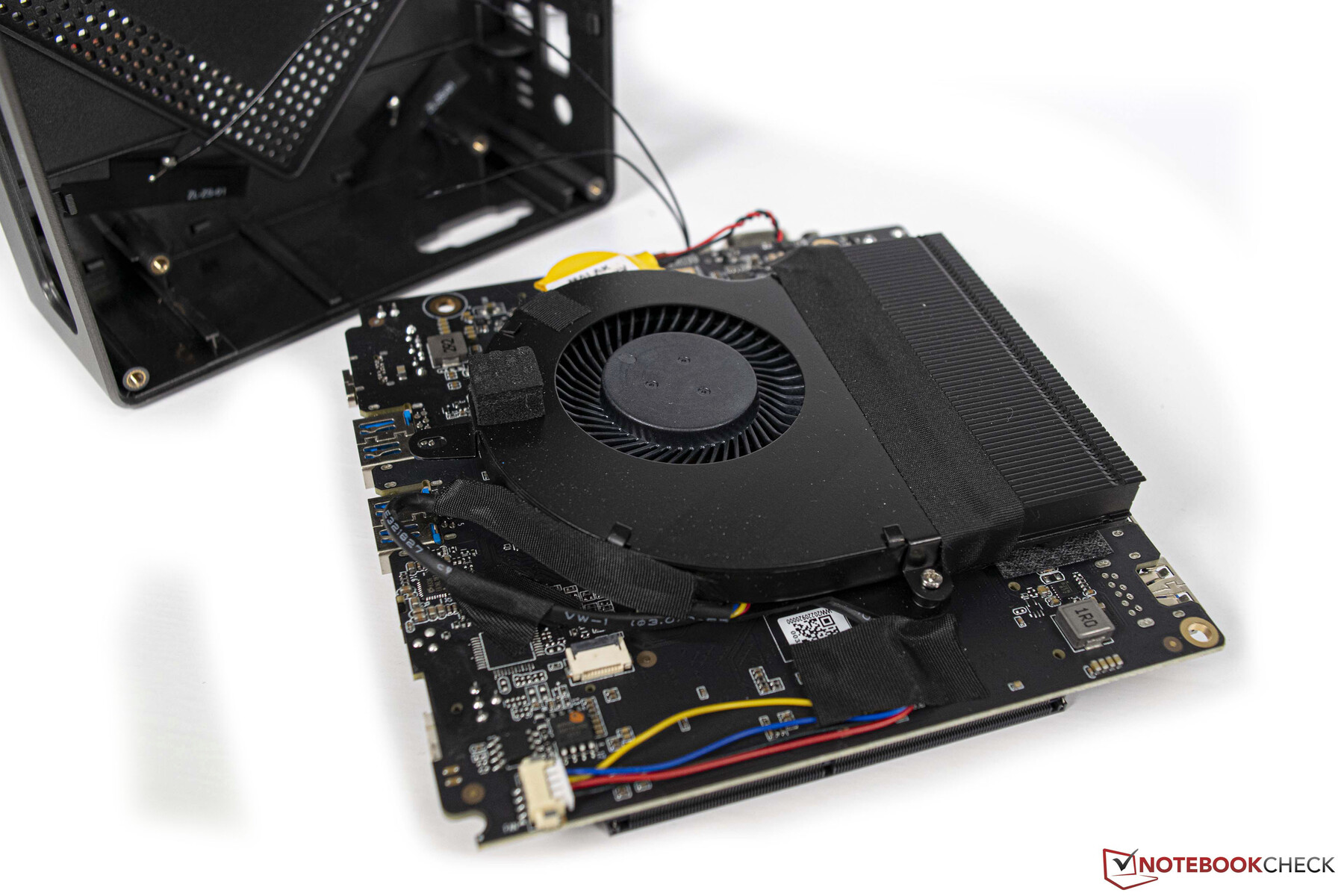

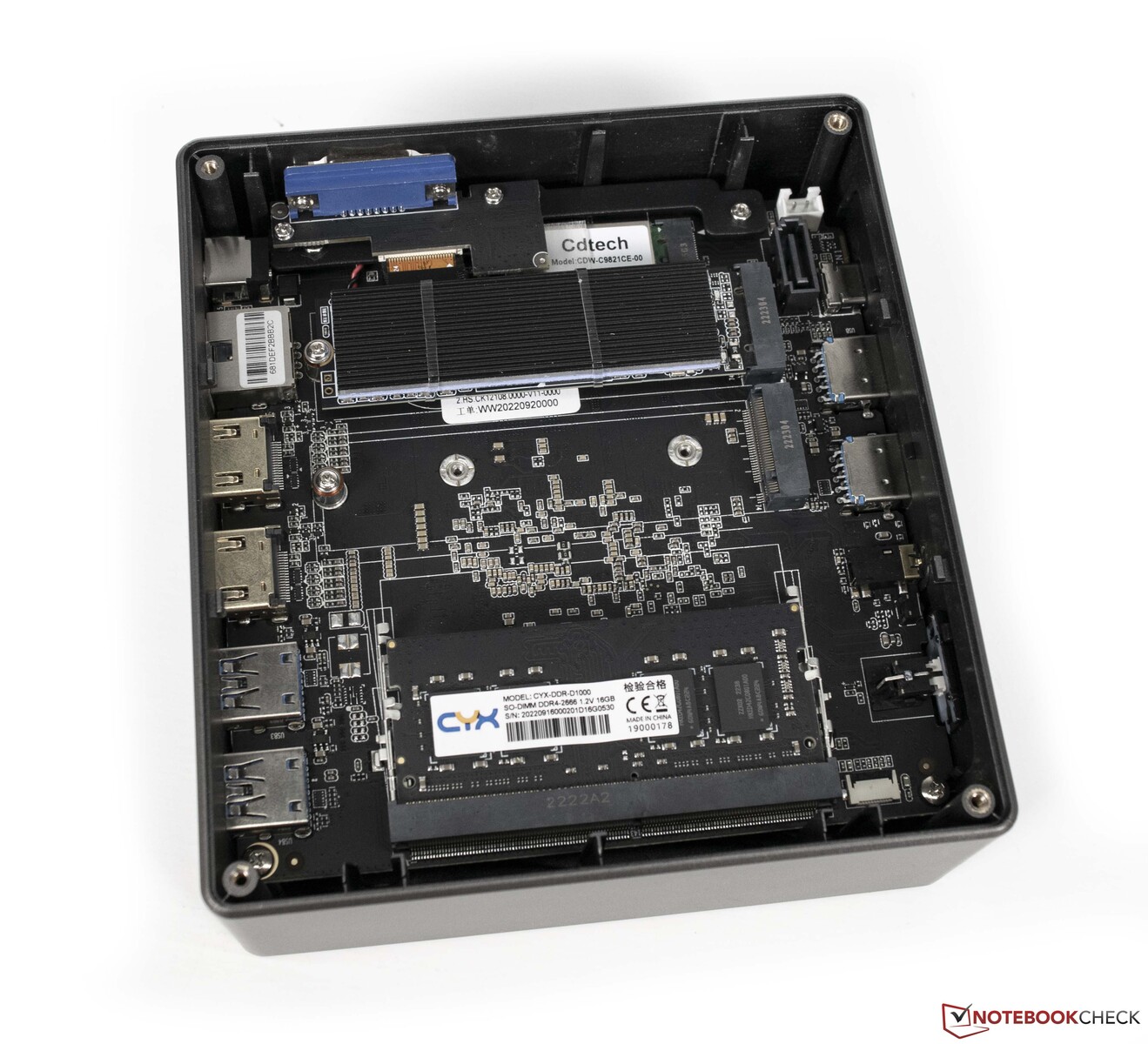

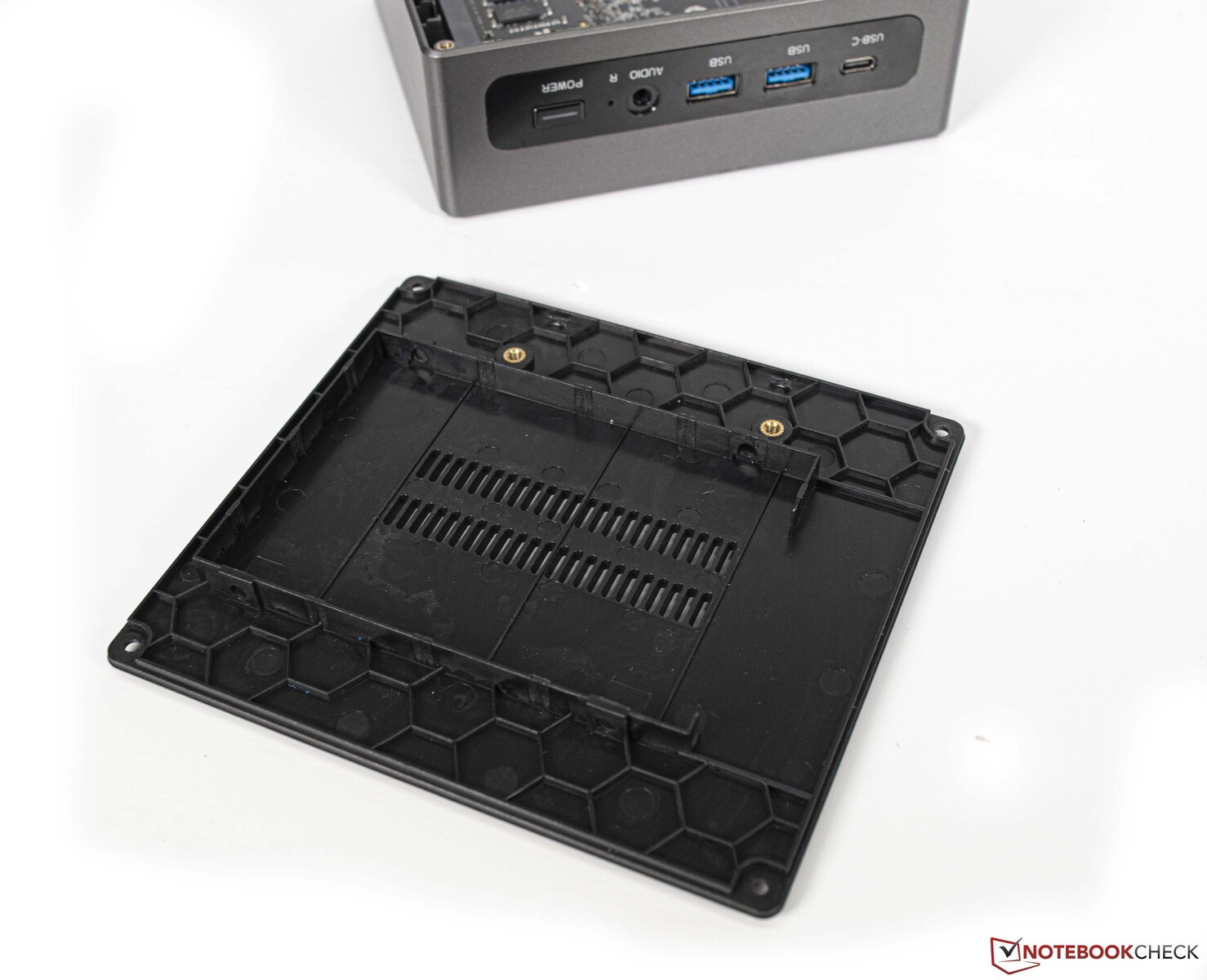

Mantenimiento

Por el momento, no es necesaria una actualización debido a la configuración de la base sólida. Si aún desea acceder a los componentes incorporados, esto puede lograrse fácilmente, ya que sólo hay que desatornillar cuatro pequeños tornillos para retirar la placa base. Una ranura adicional para otro módulo SO DIMM así como dos dispositivos más de almacenamiento masivo podrían ser alojados en nuestra muestra de prueba. Si quieres limpiar el ventilador, es necesario un mayor desmontaje sin ser particularmente problemático.

Rendimiento

A nivel básico, el Intel Core i7-10810U es adecuado para aplicaciones ofimáticas y cargas de trabajo ligeras y multihilo que se procesan eficientemente gracias a sus 12 hilos. Por desgracia, el fabricante ha desaprovechado parte del rendimiento instalando sólo un módulo de RAM. Lo mismo ocurre con el SSD integrado, que sólo tiene velocidad SATA.

Condiciones de prueba

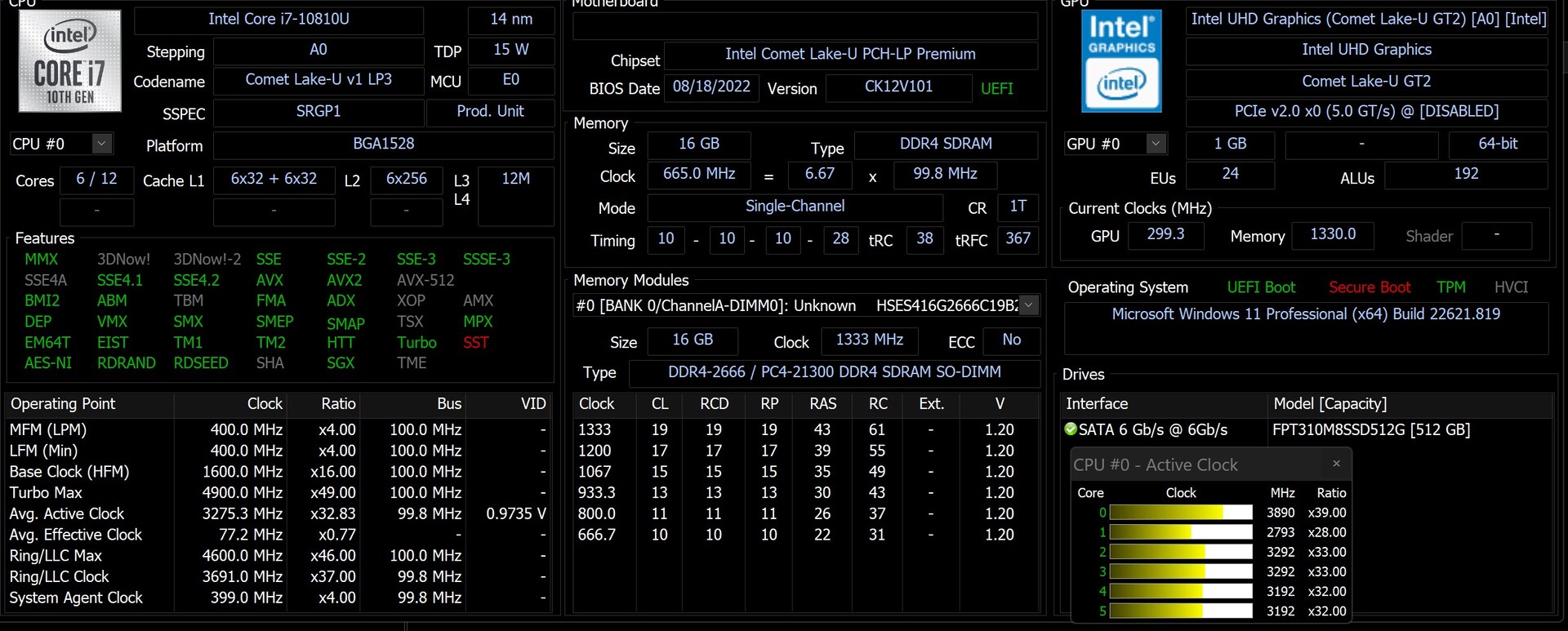

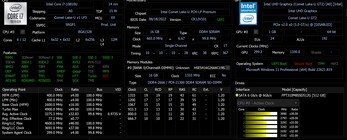

Todas las pruebas de rendimiento se llevaron a cabo con la configuración predeterminada de fábrica. No realizamos ningún cambio en los límites de potencia del SoC. No obstante, la BIOS permite cambiar estos valores.

Procesador

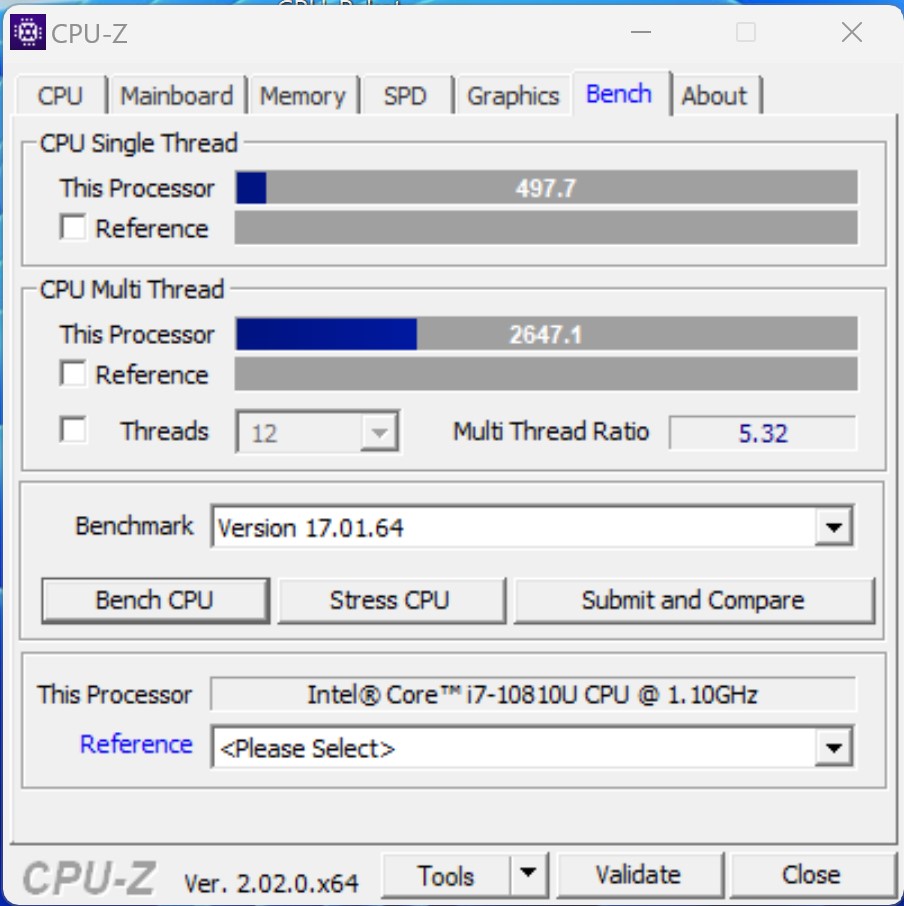

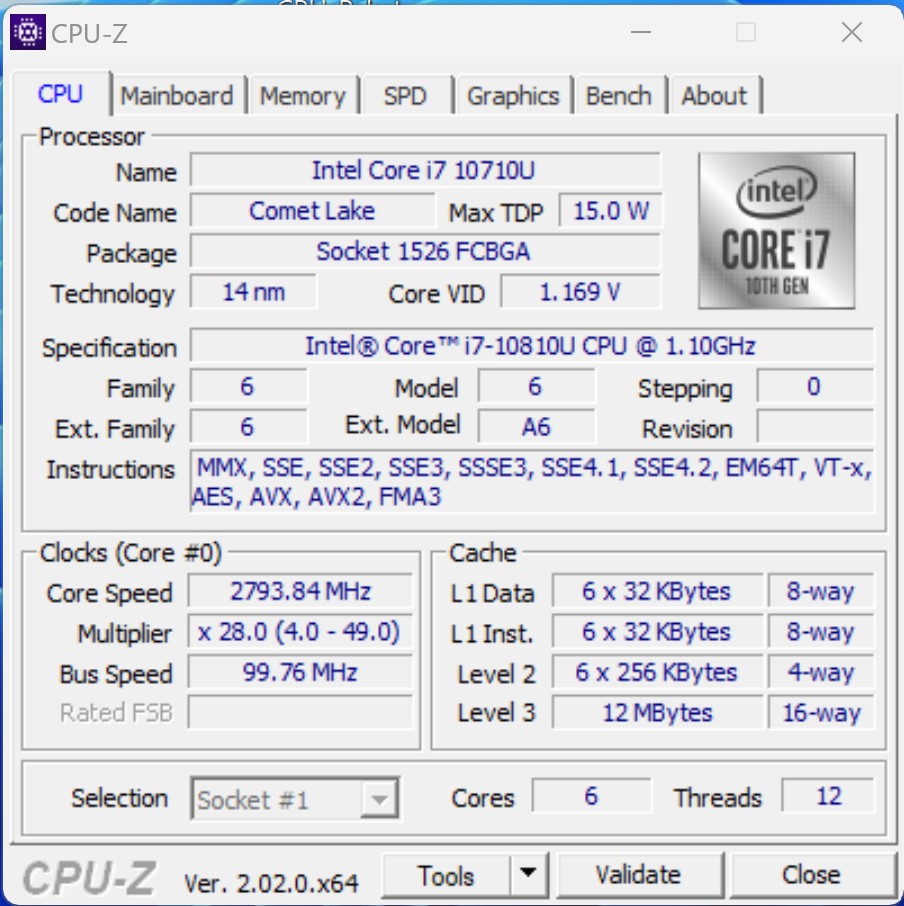

El Intel Core i7-10810U pertenece a la serie Comet Lake y ofrece seis núcleos de computación habilitados para Hyper-Threading para un total de 12 hilos. El consumo de energía está limitado a 40 vatios (límite de energía a corto plazo) y 15 vatios (límite de energía a largo plazo), actuando el fabricante de forma muy conservadora en este campo. El sistema de refrigeración aún tiene reservas para sacar más rendimiento al SoC. Esto significa que el NiPoGi CK10 tiene dificultades para seguir el ritmo de la competencia. Sólo el Ace Magician TK11-A0 se acerca y puede ser vencido en muchos benchmarks multihilo. El envejecido Intel Core i7-10810U tiene dificultades cuando se compara con competidores con 8 núcleos nativos

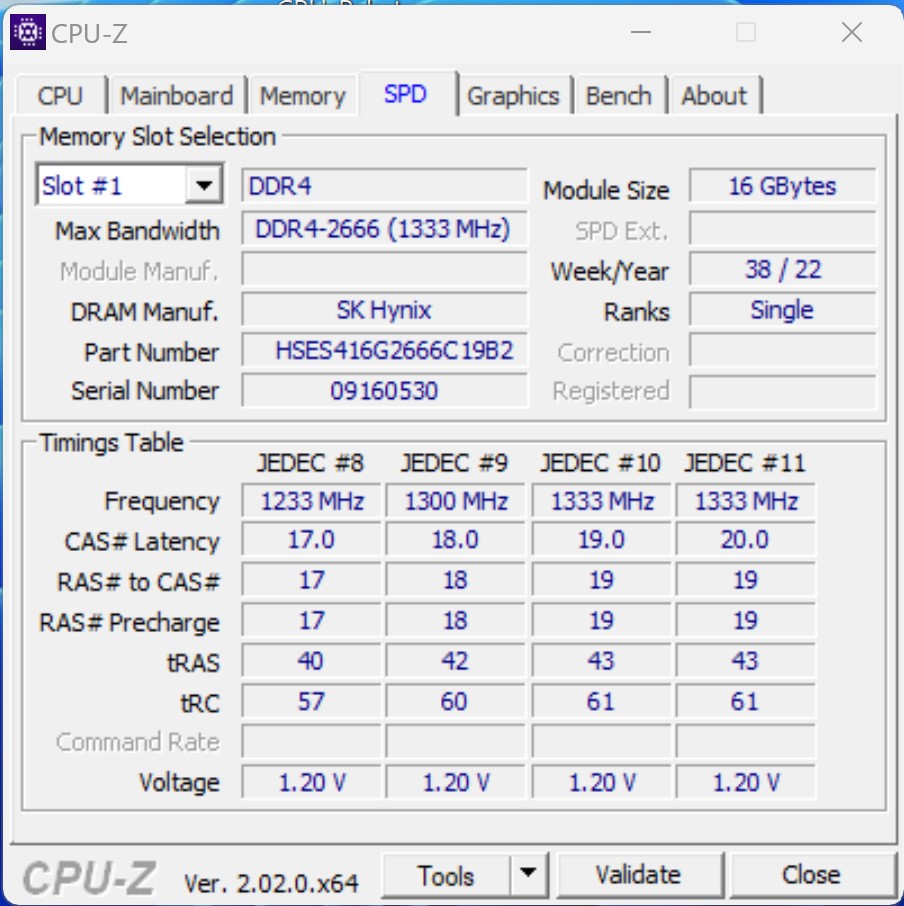

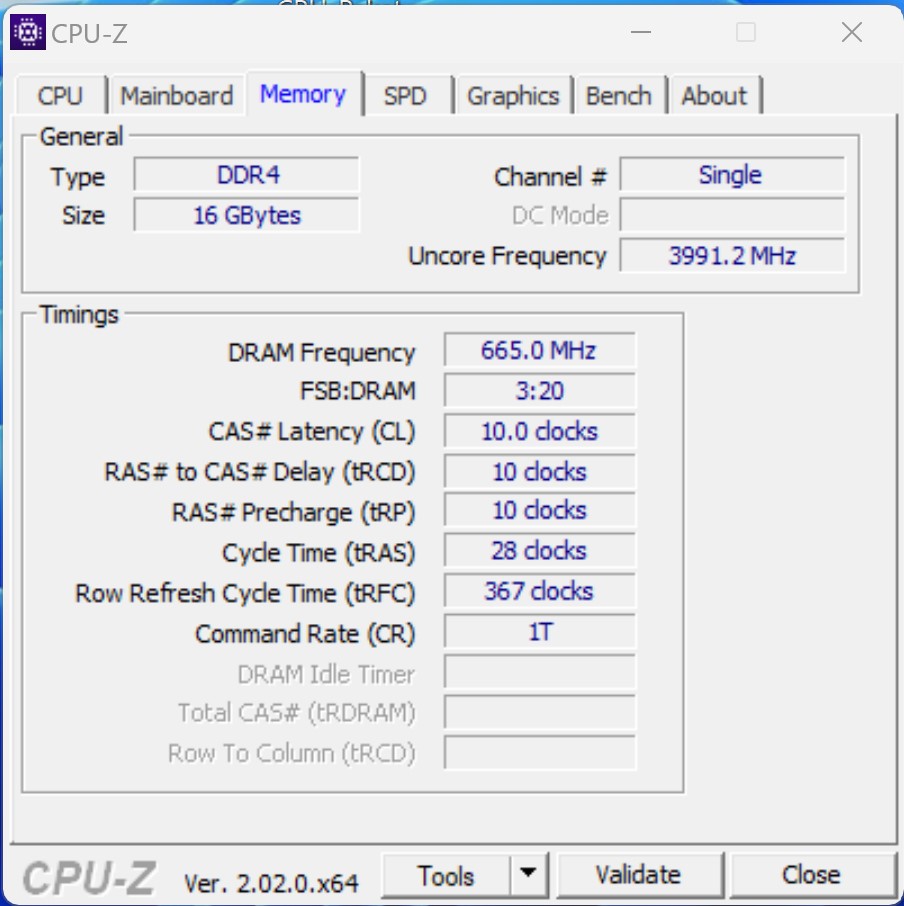

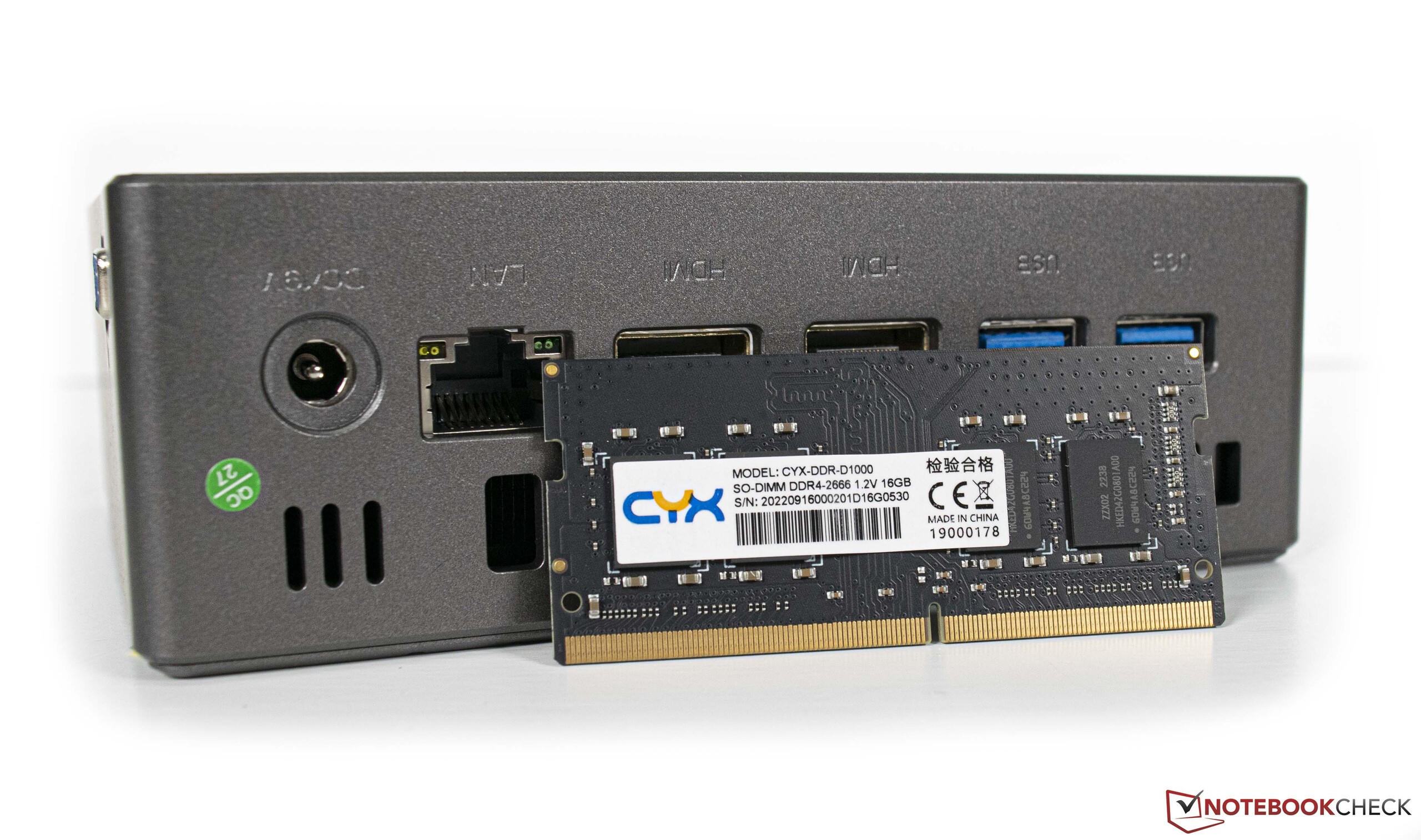

En las pruebas de memoria, el único módulo de RAM incorporado es fatal para el NiPoGi CK10. El modo de doble canal sólo puede utilizarse con dos módulos de RAM y es algo de lo que se beneficiaría todo el sistema

Puede encontrar más pruebas de rendimiento del procesador aquí.

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.4 pt ∼49%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	49.3 pt ∼49%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	49.1 pt ∼49%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	44.3 pt ∼44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	43.6 pt ∼44%
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	41.8 pt ∼42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	37.2 pt ∼37%
Average Intel Core i7-10810U	35.8 pt ∼36%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	34.8 pt ∼35%

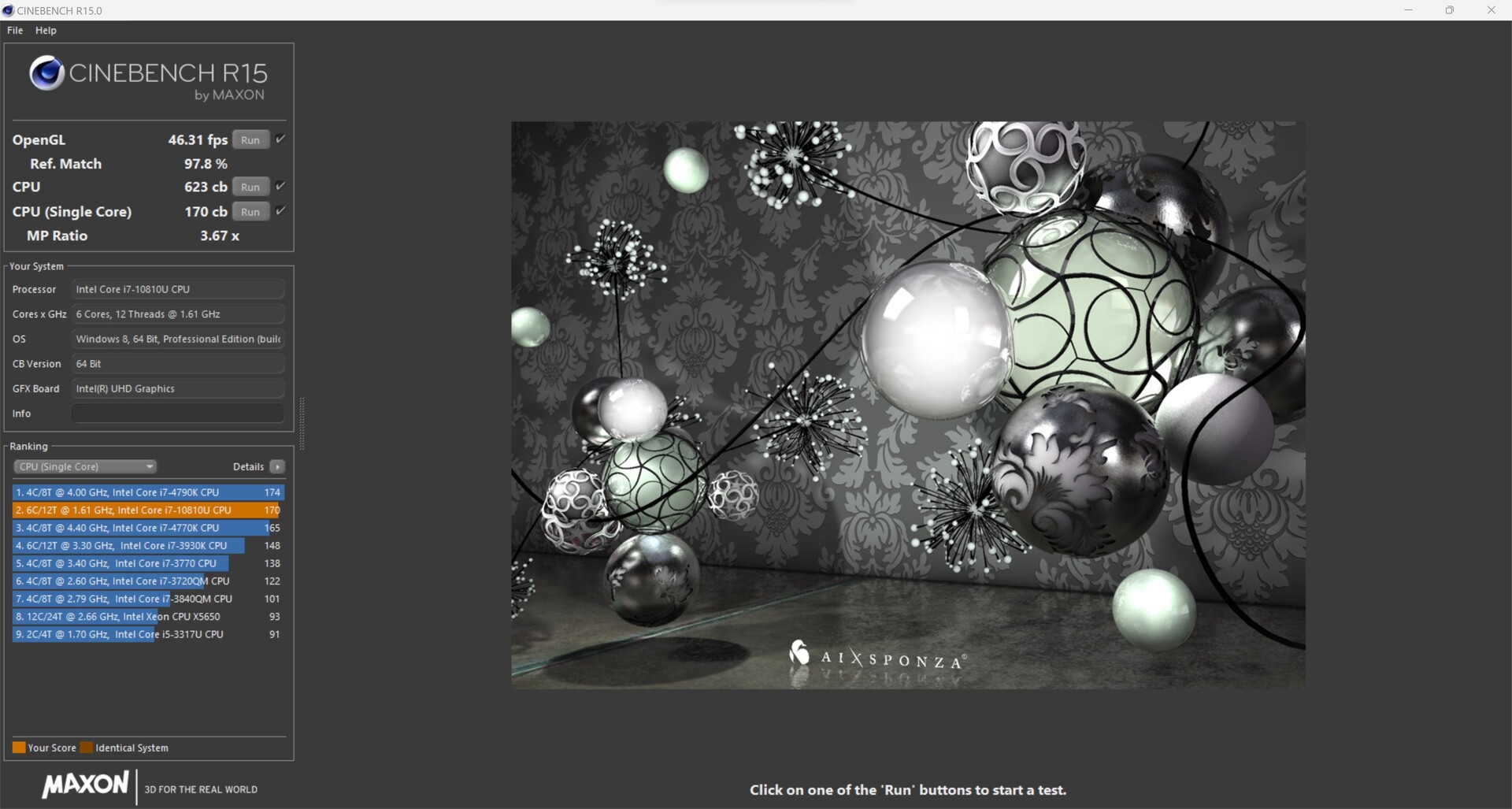

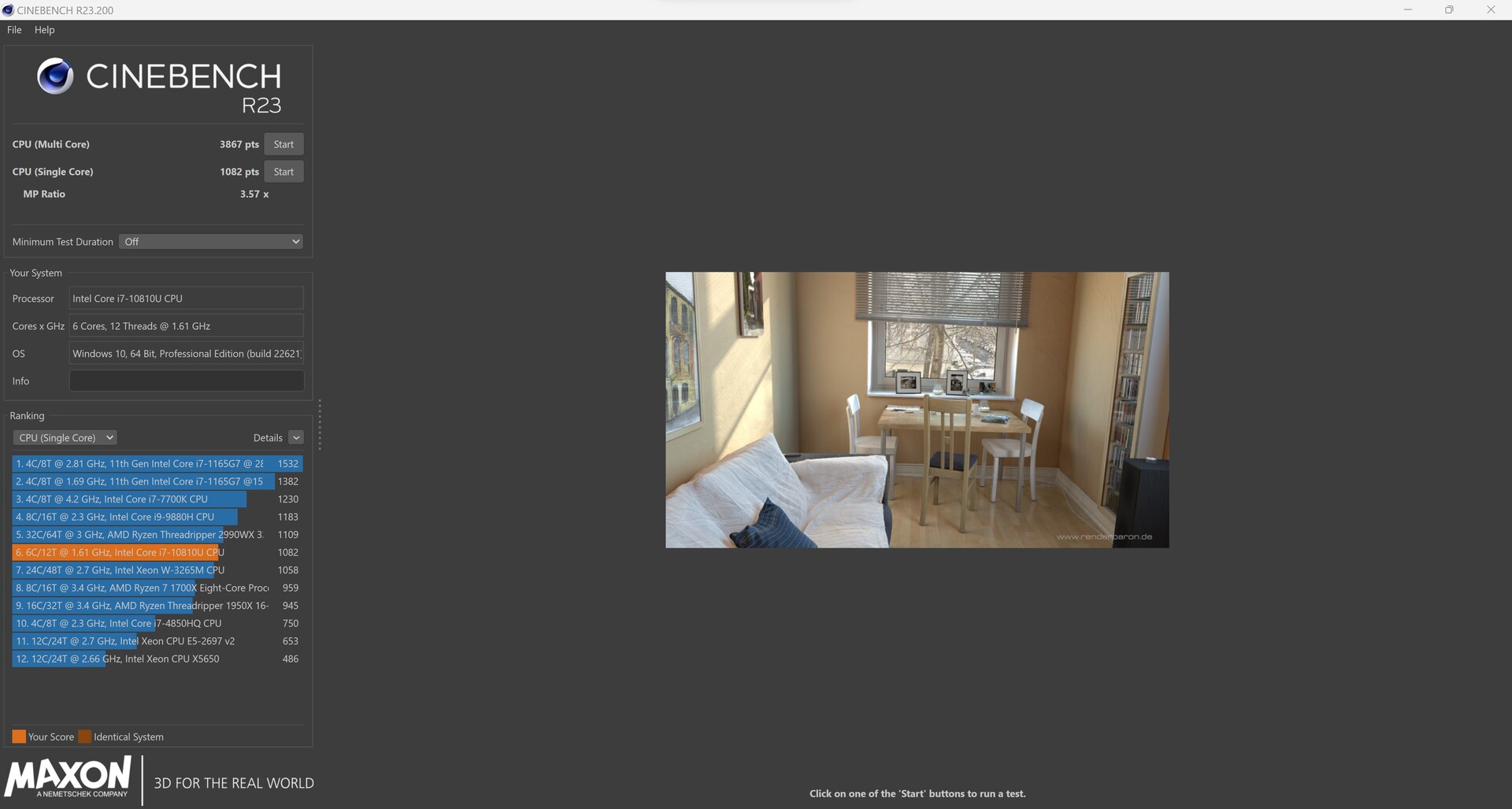

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points ∼74% +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points ∼74% +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68% +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points ∼65% +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points ∼60% +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points ∼59% +14%
Average Intel Core i7-10810U (161 - 183, n=5)	175.6 Points ∼54% +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points ∼52%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points ∼23% +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points ∼20% +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points ∼20% +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points ∼13% +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points ∼10% +52%
Average Intel Core i7-10810U (623 - 1064, n=4)	799 Points ∼8% +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points ∼6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points ∼6% -10%

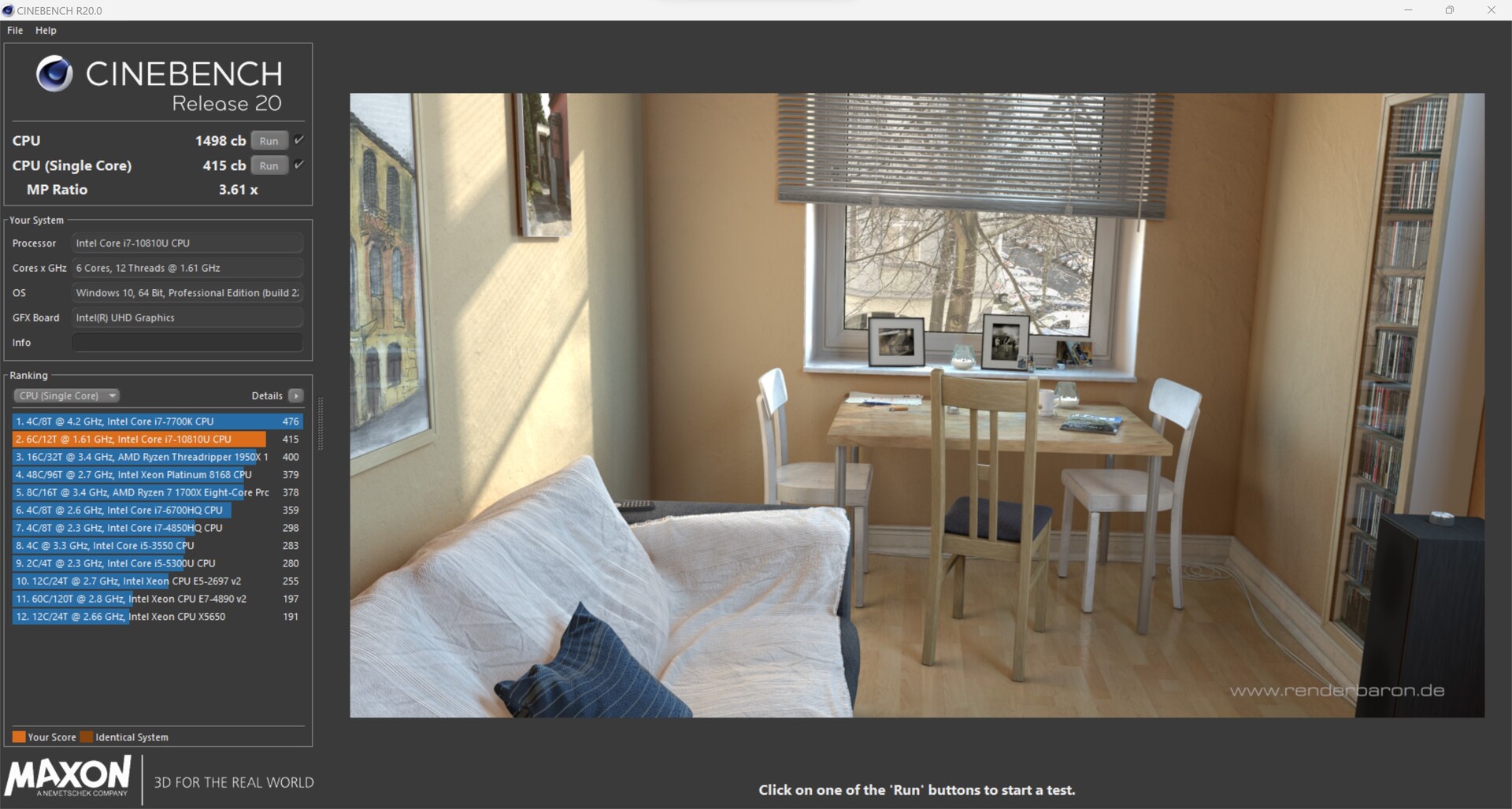

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points ∼67% +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points ∼67% +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points ∼64% +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points ∼61% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points ∼59% +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points ∼58% +22%
Average Intel Core i7-10810U (396 - 447, n=5)	425 Points ∼49% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points ∼48%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points ∼22% +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points ∼20% +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points ∼19% +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points ∼13% +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points ∼10% +55%
Average Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points ∼8% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points ∼6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points ∼6% -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points ∼73% +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points ∼73% +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼71% +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points ∼67% +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points ∼64% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points ∼59% +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points ∼57% +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points ∼50%
Average Intel Core i7-10810U	1.95 Points ∼50% 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points ∼36% +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points ∼33% +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points ∼32% +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points ∼21% +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points ∼15% +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points ∼10%
Average Intel Core i7-10810U	6.98 Points ∼10% 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points ∼9% -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points ∼66% +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points ∼66% +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points ∼62% +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points ∼60% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points ∼57% +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points ∼55% +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points ∼47%
Average Intel Core i7-10810U	8591 Points ∼47% 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points ∼53% +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points ∼48% +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points ∼47% +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points ∼33% +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points ∼30% +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points ∼18% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points ∼17%
Average Intel Core i7-10810U	23491 Points ∼17% 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * ∼5% -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * ∼5%
Average Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * ∼5% +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * ∼4% +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * ∼3% +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * ∼2% +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * ∼2% +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * ∼2% +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * ∼1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * ∼1% +2%
Average Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * ∼1% +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * ∼1% +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * ∼1% +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * ∼1% +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * ∼1% +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * ∼1% +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * ∼3% -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * ∼3%
Average Intel Core i7-10810U (205 - 267, n=2)	236 s * ∼3% +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * ∼2% +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * ∼2% +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * ∼1% +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * ∼1% +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * ∼1% +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps ∼64% +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps ∼62% +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps ∼51% +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% +17%
Average Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps ∼35% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps ∼33%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps ∼47% +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps ∼42% +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps ∼40% +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% +94%
Average Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps ∼14% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps ∼14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼15% +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s ∼14% +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s ∼13% +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s ∼11% +15%
Average Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s ∼9% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s ∼9%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s ∼8% -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s ∼8% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s ∼8% -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼33% +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s ∼23% +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s ∼23% +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s ∼22% +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s ∼22% +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s ∼19% +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s ∼18%
Average Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s ∼17% -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s ∼16% -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s ∼0% +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s ∼0% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s ∼0% +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s ∼0% +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s ∼0%
Average Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s ∼0% -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s ∼0% -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s ∼0% +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s ∼0% +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s ∼0% +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s ∼0% +24%
Average Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s ∼0% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s ∼0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s ∼0% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -21%

Geekbench 5.2 - 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points ∼27% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points ∼25% +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points ∼21% +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points ∼20% +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% +25%
Average Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points ∼15% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points ∼14%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼36% +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼36% +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points ∼35% +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼33% +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points ∼33% +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼32% +14%
Average Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points ∼28% +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points ∼28% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points ∼28%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points ∼25% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points ∼24% +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points ∼19% +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points ∼18% +43%
Average Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points ∼15% +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points ∼12%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points ∼7% +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼6% +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points ∼6% +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points ∼5% +1%
Average Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points ∼5% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points ∼5%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points ∼66% +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points ∼64% +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points ∼60% +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points ∼55% +11%
Average Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points ∼52% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points ∼49%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points ∼36% +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points ∼32% +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points ∼27% +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points ∼25% +14%
Average Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points ∼24% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points ∼22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points ∼39% +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points ∼38% +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points ∼34% +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points ∼33% +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points ∼32% +78%
Average Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points ∼23% +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points ∼21% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points ∼18%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS ∼36% +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS ∼34% +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS ∼30% +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS ∼24% +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS ∼17% +33%
Average Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS ∼13% +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS ∼12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS ∼11% -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS ∼69% +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS ∼69% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS ∼63% +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS ∼59% +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS ∼57% +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS ∼57% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS ∼55%
Average Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS ∼55% -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps ∼34% +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps ∼32% +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps ∼28% +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps ∼22% +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps ∼17% +51%
Average Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps ∼11% +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps ∼11% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps ∼11%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * ∼15%
Average Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * ∼15% +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * ∼14% +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * ∼13% +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * ∼12% +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * ∼12% +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * ∼11% +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * ∼11% +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * ∼17%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * ∼17% +3%
Average Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * ∼17% +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * ∼13% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * ∼13% +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * ∼13% +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * ∼12% +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * ∼12% +29%

WebXPRT 3 - ---
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points ∼59% +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points ∼58% +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼57% +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points ∼54% +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points ∼53% +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points ∼49% +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points ∼47% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points ∼43%
Average Intel Core i7-10810U (202 - 207, n=5)	205 Points ∼43% 0%

Mozilla Kraken 1.1 - Total Score
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * ∼1%
Average Intel Core i7-10810U (853 - 968, n=5)	901 ms * ∼1% +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * ∼1% +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * ∼1% +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * ∼1% +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * ∼1% +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * ∼1% +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * ∼1% +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points ∼44% +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points ∼42% +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points ∼35% +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points ∼32% +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points ∼25% +63%
Average Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points ∼18% +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points ∼18% +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points ∼16%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points ∼46% +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points ∼44% +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points ∼38% +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points ∼33% +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points ∼25% +53%
Average Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points ∼20% +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points ∼17% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points ∼17%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points ∼35% +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points ∼34% +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points ∼32% +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points ∼27% +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points ∼26% +91%
Average Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points ∼16% +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points ∼14% +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points ∼13%

* ... más pequeño es mejor

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt ∼94%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt ∼84%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt ∼83%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt ∼83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt ∼58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt ∼51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt ∼40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt ∼31%

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s ∼100% +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s ∼96% +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s ∼87% +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼85% +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s ∼58% +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s ∼48% +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s ∼36% +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s ∼30%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points ∼100% +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points ∼86% +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼85% +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points ∼80% +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points ∼57% +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points ∼31% +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points ∼26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points ∼24% -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s ∼100% +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s ∼86% +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼85% +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s ∼76% +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s ∼61% +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s ∼57% +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s ∼48% +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s ∼31%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points ∼100% +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points ∼97% +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points ∼93% +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼90% +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points ∼64% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points ∼54%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points ∼50% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points ∼44% -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points ∼100% +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points ∼88% +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points ∼84% +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼82% +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points ∼57% +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points ∼35% +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points ∼32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points ∼27% -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points ∼100% +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points ∼86% +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼85% +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points ∼76% +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points ∼57% +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points ∼34% +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points ∼27% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points ∼23%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s ∼100% +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s ∼89% +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼85% +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s ∼58% +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s ∼57% +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s ∼56% +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s ∼44% +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s ∼13%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s ∼100% +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s ∼98% +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s ∼89% +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼86% +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s ∼58% +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s ∼47% +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s ∼34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s ∼30% -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s ∼100% +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s ∼98% +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼85% +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s ∼85% +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s ∼55% +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s ∼48% +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s ∼36% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s ∼30%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s ∼100% +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s ∼88% +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼65% +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s ∼64% +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s ∼63% +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s ∼49% +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s ∼48% +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s ∼33%

NiPoGi CK10 Cinebench R15 multibucle

El bucle continuo de Cinebench R15 demostró que el sistema de refrigeración integrado no tiene mucho trabajo con el Intel Core i7-10810U. El ajuste conservador asegura una velocidad de reloj turbo muy corta, por lo que sólo observamos una mínima pérdida de rendimiento tras la primera ejecución. Con una media de 612 puntos, el rendimiento fue excepcionalmente estable a lo largo de las 50 ejecuciones.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Rendimiento del sistema

Los benchmarks sirven para destacar que el SoC ya tiene más de dos años. Visto de forma subjetiva, las limitaciones de rendimiento del sistema se notan debido al SSD y la RAM relativamente lentos, que sólo funcionan en un canal. A veces se observan pequeñas latencias al abrir programas. Además, el rendimiento Wi-Fi por debajo de la media tampoco tiene un efecto beneficioso en los flujos de trabajo.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points ∼100% +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼97% +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points ∼95% +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points ∼89% +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points ∼86% +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points ∼79% +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points ∼69% +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points ∼60%

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points ∼100% +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points ∼99% +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points ∼98% +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼97% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points ∼92% +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points ∼87% +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points ∼86% +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points ∼72%

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points ∼100% +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points ∼97% +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼97% +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points ∼94% +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points ∼81% +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points ∼67% +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points ∼65%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points ∼62% -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt ∼100%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt ∼93%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt ∼89%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt ∼70%

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼100% +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼96% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points ∼91% +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points ∼87% +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points ∼71%

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points ∼100% +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼99% +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points ∼99% +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points ∼96% +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points ∼61%

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points ∼100% +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼95% +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points ∼86% +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points ∼82% +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points ∼72%

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points ∼100% +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼97% +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points ∼95% +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points ∼90% +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points ∼75%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s ∼100% +156%
Average of class Mini PC (6481 - 70620, n=59, last 2 years)	42006 MB/s ∼86% +121%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s ∼86% +121%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s ∼78% +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s ∼77% +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼73% +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼72% +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s ∼65% +67%
Average Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s ∼49% +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s ∼39%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s ∼100% +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s ∼100% +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s ∼93% +123%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s ∼92% +119%
Average of class Mini PC (6914 - 65856, n=59, last 2 years)	42656 MB/s ∼91% +117%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼86% +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼82% +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s ∼81% +94%
Average Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s ∼53% +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s ∼42%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s ∼100% +175%
Average of class Mini PC (6862 - 87358, n=59, last 2 years)	45268 MB/s ∼90% +147%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s ∼83% +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼78% +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼74% +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s ∼70% +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s ∼70% +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s ∼70% +92%
Average Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s ∼50% +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s ∼36%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * ∼100% -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼95% -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * ∼95% -50%
Average of class Mini PC (55.3 - 146, n=59, last 2 years)	86 ns * ∼90% -43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * ∼83% -32%
Average Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * ∼81% -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * ∼78% -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * ∼77% -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼72% -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * ∼63%

* ... más pequeño es mejor

Latencias del CPD

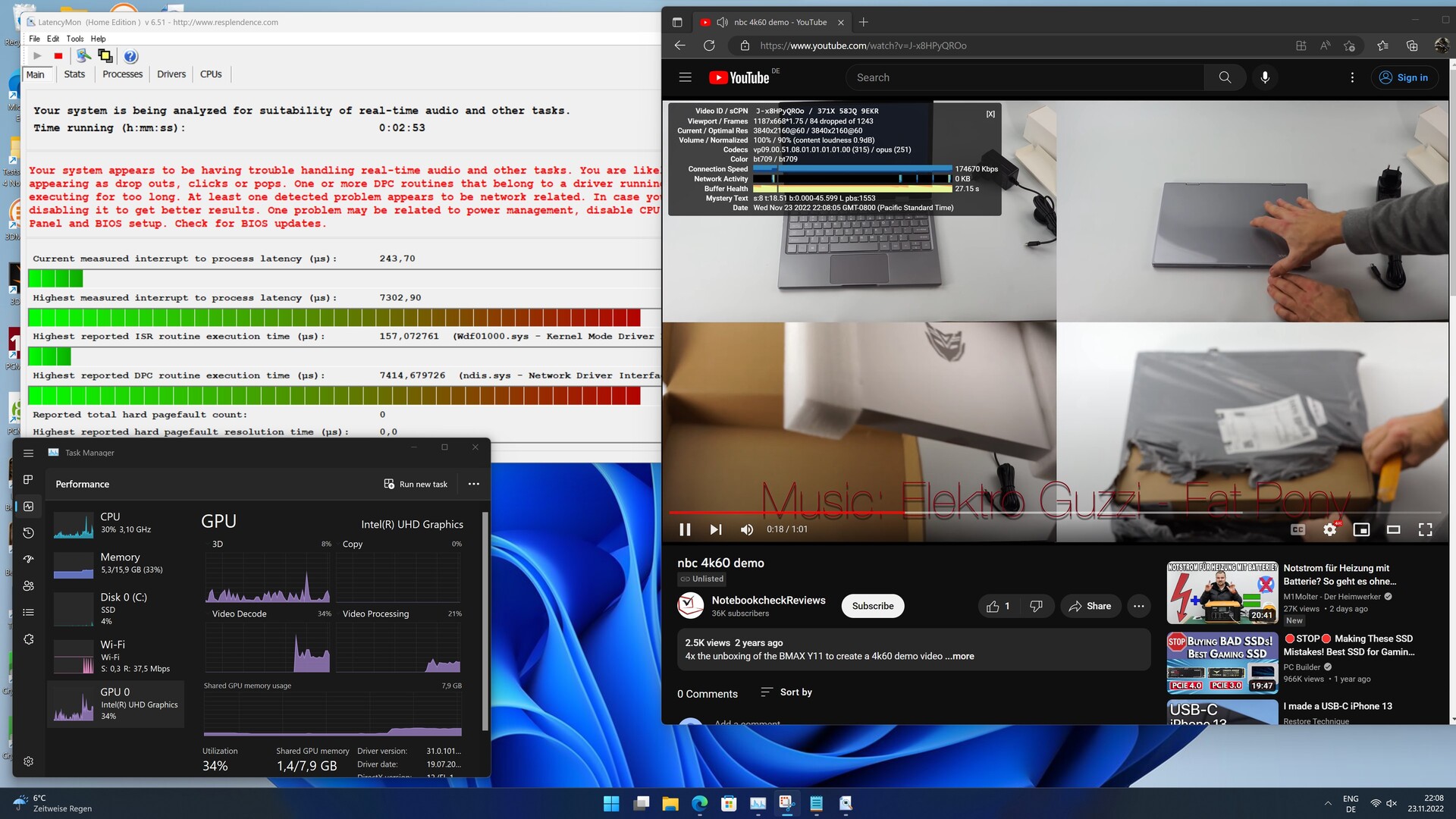

El NiPoGi CK10 tiene problemas de latencia al abrir varias pestañas en Edge. La latencia no empeoró al reproducir vídeos 4K de Youtube. El Intel Core i7-10810Ufunciona con una carga de aproximadamente el 35 por ciento al reproducir un vídeo de este tipo.

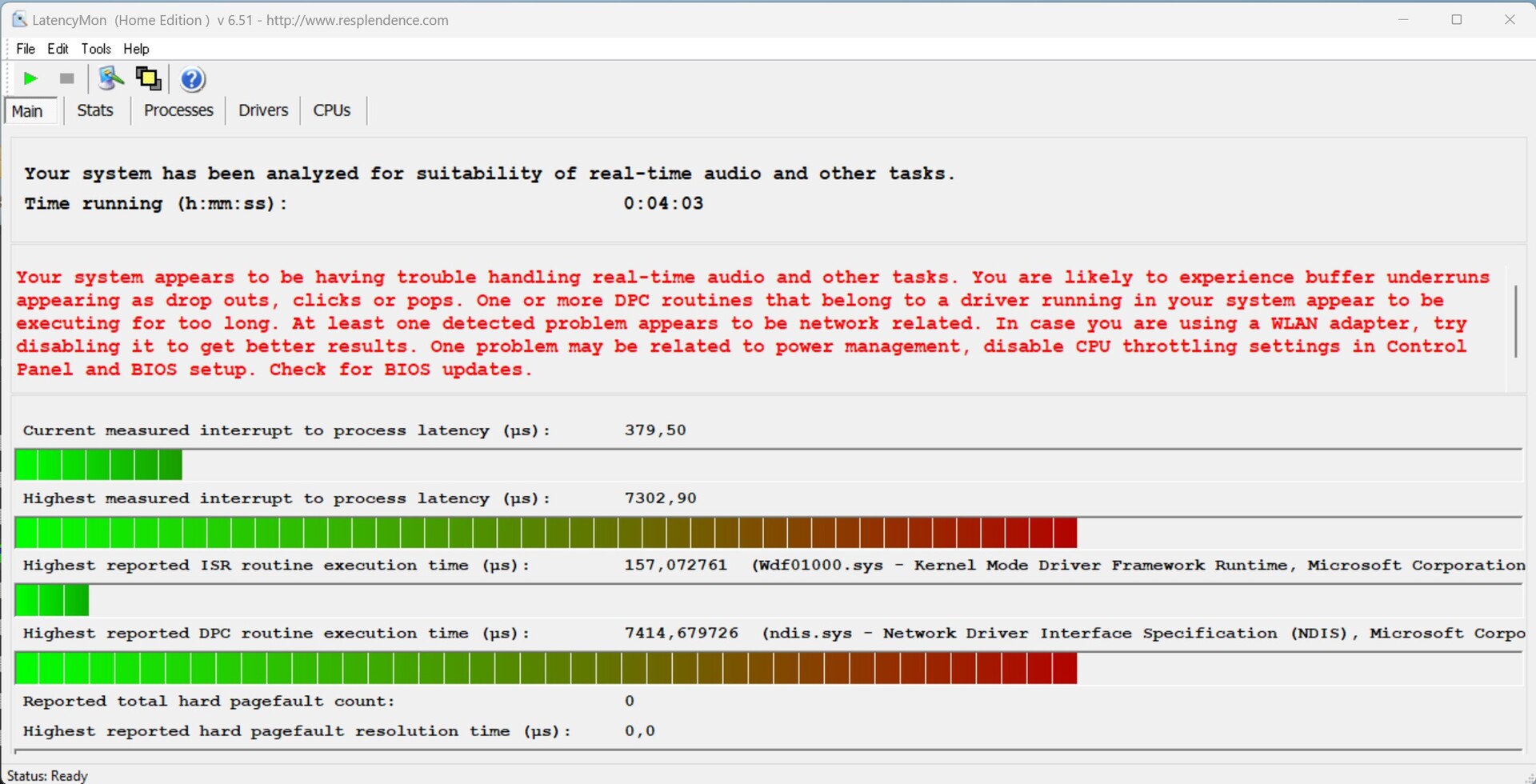

Máxima latencia al abrir varias pestañas del navegador y reproducir material de vídeo 4K

Latencia máxima tras diez segundos de Prime95

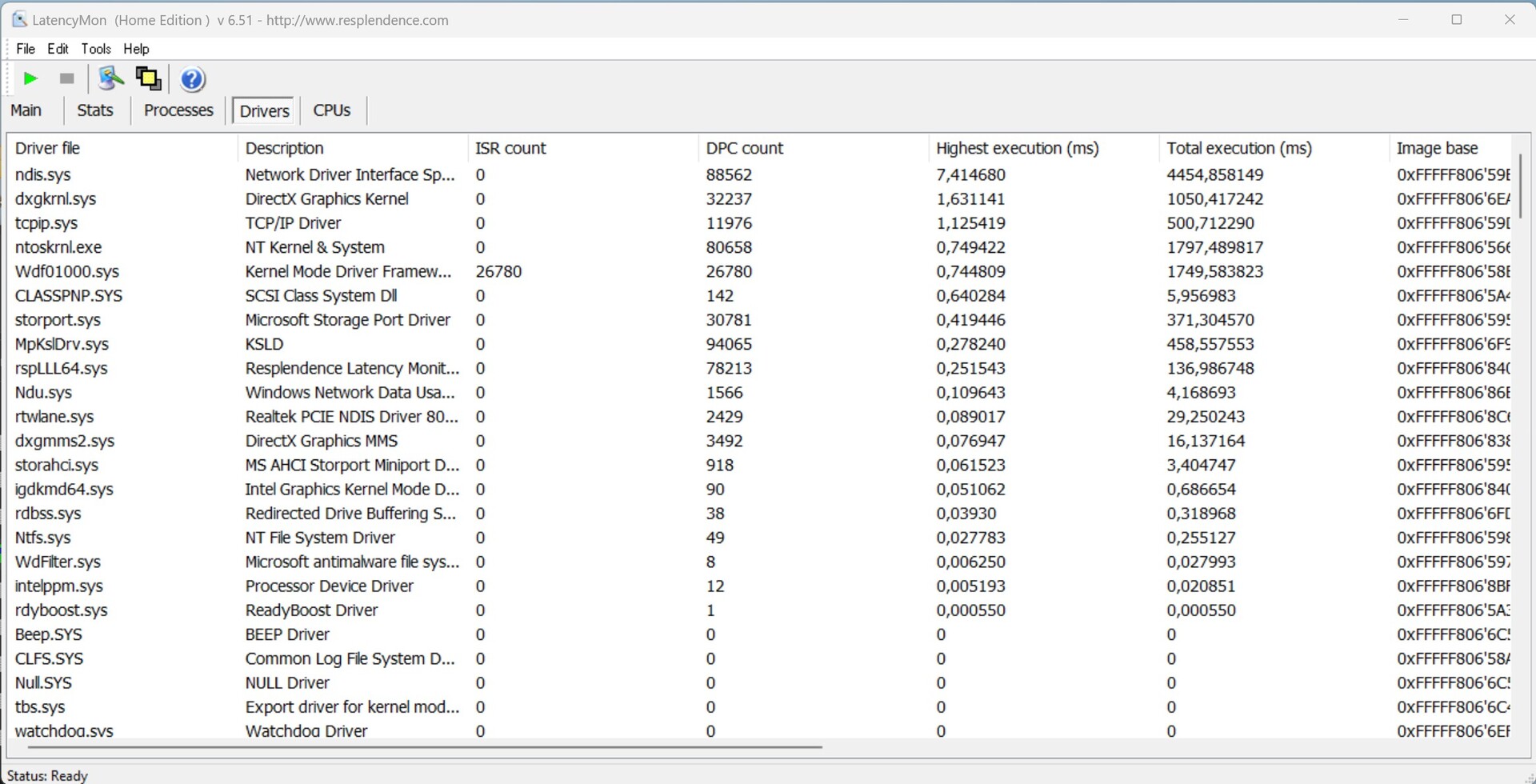

Controladores clasificados por su mayor latencia

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * ∼100%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * ∼25% +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * ∼22% +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * ∼15% +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * ∼15% +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * ∼10% +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * ∼9% +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * ∼5% +95%

* ... más pequeño es mejor

Almacenamiento masivo

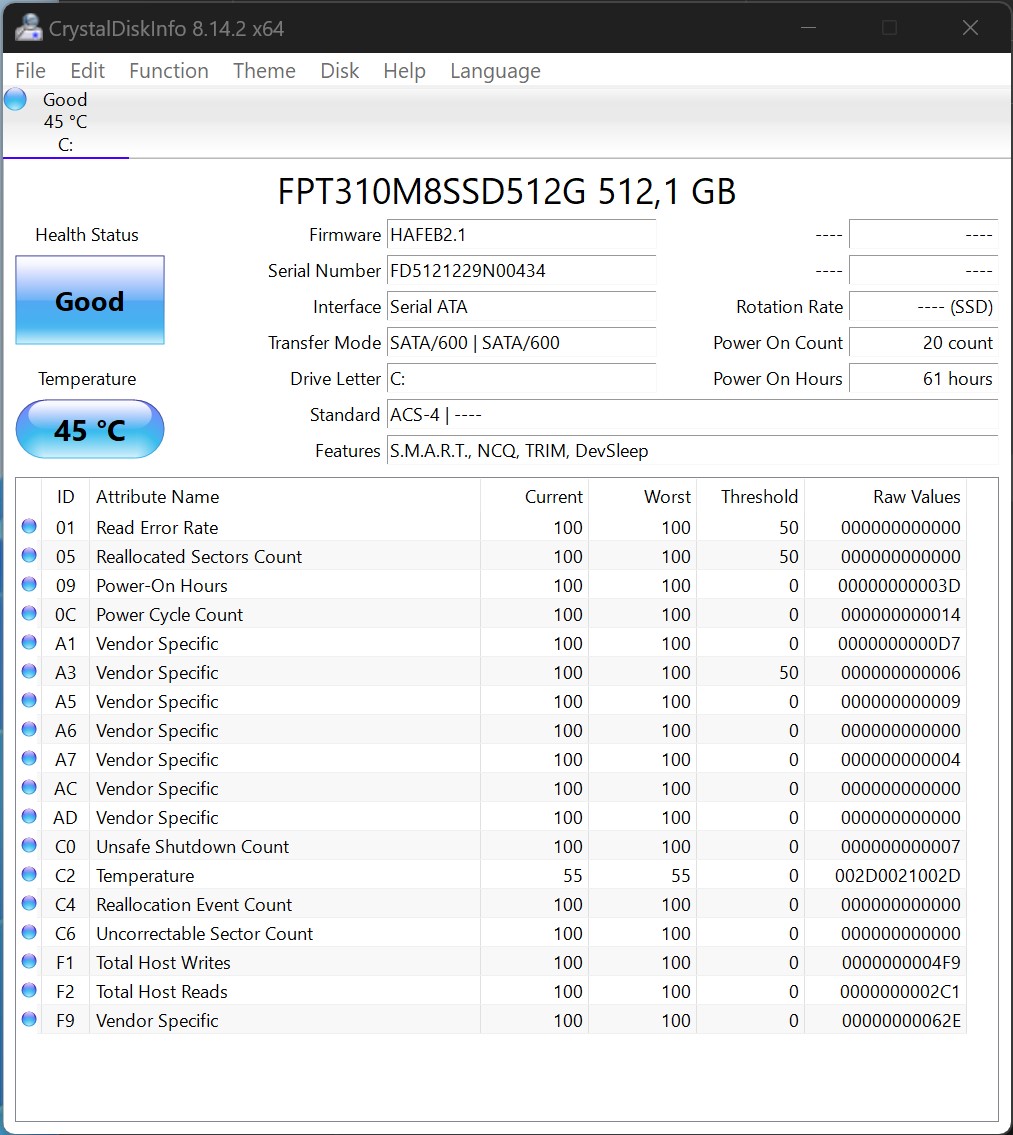

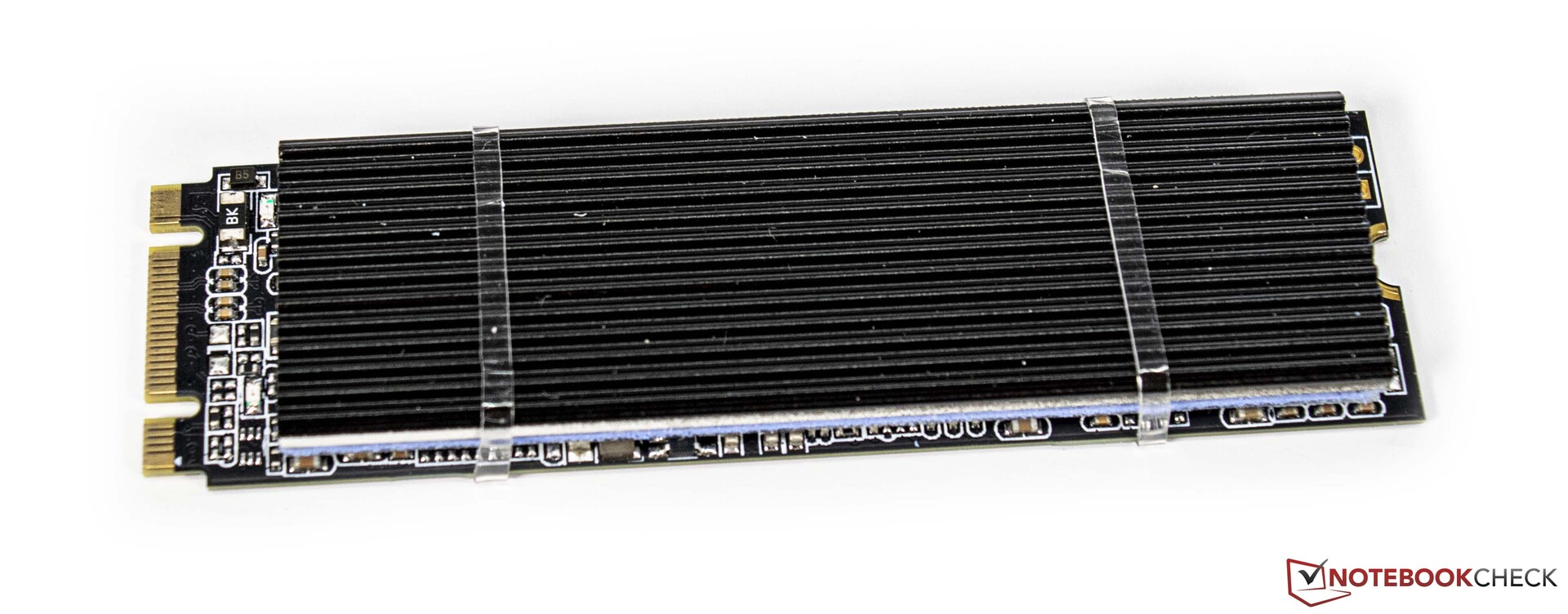

El CK10 está alimentado por un SSD desconocido con una capacidad de almacenamiento de 512 GB. Se trata de un SSD M.2 2280 basado en SATA que puede verse claramente en los benchmarks. Las desventajas son obvias cuando se compara con alternativas más rápidas como los SSDs NVMe. Sin embargo, el rendimiento de lectura 4K está a buen nivel. El mini PC puede equiparse con hasta tres dispositivos de almacenamiento masivo (2x M.2 2280, 1x 2.5 pulgadas).

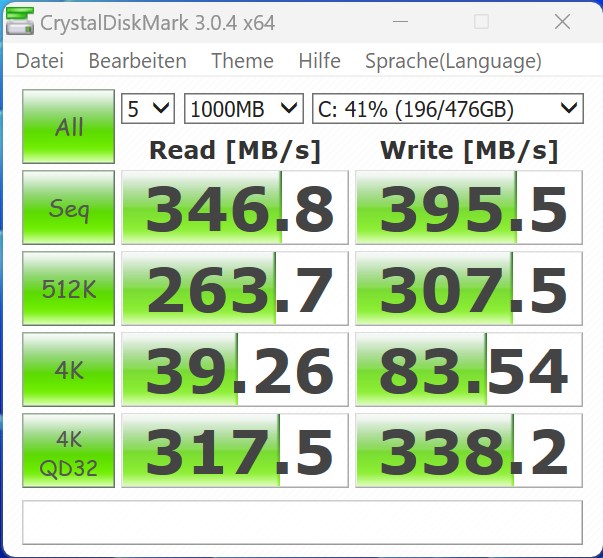

CrystalDiskMark 3.0

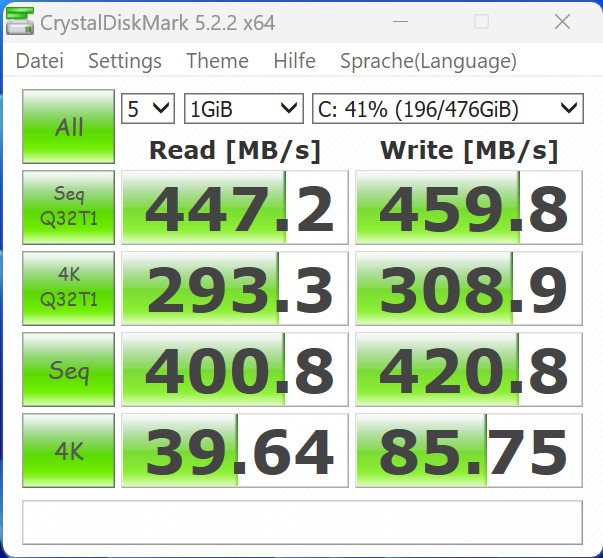

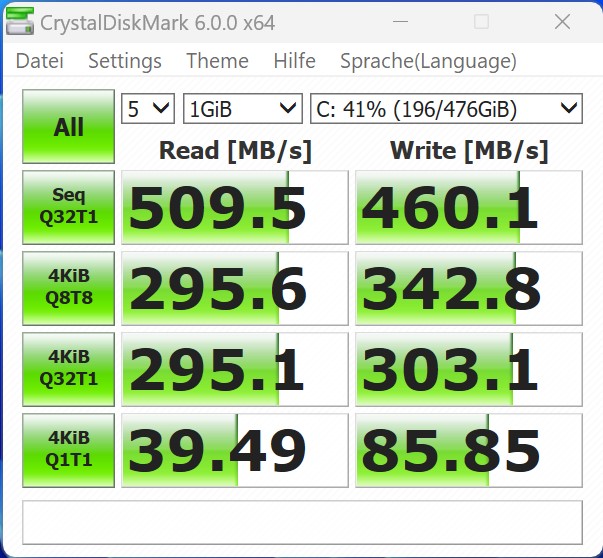

CrystalDiskMark 5.2 / 6

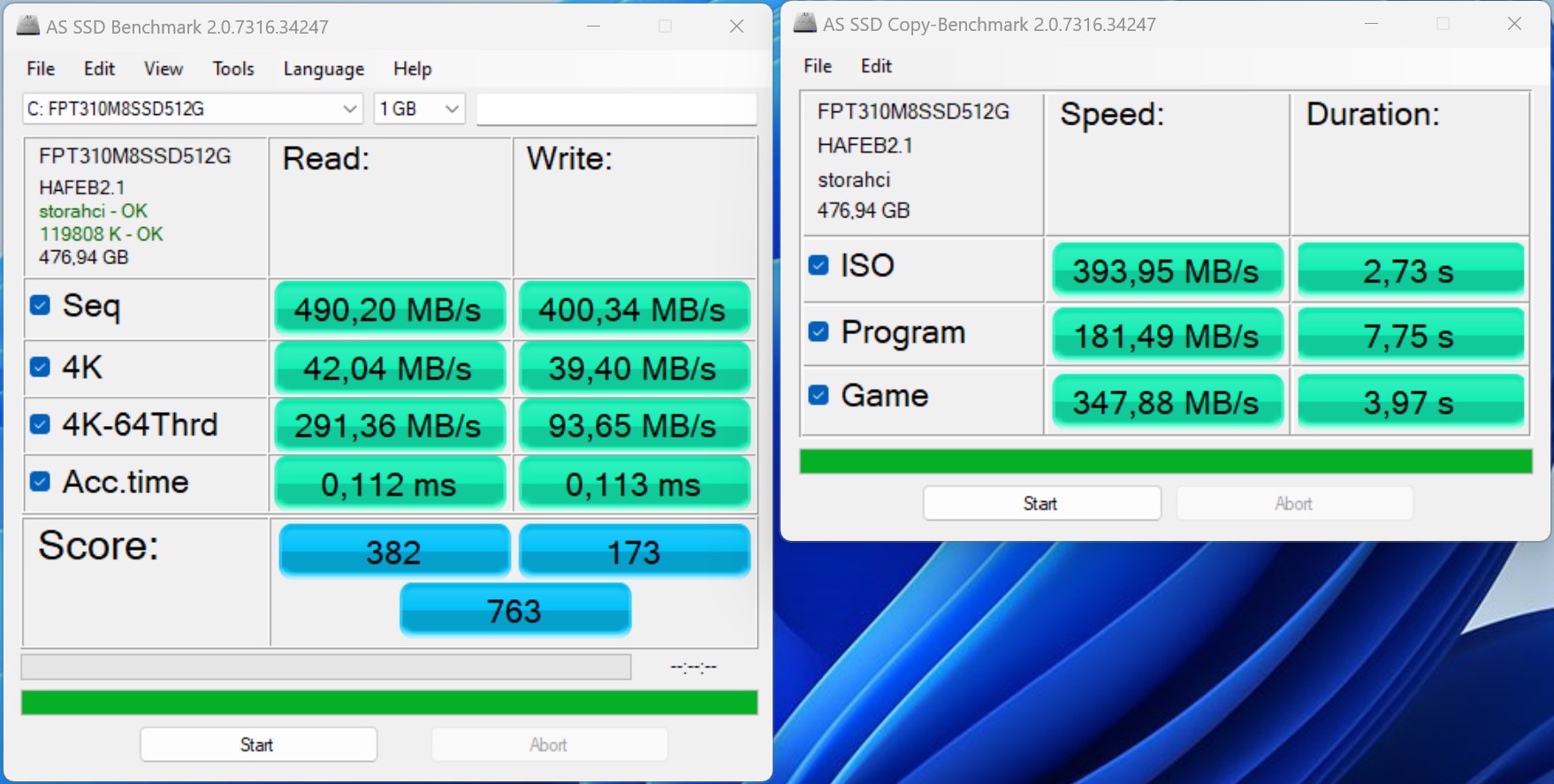

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt ∼87%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt ∼86%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt ∼82%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt ∼71%
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt ∼69%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt ∼68%
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt ∼65%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt ∼28%

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s ∼100% +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s ∼95% +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s ∼93% +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s ∼78% +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s ∼70% +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s ∼66% +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s ∼60% +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s ∼14%
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s ∼100% +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s ∼100% +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s ∼71% +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s ∼68% +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s ∼66% +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s ∼55% +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s ∼31% +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s ∼24%
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s ∼100% +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s ∼97% +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s ∼94% +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s ∼93% +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s ∼86% +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s ∼86% +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s ∼78% +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s ∼18%
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s ∼100% +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s ∼99% +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s ∼74% +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s ∼70% +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s ∼67% +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s ∼55% +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s ∼31% +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s ∼26%
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s ∼100% +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s ∼98% +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s ∼94% +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s ∼92% +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s ∼80%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s ∼79% -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s ∼61% -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s ∼56% -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s ∼100% +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s ∼96% +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s ∼90% +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s ∼77% +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s ∼73% +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s ∼63% +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s ∼57% +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s ∼38%
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB

Revisión del NiPoGi CK10 con el Intel Core i7-10810U: Pequeño PC de oficina que ofrece espacio para tres SSD

Posibles contendientes en la comparación

Caso

Comparación de tamaños

Conectividad

Comunicación

Mantenimiento

Rendimiento

Condiciones de prueba

Procesador

NiPoGi CK10 Cinebench R15 multibucle

Rendimiento del sistema

Latencias del CPD

Almacenamiento masivo
