Análisis del Minisforum EliteMini TH50: PC de sobremesa compacto para el uso diario en la oficina

Más que un simple ordenador de oficina El fabricante Minisforum ofrece un sólido PC de trabajo basado en Intel con el compacto EliteMini TH50. Gracias a Thunderbolt, la gama de aplicaciones se ha ampliado considerablemente. En este análisis, descubriremos lo que ofrece esta pequeña potencia informática.

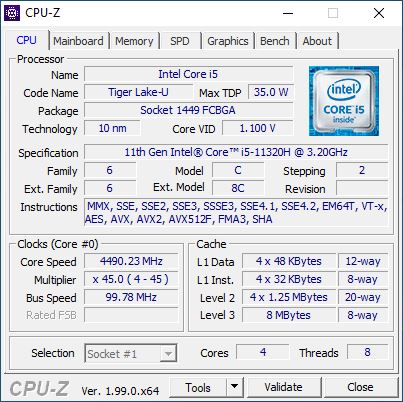

CPU-Z
CPU-Z

Como fabricante de sistemas, Minisforum es ya un nombre familiar para muchos, aunque el fabricante chino no esté todavía muy extendido en esta parte del mundo. La cartera de productos abarca desde los mini PC de IoT hasta los dispositivos de oficina y los ordenadores compactos para juegos. Ya pudimos conocer algunos sistemas de la serie EliteMini. Sin embargo, una APU de AMD ha servido hasta ahora de base para estos PC. Ahora, el EliteMini TH50 se apoya en un SoC Intel Tiger Lake y, por tanto, ofrece aún más opciones de uso.

El Intel Core i5-11320H es un SoC sólido y ofrece una base sólida. No se romperán récords con este procesador, pero el rendimiento debería ser suficiente para el uso previsto. Equipado con 16 GB de RAM DDR4 y un SSD de 512 GB, Minisforum nos proporcionó el modelo superior. El fabricante cobra 669 dólares por esta configuración. El EliteMini TH50 también está disponible como versión básica sin SSD. Sin embargo, el precio de 629 dólares sin SSD no supone un gran ahorro. También hay que tener en cuenta que no se incluye ninguna licencia de Windows en la compra sin dispositivo de almacenamiento masivo. Además, en el EliteMini TH50 siempre se instalan 16 GB de RAM porque están soldados a la placa.

El Minisforum EliteMini TH50 se entrega en una caja robusta con los accesorios adecuados para poner en marcha el sistema. La fuente de alimentación es compacta y suministra 65 W a través de USB-C. Además, hay una placa de montaje para fijarla a una pantalla (montaje VESA) en el volumen de suministro. Internamente, el dispositivo puede equiparse con dos dispositivos de almacenamiento masivo adicionales de 2,5 pulgadas.

Minisforum EliteMini TH50
Procesador
Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35
Adaptador gráfico
Memoría
16 GB
, DDR4-3200, fest verlötet
Placa base
Intel Tiger Lake-UP3 PCH-LP
Disco duro

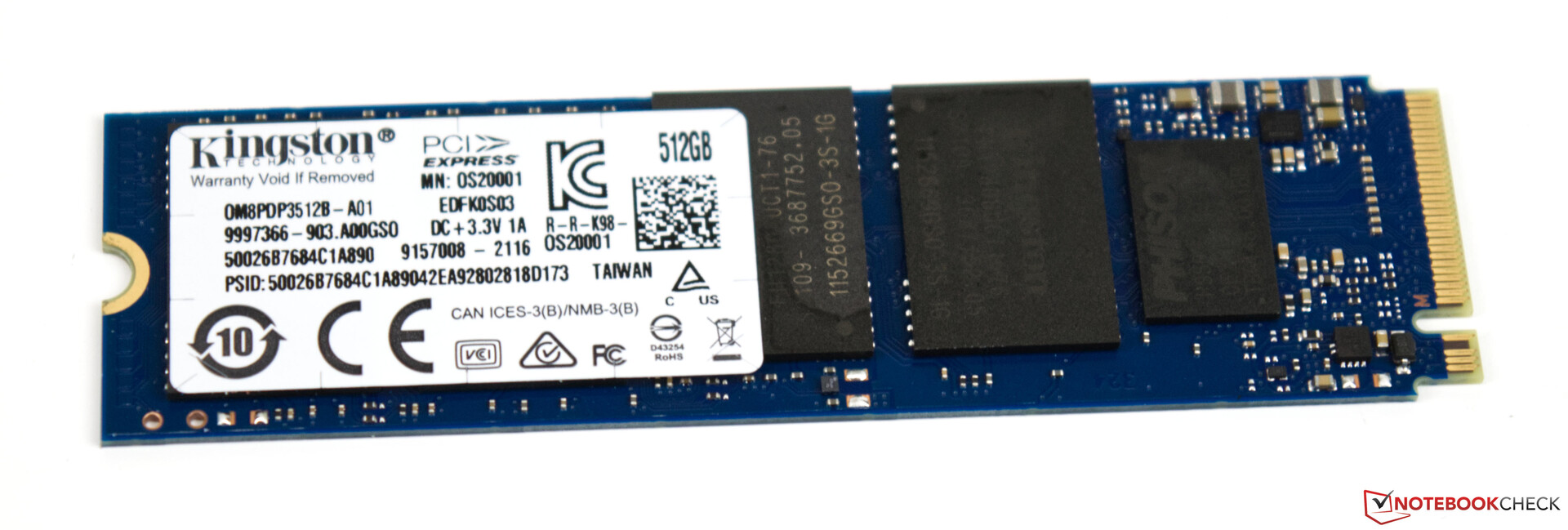

Kingston OM8PDP3512B-AI1, 512 GB
, M.2-2280 NVMe, 450 GB libre
Conexiones
2 USB 2.0, 4 USB 3.0, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Conexiones: 3.5mm Audio Jack
Equipamento de red
MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Tamaño

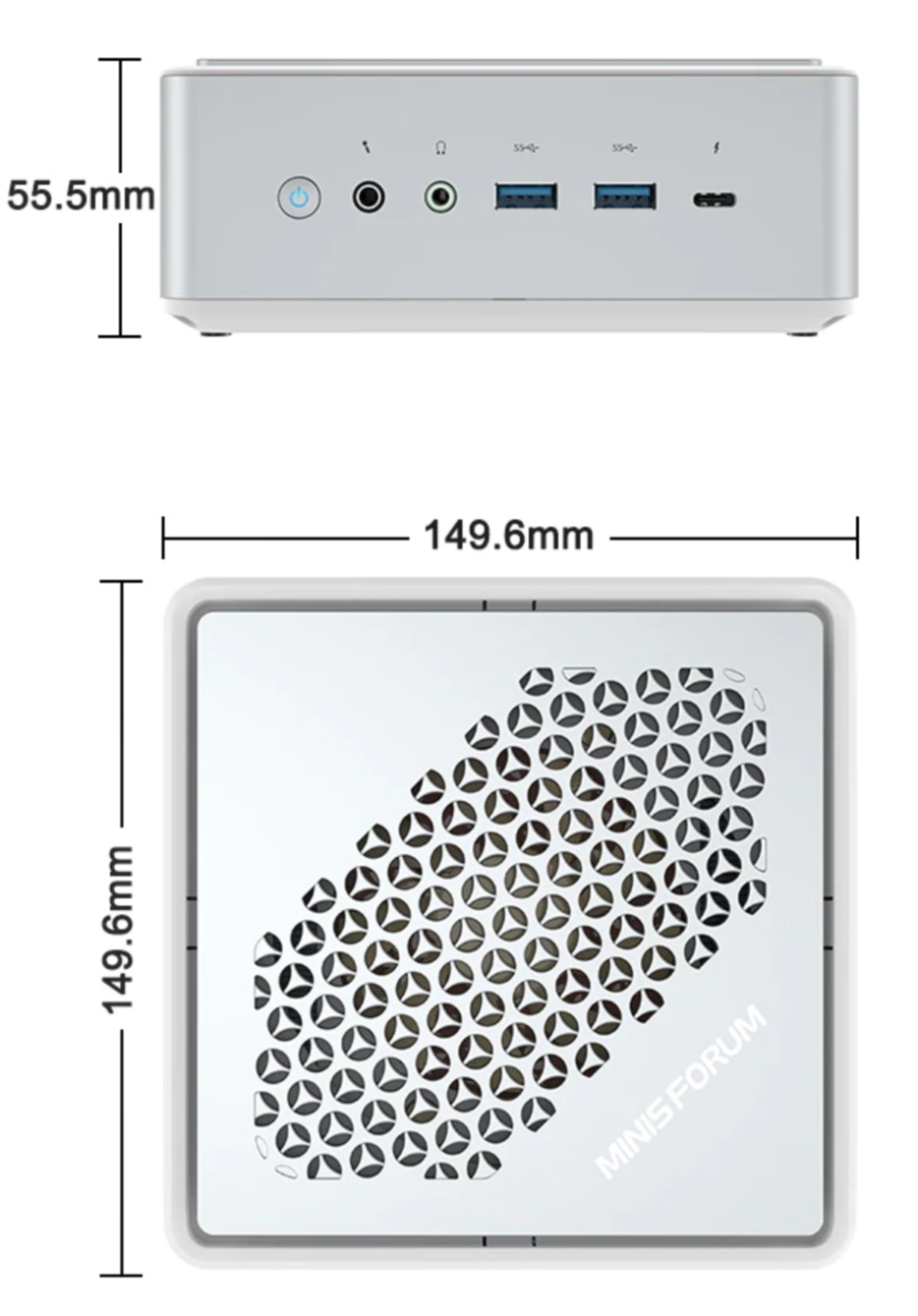

Alto x ancho x profundidad (en mm): 55.5 x 149.6 x 149.6
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Características adicionales
65-Watt-Netzteil
Peso
763 g, Suministro de Electricidad: 277 g
Precio
0 599
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Maletas y equipos

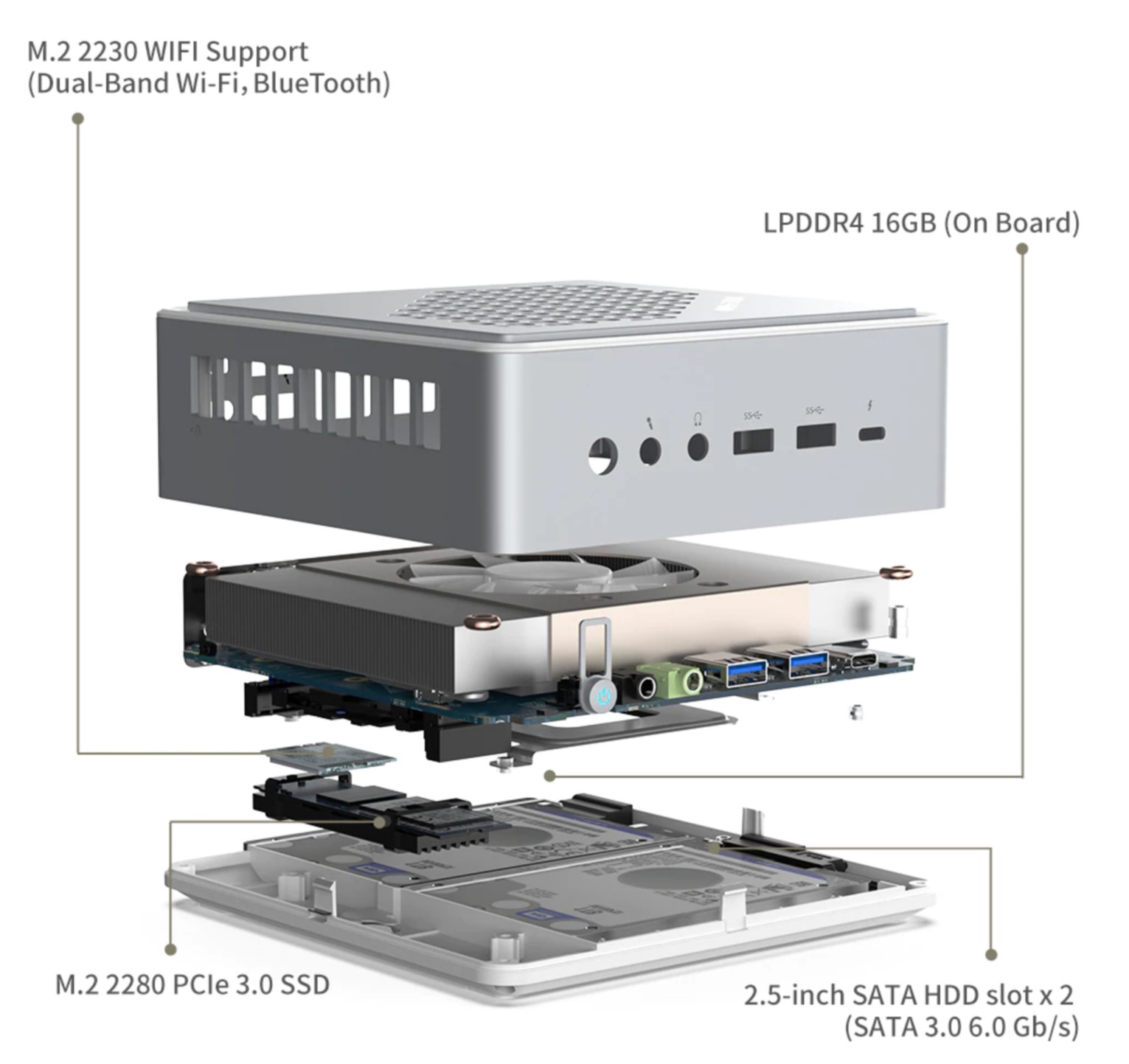

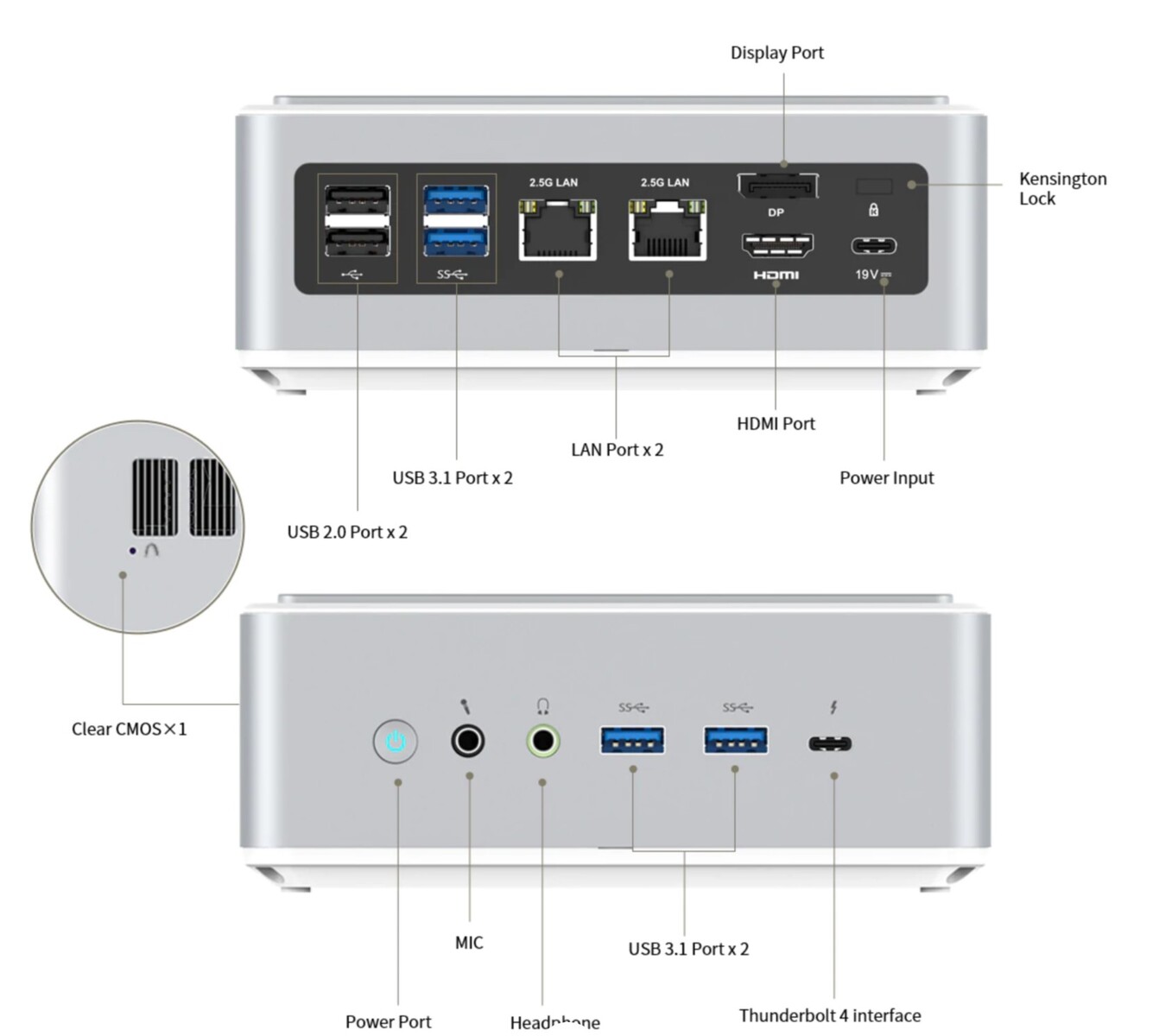

Interfaces externas (fuente: Minisforum)
Interfaces externas (fuente: Minisforum)

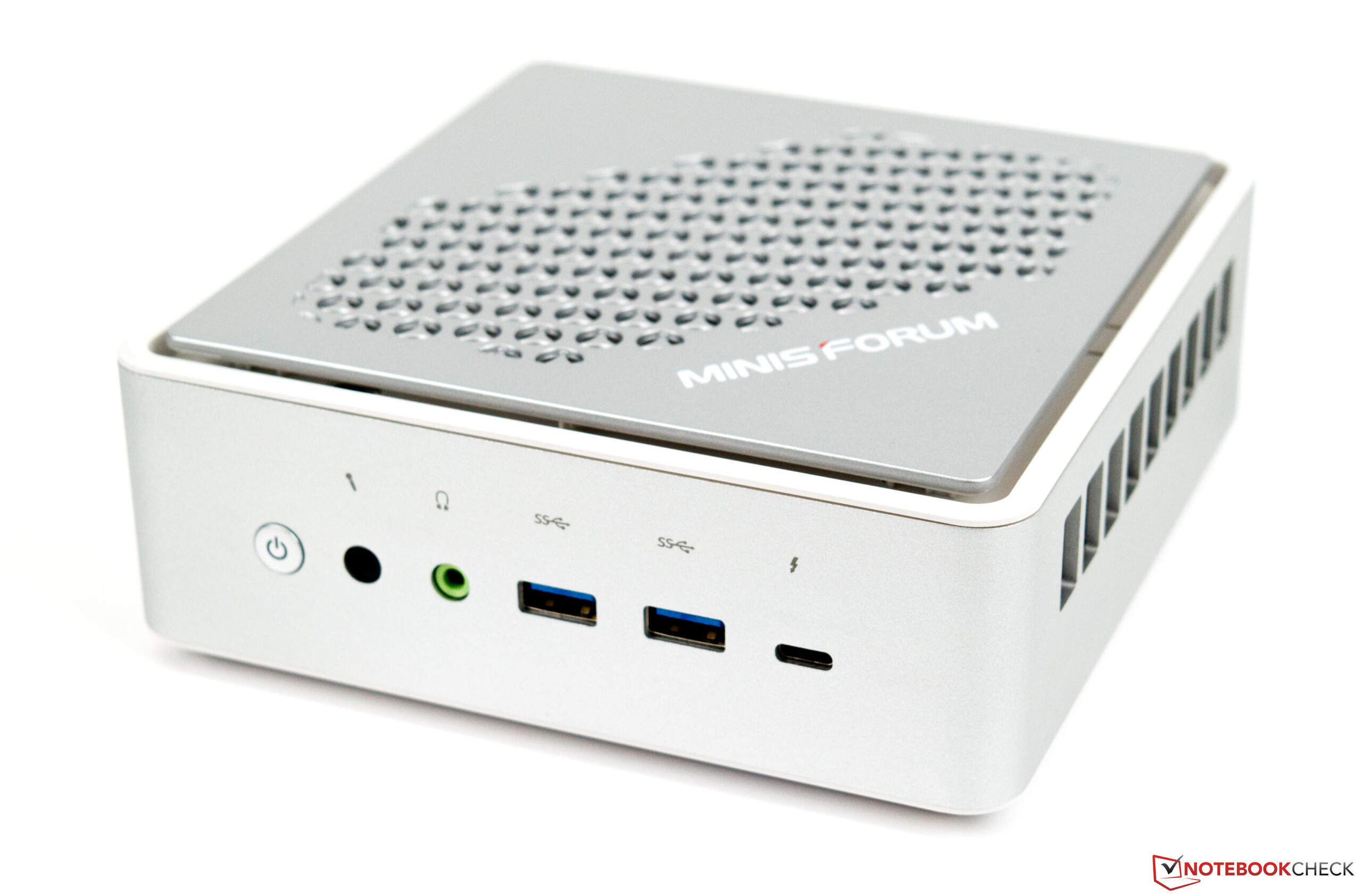

La estructura del Minisforum EliteMini TH50 se parece mucho a la del Minisforum Elitemini HM90. La carcasa está hecha de un cuerpo de aluminio, lo que da al sistema una buena estabilidad. La parte superior e inferior son de plástico, que combina bien con la base de aluminio en términos de color. En términos de color, tiene que gustar la combinación de plata y blanco ya que no hay alternativas. El sistema no ofrece ningún aspecto llamativo, pero no tiene por qué hacerlo, ya que la funcionalidad es mucho más importante

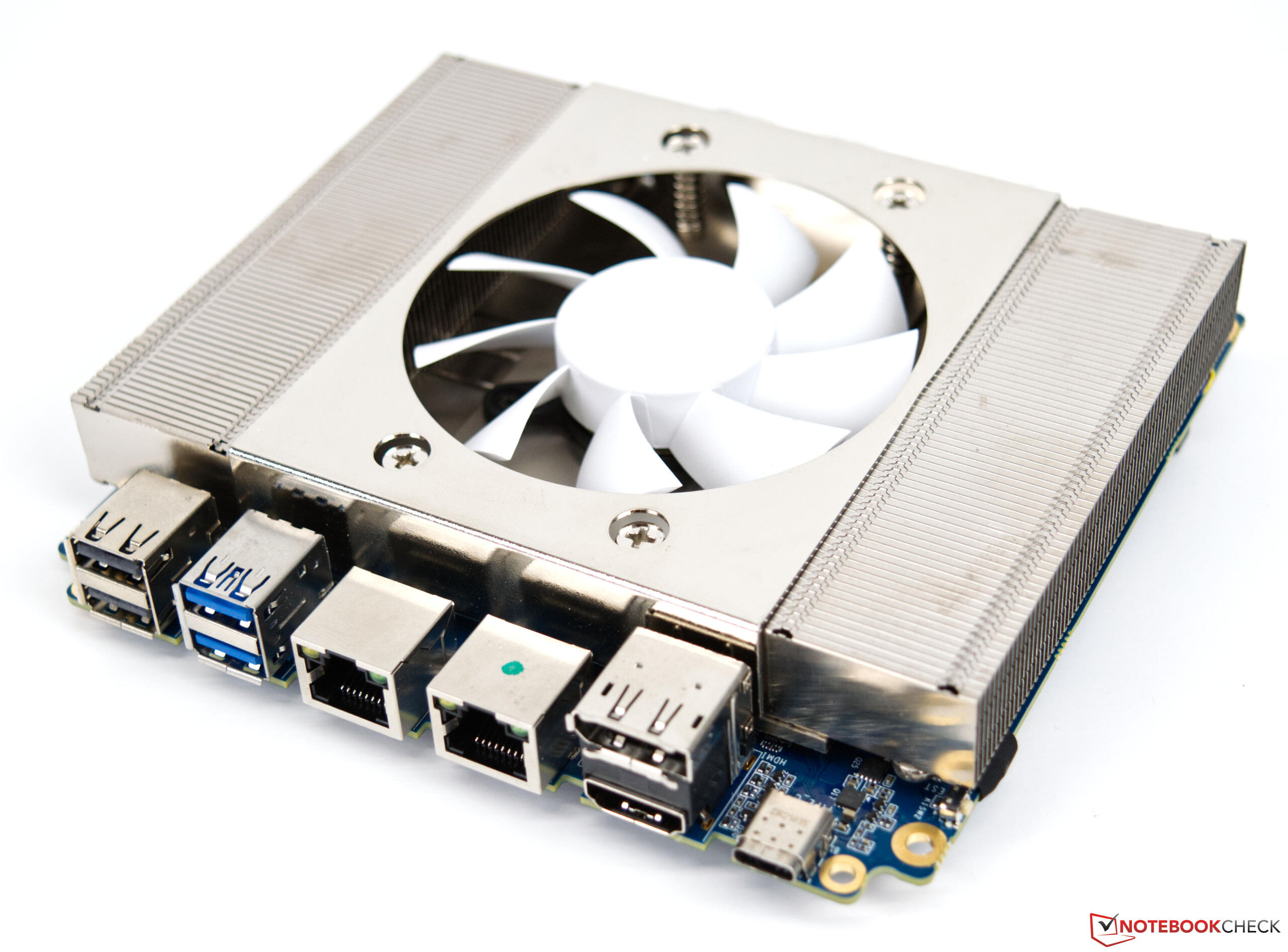

Hablando de la refrigeración, en primer lugar: ésta ya era bastante convincente en el EliteMini HM90. El principio sigue siendo el mismo esta vez también. El aire fresco es aspirado en la parte superior y conducido fuera de la carcasa a través del refrigerador en el lateral.

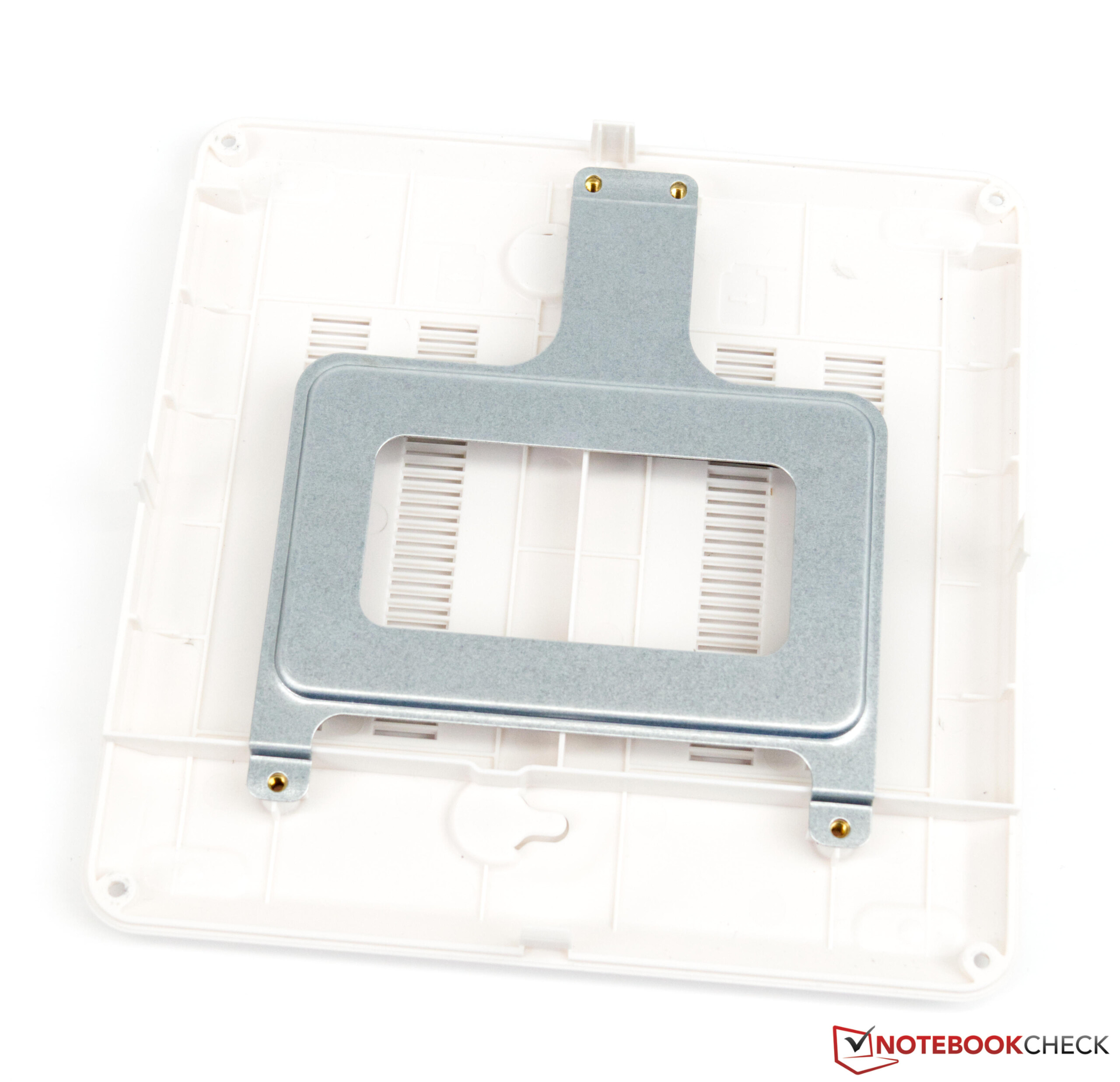

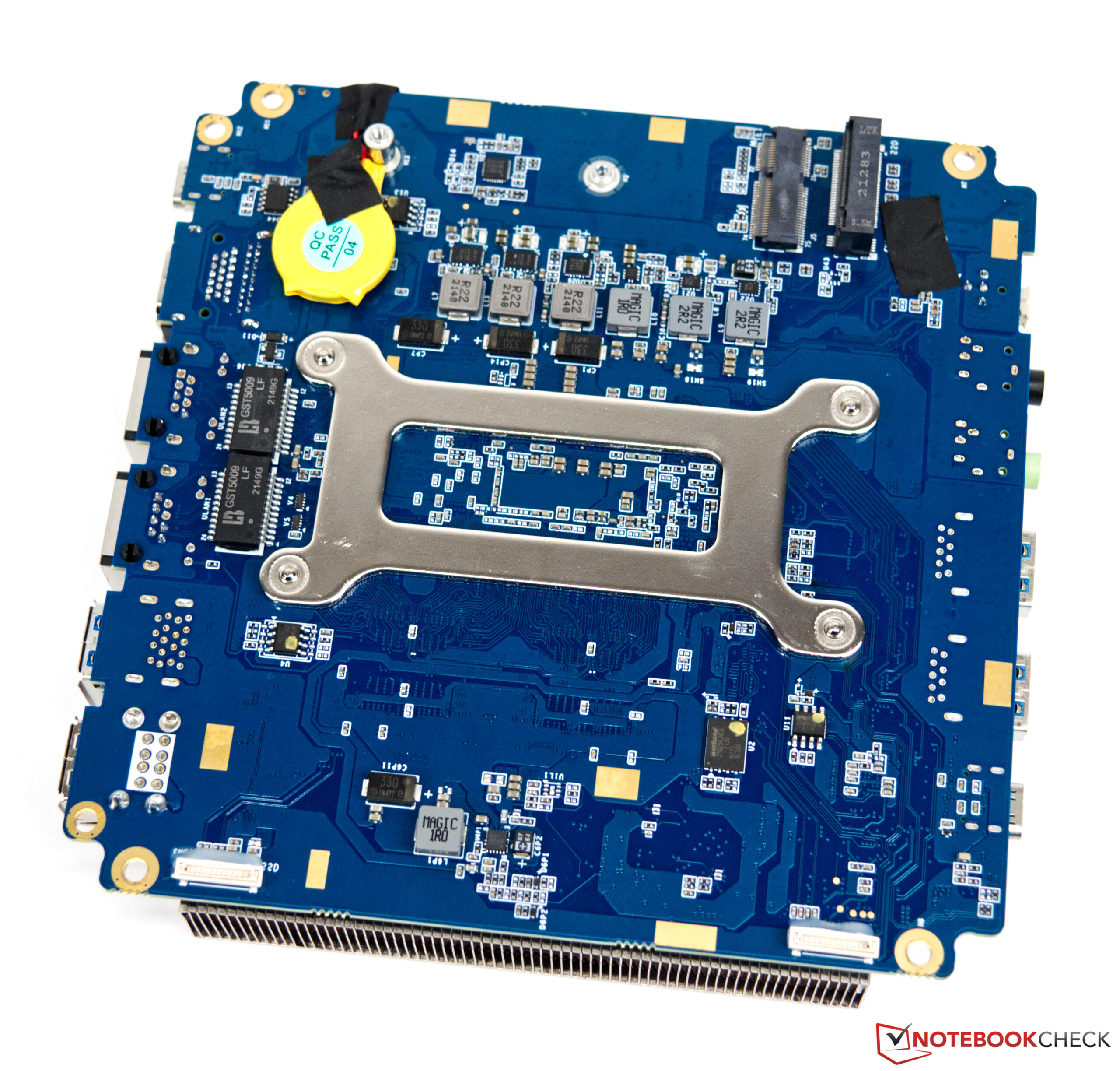

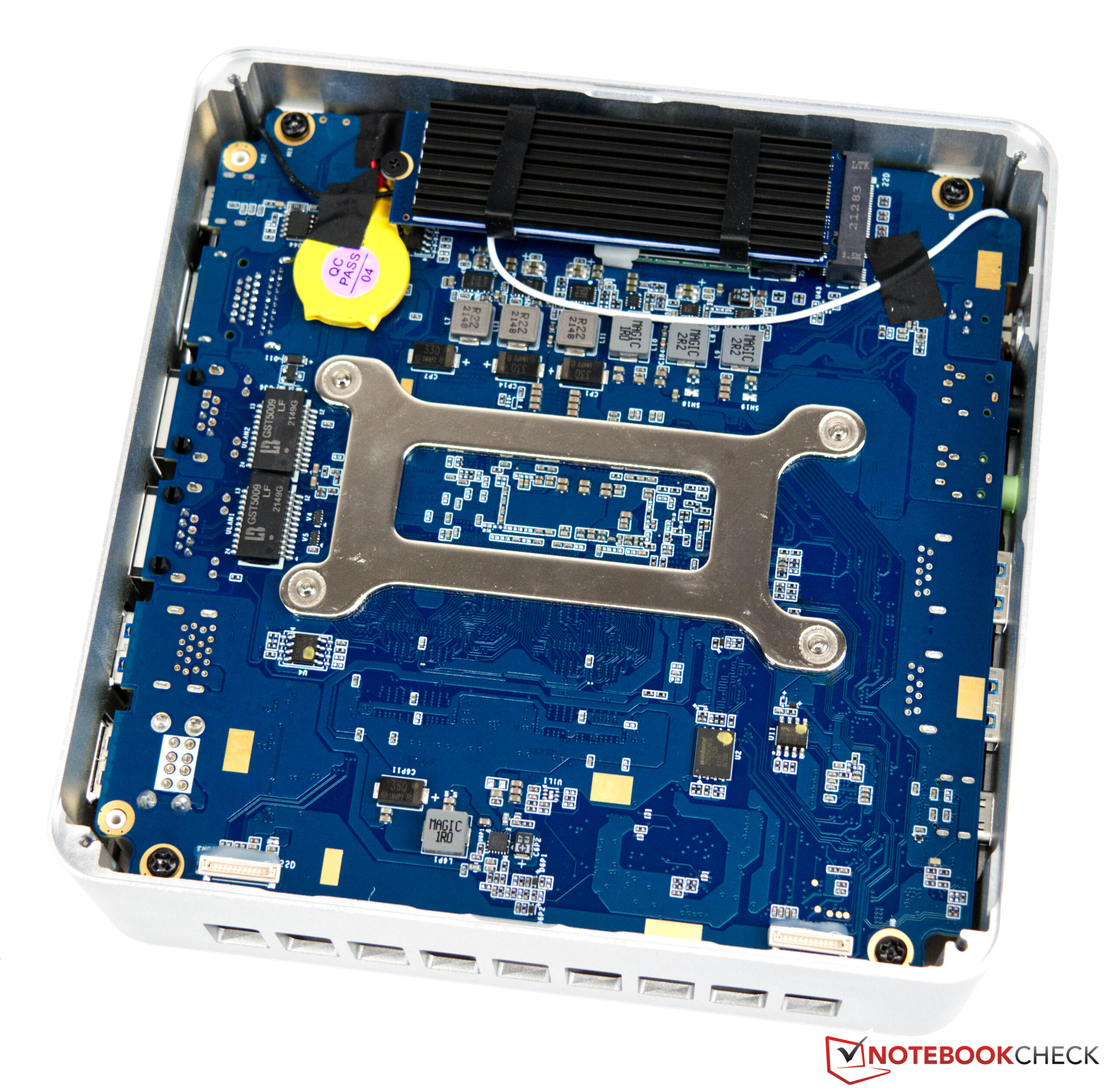

El dispositivo se puede abrir fácilmente a través de la placa inferior. Cuatro tornillos fijan la placa base a la carcasa. Sin embargo, no hay mucho que ver por debajo. El módulo WLAN así como el SSD pueden ser intercambiados. Además, se pueden guardar otras dos unidades de datos de 2,5 pulgadas en el dispositivo. Estas se fijan directamente en la placa base y se conectan a la placa con cables cortos.

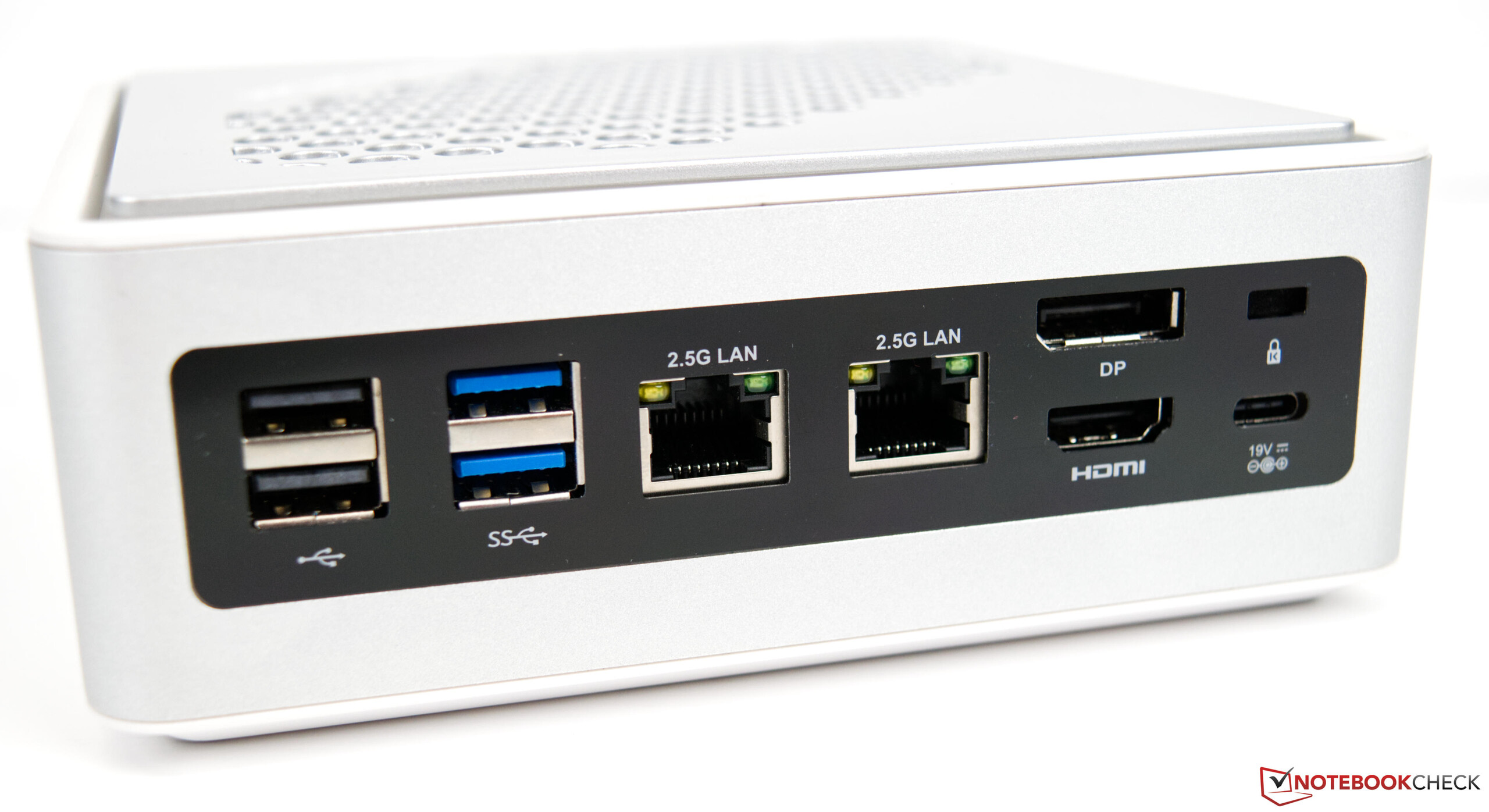

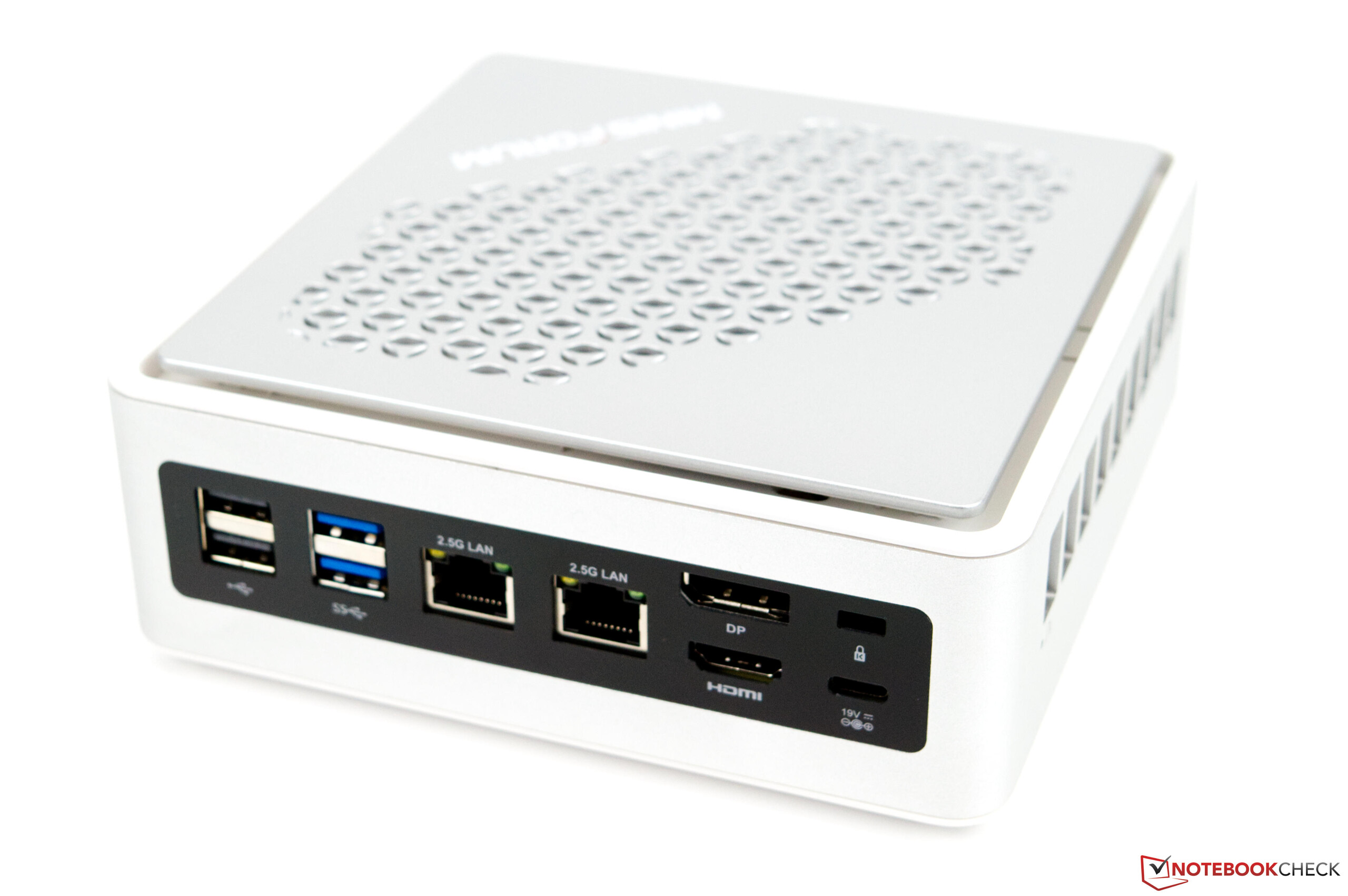

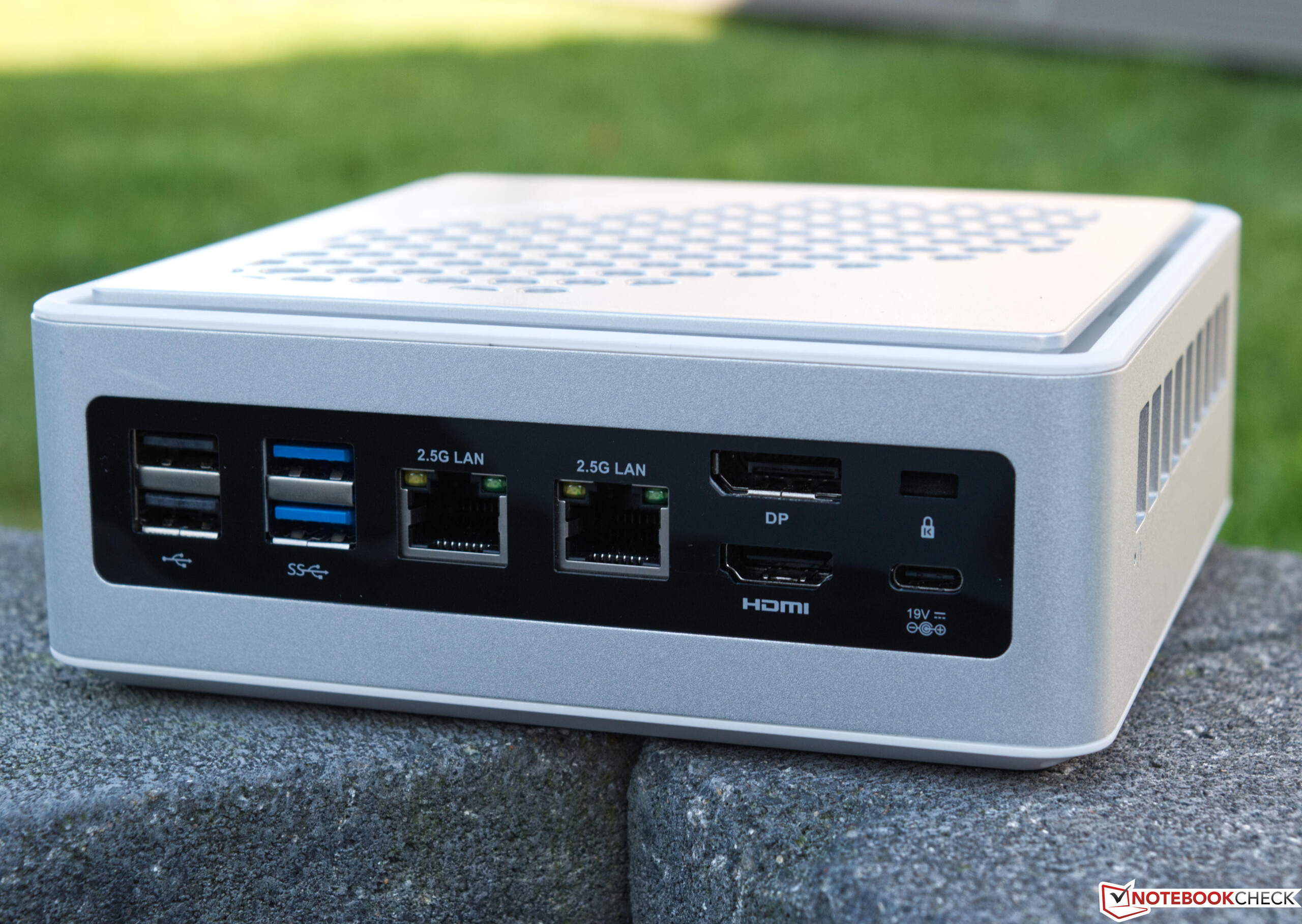

En cuanto a las conexiones externas, el EliteMini HM50 ofrece varias opciones para conectar dispositivos adicionales. Hay un total de seis interfaces USB-A disponibles, lo que debería ser más que suficiente. También hay soporte para Thunderbolt 4 al que se pueden conectar soluciones de acoplamiento externas, lo que permite una amplia gama de opciones para ampliar la conectividad del EliteMini TH50. También probamos una solución de GPU externa para ver qué rendimiento de juego se puede esperar con el pequeño sistema. También hay dos puertos Ethernet 2,5G junto con un HDMI y un DisplayPort. Aquellos que también utilizan el puerto Thunderbolt para la salida de imágenes pueden manejar hasta tres pantallas simultáneamente con el EliteMini TH50.

Aviso importante

Hay un puerto USB-C en la parte trasera, que está destinado al adaptador de corriente. Minisforum señala explícitamente que no se debe conectar el adaptador de corriente al puerto Thunderbolt 4. Tras contactar con el fabricante, se confirmó que conectar la fuente de alimentación de forma incorrecta provocará que el sistema no arranque y que la placa base sufra daños irreparables.

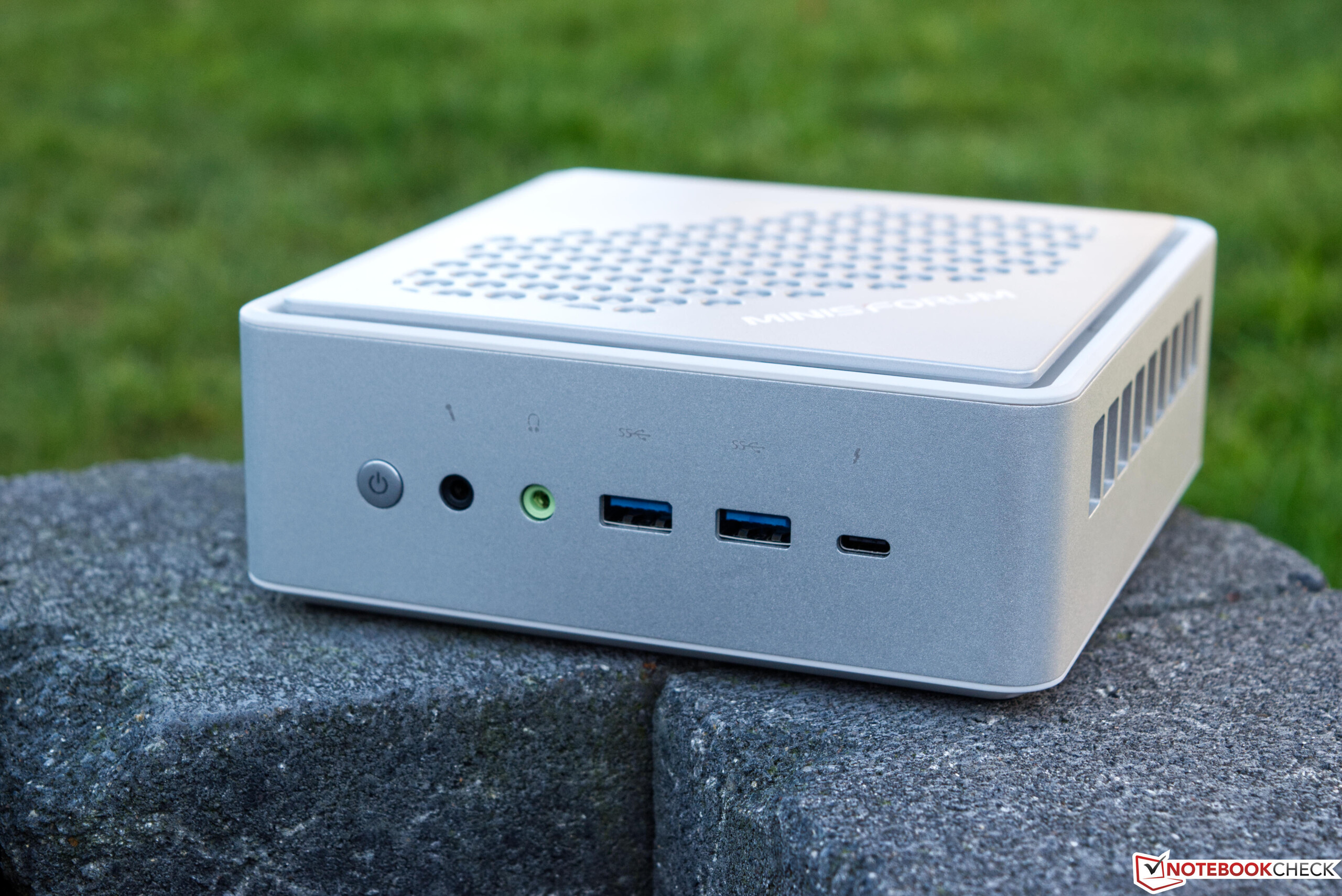

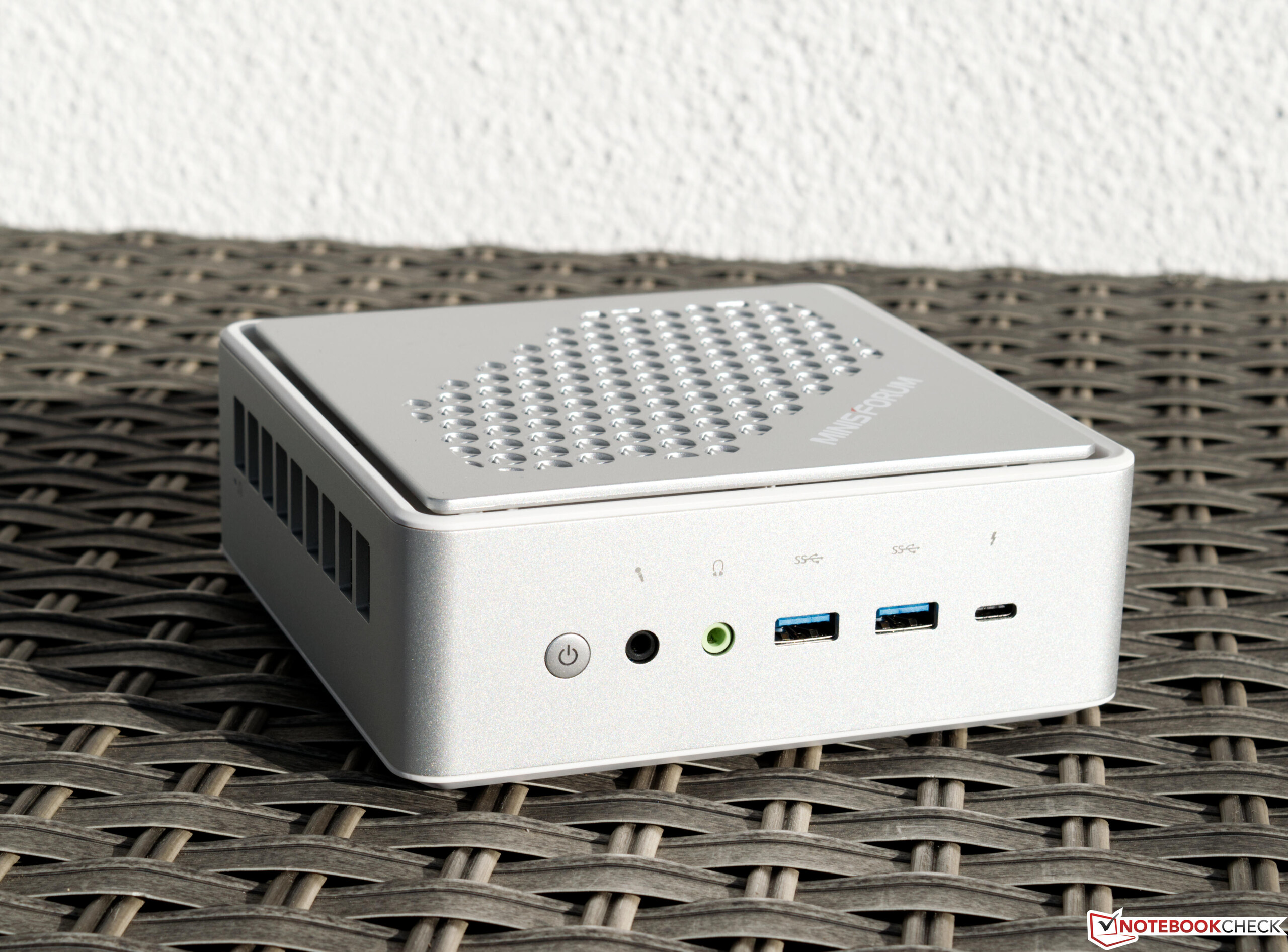

Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50

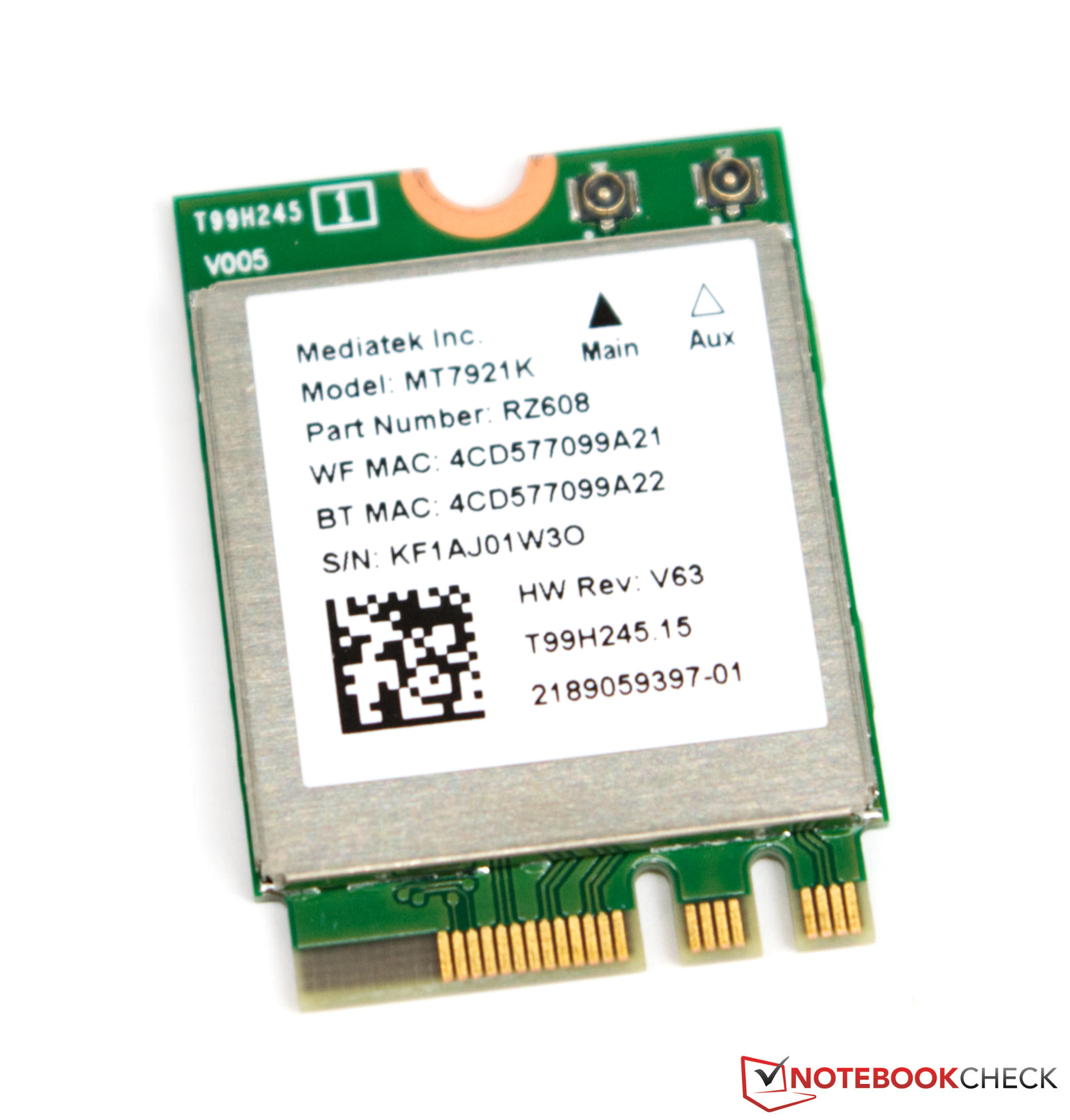

Minisforum EliteMini TH50 - Tarjeta WLAN
Minisforo EliteMini TH50
Minisforo EliteMini TH50
Minisforo EliteMini TH50

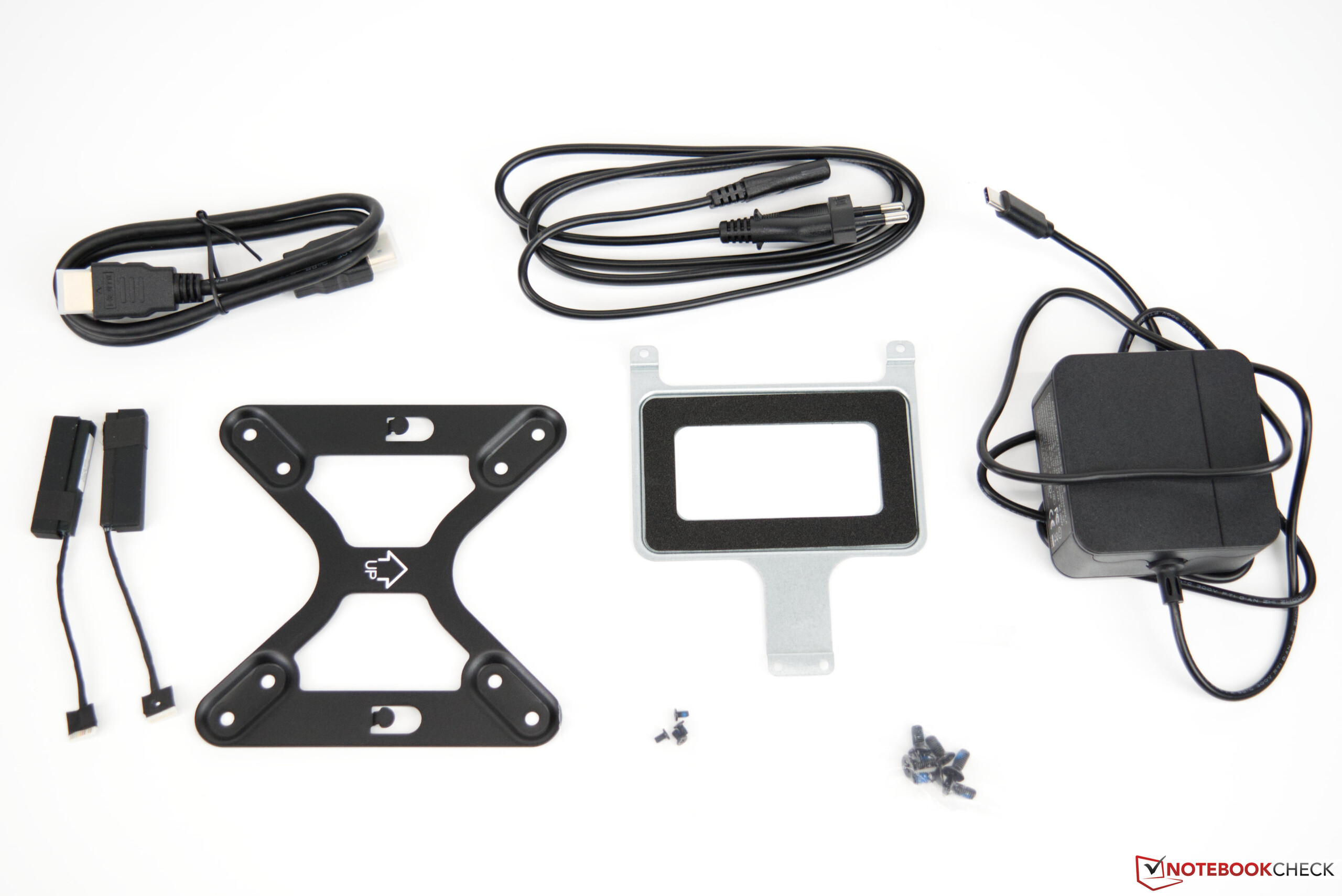

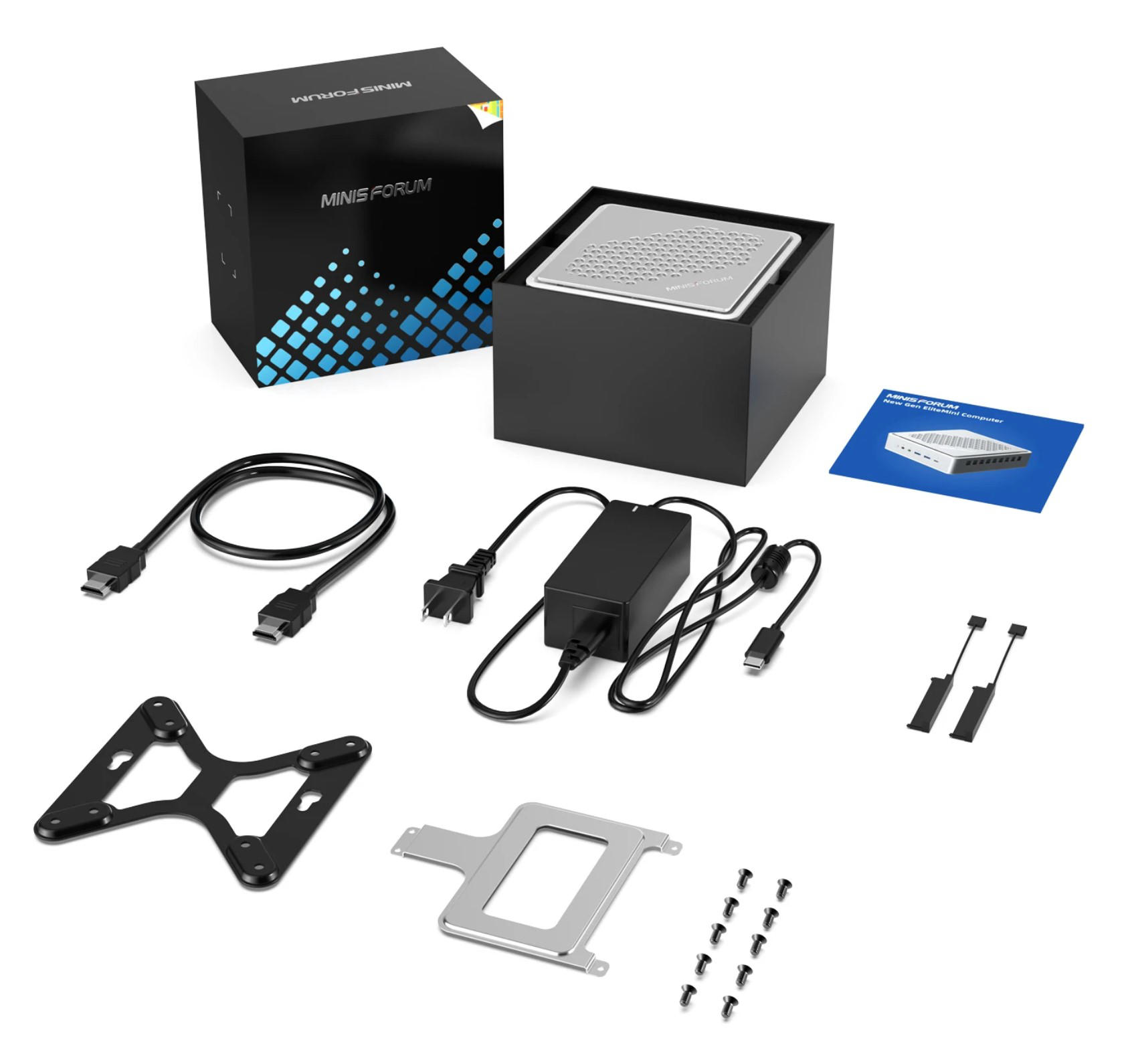

Minisforum EliteMini TH50 - Accesorios
Minisforo EliteMini TH50

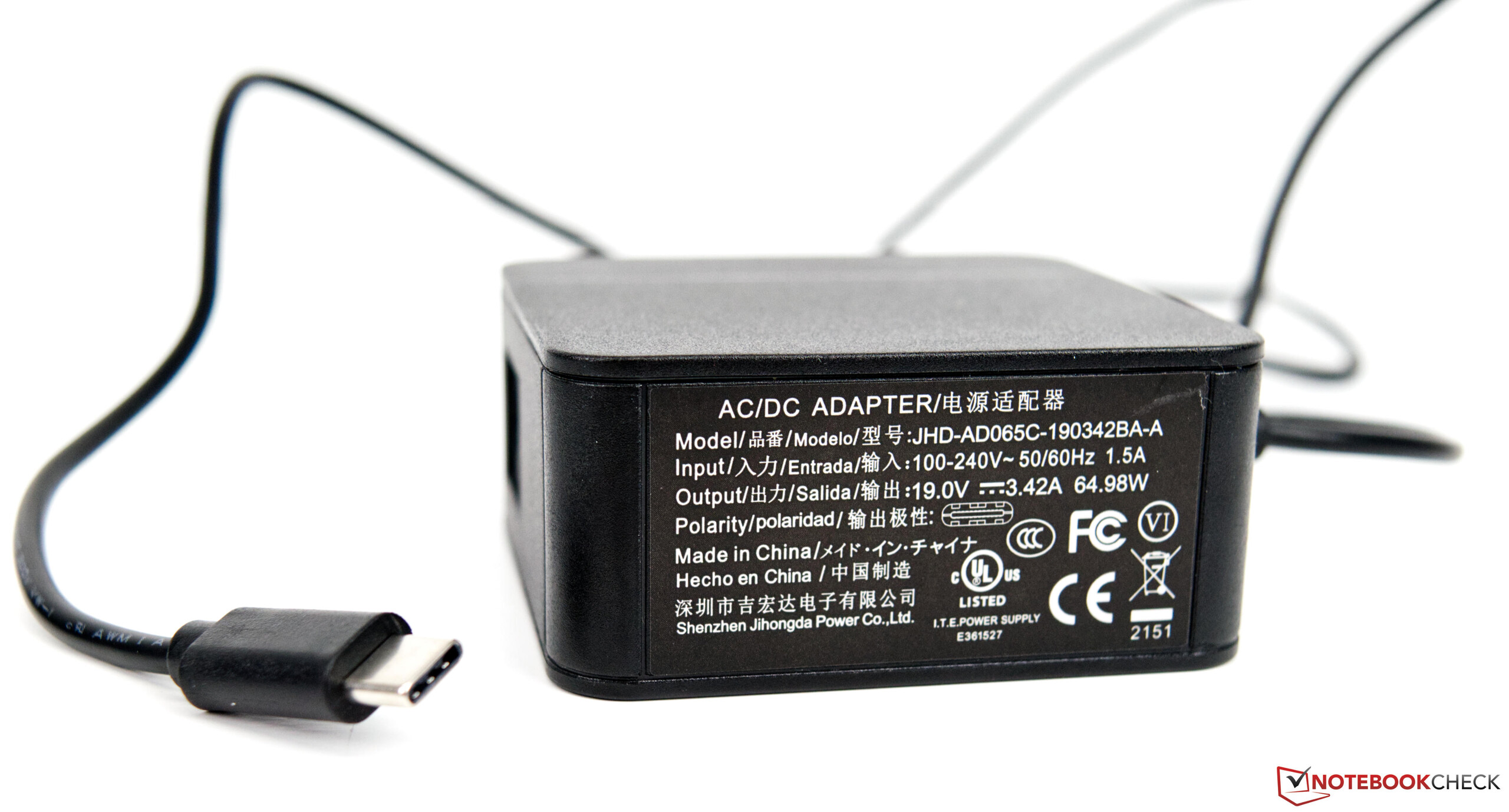

Minisforum EliteMini TH50 - Fuente de alimentación

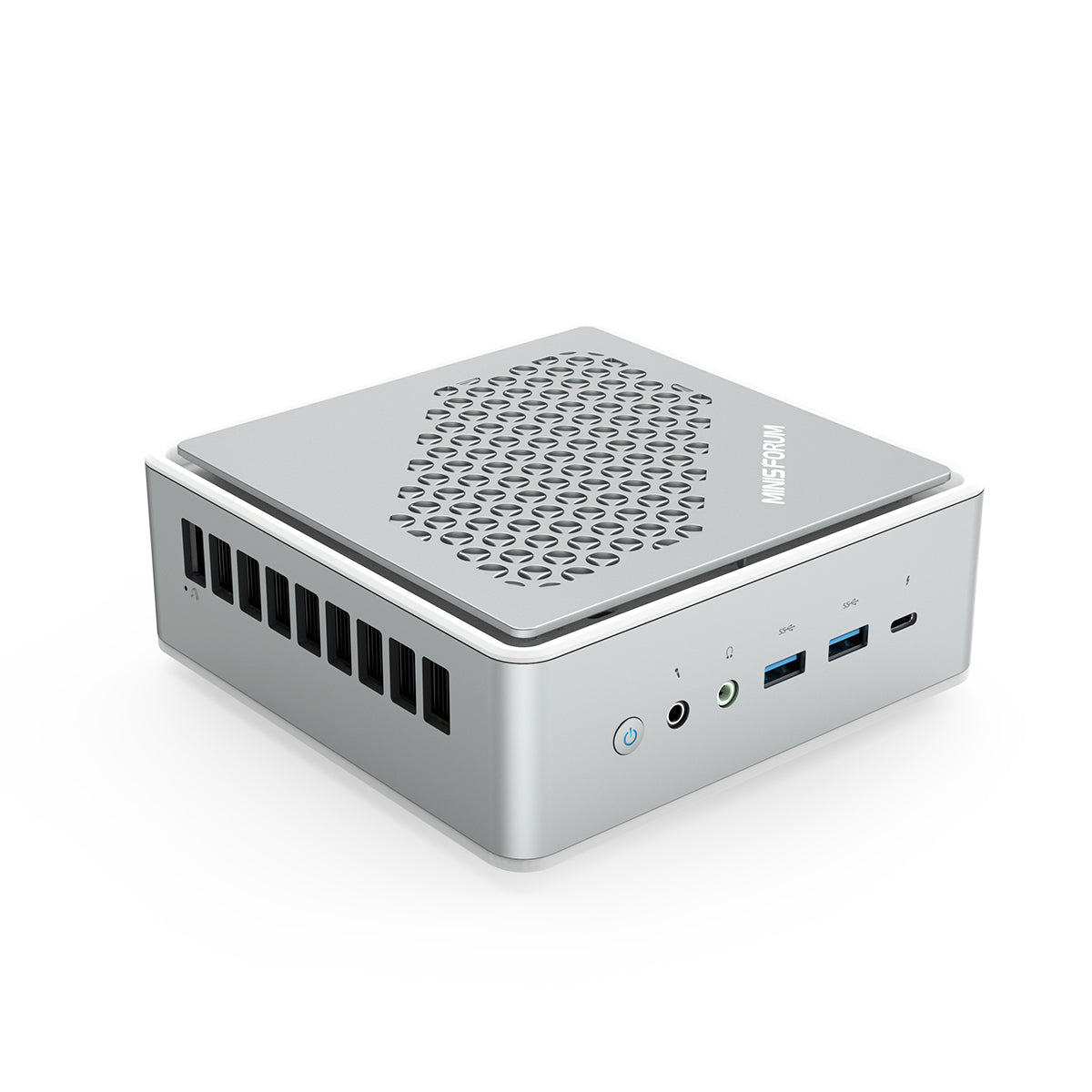

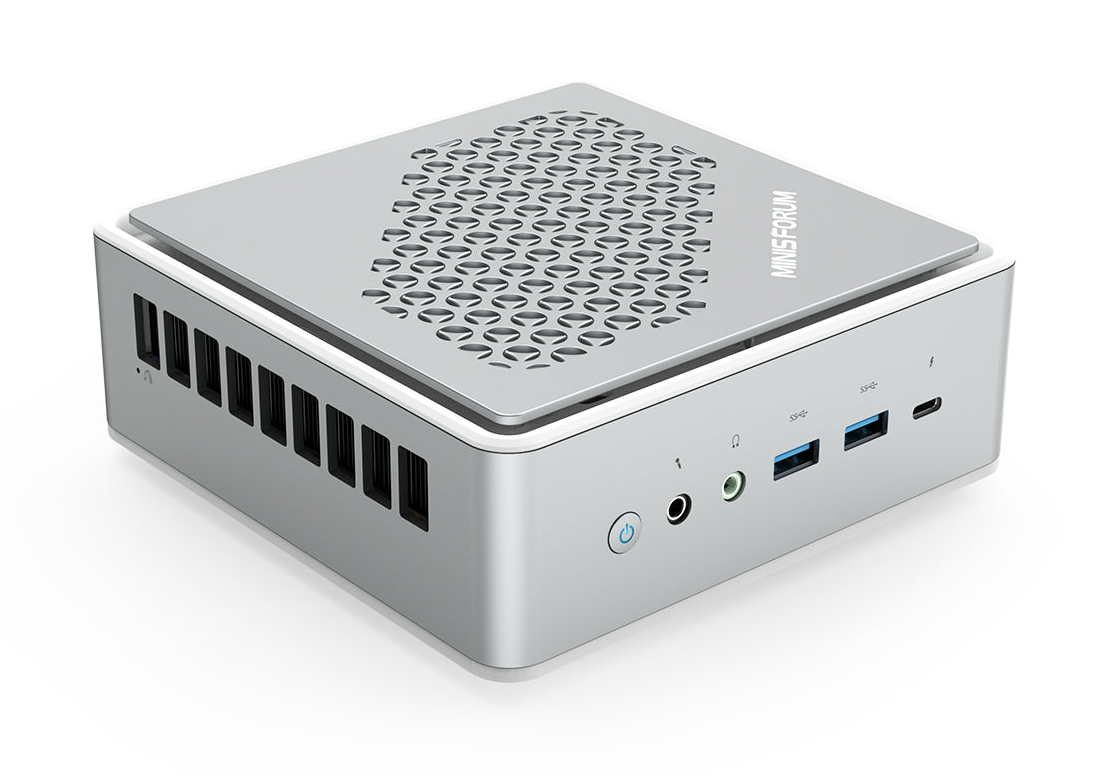

Minisforum EliteMini TH50 (Fuente: Minisforum)
Minisforum EliteMini TH50 (Fuente: Minisforum)
Minisforum EliteMini TH50 (Fuente: Minisforum)
Minisforum EliteMini TH50 (Fuente: Minisforum)
Minisforum EliteMini TH50 (Fuente: Minisforum)

Rendimiento: Reservas suficientes

El Minisforum EliteMini TH50 está equipado con el Intel Core i5-11320H. Este SoC está soportado por 16 GB de RAM DDR4 y por tanto ofrece una buena base para la mayoría de aplicaciones. El rápido SSD NVMe ofrece 512 GB de espacio de almacenamiento en nuestra configuración y debería ser suficiente para la mayoría de los usuarios. Como alternativa, el EliteMini TH50 también está disponible con un SSD de 256 GB. Sin embargo, seguimos recomendando optar por la variante de 512 GB debido al bajo potencial de ahorro

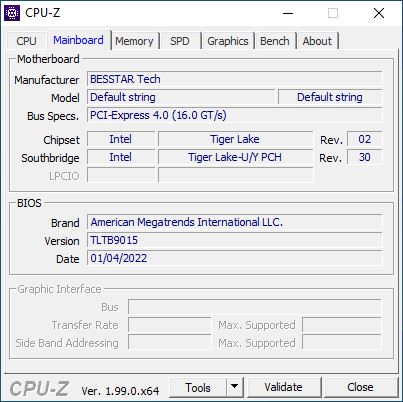

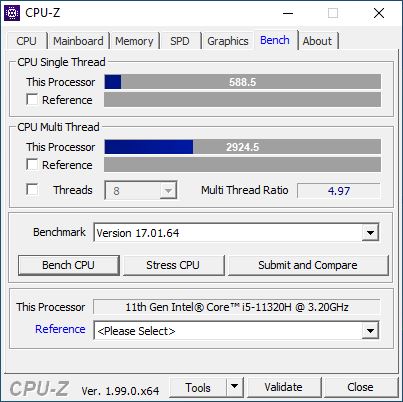

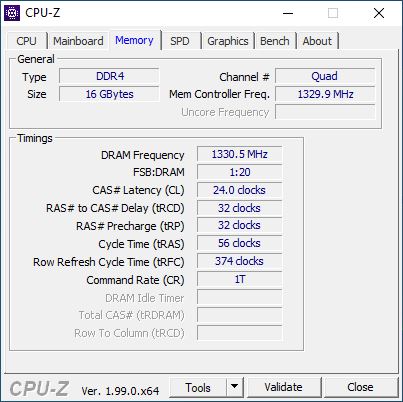

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

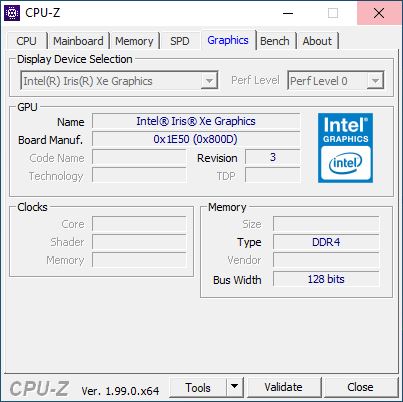

GPU-Z
GPU-Z
HWiNFO

Procesador

El Intel Core i5-11320H pertenece a la serie Tiger Lake y procede de la demografía de portátiles. El frugal SoC ofrece cuatro núcleos nativos y ocho hilos con un TDP de 35 W. El rendimiento mononúcleo es bastante positivo y suele ser sólo un poco peor que el de la competencia con SoCs mucho más rápidos. Sin embargo, el EliteMini TH50 tiene que dejar que los contendientes con seis y ocho núcleos marchen por delante en las pruebas multihilo. No obstante, nuestra muestra de prueba lo hace bien y se equipara en su mayor parte con el Intel NUC10i7FNH

El Intel Core i5-11320H está especificado con un consumo de energía de 35 W. No obstante, pudimos documentar un consumo de energía del SoC de hasta 48 W bajo carga durante un breve periodo de tiempo. Sin embargo, esto es sólo de corta duración debido al turbo del SoC. Desafortunadamente, no se puede ajustar el límite de energía en la BIOS del Minisforum EliteMini TH50. Este ha sido el caso de los sistemas basados en AMD también, por lo que se espera una opción similar para el EliteMini TH50

Para más comparaciones y pruebas de rendimiento, consulte nuestraTabla de comparación de CPUs.

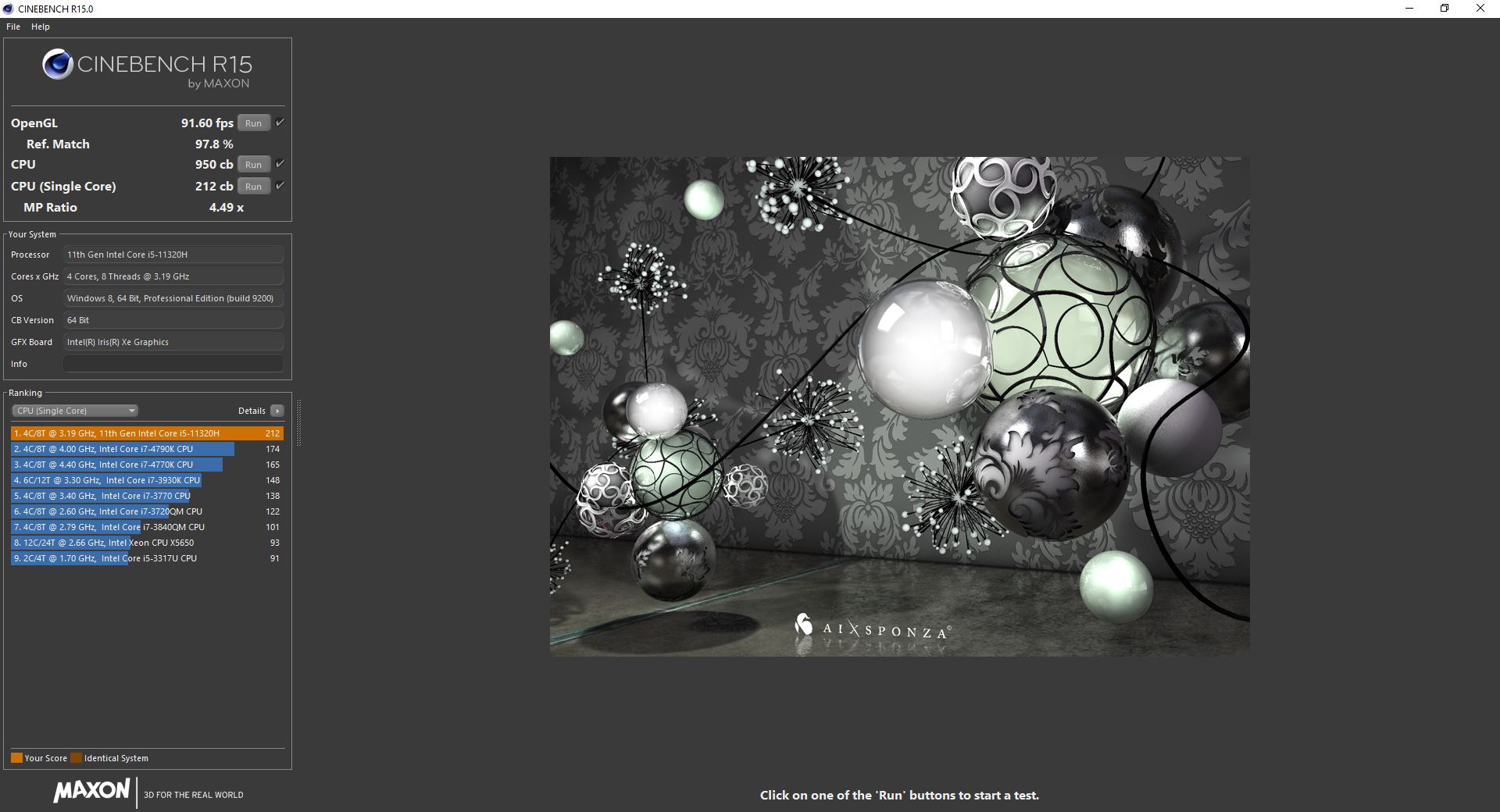

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
242 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
240 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
215 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
212 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196 Points -8%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
194 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
194 Points -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
168 Points -21%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
162 Points -24%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
123 Points -42%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
117 Points -45%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
108 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
84 Points -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
77 Points -64%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2224 Points +134%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1967 Points +107%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1919 (1862.02min - 1893.4max) Points +102%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1607 Points +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1455 Points +53%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1067 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
950 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
790 Points -17%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
319 Points -66%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
316 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
298 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
261 Points -73%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
248 Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
220 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points -78%

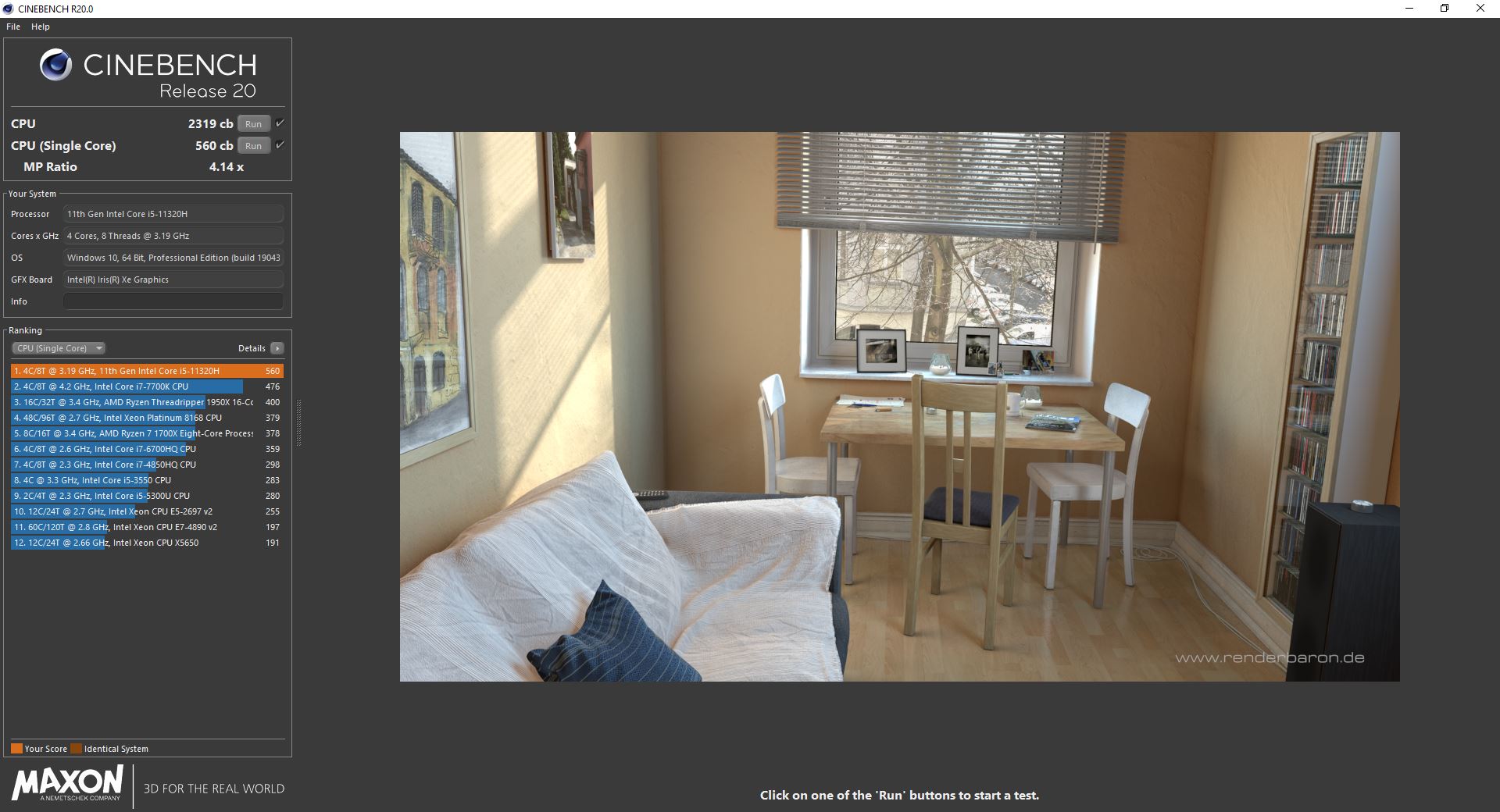

Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
582 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
567 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
560 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
505 Points -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
504 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
480 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
428 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
401 Points -28%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
266 Points -52%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
200 Points -64%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
171 Points -69%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5185 Points +124%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4585 Points +98%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4495 Points +94%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3357 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2319 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2303 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1820 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
743 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
720 Points -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
556 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
491 Points -79%
Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1499 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1479 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1456 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1234 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1031 Points -29%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
696 Points -52%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
660 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
411 Points -72%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13430 Points +125%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11792 Points +97%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11440 Points +91%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
8532 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5980 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1910 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1833 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1529 (1521.41min - 1529.3max) Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
834 (768.67min - 833.537max) Points -86%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.86 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.8 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2.51 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
2.4 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
2.26 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.24 Points -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.19 Points -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.91 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.87 Points -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.47 Points -41%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.33 Points -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.28 Points -49%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.92 Points -63%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25.6 Points +137%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.03 Points +114%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 Points +104%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
18.04 Points +67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
16.7 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
10.89 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
10.78 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8.66 Points -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
4.14 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3.59 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
3.26 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3.09 Points -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.86 Points -73%
Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2379 Seconds * -361%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1805 Seconds * -250%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
585 Seconds * -13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
516 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
468.3 Seconds * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
317.4 Seconds * +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
315.4 Seconds * +39%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
265 Seconds * +49%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
247.3 Seconds * +52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
229.3 Seconds * +56%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
732 s * -282%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
620 s * -224%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
615 s * -221%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
566 s * -196%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
558 s * -192%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
543 s * -184%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
217.8 s * -14%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
191.4 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
177.4 s * +7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
120.2 s * +37%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
119.5 s * +38%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
106.7 s * +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91.6 s * +52%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.9 s * +57%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
23.1 s * -292%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
19.5 s * -231%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
18 s * -205%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
17.62 s * -199%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
17.37 s * -195%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
17.09 s * -190%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.78 s * -15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5.895 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.103 s * +13%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4.4 s * +25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3.788 s * +36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.308 s * +44%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
3.257 s * +45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.194 s * +46%
X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
128 (122min - 128max) fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (112min - 112max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
111 (111min - 112max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
92.8 (89.1min - 100max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
84.8 (84.6min - 105max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
60.5 (60.4min - 73.5max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21.6 (21.5min - 22.1max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
20.55 (20.4min - 20.7max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
19.3 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.46 fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
13.75 fps
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276.5 (274min - 278max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
271.5 (259min - 276max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
237.5 (236min - 239max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
236 (235min - 257max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
215 (213min - 217max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
206 (204min - 208max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
184.5 (184min - 186max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
106.5 (106min - 109max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
105 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
102 (100min - 118max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
88.5 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
74 fps
TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.1 GB/s +110%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +110%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1 GB/s +90%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.57 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.525 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.48 GB/s -9%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.23 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.21 GB/s -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.182 GB/s -65%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.166 GB/s -68%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.142 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.133 GB/s -75%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.8 GB/s +96%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1.7 GB/s +85%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.6 GB/s +74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.919 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.79 GB/s -14%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.403 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.346 GB/s -62%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.283 GB/s -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.266 GB/s -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.245 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.199 GB/s -78%
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 GB/s +77%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10.3 GB/s +69%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10.1 GB/s +66%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.1 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.7 GB/s -23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4.6 GB/s -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.6 GB/s -57%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.9 GB/s -69%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.9 GB/s -69%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.7 GB/s -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.5 GB/s -75%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1.3 GB/s -79%
Geekbench 4.4
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32434 Points +47%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
32174 Points +46%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31724 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
29385 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28402 Points +29%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22969 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
22045 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13949 Points -37%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
5468 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5399 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5066 Points -77%
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6434 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6365 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6238 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
5969 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
5726 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5287 Points -15%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5271 Points -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3680 Points -41%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2613 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2555 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1922 Points -69%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.9 fps +102%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.5 fps +84%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +64%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
11.6 fps +48%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.4 fps +45%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
7.95 fps +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
7.86 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.28 fps -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.65 fps -79%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.48 fps -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0 fps -100%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16783 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16422 Points +41%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
15497 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13940 Points +20%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12199 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11662 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
11443 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
7679 Points -34%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
4420 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3863 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3765 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3659 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
3072 Points -74%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2794 Points -76%
LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
143 s * -194%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
92.9 s * -91%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
66 s * -36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
59.5 s * -22%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 s * -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 s * -1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
48.7 s *
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
45.23 s * +7%

* ... más pequeño es mejor

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23

Cinebench R15 multibucle

Durante la prueba de carga con el multibucle Cinebench R15, el Minisforum EliteMini TH50 puede mantener el Intel Core i5-11320H bien controlado. Tras la primera ejecución, el rendimiento se reduce ligeramente y luego se mantiene estable en gran medida. Con una media de 896 puntos, nuestra muestra de prueba está sólo por detrás delIntel NUC10i7FNHcon seis núcleos y 12 hilos.

0801602403204004805606407208008809601040112012001280136014401520Tooltip
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

Pruebas de rendimiento y renderización del sistema

En las pruebas sintéticas, nuestra unidad Minisforum EliteMini TH50 vuelve a enfrentarse alIntel NUC10i7FNH. Debido a los SoCs más rápidos de los otros dispositivos de la comparación, no es posible lograr una mejor clasificación aquí. Sin embargo, el EliteMini TH50 lo hace bien y la diferencia con el EliteMini HM90 no es muy alta. La latencia medida bajo carga y durante la reproducción de vídeo 4K es muy buena y no hay caídas. La Intel Iris Xe Graphics G7 iGPU se utiliza en un 26% durante la reproducción. Incluso después de iniciar Prime 95, la latencia del CPD no aumenta mucho.

Lo que ocurre con una base de GPU externa y la Nvidia GeForce RTX 3060 puede verse de forma impresionante cuando se observan los resultados de LuxMark y ComputeMark. Todo el potencial de la tarjeta gráfica externa no se puede aprovechar en los benchmarks SPECviewprf.

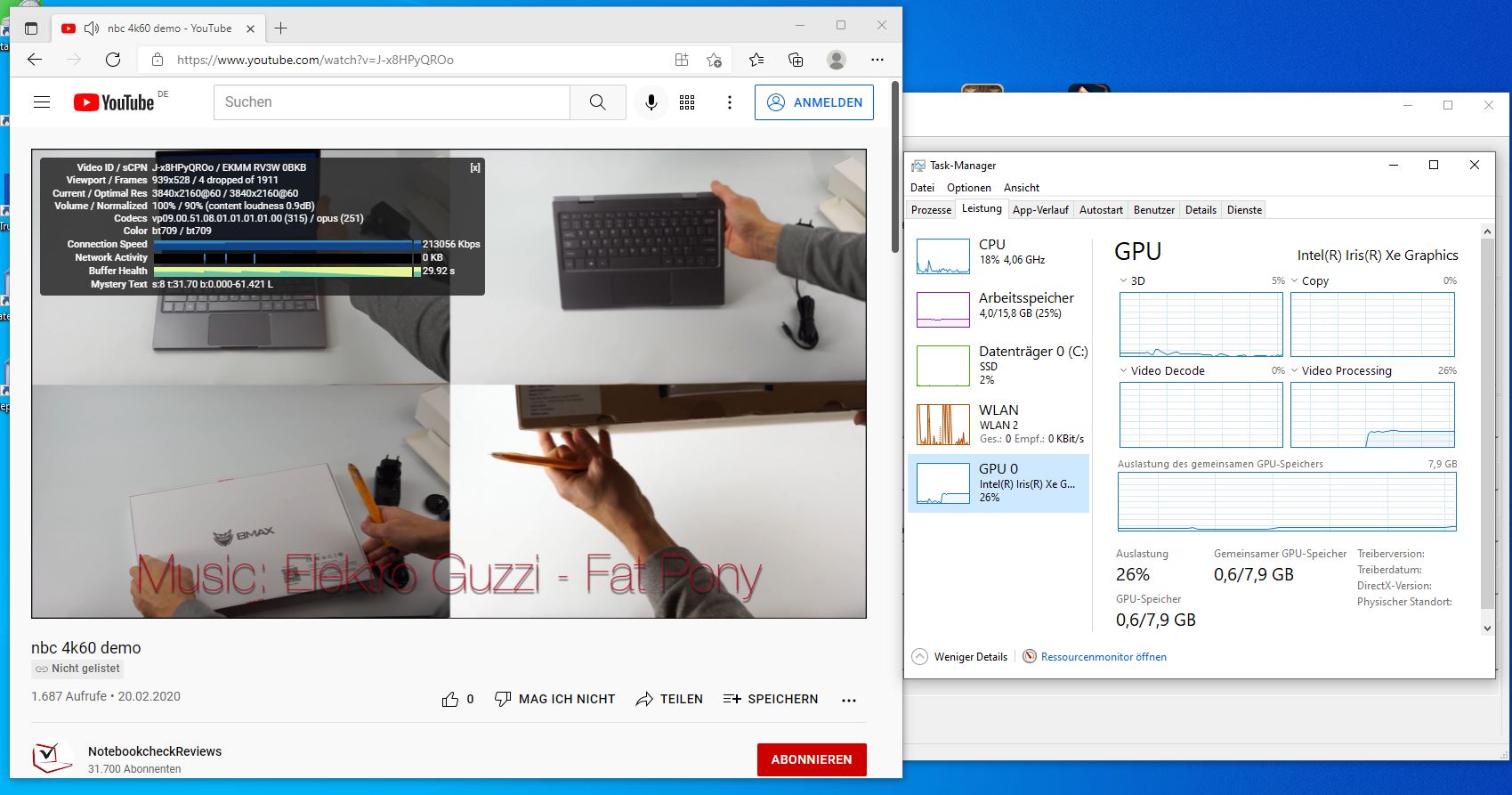

Máxima latencia al abrir varias pestañas del navegador y reproducir vídeo 4K.
Máxima latencia al abrir varias pestañas del navegador y reproducir vídeo 4K.

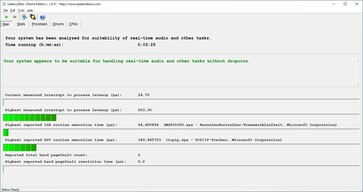

Latencia máxima tras diez segundos de Prime95
Latencia máxima tras diez segundos de Prime95
PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
6939 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +27%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
6499 Points +27%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +23%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
5697 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5130 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4418 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4019 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points -42%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points -50%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2391 Points -53%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -65%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
8581 Points +26%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points +21%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8136 Points +19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
7447 Points +9%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
6876 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6832 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6494 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
4084 Points -40%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3854 Points -44%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -57%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10797 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10321 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10087 Points +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
9846 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
9556 Points
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
9059 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9026 Points -6%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
9013 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8235 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
6210 Points -35%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5446 Points -43%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5419 Points -43%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
4693 Points -51%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10161 Points +81%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9785 Points +74%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7105 Points +27%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6808 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6794 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6262 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5615 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
3777 Points -33%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3296 Points -41%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2139 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2097 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1677 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1165 Points -79%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -978%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -654%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -365%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * -352%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
349.5 μs *
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
82.3 fps +121%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.5 fps +73%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
61.8 fps +66%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
59.2 fps +59%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 fps +32%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
47.8 fps +28%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
28.71 fps -23%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
26.2 fps -30%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
23.86 fps -36%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.55 fps -56%
1900x1060 Siemens NX (snx-02)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.1 fps +513%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.1 fps +484%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +377%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
12 fps +249%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9.08 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7.39 fps +115%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.44 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.98 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.67 fps -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.6 fps -24%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.48 fps -28%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.6 fps +295%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 fps -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.3 fps -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
8.8 fps -52%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.35 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
5.56 fps -70%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
49 fps +341%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
40.14 fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24.9 fps +124%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.2 fps +10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.91 fps -74%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.7 fps -76%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.62 fps -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.61 fps -85%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
200 fps +410%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
171 fps +336%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
66 fps +68%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.2 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31 fps -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.6 fps -32%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
17 fps -57%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.71 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13.02 fps -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3.33 fps -92%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
13.1 fps +2947%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.49 fps +2572%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8.21 fps +1809%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.19 fps +409%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.52 fps +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.5 fps +16%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.43 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.28 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.23 fps -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.09 fps -79%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.08 fps -81%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
61.5 fps +635%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
52.2 fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
45.4 fps +442%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.2 fps +344%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.9 fps +329%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.9 fps +257%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
14.42 fps +72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.93 fps +54%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
10.8 fps +29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
9.89 fps +18%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
8.37 fps
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
117 fps +215%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
78.3 fps +111%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
63.1 fps +70%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.2 fps +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.1 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32.7 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
16.55 fps -55%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
15.5 fps -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
14.12 fps -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
11.3 fps -70%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +449%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
180.8 fps +366%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
98 fps +153%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.7 fps +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.8 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.4 fps -4%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.22 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.92 fps -67%
SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
114 fps +129%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
85.4 fps +72%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
73.2 fps +47%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.7 fps +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
69.6 fps +40%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
57.4 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
49.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
37.6 fps -24%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
31.48 fps -37%
Siemens NX (snx-03)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.2 fps +517%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.3 fps +486%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.6 fps +378%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
21.9 fps +254%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16.33 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.4 fps +116%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.19 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.37 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.8 fps -22%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.9 fps +296%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.3 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.1 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -27%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.34 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
78.3 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
56.4 fps +331%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
44.9 fps +243%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.2 fps +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.2 fps +47%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +25%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
13.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.23 fps -83%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.12 fps -84%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
367 fps +834%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
281 fps +615%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
141 fps +259%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.1 fps -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22.97 fps -42%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
18.97 fps -52%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
28.2 fps +675%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
21.83 fps +500%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.1 fps +260%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6.93 fps +90%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.64 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.42 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.88 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.82 fps -77%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.73 fps -80%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
241 fps +605%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
183.8 fps +437%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
111 fps +225%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 fps +47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.9 fps +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
34.2 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
18.88 fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
16.77 fps -51%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
171 fps +223%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
113.7 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
92.9 fps +76%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.3 fps +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
52.9 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.2 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
23.37 fps -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
19.97 fps -62%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +453%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
178.6 fps +364%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
97.7 fps +154%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
42.9 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.5 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.8 fps -2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.01 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.71 fps -67%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
20018 Points +486%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1476 Points -57%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1134 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
964 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
959 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
2016 Points +559%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
306 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
128 Points -58%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
128 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
86 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
86 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
86 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
67 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
54 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
44 Points -86%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1958 Points +571%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
292 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
126 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
103 Points -65%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
83 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
82 Points -72%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
63 Points -78%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
42 Points -86%
1024x600 Normal, Mandel Vector
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4163 Points +446%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points +68%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
763 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
250 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
211 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
189 Points -75%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
189 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
186 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
147 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
140 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79 Points -90%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4367 Points +412%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
853 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
428 Points -50%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
262 Points -69%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
226 Points -74%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
223 Points -74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
223 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
137 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
135 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7514 Points +526%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points 0%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1200 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
543 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
430 Points -64%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
379 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
272 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
118 Points -90%
LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1647 Samples/s +138%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
693 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
306 Samples/s -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
188 Samples/s -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
146 Samples/s -79%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
76 Samples/s -89%
Sala GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6513 Samples/s +181%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2320 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s -45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
702 Samples/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
404 Samples/s -83%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s -83%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
379 Samples/s -84%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s -89%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
129 Samples/s -94%

* ... más pequeño es mejor

Almacenamiento masivo

sSD Kingston de 512 GB
sSD Kingston de 512 GB

Nuestro sistema de pruebas está equipado con un SSD NVMe de 512 GB, que también es la oferta superior del EliteMini TH50. No hay un SSD más grande de fábrica, pero eso no significa que no puedas reemplazarlo tú mismo. No obstante, 512 GB de almacenamiento deberían bastar para la mayoría de propósitos dado que el usuario aún tiene 450 GB disponibles menos la instalación de Windows

El SSD instalado aquí usa la ranura M.2-2280 y ofrece tasas de transferencia muy altas gracias al protocolo NVMe. Nos gusta mucho la tasa de lectura 4K de más de 60 MB/s. Como alternativa, puedes instalar dos dispositivos de almacenamiento masivo de 2,5 pulgadas en el panel inferior. Se incluyen todos los soportes, tornillos y cables de conexión necesarios.

AS SSD
AS SSD
CDM3
CDM3
CDM5
CDM5
CDM6
CDM6
CDI
CDI

Continuous DiskSpd Read Loop, Queue Depth 8

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Minisforum EliteMini TH50: Ø1905 (1097.76-2359.4)

Tarjeta gráfica

La unidad gráfica integrada del Intel Core i5-11320H es la Intel Iris Xe Graphics G7 con 96 UEs. En general, el rendimiento mostrado aquí refleja exactamente lo que puedes esperar de esta iGPU. Comparada con la AMD Radeon RX Vega 8de AMD, la iGPU de Intel puede mantener el ritmo muy bien y a menudo incluso situarse por delante

También probamos el rendimiento de la GPU aquí con la ayuda del Razer Core X y una Nvidia GeForce RTX 3060 y pudimos conseguir buenos resultados. Sorprendentemente, los valores fueron mejores que los del Zotac Magnus One con una Nvidia GeForce RTX 3070 instalada

Se pueden encontrar más benchmarks de la Intel Iris Xe Graphics G7aquí.

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
40950 Points +528%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
28828 Points +342%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24369 Points +274%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points -3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=53)
5920 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1983 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points -80%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points -91%
3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
441161 Points +635%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
326331 Points +444%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
286573 Points +378%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +185%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (96941 - 231980, n=18)
154016 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +118%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points +67%
Average Intel Iris Xe Graphics G7 96EUs
  (35195 - 214326, n=39)
90880 Points +51%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
79747 Points +33%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points -3%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points -32%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points -57%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points -64%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
376770 Points +646%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
289413 Points +473%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
284001 Points +462%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +141%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (84227 - 147236, n=14)
111810 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +102%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points +67%
Average Intel Iris Xe Graphics G7 96EUs
  (35612 - 144112, n=25)
70045 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
48446 Points -4%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points -20%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points -48%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points -72%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
30090 Points +536%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
20775 Points +339%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
18711 Points +296%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points -20%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=53)
3677 Points -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points -69%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1418 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points -75%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points -78%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points -81%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -91%
Unigine Heaven 4.0
Extreme Preset DX11
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196.4 fps +743%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
141.3 fps +506%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.3 fps
Average Intel Iris Xe Graphics G7 96EUs
  (17.7 - 27.5, n=16)
23.3 fps 0%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.4 fps -8%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (15.4 - 24.4, n=9)
19.9 fps -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.4 fps -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.4 fps -90%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.4 fps -90%
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
187.5 fps +708%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
132.9 fps +473%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Average Intel Iris Xe Graphics G7 96EUs
  (17.3 - 26.3, n=16)
22.8 fps -2%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.6 fps -16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (13.5 - 22.8, n=8)
18.8 fps -19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.2 fps -30%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -42%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.2 fps -91%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.2 fps -91%
Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
140.2 fps +782%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
99.6 fps +526%
Average Intel Iris Xe Graphics G7 96EUs
  (11.7 - 21.1, n=14)
16.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
15.9 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.8 fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8.8 - 14.7, n=8)
12.1 fps -24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.7 fps -33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8.8 fps -45%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.3 fps -60%
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
157.5 fps +957%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
112.8 fps +657%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
14.9 fps
Average Intel Iris Xe Graphics G7 96EUs
  (11.3 - 17.2, n=14)
14.8 fps -1%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.2 fps -5%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10 - 16.4, n=8)
13.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.6 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10 fps -33%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.5 fps -56%
3DMark 05 Standard
36918 puntos
3DMark 06 Standard Score
27809 puntos
3DMark Vantage P Result
22253 puntos
3DMark 11 Performance
6905 puntos
3DMark Ice Storm Standard Score
61362 puntos
3DMark Cloud Gate Standard Score
17814 puntos
3DMark Fire Strike Score
4340 puntos
3DMark Fire Strike Extreme Score
2149 puntos
3DMark Time Spy Score
1777 puntos
ayuda

Rendimiento de los juegos

Minisforum no anuncia explícitamente el EliteMini TH50 como un PC para juegos. Sin embargo, se pueden encontrar algunos valores en la página de inicio, que deberían ayudar a aclarar el rendimiento de los juegos. Aquellos que compren el EliteMini TH50 deben tener en cuenta que laIntel Iris Xe Graphics G7 instaladaes sólo una simple iGPU. El rendimiento es comparable al de la iGPU del AMD Ryzen 9 5900HXsi sólo tenemos en cuenta el rendimiento en juegos en este punto

Sin embargo, con el puerto Thunderbolt 4, los usuarios tienen ahora más opciones para mejorar el rendimiento 3D con la ayuda de bases de GPU externas. Hemos probado el EliteMini TH50 con el Razer Core X, equipado con una Nvidia GeForce RTX 3060y hemos visto lo que se puede esperar en términos de rendimiento en los juegos

Está claro que el rendimiento no es comparable con un sistema de sobremesa convencional. En los juegos probados, el rendimiento fue aproximadamente un 40 por ciento inferior a nuestro sistema de prueba (base AMD Ryzen 9 5900X), que usamos para nuestras pruebas de tarjetas gráficas. Sin embargo, el beneficio comparado con la iGPU sigue siendo muy claro. Todos los juegos probados funcionan sin problemas incluso con el Intel Core i5-11320H en combinación con nuestro Razer Core X y la Nvidia GeForce RTX 3060. Esto es una clara ventaja sobre los mini PC basados en AMD, que aún no tienen Thunderbolt. Sin embargo, esto podría ser historia en un futuro próximo, porque las nuevas APUs de AMD también podrán utilizar una interfaz moderna como USB4.

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
97.5 pt
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060 -1!
96 pt
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
69 pt
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.8 pt
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
20.3 pt
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 pt
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
111 (4.48min, 76.9P1 - 235max) fps +988%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1 - 206max) fps +920%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
77.1 (6.65min, 50P1 - 157max) fps +656%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.2 (7.37min, 10.8P1 - 37.9max) fps +49%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1 - 33.5max) fps +18%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
10.2 (4.22min, 6.37P1 - 90.8max) fps
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
63.3 (22.3min, 40.7P0.1, 51.3P1 - 358max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
52.4 (36.2min, 37.9P0.1, 42.8P1 - 115max) fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 (14min, 14.2P0.1, 14.7P1 - 22.5max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
15.5 (6.52min, 7.57P0.1, 9.58P1 - 59max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1 - 59.1max) fps -7%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
159.7 (126.4min) fps +191%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
147.1 (126min) fps +168%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
110.5 (94.3min) fps +102%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
62.8 (57.5min) fps +15%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
54.8 (47.9min) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -9%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
88.6 fps +282%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
88.6 fps +282%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
70.8 fps +205%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16 fps -31%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.6 fps -41%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 fps +416%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
105 fps +384%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73.4 fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.1 fps +85%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37 fps +71%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
21.7 fps
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
132 (109min - 150max) fps +428%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
122 (93min - 151max) fps +388%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
88 (67min - 116max) fps +252%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 (23min - 32max) fps 0%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (22min - 29max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min - 23max) fps -24%
Far Cry New Dawn - 1920x1080 Ultra Preset
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 (83min - 146max) fps +348%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
102 (72min - 145max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73 (52min - 111max) fps +192%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (18min - 31max) fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 (19min - 30max) fps -4%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min - 24max) fps -24%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1 - 215max) fps +521%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
153 (43.4min, 116P1 - 214max) fps +517%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
114 (56min, 73.9P1 - 191max) fps +360%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.6 (21.9min, 22.5P1 - 39max) fps +11%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
24.8 (8min, 8.72P1 - 317max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1 - 34.3max) fps -4%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
59.8 (30.99min - 119.9max) fps +416%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
55.1 (32.45min - 87.42max) fps +375%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
37.8 (17.54min - 83.29max) fps +226%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 (7.31min - 18.99max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.6 (6.55min - 19.58max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min - 15.68max) fps -7%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
100 fps +777%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
78.5 fps +589%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
58.5 fps +413%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.8 fps +21%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.4 fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -1%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
87.8 (55min - 111max) fps +277%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28.4 (21min - 36max) fps +22%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min - 30max) fps +4%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.3 (16min - 29max) fps
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
104 (88min, 88P1 - 117max) fps +288%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1 - 107max) fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
75.1 (52min, 54P1 - 85max) fps +180%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27 (22min, 22P1 - 31max) fps +1%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
26.8 (22min, 22P1 - 30max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1 - 25max) fps -18%

Leyenda


Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1

Intel Beast Canyon NUC Intel Core i9-11900KB, NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB

Inno3D GeForce RTX 3060 Twin X2 AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3060, Corsair MP600

Minisforum EliteMini TH50 (RTX 3060 via TB) Intel Core i5-11320H, NVIDIA GeForce RTX 3060,

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB

Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
bajo medio alto ultra
GTA V (2015) 99.2 85.3 26 10.2
The Witcher 3 (2015) 89.8 56.5 29.5 15.5
Dota 2 Reborn (2015) 125.3 90 60.5 54.8
Final Fantasy XV Benchmark (2018) 43.2 23.2 23.2
X-Plane 11.11 (2018) 27.3 25.5 21.7
Far Cry 5 (2018) 55 29 27 25
Strange Brigade (2018) 87.5 37.3 30.5 24.8
Far Cry New Dawn (2019) 48 29 27 25
Metro Exodus (2019) 40.4 20.6 14.8 11.6
Borderlands 3 (2019) 51.7 24.3 15.1 11.4
F1 2020 (2020) 93.1 47.7 36.4 23.3
F1 2021 (2021) 105 50.3 40.1 26.8
God of War (2022) 21 18.8 15.2 10.1
Dying Light 2 (2022) 16.8 13.8 11.7
GRID Legends (2022) 66.4 45.4 36.6 26.9
Elden Ring (2022) 45.5 41.5 33.6 27.9
Cyberpunk 2077 1.6 (2022) 17.8 15.4 12.2 10.1
Elex 2 (2022) 20.4 18.3 16.3 14.6
bajo medio alto ultra
GTA V (2015) 166 160 135 77.1
The Witcher 3 (2015) 219 133 80 52.4
Dota 2 Reborn (2015) 135.5 117.1 113.2 110.5
Final Fantasy XV Benchmark (2018) 137 102 70.8
X-Plane 11.11 (2018) 95.8 88 73.4
Far Cry 5 (2018) 118 98 95 88
Strange Brigade (2018) 170 130 121 114
Far Cry New Dawn (2019) 100 86 80 73
Metro Exodus (2019) 110 66.9 50 37.8
Borderlands 3 (2019) 112 94.2 73.4 58.5
F1 2020 (2020) 180 111 111 87.8
F1 2021 (2021) 184 163 128 75.1

Emisiones y energía

Temperatura

Minisforum utiliza la misma tecnología de refrigeración para el EliteMini TH50 que el EliteMini HM90- el ventilador axial aspira el aire frío desde arriba y lo presiona hacia abajo sobre el disipador, de modo que el aire caliente puede salir por el lado de la caja. El principio está bien pensado y funciona muy bien. ElIntel Core i5-11320H alcanzó un máximo de 86 °C. Así, el SoC está claramente en la zona verde. Dado que la prueba de estrés es un escenario extremo, se pueden esperar temperaturas mucho más bajas en el uso normal. Sin embargo, la carga permanente no tuvo un impacto negativo. El resultado del benchmark 3DMark11 está al mismo nivel que el arranque en frío y sólo varía en unos pocos puntos dentro de las tolerancias de medición.

Prueba de esfuerzo: Prime95 solo
Prueba de esfuerzo: Prime95 solo
Prueba de esfuerzo: FurMark solo
Prueba de esfuerzo: FurMark solo
Prueba de esfuerzo: FurMark+Prime95
Prueba de esfuerzo: FurMark+Prime95
Desarrollo del calor durante la prueba de esfuerzo
Desarrollo del calor durante la prueba de esfuerzo
Desarrollo del calor durante la prueba de esfuerzo
Desarrollo del calor durante la prueba de esfuerzo
Desarrollo del calor durante la prueba de esfuerzo (unidad de alimentación)
Desarrollo del calor durante la prueba de esfuerzo (unidad de alimentación)

Emisiones acústicas

Gracias al sofisticado diseño de la refrigeración, el nivel de ruido medido bajo carga también es moderado. El dispositivo es casi silencioso en ralentí y el ruido del ventilador se asienta en algo menos de 32,5 dB(A) bajo carga. No obstante, se percibe un claro aumento de revoluciones al principio. Medimos casi 41 dB(A) aquí, pero dura muy poco

Emisiones acústicas (ambiente)
Emisiones acústicas (ambiente)
Emisiones acústicas (ralentí)
Emisiones acústicas (ralentí)
Emisiones de ruido (prueba de esfuerzo: FurMark+Prime95)
Emisiones de ruido (prueba de esfuerzo: FurMark+Prime95)

Ruido

Ocioso
30.8 / 32.1 / 32.9 dB(A)
Carga
33.9 / 41.4 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distancia)   environment noise: 30.2 dB(A)
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Noise
-1%
6%
off / environment *
30.2
30.1
-0%
30.8
-2%
Idle Minimum *
30.8
Idle Average *
32.1
33.15
-3%
31.6
2%
Idle Maximum *
32.9
Load Average *
33.9
Load Maximum *
41.4
41.63
-1%
33.4
19%

* ... más pequeño es mejor

Absorción de energía

En cuanto al consumo de energía, el Minisforum EliteMini TH50 obtiene una cifra muy buena. Debido al frugal SoC, el consumo de energía es bastante nominal incluso bajo carga con una media de 52,7 W. Sin embargo, la fuente de alimentación tiene que compensar hasta 72 W en poco tiempo. Además, la fuente de alimentación puede verse sobrecargada cuando se instalan dos dispositivos de almacenamiento adicionales. Por tanto, habríamos preferido una fuente de alimentación de hasta 90 W.

Consumo de energía desconectado
Consumo de energía desconectado
Consumo de energía en modo de reposo
Consumo de energía en modo de reposo
Consumo de energía durante la prueba de esfuerzo (Prime95)
Consumo de energía durante la prueba de esfuerzo (Prime95)
Consumo de energía durante la prueba de esfuerzo (FurMark)
Consumo de energía durante la prueba de esfuerzo (FurMark)
Consumo de energía durante la prueba de esfuerzo (FurMark y Prime95)
Consumo de energía durante la prueba de esfuerzo (FurMark y Prime95)
Consumo de energía durante el juego (El Witcher 3 Ultra Preset)
Consumo de energía durante el juego (El Witcher 3 Ultra Preset)
Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
326.2 (316min - 333max) Watt * -1991%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
251.9 (242min - 270max) Watt * -1515%
Morefine S500+
58.3 (53.2min, 55.8P1 - 69.7max) Watt * -274%
Minisforum EliteMini HX90 (Idle: 6.3 W)
56.2 (52.1min, 53.3P1 - 79.8max) Watt * -260%
Minisforum HM90 (Idle: 9.8 W)
47.47 (44min - 78max) Watt * -204%
Intel NUC10i7FNH (Idle: 8.4 W)
46.6 (45min - 68max) Watt * -199%
Intel NUC10i5FNK (Idle: 15.7 W)
37.8 (35min - 63max) Watt * -142%
MSI Cubi 5 10M (Idle: 8 W)
25.17 (25min - 26max) Watt * -61%
Minisforum EliteMini TH50
15.6 (15min, 15.1P1 - 19.6max) Watt *
Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
116.3 (110min - 238max) Watt * -121%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
109.4 (107min - 151max) Watt * -108%
Minisforum EliteMini HX90 (Idle: 6.3 W)
86.9 (77.4min, 79.5P1 - 109max) Watt * -65%
Minisforum HM90 (Idle: 9.8 W)
73.2 (71min - 76max) Watt * -39%
Morefine S500+
72.4 (69.4min, 71P1 - 75.6max) Watt * -37%
Intel NUC10i7FNH (Idle: 8.4 W)
60 (52min - 86max) Watt * -14%
Intel NUC10i5FNK (Idle: 15.7 W)
58.5 (56min - 69max) Watt * -11%
Minisforum EliteMini TH50
52.7 (45.8min, 49.6P1 - 72.1max) Watt *
MSI Cubi 5 10M (Idle: 8 W)
46.72 (40min - 66max) Watt * +11%
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * +67%

* ... más pequeño es mejor

Pro

+ buen rendimiento del sistema
+ carcasa estable
+ dimensiones compactas
+ muchas interfaces USB
+ Compatibilidad con Thunderbolt 4
+ posibilidad de hasta tres dispositivos de almacenamiento masivo

Contra

- no hay lector de tarjetas SD

Conclusión: Gran rendimiento con buena conectividad

Minisforum EliteMini TH50 en prueba, proporcionado por Minisforum
Minisforum EliteMini TH50 en prueba, proporcionado por Minisforum
Minisforum EliteMini TH50 en prueba, proporcionado por Minisforum

El Minisforum EliteMini TH50 es un mini PC muy compacto con un gran rendimiento para una amplia gama de aplicaciones. Con el Intel Core i5-11320H, el EliteMini TH50 deja una impresión positiva debido al buen rendimiento de un solo núcleo. Con sus cuatro núcleos, el SoC también puede mantener el ritmo en aplicaciones multihilo y puede enfrentarse alIntel NUC10i7FNHque está equipado con un SoC de seis núcleos. Junto con los 16 GB de memoria de trabajo y el SSD de 512 GB, se obtiene un gran dispositivo en la configuración superior. Además, el EliteMini TH50 acumula puntos positivos con su moderna conectividad. Sobre todo, la opción Thunderbolt debería ofrecer el mayor valor añadido para los usuarios

El Minisforum EliteMini TH50 es un muy buen PC polivalente que puede hacer algo más que simples tareas de oficina.

En general, el EliteMini TH50 convence con un rendimiento estable. La gráfica Intel Iris Xe G7 también ha dado un gran paso adelante en términos de rendimiento 3D. Aquí se supera el rendimiento de la AMD Radeon RX Vega 8. Por lo tanto, el EliteMini TH50 también es adecuado para los juegos hasta cierto punto. El rendimiento 3D puede ampliarse con una base de GPU externa a través de la interfaz Thunderbolt, lo que convierte al EliteMini TH50 en un PC de juegos de pleno derecho

La combinación de colores de plata y blanco es una cuestión de opinión, pero no tiene más remedio que gustar. Minisforum no ofrece colores de carcasa alternativos para el EliteMini TH50. La fabricación es buena y la ampliación con bahías de almacenamiento adicionales se puede hacer rápidamente

En los preciosa partir de US$629el EliteMini TH50 puede adquirirse directamente en Minisforum. Sin embargo, hay que contar con US$669 para nuestro sistema de prueba. Nos referimos a nuestra configuración de prueba como una recomendación de compra porque la licencia de Windows sólo se incluye en las configuraciones con unidad de almacenamiento.

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Análisis del Minisforum EliteMini TH50: PC de sobremesa compacto para el uso diario en la oficina
Sebastian Bade, 2022-02-22 (Update: 2022-02-22)
