Análisis del Ace Magician T8Pro: Mini PC económico para la oficina

Silencioso y eficaz El Ace Magician T8Pro es un PC de oficina extremadamente compacto lanzado por Minipc Union. El SoC Jasper Lake que lleva en su interior sólo es capaz de ejecutar tareas básicas. En este análisis hemos resumido nuestros hallazgos con multitud de mediciones y resultados de pruebas comparativas para que te hagas una mejor idea de este producto.

El fabricante de sistemas Minipc Union ofrece una amplia gama de PC compactos para aplicaciones que van desde tareas básicas de oficina hasta juegos económicos. El Ace Magician T8Pro es un mini PC muy compacto equipado con un Intel Celeron N5095A. El dispositivo también viene con 8 GB de RAM y una unidad SSD de 256 GB. Puedes esperar pagar unos 290 euros (309 dólares) por el dispositivo, que es un precio justo en comparación con otros miniordenadores compactos. No hay otras variantes disponibles, aunque tampoco creemos que sea necesario. Además, Windows 11 Pro está incluido en el precio.

El mini PC viene empaquetado en una pequeña caja que también contiene un cargador de 65 vatios y un soporte VESA para montar el dispositivo en un monitor.

Minipc Union Ace Magician T8Pro
Procesador
Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake
Memoría
8 GB
Disco duro
FPT310M4SSD256G, 256 GB
, M.2 2242 SATA SSD, 210 GB libre
Conexiones
3 USB 3.0, 3 HDMI, Audio Conexiones: 3.5mm Klinke
Equipamento de red
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamaño
Alto x ancho x profundidad (en mm): 43.5 x 87 x 87
Sistema Operativo
Microsoft Windows 11 Pro
Características adicionales
12 Meses Garantía
Peso
209 g, Suministro de Electricidad: 124 g
Precio
280 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Información detallada sobre el Ace Magician T8Pro

Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro
Mago Ace T8Pro

Caso

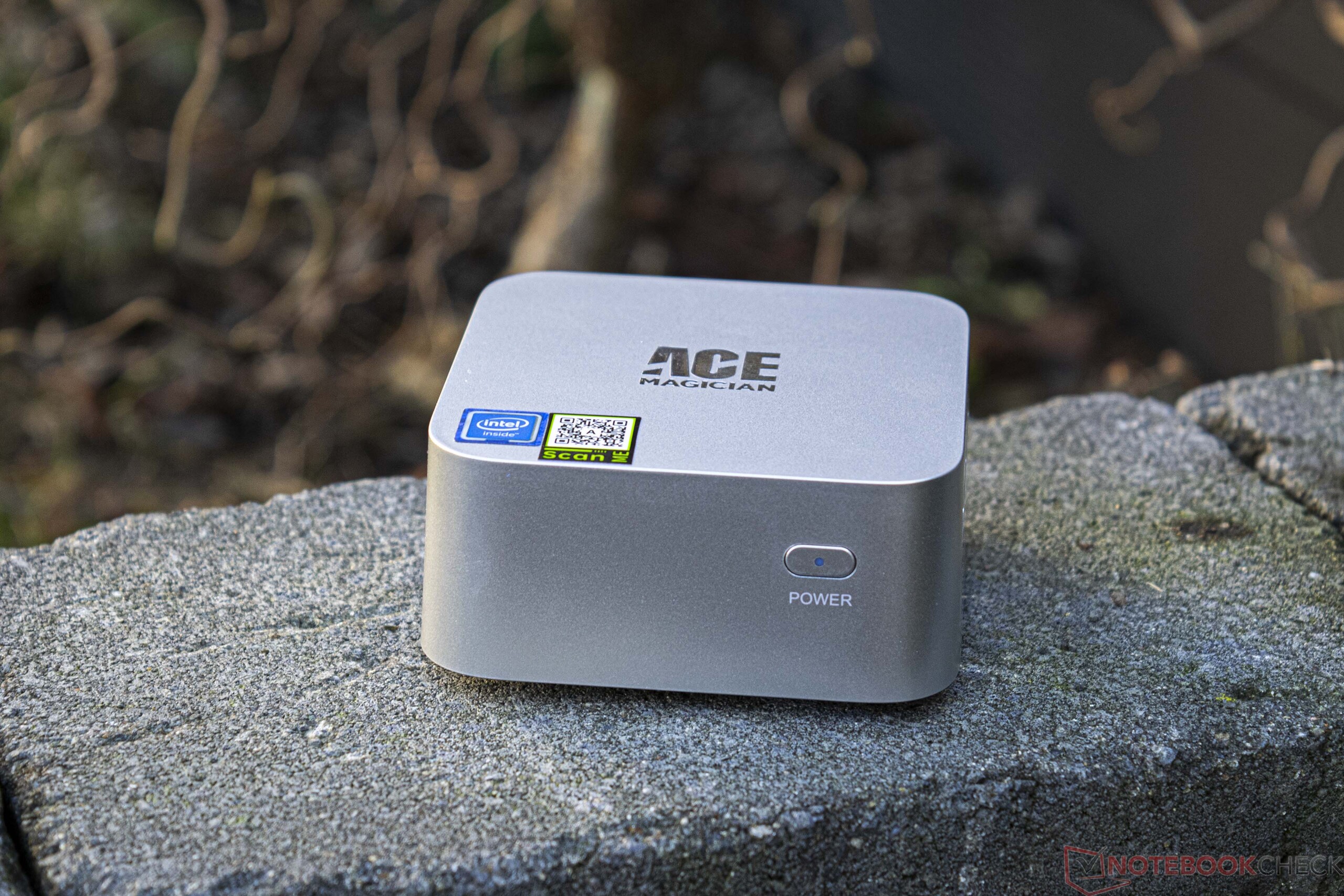

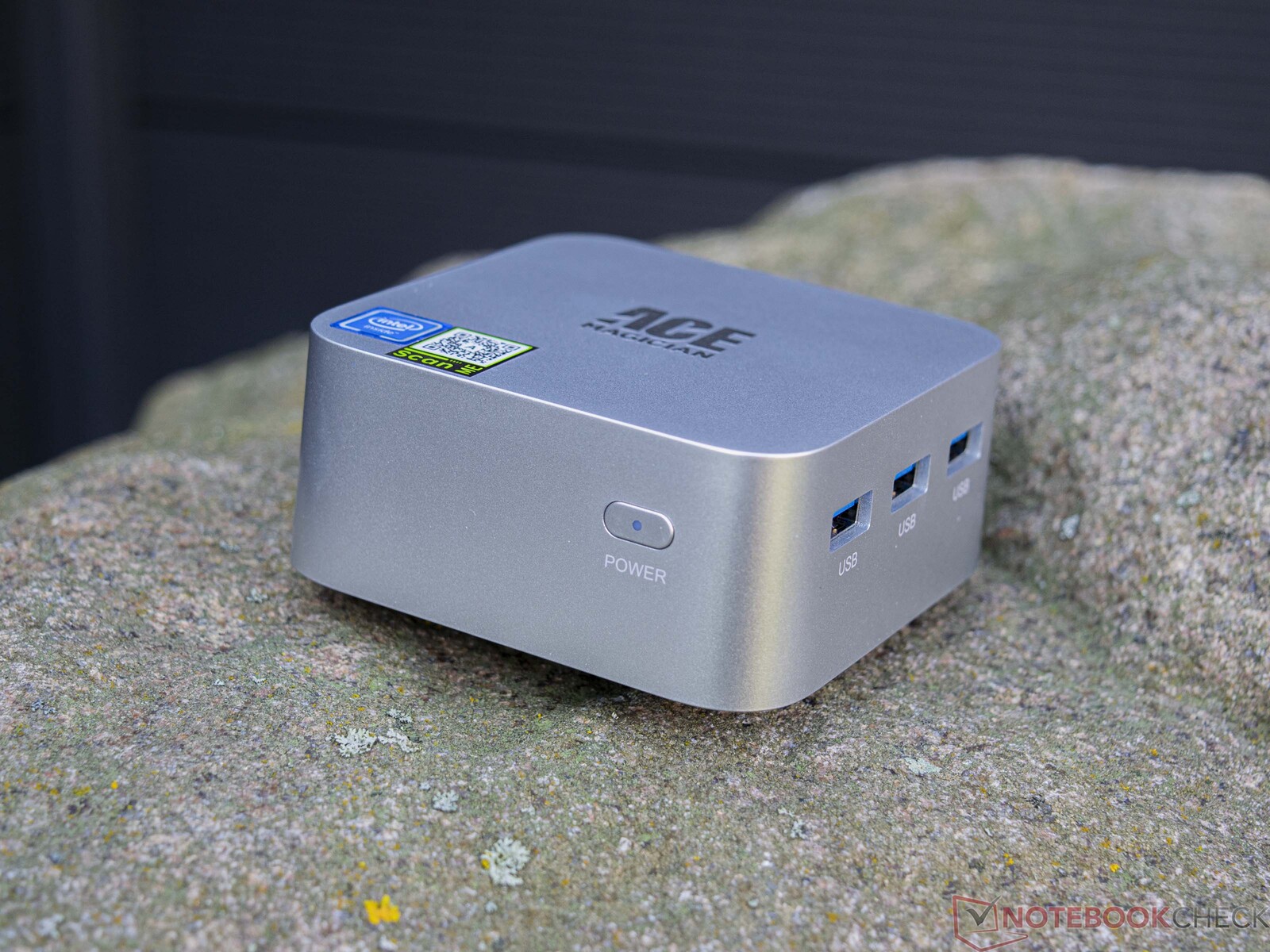

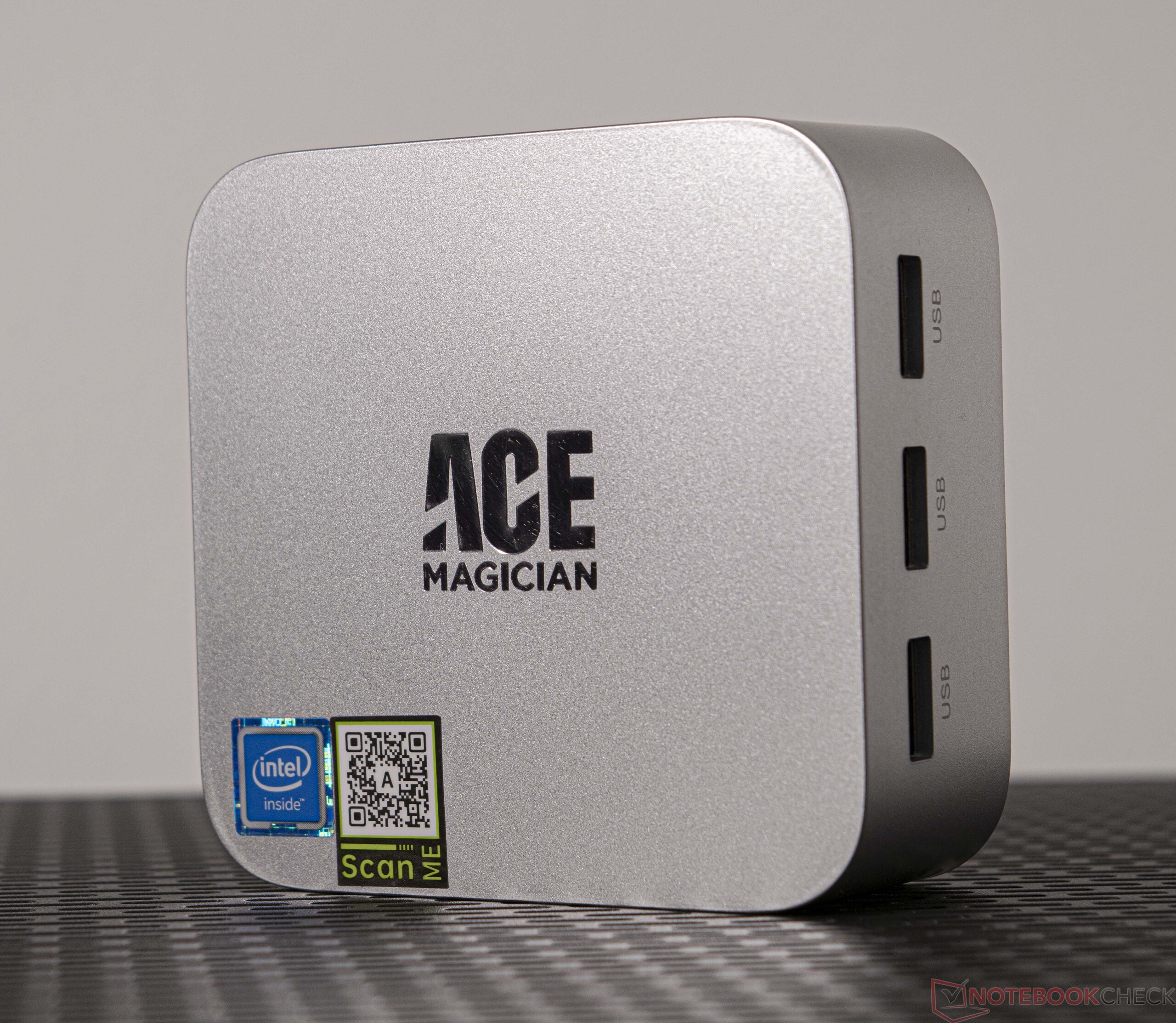

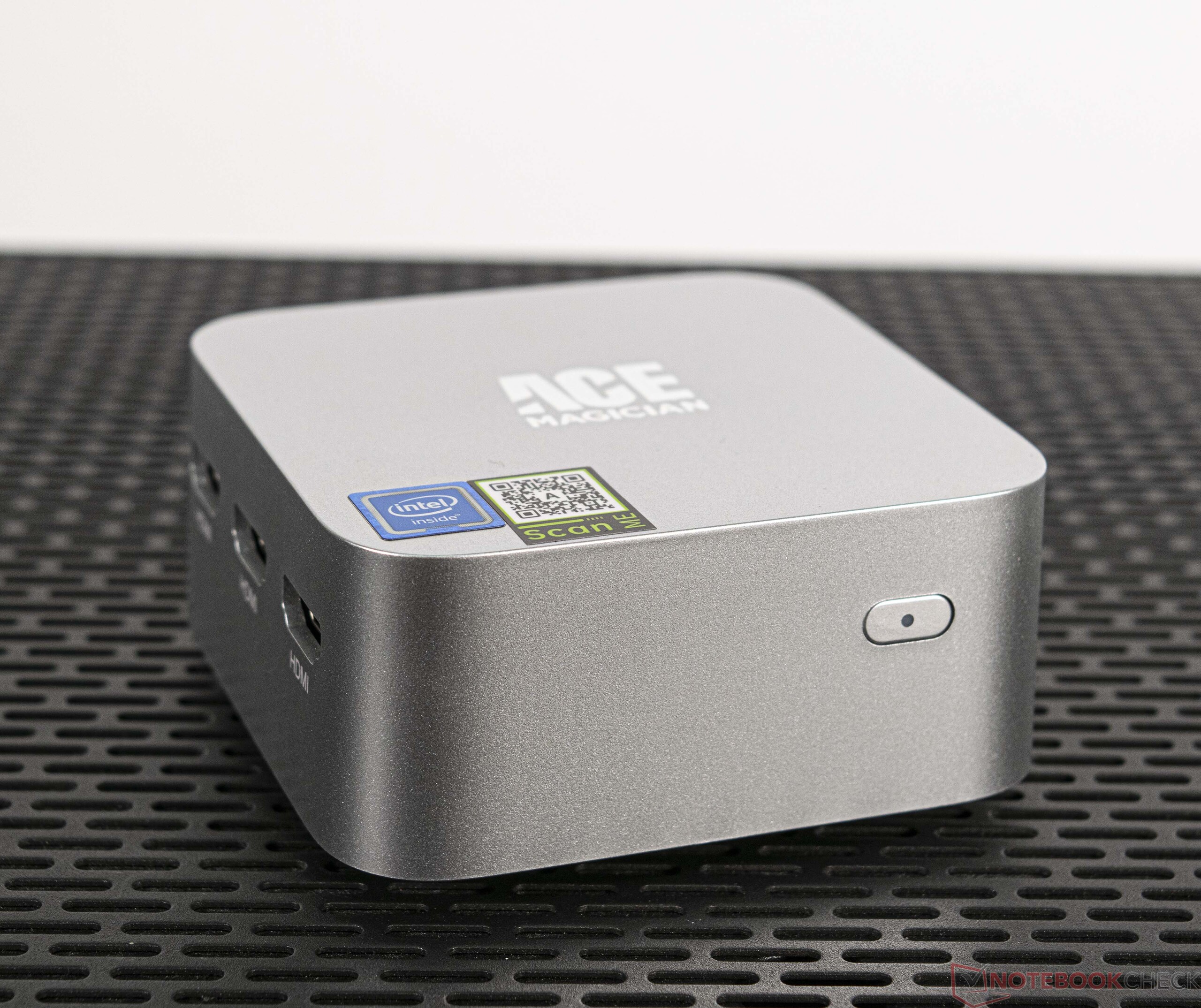

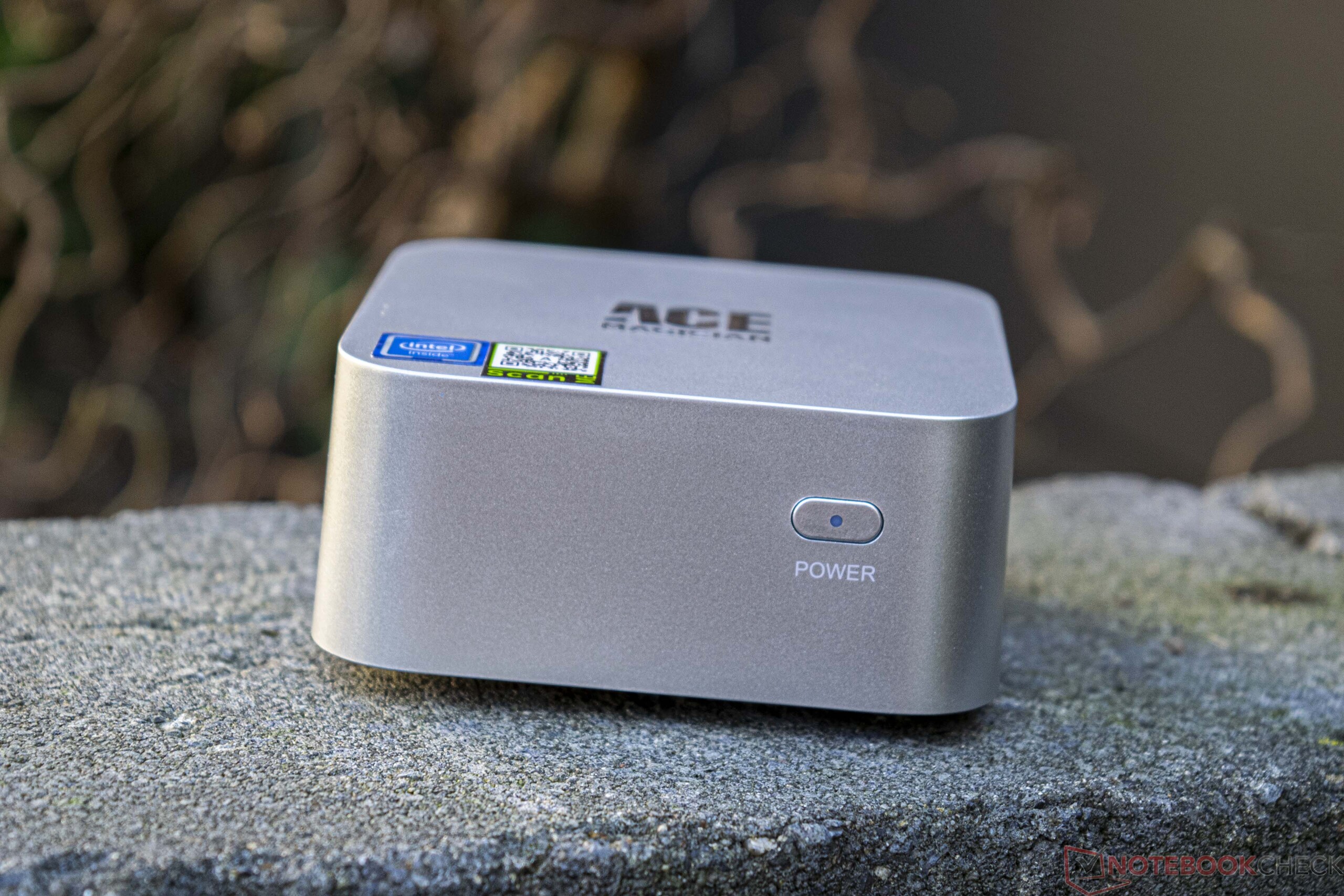

El Ace Magician T8Pro es un minipc muy pequeño que sólo ocupa 8,7 x 8,7 cm (3,5 x 3,5"). El producto también es relativamente delgado, con sólo 4,35 cm. El fabricante ha optado por una estructura principalmente de plástico. Las superficies del dispositivo son bastante lisas y agradables al tacto. En cuanto a los colores, el Ace Magician T8Pro es relativamente neutro, plateado y gris, lo que le permite integrarse perfectamente en un escritorio moderno. No presenta problemas de estabilidad gracias a su diseño compacto. Además, el pequeño ordenador pesa sólo 209 g (0,46 lb).

Comparación de tamaños

158 mm 166 mm 67 mm 1.1 kg185 mm 179 mm 40 mm 1.3 kg168 mm 120 mm 39 mm 638 g149.6 mm 149.6 mm 55.5 mm 763 g145 mm 149 mm 40 mm 697 g117 mm 112 mm 34.2 mm 496 g87 mm 87 mm 43.5 mm 209 g297 mm 210 mm 1 mm 5.7 g

Especificaciones

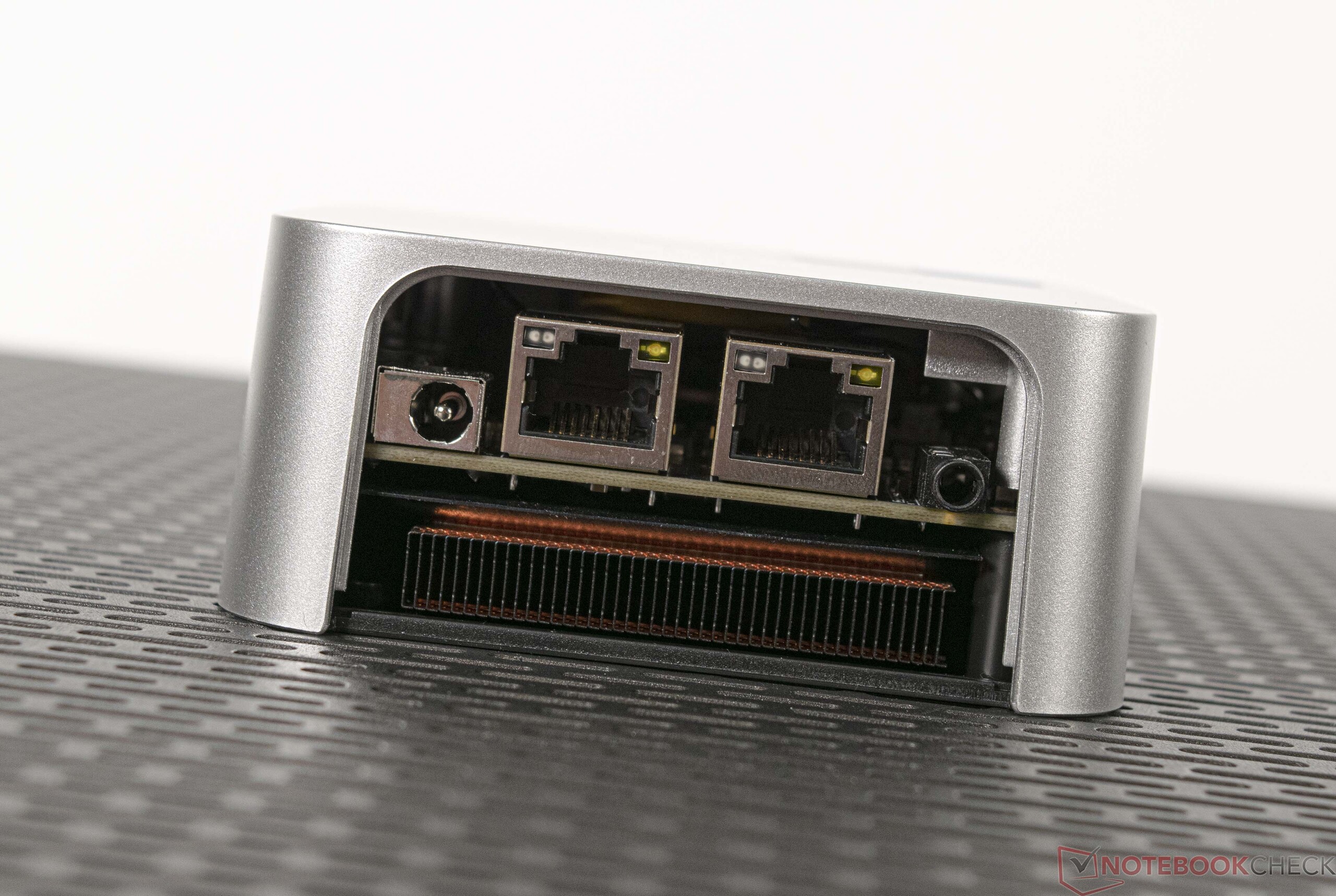

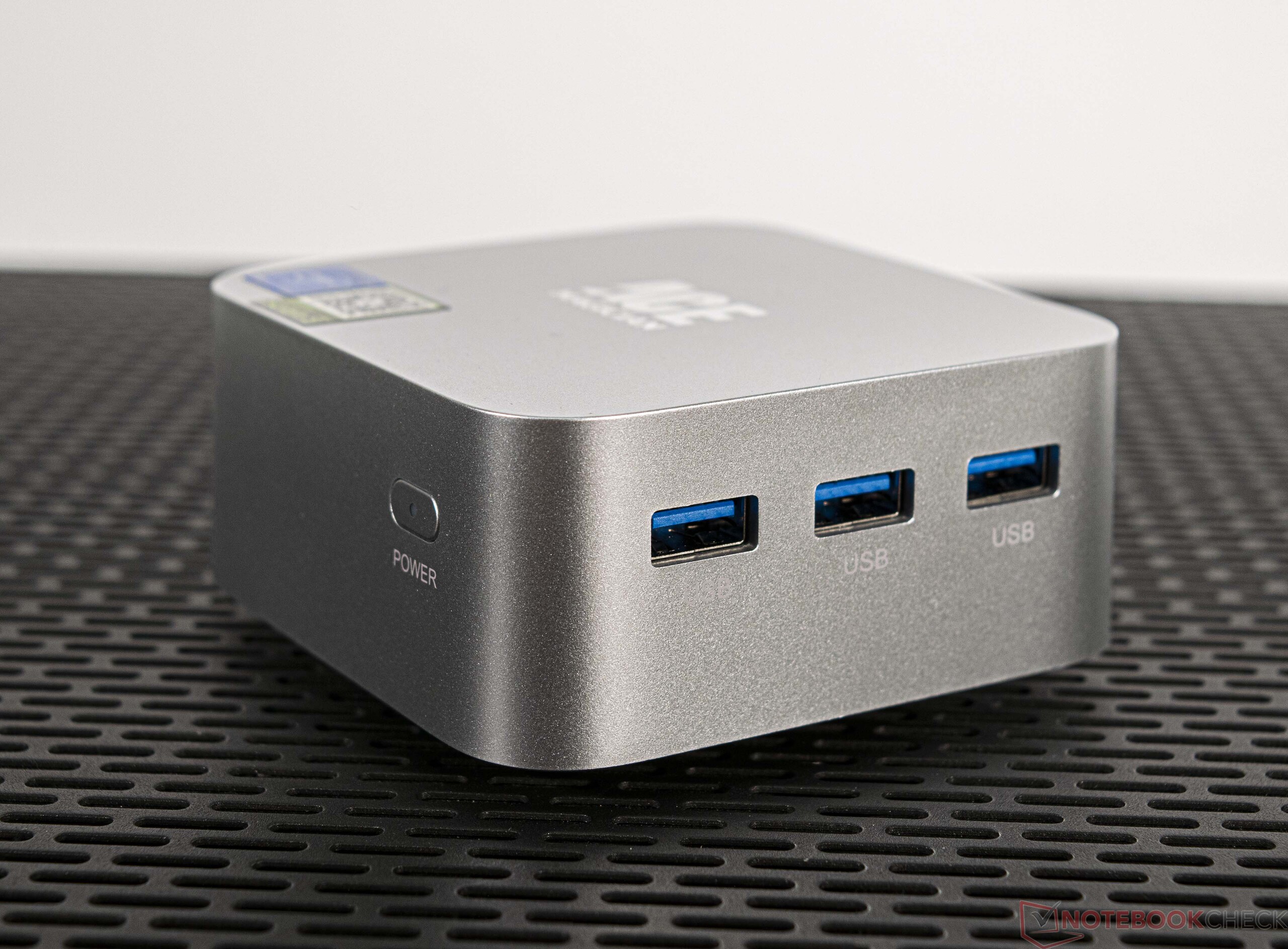

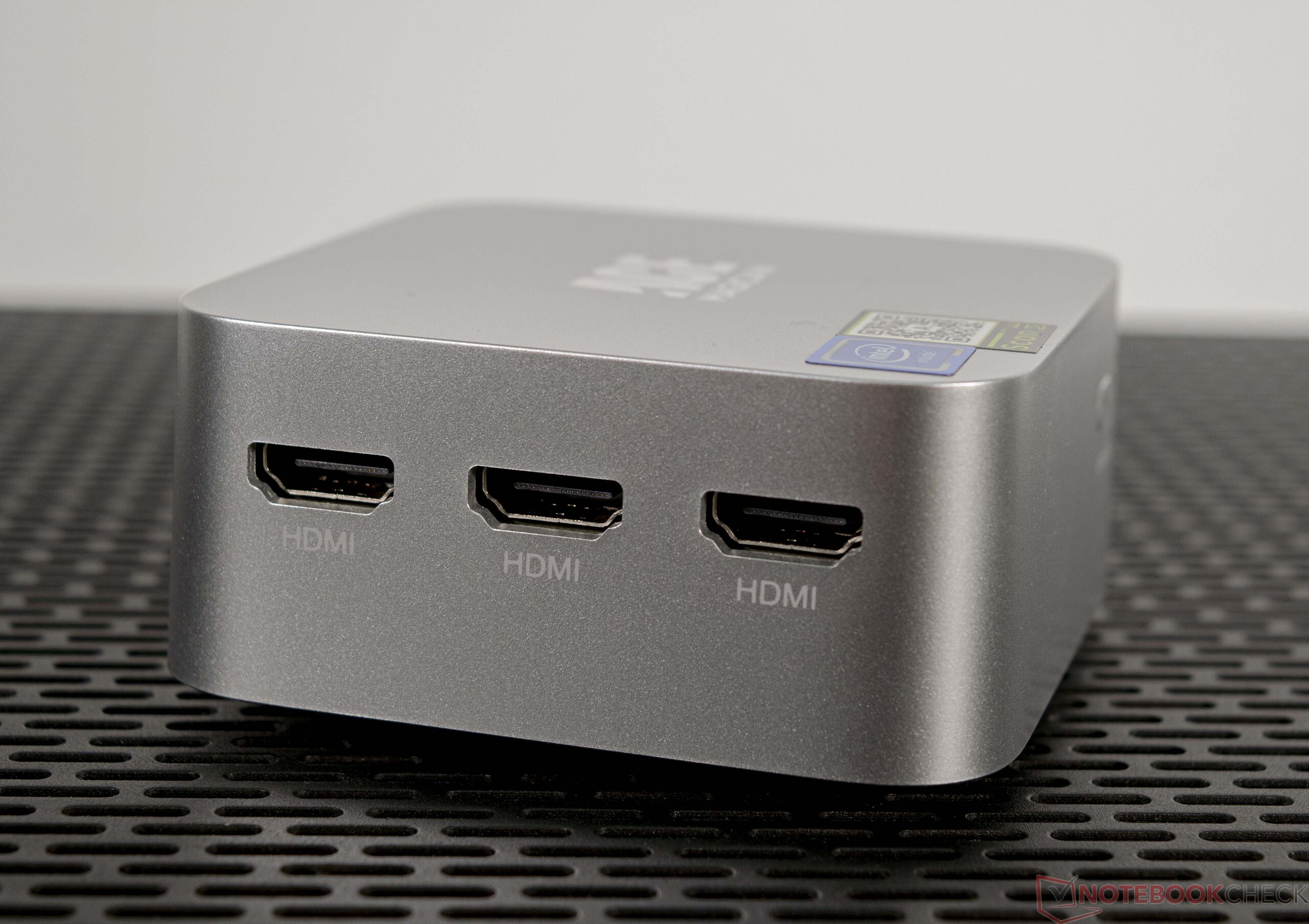

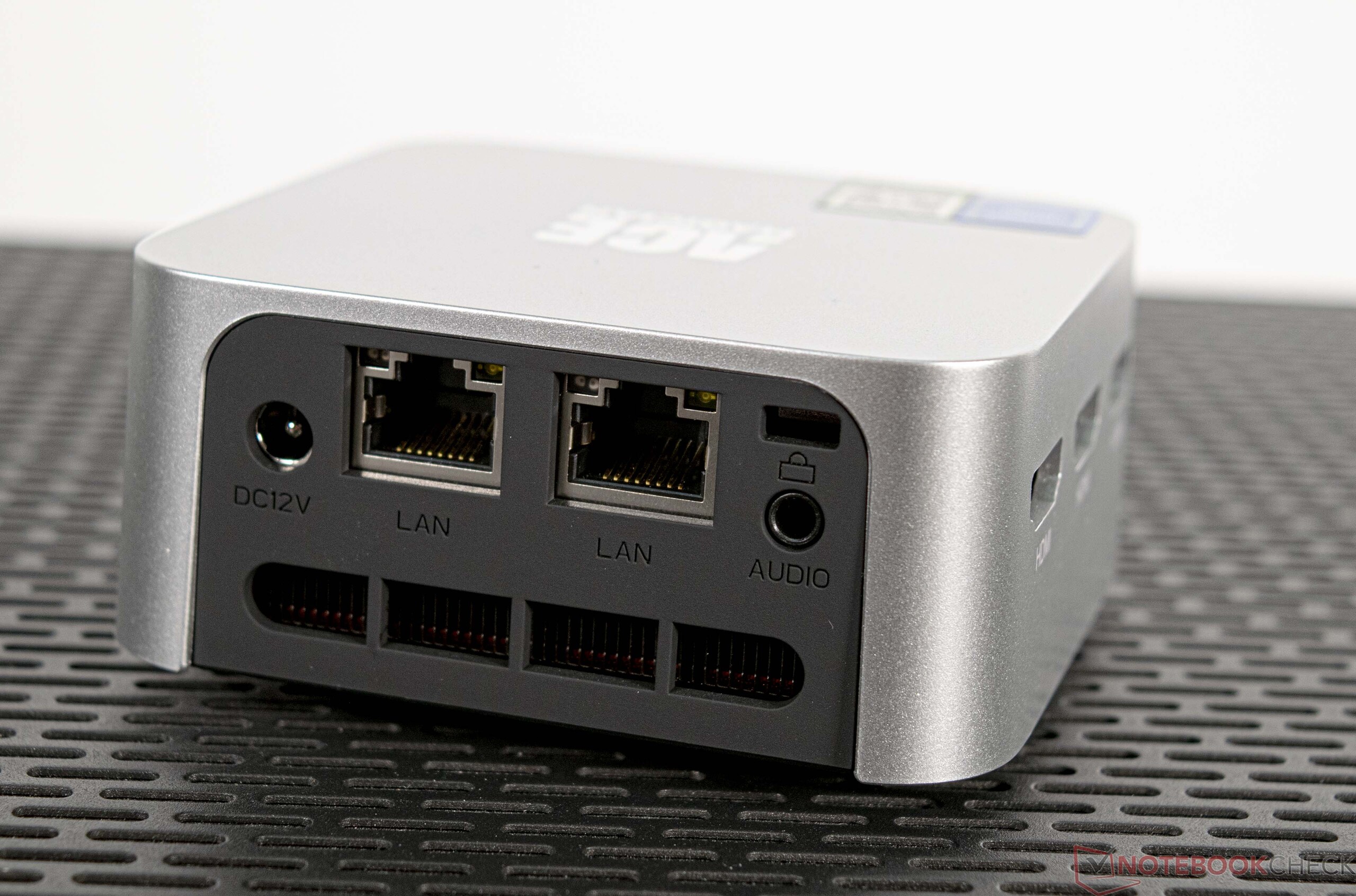

A pesar de su diseño compacto, Minipc Union ha conseguido incluir tres puertos USB-A y tres salidas HDMI en el Ace Magician T8Pro. Los dos tipos de puertos están situados en un lateral del dispositivo, y hay dos puertos LAN en la parte trasera. Esto significa que el Ace Magician T8Pro está muy bien equipado y puede plantar cara a dispositivos "más grandes" en nuestra comparación. El T8Pro utiliza un chip Realtek 8821CE para la comunicación inalámbrica, que ofrece un rendimiento peor que las soluciones inalámbricas de los otros dispositivos.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
964 (933min - 986max) MBit/s +166%
Average of class Mini PC
  (192.9 - 1796, n=95, last 2 years)
909 MBit/s +150%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +149%
Minisforum EliteMini TH50
MediaTek MT7921
776 MBit/s +114%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s +18%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (354 - 365, n=5)
360 MBit/s -1%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
290 (279min - 299max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +425%
Minisforum EliteMini TH50
MediaTek MT7921
866 MBit/s +370%
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
858 (810min - 882max) MBit/s +366%
Average of class Mini PC
  (184.1 - 1776, n=95, last 2 years)
843 MBit/s +358%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s +211%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (184.1 - 274, n=5)
242 MBit/s +31%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
225 (210min - 237max) MBit/s +22%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s
050100150200250300350Tooltip
Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)
Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

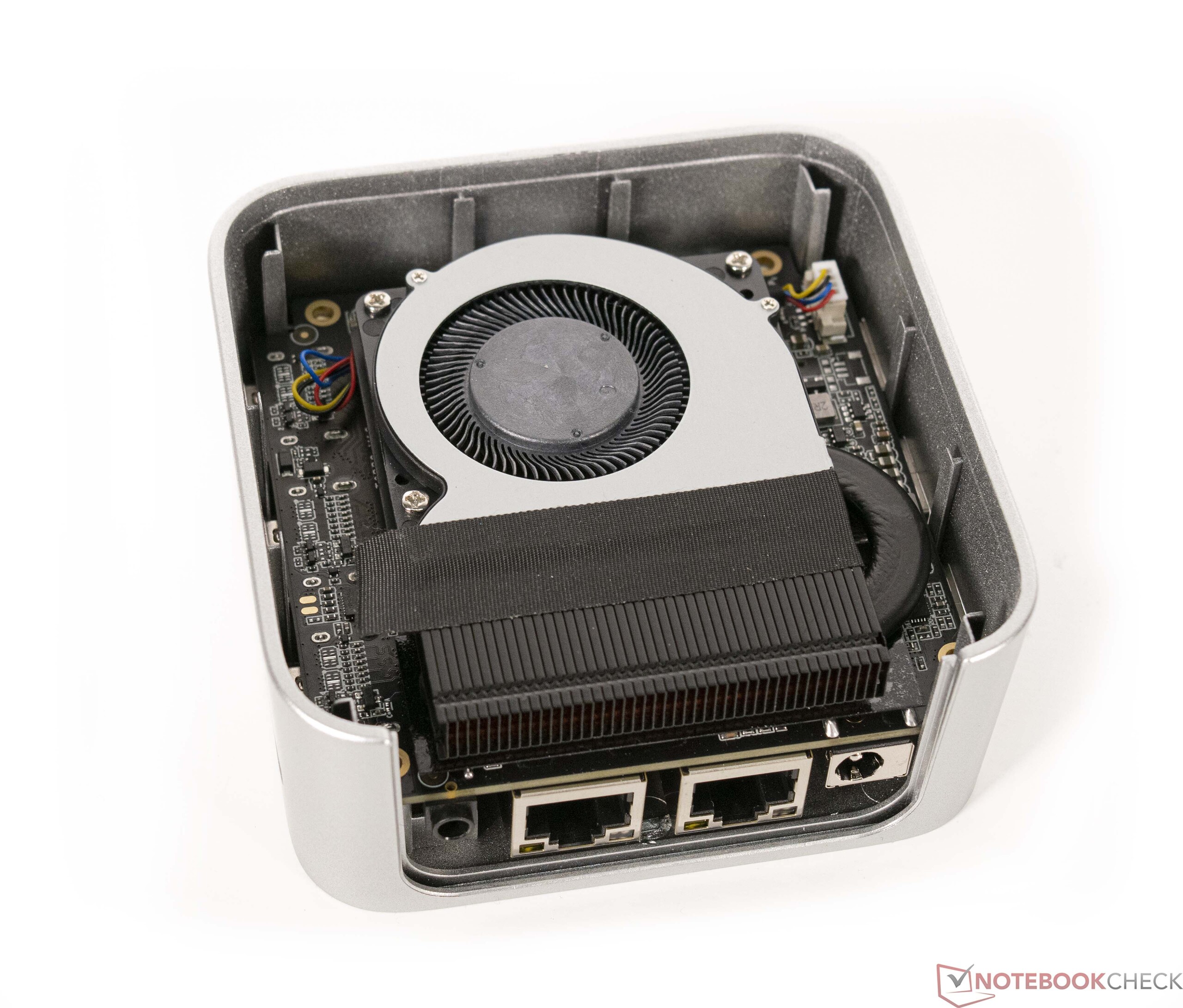

Mantenimiento

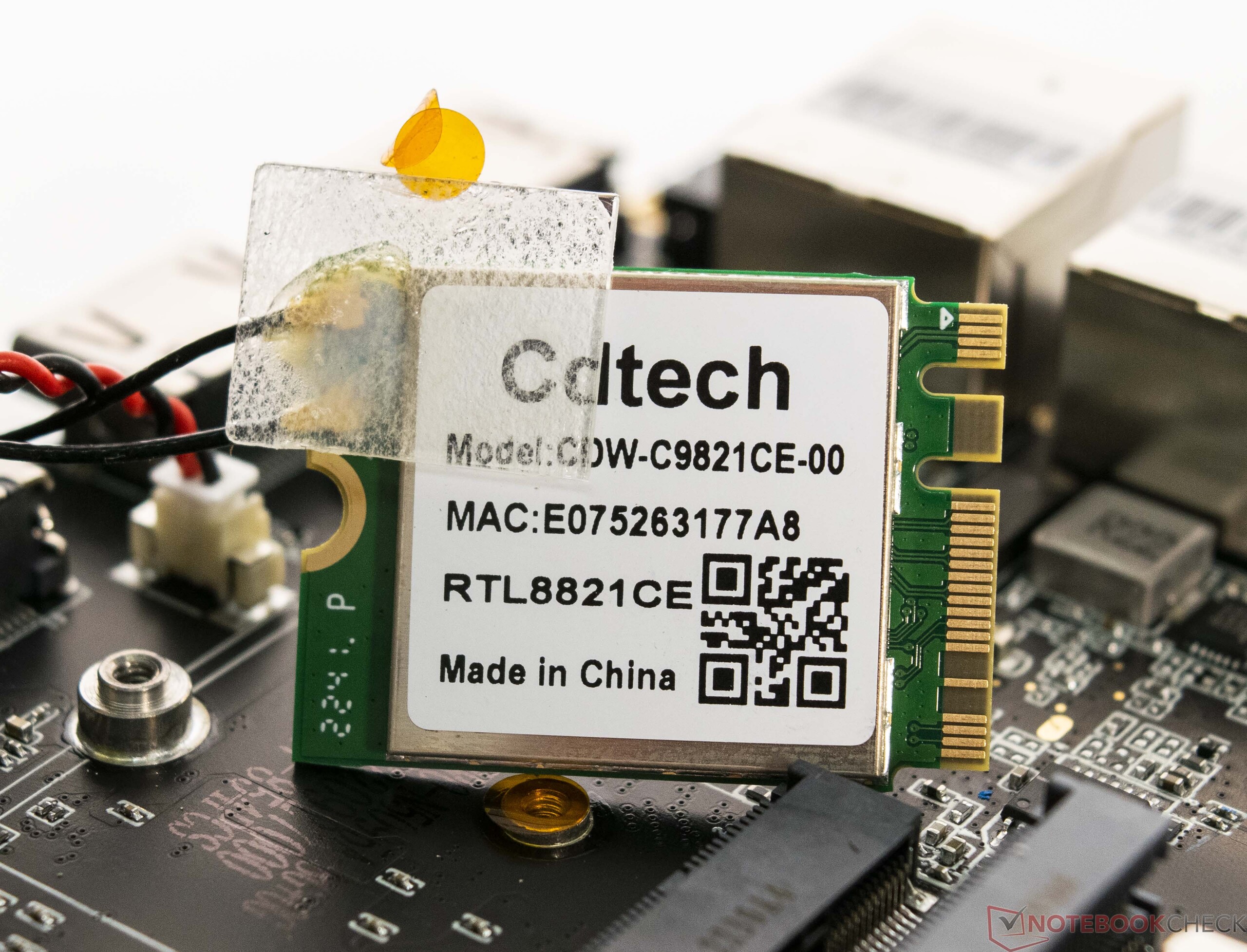

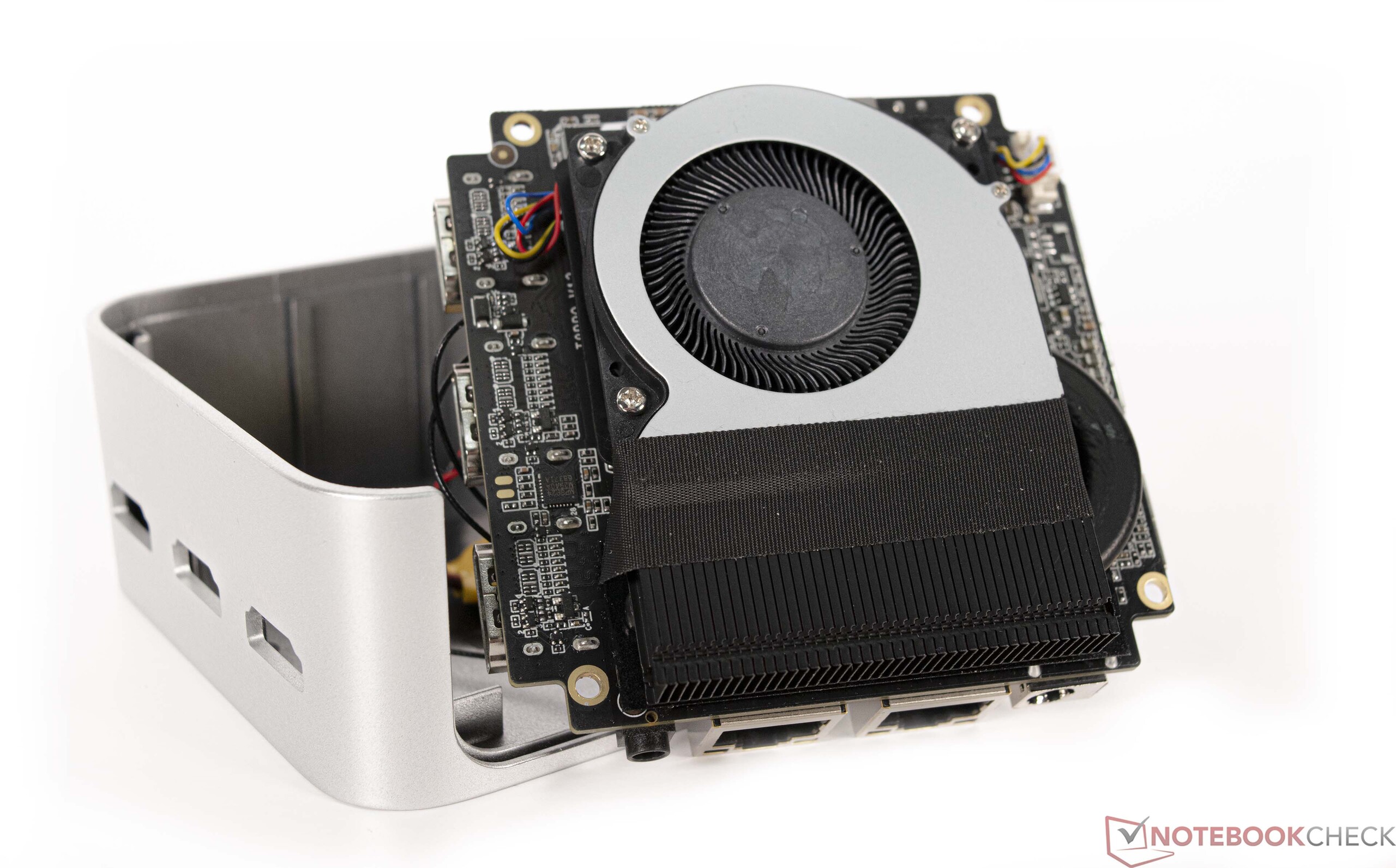

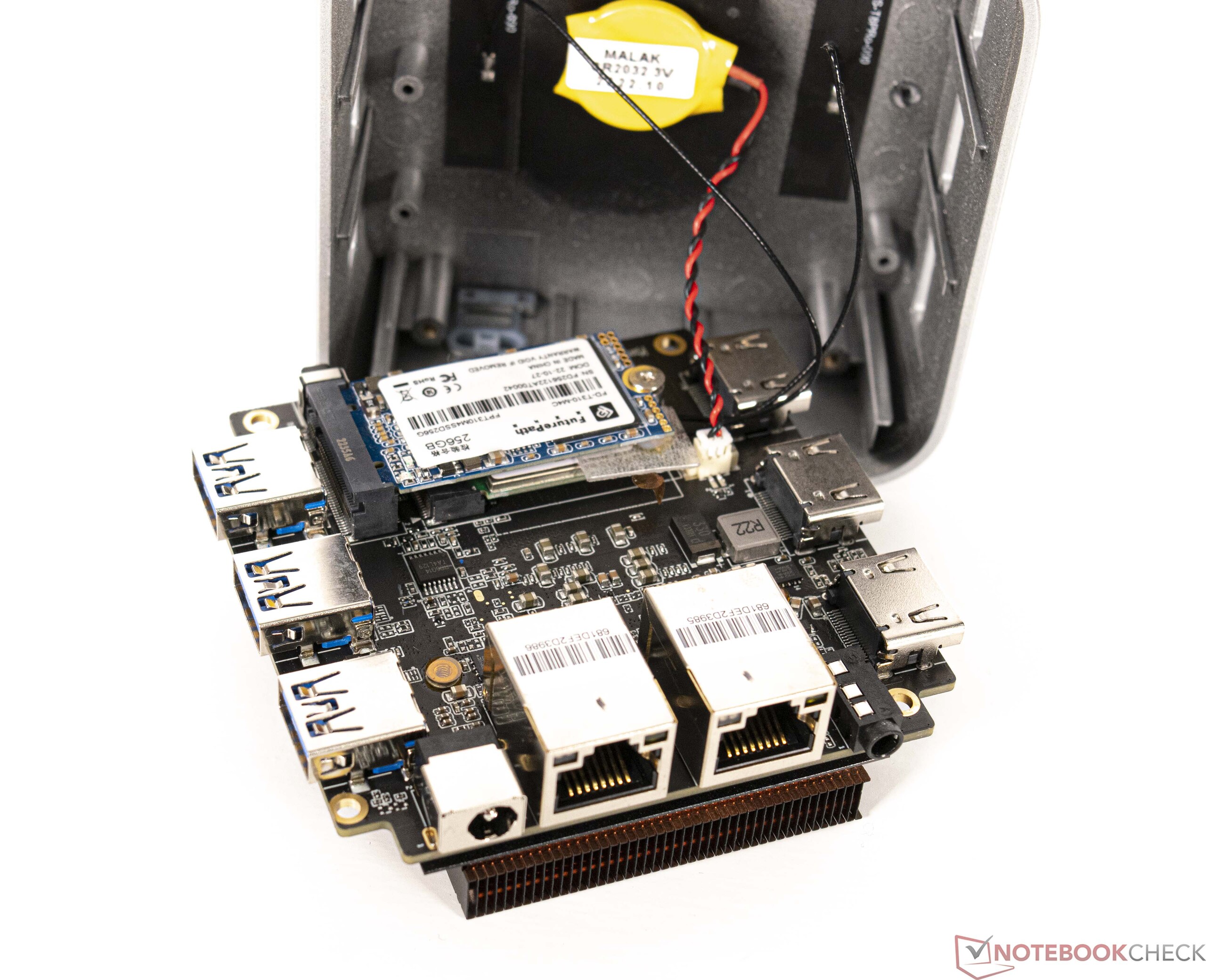

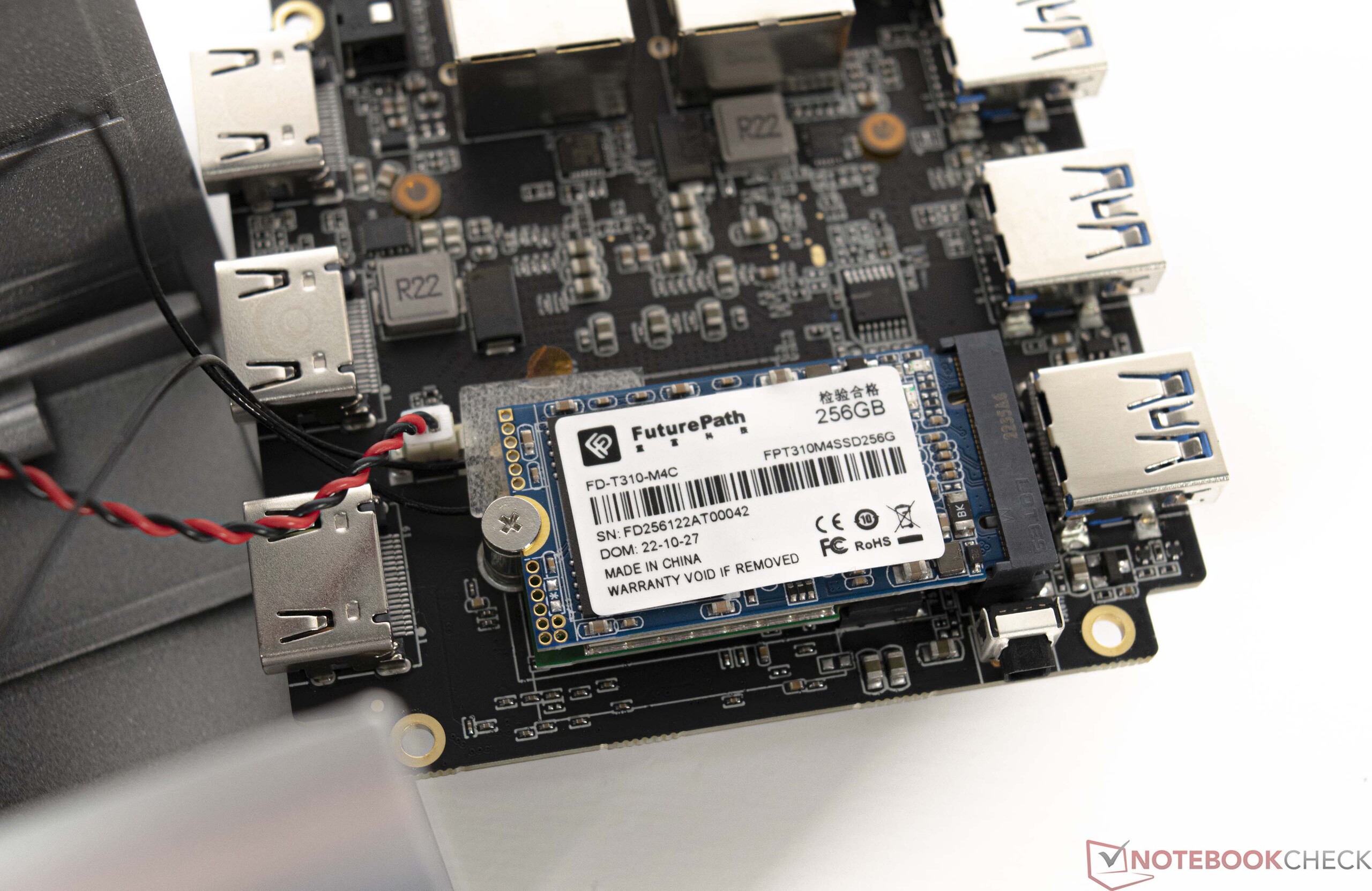

El SSD y el módulo Wi-Fi son fácilmente accesibles para aquellos que quieran actualizar el Ace Magician T8Pro. Para abrir el dispositivo, basta con retirar los cuatro tornillos de la parte inferior. Sin embargo, hay que tener en cuenta el factor de forma del SSD, ya que el dispositivo sólo puede alojar un SSD M.2 con una longitud de 42 mm. A diferencia del SSD y el módulo Wi-Fi, la memoria no es actualizable.

Rendimiento

El Intel Celeron N5095 es la única opción de procesador disponible para el Ace Magician T8Pro. Los cuatro núcleos nativos disponen de 8 GB de RAM DDR4 y ofrecen un rendimiento sólido para tareas ofimáticas básicas.

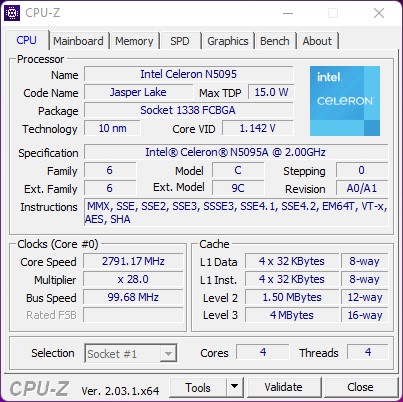

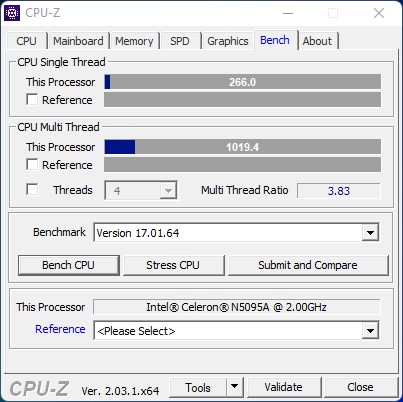

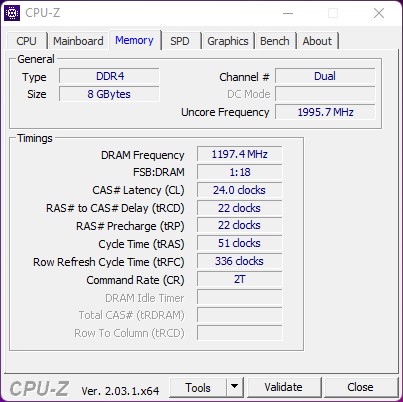

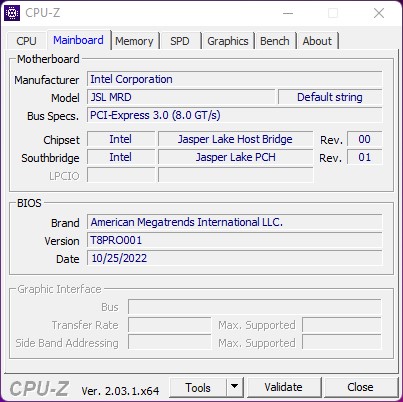

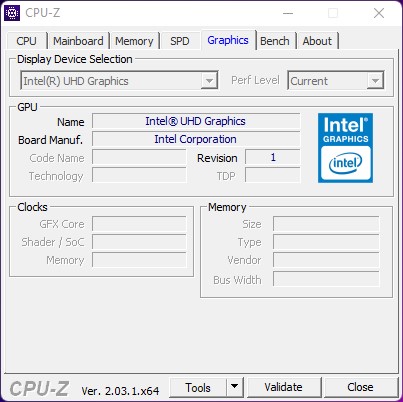

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

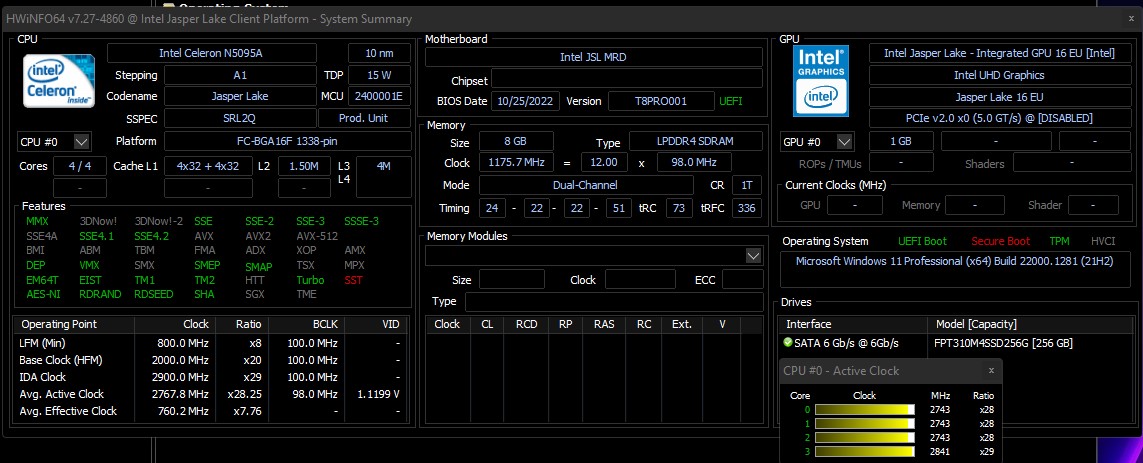

HWiNFO

Condiciones de la prueba

Realizamos todas las pruebas relacionadas con el rendimiento con el plan de energía "Alto rendimiento" para obtener los mejores resultados posibles. La única vez que utilizamos un plan de energía diferente fue al medir el consumo de energía y los niveles de ruido. Haga clic en aquí para obtener más información sobre nuestros criterios de prueba.

Procesador

El Ace Magician T8Pro puede aprovechar la potencia del Intel Celeron N5095 bastante bien. Dicho esto, hay productos de la competencia que rinden mejor con el mismo SoC, como el Geekom MiniAir 11 Edición Especial. Sin embargo, la diferencia de rendimiento es de un solo dígito y, por tanto, insignificante. El límite de potencia a corto plazo (PL2) del SoC es de unos 20 vatios, mientras que el límite de potencia a largo plazo (PL1) está limitado a 15 vatios.

Puede hacer clic en aquípara ver más pruebas comparativas de procesadores.

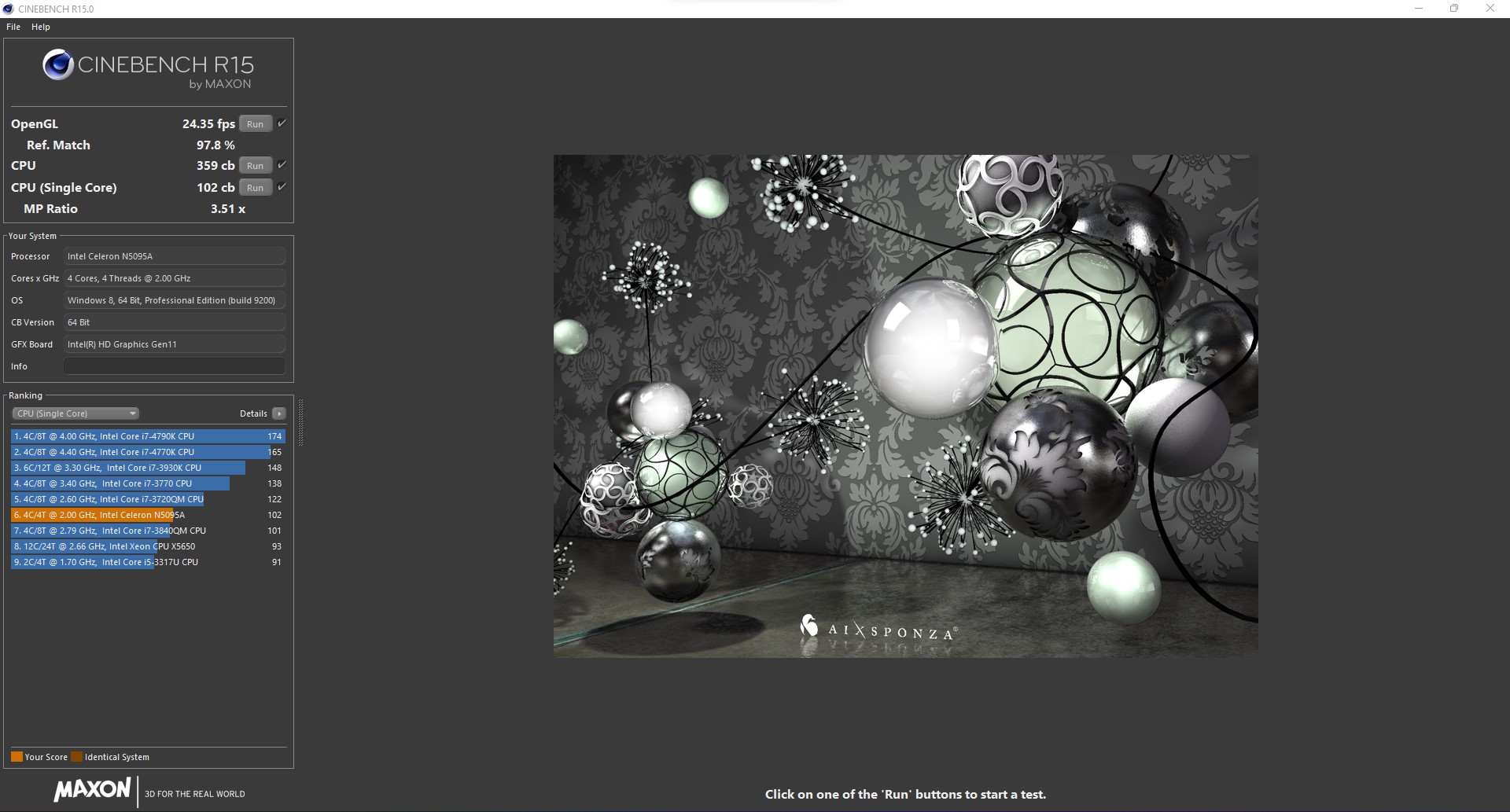

Cinebench R15
Cinebench R15

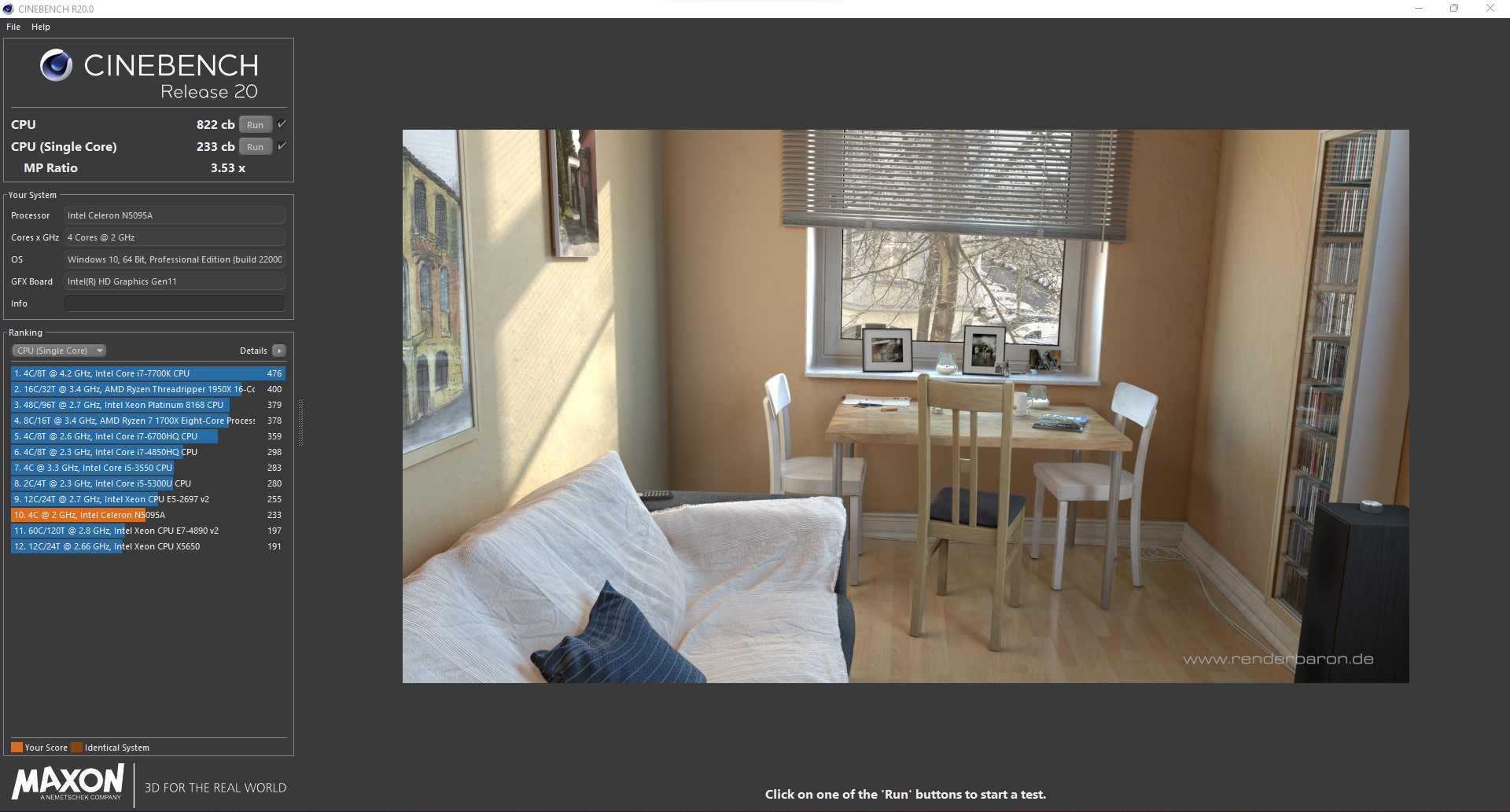

Cinebench R20
Cinebench R20

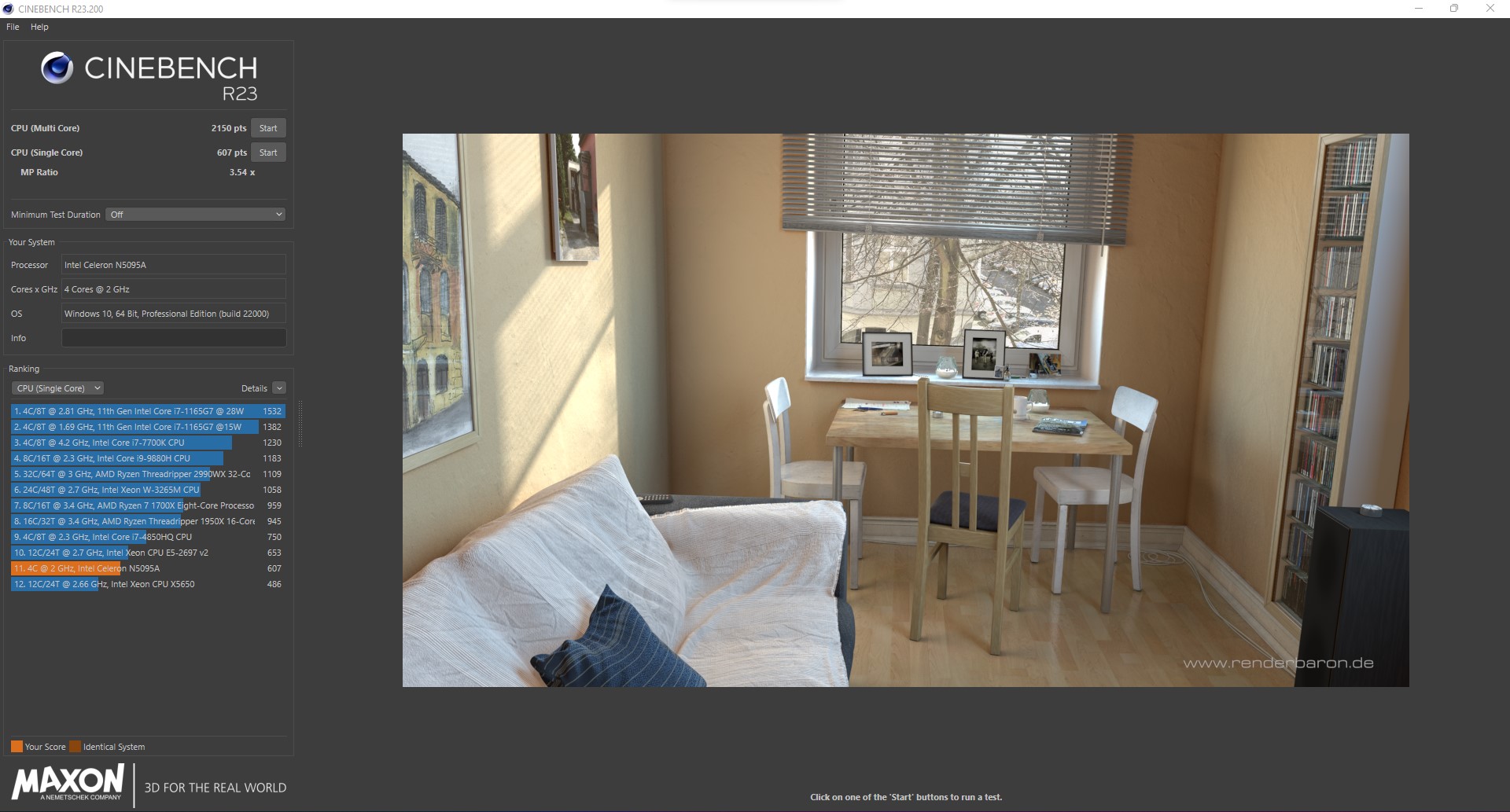

Cinebench R23
Cinebench R23
Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
123 Points +21%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.3 Points +5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
106 Points +4%
Average Intel Celeron N5095
  (95.4 - 109, n=5)
103.9 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
95.4 Points -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
77 Points -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
372 Points +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
369 Points +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
358 (350.25min - 357.53max) Points 0%
Average Intel Celeron N5095
  (221 - 379, n=6)
343 Points -4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
319 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
248 Points -31%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
128 Points -64%
Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
266 Points +14%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
236 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
234 Points 0%
Average Intel Celeron N5095
  (228 - 239, n=5)
234 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
228 Points -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
174 Points -25%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
828 Points +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
827 Points +1%
Average Intel Celeron N5095
  (804 - 844, n=5)
825 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
804 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
720 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
556 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
285 Points -65%
Cinebench R23
Single Core
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
696 Points +15%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
615 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
611 Points +1%
Average Intel Celeron N5095
  (587 - 621, n=5)
608 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
607 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
587 Points -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
439 Points -28%
Multi Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2176 (2164.67min - 2176.1max) Points +1%
Average Intel Celeron N5095
  (2150 - 2219, n=5)
2174 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2164 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2159 (2113.79min - 2158.74max) Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2150 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1833 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
735 Points -66%
Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.47 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.29 Points +3%
Average Intel Celeron N5095
  (1.25 - 1.29, n=2)
1.27 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.97 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4.76 Points +2%
Average Intel Celeron N5095
  (4.65 - 4.76, n=2)
4.71 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4.14 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3.09 Points -34%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.65 Points -65%
Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
6163 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5451 Points +4%
Average Intel Celeron N5095
  (5224 - 5451, n=2)
5338 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
4120 Points -21%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points
Average Intel Celeron N5095
  (16442 - 17278, n=2)
16860 Points -2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
16442 Points -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
15504 Points -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
10705 Points -38%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
6653 Points -61%
Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3767 Seconds * -144%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 Seconds * -54%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1805 Seconds * -17%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1624 Seconds * -5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1550 Seconds * -0%
Average Intel Celeron N5095
  (1502 - 1624, n=5)
1548 Seconds * -0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1547 Seconds *
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1502 Seconds * +3%
wPrime 2.10
32m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
49.66 s * -159%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
19.779 s * -3%
Average Intel Celeron N5095
  (19.2 - 19.8, n=2)
19.5 s * -2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
17.37 s * +10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
17.09 s * +11%
1024m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1561.178 s * -158%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
617.326 s * -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
615 s * -2%
Average Intel Celeron N5095
  (605 - 617, n=2)
611 s * -1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
566 s * +7%
X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
120.25 (119.9min - 120.3max) fps +7%
Average Intel Celeron N5095
  (112.8 - 120.3, n=2)
116.5 fps +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
102 (100min - 118max) fps -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
25.25 (25.2min - 25.4max) fps +2%
Average Intel Celeron N5095
  (24.8 - 25.3, n=2)
25 fps +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -60%
WinRAR - Result
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1781 KB/s +9%
Average Intel Celeron N5095
  (1630 - 1781, n=2)
1706 KB/s +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1525 KB/s -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1140 KB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
731 KB/s -55%
TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2.6 GB/s +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.5 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s
Average Intel Celeron N5095
  (2.5 - 2.5, n=2)
2.5 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.9 GB/s -24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.403 GB/s +9%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.37 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s
Average Intel Celeron N5095
  (0.37 - 0.37, n=2)
0.37 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.266 GB/s -28%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.23 GB/s +16%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.198 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s
Average Intel Celeron N5095
  (0.198 - 0.198, n=2)
0.198 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.182 GB/s -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.074 GB/s -63%
Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2036 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2020 Points -2%
Average Intel Celeron N5095
  (1933 - 2052, n=4)
2010 Points -2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1933 Points -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1673 Points -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1501 Points -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
844 Points -59%
Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
659 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
657 Points +3%
Average Intel Celeron N5095
  (637 - 659, n=4)
649 Points +2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
606 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
556 Points -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
455 Points -29%
Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points
Average Intel Celeron N5095
  (1985 - 2070, n=4)
2029 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2020 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1985 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1482 Points -27%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1313 Points -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
857 Points -58%
5.0 Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
655 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
655 Points +3%
Average Intel Celeron N5095
  (628 - 655, n=4)
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
603 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
559 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
453 Points -29%
Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2929 Points +2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2900 Points +1%
Average Intel Celeron N5095
  (2858 - 2929, n=3)
2896 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2585 Points -10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2555 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points
Average Intel Celeron N5095
  (7759 - 7968, n=3)
7856 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
7842 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
7759 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
5468 Points -31%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
5399 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3606 Points -55%
3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
4322 Points +1%
Average Intel Celeron N5095
  (4224 - 4439, n=5)
4309 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4272 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
4224 Points -1%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3659 Points -15%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2794 Points -35%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1591 Points -63%
7-Zip 18.03
7z b 4
Average Intel Celeron N5095
  (10924 - 11168, n=5)
11024 MIPS +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
11023 MIPS +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
11013 MIPS +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
10994 MIPS +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
9964 MIPS -9%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
7790 MIPS -29%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3515 MIPS +20%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
3124 MIPS +6%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
3100 MIPS +6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
3098 MIPS +6%
Average Intel Celeron N5095
  (2935 - 3124, n=5)
3074 MIPS +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2593 MIPS -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 MIPS -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.02 fps 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2 fps 0%
Average Intel Celeron N5095
  (1.9 - 2.05, n=5)
1.996 fps -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.9 fps -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.65 fps -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.48 fps -26%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.88 fps -56%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.579 sec * -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.371 sec * -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1.178 sec * +2%
Average Intel Celeron N5095
  (1.16 - 1.2, n=5)
1.174 sec * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.166 sec * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.16 sec * +3%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.137 sec * +5%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
144.7 s * -40%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
143 s * -38%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.9 s * -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
106.5 s * -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s *
Average Intel Celeron N5095
  (97 - 107.9, n=5)
103.6 s * -0%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
103.2 s * -0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
92.9 s * +10%
WebXPRT 3 - Overall
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
146 Points +15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Average Intel Celeron N5095
  (114.3 - 127.2, n=6)
123.4 Points -3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
122.2 Points -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
114.3 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
89.2 Points -30%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
86.2 Points -32%
Mozilla Kraken 1.1 - Total
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2288 ms * -41%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1619 ms *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1591 ms * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1581 ms * +2%
Average Intel Celeron N5095
  (1557 - 1619, n=6)
1578 ms * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1396 ms * +14%
3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
5499 Points -1%
Average Intel Celeron N5095
  (5400 - 5572, n=5)
5496 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5474 Points -1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
5400 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4295 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3885 Points -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2195 Points -60%

* ... más pequeño es mejor

Performance Rating
Average of class Mini PC

100 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21.1 pt
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
20.2 pt
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19.9 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
16.4 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8.8 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6.8 pt
AIDA64 / FP32 Ray-Trace
Average of class Mini PC
  (561 - 27538, n=107, last 2 years)
10532 KRay/s +748%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s -20%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -67%
AIDA64 / FPU Julia
Average of class Mini PC
  (3604 - 116903, n=107, last 2 years)
54806 Points +635%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7459 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -68%
AIDA64 / CPU SHA3
Average of class Mini PC
  (225 - 5096, n=107, last 2 years)
2398 MB/s +367%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s -23%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -68%
AIDA64 / CPU Queen
Average of class Mini PC
  (8172 - 119802, n=107, last 2 years)
71321 Points +219%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21458 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -65%
AIDA64 / FPU SinJulia
Average of class Mini PC
  (408 - 15525, n=107, last 2 years)
7594 Points +658%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points +20%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -60%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -60%
AIDA64 / FPU Mandel
Average of class Mini PC
  (1958 - 62378, n=107, last 2 years)
28955 Points +631%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3962 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -68%
AIDA64 / CPU AES
Average of class Mini PC
  (3691 - 177158, n=107, last 2 years)
78773 MB/s +307%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19086 MB/s -1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s -48%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s -67%
AIDA64 / CPU ZLib
Average of class Mini PC
  (74.8 - 1233, n=107, last 2 years)
607 MB/s +223%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
189.9 MB/s +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -68%
AIDA64 / FP64 Ray-Trace
Average of class Mini PC
  (308 - 14722, n=107, last 2 years)
5628 KRay/s +733%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s -18%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -68%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 45560, n=107, last 2 years)
25572 MPixel/s +158%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7707 MPixel/s -22%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s -25%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -48%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -75%

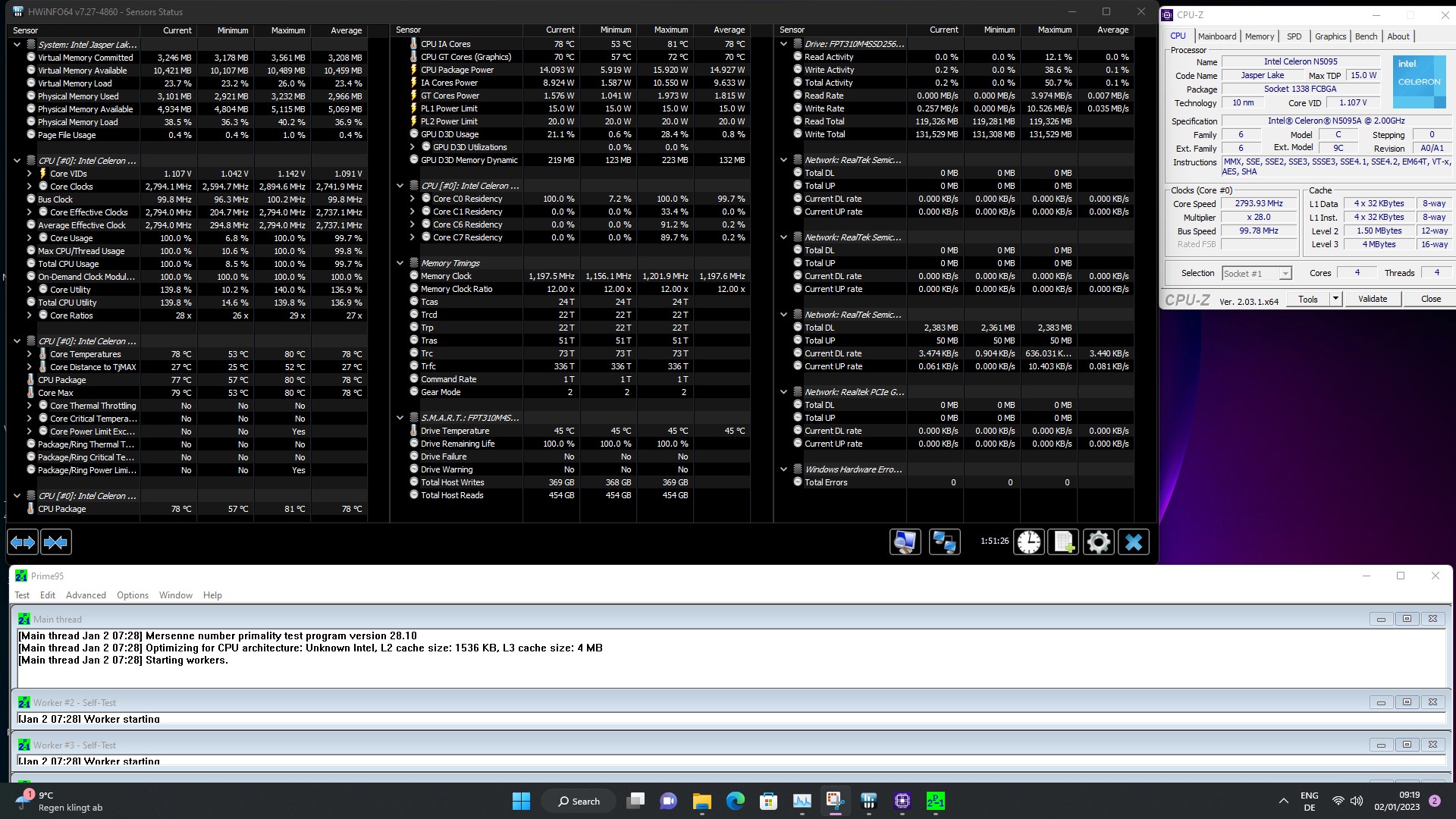

El rendimiento del Intel Celeron N5059se maneja muy bien bajo carga, como demuestra la prueba en bucle Cinebench R15. Los resultados se mantuvieron constantes a lo largo de las 50 ejecuciones de la prueba. La refrigeración pasiva Newsmay AC8 no pudo mantener el ritmo a pesar de tener un SoC más rápido. En general, nuestro modelo de pruebas logró el segundo puesto en el grupo de comparación.

020406080100120140160180200220240260280300320340360Tooltip
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)
Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Rendimiento del sistema

En Intel Celeron N5059 limita la capacidad del Ace Magician T8Pro. No obstante, el dispositivo rinde bien en el uso diario, siempre que no se abrume su SoC. El Ace Magician fue incluso capaz de superar ligeramente al Geekom MiniAir 11 Special Editiony la diferencia de rendimiento entre el T8Pro y el Newsmay AC8 (con un Intel Pentium Silver N6005) es minúscula.

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93.7 pt
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
91.5 pt
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
75.6 pt
PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
2928 Points -20%
Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93 pt
CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
473 Points -4%
PCMark 10 Score
2417 puntos
ayuda

Latencia del CPD

El Ace Magician T8Pro tuvo problemas de latencia en cuanto se abrieron varias pestañas en el navegador Edge. Reproducir nuestro vídeo 4K de prueba aumentó aún más la latencia. Durante la reproducción de vídeo, el uso de la iGPU superó ligeramente el 30%.

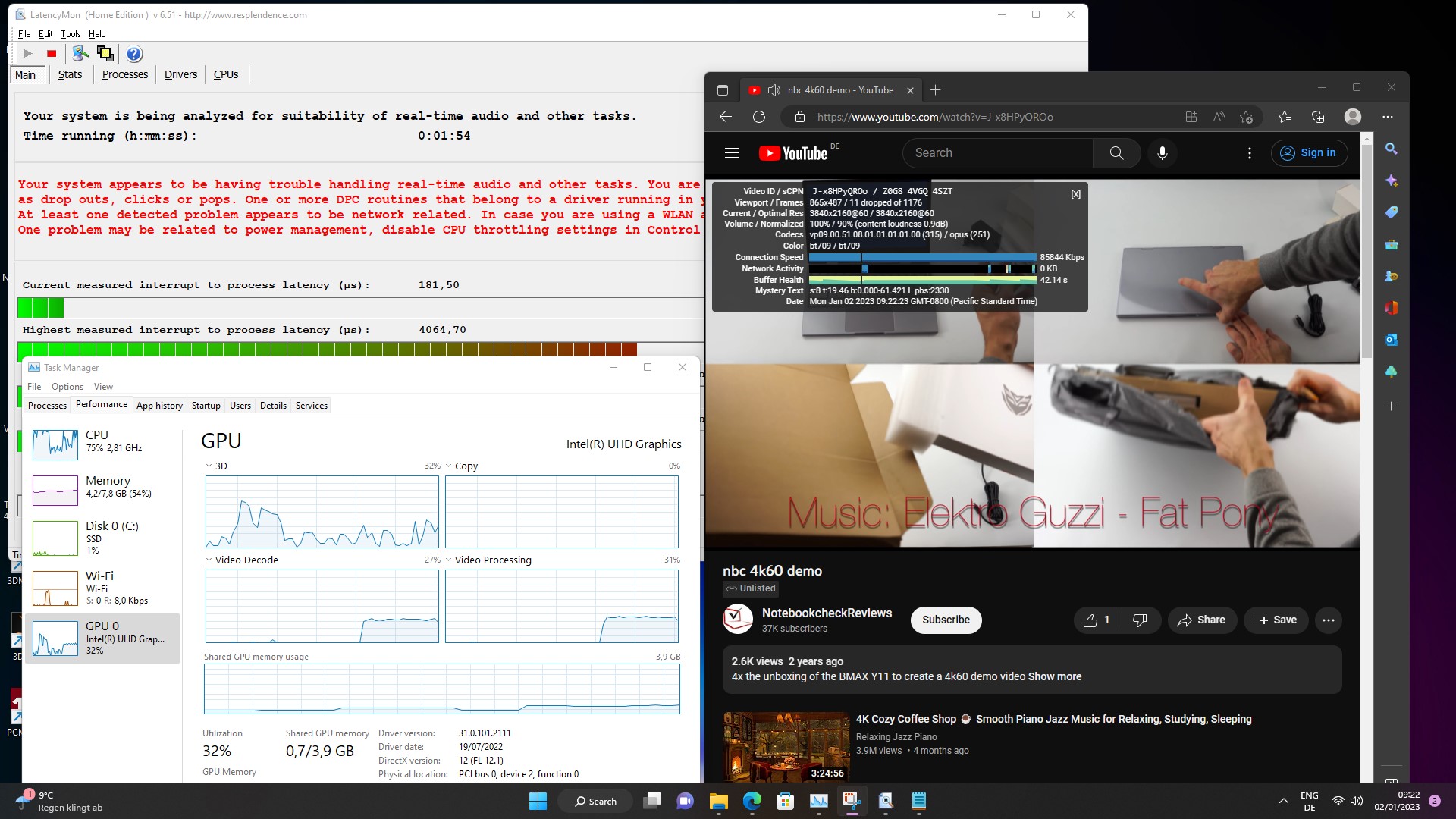

Latencia máxima con varias pestañas del navegador abiertas y con reproducción de vídeo 4K
Latencia máxima con varias pestañas del navegador abiertas y con reproducción de vídeo 4K

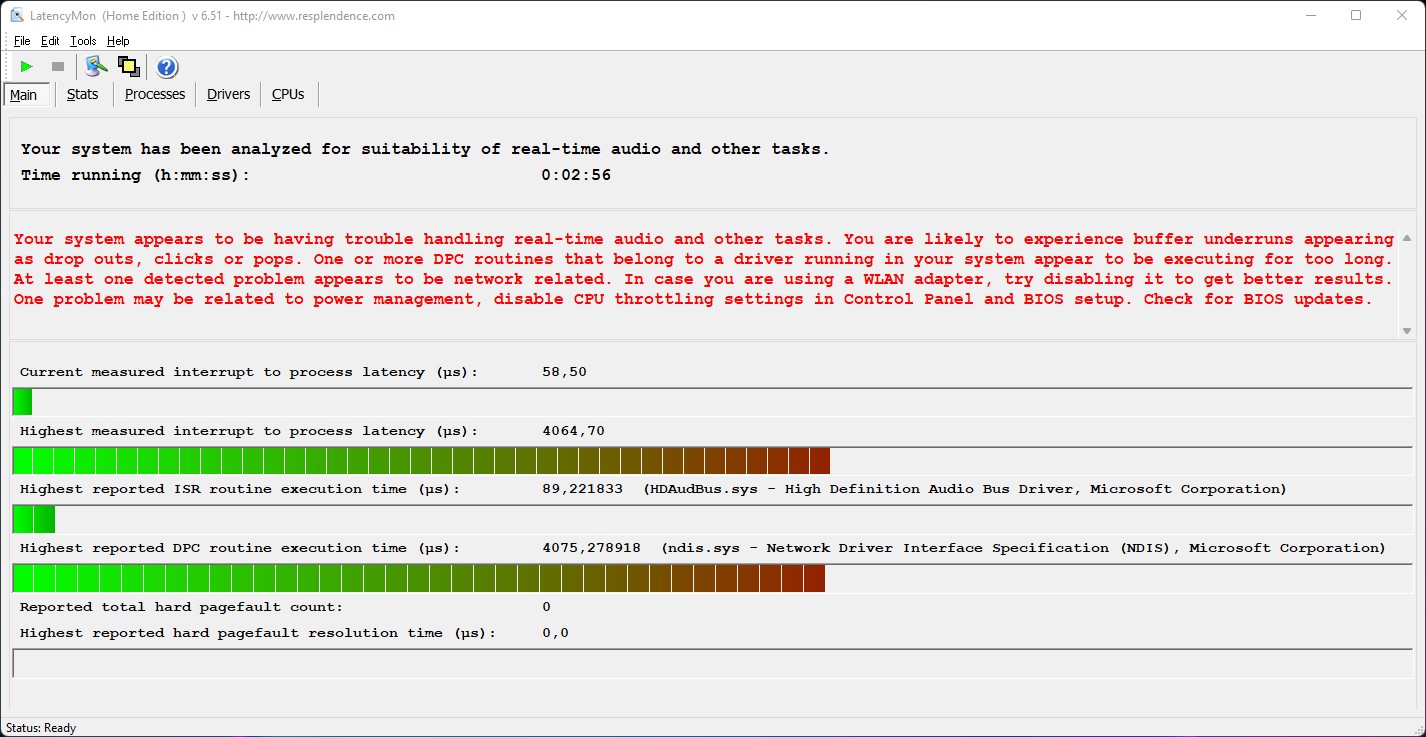

Latencia máxima tras ejecutar Prime95 durante 10 segundos
Latencia máxima tras ejecutar Prime95 durante 10 segundos

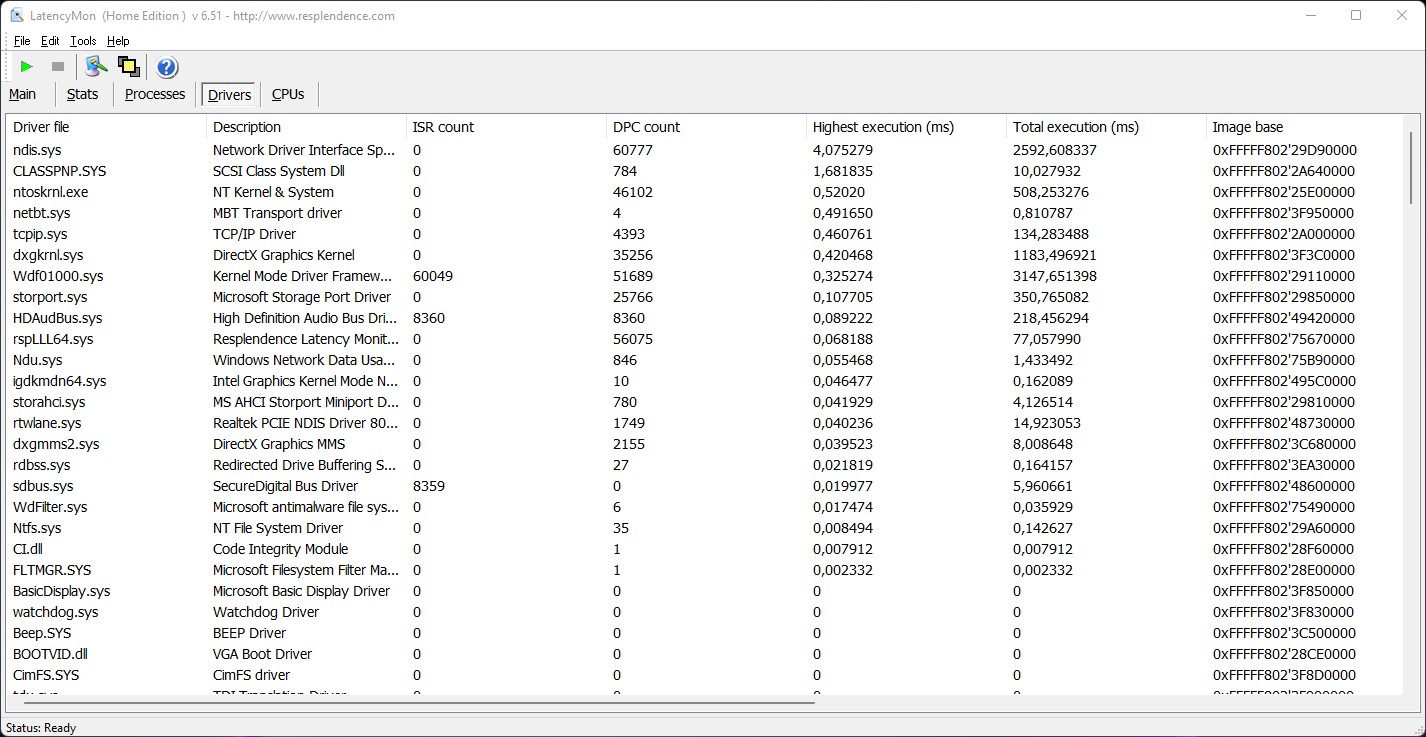

Controladores ordenados por tiempo de ejecución (de mayor a menor)
Controladores ordenados por tiempo de ejecución (de mayor a menor)
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs *
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128
1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
687.3 μs * +83%

* ... más pequeño es mejor

Almacenamiento masivo

El Ace Magician T8Pro está equipado con un SSD de 256 GB. La unidad sólo soporta velocidades SATA, por lo que es más lenta que las SSD NVMe. No obstante, sigue siendo adecuado para los fines previstos del T8Pro. Tampoco notamos caídas de rendimiento bajo carga sostenida. Si los 256 GB de almacenamiento de la configuración por defecto no son suficientes para tus necesidades, puedes reemplazar el SSD incluido por uno mayor. Aunque debes asegurarte de que el nuevo SSD no supere los 42 mm (M.2 2242).

Puede consultar nuestra tabla de unidades de almacenamiento https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html para ver más comparaciones y resultados de pruebas comparativas.

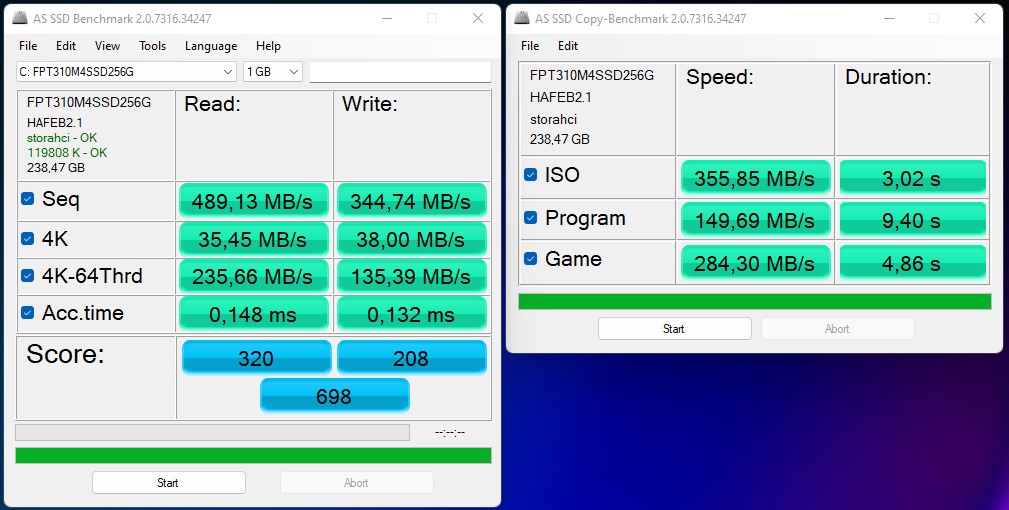

AS SSD
AS SSD

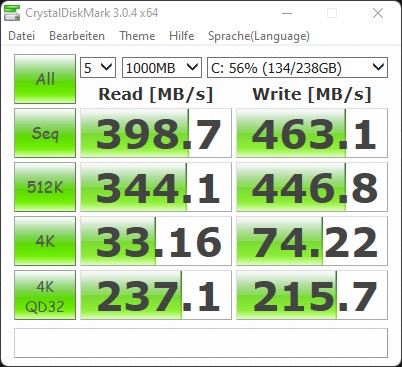

MDL 3
MDL 3

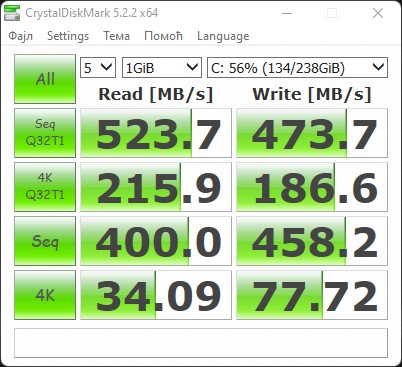

MDL 5
MDL 5

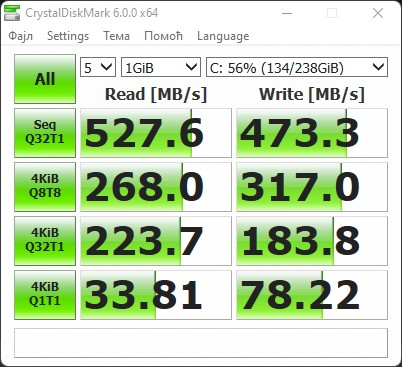

MDL 6
MDL 6
FPT310M4SSD256G
Sequential Read: 398.7 MB/s
Sequential Write: 463.1 MB/s
512K Read: 344.1 MB/s
512K Write: 446.8 MB/s
4K Read: 33.16 MB/s
4K Write: 74.22 MB/s
4K QD32 Read: 237.1 MB/s
4K QD32 Write: 215.7 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

97.6 pt
AC6-M Mini-PC

32 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
30.4 pt
Average FPT310M4SSD256G

30.4 pt
Newsmay AC8 N6005
Lexar 128GB SSD
30.1 pt
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
23.7 pt
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
21.1 pt
Geekom MiniAir 11
NF830 256GB M.2 2280
17.9 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
6.6 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4168, n=106, last 2 years)
2087 MB/s +342%
Newsmay AC8 N6005
Lexar 128GB SSD
511 (502.22min - 510.84max) MB/s +8%
AC6-M Mini-PC

477 (454.59min - 477.1max) MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s
Average FPT310M4SSD256G
  ()
472 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s -1%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
434 (226.49min - 434.29max) MB/s -8%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
229 (187.74min - 229.26max) MB/s -51%
seq write
Average of class Mini PC
  (222 - 5595, n=106, last 2 years)
2173 MB/s +369%
Newsmay AC8 N6005
Lexar 128GB SSD
491 (445.91min - 491.36max) MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s
Average FPT310M4SSD256G
  ()
463 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s -6%
AC6-M Mini-PC

428 (412.52min - 427.8max) MB/s -8%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
409 (44.25min - 408.73max) MB/s -12%
Geekom MiniAir 11
NF830 256GB M.2 2280
256 (237.45min - 255.73max) MB/s -45%
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s -77%
seq q8 t1 read
Average of class Mini PC
  (236 - 8430, n=106, last 2 years)
3268 MB/s +494%
AC6-M Mini-PC

563 (509.43min - 563.43max) MB/s +2%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s
Average FPT310M4SSD256G
  ()
550 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
548 (494.87min - 547.82max) MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s -11%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
447 (396.95min - 446.64max) MB/s -19%
Geekom MiniAir 11
NF830 256GB M.2 2280
260 (234.3min - 260.36max) MB/s -53%
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s -54%
seq q8 t1 write
Average of class Mini PC
  (228 - 6669, n=106, last 2 years)
2362 MB/s +407%
Newsmay AC8 N6005
Lexar 128GB SSD
515 (500.64min - 515.04max) MB/s +11%
AC6-M Mini-PC

497 (494.3min - 497.29max) MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s +5%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s
Average FPT310M4SSD256G
  ()
466 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
346 (118.46min - 345.82max) MB/s -26%
Geekom MiniAir 11
NF830 256GB M.2 2280
268 (261.2min - 268.44max) MB/s -42%
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s -78%
4k q1 t1 read
Average of class Mini PC
  (5.67 - 86.6, n=106, last 2 years)
52.7 MB/s +55%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s
Average FPT310M4SSD256G
  ()
33.9 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
26.4 (25.68min - 26.38max) MB/s -22%
Geekom MiniAir 11
NF830 256GB M.2 2280
16.1 (12.09min - 16.13max) MB/s -53%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s -53%
AC6-M Mini-PC

13.9 (11.27min - 13.88max) MB/s -59%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s -60%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
12.9 (5.79min - 12.85max) MB/s -62%
4k q1 t1 write
Average of class Mini PC
  (22 - 435, n=106, last 2 years)
191.6 MB/s +159%
Newsmay AC8 N6005
Lexar 128GB SSD
99.8 (98.72min - 99.78max) MB/s +35%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s
Average FPT310M4SSD256G
  ()
74.1 MB/s 0%
AC6-M Mini-PC

62 (61.58min - 62.02max) MB/s -16%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s -37%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
22 (19.72min - 21.99max) MB/s -70%
Geekom MiniAir 11
NF830 256GB M.2 2280
20.9 (15.11min - 20.94max) MB/s -72%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s -81%
4k q32 t16 read
Average of class Mini PC
  (26.1 - 3197, n=106, last 2 years)
1157 MB/s +335%
AC6-M Mini-PC

302 (300.2min - 301.59max) MB/s +14%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s
Average FPT310M4SSD256G
  ()
266 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
185 (183.89min - 185.03max) MB/s -30%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
170.2 (157.55min - 170.17max) MB/s -36%
Geekom MiniAir 11
NF830 256GB M.2 2280
165.1 (75.31min - 165.14max) MB/s -38%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s -39%
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s -90%
4k q32 t16 write
Average of class Mini PC
  (30.2 - 3983, n=106, last 2 years)
1172 MB/s +267%
AC6-M Mini-PC

351 (323.82min - 350.53max) MB/s +10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s
Average FPT310M4SSD256G
  ()
319 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
288 (244.64min - 287.66max) MB/s -10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s -34%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
168.3 (88.04min - 168.3max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
113 (45.88min - 112.97max) MB/s -65%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s -96%
AS SSD
Score Total
Average of class Mini PC
  (151.3 - 10021, n=104, last 2 years)
3731 Points +435%
AC6-M Mini-PC

1091 Points +56%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points
Average FPT310M4SSD256G
  ()
698 Points 0%
Newsmay AC8 N6005
Lexar 128GB SSD
604 Points -13%
Geekom MiniAir 11
NF830 256GB M.2 2280
582 Points -17%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points -17%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
151.3 (331.02min) Points -78%
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points -81%
Score Read
Average of class Mini PC
  (61 - 3741, n=104, last 2 years)
1406 Points +339%
AC6-M Mini-PC

473 Points +48%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points
Average FPT310M4SSD256G
  ()
320 Points 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
217 Points -32%
Geekom MiniAir 11
NF830 256GB M.2 2280
201 Points -37%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points -48%
Newsmay AC8 N6005
Lexar 128GB SSD
134 Points -58%
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points -80%
Score Write
Average of class Mini PC
  (88 - 4371, n=104, last 2 years)
1654 Points +695%
Newsmay AC8 N6005
Lexar 128GB SSD
396 Points +90%
AC6-M Mini-PC

374 Points +80%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points +56%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
312 Points +50%
Geekom MiniAir 11
NF830 256GB M.2 2280
278 Points +34%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points
Average FPT310M4SSD256G
  ()
208 Points 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points -81%
Seq Read
Average of class Mini PC
  (291 - 6620, n=104, last 2 years)
2872 MB/s +487%
Newsmay AC8 N6005
Lexar 128GB SSD
512 MB/s +5%
AC6-M Mini-PC

492 MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s
Average FPT310M4SSD256G
  ()
489 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s -7%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
433 MB/s -11%
Geekom MiniAir 11
NF830 256GB M.2 2280
421.78 MB/s -14%
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s -46%
Seq Write
Average of class Mini PC
  (240 - 5783, n=104, last 2 years)
2044 MB/s +494%
AC6-M Mini-PC

450 MB/s +31%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s +27%
Newsmay AC8 N6005
Lexar 128GB SSD
411.6 MB/s +20%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
385 MB/s +12%
Geekom MiniAir 11
NF830 256GB M.2 2280
365.24 MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s
Average FPT310M4SSD256G
  ()
344 MB/s 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s -66%
4K Read
Average of class Mini PC
  (6.08 - 104.3, n=104, last 2 years)
56.8 MB/s +60%
Average FPT310M4SSD256G
  ()
35.5 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s
Newsmay AC8 N6005
Lexar 128GB SSD
23.29 MB/s -34%
AC6-M Mini-PC

19.43 MB/s -45%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
16.2 MB/s -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s -61%
Geekom MiniAir 11
NF830 256GB M.2 2280
13.57 MB/s -62%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s -63%
4K Write
Average of class Mini PC
  (30.9 - 366, n=104, last 2 years)
171.5 MB/s +351%
Newsmay AC8 N6005
Lexar 128GB SSD
83 MB/s +118%
AC6-M Mini-PC

51.4 MB/s +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s +31%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s
Average FPT310M4SSD256G
  ()
38 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
36.63 MB/s -4%
Geekom MiniAir 11
NF830 256GB M.2 2280
21.25 MB/s -44%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s -65%
4K-64 Read
Average of class Mini PC
  (23.4 - 3220, n=104, last 2 years)
1062 MB/s +351%
AC6-M Mini-PC

404.1 MB/s +71%
Average FPT310M4SSD256G
  ()
236 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
157.18 MB/s -33%
Geekom MiniAir 11
NF830 256GB M.2 2280
144.84 MB/s -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s -55%
Newsmay AC8 N6005
Lexar 128GB SSD
59.4 MB/s -75%
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s -89%
4K-64 Write
Average of class Mini PC
  (32.8 - 3731, n=104, last 2 years)
1278 MB/s +844%
AC6-M Mini-PC

277.8 MB/s +105%
Newsmay AC8 N6005
Lexar 128GB SSD
272.3 MB/s +101%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
237.24 MB/s +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s +70%
Geekom MiniAir 11
NF830 256GB M.2 2280
219.83 MB/s +62%
Average FPT310M4SSD256G
  ()
135.4 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms * -110%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.284 ms * -92%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.205 ms * -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * -30%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms *
Average FPT310M4SSD256G
  ()
0.148 ms * -0%
Newsmay AC8 N6005
Lexar 128GB SSD
0.139 ms * +6%
Average of class Mini PC
  (0.022 - 0.489, n=104, last 2 years)
0.1011 ms * +32%
AC6-M Mini-PC

0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms * -614%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.218 ms * -65%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.203 ms * -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * -36%
Newsmay AC8 N6005
Lexar 128GB SSD
0.145 ms * -10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms *
Average FPT310M4SSD256G
  ()
0.132 ms * -0%
Average of class Mini PC
  (0.016 - 0.765, n=104, last 2 years)
0.1232 ms * +7%
AC6-M Mini-PC

0.071 ms * +46%

* ... más pequeño es mejor

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540Tooltip
Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)
Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)
Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)
Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Tarjeta gráfica y rendimiento en juegos

El procesamiento gráfico corre a cargo de UHD Graphics 16 UE de Intel (Jasper Lake) de Intel. Con esta iGPU, no es razonable pedir al Ace Magician T8Pro que realice cálculos 3D complejos. No obstante, según nuestras mediciones, el T8Pro es ligeramente mejor que el Geekom MiniAir 11 Edición Especial en términos de rendimiento gráfico. Dicho esto, nuestra unidad de pruebas no es tan buena como el Newsmay AC8porque la iGPU del Intel Pentium Silver N6005 tiene un total de 32 UE. Aunque no esperes jugar a juegos 3D exigentes en el Ace Magician T8Pro, este pequeño PC de oficina no debería tener problemas para ejecutar juegos sencillos basados en navegador y otros juegos casuales.

Haz clic en aquí para ver más resultados de pruebas comparativas de Intel UHD Graphics.

3DMark Performance Rating - Percent
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
100 pt
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
72.6 pt
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.7 pt
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.1 pt
