Breve análisis del Convertible Cube i7 Book CDK09

Peter Strasser, Klaus Hinum (traducido por Francisco García), 10/09/2016

Convertible Skylake. El Cube i7 ofrece un veloz SoC Core m3-6Y30, 64 GB de SSD, y una pantalla táctil IPS de 10.6" por poco dinero. Lógicamente se han hecho recortes en muchos sitios. Revelaremos dónde hay que aceptar las concesiones en este test del tablet que incluye teclado anclable.

Cube i7 Book CDK09
Procesador
Adaptador gráfico
Memoría
4096 MB
, LPDDR3L dual-channel 933 10-10-10-28
pantalla
10.6 pulgadas 16:9, 1920x1080 pixels 208 PPI, multitáctil, 10 puntos, Samsung LTN140W1-L01, IPS, lustroso: si, detachable screen
Placa base
Intel Skylake-Y Premium PCH
Disco duro
FORESEE 64GB O1229B, 64 GB
Tarjeta de sonido
Intel Skylake-U/Y PCH - High Definition Audio
Conexiones
2 USB 2.0, 2 USB 3.0, Audio Conexiones: headset, Card Reader: micro-SD, Sensores: sensor G, 3 puertos USB: micro-USB 3.0 y USB-C Gen. 1
Equipamento de red
Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac)
Tamaño
Alto x ancho x profundidad (en mm): 18 x 274 x 172
Battería
31.8 Wh, 4300 mAh Litio-Ion, 7.4V
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Primary Camera: 2 MPix
Secondary Camera: 2 MPix
Características adicionales
Altavoces: estéreo, micrófono, Teclado: chiclet, Luz de Teclado: no, 12 Meses Garantía, fanless
Released
06/30/2016
Peso
1.354 kg
Precio
556 Euro



Size Comparison

Connectivity

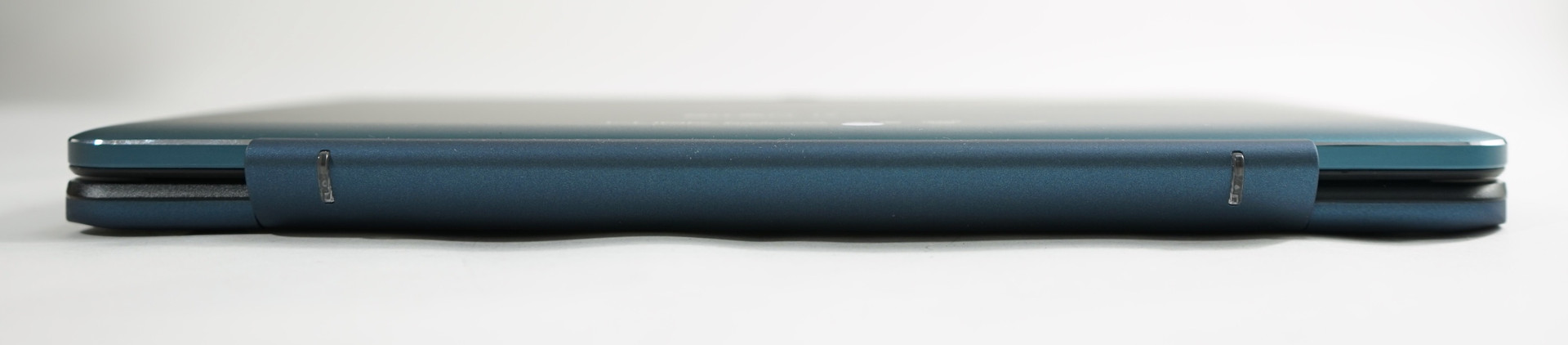

Rear: no interfaces
Rear: no interfaces

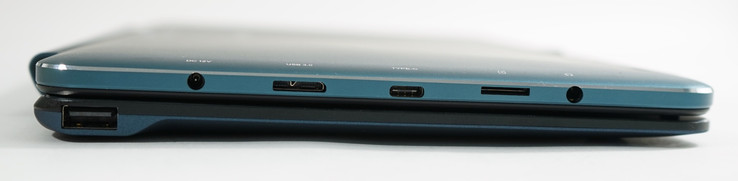

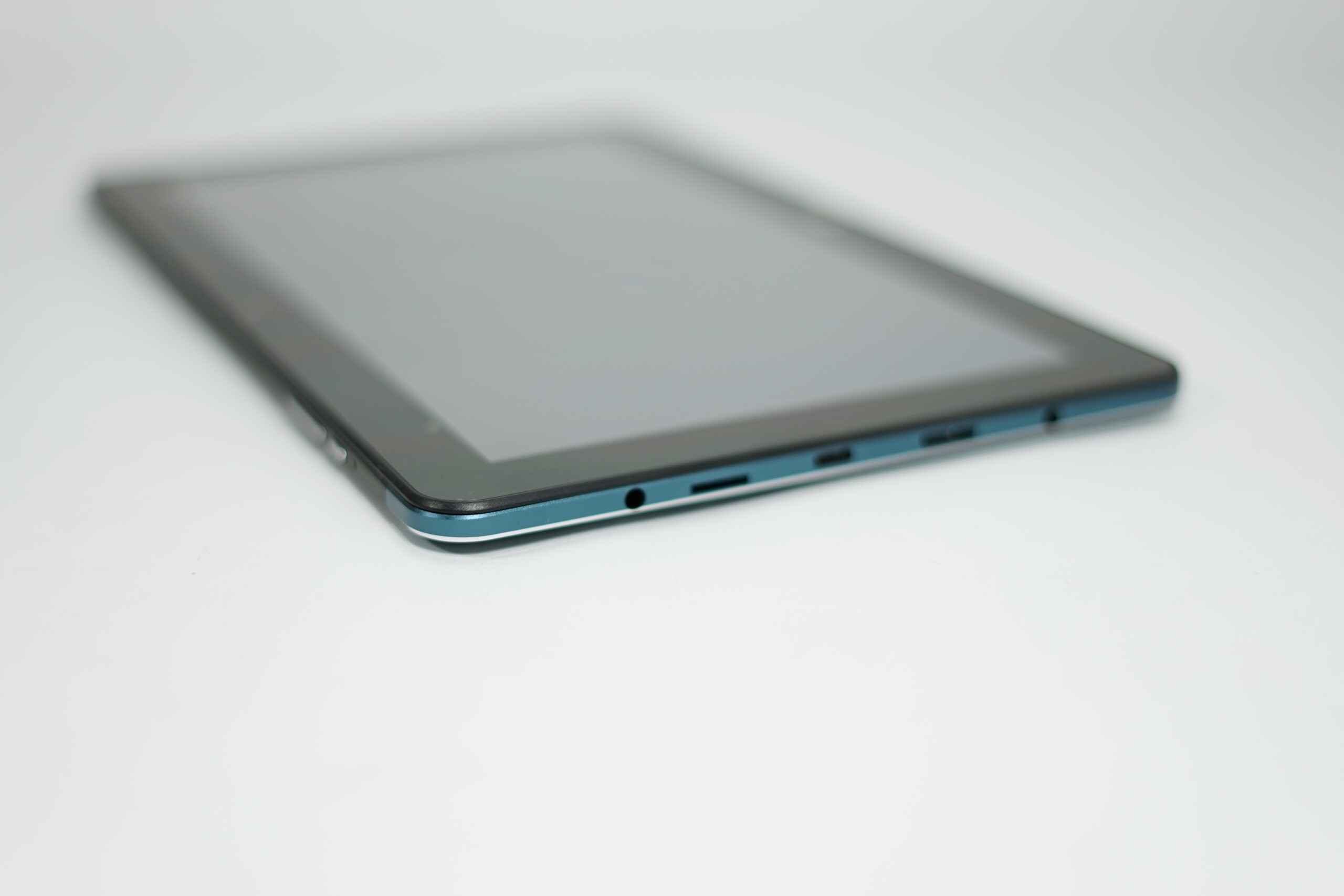

Left: USB 2.0 in keyboard, headset, micro-SD, USB-C (3.0), mini-USB 3.0 (with adapter), power-in
Left: USB 2.0 in keyboard, headset, micro-SD, USB-C (3.0), mini-USB 3.0 (with adapter), power-in

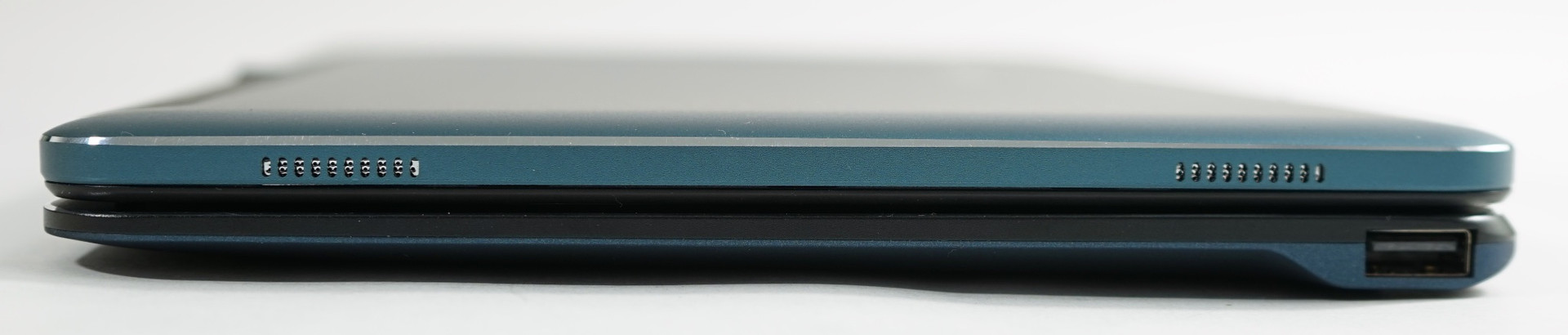

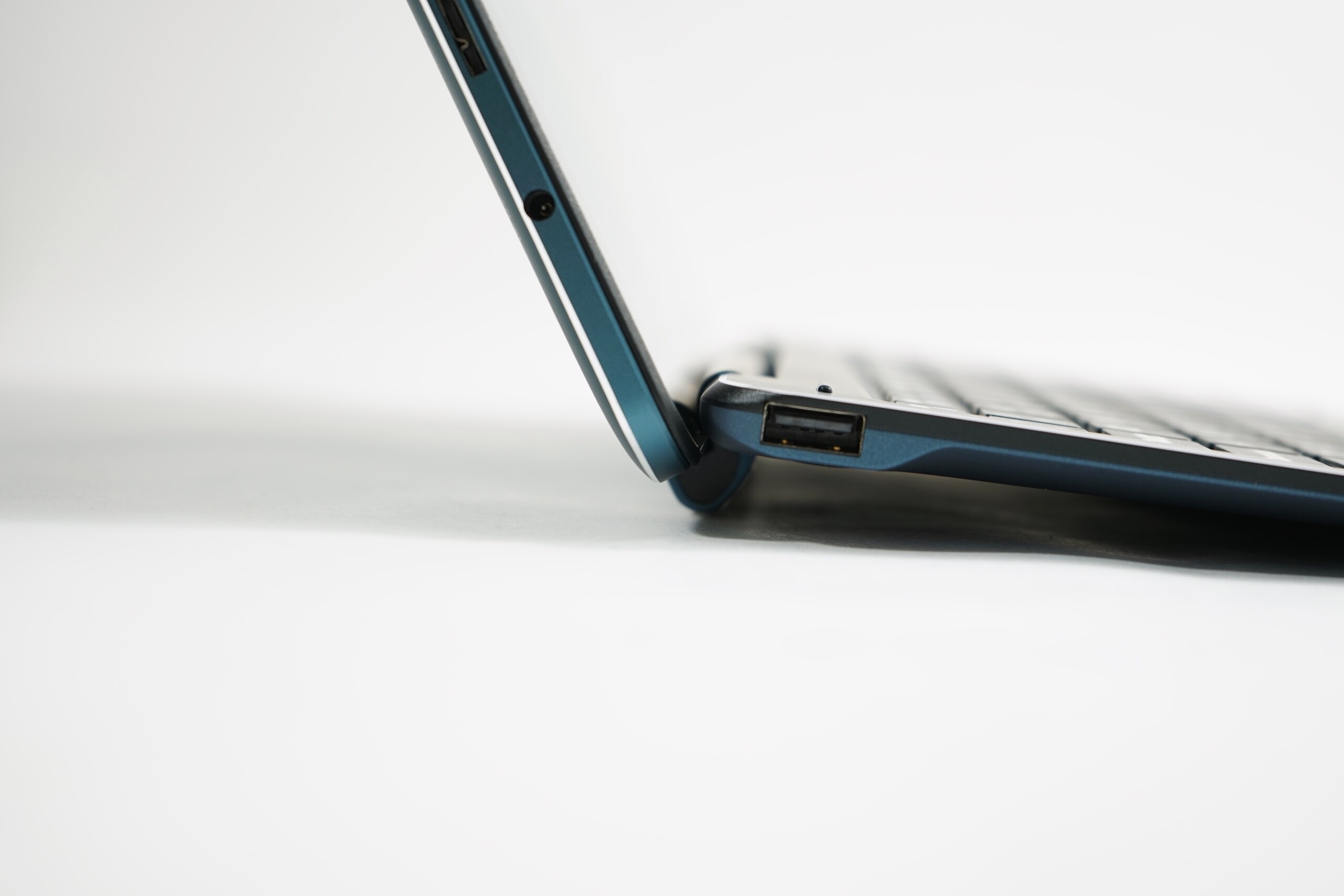

Right: USB 2.0 in keyboard
Right: USB 2.0 in keyboard
Upper edge: power button, volume control
Upper edge: power button, volume control
Networking
Cube i7 Book CDK09
Intel Dual Band Wireless-AC 3165
iperf3 Client (receive) TCP 1 m 4M x10
357 MBit/s ∼47%
iperf3 Client (transmit) TCP 1 m 4M x10
219 MBit/s ∼29%
MSI CX61 2QC 2970M MS-16GD
Realtek RTL8723AE Wireless LAN 802.11n
iperf3 Client (receive) TCP 1 m 4M x10
100 MBit/s ∼13%
iperf3 Client (transmit) TCP 1 m 4M x10
113 MBit/s ∼15%
MSI PE60 2QD
Intel Dual Band Wireless-AC 3165
iperf3 Client (receive) TCP 1 m 4M x10
236 MBit/s ∼31%
iperf3 Client (transmit) TCP 1 m 4M x10
322 MBit/s ∼42%
Intel NUC5i5RYH
Intel Dual Band Wireless-AC 7265
iperf3 Client (receive) TCP 1 m 4M x10
443 MBit/s ∼58%
iperf3 Client (transmit) TCP 1 m 4M x10
549 MBit/s ∼71%
Microsoft Surface Pro 4, Core i5, 128GB
Marvell AVASTAR Wireless-AC Network Controller
iperf3 Client (receive) TCP 1 m 4M x10
459 MBit/s ∼60%
iperf3 Client (transmit) TCP 1 m 4M x10
593 MBit/s ∼77%
Lenovo ThinkPad T460s-20FA003GGE
Intel Dual Band Wireless-AC 8260
iperf3 Client (receive) TCP 1 m 4M x10
637 MBit/s ∼84%
iperf3 Client (transmit) TCP 1 m 4M x10
534 MBit/s ∼70%
MSI GT72S-6QEG16SR421BW
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
iperf3 Client (receive) TCP 1 m 4M x10
664 MBit/s ∼87%
iperf3 Client (transmit) TCP 1 m 4M x10
625 MBit/s ∼81%
Apple MacBook Pro Retina 13 inch 2013-10
Broadcom 802.11ac
iperf3 Client (receive) TCP 1 m 4M x10
762 MBit/s ∼100%
iperf3 Client (transmit) TCP 1 m 4M x10
768 MBit/s ∼100%
350
cd/m²
379
cd/m²
371
cd/m²
341
cd/m²
384
cd/m²
372
cd/m²
374
cd/m²
380
cd/m²
376
cd/m²
Temperatura del cuarto
X-Rite i1Pro 2
Máximo: 384 cd/m² Médio: 369.7 cd/m² Minimum: 7.5 cd/m²
iluminación: 89 %
Brillo con batería: 384 cd/m²
Contraste: 1038:1 (Negro: 0.37 cd/m²)
ΔE Color 5.8 | - Ø
ΔE Greyscale 5.1 | - Ø
Gamma: 2.4
Cube i7 Book CDK09
Samsung LTN140W1-L01, , 1920x1080, 10.6
Microsoft Surface 3
Panasonic MEI9001, , 1920x1280, 10.8
Microsoft Surface Pro 4, Core i5, 128GB
Samsung 123YL01-001 ID: SDC3853, , 2736x1824, 12.3
Cube i9
KDC0000, , 1920x1200, 12.2
Response Times
Response Time Grey 50% / Grey 80% *
46
37.2
Response Time Black / White *
31.2
24
PWM Frequency
50
200
Screen
11%
15%
4%
Brightness
370
380
3%
396
7%
263
-29%
Brightness Distribution
89
90
1%
87
-2%
77
-13%
Black Level *
0.37
0.49
-32%
0.36
3%
0.28
24%
Contrast
1038
814
-22%
1147
11%
939
-10%
Colorchecker DeltaE2000 *
5.8
1.66
71%
3.09
47%
4.1
29%
Greyscale DeltaE2000 *
5.1
2.75
46%
3.92
23%
3.8
25%
Gamma
2.4 100%
2.22 108%
2.3 104%
2.25 107%
CCT
7125 91%
6358 102%
7333 89%
6433 101%
Color Space (Percent of AdobeRGB 1998)
64.4
61
57.7
Color Space (Percent of sRGB)
98.8
97
76.2
Media total (Programa/Opciones)
11% / 11%
15% / 15%
4% / 4%

* ... más pequeño es mejor

Cinebench R15
CPU Single 64Bit
Cube i7 Book CDK09
Intel Core m3-6Y30
89 Points ∼46%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
88 Points ∼45% -1%
Cube i9
Intel Core m3-6Y30
73 Points ∼37% -18%
Microsoft Surface 3
Intel Atom x7-Z8700
38 Points ∼19% -57%
CPU Multi 64Bit
Cube i7 Book CDK09
Intel Core m3-6Y30
211 Points ∼11%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
206 Points ∼11% -2%
Cube i9
Intel Core m3-6Y30
192 Points ∼10% -9%
Microsoft Surface 3
Intel Atom x7-Z8700
134 Points ∼7% -36%
Cinebench R15 OpenGL 64Bit
31.13 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Multi 64Bit
211 Points
Cinebench R15 CPU Single 64Bit
89 Points
ayuda
PCMark 8 - Home Score Accelerated v2
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
2976 Points ∼100% 0%
Cube i7 Book CDK09
HD Graphics 515, 6Y30, FORESEE 64GB O1229B
2976 Points ∼100%
HP Pavilion x2 12-b000ng
HD Graphics 515, 6Y30, SanDisk Z400s SD8SNAT-128G
2831 Points ∼95% -5%
Huawei MateBook m5-6Y57
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2717 Points ∼91% -9%
Cube i9
HD Graphics 515, 6Y30, FORESEE 128GB O1229B
2628 Points ∼88% -12%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
2550 Points ∼86% -14%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
2536 Points ∼85% -15%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼82% -18%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
2367 Points ∼80% -20%
Dell XPS 12 9250 4K
HD Graphics 515, 6Y75, Samsung PM951 NVMe 512 GB
2277 Points ∼77% -23%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
2217 Points ∼74% -26%
HP Spectre x2 12-a001ng
HD Graphics 515, 6Y30, Liteon L8H-256V2G
2116 Points ∼71% -29%
PCMark 8 Home Score Accelerated v2
2976 puntos
ayuda
Cube i7 Book CDK09
FORESEE 64GB O1229B
Cube i9
FORESEE 128GB O1229B
Microsoft Surface 3
128 GB eMMC Flash
Microsoft Surface Pro 4, Core m3
Samsung MZFLV128 NVMe
CrystalDiskMark 3.0
2%
-64%
49%
Write 4k QD32
96.18
116
21%
11.2
-88%
149.2
55%
Read 4k QD32
121.3
22.7
-81%
27.94
-77%
243.7
101%
Write 4k
51.25
56.8
11%
9.52
-81%
68.02
33%
Read 4k
14.72
18.4
25%
12.64
-14%
30.14
105%
Write 512
130.7
199
52%
39.9
-69%
158.2
21%
Read 512
252.4
197
-22%
133.7
-47%
313.1
24%
Write Seq
157
208
32%
47.99
-69%
158.2
1%
Read Seq
433.2
337
-22%
149.3
-66%
662.5
53%
FORESEE 64GB O1229B
Sequential Read: 433.2 MB/s
Sequential Write: 157 MB/s
512K Read: 252.4 MB/s
512K Write: 130.7 MB/s
4K Read: 14.72 MB/s
4K Write: 51.25 MB/s
4K QD32 Read: 121.3 MB/s
4K QD32 Write: 96.18 MB/s
3DMark - 1280x720 Sky Diver Graphics
Cube i9
Intel HD Graphics 515, Intel Core m3-6Y30
2464 Points ∼100% +23%
Cube i7 Book CDK09
Intel HD Graphics 515, Intel Core m3-6Y30
2010 Points ∼82%
Acer Aspire Switch 12S SW7-272-M3A0
Intel HD Graphics 515, Intel Core m3-6Y30
1750 Points ∼71% -13%
3DMark 06 Standard
6599 puntos
ayuda
Carga Máx.
 39 °C34 °C28 °C
 37 °C36 °C30 °C
 35 °C32 °C29 °C
Máximo: 39 °C
Médio: 33.3 °C
35 °C40 °C46 °C
34 °C39 °C45 °C
34 °C38 °C41 °C
Máximo: 46 °C
Médio: 39.1 °C
Conector de corriente  28 °C | Temperatura del cuarto 21 °C | Flir One
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203234.92531.631.53133.333.74045.441.85030.6306332.830.78026.328.710026.428.212527.927.81602723.620024.123.725024.422.531523.421.640031.620.550039.419.763048.319.980052.519.6100058.819.1125058.317160058.217.2200061.617.6250062.216.9315061.817.340006317.4500062.816.8630063.516.9800052.717.3100004517.11250038.917.11600039.317.3SPL72.230.3N261.4median 48.3Cube i7 Book CDK09median 17.6Delta15.62.735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.430.134.232.131.629.732.129.828.629.330.428.234.926.536.425.437.324.243.224.746.324.546.523.249.822.552.62056.319.958.520.259.218.660.418.455.919.258.118.557.317.958.31860.117.561.316.96217.459.817.56117.561.217.555.517.542.917.529.630.671.61.529.8median 18.5Microsoft Surface Pro 4, Core i5, 128GBmedian 57.32.56.131.434.435.431.432.832.934.832.835.23333.935.231.231.231.731.23534.734.1352928.729.32928.327.429.328.32930.734.62934.237.642.234.235.941.546.335.937.241.546.737.231.135.439.631.138.643.448.138.6535862.25353.758.362.753.755.96164.955.952.557.461.652.556.461.265.256.455.760.765.555.756.961.966.856.956.761.766.256.75661.365.85653.859.263.453.853.258.36353.256.961.766.356.959.664.46959.654.759.864.354.746.451.255.746.443.848.853.443.84246.651.24267.672.677.167.622.530.740.422.5median 53.2Acer Aspire Switch 12S SW7-272-M3A0median 58.3median 62.7median 53.288.27.58hearing rangehide median Pink Noise
Cube i7 Book CDK09 audio analysis

(±) | speaker loudness is average but good (72 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (3.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.2% higher than median
(-) | mids are not linear (16% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 11.3% higher than median
(±) | linearity of highs is average (10.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (43.6% difference to median)
Compared to same class
» 97% of all tested devices in this class were better, 1% similar, 1% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 99% of all tested devices were better, 1% similar, 0% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Microsoft Surface Pro 4, Core i5, 128GB audio analysis

(-) | not very loud speakers (71.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 13% of all tested devices in this class were better, 9% similar, 78% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 22% of all tested devices were better, 4% similar, 75% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Acer Aspire Switch 12S SW7-272-M3A0 audio analysis

(-) | not very loud speakers (68 dB)
Analysis not possible as minimum curve is missing or too high

Consumo de corriente
Off / Standbydarklight 0.4 / 0.9 Watt
Ociosodarkmidlight 6.6 / 10 / 12 Watt
Carga midlight 21.1 / 22 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, 38 Wh
488 min ∼41% +63%
Microsoft Surface 3
Z8700, HD Graphics (Cherry Trail), 28 Wh
437 min ∼37% +46%
Cube i7 Book CDK09
6Y30, HD Graphics 515, 31.8 Wh
300 min ∼25%
Cube i9
6Y30, HD Graphics 515, 38 Wh
262 min ∼22% -13%
Tiempo de Ejecución de la Batería
Navegando con WLAN v1.3
5h 00min

Pro

+ diseño directo y atractivo
+ buena construcción para su precio
+ precio
+ teclado decente
+ rendimiento multimedia y de oficina
+ panel IPS con buenos ángulos de visión
+ Wi-Fi AC dual-band Intel 3165Fi

Contra

- sólo 64 GB de almacenamiento
- molesto ClickPad
- ángulo de apertura limitado
- malas cámaras
- malos altavoces
- pantalla lustrosa
No es un rival directo - Surface 4 Pro
No es un rival directo - Surface 4 Pro

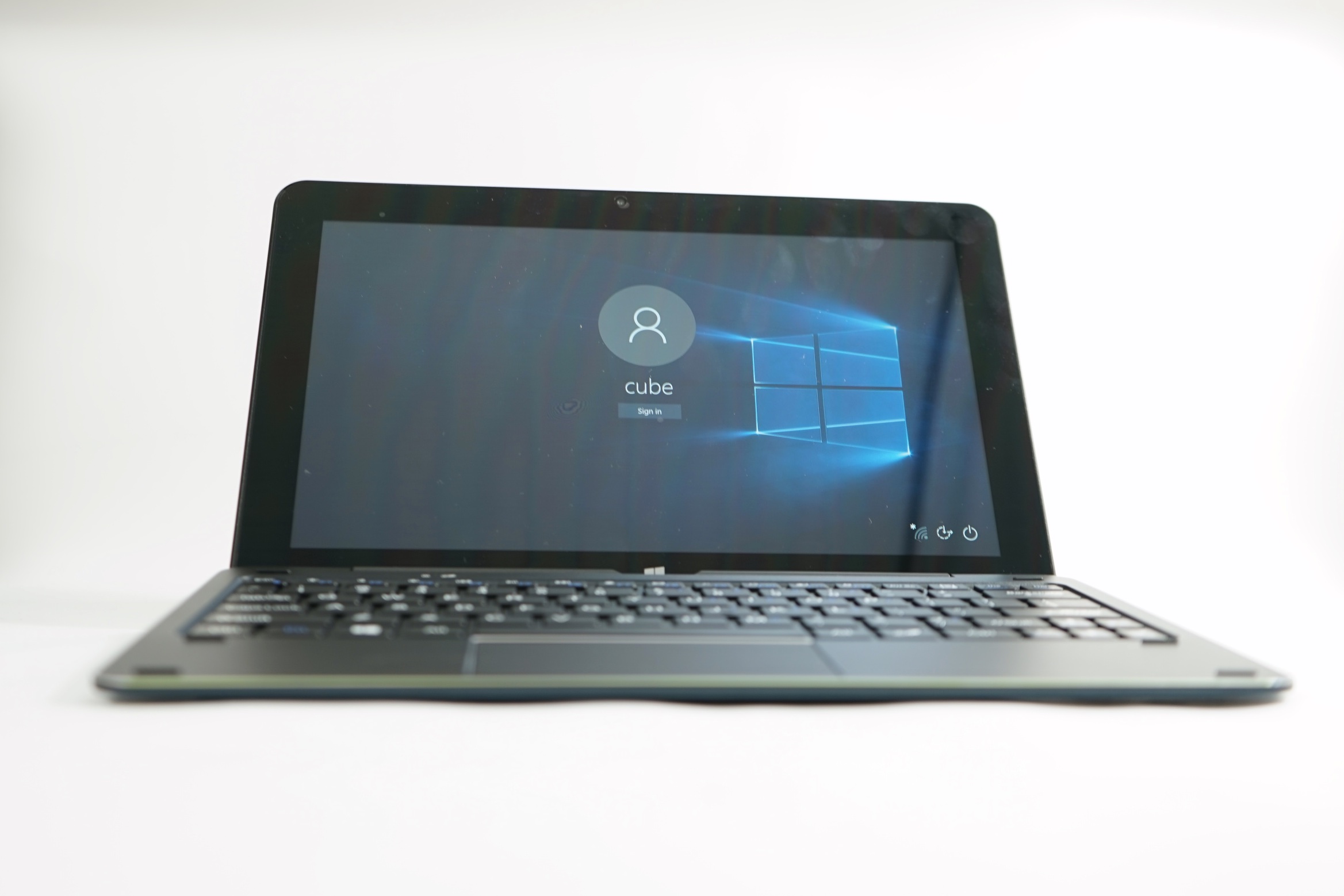

El Cube i7 Book con teclado anclable causó una gran impresión para su precio. Construcción, diseño, y rendimiento del Core m3 son definitivamente puntos a favor. La pantalla convence con buenos ángulos y contraste, aunque la reproducción de color es más bien malilla. La batería aguanta lo que la media; no puedes sacarle más de 4 horas con el brillo máximo y carga media. SSD, altavoces, cámaras, y ClickPad son puntos en los que Cube hizo claros recortes. El Cube i7 actualmente se puede comprar en Gearbest por 315 Euros envío incluido (promoción; listado a 556 Euros). Sin embargo, los aranceles del 17.5% lo suben hasta los 700 Euros y puede que haya que sumarse el impuesto sobre facturación de importaciones en Alemania. Gearbest ofrece una opción  "Alemania Express" que en teoría no incurre en dichas tasas. No obstante, el dispositivo se tiene que enviar a china en un caso de garantía.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Cube i7 Book CDK09 - 09/28/2016 v5.1
Peter Strasser, Klaus Hinum

Acabado
78 / 98 → 80%
Teclado
83%
Ratón
75%
Conectividad
30 / 80 → 38%
Peso
71 / 78 → 84%
Battería
82%
Pantalla
81%
Rendimiento de juegos
48 / 68 → 71%
Rendimiento de la Aplicación
71 / 87 → 82%
Temperatura
85%
Ruido
100%
Audio
42 / 91 → 46%
Cámara
20 / 85 → 24%
Médio
67%
78%
Convertible - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del Convertible Cube i7 Book CDK09
Peter Strasser, Klaus Hinum, 2016-10- 9 (Update: 2017-05-23)
