Breve análisis del convertible Lenovo Yoga Book Android YB1-X90F

Florian Wimmer (traducido por Fernando Alvarez Ude), 11/15/PM

Talentos múltiples. ¿Te gustaría una tablet que es también una tablet con capacidades gráficas? ¿Quieres un teclado también? El Lenovo Yoga Book Android ofrece todo esto y más. En nuestro análisis averiguamos como se comporta este dispositivo.

Lenovo Yoga Book Android YB1-X90F (Yoga Book Serie)
Procesador
Intel Atom x5-Z8550 1.44 GHz
Adaptador gráfico
Intel HD Graphics 400 (Braswell)
Memoría
4096 MB
, LPDDR3
pantalla
10.1 pulgadas 16:9, 1920x1080 pixels 218 PPI, Multi-Táctil, native pen support, IPS, Gamut: 70%, Profundidad de color: 16.7 Millones de colores, Brillo: 400 nits, lustroso: si
Disco duro
64 GB eMMC Flash, 64 GB
, 52 GB libre
Conexiones
1 USB 2.0, 1 HDMI, Audio Conexiones: 3.5 mm, Card Reader: microSD de hasta 128GB, Brightness Sensor, Sensores: Vibración, Acelerómetro, Sensor de posición, Luz ambiental, Proximidad
Equipamento de red
802.11 a/b/g/n/ac (a/b/g/n/ac), Bluetooth 4.0, GPS
Tamaño
Alto x ancho x profundidad (en mm): 9.6 x 256.6 x 170.8
Battería
32 Wh, 8500 mAh Litio-Polimero, Duración de la Batería (según el fabricante): 15 h
Sistema Operativo
Android 6.0 Marshmallow
Camera
Primary Camera: 8 MPix Auto focus
Secondary Camera: 2 MPix
Características adicionales
Altavoces: Altavoces Dolby Atmos Stereo, Teclado: Teclado Halo virtual, Luz de Teclado: si, Stylus con cabeceras intercambiables, Cargador, Cable USB-C, Art Rage, McAfee Security, SHAREit, SYNCit, Note Saver, 12 Meses Garantía, fanless
Peso
690 g, Suministro de Electricidad: 75 g
Precio
500 Euros



Size Comparison

Networking
iperf Server (receive) TCP 1 m
Asus TransformerBook T302CA-FL010T
HD Graphics 515, 6Y30, Samsung CM871 MZNLF128HCHP
583 MBit/s ∼100% +29%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
452 MBit/s ∼78%
Lenovo Yoga 510-15IKB 80VC000XGE
Radeon R7 M460, 7200U, Samsung MZYTY256HDHP (I219-LM)
349 MBit/s ∼60% -23%
iperf Client (transmit) TCP 1 m
Asus TransformerBook T302CA-FL010T
HD Graphics 515, 6Y30, Samsung CM871 MZNLF128HCHP
480 MBit/s ∼100% +49%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
322 MBit/s ∼67%
Lenovo Yoga 510-15IKB 80VC000XGE
Radeon R7 M460, 7200U, Samsung MZYTY256HDHP (I219-LM)
307 MBit/s ∼64% -5%

Comparación de Imágenes

Elige una escena y navega dentro de la primera imagen. Un click cambia el nivel de zoom. Un click en la imagen aumentada abre la original en una ventana nueva. La primera imagen muestra la fotografía escalada del dispositivo de pruebas.

Scene 1Scene 2Scene 3

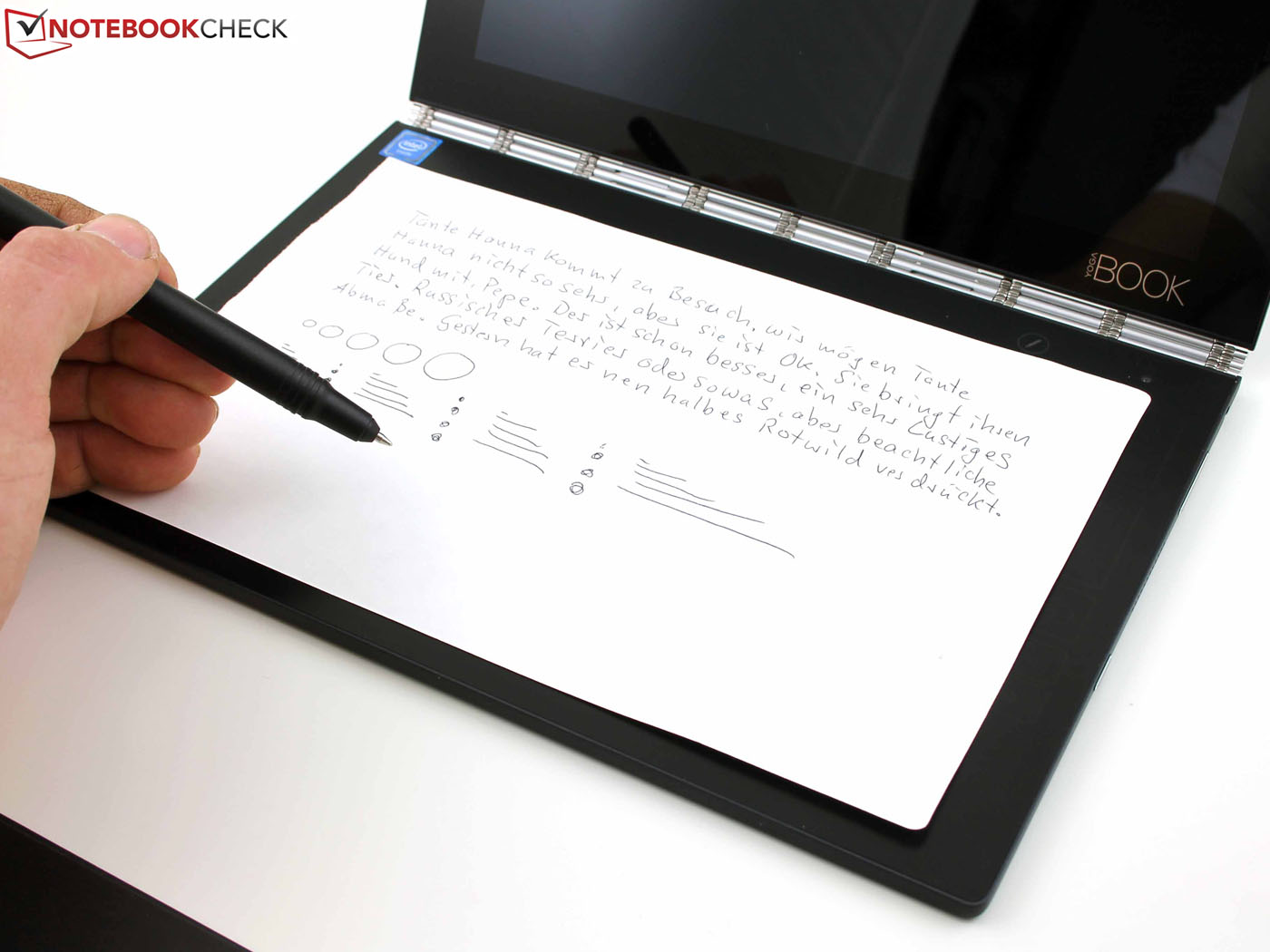

You can simply put a piece of paper on the graphics tablet.
You can simply put a piece of paper on the graphics tablet.

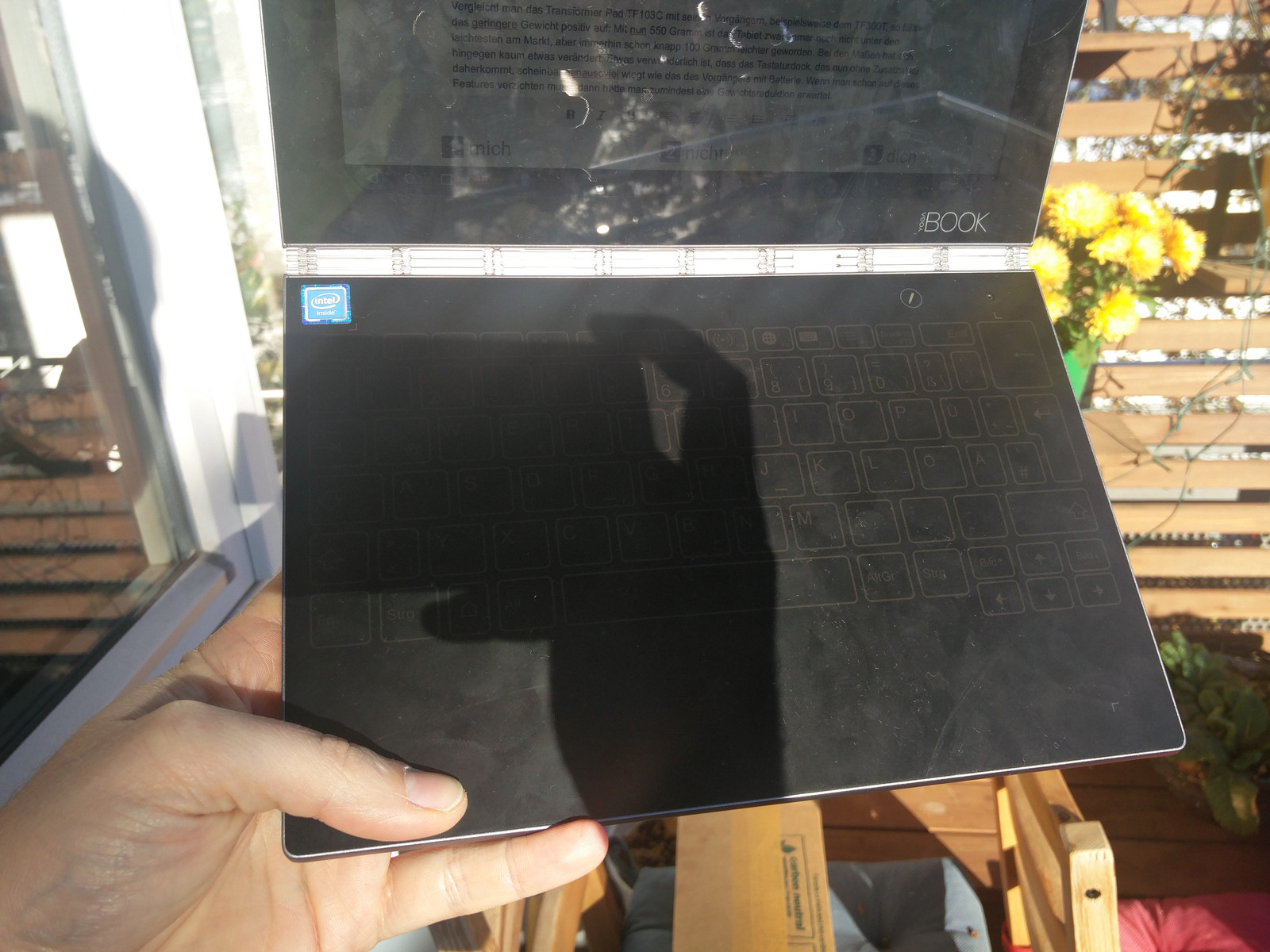

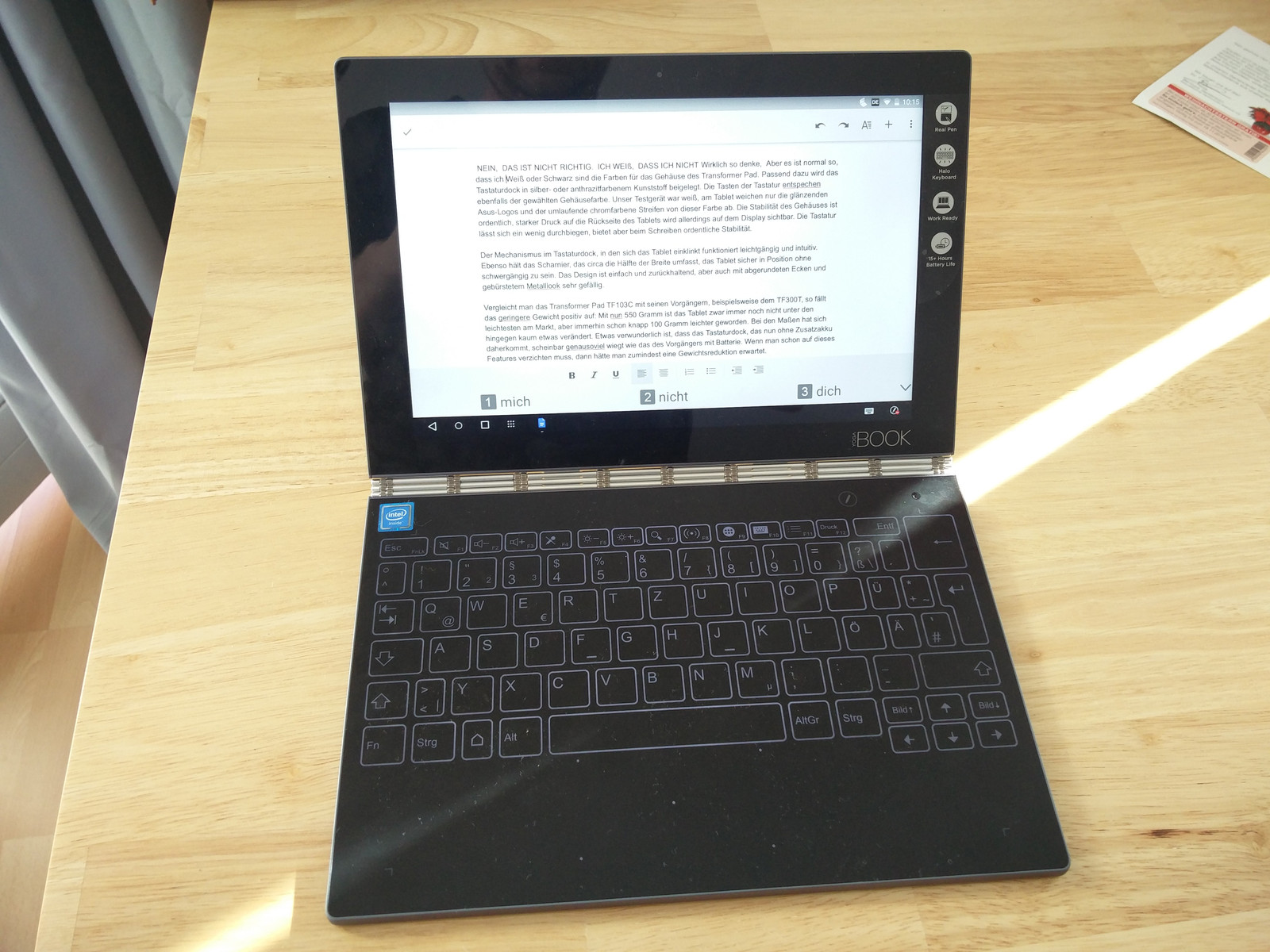

The keyboard can be hard to read in bright lighting conditions.
The keyboard can be hard to read in bright lighting conditions.
Overall, the keyboard works surprisingly well.
Overall, the keyboard works surprisingly well.
447
cd/m²
447
cd/m²
399
cd/m²
428
cd/m²
449
cd/m²
388
cd/m²
416
cd/m²
427
cd/m²
387
cd/m²
Temperatura del cuarto
X-Rite i1Pro 2
Máximo: 449 cd/m² Médio: 420.9 cd/m² Minimum: 4.7 cd/m²
iluminación: 86 %
Brillo con batería: 449 cd/m²
Contraste: 1403:1 (Negro: 0.32 cd/m²)
ΔE Color 4.7 | - Ø
ΔE Greyscale 4.5 | - Ø
94.3% sRGB (Calman)
Gamma: 2.22
Lenovo Yoga Book Android YB1-X90F
IPS, 1920x1080, 10.1
Google Pixel C
LTPS, 2560x1800, 10.2
Apple iPad Pro 9.7
IPS, 2048x1536, 9.7
Sony Xperia Z4 Tablet
Triluminos display with X-Reality, 2560x1600, 10.1
Lenovo Yoga Book 2016 Windows 64GB LTE
IPS , 1920x1080, 10.1
Screen
-16%
14%
-48%
-3%
Brightness
421
510
21%
500
19%
457
9%
363
-14%
Brightness Distribution
86
91
6%
93
8%
92
7%
83
-3%
Black Level *
0.32
0.39
-22%
0.52
-63%
0.46
-44%
0.37
-16%
Contrast
1403
1249
-11%
1006
-28%
1024
-27%
1032
-26%
Colorchecker DeltaE2000 *
4.7
5.24
-11%
1.1
77%
8.69
-85%
3.61
23%
Greyscale DeltaE2000 *
4.5
7.95
-77%
1.4
69%
11.24
-150%
3.77
16%
Gamma
2.22 108%
2.16 111%
2.11 114%
2.17 111%
2.43 99%
CCT
7122 91%
6565 99%
6662 98%
9508 68%
6760 96%
Color Space (Percent of AdobeRGB 1998)
62.97
Color Space (Percent of sRGB)
99.55
99

* ... más pequeño es mejor

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.

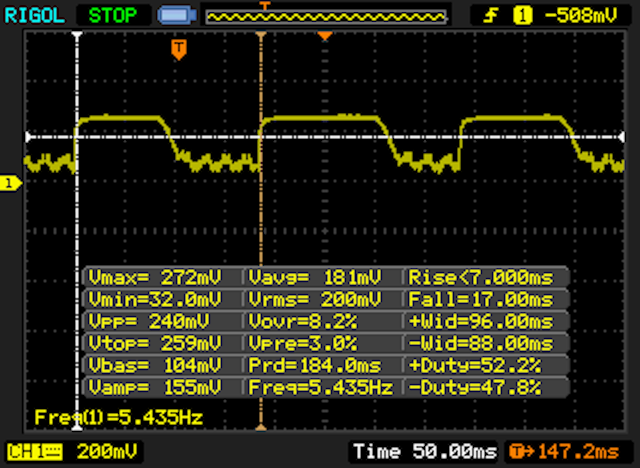

       Tiempo de respuesta de Negro a Blanco
24 ms ... subida ↗ y bajada ↘ combinada↗ 7 ms subida
↘ 17 ms bajada
La pantalla mostró buenos tiempos de respuesta en nuestros tests pero podría ser demasiado lenta para los jugones competitivos.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 26 % de todos los dispositivos son mejores.
Esto quiere decir que el tiempo de respuesta medido es mejor que la media (27.2 ms) de todos los dispositivos testados.

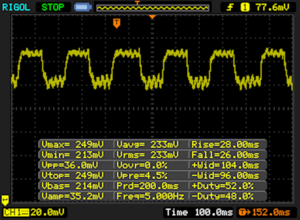

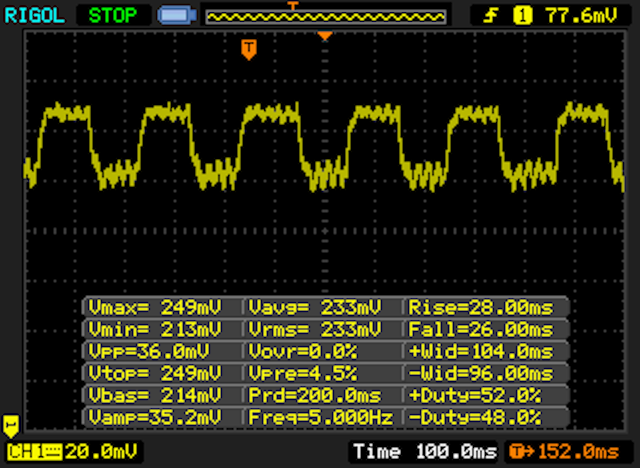

       Tiempo de respuesta 50% Gris a 80% Gris
54 ms ... subida ↗ y bajada ↘ combinada↗ 28 ms subida
↘ 26 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 84 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es peor que la media (44.2 ms) de todos los dispositivos testados.

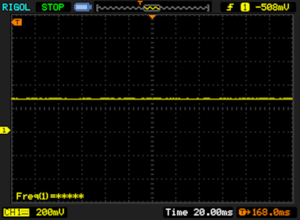

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.
Parpadeo de Pantalla / PWM no detectado

Comparación: 60 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 1345 (mínimo: 43 - máxmo: 30860) Hz.

AnTuTu Benchmark v6 - Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
168840 Points ∼92% +90%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
90568 Points ∼49% +2%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
88989 Points ∼48%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
1807 Points ∼70% +10%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1643 Points ∼64%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1205 Points ∼47% -27%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6127 Points ∼79% +328%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
4293 Points ∼56% +200%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1431 Points ∼19%
2560x1440 Sling Shot OpenGL ES 3.0
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
4002 Points ∼82% +172%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2735 Points ∼56% +86%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1926 Points ∼40% +31%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1473 Points ∼30%
1280x720 offscreen Ice Storm Unlimited Physics
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22527 Points ∼33% +73%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
16023 Points ∼23% +23%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
13056 Points ∼19%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
11189 Points ∼16% -14%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
52816 Points ∼12% +189%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
50084 Points ∼11% +174%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37312 Points ∼8% +104%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
18258 Points ∼4%
1280x720 offscreen Ice Storm Unlimited Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40665 Points ∼21% +142%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
34015 Points ∼17% +103%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
24566 Points ∼12% +46%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
16773 Points ∼9%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
117.1 fps ∼9% +278%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
69 fps ∼5% +123%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
54 fps ∼4% +74%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
31 fps ∼2%
T-Rex HD Onscreen C24Z16
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
59.4 fps ∼13% +92%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
39 fps ∼9% +26%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37 fps ∼8% +19%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
31 fps ∼7%
GFXBench 3.0
off screen Manhattan Offscreen OGL
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
51 fps ∼9% +264%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40 fps ∼7% +186%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
26 fps ∼5% +86%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
14 fps ∼3%
on screen Manhattan Onscreen OGL
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
35.1 fps ∼15% +134%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22 fps ∼10% +47%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
16 fps ∼7% +7%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
15 fps ∼7%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
39.5 fps ∼9% +449%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
31 fps ∼7% +331%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
18 fps ∼4% +150%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
7.2 fps ∼2%
on screen Manhattan ES 3.1 Onscreen
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
26.9 fps ∼15% +284%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
13 fps ∼7% +86%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
9.4 fps ∼5% +34%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
7 fps ∼4%
PCMark for Android - Work performance score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6858 Points ∼84% +52%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
4504 Points ∼55%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4441 Points ∼55% -1%
BaseMark OS II
Web
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
1185 Points ∼77% +22%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
973 Points ∼63%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
884 Points ∼57% -9%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
758 Points ∼49% -22%
Graphics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6485 Points ∼75% +219%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6355 Points ∼74% +212%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2683 Points ∼31% +32%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
2035 Points ∼24%
Memory
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
2185 Points ∼57% +72%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1270 Points ∼33%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
954 Points ∼25% -25%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
868 Points ∼23% -32%
System
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6098 Points ∼93% +198%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2724 Points ∼41% +33%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2488 Points ∼38% +22%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
2047 Points ∼31%
Overall
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
3181 Points ∼96% +111%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1909 Points ∼58% +27%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1506 Points ∼46%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1482 Points ∼45% -2%
Geekbench 4.0
Compute RenderScript Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
4357 Points ∼53%
64 Bit Multi-Core Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
3118 Points ∼12%
64 Bit Single-Core Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1025 Points ∼19%
JetStream 1.1 - 1.1 Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe) (Safari Mobile 9.0)
143 Points ∼1% +219%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash (Chrome 44.0.2403.133)
47.4 Points ∼0% +6%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash (Chrome 53)
44.84 Points ∼0%
Octane V2 - Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe) (Safari Mobile 9.0)
19621 Points ∼40% +143%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash (Chrome 53)
8060 Points ∼16%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash (Chrome 39)
7790 Points ∼16% -3%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash (Chrome 44.0.2403.133)
7563 Points ∼15% -6%
Mozilla Kraken 1.1 - Total Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash (Chrome 44.0.2403.133)
5533.1 ms * ∼9% -25%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash (Chrome 53)
4419 ms * ∼7%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash (Chrome 39)
4064 ms * ∼7% +8%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe) (Safari Mobile 9.0)
1546.3 ms * ∼3% +65%
WebXPRT 2015 - Overall Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe) (Safari Mobile 9.0)
225 Points ∼39% +96%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash (Chrome 44.0.2403.133)
128 Points ∼22% +11%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash (Chrome 53)
115 Points ∼20%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash (Chrome 39)
93 Points ∼16% -19%

* ... más pequeño es mejor

AndroBench 3-5
Sequential Write 256KB SDCard
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
30.6 MB/s ∼35%
Sequential Read 256KB SDCard
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
48.9 MB/s ∼51%
Random Write 4KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
13.6 MB/s ∼9% +16%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
11.7 MB/s ∼8%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
10.08 MB/s ∼7% -14%
Random Read 4KB
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
23.5 MB/s ∼14%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
20 MB/s ∼12% -15%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
19.96 MB/s ∼12% -15%
Sequential Write 256KB
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
109.38 MB/s ∼56% +36%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
81 MB/s ∼42% 0%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
80.6 MB/s ∼41%
Sequential Read 256KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
256 MB/s ∼33% +79%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
154.29 MB/s ∼20% +8%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
143.4 MB/s ∼18%
Asphalt 8: Airborne
 ConfiguracionesValor
 high30 fps
 very low30 fps
Dead Trigger 2
 ConfiguracionesValor
 high30 fps

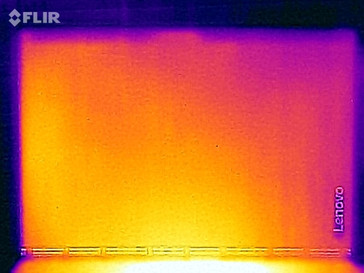

Heat-map Back
Heat-map Back
Heat-map Front
Heat-map Front
Carga Máx.
 26.1 °C26.4 °C27.6 °C
 26.5 °C27.3 °C27.5 °C
 27.2 °C28.5 °C29.2 °C
Máximo: 29.2 °C
Médio: 27.4 °C
28.5 °C31.3 °C29.5 °C
27.3 °C28.3 °C29.3 °C
26.7 °C27.2 °C28 °C
Máximo: 31.3 °C
Médio: 28.5 °C
Conector de corriente  35.8 °C | Temperatura del cuarto 21.4 °C | Voltcraft IR-350
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.330.929.32524.730.424.73124.331.124.34028.83228.85027.128.427.16325.724.925.7802725.8271003226.23212539.933.239.916037.123.437.120044.121.844.125047.421.947.431550.221.250.24005422.25450057.721.557.763060.118.960.180068.318.168.3100070.616.470.6125070.715.870.7160067.316.367.3200060.815.960.8250063.314.763.3315062.314.862.3400066.614.366.65000701470630071.313.771.3800064.713.764.7100006513.5651250061.413.561.41600057.313.457.3SPL79.328.979.3N441.244median 61.4Lenovo Yoga Book Android YB1-X90Fmedian 16.3median 61.4Delta8.63.88.63730.934.43725.629.328.925.628.931.523.728.929.331.830.929.33935.937.23933.535.130.533.52730.928.52722.432.722.322.423.534.522.923.530.438.92030.434.443.420.434.440.649.719.840.644.255.620.344.247.158.619.247.152.265.917.952.257.172.616.357.15770.417.65758.472.41858.46176.917.66163.779.21763.760.376.717.260.359.275.717.759.256.977.717.356.963.181.917.463.166.688.517.766.664.584.81864.553.975.617.753.947.569.518.247.542.164.217.942.133.357.317.833.373.392.829.873.329.588.31.329.5median 53.9Google Pixel Cmedian 70.4median 17.9median 53.99.411.71.39.439.631.432.735.235.439.635.230.636.927.629.735.227.530.127.224.829.527.527.828.428.227.129.727.834.845.632.435.439.734.831.934.833.53733.931.931.633.628.530.328.531.63437.733.527.828.2344345.529.434.126434650.636.736.520.64650.854.239.840.120.750.855.560.842.342.820.655.561.363.246.147.42161.359.266.746.447.118.459.26368.445.44618.76359.166.447.74817.959.164.770.950.752.918.664.768.173.853.254.817.568.173.178.65860.416.973.175.178.859.259.317.475.169.575.854.455.716.269.569.378.954.559.416.969.371.776.556.656.317.571.770.378.953.858.317.270.369.481.452.960.917.769.472.482.955.862.517.472.469.48253.160.317.669.461.678.345.15617.661.65875.239.851.617.85848.868.73145.717.948.882.490.666.970.529.882.453.28520.625.51.353.2median 63Apple iPad Pro 9.7median 73.8median 47.7median 52.9median 17.8median 638.49.37.27.31.68.431.332.831.329.532.529.530.136.930.128.329.928.326.631.226.626.826.326.826.726.326.726.526.626.52824.72831.224.131.232.622.232.63021.53037.120.737.153.22053.253.819.253.856.618.556.654185456.71856.759.517.559.560.317.260.353.917.553.955.917.455.963.217.663.260.617.860.66117.86150.117.950.150.117.950.155.917.855.953.417.753.440.722.140.770.430.270.425.31.425.3median 53.8Lenovo Yoga Book 2016 Windows 64GB LTEmedian 18median 53.88.32.28.3hearing rangehide median Pink Noise
Lenovo Yoga Book Android YB1-X90F audio analysis

(±) | speaker loudness is average but good (79.27 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(±) | linearity of mids is average (8.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 8% similar, 60% worse
» The best had a delta of 11%, average was 22%, worst was 44%
Compared to all devices tested
» 36% of all tested devices were better, 5% similar, 59% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Google Pixel C audio analysis

(+) | speakers can play relatively loud (92.79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.9% higher than median
(±) | linearity of highs is average (9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 53% of all tested devices in this class were better, 21% similar, 26% worse
» The best had a delta of 17%, average was 23%, worst was 33%
Compared to all devices tested
» 62% of all tested devices were better, 8% similar, 31% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Apple iPad Pro 9.7 audio analysis

(+) | speakers can play relatively loud (90.59 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.8% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.1% higher than median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 21% similar, 79% worse
» The best had a delta of 17%, average was 23%, worst was 33%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 72% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Lenovo Yoga Book 2016 Windows 64GB LTE audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (12.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.8% difference to median)
Compared to same class
» 63% of all tested devices in this class were better, 12% similar, 25% worse
» The best had a delta of 11%, average was 22%, worst was 44%
Compared to all devices tested
» 64% of all tested devices were better, 8% similar, 28% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Consumo de corriente
Off / Standbydarklight 0.12 / 0.12 Watt
Ociosodarkmidlight 2.19 / 4.3 / 4.37 Watt
Carga midlight 8.62 / 11.26 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga Book Android YB1-X90F
8500 mAh
Google Pixel C
 mAh
Apple iPad Pro 9.7
7306 mAh
Sony Xperia Z4 Tablet
 mAh
Lenovo Yoga Book 2016 Windows 64GB LTE
8500 mAh
Power Consumption
-4%
-26%
-13%
Idle Minimum *
2.19
1.82
17%
1.71
22%
2
9%
Idle Average *
4.3
4.26
1%
7.55
-76%
4.6
-7%
Idle Maximum *
4.37
4.33
1%
7.62
-74%
5.7
-30%
Load Average *
8.62
9.82
-14%
8.39
3%
11.5
-33%
Load Maximum *
11.26
13.99
-24%
12.08
-7%
11.5
-2%

* ... más pequeño es mejor

Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
33h 05min
Navegando con WLAN v1.3
10h 02min
Big Buck Bunny H.264 1080p
11h 42min
Carga (máximo brillo)
3h 42min
Lenovo Yoga Book Android YB1-X90F
8500 mAh
Google Pixel C
 mAh
Apple iPad Pro 9.7
7306 mAh
Sony Xperia Z4 Tablet
 mAh
Lenovo Yoga Book 2016 Windows 64GB LTE
8500 mAh
Duración de Batería
12%
2%
-8%
-30%
Reader / Idle
1985
2090
5%
1850
-7%
2135
8%
1153
-42%
Load
222
294
32%
186
-16%
166
-25%
WiFi
WiFi v1.3
602
638
6%
779
29%
525
-13%
498
-17%
H.264
702
740
5%
708
1%
705
0%

Pro

+ Tableta gráfica
+ Muchos accesorios
+ Innovador método de entrada
+ Teclado Halo muy util
+ Muy flexible con bisagras solidas
+ Buena pantalla
+ Apenas se calienta
+ Buenos altavoces

Contra

- El teclado Halo es dificil de leer en ambientes con mucha luz
- La tableta gráfica tiene algunos fallos
- Durante su uso la carcasa cruje
- Incluye software poco útil
- El módulo GPS es poco fiable
- Solo tiene 12 meses de garantía

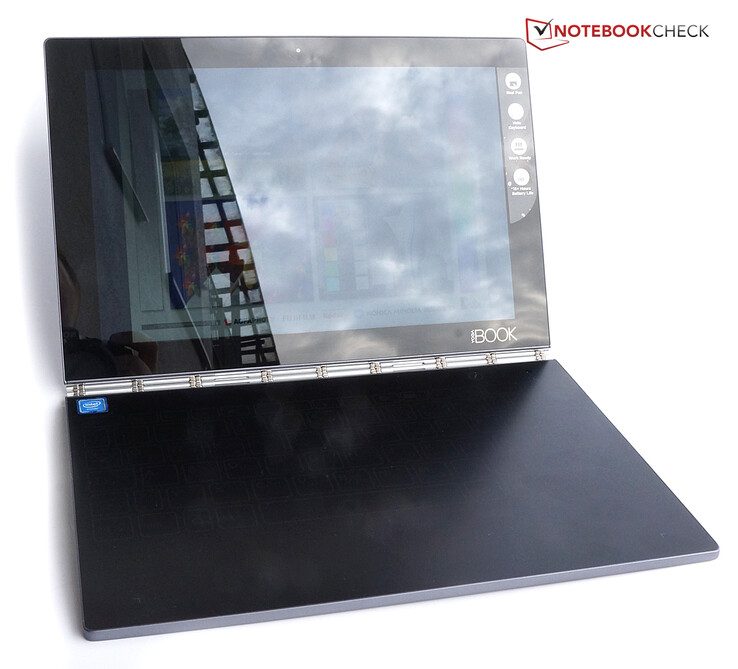

Análisis: Yoga Book Android. Modelo de prueba cedido por Lenovo Alemania.
Análisis: Yoga Book Android. Modelo de prueba cedido por Lenovo Alemania.

El Yoga Book ocupa un lugar especial en nuestro corazón y funciona bien incluso con Android. De hecho, en algunos aspectos puede batir incluso a algunos tablets con Windows. El diseño es único y es un placer observar el funcionamiento de las características bisagras. El teclado Halo retroiluminado tiene muy buen aspecto y funciona muy bien en su uso cotidiano, pero recomendamos evitar las zonas soleadas, si no tendrás que buscar un teclado físico.

El Yoga Book hace un buen trabajo digitalizando notas. Es un gran plus para profesionales que toman muchas notas sobre la marcha y quieren una tablet y una tableta digitalizadora a la vez. El iPad Pro 9.7  no puede igualarle en este aspecto. Al modelo de prueba le costó alguna vez reconocer el contenido o ejecutar alguna acción. Los usuarios profesionales deberían tomarse un tiempo para probar el dispositivo (especialmente la tableta gráfica) antes de comprarlo.

El rendimiento y la pantalla son decentes, pero no extraordinarios. Resultan suficientes para las tareas cotidianas. La pantalla no tiene fidelidad de color suficiente para su uso profesional. Afortunadamente, el dispositivo apenas se calienta y siempre rinde al máximo. Los buenos altavoces, la robusta carcasa y los dispositivos de entrada muy versátiles completan el Lenovo Yoga Book Android.

Nos gustó la buena duración de la batería. La barra de navegación de Android se ha personalizado con el fin de ser funcional y fácil de usar.

Practico, funcional, flexible y sin grandes puntos flacos: el Yoga Book con Android es sin duda un dispositivo para sectores muy específicos, pero es muy divertido trabajar con él.

Si no necesitas Windows 10, te recomendamos echar un ojo a la versión Android, ya que puede resultar más conveniente que el dispositivo con Windows en ciertos aspectos como la batería y la pantalla.

En resumen, Lenovo ofrece una herramienta única para diseñadores gráficos que quieren una tablet portátil. El Yoga Book también destaca en diseño y apariencia gracias a su fabulosa carcasa y bisagras características. El dispositivo ofrece todo esto sin grandes puntos flacos. Recomendamos a los potenciales compradores de tablets echar un ojo al Yoga Book Android.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Lenovo Yoga Book Android YB1-X90F - 11/09/PM v5.1
Florian Wimmer

Acabado
91 / 98 → 93%
Teclado
75%
Ratón
92%
Conectividad
43 / 80 → 54%
Peso
80 / 78 → 100%
Battería
93%
Pantalla
84%
Rendimiento de juegos
43 / 68 → 64%
Rendimiento de la Aplicación
51 / 87 → 59%
Temperatura
95%
Ruido
100%
Audio
63 / 91 → 69%
Cámara
63 / 85 → 74%
Médio
75%
88%
Convertible - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del convertible Lenovo Yoga Book Android YB1-X90F
Florian Wimmer, 2016-11-15 (Update: 2016-11-15)
