Análisis del NiPoGi CK10 - El mini PC con un Intel Core i5-12450H y 16 GB de RAM no cumple las expectativas

Name: NiPoGi CK10
Brand: NiPoGi

SoC moderno y mucho plástico Basado en el Intel Core i5-12450H, el NiPoGi CK10 pretende enamorar a los compradores. A primera vista, parece prometedor, ya que el SoC Alder Lake ofrece 8 núcleos, después de todo. Sin embargo, con un objetivo de potencia limitado, el procesador no fue capaz de mostrar todo lo que podría haber hecho. En este análisis con diversos puntos de referencia, podrá averiguar el efecto de esta limitación.

Sebastian Bade (traducido por DeepL / Ninh Duy), Published 10/20/2023 🇺🇸 🇩🇪 ...

Mini PC Intel Alder Lake Desktop

NiPoGi es un fabricante chino de sistemas especializado en mini PC. El CK10 es un dispositivo relativamente pequeño equipado con unIntel Core i5-12450H. También cuenta con 16 GB de RAM DDR4 y una unidad SSD de 512 GB, lo que significa que el dispositivo está listo para ser utilizado tras una breve configuración. El fabricante cobra unos 530 dólares por el dispositivo, aunque siempre hay descuentos disponibles que rebajan aún más el precio. Esto lo hace mucho más atractivo y puede ser el factor decisivo a la hora de comprar el PC.

Otros mini PC igualmente compactos y económicos actúan como dispositivos de comparación para esta revisión. Puede verlos en la siguiente tabla.

Download your licensed rating image as PNG / SVG

NiPoGi CK10

Procesador

Intel Core i5-12450H 8 x 1.5 - 4.4 GHz, 35 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

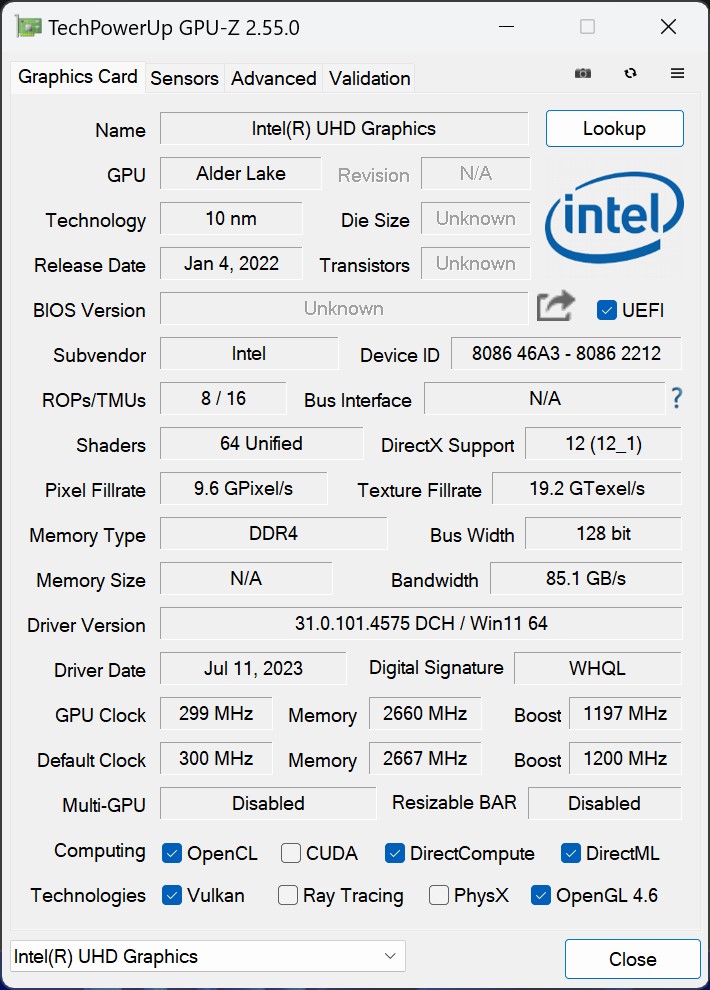

Adaptador gráfico

Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

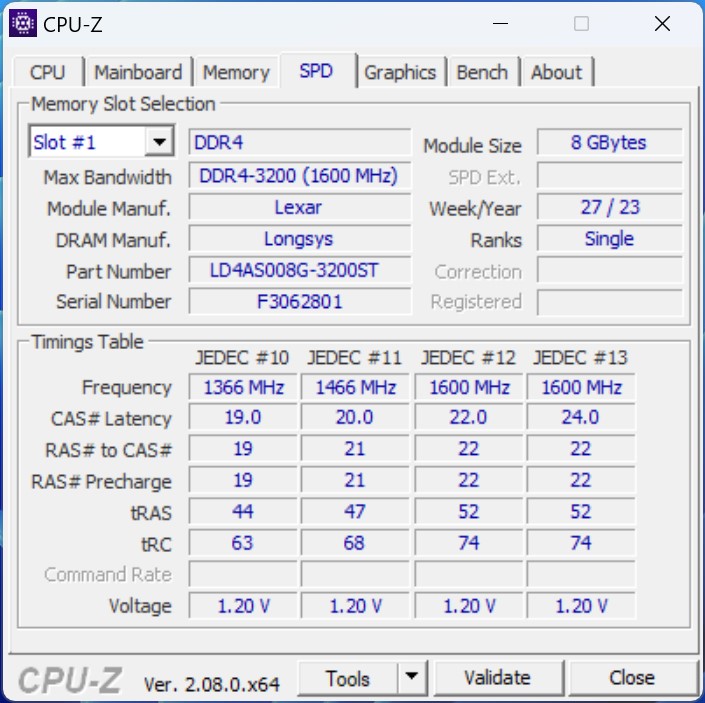

Memoría

16 GB

, DDR4-3200

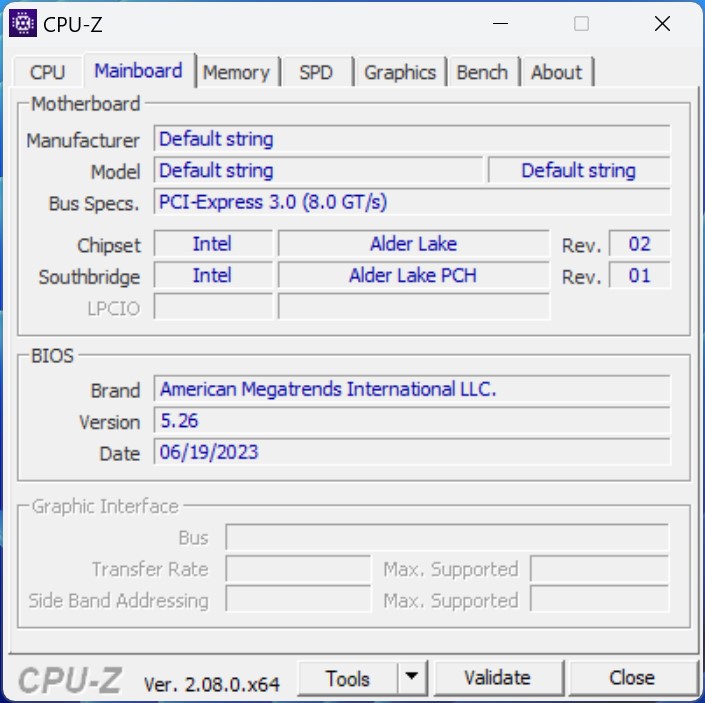

Placa base

Intel Alder Lake-P PCH

Disco duro

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 512 GB , 440 GB libre

Tarjeta de sonido

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Conexiones

5 USB 3.0, 1 VGA, 2 HDMI

Equipamento de red

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Tamaño

Alto x ancho x profundidad (en mm): 50 x 137.5 x 125

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionales

65-Watt-Netzteil, 12 Meses Garantía

Peso

481 g, Suministro de Electricidad: 233 g

Precio

499 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

todas las especificaciónes

Posibles contendientes en la comparación

Valoración	Fecha	Modelo	Peso	Altura
77.2 %	10/2023	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	481 g	50 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.9 %	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
78 %	10/2023	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	545 g	54.3 mm
77.8 %	09/2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
73.8 %	08/2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

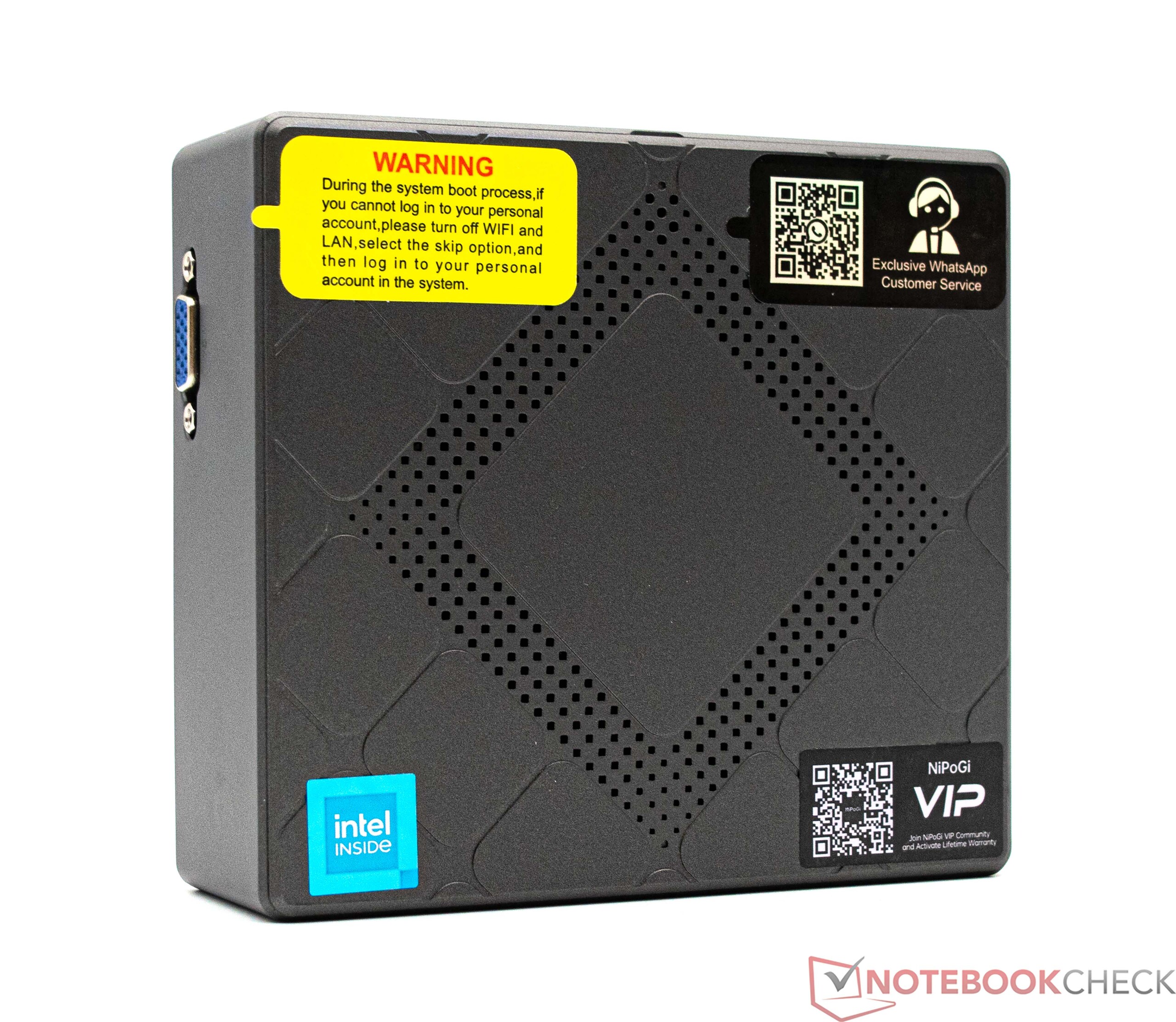

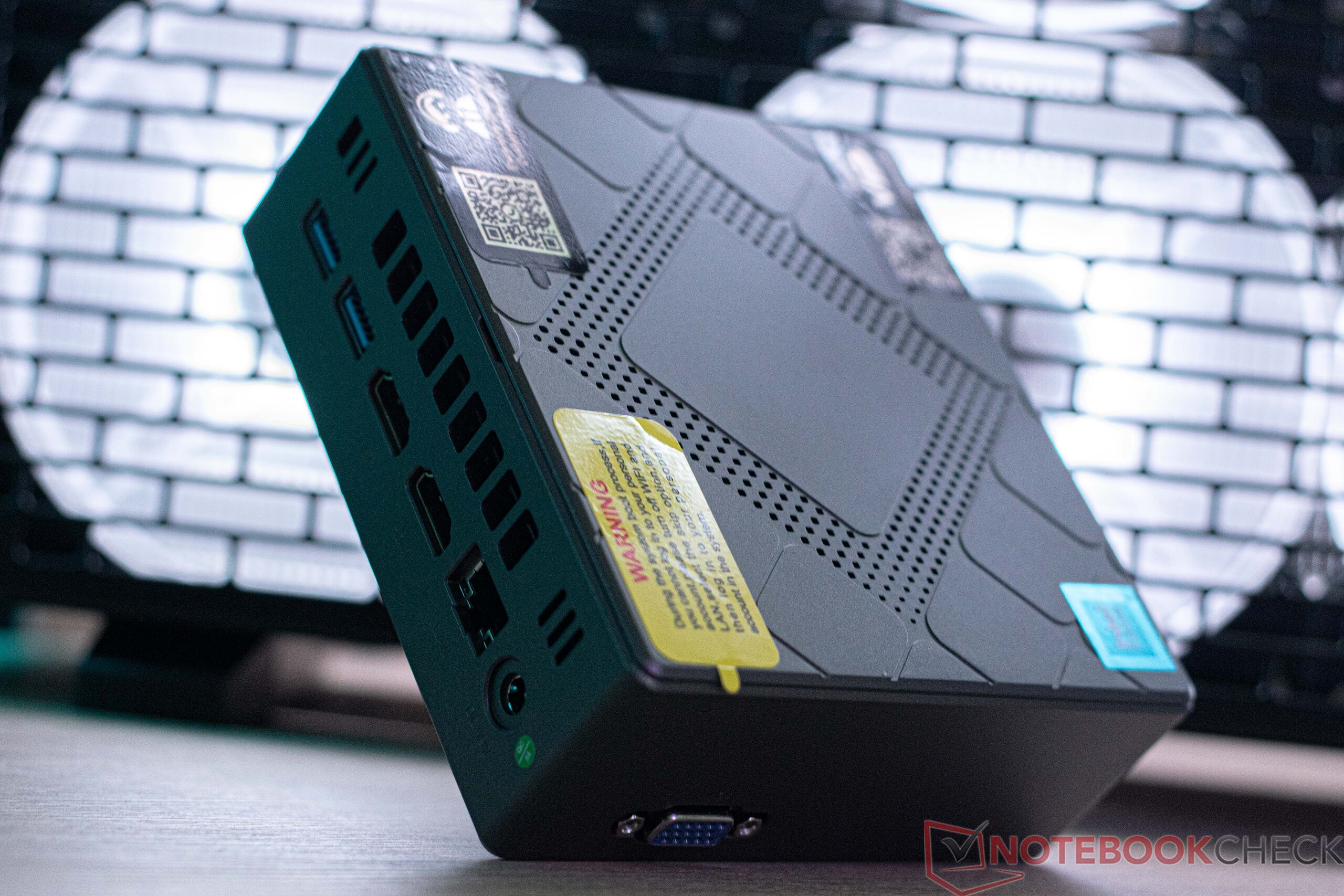

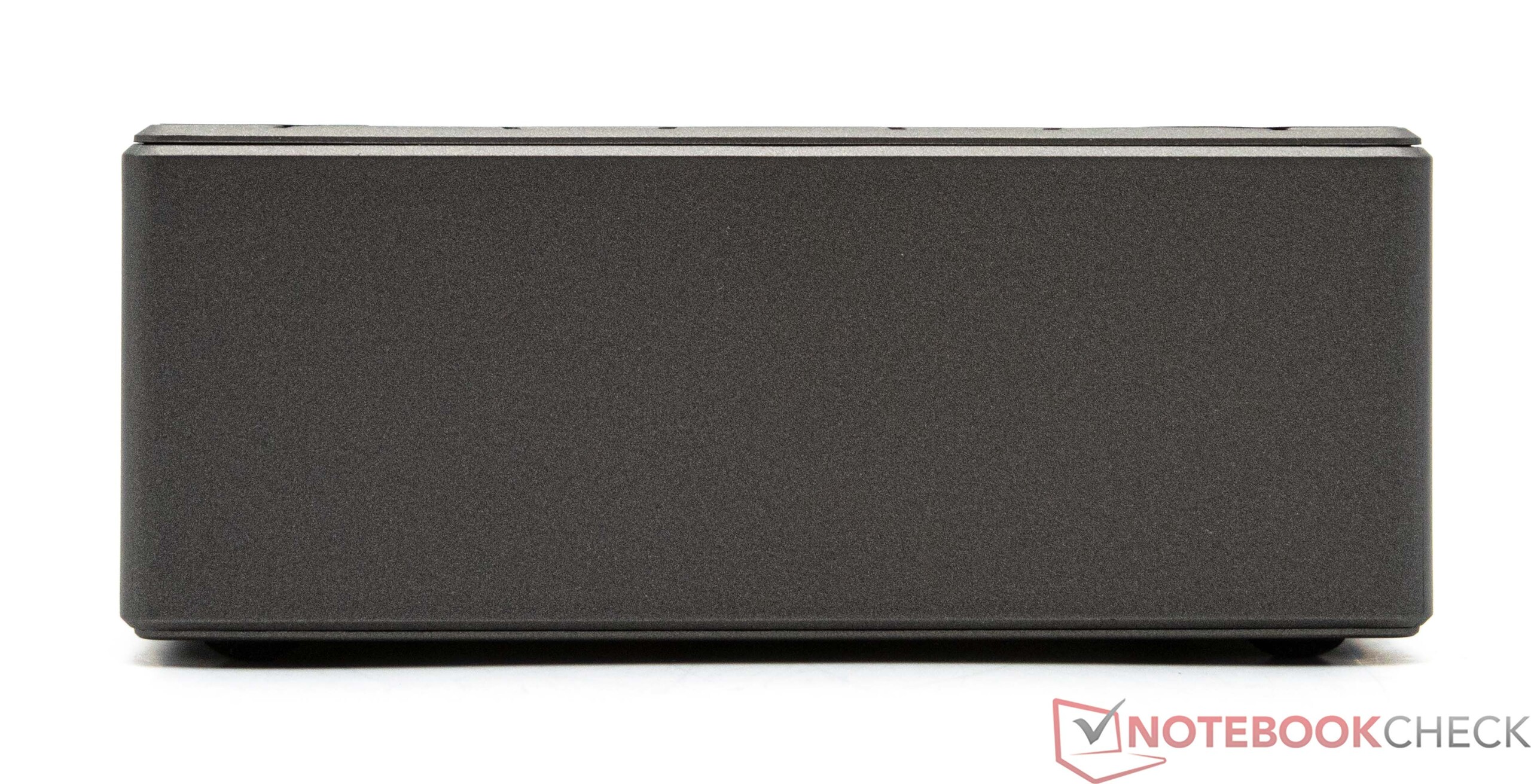

Caja - Plástico hasta donde alcanza la vista

El NiPoGi CK10 no presenta ningún elemento destacado digno de mención, pero esto no es precisamente necesario en un mini PC sencillo destinado a un uso de oficina. El NiPoGi CK10 ocupa un espacio de 13,7 x 12,5 centímetros, lo que significa que tiene un tamaño medio en lo que se refiere a mini PC.

Su carcasa está fabricada íntegramente en plástico, pero su construcción es buena y no observamos ninguna holgura. Aun así, nos hubiera gustado ver una carcasa algo más moderna y estable, ya que da la sensación de ser un poco barata. El Blackview MP200 muestra cómo se puede hacer de otra manera, a pesar de que también se basa en el plástico.

Dentro de nuestro campo de comparación, su huella de 3,7 x 12,5 centímetros está en realidad en el lado más pequeño. El PC compacto tiene una altura de exactamente cinco centímetros. En cuanto a los materiales, se basa casi por completo en el uso de plástico. El fabricante ha decidido no incluir un marco metálico adicional para dotar de estructura al dispositivo. Sin embargo, el escáner de huellas dactilares implícito en la parte superior no tiene ninguna función. Parece que el fabricante también utiliza esta carcasa para otras opciones de configuración.

Comparación de tamaños

Acemagic AD15 Blackview MP200 Morefine M600, 6600U NiPoGi CK10 Minisforum Venus Series UN1245 Minisforum Venus Series NAB6 Geekom Mini IT11, i7-11390H DIN A4 ❌

Conectividad - Bastante estándar con una excepción

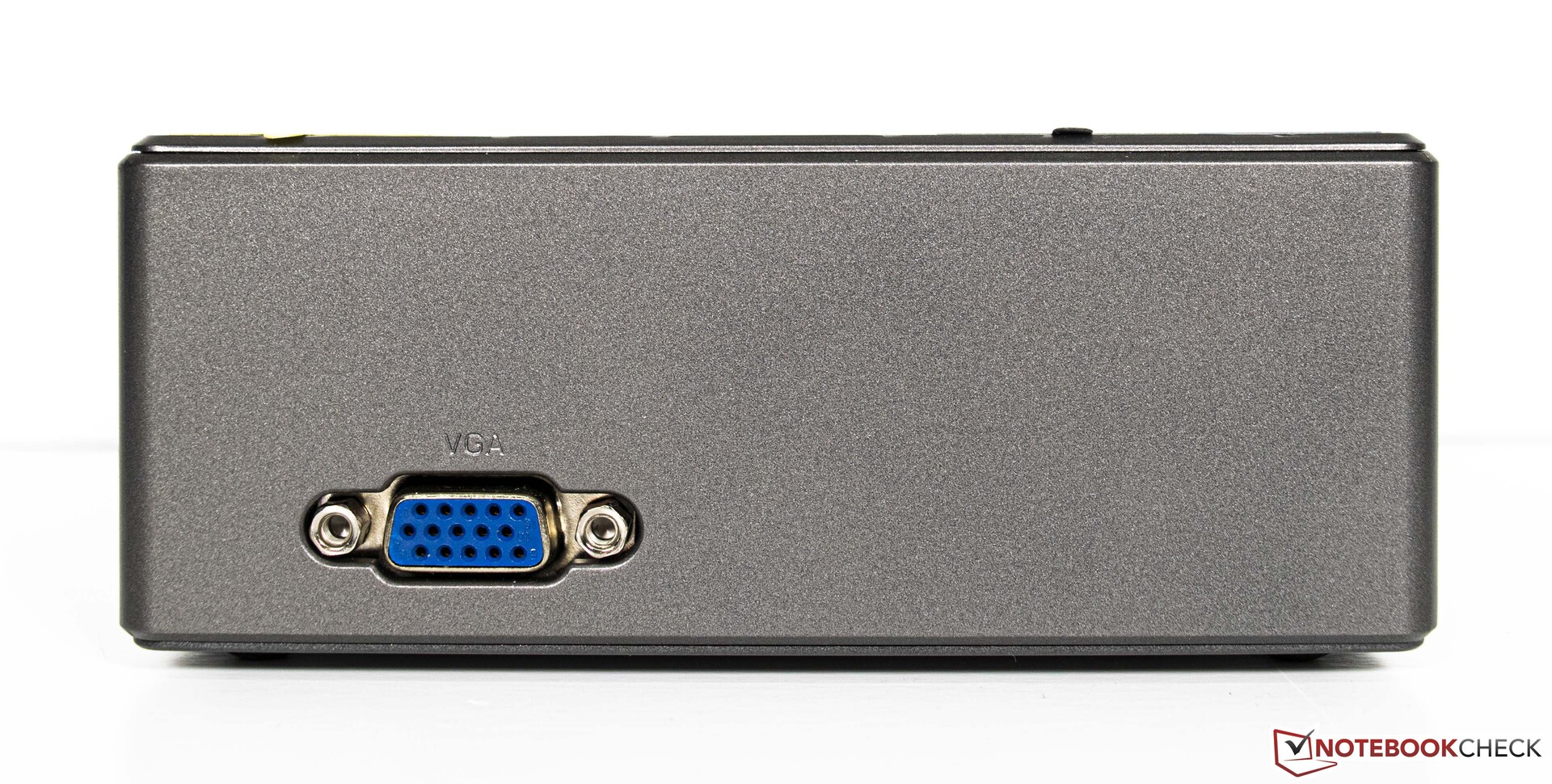

La NiPoGi CK10 tiene una buena selección de puertos externos: Cinco puertos USB y dos HDMI son completamente suficientes. Si necesita una conexión VGA, está de suerte: el NiPoGi CK10 dispone de una. La salida de audio analógica se encuentra en el lado izquierdo del PC. Esta conexión apenas se utiliza hoy en día.

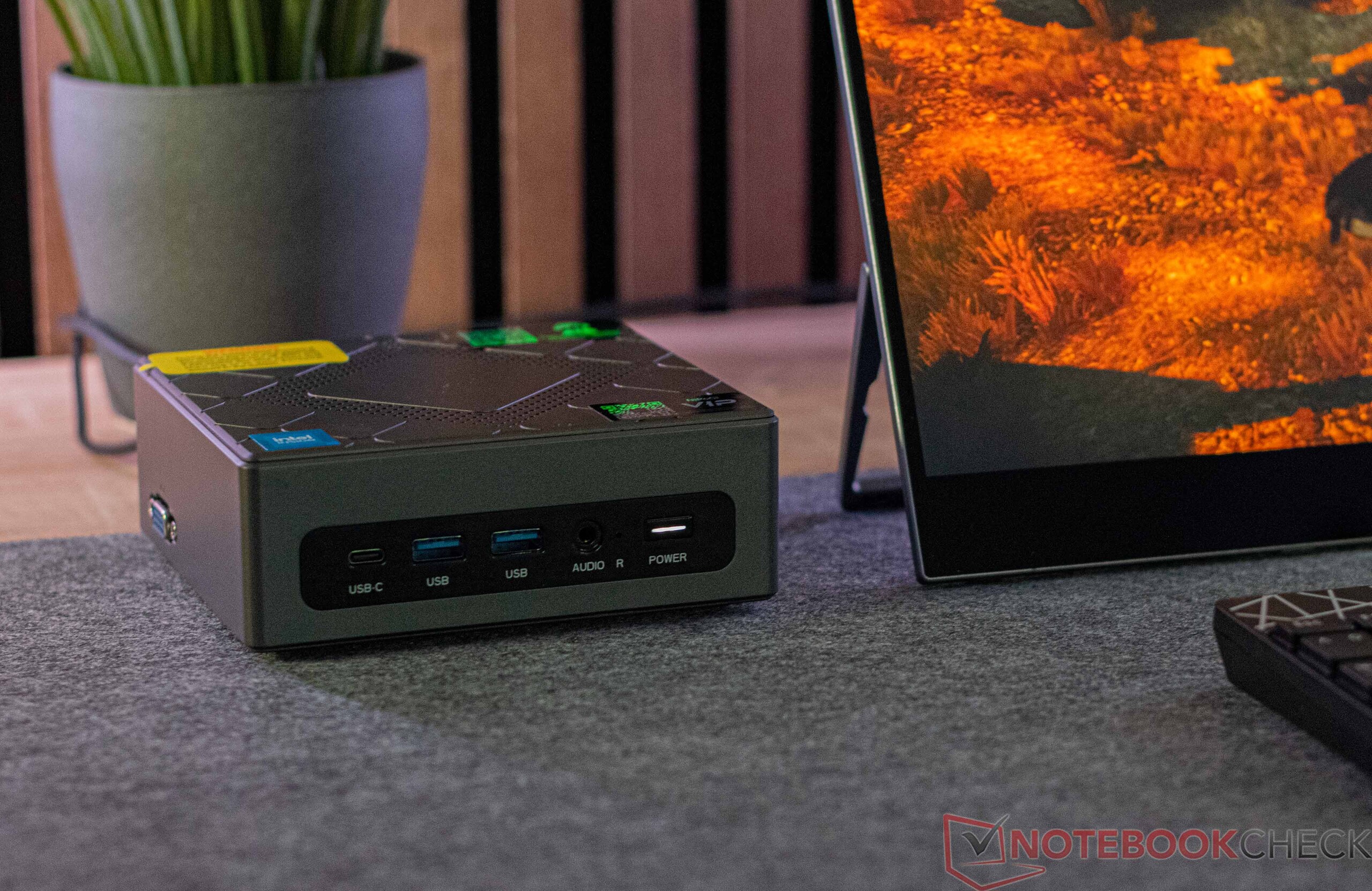

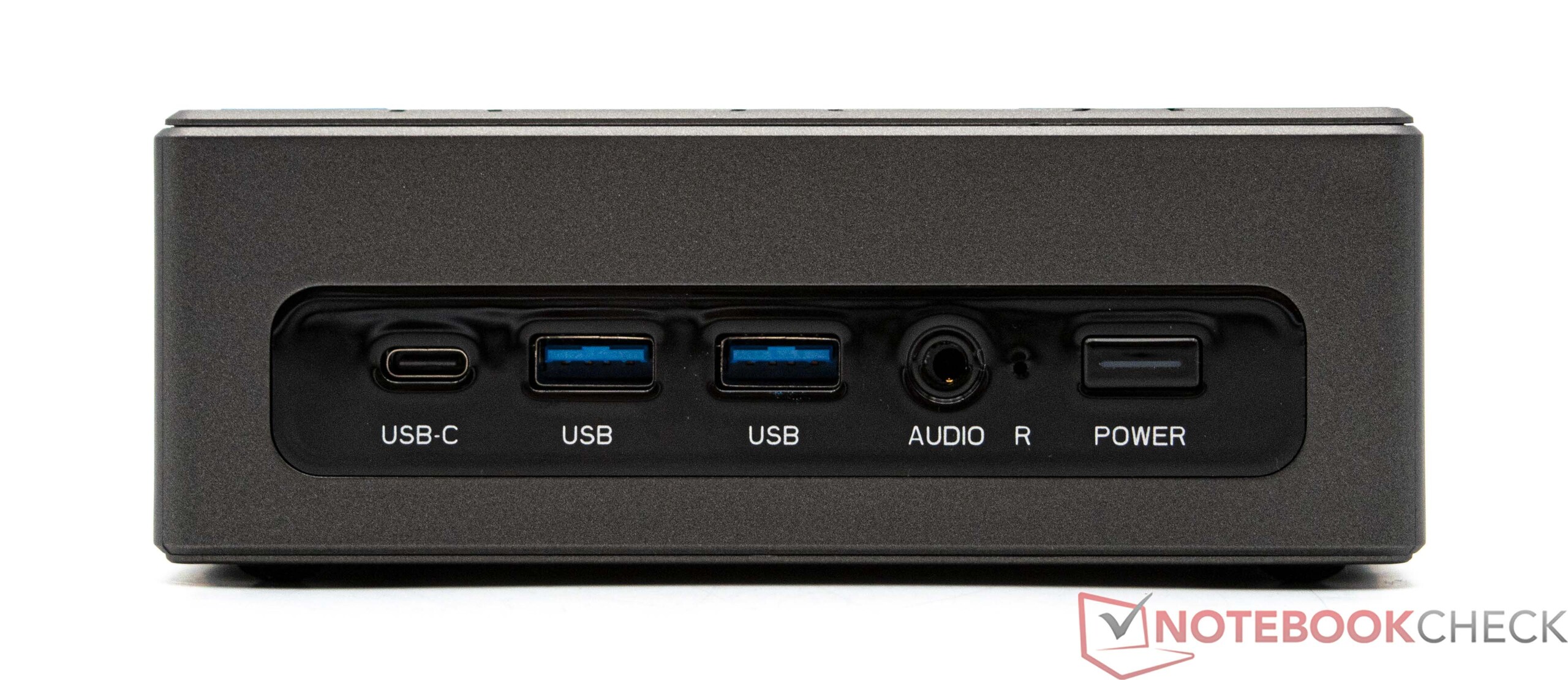

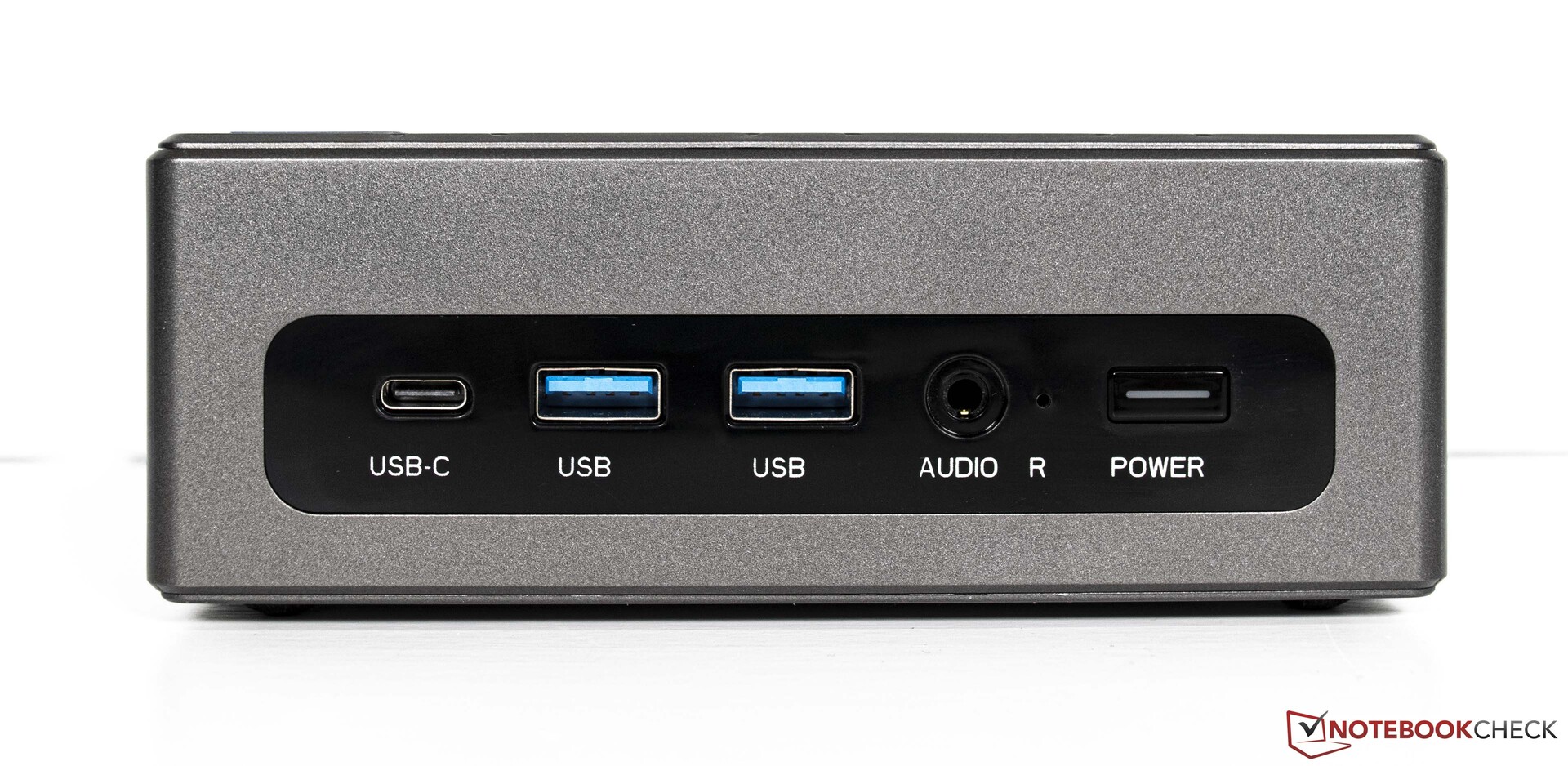

Frontal: USB Tipo-C (datos), 2x USB 3.0, toma de 3,5 mm, encendido

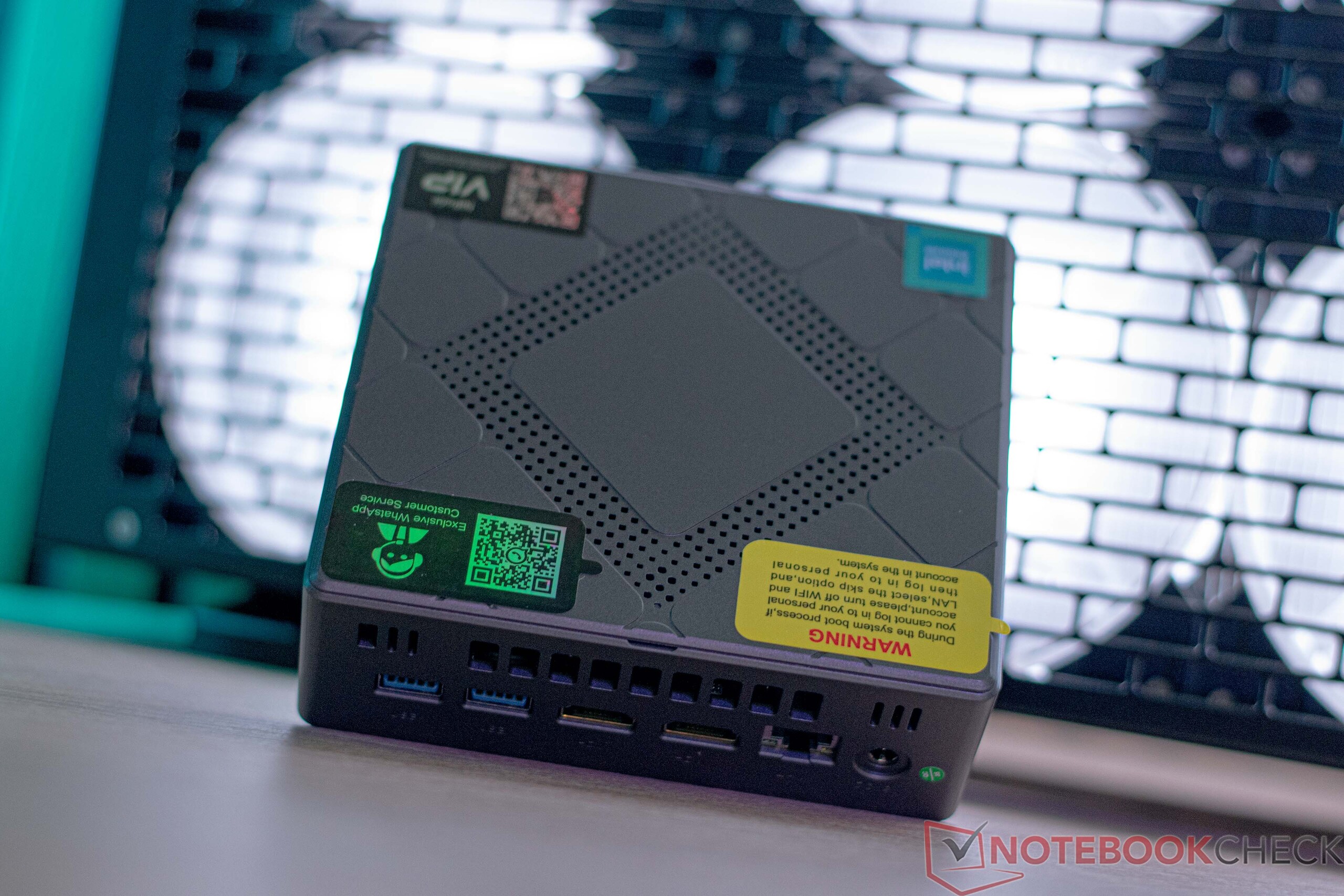

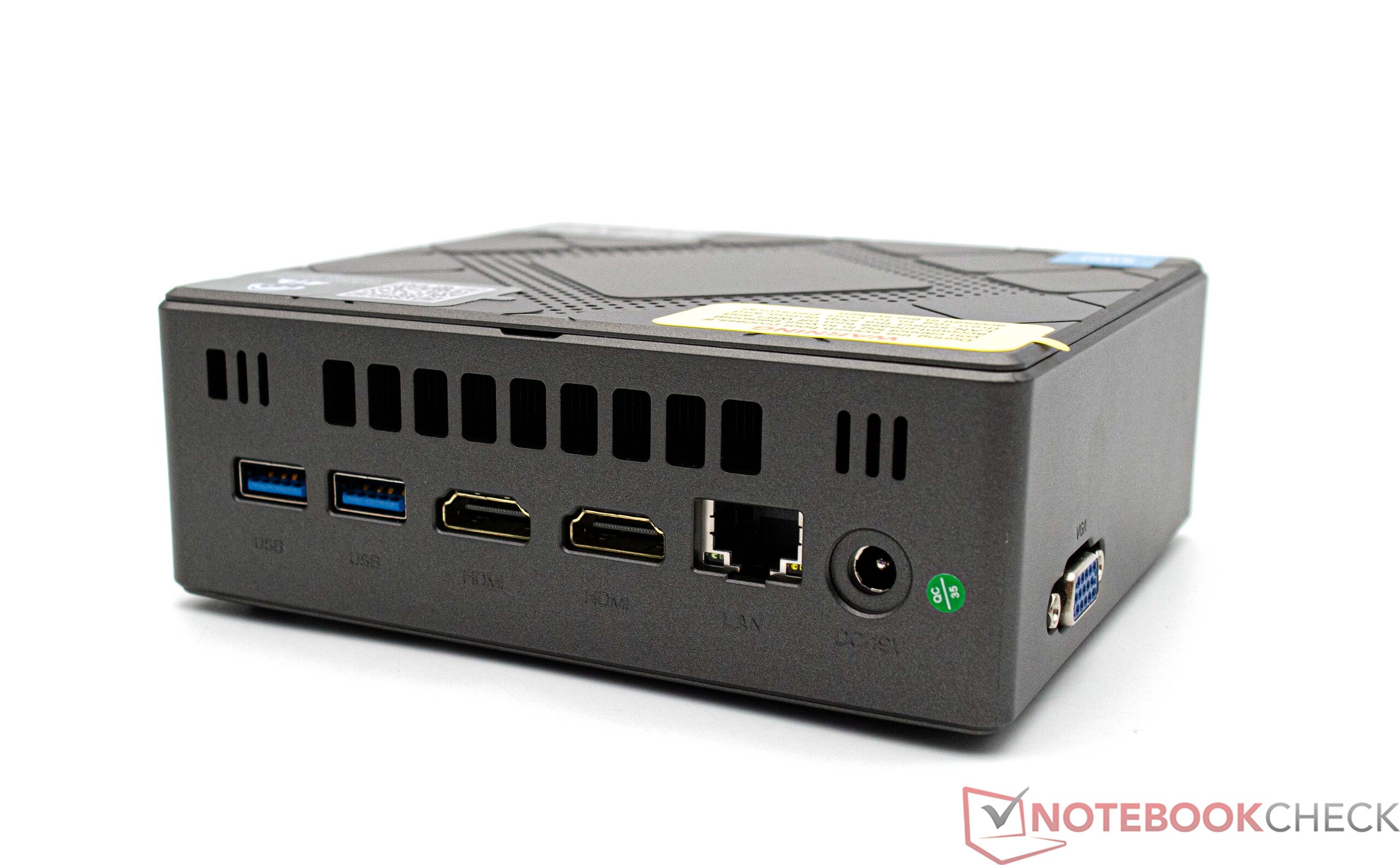

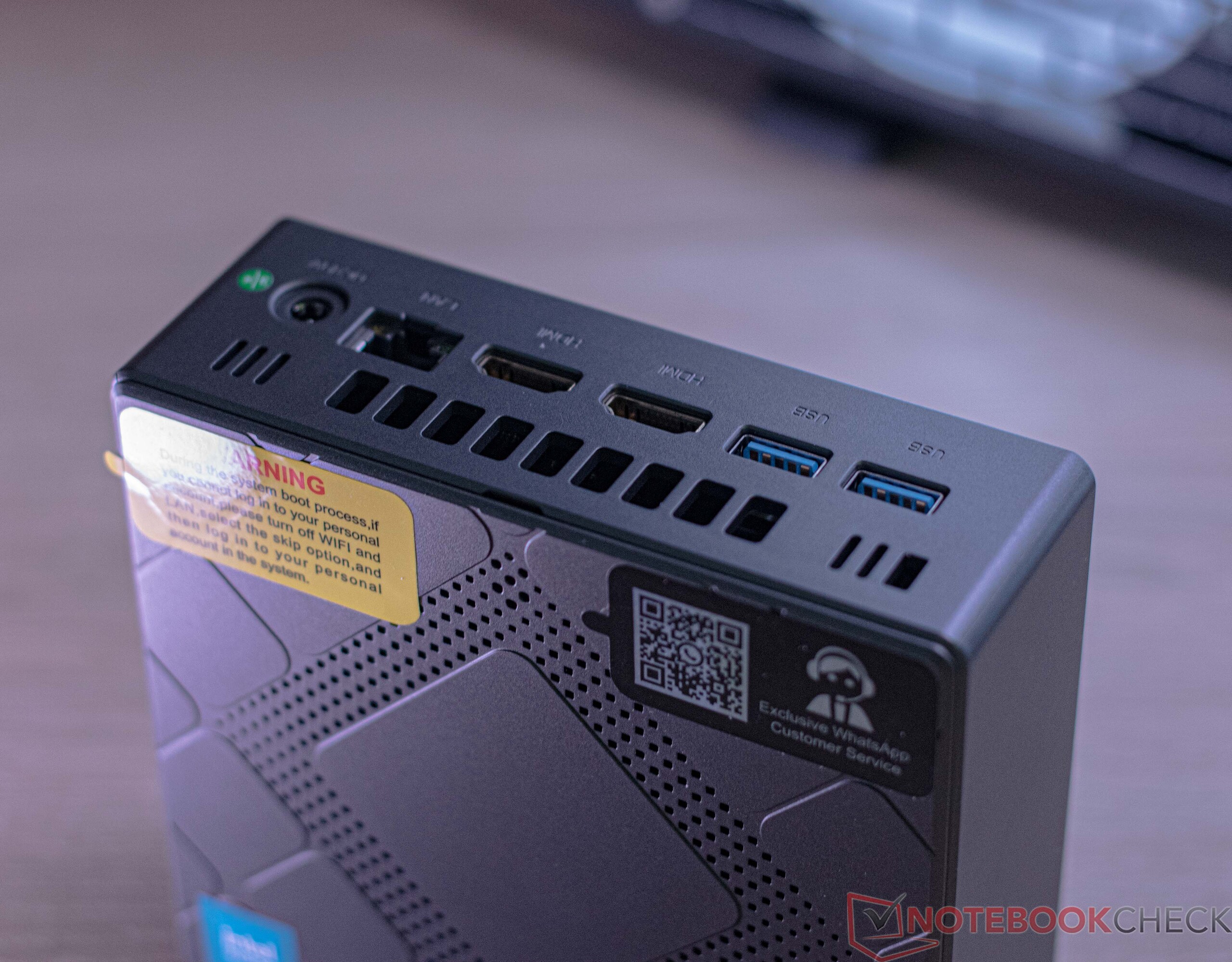

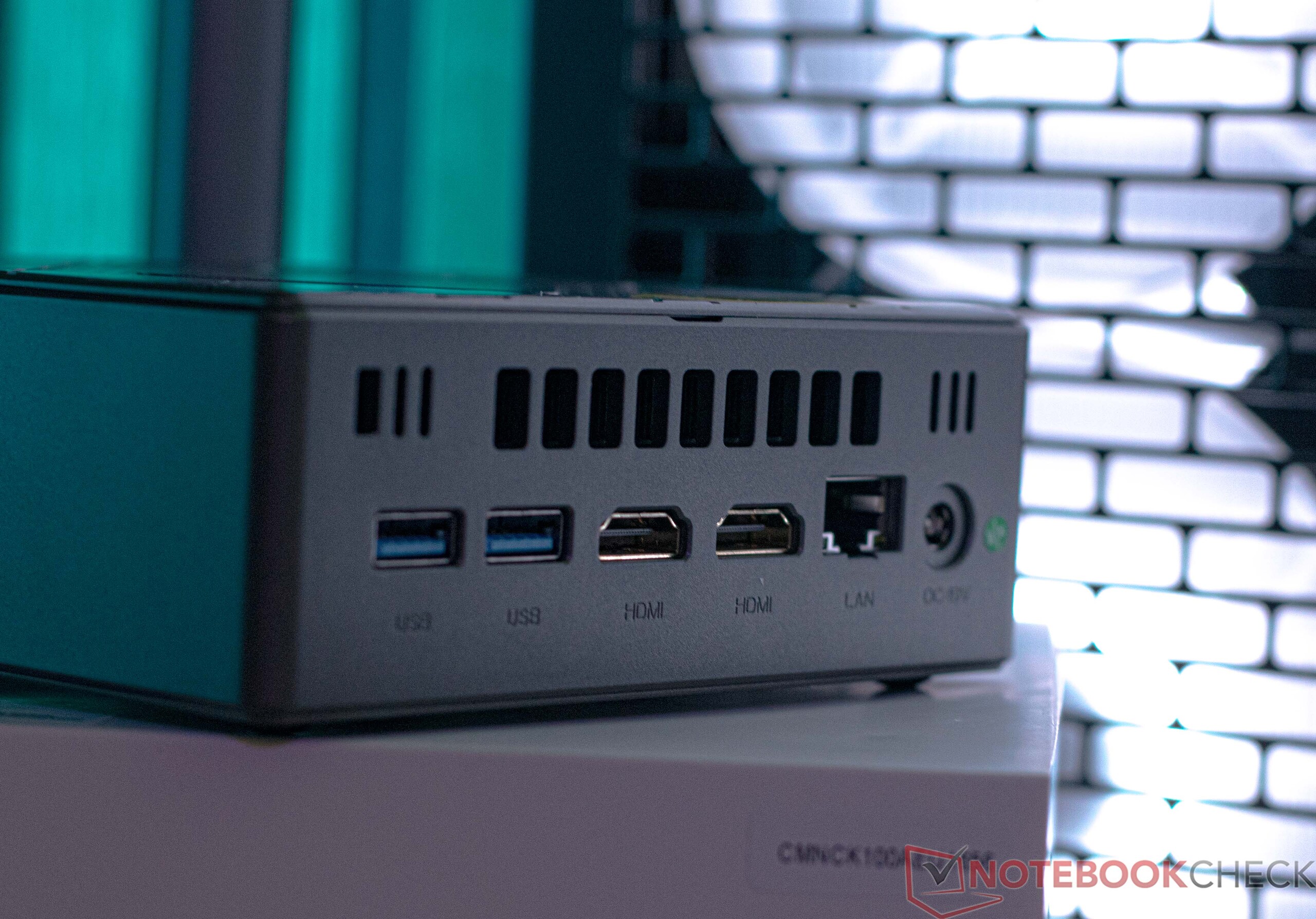

Parte trasera: 2x USB 3.0, 2x HDMI, GBit LAN, conexión de alimentación

Comunicación

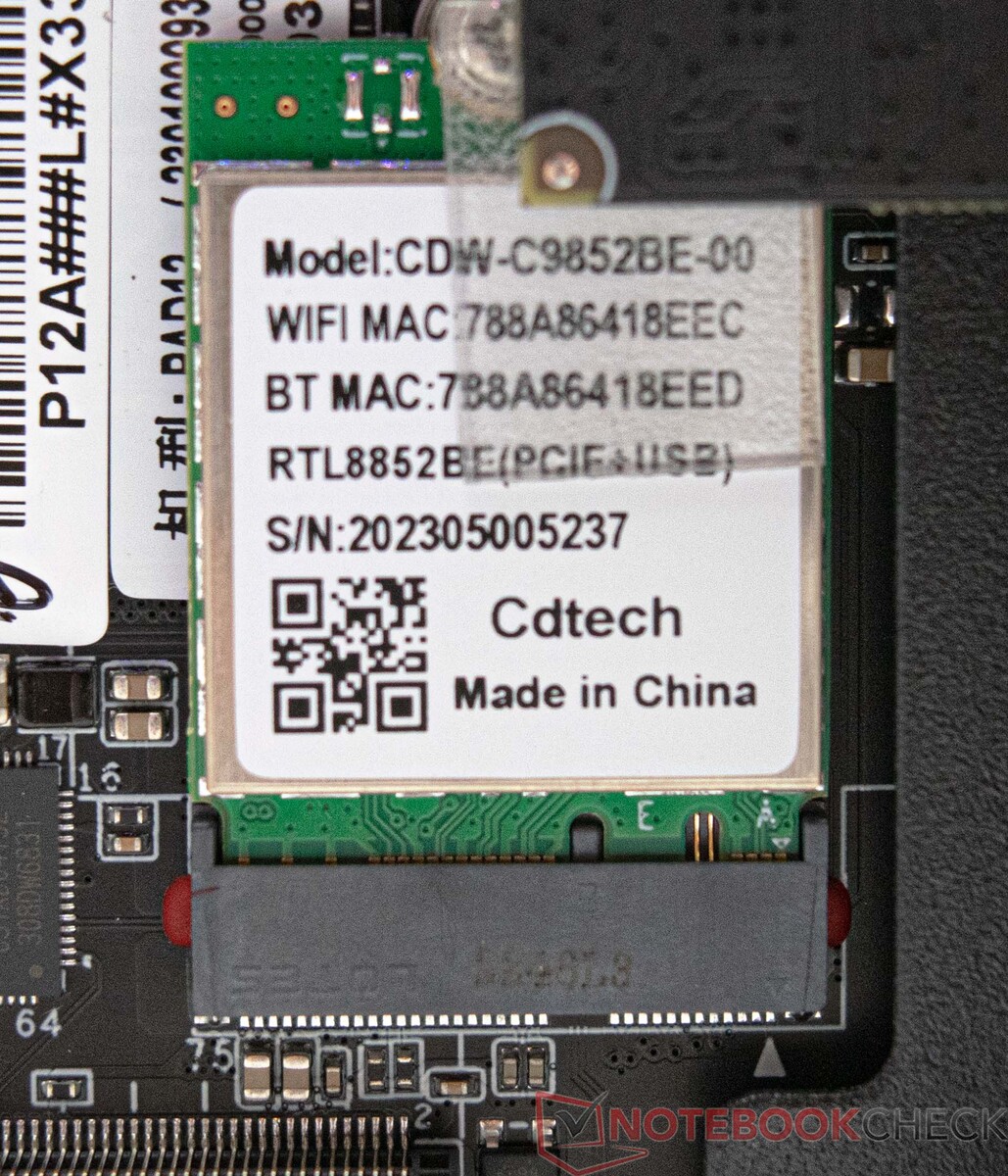

Módulo WLAN en el interior del NiPoGi CK10

El NiPoGi CK10 se basa en un módulo WiFi Realtek que logró un rendimiento adecuado en nuestra prueba. Sólo se quedó unos puntos porcentuales por detrás de los mejores dispositivos. Para esta prueba, utilizamos el Asus ROG Rapture GT-AXE11000 como router de prueba. Las velocidades de transmisión documentadas fueron estables y ligeramente mejores que las delMinisforum Serie Venus UN1245. Por otro lado, el NiPoGi CK10 dispone de una conexión Ethernet. Puede alcanzar velocidades de hasta 1 GBit/s.

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +2%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +1%
NiPoGi CK10 Realtek RTL8852BE	940 (924^min - 961^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s -5%
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s -11%
Minisforum Venus Series UN1245 MediaTek RZ608	795 (753^min - 805^max) MBit/s -15%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -16%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s -23%
iperf3 transmit AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +5%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +3%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +3%
NiPoGi CK10 Realtek RTL8852BE	801 (770^min - 825^max) MBit/s
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s -2%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -2%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s -9%
Minisforum Venus Series UN1245 MediaTek RZ608	724 (606^min - 852^max) MBit/s -10%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -22%

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø752 (710-810)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø712 (691-721)

NiPoGi CK10 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (924-961)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø794 (753-805)

NiPoGi CK10 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø801 (770-825)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø724 (606-852)

Volumen de suministro

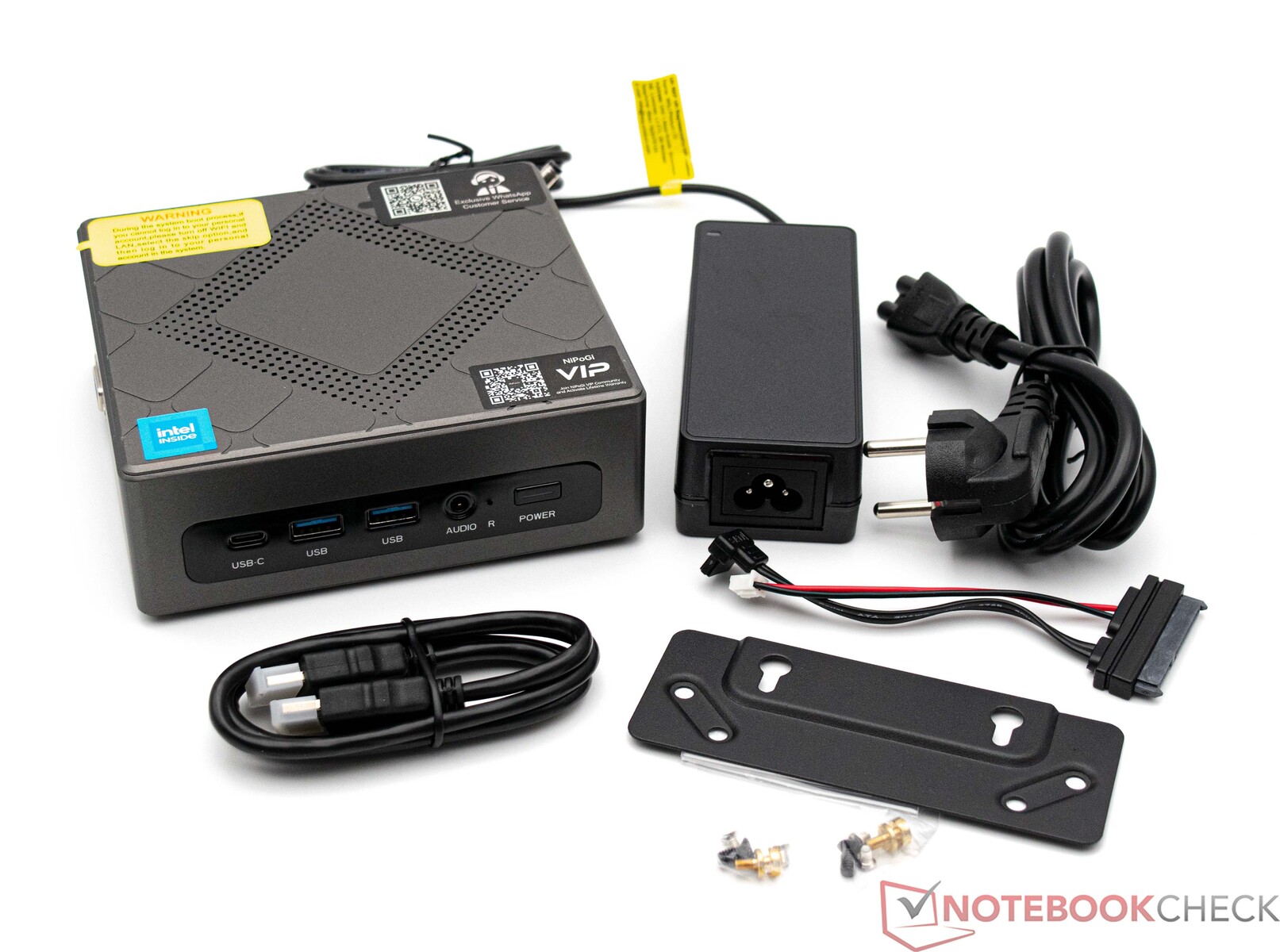

Aparte del propio PC, también obtiene una fuente de alimentación de 65 vatios y un soporte VESA que le permite fijar el dispositivo a un monitor. También se incluyen un cable HDMI y un cable de conexión para un dispositivo de almacenamiento adicional.

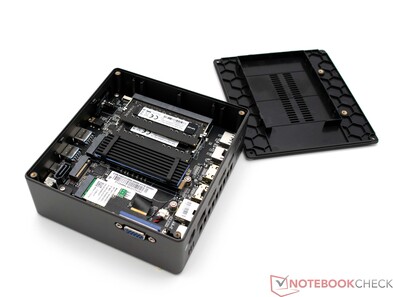

Mantenimiento

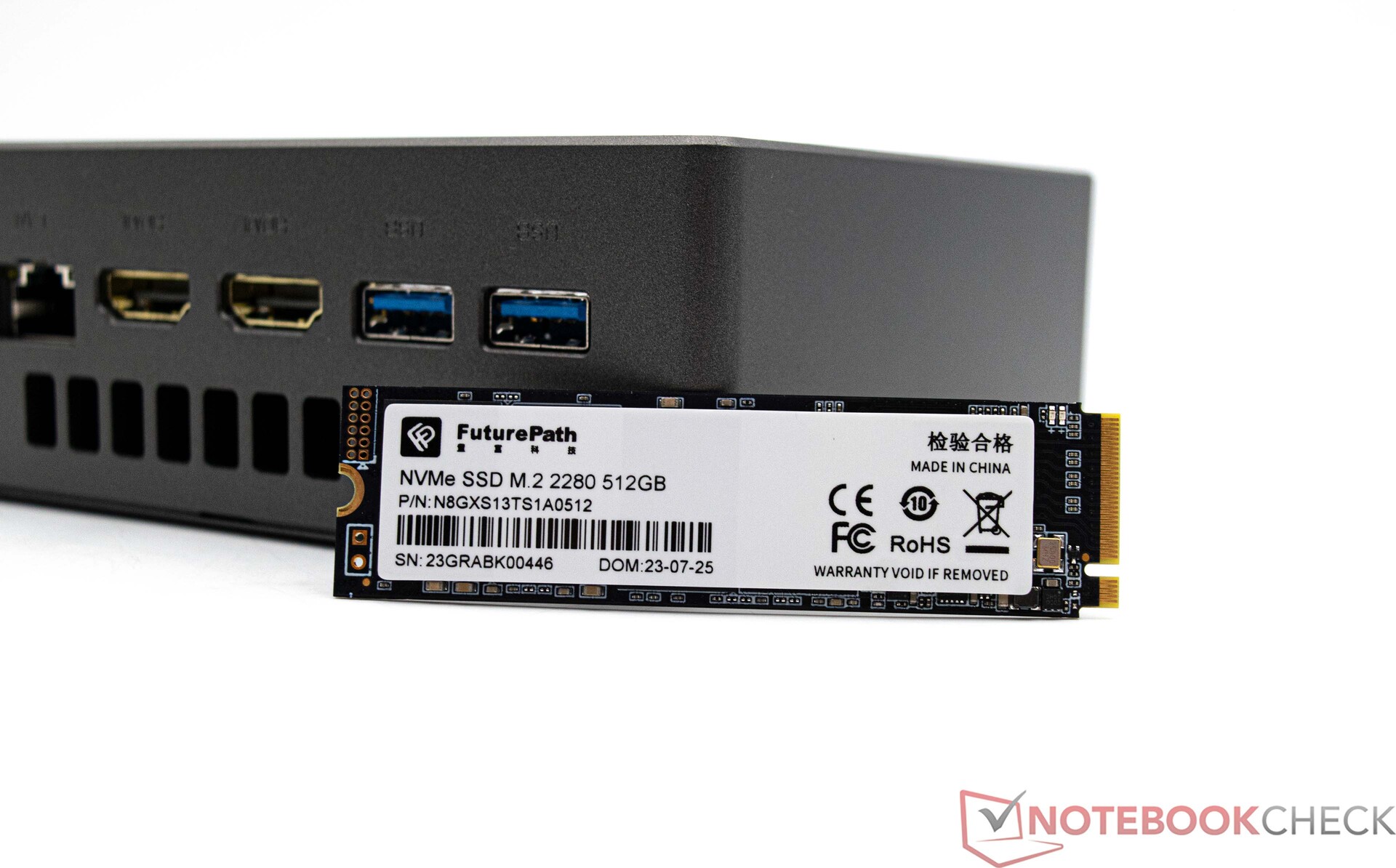

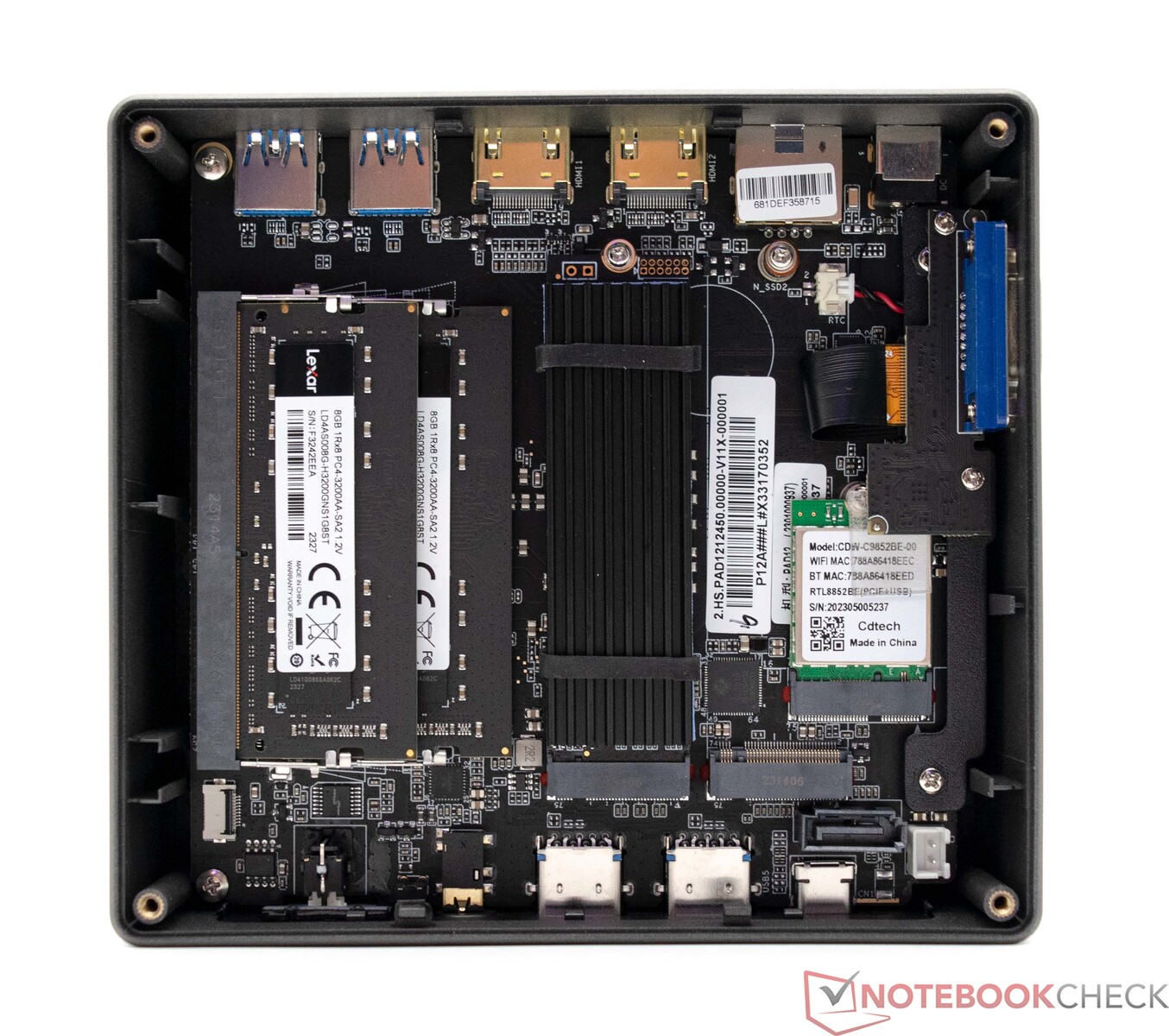

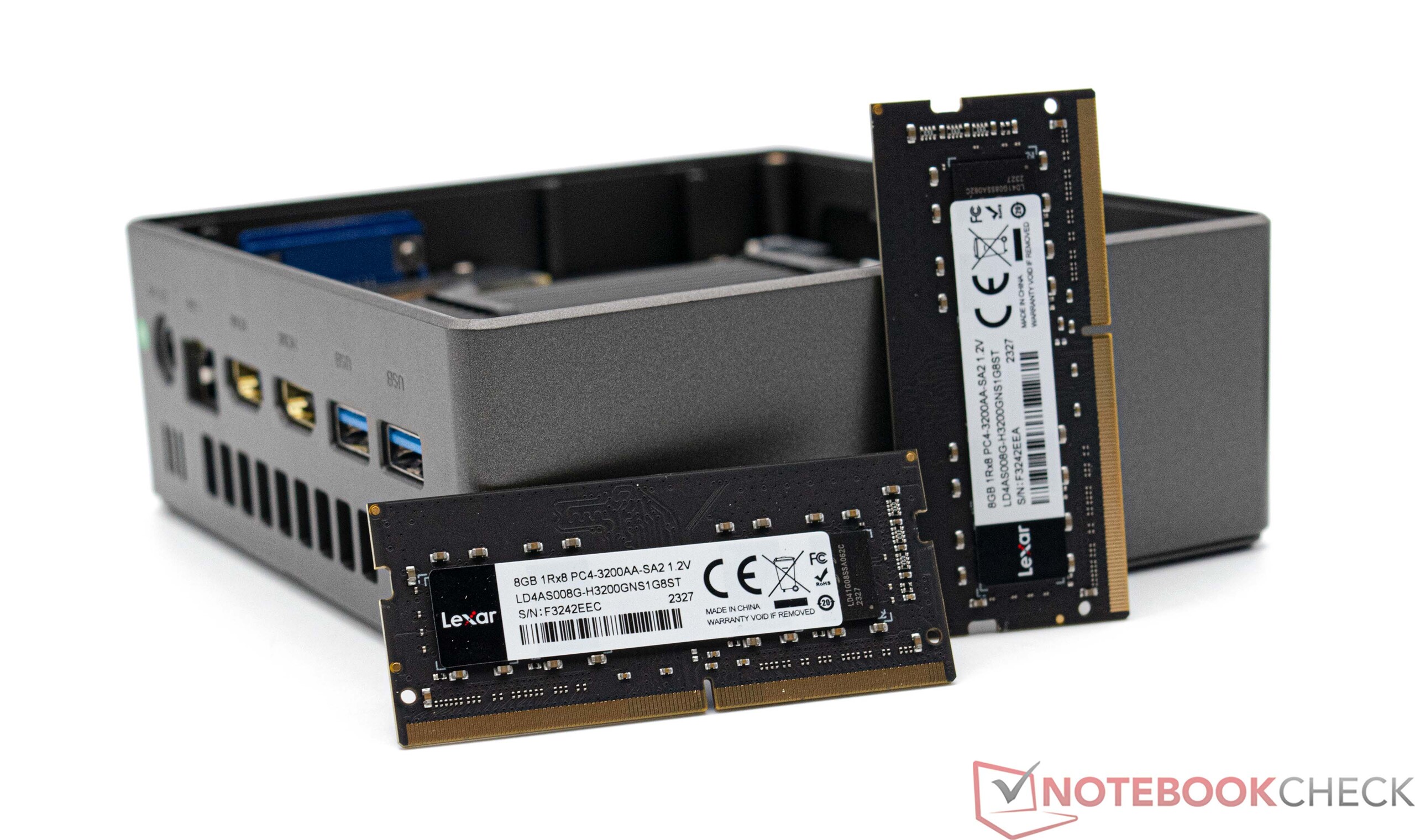

La RAM y la SSD del NiPoGi CK10 pueden ampliarse. La primera requiere que cambie los módulos, ya que las dos ranuras SO DIMM están ocupadas. Sin embargo, la cosa cambia cuando se trata de dispositivos de almacenamiento. En total, el mini PC puede alojar hasta tres a la vez. Sólo podrá acceder a los ventiladores de la CPU si desmonta aún más el aparato.

Rendimiento - Alder Lake H con 8 núcleos y 12 hilos

El NiPoGi CK10 deIntel Core i5-12450Hes un buen SoC equipado con núcleos P y E que pueden procesar hasta 12 hilos a la vez. Como resultado, el SoC ofrece un rendimiento adecuado que se adapta bien al uso diario. Debido a su limitado consumo de energía, no se puede aprovechar todo el rendimiento del SoC.

Condiciones de prueba

Todas las pruebas de rendimiento se realizaron utilizando el perfil de energía Rendimiento máximo. El rendimiento del SoC no se modificó en la BIOS, sino que se dejó en su estado de suministro según la configuración del fabricante. Se utilizaron perfiles de energía diferentes para las mediciones de emisión de ruido y potencia según nuestros criterios de prueba.

Procesador

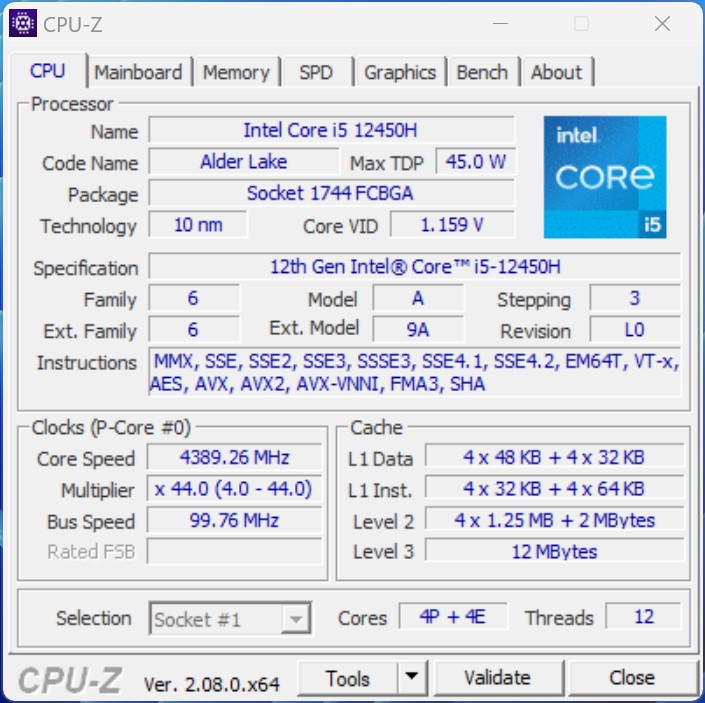

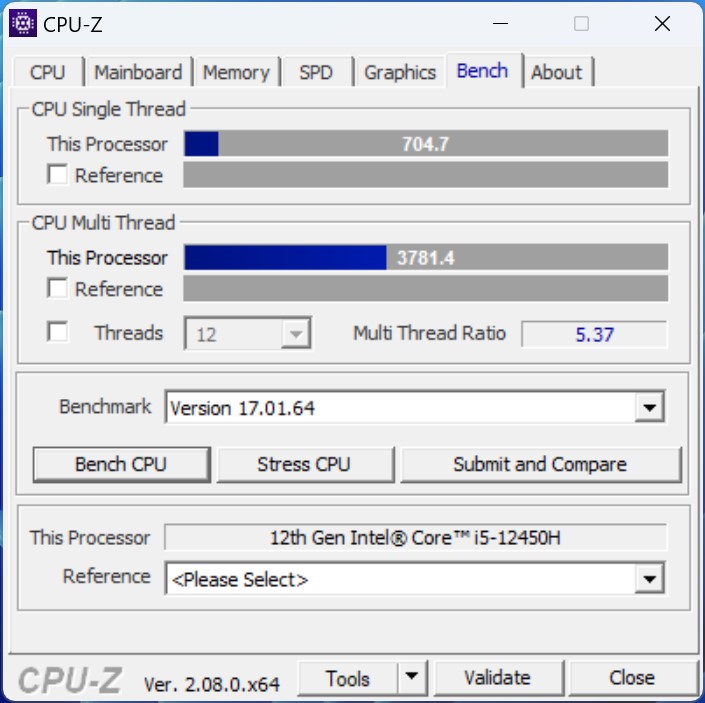

El NiPoGi CK10 tiene unIntel Core i5-12450Hinstalado. Con sus ocho núcleos de computación nativos, el SoC puede procesar hasta 12 hilos simultáneamente. El fabricante ha limitado el consumo de energía del SoC a 35 vatios, lo que se tradujo en un rendimiento multihilo ligeramente peor en nuestra prueba. En comparación directa con elMinisforo Serie Venus UN1245nuestra muestra de prueba no pudo seguirle el ritmo. Sin embargo, en la comparación de rendimiento promediado, puede ver que esta limitación en realidad sólo tuvo un impacto menor, ya que el NiPoGi CK10 fue capaz de lograr buenos resultados de rendimiento mononúcleo a pesar de este límite de potencia.

Para más comparaciones y puntos de referencia, eche un vistazo a nuestraTabla comparativa de CPU.

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	48.9 pt
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	44.5 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	44.2 pt
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	43.1 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43 pt
Blackview MP200 Intel Core i5-11400H, 2700 MHz	41.1 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	40.3 pt

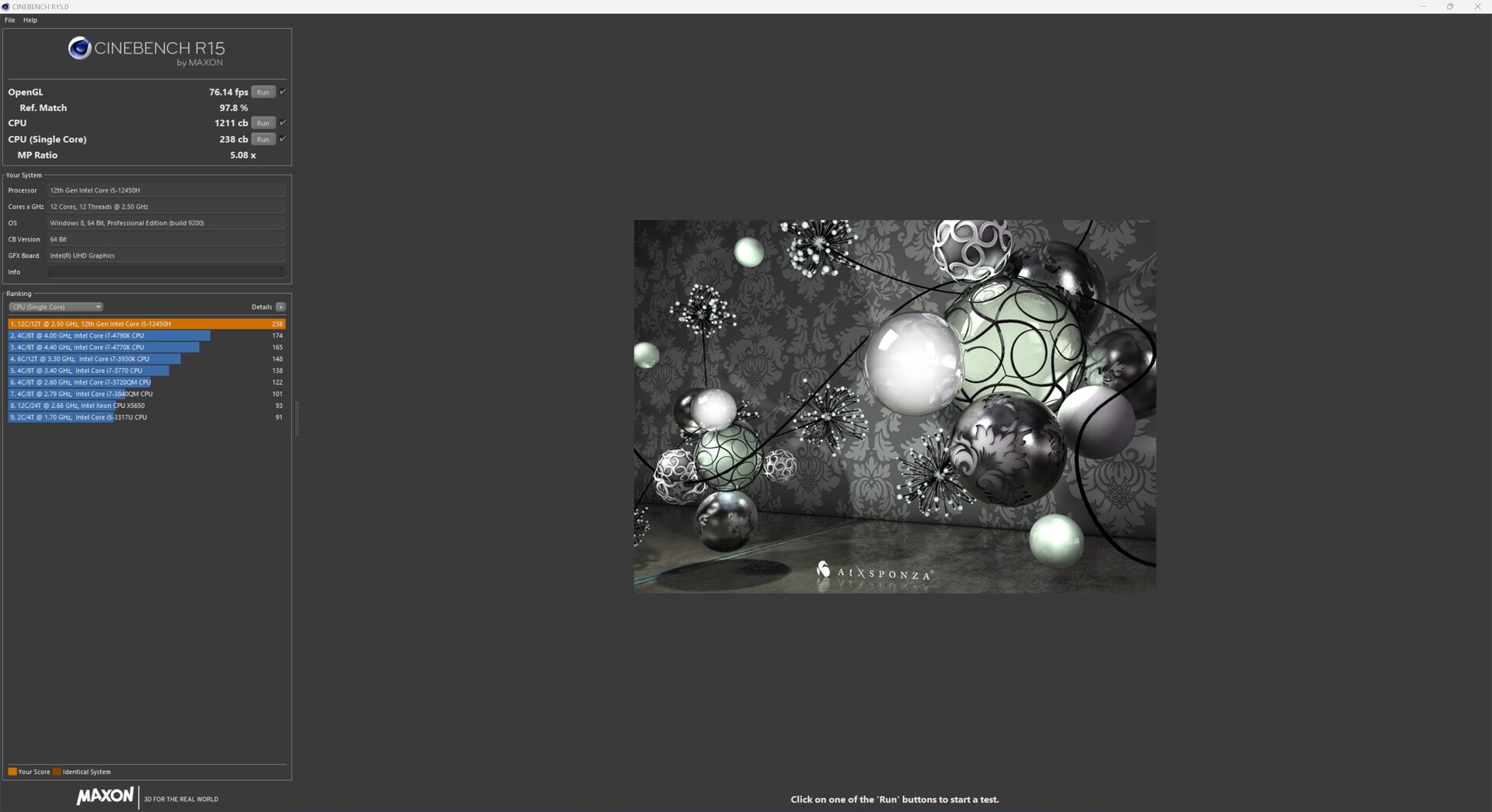

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	238 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	238 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	226 Points -5%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	218 Points -8%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1591 Points +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1379 Points +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1378 Points +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1211 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points -21%

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	644 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	640 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	574 Points -11%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	560 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -13%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +48%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3779 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	3510 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points +6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	3283 Points +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	3237 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points -29%

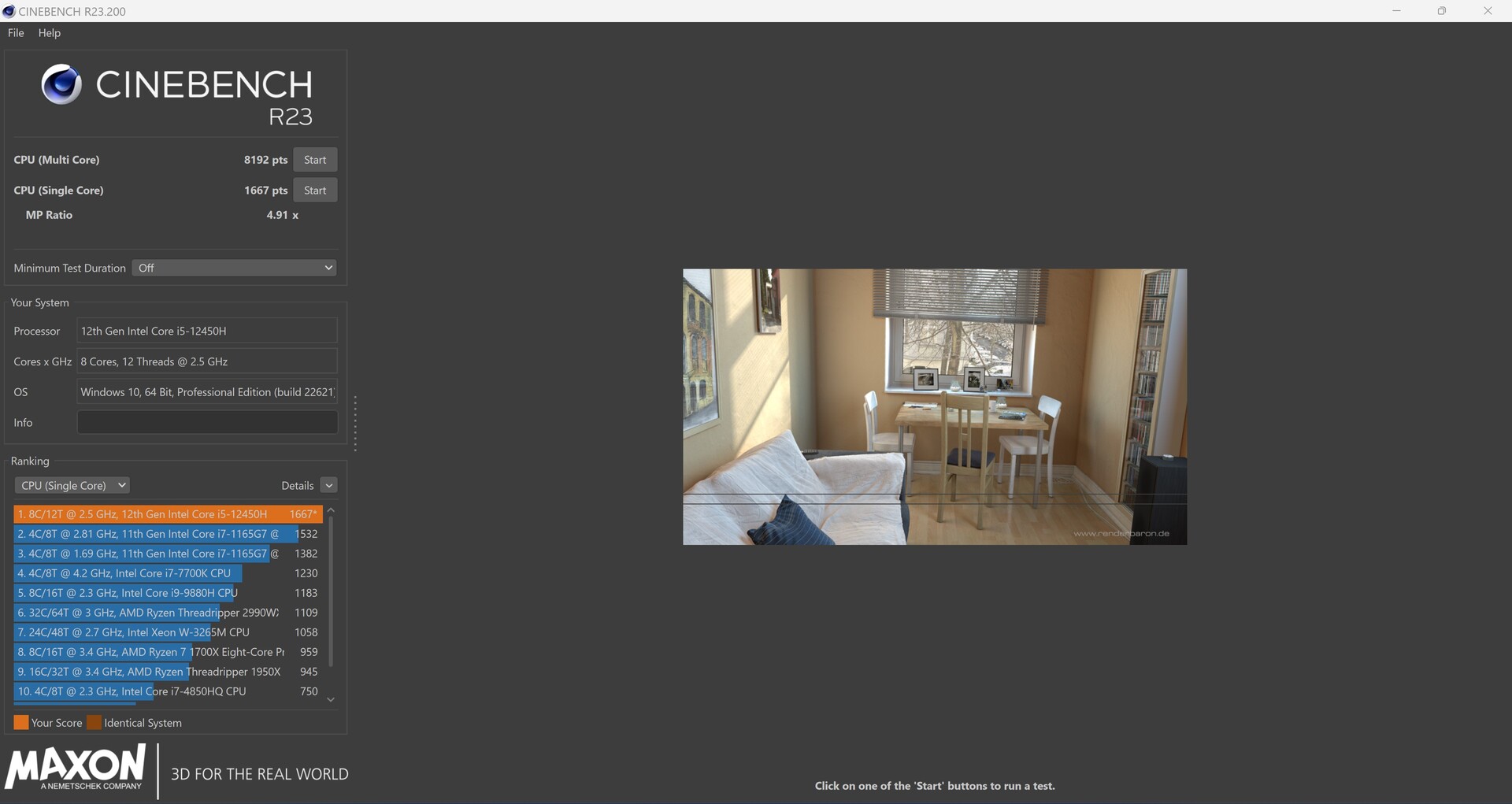

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1667 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1659 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1496 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1462 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -15%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9503 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	9134 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8451 Points +4%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8129 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points -27%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	2.88 Points +2%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	2.83 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2.78 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	2.62 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	2.55 Points -10%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +51%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	17.87 Points +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	16.55 Points +13%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	15.97 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	14.61 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10.68 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13352 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	13344 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	12516 Points -6%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	11860 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	11530 Points -14%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	58173 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	55999 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points +9%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	54687 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	50207 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	39426 Points -21%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds * -22%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	422 Seconds *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * +2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	373 Seconds * +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	349 Seconds * +17%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	319 Seconds * +24%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +32%

wPrime 2.10
32m
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8.23 s *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7.234 s * +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6.518 s * +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * +43%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	4.498 s * +45%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3.969 s * +52%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +55%
1024m
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	452.626 s * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	431.842 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	196.909 s * +54%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * +66%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	140.674 s * +67%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	121.132 s * +72%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +21%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	277 (260^min - 288^max) fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	257.5 (251^min - 259^max) fps
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	242 (239^min - 245^max) fps -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	226.5 (210^min - 228^max) fps -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -18%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +46%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	86.25 (83.2^min - 94.6^max) fps +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	85.35 (83^min - 87.2^max) fps +12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	77.85 (69.8^min - 82.6^max) fps +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	75.9 (75^min - 75.9^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps -27%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +61%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8569 KB/s +51%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6195 KB/s +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6144 KB/s +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5658 KB/s
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5477 KB/s -3%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9.7 GB/s +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s +33%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8.4 GB/s +20%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	8 GB/s +14%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5.4 GB/s -23%
Twofish Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +50%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1.5 GB/s +25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s +8%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1.3 GB/s +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1.3 GB/s +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1.2 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.838 GB/s -30%
Serpent Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1 GB/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s +22%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.815 GB/s +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.79 GB/s +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.703 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.509 GB/s -28%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +38%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7976 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +13%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7200 Points +6%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6804 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6006 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points -25%
Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1665 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1655 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1603 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1465 Points -12%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +54%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7879 Points +18%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7116 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6675 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5961 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points -25%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points +5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1581 Points
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1570 Points -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1569 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1461 Points -8%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7186 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7153 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	6747 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6110 Points -15%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +53%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +34%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	32181 Points +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	27953 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	26009 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	24947 Points -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points -22%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +36%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	15082 Points +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	14645 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13514 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10999 Points -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10536 Points -22%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +43%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +32%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	43146 MIPS +29%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	34660 MIPS +3%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	33619 MIPS 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	33549 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS -23%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	5732 MIPS +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5343 MIPS +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5278 MIPS
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	4994 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	12 fps +27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	10.8 fps +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10.2 fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	9.47 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps -20%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.581 sec * -12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	0.559 sec * -8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.517 sec *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.515 sec * -0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +11%

LibreOffice - 20 Documents To PDF
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -24%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	53 s * -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	46.6 s * -9%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	46.3 s * -8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	42.8 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +7%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	285 Points +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	277 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	270 Points -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	247 Points -11%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H, 2700 MHz	660 ms * -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms * -14%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	641 ms * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	566 ms * -1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	563 ms *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +8%

3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21176 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +22%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19341 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17250 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16258 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points -33%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +25%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21928 Points +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19994 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17852 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16949 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points -33%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8744 Points +42%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6901 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6151 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5160 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points -25%

* ... más pequeño es mejor

Performance Rating
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	95.5 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	86.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	80.4 pt
Average of class Mini PC	79.8 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	79.3 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	75.1 pt
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	65.8 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	55.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s +69%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +50%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s +46%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +32%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	9129 KRay/s +26%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	7229 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -8%

AIDA64 / FPU Julia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +49%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +36%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points +32%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46204 Points +16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points +12%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	39966 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -30%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s +88%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +67%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +27%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	2071 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	1862 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -1%

AIDA64 / CPU Queen
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points +43%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points +17%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	64750 Points +9%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	59539 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -17%

AIDA64 / FPU SinJulia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +70%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points +66%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +45%
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +43%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points +40%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	5985 Points +17%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	5133 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -12%

AIDA64 / FPU Mandel
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +75%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points +71%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +50%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points +45%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +44%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	22917 Points +24%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	18516 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -10%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s +74%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s +41%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	78537 MB/s +11%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	70617 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -44%

AIDA64 / CPU ZLib
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +27%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	592 MB/s +11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s +11%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +10%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	531 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -30%

AIDA64 / FP64 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s +63%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +41%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s +41%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	4977 KRay/s +22%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	4082 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -10%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	28682 MPixel/s +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	27940 MPixel/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -9%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s -12%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s -26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -56%

NiPoGi CK10 vs. Cinebench R15 Multi Loop

El bucle continuo de Cinebench R15 nos da una idea de cómo se comporta el SoC durante un periodo de tiempo más largo. Aunque el fabricante ha limitado el rendimiento del SoC, la unidad de refrigeración se ve rápidamente desbordada bajo una carga permanente. Al echar un vistazo a los datos de telemetría, se puede ver que completó la primera ejecución con todo su rendimiento intacto. Luego, durante la segunda ejecución, su rendimiento ya descendió, teniendo un efecto visible. En comparación con sus competidores, la NiPoGi CK10 quedó en penúltimo lugar.

Métricas de la CPU durante el bucle Cinebench R15

NiPoGi CK10 Intel Core i5-12450H, Intel Core i5-12450H: Ø1004 (968.01-1261.83)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel Core i5-12450H: Ø1370 (1352.4-1379.41)

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

Rendimiento del sistema

Visto subjetivamente, la NiPoGi CK10 ofrece un rendimiento adecuado del sistema. En el campo de la comparación, nuestro dispositivo de prueba sólo consiguió unos resultados medios. El NiPoGi CK10 quedó por detrás delMinisforum Serie Venus UN1245lo que demuestra que es probable que su unidad de refrigeración también se vea rápidamente superada en este ámbito.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +15%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +12%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	5319 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	5262 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points -4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -14%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	10306 Points 0%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	10280 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points -6%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -6%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -7%

PCMark 10 / Productivity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +23%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	7527 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	7368 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points -9%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -12%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +25%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1637 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1504 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -15%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +48%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1888 Points +35%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1403 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -12%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -23%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points -26%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points +4%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1530 Points
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1525 Points 0%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -14%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +24%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1677 Points +11%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1513 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	43790 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	43746 MB/s 0%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -49%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	47170 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	47042 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s -8%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s -10%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -47%

AIDA64 / Memory Write
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	46882 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s 0%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46529 MB/s -1%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s -17%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -51%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -22%
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * -14%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns * -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	77.5 ns * -1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	76.9 ns *
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +14%

* ... más pequeño es mejor

	NiPoGi CK10, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	Minisforum Venus Series UN1245, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	Minisforum Venus Series NAB6, Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	Geekom Mini IT11, i7-11390H, Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Morefine M600, 6600U, AMD Ryzen 5 6600U, AMD Radeon 660M Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	Acemagic AD15, Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	Blackview MP200, Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
SPECviewperf 12		-6%	17%	14%	1243%	-12%	-43%
1900x1060 3ds Max (3dsmax-05)	29.8	29.5 -1%	36.2 21%	30.1 1%	55.8 87%	26.8 -10%	16.8 -44%
1900x1060 Catia (catia-04)	22.9	22.8 0%	34.5 51%	29.2 28%	45 97%	22.2 -3%	14.6 -36%
1900x1060 Creo (creo-01)	17.7	18.4 4%	6.44 -64%	7.28 -59%	39.3 122%	15.5 -12%	4.03 -77%
1900x1060 Energy (energy-01)	0.56	0.24 -57%	0.35 -37%	0.92 64%	51.1 9025%	0.23 -59%	0.16 -71%
1900x1060 Maya (maya-04)	23.3	22.9 -2%	33.4 43%	30.4 30%	44.4 91%	23.9 3%	12.8 -45%
1900x1060 Medical (medical-01)	4.98	5 0%	9.12 83%	8.13 63%	25.8 418%	4.96 0%	2.83 -43%
1900x1060 Showcase (showcase-01)	13.1	13.1 0%	15.9 21%	15 15%	22.8 74%	11.2 -15%	6.62 -49%
1900x1060 Siemens NX (snx-02)	3.31	3.48 5%	3.89 18%	2.85 -14%	42.4 1181%	3.03 -8%	3.58 8%
1900x1060 Solidworks (sw-03)	38.3	38.5 1%	44.5 16%	37.4 -2%	74.6 95%	37.8 -1%	25.7 -33%
SPECviewperf 13		1%	38%	24%	256%	-5%	-35%
3ds Max (3dsmax-06)	29.6	29.3 -1%	36 22%	30 1%	51.7 75%	27.2 -8%	16.7 -44%
Catia (catia-05)	32.8	32.9 0%	49.6 51%	42.5 30%	56.9 73%	31.9 -3%	21.5 -34%
Creo (creo-02)	26.7	27.7 4%	33 24%	30.3 13%	53.8 101%	22.5 -16%	12.8 -52%
Maya (maya-05)	32.4	32.1 -1%	38.2 18%	34.3 6%	62.6 93%	32 -1%	18.8 -42%
Medical (medical-02)	4.51	4.48 -1%	10.9 142%	10.9 142%	24.9 452%	4.96 10%	2.58 -43%
Showcase (showcase-02)	13.1	13.1 0%	15.7 20%	14.8 13%	23.9 82%	11.3 -14%	6.63 -49%
Siemens NX (snx-03)	5.91	6.24 6%	6.68 13%	5.16 -13%	72.7 1130%	5.45 -8%	6.46 9%
Solidworks (sw-04)	46.8	47 0%	53.9 15%	47.6 2%	66.6 42%	45.5 -3%	34.1 -27%
Media total (Programa/Opciones)		-3% / -3%	28% / 27%	19% / 19%	750% / 779%	-9% / -9%	-39% / -40%

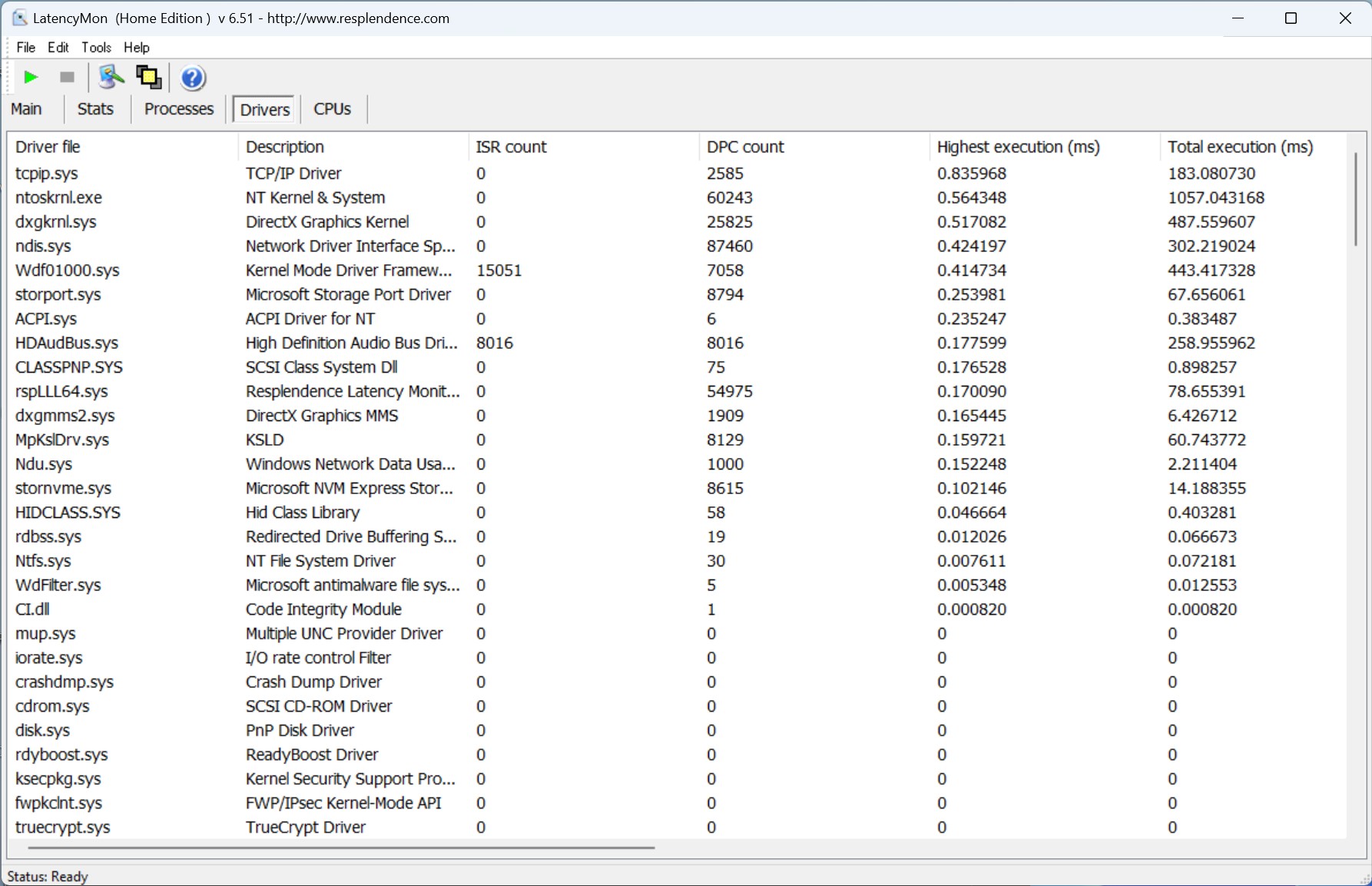

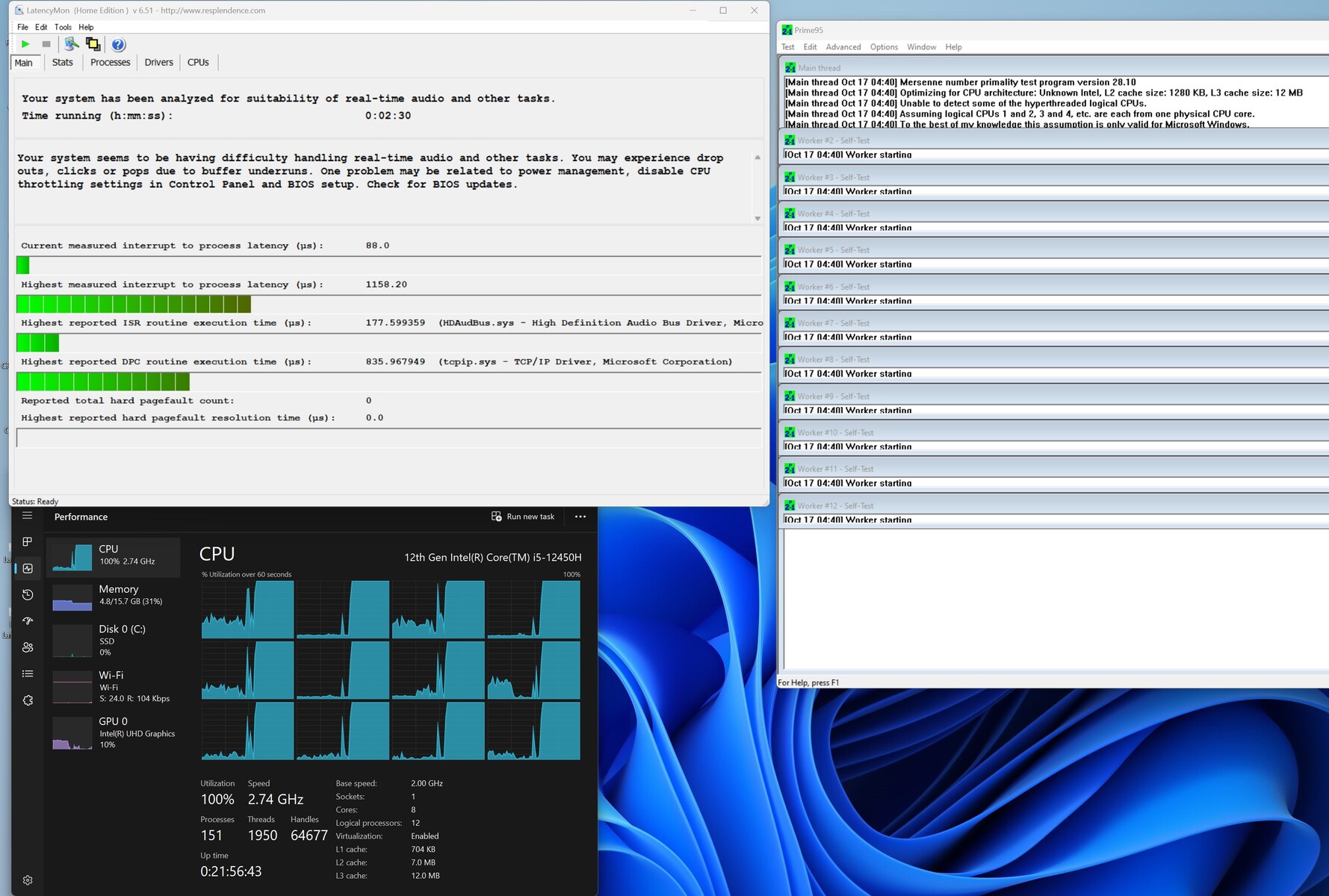

Latencia del CPD

Sólo notamos un ligero aumento de las latencias en el NiPoGi CK10 al reproducir nuestro vídeo de prueba 4K. Tampoco hubo problemas al abrir varias pestañas en el navegador Edge. No documentamos ninguna tasa crítica, y nuestro dispositivo de prueba volvió a asegurarse un lugar medio en la comparación.

Latencia máxima al abrir varias pestañas del navegador y reproducir vídeo 4K.

Latencia máxima tras diez segundos de Prime95

Conductores clasificados por mayor duración de ejecución

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -69%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -22%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs * -1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	835.9 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +44%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	447.9 μs * +46%

* ... más pequeño es mejor

Dispositivos de almacenamiento

NiPoGi ha instalado una unidad SSD NVMe de 512 GB de Neatac en nuestra muestra de prueba. Sus valores de medición muestran un rendimiento decente sin llegar a destacar entre la multitud. El rendimiento diario de la SSD es bueno y la instalación de nuestros programas de prueba funcionó sin problemas. Sus niveles de rendimiento en carga continua son excelentes. Aquí notamos un rendimiento constante sin caídas. La NiPoGi CK10 puede equiparse con un total de tres dispositivos de almacenamiento. Aparte de la unidad SSD NVMe preinstalada, puede instalar otra unidad SSD M.2, así como un dispositivo de almacenamiento de 2,5 pulgadas. Sólo tiene que asegurarse de que la altura de la unidad de 2,5 pulgadas no supere los siete milímetros.

Para más comparaciones y pruebas comparativas, eche un vistazo a nuestra tabla comparativa Laptop SSD & HDD Benchmarks .

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2222 MB/s

Sequential Write: 1848 MB/s

512K Read: 1372 MB/s

512K Write: 1525 MB/s

4K Read: 57.54 MB/s

4K Write: 238.4 MB/s

4K QD32 Read: 798 MB/s

4K QD32 Write: 573.6 MB/s

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

NiPoGi CK10 Future Path FPE220M8SSD512G: Ø2378 (2112.25-2402.9)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	93.9 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	81.3 pt
Average of class Mini PC	54.1 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.3 pt
NiPoGi CK10 ^-11! Future Path FPE220M8SSD512G	49.2 pt
Blackview MP200 Foresee XP1000F512G	47.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	41.2 pt
Acemagic AD15 Netac NS512GSSD340	18.4 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +34%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2655 (2644.09^min - 2654.58^max) MB/s +32%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s +4%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +1%
NiPoGi CK10 Future Path FPE220M8SSD512G	2014 (1987.04^min - 2014.36^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -16%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s -74%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +122%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3523 (3505.18^min - 3522.8^max) MB/s +120%
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s +50%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +44%
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +28%
NiPoGi CK10 Future Path FPE220M8SSD512G	1598 (1557.1^min - 1598.24^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -33%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s -71%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +100%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4788 (4242.12^min - 4787.8^max) MB/s +100%
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +32%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s +26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +5%
NiPoGi CK10 Future Path FPE220M8SSD512G	2399 (2078.28^min - 2398.91^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -7%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s -77%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +121%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3533 (3500.99^min - 3532.65^max) MB/s +121%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +56%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s +51%
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +39%
NiPoGi CK10 Future Path FPE220M8SSD512G	1602 (1566.78^min - 1601.65^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s 0%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s -70%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +51%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	80.2 (79.47^min - 80.17^max) MB/s +46%
NiPoGi CK10 Future Path FPE220M8SSD512G	55 (53.87^min - 55.03^max) MB/s
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s -2%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s -6%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -27%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -31%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s -37%
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +116%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	386 (379.05^min - 385.59^max) MB/s +98%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +18%
NiPoGi CK10 Future Path FPE220M8SSD512G	194.7 (191^min - 194.69^max) MB/s
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s -5%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -38%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -46%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s -52%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +97%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1936 (1933.07^min - 1936.22^max) MB/s +97%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +11%
NiPoGi CK10 Future Path FPE220M8SSD512G	985 (816.79^min - 984.52^max) MB/s
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -26%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -43%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s -81%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +579%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2578 (1137.7^min - 2578.06^max) MB/s +417%
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +118%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +9%
NiPoGi CK10 Future Path FPE220M8SSD512G	499 (331.35^min - 498.71^max) MB/s
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s -54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -65%

AS SSD
Score Total
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	6225 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points
Blackview MP200 Foresee XP1000F512G	3153 Points
Acemagic AD15 Netac NS512GSSD340	753 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2327 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points
Blackview MP200 Foresee XP1000F512G	1276 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points
Acemagic AD15 Netac NS512GSSD340	266 Points
Score Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2732 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points
Blackview MP200 Foresee XP1000F512G	1235 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points
Acemagic AD15 Netac NS512GSSD340	345 Points
Seq Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4095 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s
Blackview MP200 Foresee XP1000F512G	2930 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s
Acemagic AD15 Netac NS512GSSD340	529 MB/s
Seq Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3118 MB/s
Blackview MP200 Foresee XP1000F512G	2478 MB/s
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s
Acemagic AD15 Netac NS512GSSD340	425 MB/s
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	100.9 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s
Blackview MP200 Foresee XP1000F512G	52.2 MB/s
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	332 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s
Blackview MP200 Foresee XP1000F512G	103.1 MB/s
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1817 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s
Blackview MP200 Foresee XP1000F512G	931 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s
4K-64 Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2089 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s
Blackview MP200 Foresee XP1000F512G	884 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s
Acemagic AD15 Netac NS512GSSD340	213 MB/s
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms *
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.073 ms *
Acemagic AD15 Netac NS512GSSD340	0.063 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms *
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms *
Acemagic AD15 Netac NS512GSSD340	0.137 ms *
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.031 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms *

* ... más pequeño es mejor

Tarjeta gráfica

La unidad gráfica integrada de la NiPoGi CK10 es laIntel UHD Graphicsel mismo modelo que en elMiniseries Venus UN1245. ElIntel Core i5-12450H'sIntel UHD Graphicses una iGPU con 64 UE. Esto significa que, en el uso práctico, ambos dispositivos son igual de rápidos (con algunas fluctuaciones de rendimiento). Como suele ocurrir, Intel no puede seguir el ritmo de AMD con sus iGPU, lo que hizo que nuestra muestra de prueba no fuera la mejor. Las iGPU actuales, como la AMD Radeon 680Mo laAMD Radeon 780Mofrecen un rendimiento 3D notablemente mejor.

Para más comparaciones y pruebas comparativas, eche un vistazo a nuestroG Tabla comparativa de PU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	100 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	86.7 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	85.6 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.9 pt
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.5 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.6 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	26.5 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +45%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +39%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3886 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -57%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +41%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +7%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19949 Points
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points -4%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -61%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +53%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +34%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3026 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -60%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +67%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +52%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points +42%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -59%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +36%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1349 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1346 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -60%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	95.1 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.9 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	79.4 pt
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	61.9 pt
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	58.4 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	52.4 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +58%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +37%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +3%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	12.9 fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	9.8 fps -24%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -42%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +31%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +15%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	15.9 fps +2%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	15.6 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -51%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +13%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +9%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	10 fps 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	10 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	17.7 fps +82%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +56%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	9.7 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -44%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +99%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +60%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points +46%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1735 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	1724 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -57%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +57%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points +6%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	203 Points 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	203 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -42%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +80%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points +16%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	197 Points +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	189 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -42%
1024x600 Normal, Mandel Vector
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +209%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +98%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points +60%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	306 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	302 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points -16%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -52%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +86%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +64%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points +62%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	483 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	476 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points -21%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -70%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +74%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +69%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points +48%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	555 Points
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	547 Points -1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -58%

3DMark 05 Standard		32570 puntos
3DMark 06 Standard Score		22825 puntos
3DMark Vantage P Result		15454 puntos
3DMark 11 Performance		4406 puntos
3DMark Ice Storm Standard Score		108684 puntos
3DMark Cloud Gate Standard Score		17386 puntos
3DMark Fire Strike Score		2850 puntos
3DMark Fire Strike Extreme Score		1346 puntos
3DMark Time Spy Score		981 puntos
ayuda

... comparado con

Rendimiento en juegos

EnIntel UHD Graphicsel bajo rendimiento 3D también se traduce en un menor rendimiento en juegos. Los juegos modernos no pueden ejecutarse con fluidez utilizando la iGPU del NiPoGi CK10. Algunos juegos más antiguos son dominados por la unidad gráfica - aunque a menudo sólo con el preajuste gráfico más bajo. Si no quiere renunciar a la compacidad pero sigue necesitando un rendimiento decente en los juegos, debería echar un vistazo alMinisforo HX99Gy elMinisforum NUCXi7. Eso sí, debe tener en cuenta que estos dos modelos con GPU dedicada se encuentran en un rango de precios completamente diferente.

Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	99 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	85.2 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	70.8 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.2 pt
NiPoGi CK10 ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	63.2 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.7 pt
Blackview MP200 ^-6! Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	31.6 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	80.8 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	76.8 fps +29%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	63.3 fps +6%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	59.5 (19.9^min, 24.7^P0.1, 33.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	24.5 fps -59%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	26.2 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.6 fps +18%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	22.2 fps +16%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19.2 (9.37^min, 9.7^P0.1, 10.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -16%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.3 fps -57%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	49 fps +56%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36.6 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.9 fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	31.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	24.5 fps -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13.4 fps -57%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	13.6 fps +64%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.5 fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.52 fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.29 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.23 fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	3.3 fps -60%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	142.9 (1.358^min, 71.4^P1) fps +31%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	129.9 (16.1^min, 83.3^P1) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	116.1 (16^min, 83.3^P1) fps +7%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	108.8 (14.4^min, 71.4^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	100.8 (23.7^min, 71.4^P1) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	97.7 (25.6^min, 55.6^P1) fps -10%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	59.3 (9.5^min, 33.3^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	33.9 (1.094^min, 20.4^P1) fps
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	20.5 (8.17^min, 14.5^P1) fps
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	18.5 (6.9^min, 14.3^P1) fps
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	14.6 (9.64^min, 11^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13.7 (7.54^min, 9.71^P1) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.59 (3.34^min, 6.21^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62 (49^min) fps +72%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	50 (44^min) fps +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	40 (35^min) fps +11%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	30 (26^min) fps -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	16 (14^min) fps -56%
1920x1080 High Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (25^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	22 (19^min) fps +38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19 (17^min) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	12 (10^min) fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (6^min) fps -56%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	58 (42^min) fps +76%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48 (32^min) fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36 (24^min) fps +9%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34 (21^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33 (21^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	27 (17^min) fps -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15 (11^min) fps -55%
1920x1080 High Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (23^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	23 (17^min) fps +44%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	18 (14^min) fps +13%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13 (9^min) fps -19%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (5^min) fps -56%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	135.9 (121.4^min) fps +28%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	134.7 (102.1^min) fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	133.3 (93.2^min) fps +26%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	116 (101.7^min) fps +9%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	106.2 (84.2^min) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	98.7 (85.5^min) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	95.8 (84.4^min) fps -10%
1920x1080 high (2/3)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	64.9 (56.8^min) fps +50%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	57.8 (54.5^min) fps +33%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.2 (38.5^min) fps +4%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	44.7 (41.8^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	43.3 (40.5^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	37.1 (33.3^min) fps -14%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	22.6 (20.6^min) fps -48%

Shadow of the Tomb Raider - 1280x720 Lowest Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	69.3 fps +107%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	41.2 fps +23%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	39.1 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34.9 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	33.2 fps -1%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15.8 fps -53%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	56.3 fps +91%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46.8 fps +59%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	35.9 fps +22%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.3 fps +10%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	29.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	25.7 fps -13%
1920x1080 High Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	12.6 fps +51%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.7 fps +28%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.66 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.33 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.35 fps -24%

F1 2020
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	102.1 (87^min) fps +75%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	78.4 (70^min) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	66.7 (54^min) fps +15%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	60.2 (53^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	58.2 (52^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	48.5 (43^min) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	32.3 (27^min) fps +58%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	29 (23^min) fps +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	26.4 (22^min) fps +29%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	21 (16^min) fps +2%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.5 (16^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.5 (13^min) fps -20%

F1 2021
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	109.5 (93^min, 91^P1) fps +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	92.1 (71^min, 71^P1) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	78.3 (58^min, 55^P1) fps +14%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	71.5 (56^min, 55^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	68.4 (49^min, 49^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	56.8 (45^min, 44^P1) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	35.2 (29^min, 28^P1) fps +44%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	33.2 (28^min, 26^P1) fps +36%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	29.2 (25^min, 23^P1) fps +20%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	25.2 (21^min, 20^P1) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	24.4 (20^min, 20^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	20.1 (16^min, 16^P1) fps -18%

	bajo	medio	alto	ultra
GTA V (2015)	108.8	91.9
The Witcher 3 (2015)	59.5	36.4	19.2	9.57
Dota 2 Reborn (2015)	106.2	79.2	43.3	40.4
Final Fantasy XV Benchmark (2018)	28.1	14.5	10.4
X-Plane 11.11 (2018)	36.2	24.2	21.5
Far Cry 5 (2018)	36	17	16	15
Strange Brigade (2018)	61.7	25.1	19.8	16.8
Shadow of the Tomb Raider (2018)	33.4	15
Far Cry New Dawn (2019)	33	17	16	15
Metro Exodus (2019)	27.3	12.3	9.54	7.65
Borderlands 3 (2019)	31.4	13.9	8.29	6.02
F1 2020 (2020)	58.2	27.5	20.5	12.9
F1 2021 (2021)	68.4	30.4	24.4	16
God of War (2022)	13.1	11.3	8.94	6.64
Tiny Tina's Wonderlands (2022)	16.7	12.7	8.33	6.44
F1 22 (2022)	27.1	24.3	17.2	13.4
F1 23 (2023)	24.2	21.6	14.8

Emisiones - Frugal y no demasiado ruidoso

Emisiones sonoras

Los valores de emisión de ruido del NiPoGi CK10 no son ni buenos ni malos. Representan mucho mejor un resultado medio. En modo inactivo, los ventiladores funcionan de forma bastante silenciosa sin molestar. Bajo carga, observamos algo más de 36 dB(A), lo que significa que nuestra muestra de prueba alcanzó el mismo resultado que elMinisforum Venus Serie NAB6. En comparación con laMinisforum Venus Serie UN1245, la NiPoGi lo hizo considerablemente mejor, ya que sus emisiones de ruido de 36 dB(A) bajo carga no son molestas.

Ruido

Ocioso		30.6 / 31.1 / 31.7 dB(A)
Carga		32.9 / 36.1 dB(A)

	30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R (15 cm de distancia) environment noise: 25 dB(A)

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		4%	-1%	2%	-9%	8%	-5%
off / environment *	25	29.4 -18%	29.4 -18%	29.7 -19%	25.2 -1%	25.4 -2%	25.1 -0%
Idle Minimum *	30.6	29.4 4%	29.4 4%	30.2 1%	32 -5%	26.2 14%	25.3 17%
Idle Average *	31.1	29.4 5%	29.5 5%	30.2 3%	32.1 -3%	26.5 15%	25.3 19%
Idle Maximum *	31.7	29.5 7%	29.7 6%	30.2 5%	32.2 -2%	27.3 14%	25.3 20%
Load Average *	32.9	29.6 10%	34.6 -5%	30.6 7%	39.8 -21%	30.8 6%	46 -40%
Witcher 3 ultra *	36.2			30.5 16%		32.6 10%
Load Maximum *	36.1	29.6 18%	36.1 -0%	36.4 -1%	43.3 -20%	37.5 -4%	51.8 -43%

* ... más pequeño es mejor

Temperatura

En modo inactivo, las temperaturas de la caja, muy por debajo de los 30 °C, están bien. Al mismo tiempo, sus temperaturas subieron bastante durante la prueba de estrés. Sin embargo, sus valores superiores a 40 °C siguen sin ser preocupantes. Observamos una temperatura máxima del procesador de 91 °C, lo que se debe al límite térmico. Además, observamos que sólo consumía 26 vatios bajo carga permanente, mientras que hasta 35 vatios debería ser posible. La unidad de refrigeración instalada es demasiado pequeña para poder disipar todo el calor.

NiPoGi CK10 frente a la prueba de esfuerzo (frente)

NiPoGi CK10 frente a la prueba de esfuerzo (espalda)

La fuente de alimentación del NiPoGi CK10 durante la prueba de esfuerzo

Carga Máx.

Inactivo


41.4 °C	39.6 °C	41.9 °C
37.3 °C	35.1 °C	36.7 °C
36.7 °C	33.4 °C	38.6 °C

Máximo: 41.9 °C
Médio: 37.9 °C


35.2 °C	39.9 °C	39.9 °C
35.8 °C	32.4 °C	36.8 °C
36.5 °C	34.5 °C	36.2 °C

Máximo: 39.9 °C
Médio: 36.4 °C

Conector de corriente 39.9 °C | Temperatura del cuarto 22.6 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 37.9 °C / 100 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 41.9 °C / 107 F, compared to the average of 35.4 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 32.1 °C / 90 F.

Consumo de energía

La NiPoGi CK10 con su fuente de alimentación de 65 vatios

Como resultado del bajo consumo de energía del Intel Core i5-12450H, observamos buenos valores de consumo del sistema bajo carga. La fuente de alimentación sólo tiene que suministrar un máximo de 62,3 vatios. Esto es considerablemente menos que el Minisforum Venus Serie UN1245que incorpora el mismo SoC. A su vez, la NiPoGi CK10 se conforma con una fuente de alimentación de 65 vatios; no tuvimos ningún problema al utilizarla. Lo único que hay que mencionar es que sus valores en reposo eran un poco elevados. Esto se manejó mucho mejor en el dispositivo de Minisforum.

Consumo de corriente

Off / Standby	1 / 0.74 Watt
Ocioso	9.1 / 11.3 / 13.7 Watt
Carga	49.5 / 62.3 Watt


Clave: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		5%	-25%	27%	8%	-25%	-11%	-7%	-12%
Idle Minimum *	9.1	8 12%	10.4 -14%	7.3 20%	8.2 10%	8.7 4%	9 1%	9.1 ?(3.6 - 14.3, n=10) -0%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -7%
Idle Average *	11.3	8.7 23%	12.3 -9%	7.8 31%	8.6 24%	14.9 -32%	10.6 6%	11.1 ?(5.3 - 16.8, n=10) 2%	11.7 ?(1.9 - 63, n=91, last 2 years) -4%
Idle Maximum *	13.7	8.8 36%	12.4 9%	8.4 39%	9.6 30%	18.9 -38%	19.9 -45%	15.9 ?(7 - 28.7, n=10) -16%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -7%
Load Average *	49.5	54.6 -10%	72.9 -47%	28.7 42%	52.1 -5%	49.6 -0%	30.9 38%	52.6 ?(34.7 - 76.9, n=10) -6%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -5%
Load Maximum *	62.3	83.2 -34%	101.2 -62%	61.1 2%	73.6 -18%	97.7 -57%	97.8 -57%	72.7 ?(44.6 - 101.2, n=10) -17%	86 ?(18.1 - 271, n=92, last 2 years) -38%
Witcher 3 ultra *							44.8

* ... más pequeño es mejor

Power consumption with external monitor

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Prime95 V2810 Stress (external Monitor): Ø52.5 (44.6-64.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Prime95 V2810 Stress (external Monitor): Ø72.5 (71.3-73.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R15 Multi (external Monitor): Ø58.1 (56.2-59.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R15 Multi (external Monitor): Ø65.9 (65.6-66.2)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø33.1 (28.9-45.5)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.8 (33.7-40.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.3 (43.7-50.8)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1920x1080 The Witcher 3 ultra (external Monitor): Ø49.1 (47.6-71.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Idle 1min (external Monitor): Ø11.3 (10.6-13.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Idle 1min (external Monitor): Ø9.17 (8.95-9.66)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Single (external Monitor): Ø35.5 (32.8-59)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Single (external Monitor): Ø34.8 (33.3-60.8)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Multi (external Monitor): Ø57.9 (53.5-61.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Multi (external Monitor): Ø66 (63.9-67.4)

Pro

+ caja ligera

+ ocupa poco espacio

+ muchos puertos USB

+ Opción de montaje VESA

+ bajo consumo de energía

+ potente SSD

+ rendimiento SSD estable

+ fácil de abrir

+ se pueden instalar tres dispositivos de almacenamiento

Contra

- sin lector de tarjetas SD

- sin Thunderbolt

- Intel Core i5-12450H con bajo límite TDP

- sistema de refrigeración débil

Veredicto - Un buen SoC, pero sin suficiente potencia de refrigeración

Reseña de NiPoGi CK10 - muestra de prueba proporcionada por NiPoGi

El NiPoGi CK10 es un PC de oficina superpequeño y sencillo que no consigue destacar entre la multitud. En general, acogemos con satisfacción el uso de procesadores Alder Lake, ya que es posible alcanzar niveles de rendimiento decentes al tiempo que se ahorra energía mediante el uso de un diseño híbrido. Sin embargo, el sistema de refrigeración tiene que encajar para evitar una restricción artificial del rendimiento, como vimos en el CK10. En conjunto, medimos un rendimiento adecuado que, por desgracia, se resintió cuando se cargaron todos los núcleos. El NiPoGi CK10 sigue siendo adecuado para un uso sencillo de oficina diario. No medimos ninguna latencia perceptible en nuestra configuración de prueba con 16 GB de RAM y un SSD de 512 GB.

El NiPoGi CK10 es un sencillo mini PC basado en un Intel Core i5-12450H. Por desgracia, el SoC se quedó por detrás de nuestras expectativas debido a sus restricciones de potencia.

Además, una buena conectividad es importante en el uso diario. En este aspecto, el NiPoGi CK10 ofrece sólidas opciones de conectividad de base. Lamentablemente, no incluye Thunderbolt ni un lector de tarjetas SD. Sin embargo, su competidor directo, el Minisforum Venus Series UN1245, tampoco dispone de ellos.

Si echamos un vistazo al precio del NiPoGi CK10, a primera vista no parece el mejor. Actualmente puede encontrarla por unos 530 dólares. Una Minisforum Venus Series UN1245 con una configuración similar cuesta unos 100 dólares menos. A veces, se pueden encontrar grandes descuentos en el PC, lo que podría hacer el precio mucho más atractivo.

Precio y disponibilidad

La NiPoGi CK10 se vende al por menor por unos 530 dólares estadounidenses. En el momento de escribir estas líneas, no se puede encontrar en ninguna tienda en línea de EE.UU., pero sí en Amazon.co.uk.

NiPoGi CK10 - 2023-10-18 10/18/2023 v7
Sebastian Bade

Acabado

81 / 98 → 82%

Conectividad

50 / 81 → 62%

Peso

83%

Rendimiento de juegos

61%

Rendimiento de la Aplicación

87%

Temperatura

90%

Ruido

85%

Médio

74%

77%

Mini PC - media ponderada

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Editor of the original article: Daisy Dickson - Translator - 215 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 390192 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Análisis del NiPoGi CK10 - El mini PC con un Intel Core i5-12450H y 16 GB de RAM no cumple las expectativas

Sebastian Bade, 2023-10-20 (Update: 2023-10-20)
