Breve análisis del Acer Aspire E5-553G-109A

Sven Kloevekorn (traducido por Francisco García), 01/29/PM

Competitividad limitada. A pesar de algunas estrategias buenas, un SSD y bastante rendimiento CPU, no nos terminamos de acostumbrar al nuevo multimedia de Acer con base AMD. El motor no funciona con tanta eficiencia y fiabilidad como la competencia de Intel, y especialmente el display TN subpar sin flexibilidad ninguna en lo tocante al ángulo de visión seguramente sólo le vanga a los usuarios nada exigentes.

Acer Aspire E15 E5-553G-109A (Aspire E5 Serie)
Procesador
AMD A12-9700P 2.5 GHz
Adaptador gráfico
AMD Radeon R8 M445DX - 2048 MB, Núcleo: 1020 MHz, Memoría: 2000 MHz, DDR3/DDR4, 16.101.1201.1007, AMD Enduro
Memoría
8192 MB
, DDR4, 1866 MHz, Dual-Channel, ambas ranuras ocupadas
pantalla
15.6 pulgadas 16:9, 1920x1080 pixels 141 PPI, Chi Mei CMN15C4 / N156HGE-EAB, TN LED, lustroso: no
Placa base
AMD CZ FCH
Disco duro
Liteonit CV3-8D128, 128 GB
, + 1 x Toshiba MQ01ABD100 1 TB
Tarjeta de sonido
AMD Kabini - High Definition Audio Controller
Conexiones
1 USB 2.0, 3 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Conexiones: Entrada/salida de audio, clavija de 3.5mm, Card Reader: SD/SDHC/SDXC, Brightness Sensor
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n/ac), Bluetooth 4.1
Unidad óptica
Slimtype DVD A DA8AESH
Tamaño
Alto x ancho x profundidad (en mm): 25 x 382 x 256
Battería
40 Wh, 2800 mAh Litio-Ion, 4 celdas
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 1.3 MP HD (720p), 30 FPS
Características adicionales
Altavoces: estéreo, Teclado: Chiclet, Luz de Teclado: no, 24 Meses Garantía
Peso
2.4 kg, Suministro de Electricidad: 207 g
Precio
629 EUR

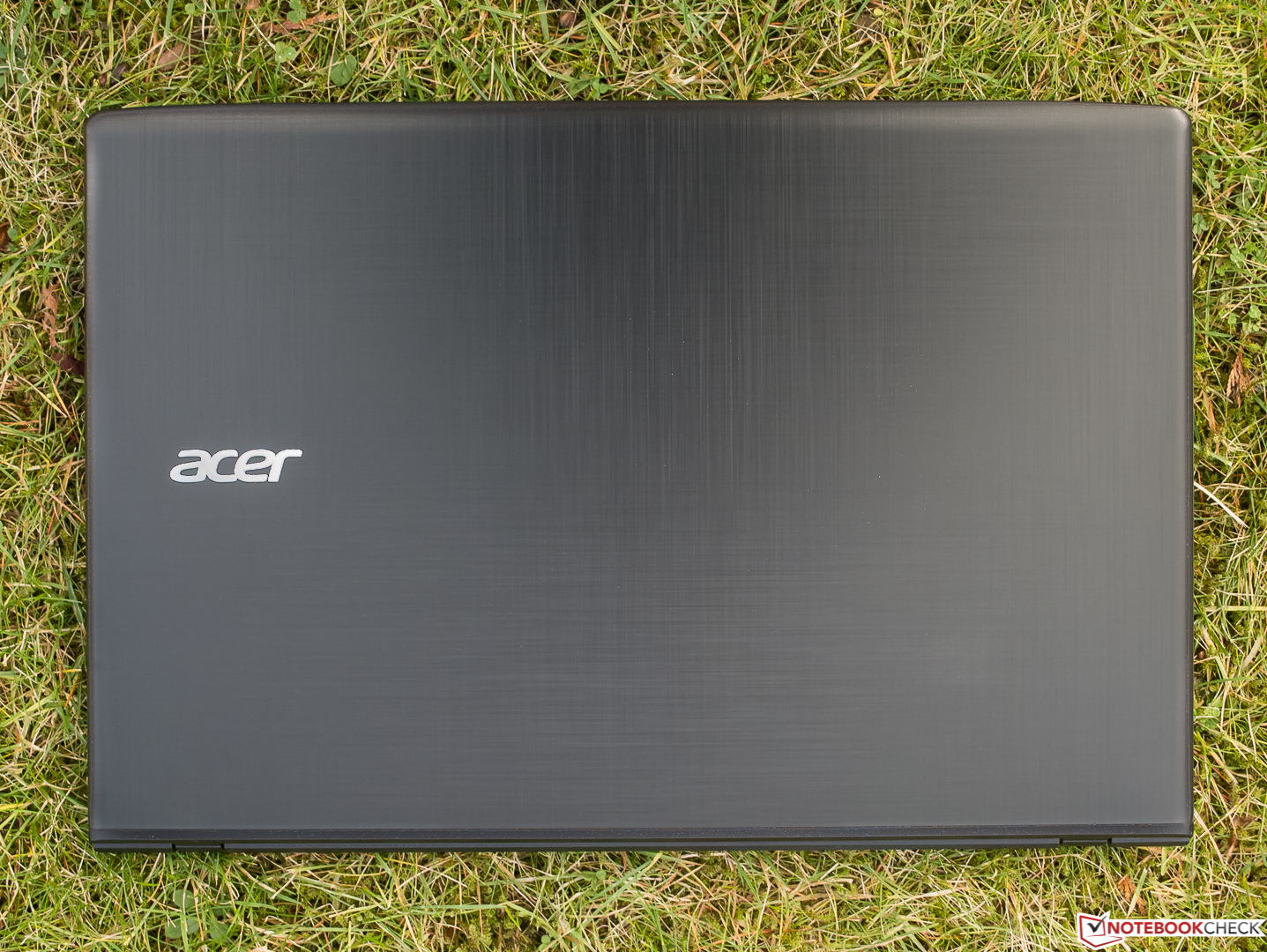

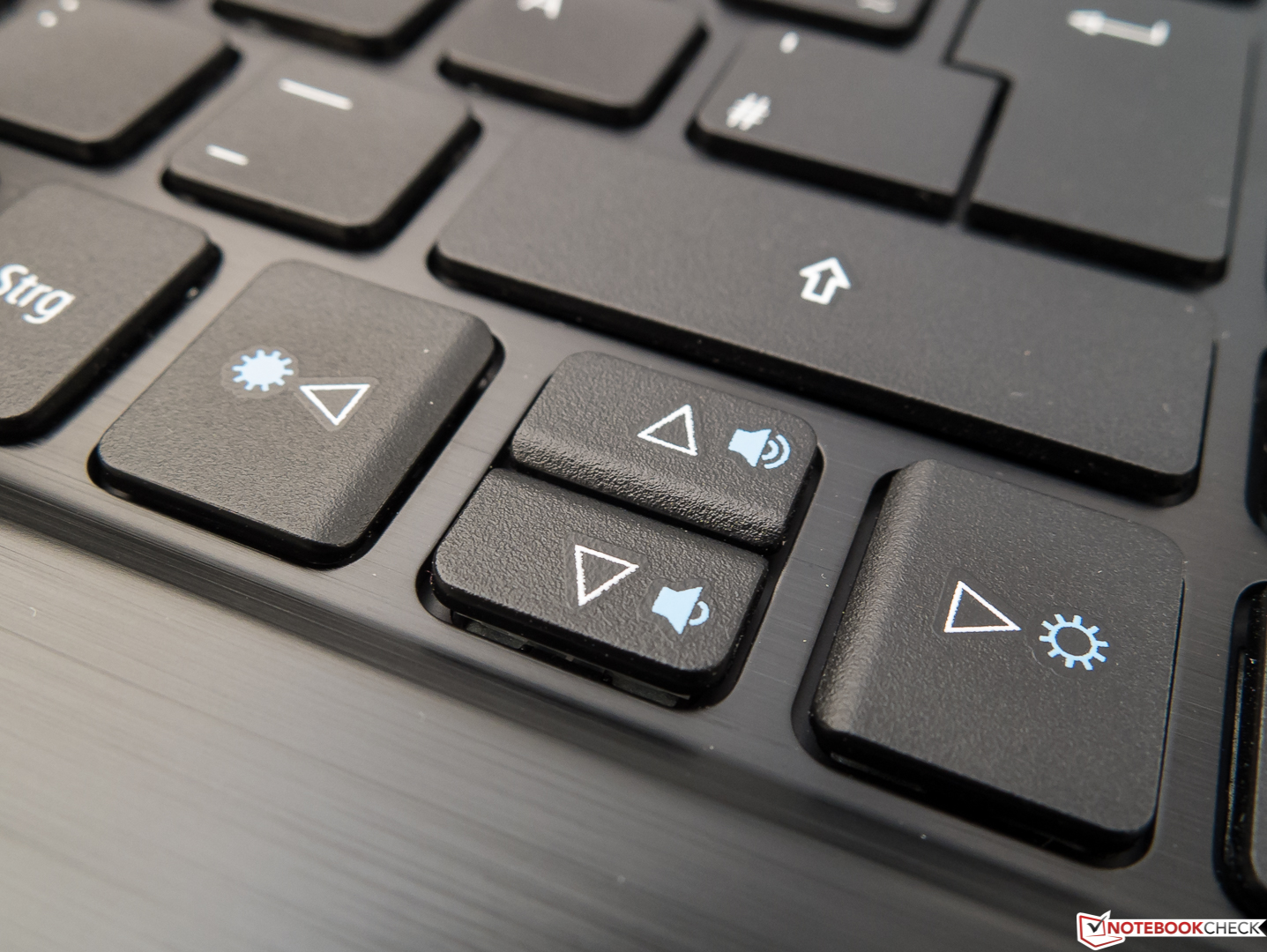

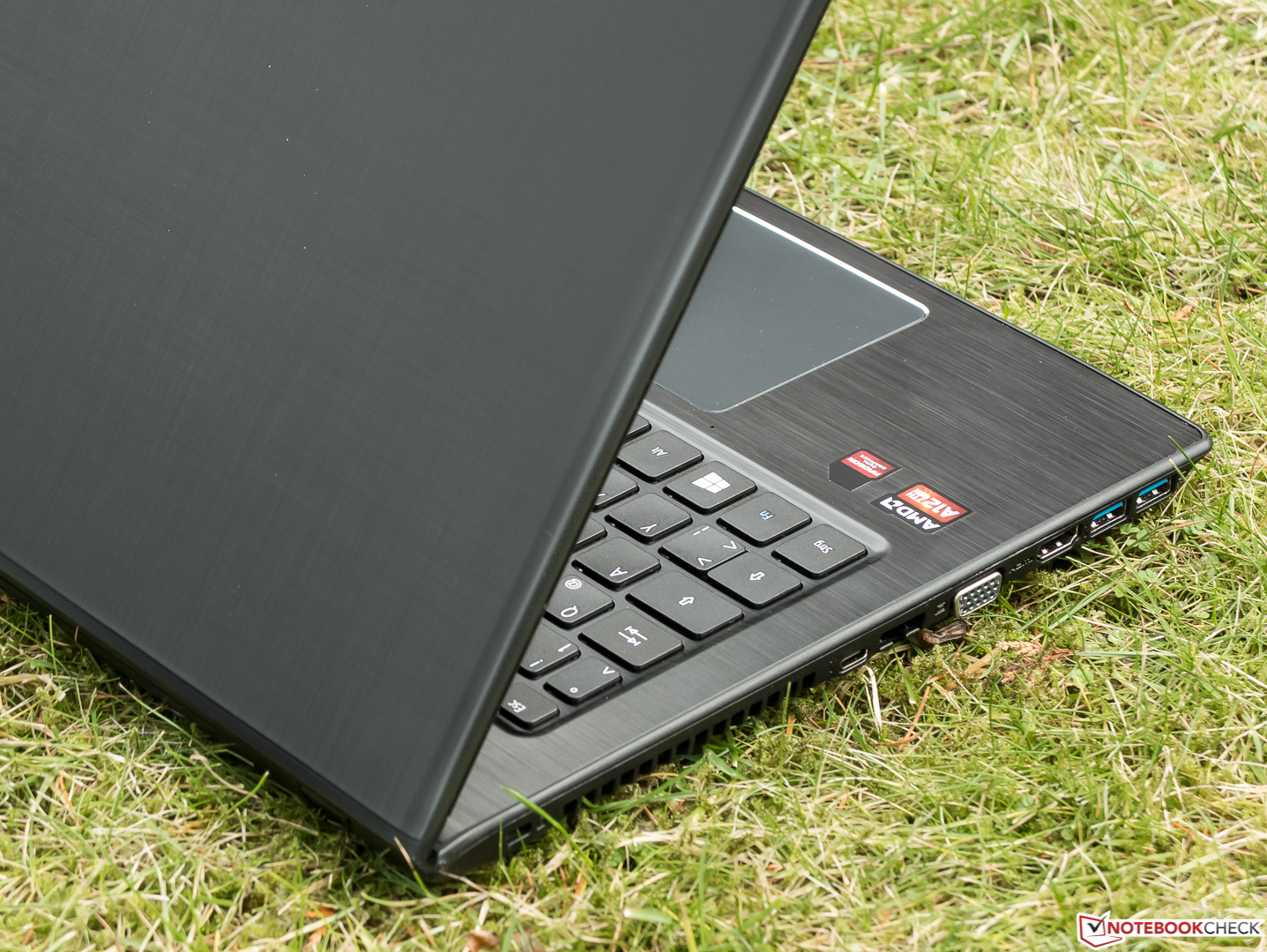

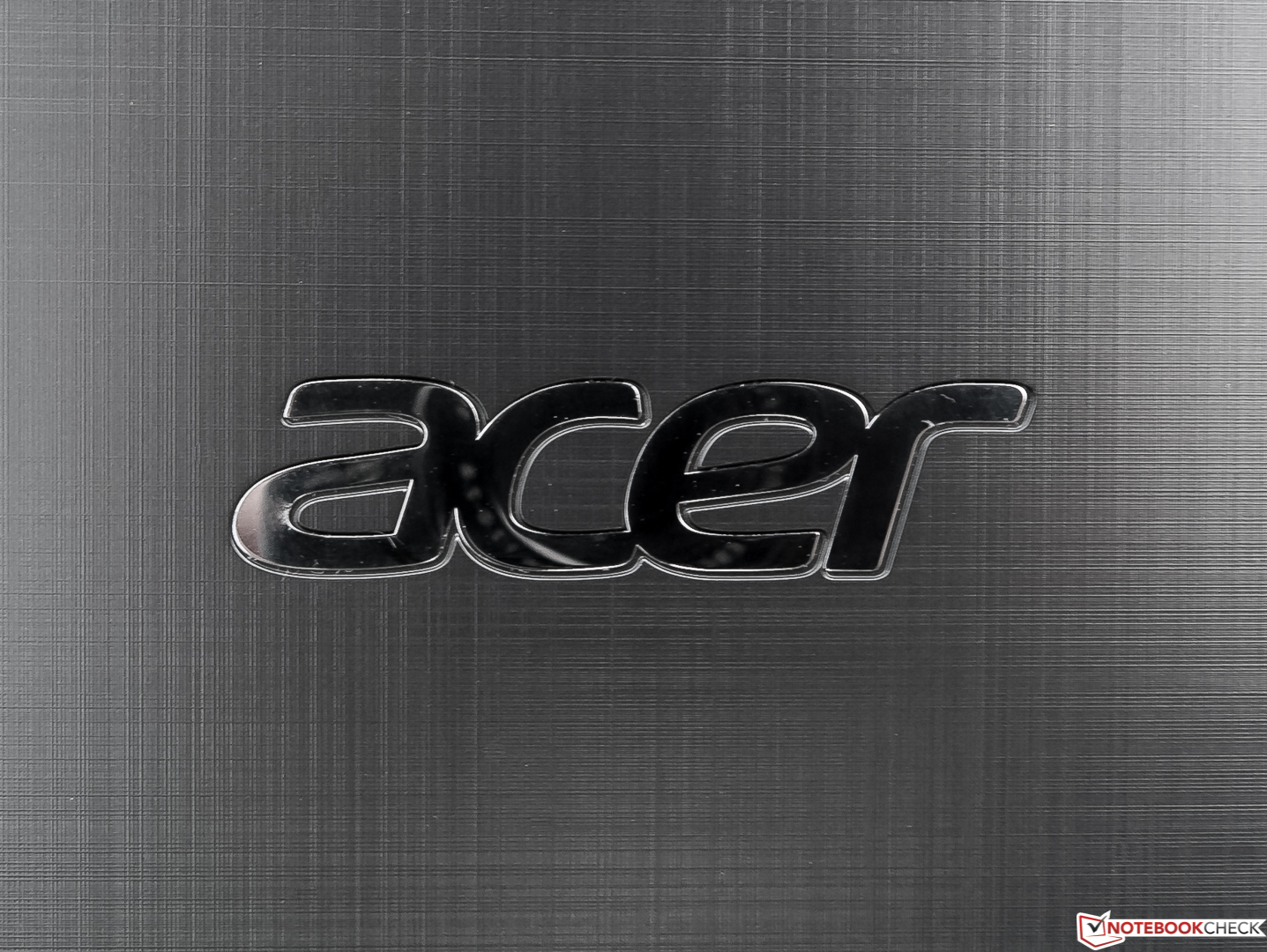

Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G
Acer Aspire E5-553G

Size Comparison

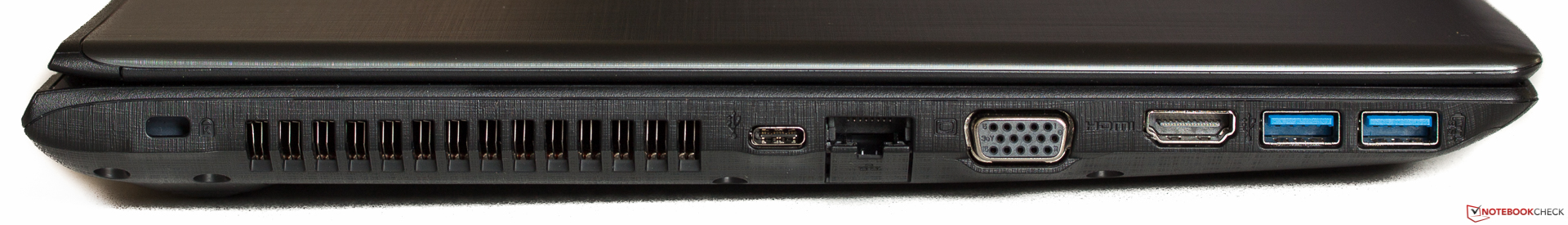

Left side: Kensington lock, air outlet, USB 3.1 Type-C, Ethernet (folds out), VGA, HDMI, 2 x USB 3.0
Left side: Kensington lock, air outlet, USB 3.1 Type-C, Ethernet (folds out), VGA, HDMI, 2 x USB 3.0

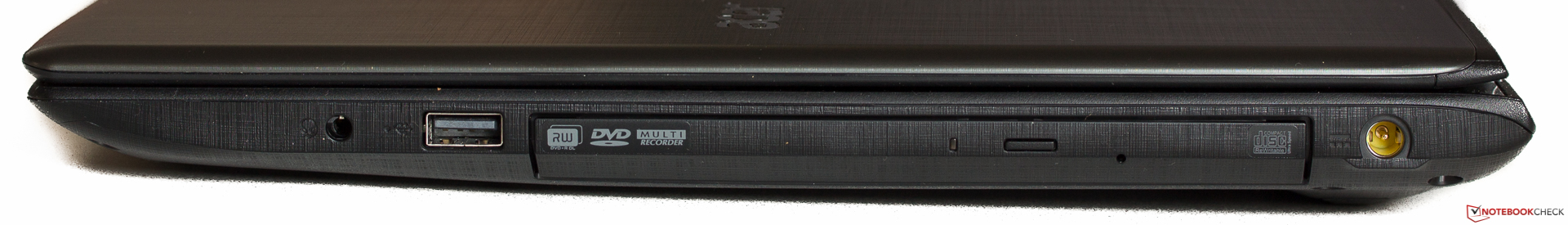

Right side: audio in/out, USB 2.0, DVD drive, power
Right side: audio in/out, USB 2.0, DVD drive, power
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Acer Aspire E15 E5-553G-109A
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
57.3 MB/s ∼100%
Acer Aspire E5-575G-549D
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
52.6 MB/s ∼92% -8%
Medion Akoya P6670
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
21.8 MB/s ∼38% -62%
Lenovo Ideapad 510-15ISK
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
16.7 MB/s ∼29% -71%
maximum AS SSD Seq Read Test (1GB)
Acer Aspire E15 E5-553G-109A
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.15 MB/s ∼100%
Acer Aspire E5-575G-549D
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
80.9 MB/s ∼97% -3%
Medion Akoya P6670
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.3 MB/s ∼33% -67%
Lenovo Ideapad 510-15ISK
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.3 MB/s ∼32% -68%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Acer Aspire E15 E5-553G-109A
Qualcomm Atheros QCA9377 Wireless Network Adapter (RTL GBE)
333 MBit/s ∼100%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer Aspire E15 E5-553G-109A
Qualcomm Atheros QCA9377 Wireless Network Adapter (RTL GBE)
346 MBit/s ∼100%
198
cd/m²
228
cd/m²
212
cd/m²
188
cd/m²
224
cd/m²
196
cd/m²
171
cd/m²
205
cd/m²
184
cd/m²
Temperatura del cuarto
X-Rite i1Pro 2
Máximo: 228 cd/m² Médio: 200.7 cd/m² Minimum: 17.6 cd/m²
iluminación: 75 %
Brillo con batería: 224 cd/m²
Contraste: 487:1 (Negro: 0.46 cd/m²)
ΔE Color 10.5 | - Ø
ΔE Greyscale 11.23 | - Ø
59% sRGB (Argyll) 38% AdobeRGB 1998 (Argyll)
Gamma: 2.12
Acer Aspire E15 E5-553G-109A
Chi Mei CMN15C4 / N156HGE-EAB, , 1920x1080, 15.6
Lenovo Ideapad 510-15ISK
LG Philips LGD04A7 / LG Display LP156WF6-SPK2 , , 1920x1080, 15.6
Acer Aspire E5-575G-549D
Chi Mei CMN15C4, , 1920x1080, 15.6
Medion Akoya P6670
LG Philips LP156WF6-SPK3, , 1920x1080, 15.6
Response Times
-53%
-28%
-50%
Response Time Grey 50% / Grey 80% *
42.4
40
6%
39
8%
42
1%
Response Time Black / White *
14.6
24
-64%
24
-64%
22
-51%
PWM Frequency
28740
50
-100%
50
-100%
Screen
27%
1%
10%
Brightness
201
276
37%
169
-16%
269
34%
Brightness Distribution
75
80
7%
91
21%
74
-1%
Black Level *
0.46
0.33
28%
0.47
-2%
0.65
-41%
Contrast
487
861
77%
374
-23%
442
-9%
Colorchecker DeltaE2000 *
10.5
7.21
31%
8.83
16%
5.42
48%
Greyscale DeltaE2000 *
11.23
6.86
39%
8.97
20%
5.14
54%
Gamma
2.12 113%
2.46 98%
2.43 99%
2.48 97%
CCT
11096 59%
6726 97%
10234 64%
6952 93%
Color Space (Percent of AdobeRGB 1998)
38
37
-3%
36.8
-3%
36
-5%
Color Space (Percent of sRGB)
59
58
-2%
57.3
-3%
57
-3%
Media total (Programa/Opciones)
-13% / 5%
-14% / -5%
-20% / -7%

* ... más pequeño es mejor

Tiempos de respuesta del display

Los tiempos de respuesta del display muestran lo rápido que puede cambiar la pantalla de un color al siguiente. Tiempos lentos de respuesta pueden llevar a imágenes persistentes alrededor de objetos en movimiento o a displays borrosos. Particularmente los aficionados a los juegos 3D frenéticos deberían usar una pantalla con tiempos de respuesta rápidos.
       Tiempo de respuesta de Negro a Blanco
14.6 ms ... subida ↗ y bajada ↘ combinada↗ 9.4 ms subida
↘ 5.2 ms bajada
La pantalla mostró buenos tiempos de respuesta en nuestros tests pero podría ser demasiado lenta para los jugones competitivos.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 7 % de todos los dispositivos son mejores.
Esto quiere decir que el tiempo de respuesta medido es mejor que la media (27.2 ms) de todos los dispositivos testados.
       Tiempo de respuesta 50% Gris a 80% Gris
42.4 ms ... subida ↗ y bajada ↘ combinada↗ 22 ms subida
↘ 20.4 ms bajada
La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones.
En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 52 % de todos los dispositivos son mejores.
Eso quiere decir que el tiempo de respuesta es similar al dispositivo testado medio (44.2 ms).

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)

Para atenuar el brillo de pantalla algunos portátiles están encendiendo y apagando la retroiluminación muy rápidamente. Esto se hace a una frecuencia que no debiera detectarse a simple vista. Si la frecuencia es demasiado lenta, la gente sensible podría experimentar problemas visuales, dolores de cabeza e incluso ver parpadeos.
Parpadeo de Pantalla / PWM detectado 28740 Hz

La retroiluminación del display parpadea a 28740 Hz (seguramente usa PWM - Pulse-Width Modulation) .

La frecuencia de 28740 Hz es bastante alta, por lo que la mayoría de gente sensible al parpadeo no debería ver parpadeo o tener fatiga visual.

Comparación: 60 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 1345 (mínimo: 43 - máxmo: 30860) Hz.


Cinebench R15
CPU Single 64Bit
Acer Aspire E5-575G-549D
Intel Core i5-7200U
129 Points ∼58% +65%
Medion Akoya P6670
Intel Core i5-6200U
117 Points ∼52% +50%
Lenovo Ideapad 510-15ISK
Intel Core i5-6200U
109 Points ∼49% +40%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
98 Points ∼44% +26%
Acer Aspire E15 E5-553G-109A
AMD A12-9700P
78 Points ∼35%
CPU Multi 64Bit
Acer Aspire E5-575G-549D
Intel Core i5-7200U
331 Points ∼18% +45%
Lenovo Ideapad 510-15ISK
Intel Core i5-6200U
293 Points ∼16% +28%
Medion Akoya P6670
Intel Core i5-6200U
291 Points ∼16% +27%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
250 Points ∼13% +9%
Acer Aspire E15 E5-553G-109A
AMD A12-9700P
229 Points ∼12%
Cinebench R10 Rendering Single 32Bit
2262
Cinebench R10 Rendering Multiple CPUs 32Bit
5148
Cinebench R11.5 CPU Single 64Bit
0.76 Points
Cinebench R11.5 CPU Multi 64Bit
1.92 Points
Cinebench R15 CPU Single 64Bit
78 Points
Cinebench R15 CPU Multi 64Bit
229 Points
ayuda
PCMark 8
Work Score Accelerated v2
Acer Aspire E5-575G-549D
GeForce GTX 950M, 7200U, Toshiba MQ01ABD100
4047 Points ∼62% +5%
Lenovo Ideapad 510-15ISK
GeForce 940MX, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3907 Points ∼60% +2%
Acer Aspire E15 E5-553G-109A
Radeon R8 M445DX, A12-9700P, Liteonit CV3-8D128
3844 Points ∼59%
Home Score Accelerated v2
Medion Akoya P6670
GeForce 940MX, 6200U, Phison S11-128G
3396 Points ∼57% +19%
Lenovo Ideapad 510-15ISK
GeForce 940MX, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3294 Points ∼55% +16%
Acer Aspire E5-575G-549D
GeForce GTX 950M, 7200U, Toshiba MQ01ABD100
3162 Points ∼53% +11%
Acer Aspire E15 E5-553G-109A
Radeon R8 M445DX, A12-9700P, Liteonit CV3-8D128
2847 Points ∼48%
PCMark 8 Home Score Accelerated v2
2847 puntos
PCMark 8 Work Score Accelerated v2
3844 puntos
ayuda
Acer Aspire E15 E5-553G-109A
Liteonit CV3-8D128
Lenovo Ideapad 510-15ISK
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Acer Aspire E5-575G-549D
Toshiba MQ01ABD100
Medion Akoya P6670
Phison S11-128G
CrystalDiskMark 3.0
-91%
-90%
9%
Write 4k QD32
143.2
0.612
-100%
0.722
-99%
85.68
-40%
Read 4k QD32
171.6
0.602
-100%
0.647
-100%
258
50%
Write 4k
44.94
0.595
-99%
0.726
-98%
59.99
33%
Read 4k
23.76
0.326
-99%
0.366
-98%
31.19
31%
Write 512
185.8
28.08
-85%
25.93
-86%
75.51
-59%
Read 512
295.9
28.87
-90%
29.32
-90%
295.5
0%
Write Seq
311.8
69.91
-78%
85.61
-73%
398
28%
Read Seq
348.6
84.54
-76%
95.33
-73%
441.8
27%
Liteonit CV3-8D128
Sequential Read: 348.6 MB/s
Sequential Write: 311.8 MB/s
512K Read: 295.9 MB/s
512K Write: 185.8 MB/s
4K Read: 23.76 MB/s
4K Write: 44.94 MB/s
4K QD32 Read: 171.6 MB/s
4K QD32 Write: 143.2 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
4251 Points ∼8% +12%
Acer Aspire E15 E5-553G-109A
AMD Radeon R8 M445DX, AMD A12-9700P
3811 Points ∼7%
Medion Akoya P6670
NVIDIA GeForce 940MX, Intel Core i5-6200U
2516 Points ∼5% -34%
Lenovo Ideapad 510-15ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
2343 Points ∼5% -39%
3DMark
1920x1080 Fire Strike Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
3574 Points ∼9% +71%
Acer Aspire E15 E5-553G-109A
AMD Radeon R8 M445DX, AMD A12-9700P
2090 Points ∼5%
Lenovo Ideapad 510-15ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
1580 Points ∼4% -24%
1280x720 Cloud Gate Standard Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
22439 Points ∼14% +85%
Acer Aspire E15 E5-553G-109A
AMD Radeon R8 M445DX, AMD A12-9700P
12140 Points ∼7%
Lenovo Ideapad 510-15ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
8541 Points ∼5% -30%
3DMark 11 Performance
2992 puntos
3DMark Cloud Gate Standard Score
6270 puntos
3DMark Fire Strike Score
1644 puntos
ayuda
bajo medio alto ultra
The Witcher 3 (2015) 24.315.3fps
Rise of the Tomb Raider (2016) 23.914.8fps
Battlefield 1 (2016) 31.27.9fps
Civilization VI (2016) 36.89.7fps
Farming Simulator 17 (2016) 63.821.6fps
Dishonored 2 (2016) 13.8fps
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.93332.533.931.632.92530.631.831.832.830.730.63131.53433.63531.831.54030.231.334.832.230.730.25030.72934.330.629.630.76326.928.328.627.327.526.98029.529.827.929.726.529.51003029.42930.825.93012525.725.624.826.124.825.716024.822.623.324.723.724.820023.523.323.623.322.823.525022.622.722.222.122.322.631522.222.521.521.821.122.24002221.820.620.520.42250020.821.120.219.819.720.863020.22119.119.51920.28002423.72323.718.824100022.923.221.422.518.422.9125023.423.518.620.417.523.4160025.425.518.819.517.625.4200023.424.118.719.217.523.4250020.220.318.118.217.720.2315018.918.9181817.918.9400018.618.318.118.31818.6500018.618.318.118.318.318.6630018.618.118.318.318.218.6800018.618.318.418.418.318.61000018.818.318.418.418.318.81250018.718.318.218.318.218.71600019.418.318.318.418.219.4SPL33.733.831.431.930.533.7N1.91.91.61.71.41.9median 22Acer Aspire E15 E5-553G-109Amedian 21.8median 18.8median 19.5median 18.3median 22Delta2.62.11.72.61.92.635.537.436.732.835.534.234.63535.334.237.536.635.232.437.534.134.332.432.134.132.830.832.63332.83331.330.233333028.929.829.63029.231.429.328.629.227.227.526.526.927.230.731.631.325.730.727.126.826.426.427.125.125.525.623.525.125.925.925.823.825.924.52524.32224.523.724.923.121.523.724.225.623.321.424.224.827.323.520.824.824.128.323.319.924.122.627.521.319.222.622.527.421.61922.520.92620.318.720.920.524.120.318.620.519.822.92018.419.819.720.819.718.519.719.519.919.518.319.519.519.519.318.319.519.219.419.218.319.219.219.21918.219.219.619.2191819.619.519.21918.119.53436.933.531.6342.12.62.11.72.1median 22.6Medion Akoya P6670median 25.5median 21.6median 19.2median 22.63.22.532.63.236.338.337.138.136.335.137.438.135.835.134.5343334.834.534.233.731.933.634.232.532.132.632.932.535.436.337.435.235.431.13131.730.731.129.932.530.528.929.927.329.326.927.827.329.630.330.326.529.627.428.128.527.627.4252725.424.92525.326.126.52525.32425.324.523242324.223.722.62323.224.123.121.423.22425.324.421.12425.225.324.620.225.222.322.821.519.922.321.421.820.619.521.420.721.320.619.220.720.120.920.519.620.12020.62019.3202020.219.819.32019.72019.919.319.719.619.619.619.319.619.419.619.419.219.419.119.219.318.919.11919.21918.61919.219.119.218.919.233.834.533.932.433.82.12.32.11.82.1median 22.3Acer TravelMate P249-M-3895median 22.8median 21.5median 19.9median 22.333.43.12.83hearing rangehide median Fan Noise

Ruido

Ocioso
31.4 / 31.4 / 31.9 dB(A)
DVD
36.6 / dB(A)
Carga
33.7 / 33.8 dB(A)



30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distancia)   environment noise: 30.5 dB(A)
Heat development upper side (load)
Heat development upper side (load)
Heat development underside (load)
Heat development underside (load)
Heat development upper side (idle)
Heat development upper side (idle)
Heat development underside (idle)
Heat development underside (idle)
Carga Máx.
 35.7 °C36.7 °C27.2 °C
 36 °C36.8 °C27.3 °C
 32.4 °C36.6 °C27.4 °C
Máximo: 36.8 °C
Médio: 32.9 °C
24.5 °C31.4 °C56.5 °C
24.8 °C40 °C50.1 °C
26.2 °C34.5 °C34.2 °C
Máximo: 56.5 °C
Médio: 35.8 °C
Conector de corriente  55.3 °C | Temperatura del cuarto 21.4 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.731.632.72531.730.731.7313531.8354029.930.729.95029.629.629.66328.827.528.88029.526.529.510030.725.930.712528.624.828.616030.623.730.620036.322.836.325048.422.348.431553.621.153.640059.820.459.850058.719.758.763066.91966.980073.618.873.6100068.418.468.4125060.517.560.5160057.117.657.1200062.817.562.8250065.317.765.3315066.917.966.9400072.61872.6500071.318.371.3630067.518.267.580007118.3711000075.918.375.91250076.218.276.21600060.618.260.6SPL81.630.581.6N49.31.449.3median 62.8Acer Aspire E15 E5-553G-109Amedian 18.3median 62.8Delta9.41.99.429.53133.630.334.338.730.631.332.430.628.928.828.427.626.427.626.529.424.534.324.43823.146.822.656.721.261.220.460.719.666.619.464.81962.118.562.518.261.418.666.818.568.218.667.318.867.318.870.718.867.718.965.318.863.518.762.518.657.831.278.41.642.3median 18.9Lenovo Ideapad 510-15ISKmedian 62.51.48.633.634.634.736.434.335.233.834.834.132.633.635.53436.736.934.537.237.131.634.431.347.630.157.930.259.830.559.229.163.128.266.43074.73172.731.568.132.464.232.166.128.963.126.767.42567.424.667.524.165.823.76323.559.823.361.723.154.641.279.83.946.4median 30Acer Aspire E5-575G-549Dmedian 63.12.66.143.532.843.544.435.344.443.632.443.643.432.143.445.53345.548.13348.147.329.647.348.828.648.849.926.949.951.725.751.755.526.455.56023.56064.623.864.665.12265.169.321.569.374.621.474.674.420.874.469.919.969.96519.26567.21967.267.718.767.766.418.666.465.918.465.966.718.566.767.618.367.662.818.362.864.318.364.367.318.267.370.31870.362.318.162.380.531.680.551.31.751.3median 65.9Medion Akoya P6670median 19.2median 65.93.62.63.6hearing rangehide median Pink Noise
Acer Aspire E15 E5-553G-109A audio analysis

(±) | speaker loudness is average but good (76 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(±) | linearity of mids is average (12.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.3% higher than median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.5% difference to median)
Compared to same class
» 74% of all tested devices in this class were better, 6% similar, 20% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 63% of all tested devices were better, 8% similar, 30% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Lenovo Ideapad 510-15ISK audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.7% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (6.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.4% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 6% similar, 40% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 36% of all tested devices were better, 5% similar, 58% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Acer Aspire E5-575G-549D audio analysis

(±) | speaker loudness is average but good (80.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.8% lower than median
(-) | bass is not linear (16.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.9% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 3% similar, 29% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 54% of all tested devices were better, 8% similar, 38% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Medion Akoya P6670 audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.8% lower than median
(+) | bass is linear (6.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.3% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.4% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 6% similar, 83% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 2% of all tested devices were better, 2% similar, 96% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Consumo de corriente
Off / Standbydarklight 0.43 / 0.5 Watt
Ociosodarkmidlight 7.2 / 10.3 / 11.9 Watt
Carga midlight 48.2 / 63 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Acer Aspire E15 E5-553G-109A
A12-9700P, Radeon R8 M445DX, Liteonit CV3-8D128, TN LED, 1920x1080, 15.6
Lenovo Ideapad 510-15ISK
6200U, GeForce 940MX, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, IPS, 1920x1080, 15.6
Acer Aspire E5-575G-549D
7200U, GeForce GTX 950M, Toshiba MQ01ABD100, TN, 1920x1080, 15.6
Medion Akoya P6670
6200U, GeForce 940MX, Phison S11-128G, IPS, 1920x1080, 15.6
Power Consumption
0%
3%
12%
Idle Minimum *
7.2
7.7
-7%
6
17%
6.7
7%
Idle Average *
10.3
11.7
-14%
8.1
21%
9.2
11%
Idle Maximum *
11.9
13.6
-14%
9.8
18%
9.7
18%
Load Average *
48.2
48.3
-0%
52.5
-9%
40.6
16%
Load Maximum *
63
41
35%
81.6
-30%
58
8%

* ... más pequeño es mejor

Tiempo de Ejecución de la Batería
Ocioso (sin WLAN, min brillo)
5h 58min
Navegando con WLAN v1.3
4h 17min
Carga (máximo brillo)
0h 55min
Acer Aspire E15 E5-553G-109A
A12-9700P, Radeon R8 M445DX, 40 Wh
Lenovo Ideapad 510-15ISK
6200U, GeForce 940MX, 30 Wh
Acer Aspire E5-575G-549D
7200U, GeForce GTX 950M, 62 Wh
Medion Akoya P6670
6200U, GeForce 940MX, 44 Wh
Duración de Batería
15%
75%
9%
Reader / Idle
358
443
24%
767
114%
Load
55
73
33%
75
36%
WiFi
WiFi v1.3
257
225
-12%
451
75%
280
9%
H.264
460

Pro

+ carcasa resistente
+ escotilla de mantenimiento
+ fabricación impecable
+ ClickPad buenísimo
+ SSD + 1 TB HDD
+ buena selección de puertos para su precio
+ sin PWM
+ fresco dónde tiene que serlo

Contra

- problemas de rendimiento
- gráfica dual sin sentido, con posibilidad de caídas de leves frame
- ralentización fuera del test de estrés
- casi inútil para el juego
- ventilador chirriante a velocidades más altas
- display terrible:
- poco contraste
- mala reproducción de color
- profundidad de color reducida
- estabilidad de ángulo de visión desastrosa

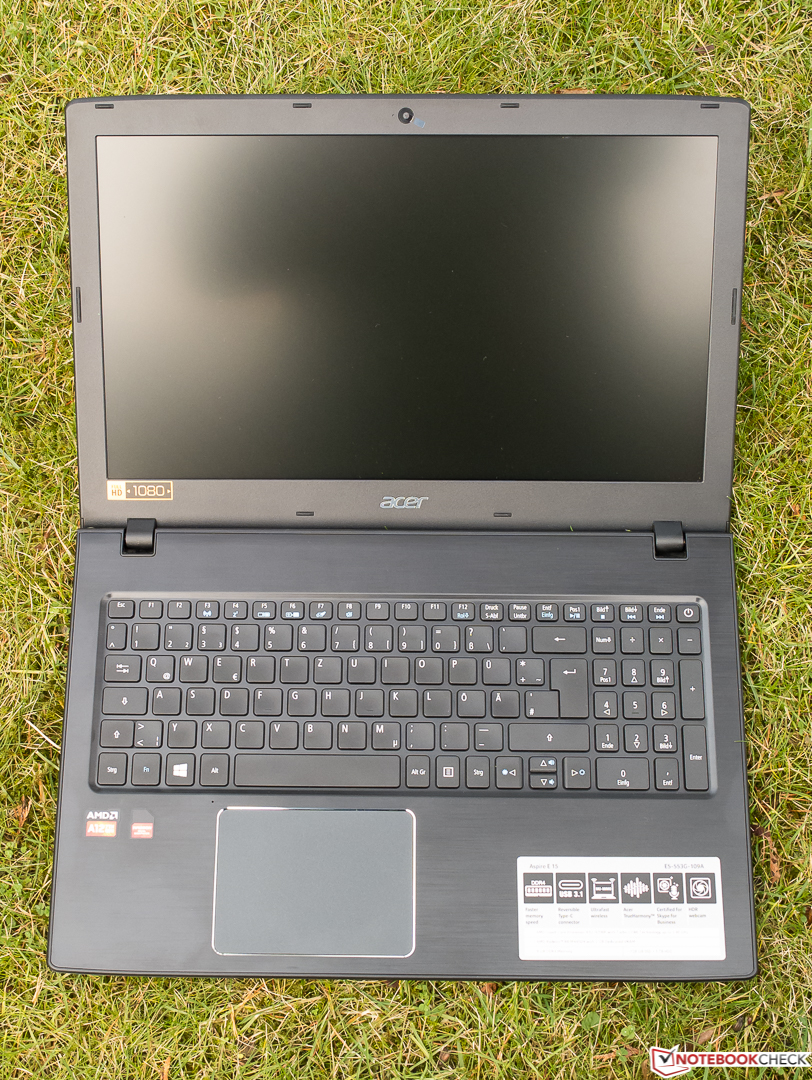

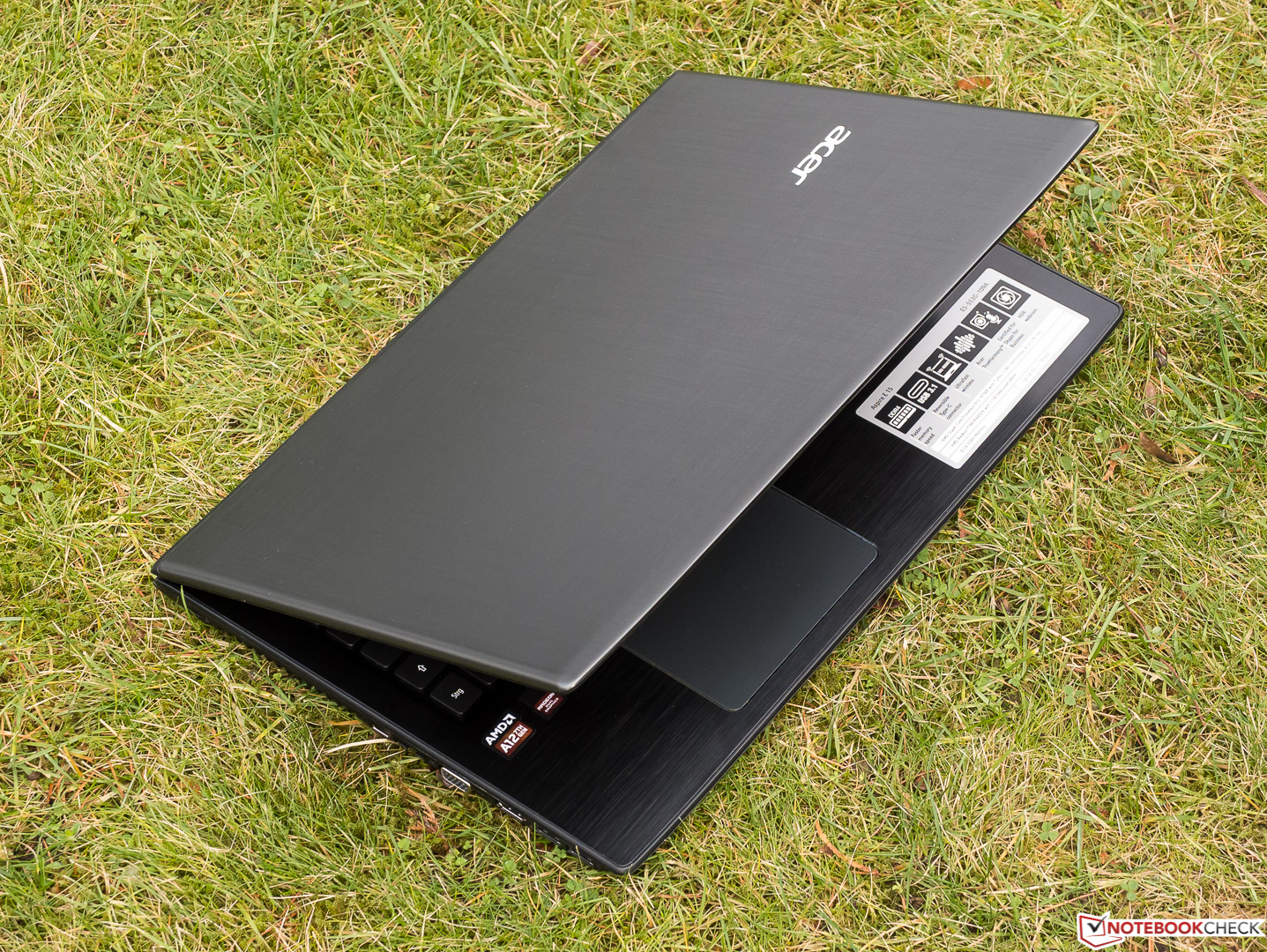

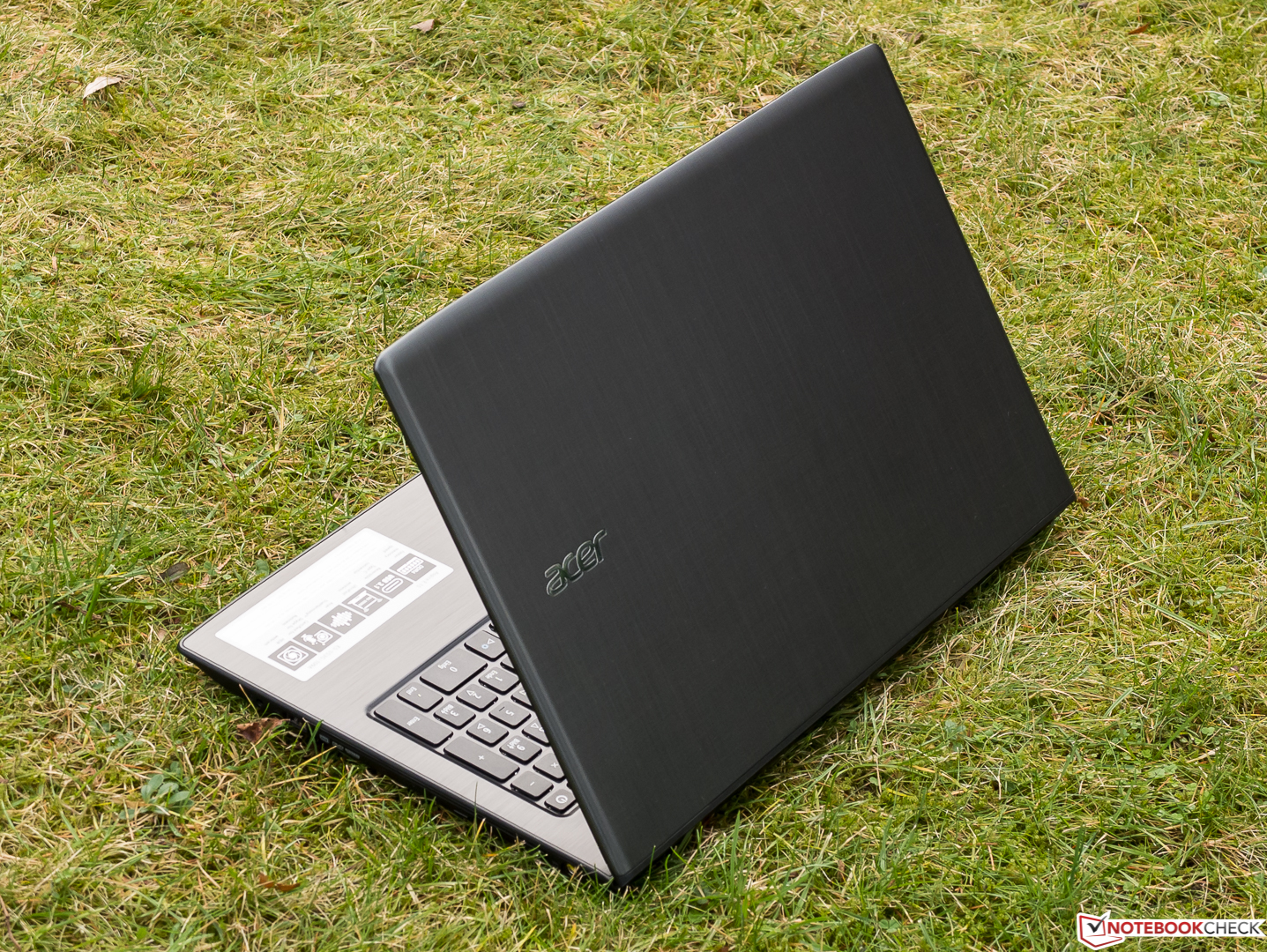

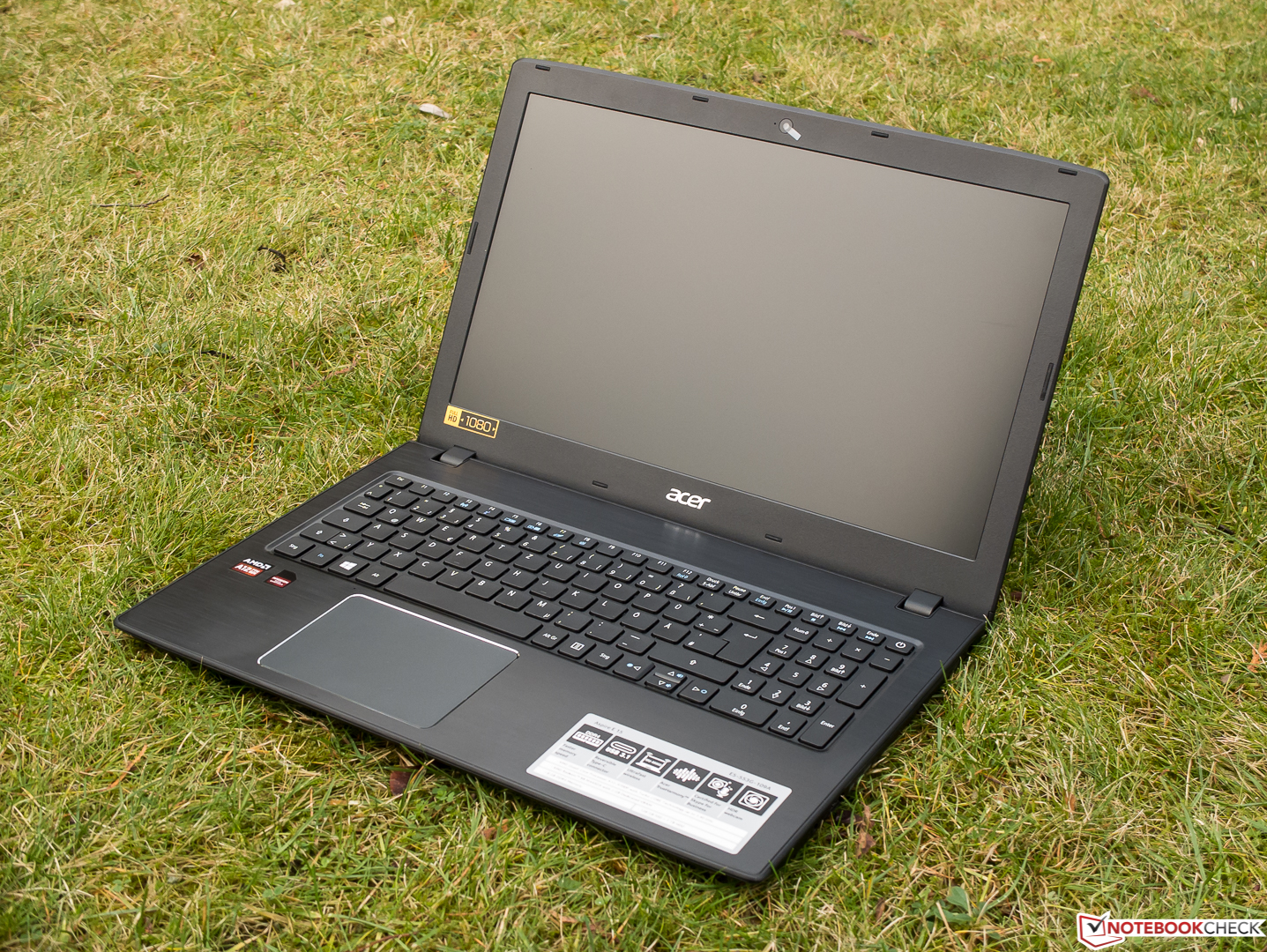

Acer Aspire E5-553G-109A. Modelo de pruebas cortesía de Cyberport.de
Acer Aspire E5-553G-109A. Modelo de pruebas cortesía de Cyberport.de

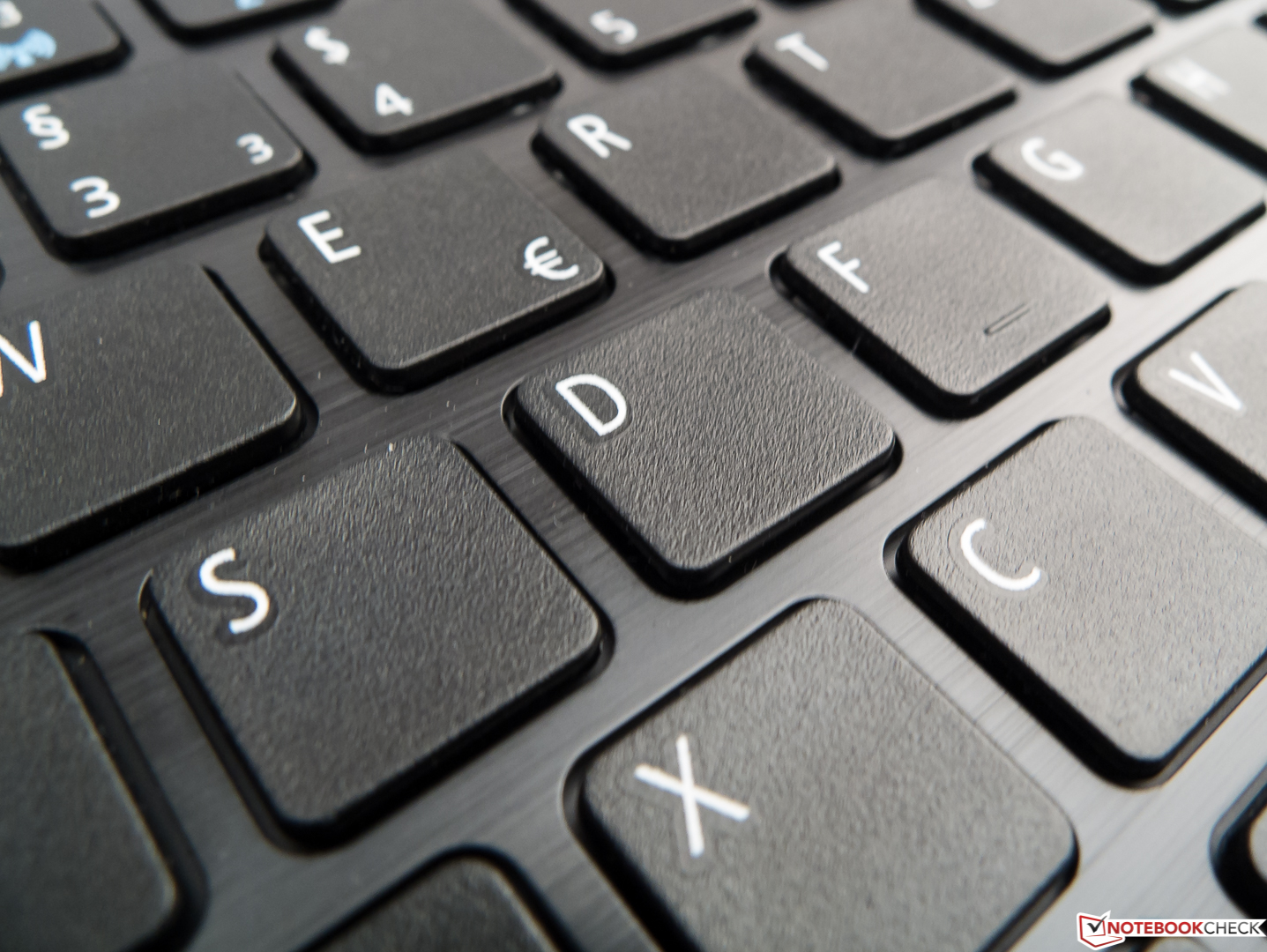

Las características que más nos gustan del  Acer Aspire E5-553G-109A son los dispsoitivos de entrada decente (teclado) a muy bueno (ClickPad) así como la carcasa sólida bien fabricada. El procesador AMD es más adecuado para las aplicaciones ofimáticas y tiene problemas con algunos defectos tales como la ralentización, el uso subóptimo de los cuatro núcleos, y el débil rendimiento monohilo. Raramente adelanta siquiera a los dual-core i3s sin Hyper-Threading en multitarea. La construcción gráfica dual sin sentido Radeon R8 M445DX merece criticarse. No sólo casi no logra FPS adicionales comparado con la R7 M440 dedicada, sino que aumenta el peligro de pérdidas de frames. Al final no importa, ya que la solución gráfica dual se puede desconectar y la R7 M440 puede cumplir las tareas por sí misma, algo que recomendamos. Si evitas una carga elevada persistente, la tecnología AMD rinde tan bien en la práctica que garantiza un funcionamiento mayormente fluido. El SSD, por supuesto, juega un papel.

La mayor debilidad del nuevo Acer es sin duda su terrible display que dificulta hasta encontrarle algo positivo. Con una pantalla así, la recomendación de compra queda lejos.

Especialmente la terrible estabilidad de ángulo de visión no es más que una impertinencia, a pesar del hecho de que la calidad del display siga aún sin ser muy importante a muchos usuarios de portátil. Además, hay bandas de gradientes de color, que no veíamos hacía ya mucho, y probablemente indica una profundidad de color reducida.

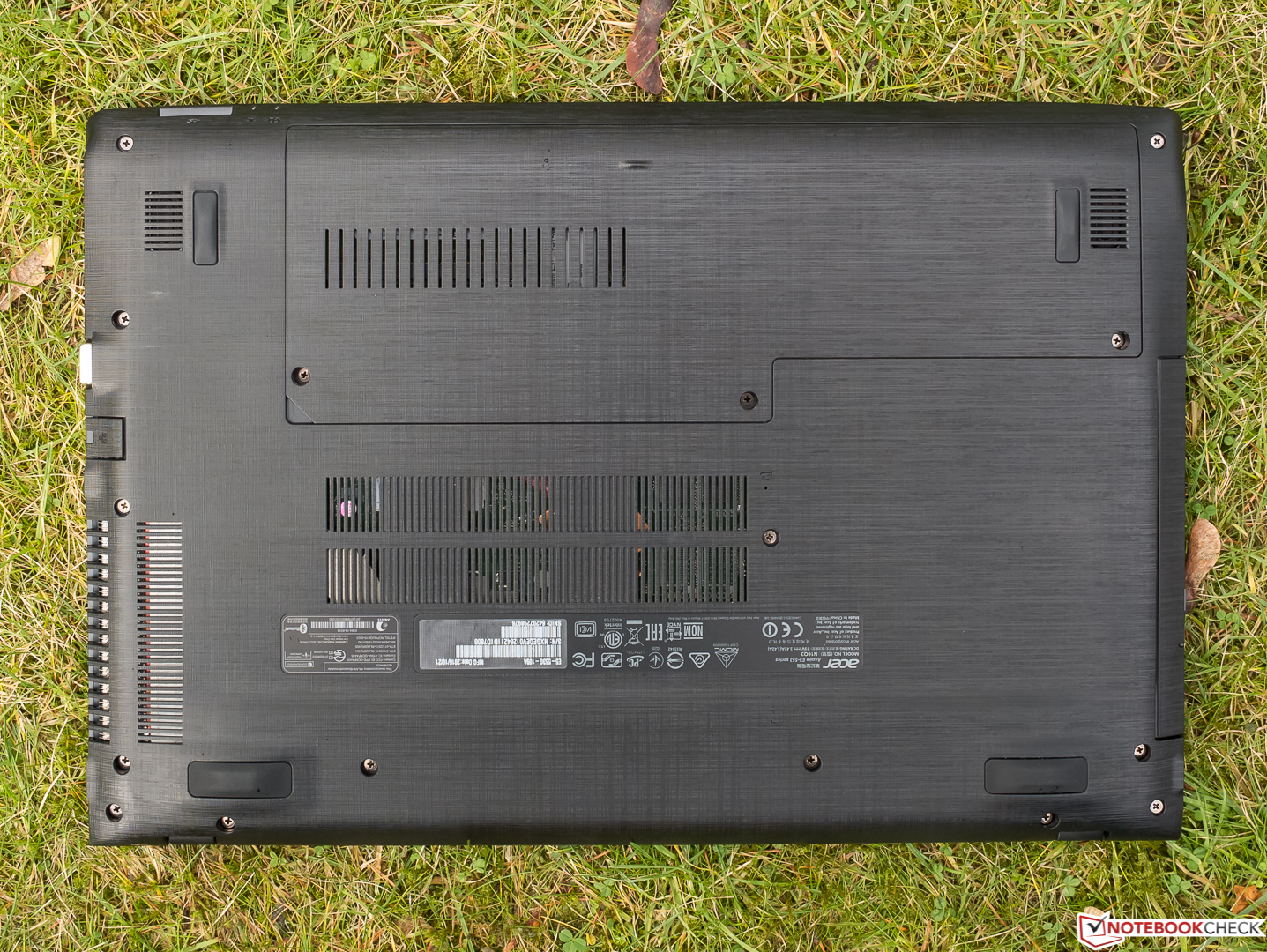

La selección de puertos incluye USB Type-C, por otro lad, y es buena para este nivel de precio, aún cuando los puertos no estén bien posicionados. El módulo WLAN también hace una buena labor a la vista de que sólo tiene una antena. Que Acer incluya una escotilla de mantenimiento es digno de alabanzas hoy día.

Seamos francos: desde nuestro punto de vista difícilmente hay motivos para elegir el Acer E5-553G respecto a ninguno de los otros portátiles multimedia en este análisis. Especialmente el Lenovo IdeaPad 510-15ISK, que es ligeramente más caro, ofrece bastante más por lo que cuesta.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Acer Aspire E15 E5-553G-109A - 01/18/PM v6
Sven Kloevekorn

Acabado
78 / 98 → 79%
Teclado
76%
Ratón
91%
Conectividad
44 / 81 → 54%
Peso
60 / 67 → 86%
Battería
77%
Pantalla
74%
Rendimiento de juegos
60 / 85 → 70%
Rendimiento de la Aplicación
70 / 92 → 76%
Temperatura
90%
Ruido
84 / 95 → 89%
Audio
63%
Cámara
49 / 85 → 58%
Médio
70%
76%
Multimedia - media ponderada

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del Acer Aspire E5-553G-109A
Sven Kloevekorn, 2017-01-29 (Update: 2017-01-29)
