Core i7-8809G de 100 W frente a Core i7-1165G7 de 28 W: ¿Puede Tiger Lake superar al exótico chipset de Intel-AMD?

Core i7-8809G de 100 W frente a Core i7-1165G7 de 28 W: ¿Puede Tiger Lake superar al exótico chipset de Intel-AMD?
Core i7-8809G de 100 W frente a Core i7-1165G7 de 28 W: ¿Puede Tiger Lake superar al exótico chipset de Intel-AMD?
Intel ha recorrido un largo camino desde Kaby Lake. Un análisis más detallado de la evolución y las diferencias entre los NUCs Hades Canyon y Phantom Canyon muestra por qué es poco probable que el fabricante de chips azul busque otra asociación con su homólogo rojo a corto plazo.
Allen Ngo, 🇺🇸 🇫🇷 ...
, , , , , ,
buscar relación
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Intel y AMD hicieron olas en su industria cuando anunciaron una asociación en 2017 para desarrollar conjuntamente la plataforma Kaby Lake-G. Se trataba de un chipset único que casaba una CPU Kaby Lake-H de cuatro núcleos con una GPU Radeon RX Vega, todo ello envuelto bajo una envoltura de 100 W TDP. Sin embargo, no duró mucho en el mercado, debido en parte a su muy limitado apoyo por parte de los principales fabricantes de PC

El NUC de 2018 Hades Canyon sigue siendo el único campeón del Kaby Lake-G Core i7-8809G . Aunque sería una tontería esperar que funcione tan rápido como las últimas soluciones de 2021, seguimos interesados en ver qué diferencia de rendimiento existe entre el raro Core i7-8809G de 100 W y la actual plataforma Tiger Lake-U de 28 W

El NUC11 Phantom Canyon es el sucesor directo del NUC8 Hades Canyon, lo que lo convierte en el sistema perfecto para una comparación cara a cara. Las pruebas de rendimiento multihilo como CineBench, Blender y HWBOT x265 muestran que el Core i7-8809G y el Core i7-1165G7 están muy cerca el uno del otro a pesar de sus enormes diferencias en los niveles de TDP. Sin embargo, la nueva CPU supera ampliamente a la de Intel-AMD cuando se trata de cargas de un solo hilo

Si miramos la Radeon RX Vega M GH y móvil GeForce RTX 2060esta última ofrece velocidades de fotogramas significativamente más rápidas, especialmente cuando se ejecutan títulos DX12 exigentes a resoluciones más altas, en las que el rendimiento está más ligado a la GPU

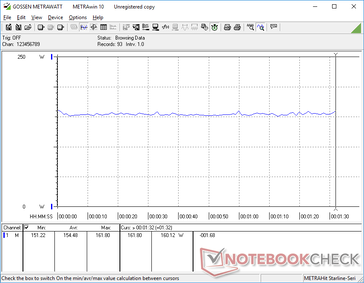

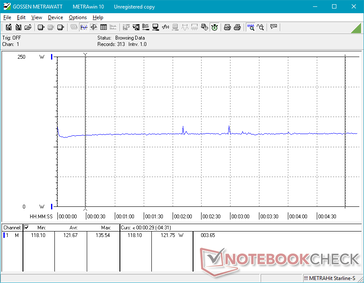

El consumo general de energía es mayor en Phantom Canyon que en Hades Canyon, lo que significa que el aumento de rendimiento no es gratuito. Sin embargo, el aumento del consumo es mucho menor que el aumento del rendimiento en porcentaje para un mayor rendimiento por vatio entre generaciones. Además, las temperaturas de los núcleos y el ruido de los ventiladores se mantienen relativamente constantes entre los dos NUC a pesar de las grandes diferencias de rendimiento. Los usuarios obtienen más rendimiento sin que la máquina haga más ruido o se caliente.

Kaby Lake-G fue divertido mientras duró, pero Phantom Canyon es la prueba de que no se necesita una arquitectura exótica cuando las CPU y GPU "de serie" pueden lograr lo mismo y con mejor soporte de software.

Consulta nuestros análisis completos sobre el NUC8 Hades Canyon y NUC11 Phantom Canyon para saber más sobre estos NUC para juegos.

Intel NUC8 Hades Canyon Especificaciones del núcleoEspecificaciones del núcleo del Intel NUC11 Phantom Canyon
CPU Intel Core i7-8809G de 8ª generación Kaby Lake-G
CPU y GPU combinadas de 100 W TDP
GPU discreta Radeon RX Vega M GH
4 GB de VRAM HBM2
Lanzamiento en 2018
CPU Intel Core i7-1165G7 de 11ª generación Tiger Lake-U
CPU de 28 W TDP + GPU TGP de 80 W a 90 W
GPU móvil discreta GeForce RTX 2060
6 GB de VRAM GDDR6
Lanzamiento en 2021
Intel NUC8 Hades Canyon PuertosIntel NUC11 Phantom Canyon Puertos
2x mini-DisplayPort 1.3
2x RJ-45 a 1 Gbps
6x USB-A
3x USB-C (2x Thunderbolt 3)
2x HDMI 2.0a
1x Óptico
1x Audio de 3,5 mm
1x mini-DisplayPort 1.4
1x RJ-45 de 2,5 Gbps
6x USB-A
2x USB-C (2x Thunderbolt 4)
1x HDMI 2.0b
1x Óptico
1x audio de 3,5 mm
221 mm 142 mm 42 mm 1.4 kg221 mm 142 mm 39 mm 1.3 kg
0551101652202753303854404955506056607157708258809359901011.79901.51905.26909.03909.88910.13909.75912.58915.6915.39914.31913.01913.26913.68913.08916.67910.37909.65912.95916.44912.35904.92914.31912.18911.89913.68913.55910.27914.68918.02913.45910.83912.6916.36910913.18914.43912.7905.51912.06915.35909.61912.39913.43914.37914.49915.44912.28908.9914.18853.81858.98855.8856.68859.57856.38859.83856.95858.39853.83855.23856.38858.68858.68858.11859.53854.96855.52856.68858.96858.11860.4854.41858.68857.25858.96856.66857.82856.38859.83858.41858.39858.68854.96853.53857.25854.66860.99855.8856.95856.09862.44856.68854.96859.83857.82856.95861.29854.94856.951011.79901.51905.26909.03909.88910.13909.75912.58915.6915.39914.31913.01913.26913.68913.08916.67910.37909.65912.95916.44912.35904.92914.31912.18911.89913.68913.55910.27914.68918.02913.45910.83912.6916.36910913.18914.43912.7905.51912.06915.35909.61912.39913.43914.37914.49915.44912.28908.9914.18853.81858.98855.8856.68859.57856.38859.83856.95858.39853.83855.23856.38858.68858.68858.11859.53854.96855.52856.68858.96858.11860.4854.41858.68857.25858.96856.66857.82856.38859.83858.41858.39858.68854.96853.53857.25854.66860.99855.8856.95856.09862.44856.68854.96859.83857.82856.95861.29854.94856.951011.79901.51905.26909.03909.88910.13909.75912.58915.6915.39914.31913.01913.26913.68913.08916.67910.37909.65912.95916.44912.35904.92914.31912.18911.89913.68913.55910.27914.68918.02913.45910.83912.6916.36910913.18914.43912.7905.51912.06915.35909.61912.39913.43914.37914.49915.44912.28908.9914.18853.81858.98855.8856.68859.57856.38859.83856.95858.39853.83855.23856.38858.68858.68858.11859.53854.96855.52856.68858.96858.11860.4854.41858.68857.25858.96856.66857.82856.38859.83858.41858.39858.68854.96853.53857.25854.66860.99855.8856.95856.09862.44856.68854.96859.83857.82856.95861.29854.94856.95Tooltip
Intel NUC11PHKi7C Intel Core i7-1165G7; CPU Multi 64Bit: Ø914 (901.51-1011.79)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G; CPU Multi 64Bit: Ø857 (853.53-862.44)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
2005 Points ∼100% +21%
Intel NUC11PHKi7C
Intel Core i7-1165G7
1660 Points ∼83%
Cinebench R20 / CPU (Single Core)
Intel NUC11PHKi7C
Intel Core i7-1165G7
583 Points ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
404 Points ∼69% -31%
Cinebench R15 / CPU Multi 64Bit
Intel NUC11PHKi7C
Intel Core i7-1165G7
1012 (901.51min - 1011.79max) Points ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼85% -15%
Cinebench R15 / CPU Single 64Bit
Intel NUC11PHKi7C
Intel Core i7-1165G7
229 Points ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼78% -22%
Blender 2.79 / BMW27 CPU
Intel NUC11PHKi7C
Intel Core i7-1165G7
543 Seconds * ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
536.9 Seconds * ∼99% +1%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11PHKi7C
Intel Core i7-1165G7
5260 MIPS ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
4101 MIPS ∼78% -22%
7-Zip 18.03 / 7z b 4
Intel NUC11PHKi7C
Intel Core i7-1165G7
24684 MIPS ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
19347 MIPS ∼78% -22%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC11PHKi7C
Intel Core i7-1165G7
1544 Points ∼100%
Geekbench 5.3 / 64 Bit Multi-Core Score
Intel NUC11PHKi7C
Intel Core i7-1165G7
5209 Points ∼100%
HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC11PHKi7C
Intel Core i7-1165G7
7.14 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
7.1 fps ∼99% -1%
LibreOffice / 20 Documents To PDF
Intel NUC11PHKi7C
Intel Core i7-1165G7
48 s * ∼100%
R Benchmark 2.5 / Overall mean
Intel NUC11PHKi7C
Intel Core i7-1165G7
0.561 sec * ∼100%

* ... más pequeño es mejor

3DMark
1920x1080 Fire Strike Graphics
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
17077 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10248 Points ∼60% -40%
Average Intel Iris Xe Graphics G7 96EUs
  (3113 - 5909, n=51)
4904 Points ∼29% -71%
2560x1440 Time Spy Graphics
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
6599 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
2908 Points ∼44% -56%
Average Intel Iris Xe Graphics G7 96EUs
  (994 - 1670, n=52)
1431 Points ∼22% -78%
2560x1440 Time Spy Score
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
6380 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
3096 Points ∼49% -51%
Average Intel Iris Xe Graphics G7 96EUs
  (1121 - 1859, n=50)
1583 Points ∼25% -75%
3840x2160 Fire Strike Ultra Graphics
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
3959 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
2247 Points ∼57% -43%
Average Intel Iris Xe Graphics G7 96EUs
  (682 - 1315, n=15)
1158 Points ∼29% -71%
3DMark 11
1280x720 Performance GPU
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
23992 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
14302 Points ∼60% -40%
Average Intel Iris Xe Graphics G7 96EUs
  (4841 - 7090, n=45)
6364 Points ∼27% -73%
1280x720 Performance Combined
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, i7-1165G7
12149 Points ∼100%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10391 Points ∼86% -14%
Average Intel Iris Xe Graphics G7 96EUs
  (2912 - 7160, n=44)
5261 Points ∼43% -57%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
130 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
81.8 fps ∼63% -37%
Average Intel Iris Xe Graphics G7 96EUs
  (23.8 - 47.3, n=28)
36.7 fps ∼28% -72%
1920x1080 Standard Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
89.2 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
41.2 fps ∼46% -54%
Average Intel Iris Xe Graphics G7 96EUs
  (12.2 - 26.2, n=29)
20.2 fps ∼23% -77%
1920x1080 High Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
67.5 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
20.4 fps ∼30% -70%
Average Intel Iris Xe Graphics G7 96EUs
  (9.53 - 21.7, n=27)
15.3 fps ∼23% -77%
GTA V
1024x768 Lowest Settings possible
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
168 (5.58min, 111P1 - 300max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
165 (1.676min, 100P1 - 336max) fps ∼98% -2%
Average Intel Iris Xe Graphics G7 96EUs
  (59.2 - 107, n=20)
87.8 fps ∼52% -48%
1920x1080 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
165 (4.25min, 111P1 - 348max) fps ∼100% +6%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
156 (4.99min, 111P1 - 301max) fps ∼95%
Average Intel Iris Xe Graphics G7 96EUs
  (35.1 - 88.1, n=20)
68.4 fps ∼41% -56%
1366x768 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
158 (4.71min, 100P1 - 289max) fps ∼100% 0%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
158 (4.65min, 90.9P1 - 266max) fps ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (45.5 - 96, n=20)
74 fps ∼47% -53%
1920x1080 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
157 (3.27min, 100P1 - 316max) fps ∼100% +7%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
147 (4.13min, 90.9P1 - 289max) fps ∼94%
Average Intel Iris Xe Graphics G7 96EUs
  (29.2 - 76.5, n=18)
60 fps ∼38% -59%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
119 (39.3min, 76.9P1 - 229max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
81.2 (1.964min, 62.5P1 - 159max) fps ∼68% -32%
Average Intel Iris Xe Graphics G7 96EUs
  (9.7 - 35, n=20)
24.5 fps ∼21% -79%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
69.6 (19.2min, 47.6P1 - 121max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
39.4 (1.843min, 27P1 - 125max) fps ∼57% -43%
Average Intel Iris Xe Graphics G7 96EUs
  (4.22 - 12.8, n=18)
10.1 fps ∼15% -85%
Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
139 (124.5min) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
127 (103.6min) fps ∼91% -9%
Average Intel Iris Xe Graphics G7 96EUs
  (65.4 - 92.5, n=49)
80.1 fps ∼58% -42%
1366x768 med (1/3)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
123 (107.7min) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
119 (95.8min) fps ∼97% -3%
Average Intel Iris Xe Graphics G7 96EUs
  (45.2 - 87.7, n=49)
63.4 fps ∼52% -48%
1920x1080 high (2/3)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
116 (100.9min) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
108 (87.1min) fps ∼93% -7%
Average Intel Iris Xe Graphics G7 96EUs
  (31.3 - 61.5, n=49)
44.2 fps ∼38% -62%
1920x1080 ultra (3/3) best looking
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
112 (98.7min) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
94.6 (82.1min) fps ∼84% -16%
Average Intel Iris Xe Graphics G7 96EUs
  (29.7 - 55.2, n=49)
41.3 fps ∼37% -63%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
220.7 (196min - 232max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
165.5 (148min - 174max) fps ∼75% -25%
Average Intel Iris Xe Graphics G7 96EUs
  (32.5 - 107, n=45)
82.1 fps ∼37% -63%
1366x768 Medium Graphics & Postprocessing
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
152.2 (142min - 162max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
105.1 (100min - 110max) fps ∼69% -31%
Average Intel Iris Xe Graphics G7 96EUs
  (21.4 - 67, n=44)
52.2 fps ∼34% -66%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
101.5 (96min - 106max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
59.7 (56min - 64max) fps ∼59% -41%
Average Intel Iris Xe Graphics G7 96EUs
  (10.6 - 45.9, n=44)
28.2 fps ∼28% -72%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
61.4 (59min - 64max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
34.3 (32min - 37max) fps ∼56% -44%
Average Intel Iris Xe Graphics G7 96EUs
  (10.3 - 17, n=36)
14.4 fps ∼23% -77%
X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
94.8 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
61.8 fps ∼65% -35%
Average Intel Iris Xe Graphics G7 96EUs
  (15.8 - 63.5, n=53)
38.3 fps ∼40% -60%
1920x1080 med (fps_test=2)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
81.3 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
52.8 fps ∼65% -35%
Average Intel Iris Xe Graphics G7 96EUs
  (17.9 - 45.6, n=53)
34.9 fps ∼43% -57%
1920x1080 high (fps_test=3)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
69.8 fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
45.5 fps ∼65% -35%
Average Intel Iris Xe Graphics G7 96EUs
  (17.3 - 41.7, n=53)
31.3 fps ∼45% -55%
Strange Brigade
1280x720 lowest AF:1
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
287 (77min, 220P1 - 480max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
210 (146min, 184P1 - 270max) fps ∼73% -27%
Average Intel Iris Xe Graphics G7 96EUs
  (54.4 - 97.8, n=16)
86 fps ∼30% -70%
1920x1080 medium AA:medium AF:4
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
148 (64.5min, 124P1 - 240max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
85.3 (73.4min, 74.4P1 - 110max) fps ∼58% -42%
Average Intel Iris Xe Graphics G7 96EUs
  (18.8 - 42.1, n=16)
35 fps ∼24% -76%
1920x1080 high AA:high AF:8
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
124 (75.3min, 98P1 - 191max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
68 (51.7min, 52.9P1 - 92.9max) fps ∼55% -45%
Average Intel Iris Xe Graphics G7 96EUs
  (16.5 - 33.5, n=16)
28.1 fps ∼23% -77%
1920x1080 ultra AA:ultra AF:16
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
109 (68.2min, 83.9P1 - 190max) fps ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
56.6 (42.9min, 44.5P1 - 73.7max) fps ∼52% -48%
Average Intel Iris Xe Graphics G7 96EUs
  (16.9 - 27.2, n=15)
23.3 fps ∼21% -79%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Intel NUC11PHKi7C
Intel Wi-Fi 6 AX201
1129 (1014min - 1229max) MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s ∼33% -67%
iperf3 Client (receive) TCP 1 m 4M x10
Intel NUC11PHKi7C
Intel Wi-Fi 6 AX201
870 (452min - 924max) MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s ∼68% -32%
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Intel NUC11PHKi7C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
173.9 MB/s ∼100%
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s ∼47% -53%
maximum AS SSD Seq Read Test (1GB)
Intel NUC11PHKi7C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
201.37 MB/s ∼100%
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.27 MB/s ∼44% -56%
Intel NUC11PHKi7C
GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise
-10%
off / environment *
24.5
28.7
-17%
Idle Minimum *
25.3
29
-15%
Idle Average *
25.3
29
-15%
Idle Maximum *
25.3
29
-15%
Load Average *
36.4
36
1%
Witcher 3 ultra *
39.7
42
-6%
Load Maximum *
47.9
49.4
-3%

* ... más pequeño es mejor

Intel NUC11PHKi7C
i7-1165G7, GeForce RTX 2060 Mobile, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption
-40%
Idle Minimum *
5.8
15.5
-167%
Idle Average *
5.9
16.2
-175%
Idle Maximum *
20.7
16.5
20%
Load Average *
130.8
83.4
36%
Witcher 3 ultra *
154.4
121.7
21%
Load Maximum *
225.2
173.5
23%

* ... más pequeño es mejor

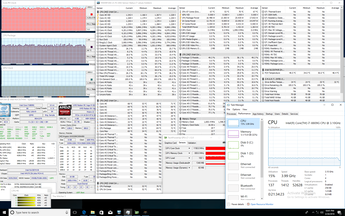

Signos vitales del sistema cuando se ejecuta Witcher 3 (Hades Canyon)
Signos vitales del sistema cuando se ejecuta Witcher 3 (Hades Canyon)

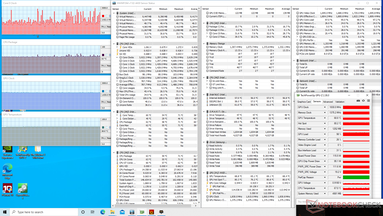

Datos vitales del sistema cuando se ejecuta Witcher 3 (Phantom Canyon)
Datos vitales del sistema cuando se ejecuta Witcher 3 (Phantom Canyon)

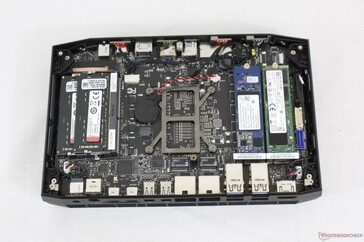

Hades Canyon
Hades Canyon
Hades Canyon
Hades Canyon

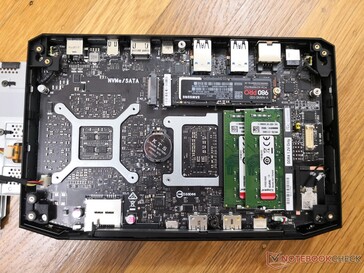

Cañón del Fantasma
Cañón del Fantasma
Cañón del Fantasma
Cañón del Fantasma
Hades Canyon temperatura en funcionamiento Witcher 3
Hades Canyon temperatura en funcionamiento Witcher 3
Temperatura de Phantom Canyon en funcionamiento Witcher 3
Temperatura de Phantom Canyon en funcionamiento Witcher 3
Hades Canyon consumo de energía en funcionamiento Witcher 3
Hades Canyon consumo de energía en funcionamiento Witcher 3
Consumo de energía de Phantom Canyon en funcionamiento Witcher 3
Consumo de energía de Phantom Canyon en funcionamiento Witcher 3

Pricecompare

Allen Ngo
Editor of the original article: Allen Ngo - Lead Editor U.S. - 4540 articles published on Notebookcheck since 2011
contact me via: @AllenNgoNBC
Ninh Duy
Translator: Ninh Duy - Editorial Assistant - 182662 articles published on Notebookcheck since 2017
contact me via: Facebook
Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Noticias > Archivo de noticias > Archivo de noticias 2021 04 > Core i7-8809G de 100 W frente a Core i7-1165G7 de 28 W: ¿Puede Tiger Lake superar al exótico chipset de Intel-AMD?
Allen Ngo, 2021-04-29 (Update: 2021-04-29)
