Reseña del kit esencial Intel NUC11 alias Atlas Canyon con Intel Pentium Silver N6005 e Intel Celeron N4505

Intel ha lanzado su serie NUC 11 Essential Kit bajo el seudónimo Atlas Canyon, que utiliza procesadores Jasper Lake. Las versiones barebone de los PC son bastante asequibles. En el momento de la prueba, el sistema con un Intel Celeron N4505cuesta unos 129 dólares y la versión del Intel NUC11 Essential Kit - Atlas Canyon con un Intel Pentium Silver N6005cuesta unos 229 dólares. Los sistemas barebone suelen venderse sin RAM ni SSD, lo que debe tenerse en cuenta a la hora de calcular los costes. La licencia del sistema operativo tampoco está incluida en el precio. Para nuestra prueba, instalamos 16 GB de RAM DDR4 y un SSD de 512 GB en nuestros dos dispositivos de prueba.

Los dispositivos de comparación, que tienen especificaciones similares, se enumeran en la siguiente tabla.

Valoración	Fecha	Modelo	Peso	Altura
70.9 %	03/2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 g	36 mm
63.2 %	03/2023	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	535 g	36 mm
65.9 %	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm
		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm
	02/2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm
	08/2021	AC6-M Mini-PC Celeron J4125, UHD Graphics 600		58 mm
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	381 g	47 mm

Caso

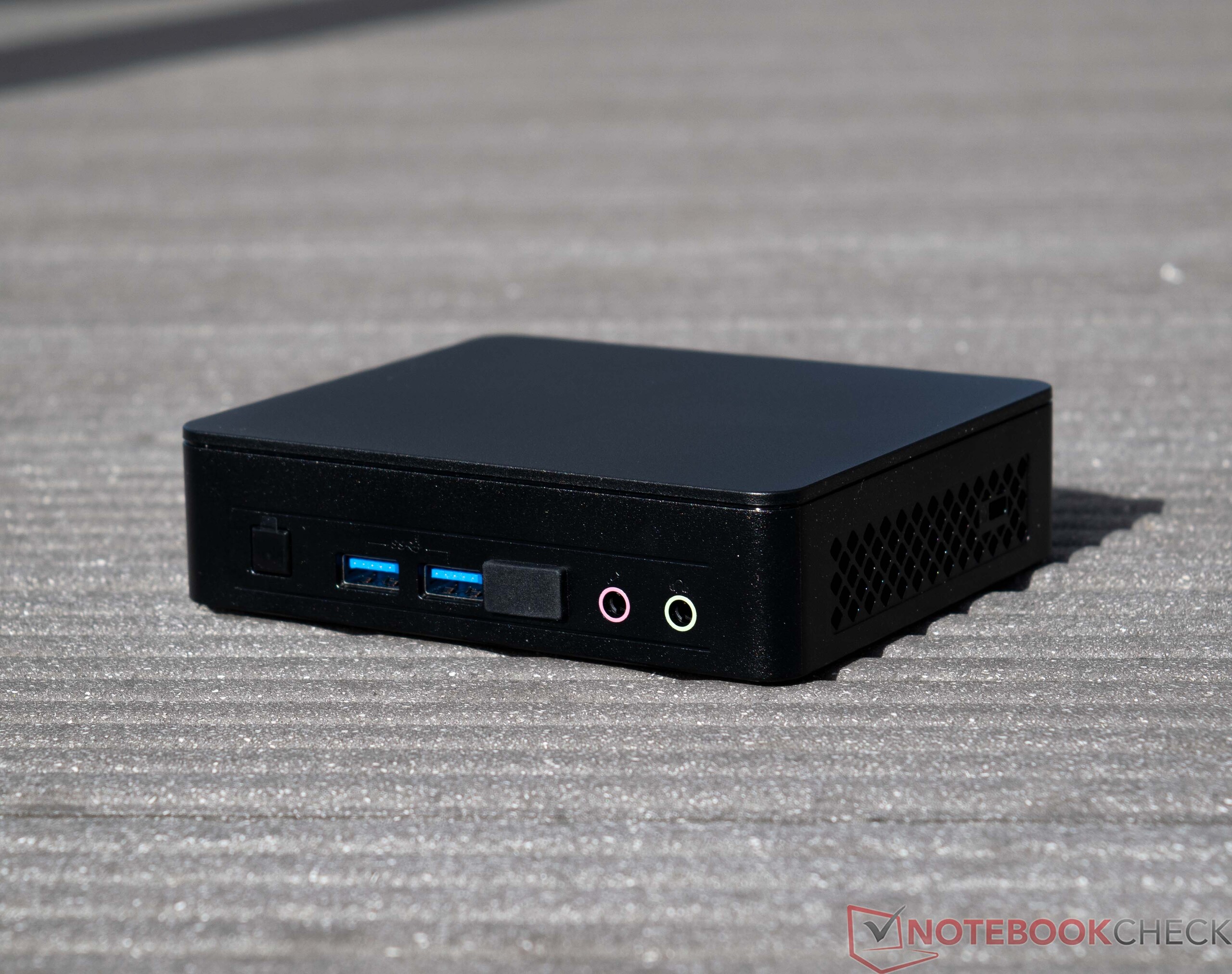

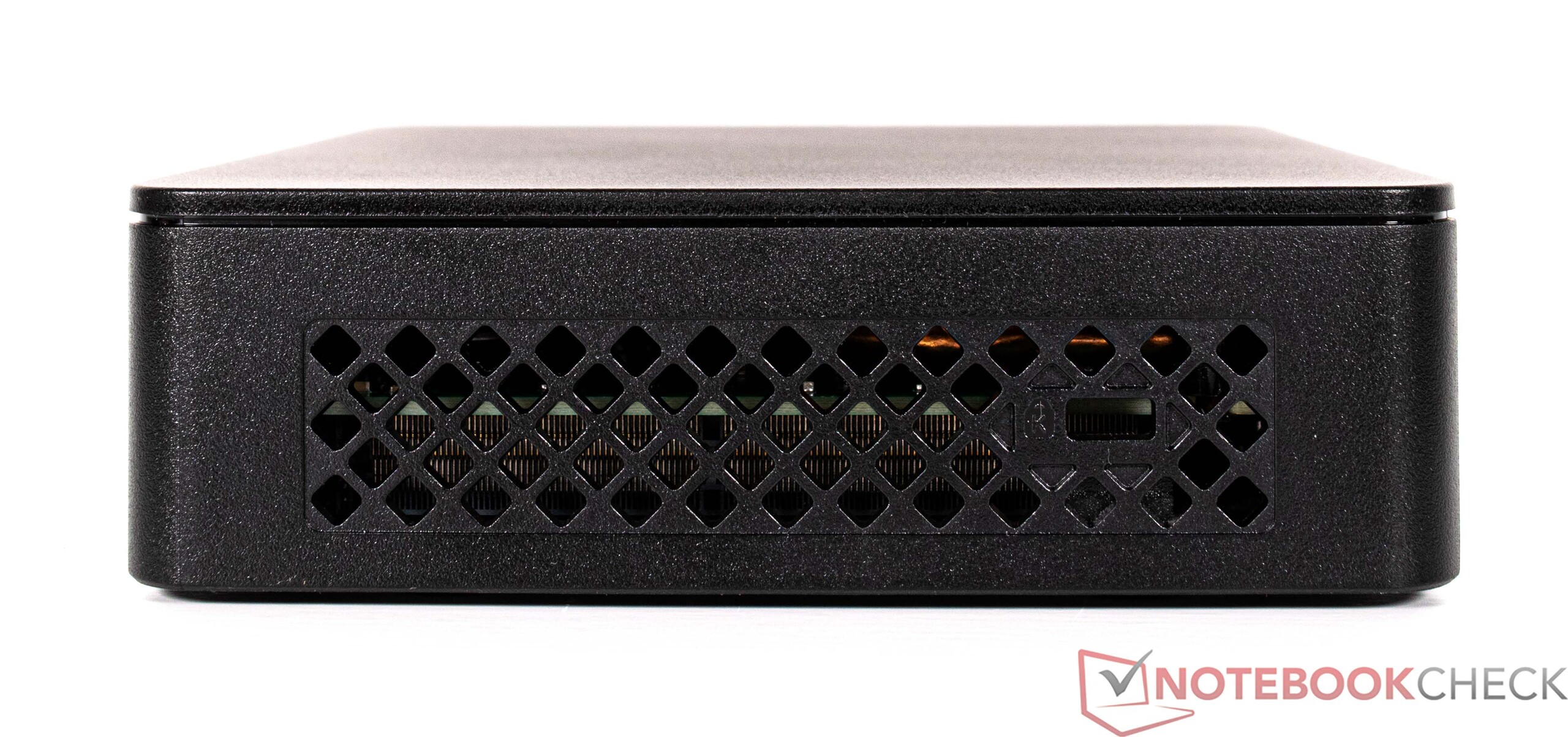

El Intel NUC11 Essential Kit - Atlas Canyon es todo negro y no tiene superficies muy brillantes. A primera vista, la carcasa de plástico parece un poco barata. Sin embargo, la sensación táctil real de la carcasa es mucho mejor: el dispositivo es muy resistente gracias a sus soportes metálicos interiores. Esto es muy similar a otros dispositivos de la serie NUC y el fabricante no hace ninguna excepción con el Intel NUC11 Essential Kit - Atlas Canyon. En lo que respecta al tamaño, podemos ver un poco de diferencia en comparación con otros modelos de la serie. El mini PC tiene una huella de 13,5 x 11,5 centímetros - ópticamente, este dispositivo relativamente pequeño recuerda al Intel NUC Pro Chassis Element. Técnicamente, están construidos de forma muy diferente el uno del otro. El Intel NUC11 Essential Kit - Atlas Canyon puede fijarse a un monitor mediante el soporte VESA suministrado.

Comparación de tamaños

Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Intel NUC11ATKPE, N6005 Intel NUC11ATKC2, N4505 Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

Conectividad

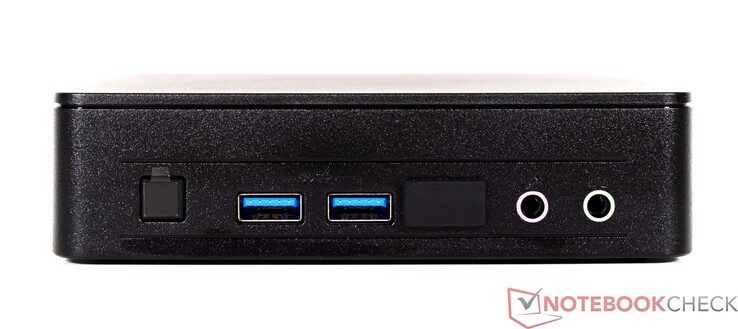

El Intel NUC 11 Essential Kit - Atlas Canyon tiene una conectividad bastante estándar para un mini PC de esta clase de dispositivo. Seis puertos USB de tipo A son más que suficientes para el uso diario. Puedes conectar monitores a través de DisplayPort o HDMI. Ambos dispositivos están equipados exactamente igual, por lo que nos hemos abstenido de presentarlos por separado.

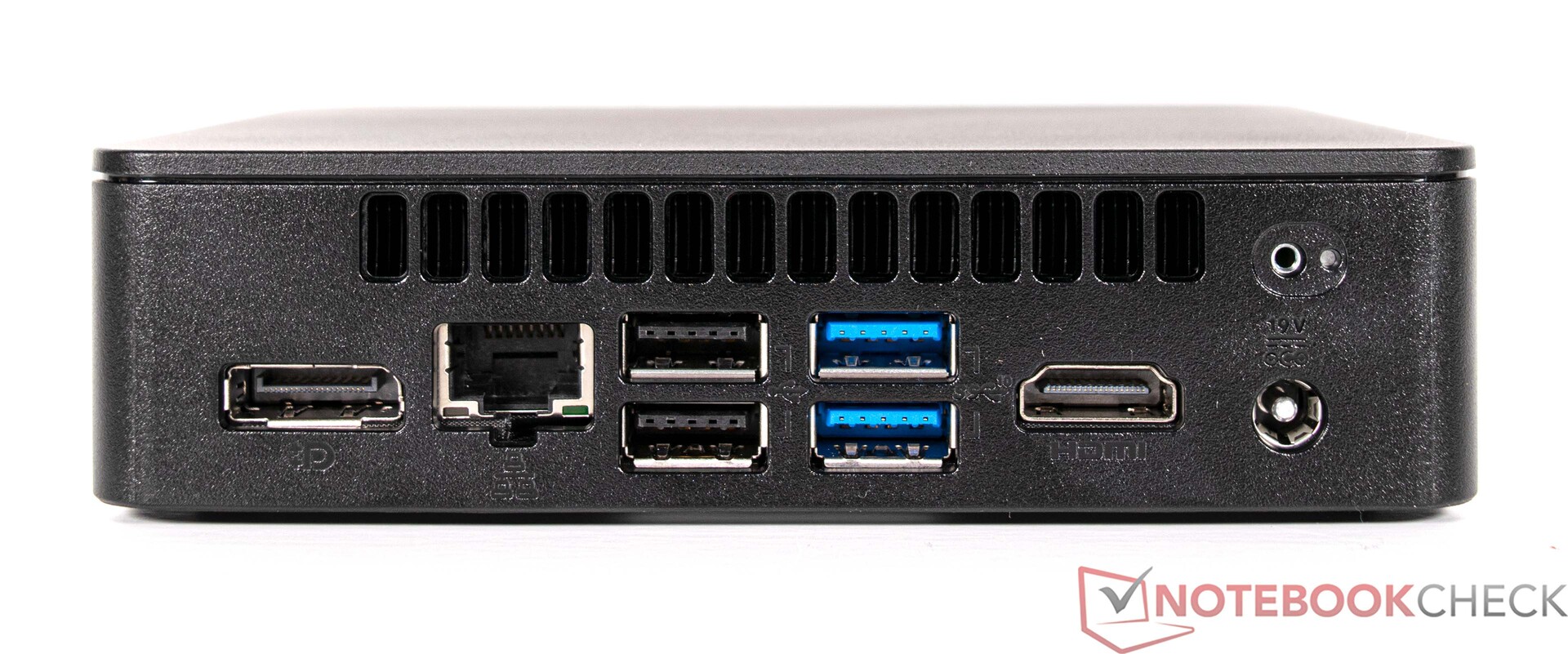

Parte trasera: DisplayPort, GBit LAN, 2x USB 2.0, 2x USB 3.2, HDMI, fuente de alimentación

Comunicación

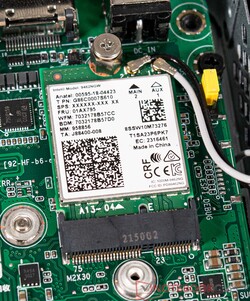

El Intel NUC11 Essential Kit cuenta con un módulo WLAN propio de Intel, el Wireless AC 9462. Su rendimiento es bueno comparado con el de sus competidores, incluso mejor a veces. Por desgracia, seguimos midiendo velocidades de transmisión significativamente más lentas que la media de los mini PC que probamos. Ambos modelos del Intel NUC 11 Essential Kit se basan en el mismo módulo WLAN, por lo que obtuvimos resultados casi idénticos en cada uno de ellos. Utilizamos el Asus ROG Rapture GT-AXE11000 como router de prueba.

Networking
iperf3 receive AXE11000
Average of class Mini PC (192.9 - 1688, n=22, last 2 years)	838 MBit/s ∼100% +126%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s ∼44%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (333^min - 376^max) MBit/s ∼44% -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s ∼43% -2%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s ∼43% -4%
Average Intel Wireless AC 9462 (245 - 371, n=4)	327 MBit/s ∼39% -12%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s ∼35% -22%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1491, n=22, last 2 years)	774 MBit/s ∼100% +116%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (332^min - 393^max) MBit/s ∼47% +2%
Average Intel Wireless AC 9462 (359 - 370, n=4)	366 MBit/s ∼47% +2%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s ∼46%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s ∼35% -25%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s ∼29% -37%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s ∼24% -49%

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø364 (186-374)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø366 (333-376)

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø359 (322-389)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø366 (332-393)

Accesorios

El mini PC viene con un adaptador de corriente de 65 vatios y una placa de montaje para el soporte VESA.

Mantenimiento

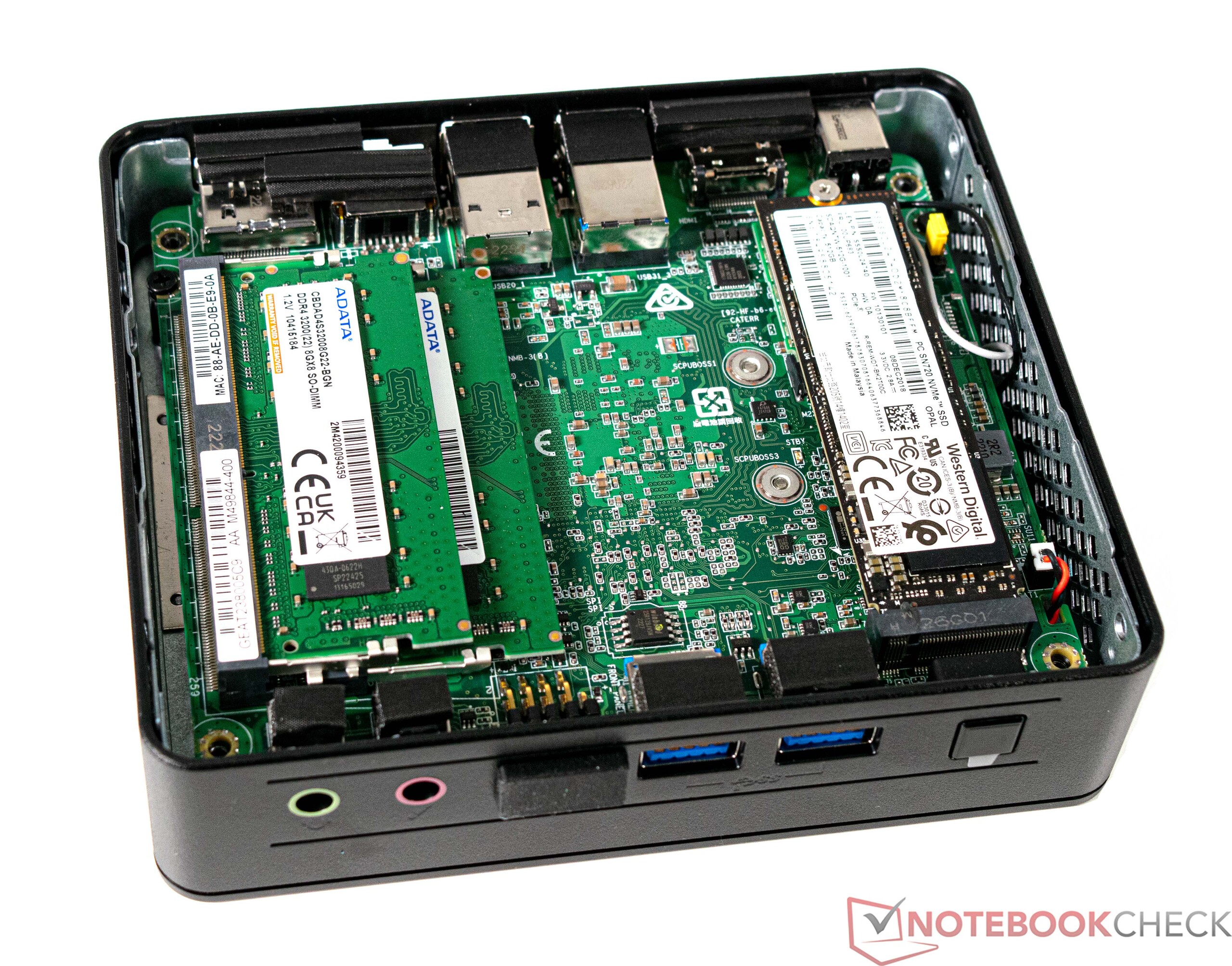

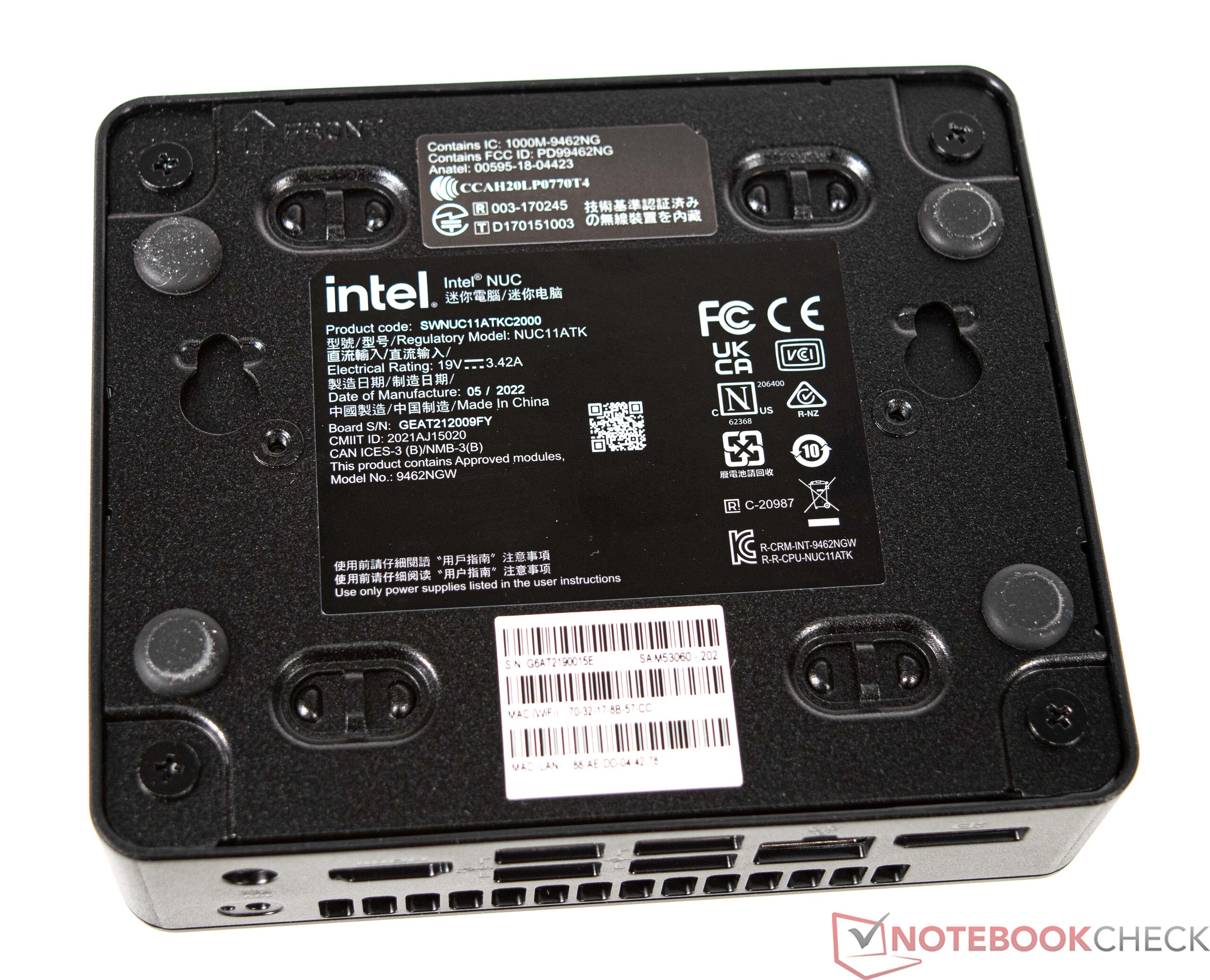

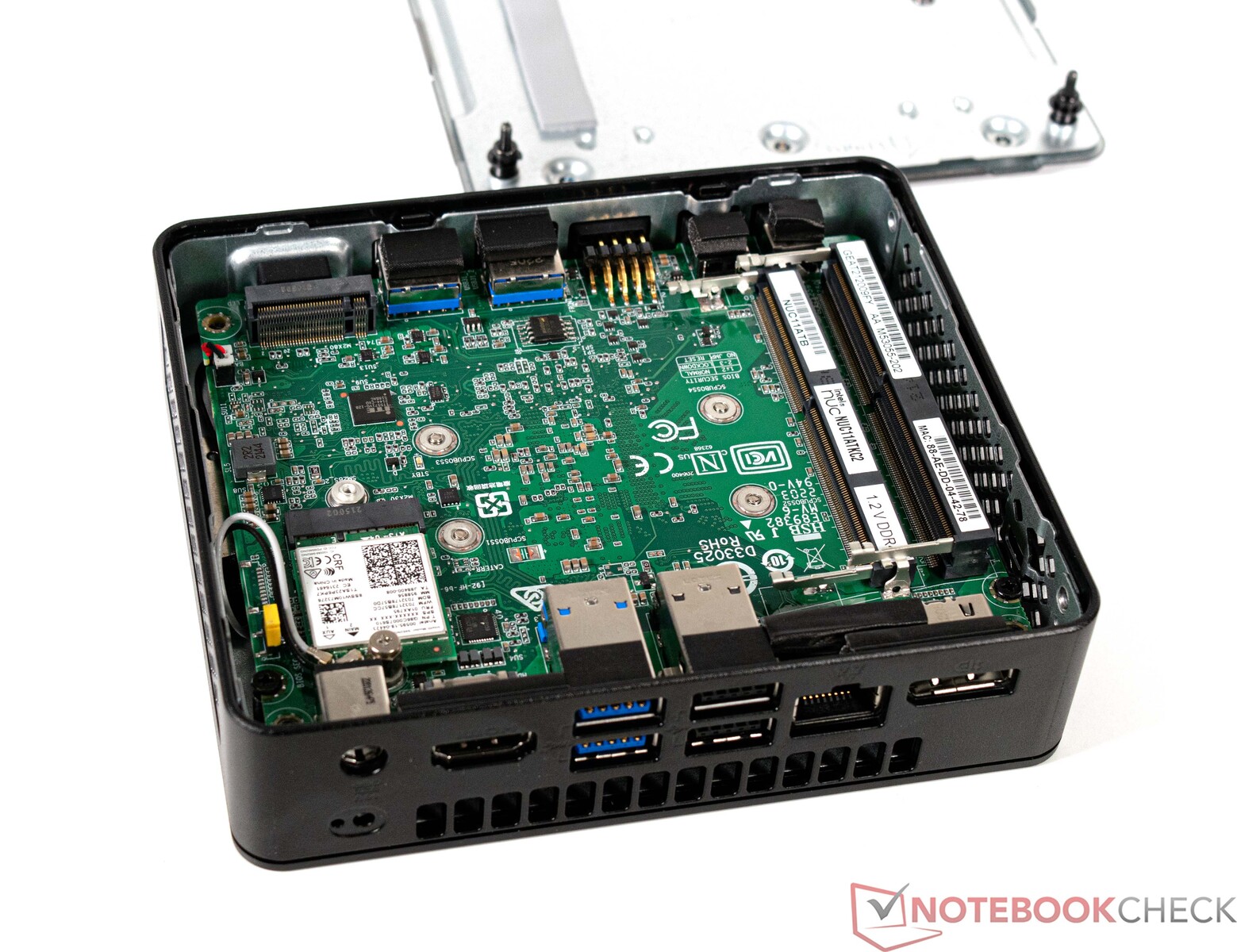

La parte inferior del Intel NUC11 Essential Kit - Atlas Canyon se puede abrir fácilmente, ya que la placa inferior sólo está sujeta por cuatro tornillos. En el interior, las ranuras de memoria RAM y el puerto M.2 son de fácil acceso. Si quieres limpiar el ventilador de la CPU, tendrás que desmontar más el dispositivo.

Kit esencial Intel NUC11 - Atlas Canyon (Intel Celeron N4505)

Kit esencial Intel NUC11 - Atlas Canyon (Intel Pentium Silver N6005)

Rendimiento: 4 núcleos hacen que el uso diario sea considerablemente más fluido

El Intel NUC11 Essential Kit - Atlas Canyon tiene algunas opciones Jasper Lake - en nuestra prueba, vamos a echar un vistazo más de cerca a la Intel Celeron N4505y elIntel Pentium Silver N6005. Debido a que el Intel Celeron N4505 sólo tiene 2 núcleos, este modelo alcanza rápidamente sus límites. Para el uso diario, el Intel Pentium Silver N6005 es sin duda la opción más sensata: sus 4 núcleos proporcionan una notable mejora del rendimiento. Sin embargo, para usos específicos con un sistema operativo más pequeño, el Intel NUC11 Essential Kit - Atlas Canyon con un Intel Celeron N4505 definitivamente todavía tiene su lugar. Según sus especificaciones, este modelo también es compatible con Linux.

Intel Pentium Silver N6005

Intel Celeron N4505

Condiciones de ensayo

Ejecutamos todas las pruebas de rendimiento utilizando el perfil energético "equilibrado". No cambiamos el rendimiento de la CPU, sino que la dejamos en modo automático según la configuración de la BIOS.

Procesador

Los procesadores de la serie Jasper Lake cuentan con 2 núcleos en el Intel Celeron N4505y 4 núcleos en el Intel Pentium Silver N6005. El SoC de doble núcleo tuvo bastantes problemas durante nuestra prueba, mientras que el modelo con 4 núcleos hizo un trabajo considerablemente mejor. Incluso el rendimiento mononúcleo del Intel Pentium Silver N6005 fue mejor, aunque el mismo SoC rindió mejor en el Newsmay AC8.

Aun así, hay que tener en cuenta dónde se pretende utilizar el dispositivo: Para sistemas integrados más pequeños con responsabilidades limitadas que utilicen Linux como sistema operativo, el Intel NUC11 Essential Kit - Atlas Canyon con un Intel Celeron N4505 es sin duda una opción válida y rentable. Si el sistema necesita ejecutar Windows, entonces recomendaríamos adquirir el Intel NUC11 Essential Kit - Atlas Canyon con un Intel Pentium N6005.

Para más comparaciones y pruebas comparativas, echa un vistazo a nuestraTabla de comparación de CPU.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	88.9 pt ∼89%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	85.7 pt ∼86%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	74.9 pt ∼75%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	74 pt ∼74%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	71.9 pt ∼72%
AC6-M Mini-PC ^-2! Intel Celeron J4125, 2000 MHz	51.2 pt ∼51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	50.6 pt ∼51%

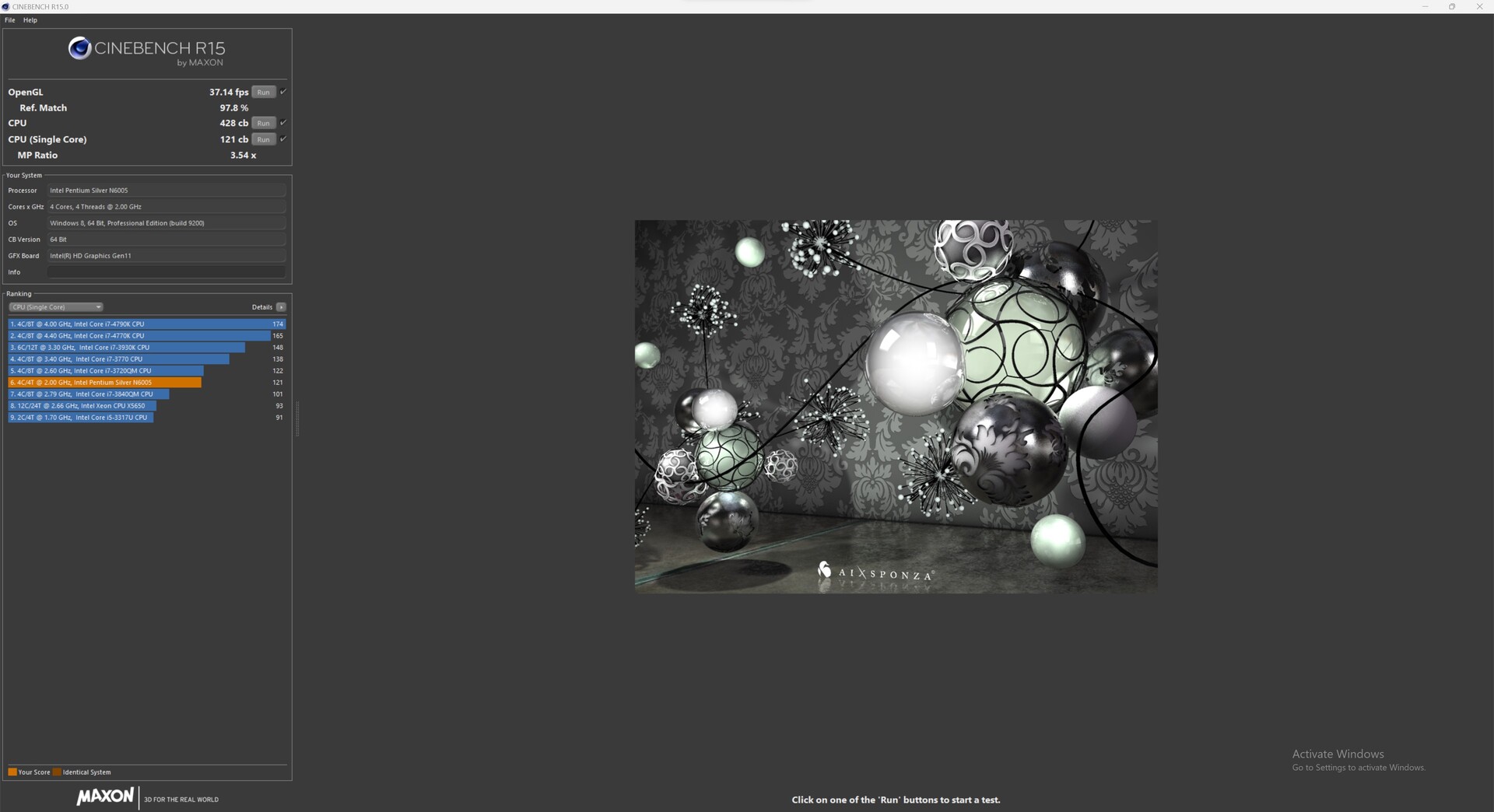

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points ∼100% +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	121 Points ∼98%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points ∼86% -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	104 Points ∼85% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points ∼83% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points ∼63% -36%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	428 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points ∼95% -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points ∼75% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points ∼58% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	191 Points ∼45% -55%

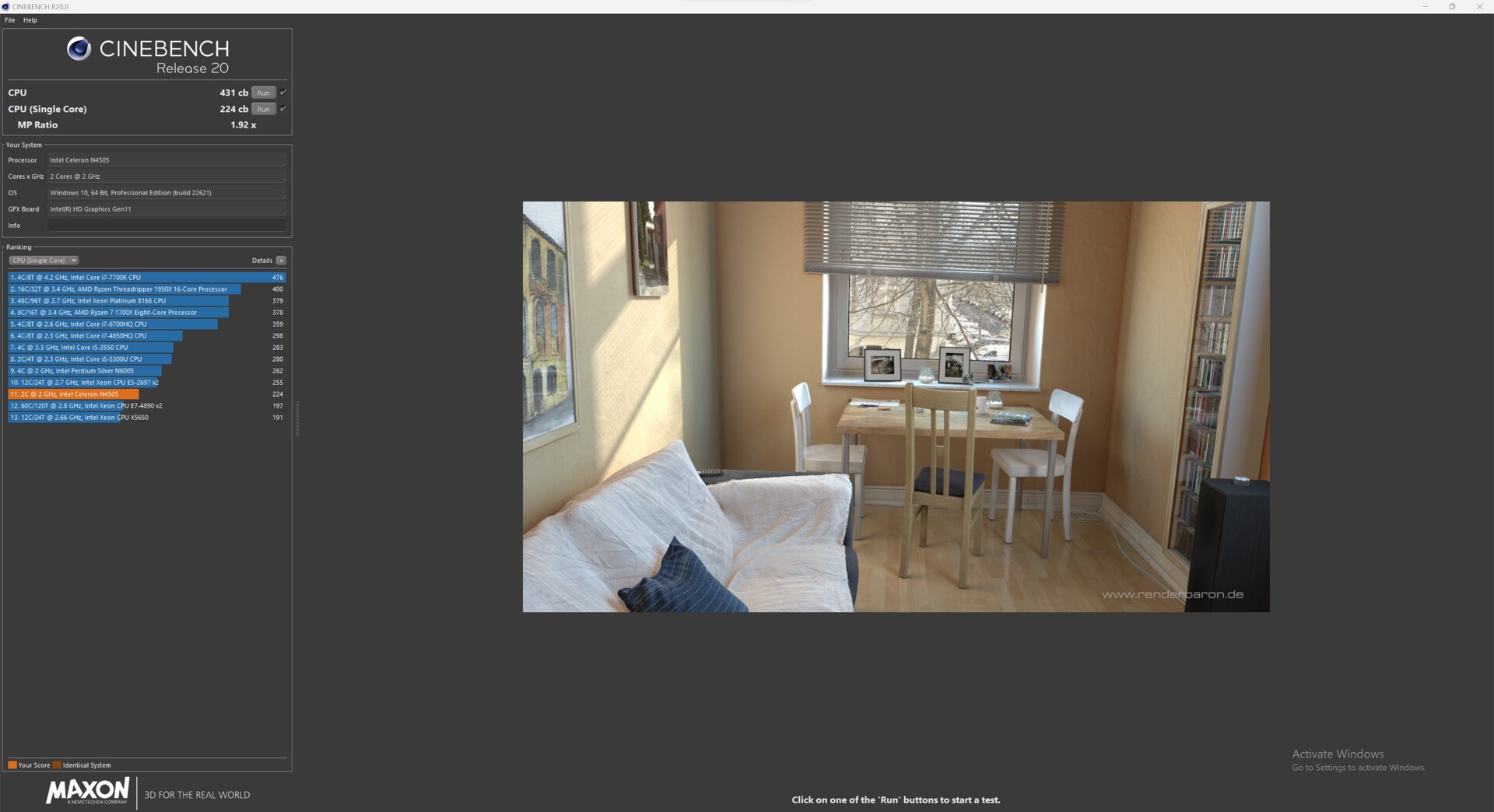

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	262 Points ∼98%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points ∼91% -8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points ∼88% -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points ∼88% -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	224 Points ∼84% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points ∼64% -35%
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	948 Points ∼97%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points ∼85% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points ∼84% -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points ∼74% -24%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points ∼57% -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	431 Points ∼44% -55%

Cinebench R23
Single Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points ∼100% +1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points ∼99% 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points ∼99%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points ∼87% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points ∼87% -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	592 Points ∼85% -15%
Multi Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2475 Points ∼98%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points ∼86% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points ∼85% -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points ∼73% -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1114 Points ∼44% -55%

Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.48 Points ∼99%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points ∼99% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points ∼87% -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.27 Points ∼85% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points ∼84% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points ∼62% -38%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5.56 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points ∼93% -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points ∼74% -26%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points ∼56% -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2.46 Points ∼44% -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points ∼100% +6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6172 Points ∼94%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points ∼94% 0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points ∼83% -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5294 Points ∼81% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points ∼80% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points ∼57% -40%
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	20238 Points ∼99%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points ∼85% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points ∼80% -19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points ∼76% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points ∼52% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	10063 Points ∼49% -50%

Blender - v2.79 BMW27 CPU
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2953 Seconds * ∼100% -118%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * ∼81% -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * ∼61% -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * ∼52% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * ∼52% -14%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1354 Seconds * ∼46%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * ∼39% +15%

wPrime 2.10
32m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	35.481 s * ∼100% -122%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * ∼56% -24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * ∼54% -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * ∼49% -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * ∼48% -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * ∼46% -3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	16.004 s * ∼45%
1024m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1120.441 s * ∼100% -127%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * ∼55% -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * ∼55% -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * ∼54% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * ∼51% -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * ∼48% -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	493.256 s * ∼44%

X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps ∼100% +7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	135.5 (134.3^min - 136.3^max) fps ∼93%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps ∼83% -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps ∼78% -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps ∼70% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps ∼54% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	72.3 (71.9^min - 72.4^max) fps ∼50% -47%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	28.75 (28.3^min - 29.5^max) fps ∼97%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps ∼85% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps ∼83% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps ∼73% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps ∼56% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	13.8 (13.8^min - 13.8^max) fps ∼47% -52%

WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s ∼100% +20%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1824 KB/s ∼84%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s ∼82% -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s ∼75% -11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s ∼70% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s ∼52% -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1000 KB/s ∼46% -45%

TrueCrypt
AES Mean 100MB
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.9 GB/s ∼100%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s ∼90% -10%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼86% -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s ∼83% -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s ∼66% -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.3 GB/s ∼45% -55%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s ∼100% +23%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼81% 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼81%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼74% -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼74% -8%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s ∼54% -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.192 GB/s ∼39% -52%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s ∼100% +11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s ∼95% +5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.219 GB/s ∼90%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼81% -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼81% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s ∼75% -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.101 GB/s ∼42% -54%

Geekbench 5.4
Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2402 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points ∼100% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points ∼85% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points ∼70% -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points ∼62% -38%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1225 Points ∼51% -49%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼100% +9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	738 Points ∼92%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points ∼82% -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	647 Points ∼80% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points ∼79% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points ∼75% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points ∼57% -38%

Geekbench 5.0
5.0 Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2455 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points ∼97% -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points ∼83% -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points ∼81% -19%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points ∼60% -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points ∼53% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1205 Points ∼49% -51%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼100% +16%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points ∼86%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points ∼81% -6%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	645 Points ∼80% -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points ∼79% -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points ∼75% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points ∼56% -35%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points ∼100% +8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3314 Points ∼92%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2942 Points ∼82% -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points ∼82% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points ∼80% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points ∼71% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points ∼54% -42%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	9426 Points ∼98%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points ∼82% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points ∼81% -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points ∼57% -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points ∼56% -43%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5078 Points ∼53% -46%

3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5024 Points ∼99%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points ∼84% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points ∼84% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points ∼72% -27%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points ∼55% -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2700 Points ∼53% -46%

7-Zip 18.03
7z b 4
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	12851 MIPS ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS ∼91% -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS ∼85% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS ∼78% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS ∼61% -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5871 MIPS ∼46% -54%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3425 MIPS ∼97%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS ∼89% -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS ∼88% -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2971 MIPS ∼85% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS ∼83% -14%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS ∼68% -31%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps ∼100% +29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.34 fps ∼77%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps ∼67% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps ∼66% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps ∼54% -29%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps ∼49% -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.16 fps ∼38% -50%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * ∼100% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.224 sec * ∼78% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * ∼76% -12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * ∼74% -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * ∼72% -6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.073 sec * ∼68%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * ∼65% +4%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * ∼100% -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	111.7 s * ∼78%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	105.1 s * ∼73% +6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * ∼72% +7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * ∼72% +8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * ∼65% +17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * ∼56% +28%

WebXPRT 3 - ---
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points ∼100% +9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points ∼94% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	142.3 Points ∼92%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points ∼82% -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points ∼79% -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	113.3 Points ∼73% -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points ∼56% -39%

Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * ∼100% -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1798 ms * ∼79% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * ∼71% -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * ∼69% -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1516 ms * ∼66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * ∼61% +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * ∼54% +18%

3DMark - 1920x1080 Fire Strike Physics
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6403 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points ∼92% -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points ∼86% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points ∼85% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points ∼67% -33%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points ∼61% -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2979 Points ∼47% -53%

* ... más pequeño es mejor

Performance Rating
Average of class Mini PC	100 pt ∼100%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	28.5 pt ∼29%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	25.6 pt ∼26%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	24.6 pt ∼25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	19.8 pt ∼20%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	13.8 pt ∼14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	11.7 pt ∼12%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8.2 pt ∼8%

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 15814, n=30, last 2 years)	7853 KRay/s ∼100% +441%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s ∼18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s ∼16% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s ∼16% -14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s ∼13% -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	744 KRay/s ∼9% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	646 KRay/s ∼8% -55%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s ∼5% -71%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 99936, n=30, last 2 years)	43647 Points ∼100% +396%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points ∼20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points ∼17% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points ∼17% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points ∼14% -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	3970 Points ∼9% -55%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	3857 Points ∼9% -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points ∼6% -73%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 3570, n=30, last 2 years)	1917 MB/s ∼100% +223%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s ∼31%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼27% -13%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s ∼27% -13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s ∼21% -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	270 MB/s ∼14% -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	260 MB/s ∼14% -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s ∼9% -72%

AIDA64 / CPU Queen
Average of class Mini PC (8178 - 104437, n=30, last 2 years)	61655 Points ∼100% +135%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points ∼43%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points ∼36% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points ∼36% -16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points ∼32% -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	11639 Points ∼19% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	8178 Points ∼13% -69%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points ∼13% -70%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 13164, n=30, last 2 years)	6198 Points ∼100% +424%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points ∼19% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points ∼19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼16% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points ∼16% -15%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	519 Points ∼8% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	408 Points ∼7% -65%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points ∼6% -66%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 55002, n=30, last 2 years)	23217 Points ∼100% +397%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points ∼20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points ∼17% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points ∼17% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points ∼15% -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	2049 Points ∼9% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	1987 Points ∼9% -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points ∼5% -73%

AIDA64 / CPU AES
Average of class Mini PC (3778 - 136723, n=30, last 2 years)	63647 MB/s ∼100% +411%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s ∼30% +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s ∼30% +55%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s ∼20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s ∼16% -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7954 MB/s ∼12% -36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s ∼10% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	5504 MB/s ∼9% -56%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 982, n=30, last 2 years)	498 MB/s ∼100% +124%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s ∼45%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s ∼38% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s ∼38% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s ∼26% -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	98.7 MB/s ∼20% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	74.9 MB/s ∼15% -66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s ∼12% -73%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 8447, n=30, last 2 years)	4193 KRay/s ∼100% +415%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s ∼19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% -17%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s ∼13% -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	412 KRay/s ∼10% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	350 KRay/s ∼8% -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s ∼5% -74%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=30, last 2 years)	23375 MPixel/s ∼100% +99%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s ∼50%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s ∼42% -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	7994 MPixel/s ∼34% -32%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s ∼33% -35%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s ∼29% -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4408 MPixel/s ∼19% -62%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s ∼11% -79%

Intel NUC11 Essential Kit - Atlas Canyon vs. Cinebench R15 Multi Loop

En la prueba de bucle continuo Cinebench R15 pudimos comprobar por primera vez la capacidad de refrigeración de ambos dispositivos. El rendimiento de ambos sistemas se mantuvo estable a lo largo de los 50 ciclos. En comparación con elNewsmay AC8nuestro modelo de pruebas con el mismo SoC obtuvo un resultado mucho mejor gracias a su sistema de refrigeración activa. Debido al Intel Celeron N4505el sistema simplemente no pudo seguir el ritmo de sus competidores y acabó en último lugar con 193,9 puntos.

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø414 (407.59-416.69)

Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel Celeron N4505: Ø193.9 (178.74-195.53)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Rendimiento del sistema

Vimos resultados similares en las pruebas sintéticas de rendimiento del sistema. El Intel NUC11 Essential Kit con unIntel Pentium Silver N6005pudo competir con el NiPoGi GK3Plusque también tiene un SoC de cuatro núcleos, el Intel N95. Sin embargo, el Intel N95 es un SoC mucho más nuevo, lo que se tradujo en un rendimiento entre un 10 y un 25 por ciento mejor. La muestra de prueba con un Intel Celeron N4505superó incluso al Newsmay AC6-Mque tiene 4 núcleos. En las pruebas de RAM, nuestras dos muestras de prueba pudieron rendir bien en comparación con sus competidores.

Performance Rating | PCMark 10

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	100 pt ∼100%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	88.7 pt ∼89%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	84.2 pt ∼84%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	83.4 pt ∼83%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	80.9 pt ∼81%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	72.6 pt ∼73%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	65.3 pt ∼65%

PCMark 10
Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	2983 Points ∼100% +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	2746 Points ∼92%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points ∼85% -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points ∼81% -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points ∼79% -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	2067 Points ∼69% -25%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points ∼61% -34%
Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	6650 Points ∼100% +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	6113 Points ∼92%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points ∼88% -4%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points ∼85% -7%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points ∼82% -11%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	4876 Points ∼73% -20%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points ∼71% -23%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	4524 Points ∼100% +22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points ∼85% +4%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	3719 Points ∼82%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points ∼81% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points ∼78% -5%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	3396 Points ∼75% -9%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points ∼65% -21%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	100 pt ∼100%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	79.7 pt ∼80%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	74.5 pt ∼75%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	69.4 pt ∼69%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	66 pt ∼66%

CrossMark
Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	661 Points ∼100% +37%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points ∼75% +3%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	482 Points ∼73%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	419 Points ∼63% -13%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points ∼61% -16%
Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	616 Points ∼100% +21%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	510 Points ∼83%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points ∼71% -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points ∼71% -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	388 Points ∼63% -24%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	721 Points ∼100% +22%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	591 Points ∼82%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points ∼77% -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points ∼74% -9%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	513 Points ∼71% -13%
Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	666 Points ∼100% +24%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	539 Points ∼81%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points ∼74% -8%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points ∼71% -12%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	442 Points ∼66% -18%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 70620, n=30, last 2 years)	40062 MB/s ∼100% +51%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s ∼66%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	25028 MB/s ∼62% -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s ∼55% -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s ∼41% -38%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13833 MB/s ∼35% -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6481 MB/s ∼16% -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s ∼16% -76%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 65856, n=30, last 2 years)	40845 MB/s ∼100% +112%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s ∼47%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s ∼41% -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	15613 MB/s ∼38% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s ∼38% -20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10204 MB/s ∼25% -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6914 MB/s ∼17% -64%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s ∼16% -66%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 66047, n=30, last 2 years)	42379 MB/s ∼100% +23%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s ∼81%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s ∼73% -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	29332 MB/s ∼69% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s ∼44% -46%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10449 MB/s ∼25% -70%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s ∼16% -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6862 MB/s ∼16% -80%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	146 ns * ∼100% -164%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * ∼99% -160%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	89.5 ns * ∼61% -62%
Average of class Mini PC (55.3 - 146, n=30, last 2 years)	85.3 ns * ∼58% -54%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * ∼51% -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * ∼41% -7%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	59.1 ns * ∼40% -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns * ∼38%

* ... más pequeño es mejor

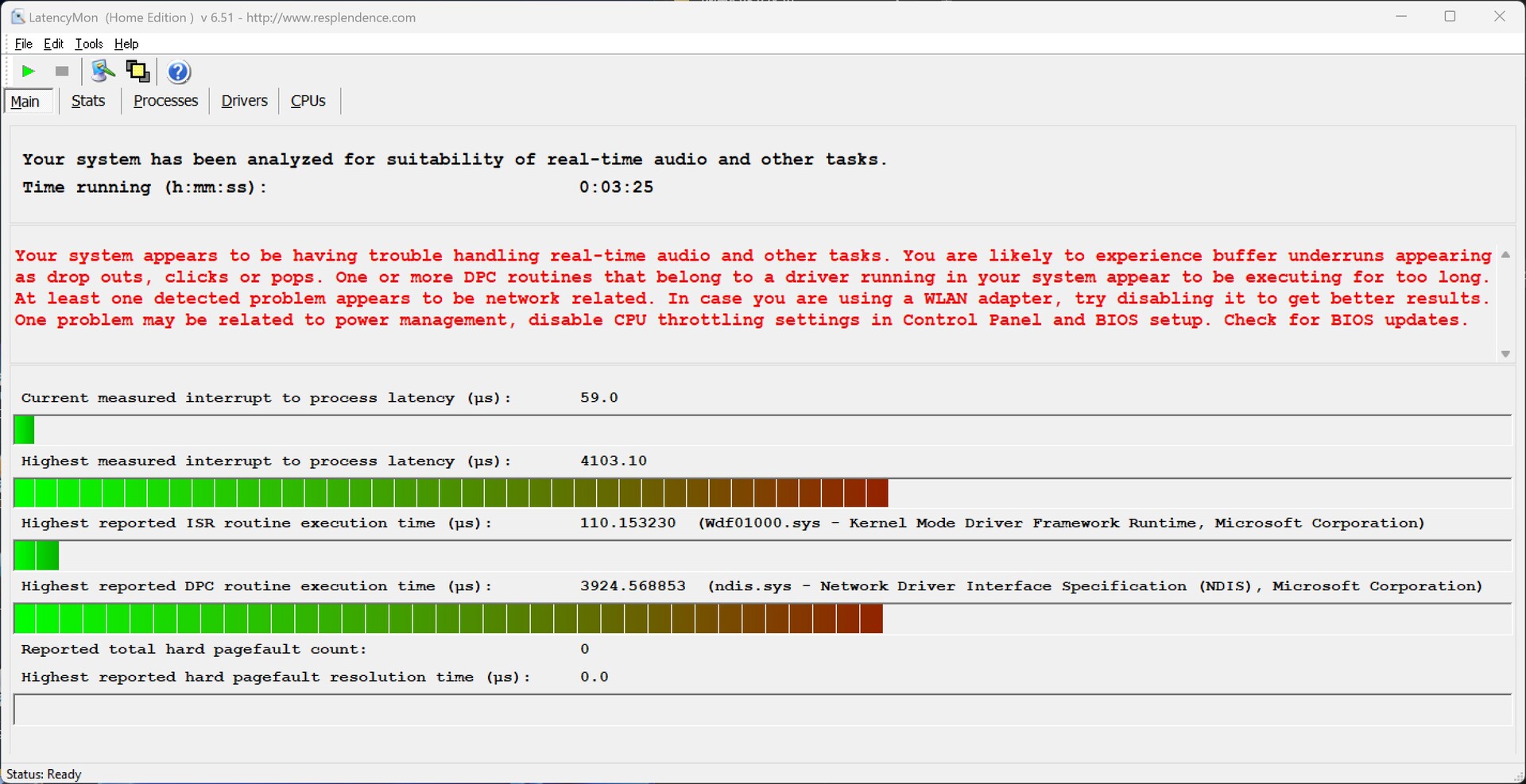

Latencia del CPD

Ambos sistemas de prueba tuvieron problemas con las latencias altas. Sorprendentemente, vimos peores resultados en el dispositivo supuestamente más rápido. Por otro lado, a ambos dispositivos les costó reproducir vídeo de alta resolución en 4K.

Intel NUC11ATKPE, N6005

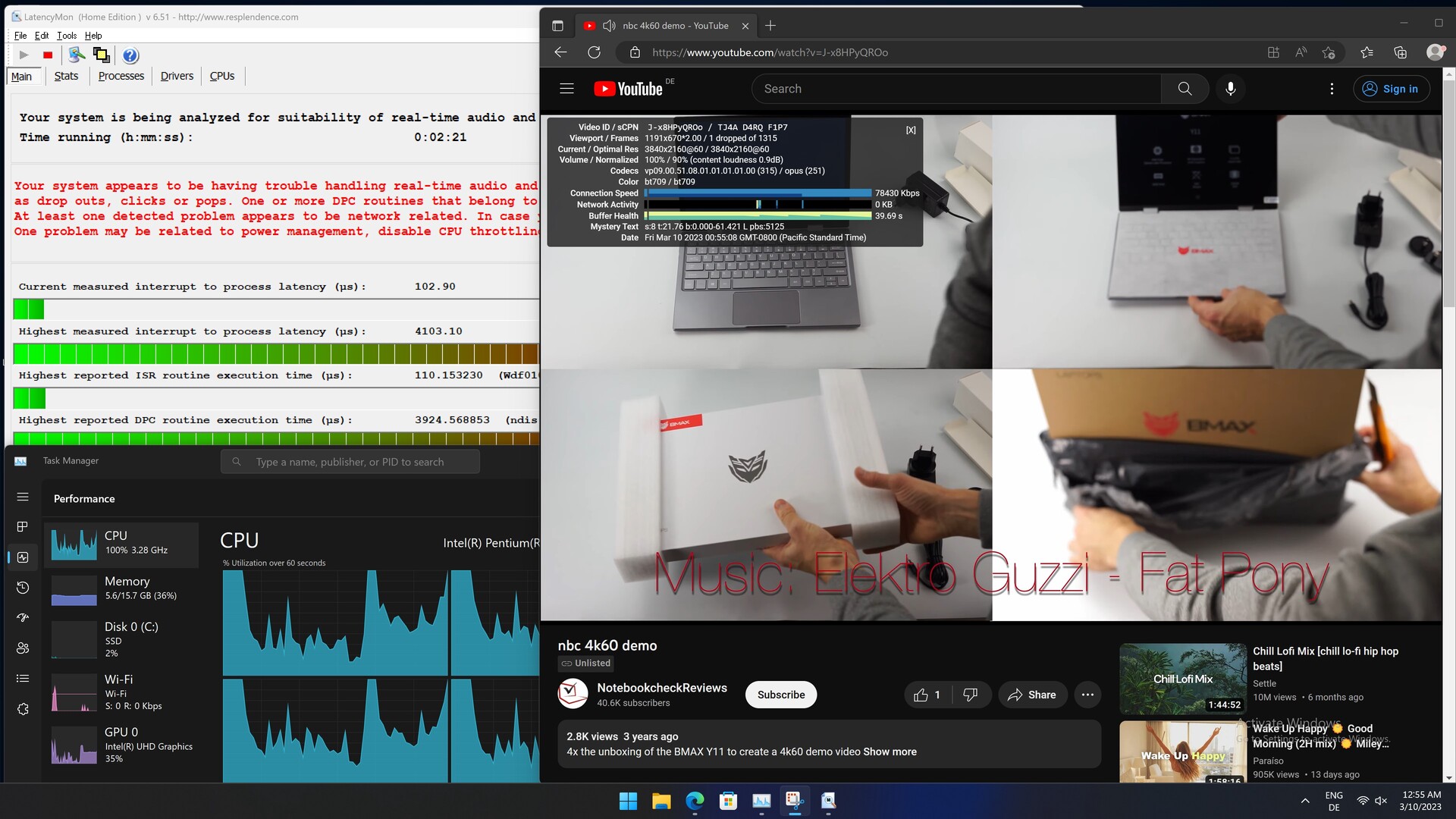

Latencia máxima al abrir varias pestañas del navegador y reproducir vídeo 4K

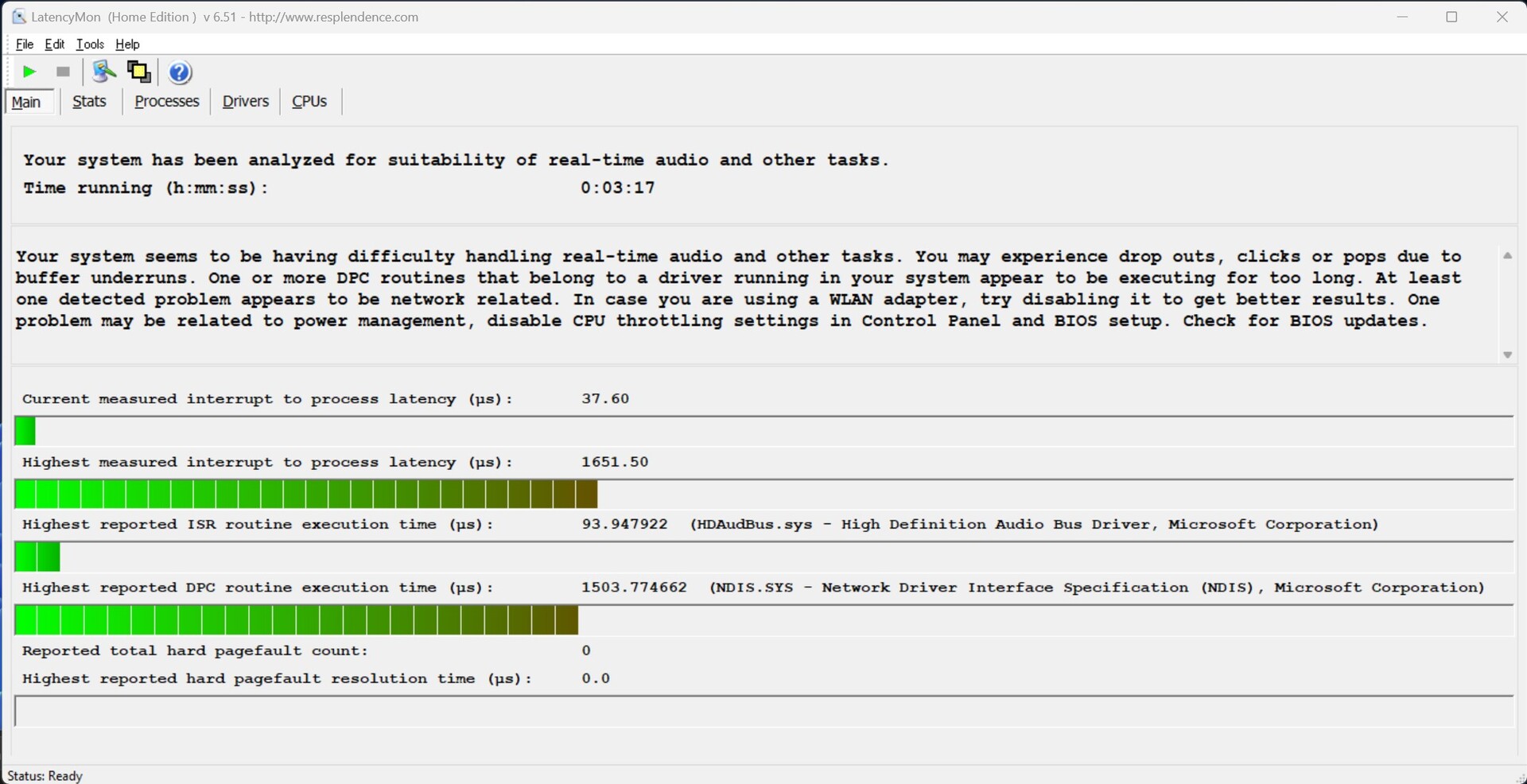

Latencia máxima tras diez segundos de Prime95

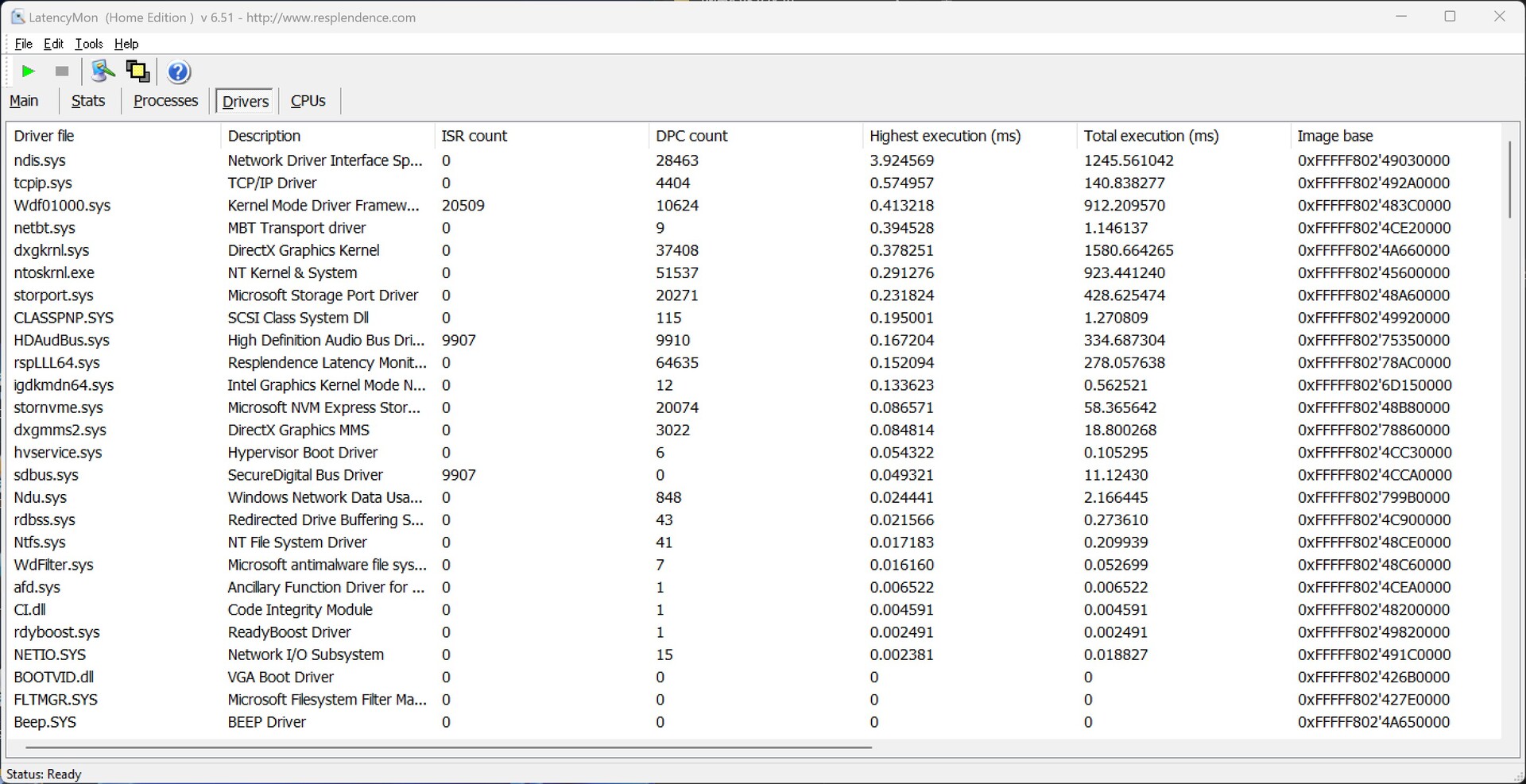

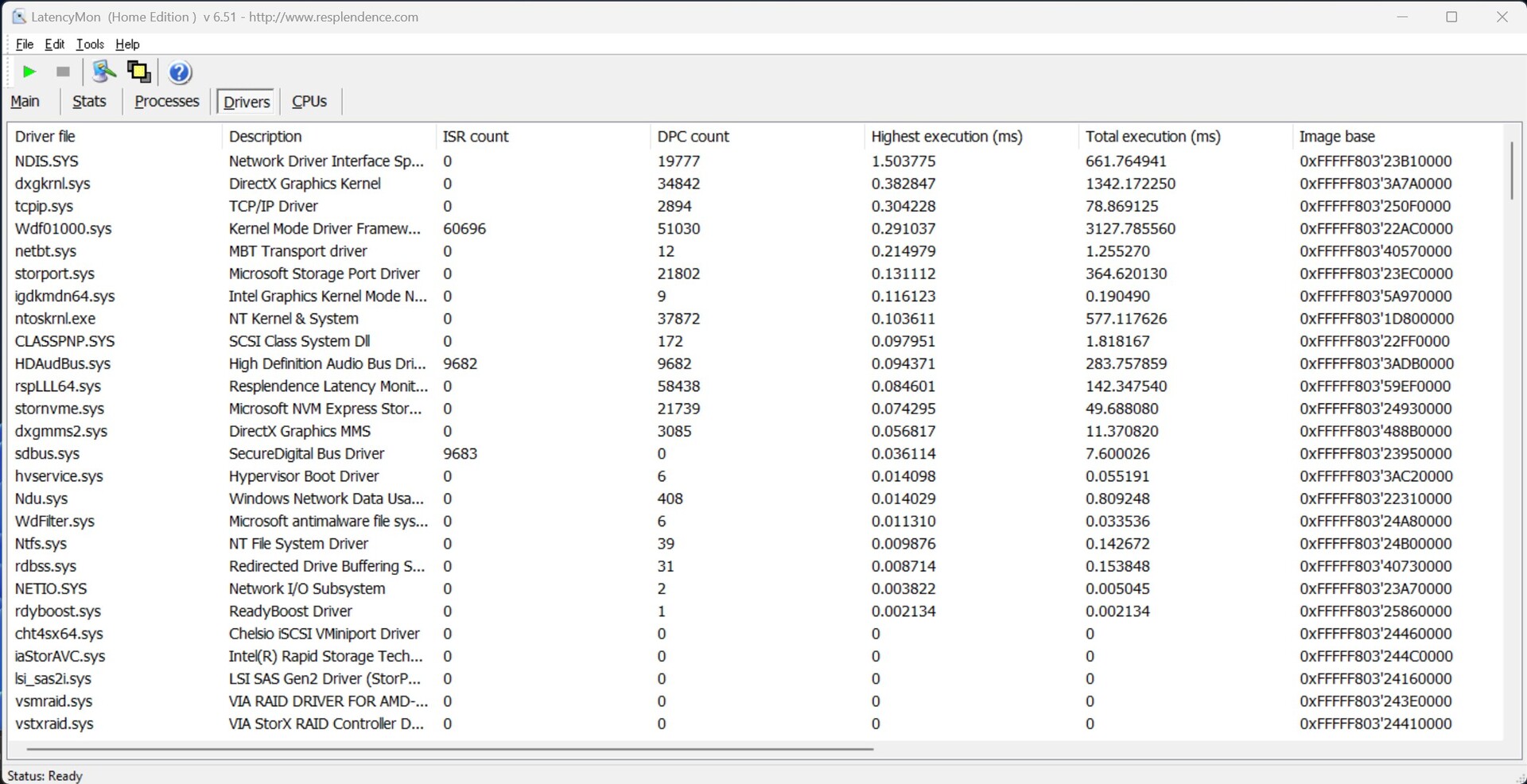

Conductores clasificados por mayor duración de ejecución

Intel NUC11ATKC2, N4505

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4075 μs * ∼100% -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs * ∼96%
AC6-M Mini-PC UHD Graphics 600, Celeron J4125	3767 μs * ∼92% +4%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Kimtigo KTB900SM28/512GB	3463 μs * ∼85% +12%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * ∼65% +33%
Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G	1503.7 μs * ∼37% +62%
Geekom MiniAir 11 Special Edition UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	687.3 μs * ∼17% +82%

* ... más pequeño es mejor

Dispositivos de almacenamiento

Como mencionamos en nuestra introducción, el Intel NUC11 Essential Kit - Atlas Canyon es un sistema barebone. Para nuestra prueba, instalamos un SSD de 512 GB de Western Digital. El modelo equipado ofreció velocidades de transmisión rápidas y estables. Intel utiliza la placa inferior para refrigerar el dispositivo, que ya viene equipado con una almohadilla de conducción del calor. El Intel NUC11 Essential Kit - Atlas Canyon sólo puede equiparse con una SSD.

Para más comparaciones y pruebas comparativas, echa un vistazo a nuestra tabla comparativa.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAPNTW-512G

Sequential Read: 1061 MB/s

Sequential Write: 1012 MB/s

512K Read: 793.6 MB/s

512K Write: 819.4 MB/s

4K Read: 18.84 MB/s

4K Write: 75.66 MB/s

4K QD32 Read: 202.9 MB/s

4K QD32 Write: 113 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	94.6 pt ∼95%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	53.2 pt ∼53%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	45.7 pt ∼46%
AC6-M Mini-PC	32.1 pt ∼32%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	31.5 pt ∼32%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	28.6 pt ∼29%
Newsmay AC8 N6005 Lexar 128GB SSD	27.9 pt ∼28%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.7 pt ∼17%

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=29, last 2 years)	1879 MB/s ∼100% +78%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s ∼56%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1026 (988.51^min - 1025.76^max) MB/s ∼55% -3%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s ∼27% -52%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s ∼25% -55%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s ∼25% -55%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s ∼24% -57%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s ∼23% -59%
seq write
Average of class Mini PC (222 - 3938, n=29, last 2 years)	1857 MB/s ∼100% +90%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1022 (961.96^min - 1021.79^max) MB/s ∼55% +5%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s ∼53%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s ∼27% -49%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s ∼26% -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s ∼25% -53%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s ∼23% -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s ∼22% -58%
seq q8 t1 read
Average of class Mini PC (236 - 7061, n=29, last 2 years)	2779 MB/s ∼100% +90%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s ∼53%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1426 (1221.66^min - 1425.85^max) MB/s ∼51% -2%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s ∼20% -61%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s ∼20% -62%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s ∼20% -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s ∼18% -66%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s ∼16% -69%
seq q8 t1 write
Average of class Mini PC (228 - 3938, n=29, last 2 years)	1993 MB/s ∼100% +51%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s ∼66%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1283 (1273.81^min - 1283.04^max) MB/s ∼64% -3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s ∼26% -61%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s ∼26% -61%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s ∼25% -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s ∼23% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s ∼17% -74%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=29, last 2 years)	49.5 MB/s ∼100% +104%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s ∼68% +40%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s ∼53% +9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s ∼52% +7%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	24.4 (23.94^min - 24.41^max) MB/s ∼49% 0%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s ∼49%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s ∼28% -43%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s ∼26% -47%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=29, last 2 years)	184.5 MB/s ∼100% +344%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s ∼54% +140%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s ∼52% +131%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s ∼40% +78%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s ∼34% +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s ∼23%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	40 (39.1^min - 40.03^max) MB/s ∼22% -4%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s ∼12% -47%
4k q32 t16 read
Average of class Mini PC (31 - 1948, n=29, last 2 years)	971 MB/s ∼100% +35%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s ∼74%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	460 (454.97^min - 459.58^max) MB/s ∼47% -36%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s ∼31% -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s ∼27% -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s ∼27% -64%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s ∼19% -74%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s ∼18% -76%
4k q32 t16 write
Average of class Mini PC (30.2 - 3830, n=29, last 2 years)	1204 MB/s ∼100% +138%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s ∼42%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s ∼29% -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s ∼26% -37%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	316 (312.68^min - 316.32^max) MB/s ∼26% -38%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s ∼24% -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s ∼22% -49%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s ∼14% -67%

AS SSD
Score Total
Average of class Mini PC (151.3 - 8314, n=30, last 2 years)	3398 Points ∼100% +65%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points ∼61%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1610 Points ∼47% -22%
AC6-M Mini-PC	1091 Points ∼32% -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points ∼22% -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points ∼21% -66%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points ∼18% -71%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points ∼4% -93%
Score Read
Average of class Mini PC (61 - 2781, n=30, last 2 years)	1234 Points ∼100% +44%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points ∼70%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	588 Points ∼48% -32%
AC6-M Mini-PC	473 Points ∼38% -45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points ∼26% -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points ∼19% -73%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points ∼18% -75%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points ∼11% -84%
Score Write
Average of class Mini PC (97 - 4185, n=30, last 2 years)	1594 Points ∼100% +107%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points ∼48%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	728 Points ∼46% -5%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points ∼25% -49%
AC6-M Mini-PC	374 Points ∼23% -51%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points ∼23% -52%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points ∼20% -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points ∼13% -73%
Seq Read
Average of class Mini PC (305 - 5799, n=30, last 2 years)	2521 MB/s ∼100% +87%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1359 MB/s ∼54% +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s ∼53%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s ∼20% -62%
AC6-M Mini-PC	492 MB/s ∼20% -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s ∼19% -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s ∼19% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s ∼17% -68%
Seq Write
Average of class Mini PC (240 - 3737, n=30, last 2 years)	1776 MB/s ∼100% +58%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1139 MB/s ∼64% +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s ∼63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s ∼27% -57%
AC6-M Mini-PC	450 MB/s ∼25% -60%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s ∼23% -63%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s ∼22% -66%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s ∼19% -69%
4K Read
Average of class Mini PC (6.08 - 103.7, n=30, last 2 years)	52.1 MB/s ∼100% +139%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s ∼68% +63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s ∼53% +26%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s ∼45% +7%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s ∼42%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	21.4 MB/s ∼41% -2%
AC6-M Mini-PC	19.43 MB/s ∼37% -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s ∼31% -26%
4K Write
Average of class Mini PC (33.7 - 366, n=30, last 2 years)	163.5 MB/s ∼100% +318%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s ∼52% +119%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s ∼51% +112%
AC6-M Mini-PC	51.4 MB/s ∼31% +31%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s ∼24%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.2 MB/s ∼23% -2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s ∼23% -3%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s ∼22% -6%
4K-64 Read
Average of class Mini PC (24.7 - 2148, n=30, last 2 years)	930 MB/s ∼100% +32%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s ∼76%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	431 MB/s ∼46% -39%
AC6-M Mini-PC	404.1 MB/s ∼43% -43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s ∼25% -66%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB

Reseña del kit esencial Intel NUC11 alias Atlas Canyon con Intel Pentium Silver N6005 e Intel Celeron N4505

Posibles contendientes en la comparación

Intel NUC11 Essential Kit - Atlas Canyon en detalle

Caso

Comparación de tamaños

Conectividad

Comunicación

Accesorios

Mantenimiento

Rendimiento: 4 núcleos hacen que el uso diario sea considerablemente más fluido

Intel Pentium Silver N6005

Intel Celeron N4505

Condiciones de ensayo

Procesador

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Intel NUC11 Essential Kit - Atlas Canyon vs. Cinebench R15 Multi Loop

Rendimiento del sistema

Latencia del CPD

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Dispositivos de almacenamiento

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505
