Zotac Gaming GeForce RTX 3070 Twin Edge Review: Rendimiento de la RTX 2080 Ti para todos

Rápido y casi tan furioso. La NVIDIA RTX 3070 ofrece niveles de rendimiento de la RTX 2080 Ti a menos de la mitad del precio de venta al público de esta última. La Zotac Gaming GeForce RTX 3070 Twin Edge trae todas las bondades de la GPU Ampere GA104 en un formato compacto de 2 ranuras. En este análisis, evaluamos el rendimiento de la Zotac RTX 3070 Twin Edge y vemos si realmente está a la altura.

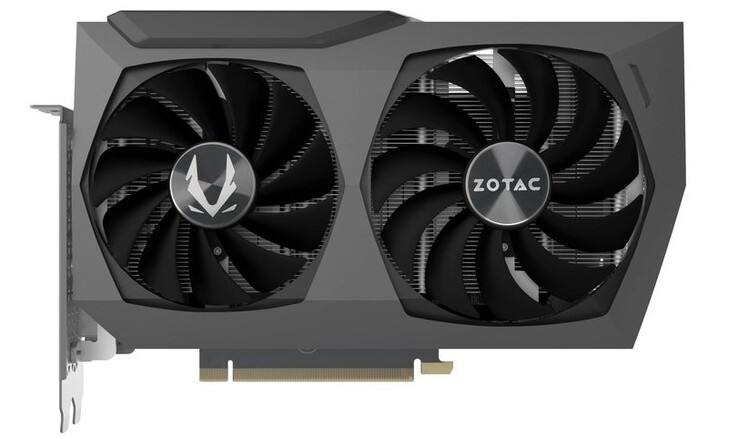

Zotac Gaming GeForce RTX 3070 Twin Edge. (Fuente de la imagen: Zotac)
Zotac Gaming GeForce RTX 3070 Twin Edge. (Fuente de la imagen: Zotac)

Durante el lanzamiento de la Ampere de NVIDIA a finales del año pasado, se habló mucho de cómo la GeForce RTX 3080 permite el juego 4K convencional, mientras que la RTX 3090 busca suplantar a la Titan RTX. En medio de todo este revuelo, una tarjeta que destacó fue la GeForce RTX 3070

La RTX 3070 viene con la promesa de ofrecer niveles de rendimiento de la RTX 2080 Ti por menos de la mitad del precio. La RTX 3070 no cuenta con memoria GDDR6X y tiene menos VRAM y ancho de banda de memoria que la RTX 2080 TI. Sin embargo, la combinación de más núcleos CUDA, núcleos Tensor de tercera generación, núcleos RT de segunda generación y relojes más altos ayuda a que la RTX 3070 esté a la altura de la GPU de juegos insignia de Turing.

La Zotac Gaming GeForce RTX 3070 Twin Edge, como su nombre indica, es una tarjeta de doble ventilador que está disponible en versiones OC y no OC. Nosotros tenemos la Twin Edge sin OC para analizarla. Esta tarjeta tiene una velocidad ligeramente inferior a la de la Founders Edition y ofrece la misma potencia de 220 W

La versión OC, por su parte, tiene una velocidad superior en unos 5 MHz. Aquellos que prefieran un mayor aumento de potencia pueden optar por las tarjetas Zotac RTX 3070 AMP Holo (240 W) y Super Mini (215 W) o echar un vistazo a la MSI GeForce RTX 3070 Gaming X Trio

Comparación de la RTX 3070 con otras GPUs NVIDIA

Especificaciones RTX3090 RTX3080 FE ZotacRTX 3070 Twin Edge RTX3070 FE TitanRTX RTX2080 Ti RTX2080 RTX2070 S TITANX Pascal
Chip GA102 GA102 GA104 GA104 TU102 TU102 TU104 TU104 GP102
Proceso FinFET 8 nm 8nm 8 nm 12 nm 12 nm 12 nm 16 nm
CUDA cores 10,496 8,704 5,888 5,888 4,608 4,352 2,944 2,560 3,584
Textureunits 328 272 184 184 288 272 184 160 224
Núcleos de tensor 328 3ª Gen. 272 3ª Gen. 184 Gen. 576 2ª Gen. 544 2ª Gen. 368 2ª Gen. 320 2ª Gen. -
RTcores 82 68 46 46 72 68 46 40 -
Reloj base de la GPU 1.395 MHz 1.440 MHz 1.500 MHz 1.500 MHz 1.350 MHz 1.350 MHz 1.515 MHz 1.605 MHz 1.417 MHz
Reloj de refuerzo de la GPU 1.695 MHz 1.710 MHz 1.725 MHz 1.750 MHz 1.770 MHz 1.545 MHz 1.710 MHz 1.770 MHz 1.531 MHz
Memorybus 384-bit 320-bit 256-bit 256-bit 384-bit 352-bit 256-bit 256-bit 384-bit
Ancho de banda de la memoria 936 GB/s 760 GB/s 448GB/s 448 GB/s 672 GB/s 616 GB/s 448 GB/s 480,4 GB/s
Memoria de vídeo 24 GB GDDR6X 10 GB GDDR6X 8GB GDDR6 8 GB GDDR6 24 GB GDDR6 11 GB GDDR6 8 GB GDDR6 12 GB GDDR5X
Consumo de energía 350 W 320 W 220W 280 W 250 W 215 W 250 W

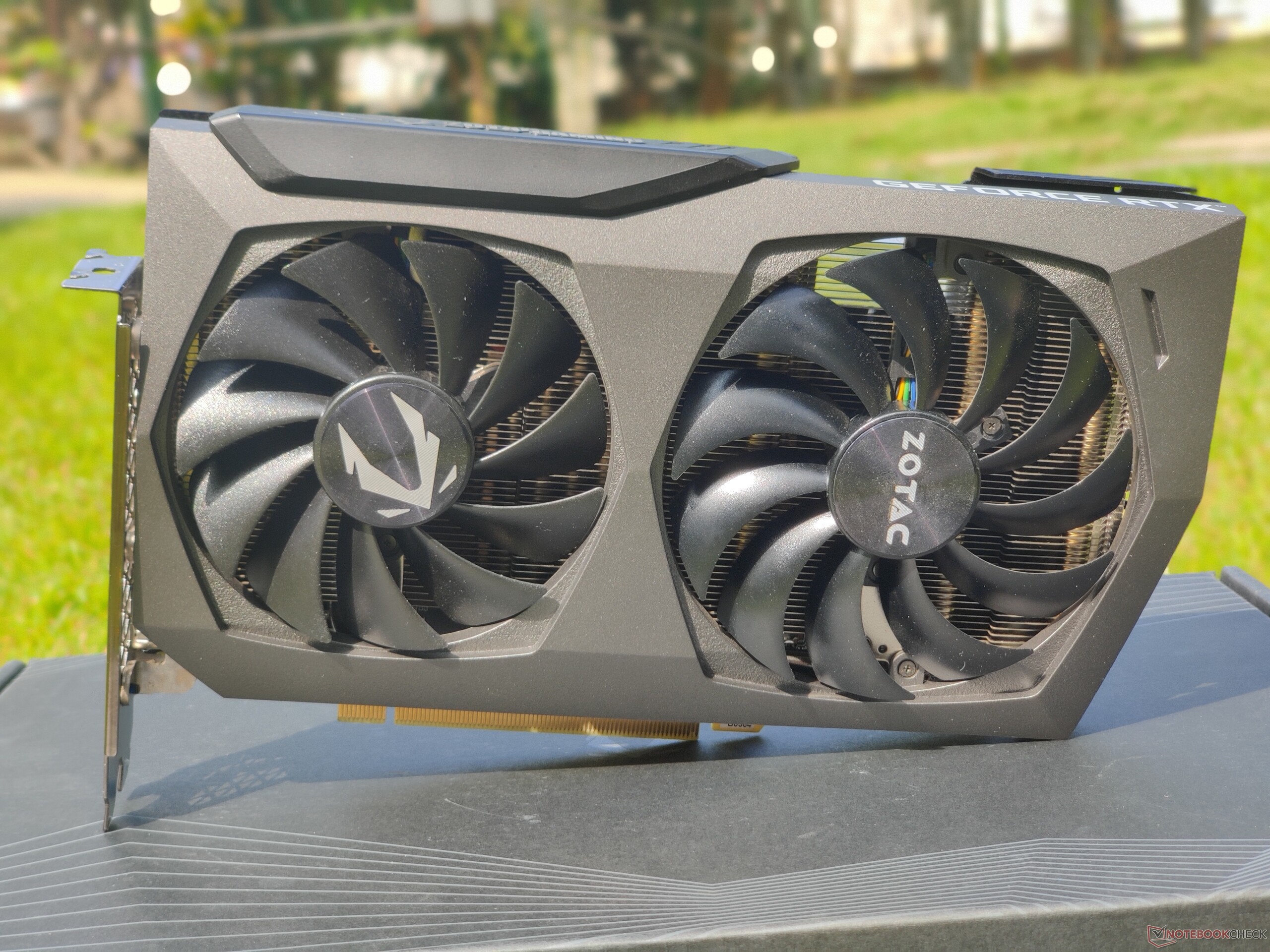

Un recorrido por la Zotac Gaming GeForce RTX 3070 Twin Edge

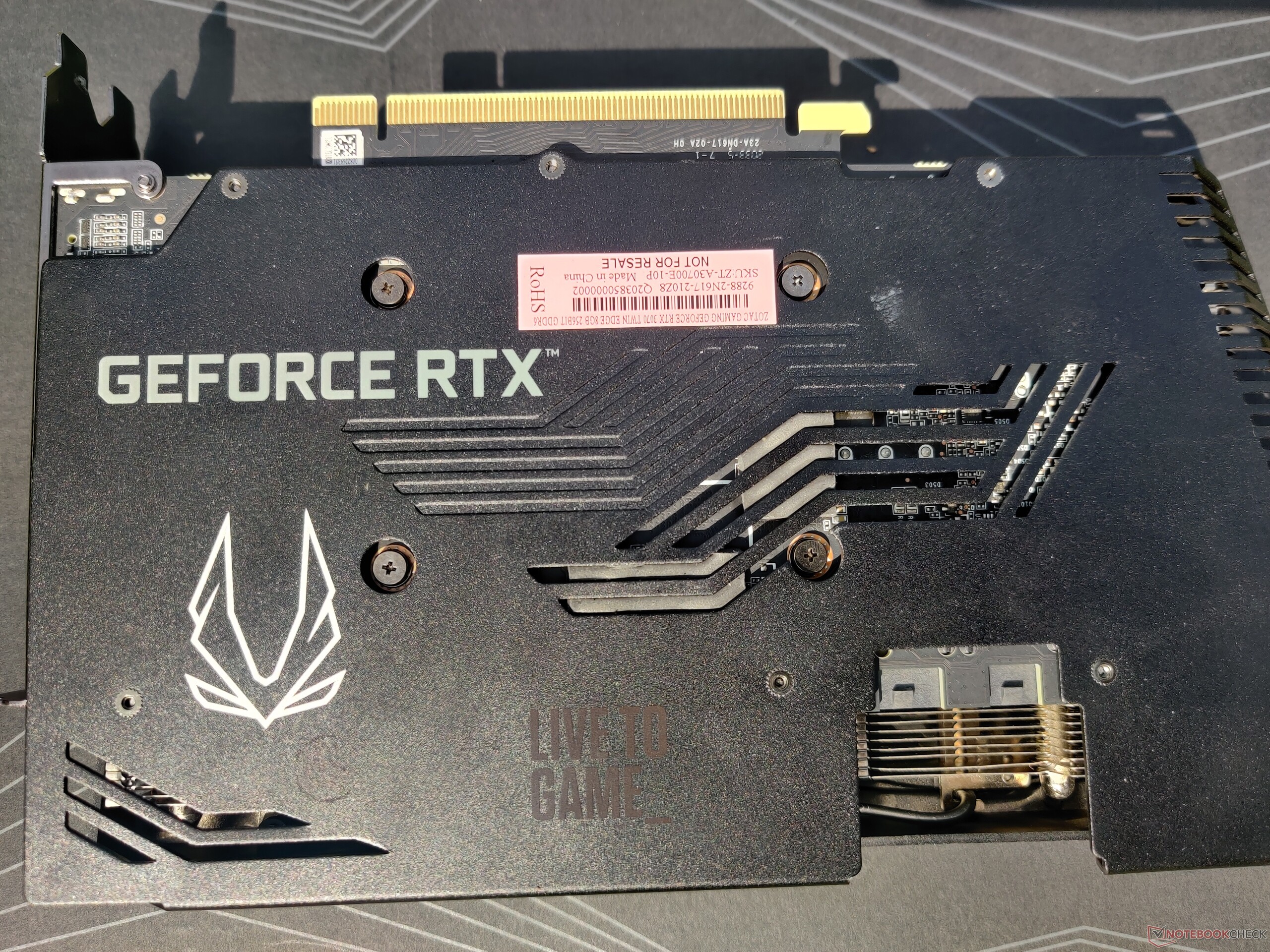

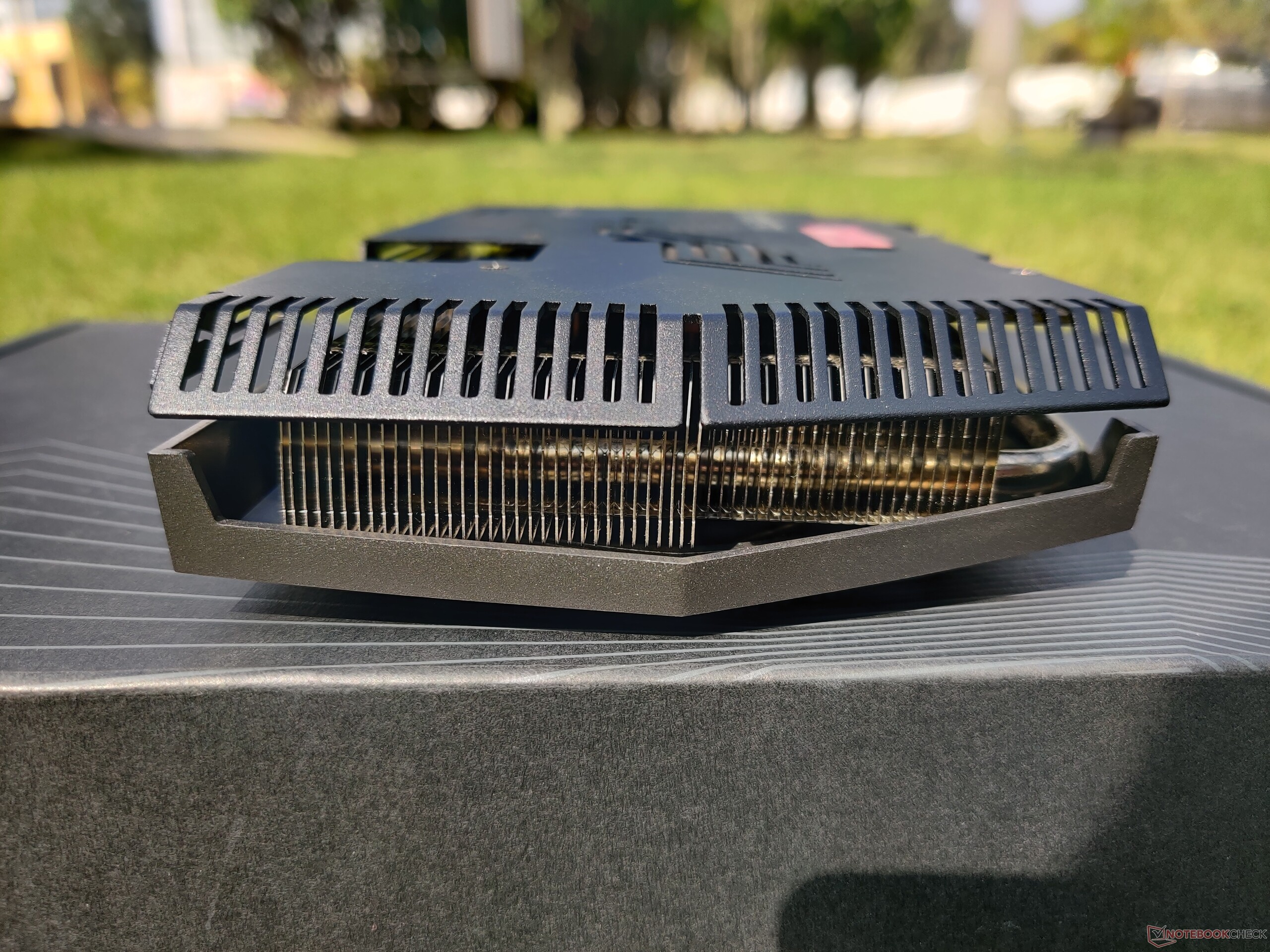

La Zotac Gaming RTX 3070 Twin Edge no llamará la atención precisamente por su aspecto, pero ofrece un diseño limpio y minimalista. No hay ningún elemento RGB, y el logotipo de Zotac Gaming sólo se ilumina en blanco. La tarjeta ofrece dos conectores de alimentación de 8 pines junto con cuatro puertos de salida de vídeo compuestos por tres salidas DisplayPort 1.4a y una salida HDMI 2.1

Los dos conectores de alimentación de 8 pines están colocados un poco más adentro del borde derecho, como es el caso de la mayoría de las tarjetas de Zotac, por lo que algunos usuarios pueden encontrar que sus cables de alimentación son un poco cortos. Lo bueno es que Zotac proporciona dos conectores de 6 a 8 pines como accesorios, que pueden usarse como solución. No encontramos problemas de estabilidad al utilizar la tarjeta con estos cables.

Zotac ofrece una garantía estándar de 3 años para todas las tarjetas RTX 30, que puede ampliarse en dos años más si la compra se registra en el sitio web de Zotac. Sin embargo, esta política de garantía sólo es aplicable para las regiones EMEAI

Los compradores de América del Norte (EE.UU. y Canadá) obtienen una garantía estándar de 2 años que se puede ampliar un año más si el producto se registra en Zotac.com en los 30 días siguientes a la compra.

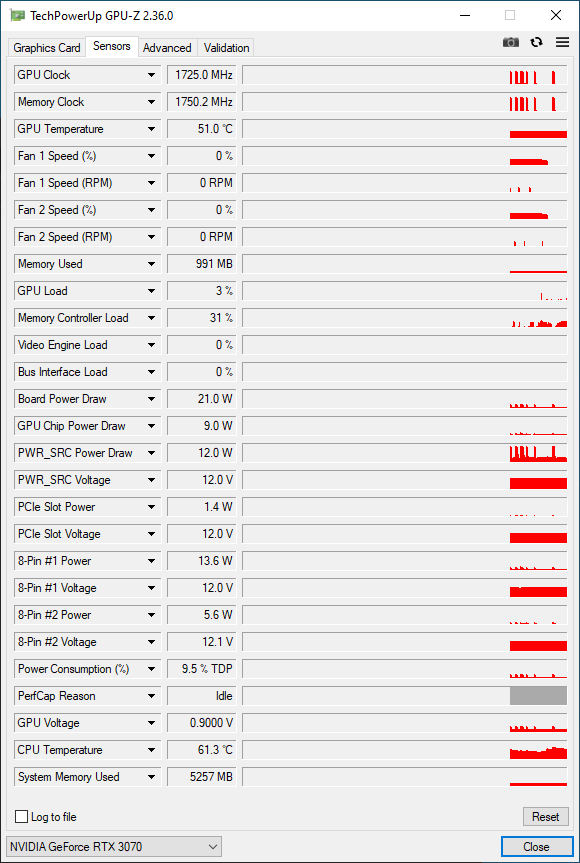

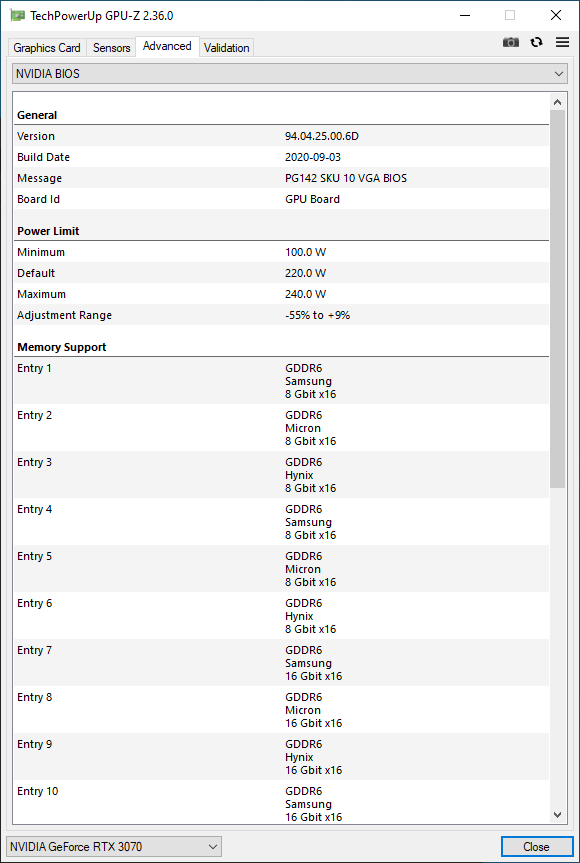

La GPU-Z no arroja ninguna sorpresa, ya que Zotac no ha ajustado mucho las especificaciones de la Founders Edition. La RTX 3070 Twin Edge ofrece un reloj base de 1.500 MHz y un boost de hasta 1.725 MHz. Aunque el TGP de la RTX 3070 es de 220 W, es posible aumentarlo en un 9% hasta los 240 W. Buena parte de esta potencia adicional se destina a la propia GPU, ya que la tarjeta carece de RGB y solo tiene dos ventiladores

El banco de pruebas

Nuestro banco de pruebas se basa en la plataforma AMD Ryzen 5000 Zen 3 X570. El procesador AMD Ryzen 9 5950X de 16 núcleos ofrece un excelente rendimiento en juegos que supera al Intel Core i9-10900K y es nuestro procesador elegido para esta prueba. Un refrigerador Corsair iCUE H115i Elite Capellix AIO ayudó a mantener fresca esta gigantesca CPU

Utilizamos la placa base MSI Prestige X570 Creation como base. El Ryzen 9 5950X se combinó con 32 GB (16 GB x2) de memoria RAM G.SKILL Trident Z Neo DDR4-3600 con tiempos de 16-19-19-39. Se instaló Windows 10 20H2 con las últimas actualizaciones acumulativas (Build 19041.662) en un SSD Gigabyte Aorus NVMe Gen4 de 1 TB y se utilizaron dos SSD Crucial MX500 SATA de 1 TB cada uno para ejecutar pruebas y juegos

Todo el conjunto se alojó en una caja Corsair iCUE 4000X RGB con una fuente de alimentación Thermaltake Toughpower Grand 850 W 80 Plus Gold. Todas las pruebas se realizaron con la caja cerrada para que fueran representativas de un escenario de uso normal

Nos gustaría agradecer a AMD por proporcionar el Ryzen 9 5950X y a Corsair por el refrigerador iCUE Elite Capellix y la caja iCUE 4000X

Emparejamos la RTX 3070 Twin Edge con un televisor inteligente OnePlus Serie U 55U1 que funcionaba a 4K 60 Hz. La salida de color se configuró como RGB de 32 bits en el panel de control de NVIDIA y el escalado del escritorio de Windows se configuró al 100%

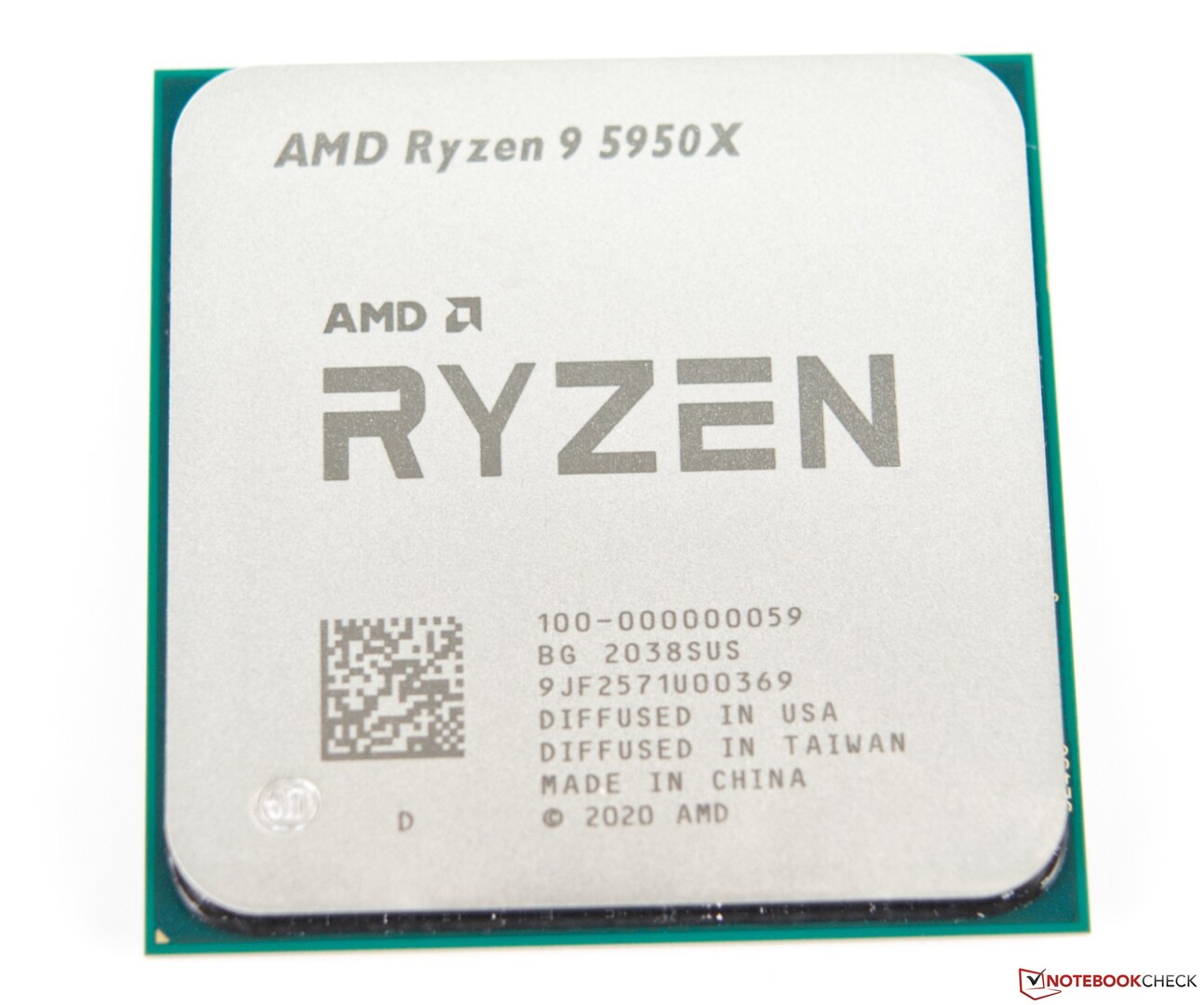

CPU AMD Ryzen 9 5950X
CPU AMD Ryzen 9 5950X

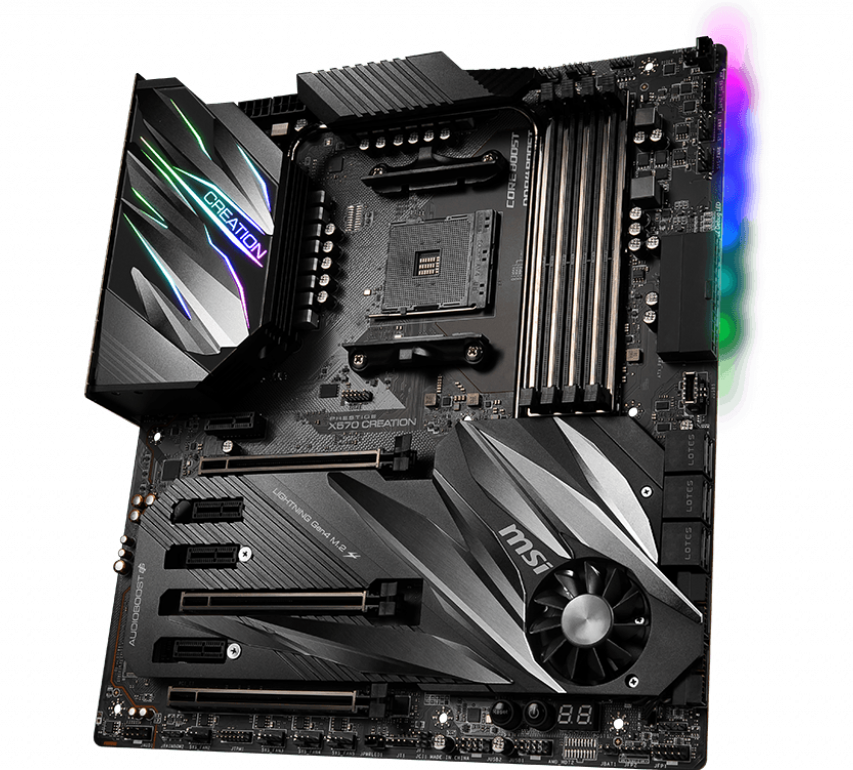

Placa base MSI Prestige X570 Creation. (Fuente de la imagen: MSI)
Placa base MSI Prestige X570 Creation. (Fuente de la imagen: MSI)

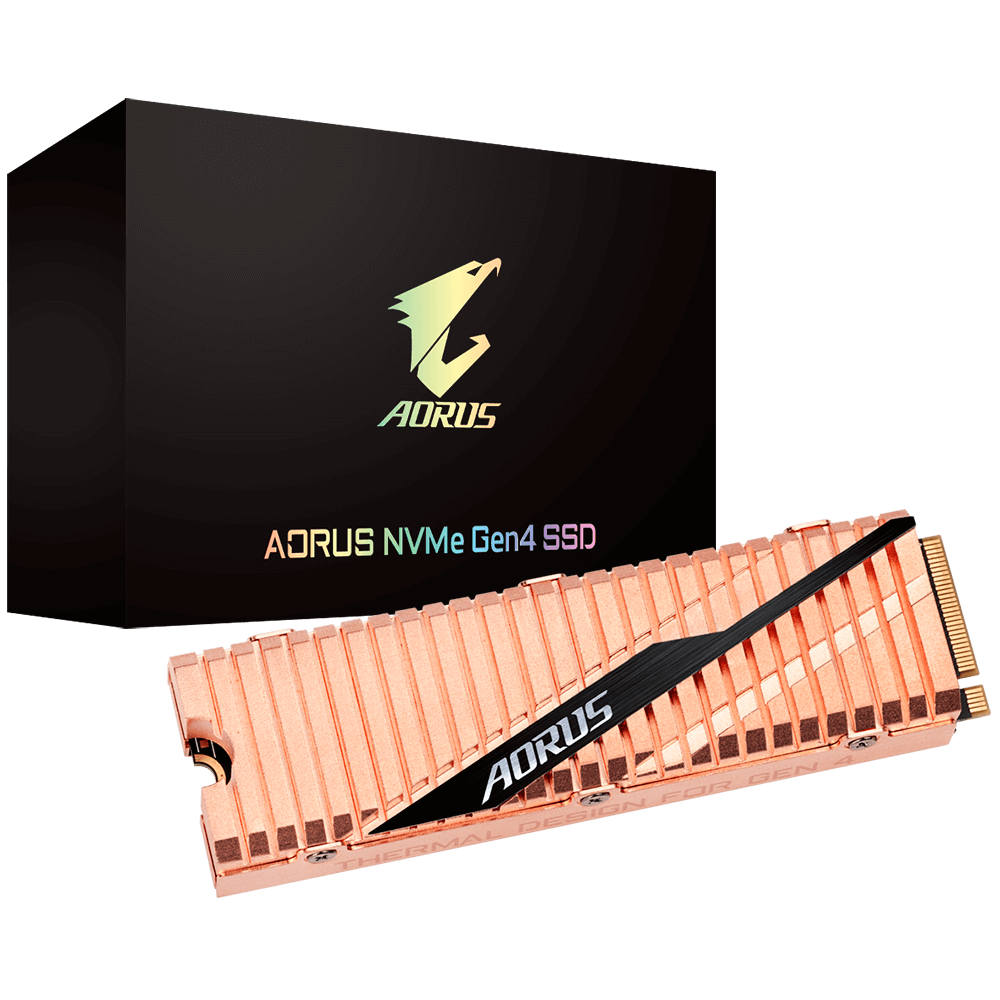

SSD Gigabyte Aorus NVMe Gen4. (Fuente de la imagen: Gigabyte)
SSD Gigabyte Aorus NVMe Gen4. (Fuente de la imagen: Gigabyte)
Memoria RAM G.SKILL Trident Z Neo DDR4-3600. (Fuente de la imagen: G.SKILL)
Memoria RAM G.SKILL Trident Z Neo DDR4-3600. (Fuente de la imagen: G.SKILL)

Puntos de referencia sintéticos

La Zotac RTX 3070 Twin Edge rinde decentemente en nuestras pruebas sintéticas de benchmark. Esta tarjeta empata con la MSI GeForce RTX 3070 Ventus 3X OC en la mayoría de las pruebas de 3DMark, ya que ambas tienen prácticamente las mismas especificaciones (la Ventus es sólo 25 MHz más rápida)

También vemos que el rendimiento general está en línea con una RTX 2080 Ti y es entre un 13% y un 20% más rápida que una RTX 2080 Super.

La diferencia de rendimiento entre la RTX 3070 y la Titan RTX se reduce significativamente en los benchmarks Unigine Heaven 4.0 y Valley 1.0. Sin embargo, la Titan RTX se ve con ventaja en todos los subconjuntos de la prueba de superposición

3DMark
1920x1080 Fire Strike Graphics
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
49735 Points +59%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
43404 Points +39%
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
42688 Points +37%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
40910 Points +31%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
37604 Points +20%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
34722 Points +11%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
32081 Points +3%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
31252 Points
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
31096 Points 0%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
31020 Points -1%
Average NVIDIA GeForce RTX 3070
  (20357 - 33270, n=7)
28949 Points -7%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
27075 Points -13%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
25383 Points -19%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
24151 Points -23%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
21970 Points -30%
3840x2160 Fire Strike Ultra Graphics
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
12626 Points +57%
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
12371 Points +54%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
11715 Points +46%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
10793 Points +34%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
10645 Points +32%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
8649 Points +8%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
8483 Points +5%
Average NVIDIA GeForce RTX 3070
  (8043 - 8483, n=5)
8250 Points +3%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
8227 Points +2%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
8043 Points
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
7925 Points -1%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
6500 Points -19%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
5955 Points -26%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
5786 Points -28%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
5175 Points -36%
Fire Strike Extreme Graphics
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
25015 Points +61%
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
23114 Points +49%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
22423 Points +45%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
20861 Points +35%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
20007 Points +29%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
17176 Points +11%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
16196 Points +4%
Average NVIDIA GeForce RTX 3070
  (15503 - 16276, n=5)
15859 Points +2%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
15722 Points +1%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
15603 Points +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
15503 Points
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
12968 Points -16%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
12209 Points -21%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
11634 Points -25%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
10481 Points -32%
2560x1440 Time Spy Graphics
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
19571 Points +50%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
18863 Points +45%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
17604 Points +35%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
17603 Points +35%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
17467 Points +34%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
15283 Points +17%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
13744 Points +6%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
13579 Points +4%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
13111 Points +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
13024 Points
Average NVIDIA GeForce RTX 3070
  (11043 - 13579, n=7)
12616 Points -3%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
11477 Points -12%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
10094 Points -22%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
8795 Points -32%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
8673 Points -33%
Unigine Heaven 4.0 - Extreme Preset DX11
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
283.5 fps +33%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
272.4 (47.3min - 557.4max) fps +27%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
252.5 fps +18%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
247.9 fps +16%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
237.1 fps +11%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
232.6 fps +9%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
215.2 fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
213.7 fps
Average NVIDIA GeForce RTX 3070
  (196.4 - 214, n=5)
206 fps -4%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
203.2 fps -5%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
202.5 fps -5%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
175.2 fps -18%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
160.1 fps -25%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
141.7 fps -34%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
132.5 fps -38%
Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
196 fps +17%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
190.6 fps +13%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
184.2 (47.3min - 301.5max) fps +10%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
181.8 fps +8%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
180.1 fps +7%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
176.2 fps +5%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
168.1 fps
Average NVIDIA GeForce RTX 3070
  (155.1 - 168.5, n=5)
161.2 fps -4%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X
159.4 fps -5%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
157 fps -7%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
155.1 fps -8%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X
120.2 fps -28%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X
113.7 fps -32%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X
106.9 fps -36%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X
106.3 fps -37%
Unigine Superposition
1280x720 720p Low
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
40994 Points +4%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
39277 Points
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
36452 Points -7%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
34602 Points -12%
Average NVIDIA GeForce RTX 3070
  (27330 - 40007, n=5)
34576 Points -12%
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
33329 Points -15%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
32183 Points -18%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
31666 Points -19%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
30851 Points -21%
1920x1080 1080p High
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
25953 Points +48%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
23626 (113.62min - 236.69max) Points +35%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
22265 Points +27%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
21912 Points +25%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
21333 Points +22%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
20315 Points +16%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
17491 Points
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
17346 Points -1%
Average NVIDIA GeForce RTX 3070
  (17054 - 17491, n=5)
17312 Points -1%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
17244 Points -1%
1920x1080 1080p Extreme
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
12694 Points +52%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
11927 (69.49min - 121.03max) Points +43%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
10822 Points +30%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
10572 Points +27%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
10046 Points +21%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
9056 Points +9%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
8507 Points +2%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
8365 Points 0%
Average NVIDIA GeForce RTX 3070
  (8276 - 8507, n=5)
8354 Points 0%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
8336 Points
3840x2160 4k Optimized
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
16868 Points +58%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
15888 (99.72min - 146.92max) Points +48%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
14243 Points +33%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
13984 Points +31%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
13471 Points +26%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
12186 Points +14%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
10755 Points 0%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
10704 Points
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
10673 Points 0%
Average NVIDIA GeForce RTX 3070
  (10544 - 10755, n=5)
10667 Points 0%
7680x4320 8k Optimized
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X
7521 Points +63%
Zotac Gaming GeForce RTX 3090 Trinity
NVIDIA GeForce RTX 3090, R9 3900X
6969 (43.54min - 60.14max) Points +51%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X
6346 Points +38%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X
6243 Points +36%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X
5402 Points +17%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X
5256 Points +14%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X
4695 Points +2%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X
4639 Points +1%
Average NVIDIA GeForce RTX 3070
  (4587 - 4695, n=5)
4624 Points 0%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X
4602 Points
3DMark 11 Performance
36313 puntos
3DMark Fire Strike Score
29648 puntos
3DMark Fire Strike Extreme Score
15360 puntos
3DMark Time Spy Score
12696 puntos
ayuda

Puntos de referencia para juegos

La Zotac RTX 3070 Twin Edge rinde en las líneas esperadas cuando se trata de juegos. La RTX 3070 es adecuada para jugar a títulos AAA modernos a 1440p Ultra 60+ fps o 1080p Ultra 100+ fps. El juego a 4K es muy posible, ya que vemos que la mayoría de los títulos alcanzan las marcas de fps de finales de los 40 y principios de los 50. Si se ajustan algunos de los parámetros del juego, se podrá jugar a 4K 60 fps sin que la fidelidad visual se vea afectada.

La tarjeta ofrece 8 GB de RAM GDDR6 a bordo, lo que debería ser suficiente para la mayoría de los juegos actuales. Aunque los 16 GB de RAM de la AMD Radeon RX 6800 pueden parecer tentadores, no nos encontramos con ningún problema de limitación de la VRAM con la RTX 3070 al ejecutar nuestro conjunto de juegos

RTX 3070 Twin Edge consigue una media de 123 fps en La página web Witcher 3 1080p Ultra. Este valor baja un poco de vez en cuando, pero la tarjeta consigue ofrecer un rendimiento bastante constante a lo largo del tiempo y nunca baja de los 120 fps. Esto indica que la configuración de refrigeración de la tarjeta está haciendo bien su trabajo para evitar cualquier estrangulamiento

0102030405060708090100110120Tooltip
Zotac Gaming GeForce RTX 3070 Twin Edge NVIDIA GeForce RTX 3070, R9 5950X: Ø123.2 (120-126)
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
160 (140min - 184max) fps +30%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
160 (138min - 179max) fps +30%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
152 (138min - 171max) fps +24%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
145 (123min - 154max) fps +18%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
135 (118min - 158max) fps +10%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
123 (120min, 121P1 - 126max) fps
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
122 (110min - 138max) fps -1%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
121 (112min - 134max) fps -2%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
109 (81min - 123max) fps -11%
Average NVIDIA GeForce RTX 3070
  (52.8 - 132.2, n=7)
106.1 fps -14%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
97 (83min - 109max) fps -21%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
92 (79min - 99max) fps -25%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
79 (67min - 89max) fps -36%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
128 (117min - 138max) fps +43%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
115 (107min - 124max) fps +28%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
114 (106min - 122max) fps +27%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
110 (97min - 117max) fps +23%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
96 (87min - 109max) fps +7%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
90.9 (84min - 101max) fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
89.6 (81min, 81P1 - 96max) fps
Average NVIDIA GeForce RTX 3070
  (84 - 93.9, n=5)
89.3 fps 0%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
88.2 (82min - 97max) fps -2%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
79 (71min - 87max) fps -12%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
68 (61min - 74max) fps -24%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
57 (51min - 62max) fps -36%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
52.1 (47min - 57max) fps -42%
3840x2160 Ultra Graphics & Postprocessing (HBAO+)
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
85.7 (80min - 93max) fps +45%
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
85.4 (79min - 92max) fps +45%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
78 (72min - 83max) fps +32%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
65 (59min - 71max) fps +10%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
60.3 (55min - 67max) fps +2%
Average NVIDIA GeForce RTX 3070
  (59 - 60.3, n=2)
59.7 fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
59 (53min, 53.59P1 - 64max) fps
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
55.2 (49min - 61max) fps -6%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
46.3 (41min - 50max) fps -22%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
39.7 (35min - 43max) fps -33%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
38.4 (32min - 42max) fps -35%
Shadow of the Tomb Raider
1920x1080 Highest Preset AA:T
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
194 fps +29%
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
188 fps +25%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
185 fps +23%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
177 fps +18%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
160 fps +7%
Average NVIDIA GeForce RTX 3070
  (138 - 160, n=4)
151.3 fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
150 fps
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
145 fps -3%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
145 fps -3%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
145 fps -3%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
138 fps -8%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
130 fps -13%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
110 fps -27%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
110 fps -27%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
104 fps -31%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
96 fps -36%
2560x1440 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
162 fps +42%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
152 fps +33%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
148 fps +30%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
147 fps +29%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
137 fps +20%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
116 fps +2%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
114 fps
Average NVIDIA GeForce RTX 3070
  (108 - 116, n=4)
113.2 fps -1%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
108 fps -5%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
108 fps -5%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
91 fps -20%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
81 fps -29%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
76 fps -33%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
69 fps -39%
3840x2160 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
95.6 fps +54%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
89.3 fps +44%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
87.9 fps +42%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
83.9 fps +35%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
79.6 fps +28%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
63.5 fps +2%
Average NVIDIA GeForce RTX 3070
  (61 - 63.5, n=4)
62.3 fps 0%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
62 fps
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
61 fps -2%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
60 fps -3%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
49 fps -21%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
43 fps -31%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
38 fps -39%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
36 fps -42%
Borderlands 3
2560x1440 Badass Overall Quality (DX11)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
117 fps +48%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
109 fps +38%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
103 fps +30%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
95.7 fps +21%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
93.6 fps +18%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
79 fps
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
78 fps -1%
Average NVIDIA GeForce RTX 3070
  (75.1 - 82.9, n=5)
77.7 fps -2%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
75.9 fps -4%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
75.1 fps -5%
3840x2160 Badass Overall Quality (DX11)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
73.4 fps +65%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
71.5 fps +61%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
61.9 fps +39%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
61.5 fps +38%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
53.6 fps +20%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
44.5 fps
Average NVIDIA GeForce RTX 3070
  (42.7 - 46.3, n=5)
44.3 fps 0%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
44.2 fps -1%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
43.8 fps -2%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
43.6 fps -2%
1920x1080 Badass Overall Quality (DX11)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
135 fps +30%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
128 fps +23%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
120 fps +15%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
117 fps +13%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
117 fps +13%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
104 fps
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
101.3 fps -3%
Average NVIDIA GeForce RTX 3070
  (95.3 - 108.9, n=5)
100.6 fps -3%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
95.8 fps -8%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
95.3 fps -8%
Call of Duty Black Ops Cold War
1920x1080 Highest Settings
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
161 (59.8min, 96.1P0.1, 111P1 - 312max) fps +34%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
144 (58.7min, 90.7P0.1, 105P1 - 365max) fps +20%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
127 (21.9min, 24.4P0.1, 83.5P1 - 285max) fps +6%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
122 (45min, 57.3P0.1, 67.9P1 - 301max) fps +2%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
120 (49.7min, 76.4P0.1, 85.7P1 - 245max) fps
Average NVIDIA GeForce RTX 3070
  (95.7 - 122, n=3)
112.6 fps -6%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
95.7 (21.6min, 37.6P0.1, 58P1 - 166max) fps -20%
2560x1440 Highest Settings
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
122 (54.5min, 84.4P0.1, 93.9P1 - 258max) fps +36%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
107 (43.6min, 54P0.1, 62.7P1 - 272max) fps +20%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
104 (19.1min, 20.4P0.1, 77.7P1 - 258max) fps +16%
Average NVIDIA GeForce RTX 3070
  (83 - 107, n=3)
93.2 fps +4%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
89.5 (40.5min, 65.1P0.1, 70.3P1 - 219max) fps
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
83 (22.7min, 30P0.1, 52.1P1 - 158max) fps -7%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
80.4 (16.5min, 31.8P0.1, 64.3P1 - 285max) fps -10%
3840x2160 Highest Settings
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
76.1 (42.1min, 58.7P0.1, 61.9P1 - 221max) fps +74%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
74 (32.6min, 43.5P0.1, 50.6P1 - 270max) fps +69%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
65.6 (13.8min, 17.5P0.1, 51.4P1 - 229max) fps +50%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
64 (10.8min, 11.6P0.1, 50.8P1 - 159max) fps +46%
Average NVIDIA GeForce RTX 3070
  (43.8 - 74, n=3)
56 fps +28%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
50.2 (16.1min, 25.6P0.1, 36.1P1 - 146max) fps +15%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
43.8 (16.7min, 17.4P0.1, 33.8P1 - 80.3max) fps
1920x1080 Highest Settings + Ultra Ray Tracing
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
88.3 (22.4min, 29.5P0.1, 44.8P1 - 267max) fps +26%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
81.9 (17.3min, 30.1P0.1, 42.6P1 - 248max) fps +17%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
70.1 (23.8min, 27.5P0.1, 42.6P1 - 217max) fps
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
68.5 (19.1min, 22.3P0.1, 30.4P1 - 229max) fps -2%
Average NVIDIA GeForce RTX 3070
  (49.8 - 70.1, n=3)
62.8 fps -10%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
49.8 (8.39min, 9.64P0.1, 25.1P1 - 146max) fps -29%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
21.8 (8.8min, 9.61P0.1, 16.2P1 - 49.5max) fps -69%
Watch Dogs Legion
1920x1080 Ultra Preset + Ultra Ray Tracing (DX12)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
78.2 (53.58min, 63.39P1 - 115.63max) fps +51%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
71.4 (47.71min, 55.63P1 - 113.42max) fps +38%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
71.3 (24.22min, 56.02P1 - 112.08max) fps +38%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
70.9 (37.64min, 58.05P1 - 113.63max) fps +37%
Average NVIDIA GeForce RTX 3070
  (51.7 - 61, n=4)
55.1 fps +7%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
54.3 (18.74min, 40.53P1 - 81.06max) fps +5%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
53.2 (13.35min, 28.3P1 - 83.71max) fps +3%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
51.7 (15.03min, 25.28P1 - 71.97max) fps
3840x2160 Ultra Preset (DX12)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
60.3 (34.68min, 51.05P1 - 78.14max) fps +55%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
54.1 (24.72min, 44.97P1 - 114.7max) fps +39%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
53.5 (33.98min, 42.85P1 - 79.6max) fps +38%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
49.3 (32.85min, 41.54P1 - 76.12max) fps +27%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
39.2 (17.54min, 27.54P1 - 81.17max) fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
38.9 (22.74min, 31.31P1 - 54.01max) fps
Average NVIDIA GeForce RTX 3070
  (37 - 39.2, n=4)
38 fps -2%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
37 (17.44min, 25.32P1 - 81.3max) fps -5%
2560x1440 Ultra Preset (DX12)
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
89.7 (59.87min, 73.02P1 - 132.92max) fps +37%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
84.5 (58.88min, 69.45P1 - 137.16max) fps +29%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
81.6 (44.31min, 65.35P1 - 139.28max) fps +25%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
81.1 (46.24min, 61.45P1 - 140.66max) fps +24%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
66.3 (41min, 50.81P1 - 116.42max) fps +2%
Average NVIDIA GeForce RTX 3070
  (65.3 - 67, n=4)
66.1 fps +1%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
65.7 (25.01min, 51.86P1 - 96.9max) fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
65.3 (41.29min, 53.17P1 - 88.97max) fps
1920x1080 Ultra Preset (DX12)
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
112 (75.12min, 87.97P1 - 181.69max) fps +32%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
103 (55.63min, 83.65P1 - 156.57max) fps +21%
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
103 (30.26min, 75.96P1 - 155.81max) fps +21%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
99.3 (13.98min, 73.29P1 - 167.32max) fps +17%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
86 (37.65min, 66.32P1 - 130.48max) fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
84.9 (55.86min, 67.74P1 - 127.49max) fps
Average NVIDIA GeForce RTX 3070
  (79 - 89, n=4)
84.7 fps 0%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
79 (42.91min, 56.59P1 - 121.27max) fps -7%
Metro Exodus
1920x1080 Ultra Quality DXR AF:16x
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
116 (59.68min - 166.06max) fps +41%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
102 (54.36min - 150.53max) fps +24%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
91.5 (51.03min - 134.52max) fps +11%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
87.8 (55.41min - 116.04max) fps +7%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
85.5 (52.71min - 120.38max) fps +4%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
82.1 (47.4min - 134.03max) fps
Average NVIDIA GeForce RTX 3070
  (80.4 - 83, n=5)
81.6 fps -1%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
80.4 (43.5min - 124.3max) fps -2%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
80.4 (44.72min - 124.72max) fps -2%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
78.6 (43min - 115max) fps -4%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
65 (37.62min - 97.62max) fps -21%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
57.5 (34min - 85max) fps -30%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
50.1 (30min - 72max) fps -39%
3840x2160 Ultra Quality AF:16x
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
76.3 (45.25min - 131.44max) fps +58%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
71.7 (40.9min - 110.8max) fps +48%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
65.9 (38.48min - 122.03max) fps +36%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
64.1 (36.54min - 108.57max) fps +33%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
56.3 (40.14min - 64.28max) fps +17%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
49.1 (30.24min - 89.89max) fps +2%
Average NVIDIA GeForce RTX 3070
  (48.3 - 49.7, n=5)
48.9 fps +1%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
48.6 (29.82min - 99.64max) fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
48.3 (29.65min - 105.2max) fps
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
47.5 (31min - 69max) fps -2%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
40 (25.84min - 59.35max) fps -17%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
35 (23min - 51max) fps -28%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
29.7 (20min - 42max) fps -39%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
29.6 (20.7min - 36.64max) fps -39%
2560x1440 Ultra Quality AF:16x
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
112 (58.69min - 182.42max) fps +49%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
102 (61.16min - 146.03max) fps +35%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
97.4 (51.56min - 162.47max) fps +29%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
94.6 (55.44min - 143.68max) fps +25%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
92.2 (46.62min - 155.93max) fps +22%
Average NVIDIA GeForce RTX 3070
  (74.4 - 78.3, n=5)
75.8 fps +1%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
75.4 (39.91min - 127.26max) fps
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
74.8 (41.41min - 120.5max) fps -1%
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
74.4 (38.95min - 129.85max) fps -1%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
71.9 (40min - 108max) fps -5%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
61 (35.51min - 95.82max) fps -19%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
54.5 (31.85min - 78.06max) fps -28%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
54.3 (32min - 83max) fps -28%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
46.5 (28min - 69max) fps -38%
1920x1080 Ultra Quality AF:16x
MSI GeForce RTX 3090 Suprim X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3090
132 (72.24min - 199.88max) fps +41%
MSI GeForce RTX 3080 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
116 (56.76min - 185.19max) fps +24%
AMD Radeon RX 6800 XT
AMD Ryzen 9 5950X, AMD Radeon RX 6800 XT
115 (64.52min - 181.92max) fps +23%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3080
111 (57.16min - 183.25max) fps +19%
Zotac Gaming GeForce RTX 3090 Trinity
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 3090
108 (64.8min - 150.67max) fps +15%
Average NVIDIA GeForce RTX 3070
  (91.3 - 97.7, n=5)
93.9 fps 0%
MSI GeForce RTX 3070 Ventus 3X
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
93.7 (46.52min - 161.6max) fps 0%
Zotac Gaming GeForce RTX 3070 Twin Edge
AMD Ryzen 9 5950X, NVIDIA GeForce RTX 3070
93.6 (45.01min - 161.08max) fps
MSI GeForce RTX 3070 Gaming X Trio
AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3070
91.3 (46.36min - 152.74max) fps -2%
KFA2 GeForce RTX 2080 Ti EX
AMD Ryzen 9 3900X, NVIDIA GeForce RTX 2080 Ti (Desktop)
89.7 (46min - 140max) fps -4%
Nvidia GeForce RTX 2080 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2080 Super (Desktop)
76 (38.54min - 122.4max) fps -19%
Nvidia GeForce RTX 2070 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2070 Super (Desktop)
67.8 (36min - 110max) fps -28%
AMD Radeon RX 5700 XT
AMD Ryzen 7 2700X, AMD Radeon RX 5700 XT (Desktop)
61 (36.09min - 86.1max) fps -35%
Nvidia GeForce RTX 2060 Super
AMD Ryzen 7 2700X, NVIDIA GeForce RTX 2060 Super (Desktop)
58.9 (32min - 92max) fps -37%
bajo medio alto ultraQHD4K
The Witcher 3 (2015) 548 449 244 123 89.6
Shadow of the Tomb Raider (2018) 165 161 157 150 114 62
Assassin´s Creed Odyssey (2018) 149 125 107 81 68 48
Metro Exodus (2019) 197 154 118 93.6 75.4 48.3
Total War: Three Kingdoms (2019) 371.5 206.4 136 103.5 67.5 33.1
Borderlands 3 (2019) 169 150 126 104 79 44.5
Red Dead Redemption 2 (2019) 175 160 118 77.9 63.2 42.6
Doom Eternal (2020) 547 358 322 311 244 136
Gears Tactics (2020) 342.6 204.9 150.8 136.2 98.2 53.5
Watch Dogs Legion (2020) 129 127 113 84.9 65.3 38.9
Assassin´s Creed Valhalla (2020) 130 100 85 77 65 43
Call of Duty Black Ops Cold War (2020) 239 146 124 120 89.5 43.8
Immortals Fenyx Rising (2020) 148 109 96 88 76 54
Cyberpunk 2077 1.0 (2020) 125 108 93.1 80.6 53.7 26.6

Emisiones

La RTX 3070 no es precisamente una GPU conservadora en lo que respecta a la salida de calor o el consumo de energía. Zotac, sin embargo, emplea algunos trucos, como la reducción de la velocidad de la GPU, la implementación de un sistema de refrigeración IceStorm 2.0 mejorado y el uso de una placa trasera de metal para una mejor disipación del calor

El TGP de 220 W de serie puede aumentarse en un 9% hasta 240 W para permitir aumentos de hasta 1.785 MHz, lo que la hace unos 45 MHz más lenta que el OC original de la MSI RTX 3070 Gaming X Trio.

Utilizamos el test de estrés FurMark al 100% y al 109% de potencia para determinar los niveles de temperatura y ruido. El consumo total del sistema se comprobó mientras se estresaba con FurMark y The Witcher 3 a 1080p Ultra preestablecido en ambos objetivos de energía

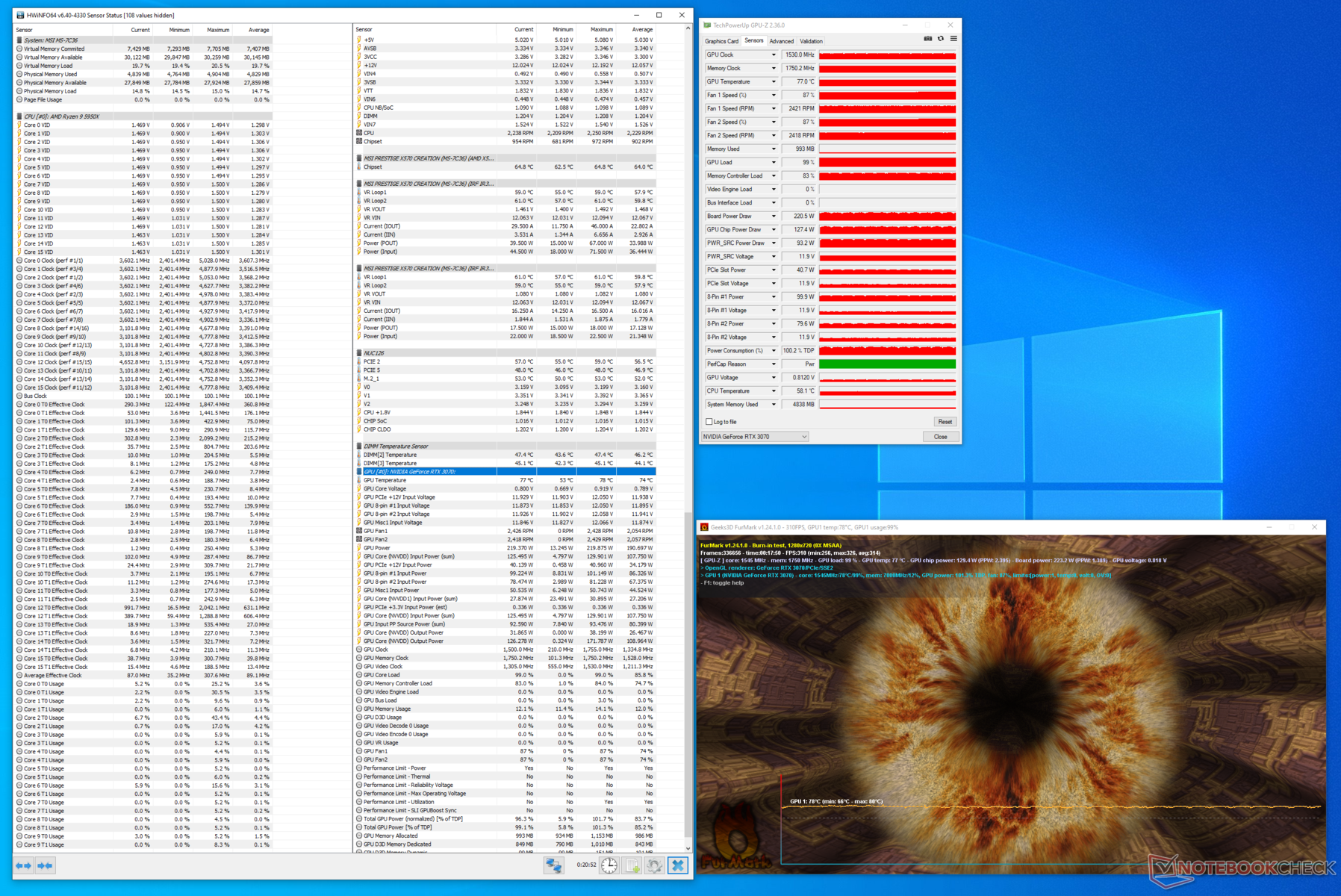

Estrés de FurMark al 100% de potencia
Estrés de FurMark al 100% de potencia

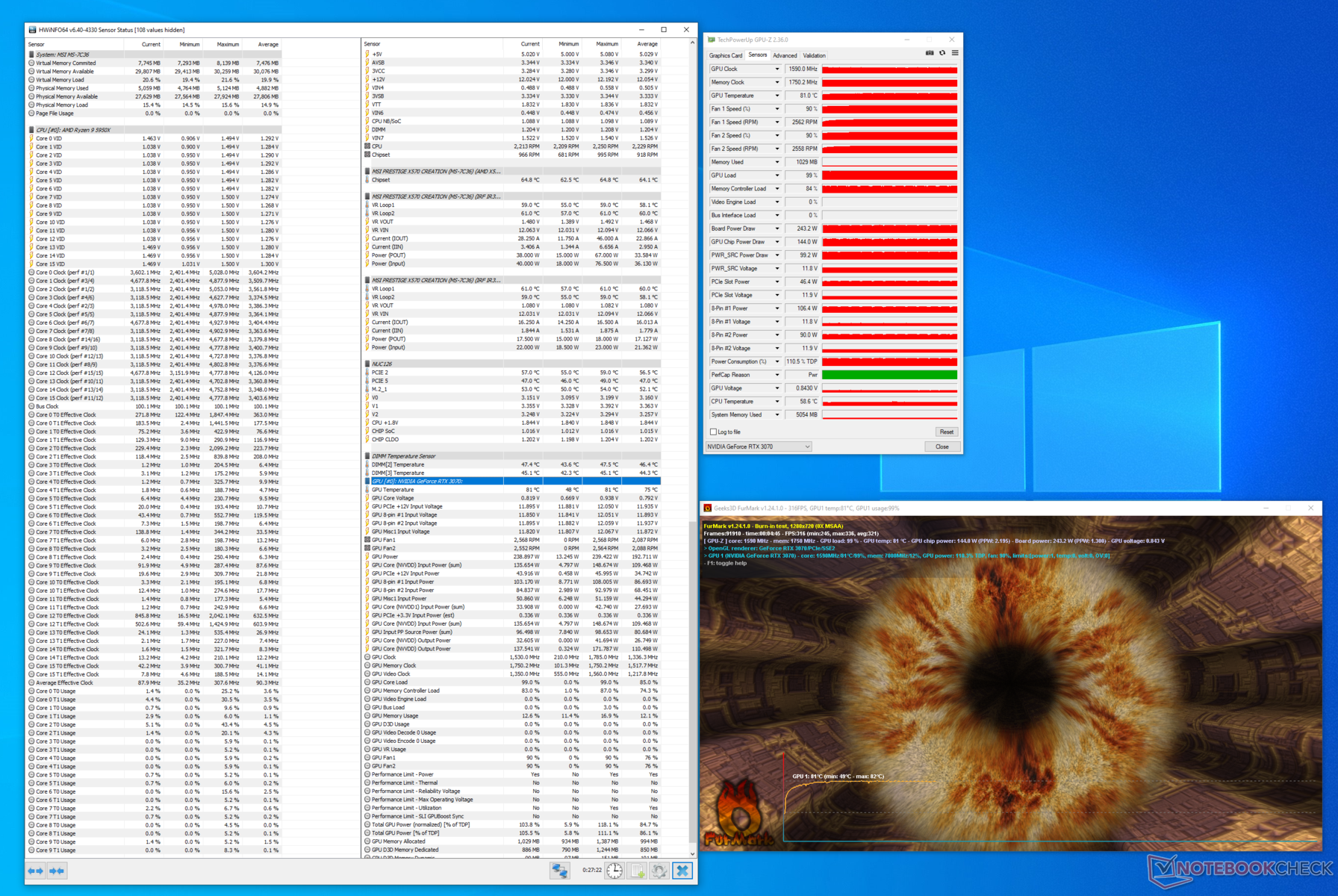

Estrés de FurMark al 109% de potencia objetivo
Estrés de FurMark al 109% de potencia objetivo

Temperatura

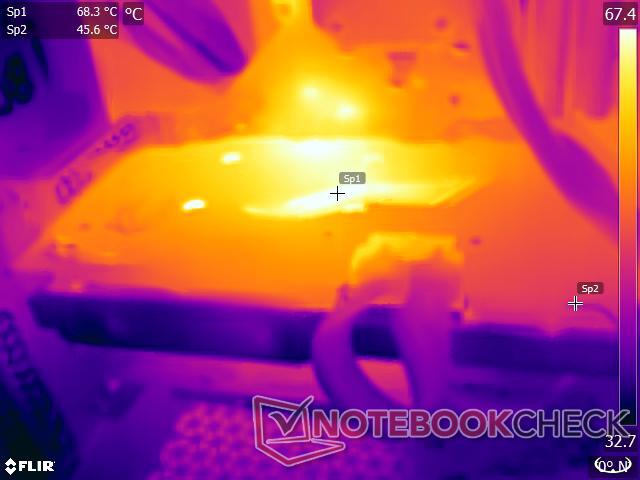

Mapa de calor de la Zotac RTX 3070 Twin Edge.
Mapa de calor de la Zotac RTX 3070 Twin Edge.

La RTX 3070 Twin Edge parece ser un cliente relativamente fresco gracias a los ventiladores duales de 11 aspas, que según Zotac aumentan el flujo de aire en un 10% más que la generación anterior. Sin embargo, esto también significa que los ventiladores pueden llegar a ser considerablemente ruidosos, como se ve en nuestras pruebas de ruido a continuación

El núcleo de la GPU se calienta hasta 77 °C a plena carga con el TGP por defecto de 220 W. Aumentar el TGP a 240 W hace que el núcleo se caliente a 81 °C

Encontramos que la temperatura de la superficie alcanza un máximo de 68,3 °C cerca de la zona de la GPU cuando está bajo estrés, mientras que las regiones alejadas del centro se mantienen relativamente frías a unos 45 °C, como se ve en nuestro mapa de calor

Las temperaturas en ralentí oscilan entre los 48 °C y los 53 °C, tiempo durante el cual los ventiladores están completamente apagados

Consumo de energía

Nuestro banco de pruebas funciona a unos 115 W con toda la iluminación RGB apagada y un total de cinco ventiladores (tres ventiladores de caja Corsair SP de 120 mm y dos ventiladores de radiador Corsair ML 120) y la bomba Elite Capellix funcionando en un perfil equilibrado.

Observamos un consumo medio total del sistema de 375 W mientras se ejecutaba FurMark con el objetivo de potencia (PT) del 100% por defecto. Esto es un 6% menos que una RTX 2080 Ti y a la par con una RTX 2080 Super. Aumentando el PT al 109% se obtiene un consumo de energía un 5% mayor, con 393 W.

La RTX 3070 Twin Edge consume un poco más de energía que la MSI RTX 3070 Gaming X Trio en The Witcher 3 a 1080p Ultra, pero sigue siendo algo más económica que la RTX 2080 Ti y la Titan RTX

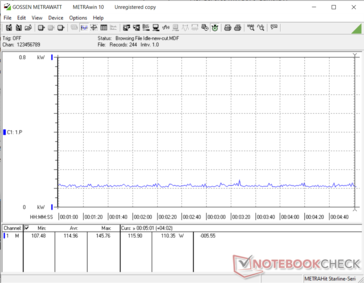

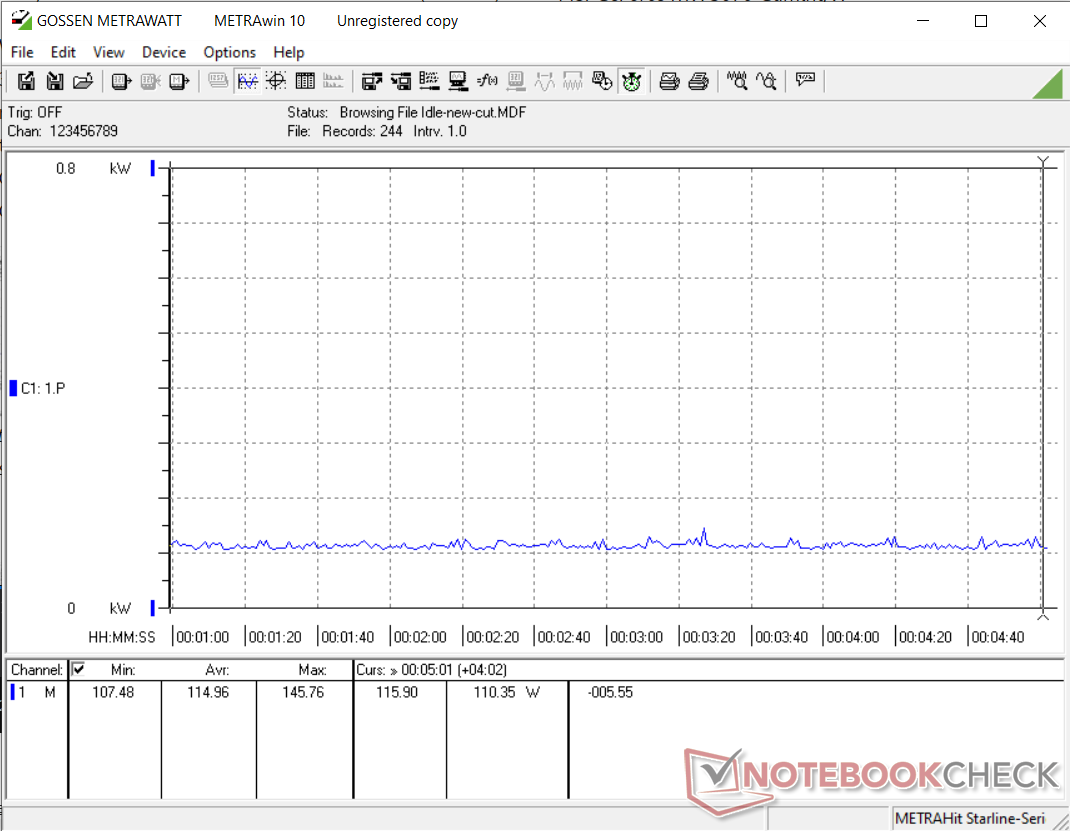

Consumo de energía del sistema - En reposo
Consumo de energía del sistema - En reposo

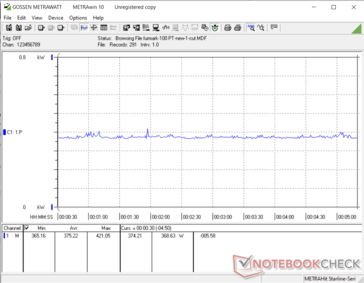

Consumo de energía del sistema - FurMark al 100% PT
Consumo de energía del sistema - FurMark al 100% PT

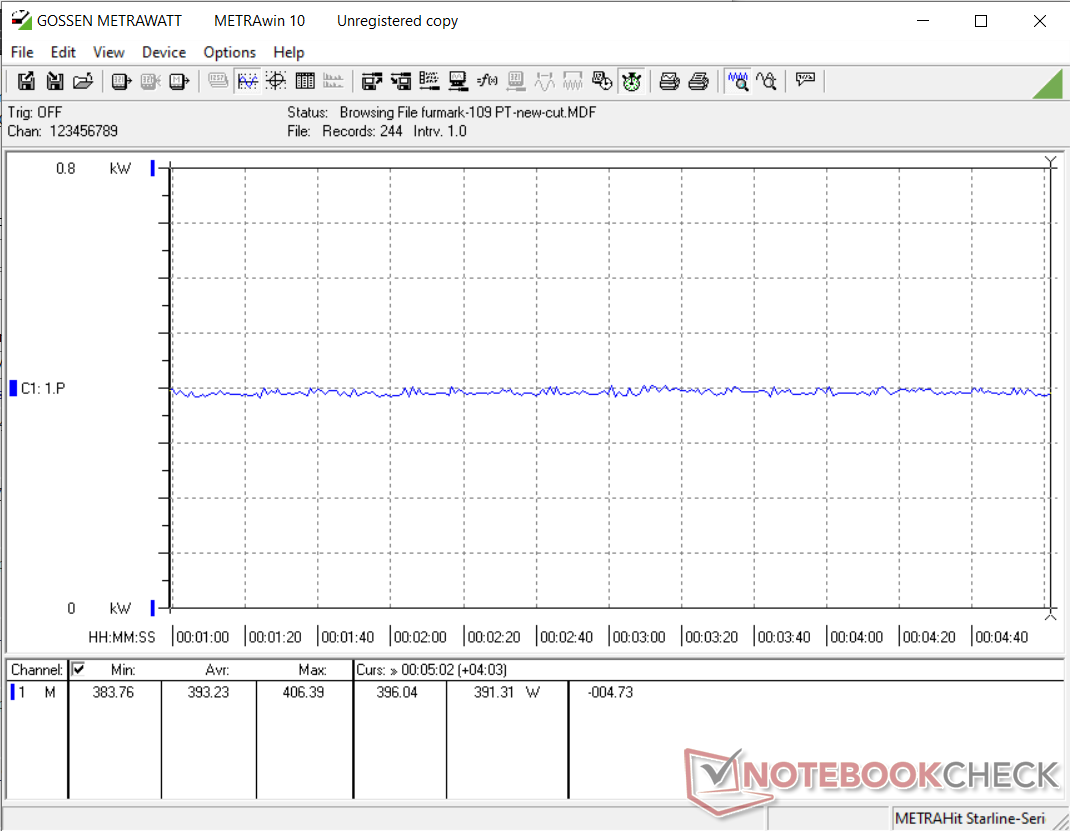

Consumo de energía del sistema - FurMark al 109% PT
Consumo de energía del sistema - FurMark al 109% PT
Consumo de energía del sistema - El preajuste Witcher 3 1080p Ultra
Consumo de energía del sistema - El preajuste Witcher 3 1080p Ultra
Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X (Idle: 105.9 W)
597 (577min - 618max) Watt * -47%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X (Idle: 88.3 W)
505 (389min - 543max) Watt * -24%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X (Idle: 99.5 W)
505 (389min - 543max) Watt * -24%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X (Idle: 103 W)
498.3 (487min - 523max) Watt * -23%
AMD Ryzen 9 5900X
NVIDIA Titan RTX, R9 5900X (Idle: 78.1 W)
439.6 (419min - 497max) Watt * -8%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X (Idle: 100.5 W)
438.8 (431min - 463max) Watt * -8%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X (Idle: 114.96 W)
406 (397min, 399P1 - 421max) Watt *
Average NVIDIA GeForce RTX 3070
  (Idle: 317 - 550, n=5 W)
401 Watt * +1%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X (Idle: 95.1 W)
394.5 (381min - 430max) Watt * +3%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X (Idle: 78.87 W)
382.8 (360min - 410max) Watt * +6%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)
348.7 (341min - 359max) Watt * +14%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X (96.8 fps, Idle: 80.5 W)
344.7 (335min - 370max) Watt * +15%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X (Idle: 91.46 W)
316.5 (309min - 329max) Watt * +22%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X (82.7 fps, Idle: 77.12 W)
298.2 (293min - 322max) Watt * +27%
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X (Idle: 105.9 W)
551 (521min - 582max) Watt * -40%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X (Idle: 88.3 W)
505 (493min - 541max) Watt * -28%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X (Idle: 103 W)
492 (485min - 514max) Watt * -25%
AMD Radeon RX 6800 XT
AMD Radeon RX 6800 XT, R9 5950X (Idle: 99.5 W)
447.9 (413min - 484max) Watt * -14%
KFA2 GeForce RTX 2080 Ti EX
NVIDIA GeForce RTX 2080 Ti (Desktop), R9 3900X (Idle: 100.5 W)
400.8 (354min - 432max) Watt * -2%
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X (109% PT, Idle: 114.96 W)
393 (384min, 385P1 - 406max) Watt *
Zotac Gaming GeForce RTX 3070 Twin Edge
NVIDIA GeForce RTX 3070, R9 5950X (100% PT, Idle: 114.96 W)
375 (365min, 366P1 - 421max) Watt * +5%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X (Idle: 95.1 W)
376.9 (369min - 433max) Watt * +4%
Nvidia GeForce RTX 2080 Super
NVIDIA GeForce RTX 2080 Super (Desktop), R7 2700X (Idle: 78.87 W)
376.8 (331min - 409max) Watt * +4%
Average NVIDIA GeForce RTX 3070
  (Idle: 281 - 393, n=6 W)
348 Watt * +11%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X (Idle: 91.46 W)
336.6 (330min - 365max) Watt * +14%
AMD Radeon RX 5700 XT
AMD Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)
326.6 (313min - 351max) Watt * +17%
Nvidia GeForce RTX 2070 Super
NVIDIA GeForce RTX 2070 Super (Desktop), R7 2700X (283 fps, Idle: 80.5 W)
326 (315min - 348max) Watt * +17%
Nvidia GeForce RTX 2060 Super
NVIDIA GeForce RTX 2060 Super (Desktop), R7 2700X (237 fps, Idle: 77.12 W)
281.4 (275min - 321max) Watt * +28%

* ... más pequeño es mejor

Niveles de ruido

En reposo, la Zotac RTX 3070 Twin Edge es una tarjeta silenciosa y el nivel de presión sonora (SPL) es más o menos igual al valor ambiental de 29,71 dB(A) a una distancia de 20 cm de la carcasa. Sin embargo, las cosas empiezan a ser ruidosas bajo estrés. Tras estresar la tarjeta con FurMark durante unos 30 minutos, observamos que los niveles de SPL del ventilador superaban la marca de los 50 db(A). Esto se debe probablemente a la presencia de sólo dos ventiladores que trabajan duro para mantener las temperaturas bajo control y al formato compacto de la tarjeta

Los usuarios pueden ajustar los niveles de ruido manualmente en las curvas de los ventiladores, pero recomendamos un buen juego de auriculares para ahogar el ruido mientras se juega con los ajustes al máximo

Niveles de ruido - En reposo con los ventiladores de la caja apagados
Niveles de ruido - En reposo con los ventiladores de la caja apagados
Niveles de ruido - FurMark stress con los ventiladores de la caja apagados
Niveles de ruido - FurMark stress con los ventiladores de la caja apagados

Pro

+ Formato compacto de 2 ranuras
+ Buena construcción
+ Incluye 2 adaptadores de 6 a 8 pines
+ Placa trasera de metal
+ Ventiladores dobles de 11 aspas
+ Parada completa del ventilador en reposo
+ Rendimiento a la par con la RTX 2080 Ti
+ Trazado de rayos y funcionalidad DLSS 2.0 en juegos compatibles
+ Opción de aumentar el TGP a 240 W
+ Temperaturas superficiales inferiores a 70 °C bajo carga
+ 3+2 años de garantía en determinadas regiones

Contra

- La cubierta de plástico podría ser más firme
- El logotipo de Zotac sólo brilla en blanco
- Reloj ligeramente inferior al de la Founders Edition
- Altos niveles de ruido bajo carga
- La VRAM de 8 GB GDDR6 puede no estar preparada para el futuro
- Existencias muy limitadas
- Precio inflado

Veredicto

Zotac Gaming GeForce RTX 3070 Twin Edge. Unidad de revisión por cortesía de Zotac India.
Zotac Gaming GeForce RTX 3070 Twin Edge. Unidad de revisión por cortesía de Zotac India.

La Zotac Gaming GeForce RTX 3070 Twin Edge está bien hecha, sin bordes afilados, aunque la cubierta de plástico podría ser un poco más firme. La tarjeta ocupa un espacio mínimo y cabe en la mayoría de las cajas con facilidad. La placa trasera de metal es una adición bienvenida para ayudar a la correcta disipación del calor

Los conocedores del RGB se sentirán decepcionados por el hecho de que la Twin Edge sólo ofrezca una iluminación blanca estática para el logotipo de Zotac. En combinación con un conjunto de cinco heatpipes de cobre, los ventiladores duales de 11 aspas ayudan a mantener la temperatura bajo control. Sin embargo, estos ventiladores pueden llegar a ser perceptiblemente ruidosos bajo carga, lo que puede ser desagradable en un ambiente silencioso.

La Zotac Gaming GeForce RTX 3070 Twin Edge cumple todos los requisitos para cualquiera que busque una oferta viable de placa base RTX 3070. El rendimiento es envidiablemente cercano o a veces incluso marginalmente mejor que una RTX 2080 Ti, pero definitivamente hay espacio para optimizar aún más el consumo de energía y los niveles de ruido del ventilador.

La Zotac RTX 3070 Twin Edge rinde a la par que la RTX 2080 Ti tanto en pruebas sintéticas como en juegos, pero consumiendo menos energía. Zotac permite añadir otros 20 W a la TGP, lo que aumenta los relojes en 60 MHz y el consumo de energía en un 5%.

Nuestra principal queja con la Zotac RTX 3070 Twin Edge es el precio de venta actual. El precio de venta al público de NVIDIA para la RTX 3070 es de 499 dólares, mientras que la RTX 3070 Twin Edge se vende originalmente por 620 dólares. Sin embargo, la demanda y la oferta actuales hacen que la RTX 3070 Twin Edge tenga un precio desorbitado de 950 dólares en Amazon. A no ser que tengas una necesidad imperiosa, te sugerimos que vigiles los precios hasta que bajen a niveles más razonables

Precio y disponibilidad

La Zotac Gaming GeForce RTX 3070 Twin Edge se puede comprar en varias tiendas online, incluyendo la tienda de Zotac , Amazon y Newegg. Newegg ofrece actualmente la RTX 3070 Twin Edge por 649,99 dólares y la Twin Edge OC por 694,99 dólares. Como es lógico, la tarjeta aparece como agotada en el momento de la publicación.

La RTX 3070 Twin Edge está disponible en Amazon por 949,99 dólares. Se trata de un precio muy elevado que disminuye la propuesta de valor de esta tarjeta en comparación con la RTX 2080 Ti

También hay existencias limitadas en

para una RTX 3070 Twin Edge OC White Edition que se vende por 899 dólares en el momento de la publicación<br />

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Zotac Gaming GeForce RTX 3070 Twin Edge Review: Rendimiento de la RTX 2080 Ti para todos
Vaidyanathan Subramaniam, 2021-01-29 (Update: 2021-01-29)
