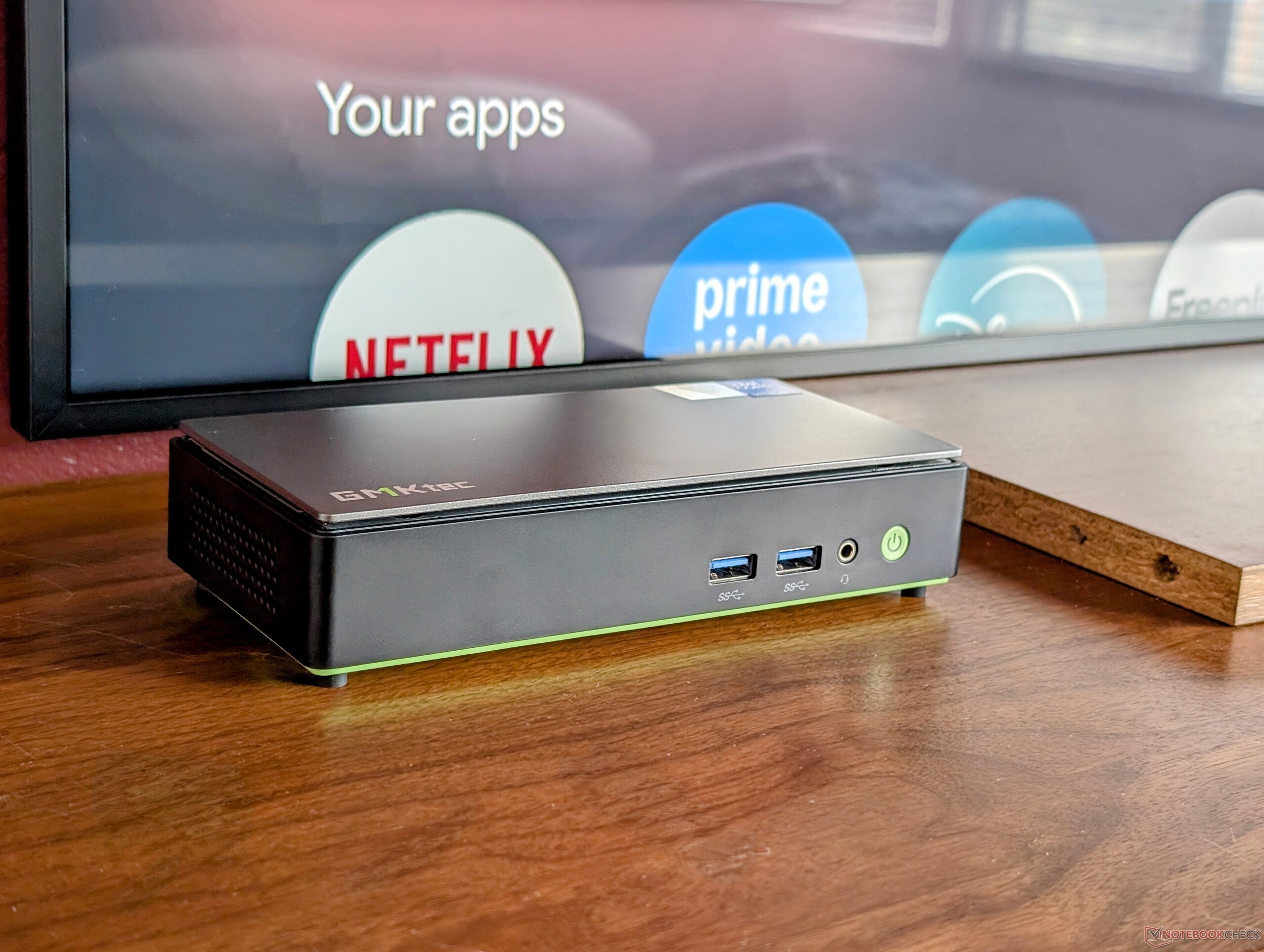

Reseña del GMK NucBox K13: Mini PC ultraligero y eficiente con Intel Lunar Lake

Name: GMK NucBox K13
Brand: GMK

Tamaño superpequeño.

El NucBox K13 es uno de los mini PC más pequeños hasta la fecha que incorpora una CPU Intel Lunar Lake-V. El nuevo diseño alargado ahorra mucho espacio, pero viene con algunas consecuencias y características ausentes.
Allen Ngo, 👁 Allen Ngo (traducido por DeepL / Ninh Duy) Publicado 03/16/2026 🇺🇸 🇳🇱 ...

Veredicto - Superligero y ultraeficiente

La NucBox K13 se diseñó específicamente pensando en las ventajas de Intel Lunar Lake. Su diseño ultracompacto, su peso muy reducido y su adaptador de CA aún más pequeño no habrían sido posibles con un procesador de la serie H como el Core Ultra 7 255H o el Ryzen AI 9. El sistema es incluso más pequeño que el ya pequeño MSI Cubi NUC AI+ 2MG para los usuarios que necesiten encajar un mini PC en espacios más reducidos o discretos.

Dispositivo de pruebas cortesía de GMKtec

Download your licensed rating image as PNG / SVG

Sin embargo, su diminuto tamaño conlleva varios inconvenientes. A diferencia del MSI antes mencionado, el GMK no tiene un altavoz integrado ni cuenta con tantos puertos como el más potente NucBox K12. El rendimiento de la GPU es algo más lento de lo esperado, la RAM máxima está limitada a 16 GB y el ruido del ventilador es, por desgracia, bastante perceptible cuando se ejecuta algo exigente. No obstante, apreciamos que el modelo siga soportando hasta dos unidades SSD M.2 internas a pesar del ajustado volumen y que el precio no sea irrazonable dadas sus equilibradas especificaciones y su tamaño.

Pro

+ admite hasta dos unidades SSD M.2 PCIe4 x4 2280

+ procesador Lunar Lake-V de bajo consumo

+ pequeño y muy ligero

+ bloque de alimentación compacto

+ Compatible con VESA

Contra

- sin OcuLink, DisplayPort de tamaño completo ni lector SD

- rendimiento gráfico más lento de lo esperado

- rendimiento Turbo Boost limitado

- RAM no ampliable por el usuario

- ruido agudo del ventilador

- sin altavoz integrado

Precio y disponibilidad

La NucBox K13 es ahora se envía directamente desde el fabricante a partir de 670 dólares para la configuración básica de 16 GB de RAM/512 GB de SSD hasta 720 dólares para la configuración de 16 GB de RAM/1 TB de SSD.

Los mini PC GMKtec cubren todo el espectro de procesadores, desde cPU de 15 W de la serie U como el Core Ultra 5 125U hasta el descomunal 100 W Ryzen AI Max+ 395. El nuevo NucBox K13 es una solución intermedia que debería resultar más relevante para la mayoría de los usuarios domésticos o de oficina que buscan un mini PC pequeño pero equilibrado.

Entre las alternativas al GMK NucBox K13 se incluyen otros mini PC equipados con procesadores ULV como el MSI Cubi NUC, Ninkear M7o el NiPoGi AM06 Pro.

Más reseñas de GMK:

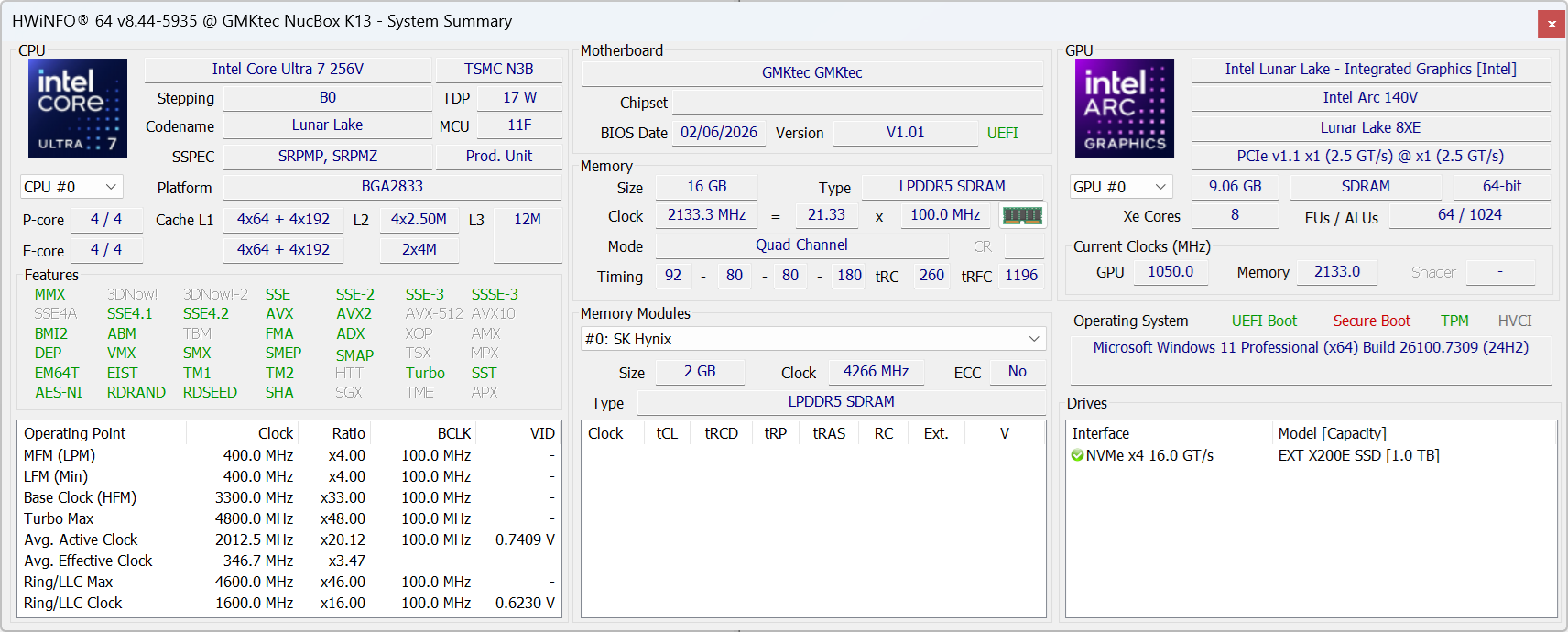

Especificaciones

GMK NucBox K13

Procesador

Intel Core Ultra 7 256V 8c/8t, 4 x 4.8 GHz Intel Lion Cove P-Core, 4 x 3.7 GHz Intel Skymont E-Core, 37 W PL2 / Short Burst, 30 W PL1 / Sustained, Lunar Lake

Adaptador gráfico

Intel Arc Graphics 140V, Núcleo: 1950 MHz, LPDDR5, 32.0.101.8509

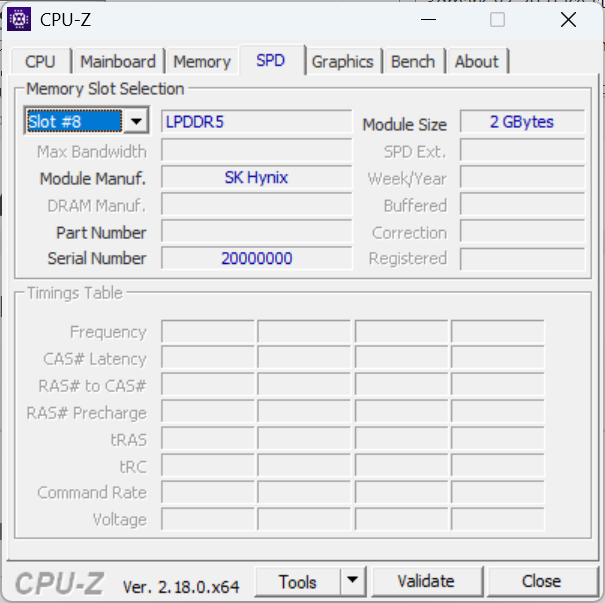

Memoría

16 GB

, LPDDR5-8533, Soldered

Tarjeta de sonido

Intel Lunar Lake SOC - cAVS (Audio, Voice, Speech)

Conexiones

1 USB 2.0, 2 USB 3.1 Gen2, 2 USB4 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Conexiones: 3.5 mm combo

Equipamento de red

Realtek Semiconductor RTL8126 PCIe Ethernet Controller (10/100/1000/2500/5000MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamaño

Alto x ancho x profundidad (en mm): 36.6 x 186 x 88

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionales

12 Meses Garantía

Peso

506 g, Suministro de Electricidad: 332 g

Precio

670 USD

Nota: El fabricante puede utilizar componentes de diferentes proveedores, incluidos paneles de visualización, unidades o lápices de memoria con especificaciones similares.

todas las especificaciónes

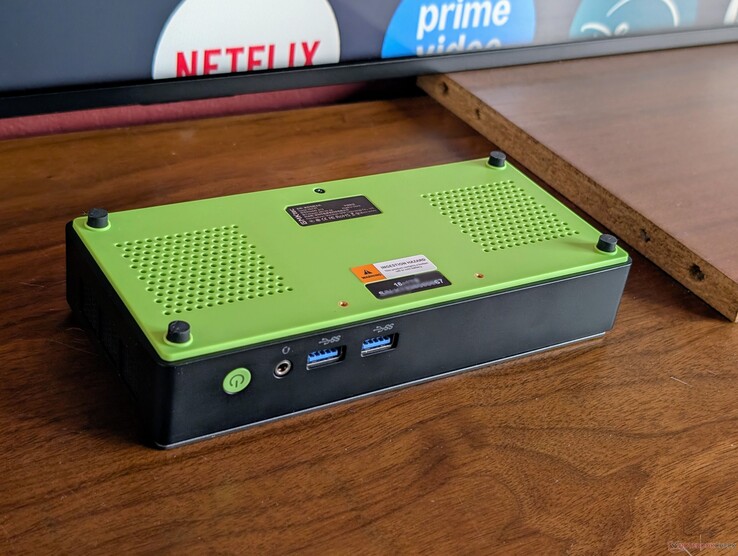

Caso

El firme chasis es de metal gris oscuro pero con un fondo de plástico verde a juego con el tono de color del logotipo de GMKtec. Su característica más llamativa es sin duda el pequeño tamaño y las estrechas dimensiones en comparación con los diseños más cuadrados de la mayoría de los demás mini PC, incluidos los del mismo fabricante. El modelo es también casi un 25 por ciento más ligero que el MSI Cubi NUC que lleva opciones de procesador Intel Lunar Lake-V similares.

Comparación de tamaños

Conectividad

Las opciones de puerto son algo más limitadas en comparación con la competencia. El modelo no cuenta con OcuLink ni DisplayPort de tamaño completo, por ejemplo, así como con menos puertos USB-A que en el NucBox K12.

Tenga en cuenta que aunque el sistema se envía con un adaptador de CA de barril, puede ser alimentado por la mayoría de los adaptadores de CA USB-C genéricos en su lugar.

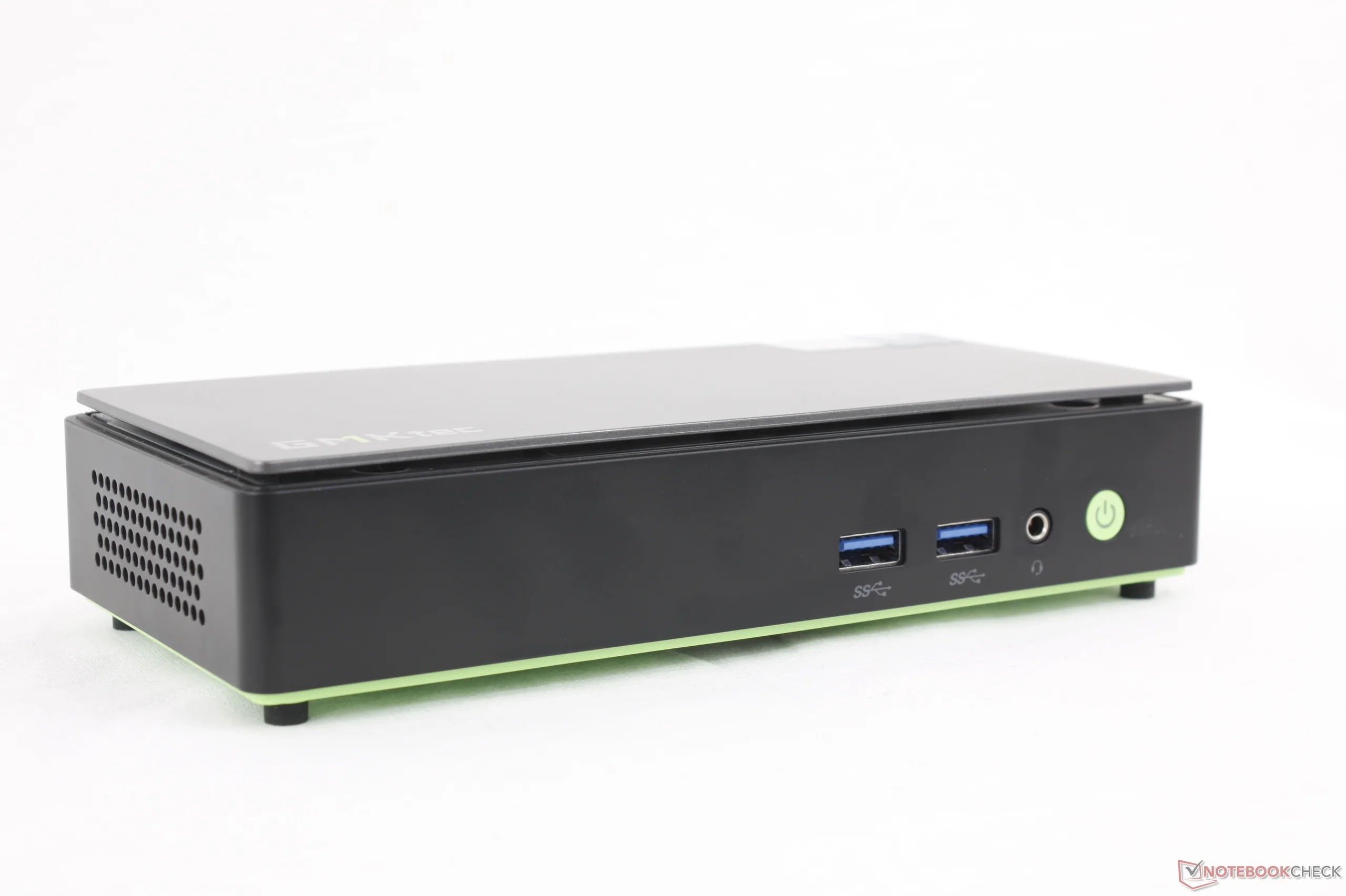

Frontal: 2x USB-A 3.2 Gen. 2, combo de 3,5 mm, botón de encendido

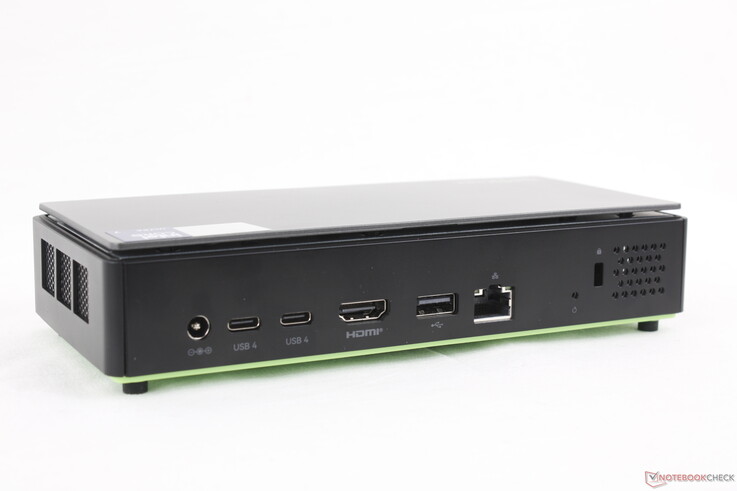

Parte trasera: Adaptador de CA, 2x USB-C 4.0 con DisplayPort 1.4 + Power Delivery, HDMI 2.1, USB-A 2.0, RJ-45 (5 Gbps), bloqueo Kensington

Comunicación

El sistema no se entrega con soporte Wi-Fi 7, probablemente para ahorrar costes.

Networking
iperf3 transmit AXE11000
Asus NUC 15 Pro+ Intel BE201 320MHz	1636 (1200^min - 1707^max) MBit/s +127%
GMK EVO-T1 Intel Wi-Fi 6 AX201	1405 (1297^min - 1536^max) MBit/s +95%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1282 (1121^min - 1470^max) MBit/s +78%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1193 (1001^min - 1325^max) MBit/s +66%
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	720 (559^min - 847^max) MBit/s
Beelink SER9 Pro	580 (458^min - 645^max) MBit/s -19%
iperf3 receive AXE11000
Asus NUC 15 Pro+ Intel BE201 320MHz	1671 (1579^min - 1738^max) MBit/s +114%
GMK EVO-T1 Intel Wi-Fi 6 AX201	1582 (1543^min - 1618^max) MBit/s +103%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1409 (1143^min - 1606^max) MBit/s +80%
Beelink SER9 Pro	851 (780^min - 908^max) MBit/s +9%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	819 (705^min - 979^max) MBit/s +5%
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	781 (671^min - 891^max) MBit/s
iperf3 transmit AXE11000 6GHz
Asus NUC 15 Pro+ Intel BE201 320MHz	1605 (1475^min - 1665^max) MBit/s +57%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1101 (868^min - 1237^max) MBit/s +8%
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1022 (518^min - 1060^max) MBit/s
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	999 (530^min - 1123^max) MBit/s -2%
iperf3 receive AXE11000 6GHz
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1760 (1732^min - 1777^max) MBit/s
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1656 (1581^min - 1726^max) MBit/s -6%
Asus NUC 15 Pro+ Intel BE201 320MHz	1618 (1586^min - 1644^max) MBit/s -8%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	860 (829^min - 889^max) MBit/s -51%

GMK NucBox K13; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1005 (518-1060)

GMK NucBox K13; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1760 (1732-1777)

GMK NucBox K13; iperf3 transmit AXE11000; iperf 3.1.3: Ø720 (559-847)

GMK NucBox K13; iperf3 receive AXE11000; iperf 3.1.3: Ø780 (671-891)

Mantenimiento

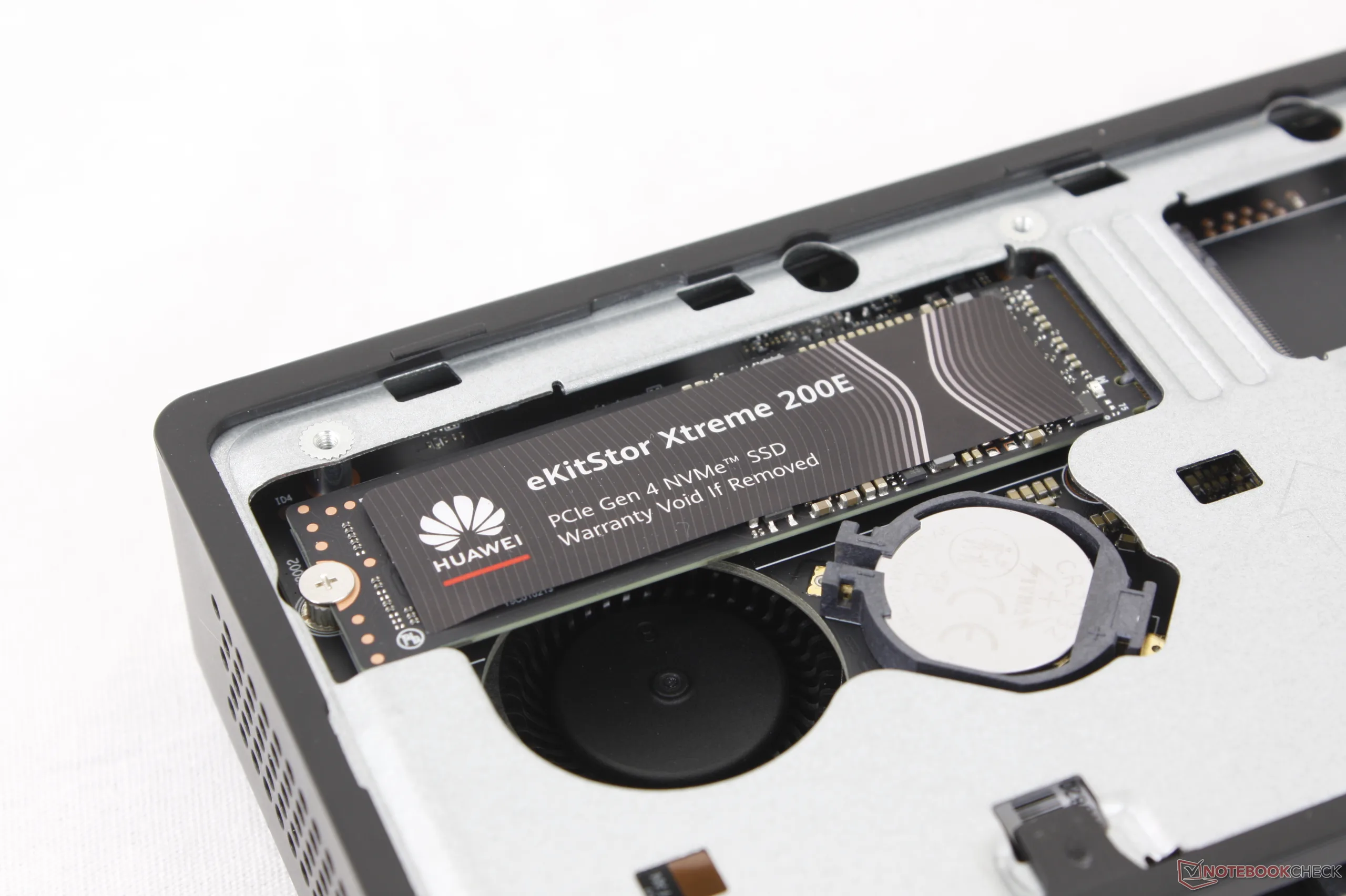

El panel inferior puede retirarse fácilmente con un destornillador Philips para dejar al descubierto las dos ranuras para SSD M.2 2280, la batería de la BIOS y el módulo WLAN M.2 extraíble. La RAM está soldada y no es actualizable.

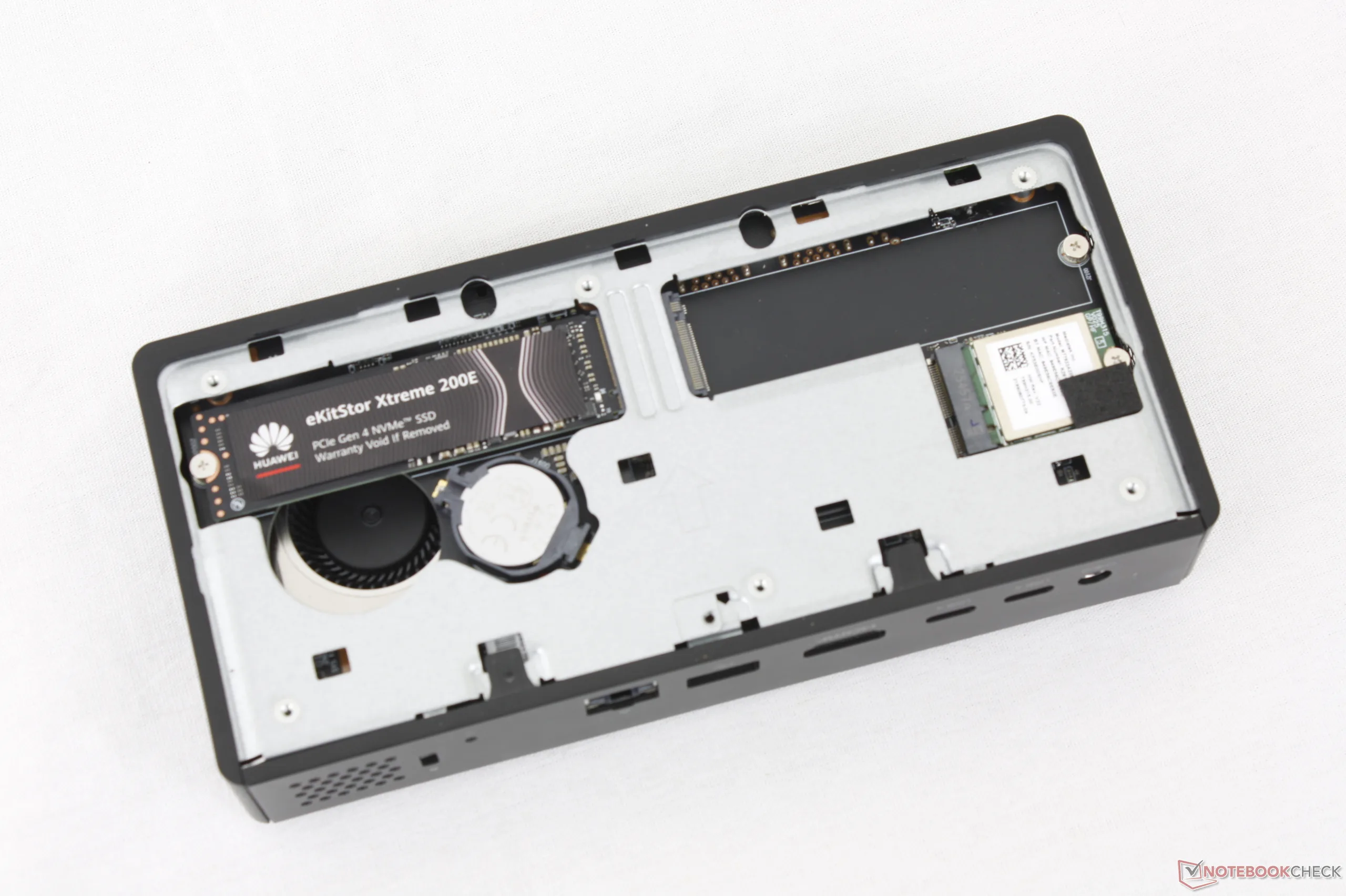

Parte inferior con el panel verde retirado

Sostenibilidad

El fabricante no menciona los materiales reciclados utilizados durante la fabricación. Por lo demás, el envase es principalmente de papel y cartón con un poco de envoltorio de plástico.

Accesorios y garantía

La caja de venta incluye un cable HDMI y un soporte de montaje VESA extraíble junto con un adaptador de CA de barril. Se aplica la habitual garantía limitada de un año del fabricante si se adquiere en EE.UU.

Rendimiento - Eficiencia de Lunar Lake

Condiciones de prueba

Configuramos tanto Windows como la BIOS en modo Rendimiento antes de ejecutar las pruebas comparativas que se indican a continuación. Vale la pena señalar que la BIOS está configurada en modo Equilibrado por defecto.

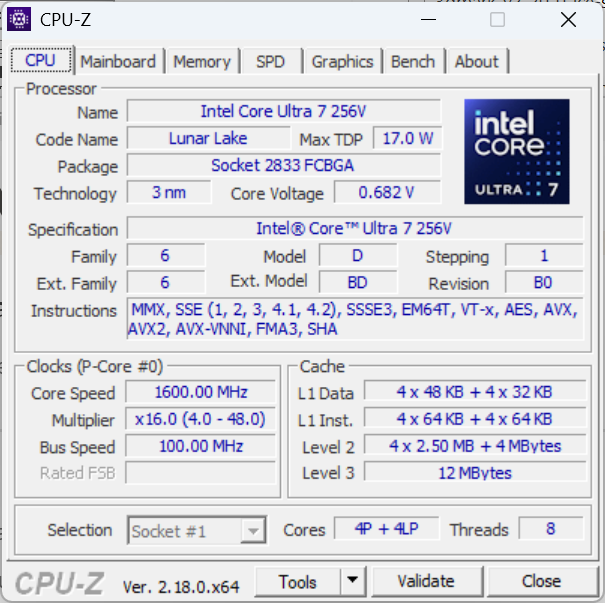

Procesador

El rendimiento de la CPU está donde esperamos que esté en relación con otros PC con el mismo Core Ultra 7 256V procesador. El rendimiento en bruto está en el lado más débil, ya que la mayoría de las CPU más antiguas de la serie H superan a nuestra CPU Lunar Lake-V. En cambio, la CPU destaca en rendimiento por vatio y una NPU de 47 TOPS relativamente rápida para la aceleración de IA.

Bucle múltiple Cinebench R15

GMK NucBox K13 Intel Core Ultra 7 256V: Ø1571 (1564.76-1609.27)

GMK NucBox K12 AMD Ryzen 7 H 255: Ø2505 (2493.14-2513.98)

GMK EVO-T1 Intel Core Ultra 9 285H: Ø3047 (3002.55-3112.11)

Beelink SER9 Pro AMD Ryzen 7 H 255: Ø2565 (2544.37-2588.16)

Asus NUC 15 Pro+ Intel Core Ultra 9 285H: Ø3009 (2951.59-3148.12)

MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V: Ø1475 (1459.06-1488.32)

CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.5: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance rating
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	88.2 pt
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	72.3 pt
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	72.3 pt
Beelink SER8 AMD Ryzen 7 8845HS	66.4 pt
GMK NucBox K12 AMD Ryzen 7 H 255	62.3 pt
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	61.9 pt
GMK NucBox K13 Intel Core Ultra 7 256V	55.6 pt
Alliwava H90 Pro AMD Ryzen 7 8745HS	55 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	54.7 pt
Medio Intel Core Ultra 7 256V	54.5 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	50.7 pt
GMK NucBox M3 Ultra Intel Core i7-12700H	50.3 pt
MSI Cubi NUC 1M Intel Core 7 150U	49.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H	48.8 pt

Cinebench R23 / Multi Core
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	35314 Points +225%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	23208 Points +114%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	20882 Points +92%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points +53%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	16142 Points +49%
GMK NucBox K12 AMD Ryzen 7 H 255	15871 (15687.6^min - 15871.1^max) Points +46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12945 Points +19%
Alliwava H90 Pro AMD Ryzen 7 8745HS	12590 Points +16%
GMK NucBox K13 Intel Core Ultra 7 256V	10864 (10591.5^min - 10864.2^max) Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	10524 (10414.4^min - 10524.2^max) Points -3%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -4%
GMK NucBox M3 Ultra Intel Core i7-12700H	10300 Points -5%
Medio Intel Core Ultra 7 256V (8589 - 10864, n=8)	10165 Points -6%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points -33%

Cinebench R23 / Single Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2166 Points +13%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	2072 Points +9%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	2027 Points +6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1957 Points +3%
GMK NucBox K13 Intel Core Ultra 7 256V	1909 Points
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points -2%
Medio Intel Core Ultra 7 256V (1799 - 1909, n=8)	1865 Points -2%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	1794 Points -6%
GMK NucBox M3 Ultra Intel Core i7-12700H	1793 Points -6%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points -7%
GMK NucBox K12 AMD Ryzen 7 H 255	1697 Points -11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1536 Points -20%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -22%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1378 Points -28%

Cinebench R20 / CPU (Multi Core)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	13988 Points +230%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	9120 Points +115%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	8172 Points +93%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	6486 Points +53%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points +52%
GMK NucBox K12 AMD Ryzen 7 H 255	6255 Points +48%
Alliwava H90 Pro AMD Ryzen 7 8745HS	5146 Points +22%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5022 Points +19%
GMK NucBox K13 Intel Core Ultra 7 256V	4233 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	4121 Points -3%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -3%
Medio Intel Core Ultra 7 256V (3822 - 4233, n=7)	4038 Points -5%
GMK NucBox M3 Ultra Intel Core i7-12700H	3981 Points -6%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points -33%

Cinebench R20 / CPU (Single Core)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	837 Points +14%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	815 Points +11%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	796 Points +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	741 Points +1%
GMK NucBox K13 Intel Core Ultra 7 256V	733 Points
Medio Intel Core Ultra 7 256V (700 - 733, n=7)	719 Points -2%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points -2%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points -5%
GMK NucBox M3 Ultra Intel Core i7-12700H	691 Points -6%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	690 Points -6%
GMK NucBox K12 AMD Ryzen 7 H 255	660 Points -10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	623 Points -15%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	591 Points -19%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -20%

Cinebench R15 / CPU Multi 64Bit
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	5463 Points +240%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	3494 Points +117%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	3151 Points +96%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points +63%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	2608 Points +62%
GMK NucBox K12 AMD Ryzen 7 H 255	2514 (2493.14^min - 2513.98^max) Points +56%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2092 Points +30%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2029 Points +26%
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points +8%
GMK NucBox K13 Intel Core Ultra 7 256V	1609 (1564.76^min - 1609.27^max) Points
Medio Intel Core Ultra 7 256V (1500 - 1627, n=6)	1574 Points -2%
GMK NucBox M3 Ultra Intel Core i7-12700H	1522 Points -5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1488 (1459.06^min - 1488.32^max) Points -8%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points -35%

Cinebench R15 / CPU Single 64Bit
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	322 Points +11%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	318 Points +10%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	313 Points +8%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	297 Points +3%
GMK NucBox K13 Intel Core Ultra 7 256V	289 Points
Medio Intel Core Ultra 7 256V (275 - 290, n=6)	284 Points -2%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points -2%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	282 Points -2%
GMK NucBox K12 AMD Ryzen 7 H 255	266 Points -8%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points -11%
GMK NucBox M3 Ultra Intel Core i7-12700H	256 Points -11%
Alliwava H90 Pro AMD Ryzen 7 8745HS	252 Points -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	244 Points -16%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -16%

Blender / v2.79 BMW27 CPU
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * -43%
Medio Intel Core Ultra 7 256V (315 - 373, n=7)	340 Seconds * -8%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	326 Seconds * -3%
GMK NucBox K13 Intel Core Ultra 7 256V	315 Seconds *
GMK NucBox M3 Ultra Intel Core i7-12700H	299 Seconds * +5%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * +7%
Alliwava H90 Pro AMD Ryzen 7 8745HS	244 Seconds * +23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	241 Seconds * +23%
GMK NucBox K12 AMD Ryzen 7 H 255	203 Seconds * +36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	201 Seconds * +36%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * +39%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	163 Seconds * +48%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	141 Seconds * +55%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	90 Seconds * +71%

7-Zip 18.03 / 7z b 4
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	117076 MIPS +220%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	73258 MIPS +100%
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS +94%
GMK NucBox K12 AMD Ryzen 7 H 255	68893 MIPS +88%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	67343 MIPS +84%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	63459 MIPS +74%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	59045 MIPS +61%
Alliwava H90 Pro AMD Ryzen 7 8745HS	58207 MIPS +59%
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS +35%
GMK NucBox M3 Ultra Intel Core i7-12700H	43850 MIPS +20%
GMK NucBox K13 Intel Core Ultra 7 256V	36572 MIPS
Medio Intel Core Ultra 7 256V (33926 - 36572, n=7)	35590 MIPS -3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	34645 MIPS -5%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS -14%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +17%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	6619 MIPS +15%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	6479 MIPS +12%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	6368 MIPS +10%
GMK NucBox K12 AMD Ryzen 7 H 255	6261 MIPS +9%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	6111 MIPS +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	6047 MIPS +5%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS +2%
GMK NucBox M3 Ultra Intel Core i7-12700H	5838 MIPS +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	5816 MIPS +1%
GMK NucBox K13 Intel Core Ultra 7 256V	5763 MIPS
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS -1%
Medio Intel Core Ultra 7 256V (5528 - 5763, n=7)	5666 MIPS -2%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5662 MIPS -2%

Geekbench 6.5 / Multi-Core
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	17002 Points +58%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	16207 Points +50%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points +24%
GMK NucBox K12 AMD Ryzen 7 H 255	12515 Points +16%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	11437 Points +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11341 Points +5%
Medio Intel Core Ultra 7 256V (9852 - 11085, n=8)	10799 Points 0%
GMK NucBox K13 Intel Core Ultra 7 256V	10784 Points
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	9922 Points -8%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9625 Points -11%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -14%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	8964 Points -17%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points -19%
GMK NucBox M3 Ultra Intel Core i7-12700H	8721 Points -19%

Geekbench 6.5 / Single-Core
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	2931 Points +7%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	2881 Points +5%
GMK NucBox K13 Intel Core Ultra 7 256V	2750 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2748 Points 0%
Medio Intel Core Ultra 7 256V (2680 - 2784, n=8)	2746 Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points -2%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2694 Points -2%
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points -4%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	2607 Points -5%
GMK NucBox K12 AMD Ryzen 7 H 255	2545 Points -7%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2416 Points -12%
GMK NucBox M3 Ultra Intel Core i7-12700H	2388 Points -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2078 Points -24%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -26%

Geekbench 5.5 / Multi-Core
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	17334 Points +92%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	15703 Points +74%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	12418 Points +37%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points +35%
GMK NucBox K12 AMD Ryzen 7 H 255	11604 Points +28%
Alliwava H90 Pro AMD Ryzen 7 8745HS	10214 Points +13%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	10089 Points +12%
Medio Intel Core Ultra 7 256V (9044 - 9715, n=7)	9466 Points +5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9241 Points +2%
GMK NucBox K13 Intel Core Ultra 7 256V	9044 Points
GMK NucBox M3 Ultra Intel Core i7-12700H	8230 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -9%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points -14%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	7574 Points -16%

Geekbench 5.5 / Single-Core
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	2204 Points +10%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2022 Points +1%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points 0%
GMK NucBox K13 Intel Core Ultra 7 256V	2001 Points
Medio Intel Core Ultra 7 256V (1972 - 2013, n=7)	1998 Points 0%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	1967 Points -2%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	1922 Points -4%
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points -5%
GMK NucBox K12 AMD Ryzen 7 H 255	1880 Points -6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1795 Points -10%
GMK NucBox M3 Ultra Intel Core i7-12700H	1698 Points -15%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	1689 Points -16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1517 Points -24%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -24%

HWBOT x265 Benchmark v2.2 / 4k Preset
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	31.8 fps +129%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	24.9 fps +79%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	24.9 fps +79%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps +52%
GMK NucBox K12 AMD Ryzen 7 H 255	19.9 fps +43%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	18.5 fps +33%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	16.3 fps +17%
Alliwava H90 Pro AMD Ryzen 7 8745HS	15.7 fps +13%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps 0%
GMK NucBox K13 Intel Core Ultra 7 256V	13.9 fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	13.3 fps -4%
Medio Intel Core Ultra 7 256V (11.9 - 13.9, n=7)	12.9 fps -7%
GMK NucBox M3 Ultra Intel Core i7-12700H	11.6 fps -17%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps -38%

LibreOffice / 20 Documents To PDF
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	74 s * -48%
GMK NucBox M3 Ultra Intel Core i7-12700H	61.8 s * -23%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	59.9 s * -20%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	56.1 s * -12%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	54.4 s * -9%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	53.3 s * -6%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	52.1 s * -4%
GMK NucBox K12 AMD Ryzen 7 H 255	51.4 s * -3%
GMK NucBox K13 Intel Core Ultra 7 256V	50.1 s *
Medio Intel Core Ultra 7 256V (42.7 - 55.6, n=7)	49.5 s * +1%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * +8%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	45.1 s * +10%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +24%

R Benchmark 2.5 / Overall mean
Alliwava H90 Pro AMD Ryzen 7 8745HS	0.501 sec * -12%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	0.4932 sec * -10%
GMK NucBox M3 Ultra Intel Core i7-12700H	0.4733 sec * -6%
GMK NucBox K12 AMD Ryzen 7 H 255	0.4587 sec * -3%
Medio Intel Core Ultra 7 256V (0.439 - 0.4645, n=7)	0.4537 sec * -2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	0.4505 sec * -1%
GMK NucBox K13 Intel Core Ultra 7 256V	0.4468 sec *
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +1%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	0.4429 sec * +1%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	0.4413 sec * +1%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * +3%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470	0.4031 sec * +10%
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395	0.3969 sec * +11%

* ... más pequeño es mejor

Cinebench R15 CPU Multi 64Bit

1609 Points

Cinebench R15 OpenGL 64Bit

210 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

289 Points

Cinebench R20 CPU (Multi Core)

4233 Points

Cinebench R20 CPU (Single Core)

733 Points

Cinebench R23 Multi Core

10864 Points

Cinebench R23 Single Core

1909 Points

Cinebench 2024 CPU Multi Core

649 Points

Cinebench 2024 CPU Single Core

120.3 Points

ayuda

... comparado con

Performance rating
Beelink SER9 Pro ^-1! AMD Ryzen 7 H 255, Radeon 780M	93.1 pt
GMK NucBox K12 ^-1! AMD Ryzen 7 H 255, Radeon 780M	90.5 pt
Asus NUC 15 Pro+ ^-1! Intel Core Ultra 9 285H, Arc 140T	88.3 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	79.1 pt
GMK NucBox K13 ^-1! Intel Core Ultra 7 256V, Arc 140V	60.4 pt
Medio Intel Core Ultra 7 256V	53.1 pt
MSI Cubi NUC AI+ 2MG ^-1! Intel Core Ultra 7 258V, Arc 140V	51 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	26120 KRay/s +103%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	25404 KRay/s +97%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	23948 KRay/s +86%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	23041 KRay/s +79%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	16836 KRay/s +31%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	12898 KRay/s
Medio Intel Core Ultra 7 256V (10524 - 12898, n=7)	12200 KRay/s -5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	12094 KRay/s -6%

AIDA64 / FPU Julia
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	115042 Points +84%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	114534 Points +83%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	86627 Points +39%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	106590 Points +70%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	104302 Points +67%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	62522 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	60874 Points -3%
Medio Intel Core Ultra 7 256V (52443 - 62522, n=7)	58843 Points -6%

AIDA64 / CPU SHA3
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	5482 MB/s +88%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	5093 MB/s +75%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	4030 MB/s +38%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	4764 MB/s +63%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	4604 MB/s +58%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2915 MB/s
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	2705 MB/s -7%
Medio Intel Core Ultra 7 256V (2364 - 2915, n=7)	2666 MB/s -9%

AIDA64 / CPU Queen
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	115748 Points
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	111673 Points
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	67363 Points
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	58606 Points
Medio Intel Core Ultra 7 256V (49622 - 49794, n=6)	49721 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	49605 Points

AIDA64 / FPU SinJulia
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	15123 Points +241%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	14626 Points +230%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	8550 Points +93%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	8074 Points +82%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	7570 Points +71%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	4434 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	4425 Points 0%
Medio Intel Core Ultra 7 256V (4401 - 4434, n=7)	4425 Points 0%

AIDA64 / FPU Mandel
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	60511 Points +83%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	45082 Points +37%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	60319 Points +83%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	57378 Points +74%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	56019 Points +70%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	33019 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	31593 Points -4%
Medio Intel Core Ultra 7 256V (27382 - 33019, n=7)	31110 Points -6%

AIDA64 / CPU AES
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	86090 MB/s +13%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	83999 MB/s +11%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	78003 MB/s +3%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	75938 MB/s
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	72638 MB/s -4%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	64197 MB/s -15%
Medio Intel Core Ultra 7 256V (38495 - 75938, n=7)	44794 MB/s -41%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	40408 MB/s -47%

AIDA64 / CPU ZLib
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	1271 MB/s +103%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	1167 MB/s +86%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	882 MB/s +41%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	1066 MB/s +70%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	1036 MB/s +65%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	627 MB/s
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	596 MB/s -5%
Medio Intel Core Ultra 7 256V (536 - 632, n=7)	596 MB/s -5%

AIDA64 / FP64 Ray-Trace
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	13941 KRay/s +106%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	13694 KRay/s +103%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	12696 KRay/s +88%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	12576 KRay/s +86%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	9140 KRay/s +35%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	6761 KRay/s
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	6732 KRay/s 0%
Medio Intel Core Ultra 7 256V (5655 - 6878, n=7)	6436 KRay/s -5%

AIDA64 / CPU PhotoWorxx
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	57060 MPixel/s
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	55170 MPixel/s -3%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	53330 MPixel/s -7%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	54590 MPixel/s -4%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	54395 MPixel/s -5%
Medio Intel Core Ultra 7 256V (49906 - 57060, n=7)	52440 MPixel/s -8%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	41649 MPixel/s -27%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	40115 MPixel/s -30%

AIDA64 / CPU CheckMate
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (v8.20.8100)	3649 MP/s +30%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2805 MP/s
Medio Intel Core Ultra 7 256V (n=1)	2805 MP/s 0%

Rendimiento del sistema

Las puntuaciones de PCMark son ligeramente superiores a las esperadas debido a que la subprueba de Productividad está sobrevalorada incluso después de actualizar a la última versión del benchmark en el momento de escribir estas líneas. Curiosamente, experimentamos problemas similares con el reciente MSI Venture 16 AI.

Performance rating
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	89.9 pt
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V	82.1 pt
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	81.9 pt
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	81.9 pt
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	81.9 pt
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	80.7 pt
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	79.9 pt

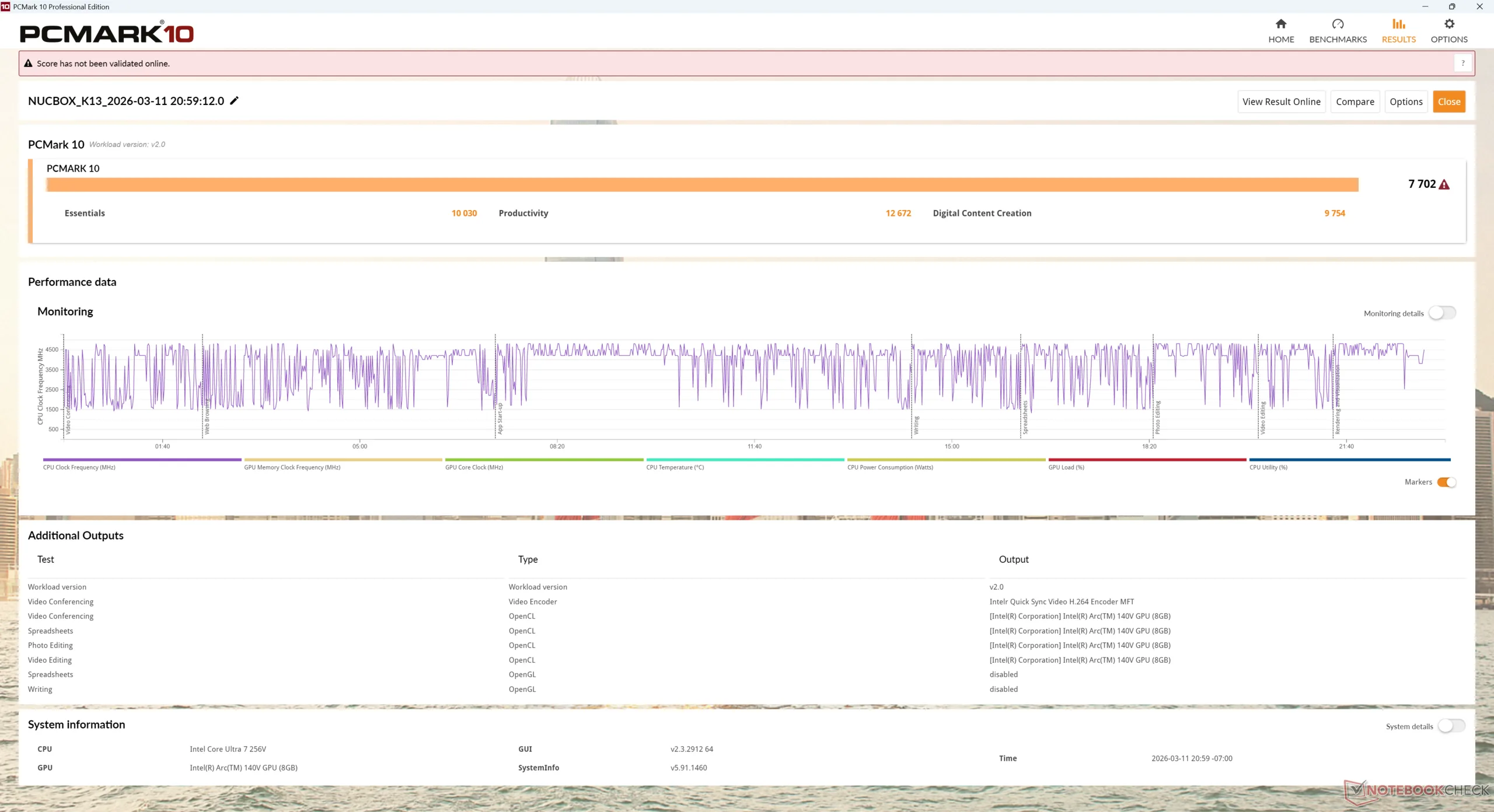

PCMark 10 / Score
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	7798 Points +1%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	7702 Points
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	7196 Points -7%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (6677 - 7702, n=7)	7045 Points -9%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6959 Points -10%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6907 Points -10%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	6864 Points -11%

PCMark 10 / Essentials
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10502 Points +5%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10377 Points +3%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	10307 Points +3%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (9627 - 11365, n=7)	10205 Points +2%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	10176 Points +1%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	10030 Points
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	10028 Points 0%

PCMark 10 / Productivity
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	12672 Points
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	10667 Points -16%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (8161 - 12672, n=7)	9551 Points -25%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9440 Points -26%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9325 Points -26%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	8912 Points -30%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	8635 Points -32%

PCMark 10 / Digital Content Creation
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	11705 Points +20%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	11679 Points +20%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (9481 - 10126, n=7)	9802 Points 0%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	9754 Points
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	9678 Points -1%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9243 Points -5%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9227 Points -5%

CrossMark / Overall
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	2000 Points +17%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1791 Points +5%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1771 Points +3%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1769 Points +3%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	1713 Points
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (1636 - 1736, n=7)	1689 Points -1%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1551 Points -9%

CrossMark / Productivity
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	1927 Points +17%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1733 Points +5%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1709 Points +4%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	1644 Points
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1637 Points 0%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (1563 - 1682, n=7)	1625 Points -1%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1479 Points -10%

CrossMark / Creativity
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	2161 Points +12%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	2115 Points +10%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	1924 Points
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (1862 - 1962, n=7)	1918 Points 0%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1895 Points -2%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1887 Points -2%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1749 Points -9%

CrossMark / Responsiveness
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	1772 Points +29%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1666 Points +22%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1617 Points +18%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	1371 Points
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1314 Points -4%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (1215 - 1371, n=7)	1293 Points -6%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1246 Points -9%

WebXPRT 3 / Overall
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	324 Points +8%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	317 Points +6%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	300 Points 0%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	299 Points
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (243 - 310, n=7)	296 Points -1%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	290 Points -3%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	230 Points -23%

WebXPRT 4 / Overall
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	287 Points +1%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	285 Points
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (282 - 286, n=7)	284 Points 0%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	276 Points -3%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points -14%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points -14%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	236 Points -17%

Mozilla Kraken 1.1 / Total
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	577 ms * -22%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	566 ms * -20%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	482 ms * -2%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	473 ms * -0%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	473 ms *
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (470 - 480, n=7)	473 ms * -0%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	465 ms * +2%

Geekbench AI / Single Precision GPU 1.5
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	8294 Points +24%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	7987 Points +19%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	7966 Points +19%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	7892 Points +18%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (6698 - 8212, n=4)	7623 Points +14%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	7193 Points +7%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	6698 Points

Geekbench AI / Half Precision GPU 1.5
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	16288 Points +41%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (11542 - 16259, n=4)	14301 Points +24%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	11903 Points +3%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	11899 Points +3%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	11542 Points
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	11370 Points -1%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	11120 Points -4%

Geekbench AI / Quantized GPU 1.5
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	5954 Points +43%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	5540 Points +33%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	5370 Points +29%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	5264 Points +27%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	5244 Points +26%
Medio Intel Core Ultra 7 256V, Intel Arc Graphics 140V (4150 - 5483, n=4)	4974 Points +20%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	4150 Points

* ... más pequeño es mejor

PCMark 10 Score		7702 puntos
ayuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	107843 MB/s +4%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	103760 MB/s
Medio Intel Core Ultra 7 256V (99227 - 104459, n=7)	101821 MB/s -2%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	84796 MB/s -18%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	79203 MB/s -24%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	77284 MB/s -26%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	74184 MB/s -29%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	67673 MB/s -35%

AIDA64 / Memory Read
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	89848 MB/s
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	89837 MB/s 0%
Medio Intel Core Ultra 7 256V (86352 - 89848, n=7)	88150 MB/s -2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	87541 MB/s -3%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	75428 MB/s -16%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	74572 MB/s -17%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	61129 MB/s -32%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	58305 MB/s -35%

AIDA64 / Memory Write
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	117886 MB/s +2%
Medio Intel Core Ultra 7 256V (108692 - 117933, n=7)	115422 MB/s 0%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	115369 MB/s
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106026 MB/s -8%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	85497 MB/s -26%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	84220 MB/s -27%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	77625 MB/s -33%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	75629 MB/s -34%

AIDA64 / Memory Latency
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	130.7 ns * -31%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	128.3 ns * -29%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	106.2 ns * -7%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	103.9 ns * -4%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	99.6 ns *
Medio Intel Core Ultra 7 256V (96.1 - 99.6, n=7)	98.9 ns * +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	95.5 ns * +4%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	93.7 ns * +6%

* ... más pequeño es mejor

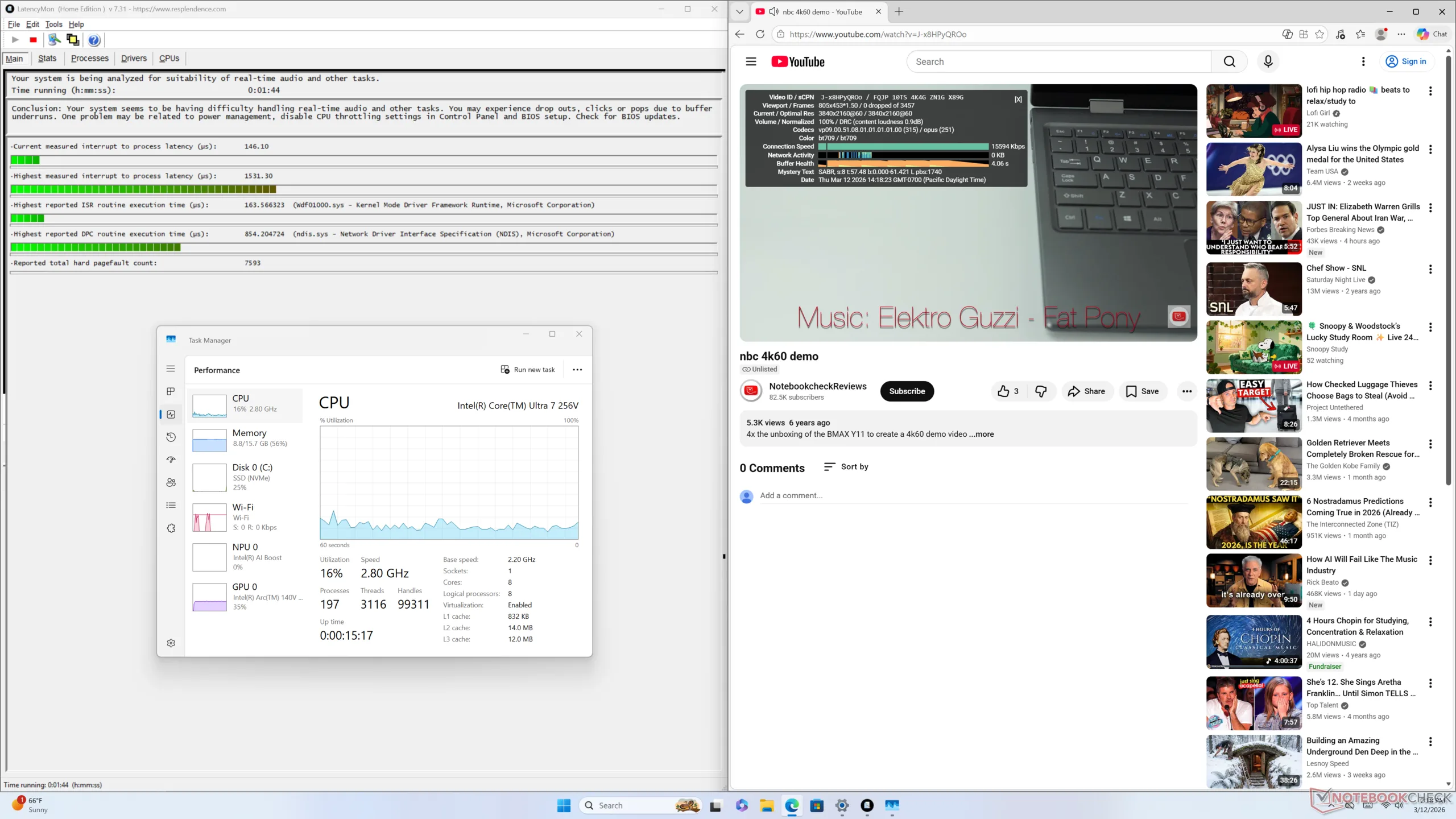

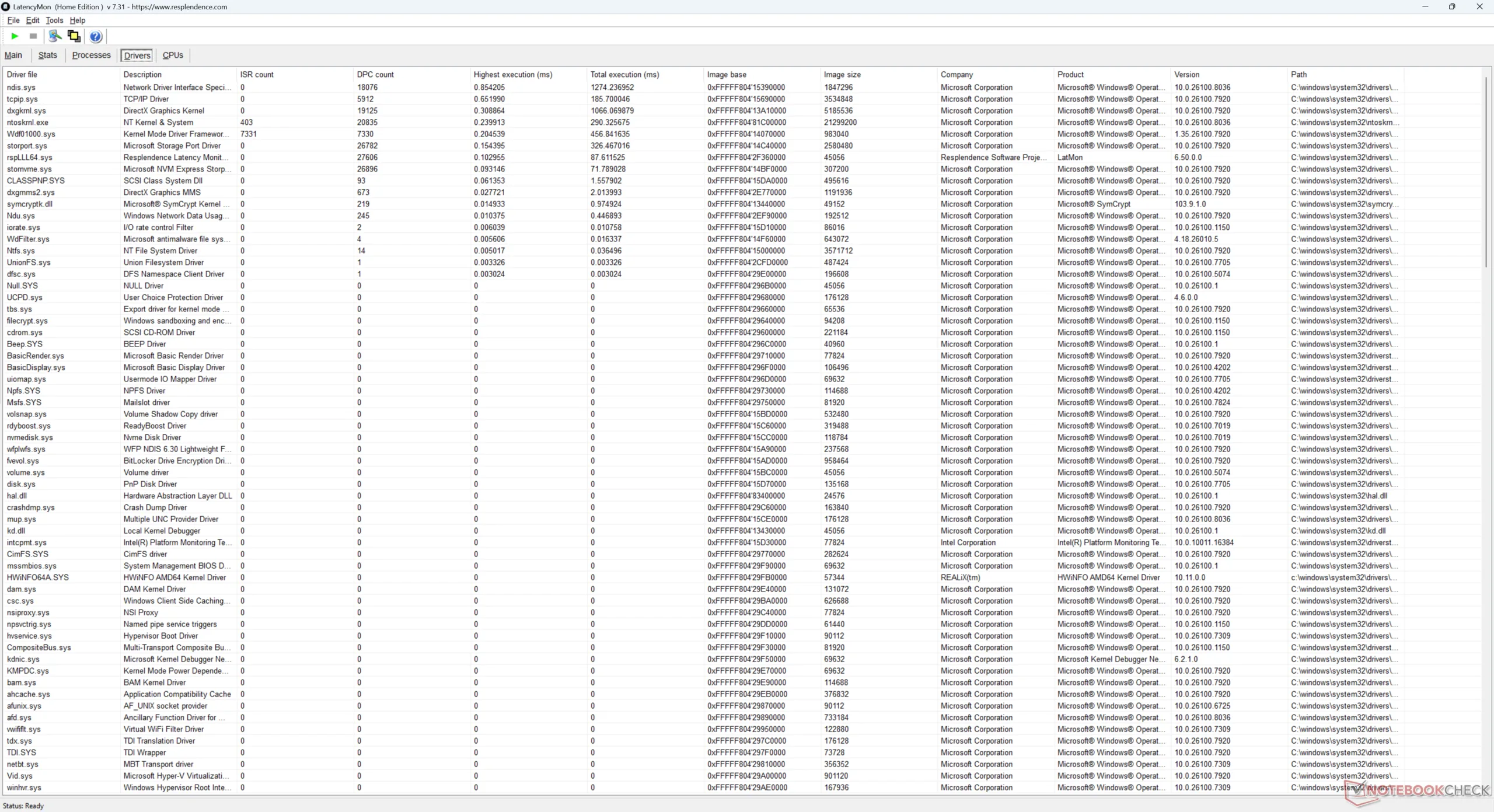

Latencia del CPD

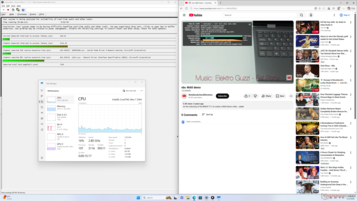

LatencyMon revela problemas menores de DPC pero por lo demás no hay caídas de fotogramas durante la reproducción de vídeo 4K60

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K13 Arc 140V, Core Ultra 7 256V	1531.3 μs *
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1124 μs * +27%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1006 μs * +34%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	978.6 μs * +36%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	844.8 μs * +45%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	790.7 μs * +48%

* ... más pequeño es mejor

Dispositivos de almacenamiento

Tasas de transferencia con el Huawei eKitStor Xtreme 200E alcanzan un máximo de 6800 MB/s, pero el rendimiento se estrangula rápidamente a sólo 3600 MB/s cuando se estresa, como muestran los resultados de nuestra prueba en bucle DiskSpd que se muestran a continuación.

El sistema admite hasta dos unidades SSD M.2 PCIe4 x4 NVMe individuales

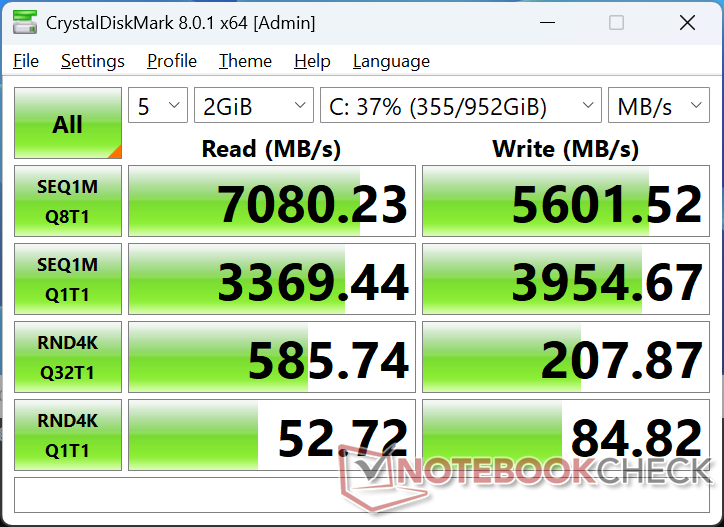

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 7019 MB/s

CDM 5/6 Write Seq Q32T1: 4165 MB/s

CDM 5/6 Read 4K Q32T1: 519.2 MB/s

CDM 5/6 Write 4K Q32T1: 222.1 MB/s

CDM 5 Read Seq: 3905 MB/s

CDM 5 Write Seq: 3209 MB/s

CDM 5/6 Read 4K: 62.52 MB/s

CDM 5/6 Write 4K: 90.32 MB/s

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	93 pt
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	68.5 pt
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	58.9 pt
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	56.6 pt
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	55.9 pt
GMK NucBox K13	54.9 pt
Global Average -3	43.4 pt

DiskSpd
seq read
GMK NucBox K13	3798 (3675.89^min - 3797.73^max) MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3100 (3048.82^min - 3099.89^max) MB/s -18%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2932 (2911.11^min - 2931.83^max) MB/s -23%
Global Average -3 (113.3 - 8495, n=2062)	2472 MB/s -35%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	2149 (2136.58^min - 2148.64^max) MB/s -43%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2112 (2077.27^min - 2111.8^max) MB/s -44%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	1844 (796.16^min - 1843.9^max) MB/s -51%
seq write
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4563 (4113.52^min - 4563.08^max) MB/s +34%
GMK NucBox K13	3401 (3250.59^min - 3400.95^max) MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3335 (698.84^min - 3334.89^max) MB/s -2%
Global Average -3 (43 - 10342, n=2062)	2557 MB/s -25%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2508 (2473.89^min - 2508^max) MB/s -26%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1810 (450.26^min - 1810.21^max) MB/s -47%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1808 (844.51^min - 1808.37^max) MB/s -47%
seq q8 t1 read
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	7106 (6492.57^min - 7105.99^max) MB/s +2%
GMK NucBox K13	6963 (6149.34^min - 6962.54^max) MB/s
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	5875 (4751.87^min - 5875.38^max) MB/s -16%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	5103 (4471.34^min - 5103.21^max) MB/s -27%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	4942 (4516.62^min - 4941.52^max) MB/s -29%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	4915 (4300^min - 4915.3^max) MB/s -29%
Global Average -3 (114.5 - 16102, n=2062)	4335 MB/s -38%
seq q8 t1 write
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5283 (736.31^min - 5283.36^max) MB/s +6%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4973 (4947.14^min - 4972.98^max) MB/s 0%
GMK NucBox K13	4962 (4736.84^min - 4961.79^max) MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4599 (4437.99^min - 4599.05^max) MB/s -7%
Global Average -3 (46.7 - 14571, n=2062)	3306 MB/s -33%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1803 (883.02^min - 1802.5^max) MB/s -64%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1799 (640.89^min - 1798.7^max) MB/s -64%
4k q1 t1 read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	77 (75.54^min - 77.03^max) MB/s +24%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	63.5 (59.74^min - 63.47^max) MB/s +2%
GMK NucBox K13	62.1 (57.4^min - 62.05^max) MB/s
Global Average -3 (0.67 - 361, n=2062)	59 MB/s -5%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	57.3 (57.09^min - 57.31^max) MB/s -8%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	54.4 (53.83^min - 54.44^max) MB/s -12%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	50.5 (49.98^min - 50.45^max) MB/s -19%
4k q1 t1 write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	261 (259.05^min - 260.68^max) MB/s +124%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	251 (216.59^min - 251.05^max) MB/s +116%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	242 (231.04^min - 241.7^max) MB/s +108%
Global Average -3 (1.23 - 435, n=2061)	166.4 MB/s +43%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	144.3 (142.64^min - 144.32^max) MB/s +24%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	130.4 (122.26^min - 130.43^max) MB/s +12%
GMK NucBox K13	116.4 (60.8^min - 116.37^max) MB/s
4k q32 t16 read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3548 (3523.05^min - 3547.64^max) MB/s +88%
GMK NucBox K13	1883 (1647.29^min - 1883.42^max) MB/s
Global Average -3 (1.03 - 8156, n=2061)	1464 MB/s -22%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	781 (686.38^min - 780.77^max) MB/s -59%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	719 (619.26^min - 718.65^max) MB/s -62%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	698 (696.34^min - 698.49^max) MB/s -63%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	696 (692.86^min - 696.3^max) MB/s -63%
4k q32 t16 write
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3304 (3139.17^min - 3304.42^max) MB/s +648%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1786 (636.51^min - 1786.33^max) MB/s +304%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1780 (805.06^min - 1780.2^max) MB/s +303%
Global Average -3 (1.5 - 6738, n=2061)	1233 MB/s +179%
GMK NucBox K13	442 (372.74^min - 441.63^max) MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	413 (353.25^min - 412.63^max) MB/s -7%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	412 (409.29^min - 411.67^max) MB/s -7%

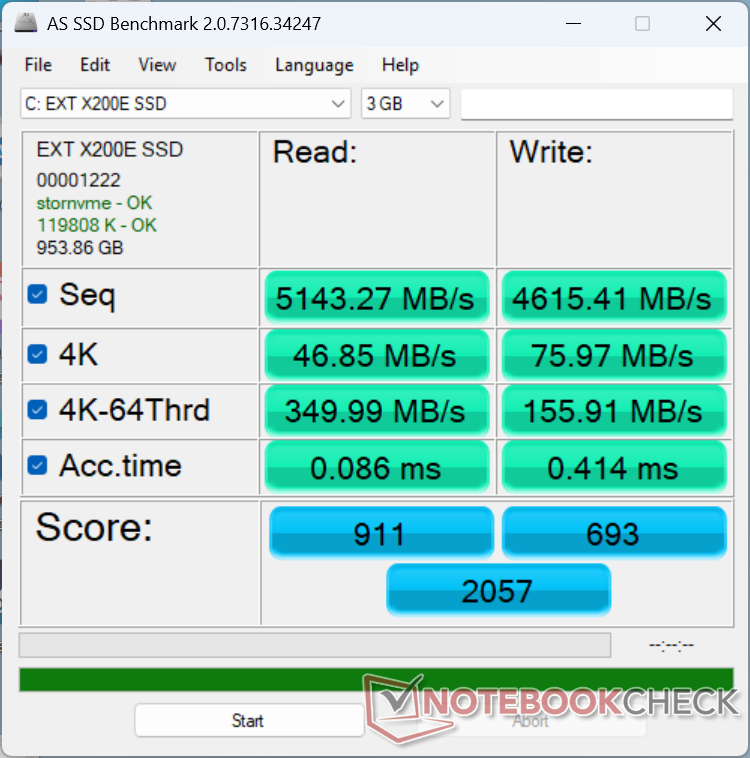

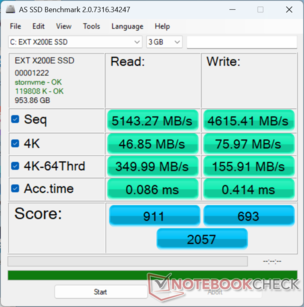

AS SSD
Score Total
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	8193 Points +298%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5647 Points +175%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3778 Points +84%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3482 Points +69%
Global Average -3 (19 - 16295, n=3720)	3105 Points +51%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2362 Points +15%
GMK NucBox K13	2057 Points
Score Read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3001 Points +229%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	1396 Points +53%
Global Average -3 (6 - 6261, n=3721)	1169 Points +28%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	1164 Points +28%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1127 Points +24%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1095 Points +20%
GMK NucBox K13	911 Points
Score Write
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3662 Points +428%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3655 Points +427%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2146 Points +210%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1928 Points +178%
Global Average -3 (4 - 7208, n=3721)	1370 Points +98%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	693 Points 0%
GMK NucBox K13	693 Points
Seq Read
GMK NucBox K13	5143.27 MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5114 MB/s -1%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4428.19 MB/s -14%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4229 MB/s -18%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3916.9 MB/s -24%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3870.26 MB/s -25%
Global Average -3 (193.2 - 12763, n=3938)	2184 MB/s -58%
Seq Write
GMK NucBox K13	4615.41 MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3985 MB/s -14%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	2533 MB/s -45%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2329.39 MB/s -50%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2185.55 MB/s -53%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1648.2 MB/s -64%
Global Average -3 (52.2 - 11316, n=3941)	1487 MB/s -68%
4K Read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	84.6 MB/s +81%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	56.39 MB/s +20%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	53.9 MB/s +15%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	52.09 MB/s +11%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	50 MB/s +7%
GMK NucBox K13	46.85 MB/s
Global Average -3 (6.08 - 314, n=3930)	43.8 MB/s -7%
4K Write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	219.87 MB/s +189%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	211 MB/s +178%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	195.18 MB/s +157%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	190.38 MB/s +151%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	152.4 MB/s +101%
Global Average -3 (13.3 - 512, n=3930)	118.2 MB/s +56%
GMK NucBox K13	75.97 MB/s
4K-64 Read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	2493 MB/s +612%
Global Average -3 (13.1 - 5086, n=3929)	855 MB/s +144%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	831 MB/s +137%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	688.04 MB/s +97%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	664.75 MB/s +90%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	653.44 MB/s +87%
GMK NucBox K13	349.99 MB/s
4K-64 Write
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3249 MB/s +1984%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3052 MB/s +1858%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1707.34 MB/s +995%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1572.62 MB/s +909%
Global Average -3 (13.7 - 5909, n=3927)	1039 MB/s +566%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	264.78 MB/s +70%
GMK NucBox K13	155.91 MB/s
Access Time Read
Global Average -3 (0.012 - 33, n=3860)	0.58 ms * -574%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.125 ms * -45%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	0.105 ms * -22%
GMK NucBox K13	0.086 ms *
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.069 ms * +20%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +43%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.048 ms * +44%
Access Time Write
Global Average -3 (0.011 - 60.7, n=3903)	0.4958 ms * -20%
GMK NucBox K13	0.414 ms *
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.097 ms * +77%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.088 ms * +79%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.056 ms * +86%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	0.024 ms * +94%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.019 ms * +95%

* ... más pequeño es mejor

Estrangulamiento de disco: Bucle de lectura DiskSpd, profundidad de cola 8

GMK NucBox K13 ; diskspd 2.0.17 f: Ø3921 (3036.26-6836.51)

GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4584 (3983.12-4907.96)

Rendimiento de la GPU

Aunque sigue siendo relativamente rápida para una GPU integrada, la Arc 140V de nuestra GMK es entre un 15 y un 25 por ciento más lenta que la media de los PC de nuestra base de datos con la misma iGPU, según las pruebas 3DMark. Lamentablemente, esto se traslada a la hora de ejecutar juegos reales, en los que nuestra GMK rendía casi sistemáticamente un poco más despacio de lo esperado.

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	100 pt
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	33 pt
Medio Intel Arc Graphics 140V	31.9 pt
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	29.1 pt
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	28.2 pt
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	24.9 pt
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	23.7 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	22.7 pt
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	21.2 pt
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	18.3 pt
GMK NucBox M3 Ultra ^-2! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	17.3 pt
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	16.7 pt
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	16.2 pt
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	14.9 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	44735 Points +365%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	13673 Points +42%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	13279 Points +38%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	13067 Points +36%
Medio Intel Arc Graphics 140V (7351 - 12772, n=37)	11284 Points +17%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	9808 Points +2%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	9619 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	9295 Points -3%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	8947 Points -7%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	8417 Points -12%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	7351 Points -24%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points -25%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6946 Points -28%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points -35%

3DMark
1280x720 Cloud Gate Standard Graphics
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	176572 Points +364%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	55397 Points +46%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	53347 Points +40%
Medio Intel Arc Graphics 140V (38019 - 61591, n=19)	52697 Points +39%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	51042 Points +34%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	50524 Points +33%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	42305 Points +11%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	39386 Points +4%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	38019 Points
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	32034 Points -16%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points -16%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	29973 Points -21%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points -23%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	29213 Points -23%
1920x1080 Fire Strike Graphics
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	30087 Points +296%
Medio Intel Arc Graphics 140V (6209 - 10476, n=37)	9456 Points +24%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8773 Points +15%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	8572 Points +13%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	8408 Points +11%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	7601 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6823 Points -10%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	6320 Points -17%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	6209 Points -18%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	5511 Points -27%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	5173 Points -32%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points -34%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points -36%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	4892 Points -36%
2560x1440 Time Spy Graphics
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	11164 Points +279%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3940 Points +34%
Medio Intel Arc Graphics 140V (2754 - 4415, n=40)	3910 Points +33%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2943 Points
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	2917 Points -1%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	2863 Points -3%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2754 Points -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2404 Points -18%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2126 Points -28%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	1950 Points -34%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	1635 Points -44%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points -46%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points -51%
2560x1440 Time Spy Score
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	10960 Points +237%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4390 Points +35%
Medio Intel Arc Graphics 140V (3053 - 4721, n=37)	4170 Points +28%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	3274 Points +1%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	3249 Points
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	3215 Points -1%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	3053 Points -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2702 Points -17%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2377 Points -27%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	2203 Points -32%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	1862 Points -43%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1793 Points -45%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1602 Points -51%

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark 11 Performance		10298 puntos
3DMark Cloud Gate Standard Score		27787 puntos
3DMark Fire Strike Score		6956 puntos
3DMark Time Spy Score		3249 puntos
ayuda

... comparado con

Blender
v3.3 Classroom CPU
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * -62%
Medio Intel Arc Graphics 140V (506 - 772, n=36)	589 Seconds * -15%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	523 Seconds * -2%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	513 Seconds *
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	497 Seconds * +3%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	405 Seconds * +21%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	393 Seconds * +23%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	327 Seconds * +36%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	324 Seconds * +37%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	310 Seconds * +40%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	266 Seconds * +48%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	214 Seconds * +58%
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	138 Seconds * +73%
v3.3 Classroom oneAPI/Intel
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	278 Seconds * -9%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	255 Seconds *
Medio Intel Arc Graphics 140V (195 - 405, n=23)	250 Seconds * +2%
v4.3 Barbershop CPU
Medio Intel Arc Graphics 140V (2608 - 3811, n=14)	3031 Seconds * -14%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2741 Seconds * -3%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2657 Seconds *
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2632 Seconds * +1%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2038 Seconds * +23%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1912 Seconds * +28%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	1616 Seconds * +39%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	1557 Seconds * +41%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1349 Seconds * +49%
Minisforum AI X1 Pro, HX 470 AMD Radeon 890M, AMD Ryzen AI 9 HX 470	1119 Seconds * +58%
Acemagic M1A Pro+ AMD Radeon 8060S, AMD Ryzen AI Max+ 395	702 Seconds * +74%
v4.3 Barbershop oneAPI
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	975 Seconds *
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	914 Seconds * +6%
Medio Intel Arc Graphics 140V (760 - 975, n=18)	865 Seconds * +11%

* ... más pequeño es mejor

Performance rating - Percent
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	93.7 pt
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	91.3 pt
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	89.6 pt
GMK EVO-T1 ^-1! Intel Core Ultra 9 285H, Intel Arc Graphics 140T	88.4 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	86.1 pt
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	82.2 pt

Cyberpunk 2077 - 1920x1080 Ultra Preset (FSR off)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.6 (22^min, 21.1^P1) fps +18%
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	24.8 (21.5^min) fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	23.6 (19.9^min, 16.3^P1) fps +9%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +4%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	21.7 (17.5^min, 15.6^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps -11%

Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +4%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	26.7 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +3%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26 (19.7^min, 19.8^P0.1, 23.2^P1) fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	25.8 (22.3^min, 22.3^P0.1, 22.9^P1) fps
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.3 (21.5^min, 22.2^P0.1, 22.8^P1) fps -2%

GTA V - 1920x1080 Highest AA:4xMSAA + FX AF:16x
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	29.1 (7.19^min, 20.4^P1) fps +28%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.8 (3.22^min, 18.9^P1) fps +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps +17%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.8 (5.12^min, 17.5^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	18.5 (8.68^min, 14.9^P1) fps -19%
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	18.1 (7.49^min, 14.1^P1) fps -21%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	31.7 fps +11%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	30.9 fps +8%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +7%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.5 fps
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.6 fps -3%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps +5%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	56.2 (40.6^min, 46.2^P1) fps +3%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	54.5 (14.8^min, 22.5^P1) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps -2%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	49.5 (33.1^min, 38.6^P1) fps -9%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	92.2 (50.4^min) fps +17%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	81.5 (71.5^min) fps +4%
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	81.4 (52.3^min) fps +4%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.5 (50.7^min) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps -1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps -16%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	48.3 fps +118%
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Arc Graphics 140T	42.9 fps +93%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	38 fps +71%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +67%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +62%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.2 fps

Cyberpunk 2077
1280x720 Low Preset (FSR off)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	171.6 (130.8^min, 112.4^P1) fps +190%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.6 (60.1^min) fps +23%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	72.2 (60.8^min, 57.6^P1) fps +22%
Medio Intel Arc Graphics 140V (51 - 77.2, n=23)	65 fps +10%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	62.8 (53.8^min, 50.6^P1) fps +6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	62.5 (32.9^min, 26.7^P1) fps +6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	61 (51.4^min, 48.9^P1) fps +3%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	59.1 (48.7^min, 46.4^P1) fps
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	55.9 (46.7^min, 43^P1) fps -5%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	46 (37.2^min) fps -22%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	42.1 (35.8^min, 27.2^P1) fps -29%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps -57%
1920x1080 Low Preset (FSR off)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	148.7 (118.1^min, 103.2^P1) fps +287%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	43.8 (37.3^min) fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	43.5 (37.6^min, 35.5^P1) fps +13%
Medio Intel Arc Graphics 140V (30.5 - 49.1, n=42)	43.2 fps +13%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	40.5 (35.6^min, 34.1^P1) fps +5%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	38.4 (32.6^min, 30.8^P1) fps
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	36.4 (31.2^min, 29.7^P1) fps -5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	33.9 (19.2^min, 16.7^P1) fps -12%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	32.8 (28^min, 26.6^P1) fps -15%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	27.1 (22.2^min) fps -29%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	25.2 (21.5^min, 18.8^P1) fps -34%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.3 (20.5^min) fps -37%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.4 (12.1^min) fps -60%
1920x1080 Medium Preset (FSR off)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	124.4 (103.1^min, 91.7^P1) fps +312%
Medio Intel Arc Graphics 140V (24.3 - 39.7, n=40)	35.6 fps +18%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.5 (29.8^min) fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	33.9 (29.5^min, 20.2^P1) fps +12%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	33.7 (29.8^min, 29^P1) fps +12%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	30.2 (26.1^min, 24.6^P1) fps
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	28.1 (24.5^min, 22.5^P1) fps -7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	28.1 (24.6^min, 18.6^P1) fps -7%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (15.5^min, 13.9^P1) fps -12%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	22.5 (19^min) fps -25%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	21 (18^min, 16.3^P1) fps -30%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	18.1 (15.7^min) fps -40%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	12.4 (10.3^min) fps -59%
1920x1080 High Preset (FSR off)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	100.3 (84.2^min, 77.1^P1) fps +323%
Medio Intel Arc Graphics 140V (20 - 34.4, n=42)	29.9 fps +26%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	29 (25.5^min, 24.8^P1) fps +22%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	27.1 (22.6^min) fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.1 (23.1^min, 20.3^P1) fps +14%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	23.7 (19.8^min, 18.6^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	23.2 (12.6^min, 11.3^P1) fps -2%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	22.6 (19.2^min, 15.8^P1) fps -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	21.7 (18.4^min, 15.1^P1) fps -8%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	17.2 (14.4^min) fps -27%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.9 (13.5^min, 12.6^P1) fps -33%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	11.6 (10^min) fps -51%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.8 (8.83^min) fps -54%
1920x1080 Ultra Preset (FSR off)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	89.7 (73.6^min, 66.8^P1) fps +313%
Medio Intel Arc Graphics 140V (17.5 - 30.1, n=42)	25.9 fps +19%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.6 (22^min, 21.1^P1) fps +18%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	23.6 (19.9^min, 16.3^P1) fps +9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	23.4 (19^min) fps +8%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	21.7 (17.5^min, 15.6^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps -11%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	19.1 (16^min, 15.2^P1) fps -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	18.7 (15.9^min, 13.8^P1) fps -14%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	15.6 (12.7^min) fps -28%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	14.3 (11.8^min, 11.1^P1) fps -34%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.46 (7.99^min) fps -56%

GTA V
1024x768 Lowest Settings possible
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	183.1 (2.6^min, 83.3^P1) fps +12%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	176.4 (3.08^min, 125^P1) fps +7%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	164.9 (4.2^min, 111.1^P1) fps 0%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	164.2 (3.24^min, 90.9^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	160.4 (4.6^min, 100^P1) fps -2%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	152.9 (3.33^min, 100^P1) fps -7%
Medio Intel Arc Graphics 140V (110.5 - 167.4, n=34)	149.7 fps -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	145.3 (6.3^min, 90.9^P1) fps -12%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	126.4 (4.84^min, 71.4^P1) fps -23%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	109.7 (19^min, 66.7^P1) fps -33%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	107.9 (16.9^min, 71.4^P1) fps -34%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps -39%
1920x1080 Lowest Settings possible
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	183.4 (2.08^min, 142.9^P1) fps +20%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	152.8 (5.95^min, 100^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	152.6 (4.38^min, 100^P1) fps 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	151 (4.26^min, 58.8^P1) fps -1%
Medio Intel Arc Graphics 140V (110.7 - 158.4, n=18)	140.9 fps -8%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	127.4 (19.9^min, 83.3^P1) fps -17%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	112.8 (8.59^min, 76.9^P1) fps -26%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	107.9 (24.4^min, 76.9^P1) fps -29%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	84.6 (18.3^min, 58.8^P1) fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps -49%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	76.1 (7.03^min, 52.6^P1) fps -50%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 (18.1^min, 45.5^P1) fps -56%
1366x768 Normal/Off AF:4x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	180 (2.2^min, 142.9^P1) fps +14%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	168.9 (3.98^min, 125^P1) fps +7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	157.7 (4.41^min, 90.9^P1) fps
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	154.4 (4.84^min, 100^P1) fps -2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	152.4 (3.6^min, 90.9^P1) fps -3%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	142.1 (6.53^min, 90.9^P1) fps -10%
Medio Intel Arc Graphics 140V (91.1 - 157.7, n=33)	140.3 fps -11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	130.2 (21^min, 76.9^P1) fps -17%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	115 (20.8^min, 71.4^P1) fps -27%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	97.4 (23.4^min, 62.5^P1) fps -38%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	97.1 (7.78^min, 62.5^P1) fps -38%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps -45%
1920x1080 Normal/Off AF:4x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	179 (3.57^min, 125^P1) fps +21%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	147.7 (4.77^min, 90.9^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	145 (4.16^min, 58.8^P1) fps -2%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	140 (5.75^min, 100^P1) fps -5%
Medio Intel Arc Graphics 140V (104.4 - 152, n=19)	132 fps -11%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	131.5 (23^min, 83.3^P1) fps -11%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	115.8 (8.35^min, 71.4^P1) fps -22%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	107.9 (22.2^min, 71.4^P1) fps -27%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	81.6 (21.4^min, 52.6^P1) fps -45%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	74.8 (18.3^min, 47.6^P1) fps -49%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	71.8 (20.9^min, 47.6^P1) fps -51%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	165.4 (3.83^min, 111.1^P1) fps +188%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	65 (10.7^min, 45.5^P1) fps +13%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	63.6 (8.99^min, 25.6^P1) fps +11%
Medio Intel Arc Graphics 140V (32 - 76.3, n=31)	61.5 fps +7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	57.4 (6.55^min, 45.5^P1) fps
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	54.7 (7.18^min, 37^P1) fps -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	50.9 (4.69^min, 34.5^P1) fps -11%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	45.3 (15.1^min, 35.7^P1) fps -21%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	36.6 (5.2^min, 25^P1) fps -36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	33.7 (4.68^min, 22.7^P1) fps -41%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps -59%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	19.8 (5.18^min, 14.5^P1) fps -66%
1920x1080 Highest AA:4xMSAA + FX AF:16x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	94.4 (16.7^min, 66.7^P1) fps +314%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.8 (3.22^min, 18.9^P1) fps +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps +17%
Medio Intel Arc Graphics 140V (15.4 - 29, n=32)	26 fps +14%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	23.5 (4.49^min, 16.4^P1) fps +3%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23 (3.67^min, 16.7^P1) fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.8 (5.12^min, 17.5^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	18.5 (8.68^min, 14.9^P1) fps -19%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	14.9 (2.95^min, 10.3^P1) fps -35%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	13.8 (2.14^min, 9.26^P1) fps -39%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -56%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	8.39 (3.74^min, 7.04^P1) fps -63%

X-Plane 11.11
1280x720 low (fps_test=1)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	127.3 fps +304%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	71.4 fps +127%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	70.8 fps +125%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.9 fps +109%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	64.5 fps +105%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	61.1 fps +94%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	55.3 fps +76%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	51.8 fps +64%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	51.8 fps +64%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	47.5 fps +51%
Medio Intel Arc Graphics 140V (31.5 - 57, n=42)	46.7 fps +48%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	31.5 fps
1920x1080 med (fps_test=2)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	104.5 fps +268%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	55.7 fps +96%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	52.1 fps +83%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	50.2 fps +77%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47.8 fps +68%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	45.3 fps +60%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	41.7 fps +47%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	40.5 fps +43%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	38.5 fps +36%
Medio Intel Arc Graphics 140V (28.4 - 44.3, n=42)	37.9 fps +33%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	34.8 fps +23%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.4 fps
1920x1080 high (fps_test=3)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	78 fps +251%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	48.3 fps +118%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	41.9 fps +89%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	41.9 fps +89%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	39.6 fps +78%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	38 fps +71%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +62%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	34.8 fps +57%
Medio Intel Arc Graphics 140V (22.2 - 37.9, n=42)	33.3 fps +50%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps +50%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	29 fps +31%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.2 fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	215 (173.2^min) fps +106%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	157.1 (135^min) fps +50%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	154 (134.7^min) fps +47%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	151.9 (101.9^min) fps +45%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	150.2 (131.1^min) fps +44%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	144.9 (123.5^min) fps +39%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	134.4 (114.9^min) fps +29%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	128.5 (114.3^min) fps +23%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	107.9 (57.9^min) fps +3%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	104.5 (67^min) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	98.1 (63.6^min) fps -6%
Medio Intel Arc Graphics 140V (36.5 - 116.9, n=41)	97.8 fps -6%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps -7%
1366x768 med (1/3)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	175.2 (147.5^min) fps +98%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	130.1 (91.5^min) fps +47%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	112.6 (94.4^min) fps +27%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	108.9 (90.2^min) fps +23%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.9 (92.8^min) fps +22%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	106.5 (89.3^min) fps +20%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	104 (88^min) fps +17%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	94.5 (55.6^min) fps +7%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	93.3 (80.9^min) fps +5%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	88.7 (53.6^min) fps
Medio Intel Arc Graphics 140V (35.7 - 101.7, n=41)	81.4 fps -8%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	80.4 (44.8^min) fps -9%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps -30%
1920x1080 high (2/3)
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	168.8 (134.6^min) fps +145%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	98.8 (80.5^min) fps +43%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	93.2 (82^min) fps +35%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	87.6 (52.1^min) fps +27%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	81.4 (72.4^min) fps +18%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	80.6 (71^min) fps +17%
Medio Intel Arc Graphics 140V (36 - 88.5, n=41)	70.3 fps +2%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	70 (63.6^min) fps +2%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	68.9 (35.5^min) fps
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	65 (58^min) fps -6%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps -9%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	60.7 (55.9^min) fps -12%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.9 (22.6^min) fps -13%
1920x1080 ultra (3/3) best looking
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	151.9 (114.5^min) fps +94%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	92.2 (50.4^min) fps +17%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	90.4 (71.8^min) fps +15%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	81.5 (71.5^min) fps +4%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.5 (50.7^min) fps
Medio Intel Arc Graphics 140V (33.3 - 93, n=41)	74.8 fps -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	72.2 (64.2^min) fps -8%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	70.5 (61.2^min) fps -10%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps -16%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps -23%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	58.2 (51.9^min) fps -26%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps -26%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	54.1 (49.3^min) fps -31%

Strange Brigade
1280x720 lowest AF:1
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	240 (45.1^min, 113.4^P1) fps +4%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	231 (91^min, 198.8^P1) fps
Medio Intel Arc Graphics 140V (138.1 - 251, n=36)	219 fps -5%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	198.3 (71.2^min, 167.4^P1) fps -14%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	173.7 (119.2^min, 145.2^P1) fps -25%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	168.5 (110.2^min, 146^P1) fps -27%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	120.2 (78.3^min, 104.5^P1) fps -48%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	96.5 (21.3^min, 36.4^P1) fps -58%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps -62%
1920x1080 medium AA:medium AF:4
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	83.5 (55.7^min, 74^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	79.4 (59.8^min, 69.1^P1) fps -5%
Medio Intel Arc Graphics 140V (55.5 - 87, n=36)	78 fps -7%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.8 (20.2^min, 27^P1) fps -14%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	68.9 (55.3^min, 59.1^P1) fps -17%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	67.1 (46.5^min, 58.3^P1) fps -20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	43 (36.6^min, 37.4^P1) fps -49%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	40.9 (18.9^min, 23.2^P1) fps -51%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps -53%
1920x1080 high AA:high AF:8
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	67 (48.2^min, 55^P1) fps +2%
Medio Intel Arc Graphics 140V (45.3 - 73.2, n=36)	65.9 fps 0%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	65.8 (43.1^min, 52.8^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.7 (18.9^min, 25.9^P1) fps -9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	58.7 (43.2^min, 45.6^P1) fps -11%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	56.5 (42.4^min, 43.8^P1) fps -14%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	35.9 (28.5^min, 29.1^P1) fps -45%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	32.6 (9.2^min, 18.5^P1) fps -50%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	31.1 (8.7^min, 16.3^P1) fps -53%
1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps +5%
Medio Intel Arc Graphics 140V (39 - 62.5, n=36)	56.8 fps +4%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	56.2 (40.6^min, 46.2^P1) fps +3%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	54.5 (14.8^min, 22.5^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	50.8 (24.5^min, 33.9^P1) fps -7%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	49.5 (33.1^min, 38.6^P1) fps -9%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps -46%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	26.3 (5.9^min, 8.53^P1) fps -52%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps -54%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	206 (64.1^min, 96.3^P0.1, 142.5^P1) fps +289%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	63.4 fps +20%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	59.8 fps +13%
Medio Intel Arc Graphics 140V (49.3 - 73.3, n=18)	59.3 fps +12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	58.6 (36.1^min, 40.9^P0.1, 51.3^P1) fps +11%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.6 fps +9%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.3 (43.1^min, 43.6^P0.1, 47.5^P1) fps +8%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	53 (45.6^min, 45.9^P0.1, 48^P1) fps
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	49.9 (36.7^min, 42.5^P0.1, 45.7^P1) fps -6%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	41 (26.8^min, 30.3^P0.1, 33.4^P1) fps -23%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	38.5 (27.4^min, 28.6^P0.1, 31.5^P1) fps -27%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.3 fps -30%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	28.6 (21.1^min, 21.6^P0.1, 24.1^P1) fps -46%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps -57%
1920x1080 Low Preset AA:SM
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	151.7 (97.7^min, 112.8^P0.1, 126.9^P1) fps +314%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	41.6 fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	39.9 fps +9%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	39.5 (32.2^min, 32.3^P0.1, 34^P1) fps +8%
Medio Intel Arc Graphics 140V (23.7 - 47, n=36)	39.2 fps +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	39.1 (32.7^min, 32.9^P0.1, 35.1^P1) fps +7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	36.6 (33^min, 33.2^P0.1, 33.8^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36.1 fps -1%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	34.9 (28.6^min, 29.1^P0.1, 30.7^P1) fps -5%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	26.8 (22.1^min, 22.1^P0.1, 23^P1) fps -27%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	24.8 (19.5^min, 19.8^P0.1, 21^P1) fps -32%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	22.9 fps -37%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	19.7 (17.3^min, 17.4^P0.1, 17.7^P1) fps -46%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.3 fps -58%
1920x1080 Medium Preset AA:T
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	115.2 (96.9^min, 97.8^P0.1, 100.5^P1) fps +276%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.8 fps +14%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	32.9 fps +8%
Medio Intel Arc Graphics 140V (19.6 - 37, n=37)	31.6 fps +3%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	31.2 (25.4^min, 26^P0.1, 27.3^P1) fps +2%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	30.6 (26.9^min, 27^P0.1, 27.7^P1) fps
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	29.7 (20.6^min, 23.4^P0.1, 26.4^P1) fps -3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29.5 fps -4%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	27.5 (19.8^min, 22^P0.1, 24.9^P1) fps -10%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	20.4 (17^min, 17.1^P0.1, 17.9^P1) fps -33%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	19.4 (15.6^min, 15.8^P0.1, 16.7^P1) fps -37%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.1 fps -51%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	15.1 (13.3^min, 13.3^P0.1, 13.7^P1) fps -51%
1920x1080 High Preset AA:T
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	100.4 (89.2^min, 90^P0.1, 91.6^P1) fps +279%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29 fps +9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28.9 fps +9%
Medio Intel Arc Graphics 140V (17 - 32.9, n=37)	28 fps +6%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27 fps +2%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	26.5 (23.4^min, 23.5^P0.1, 24.9^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26.2 (21.4^min, 21.4^P0.1, 23.3^P1) fps -1%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	24.5 (19.6^min, 20.4^P0.1, 21.7^P1) fps -8%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	22.1 (13^min, 13.3^P0.1, 14.2^P1) fps -17%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	16.9 (14^min, 14.2^P0.1, 14.8^P1) fps -36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.6 (13.2^min, 13.4^P0.1, 13.7^P1) fps -41%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	13.3 fps -50%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	13 (10.4^min, 10.8^P0.1, 11.8^P1) fps -51%
1920x1080 Ultra Preset AA:T
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	97.3 (85.9^min, 86.9^P0.1, 89.8^P1) fps +277%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28 fps +9%
Medio Intel Arc Graphics 140V (16.6 - 32.2, n=38)	27 fps +5%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	26.7 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +3%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26 (19.7^min, 19.8^P0.1, 23.2^P1) fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	25.8 (22.3^min, 22.3^P0.1, 22.9^P1) fps
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23.9 (20.5^min, 20.6^P0.1, 21.6^P1) fps -7%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	20.7 (13.1^min, 13.1^P0.1, 13.6^P1) fps -20%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	16.8 (14.2^min, 14.4^P0.1, 15.1^P1) fps -35%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.2 (13.2^min, 13.2^P0.1, 13.5^P1) fps -41%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	12.6 fps -51%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	12.6 (11.5^min, 11.5^P0.1, 11.6^P1) fps -51%

F1 24
1920x1080 Low Preset AA:T AF:16x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	258 (210^min, 164^P1) fps +236%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	83.4 (63^min, 42^P1) fps +9%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	83 (71^min, 67^P1) fps +8%
Medio Intel Arc Graphics 140V (54 - 99, n=25)	81.8 fps +7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	76.8 (63^min, 55^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	72 (52^min, 30^P1) fps -6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	71.8 (52^min, 35^P1) fps -7%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	68.3 (56^min, 52^P1) fps -11%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	48.4 (36^min, 36^P1) fps -37%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (37^min, 30^P1) fps -39%
1920x1080 Medium Preset AA:T AF:16x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	243 (206^min, 153^P1) fps +210%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.4 (53^min, 55^P1) fps
Medio Intel Arc Graphics 140V (49.2 - 88.2, n=24)	76.3 fps -3%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	74.9 (65^min, 61^P1) fps -4%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	73.3 (48^min, 47^P1) fps -7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	64.3 (49^min, 47^P1) fps -18%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	62.6 (48^min, 43^P1) fps -20%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	43.9 (36^min, 32^P1) fps -44%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	41.2 (30^min, 25^P1) fps -47%
1920x1080 High Preset AA:T AF:16x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	186.3 (162^min, 119^P1) fps +217%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	58.7 (34^min, 45^P1) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.7 (51^min, 49^P1) fps -2%
Medio Intel Arc Graphics 140V (34.4 - 66.4, n=26)	57.4 fps -2%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	55.4 (38^min, 30^P1) fps -6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	53.8 (38^min, 22^P1) fps -8%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	46.6 (37^min, 35^P1) fps -21%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	44.9 (28^min, 22^P1) fps -24%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	34.4 (27^min, 25^P1) fps -41%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	30.9 (10^min, 21^P1) fps -47%
1920x1080 Ultra High Preset AA:T AF:16x
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	59 (41^min, 28^P1) fps +243%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	19.2 (16^min, 16^P1) fps +12%
Medio Intel Arc Graphics 140V (15.3 - 22, n=24)	19 fps +10%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	17.2 (13^min, 12^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	16.6 (10^min, 7^P1) fps -3%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	12.3 (1^min, 3^P1) fps -28%
Alliwava H90 Pro AMD Ryzen 7 8745HS, AMD Radeon 780M	11.5 (7^min, 7^P1) fps -33%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	9.51 (6^min, 6^P1) fps -45%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	206 fps +162%
Medio Intel Arc Graphics 140V (54.1 - 97.1, n=40)	82.3 fps +5%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	79.7 fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.7 fps
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	78.4 fps 0%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	77.9 fps -1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.3 fps -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	60 fps -24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	48.3 fps -39%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	46.4 fps -41%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	44.4 fps -44%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -48%
1920x1080 Standard Quality
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	132.3 fps +209%
Medio Intel Arc Graphics 140V (31.6 - 87.6, n=41)	46.5 fps +9%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	43.6 fps +2%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	42.8 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	40.2 fps -6%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	39.1 fps -9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	39.1 fps -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	29.3 fps -32%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.7 fps -42%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	23.7 fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps -46%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	22.2 fps -48%
1920x1080 High Quality
Acemagic M1A Pro+ AMD Ryzen AI Max+ 395, AMD Radeon 8060S	91.8 fps +222%
Medio Intel Arc Graphics 140V (23 - 37.2, n=40)	32.9 fps +15%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	30.9 fps +8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.4 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +1%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.5 fps
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.6 fps -3%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps -37%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470, AMD Radeon 890M	17.7 fps -38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	17.4 fps -39%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -42%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	16.3 fps -43%

Cyberpunk 2077 ultra FPS Gráfico

GMK NucBox K13 Core Ultra 7 256V, Arc 140V: Ø25.2 (23.7-26.3)

	bajo	medio	alto	ultra
GTA V (2015)	164.2	157.7	57.4	22.8
Dota 2 Reborn (2015)	104.5	88.7	68.9	78.5
Final Fantasy XV Benchmark (2018)	78.7	42.8	28.5
X-Plane 11.11 (2018)	31.5	28.4	22.2
Strange Brigade (2018)	231	83.5	65.8	54.5
Baldur's Gate 3 (2023)	36.6	30.6	26.5	25.8
Cyberpunk 2077 (2023)	38.4	30.2	23.7	21.7
F1 24 (2024)	76.8	78.4	58.7	17.2

Emisiones

Ruido del sistema

El ruido del ventilador es una bolsa mixta. Mientras que el sistema es generalmente silencioso cuando se navega por la web o se ejecutan otras cargas poco exigentes, el ruido del ventilador se eleva con bastante rapidez a más de 40 dB(A) cuando se ejecutan aplicaciones más intensas como juegos. Además, el ventilador es agudo como se muestra en nuestro gráfico agudo a continuación, lo que significa que cualquier cambio de RPM será más perceptible para los oídos.

Ruido

Ocioso		24.5 / 25 / 25.1 dB(A)
Carga		40.1 / 45.1 dB(A)

	30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distancia) ruido ambiental: 23.3 dB(A)

	GMK NucBox K13 Core Ultra 7 256V, Arc 140V	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M	GMK EVO-T1 Ultra 9 285H, Arc 140T	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M	Asus NUC 15 Pro+ Ultra 9 285H, Arc 140T	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V
Noise		-19%	-34%	-0%	-14%	-14%
apagado / medio ambiente * (dB)	23.3	23.5 -1%	24.7 -6%	23 1%	25.3 -9%	24.8 -6%
Idle Minimum * (dB)	24.5	35.4 -44%	38.7 -58%	29.1 -19%	25.4 -4%	28 -14%
Idle Average * (dB)	25	35.4 -42%	38.8 -55%	30.1 -20%	25.5 -2%	36.1 -44%
Idle Maximum * (dB)	25.1	39 -55%	38.9 -55%	31.7 -26%	37.3 -49%	36.1 -44%
Load Average * (dB)	40.1	42.4 -6%	51.6 -29%	33.7 16%	44.4 -11%	38.9 3%
Cyberpunk 2077 ultra * (dB)	44.2	40.4 9%	52 -18%	33.8 24%	46.2 -5%	37 16%
Load Maximum * (dB)	45.1	41.4 8%	51.6 -14%	35.2 22%	52.7 -17%	49.2 -9%
Witcher 3 ultra * (dB)			38.7		47.7

* ... más pequeño es mejor

Temperatura

El adaptador de CA alcanza más de 48 C cuando funciona con cargas exigentes

La mitad derecha del sistema siempre estará más caliente que la izquierda debido a cómo está diseñada la solución de refrigeración. El calor residual se escapa por el borde derecho, como muestran los mapas de temperatura que aparecen a continuación, por lo que es importante orientar correctamente la unidad si se coloca en posición vertical.

Carga Máx.

Inactivo


23.8 °C	28.6 °C	31.4 °C
23.8 °C	31 °C	31.2 °C
24.6 °C	28.4 °C	31.6 °C

Máximo: 31.6 °C
Médio: 28.3 °C


48.6 °C	41.6 °C	28 °C
50.6 °C	43.8 °C	25.6 °C
42.6 °C	40 °C	33 °C

Máximo: 50.6 °C
Médio: 39.3 °C

Conector de corriente 46 °C | Temperatura del cuarto 20 °C | Fluke 62 Mini IR Thermometer

(+) La temperatura media de la parte superior bajo carga máxima es de 28.3 °C / 83 F, en comparación con la media de 32.3 °C / 90 F de los dispositivos de la clase Mini PC.
(+) La temperatura máxima en la parte superior es de 31.6 °C / 89 F, frente a la media de 35.6 °C / 96 F, que oscila entre 20.6 y 69.5 °C para la clase Mini PC.
(-) El fondo se calienta hasta un máximo de 50.6 °C / 123 F, frente a la media de 36.3 °C / 97 F
(+) En reposo, la temperatura media de la parte superior es de 26.3 °C / 79# F, frente a la media del dispositivo de 32.3 °C / 90 F.

	GMK NucBox K13 Core Ultra 7 256V, Arc 140V	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M	GMK EVO-T1 Ultra 9 285H, Arc 140T	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M	Asus NUC 15 Pro+ Ultra 9 285H, Arc 140T	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V
Heat		6%	-4%	9%	-7%	18%
Maximum Upper Side * (°C)	31.6	31.6 -0%	36.4 -15%	26.8 15%	42.2 -34%	30.8 3%
Maximum Bottom * (°C)	50.6	35.8 29%	48.5 4%		31.3 38%	26.4 48%
Idle Upper Side * (°C)	27	28.2 -4%	29.6 -10%	26.2 3%	34.9 -29%	26.4 2%
Idle Bottom * (°C)	31.2	31.4 -1%	30 4%		32.2 -3%	25.4 19%

* ... más pequeño es mejor

Prueba de estrés

Al ejecutar el estrés Prime95, la CPU aumentaba a 3,5 GHz y 37 W antes de caer rápidamente a 3,2 GHz y 30 W unos segundos más tarde para significar la sostenibilidad limitada de Turbo Boost. La temperatura del núcleo se estabiliza en el rango bajo de 70 C que es similar a lo que observamos en el NucBox K12 a pesar de sus diferencias en tamaño y rendimiento.

	Reloj de la CPU (GHz)	Reloj de la GPU (MHz)	Temperatura media de la CPU (°C)
Sistema en reposo	--	--	35
Prime95 Stress	3.2	--	74
Prime95 + FurMark Stress	1.8	1950	71
Cyberpunk 2077 Estrés	1,5	1950	72

Gestión de la energía

Consumo de energía

Lunar Lake-V es extremadamente eficiente, como muestran las tablas siguientes. El sistema consume sólo 32 W de media al ejecutar Cyberpunk 2077 en comparación con los 86 W de la NucBox K12 alimentada por la Radeon 780M. Aunque esta última puede ser más rápida, definitivamente no es el doble o el triple que nuestra solución Intel.

El ladrillo de alimentación de 100 W es bastante compacto con sólo ~9,9 x 6,3 x 2,3 cm.

El consumo se dispararía a 40 W al iniciar el estrés Prime95 antes de caer a 34 W unos segundos más tarde debido al Turbo Boost limitado

Prime95+FurMark tensión iniciada en la marca 10s

Consumo de corriente

Off / Standby	0.03 / 0.39 Watt
Ocioso	2.3 / 3.6 / 5.8 Watt
Carga	27.3 / 39.6 Watt


Clave: min: , med: , max: Metrahit Energy

	GMK NucBox K13 Core Ultra 7 256V, Arc 140V, , , x,	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	GMK EVO-T1 Ultra 9 285H, Arc 140T, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Asus NUC 15 Pro+ Ultra 9 285H, Arc 140T, Micron 3500 1TB MTFDKBA1T0TGD, , x,	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V, Phison 1 TB ESR01TBTCCZ-27J, , x,
Power Consumption		-183%	-141%	-120%	-116%	-47%
Idle Minimum * (Watt)	2.3	9.9 -330%	6.1 -165%	7 -204%	3.9 -70%	2.9 -26%
Idle Average * (Watt)	3.6	10.1 -181%	7.9 -119%	7.1 -97%	6.1 -69%	5.7 -58%
Idle Maximum * (Watt)	5.8	13.1 -126%	13.2 -128%	7.5 -29%	8.2 -41%	10.2 -76%
Load Average * (Watt)	27.3	69.8 -156%	60.7 -122%	62.3 -128%	56.1 -105%	38.7 -42%
Cyberpunk 2077 ultra external monitor * (Watt)	31.6	86.3 -173%	67.4 -113%	80.1 -153%	63.9 -102%	41.1 -30%
Load Maximum * (Watt)	39.6	92.8 -134%	117.1 -196%	82.9 -109%	160.6 -306%	60 -52%

* ... más pequeño es mejor

Consumo de energía Cyberpunk / Prueba de estrés

GMK NucBox K13 Core Ultra 7 256V, Arc 140V: Ø34.5 (33.1-40.1)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M: Ø91.4 (89.7-92.8)

Consumo de energía Monitor externo

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Prime95 V2810 Stress (external Monitor): Ø34.5 (33.5-39.5)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø89 (87.7-90.4)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cinebench R15 Multi (external Monitor): Ø36.7 (33.6-39.6)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø81.4 (80.4-82.7)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cinebench R23 Multi (external Monitor): Ø34.2 (33.1-38.8)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.2 (26.2-39.6)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø85.1 (80-87.5)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Idle 1min (external Monitor): Ø3.64 (2.33-5.79)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M; Idle 1min (external Monitor): Ø10 (9.29-14.6)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø31.6 (30.7-32.5)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø86.3 (78.2-87.4)

Valoración de Notebookcheck

La muy compacta GMK NucBox K13 equilibra muy bien el tamaño y el rendimiento, aunque a costa de un mayor ruido del ventilador y de la ausencia de algunas funciones auxiliares.

Volver al veredicto

GMK NucBox K13 - 03/16/2026 v8
Allen Ngo

Acabado

79 / 98 → 80%

Conectividad

58 / 81 → 72%

Peso

83%

Rendimiento de juegos

52 / 80 → 65%

Rendimiento de la Aplicación

84 / 92 → 91%

AI Performance

89%

Temperatura

90%

Ruido

84%

Médio

61%

77%

Mini PC - media ponderada

CO2 Emissions
No Data

Materials
50%

Packaging
50%

Power Use
92.7%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 42.5%

Competidores potenciales en comparación

Imagen	Modelo	Precio	Peso	Altura	Pantalla
1. 77.4%	GMK NucBox K13 Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 16 GB Memoría	Precio de catálogo: 670 USD	506 g	36.6 mm	x
2. 73.7%	GMK NucBox K12 AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memoría, 1024 GB SSD		938 g	78 mm	x
3. 75.4%	GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memoría, 1024 GB SSD	Precio de catálogo: 999€	946 g	73.6 mm	x
4. 80.2%	Beelink SER9 Pro AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memoría, 1024 GB SSD	Amazon: Precio de catálogo: 520 USD	812 g	44.7 mm	x
5. 77.5%	Asus NUC 15 Pro+ Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memoría, 1024 GB SSD	Amazon: $1,253.46 Precio de catálogo: 991€	690 g	42 mm	x
6. 75.2%	MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memoría, 1000 GB SSD	Amazon: Precio de catálogo: 900 USD	669 g	50.1 mm	x

Transparencia

La selección de los dispositivos que se van a reseñar corre a cargo de nuestro equipo editorial. La muestra de prueba fue proporcionada al autor en calidad de préstamo por el fabricante o el minorista a los efectos de esta reseña. El prestamista no tuvo ninguna influencia en esta reseña, ni el fabricante recibió una copia de la misma antes de su publicación. No había ninguna obligación de publicar esta reseña. Como empresa de medios independiente, Notebookcheck no está sujeta a la autoridad de fabricantes, minoristas o editores.

Así es como prueba Notebookcheck

Cada año, Notebookcheck revisa de forma independiente cientos de portátiles y smartphones utilizando procedimientos estandarizados para asegurar que todos los resultados son comparables. Hemos desarrollado continuamente nuestros métodos de prueba durante unos 20 años y hemos establecido los estándares de la industria en el proceso. En nuestros laboratorios de pruebas, técnicos y editores experimentados utilizan equipos de medición de alta calidad. Estas pruebas implican un proceso de validación en varias fases. Nuestro complejo sistema de clasificación se basa en cientos de mediciones y puntos de referencia bien fundamentados, lo que mantiene la objetividad.

Please share our article, every link counts!

Más artículos relacionados con este dispositivo

GMK NucBox K13 (NucBox Serie)

Análisis

•

Análisis del GMKtec NucBox M7 Ultra: La mejor relación calidad-precio entre...

Análisis

•

Reseña del GMK NucBox K15: Mini PC asequible con un diseño sobredimensionado

Noticias

•

El mini PC GMKtec K15 cambia la compacidad por un funcionamiento más silenc...

Análisis

•

Reseña del mini PC GMK NucBox M8: Pequeño, profesional y asequible

Noticias

•

GMKtec NucBox M8 es un mini PC más reciente con un procesador AMD Zen 3+ má...

Análisis

•

Mini PC asequible para la oficina en casa y multimedia - Reseña del GMKtec ...

Análisis

•

Reseña del mini PC GMK NucBox K12: Más grande, pero no necesariamente más r...

Noticias

•

El diseño de la GMK NucBox K12 tiene un pequeño pero molesto defecto

Noticias

•

El nuevo Ryzen 7 H 255 tiene un rendimiento casi idéntico al Ryzen 7 7840HS...

Noticias

•

¿La mejor relación calidad-precio? Reseña del mini PC GMKtec NucBox M6 Ultr...

Análisis

•

Mini PC a un gran precio con potencia AMD Ryzen y versatilidad USB4 - Reseñ...

Análisis

•

Reseña del mini PC GMK NucBox K11: Gran rendimiento por dólar con AMD Zen 4

Análisis

•

Análisis del mini PC GMK NucBox M7 Pro: El antiguo procesador Ryzen 9 sigue...

Análisis

•

Reseña del mini PC GMK NucBox K9: Core Ultra 5 125H con gráficos Arc 7

Análisis

•

Reseña del GMK NucBox M6: Un mini PC equilibrado por menos de 300 dólares

Análisis

•

Reseña del mini PC GMK NucBox M5: AMD Zen 2 se hace esperar

Análisis

•

Reseña del mini PC GMK NucBox K6: Tan potente como los últimos portátiles I...

Análisis

•

Reseña del mini PC GMK NucBox M4: core i9 de 11ª generación por menos de 50...

Análisis

•

Análisis del mini PC GMKtec NucBox M3: El Core i5-12450H consume demasiada ...

Análisis

•

Análisis del mini PC GMK NucBox K2 Ryzen 7 7735HS: Optimizado para un alto ...

...

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5485 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 729119 articles published on Notebookcheck since 2008

contact me via: Facebook

> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Reseña del GMK NucBox K13: Mini PC ultraligero y eficiente con Intel Lunar Lake

Allen Ngo, 2026-03-16 (Update: 2026-03-16)

Cinebench 2024 CPU Multi Core comparado con
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	645
MSI Prestige 13 AI Plus Evo A2VMG Core Ultra 7 258V, Arc 140V	646
Asus ZenBook A14 UX3407QA SD X1-26-100, Adreno X1-45 1.7 TFLOPS	646
GMK NucBox K13 Core Ultra 7 256V, Arc 140V	649
Acer Nitro V 16 AI ANV16-42-R860 R5 240, GeForce RTX 5050 Laptop	654
Xiaomi RedmiBook 14 2025 Core 5 220H, Iris Xe G7 80EUs	655
HP EliteBook X G1i 14 AI Core Ultra 7 268V, Arc 140V	656
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 comparado con
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Acer TravelMate P6 TMP614-54-TCO-553Z Core Ultra 5 226V, Arc 130V	10260
Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M	10275
LG Ultra 17U70N i5-10210U, GeForce GTX 1650 Mobile	10278
GMK NucBox K13 Core Ultra 7 256V, Arc 140V	10298
Dell 14 Plus 2-in-1 Ryzen AI 7 350, Radeon 860M	10325
Lenovo ThinkPad T16 Gen 4 21QQS06M00 Ryzen AI 7 PRO 350, Radeon 860M	10353
Lenovo ThinkPad P14s G3 AMD 21J6S05000 R7 PRO 6850U, Radeon 680M	10377
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
