Breve análisis del Mini PC Zotac ZBOX Magnus EN51050

Allen Ngo (traducido por Francisco García), 09/30/2017

Caja Gaming negra. El gama media EN51050 logra un equilibrio de rendimiento genial entre la CPU i5-7500T y la GPU GTX 1050. Con todo, a $700, el precio de un kit barebones queda llamativamente lejos de un portátil gaming completamente desarrollado con hardware más rápido.

No, or more than one (0) Rating for the given SpecsID 283342 found

Zotac ZBOX Magnus EN51050
Procesador
Intel Core i5-7500T
Adaptador gráfico
NVIDIA GeForce GTX 1050 (Notebook) - 2048 MB, Núcleo: 1354 MHz, Memoría: 7008 MHz, GDDR5, 382.16
Memoría
16384 MB
, DDR4 PC4-19200, 1600 MHz, 14-14-14-35, Dual-Channel
Placa base
Intel B150 (Skylake PCH-H)
Disco duro
Samsung SSD 960 Pro 512 GB m.2, 512 GB
, secundario: bahía 2.5" SATA III libre
Tarjeta de sonido
Intel Skylake PCH-H High Definition Audio Controller
Conexiones
2 USB 2.0, 3 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Infrared, 1 Kensington Lock, Audio Conexiones: 3.5 mm microphone, 3.5 mm headphones, Card Reader: SD
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.2
Tamaño
Alto x ancho x profundidad (en mm): 62.2 x 210 x 203
Características adicionales
guía de inicio rápido, manual de usuario, antena, garantía, DVD de drivers, pendrive de drivers
Peso
1.724 kg, Suministro de Electricidad: 794 g
Precio
700 USD

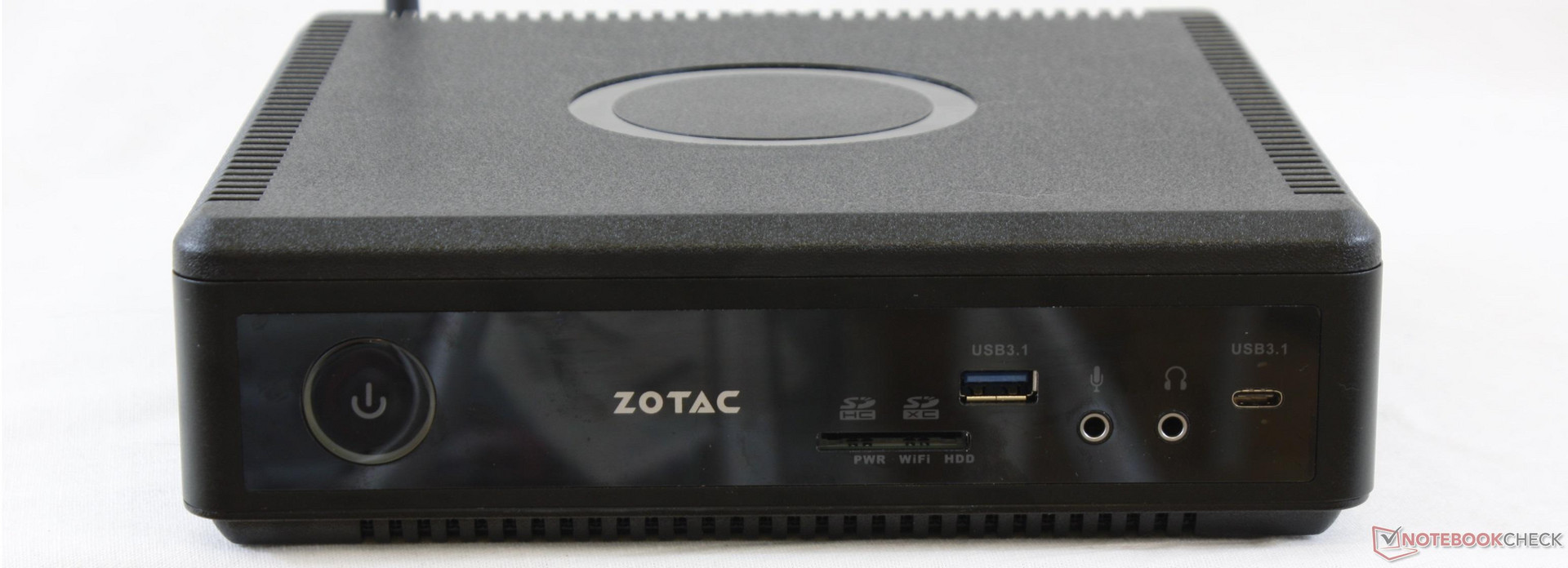

Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2
Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2

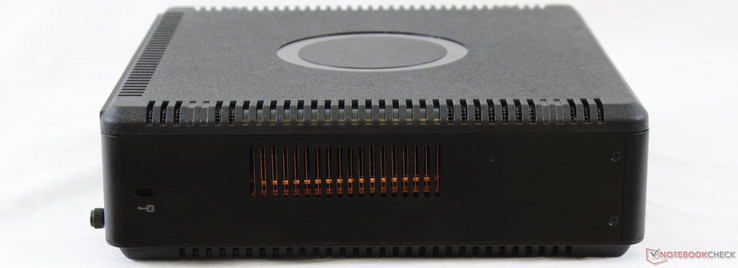

Left: Kensington Lock
Left: Kensington Lock

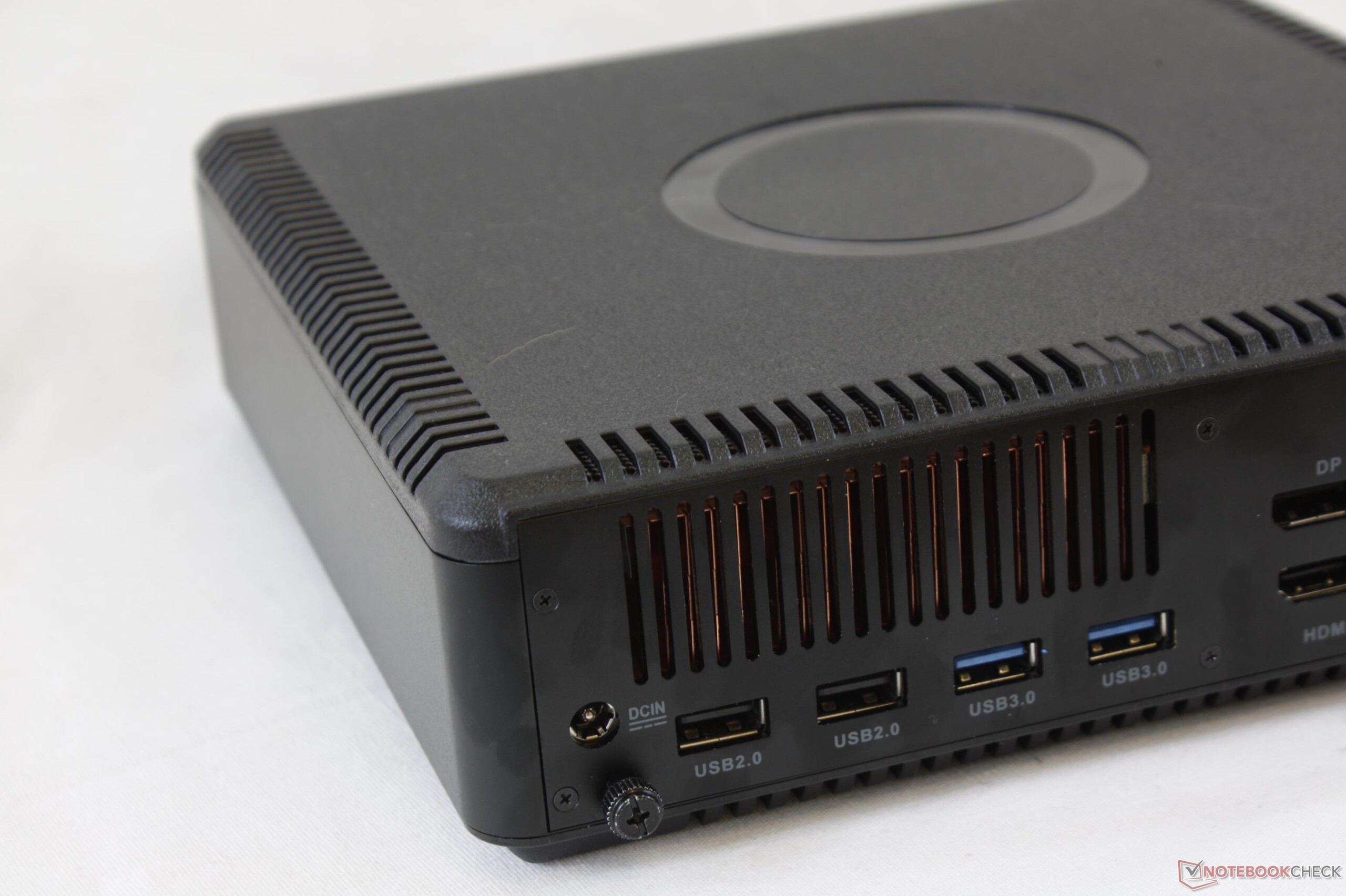

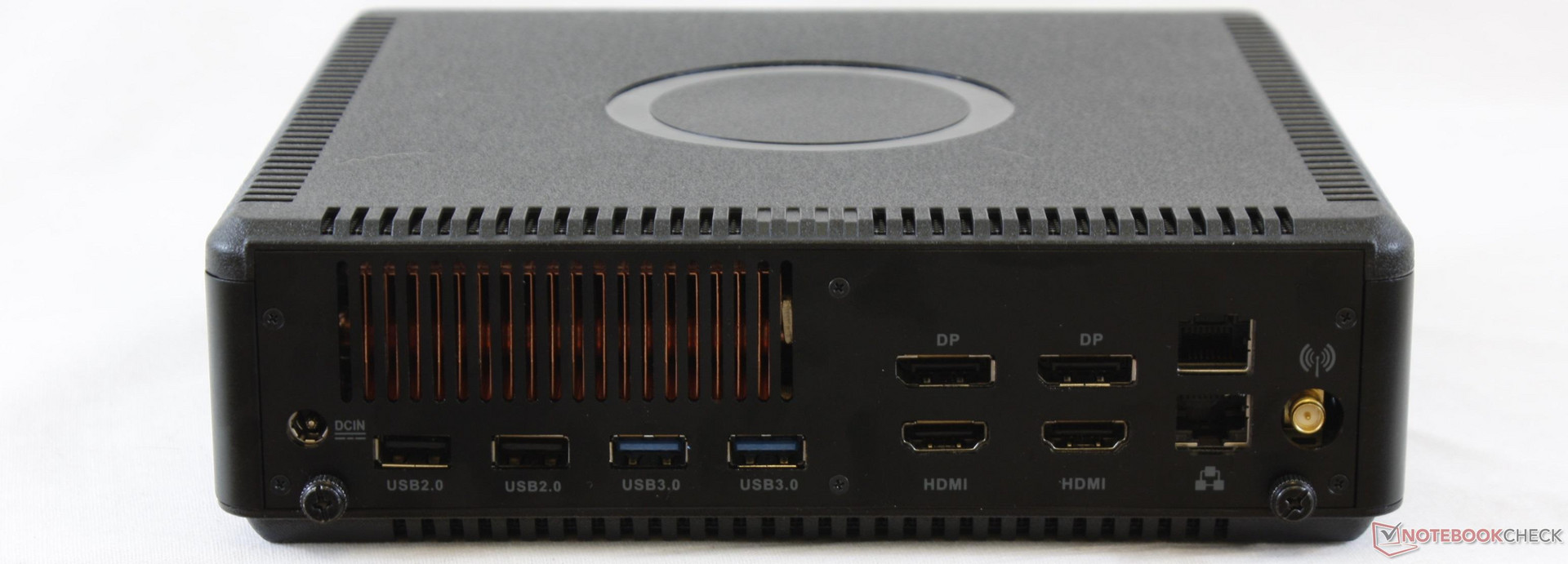

Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna

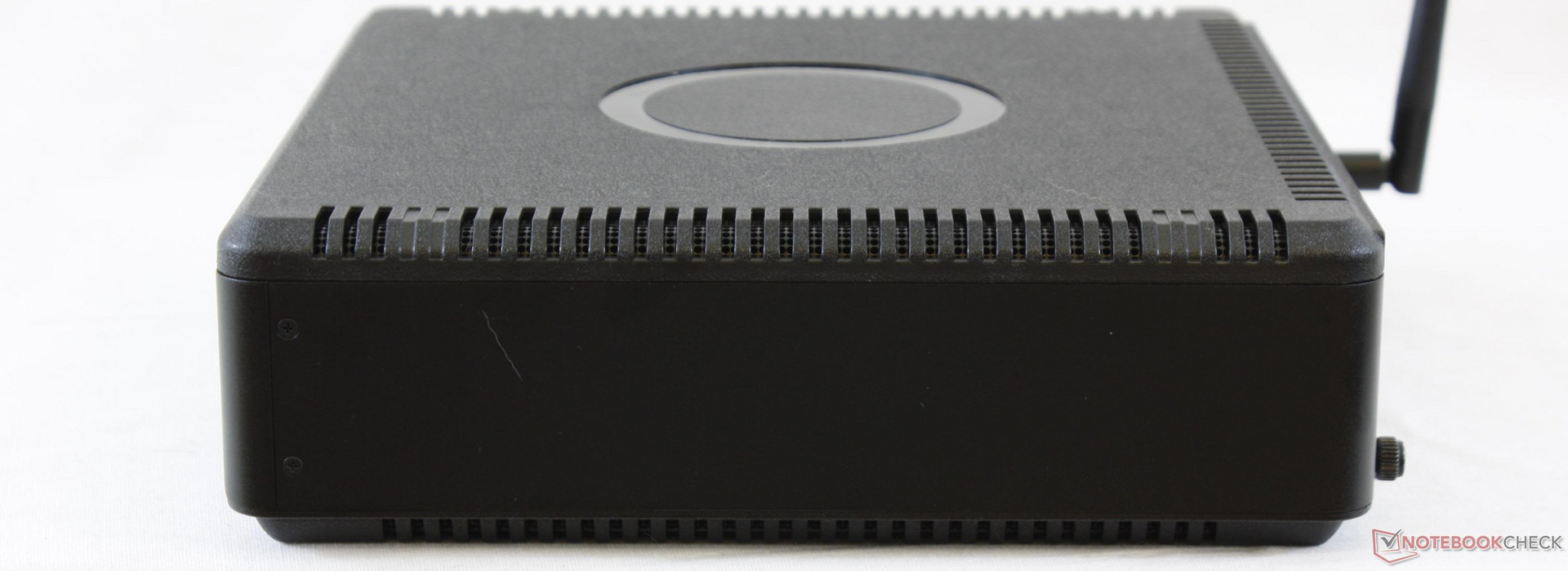

Right: No connectivity
Right: No connectivity
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Gigabyte Sabre 15G
78.76 MB/s ∼100% +82%
Zotac ZBOX Magnus EN51050
43.3 MB/s ∼55%
MSI GS43VR 7RE-069US
19.54 MB/s ∼25% -55%
maximum AS SSD Seq Read Test (1GB)
Gigabyte Sabre 15G
86.53 MB/s ∼100% +108%
Zotac ZBOX Magnus EN51050
41.68 MB/s ∼48%
MSI GS43VR 7RE-069US
19.83 MB/s ∼23% -52%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
168 Points ∼84% +30%
Dell Latitude 7480
Intel Core i7-7600U
162 Points ∼81% +26%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
161 Points ∼81% +25%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
145 Points ∼73% +12%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points ∼70% +8%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
134 Points ∼67% +4%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
133 Points ∼67% +3%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points ∼65% +1%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
129 Points ∼65%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
123 Points ∼62% -5%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
113 Points ∼57% -12%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
69 Points ∼35% -47%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
736 Points ∼34% +44%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points ∼33% +39%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
660 Points ∼31% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
543 Points ∼25% +6%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
538 (min: 467.61) Points ∼25% +5%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
512 Points ∼24%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
510 Points ∼24% 0%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
503 Points ∼23% -2%
Dell Latitude 7480
Intel Core i7-7600U
343 Points ∼16% -33%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
328 Points ∼15% -36%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points ∼15% -36%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
284 Points ∼13% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
229 Points ∼11% -55%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
1.98 Points ∼87% +34%
Dell Latitude 7480
Intel Core i7-7600U
1.85 Points ∼81% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
1.84 Points ∼81% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
1.66 Points ∼73% +12%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
1.6 Points ∼70% +8%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
1.51 Points ∼67% +2%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
1.51 Points ∼67% +2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
1.48 Points ∼65% 0%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
1.48 Points ∼65%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
1.45 Points ∼64% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
1.28 Points ∼56% -14%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
0.94 Points ∼41% -36%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
8.17 Points ∼3% +39%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
7.76 Points ∼3% +32%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
7.67 Points ∼3% +31%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
6.11 Points ∼3% +4%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
5.92 Points ∼2% +1%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
5.86 Points ∼2%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
5.81 Points ∼2% -1%
Dell Latitude 7480
Intel Core i7-7600U
3.78 Points ∼2% -35%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
3.67 Points ∼2% -37%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
3.16 Points ∼1% -46%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
3.15 Points ∼1% -46%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2.7 Points ∼1% -54%
Cinebench R10
Rendering Single 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
6730 Points ∼76% +35%
Dell Latitude 7480
Intel Core i7-7600U
6243 Points ∼70% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
6107 Points ∼69% +22%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
5545 Points ∼63% +11%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
5536 Points ∼62% +11%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
5088 Points ∼57% +2%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
5002 Points ∼56%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
4975 Points ∼56% -1%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
4920 Points ∼55% -2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
4904 Points ∼55% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
4368 Points ∼49% -13%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2640 Points ∼30% -47%
Rendering Multiple CPUs 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
23585 Points ∼47% +73%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
22273 Points ∼45% +64%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
21075 Points ∼42% +55%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
18297 Points ∼37% +34%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
17618 Points ∼35% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
14148 Points ∼28% +4%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
13614 Points ∼27%
Dell Latitude 7480
Intel Core i7-7600U
12153 Points ∼24% -11%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
11373 Points ∼23% -16%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
10897 Points ∼22% -20%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
9723 Points ∼20% -29%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
7200 Points ∼14% -47%
wPrime 2.0x - 1024m
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
489.402 s * ∼6% -47%
Dell Latitude 7480
Intel Core i7-7600U
484.33 s * ∼6% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
415.484 s * ∼5% -25%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
333.206 s * ∼4%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
327.064 s * ∼4% +2%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
314.7 s * ∼4% +6%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
253.57 s * ∼3% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
225.673 s * ∼3% +32%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
217.072 s * ∼3% +35%
Super Pi Mod 1.5 XS 32M - ---
HP Pavilion 17z 1EX13AV
AMD A12-9720P
863.551 Seconds * ∼4% -37%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
660.102 Seconds * ∼3% -5%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
628.572 Seconds * ∼3%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
627.687 Seconds * ∼3% -0%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
611 Seconds * ∼3% +3%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
549.204 Seconds * ∼2% +13%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
538.979 Seconds * ∼2% +14%
Dell Latitude 7480
Intel Core i7-7600U
510.27 Seconds * ∼2% +19%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
467.526 Seconds * ∼2% +26%

* ... más pequeño es mejor

Cinebench R10 Shading 32Bit
10608
Cinebench R10 Rendering Multiple CPUs 32Bit
13614
Cinebench R10 Rendering Single 32Bit
5002
Cinebench R11.5 OpenGL 64Bit
64.27 fps
Cinebench R11.5 CPU Multi 64Bit
5.86 Points
Cinebench R11.5 CPU Single 64Bit
1.48 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
122.86 fps
Cinebench R15 CPU Multi 64Bit
512 Points
Cinebench R15 CPU Single 64Bit
129 Points
ayuda
PCMark 10
Digital Content Creation
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4432 Points ∼47% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
4243 Points ∼45%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3014 Points ∼32% -29%
Productivity
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
6781 Points ∼71%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
6749 Points ∼71% 0%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
6665 Points ∼70% -2%
Essentials
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
8076 Points ∼84% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
7791 Points ∼81%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
7542 Points ∼79% -3%
Score
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4364 Points ∼66% 0%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
4355 Points ∼66%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3909 Points ∼59% -10%
PCMark 8
Work Score Accelerated v2
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
5063 Points ∼78% +1%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
5027 Points ∼77%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4431 Points ∼68% -12%
Creative Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
6341 Points ∼68%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
5540 Points ∼60% -13%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4274 Points ∼46% -33%
Home Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
4755 Points ∼80%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4095 Points ∼69% -14%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
3431 Points ∼57% -28%
PCMark 8 Home Score Accelerated v2
4755 puntos
PCMark 8 Creative Score Accelerated v2
6341 puntos
PCMark 8 Work Score Accelerated v2
5027 puntos
ayuda
Zotac ZBOX Magnus EN51050
Samsung SSD 960 Pro 512 GB m.2
Eurocom Q5
Samsung SSD 960 Pro 512 GB m.2
Gigabyte Sabre 15G
Liteonit CV3-8D128
Samsung Notebook 9 NP900X3N-K01US
Samsung CM871a MZNTY256HDHP
MSI WS63VR 7RL-023US
Toshiba NVMe THNSN5512GPU7
Asus ZenBook Pro UX550VD
Samsung PM961 NVMe MZVLW512HMJP
CrystalDiskMark 5.2
15%
-60%
-63%
-19%
-1%
Write 4K
164.8
202.6
23%
66.28
-60%
105.4
-36%
157.1
-5%
187.02
13%
Read 4K
54.79
57.19
4%
36.68
-33%
34.45
-37%
43.82
-20%
48.96
-11%
Write Seq
1956
2073
6%
469.2
-76%
458.4
-77%
1110
-43%
1378.45
-30%
Read Seq
1964
2763
41%
535.9
-73%
489.4
-75%
1162
-41%
1877.57
-4%
Write 4K Q32T1
424.8
498.7
17%
182
-57%
99.16
-77%
361.3
-15%
515.99
21%
Read 4K Q32T1
483.8
574.9
19%
357.9
-26%
273.5
-43%
562.8
16%
583.14
21%
Write Seq Q32T1
2042
2075
2%
506.6
-75%
512.1
-75%
1558
-24%
1586.6
-22%
Read Seq Q32T1
3157
3381
7%
562.3
-82%
551.1
-83%
2635
-17%
3266.5
3%
3DMark
3840x2160 Fire Strike Ultra Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
3093 Points ∼31% +325%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
2571 Points ∼25% +253%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
1810 Points ∼18% +149%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
843 Points ∼8% +16%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
742 Points ∼7% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook), 7500T
728 Points ∼7%
1920x1080 Fire Strike Physics
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
12557 Points ∼55% +85%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10851 Points ∼48% +60%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
10811 Points ∼48% +60%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
10564 Points ∼47% +56%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
10538 Points ∼47% +56%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
10210 Points ∼45% +51%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
9655 Points ∼43% +43%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9551 Points ∼42% +41%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
9499 Points ∼42% +40%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
6903 Points ∼31% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook), 7500T
6773 Points ∼30%
1920x1080 Fire Strike Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
13510 Points ∼33% +123%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
11453 Points ∼28% +89%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10349 Points ∼25% +71%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7866 Points ∼19% +30%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7321 Points ∼18% +21%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
6797 Points ∼17% +12%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6166 Points ∼15% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook), 7500T
6066 Points ∼15%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
4705 Points ∼12% -22%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3174 Points ∼8% -48%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points ∼5% -69%
3DMark 11
1280x720 Performance Combined
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
8876 Points ∼51% +28%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
8762 Points ∼50% +26%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
7998 Points ∼46% +15%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7952 Points ∼45% +15%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7163 Points ∼41% +3%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook), 7500T
6938 Points ∼39%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6707 Points ∼38% -3%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
6666 Points ∼38% -4%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5861 Points ∼33% -16%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3682 Points ∼21% -47%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points ∼16% -60%
1280x720 Performance GPU
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
17811 Points ∼35% +127%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
15453 Points ∼30% +97%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
13279 Points ∼26% +70%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9824 Points ∼19% +25%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
9394 Points ∼18% +20%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
8571 Points ∼17% +9%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook), 7500T
7831 Points ∼15%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
7731 Points ∼15% -1%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5825 Points ∼11% -26%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
4457 Points ∼9% -43%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points ∼6% -59%
3DMark 11 Performance
7550 puntos
3DMark Ice Storm Standard Score
98913 puntos
3DMark Cloud Gate Standard Score
14862 puntos
3DMark Fire Strike Score
5259 puntos
3DMark Fire Strike Extreme Score
2535 puntos
ayuda
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
66.8 fps ∼100% +101%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
42.8 fps ∼64% +29%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
38 fps ∼57% +14%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
36.9 (min: 34) fps ∼55% +11%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
33.3 fps ∼50%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
32.9 fps ∼49% -1%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
30.4 (min: 26) fps ∼46% -9%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
24.2 fps ∼36% -27%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
19.2 fps ∼29% -42%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
110 fps ∼100% +66%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
74 fps ∼67% +12%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
71.6 (min: 46) fps ∼65% +8%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
69.5 fps ∼63% +5%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
66.2 fps ∼60%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
63.1 fps ∼57% -5%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
55 (min: 9) fps ∼50% -17%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
45 fps ∼41% -32%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
34.9 fps ∼32% -47%
bajo medio alto ultra
Guild Wars 2 (2012) 111.165.441.2fps
StarCraft II: Heart of the Swarm (2013) 106fps
BioShock Infinite (2013) 168.366.2fps
Metro: Last Light (2013) 106.983.845.3fps
Thief (2014) 115.492.380.343.1fps
The Witcher 3 (2015) 128.341.821.6fps
Batman: Arkham Knight (2015) 93823231fps
Metal Gear Solid V (2015) 60606055.2fps
Fallout 4 (2015) 42.335.4fps
Rise of the Tomb Raider (2016) 137.377.340.833.3fps
Ashes of the Singularity (2016) 54.53529.7fps
Overwatch (2016) 290.2122.996.256.6fps
Mafia 3 (2016) 64.937.427.1fps
Dirt 4 (2017) 24297.851.728.5fps
F1 2017 (2017) 124655936fps
0123456789101112131415161718192021222324252627282930313233343536373839404142434445Tooltip
The Witcher 3 high

Ruido

Ocioso
37.6 / 37.6 / 37.7 dB(A)
Carga
39.3 / 44 dB(A)



30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   BK Precision 732A (15 cm de distancia)   environment noise: 30.7 dB(A)
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), 7500T, Samsung SSD 960 Pro 512 GB m.2
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
MSI GS43VR 7RE-069US
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS128G39MNC-3510A
Asus Zenbook UX510UW-CN044T
GeForce GTX 960M, 6500U, SanDisk SD8SNAT256G1002
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Noise
4%
-2%
-9%
5%
7%
off / environment *
30.7
29.5
4%
28.2
8%
28
9%
31.6
-3%
29.5
4%
Idle Minimum *
37.6
36.2
4%
33
12%
33
12%
31.6
16%
31.6
16%
Idle Average *
37.6
36.2
4%
33.3
11%
34.5
8%
31.6
16%
32.2
14%
Idle Maximum *
37.7
36.5
3%
34.7
8%
35
7%
33.4
11%
32.3
14%
Load Average *
39.3
36.5
7%
44.5
-13%
54.2
-38%
41.7
-6%
43
-9%
Witcher 3 ultra *
40.6
49.2
-21%
56.7
-40%
Load Maximum *
44
42.9
2%
52.8
-20%
54.2
-23%
44.8
-2%
43.2
2%

* ... más pequeño es mejor

Consumo de corriente
Off / Standbydarklight 1.38 / 1.82 Watt
Ociosodarkmidlight 21.1 / 22.1 / 26.6 Watt
Carga midlight 77.5 / 121.7 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Zotac ZBOX Magnus EN51050
7500T, GeForce GTX 1050 (Notebook), Samsung SSD 960 Pro 512 GB m.2, , ,
Zotac ZBOX Magnus EN980-U
6400, GeForce GTX 980, HGST Travelstar 7K1000 HTS721010A9E630, , , 0
Gigabyte Sabre 15G
7700HQ, GeForce GTX 1050 (Notebook), Liteonit CV3-8D128, IPS, 1920x1080, 15.6
Asus Zenbook UX510UW-CN044T
6500U, GeForce GTX 960M, SanDisk SD8SNAT256G1002, IPS, 1920x1080, 15.6
Intel Skull Canyon NUC6i7KYK
6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , , 0
Power Consumption
-88%
31%
49%
36%
Idle Minimum *
21.1
34.9
-65%
8
62%
5
76%
14.8
30%
Idle Average *
22.1
35.9
-62%
10.9
51%
8.9
60%
15.7
29%
Idle Maximum *
26.6
40.4
-52%
11
59%
11.8
56%
15.8
41%
Load Average *
77.5
190.4
-146%
76.7
1%
55
29%
62.7
19%
Load Maximum *
121.7
260.8
-114%
106.4
13%
93
24%
48.5
60%
Witcher 3 ultra *
92.4
94.9
-3%

* ... más pequeño es mejor

Pro

+ ranuras SODIMM, discos, y módulo WLAN accesibles; no precisa destornillador
+ ventilador más quedo durante el juego que portátiles GTX 1050
+ soporte NVMe; receptor IR; USB Type-C Gen. 2
+ temperaturas internas respetables durante el juego
+ 4x salidas de vídeo por HDMI 2.0 y DP 1.3
+ dos años de garantía limitada de serie
+ rendimiento Turbo Boost CPU firme
+ ranuras LGA1151 y MXM 3
+ gran variedad de puertos

Contra

- rendimiento CPU medio; rendimiento monohilo lento
- acceder a CPU y GPU anulará la garantía
- rendimiento más lento que el de una GTX 1050 sobremesa
- ventilador más ruidoso con baja carga
- no se puede reducir el ruido mínimo del ventilador
- sin opciones Thunderbolt 3 o 2x2 WLAN
- sin atril vertical ni montura VESA
- diseño de chasis poco inspirador
- lector SD de velocidad mejorable reader could be faster

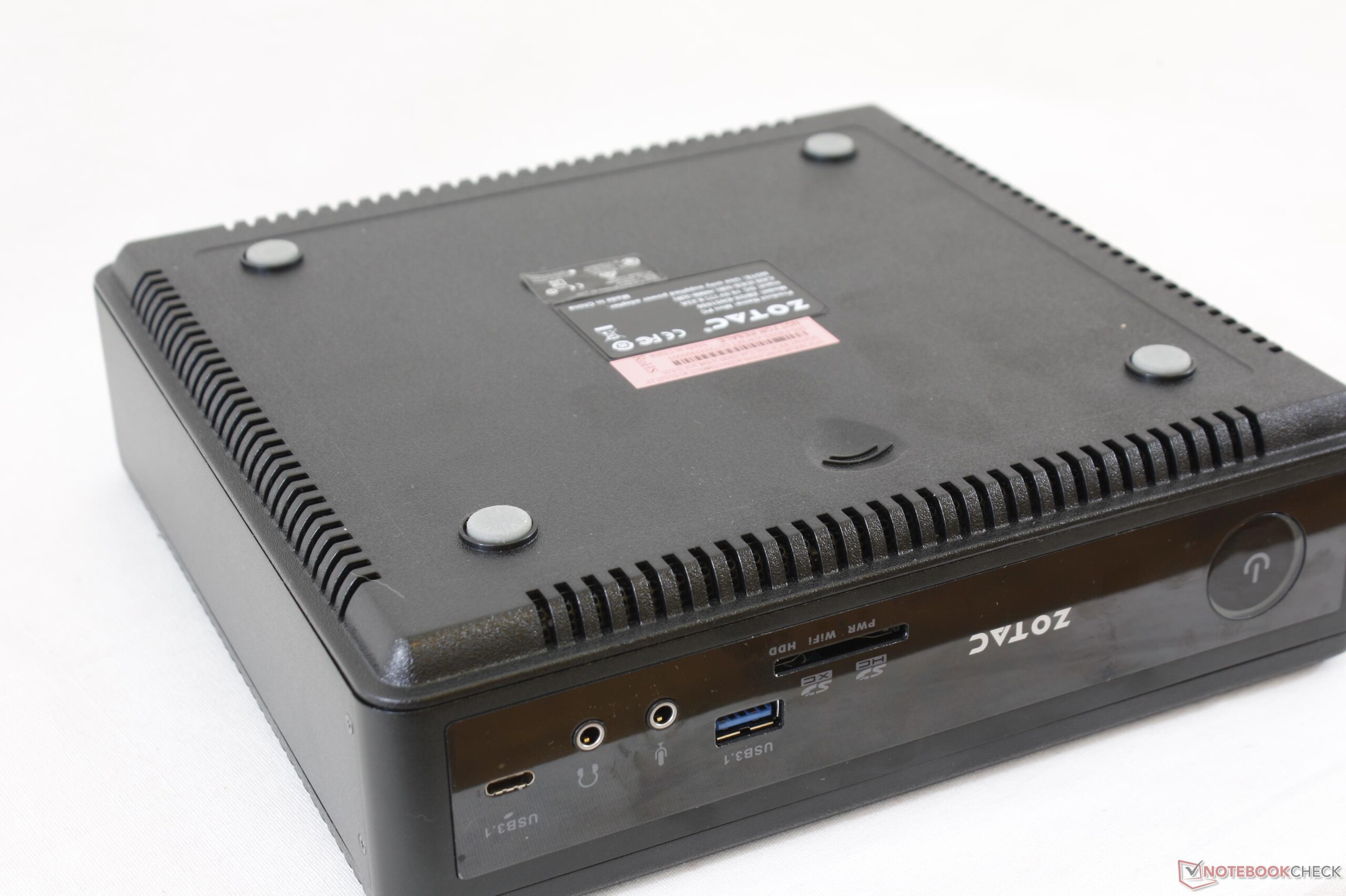

Zotac ZBox Magnus EN51050. Modelo de pruebas cortesía de Zotac US

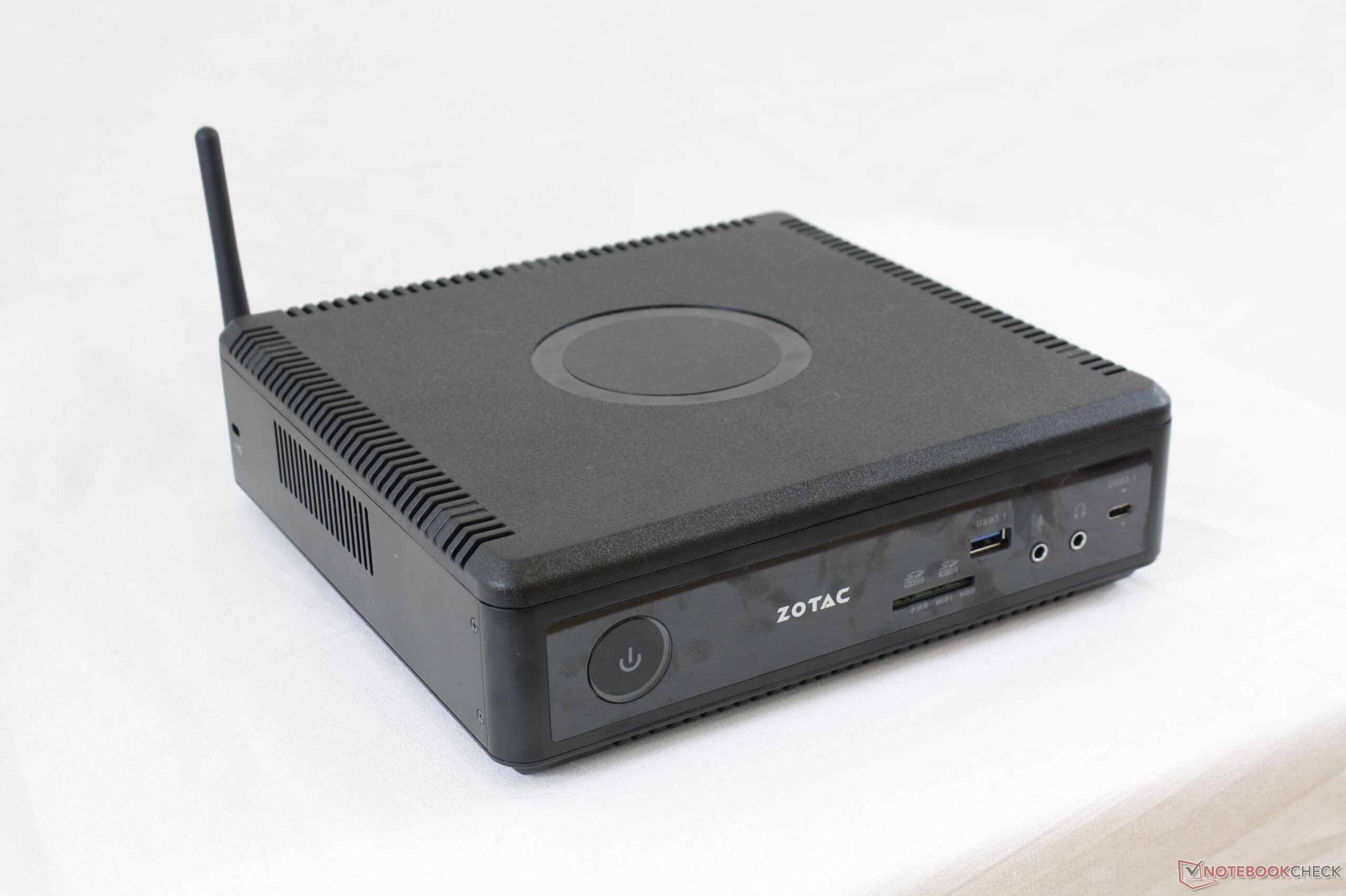

Zotac ZBox Magnus EN51050. Modelo de pruebas cortesía de Zotac US

Desde el punto de vista de un portátil, el EN51050 es más quedo y fresco jugando al tiempo que ofrece un rendimiento gráfico idéntico a portátiles mainstream como Sabre 15, Odyssey 15, XPS 15, Inspiron 7567, o Pavilion 15 Power. Su receptor IR y su amplia selección de puertos lo hacen más accesible para HTPC o instalaciones multi-monitor. Mientras tanto, los entusiastas estarán encantados de saber que tanto CPU como GPU se pueden cambiar, si bien se anula la garantía al hacerlo. Para un mini PC tan pequeño, los sockets LGA1151 y MXM 3 son una sorpresa agradable.

Hay algunas desventajas que impiden dar una recomendación inmediata al EN51050 de gama media. Primero, el precio de lanzamiento de $700 para un kit barebones es sólo $200 menos que un portátil gaming completamente desarrollado con la misma gráfica GTX 1050 pero con una CPU Core i7-7700HQ más rápida. Los usuarios, pues, no están precisamente ahorrando dinero al tomar la ruta del mini PC frente a la de un portátil gaming gama media completo con Windows 10, RAM, almacenamiento, teclado, y display. Segundo, su CPU i5-7500T está un paso por encima de las CPUs clase U de la vieja serie Magnus EN970/EN760 pero aún por debajo de las CPUs quad-core Core i7 clase HQ de los mismos portátiles gama media. Las nuevas CPUs Intel Kaby Lake-R que vienen en los Ultrabooks más recientes han demostrado ser más rápidas con menos de la mitad del TDP y hasta la CPU Skull Canyon NUC es más rápida con una fracción del tamaño. El rendimiento del procesador está a la par con dual-core i5-6400 y i5-7300HQ. Por último, los usuarios pueden esperar un rendimiento GPU, los usuarios pueden esperar que el rendimiento GPU sea más cercano al de la GTX 1050 móvil que al de la GTX 1050 de sobremesa.

Esperamos que futuras revisiones incluyan controles de ventilador más avanzados para reducir el ruido de ventilador al mínimo y que vengan con lectores SD y opciones WLAN más rápidos. Un Thunderbolt 3 también haría mucho por subir su valor frente a los portátiles gaming del mismo precio.

El EN51050 es un  mini PC mucho más equilibrado que EN51060 o EN51070 ya que la CPU Intel clase Tmarida mejor con la GTX 1050 mainstream. El sistema es sorprendentemente más mantenible que mini PCs gaming más grandes como Trident 3 o ROG GR8. Si no se precisa rendimiento quad-core, este Zotac será suficiente para las necesidades gaming mainstream.

Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.

Pricecompare

Please share our article, every link counts!
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Breve análisis del Mini PC Zotac ZBOX Magnus EN51050
Allen Ngo, 2017-09-30 (Update: 2017-09-30)
