Intel Core i7-680UM

Intel 680UM

El Intel Core i7-680UM es un procesador dual core de ultra bajo voltaje para portátiles pequeños y livianos. Tiene una frecuencia de 1,47 - 2,5 GHz (si el Turbo Boost está habilitado). El 680UM es el CPU ULV más veloz el 3er trimestre de 2010. Cada núcleo se basa en la micro-arquitectura Nehalem (Westemere). El Hyperthreading permite que el CPU Dual Core controle 4 threads simultáneamente (para un mejor uso del pipeline). Comparado con los CPUs Core i7-640M  y i7 640LM, el 680UM es mucho más lento (debido a la frecuencia más baja) pero más energéticamente eficiente.

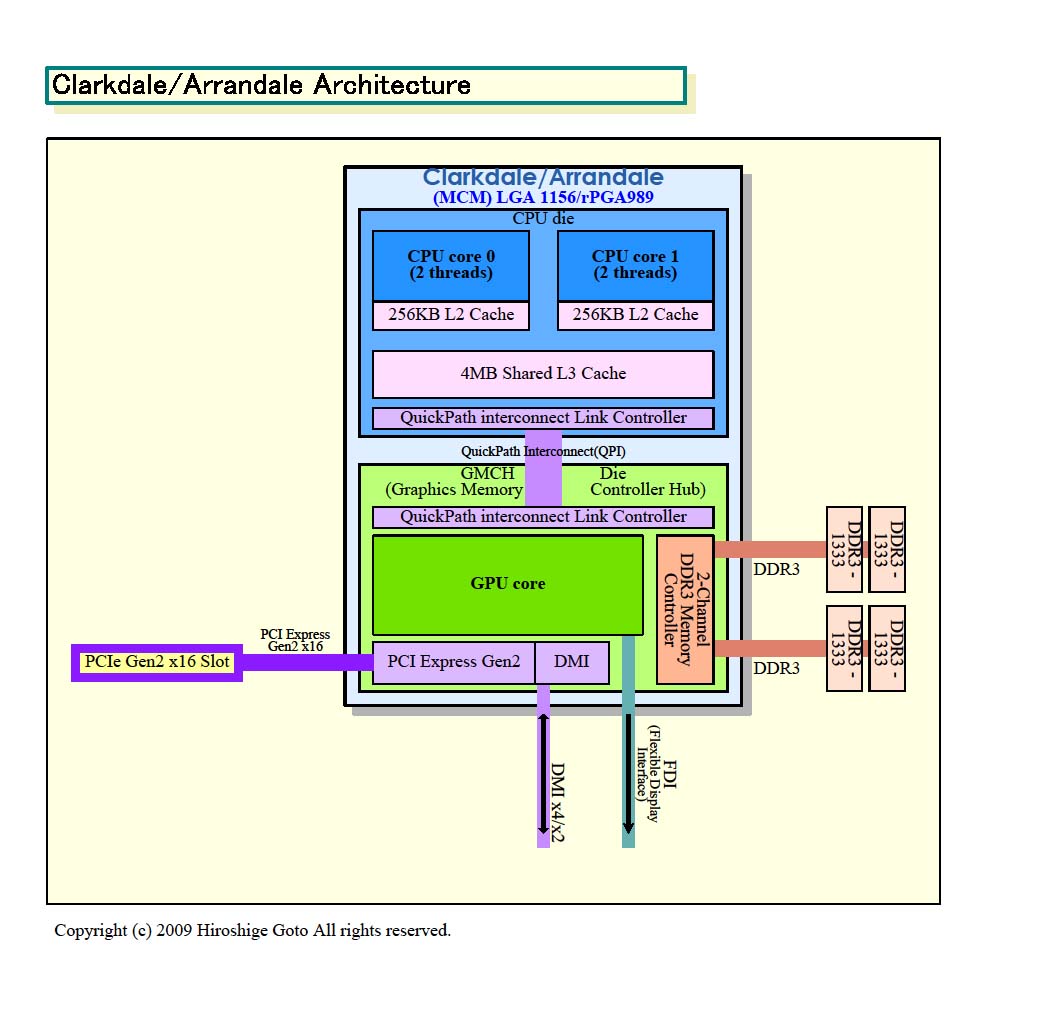

Un recurso del nuevo Core i7-680UM es la tarjeta de video integrada (llamada Intel HD Graphics) y controlador de memoria. Ambos están en un molde distinto que es producido en 45nm mientras que el molde del CPU ya es producido en el nuevo procesos de 32nm.

Gracias al controlador de memoria integrado, el HyperThreading y Turbo Boost, el  Core i7-680UM es más veloz que un Core 2 Duo de frecuencia similar (1,4 GHz) en todas las aplicaciones (que conocemos) y benchmarks. Aun así el Turbo Boost puede no activarse con frecuencia (algunas veces ni siquiera está activado en el BIOS) y, por lo tanto, el máximo of 2,53 GHz podría no ser importante. Si el Turbo se activa, el CPU puede ser tan veloz como un Core 2 Duo de 2,6 GHz en aplicaciones single threaded.

Los núcleos de CPU de 32nm  de la generación Westmere también puede procesar algunas nuevas instrucciones para acelerar la codificación AES. Aplicaciones modernas que soportan codificación AES pueden beneficiarse significantemente usando las nuevas instrucciones (como la prueba de Communications Suite en el PCMark Vantage, acelera hasta 70% usando AES en el más veloz Core i5-520M).

La Intel Graphics Media Accelerator HD (GMA HD) integrada está entre 166-500 MHz (Turbo Boost) y, por tanto, la velocidad base está claramente más allá de las versiones de bajo voltaje.. El rendimiento aún debe ser más veloz que el de la antigua GMA 4500MHD.

SerieIntel Core i7
Nombre códigoArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM « 1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Velocidad de reloj1467 - 2533 MHz
Bus Frontal2500
Caché de Nivel 2512 KB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)18 Watt
Conteo de Transistores382+177 Millón
Tecnología de producción32 nm
Tamaño de Matriz81+144 mm2
Temperatura Máx.105 °C
ConectorBGA1288
RecursosTurbo Boost (2.53 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 166-500MHz,
64 Bitsoporte para 64 Bit
Architecturex86
Precio inicial$317 U.S.
Fecha de anuncio09/26/2010
Enlace de Producto (externo)ark.intel.com

Benchmarks

- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
