Intel Core i7-3740QM

Intel 3740QM

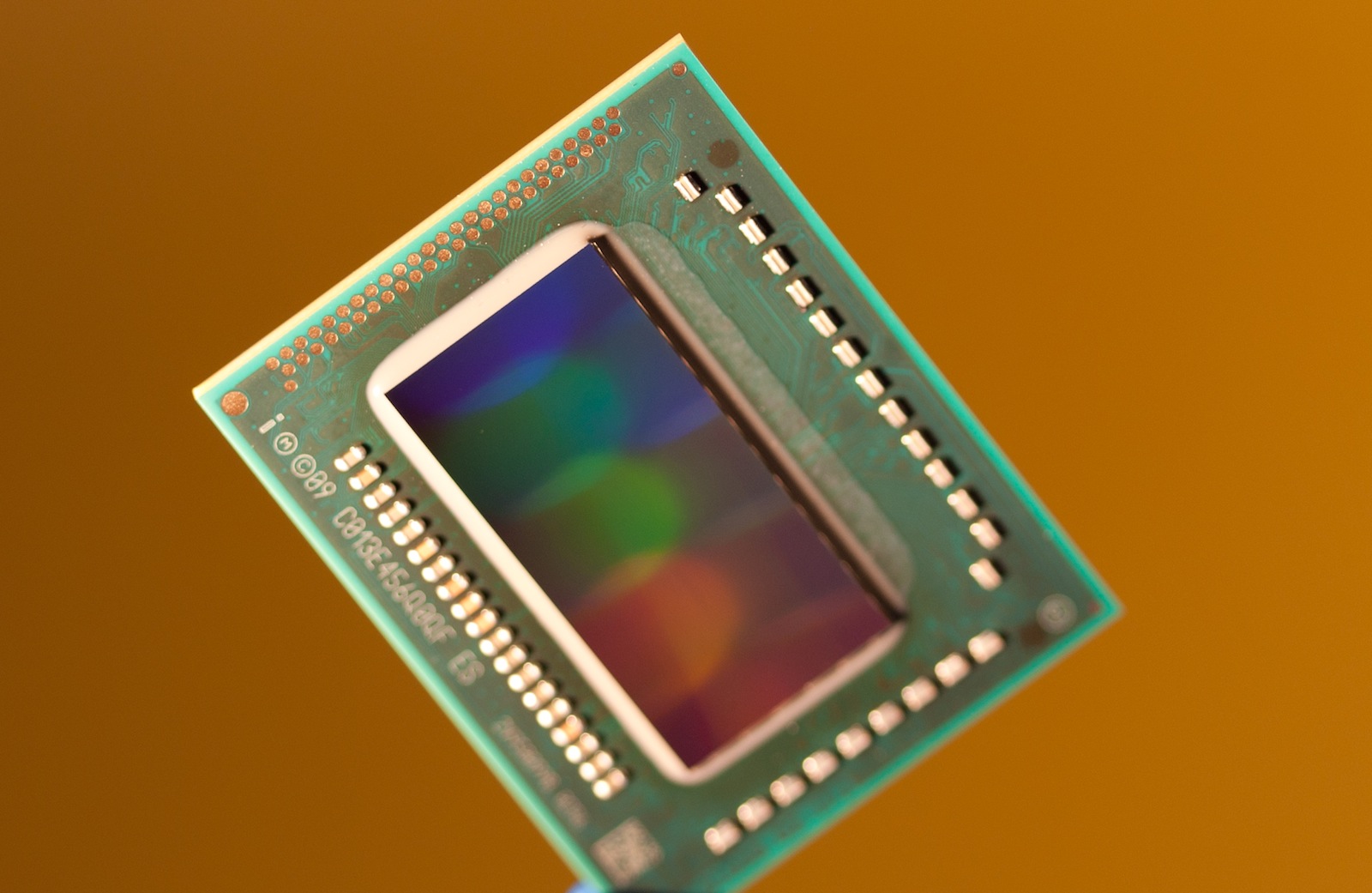

El Intel Core i7-3740QM es un veloz procesador quad-core para portátiles, basado en la arquitectura Ivy Bridge y el sucesor del i7-3720QM. Gracias al Hyperthreading, los cuatro núcleos pueden soportar hasta ocho threads en paralelo haciendo un mejor uso del CPU. Cada núcleo ofrece una velocidad base de 2,7 GHz, pero puede aumentar la frecuencia dinámicamente con Turbo Boost, hasta 3,5 GHz (para 4 núcleos activos), 3,6 GHz (para 2 núcleos activos) y 3,7 GHz (para 1 núcleo activo).

Ivy Bridge es una matriz mejorada y reducida de la arquitectura Sandy Bridge con mejoras en el rendimiento del GPU y CPU. Los CPUs son producidos en 22nm (contra 32nm de los CPUs Sandy Bridge) y son los primeros en introducir transistores 3D para una mejor eficiencia energética al compararlo con procesadores Sandy Bridge con frecuencias similares. Otros nuevos recursos son el PCI Express 3.0 integrado y soporte para DDR3(L)-1600.

El rendimiento del Core i7-3740QM debe ser ligeramente superior que el de un procesador Sandy Bridge con frecuencia similar gracias a pequeñas alteraciones estructurales. Como resultado, el rendimiento general debe ser superior al del antiguo i7-2960XM.

El Intel HD Graphics 4000 integrado, ofrece 16 Unidades de Ejecución (EUs) con frecuencia de 650 MHz hasta 1300 MHz con Turbo Boost, lo cual lo convierte en la variante más veloz.

Como con la mayoría de los modelos quad-core Ivy Bridge, el Core i7-3740QM está especificado con un TDP de 45 Watts incluyendo tarjeta de video y controlador de memoria. Por tanto, el CPU es bien adecuado para portátiles de 15 pulgadas o más grandes.

SerieIntel Core i7
Nombre códigoIvy Bridge

Serie: Core i7 Ivy Bridge

Intel Core i7-3940XM3 - 3.9 GHz4 / 8 cores8 MB L3
Intel Core i7-3920XM2.9 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3840QM2.8 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3820QM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-3740QM « 2.7 - 3.7 GHz4 / 8 cores6 MB L3
Intel Core i7-3720QM2.6 - 3.6 GHz4 / 8 cores6 MB L3
Intel Core i7-3635QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3630QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3615QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3610QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3632QM2.2 - 3.2 GHz4 / 8 cores6 MB L3
Intel Core i7-3612QM2.1 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-3540M3 - 3.7 GHz2 / 4 cores4 MB L3
Intel Core i7-3520M2.9 - 3.6 GHz2 / 4 cores4 MB L3
Intel Core i7-3687U2.1 - 3.3 GHz2 / 4 cores4 MB L3
Intel Core i7-3667U2 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-3537U2 - 3.1 GHz2 / 4 cores4 MB L3
Intel Core i7-3517U1.9 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-3689Y1.5 - 2.6 GHz2 / 4 cores4 MB L3
Velocidad de reloj2700 - 3700 MHz
Caché de Nivel 1256 KB
Caché de Nivel 21 MB
Caché de Nivel 36 MB
Número de Núcleos/Subprocesos4 / 8
Consumo de Corriente (TDP = Thermal Design Power)45 Watt
Conteo de Transistores1400 Millón
Tecnología de producción22 nm
Tamaño de Matriz160 mm2
Temperatura Máx.105 °C
ConectorFCBGA1224, FCPGA988
RecursosHD Graphics 4000, DDR3(L)-1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 4000 (650 - 1300 MHz)
64 Bitsoporte para 64 Bit
Architecturex86
Precio inicial$378 U.S.
Fecha de anuncio09/30/2012

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 6.93     de promedio: 7     mediana: 7 (9%)     max: 6.98 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.5 Points (38%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
4951 puntos (30%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
19798 puntos (14%)
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 24138     de promedio: 24219     mediana: 24218.5 (17%)     max: 24299 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 6281     de promedio: 6324     mediana: 6323.5 (8%)     max: 6366 Points
wPrime 2.10 - wPrime 2.0 1024m *
247 s (3%)
wPrime 2.10 - wPrime 2.0 32m *
7.6 s (2%)
WinRAR - WinRAR 4.0
4680 puntos (7%)
X264 HD Benchmark 4.0 - x264 Pass 2
38.6 fps (13%)
X264 HD Benchmark 4.0 - x264 Pass 1
153.8 fps (35%)
TrueCrypt - TrueCrypt Twofish
0.6 GB/s (10%)
TrueCrypt - TrueCrypt AES
3.5 GB/s (9%)
3DMark 06 - CPU - 3DMark 06 - CPU
min: 6825     de promedio: 6837     mediana: 6837 (15%)     max: 6849 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
10.2 s (2%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
23.4 s (1%)
Windows 7 Experience Index - Win7 CPU
7.7 Points (99%)
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 23645     de promedio: 23789     mediana: 23789 (21%)     max: 23933 Points
3DMark 11 - 3DM11 Performance Physics
min: 7048     de promedio: 7783     mediana: 7782.5 (21%)     max: 8517 Points
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
