Intel Core i7-660LM

Intel 660LM

El Intel Core i7-660LM es un veloz CPU dual core de clase media de bajo voltaje para portátiles y funciona con una frecuencia (gracias al Modo Turbo) de 2,27 a 3,07 GHz. Cada núcleo se basa en la micro-arquitectura Nehalem (Westmere). El Hyperthreading permite que el CPU Dual Core controle 4 threads simultáneamente (para un mejor uso del pipeline).  Todos los recursos (como Virtualization VT-x y VT-d, Trusted Execution) del núcleo Arrandale están activados en el 660LM. Comparado con el Core i7-620M, el 660LM es más lento, pero más energéticamente eficiente.

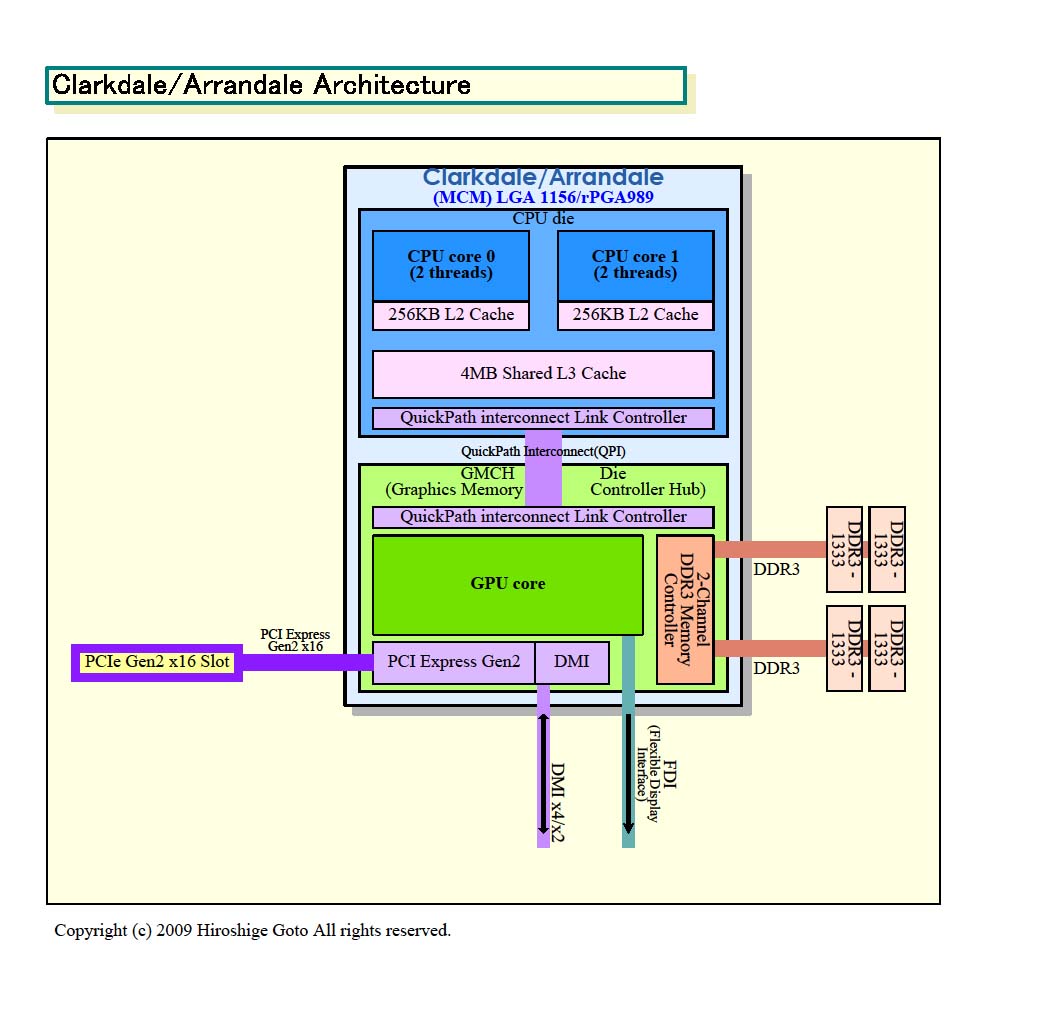

Un recurso del nuevo Core i7-660M es la tarjeta de video integrada (llamada Intel HD Graphics) y controlador de memoria. Ambos están en un molde distinto que es producido en 45nm mientras que el molde del CPU ya es producido en el nuevo proceso de 32nm.

Gracias al controlador de memoria integrado, el HyperThreading y Turbo Boost, el  Core i5-660LM es más veloz que un Core 2 Duo de frecuencia similar en todas las aplicaciones (que conocemos) y benchmarks. El rendimiento debe estar en algún lugar a la altura del Core i3-380M e i5-450M. Cuidado, algunos diseños pueden no presentar el Turbo Boost o, debido a pequeñas soluciones de enfriamiento, el TurboBoost puede no activarse con mucha frecuencia. Por tanto, el rendimiento podría ser peor.

Los núcleos de CPU de 32nm  de la generación Westmere también puede procesar algunas nuevas instrucciones para acelerar la codificación AES. Aplicaciones modernas que soportan codificación AES pueden beneficiarse significantemente usando las nuevas instrucciones (como la prueba de Communications Suite en el PCMark Vantage, acelera hasta 70% usando AES en el más veloz Core i5-520M).

La Intel Graphics Media Accelerator HD (GMA HD) integrada está entre 266-566 MHz (Turbo Boost) y, por tanto, la velocidad base está claramente más allá de las versiones de bajo voltaje.. El rendimiento aún debe ser mucho más veloz que el de la antigua GMA 4500MHD.

El consumo de energía TDP de 25 Watt (máx.) cuenta para todo el paquete y, por tanto es claramente mejor que el TDP de 25 Watt del Core 2 Duo de la serie P(sólo CPU).

SerieIntel Core i7
Nombre códigoArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM « 2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Velocidad de reloj2267 - 3067 MHz
Bus Frontal2500
Caché de Nivel 2512 KB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)25 Watt
Conteo de Transistores382+177 Millón
Tecnología de producción32 nm
Tamaño de Matriz81+177 mm2
Temperatura Máx.105 °C
ConectorBGA1288
RecursosTurbo Boost (2.93 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 266-566MHz, Dual-Channel DDR3-800/1066 Memory Controller
64 Bitsoporte para 64 Bit
Architecturex86
Precio inicial$346 U.S.
Fecha de anuncio09/26/2010
Enlace de Producto (externo)ark.intel.com

Benchmarks

- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
