Intel Core i7-660UM

Intel 660UM

El Intel Core i7-660UM es un procesador de voltaje ultrabajo para portatiles pequeños y ligeros. Tiene una velocidad de reloj de 1.33 - 2.4 GHz (si está activado Turbo Boost). Cada nucleo está basado en la microarquitectura Nehalem (Westemere). Hyperthreading permite a la CPU de doble nucleo gestionar 4 hilos de forma simultanea (para un mejor uso de la pipeline). Comparado con el Core i7-620M y el 640LM, el 660UM es mucho más lento (debido a la menor velocidad de reloj) pero más eficiente energéticamente.

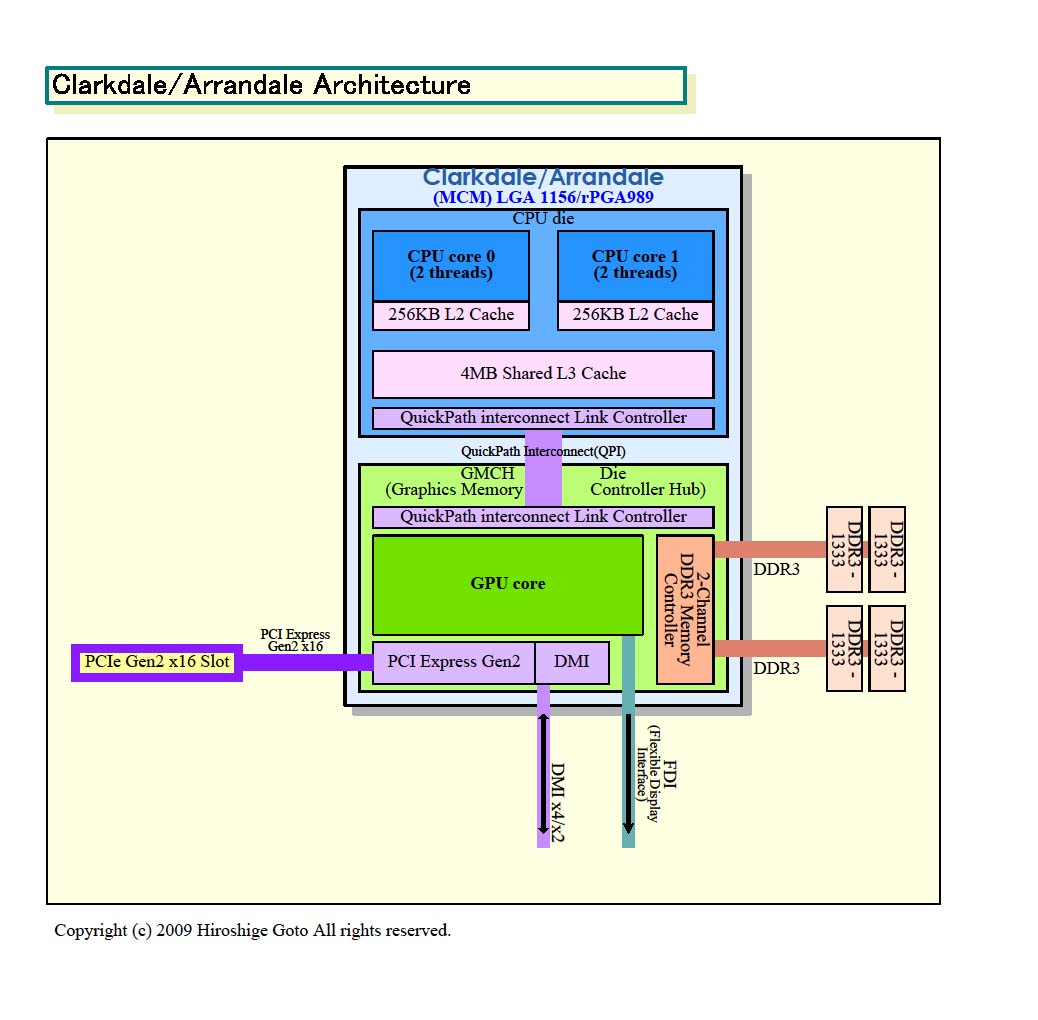

Una característica del Core i7-660UM es la tarjeta gráfica integrada (llamada Intel HD Graphics) y un controlador de memoria. Ambos están en un 'die' separado y fabricado aún en tecnología de 45 nm mientras que el 'die' de la CPU ya está fabricado en el nuevo proceso de 32 nm.

Debido al controlador de memoria integrado, Hyperthreading y Turbo Boost, el Core i5-660M es más rápido que un Core 2 Duo con velocidad de reloj similar (1.33 GHz) en todas las aplicaciones y pruebas que conocemos. Aunque el Turbo Boost puede no activarse muy frecuentemente (en ocasiones incluso esta desactivado a nivel de BIOS) y por tanto el máximo de 2.4 no es realmente importatnte. Con todo el i7-660UM debería ser más rápido que un Core 2 Duo SL9300 (1.6GHz).

Los nucleos de 32nm. de la generación Westmere pueden procesar algunas instrucciones nuevas para acelerar encriptados AES. Aplicaciones modernas con soporte para encriptado AES pueden beneficiarse de forma significativa usando las nuevas instrucciones (p.e. el test Communications Suite en PCMark Vantage se acelera hasta un 70% usando AES en el más rápido Core i5-520M).

La tarjeta gráfica Intel Graphics Media Accelerator HD (GMA HD) funciona entre 166-500 MHz (Turbo Boost) y por tanto la velocidad base está claramente más allá que la de las versiones de voltaje normal. El rendimiento debería aún ser mayor que el de la vieja 4500MHD.

SerieIntel Core i7
Nombre códigoArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM « 1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Velocidad de reloj1333 - 2400 MHz
Bus Frontal2500
Caché de Nivel 2512 KB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)18 Watt
Conteo de Transistores382+177 Millón
Tecnología de producción32 nm
Tamaño de Matriz81+144 mm2
Temperatura Máx.105 °C
ConectorBGA1288
RecursosTurbo Boost (2.40 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 166-500MHz,
64 Bitsoporte para 64 Bit
Architecturex86
Fecha de anuncio09/01/2010

Benchmarks

- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
