Notebookcheck Logo

Intel Core i7-620LM

Intel 620LM

El Intel Core i7-620LM es una CPU de doble nucleo y bajo voltaje para portatiles con una velocidad de reloj (gracias al modo turbo) de 2.0 a 2.8 GHz. Cada nucleo está basado en la microarquitectura Nehalem (Westemere). Hyperthreading permite a la CPU manejar 4 hilos de forma simultanea (para un mejor uso del pipeline). Comparado con el Core i7-620M, el 620LM es más lento pero más eficiente energeticamente.

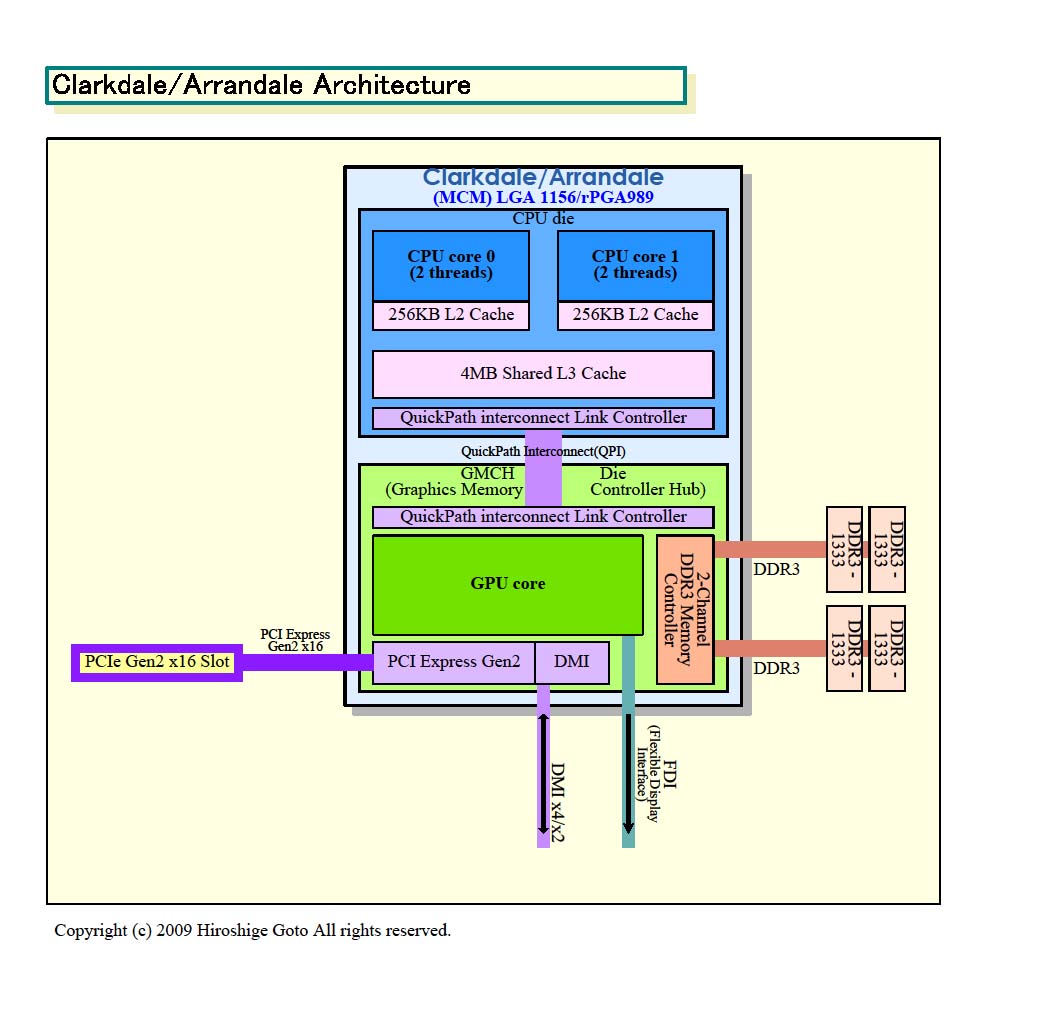

Una caracteristica de la nueva Core i7-620LM es la tarjeta gráfica integrada (llamada Intel HD Graphics) y un controlador de memoria. Ambos están en una zona distinta que está fabricada en 45nm mientras que la CPU está fabricada ya en el nuevo proceso de 32 nm.

Debido al controlador gráfico integrado, Hyperthreading y Turbo Boost, el Core i5-620LM es más rápido que un Core 2 Duo a velocidad similar en todas las pruebas y aplicaciones (conocidos por nosotros). El rendimiento estaría en el nivel del Core i5-350M. Ten en cuenta que algunos diseños portatiles podrían no presentar Turbo Boost. Por tanto, la CPU puede ser más lenta que el 350M.

Los nucleos de 32 nm de la generación Westmere pueden tambien procesar algunas instrucciones para acelerar encriptados AES. Aplicaciones modernas con soporte para codificación AES pueden mostrar una significativa mejora usando las nuevas instrucciones (p.e. el test Communications Suite en PCMark Vantage se acelera hasta un 70% usando AES en el más rápido Core i5-520M).

La tarjeta gráfica Intel Graphics Media Accelerator HD (GMA HD) funciona entre 266-566 MHz (Turbo Boost) y por tanto la velocidad base está claramente más allá que la de las versiones de voltaje normal. El rendimiento debería ser bastante mejor que el de la vieja GMA 4500MHD. El consumo de corriente de 25 vatios TDP (máximo) cuenta para el paquete competo y por tanto es claramente mejor que los 25 vatios TDP de la serie Core 2 Duo P (donde contaba solo la CPU).

SerieIntel Core i7
Nombre códigoArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM « 2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Velocidad de reloj2000 - 2800 MHz
Bus Frontal2500
Caché de Nivel 2512 KB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)25 Watt
Conteo de Transistores382+177 Millón
Tecnología de producción32 nm
Tamaño de Matriz81+144 mm2
Temperatura Máx.105 °C
ConectorBGA1288
RecursosTurbo Boost (2.8 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 266-566MHz,
64 Bitsoporte para 64 Bit
Architecturex86
Precio inicial$300 U.S.
Fecha de anuncio01/04/2010
Enlace de Producto (externo)ark.intel.com

Benchmarks

Cinebench R10 - Cinebench R10 Rend. Single (32bit)
2937 puntos (18%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
5640 puntos (4%)
wPrime 2.10 - wPrime 2.0 1024m *
848 s (10%)
wPrime 2.10 - wPrime 2.0 32m *
26.5 s (5%)
3DMark 06 - CPU - 3DMark 06 - CPU
2358 Points (5%)
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
16.2 s (3%)
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
920 s (4%)
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
28100 MIPS (13%)
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
24620 MFLOPS (19%)
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
