Intel Core i7-620UM

Intel 620UM

El Intel Core i7-620UM es un procesador de doble nucleo de voltaje ultrabajo para portatiles pequeños y ligeros. Funciona a 1.06 - 2.13 GHz (si está activado Turbo Boost). Cada nucleo se basa en la microarquitectura Nehalem (Westemere). Hyperthreading permite a la CPU de Doble Nucleo manejar 4 hilos de forma simultanea (para un mejor uso del pipeline). Comparado con el Core i7-620M el 620UM es mucho más lento (debido a la menor velocidad de reloj) pero más eficiente energeticamente

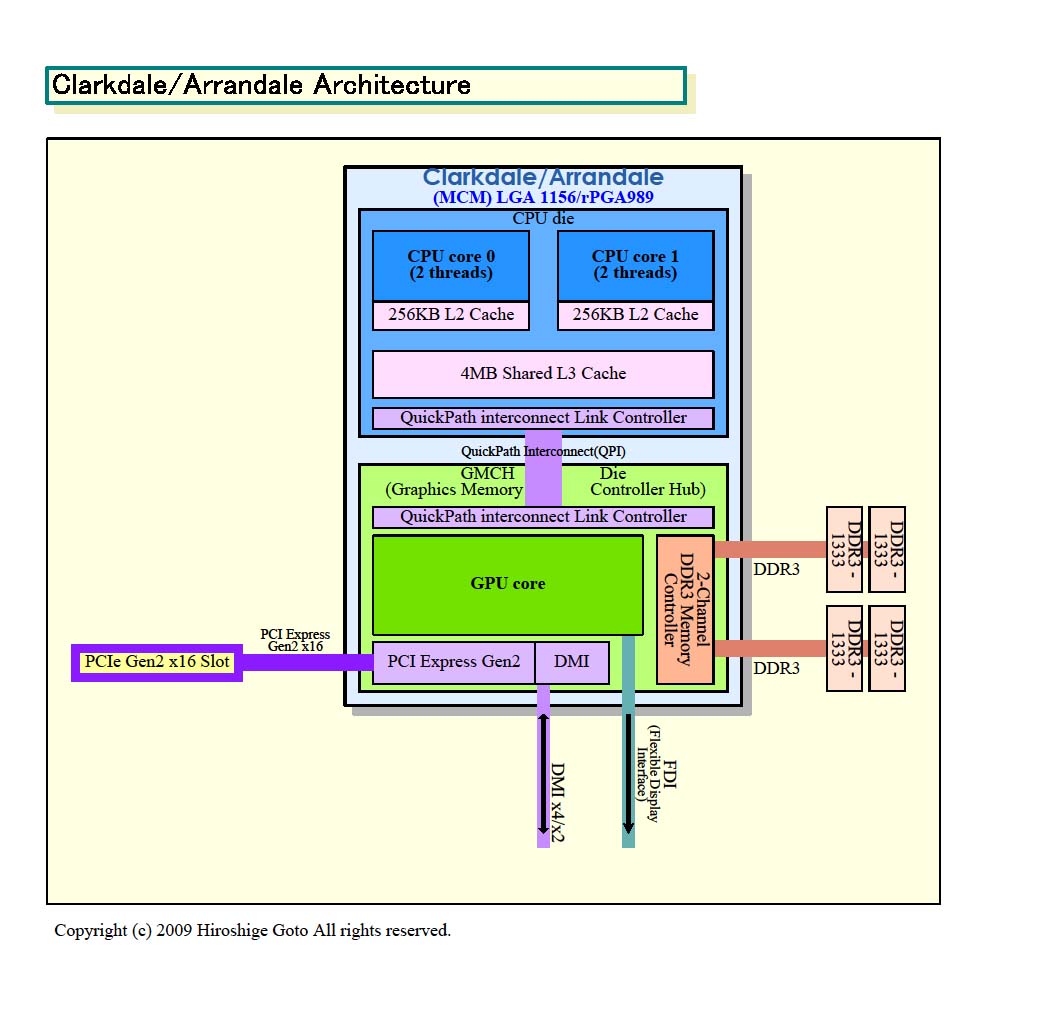

Una característica del nuevo Core i7-620UM es la tarjeta gráfica integrada (llamada Intel HD Graphics) y el controlador de memoria. Ambos están en un 'die' separado que está fabricado en 45 nm mientras que el 'die' de la CPU está fabricado ya en 32 nm.

Debido al controlador de memoria integrado, Hyperthreading y Turbo Boost, el Core i7-620UM es más rápido que un Core 2 Duo a la misma velocidad de reloj (1.06 GHz) en todas las aplicaciones y tests conocidos (por nosotros). Aunque como Turbo Boost podría no estar activado de forma común (a veces ni siquiera en la BIOS) el máximo de 2.26 GHz no es muy importante.

Los nucleos de 32 nm de la generación Westemere pueden procesar algunas instrucciones para acelerar encriptados AES. Aplicaciones modernas que soporten la codificación AES pueden beneficiarse de forma significativa del uso de las nuevas instrucciones (p.e. El Communications Suite de PCMark Vantage se aceleró hasta un 70% usando AES en el Core i5-520M).

La tarjeta gráfica integrada Intel Graphics Media Accelerator HD (GMA HD) funciona entre 166-500 MHz (Turbo Boost) y por tanto la velocidad base está claramente más alla que el de las versiones de voltaje normal. El rendimiento debería ser mejor que el de la antigua GMA 4500MHD.

El consumo de 18 vatios de TDP (máximo) cuenta para el paquete completo y por tanto es mejor que los 17 vatios de TDP del Core 2 Duo de la gama SL (que son solo de la CPU).

SerieIntel Core i7
Nombre códigoArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM « 1.06 - 2.13 GHz2 / 4 cores4 MB L3
Velocidad de reloj1060 - 2133 MHz
Bus Frontal2500
Caché de Nivel 2512 KB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)18 Watt
Conteo de Transistores382+177 Millón
Tecnología de producción32 nm
Tamaño de Matriz81+114 mm2
Temperatura Máx.105 °C
ConectorBGA1288
RecursosTurbo Boost (2.13 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 133-500MHz,
64 Bitsoporte para 64 Bit
Architecturex86
Precio inicial$278 U.S.
Fecha de anuncio01/04/2010
Enlace de Producto (externo)ark.intel.com

Benchmarks

Cinebench R10 - Cinebench R10 Rend. Single (32bit)
2111 puntos (13%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
4004 puntos (3%)
12.47 -100%
...
3950 -1%
3958 -1%
3963 -1%
3979 -1%
3983 -1%
3987 0%
Intel Core 2 Duo T5850
3997 0%
3997 0%
4000 0%
Intel Core i7-620UM
4004
Intel Core 2 Duo P7370
4022 0%
4025 1%
4029 1%
4030 1%
4042 1%
4043 1%
Intel Core i3-2365M
4044 1%
4046 1%
4060 1%
...
112749 2716%
max:
138015 3347%
0%
100%
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
