Intel Atom Z2560

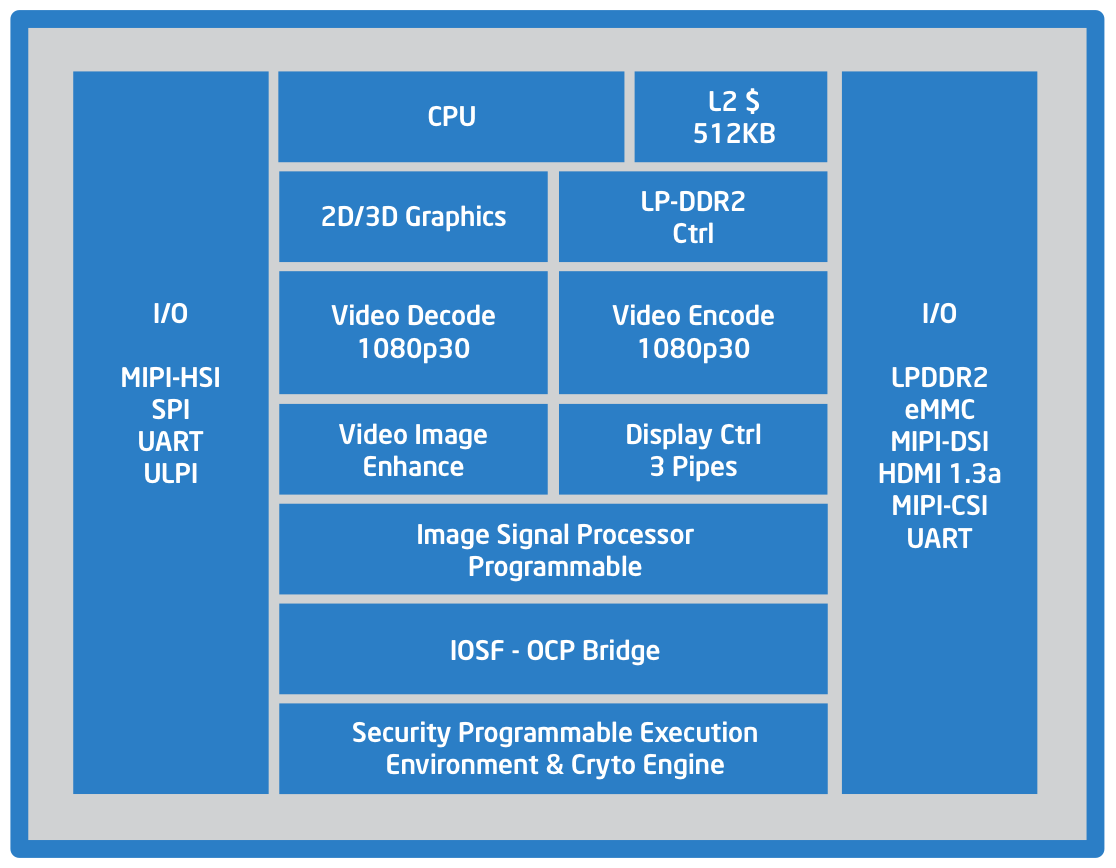

El Intel Atom Z2560 es un SoC (System on a Chip) con el nombre código Penwell y parte de la plataforma Medfield. El Z2560 es un SoC de un chip e integra un procesador Atom dual core (Saltwell) con frecuencias de 933 - 1600 MHz. Gracias al Hyper-Threading se puede ejecutar 4 threads en los dos núcleos (para una mejor eficiencia). El núcleo del CPU Saltwell aún es muy similar al primer Intel Atom. Por lo tanto, el rendimiento por frecuencia debe ser muy similar (mejoras apenas muy pequeñas). Sin embargo, el CPU ahora presenta un cache de 256 KB adicional (en un plan de voltaje separado) para permitir que el CPU y cache L2 ingresen en un estado de energía más bajo. Además, el Atom ahora soporta algún tipo de Turbo Boost y puede alcanzar hasta 1,6 GHz inmediatamente (933 MHz de frecuencia base). Además, el núcleo del CPU puede ser downclocked a 100 MHz (en fases de 100 MHz) para ahorrar energía. El rendimiento del procesador debe estar en el mismo nivel de un procesador Atom de la generación anterior con frecuencias de 933 - 1600 MHz (por ejemplo, el Atom N550 con frecuencia de 1,5 GHz). Por tanto, el Z2560 debe ser un SoC de gama media para smartphones/tablets. La tarjeta de video integrada se basa en un diseño PowerVR SGX 544MP2 y tiene una frecuencia de 400 MHz. El decodificador de video (MPEG4.2, H.264, VC1, WMV) y codificador (MPEG4.2, H.264), también derivan de Imagination Technologies (VDX385 y VDE285) y deben permitir la codificación y decodificación de videos 1080p30. Además, un controlador de memoria dual channel LPDDR2 (2x Bit 32) está integrado para un máximo de 1GB de RAM. Todo el SoC fue optimizado para eficiencia energética y bajo consumo de energía. Es producido con un proceso de LP (low power) de 32nm y tiene un TDP de 3 Watts (según TechPowerUp). Por tanto, el Z2560 es adecuado incluso para smartphones. Fuentes: Intel Pressemeldung, Intel ARK, Anandtech, Techpowerup (Socket, TDP)
Serie Intel Atom Nombre código Cloverview Serie: Atom Cloverview Velocidad de reloj 933 - 1600 MHz Caché de Nivel 1 112 KB Caché de Nivel 2 1 MB Número de Núcleos/Subprocesos 2 / 4 Consumo de Corriente (TDP = Thermal Design Power) 3 Watt Conteo de Transistores 140 Millón Recursos 32 nm0.3-1.2 Tamaño de Matriz 65 mm2 Temperatura Máx. 90 °C Conector BGA 617 Recursos Hyper-Threading, VT-x, Enhanced SpeedStep, Thermal-Monitoring, Intel HD-Audio, Smart Idle GPU PowerVR SGX544MP2 (400 MHz)Architecture x86 Fecha de anuncio 01/13/2012 Enlace de Producto (externo) Intel Atom Z2560
Benchmarks 3DMark - 3DMark Ice Storm Physics
min: 7785 de promedio: 8058 mediana: 8107 (5%) max: 8212 Points
Samsung Hummingbird S5PC110 / Exynos 3110 -93%
...
Samsung Exynos 3470 Quad -2%
Mediatek MT8135 0%
Qualcomm Snapdragon 400 APQ8028 1%
Qualcomm Snapdragon 616 MSM8939v2 1%
Qualcomm Snapdragon 400 MSM8928 1%
...
3DMark - 3DMark Ice Storm Extreme Physics
min: 7914 de promedio: 8089 mediana: 8128 (9%) max: 8224 Points
...
Qualcomm Snapdragon 400 APQ8028 1%
Qualcomm Snapdragon 616 MSM8939v2 1%
Qualcomm Snapdragon 400 MSM8928 4%
MediaTek MT8161 4%
Mediatek MT6753 5%
AMD A6 Pro-7050B 5%
...
3DMark - 3DMark Ice Storm Unlimited Physics
8852 Points (9%)
Acer Iconia One 7 B1-730 SGX544MP2 1024 MB 400 / MHz 8852
Qualcomm Snapdragon S4 Play MSM8625Q -66%
...
Qualcomm Snapdragon 615 MSM8939 -7%
Mediatek MT8135 -3%
Samsung Exynos 3475 Quad -3%
Qualcomm Snapdragon 400 APQ8028 0%
Qualcomm Snapdragon 400 MSM8928 1%
Samsung Exynos 3470 Quad 1%
Mediatek MT8127 2%
Mediatek MT6750 2%
...
Geekbench 2 - 32 Bit - Geekbench Stream
min: 823 de promedio: 887 mediana: 887 (7%) max: 951 Points
...
Mediatek Helio A22 MT6761 -13%
HiSilicon Kirin 659 9%
Intel Atom Z2480 10%
Mediatek Helio P25 11%
...
Intel Core i7-7740X 1298%
Geekbench 2 - 32 Bit - Geekbench Memory
min: 1145 de promedio: 1162 mediana: 1161.5 (11%) max: 1178 Points
...
Intel Atom Z2480 -8%
Samsung Exynos 4212 1.5 GHz -6%
HiSilicon k3v2 Hi3620 2%
...
Intel Core i7-7740X 849%
Geekbench 2 - 32 Bit - Geekbench Floating Point
min: 1458 de promedio: 1527 mediana: 1527 (3%) max: 1596 Points
...
Intel Atom Z3460 6%
...
Geekbench 2 - 32 Bit - Geekbench Integer
min: 1044 de promedio: 1049 mediana: 1048.5 (2%) max: 1053 Points
...
Samsung Exynos 3470 Quad -16%
Intel Atom Z3460 3%
...
Geekbench 2 - 32 Bit - Geekbench Total Score
min: 1209 de promedio: 1221 mediana: 1221 (3%) max: 1233 Points
...
Intel Atom Z2480 -19%
Samsung Exynos 3470 Quad -1%
Samsung Exynos 4212 1.5 GHz 2%
...
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
min: 1053 de promedio: 1057 mediana: 1056 (2%) max: 1062 puntos
Samsung Hummingbird S5PC110 / Exynos 3110 -78%
...
Intel Atom x3-C3230RK -19%
Spreadtrum SC7731 2%
HiSilicon k3v2 Hi3620 4%
Qualcomm Snapdragon 200 MSM8212 5%
...
Geekbench 3 - Geekbench 3 32 Bit Single-Core
min: 448 de promedio: 451 mediana: 451 (9%) max: 453 puntos
Samsung Hummingbird S5PC110 / Exynos 3110 -47%
...
Renesas MP5232 -17%
Mediatek MT8127 -15%
Qualcomm Snapdragon 400 MSM8928 -13%
Qualcomm Snapdragon 400 APQ8028 -4%
Qualcomm Snapdragon 410 APQ8016 7%
HiSilicon Kirin 910 13%
...
Linpack Android / IOS - Linpack Multi Thread
min: 203.213 de promedio: 219 mediana: 221.6 (7%) max: 231.685 MFLOPS
...
Mediatek MT8127 -13%
Samsung Exynos 3470 Quad -11%
HiSilicon Kirin 910 -8%
Mediatek MT8135 -1%
Qualcomm Snapdragon 400 MSM8928 1%
Marvell Armada PXA1908 3%
HiSilicon Kirin 920 5%
Qualcomm Snapdragon 200 MSM8212 8%
...
Linpack Android / IOS - Linpack Single Thread
min: 97.708 de promedio: 105 mediana: 107.9 (11%) max: 110.891 MFLOPS
...
Qualcomm Snapdragon 400 MSM8928 -16%
Intel Atom Z2480 -10%
Mediatek MT6753 8%
Qualcomm Snapdragon 400 APQ8028 8%
Mediatek MT6732 12%
HiSilicon Kirin 930 16%
Marvell Armada PXA1908 16%
HiSilicon Kirin 935 22%
...
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 12537.1 de promedio: 12834 mediana: 12834.2 (22%) max: 13131.4 ms
...
Qualcomm Snapdragon 690 5G -5%
Mediatek Helio P23 MT6763V -5%
Mediatek MT6752 -2%
Mediatek MT8735 2%
MediaTek MT8163 V/B 1.3 GHz 2%
Mediatek Helio P20 (LP4) MT6757 3%
Qualcomm Snapdragon 616 MSM8939v2 4%
Qualcomm Snapdragon 615 MSM8939 4%
Mediatek MT6750S 5%
...
Qualcomm Snapdragon S1 MSM7227A 363%
Sunspider - Sunspider 1.0 Total Score *
min: 1065.7 de promedio: 1121 mediana: 1100.7 (12%) max: 1216.2 ms
...
Qualcomm Snapdragon 801 APQ8074AB -7%
Mediatek MT6752 -6%
HiSilicon Kirin 930 -2%
Mediatek Helio P10 MT6755 -1%
Samsung Exynos 3470 Quad 0%
Samsung Exynos 4212 1.5 GHz 1%
HiSilicon Kirin 659 5%
Qualcomm Snapdragon 460 9%
Qualcomm Snapdragon 615 MSM8939 10%
...
Sunspider - Sunspider 0.9.1 Total Score *
min: 699.9 de promedio: 1015 mediana: 1114.4 (11%) max: 1229.5 ms
...
Intel Atom Z3460 -11%
Samsung Exynos 4212 1.5 GHz -10%
Intel Atom Z2480 6%
Qualcomm Snapdragon 615 MSM8939 16%
MediaTek MT8317T 18%
...
Rockchip RK2918 590%
Octane V2 - Octane V2 Total Score
3081 Points (5%)
Acer Iconia One 7 B1-730 SGX544MP2 1024 MB 400 / MHz 4.2.2 JB 3081
...
HiSilicon Kirin 910T -10%
Mediatek MT6753 -7%
MediaTek MT8163 V/B 1.3 GHz -5%
Qualcomm Snapdragon 410 APQ8016 -5%
Mediatek MT6750 0%
Mediatek MT6739WW 4%
Mediatek MT6750N 6%
...
Apple M1 1918%
Quadrant Standard Edition 2.0 - Quadrant Standard 2.0 Total Score
min: 4896 de promedio: 5097 mediana: 5096.5 (12%) max: 5297 points
Samsung Hummingbird S5PC110 / Exynos 3110 -76%
...
HiSilicon k3v2 Hi3620 -7%
Samsung Exynos 4212 1.5 GHz -5%
HiSilicon Kirin 910 9%
Mediatek MT8135 25%
...
AnTuTu v3 - AnTuTu v3 CPU
6594 Points (43%)
...
HiSilicon k3v2 Hi3620 -14%
AnTuTu v4 - AnTuTu v4 Total Score
min: 18062 de promedio: 18570 mediana: 18777 (44%) max: 18872 Points
Qualcomm Snapdragon S4 Play MSM8625Q -59%
...
Qualcomm Snapdragon 400 MSM8928 -7%
Qualcomm Snapdragon 400 APQ8028 2%
Samsung Exynos 3470 Quad 3%
HiSilicon Kirin 910 18%
Mediatek MT8135 25%
HiSilicon Kirin 910T 29%
...
AndEBench - AndEBench Java
min: 172 de promedio: 215 mediana: 225 (7%) max: 237 Iter./s
Qualcomm Snapdragon S1 MSM7227A -70%
...
Broadcom BCM21664T -16%
HiSilicon k3v2 Hi3620 -11%
MediaTek MT8317T -7%
Renesas MP5232 -3%
Mediatek MT8135 9%
Samsung Exynos 4212 1.5 GHz 15%
...
AndEBench - AndEBench Native
min: 9409 de promedio: 9466 mediana: 9453 (31%) max: 9548 Iter./s
...
Intel Atom Z3460 -20%
Samsung Exynos 3470 Quad -20%
MediaTek MT8161 -18%
Marvell Armada PXA1908 -17%
Qualcomm Snapdragon 400 APQ8028 -9%
HiSilicon k3v2 Hi3620 -6%
...
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile CPU Tests
min: 8692 de promedio: 9160 mediana: 9263 (1%) max: 9420 Points
...
Qualcomm Snapdragon 400 MSM8928 -13%
Samsung Exynos 3470 Quad -13%
HiSilicon k3v2 Hi3620 -5%
Intel Atom Z3460 -1%
Qualcomm Snapdragon 400 APQ8028 6%
...
Apple A12X Bionic 8180%
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
