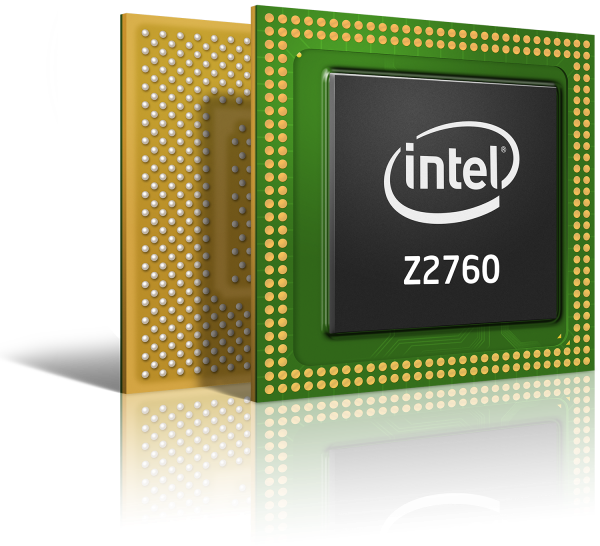

Intel Atom Z2760

Intel Z2760

El Intel Atom Z2760 es un SoC (System on a Chip) con el nombre código Cloverview y parte de la plataforma Clovertrail. El Z2760 es un SoC de un chip e integra un procesador Atom dual core con frecuencias máximas de 1,8 GHz. Gracias al Hyper-Threading se puede ejecutar 4 threads en los dos núcleos (para una mejor eficiencia). Aunque los núcleos Atom teóricamente soportan 64 bits, el Z2760 sólo está especificado para sistemas operativos de 32 bits.

El rendimiento del procesador está en el nivel de otros procesadores Atom dual core de 1,8 GHz como el Atom D525. Por tanto, las taras exigentes como la edición de videos HD es mucho para os lentos núcleos del CPU.

La tarjeta de video integrada se basa en un diseño PowerVR SGX 545 (soporte para DirectX 9_3) y tiene una frecuencia de 533 MHz. El decodificador y codificador de video también pertenecen a Imagination Technologies.

Además, un controlador de memoria de dos canales LPDDR2 está integrado para un máximo de 2 GB de RAM.

Todo el SoC fue optimizado para eficiencia energética y bajo consumo de energía. Es producido con un proceso LP (low power) de 32nm. Por tanto, el consumo de energía está en la misma liga de algunos SoCs ARM, como el Tegra 3 y es posible el resfriamiento pasivo.

SerieIntel Atom
Nombre códigoCloverview

Serie: Atom Cloverview

Intel Atom Z2760 « 1.8 GHz2 / 4 cores
Intel Atom Z25801.3 - 2 GHz2 / 4 cores
Intel Atom Z25600.93 - 1.6 GHz2 / 4 cores
Velocidad de reloj1800 MHz
Caché de Nivel 1128 KB
Caché de Nivel 21 MB
Número de Núcleos/Subprocesos2 / 4
Consumo de Corriente (TDP = Thermal Design Power)1.7 / 3 Watt
Conteo de Transistores140 Millón
Tecnología de producción32 nm
Tamaño de Matriz65 mm2
ConectorFC-BGA12F
RecursosHyperThreading, 533 MHz PowerVR SGX545, MMX, SSE1-3, SSSE3, EIST, XD Bit, Intel Burst Performance Technology (BPT, similar Turbo Boost)
GPUPowerVR SGX545 (533 MHz)
Architecturex86
Fecha de anuncio09/27/2012
Enlace de Producto (externo)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 0.5     de promedio: 0.5     mediana: 0.5 (1%)     max: 0.55 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
0.2 Points (4%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 592     de promedio: 635     mediana: 601.5 (4%)     max: 1004 puntos
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 1630     de promedio: 1684     mediana: 1696.5 (1%)     max: 1711 puntos
wPrime 2.10 - wPrime 2.0 1024m *
min: 1692     de promedio: 1931     mediana: 1892 (22%)     max: 2424 s
wPrime 2.10 - wPrime 2.0 32m *
min: 53.5     de promedio: 59.5     mediana: 58.1 (12%)     max: 73 s
WinRAR - WinRAR 4.0
min: 518     de promedio: 663     mediana: 713 (1%)     max: 759 puntos
X264 HD Benchmark 4.0 - x264 Pass 2
min: 3.22     de promedio: 3.3     mediana: 3.3 (1%)     max: 3.33 fps
X264 HD Benchmark 4.0 - x264 Pass 1
min: 17.53     de promedio: 17.8     mediana: 17.8 (4%)     max: 17.97 fps
TrueCrypt - TrueCrypt Serpent
min: 0.05322     de promedio: 0.1     mediana: 0.1 (2%)     max: 0.062 GB/s
TrueCrypt - TrueCrypt Twofish
min: 0.061     de promedio: 0.1     mediana: 0.1 (1%)     max: 0.067 GB/s
TrueCrypt - TrueCrypt AES
min: 0.055     de promedio: 0.1     mediana: 0.1 (0%)     max: 0.0624 GB/s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 902     de promedio: 949     mediana: 945 (2%)     max: 975 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 24.8     de promedio: 67.8     mediana: 84.6 (18%)     max: 87.1 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 110.5     de promedio: 177.4     mediana: 186 (8%)     max: 188.8 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 2863     de promedio: 4028     mediana: 4233 (19%)     max: 4271 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 8150     de promedio: 8826     mediana: 9000 (4%)     max: 9210 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 7300     de promedio: 7402     mediana: 7370 (6%)     max: 7530 MFLOPS
3DMark - 3DMark Ice Storm Physics
min: 1574     de promedio: 4748     mediana: 5955 (5%)     max: 6716 Points
3DMark - 3DMark Ice Storm Extreme Physics
1574 Points (1%)
Geekbench 2 - 32 Bit - Geekbench Stream
min: 1177     de promedio: 1250     mediana: 1258 (10%)     max: 1276 Points
Geekbench 2 - 32 Bit - Geekbench Memory
min: 416     de promedio: 1118     mediana: 1202 (11%)     max: 1234 Points
Geekbench 2 - 32 Bit - Geekbench Floating Point
min: 992     de promedio: 1310     mediana: 1381.5 (3%)     max: 1409 Points
Geekbench 2 - 32 Bit - Geekbench Integer
min: 1379     de promedio: 1557     mediana: 1572 (3%)     max: 1599 Points
Geekbench 2 - 32 Bit - Geekbench Total Score
min: 1031     de promedio: 1358     mediana: 1397.5 (4%)     max: 1425 Points
Sunspider - Sunspider 1.0 Total Score *
min: 694     de promedio: 813     mediana: 812.5 (9%)     max: 931 ms
Sunspider - Sunspider 0.9.1 Total Score *
min: 700     de promedio: 755     mediana: 707 (7%)     max: 951 ms
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
