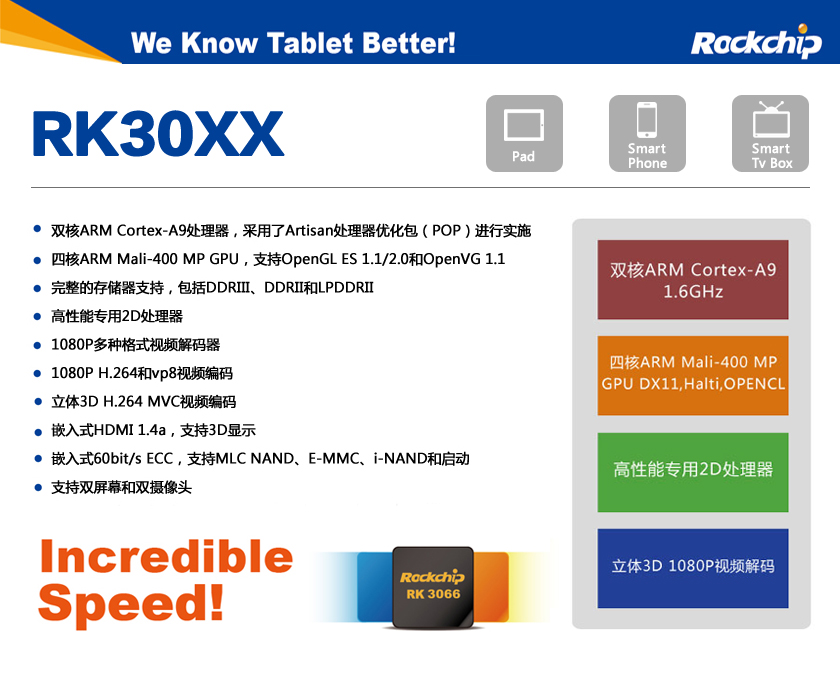

Rockchip RK3066 1.5 GHz

El Rockchip RK3066 es un SoC económico basado en ARM para Tablets y Smartphones. Integra dos CPUs ARM Cortex-A9 (ARMv7) con extensiones NEON, una tarjeta de video ARM Mali-400MP4 (quad-core con frecuencia de 250 MHz) e un de- y codificador de video como principales componentes. El controlador de memoria integrado soporta un máximo de 2 GB de memoria DDR1, DDR2 o DDR3.

Los núcleos de la CPU pueden ser acelerados hasta 1,6 GHz dependiendo de la solución de enfriamiento del tablet / smartphone.

Recursos adicionales según Wikipedia

    Procesador VPU (Video Processing Unit) Multi-Media que soporta decodificación de imágenes y videos 1080p
    Interfaz HDMI 1.4
    Interfaz TFT LCD de 2-canales con 5 capas y pantalla 3D (Tamaño máximo de la pantalla de 1920×1080)
    Interfaz USB 2.0
    Interfaz SD/MMC

Serie

Serie:

Rockchip RK3288	1.8 GHz	4 / 4
Apple A6x	1.4 GHz	2
Apple A6	1 GHz	2
Apple S5		2 / 2
HiSilicon k3v2 Hi3620	1.2 GHz	4 / 4
» Rockchip RK3066 1.5 GHz	1.5 GHz	2 / 2
Amlogic AML8726-MX	1.5 GHz	2 / 2
Rockchip RK3168	1.2 GHz	2 / 2
Rockchip RK2918 1.2 GHz	1.2 GHz	1 / 1
ARM Cortex A8 1.2 GHz	1.2 GHz	1 / 1
Telechips TCC8803 1GHz	1 GHz	1 / 1
Loongson 2F 900MHz	0.9 GHz	1 / 1
CSR8670	0.08 GHz	2
ARM Cortex-M4
HiSilicon Hi6262
DK3.5+ST		2
unknown

Velocidad de reloj

1500 MHz

Caché de Nivel 2

512 KB

Número de Núcleos/Subprocesos

2 / 2

Tecnología de producción

40 nm

Recursos

Mali-400 MP4, Single Channel DDR3 Memory Controller

GPU

ARM Mali-400 MP4 (250 MHz)

Architecture

ARM

Fecha de anuncio

04/01/2012

Enlace de Producto (externo)

RK3066

Benchmarks

3DMark - 3DMark Ice Storm Physics

min: 4687 de promedio: 4990 mediana: 5059 (3%) max: 5161 Points

+ 7 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	4687
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	4775
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	4995
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	5059
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	5115
HP Slate 7	RK3066	Mali-400 MP4	1 GB	5140
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	5161

3DMark - 3DMark Ice Storm Extreme Physics

4890 Points (5%)

+ 1 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
HP Slate 7	RK3066	Mali-400 MP4	1 GB	4890

Geekbench 2 - 32 Bit - Geekbench Stream

min: 206 de promedio: 399 mediana: 390 (3%) max: 621 Points

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	206
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	279
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	281
HP Slate 7	RK3066	Mali-400 MP4	1 GB	351
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	360
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	360
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	381
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	382
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	398
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	405
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	411
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	415
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	441
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	537
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	550
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	621

Geekbench 2 - 32 Bit - Geekbench Memory

min: 389 de promedio: 1072 mediana: 1071 (10%) max: 1439 Points

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	389
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	828
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	938
HP Slate 7	RK3066	Mali-400 MP4	1 GB	944
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	979
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	993
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	1067
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	1071
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	1071
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	1126
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	1127
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	1157
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	1329
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	1330
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	1358
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	1439

Geekbench 2 - 32 Bit - Geekbench Floating Point

min: 843 de promedio: 1408 mediana: 1342 (3%) max: 2107 Points

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	843
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	1020
HP Slate 7	RK3066	Mali-400 MP4	1 GB	1069
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	1089
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	1288
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	1303
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	1303
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	1331
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	1353
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	1455
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	1517
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	1571
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	1601
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	1693
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	1977
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	2107

Geekbench 2 - 32 Bit - Geekbench Integer

min: 490 de promedio: 798 mediana: 788.5 (2%) max: 1201 Points

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	490
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	583
HP Slate 7	RK3066	Mali-400 MP4	1 GB	591
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	634
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	760
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	762
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	762
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	770
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	807
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	810
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	824
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	891
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	899
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	915
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	1072
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	1201

Geekbench 2 - 32 Bit - Geekbench Total Score

min: 694 de promedio: 1026 mediana: 1007.5 (3%) max: 1518 Points

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	694
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	754
HP Slate 7	RK3066	Mali-400 MP4	1 GB	804
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	838
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	971
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	972
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	972
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	1004
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	1011
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	1022
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	1040
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	1061
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	1182
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	1187
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	1386
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	1518

Linpack Android / IOS - Linpack Multi Thread

min: 50.651 de promedio: 80 mediana: 82.5 (3%) max: 104.567 MFLOPS

+ 15 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	50.651
HP Slate 7	RK3066	Mali-400 MP4	1 GB	61.222
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	63.11
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	70.9
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	73.429
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	75.534
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	80.619
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	82.478
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	83.457
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	84.885
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	89.716
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	92.268
Xoro PAD 9718DR	RK3066	Mali-400 MP4	2 GB	93.652
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	93.911
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	104.567

Linpack Android / IOS - Linpack Single Thread

min: 24.869 de promedio: 52.1 mediana: 54.8 (5%) max: 62.145 MFLOPS

+ 15 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
HP Slate 7	RK3066	Mali-400 MP4	1 GB	24.869
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	37.476
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	42.54
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	50.02
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	50.17
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	51.622
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	54.073
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	54.757
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	55.964
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	57.224
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	58.83
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	59.967
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	59.976
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	61.552
Xoro PAD 9718DR	RK3066	Mali-400 MP4	2 GB	62.145

Sunspider - Sunspider 1.0 Total Score *

1959 ms (21%)

+ 1 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
HP Slate 7	RK3066	Mali-400 MP4	1 GB	1958.9

Sunspider - Sunspider 0.9.1 Total Score *

min: 1149.8 de promedio: 1418 mediana: 1355.7 (13%) max: 1883.7 ms

+ 16 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	1149.8
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	1149.8
Xoro PAD 9718DR	RK3066	Mali-400 MP4	2 GB	1180.1
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	1195.9
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	1251.7
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	1265.3
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	1266.1
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	1296
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	1415.4
Trekstor Surftab Ventos 9.7	RK3066	Mali-400 MP4	1 GB	1466.2
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	1507.8
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	1543
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	1661.9
Bullman TAB 9 AD Revolution	RK3066	Mali-400 MP4 250 MHz	1 GB	1708.1
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	1741.5
HP Slate 7	RK3066	Mali-400 MP4	1 GB	1883.7

Quadrant Standard Edition 2.0 - Quadrant Standard 2.0 Total Score

min: 3105 de promedio: 3862 mediana: 3974 (9%) max: 4257 points

+ 6 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	3105
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	3750
Xoro PAD 9718DR	RK3066	Mali-400 MP4	2 GB	3866
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	4082
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	4114
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	4257

AnTuTu v3 - AnTuTu v3 CPU

min: 2135 de promedio: 3577 mediana: 3734 (24%) max: 4267 Points

+ 15 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
Trekstor Surftab Ventos 10.1	RK3066	Mali-400 MP4 400 MHz	1 GB	2135
Prestigio MultiPad 10.1 Ultimate 3G PMP7100D3G	RK3066	Mali-400 MP4	1 GB	2718
Captiva PAD 8 Pro	RK3066	Mali-400 MP 250 MHz	1 GB	3302
Easypix MonsterPad Red Ninja	RK3066	Mali-400 MP4	1 GB	3349
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	3416
Archos 97 Titanium HD	RK3066	Mali-400 MP4	1 GB	3416
Pearl Touchlet x10.Dual+	RK3066	Mali-400 MP4	1 GB	3667
Yarvik Xenta 7ic	RK3066	Mali-400 MP4 250 MHz	1 GB	3734
i.onik TP10.1-1500DC-KB	RK3066	Mali-400 MP4	1 GB	3896
Saphir SMT 7 3G+GPS	RK3066	Mali-400 MP4 250 MHz	1 GB	3918
Archos 80 Titanium	RK3066	Mali-400 MP4	1 GB	3925
Yarvik Xenta 13c	RK3066	Mali-400 MP4 250 MHz	1 GB	3929
HP Slate 7	RK3066	Mali-400 MP4	1 GB	3945
Xoro PAD 9718DR	RK3066	Mali-400 MP4	2 GB	4043
Captiva PAD 10.1	RK3066	Mali-400 MP 250 MHz	1 GB	4267

PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile CPU Tests

5852 Points (1%)

+ 1 mas detalles + Mostrar tabla de comparación

modelo	CPU	GPU	RAM	valor
HP Slate 7	RK3066	Mali-400 MP4	1 GB	5852

- Gama de valores de las pruebas para esta tarjeta gráfica

- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

v1.17

log 25. 18:43:02

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Wed, 24 Nov 2021 16:53:39 +0100 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_2 needed +0.055s ... 0.056s

#4 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#8 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#9 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#10 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#11 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#12 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#13 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#14 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.056s

#15 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.057s

#16 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.057s

#17 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.057s

#18 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.057s

#19 composed specs +0s ... 0.057s

#20 did output specs +0s ... 0.057s

#21 getting avg benchmarks for device 3576 +0.001s ... 0.058s

#22 got single benchmarks 3576 +0.018s ... 0.076s

#23 got avg benchmarks for devices +0s ... 0.076s

#24 min, max, avg, median took s +0.121s ... 0.197s

#25 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.197s

#26 return log +0s ... 0.197s

Análisis para el RK3066 procesador

Archos 80 Titanium (ARM Mali-400 MP4, 8.00")
» Archos 80 Titanium - análise externo

Archos 97 Titanium HD (ARM Mali-400 MP4, 9.70")
» Archos 97 Titanium HD - análise externo

HP Slate 7 (ARM Mali-400 MP4, 7.00")
» Breve análisis del Tablet HP Slate 7 - análise
» HP Slate 7 - análise externo

Please share our article, every link counts!

Rockchip RK3066 1.5 GHz

Benchmarks

Análisis para el RK3066 procesador

Otras CPUs de la serie

CPUs de alrededor
