Apple A8X

Apple A8X

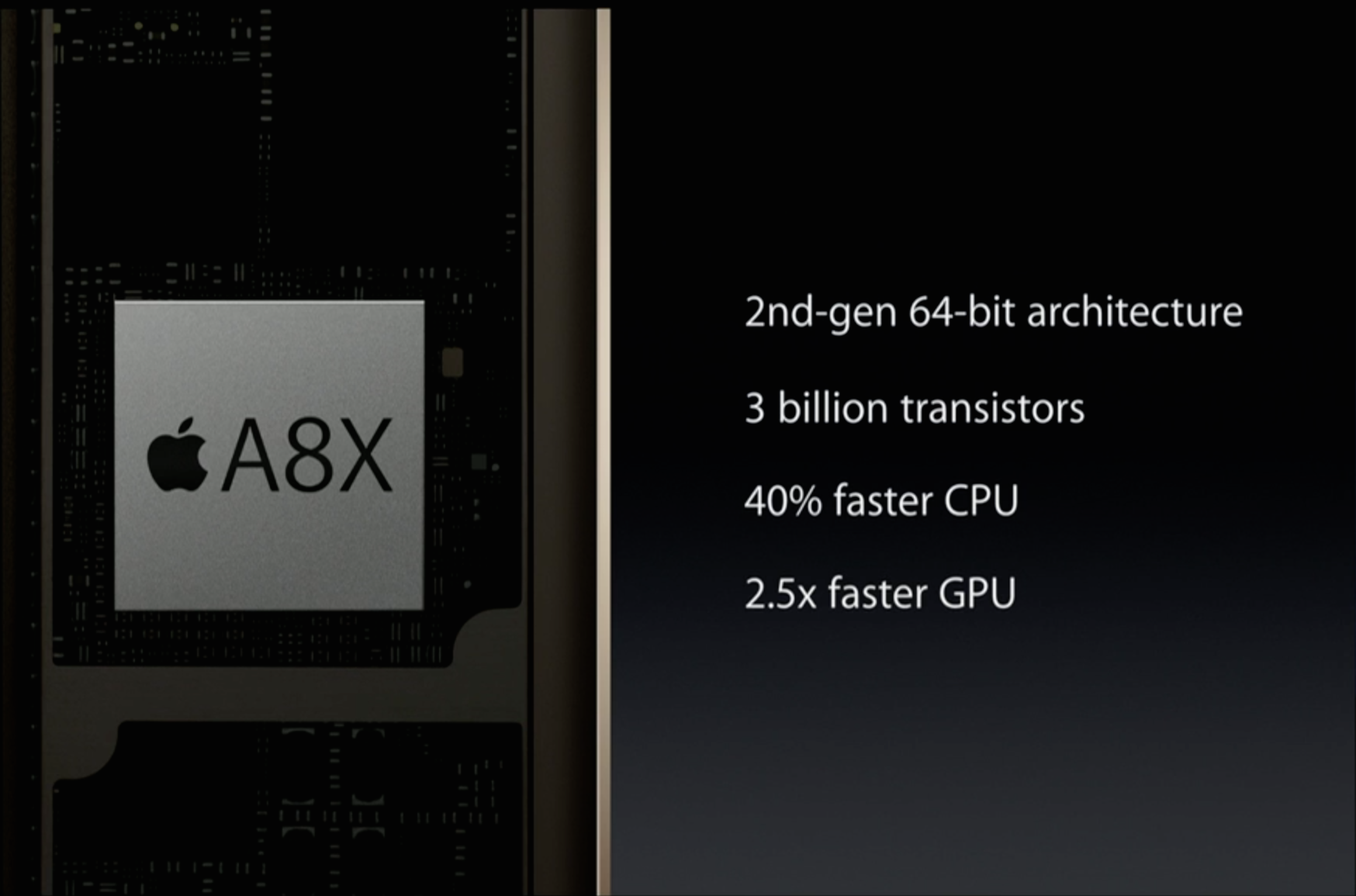

El Apple A8X es un SoC ARM de gama alta introducido en octubre de 2014 junto con el iPad Air 2. Los tres núcleos de la CPU tienen una velocidad un poco más alta que los dos dentro del A8 (+100 MHz) de Apple. Apple afirma un 40% de mejora sobre el Apple A7 de 1,3 GHz en comparación con solo 20% del A8. Además, el A8X integra una GPU mucho más poderosa (2x 4-núcleos PowerVR Series 6XT (Rogue) GXA6850) bien como un controlador de memoria LPDDR3 de 128-bits.

Arquitectura

Con el Cyclone 2, Apple logró mejorar el rendimiento ya alto del núcleo Cyclone original (Apple A7) en otros 10 a 15 por ciento. Ni el Krait de Qualcomm, ni el Cortex-A57 da ARM pueden competir con el IPC resultante. Los cambios exactos en el diseño no fueron revelados, pero esperaríamos caches y registros más grandes, así como una previsión de ramas optimizado. Como la arquitectura ARMv8, el Cyclone 2 soporta 64-bits.

Rendimiento

En comparación con los anteriores Apple A7, el A8X ofrece cerca de 20 - 70 por ciento más rendimiento. Especialmente el rendimiento multi-thread fue significantemente mejorado gracias al tercer núcleo de CPU, mientras que el poder single-thread es solo un poco superior (~20 por ciento). Según las puntuaciones Geekbench 3, el A8X es el SoC ARM móvil más veloz de finales de 2014. Sin embargo, el chip se beneficia claramente del soporte para 64-bits en la versión iOS del benchmark. Sin esta ventaja, el Nvidia Tegra K1 (Denver) dual-core aún es un poco más veloz en software single-thread (pero más lento en las pruebas multi-thread).

Gráficos

En contraste con especulaciones previas, el A8X integra un PowerVR de 8 clusters de la Serie 6 (Rogue) GXA6850 que consiste de dos GPUs GX6450 (2x 4 clusters) en vez de una sola GX6650 (6 clusters). El nombre GXA6850 fue creado por Anandtech, el diseño también puede ser llamado un GX6450MP2.

Cada cluster ofrece cuatro FP16 y dos ALUs FP32, resultando en un poder de cómputo de cerca de 230 GFLOPS FP32 a 450 MHz (velocidad estimada). La GXA6850 no solo derrota al Qualcomm Adreno 420 (Snapdragon 805), sino también al Nvidia Tegra K1 por un margen pequeño. Por eso, la GXA6850 es una de las GPUs más veloces para tablets de 2014 y puede lidiar con los juegos móviles más exigentes en altas resoluciones. Entre otros, la GPU soporta OpenGL 3.x/4.x, OpenGL ES 3.0 así como DirectX 10.

Consumo de Energía

En contraste con anteriores SoCs de Apple, el A8 y A8X son producidos por TSMC en vez de Samsung. Usando un nuevo proceso de 20 nm, el SoC consiste de increíbles 3 billones de transistores. El consumo de energía debe ser igual al de SoCs similares de gama alta de Qualcomm o Samsung.

SerieApple
Nombre códigoCyclone 2

Serie: Cyclone 2

Apple A8X « 1.5 GHz3 / 3 cores4 MB L3 Cyclone 2
Apple A81.4 GHz2 / 2 cores4 MB L3 Cyclone 2
Velocidad de reloj1500 MHz
Caché de Nivel 1384 KB
Caché de Nivel 22 MB
Caché de Nivel 34 MB
Número de Núcleos/Subprocesos3 / 3
Conteo de Transistores3000 Millón
Tecnología de producción20 nm
Tamaño de Matriz128 mm2
RecursosARMv8 Instruction Set, PowerVR GXA6850 (2x 4 Cluster Rogue), 128 Bit LPDDR3 Memory Controller
GPUPowerVR GX6650
64 Bitsoporte para 64 Bit
ArchitectureARM
Fecha de anuncio10/16/2014

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Physics
10379 Points (9%)
3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited Physics
1400 Points (17%)
3DMark - 3DMark Sling Shot (ES 3.0) Unlimited Physics
1449 Points (17%)
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
1060 puntos (3%)
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
1821 puntos (18%)
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
4357 puntos (5%)
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
4477 puntos (8%)
Geekbench 3 - Geekbench 3 32 Bit Single-Core
1812 puntos (35%)
Geekbench 3 - Geekbench 3 64 Bit Multi-Core
4530 puntos (7%)
Geekbench 3 - Geekbench 3 64 Bit Single-Core
1816 puntos (27%)
Linpack Android / IOS - Linpack Multi Thread
2429 MFLOPS (82%)
Linpack Android / IOS - Linpack Single Thread
1021 MFLOPS (100%)
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
2396 ms (3%)
Sunspider - Sunspider 0.9.1 Total Score *
326 ms (3%)
Octane V2 - Octane V2 Total Score
10512 Points (9%)
AnTuTu v5 - AnTuTu v5 Total Score
63292 Points (64%)
AnTuTu v6 - AnTuTu v6 Total Score
101062 Points (34%)
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 CPU Tests
73235 Points (10%)
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
