Nvidia Tegra K1

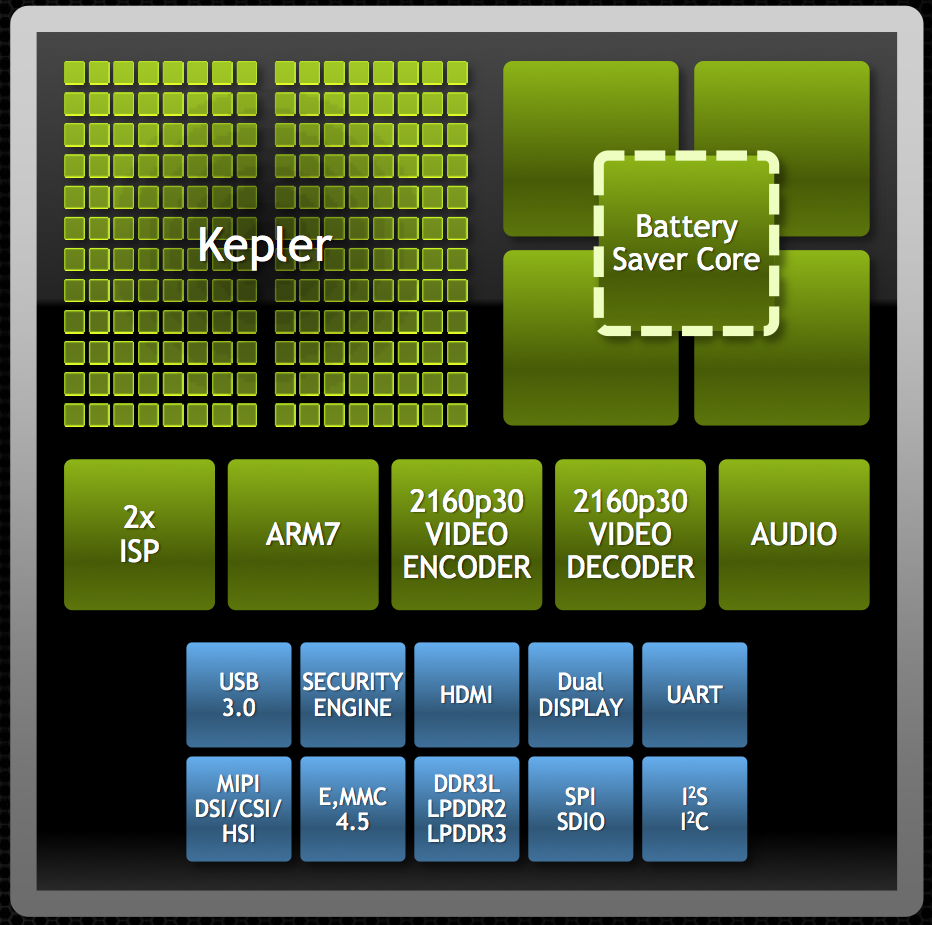

La NVIDIA Tegra K1 (Tegra 5) es un SoC (System on a Chip) basado en ARM hecho especialmente para tablets y smartphones Android de gama alta. Sus principales características incluyen un ARM Cortex A15 de 5 núcleos (4+1) integrado, una tarjeta de video basada en Kepler con 192 núcleos CUDA, un controlador de memoria de dos canales de 64-bits (hasta 4 GB), codecs de video para codificar y decodificar hasta contenido 4k y dual ISP. Es producida en TSMC bajo un proceso HPM de 28nm para un rendimiento máximo mejorado (en contraste con el proceso HPL de 28nm del Tegra 4, que está optimizado para bajas fugas).
Más adelante en 2014, Nvidia introducirá una segunda versión del Tegra K1 con dos núcleos "Denver" de hasta 2,5 GHz. Similar a la "Cyclone" de Apple, Denver ya soporta 64-bits (ARMv8) y ha sido desarrollado por la propia Nvidia. Especialmente el rendimiento por núcleo debe estar significantemente por encima del modelo Cortex-A15.
Serie NVIDIA Tegra Nombre código Logan (Cortex-A15 "r3" + Kepler-GPU) Velocidad de reloj 2300 MHz Caché de Nivel 1 256 KB Caché de Nivel 2 2 MB Número de Núcleos/Subprocesos 4 / 4 Tecnología de producción 28 nm Recursos 2x 32 Bit Dual-Channel Memory Controller (DDR3L, LPDDR2/3, max. 2.133 MHz), Kepler-GPU, Dual ISP, 4K Encoder + Decoder, USB 3.0 GPU NVIDIA Tegra K1 Kepler GPU ( - 950 MHz)Fecha de anuncio 01/06/2014 Enlace de Producto (externo) NVIDIA Tegra K1
Benchmarks 3DMark - Ice Storm Unlimited Physics 1280x720 offscreen
min: 16299 de promedio: 18210 mediana: 17245 (20%) max: 21086 Points
Lenovo ThinkVision 28 GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 16299
Xiaomi MiPad GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 17245
NVIDIA Shield Tablet P1761W GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 21086
Qualcomm Snapdragon S4 Play MSM8625Q -84%
...
Samsung Exynos 5433 Octa -3%
Intel Celeron 2970M -3%
Intel Atom x5-Z8500 1%
Samsung Exynos 850 3%
AMD A9-9420 4%
...
AMD Ryzen 7 3800XT 362%
3DMark - Sling Shot Extreme (ES 3.1) Unlimited Physics 2560x1440
1904 Points (24%)
...
Qualcomm Snapdragon 650 MSM8956 -12%
HiSilicon Kirin 659 -12%
Samsung Exynos 8890 Octa -11%
Apple A9X -10%
Qualcomm Snapdragon 821 MSM8996 Pro 3%
Mediatek MT8768 10%
Apple A11 Bionic 10%
HiSilicon Kirin 960 13%
Samsung Exynos 850 14%
...
3DMark - Sling Shot OpenGL ES 3.0 Unlimited Physics 2560x1440
1941 Points (34%)
...
Mediatek Helio P20 (LP4) MT6757 -10%
Samsung Exynos 8890 Octa -8%
Qualcomm Snapdragon 821 MSM8996 Pro -1%
Qualcomm Snapdragon 652 MSM8976 -1%
HiSilicon Kirin 960s 8%
HiSilicon Kirin 960 11%
Samsung Exynos 850 13%
...
Geekbench 2 - 32 Bit - Stream
1860 Points (15%)
...
Qualcomm Snapdragon 801 APQ8074AB -4%
AMD A8-3520M -4%
...
Intel Core i7-7740X 567%
Geekbench 2 - 32 Bit - Memory
3933 Points (36%)
...
HiSilicon Kirin 960s -4%
Qualcomm Snapdragon 801 APQ8074AB -2%
AMD A10-7700K 5%
...
Intel Core i7-7740X 180%
Geekbench 2 - 32 Bit - Floating Point
7523 Points (15%)
...
Intel Core i7-2640M -3%
Intel Core i3-8145U 7%
Intel Core i5-6360U 10%
...
Geekbench 2 - 32 Bit - Integer
3251 Points (7%)
...
AMD A6-9220e -5%
Samsung Exynos 7884B -2%
AMD A4-6210 -1%
HiSilicon Kirin 659 1%
Intel Celeron N3150 3%
Intel Core 2 Duo (Desktop) E6600 5%
...
Geekbench 2 - 32 Bit - Total Score
4743 Points (12%)
...
AMD A9-9425 -5%
AMD Pro A8-8600B 0%
...
Geekbench 3 - 32 Bit Multi-Core Score
min: 3062 de promedio: 3279 mediana: 3278.5 (6%) max: 3495 Points
Xiaomi MiPad GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 3062
NVIDIA Shield Tablet P1761W GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 3495
Samsung Hummingbird S5PC110 / Exynos 3110 -93%
...
AMD A4-6210 -4%
Samsung Exynos 5430 Octa -2%
Intel Pentium N3700 -2%
HiSilicon Kirin 930 -2%
Intel Celeron 3865U -2%
AMD E2-7110 -1%
AMD A9-9425 1%
Intel Core M-5Y51 5%
...
Geekbench 3 - 32 Bit Single-Core Score
min: 1054 de promedio: 1091 mediana: 1090.5 (22%) max: 1127 Points
Xiaomi MiPad GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 1054
NVIDIA Shield Tablet P1761W GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 1127
Samsung Hummingbird S5PC110 / Exynos 3110 -78%
...
AMD A4-6210 -8%
AMD E2-7110 -7%
AMD A4-7210 11%
AMD A6-9220e 14%
AMD A6 Pro-7050B 15%
...
Geekbench 4.0 - 64 Bit Single-Core Score
1008 Points (16%)
...
Intel Atom x5-Z8300 -13%
HiSilicon Kirin 659 -12%
Intel Atom x5-E8000 -7%
Intel Atom x5-Z8550 2%
AMD A6-9220e 10%
Samsung Exynos 7884B 20%
AMD A8-7410 35%
...
Geekbench 4.0 - 64 Bit Multi-Core Score
2755 Points (7%)
...
Mediatek Helio A22 MT6761 -13%
Mediatek MT6753 -11%
Intel Atom x5-E8000 -8%
Mediatek MT8173C -7%
Mediatek Helio P10 MT6755 2%
Qualcomm Snapdragon 650 MSM8956 10%
Intel Atom x5-Z8550 13%
Qualcomm Snapdragon 652 MSM8976 14%
...
AMD Ryzen 9 3900 1390%
Geekbench 4.4 - 64 Bit Single-Core Score
1085 Points (17%)
...
HiSilicon Kirin 659 -15%
Intel Atom x5-E8000 -12%
Intel Atom x7-E3950 7%
Samsung Exynos 7884B 11%
Mediatek MT8173 11%
...
Intel Core i9-10900K 485%
Geekbench 4.4 - 64 Bit Multi-Core Score
2949 Points (5%)
...
Apple A8 -6%
Intel Atom x5-E8000 -5%
Qualcomm Snapdragon 650 MSM8956 -3%
HiSilicon Kirin 935 -1%
Mediatek Helio P10 MT6755 -1%
Mediatek MT8173 12%
...
Intel Core i9-9980XE 1770%
Linpack Android / IOS - Multi Thread
726 MFLOPS (25%)
...
Qualcomm Snapdragon 801 MSM8974AA -13%
Apple A9 74%
Apple A8 98%
Apple A9X 115%
...
Linpack Android / IOS - Single Thread
673 MFLOPS (66%)
...
Samsung Exynos 5430 Octa -42%
Qualcomm Snapdragon 801 MSM8974AA -37%
Apple A9 1%
Apple A8 14%
Apple A9X 27%
Mozilla Kraken 1.1 - Total Score *
min: 4286 de promedio: 4491 mediana: 4491.3 (8%) max: 4696.6 ms
...
Mediatek Helio X20 MT6797 -4%
Intel Pentium N3700 -3%
Intel Atom x5-Z8550 -2%
Mediatek Helio P60 -1%
Apple A8 1%
Nvidia Tegra X1 4%
Intel Atom x5-Z8500 5%
...
Qualcomm Snapdragon S1 MSM7227A 1224%
Sunspider - 1.0 Total Score *
min: 458 de promedio: 539 mediana: 525 (6%) max: 634.6 ms
...
Intel Atom Z3735D -9%
Intel Celeron N2840 -9%
Intel Atom x5-Z8300 -6%
AMD E1-6010 -5%
Intel Atom Z3736F -2%
AMD A4 Micro-6400T 1%
Intel Atom Z3735G 15%
Intel Atom Z3745D 17%
...
Sunspider - 0.9.1 Total Score *
532 ms (5%)
...
Apple A8 -46%
Qualcomm Snapdragon 801 APQ8074AB -2%
Mediatek MT8135 32%
Intel Celeron N2840 39%
...
Rockchip RK2918 1217%
min: 6777 de promedio: 6810 mediana: 6810 (13%) max: 6843 Points
...
Intel Atom x5-Z8300 -6%
Intel Celeron N2840 -2%
Intel Celeron N3050 -2%
HiSilicon Kirin 960s 0%
Samsung Exynos 5433 Octa 3%
Samsung Exynos 7884B 5%
Apple A8 9%
Mediatek Helio X20 MT6797 9%
...
min: 1754 de promedio: 1835 mediana: 1835 (49%) max: 1916 Points
...
Samsung Exynos 5430 Octa -14%
Nvidia Tegra X1 24%
HiSilicon Kirin 960 67%
Qualcomm Snapdragon 652 MSM8976 80%
...
Vellamo 3.x - Multicore Beta
min: 2456 de promedio: 2458 mediana: 2458 (55%) max: 2460 Points
...
HiSilicon Kirin 930 -17%
Mediatek Helio P10 MT6755 -11%
Nvidia Tegra X1 3%
Qualcomm Snapdragon 652 MSM8976 7%
Qualcomm Snapdragon 821 MSM8996 Pro 32%
Samsung Exynos 8890 Octa 40%
...
HiSilicon Kirin 960 82%
min: 2869 de promedio: 4067 mediana: 3943.5 (52%) max: 5513 Points
...
Intel Atom Z3735F -25%
Mediatek Helio P10 MT6755 -22%
HiSilicon Kirin 920 -17%
Qualcomm Snapdragon 652 MSM8976 24%
Qualcomm Snapdragon 821 MSM8996 Pro 51%
Nvidia Tegra X1 54%
...
HiSilicon Kirin 960 83%
Quadrant Standard Edition 2.0
21000 points (49%)
Samsung Hummingbird S5PC110 / Exynos 3110 -94%
...
Qualcomm Snapdragon 801 APQ8074AB -18%
Mediatek MT6752 -16%
Mediatek MT6753 -3%
Qualcomm Snapdragon 615 MSM8939 -3%
Nvidia Tegra X1 -2%
Qualcomm Snapdragon 616 MSM8939v2 7%
Mediatek Helio P10 MT6755 8%
...
min: 33917 de promedio: 38457 mediana: 38457 (89%) max: 42997 puntos
Lenovo ThinkVision 28 GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 33917
NVIDIA Shield Tablet P1761W GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB 42997
Qualcomm Snapdragon S4 Play MSM8625Q -80%
...
Qualcomm Snapdragon 801 APQ8074AB -15%
min: 54095 de promedio: 54765 mediana: 54765 (55%) max: 55435 Points
Samsung Hummingbird S5PC110 / Exynos 3110 -89%
...
HiSilicon Kirin 930 -14%
HiSilicon Kirin 935 -13%
Samsung Exynos 5430 Octa -9%
Samsung Exynos 5433 Octa -6%
Apple A9 8%
Nvidia Tegra X1 15%
Samsung Exynos 8890 Octa 47%
87000 Points (30%)
Samsung Hummingbird S5PC110 / Exynos 3110 -94%
...
Qualcomm Snapdragon 650 MSM8956 -13%
Qualcomm Snapdragon 652 MSM8976 -5%
Mediatek Helio X20 MT6797 -4%
Intel Atom x5-Z8550 2%
Mediatek Helio P60 18%
...
4344 Points (13%)
Mediatek MT6580M -33%
Mediatek MT6739WW -18%
Mediatek MT6750S -6%
Mediatek MT8321 -4%
Qualcomm Snapdragon 615 MSM8939 1%
Mediatek Helio P10 MT6755 2%
MediaTek MT8163 V/B 1.3 GHz 3%
Mediatek MT6750 4%
Mediatek Helio P25 11%
...
26488 Points (33%)
...
Mediatek MT8173 -16%
HiSilicon Kirin 659 -10%
Mediatek Helio X25 MTK6797T -9%
Mediatek Helio P23 MT6763V -8%
Samsung Exynos 7884B 4%
HiSilicon Kirin 960s 6%
Mediatek Helio P60 31%
...
73621 Points (23%)
...
Apple A10 Fusion -25%
Qualcomm Snapdragon 821 MSM8996 Pro -17%
HiSilicon Kirin 960 -16%
Apple A9X 21%
Apple A11 Bionic 29%
HiSilicon Kirin 980 50%
Apple A12 Bionic 101%
...
Apple A12X Bionic 331%
44372 Points (27%)
...
Mediatek Helio X25 MTK6797T -7%
HiSilicon Kirin 659 -7%
Samsung Exynos 7884B -6%
HiSilicon Kirin 960s -2%
Qualcomm Snapdragon 821 MSM8996 Pro 2%
...
Apple A12X Bionic 267%
148825 Points (26%)
...
Mediatek Helio P60 -11%
Qualcomm Snapdragon 821 MSM8996 Pro 2%
HiSilicon Kirin 960 17%
Apple A10 Fusion 18%
...
Apple A12X Bionic 276%
1026 Iter./s (32%)
Qualcomm Snapdragon S1 MSM7227A -94%
...
HiSilicon Kirin 920 -37%
MediaTek MT8161 -25%
HiSilicon Kirin 930 30%
HiSilicon Kirin 659 65%
...
17300 Iter./s (57%)
...
HiSilicon Kirin 910T -23%
Nvidia Tegra X1 -12%
Qualcomm Snapdragon 801 APQ8074AB 3%
HiSilicon Kirin 920 5%
HiSilicon Kirin 930 17%
HiSilicon Kirin 659 18%
Mediatek MT6752 23%
...
PassMark PerformanceTest Mobile V1 - CPU Tests
22985 Points (3%)
...
HiSilicon Kirin 920 -18%
Mediatek MT6752 32%
...
Apple A12X Bionic 3200%
PCMark for Android - Computer Vision score
2879 Points (15%)
...
Mediatek Helio A22 MT6761 -7%
Mediatek Helio P23 MT6763V 3%
Qualcomm Snapdragon 821 MSM8996 Pro 8%
...
MediaTek Dimensity 820 263%
PCMark for Android - Storage score
2052 Points (7%)
Mediatek MT6739WW -10%
Mediatek MT6753 14%
Mediatek Helio P25 34%
Mediatek Helio P10 MT6755 36%
Mediatek MT6750N 37%
...
PCMark for Android - Work 2.0 performance score
4149 Points (27%)
...
Samsung Exynos 8890 Octa -14%
Mediatek MT8173 -11%
HiSilicon Kirin 935 -6%
Mediatek Helio P20 (LP4) MT6757 2%
Mediatek Helio X20 MT6797 3%
Mediatek Helio P25 7%
Qualcomm Snapdragon 650 MSM8956 8%
MediaTek MT8168 10%
...
PCMark for Android - Work performance score
5567 Points (28%)
NVIDIA Shield Tablet LTE P1761 GeForce ULP K1 (Tegra K1 Kepler GPU) 2048 MB Android 5.0 5567
...
Intel Atom x5-Z8500 -6%
Qualcomm Snapdragon 650 MSM8956 -5%
Intel Atom Z3735F -5%
Qualcomm Snapdragon 652 MSM8976 -5%
Mediatek Helio P25 -1%
Mediatek Helio X25 MTK6797T 0%
Samsung Exynos 5433 Octa 0%
Qualcomm Snapdragon 821 MSM8996 Pro 2%
MediaTek MT8168 5%
...
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
v1.15
log 22. 12:40:21
#0 no ids found in url (should be separated by "_") +0s ... 0s
#1 not redirecting to Ajax server +0s ... 0s
#2 did not recreate cache, as it is less than 5 days old! Created at Thu, 17 Sep 2020 15:36:40 +0200 +0.001s ... 0.001s
#3 composed specs +0.009s ... 0.011s
#4 did output specs +0s ... 0.011s
#5 got avg benchmarks for devices +0.036s ... 0.047s
#6 min, max, avg, median took s +0.536s ... 0.583s
#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.583s
#8 return log +0s ... 0.583s
Análisis para el NVIDIA Tegra K1 procesador
Acer Chromebook 13 CB5-311-T0B2 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Breve análisis del Acer Chromebook 13 CB5-311-T0B2 - análiseAcer Chromebook 13 CB5-311-T9B0 - análise externo
Acer Chromebook 13 CB5-311-T17X (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Acer Chromebook 13 CB5-311-T17X - análise externo
Acer Chromebook 13 CB5-311-T1UU (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Acer Chromebook 13 CB5-311-T1UU - análise externo
Acer Chromebook 13 CB5-311-T28J (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Acer Chromebook 13 CB5-311-T28J - análise externo
Acer Chromebook 13 CB5-311-T6R7 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Acer Chromebook 13 CB5-311-T6R7 - análise externo
Acer Chromebook 13 CB5-311-T9B0 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 13.3")Acer Chromebook 13 CB5-311-T9B0 - análise externo
HP Chromebook 14 G3 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 14")HP Chromebook 14 G3 - análise externo
HP Chromebook 14-x001nd (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 14")HP Chromebook 14-x001nd - análise externo
HP Chromebook 14-x001nf (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 14")HP Chromebook 14-x001nf - análise externo
NVIDIA Shield Tablet K1 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 8")NVIDIA Shield Tablet K1 - análise externo
NVIDIA Shield Tablet LTE P1761 (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 8")Breve actualización del análisis del Nvidia Shield Tablet LTE - análiseNVIDIA Shield Tablet LTE P1761 - análise externo
NVIDIA Shield Tablet P1761W (NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU), 8")Breve análisis del Nvidia Shield Tablet con Tegra K1 - análiseNVIDIA Shield Tablet - análise externo
Otras CPUs de la serie NVIDIA Tegra » NVIDIA Tegra X1 2 GHz / 2.5 MB L2
CPUs de alrededor - Mediatek MT6595 Turbo 2.5 GHz / 2 MB
- Mediatek Mediatek Helio MT8768 1.5 GHz
- Samsung Exynos Exynos 5433 1.9 GHz
- Apple A8 1.4 GHz / 1 MB + 4 MB
Please share our article, every link counts!
Klaus Hinum (Update: 2014-06- 8)
- Valores medios de las pruebas para esta tarjeta gráfica
