Intel Core i7-640M

Intel 640M

El Intel Core i7-640M es un CPU dual core avanzado para portátiles y (gracias al Modo Turbo) funciona a una frecuencia de 2,8 hasta 3,46 GHz. Cada núcleo se basa en la micro-arquitectura Nehalem (Westemere). El Hyperthreading permite que el CPU Dual Core maneje 4 threads de una vez (para un mejor uso del pipeline). Por lo tanto, el i7-640M se relaciona con los otros CPUs i5 e i3 y no con los CPUs quad-core i7.

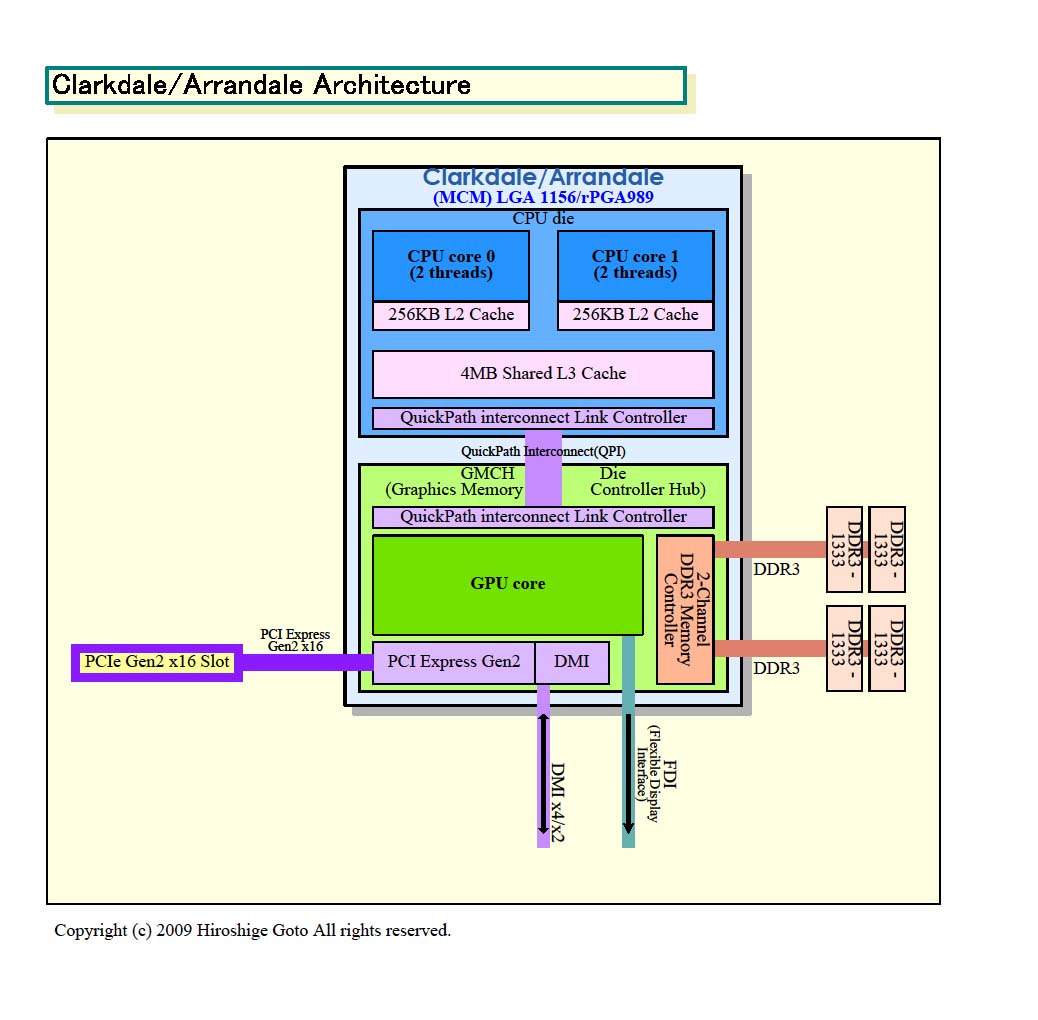

Una característica del nuevo Core i7-640M es la tarjeta de video integrada llamada Intel HD Graphics (GMA HD) y controlador de memoria. Ambos están en una matriz separada que aún es fabricada en 45nm mientras que la matriz del CPU ya es fabricada en el nuevo proceso de 32nm.

Los núcleos de cpu de 32nm de la generación Westmere también pueden procesar algunas nuevas instrucciones para acelerar encriptaciones AES. Comparado con versiones i5 más lentas sin características AES, la puntuación de Comunicaciones de 3DMark Vantage mostraron un significante aumento con CPUs que soportan AES.

La tarjeta de video integrada Intel Graphics Media Accelerator HD (GMA HD) funciona con 500-733 MHz y se desempeña claramente más rápido que la antigua GMA 4500MHD. Una GeForce 9400M (ION) aun debe ser un poco más veloz (especialmente porque la tarjetas Nvidia y ATI poseen un mejor soporte de controladores que Intel, hasta hora).

El consumo de energía de 35 Watt TDP (máx.) es de todo el paquete y por lo tanto es claramente mejor que los 35 Watt de TDP de la serie-T Core 2 Duo (sólo CPU).

El Core i7-640M no debe confundirse con el Core i7-620UM de bajo voltaje (1,2-2,26 GHz, 18 W) con nombre parecido pero más lento.

SeriesIntel Core i7
CodenameArrandale
Clock Rate2800 - 3460 MHz
Front Side Bus2500 MHz
Level 2 Cache512 KB
Level 3 Cache4096 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Millón
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 500-733MHz, Dual Channel DDR3 memory controller
64 Bit64 Bit support
Hardware VirtualizationVT-x, VT-d
Starting Price $346 U.S.
Announcement Date09/20/2010
Product Link (external)Intel Core i7 640M

CPU Benchmarks

3DMark 06 - CPU:
0% 100%
min: 3094     avg: 3280.8 (39%)     max: 3442 Points
Super Pi 1M:
0% 100%
min: 12     avg: 12.4 (3%)     max: 13 Seconds
Super Pi 2M:
0% 100%
min: 30     avg: 31.1 (1%)     max: 32.995 Seconds
Super Pi 32M:
0% 100%
min: 735     avg: 750.3 (3%)     max: 760 Seconds
PCMark 05: Standard 1024x768
0% 100%
min: 10087     avg: 10706 (67%)     max: 11325 Points
PCMark Vantage: Result 1024x768
0% 100%
min: 6197     avg: 7996.2 (39%)     max: 10809 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 3675     avg: 3727.3 (60%)     max: 3792 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 7770     avg: 8018.6 (29%)     max: 8349 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 9096     avg: 9550.2 (29%)     max: 10027 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 4566     avg: 4584 (71%)     max: 4606 Points
3DMark Vantage: P CPU no PhysX 1280x1024
0% 100%
min: 8604     avg: 8979.3 (21%)     max: 9216 Points
wPrime 2.0x: 32m
0% 100%
min: 16.6     avg: 23.9 (5%)     max: 36.611 seconds
wPrime 2.0x: 1024m
0% 100%
min: 549     avg: 770.2 (9%)     max: 1173.06 seconds
Windows 7 Experience Index: Processor
0% 100%
min: 6.8     avg: 6.9 (88%)     max: 7 points
Cinebench R11.5: CPU 64Bit
0% 100%
min: 2.4     avg: 2.5 (24%)     max: 2.63 Points
- Range of benchmarks for this CPU
- Average benchmark score

Cinebench R10 in comparison
Intel Atom Z670 (min)
691
...
Intel Core i7 620M
7559.7
Intel Core i5 580M
7699.7
Intel Core i5 2410M
7879.9
Intel Core i7 640M
8018.6
Intel Core 2 Quad Q9000
8059.4
Intel Core i5 2430M
8074.9
Intel Core i5 2450M
8483.8
...
Intel Core i7 (Desktop) 3960X (max)
27189.5
