Intel Core i7-620M

Intel 620M

El Intel Core i7-620QM es una CPU de doble nucleo de gama alta para portatiles con una velocidad de reloj (debido al modo Turbo) desde 2.66 a 3.33 GHz. Cada nucleo se basa en la microarquitectura Nehalem (Westemere). La tecnología Hyperthreading permite a la CPU de doble nucleo gestionar 4 hilos de forma simultanea (para un mejor uso del pipeline).

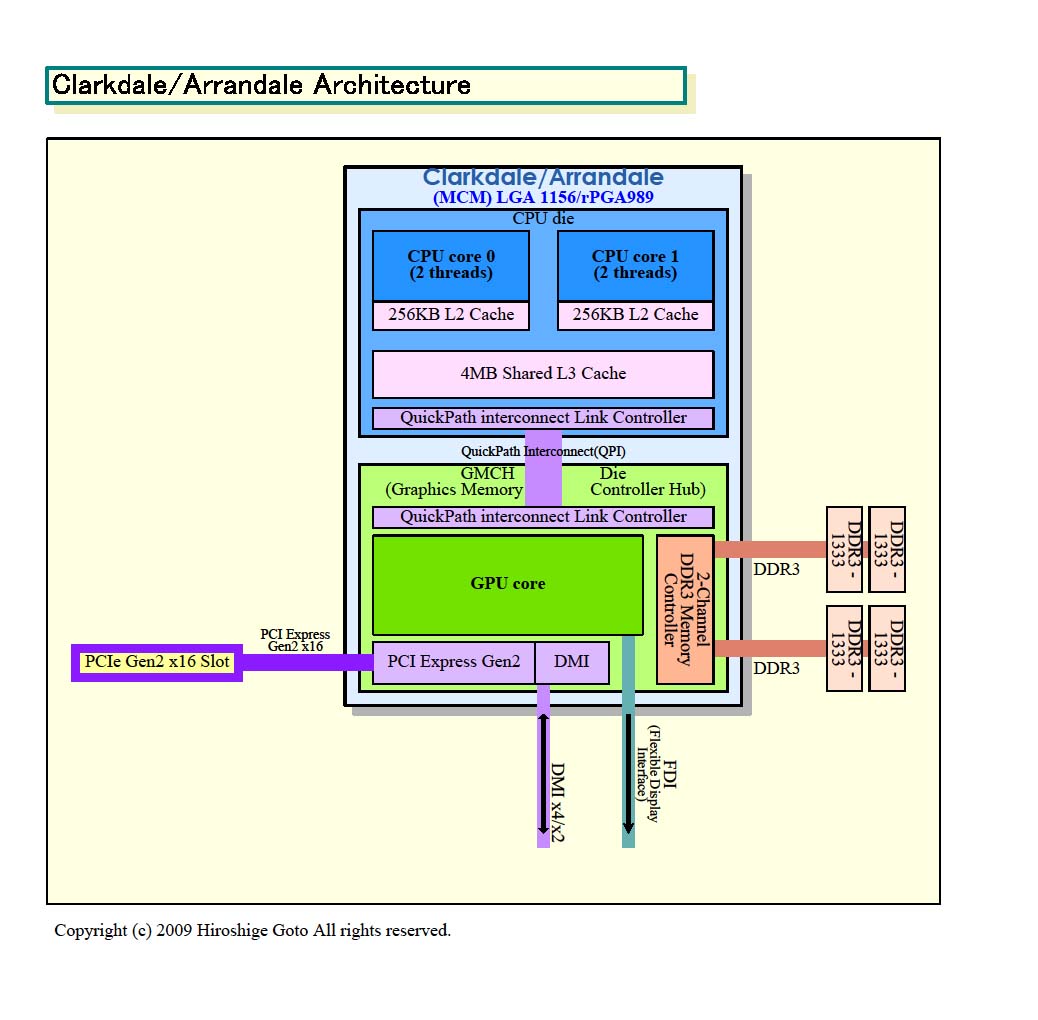

Una característica del nuevo Core i7-620M es la tarjeta gráfica integrada llamada Intel HD (GMA HD) y el controlador de memoria. Ambos estan en un 'die' diferente fabricado en 45 nm mientras que la de la CPU está fabricada en 32 nm.

El rendimiento del Core i7-620M está en la media por encima d la CPU movil más rápida anteriormente, la Core 2 Duo T9900 / X9100. En nuestros tests, solo los tests de renderizado de un solo hilo en el Cinebench R10 obtuvieron menos puntos. Incluso el Core i7-720QM de cuatro nucleos es más lenta en algunos casos.

Los nucleos de CPU de 32nm de la generación Westemere puede tambien procesar algunas instrucciones nuevas para acelerar encriptados AEs. Comparado con las versiones i5 más lentas sin características AES, el 3DMark Vantage Communication Score mostró un incremento significativo con CPUs con AES activado.

La tarjeta gráfica Intel Graphics Media Accelerator HD (GMA HD) tiene una velocidad de reloj entre 500-733 MHz y rinde claramente mejor que la vieja GMA 4500MHD. Una GeForce 9400M (ION) debería ser aún ligeramente más rápida (especialmente porque las tarjetas Nvidia y ATI tienen un mejor soporte de controladores que Intel, al menos hasta ahora).

El consumo de 35 vatios TDP es para el paquete completo y por tanto es claramente mejor que los 35 vatios de TDP (unicamente la CPU) de la gama Core 2 Duo T.

El Core i7-620M no debería ser confundido con los chips de nombre similar pero más lentos de bajo voltaje y ultra bajo voltaje Core i7-620LM (2.13-2,93 GHz, 25W) y Core i7-620UM (1.2-2.26 GHz, 18W).

SeriesIntel Core i7
CodenameArrandale
Clock Rate2660 - 3333 MHz
Front Side Bus2500 MHz
Level 2 Cache512 KB
Level 3 Cache4096 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Millón
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 500-733MHz, Dual Channel DDR3 memory controller
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $332 U.S.
Announcement Date01/10/2010
Product Link (external)Intel Core i7 620M

CPU Benchmarks

3DMark 06 - CPU:
0% 100%
min: 2739     avg: 3019.5 (36%)     max: 3200 Points
Super Pi 1M:
0% 100%
min: 13     avg: 13.1 (3%)     max: 13.51 Seconds
Super Pi 2M:
0% 100%
min: 32     avg: 32.7 (1%)     max: 34 Seconds
Super Pi 32M:
0% 100%
min: 768     avg: 785.6 (3%)     max: 804 Seconds
SiSoft Sandra Dhrystone (MIPS):
0% 100%
min: 35248     avg: 39037.6 (19%)     max: 42170 MIPS
SiSoft Sandra Whetstone (MFLOPS):
0% 100%
min: 26510     avg: 28839.2 (22%)     max: 32430 MFLOPS
PCMark 05: Standard 1024x768
0% 100%
min: 6832     avg: 6832 (43%)     max: 6832 Points
PCMark Vantage: Result 1024x768
0% 100%
min: 5575     avg: 7464.9 (36%)     max: 10611 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 3346     avg: 3504.1 (57%)     max: 4213 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 6981     avg: 7559.7 (28%)     max: 8323 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 6810     avg: 8714.5 (27%)     max: 9399 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 3440     avg: 4112 (64%)     max: 4422 Points
3DMark Vantage: P CPU no PhysX 1280x1024
0% 100%
min: 7128     avg: 8391.5 (20%)     max: 8840 Points
wPrime 2.0x: 32m
0% 100%
min: 16     avg: 22.4 (5%)     max: 39.248 seconds
wPrime 2.0x: 1024m
0% 100%
min: 524.115     avg: 813.7 (10%)     max: 1525.52 seconds
Windows 7 Experience Index: Processor
0% 100%
min: 6.5     avg: 6.8 (88%)     max: 6.9 points
Cinebench R11.5: CPU 64Bit
0% 100%
min: 2.2     avg: 2.4 (23%)     max: 2.53 Points
- Range of benchmarks for this CPU
- Average benchmark score

Cinebench R10 in comparison
Intel Atom Z670 (min)
691
...
Intel Core 2 Extreme X9100
7299
Intel Core i5 2415M
7444
Intel Core i5 560M
7487.4
Intel Core i7 620M
7559.7
Intel Core i5 580M
7699.7
Intel Core i5 2410M
7879.9
Intel Core i7 640M
8018.6
...
Intel Core i7 (Desktop) 3960X (max)
27189.5
