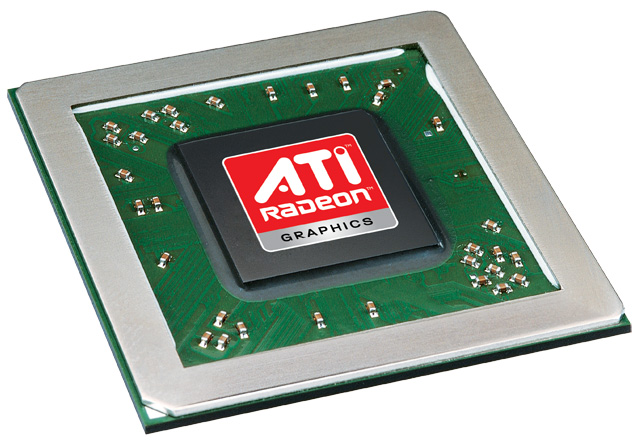

ATI Mobility Radeon X2300

ATI Mobility Radeon X2300

ATI Mobility Radeon X2300 es la sucesora del ATI Mobility Radeon X1350 para laptops.  Si la arquitectura está orientada en la versión desktop, podría soportar DirectX 10.  De acuerdo a comparación de rendimiento de un sitio japonés, la tarjeta de video es rápida, similar a ATI Mobility Radeon X600 y NVidia GeForce Go 7300.

De acuerdo a rumores recientes el X2300 es solo un X1300/X1350 con otro nombre (para evitar un nombre similar al gráfico X1250 chipset claramente más lento, publicado recientemente). Por lo tanto la tarjeta de video únicamente puede ofrecer soporte DirectX9.

Mobility Radeon X2000 Serie
Mobility Radeon X2500 12/5 cores @ 0.46 GHz64 / 128 Bit @ 400 MHz
Mobility Radeon X2300 4/2 cores @ 0.48 GHz128 Bit @ 400 MHz
Nombre CódigoM64
Pipelines4 / 2 Pixel- / Vertexshader
Velocidad del núcleo480 MHz
Velocidad de Memoria400 MHz
Ancho de Bus de Memoria128 Bit
Tipo de MemoriaDDR1/DDR2/GDDR3
Max. Cantidad de Memoria256 MB
Memoria Compartidano
APIDirectX 9c, Shader 3.0
Conteo de Transistores105 Millón
tecnología80 / 90 nm
CaracterísticasShader frecuencia 800 MHz, PureVideo tecnología (H.264, VC-1, MPEG2, WMV9 aceleración el descifrar), capaz de HDCP, gerencia de la energía PowerMizer 7.0 (conmutación dinámica entre el rendimiento y ahorro de energía), HDR (High Dynamic-Range Lighting), diseñado para Windows Vista, 16x pantalla completa AA, 16x AF independiente de ángulos, 128-Bit HDR illuminación con AA, PCI-E 16x, OpenGL 2.1, Gigathread tecnología
Fecha de Anuncio01.03.2007
Link a la Página del Fabricantehttp://www.nvidia.es/page/geforce_8M.html

Benchmarks

3DMark 2001SE - 3DMark 2001 - Standard
min: 7564     de promedio: 8355     mediana: 8354.5 (9%)     max: 9145 Points
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x800 +
Cinebench R10 Cinebench R10 Shading (32bit) +
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

F.E.A.R.

F.E.A.R.

2005
bajo 640x480
120  fps    + Comparar
medio 800x600
35  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Doom 3

Doom 3

2004
bajo 640x480
82  fps    + Comparar
medio 640x480
57.2  fps    + Comparar
alto 800x600
50.2  fps    + Comparar
ultra 1024x768
29  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle alto.

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
