La NVIDIA GeForce RTX 2080 para portátiles es la placa gráfica móvil más veloz para portátiles de inicios del 2019. Se basa en la RTX 2080 de desktop, pero con velocidades de núcleo reducidas (-7% Boost, -9% Base). La memoria parece tener la misma velocidad y tamaño. Por tanto, la RTX2080 ofrece 2.944 shaders y memoria GDDR6 de 8 GB conectada por una interfaz de 256 bits (14 GHz, 448 GB/s).

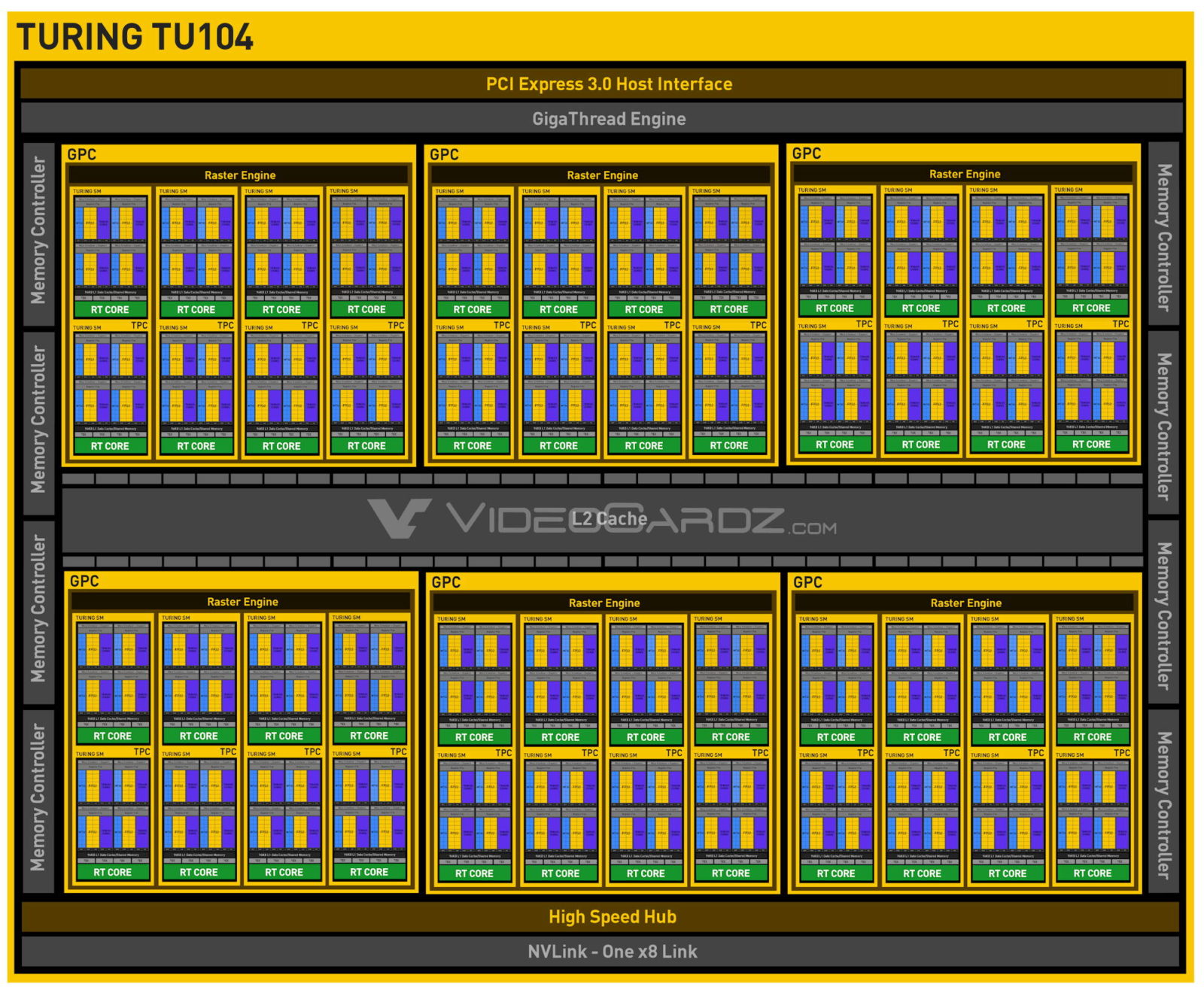

NVIDIA fabrica el chip TU104 en un proceso FinFET de 12 nm e incluye características como Deep Learning Super Sampling (DLSS) y Real-Time Ray Tracing (RTRT), que deben combinarse para crear efectos de iluminación más realistas que las GPU antiguas basadas en Pascal, de la arquitectura Pascal de la compañía (si los juegos lo soportan). La RTX 2080 también está preparada para DisplayPort 1.4, mientras que también es compatible con HDMI 2.0b, HDR, Proyección múltiple simultánea (SMP) y decodificación/decodificación de vídeo H.265 (PlayReady 3.0).
La RTX 2080 móvil se debe desempeñar un poco más lenta que la RTX 2080 de desktop y, por tanto, definitivamente más veloz que la antigua GTX 1080 para portátiles. Por lo tanto debe ser capaz de ejecutar todos los juegos exigentes en 4k con detalles máximos. Sin embargo, los recursos de Raytracing pueden reducir mucho las tasas de cuadros.
El consumo de energía de la tarjeta fue reducido de 215 Watts para la RTX 2080 de desktop a 150 Watts. Sin embargo, solo es adecuada para portátiles de juegos gruesos y pesados. Para diseños más delgados y livianos, está la variante Max-Q de la RTX 2080, que puede ser configurada a 80 o 90 Watts (con velocidades mucho más bajas).
GeForce RTX 2000 Serie |
Nombre Código | N18E-G3 TU104 |
Arquitectura | Turing |
Pipelines | 2944 - unificado |
Velocidad del núcleo | 1380 - 1590 (Boost) MHz |
Velocidad de Memoria | 14000 MHz |
Ancho de Bus de Memoria | 256 Bit |
Tipo de Memoria | GDDR6 |
Max. Cantidad de Memoria | 8 GB |
Memoria Compartida | no |
API | DirectX 12_1, OpenGL 4.6 |
Consumo de corriente | 150 Watt |
Conteo de Transistores | 13.6 Billion |
tecnología | 12 nm |
Características | NVLink, DLSS, Raytraycing, VR Ready, G-SYNC, Vulkan, Multi Monitor, 650 Watt system power recommended |
Tamaño de la portátil | grande |
Fecha de Anuncio | 06.01.2019 |
Performance Rating - 3DMark 11 + Fire Strike + Time Spy
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Time Spy Score
min: 8501 de promedio: 9604 mediana: 9617 (26%) max: 10704 Points
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Time Spy Graphics
min: 9411 de promedio: 10046 mediana: 9854 (20%) max: 10992 Points
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 428856 de promedio: 464228 mediana: 458810 (46%) max: 510435 Points
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2070 Super Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Extreme Graphics
min: 164011 de promedio: 262640 mediana: 262640 (31%) max: 361269 Points
...
Intel Arc Graphics 140T
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5080
3DMark - 3DMark Cloud Gate Score
min: 27465 de promedio: 46374 mediana: 44306.5 (42%) max: 60073 Points
...
Intel Arc Graphics 140T
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Cloud Gate Graphics
min: 72806 de promedio: 136271 mediana: 139346 (34%) max: 168006 Points
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Fire Strike Standard Score
min: 18856 de promedio: 20754 mediana: 20746 (31%) max: 23195 Points
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
3DMark - 3DMark Fire Strike Standard Graphics
min: 22504 de promedio: 25211 mediana: 25436 (24%) max: 27319 Points
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Graphics
min: 164755 de promedio: 339226 mediana: 407069 (45%) max: 445854 Points
...
Intel Arc Graphics 140T
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark 11 - 3DM11 Performance Score
min: 20224 de promedio: 26032 mediana: 25504 (31%) max: 29759 Points
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark 11 - 3DM11 Performance GPU
min: 31826 de promedio: 35286 mediana: 34897 (27%) max: 38809 Points
...
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
3DMark Vantage
3DM Vant. Perf. total +3DMark Vantage - 3DM Vant. Perf. total
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2070 Super Mobile
...
max:
3DM Vant. Perf. GPU no PhysX +3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
3DMark 06 3DMark 06 - Standard 1280x1024 +3DMark 06
min: 35591 de promedio: 41853 mediana: 41995 (55%) max: 47829 Points
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2070 Super Max-Q
...
max:
SPECviewperf 12
specvp12 sw-03 +SPECviewperf 12 - specvp12 sw-03
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA Quadro P600
AMD Radeon 610M
NVIDIA Quadro P2000 Max-Q
...
max:
specvp12 snx-02 +SPECviewperf 12 - specvp12 snx-02
...
AMD Radeon RX Vega 10
NVIDIA GeForce RTX 2080 Mobile
AMD Radeon Pro 455
AMD Radeon Pro 555
AMD Radeon Pro WX 3100
...
max:
specvp12 showcase-01 +SPECviewperf 12 - specvp12 showcase-01
...
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp12 mediacal-01 +SPECviewperf 12 - specvp12 mediacal-01
...
AMD Radeon 680M
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp12 maya-04 +SPECviewperf 12 - specvp12 maya-04
...
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp12 energy-01 +SPECviewperf 12 - specvp12 energy-01
...
NVIDIA Quadro P4000 Max-Q
NVIDIA GeForce RTX 2080 Mobile
...
AMD Radeon 660M
max:
specvp12 creo-01 +SPECviewperf 12 - specvp12 creo-01
...
NVIDIA Quadro P2000 Max-Q
AMD Radeon Pro WX Vega M GL
NVIDIA GeForce RTX 2080 Mobile
NVIDIA Quadro P620
...
max:
specvp12 catia-04 +SPECviewperf 12 - specvp12 catia-04
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA Quadro P4000 Max-Q
...
max:
specvp12 3dsmax-05 +SPECviewperf 12 - specvp12 3dsmax-05
AMD FirePro W4190M
...
NVIDIA GeForce RTX 2080 Mobile
max:
SPECviewperf 13 specvp13 sw-04 +SPECviewperf 13 - specvp13 sw-04
min: 93.9 de promedio: 94.1 mediana: 94.1 (25%) max: 94.2 fps
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2070 Super Mobile
AMD Radeon 680M
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 snx-03 +SPECviewperf 13 - specvp13 snx-03
min: 21.16 de promedio: 21.4 mediana: 21.4 (2%) max: 21.66 fps
...
AMD Radeon RX Vega 10
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
AMD Radeon Pro Vega 16
...
max:
specvp13 showcase-02 +SPECviewperf 13 - specvp13 showcase-02
min: 116.4 de promedio: 119 mediana: 119 (26%) max: 121.6 fps
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 medical-02 +SPECviewperf 13 - specvp13 medical-02
min: 61.8 de promedio: 63.5 mediana: 63.5 (13%) max: 65.2 fps
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 maya-05 +SPECviewperf 13 - specvp13 maya-05
min: 294.9 de promedio: 302 mediana: 302 (34%) max: 309 fps
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 energy-02 +SPECviewperf 13 - specvp13 energy-02
min: 21.71 de promedio: 22.1 mediana: 22.1 (7%) max: 22.55 fps
...
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
Intel UHD Graphics 24EUs (Alder Lake-N)
specvp13 creo-02 +SPECviewperf 13 - specvp13 creo-02
min: 204.3 de promedio: 207.8 mediana: 207.8 (30%) max: 211.3 fps
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 catia-05 +SPECviewperf 13 - specvp13 catia-05
min: 146.1 de promedio: 148.5 mediana: 148.5 (17%) max: 150.9 fps
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
specvp13 3dsmax-06 +SPECviewperf 13 - specvp13 3dsmax-06
min: 198.9 de promedio: 201 mediana: 201 (35%) max: 203 fps
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
Cinebench R10 Cinebench R10 Shading (32bit) +Cinebench R10 - Cinebench R10 Shading (32bit)
min: 6820 de promedio: 11436 mediana: 11602.5 (8%) max: 15720 puntos
...
AMD Radeon RX 580 (Laptop)
Intel Iris Pro Graphics 580
NVIDIA GeForce RTX 2080 Mobile
AMD Radeon RX Vega 7
NVIDIA Quadro P4000 Max-Q
AMD Radeon Pro 455
...
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 82 de promedio: 88.2 mediana: 85.8 (28%) max: 99.1 fps
...
AMD Radeon RX 580 (Laptop)
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA Quadro P4000 Max-Q
...
max:
Nvidia RTX A2000
Cinebench R15
Cinebench R15 OpenGL 64 Bit +Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 98.1 de promedio: 138.5 mediana: 144.9 (8%) max: 174.7 fps
...
AMD Radeon Pro WX Vega M GL
Apple M2 10-Core GPU
AMD Radeon 680M
NVIDIA Quadro P2000 Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA Quadro P600
NVIDIA GeForce RTX 2070 Super Mobile
...
max:
Nvidia RTX A2000
Cinebench R15 OpenGL Ref. Match 64 Bit +Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
...
NVIDIA Quadro P4000 Max-Q
NVIDIA GeForce RTX 2080 Mobile
...
GFXBench - GFXBench Car Chase Offscreen
...
Apple M1 Pro 14-Core GPU
Apple M1 Pro 16-Core GPU
NVIDIA GeForce RTX 2070 Super Max-Q
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Super Mobile
Apple M1 Max 24-Core GPU
Apple M1 Max 32-Core GPU
...
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
4x NVIDIA RTX A6000
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
...
max:
4x NVIDIA RTX A6000
ComputeMark v2.1 - ComputeMark v2.1 Result
...
NVIDIA GeForce RTX 2080 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
...
max:
NVIDIA GeForce RTX 5090
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
...
NVIDIA GeForce RTX 2070 Super Mobile
NVIDIA GeForce RTX 2080 Mobile
max:
NVIDIA GeForce RTX 5090
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
Qualcomm Adreno 690
...
NVIDIA GeForce RTX 2080 Mobile
...
max:
4x NVIDIA RTX A6000
Power Consumption - Witcher 3 Power Consumption *
min: 207 de promedio: 257.1 mediana: 254.1 (56%) max: 339.5 Watt
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
Power Consumption - Power Efficiency - Witcher 3 ultra
min: 0.2978 de promedio: 0.4 mediana: 0.4 (33%) max: 0.4449 fps per Watt
...
NVIDIA GeForce RTX 2080 Mobile
NVIDIA GeForce RTX 2080 Super Mobile
AMD Radeon RX 5300M
...
Apple M2 10-Core GPU
Power Consumption - Power Efficiency - Witcher 3 ultra external Monitor
