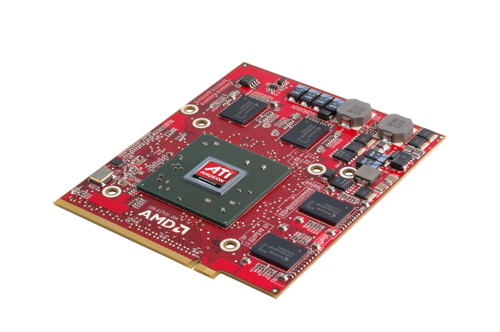

ATI Mobility Radeon HD 3850

ATI Mobility Radeon HD 3850

Una HD 3850 a menor velocidad de reloj fabricada en 55 nm con soporte DirectX 10.1.

El rendimiento debería situarse en algún lugar entre la 8800 GTS y GTX y por tanto debería funcionar muy bien en juegos como Call of Duty 4.

El motor de video Avivo HD ayuda a la CPU a decodificar videos en HD (MPEG-2, VC-1, H.264).

Mobility Radeon HD 3800 Serie
Mobility Radeon HD 3870 X2 640 @ 0.66 GHz256 Bit @ 850 MHz
Mobility Radeon HD 3850 320 @ 0.58 GHz256 Bit @ 750 MHz
Nombre CódigoM88
ArquitecturaRV6xx
Pipelines320 - unificado
Velocidad del núcleo580 MHz
Velocidad de Memoria750 MHz
Ancho de Bus de Memoria256 Bit
Tipo de MemoriaGDDR3
Memoria Compartidano
APIDirectX 10.1, Shader 4.1
Consumo de corriente55 Watt
Conteo de Transistores666 Millón
tecnología55 nm
CaracterísticasHDMI, Dual-Link DVI (wenn vom Hersteller verbaut), HDCP, PCI-Express 2.0
Tamaño de la portátilgrande
Fecha de Anuncio01.12.2007
Información55nm Fertigung, Display Port nur mit externem Transmitter
Link a la Página del Fabricantehttp://ati.amd.com/products/mobilityrade...

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DM Vant. Perf. GPU no PhysX +
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 6075     de promedio: 6095     mediana: 6095 (9%)     max: 6115 Points
Cinebench R10 Cinebench R10 Shading (32bit) +
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
bajo 1024x768
32.1  fps    + Comparar
medio 1024x768
27  fps    + Comparar
alto 1024x768
21.1  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Additional Benchmarks
Medium 1920x1200
19.5
Low 1920x1200
29.6
High 1920x1200
11.2
Med 0xAF 0xAA 1400x1050
24.1
High 0xAF 0xAA 1400x1050
15.6
Low 0xAF 0xAA 1600x1200
31.6
Med 0xAF 0xAA 1600x1200
22.1
High 0xAF 0xAA 1600x1200
13.2
Very High 1024x768
14.3
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
bajo 1024x768
37.1  fps    + Comparar
medio 1024x768
23.8  fps    + Comparar
alto 1024x768
19.7  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Additional Benchmarks
High 1920x1200
9.7
Medium 1920x1200
17.6
Low 1920x1200
33.5
Med 0xAF 0xAA 1400x1050
22.1
High 0xAF 0xAA 1400x1050
13.3
Low 0xAF 0xAA 1600x1200
36.2
Med 0xAF 0xAA 1600x1200
19.9
High 0xAF 0xAA 1600x1200
11.3
Very High 1024x768
12.7
F.E.A.R.

F.E.A.R.

2005
bajo 640x480
144  fps    + Comparar
medio 800x600
22  fps    + Comparar
alto 1024x768
21  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
