NVIDIA Quadro FX 2700M

NVIDIA Quadro FX 2700M

Estación de trabajo profesional con controladores certificados. Basado en la GeForce 9700M GTS.

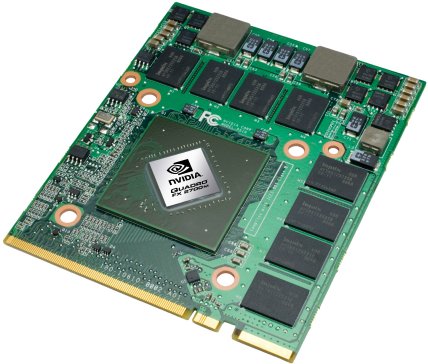

La Nvidia Quadro FX 2700M es una tarjeta gráfica profesional para portátiles. Presenta controladores certificados que están optimizados para CAD (p.e. Autocad, Invertor, Solidstation, Solid Edge, … ), DCC (p.e. Maya, 3DS Max, Lightwave 3D,…) y aplicaciones de visualización. La FX 2700M está basada en el núcleo G94 y por tanto es similar a la GeForce 9700M GTS.

Quadro FX Serie

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
Nombre CódigoNB9E-GLM2
ArquitecturaG9x
Pipelines48 - unificado
Velocidad del núcleo530 MHz
Velocidad de Shader1325 MHz
Velocidad de Memoria800 MHz
Ancho de Bus de Memoria256 Bit
Tipo de MemoriaGDDR3
Max. Cantidad de Memoria1024 MB
Memoria Compartidano
APIDirectX 10, Shader 4.0
Consumo de corriente65 Watt
Conteo de Transistores504 Millón
tecnología65 nm
CaracterísticasOpenGL 2.1, PowerMizer 8.0, PureVideo HD
Tamaño de la portátilgrande
Fecha de Anuncio14.08.2008
Link a la Página del Fabricantewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
2799 Points (1%)
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
2392 Points (1%)
62 -97%
...
2207 -8%
2212 -8%
ATI Mobility Radeon HD 560v
2216 -7%
2220 -7%
2222 -7%
AMD Radeon R4 (Stoney Ridge)
2243 -6%
2259 -6%
2322 -3%
ATI Mobility Radeon HD 5165
2362 -1%
NVIDIA Quadro FX 2700M
2392
2441 2%
2453 3%
2478 4%
2527 6%
2552 7%
AMD Radeon HD 6755G2
2593 8%
2624 10%
2674 12%
AMD Radeon 610M
2705 13%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 5437%
max:
169569 6989%
0%
100%
3DMark 03 - 3DMark 03 - Standard
min: 23330     de promedio: 23842     mediana: 23841.5 (12%)     max: 24353 Points
3DMark 05 - 3DMark 05 - Standard
min: 13450     de promedio: 14224     mediana: 14224 (16%)     max: 14998 Points
133.4 -99%
...
ATI Mobility Radeon HD 5730
13817 -3%
13920 -2%
13950 -2%
13952 -2%
14036 -1%
14084 -1%
14111 -1%
14205 0%
14211 0%
NVIDIA Quadro FX 2700M
14224
14352 1%
14377 1%
14502 2%
14510 2%
14564 2%
14733 4%
14773 4%
14777 4%
14855 4%
...
NVIDIA GeForce RTX 4090 Laptop GPU
61850 335%
max:
NVIDIA GeForce RTX 4070
86975 511%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x1024 +
3DMark 06
7660 Points (11%)
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
4394 puntos (3%)
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
