NVIDIA Quadro FX 770M

NVIDIA Quadro FX 770M

Tarjeta gráfica profesionales con controladores certificados para aplicaciones 3D profesionales y CAD con un rendimiento OpenGL significativamente mejorado. Este chip se basa en las tarjetas de consumo 9600M GT.

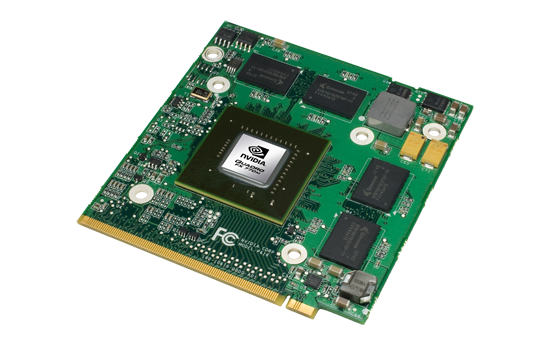

La Quadro FX 770M es un adaptador gráfico profesional de gama media para portátiles / estaciones de trabajo móviles. La GPU está optimizada para aplicaciones 2D y 3D como CAD, DCC, y software de visualización. Las soluciones FX770M contienen controladores gráficos certificados para las aplicaciones más populares.

El chip GPU de la Quadro FX770M está basada en la tarjeta de consumo para portátiles GeForce 9600M GT. Por tanto, la Quadro tiene las mismas características (como el procesador de video PureVideo HD) que la 9600M GT.

El rendimiento de la tarjeta debería ser comparable a la 9600M GT. Aunque algunos juegos podrían funcionar más lentos, ya que los controladores están optimizados para aplicaciones y OpenGL. El rendimiento OpenGL especialmente es mucho mejor que una 9600M GT. El test Cinebench R10 OpenGL muestra casi el doble de rendimiento con una FX 770M comparada con una GeForce 9600M GT.

Como todas las tarjetas de la gama GeForce 9000M, la 770 soporta CUDA.

FabricanteNVIDIA
Quadro FX Serie
Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
Nombre CódigoNB9P-GLM
ArquitecturaG9x
Pipelines32 - unificado
Velocidad del núcleo500 MHz
Velocidad de Shader1250 MHz
Velocidad de Memoria800 MHz
Ancho de Bus de Memoria128 Bit
Tipo de MemoriaGDDR2 / GDDR3
Max. Cantidad de Memoria512 MB
Memoria Compartidano
DirectXDirectX 10, Shader 4.0
Conteo de Transistores314 Millón
tecnología65 nm
CaracterísticasOpenGL 2.1, PowerMizer 8.0, 12-Bit Subpixel-Präzision, 128 Bit Grafikpipeline
Tamaño de la portátilde tamaño mediano
Fecha de Anuncio14.08.2008
Link a la Página del Fabricantehttp://www.nvidia.com/object/product_qua...

Benchmarks

3DMark 2001SE - 3DMark 2001 - Standard
34871 Points (36%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 03 - 3DMark 03 - Standard
17192 Points (9%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 05 - 3DMark 05 - Standard
11161 Points (16%)
+ 1 mas detalles   - Ocultar tabla de comparación
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 5230     de promedio: 5297     mediana: 5296.5 (9%)     max: 5363 Points
+ 2 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
33.1 puntos (69%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
40.1 puntos (84%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
31.7 puntos (67%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
85.1 puntos (46%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
36.1 puntos (71%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
55 puntos (82%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
19 puntos (49%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
17.5 puntos (36%)
+ 1 mas detalles   + Mostrar tabla de comparación
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
6180 puntos (26%)
+ 1 mas detalles   + Mostrar tabla de comparación
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
bajo 1024x768
94.2  fps    + Comparar
medio 1024x768
39  fps    + Comparar
alto 1024x768
19.5  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
bajo 1024x768
84.7  fps    + Comparar
medio 1024x768
35.4  fps    + Comparar
alto 1024x768
18.1  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Doom 3

Doom 3

2004
bajo 640x480
165.2  fps    + Comparar
medio 640x480
171.3  fps    + Comparar
alto 800x600
158.7  fps    + Comparar
ultra 1024x768
126.1  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle ultra.

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
