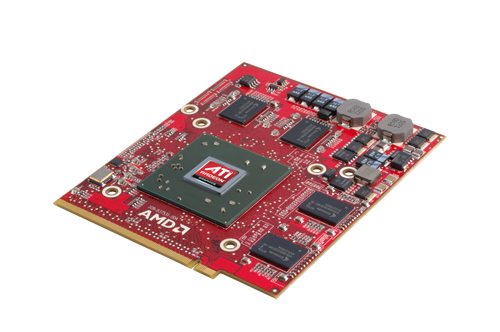

ATI Mobility Radeon HD 3870

ATI Mobility Radeon HD 3870

Mobilty Radeon HD 3850 de frecuencia más alta, también fabricada en 55 nm y con soporte para DirectX 10.1.El chip es comparable con el HD 3850 / 70 para desktop, pero con frecuencia más baja y optimizada para menor consumo de energía.

El rendimiento debe estar entre el 8800M GTX y GTS y, por lo tanto, juegos modernos (2008) como Call of Duty 4, Crysis, o World in Conflict deben ejecutarse con fluidez con detalles medios a altos.

El motor de video Avivo HD ayuda al cpu con la decodificación de videos HD (MPEG-2, H.264, VC-1).

Mobility Radeon HD 3000 Serie
Mobility Radeon HD 3870 320 @ 0.66 GHz256 Bit @ 850 MHz
Mobility Radeon HD 3470 Hybrid X2 80
Mobility Radeon HD 3470 40 @ 0.68 GHz64 Bit @ 800 MHz
Mobility Radeon HD 3450 40 @ 0.5 GHz64 Bit @ 700 MHz
Nombre CódigoM88-XT
ArquitecturaRV6xx
Pipelines320 - unificado
Velocidad del núcleo660 MHz
Velocidad de Memoria850 MHz
Ancho de Bus de Memoria256 Bit
Tipo de MemoriaGDDR3
Memoria Compartidano
APIDirectX 10.1, Shader 4.1
Consumo de corriente55 Watt
Conteo de Transistores666 Millón
tecnología55 nm
Características
Avivo HD, OpenGL 2.0, PowerPlay 7.0, PCI Express 2.0 x16, 512-bit internal ring bus
Tamaño de la portátilgrande
Fecha de Anuncio01.03.2008
Información55nm, Puerto de pantalla con transmisor externo
Link a la Página del Fabricantehttp://ati.amd.com/products/mobilityrade...

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DM Vant. Perf. GPU no PhysX +
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x1024 +
Cinebench R10 Cinebench R10 Shading (32bit) +
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
Call of Juarez Benchmark

Call of Juarez Benchmark

2006
alto 1024x768
33  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
The Elder Scrolls IV - Oblivion

The Elder Scrolls IV - Oblivion

2006
Half Life 2 - Lost Coast Benchmark

Half Life 2 - Lost Coast Benchmark

2005
F.E.A.R.

F.E.A.R.

2005
bajo 640x480
189  fps    + Comparar
alto 1024x768
91  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle alto.
Doom 3

Doom 3

2004
bajo 640x480
125  fps    + Comparar
ultra 1024x768
117  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle ultra.

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
