Intel HD Graphics 530

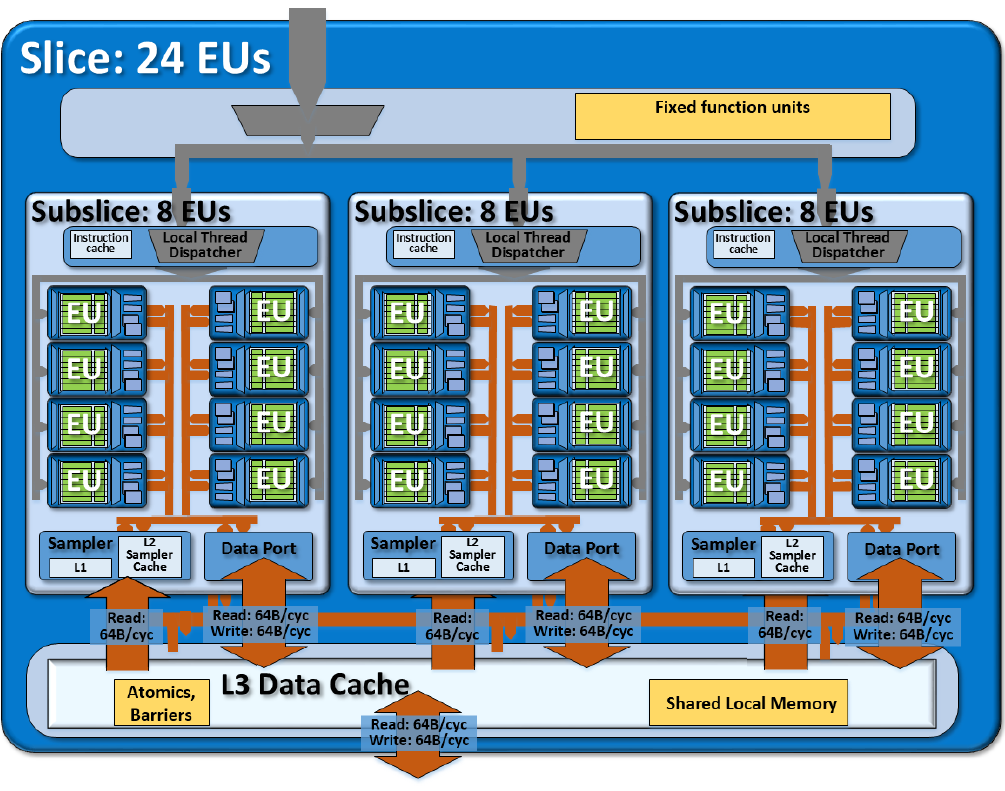

La Intel HD Graphics 530 (GT2) es una unidad gráfica integrada de la generación Skylake, que puede ser encontrada en varios procesadores de desktop y de portátiles. La versión "GT2" de la GPU Skylake ofrece 24 Unidades de Ejecución (EUs) con velocidad de hasta 1150 MHz (dependiendo del modelo de CPU). Debido a la falta de memoria gráfica dedicada o cache eDRAM, la HD 530 debe acceder la memoria principal (2x 64bit DDR3L-1600 / DDR4-2133).
El rendimiento exacto de la HD Graphics 530 depende de varios factores, como el TDP, cache L3, memoria (DDR3/DDR4) y velocidad máxima del modelo específico. Las versiones de desktop más rápidas (Core i7-6700K) pueden competir con una GeForce 920M dedicada y lidiarán bien con juegos modernos (de 2015) con configuraciones bajas o medianas.
El motor de vídeo revisado ahora decodifica H.265/HEVC por completo en el hardware y consecuentemente, de forma mucho más eficiente que antes. Pantallas pueden ser conectadas mediante DP 1.2 / eDP 1.3 (máx. 3840 x 2160 @ 60 Hz) aunque el HDMI esté limitado a la versión anterior 1.4a (máx. 3840 x 2160 @ 30 Hz). Sin embargo, HDMI 2.0 puede ser añadido utilizando un convertidor DisplayPort. Hasta tres pantallas pueden ser controladas de forma simultánea.
La HD Graphics 530 puede ser encontrada en varios procesadores de portátiles y desktop de diferentes clases de TDP (35 - 91 W).
| Fabricante | Intel |
| Gen. 9 Serie | |
| Nombre Código | Skylake GT2 |
| Arquitectura | Gen. 9 Skylake |
| Pipelines | 24 - unificado |
| Velocidad del núcleo | 350 - 1150 (Boost) MHz |
| Ancho de Bus de Memoria | 64/128 Bit |
| Memoria Compartida | si |
| DirectX | DirectX 12_1 |
| tecnología | 14 nm |
| Características | QuickSync |
| Fecha de Anuncio | 05.08.2015 |
| CPU | GPU Base Speed | GPU Boost / Turbo |
|---|
| Intel Core i7-6700K | 4 x 4000 MHz, 91 W | 350 MHz | 1150 MHz |
| Intel Core i7-6700 | 4 x 3400 MHz, 65 W | 350 MHz | 1150 MHz |
| Intel Core i7-6920HQ | 4 x 2900 MHz, 45 W | 350 MHz | 1050 MHz |
| » show 14 more |
| Intel Core i5-6600K | 4 x 3500 MHz, 91 W | 350 MHz | 1150 MHz |
| Intel Core i7-6820HK | 4 x 2700 MHz, 45 W | 350 MHz | 1050 MHz |
| Intel Core i7-6820HQ | 4 x 2700 MHz, 45 W | 350 MHz | 1050 MHz |
| Intel Core i7-6700T | 4 x 2800 MHz, 35 W | 350 MHz | 1100 MHz |
| Intel Core i7-6700HQ | 4 x 2600 MHz, 45 W | 350 MHz | 1050 MHz |
| Intel Core i5-6500 | 4 x 3200 MHz, 65 W | 350 MHz | 1050 MHz |
| Intel Core i5-6600T | 4 x 2700 MHz, 35 W | 350 MHz | 1100 MHz |
| Intel Core i5-6440HQ | 4 x 2600 MHz, 45 W | 350 MHz | 950 MHz |
| Intel Core i5-6300HQ | 4 x 2300 MHz, 45 W | 350 MHz | 950 MHz |
| Intel Core i5-6400 | 4 x 2700 MHz, 65 W | 350 MHz | 950 MHz |
| Intel Core i5-6500T | 4 x 2500 MHz, 35 W | 350 MHz | 1100 MHz |
| Intel Core i5-6400T | 4 x 2200 MHz, 35 W | 350 MHz | 950 MHz |
| Intel Core i3-6100H | 2 x 2700 MHz, 35 W | 350 MHz | 900 MHz |
| Intel Pentium G4500T | 2 x 3000 MHz, 35 W | 350 MHz | 950 MHz |
| min. - max. | | 350 - 350 MHz | 900 - 1150 MHz |
Benchmarks
Performance Rating - 3DMark 11 + Fire Strike + Time Spy
6.3 pt (6%)
...
AMD FirePro W4190M -4%
AMD Radeon R5 (Bristol Ridge) -3%
AMD Radeon R7 M445 0%
...
3DMark - Time Spy Score 2560x1440
271 Points (2%)
...
AMD Radeon R4 (Stoney Ridge) -16%
Intel UHD Graphics 615 5%
Intel UHD Graphics 617 22%
...
3DMark - Time Spy Graphics 2560x1440
235 Points (2%)
...
AMD Radeon R4 (Stoney Ridge) -13%
Intel UHD Graphics 615 7%
Intel UHD Graphics 617 25%
...
NVIDIA Titan RTX 6124%
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
min: 72022 de promedio: 80242 mediana: 80241.5 (15%) max: 88461 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 72022 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 88461 |
...
ATI Radeon HD 4850 -9%
NVIDIA Quadro T2000 Max-Q -6%
Intel UHD Graphics 617 -4%
...
3DMark - Ice Storm Extreme Graphics 1920x1080
min: 33064 de promedio: 38022 mediana: 33851 (5%) max: 47150 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 33064 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 33851 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 47150 |
NVIDIA Quadro P2000 Max-Q -4%
AMD Radeon R5 (Bristol Ridge) -3%
Intel UHD Graphics 630 -1%
NVIDIA GeForce GTX 1050 Ti Max-Q 4%
AMD Radeon R6 M340DX 6%
...
3DMark - Cloud Gate Standard Score 1280x720
min: 5731 de promedio: 7593 mediana: 7652 (11%) max: 10384 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 5731 |
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 5763 |
Schenker F516 Flex  | 6400T | 16384 MB | 950 / 933 MHz | | 5927 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 6141 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 7420 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 7652 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 8117 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 8353 |
| | 6600K | | | | 8440 |
| 6700K | | | | 9600 |
| Intel Core i7-6700K (Desktop) | 6700K | 16384 MB | 350 - 1150 / 1333 MHz | Dual-Channel DDR4-2666 | 10384 |
...
NVIDIA GeForce 930MX -5%
AMD FirePro W4190M 0%
Intel Iris Plus Graphics 640 6%
...
AMD Radeon RX 5600 XT (Desktop) 604%
3DMark - Cloud Gate Standard Graphics 1280x720
min: 6155 de promedio: 7859 mediana: 7500 (4%) max: 10598 Points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 6155 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 6185 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 6872 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 6973 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 7500 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 8387 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 8809 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 9251 |
| Intel Core i7-6700K (Desktop) | 6700K | 16384 MB | 350 - 1150 / 1333 MHz | Dual-Channel DDR4-2666 | 10598 |
...
AMD FirePro W2100 -1%
AMD Radeon R5 (Bristol Ridge) 5%
...
3DMark - Fire Strike Score 1920x1080
min: 637 de promedio: 876 mediana: 878 (3%) max: 1112 Points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 637 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 697 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 781 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 811 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 878 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 979 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 988 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 1000 |
| Intel Core i7-6700K (Desktop) | 6700K | 16384 MB | 350 - 1150 / 1333 MHz | Dual-Channel DDR4-2666 | 1112 |
...
Intel UHD Graphics 617 2%
Intel HD Graphics 630 2%
AMD Radeon R5 (Carrizo) 3%
...
3DMark - Fire Strike Graphics 1920x1080
min: 672 de promedio: 941 mediana: 935 (2%) max: 1202 Points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 672 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 750 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 838 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 877 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 935 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 1053 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 1064 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 1080 |
| Intel Core i7-6700K (Desktop) | 6700K | 16384 MB | 350 - 1150 / 1333 MHz | Dual-Channel DDR4-2666 | 1202 |
...
AMD Radeon R5 M315 -2%
Intel HD Graphics 630 3%
Intel UHD Graphics 617 6%
AMD Radeon R5 (Carrizo) 6%
...
3DMark - Ice Storm Standard Graphics 1280x720
min: 49675 de promedio: 69987 mediana: 61056.5 (8%) max: 93641 Points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 49675 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 54481 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 59967 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 60540 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 61573 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 87872 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 92144 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 93641 |
NVIDIA GeForce RTX 2070 Super Max-Q -4%
AMD Radeon RX 640 -2%
NVIDIA GeForce 930MX -1%
NVIDIA GeForce MX330 -1%
NVIDIA Quadro P520 2%
ATI Radeon HD 4850 4%
NVIDIA GeForce GTX 1050 Ti Max-Q 5%
...
AMD Radeon RX 5600 XT (Desktop) 510%
3DMark 11 - Performance 1280x720
min: 1327 de promedio: 1560 mediana: 1579 (4%) max: 1761 points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 1327 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 1367 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 1421 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 1473 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 1579 |
| 6700HQ | 16384 MB | | 10.18.15.4271 | 1637 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 1727 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 1746 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 1761 |
...
AMD Radeon HD 6755G2 -3%
...
3DMark 11 - Performance GPU 1280x720
min: 1162 de promedio: 1355 mediana: 1362 (3%) max: 1549 points
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 1162 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 1175 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 1231 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 1310 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 1362 |
| 6700HQ | 16384 MB | | 10.18.15.4271 | 1420 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 1487 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 1499 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 1549 |
...
ATI Radeon HD 5670 8%
...
3DMark Vantage
P Result 1280x1024 +3DMark Vantage - P Result 1280x1024
min: 5376 de promedio: 6414 mediana: 6831 (8%) max: 7036 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 5376 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 6831 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 7036 |
...
ATI Radeon HD 5670 3%
...
P GPU no PhysX 1280x1024 +3DMark Vantage - P GPU no PhysX 1280x1024
min: 4345 de promedio: 5173 mediana: 5520 (6%) max: 5653 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 4345 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 5520 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 5653 |
...
ATI Radeon HD 5670 3%
...
3DMark 03 - Standard 1024x768
16802 Points (9%)
VIA S3 Graphics ProSavage8 -100%
...
...
3DMark 05 - Standard 1024x768
13920 Points (26%)
...
ATI Radeon HD 5570 -5%
ATI Mobility Radeon HD 5165 -5%
ATI Mobility Radeon HD 5730 -1%
...
3DMark 06 Standard 1280x1024 +min: 8504 de promedio: 10716 mediana: 11309 (23%) max: 11840 Points
| Standard 1280x1024 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 8504 |
| Schenker F516 Flex | G4500T | | | | 9126 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 9750 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 11304 |
| Schenker F516 Flex | 6500T | 16384 MB | | | 11309 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 11411 |
| Schenker F516 Flex | 6600T | 16384 MB | | | 11535 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 11668 |
| Schenker F516 Flex | 6700T | | | | 11840 |
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 1%
Intel UHD Graphics G1 (Ice Lake 32 EU) 2%
...
SPECviewperf 11
Siemens NX 1920x1080 +SPECviewperf 11 - Siemens NX 1920x1080
min: 2.38 de promedio: 2.5 mediana: 2.5 (2%) max: 2.54 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 2.38 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 2.54 |
...
Intel HD Graphics 630 13%
...
AMD Radeon Pro Vega 56 5591%
Tcvis 1920x1080 +SPECviewperf 11 - Tcvis 1920x1080
min: 3.28 de promedio: 3.4 mediana: 3.4 (6%) max: 3.52 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 3.28 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 3.52 |
...
AMD Radeon R7 M260 -3%
ATI Radeon HD 5850 5%
...
SolidWorks 1920x1080 +SPECviewperf 11 - SolidWorks 1920x1080
min: 16.01 de promedio: 16.7 mediana: 16.7 (20%) max: 17.47 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 16.01 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 17.47 |
...
ATI Radeon HD 5850 -1%
AMD Radeon HD 6730M 12%
...
AMD Radeon Pro Vega 56 395%
Pro/ENGINEER 1920x1080 +SPECviewperf 11 - Pro/ENGINEER 1920x1080
min: 2.54 de promedio: 2.7 mediana: 2.7 (11%) max: 2.76 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 2.54 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 2.76 |
...
ATI Radeon HD 5770 -2%
AMD Radeon HD 6870 0%
NVIDIA GeForce GTX 1050 Ti Mobile 6%
...
Maya 1920x1080 +SPECviewperf 11 - Maya 1920x1080
min: 21.9 de promedio: 22.2 mediana: 22.2 (17%) max: 22.59 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 21.9 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 22.59 |
NVIDIA GeForce GTX 580 -93%
...
NVIDIA GeForce GTX 1050 Ti Mobile -9%
Intel HD Graphics 630 10%
...
AMD Radeon Pro Vega 56 499%
Lightwave 1920x1080 +SPECviewperf 11 - Lightwave 1920x1080
min: 22.54 de promedio: 23.3 mediana: 23.3 (25%) max: 24.05 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 22.54 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 24.05 |
...
NVIDIA GeForce GTX 1050 Ti Mobile -6%
AMD Radeon HD 6730M 4%
Intel HD Graphics 630 10%
...
AMD Radeon Pro Vega 56 300%
Ensight 1920x1080 +SPECviewperf 11 - Ensight 1920x1080
min: 3.2 de promedio: 3.3 mediana: 3.3 (2%) max: 3.39 fps
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 3.2 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 3.39 |
...
Intel HD Graphics 630 11%
...
Cinebench R10 Shading 32Bit +Cinebench R10 - Shading 32Bit
min: 7523 de promedio: 8622 mediana: 8926 (45%) max: 9569 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 7523 |
| Schenker F516 Flex | G4500T | | | | 7879 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 7950 |
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 8412 |
| Schenker F516 Flex | 6500T | 16384 MB | | | 8466 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 8926 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 8953 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 9003 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 9074 |
| Schenker F516 Flex | 6600T | 16384 MB | | | 9090 |
| Schenker F516 Flex | 6700T | | | | 9569 |
...
AMD Radeon Pro WX 3100 -2%
Intel UHD Graphics 630 1%
Intel Iris Plus Graphics 650 2%
AMD Radeon HD 6450 GDDR5 6%
...
Cinebench R11.5 OpenGL 64Bit +Cinebench R11.5 - OpenGL 64Bit
min: 35.45 de promedio: 41 mediana: 40.5 (23%) max: 46.98 Points
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 35.45 |
| Schenker F516 Flex | G4500T | | | | 35.65 |
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 36.65 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 39.57 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 39.6 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 40.43 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 40.59 |
| | 6600K | | | | 41.4 |
| Schenker F516 Flex | 6500T | 16384 MB | | | 44.69 |
| Schenker F516 Flex | 6600T | 16384 MB | | | 44.87 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 46.24 |
| Schenker F516 Flex | 6700T | | | | 46.98 |
AMD Radeon R7 M445 2%
NVIDIA GeForce 930MX 5%
...
Cinebench R15
OpenGL 64Bit +Cinebench R15 - OpenGL 64Bit
min: 34.51 de promedio: 41.7 mediana: 42.3 (17%) max: 47.32 Points
| 6300HQ | | | | 34.51 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 34.53 |
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 35.44 |
| Schenker F516 Flex | G4500T | | | | 38.51 |
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 39.16 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 39.43 |
| 6300HQ | | | | 41.35 |
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 43.19 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 45.22 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 45.56 |
| Schenker F516 Flex | 6500T | 16384 MB | | | 46.29 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 46.32 |
| Schenker F516 Flex | 6600T | 16384 MB | | | 46.35 |
| Schenker F516 Flex | 6700T | | | | 47.32 |
Intel UHD Graphics 617 -6%
AMD Radeon RX Vega 10 5%
AMD Radeon RX Vega 8 8%
...
NVIDIA Quadro RTX 4000 Max-Q 452%
Ref. Match 64Bit +Cinebench R15 - Ref. Match 64Bit
min: 97.8 de promedio: 97.8 mediana: 97.8 (98%) max: 97.9 Points
| Schenker F516 Flex | 6400T | 16384 MB | 950 / 933 MHz | | 97.8 |
| Schenker F516 Flex | 6500T | 16384 MB | | | 97.8 |
| Schenker F516 Flex | 6600T | 16384 MB | | | 97.8 |
| Lenovo ThinkPad T460p | 6440HQ | 4096 MB | 950 / MHz | | 97.8 |
| Schenker F516 Flex | 6700T | | | | 97.8 |
| Schenker F516 Flex | G4500T | | | | 97.8 |
| HP ZBook Studio G3 T7W00EA | 6700HQ | 32768 MB | 350 / MHz | 20.19.15.4331 | 97.8 |
| Lenovo ThinkPad T460p 20FX0026PB | 6300HQ | 16384 MB | | 20.19.15.4352 | 97.8 |
| Dell Latitude 14 E5470 | 6440HQ | 8192 MB | 300 - 950 / MHz | 20.19.15.4531 | 97.8 |
| Clevo P671RG | 6820HK | 16384 MB | | 10.18.15.4256 | 97.9 |
| 6300HQ | | | | 97.9 |
| Nexoc B519 N350DW | 6600T | 16384 MB | | | 97.9 |
...
Intel UHD Graphics G1 (Ice Lake 32 EU) 0%
Intel UHD Graphics 630 0%
Intel UHD Graphics 615 0%
...
GFXBench 3.0 - Manhattan Offscreen OGL off screen
60.6 fps (10%)
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 60.6 |
ARM Mali-G71 MP20 -10%
ARM Mali-G72 MP12 -10%
Apple A10 Fusion GPU / PowerVR -3%
NVIDIA GeForce 920MX 4%
Apple A9X / PowerVR Series 7XT 8%
NVIDIA GeForce 930MX 10%
AMD Radeon Pro 560 16%
ARM Mali-G76 MP10 16%
...
GFXBench 3.0 - Manhattan Onscreen OGL on screen
50.1 fps (14%)
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 50.1 |
Apple A9 / PowerVR GT7600 -10%
ARM Mali-G72 MP18 -3%
Apple A10 Fusion GPU / PowerVR -2%
ARM Mali-G72 MP12 1%
Apple A10X Fusion GPU / PowerVR 4%
AMD Radeon RX 550X (Laptop) 4%
ARM Mali-G76 MP16 6%
ARM Mali-G52 MP6 7%
NVIDIA GeForce 930MX 8%
...
ComputeMark v2.1 - Normal, Score 1024x600
868 Points (3%)
| Clevo P651RE | 6700HQ | 16384 MB | | 10.18.15.4256 | 868 |
...
Intel UHD Graphics 615 -1%
Intel UHD Graphics 630 3%
AMD FirePro W5130M 3%
AMD FirePro W4190M 4%
...
NVIDIA Titan RTX 3115%
Power Consumption - FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor) 1280x720 *
52 Watt (12%)
| MSI CX72 6QD | 6700HQ | 16384 MB | | 359.04 | 52 |
| MSI GE72 965M Ti | 6700HQ | 16384 MB | | | 52 |
...
AMD Radeon RX Vega 9 -19%
NVIDIA GeForce MX350 -4%
Intel Iris Plus Graphics 650 -1%
NVIDIA GeForce MX330 5%
AMD Radeon Pro 455 8%
NVIDIA Quadro M600M 14%
AMD Radeon Pro 555 17%
...
AMD Radeon VII 704%
Power Consumption - The Witcher 3 Power Consumption (external Monitor) ultra 1920x1080 *
min: 34.1 de promedio: 36.7 mediana: 37.1 (8%) max: 39 Watt
| MSI PE60 2QD | 6700HQ | 8192 MB | | | 34.1 |
| MSI GE72 965M Ti | 6700HQ | 16384 MB | | | 37.1 |
| MSI CX72 6QD | 6700HQ | 16384 MB | | 359.04 | 39 |
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -50%
...
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -50%
Intel Iris Plus Graphics 640 -9%
AMD Radeon RX Vega 9 10%
Intel HD Graphics 630 13%
AMD Radeon Pro 450 21%
...
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance
Pruebas de juegos
Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.
AMD Radeon R5 (Bristol Ridge) -30%
Intel HD Graphics 630 3%
Intel UHD Graphics 630 13%
AMD Radeon RX Vega 10 65%
...
NVIDIA Titan RTX 305%
» No jugable la mayor parte de los portátiles probados.
...
Intel UHD Graphics 615 -36%
AMD Radeon R5 (Bristol Ridge) -24%
Intel HD Graphics 630 -6%
Intel UHD Graphics 630 8%
AMD Radeon RX Vega 10 39%
NVIDIA GeForce 930MX 89%
AMD Radeon RX Vega 8 115%
...
» No jugable la mayor parte de los portátiles probados.
Intel UHD Graphics 615 -28%
AMD Radeon R5 (Bristol Ridge) -11%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 22%
...
AMD Radeon RX 5600 XT (Desktop) 1156%
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -47%
Intel UHD Graphics 615 -33%
Intel HD Graphics 630 -8%
Intel UHD Graphics 630 24%
...
...
Intel UHD Graphics 615 -9%
Intel HD Graphics 630 -9%
Intel UHD Graphics 630 21%
AMD Radeon RX Vega 10 52%
...
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -55%
Intel UHD Graphics 630 -19%
Intel HD Graphics 630 -1%
AMD Radeon RX Vega 10 23%
...
AMD Radeon Pro 555 194%
» No jugable la mayor parte de los portátiles probados.
...
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -15%
Intel UHD Graphics 630 8%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 54%
...
...
NVIDIA GeForce 930MX 83%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 83%
AMD Radeon RX Vega 10 83%
...
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -33%
Intel HD Graphics 630 9%
Intel UHD Graphics 630 21%
NVIDIA GeForce 920MX 70%
AMD Radeon RX Vega 10 74%
...
» No jugable la mayor parte de los portátiles probados.
Intel UHD Graphics 615 -34%
AMD Radeon R4 (Stoney Ridge) -27%
AMD Radeon R5 (Bristol Ridge) -14%
Intel UHD Graphics 630 2%
Intel HD Graphics 630 5%
...
» No jugable la mayor parte de los portátiles probados.
Intel UHD Graphics 615 -65%
...
AMD Radeon R5 (Bristol Ridge) -35%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) -12%
AMD Radeon RX Vega 9 7%
AMD Radeon RX Vega 10 26%
...
NVIDIA GeForce GTX 1070 SLI (Desktop) 847%
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) -37%
NVIDIA GeForce 920MX 9%
AMD Radeon RX Vega 9 14%
Intel HD Graphics 630 24%
...
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Intel UHD Graphics 630
...
NVIDIA GeForce GTX 1080 (Desktop)
Intel HD Graphics 630 5%
Intel Iris Plus Graphics 640 6%
Intel UHD Graphics 630 14%
...
Intel HD Graphics 630 28%
Intel Iris Plus Graphics 640 32%
Intel UHD Graphics 630 41%
...
...
Intel UHD Graphics 630 49%
...
...
Intel UHD Graphics 630 41%
...
NVIDIA Titan RTX 1593%
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
...
AMD Radeon RX Vega 8 66%
AMD FirePro W4190M 120%
AMD Radeon Pro 450 193%
...
NVIDIA Titan X Pascal 2229%
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon RX Vega 10 -13%
Intel HD Graphics 630 8%
Intel Iris Plus Graphics 640 18%
Intel UHD Graphics 630 28%
...
...
AMD Radeon R5 (Bristol Ridge) -18%
Intel Iris Plus Graphics 640 -12%
AMD Radeon RX Vega 10 -12%
NVIDIA GeForce 920MX 6%
AMD FirePro W4190M 6%
NVIDIA GeForce 930MX 24%
AMD Radeon Pro WX 3100 24%
AMD Radeon RX Vega 8 69%
...
NVIDIA GeForce GTX 1070 SLI (Desktop) 1018%
» No jugable la mayor parte de los portátiles probados.
...
Intel Iris Plus Graphics 640 40%
...
» No jugable la mayor parte de los portátiles probados.
...
Intel UHD Graphics G1 (Ice Lake 32 EU) -16%
NVIDIA GeForce 920MX -4%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 3%
AMD Radeon RX 560X (Laptop) 6%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 8%
...
AMD Radeon Pro 560X 90%
...
Intel UHD Graphics G1 (Ice Lake 32 EU) -18%
NVIDIA GeForce 920MX -1%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 3%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 12%
Intel UHD Graphics 630 13%
AMD Radeon RX 560X (Laptop) 14%
...
AMD Radeon Pro 560X 113%
...
AMD Radeon RX Vega 10 -28%
Intel UHD Graphics 615 -24%
AMD Radeon R5 (Bristol Ridge) -19%
Intel UHD Graphics G1 (Ice Lake 32 EU) 17%
...
AMD Radeon Pro 560X 330%
...
AMD Radeon R5 (Bristol Ridge) 11%
Intel UHD Graphics G1 (Ice Lake 32 EU) 22%
Intel UHD Graphics 630 31%
Intel HD Graphics 630 49%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 52%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 52%
...
» Jugable con todos los portátiles probados en ajustes de detalle alto.
...
AMD Radeon RX Vega 10 -9%
AMD Radeon R5 (Bristol Ridge) -6%
Intel HD Graphics 630 5%
Intel UHD Graphics 630 24%
...
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
...
AMD Radeon R4 (Stoney Ridge) -43%
Intel UHD Graphics 615 -25%
Intel UHD Graphics 617 11%
AMD Radeon R5 (Bristol Ridge) 11%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 11%
...
...
Intel UHD Graphics 617 -14%
NVIDIA GeForce 930MX 2%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 8%
Intel HD Graphics 630 12%
...
...
Intel UHD Graphics 617 -12%
NVIDIA GeForce 930MX 3%
Intel HD Graphics 630 6%
Intel UHD Graphics G1 (Ice Lake 32 EU) 13%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 27%
Intel UHD Graphics 630 28%
...
NVIDIA Titan X Pascal 1108%
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
...
Intel UHD Graphics 615 -40%
AMD Radeon R5 (Bristol Ridge) -19%
Intel UHD Graphics 630 12%
Intel HD Graphics 630 22%
AMD Radeon R7 M340 48%
...
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -57%
Intel Iris Plus Graphics 640 12%
AMD Radeon RX Vega 8 44%
Intel UHD Graphics 630 45%
...
» No jugable la mayor parte de los portátiles probados.
Intel HD Graphics 630 15%
Intel UHD Graphics 630 16%
Intel Iris Plus Graphics 640 29%
Intel Iris Plus Graphics 650 63%
...
NVIDIA GeForce GTX 1080 (Desktop) 932%
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -5%
Intel UHD Graphics G1 (Ice Lake 32 EU) -3%
Intel HD Graphics 630 10%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 13%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 22%
Intel Iris Plus Graphics 640 22%
Intel Iris Plus Graphics 650 31%
...
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon R5 (Bristol Ridge) -13%
Intel HD Graphics 630 12%
Intel UHD Graphics G1 (Ice Lake 32 EU) 19%
...
...
AMD Radeon R5 (Bristol Ridge) -19%
Intel HD Graphics 630 23%
Intel UHD Graphics G1 (Ice Lake 32 EU) 26%
...
» No jugable la mayor parte de los portátiles probados.
AMD FirePro W4190M -18%
AMD Radeon R4 (Stoney Ridge) -16%
Intel UHD Graphics 630 2%
Intel HD Graphics 630 18%
AMD Radeon R5 (Bristol Ridge) 34%
...
NVIDIA GeForce GTX 1080 (Desktop) 1696%
...
AMD FirePro W4190M -12%
Intel UHD Graphics 630 2%
Intel HD Graphics 630 20%
...
» No jugable la mayor parte de los portátiles probados.
Additional Benchmarks
Medium / Off FXAA 1366x768
21.6 [X] MSI GE72 965M TiIntel Core i7-6700HQ 2.6GHz
HD Graphics 530
min:
15 fps, max:
27 fps
...
Intel HD Graphics 630 9%
AMD Radeon RX Vega 8 86%
AMD Radeon R7 M445 90%
...
» No jugable la mayor parte de los portátiles probados.
Intel Iris Plus Graphics 650 24%
Intel HD Graphics 630 35%
AMD Radeon RX Vega 10 75%
...
NVIDIA GeForce GTX 1080 (Desktop) 900%
» No jugable la mayor parte de los portátiles probados.
...
AMD Radeon RX Vega 10 -13%
Intel UHD Graphics 630 3%
AMD Radeon RX Vega 8 14%
Intel HD Graphics 630 18%
...
...
Intel HD Graphics 630 14%
Intel UHD Graphics 630 16%
...
...
...
NVIDIA GeForce GTX 1060 (Desktop) 1098%
...
AMD Radeon R7 M445 -17%
Intel HD Graphics 630 7%
Intel UHD Graphics 630 13%
AMD Radeon RX Vega 8 29%
Intel Iris Plus Graphics 640 47%
Intel Iris Plus Graphics 650 64%
...
...
AMD Radeon Pro 555 290%
AMD Radeon Pro 455 293%
AMD Radeon Pro 560X 364%
...
NVIDIA Titan X Pascal 2986%
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Additional Benchmarks
Medium Preset 1920x1080
