ATI FirePro M7740

ATI FirePro M7740

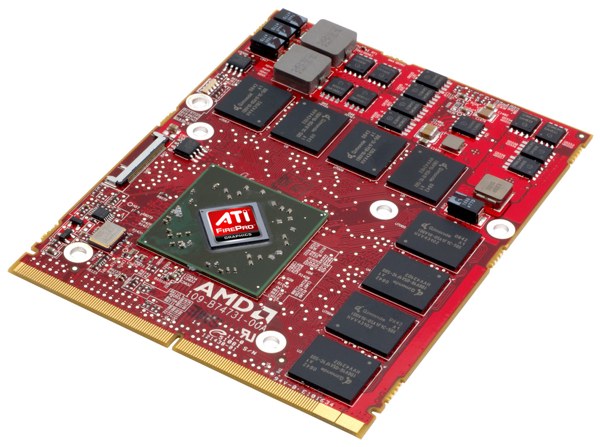

La AMD ATI FirePro M7740 es un adaptador gráfico profesional de gama alta para portátiles. Soporta controladores certificados para aplicaciones CAD (Diseño Asistido por ordenador) profesional y DCC (Creación de Contenidos Digitales). Además de garantizar que estos programas funcionaran muy bien, el controlador y la BIOS están también optimizados para rendimiento OpenGL y permiten usar algunas pocas características profesionales en el chip (como líneas AA).
El núcleo de la FirePro M7740 está basado en la Mobility Radeon HD 4860 (arquitectura RV 740). El RV740 se produce en TSMC en 40 nm y ofrece 640 (o 128 5-D) shaders unificados que soportan DirectX 10.1 y OpenGL 3.1. Como memoria gráfica, la tarjeta soporta hasta 1 GB de GDDR5. Debido a la memoria GDDR5 el relativamente pequeño bus de memoria de 128 bits no debería ser un cuello de botella.
La ATI FirePro /FireGL M7740 fue presentad a en la estación de trabajo móvil Dell Precision M6400 como una alternativa a la ya disponible Nvidia Quadro FX 3700M. AMD comparó ambas tarjetas gráficas en un subconjunto de las pruebas OpenGL del SPECViewperf10. La FirePro M7740 del Dell Precision ganó en 8 subconjuntos de la prueba (ugnx-01, tcvis-01, sw-02, proe-04, maya-02, ensight-03, 3dsmax-04) y en la puntuación Composite Score (aprox. 75 contra 63).
Comparada con tarjetas de estaciones de escritorio, la M7740 debería rendir mejor que el FirePro V7750 (320 Procesadores Stream, GDDR3).
Como la Mobility Radeon HD 4860, la Mobility Fire Pro M7740 emplea el procesador de video UVD 2 para decodificar flujos de datos HD con la GPU (especificaciones completas BluRay con la posibilidad de decodificar dos flujos simultáneamente).

FabricanteATI
FirePro M7000 Serie
FirePro M7820 800 @ 0.7 GHz128 Bit @ 1000 MHz
FirePro M7740 640 @ 0.65 GHz128 Bit @ 1000 MHz
Nombre CódigoRV740
ArquitecturaTerascale 1
Pipelines640 - unificado
Velocidad del núcleo650 MHz
Velocidad de Memoria1000 MHz
Ancho de Bus de Memoria128 Bit
Tipo de MemoriaGDDR5
Max. Cantidad de Memoria1024 MB
Memoria Compartidano
DirectXDirectX 10.1, Shader 4.1
Conteo de Transistores826 Millón
tecnología40 nm
CaracterísticasOpenGL 3.1
Tamaño de la portátilgrande
Fecha de Anuncio04.08.2009
Link a la Página del Fabricantehttp://www.amd.com/us/products/workstati...

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 6551     de promedio: 6626     mediana: 6626 (6%)     max: 6701 Points
+ 2 mas detalles   + Mostrar tabla de comparación
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 5818     de promedio: 5896     mediana: 5896 (5%)     max: 5974 Points
+ 2 mas detalles   - Ocultar tabla de comparación
3DMark 2001SE - 3DMark 2001 - Standard
34814 Points (36%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 03 - 3DMark 03 - Standard
40427 Points (21%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 05 - 3DMark 05 - Standard
17192 Points (25%)
+ 1 mas detalles   - Ocultar tabla de comparación
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 11990     de promedio: 12110     mediana: 12109.5 (20%)     max: 12229 Points
+ 2 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
min: 48.21     de promedio: 48.2     mediana: 48.2 (100%)     max: 48.209999084472656 puntos
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
37.9 puntos (80%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
46.7 puntos (99%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
187 puntos (100%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
45.1 puntos (88%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
10.6 puntos (16%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
33.7 puntos (87%)
+ 1 mas detalles   + Mostrar tabla de comparación
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
48.9 puntos (100%)
+ 1 mas detalles   + Mostrar tabla de comparación
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 6516     de promedio: 6664     mediana: 6663.5 (28%)     max: 6811 puntos
+ 2 mas detalles   + Mostrar tabla de comparación
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
