Intel HD Graphics 510

Intel HD Graphics 510

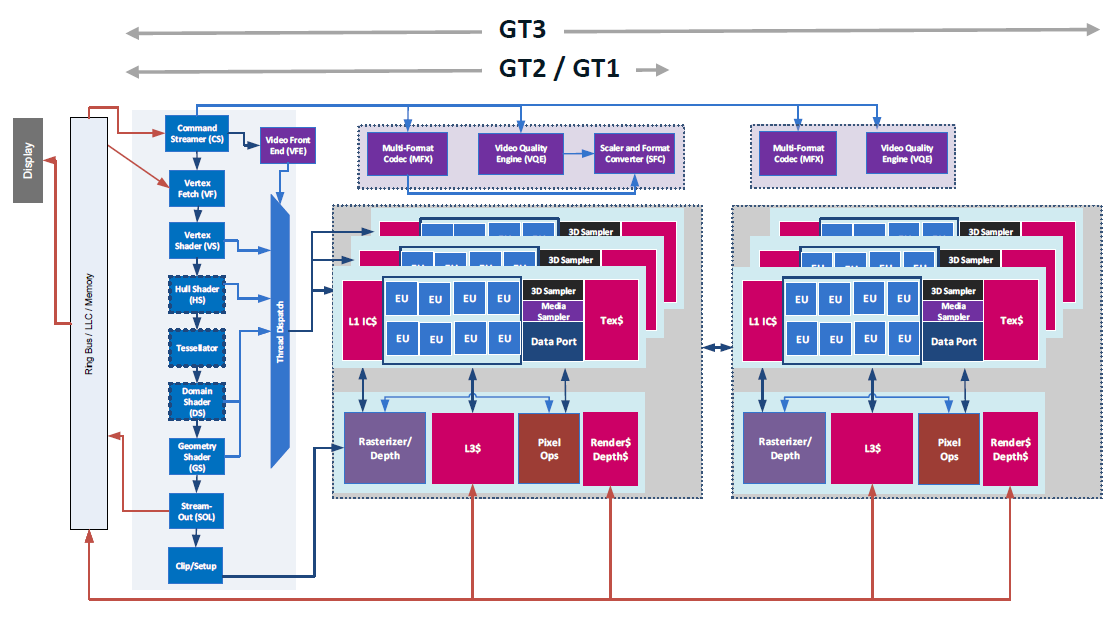

La Intel HD Graphics 510 (GT1) es una unidad gráfica integrada de la generación Skylake, que puede ser encontrada en procesadores ULV (Ultra Low Voltage) de gama baja de la generación Skylake. Esta versión "GT1" de la GPU Skylake ofrece 12 Unidades de Ejecución (EUs) con velocidad de hasta 950 MHz (dependiendo del modelo de CPU). Debido a la falta de memoria gráfica dedicada o cache eDRAM, la HD 510 debe acceder la memoria principal (2x 64bit DDR3L-1600 / DDR4-2133).

Rendimiento

Dependiendo de varios factores como la configuración de memoria, la HD Graphics 510 debe desempeñarse un poco por debajo de la antigua HD Graphics 4400 y aguantará juegos modernos (de 2015) solo con las configuraciones más bajas (si es que lo hace).

Características

El motor de vídeo revisado ahora decodifica H.265/HEVC por completo en el hardware y consecuentemente, de forma mucho más eficiente que antes. Pantallas pueden ser conectadas mediante DP 1.2 / eDP 1.3 (máx. 3840 x 2160 @ 60 Hz) aunque el HDMI esté limitado a la versión anterior 1.4a (máx. 3840 x 2160 @ 30 Hz). Sin embargo, HDMI 2.0 puede ser añadido utilizando un convertidor DisplayPort. Hasta tres pantallas pueden ser controladas de forma simultánea.

Consumo de Energía

La HD Graphics 510 puede ser encontrada en procesadores móviles especificados con TDP de 15 W y, por tanto es adecuada para portátiles compactos y ultrabooks.

Gen. 9 Serie

Iris Pro Graphics P580 72 @ 0.35 - 1.1 GHzeDRAM + 64/128 Bit
Iris Pro Graphics 580 72 @ 0.35 - 1.05 GHzeDRAM + 64/128 Bit
Iris Graphics 550 48 @ 0.3 - 1.1 GHzeDRAM + 64/128 Bit
Iris Graphics 540 48 @ 0.3 - 1.05 GHzeDRAM + 64/128 Bit
HD Graphics 530 24 @ 0.35 - 1.15 GHz64/128 Bit
HD Graphics 520 24 @ 0.3 - 1.05 GHz64/128 Bit
HD Graphics 515 24 @ 0.3 - 1 GHz64/128 Bit
UHD Graphics 610 12 @ 0.3 - 0.95 GHz64/128 Bit
HD Graphics 610 12 @ 0.3 - 0.95 GHz64/128 Bit
HD Graphics 510 12 @ 0.3 - 0.95 GHz64/128 Bit
UHD Graphics 605 18 @ 0.3 - 0.75 GHz64/128 Bit
HD Graphics 505 18 @ 0.3 - 0.75 GHz64/128 Bit
UHD Graphics 600 12 @ 0.3 - 0.7 GHz64/128 Bit
HD Graphics 500 12 @ 0.3 - 0.7 GHz64/128 Bit
Nombre CódigoSkylake GT1
ArquitecturaGen. 9 Skylake
Pipelines12 - unificado
Velocidad del núcleo300 - 950 (Boost) MHz
Ancho de Bus de Memoria64/128 Bit
Tipo de MemoriaDDR3/DDR4
Memoria Compartidasi
APIDirectX 12_1, OpenGL 4.4
tecnología14 nm
CaracterísticasQuickSync
Fecha de Anuncio01.09.2015
CPU in HD Graphics 510GPU Base SpeedGPU Boost / Turbo
Intel Core i5-6198DU2 x 2300 MHz, 15 W300 MHz1000 MHz
Intel Pentium 4405U2 x 2100 MHz, 15 W300 MHz950 MHz
min. - max.300 MHz950 - 1000 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
3.3 pt (3%)
AMD Radeon HD 8180 -75%
...
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -3%
AMD Radeon R7 M265 -3%
NVIDIA Quadro K620M -2%
Intel HD Graphics 520 -2%
AMD Radeon R7 M460 -1%
NVIDIA Quadro M500M -1%
NVIDIA GeForce GT 730M -1%
NVIDIA GeForce GT 735M 0%
AMD Radeon R7 M440 0%
Intel HD Graphics 510
AMD FirePro W4190M 0%
AMD Radeon HD 8650G 1%
NVIDIA GeForce 920M 2%
AMD Radeon HD 6620G + HD 7670M Dual Graphics 2%
AMD Radeon R5 (Bristol Ridge) 3%
AMD Radeon 520 4%
AMD Radeon R6 M255DX 4%
NVIDIA Quadro M520 4%
NVIDIA GeForce 710M 5%
...
NVIDIA GeForce GTX 1080 SLI (Laptop) 1495%
0%
100%
3DMark - 3DMark Ice Storm Unlimited Graphics
43274 Points (5%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Ice Storm Extreme Graphics
26846 Points (4%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Cloud Gate Score
4721 Points (5%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Cloud Gate Graphics
5664 Points (2%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Fire Strike Standard Score
570 Points (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Fire Strike Standard Graphics
621 Points (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark - 3DMark Ice Storm Graphics
62653 Points (8%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 11 - 3DM11 Performance Score
985 Points (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 11 - 3DM11 Performance GPU
847 Points (1%)
+ 1 mas detalles   - Ocultar tabla de comparación
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
3798 Points (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
3125 Points (2%)
+ 1 mas detalles   - Ocultar tabla de comparación
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
7253 Points (10%)
+ 1 mas detalles   + Mostrar tabla de comparación
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
9.3 fps (3%)
+ 1 mas detalles   + Mostrar tabla de comparación
Unigine Heaven 3.0 - Unigine Heaven 3.0 OpenGL
10.8 fps (5%)
+ 1 mas detalles   + Mostrar tabla de comparación
Unigine Heaven 2.1 - Heaven 2.1 high
13.5 fps (3%)
+ 1 mas detalles   - Ocultar tabla de comparación
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
7348 puntos (5%)
+ 1 mas detalles   + Mostrar tabla de comparación
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
17.2 fps (6%)
+ 1 mas detalles   + Mostrar tabla de comparación
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
28 fps (7%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench (DX / GLBenchmark) 2.7
GFXBench 2.7 T-Rex HD Onscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench 2.7 T-Rex HD Onscreen C24Z16
59.9 fps (2%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
121.9 fps (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench 3.0 - GFXBench 3.0 Manhattan
59.9 fps (16%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
64.6 fps (5%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench - GFXBench Car Chase Onscreen
55.7 fps (2%)
+ 1 mas detalles   + Mostrar tabla de comparación
GFXBench - GFXBench Car Chase Offscreen
35.9 fps (0%)
+ 1 mas detalles   + Mostrar tabla de comparación
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
167 Samples/s (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
302 Samples/s (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
ComputeMark v2.1 - ComputeMark v2.1 Result
500 puntos (1%)
+ 1 mas detalles   + Mostrar tabla de comparación
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

Resident Evil 7

Resident Evil 7

2017
bajo 1280x720
18.3  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Additional Benchmarks
Medium / Off FXAA 1366x768
14.4
Titanfall 2

Titanfall 2

2016
bajo 1280x720
19.9  fps    + Comparar
medio 1366x768
15.4  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Farming Simulator 17

Farming Simulator 17

2016
bajo 1280x720
70.6  fps    + Comparar
medio 1366x768
41.3  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Civilization VI

Civilization VI

2016
bajo 1024x768
24.5  fps    + Comparar
medio 1366x768
9.4  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
The Division

The Division

2016
bajo 1280x720
13.4  fps    + Comparar
medio 1366x768
7.7  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Rise of the Tomb Raider

Rise of the Tomb Raider

2016
bajo 1024x768
11.1  fps    + Comparar
medio 1366x768
7  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Rainbow Six Siege

Rainbow Six Siege

2015
bajo 1024x768
25  fps    + Comparar
medio 1366x768
15.9  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Anno 2205

Anno 2205

2015
bajo 1024x768
19.9  fps    + Comparar
medio 1366x768
11  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
World of Warships

World of Warships

2015
bajo 1366x768
48.7  fps    + Comparar
medio 1366x768
29.2  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Metal Gear Solid V

Metal Gear Solid V

2015
bajo 1024x768
38.9  fps    + Comparar
medio 1366x768
25.2  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Dota 2 Reborn

Dota 2 Reborn

2015
bajo 1280x720
66.2  fps    + Comparar
medio 1366x768
41.8  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Dirt Rally

Dirt Rally

2015
bajo 1024x768
110.4  fps    + Comparar
medio 1366x768
19.3  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
GTA V

GTA V

2015
bajo 1024x768
30.9  fps    + Comparar
medio 1366x768
26.8  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
Battlefield Hardline

Battlefield Hardline

2015
bajo 1024x768
31.5  fps    + Comparar
medio 1366x768
22.2  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
F1 2014

F1 2014

2014
bajo 1024x768
72  fps    + Comparar
medio 1366x768
47  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Sims 4

Sims 4

2014
bajo 1024x768
173.7  fps    + Comparar
medio 1366x768
32.2  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
GRID: Autosport

GRID: Autosport

2014
bajo 1024x768
135.5  fps    + Comparar
medio 1366x768
32.8  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Battlefield 4

Battlefield 4

2013
bajo 1024x768
33.4  fps    + Comparar
medio 1366x768
22.5  fps    + Comparar
alto 1366x768
15.9  fps    + Comparar
» No jugable la mayor parte de los portátiles probados.
BioShock Infinite

BioShock Infinite

2013
bajo 1280x720
39  fps    + Comparar
medio 1366x768
20.1  fps    + Comparar
alto 1366x768
17.7  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.
Tomb Raider

Tomb Raider

2013
bajo 1024x768
52.7  fps    + Comparar
medio 1366x768
23.9  fps    + Comparar
alto 1366x768
16.2  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle bajo.

Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos

v1.20
log 01. 22:21:14

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Thu, 01 Dec 2022 16:35:36 +0100 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.036s ... 0.037s

#4 linkCache_getLink no uid found +0s ... 0.037s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#17 composed specs +0s ... 0.04s

#18 did output specs +0s ... 0.04s

#19 start showIntegratedCPUs +0s ... 0.04s

#20 linkCache_getLink no uid found +0.013s ... 0.053s

#21 linkCache_getLink no uid found +0.005s ... 0.057s

#22 linkCache_getLink no uid found +0.001s ... 0.058s

#23 getting avg benchmarks for device 6475 +0.003s ... 0.061s

#24 linkCache_getLink no uid found +0.005s ... 0.066s

#25 got single benchmarks 6475 +0.008s ... 0.075s

#26 got avg benchmarks for devices +0s ... 0.075s

#27 linkCache_getLink no uid found +0.003s ... 0.078s

#28 linkCache_getLink no uid found +0.004s ... 0.082s

#29 linkCache_getLink no uid found +0s ... 0.082s

#30 linkCache_getLink no uid found +0.016s ... 0.099s

#31 linkCache_getLink no uid found +0.004s ... 0.102s

#32 linkCache_getLink no uid found +0.007s ... 0.109s

#33 linkCache_getLink no uid found +0.001s ... 0.111s

#34 linkCache_getLink no uid found +0.003s ... 0.114s

#35 linkCache_getLink no uid found +0.003s ... 0.117s

#36 linkCache_getLink no uid found +0.005s ... 0.121s

#37 linkCache_getLink no uid found +0.009s ... 0.13s

#38 linkCache_getLink no uid found +0.007s ... 0.137s

#39 linkCache_getLink no uid found +0.004s ... 0.141s

#40 linkCache_getLink no uid found +0.007s ... 0.148s

#41 linkCache_getLink no uid found +0.008s ... 0.155s

#42 linkCache_getLink no uid found +0.004s ... 0.16s

#43 linkCache_getLink no uid found +0.015s ... 0.174s

#44 linkCache_getLink no uid found +0.004s ... 0.178s

#45 linkCache_getLink no uid found +0.014s ... 0.192s

#46 linkCache_getLink no uid found +0.005s ... 0.197s

#47 linkCache_getLink no uid found +0s ... 0.197s

#48 linkCache_getLink no uid found +0.007s ... 0.205s

#49 linkCache_getLink no uid found +0.008s ... 0.213s

#50 linkCache_getLink no uid found +0.003s ... 0.215s

#51 linkCache_getLink no uid found +0.006s ... 0.222s

#52 linkCache_getLink no uid found +0.004s ... 0.225s

#53 linkCache_getLink no uid found +0.007s ... 0.232s

#54 linkCache_getLink no uid found +0.004s ... 0.236s

#55 linkCache_getLink no uid found +0.008s ... 0.244s

#56 linkCache_getLink no uid found +0s ... 0.244s

#57 linkCache_getLink no uid found +0.001s ... 0.245s

#58 linkCache_getLink no uid found +0.004s ... 0.249s

#59 linkCache_getLink no uid found +0.006s ... 0.255s

#60 linkCache_getLink no uid found +0s ... 0.255s

#61 linkCache_getLink no uid found +0.026s ... 0.281s

#62 linkCache_getLink no uid found +0.007s ... 0.288s

#63 linkCache_getLink no uid found +0.003s ... 0.291s

#64 linkCache_getLink no uid found +0.002s ... 0.293s

#65 linkCache_getLink no uid found +0s ... 0.293s

#66 linkCache_getLink no uid found +0.003s ... 0.296s

#67 linkCache_getLink no uid found +0.004s ... 0.3s

#68 linkCache_getLink no uid found +0.002s ... 0.302s

#69 linkCache_getLink no uid found +0.002s ... 0.303s

#70 linkCache_getLink no uid found +0.003s ... 0.307s

#71 linkCache_getLink no uid found +0.003s ... 0.309s

#72 linkCache_getLink no uid found +0.003s ... 0.312s

#73 linkCache_getLink no uid found +0.005s ... 0.318s

#74 linkCache_getLink no uid found +0.004s ... 0.322s

#75 linkCache_getLink no uid found +0.002s ... 0.324s

#76 linkCache_getLink no uid found +0s ... 0.324s

#77 linkCache_getLink no uid found +0.007s ... 0.331s

#78 linkCache_getLink no uid found +0.002s ... 0.333s

#79 linkCache_getLink no uid found +0s ... 0.333s

#80 linkCache_getLink no uid found +0.003s ... 0.335s

#81 linkCache_getLink no uid found +0.003s ... 0.338s

#82 linkCache_getLink no uid found +0.001s ... 0.34s

#83 linkCache_getLink no uid found +0.007s ... 0.347s

#84 linkCache_getLink no uid found +0.005s ... 0.352s

#85 linkCache_getLink no uid found +0.001s ... 0.353s

#86 linkCache_getLink no uid found +0.002s ... 0.355s

#87 linkCache_getLink no uid found +0.002s ... 0.356s

#88 linkCache_getLink no uid found +0s ... 0.356s

#89 linkCache_getLink no uid found +0.001s ... 0.358s

#90 linkCache_getLink no uid found +0.002s ... 0.359s

#91 linkCache_getLink no uid found +0.003s ... 0.362s

#92 linkCache_getLink no uid found +0.005s ... 0.367s

#93 linkCache_getLink no uid found +0s ... 0.367s

#94 linkCache_getLink no uid found +0.001s ... 0.368s

#95 linkCache_getLink no uid found +0.001s ... 0.369s

#96 linkCache_getLink no uid found +0.002s ... 0.371s

#97 linkCache_getLink no uid found +0s ... 0.371s

#98 linkCache_getLink no uid found +0s ... 0.371s

#99 linkCache_getLink no uid found +0.001s ... 0.372s

#100 linkCache_getLink no uid found +0.001s ... 0.373s

#101 linkCache_getLink no uid found +0.001s ... 0.374s

#102 linkCache_getLink no uid found +0s ... 0.374s

#103 linkCache_getLink no uid found +0s ... 0.374s

#104 linkCache_getLink no uid found +0s ... 0.375s

#105 linkCache_getLink no uid found +0s ... 0.375s

#106 linkCache_getLink no uid found +0.001s ... 0.376s

#107 linkCache_getLink no uid found +0.001s ... 0.376s

#108 linkCache_getLink no uid found +0.002s ... 0.378s

#109 linkCache_getLink no uid found +0s ... 0.378s

#110 linkCache_getLink no uid found +0s ... 0.378s

#111 linkCache_getLink no uid found +0s ... 0.378s

#112 linkCache_getLink no uid found +0.002s ... 0.381s

#113 linkCache_getLink no uid found +0s ... 0.381s

#114 linkCache_getLink no uid found +0.001s ... 0.382s

#115 linkCache_getLink no uid found +0.001s ... 0.383s

#116 linkCache_getLink no uid found +0.002s ... 0.385s

#117 linkCache_getLink no uid found +0.003s ... 0.388s

#118 linkCache_getLink no uid found +0.002s ... 0.39s

#119 linkCache_getLink no uid found +0.002s ... 0.392s

#120 linkCache_getLink no uid found +0s ... 0.392s

#121 linkCache_getLink no uid found +0.005s ... 0.397s

#122 linkCache_getLink no uid found +0.002s ... 0.399s

#123 linkCache_getLink no uid found +0s ... 0.399s

#124 min, max, avg, median took s +0.004s ... 0.404s

#125 before gaming benchmark output +0s ... 0.404s

#126 Got 42 rows for game benchmarks. +0.002s ... 0.406s

#127 composed SQL query for gamebenchmarks +0s ... 0.406s

#128 got data and put it in $dataArray +0.013s ... 0.419s

#129 linkCache_getLink no uid found +0.003s ... 0.421s

#130 linkCache_getLink no uid found +0.003s ... 0.425s

#131 linkCache_getLink no uid found +0s ... 0.425s

#132 linkCache_getLink no uid found +0.002s ... 0.427s

#133 linkCache_getLink no uid found +0.002s ... 0.429s

#134 linkCache_getLink no uid found +0.003s ... 0.432s

#135 linkCache_getLink no uid found +0.001s ... 0.432s

#136 linkCache_getLink no uid found +0.002s ... 0.435s

#137 linkCache_getLink no uid found +0.004s ... 0.438s

#138 linkCache_getLink no uid found +0.003s ... 0.441s

#139 linkCache_getLink no uid found +0.001s ... 0.443s

#140 linkCache_getLink no uid found +0.001s ... 0.444s

#141 linkCache_getLink no uid found +0s ... 0.444s

#142 linkCache_getLink no uid found +0.001s ... 0.446s

#143 linkCache_getLink no uid found +0s ... 0.446s

#144 linkCache_getLink no uid found +0.004s ... 0.449s

#145 linkCache_getLink no uid found +0.001s ... 0.451s

#146 linkCache_getLink no uid found +0s ... 0.451s

#147 linkCache_getLink no uid found +0.001s ... 0.452s

#148 linkCache_getLink no uid found +0s ... 0.452s

#149 linkCache_getLink no uid found +0.001s ... 0.453s

#150 linkCache_getLink no uid found +0s ... 0.453s

#151 linkCache_getLink no uid found +0.001s ... 0.454s

#152 linkCache_getLink no uid found +0.002s ... 0.456s

#153 linkCache_getLink no uid found +0.004s ... 0.46s

#154 linkCache_getLink no uid found +0.004s ... 0.464s

#155 linkCache_getLink no uid found +0.007s ... 0.47s

#156 linkCache_getLink no uid found +0.002s ... 0.473s

#157 linkCache_getLink no uid found +0.002s ... 0.475s

#158 linkCache_getLink no uid found +0.001s ... 0.476s

#159 linkCache_getLink no uid found +0.004s ... 0.48s

#160 linkCache_getLink no uid found +0.004s ... 0.484s

#161 linkCache_getLink no uid found +0.002s ... 0.486s

#162 linkCache_getLink no uid found +0.002s ... 0.487s

#163 linkCache_getLink no uid found +0.001s ... 0.488s

#164 linkCache_getLink no uid found +0.001s ... 0.49s

#165 linkCache_getLink no uid found +0.002s ... 0.491s

#166 linkCache_getLink no uid found +0.003s ... 0.495s

#167 linkCache_getLink no uid found +0.001s ... 0.496s

#168 linkCache_getLink no uid found +0.001s ... 0.497s

#169 linkCache_getLink no uid found +0.002s ... 0.498s

#170 linkCache_getLink no uid found +0.002s ... 0.5s

#171 linkCache_getLink no uid found +0.004s ... 0.504s

#172 linkCache_getLink no uid found +0.002s ... 0.506s

#173 linkCache_getLink no uid found +0.003s ... 0.508s

#174 linkCache_getLink no uid found +0.001s ... 0.509s

#175 linkCache_getLink no uid found +0s ... 0.509s

#176 linkCache_getLink no uid found +0.001s ... 0.511s

#177 linkCache_getLink no uid found +0.003s ... 0.514s

#178 linkCache_getLink no uid found +0.004s ... 0.518s

#179 linkCache_getLink no uid found +0.003s ... 0.521s

#180 linkCache_getLink no uid found +0.003s ... 0.524s

#181 linkCache_getLink no uid found +0.002s ... 0.526s

#182 linkCache_getLink no uid found +0s ... 0.526s

#183 linkCache_getLink no uid found +0.002s ... 0.528s

#184 linkCache_getLink no uid found +0s ... 0.528s

#185 linkCache_getLink no uid found +0s ... 0.528s

#186 linkCache_getLink no uid found +0s ... 0.528s

#187 linkCache_getLink no uid found +0.001s ... 0.529s

#188 linkCache_getLink no uid found +0.002s ... 0.531s

#189 linkCache_getLink no uid found +0s ... 0.531s

#190 linkCache_getLink no uid found +0s ... 0.531s

#191 linkCache_getLink no uid found +0s ... 0.531s

#192 linkCache_getLink no uid found +0s ... 0.531s

#193 linkCache_getLink no uid found +0.002s ... 0.533s

#194 linkCache_getLink no uid found +0.005s ... 0.538s

#195 linkCache_getLink no uid found +0.004s ... 0.542s

#196 linkCache_getLink no uid found +0.001s ... 0.543s

#197 linkCache_getLink no uid found +0.001s ... 0.545s

#198 linkCache_getLink no uid found +0.003s ... 0.548s

#199 linkCache_getLink no uid found +0.004s ... 0.552s

#200 linkCache_getLink no uid found +0s ... 0.552s

#201 linkCache_getLink no uid found +0s ... 0.552s

#202 linkCache_getLink no uid found +0.001s ... 0.553s

#203 linkCache_getLink no uid found +0s ... 0.553s

#204 linkCache_getLink no uid found +0.004s ... 0.557s

#205 linkCache_getLink no uid found +0s ... 0.557s

#206 linkCache_getLink no uid found +0.004s ... 0.562s

#207 linkCache_getLink no uid found +0.002s ... 0.564s

#208 linkCache_getLink no uid found +0.001s ... 0.565s

#209 linkCache_getLink no uid found +0.002s ... 0.567s

#210 linkCache_getLink no uid found +0.004s ... 0.571s

#211 linkCache_getLink no uid found +0.002s ... 0.572s

#212 linkCache_getLink no uid found +0.002s ... 0.575s

#213 linkCache_getLink no uid found +0.006s ... 0.58s

#214 linkCache_getLink no uid found +0.004s ... 0.584s

#215 linkCache_getLink no uid found +0.001s ... 0.586s

#216 linkCache_getLink no uid found +0.001s ... 0.587s

#217 linkCache_getLink no uid found +0s ... 0.587s

#218 linkCache_getLink no uid found +0s ... 0.587s

#219 linkCache_getLink no uid found +0.005s ... 0.592s

#220 linkCache_getLink no uid found +0.003s ... 0.595s

#221 linkCache_getLink no uid found +0.001s ... 0.596s

#222 linkCache_getLink no uid found +0.003s ... 0.599s

#223 linkCache_getLink no uid found +0s ... 0.599s

#224 linkCache_getLink no uid found +0.003s ... 0.602s

#225 linkCache_getLink no uid found +0.004s ... 0.606s

#226 linkCache_getLink no uid found +0.003s ... 0.609s

#227 linkCache_getLink no uid found +0.001s ... 0.61s

#228 linkCache_getLink no uid found +0.007s ... 0.617s

#229 linkCache_getLink no uid found +0.005s ... 0.622s

#230 linkCache_getLink no uid found +0.001s ... 0.623s

#231 linkCache_getLink no uid found +0.002s ... 0.625s

#232 linkCache_getLink no uid found +0s ... 0.625s

#233 linkCache_getLink no uid found +0.002s ... 0.627s

#234 linkCache_getLink no uid found +0.001s ... 0.628s

#235 linkCache_getLink no uid found +0.004s ... 0.633s

#236 linkCache_getLink no uid found +0.005s ... 0.638s

#237 linkCache_getLink no uid found +0.002s ... 0.64s

#238 linkCache_getLink no uid found +0.002s ... 0.642s

#239 linkCache_getLink no uid found +0.001s ... 0.642s

#240 linkCache_getLink no uid found +0.002s ... 0.644s

#241 linkCache_getLink no uid found +0.003s ... 0.648s

#242 benchmarks composed for output. +0.006s ... 0.654s

#243 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.656s

#244 return log +0s ... 0.656s

Análises de portátiles con Intel HD Graphics 510 tarjeta gráfica

Toshiba Satellite Pro R50-C-1E8: unknown, 15.60", 2.1 kg
  análise externo » Toshiba Satellite Pro R50-C-1E8

Acer Chromebook 14 CP5-471-C0EX: unknown, 14.00", 1.5 kg
  análise externo » Acer Chromebook 14 CP5-471-C0EX

Toshiba Satellite Pro R40-C-13V: unknown, 14.00", 1.8 kg
  análise externo » Toshiba Satellite Pro R40-C-13V

Medion Akoya E7419-MD60511: Intel Pentium 4405U, 17.30", 2.8 kg
  análise externo » Medion Akoya E7419-MD60511

Acer TravelMate P2 TMP278-M-P5JU: Intel Pentium 4405U, 17.00", 3 kg
  análise externo » Acer TravelMate P2 TMP278-M-P5JU

Lenovo E31-80-80MX00WHRK: Intel Pentium 4405U, 13.30", 1.6 kg
  análise externo » Lenovo E31-80-80MX00WHRK

Lenovo Essential E31-80-80MX0170SP: unknown, 13.30", 1.6 kg
  análise externo » Lenovo Essential E31-80-80MX0170SP

Medion Akoya E6421-30020549: Intel Pentium 4405U, 15.60", 2.3 kg
  análise externo » Medion Akoya E6421-30020549

Acer TravelMate P258-M-P209: Intel Pentium 4405U, 15.60", 2.4 kg
  análise externo » Acer TravelMate P258-M-P209

Medion Akoya E7419-MD60025: Intel Pentium 4405U, 17.30", 2.8 kg
  análise externo » Medion Akoya E7419-MD60025

Dell Latitude 13 3000-N001L337913US: Intel Pentium 4405U, 13.30", 1.8 kg
  análise externo » Dell Latitude 13 3000-N001L337913US

Lenovo Yoga 500-15ISK-80R60057GE: Intel Pentium 4405U, 15.60", 2.1 kg
  análise externo » Lenovo Yoga 500-15ISK-80R60057GE

Please share our article, every link counts!
.170

Class 1

GeForce RTX 3080 Ti Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
RTX A4500 Laptop GPU *
GeForce RTX 3070 Ti Laptop GPU
RTX A5000 Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6850M XT *
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *
Radeon RX 6800S
Radeon RX 6700M *
M1 Max 32-Core GPU *
GeForce RTX 2080 Mobile

Class 2

A770M *
Quadro RTX 5000 (Laptop)
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
GeForce RTX 3060 Laptop GPU
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
Quadro RTX 5000 Max-Q *
GeForce RTX 2080 Max-Q *
A730M *
GeForce RTX 2070 Mobile
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M1 Pro 16-Core GPU *
Radeon RX 6650M XT *
Radeon RX 6650M *
Radeon RX 6600M *
Radeon RX 6700S *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
RTX A2000 Laptop GPU
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
Radeon Pro 5600M *
A550M *
GeForce GTX 1660 Ti Max-Q *
Quadro P5000 Max-Q *
GeForce RTX 3050 Laptop GPU *
RTX A500 Laptop GPU
Radeon RX 6500M *
A370M *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1650 Mobile *
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A350M *
T600 Laptop GPU *
T550 Laptop GPU *
T500 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
GeForce GTX 1050 Ti Mobile
GeForce MX550 *
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
GeForce MX230
Vega 8 *
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
Vega 7 *
Radeon 660M *
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

Posición aproximada del adaptador gráfico

> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > FAQ/Técnica > Comparación de tarjetas gráficas > Intel > Intel HD Graphics 510
Klaus Hinum, 2015-12-17 (Update: 2015-12-17)
